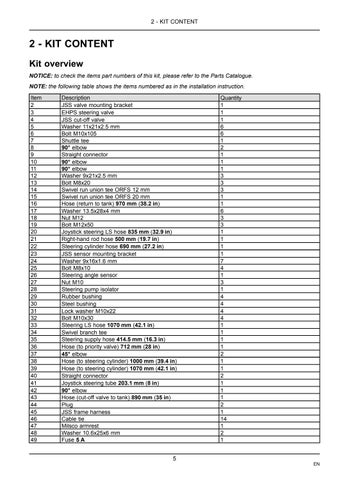

2 - KIT CONTENT
2 - KIT CONTENT Kit overview NOTICE: to check the items part numbers of this kit, please refer to the Parts Catalogue. NOTE: the following table shows the items numbered as in the installation instruction. Item 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49
Description JSS valve mounting bracket EHPS steering valve JSS cut-off valve Washer 11x21x2.5 mm Bolt M10x105 Shuttle tee 90° elbow Straight connector 90° elbow 90° elbow Washer 9x21x2.5 mm Bolt M8x20 Swivel run union tee ORFS 12 mm Swivel run union tee ORFS 20 mm Hose (return to tank) 970 mm (38.2 in) Washer 13.5x28x4 mm Nut M12 Bolt M12x50 Joystick steering LS hose 835 mm (32.9 in) Right-hand rod hose 500 mm (19.7 in) Steering cylinder hose 690 mm (27.2 in) JSS sensor mounting bracket Washer 9x16x1.6 mm Bolt M8x10 Steering angle sensor Nut M10 Steering pump isolator Rubber bushing Steel bushing Lock washer M10x22 Bolt M10x30 Steering LS hose 1070 mm (42.1 in) Swivel branch tee Steering supply hose 414.5 mm (16.3 in) Hose (to priority valve) 712 mm (28 in) 45° elbow Hose (to steering cylinder) 1000 mm (39.4 in) Hose (to steering cylinder) 1070 mm (42.1 in) Straight connector Joystick steering tube 203.1 mm (8 in) 90° elbow Hose (cut-off valve to tank) 890 mm (35 in) Plug JSS frame harness Cable tie Milsco armrest Washer 10.6x25x6 mm Fuse 5 A
Quantity 1 1 1 6 6 1 2 1 1 1 3 3 3 1 1 6 3 3 1 1 1 1 7 4 1 3 1 4 4 4 4 1 1 1 1 2 1 1 2 1 1 1 2 1 14 1 2 1
5 EN
