Install the joystick steering tube (41) the ° long elbow (42) .
from CNH Joystick Steering Kit Standard Hydraulic Steering 721G W170D Wheel Loader Instructions Manual

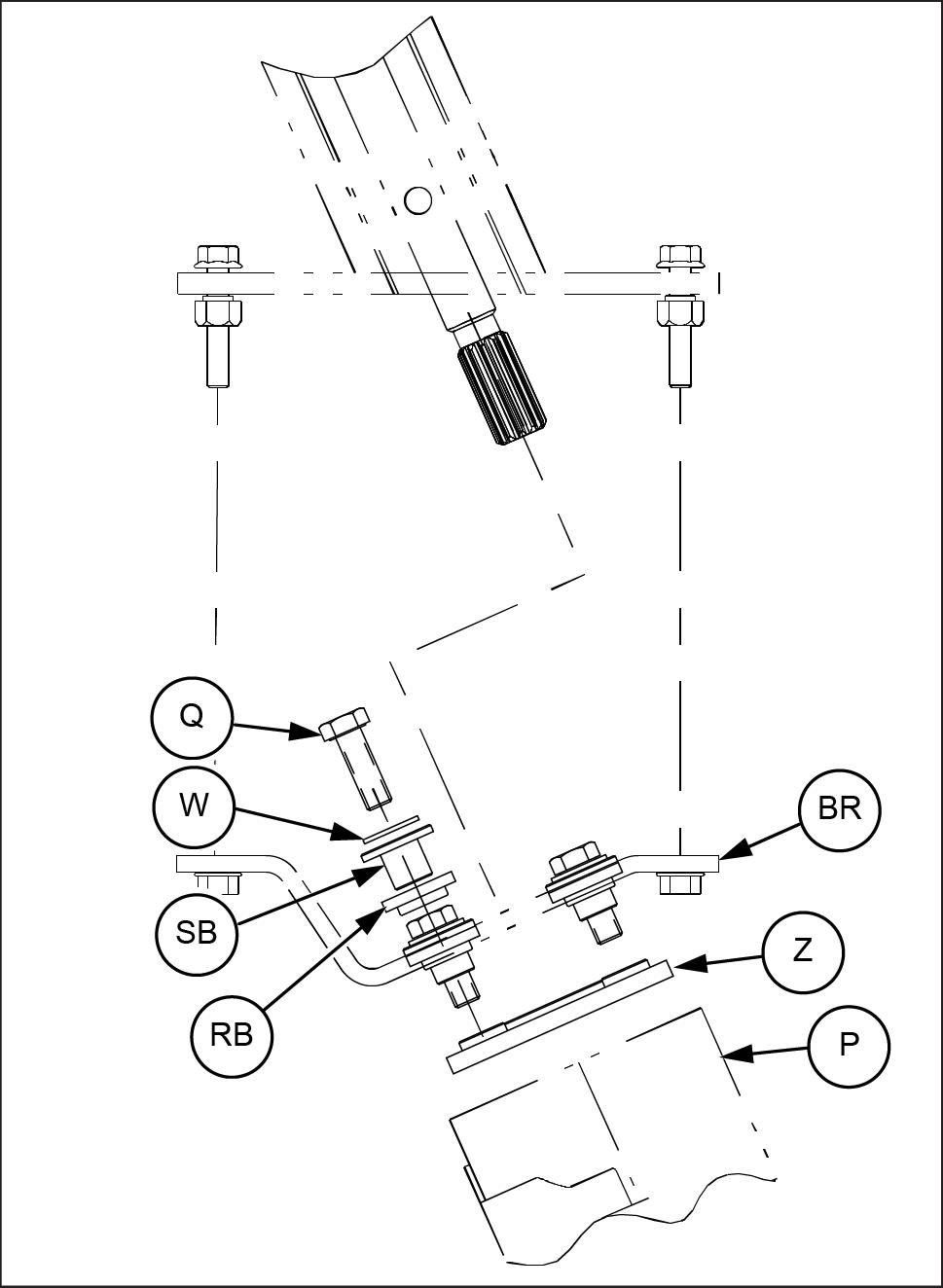

14. Under the cab compartment, loosen and remove the four fixing nuts and disengage the orbitrol valve (P) from the steering shaft. 15. Remove the four bolts (Q) , the lock washers (W) , the steel bushings (SB) , and the rubber bushings (RB) unfix the bracket (BR) from the orbitrol valve (P) . 16. Remove the steering isolator (Z) .
Discard the four bolts (Q) , the lock washers (W) , the steel bushings (SB) , the rubber bushings (RB) , the steering isolator (Z) .
LEIL20WHL1536BB 7
