Install the hose (16) the ° elbow (10
from CNH Joystick Steering Kit Standard Hydraulic Steering 721G W170D Wheel Loader Instructions Manual

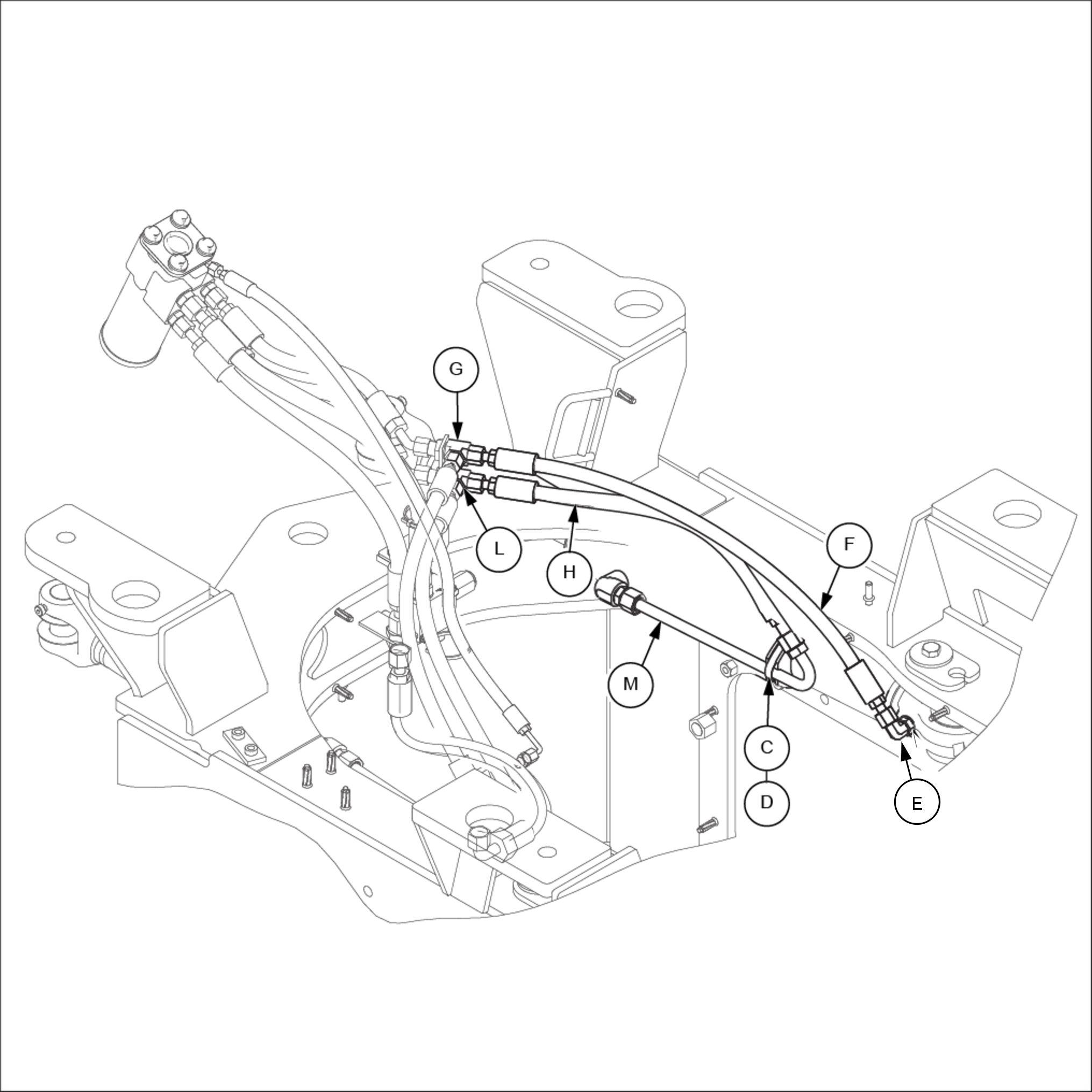

10. Locate the right - hand steering cylinder area. Remove the clamp (C) , and the block (D) . 1 Disconnect and remove the hose (F) from the union tee (G) and then from elbow (E) . 12. Disconnect and remove the hose (H) from the union tee (L) and from the right - hand cylinder tube (M) . 13. Discard the hoses (F) and (H) .
LEIL17WHL1436GB 6
