Handle in cab

Opening/closing the rear window

A Danger!

In order to avoid crushing and injury, close the rear window when driving the machine! ☞ Lock the rear window with the lock lever ☞ Remove the lock lever from the guide only in case of an emergency

☞ Opening the rear window •Unlock lock lever A in the direction of the arrow •Open the rear window • Engage lock A in the end of lever B with an audible click (arrow) ☞ Closing the open rear window •Lock the rear window in the reverse order

B

Fig. 47: Rear window lock

Interior light operation (cab)

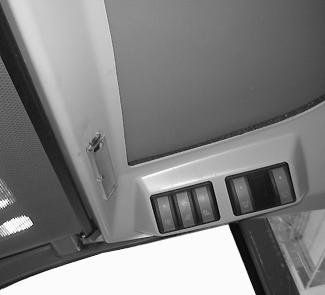

Fig. 48: Switch for interior light The interior light is switched on via a contact switch when opening the door. ☞ Switch the light on/off permanently •See the switch on the interior light
