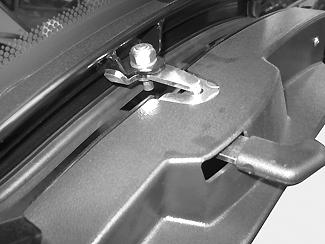

Door arrester

Opening the upper cab door to a gap

D

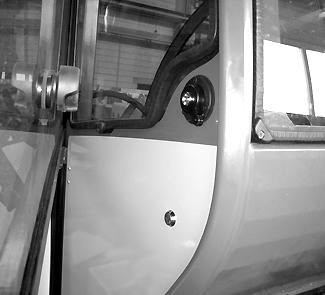

With the lower door closed, the upper door half can be opened to a gap to improve cab ventilation.

C Danger!

In order to avoid crushing and injury, close the upper and lower cab doors when driving the machine! ☞ Close the upper cab door fully with the lower door, or open it to a gap with the arrester on the lower door ☞ Open the upper cab door fully and secure in the lock on the cab

E

Fig. 46: Locking, unlocking and opening the side window to a gap ☞ Opening the upper cab door to a gap •Unlock the upper cab door out of the lower door. To do this: pull lever C (inside the cab on the door) backwards •Open the cab door and fold out spacer D •Make the cab door engage in the lock of the lower door (see arrow) with spacer D ☞ Opening the upper cab door completely •Unlock the upper cab door out of the lower door. To do this: pull lever C (inside the cab on the door) backwards • Open the upper cab door completely to the rear and make it engage in door arrester E

Notice!

Lubricate the catch bolt of the lock at regular intervals.

☞ Closing the upper cab door •From the outside or inside: press lever E forwards ➥ The side window is released from the lock by spring action •Safely lock the upper cab door in the lower door and lock the complete cab door
