Hooks for loading/tying down the machine (rear left/right of frame

3.6 Cab

Safety instructions regarding cab entrance and exit

• Remove dirt (oil, grease, earth, snow and ice) from handles, footholds and shoes before entering the cab • Use only the machine footholds, platforms and handles for entering the cab • Face the machine as you enter and leave it

Safety instruction – side window (right)

Fig. 44: Danger in case of broken side window The right-hand side window (cab) is a safety element and must be immediately replaced by a new one even if it is only slightly damaged.

Danger!

In order to avoid danger of crushing or accidents, do not put the machine into operation – or stop the machine immediately – if the side window on the right is brocken!

☞ Keep a safe distance to the telescopic boom as you lower it to the ground carefully ➥ –seeOperating the telescopic boom on page3-61 ☞ Stop the diesel engine and remove the ignition key ☞ Apply the parking brake ☞ Have the side window replaced by an authorised workshop

Locking and unlocking the door

A

B

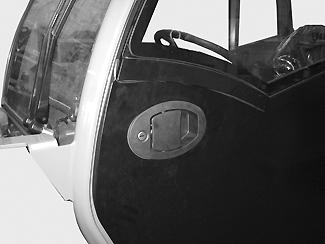

Fig. 45: Opening and locking the door

Danger!

In order to avoid danger of accidents, safely lock the upper and lower doors when using the machine! ☞ Lock the upper cab door with the lower door, or secure it in the door arrester of the cab ☞ Lock the lower cab door

☞ Outside: pull handle A outwards ☞ Inside: press door opener B upwards To open the upper cab door (side window) –seeOpening the upper cab door to a gap on page3-14

Notice!

Apply grease to the door lock at regular intervals.
