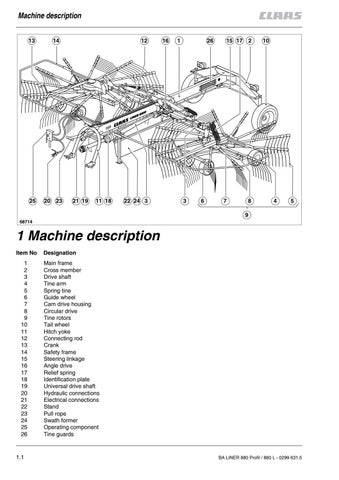

Machine description
Machine description 13
25
14
20 23
12
21 19
11 18
22 24 3
16
1
26
3
6
15 17
7
2
8
10
4
5
9 68714
1 Machine description Item No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
1.1
Designation Main frame Cross member Drive shaft Tine arm Spring tine Guide wheel Cam drive housing Circular drive Tine rotors Tail wheel Hitch yoke Connecting rod Crank Safety frame Steering linkage Angle drive Relief spring Identification plate Universal drive shaft Hydraulic connections Electrical connections Stand Pull rope Swath former Operating component Tine guards
