Removing the hydraulic cylinder Corn-Cracker ........... 11.5
D
V E

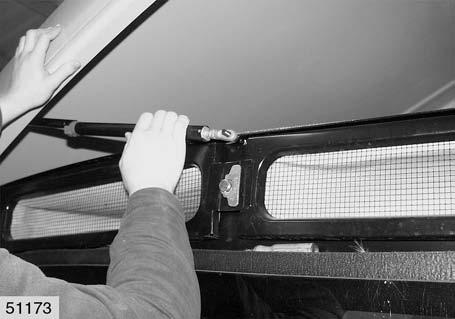

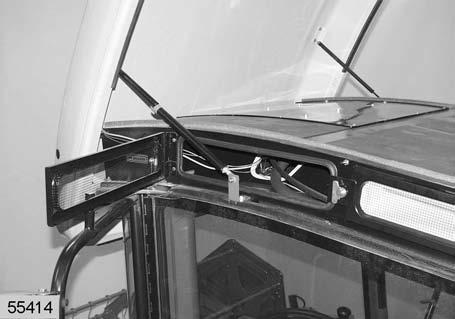

Unscrew the gas struts(D) on the left and right hand sides of the cab upper area at(E). Remove the front air filter(V). Lift the cab roof and fit a mounting bracket(M self-made) on the left and right hand side further forwards and fix to an existing hex head bolt. (Fig.4,5)

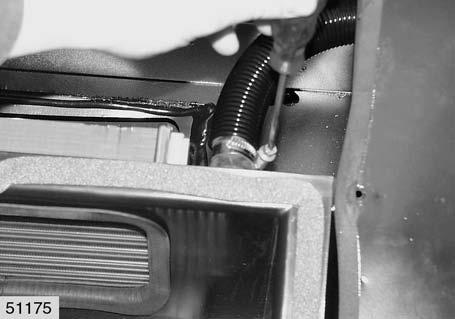

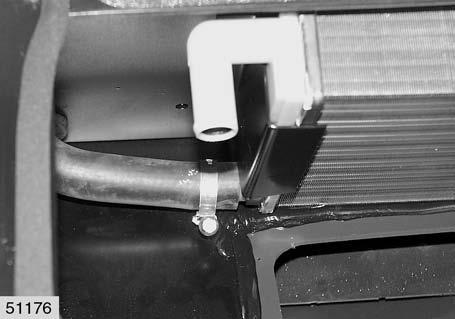

Release the hose clamps(G) of the heating hoses(H and P) from the heater body(K) and pull off the heating hoses. Collect the coolant which comes out.
Environment!
The coolant should be disposed of in a proper way.
(Fig.6,7)
4
M
H
G
P
