Mower blade box..............................................................9

1

2

3

4

00 0952 043 0 00 0952 042 0

Mower blade box

There is a mower blade box(1) located on the left hand side of the back panel, in which replacement mower blades can be kept. • Remove the mower blade box(1) from the bracket by releasing the spring(2). (Fig.62)

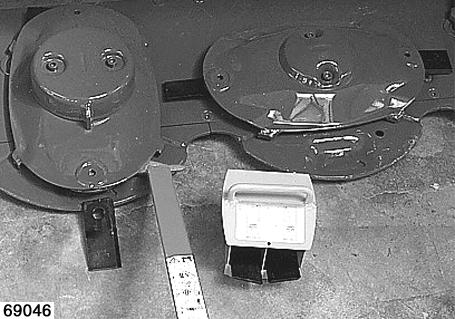

3 = Stowage space for mower blades 0009520430 4 = Stowage space for mower blades 0009520420 • Take the box with mower blades(1) to the mower head when replacing mower blades. (Fig.63,64)

62

63

3 4

1

64
