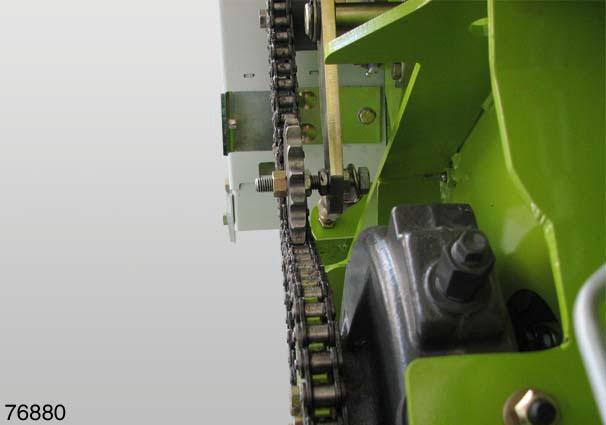

40 Tensioning drive chain with chain tensioner
The chain tensioner(10) is only fitted on front attachments with additional equipment “hydraulic paddle adjustment”. (Fig.40)
DANGER!
Danger of crushing at pinch points on pretensioned components. Serious injuries. –Never reach in between pretensioned components. –Use suitable aids to secure pretensioned components or relieve them. –Follow the instructions.

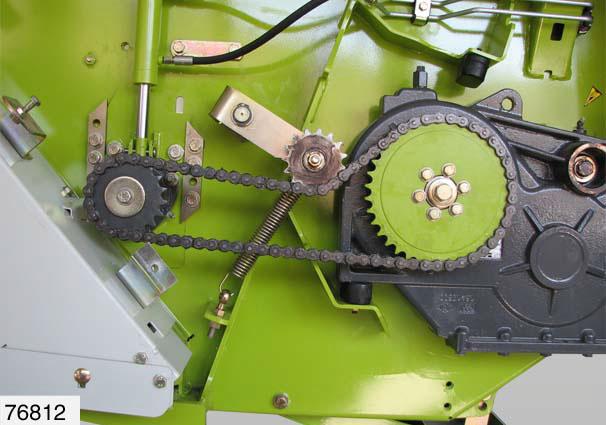

–Open left side panelling –see Side panelling, page9.50. –If necessary, attach spring(12) on the bracket(11). (Fig.41)
41

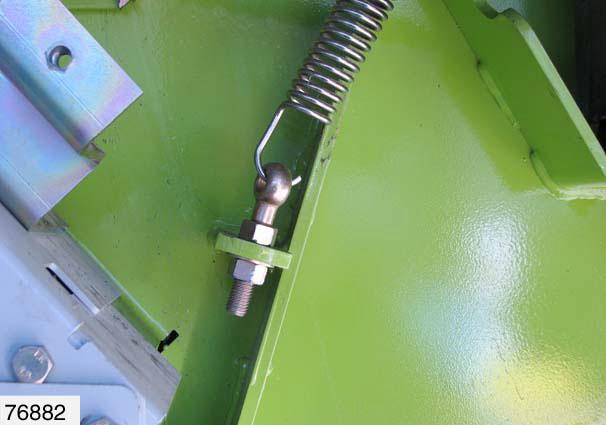

–Fully screw nut(14) onto the eye bolt(13). –Attach eye bolt(13). –Tension spring(12) with nut(15). –Tighten nut(15). (Fig.42)
