“STATUS SCREEN”
“PRESETS SCREEN”

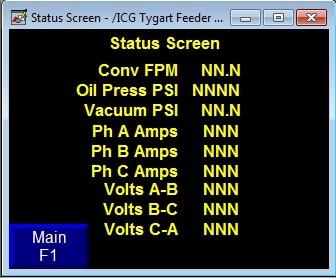

The “STATUS SCREEN” (Fig. 18) is accessed by pushing function key “F1”. This screen displays the conveyor speed, hydraulic oil pressure, vacuum pressure, and the current in each phase of the breaker motor. To return to the “MAIN SCREEN” from the “STATUS SCREEN”, press “F1”.
Fig. 18: “STATUS SCREEN”
After logging in, the functions keys “F2” through “F4” (Fig. 16) are used to access four additional screens: “PRESETS”, “OPERATION TIMERS”, and “JAM TIMERS” . Currently, function keys “F5” through “F8” are not used.

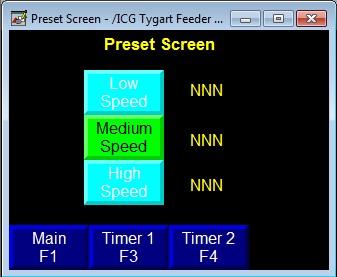

The “PRESETS SCREEN” (Fig. 19) is accessed from the “MAIN SCREEN” by pushing function key “F2”. This screen allows access to the preset breaker shaft speed designations for low, medium and high speeds. To return to the “MAIN SCREEN” from the “PRESET SCREEN”, press “F1”. The timer screens can be accessed from the “PRESET SCREEN” by pressing “F3” or “F4”.
Fig. 19: “PRESET SCREEN”
“OPERATION TIMERS SETUP SCREEN” (“TIMERS 1”)
“JAM TIMERS SETUP SCREEN” (“TIMERS 2”)

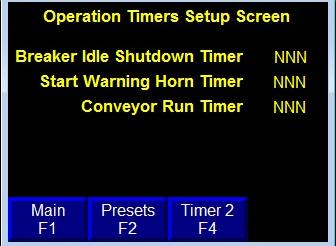

The “TIMERS 1 SCREEN” (Fig. 20) is accessed from the “MAIN SCREEN” by pushing function key “F3”. This screen allows access to the “OPERATION TIMERS SETUP SCREEN” where the timers for the breaker idle shutdown, the start-up warning horn, and conveyor run timers can be set. To return to the “MAIN SCREEN” from the “TIMERS 1 SCREEN”, press “F1”. The “PRESETS” and “TIMER 2” screens can be accessed from the “TIMERS 1 SCREEN” by pressing “F2” or “F4”.
Fig. 20: “OPERATION TIMERS SETUP SCREEN” (“TIMERS 1”)

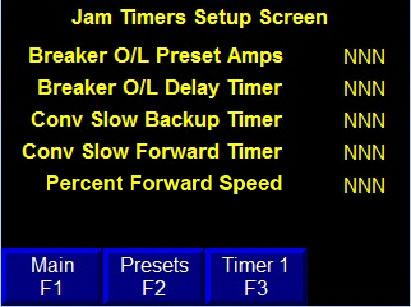

The “TIMERS 2 SCREEN” (Fig. 21) is accessed from the “MAIN SCREEN” by pushing function key “F4”. This screen allows access to the “JAM TIMERS SETUP SCREEN” where the timers for the breaker overload preset amps, beaker overload delay, conveyor slow backup, and conveyor slow forward timers can be set. To return to the “MAIN SCREEN” from the “TIMERS 2 SCREEN”, press “F1”. The “PRESETS” and “TIMER 1” screens can be accessed from the “TIMERS 1 SCREEN” by pressing “F2” or “F3”.
Fig. 21: “JAM TIMERS SETUP SCREEN” (“TIMERS 2”)
