___________________________________________ Mechanical assemblies

Head shaft assembly

The feeder breaker is equipped with a head shaft (Fig. 33) located on the discharge end of the conveyor. The head shaft is driven from the left hand side via a hydraulic motor directly mounted to the head shaft.

IMPORTANT! Weld on split sprockets are available for replacement/emergency rebuilds. See the Cat® parts manual for your machine or contact your Cat® service engineer.

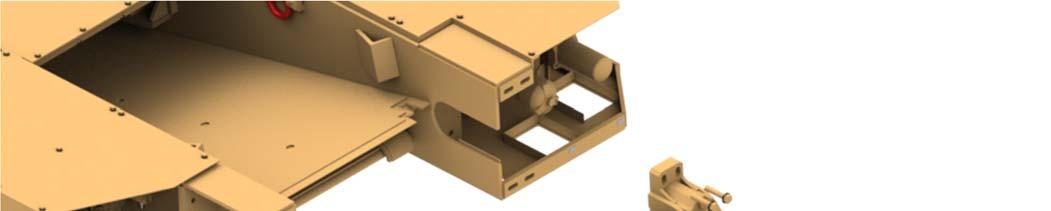

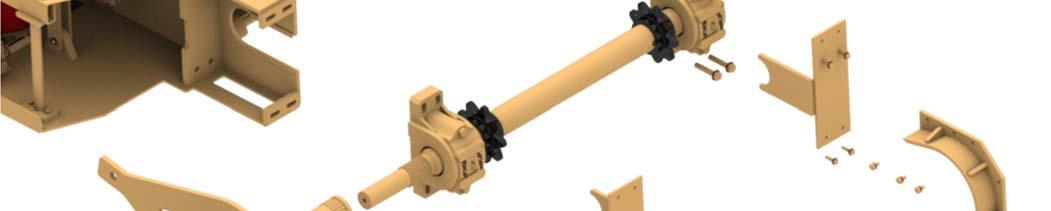

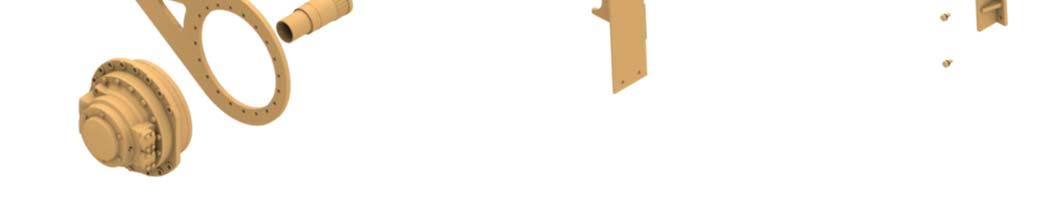

Fig. 33: Head shaft main components

1 2 3 4

1. Hydraulic motor 2. Torque arm 3. Coupling 4. Bearing (2) 5. Headshaft 5 7 8

6 9

10

6. Head shaft filler, left hand 7. Key (2) 8. Sprocket (2) 9. Head shaft filler, right hand 10. Sprocket guard (2)
