Precautions during operation

IMPORTANT: Do not pull or push dirt with the bucket when traveling.

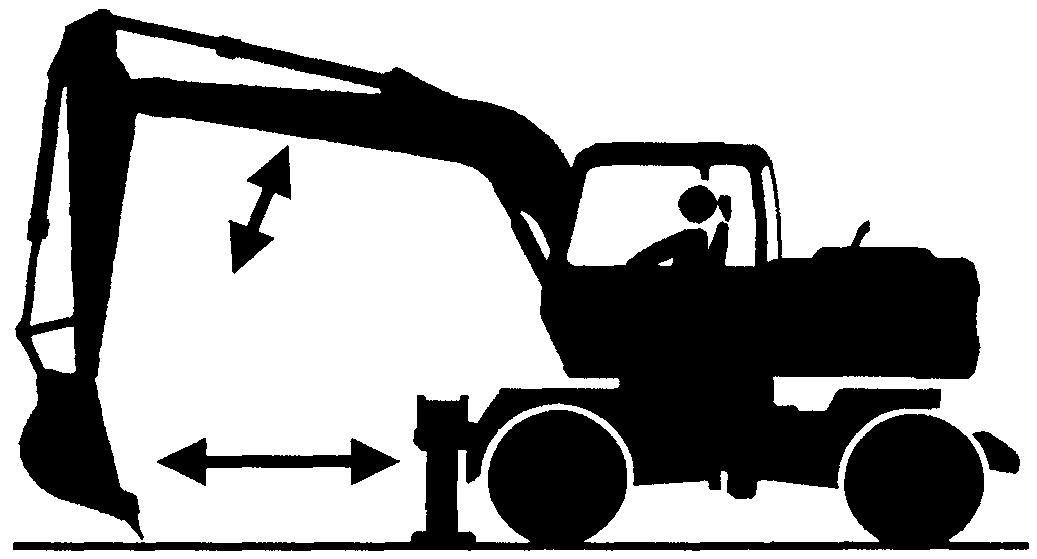

Position the dipper slightly forward of the vertical position with bucket rolled-back, as shown.

Operate the dipper retract while slowly raising the boom. Once the dipper moves past the vertical position slowly lower the boom to allow the bucket to maintain a smooth surface.

Grading operation can be more precisely done by operating the boom, dipper and bucket simultaneously.

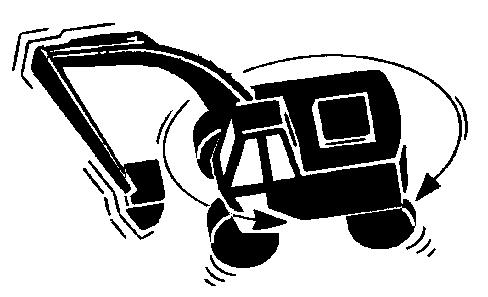

Swing force

Do not use the swing force (boom pivot) to move huge stones, pull down walls, etc. This use may damage the front attachment and swing motor.

Avoid improper use

Performance which can be obtained from the machine is clearly defined by the Manufacturer's specifications. Never exceed allowed operation.

Improper travel

Never travel with the machine bucket firmly thrust into ground.

F5947

F6042

27401 6-30060 GB

PRECAUTIONS DURING OPERATION

WARNING

Carefully inspect the work site before digging. If there is the possibility of falling objects, install overhead cab guards for safety purposes. If the ground where you are going to work is not compact or firm, adequately reinforce (prop up) the work area to operate safely.

F6043

• Wear clothing and safety equipment suitable for the job, such as hard hat, etc., when operating the machine. • Clear all persons and obstacles, if any, from the area of machine operation and movement. • Always beware of the surroundings while operating the machine. • When working in a small area congested or surrounded by obstacles, take care not to hit the upperstructure or counterweight against such obstacles while swinging.

F6044
