SWING REDUCTION GEAR

SWING REDUCTION GEAR Service specifications

Oil level check...............................................................................Every 100 hours Oil change.....................................................................................Every 500 hours (after the first 250 hours of the run-in period) Oil capacity...................................................................................................5 liters Type of oil......................................................................See “Fluids and lubricants”

Oil level

Tools required

-One 27 mm wrench for hexagonal head screws

STEP 1

Park the machine on flat, level ground, stop the engine and remove the starter switch key.

STEP 2

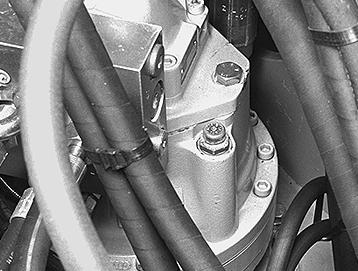

PG03516 Remove the dipstick. The level should be between the “Maxi.” and “Mini.” marks. Add oil through this orifice, if necessary.

STEP 3

Install the dipstick.

PH07627

Draining and filling

Tools required

-One 27 mm wrench for hexagonal head screws -One 30 mm wrench for hexagonal head screws

STEP 1

Park the machine on flat, level ground, stop the engine and remove the starter switch key.

STEP 2 STEP 4

Allow the oil to flow out. NOTE: The oil takes some time to flow out.

STEP 5

Install the drain plug.

STEP 6

Remove the dipstick.

STEP 3

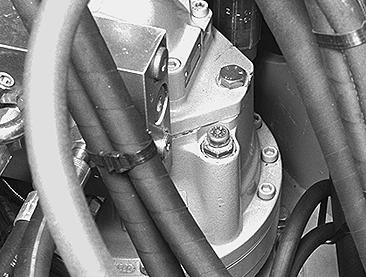

PH07627 PH07627 Fill with oil through the dipstick orifice to the correct level.

STEP 7

Install the dipstick.

PH00501 Place a container of a suitable capacity under the upperstructure and remove the drain plug.
