TRANSPORT OVERALL DIMENSIONS

A

B

NOTE: For cab height from ground, see “Machine overall dimensions” .

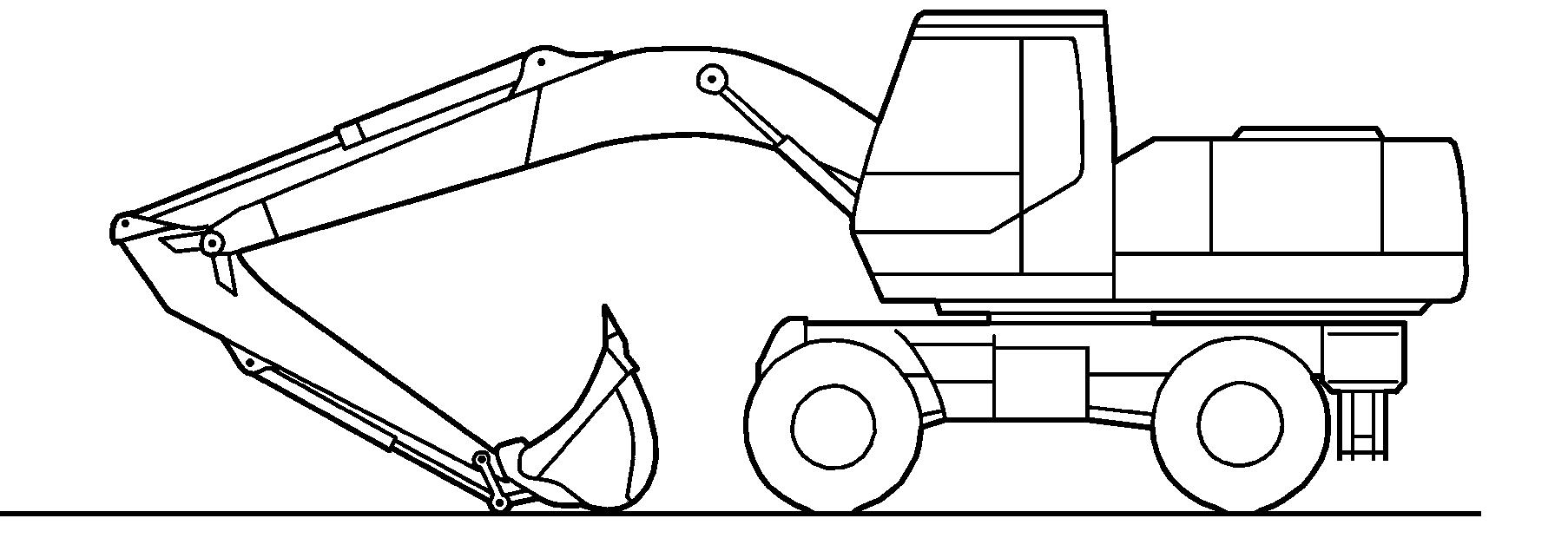

P - PL and P2A Versions

PDH0126

Boom Dipper A B

Monoblock 4.80 m

1.60 m 3.10 8.95 2.10 m 3.10 8.60 2.70 m 3.45 8.60 3.10 m 3.65 8.55

Monoblock 5.20 m

1.60 m 3.05 9.45 2.10 m 3.10 9.05 2.70 m 3.40 9.05 3.10 m 3.65 9.00

Offset backhoe

Articulated (Extended position)

1.60 m 3.10 9.05 2.10 m 3.15 8.65

1.60 m 3.35 9.20 2.10 m 3.30 8.80 2.70 m 3.40 8.85 3.10 m 3.50 8.80

Handling (1) 4.50 m 2.70 9.60

NOTE: These values are given in meters. (1) Without tool

Boom Dipper A B

Monoblock 4.80 m

1.60 m 3.10 8.95 2.10 m 3.20 8.60 2.70 m 3.65 8.50 3.10 m 3.90 8.30

Monoblock 5.20 m

Offset backhoe

1.60 m 3.05 9.45 2.10 m 3.10 9.05 2.70 m 3.40 9.05 3.10 m 3.75 8.90 1.60 m 3.10 9.05 2.10 m 3.75 8.90

Articulated (Extended position)

1.60 m 3.35 9.20 2.10 m 3.30 8.80 2.70 m 3.55 8.75 3.10 m 3.85 8.60

Handling (1) 4.50 m 2.70 9.60

P2A+2A Version

Boom Dipper A B

Monoblock 4.80 m

1.60 m 3.10 8.95 2.10 m 3.10 8.60 2.70 m 3.60 8.55 3.10 m 3.85 8.35

Monoblock 5.20 m

Offset backhoe

1.60 m 3.05 9.45 2.10 m 3.10 9.05 2.70 m 3.40 9.05 3.10 m 3.65 8.95 1.60 m 3.10 9.05 2.10 m 3.65 8.95

Articulated (Extended position)

1.60 m 3.35 9.20 2.10 m 3.30 8.80 2.70 m 3.50 8.80 3.10 m 3.80 8.65

Handling (1) 4.50 m 2.70 9.60

NOTE: These values are given in meters. (1) Without tool
