HANDLING THE MACHINE

1 2 3

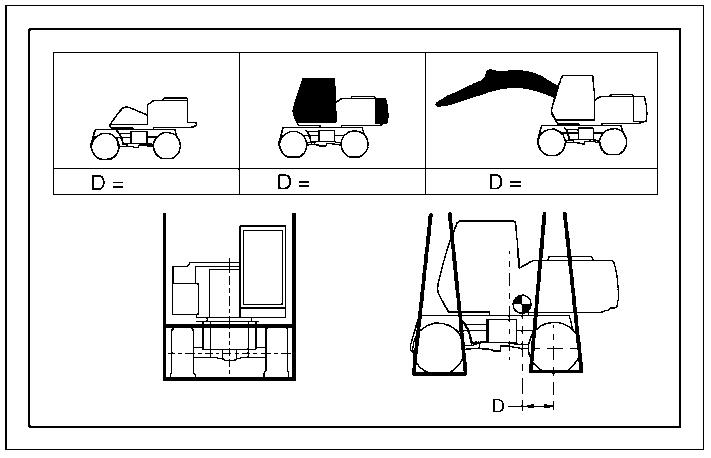

PDH1147 This decal shows the center of gravity of the machine in relation to the rear wheel axis. The distance (D) from the center of gravity varies according to three possible handling configurations. (1)Machine without boom, without cab and without counterweight. (2)Machine without boom, with cab and with counterweight. (3)Machine with monoblock boom 5.20 m, with cab and with counterweight.

WARNING: The position of the sling points shown in the decal above must be observed.

WARNING: Do not handle the machine equipped with its dipper.

P2A Version (except Germany) (4 wheel configuration 18-19,5XF)

Distance (D) Machine weight (1).....................................................754 mm..........................................10 402 kg (2).....................................................312 mm..........................................14 288 kg (3).....................................................687 mm..........................................15 958 kg

P2A Version (only Germany)

Distance (D) Machine weight (1).....................................................774 mm..........................................10 802 kg (2).....................................................399 mm..........................................14 046 kg (3).....................................................771 mm..........................................15 716 kg NOTE: For the other machine versions, consult your CASE Dealer to obtain the distance (D). For the machine weight, see “Weights” in the “Specifications” Section.

Counterweight sling points

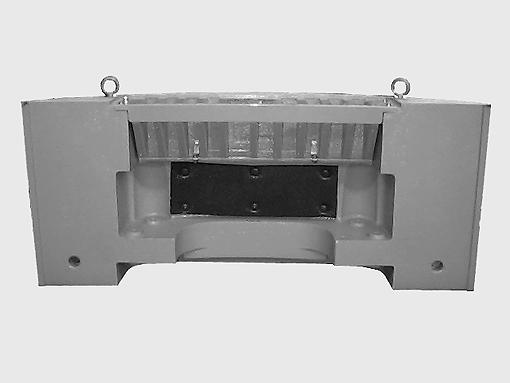

CD98E044 You must use the sling points for handling the counterweight. To remove the counterweight, consult your CASE Dealer. Weight of counterweight Except Germany......................3550 kg Only Germany..........................2900 kg

Cab sling points

PH07824 You must use the sling points for handling the cab. To remove the cab, see “Cab removal and installation” . Cab weight..................................295 kg

Dipper

To remove the dipper, consult your CASE Dealer. For the dipper weight, see “Weights” in the “Specifications” Section.

Boom

To remove the boom, consult your CASE Dealer. For the boom weight, see “Weights” in the “Specifications” Section.
