TILTING THE STEERING COLUMN

The steering column can be tilted forwards to clear the way for entering or leaving the operator’s compartment. IMPORTANT: When operating the machine, the steering column must always be tilted towards the operator and completely locked.

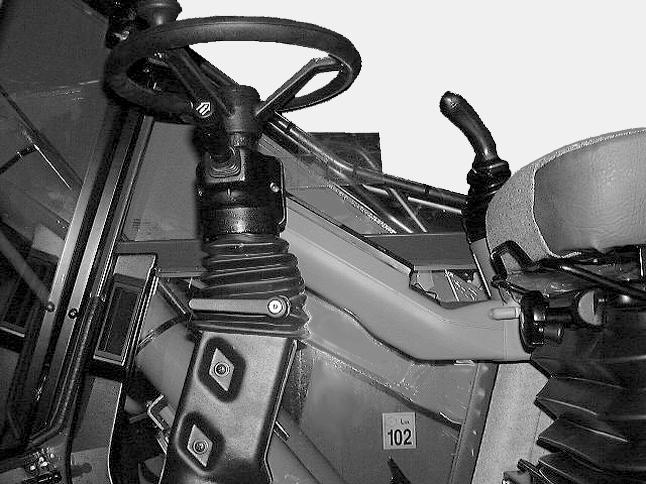

CD99M014 Use the lever to engage the locking system.

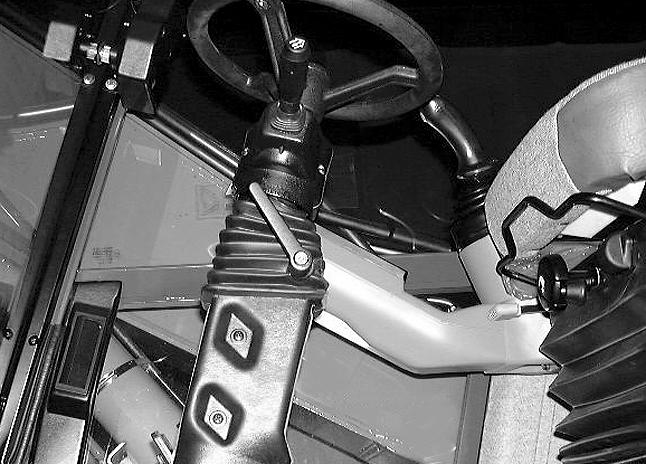

CD99M014 To tilt the steering column, turn the lever to disengage the locking system.

CD99M015 Tilt the steering column forwards or backwards.

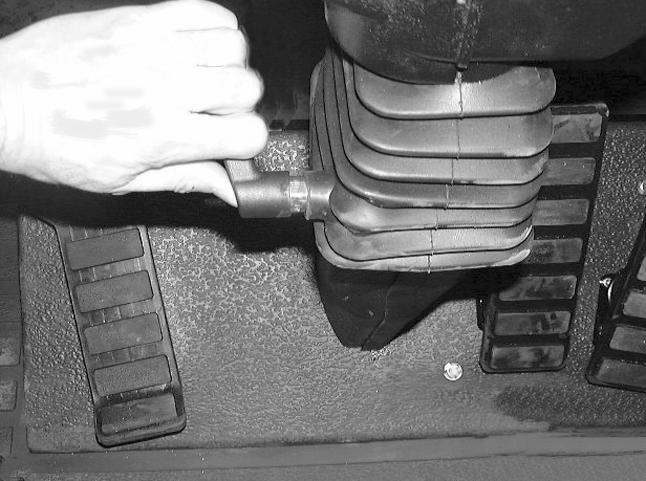

CD99M016 The lever can be positioned over a radius of 360°. To do this:

-Hold the lever and press your thumb on the knob to release the lever. -Turn the lever to the desired position and release your thumb. IMPORTANT: In the locked position, the lever must never block access to the operator’s compartment.
