AIR CONDITIONING

(If Equipped)

The air conditioning control switches are located in the right-hand console and above the operator’s right shoulder.

3

2

4

1

BD00C012 1.AIR CONDITIONING ON/OFF SWITCH 2.BLOWER FAN SWITCH 3.AIR CONDITIONING WARNING LAMP

BD00C014 4.AIR CONDITIONING TEMPERATURE

CONTROL

BC00B112

1.Air Conditioning ON/OFF Switch:

The air conditioning toggle switch has to positions, ON and OFF. Flip the toggle switch to the left for the ON position. Flip the switch back to the right for the OFF position.

2.Blower Fan Switch:

The blower fan switch has four positions, (1) OFF, (2) LOW, (3) MEDIUM and (4) HIGH. Turn the switch clockwise to Air Louvers (If Equipped) increase the air flow in the cab. Turn the switch counterclockwise to the OFF position to stop the fan.

3.Air Conditioning Warning Lamp:

This warning lamp illuminates when the air conditioning has stopped due to refrigerant pressures that are too low. The lamp will also illuminate when the system needs service or the outside air temperature is too cool for the system to work. To reset the warning lamp, toggle the air conditioning ON/OFF switch back and forth.

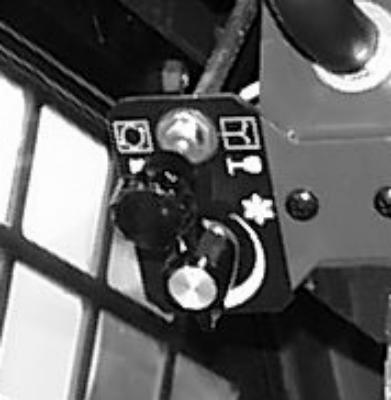

4.Air Conditioning Temperature Control:

The air conditioning temperature control is located above the operator’s right shoulder. Turn the temperature control clockwise to increase the cool air in the cab. Turn the temperature control counterclockwise to decrease the cool air in the cab.
