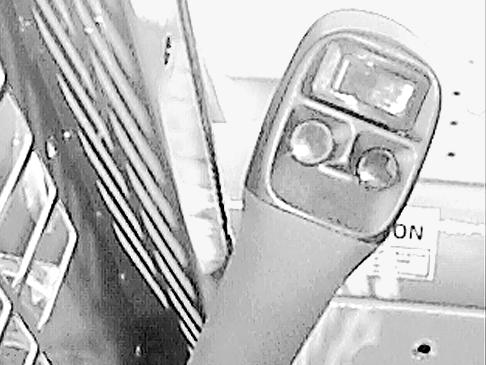

LEFT HAND CONTROL LEVER

1 3

2

BD98J187‘

1.Brake Button:

The brake is applied by pressing and releasing the red button on the control lever. The brakes can be disengaged by pressing and releasing the red button a second time.

2.Two Speed “H” Button:

The two speed “H” consists of low speed and high speed. During normal operation low speed is used. For transporting or long distance hauling high speed might be preferable. To activate high speed press and hold the black button on the control lever. To shift from high speed back to low speed, release the black button.

3.High Flow Hydraulics 340 Bar (5000 PSI) or 204 Bar (3000 PSI):

The high pressure hydraulic systems are turned on and off with this three position rocker switch. The 340 bar (5000 PSI) high flow/high pressure system is activated when the right side of the switch (detent side) is pressed. When the left side of the switch (momentary side) is pressed, the high flow hydraulics are activated. The 204 bar (3000 PSI) high flow system is activated when either the right or the left side of the switch is pressed. However, the attachment will either run in the forward direction or in reverse. You must pay attention to the correct direction of the attachment. Both systems are turned OFF when the switch is returned to the middle position. See page 116.

1

BP96N106 1.LEFT CONTROL LEVER SWITCH DECAL 1.DECAL FOR BRAKE AND TWO SPEED

CONTROL LEVER

251759A1 1.DECAL FOR HIGH FLOW, BRAKE AND

TWO SPEED CONTROL LEVER

EARLY PRODUCTION MACHINES
