HEATING AND VENTILATION
Sliding window Windshield wiper

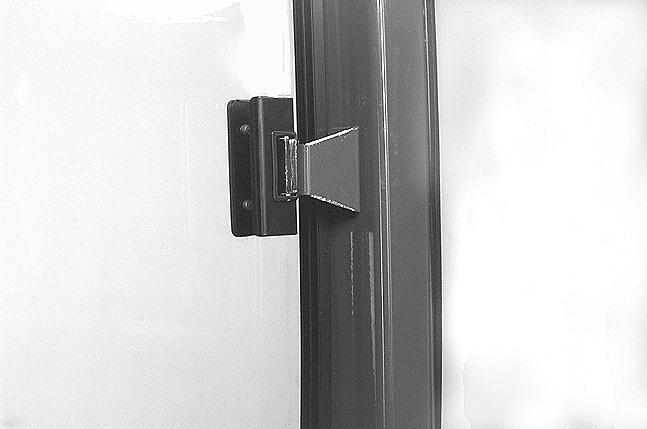

CD98A030 To open or close the right-hand sliding window, press the locking latch and slide the window.
Tool box
CD98A033 When in the off position, always make sure that the windshield wiper is resting on the guide.
Operator’s seat

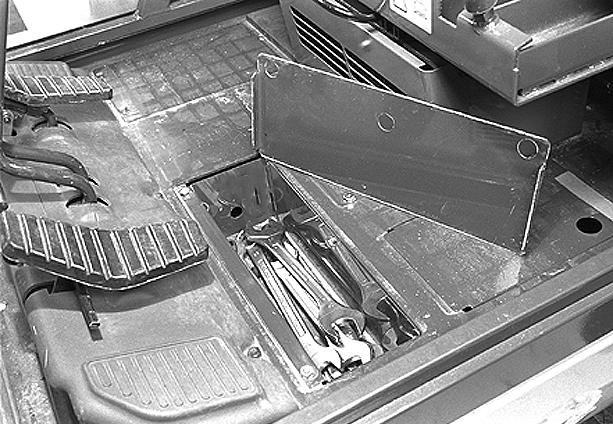

CK98B011 Located under the floor mat, in front of the seat, the tool box can be used to store fast-moving parts and tools required for maintenance operations.
CD98A016 For correct operation of the machine with maximum efficiency and comfort, adjust the seat correctly to suit the weight and size of the operator. NOTE: The seat can only be adjusted correctly when the operator is seated in it.
TRIM THIS EDGE
49
