Wheel Direction Sensor

S65

F-code Section C-code PS S5.16 5751 Switches and Sensors

Version no T-code 000 395/396/397/398/399

4. Wheel Direction Sensor

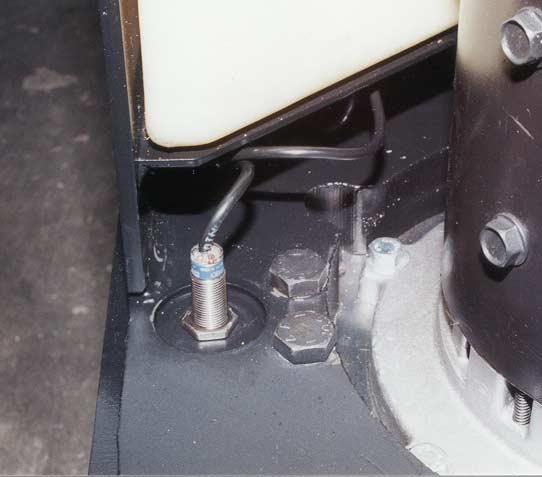

The wheel direction sensor (S65) detects travel direction information from the top of the drive unit. This sensor works in conjunction with the steer angle proximity sensors (S66) and (S67) located in front of the drive unit and accessed from the battery compartment.

4.1. Adjustment

CAUTION Adjustment of sensor with wheel nuts facing inward will result in shearing of sensor when the drive wheel is rotated.

1.Position drive wheel with wheel nuts facing outward. 2.Turn key switch OFF and disconnect battery at battery connector. 3.Remove dash, motor compartment door, and left hand panel to allow access to drive unit. 4.Loosen jam nut securing the sensor to the frame. 5.Turn wheel direction sensor by hand in a clockwise direction until it contacts the drive unit housing. 6.Back sensor out by turning the sensor counterclockwise 1-1/4 turns. 7.Tighten jam nut securing the sensor to the frame. 8.Connect battery connector to the truck. 9.Test operation of the sensor.

F-code Section C-code PS S5.16 5751 Switches and Sensors

Version no T-code 000 395/396/397/398/399

4.2. Removal

1.Turn key switch OFF and disconnect battery connector from the truck. 2.Disconnect sensor at the main wiring harness. 3.Loosen jam nut securing the sensor to the frame. 4.Turn sensor counterclockwise to remove it from the frame.

4.3. Installation

1.Install sensor in the frame. 2.Tighten by hand in a clockwise direction until it just contacts the drive unit housing. 3.Set the proper sensor distance by turning the sensor counterclockwise 1-1/4 turns. 4.Tighten jam nut securing the sensor to the frame. 5.Reconnect sensor electrical connection to the main wiring harness. 6.Install dash, motor compartment door, and left hand panel to drive unit. 7.Connect battery connector to the truck. 8.Return truck to service.
