Steering Motor Gear Replacement

F-code Section C-code PS S1.0 1730 Steering Motor

Version no T-code 000 395/396/397/398/399

3.Apply black graphite grease to gear to help prevent excessive wear. 4.Place electrical connectors toward lift motor. Insert steering motor into truck frame. 5.Apply thread locking compound to mounting bolt threads. Install four bolts with rubber grommets.

Tighten using a 0.24 inch (6 mm) Allen wrench. 6.Reconnect electrical harness connections. 7.Install motor compartment door. 8.Remove blocks from truck. Connect battery connector to the truck. 9.Test truck for proper operation. 10.Return truck to service.

3. Steering Motor Gear Replacement

3.1. Removal

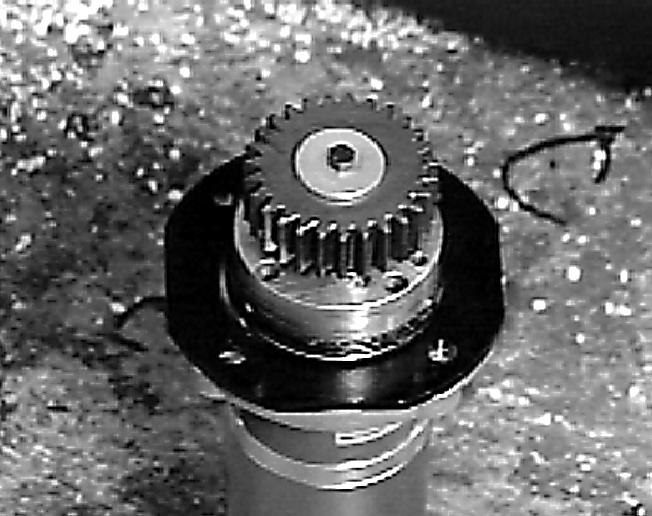

1.Remove steering motor. 2.Loosen bolt attaching steering gear to steering motor shaft. 3.Remove steering gear from motor shaft.

3.2. Installation

1.Apply Loctite 243 to steer motor shaft. Slide steering gear onto steering motor shaft. 2.Install mounting bolt in steering gear. 3.Torque gear mounting bolt to 88 in-lb (10 N•m). 4.Return steering motor to lift truck following the installation procedure on page121.
