the steering wheel

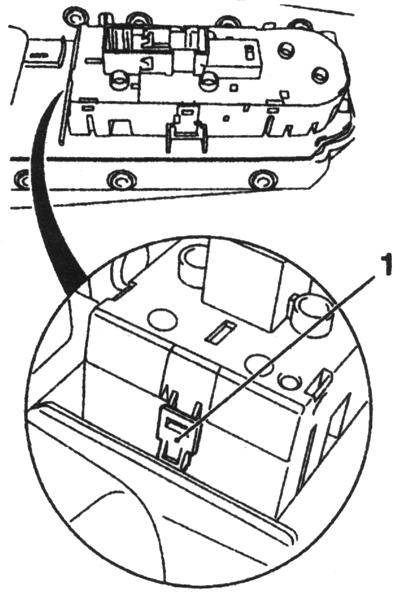

Fig. 7.25. Latch main panel ne-reklyuchateley Management elektroprivo house windows: 1 - lock

Installation is performed in reverse order of removal.

Withdrawal and install electric switches rear windows Doors

Disconnect the wire from the negative terminals of the battery. Carefully poddente with a screwdriver in the switch arm of the door and wring it out (Figure 7.26). Remove the switch and disconnected the wiring harness connector from the back of the switch. Installation is performed in reverse order of removal.

6.27 On-board electrical equipment - Removal and installation of remote control panel switches on the steering wheel

NOTE When appropriate level com-plektatsii in steering wheel be mounted bodies of distance Management informational Onno - entertainment system.

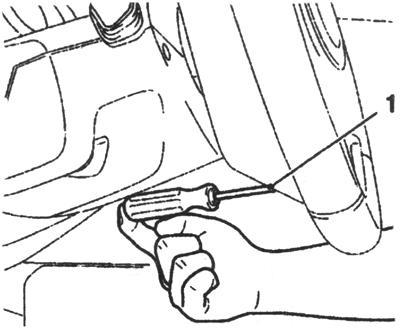

Disconnect the wire from the negative terminals of the battery. Turn the steering wheel to the left by 90 ° and remove the fixing screw (Figure 7.27).

Fig. 7.27. Bolt fixing linings Pan-li switches Distance swissagency:

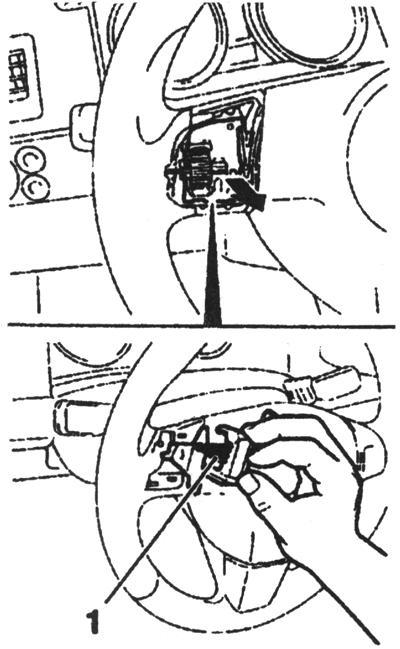

1 - bolt Bring back the steering wheel to its former position and carefully remove the pad panel, steering wheel switches. Separate panel switches on the steering wheel and disconnected the wiring harness connector from the back side panel (Figure 7.28). Installation is performed in reverse order of removal.

Fig. 7.28. Panel switches long-distance driving Opel Astra: 1 - Connector wiring 328
