and rear doors

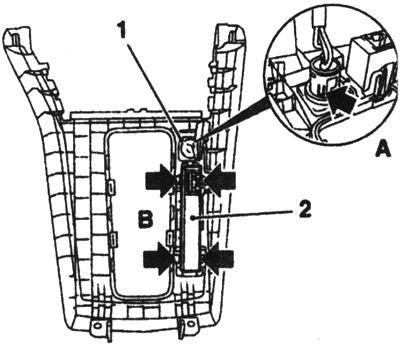

Fig. 7.24. Withdrawal release:

1 - Switch 2 - lining 4 Squeeze the latch and remove the pad light indicators. Installation is performed in reverse order of removal.

6.26 On-board electrical equipment - Removal and installation of switches, electric windows front and rear doors

Withdrawal and install electric switches front windows Doors

Disconnect the wire from the negative terminals of the battery. Remove the door trim. Disconnected from the electrical connector assembly of the main panel of switches on the back side door upholstery. Squeeze the latch and remove the assembly of the main panel switches from finishing arm (Figure 7.25).

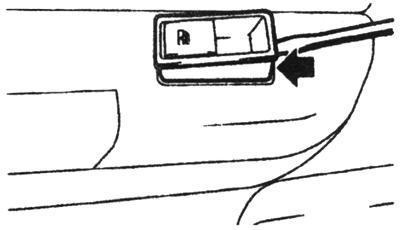

Fig. 7.26. Withdrawal individual re-klyuchatelya drive window lifts
