2.5 Clutch - Replacement of the clutch pedal

Install the battery support, secure the cable ties and tighten the 3 bolts fastening point 10 N-m. Replace the battery pack. Connect the positive terminal of the battery. Connect the negative cable to the battery. Attach the supply line clutch master cylinder. Connect the supply line to the clutch master cylinder Backa hydraulic brake system. Program volatile memory. Remove air from the hydraulic drive.

Withdrawal

Remove the lining of the steering column. Remove the light switch. Click on the light switch on the left, turn clockwise and remove it. Remove the bottom pad of the instrument panel by unscrewing 4 bolts fastening (Figure 3.25).

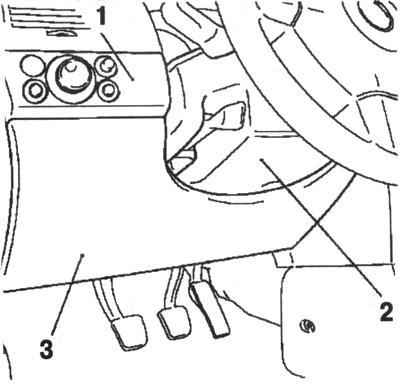

Fig. 3.25. Withdrawal finishing front pa-nonlinearity:

1 - light switch, 2 - facing the steering column; 3 - Lower lining dashboard Remove the clutch control switch (Figure 3.26). Disconnect the return spring from clutch pedal Disconnect the clutch pedal from the clutch master cylinder (Figure 3.26). Bend up a screwdriver and remove the strap.
