1.36 Kit repair tire

Minor damage to the running surface and the tire sidewalls, such as punctures extraneous objects, can be eliminated with a set of tires for repair. Damage to tires larger than 4 mm, as well as damage to the rim with tire repair kit can not be repaired. Driving with too low pressure in the tire or run flat tire leads to hidden damage that can not be corrected with a set of tires for repair. Park your car and ask for help at service stations. Tire repair kit is located in the luggage compartment, in the recess for the spare wheel (Fig. 1.266).

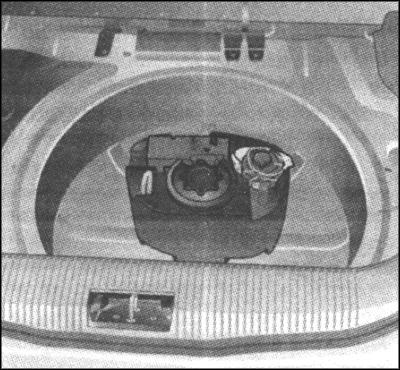

Fig. 1.266. Location kit repair Tires

Using the kit for tire repair

Remove the bag with a tire repair kit from the bay. Carefully remove the parts kit from the bag. Remove the compressor. Remove elektroshnur and air hose from offices on the lower side of the compressor (Fig. 1.267).

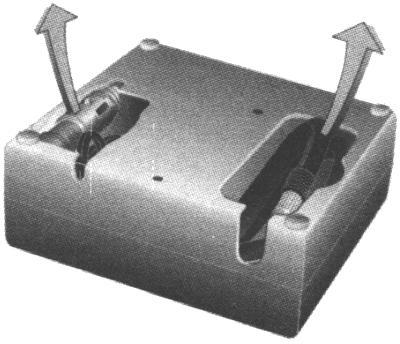

Fig. 1.267. Removing elektroshnura

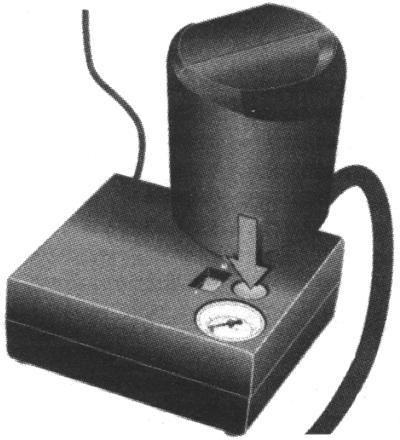

Screw the air hose to the compressor fitting the flask with a sealant (Fig. 1.268).

Insert the flask sealed with a holder on the compressor. Install the compressor closer to the wheel to the flask was sealed with the vertical. Unscrew the valve cap of the damaged tire. Screw the hose to inflate a tire valve (Figure 1.269).

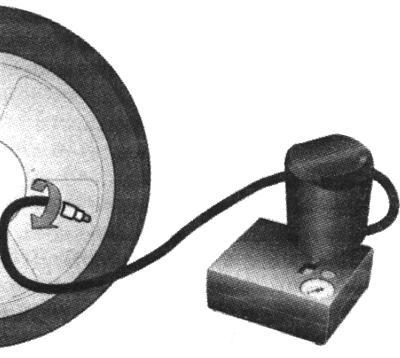

Fig. 1.269. Binding Hose to inflate to valve Tires

Switch the compressor shall be switched position. Insert the plug the cord into the outlet of the compressor for supplies or cigarette lighter socket. Turn on the ignition. Set toggle switch on the compressor in the position I, a tire will be filled with sealant (Fig. 1.270).

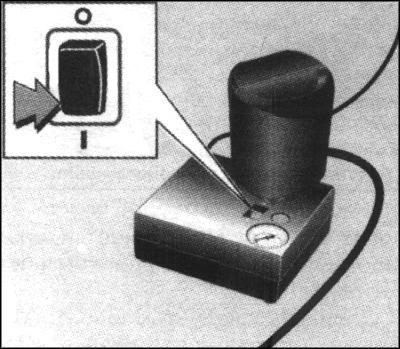

Fig. 1.270. Button inclusion and OFF-tion Compressor

NOTE In time devastation Flasks with ger-metikom (about 30 s) at gauge compressor briefly Bu child show pressure up to 6 bar. After this pressure again lowered.

Sealant will be fully pumped into the tire. After the tire is inflated with air. The target tire pressure should be achieved within 10 min. Turn off the compressor reaches the specified pressure. If the prescribed tire pressure is not reached within 10 minutes, remove tire repair kit. Push the car a distance of about 2 meters (one turn of tires) in the direction of motion or back. Reinstall the tire repair kit, and then continue pumping for another 10 min. If during this time will not achieve the prescribed pressure in the tires, so tire is damaged too much. Park your car and ask for help at service stations.

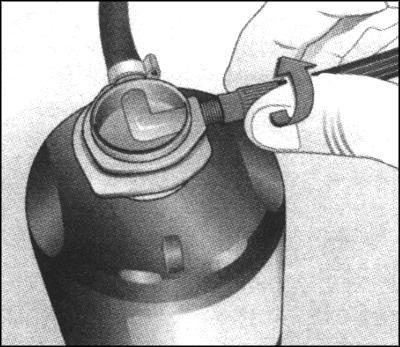

NOTE Excessive pressure reset to help Buttons over manometer (Fig. 1.271). NOTICE Do not switch the compressor for longer than 10 minutes.
