1.34 Replacement of the wheel

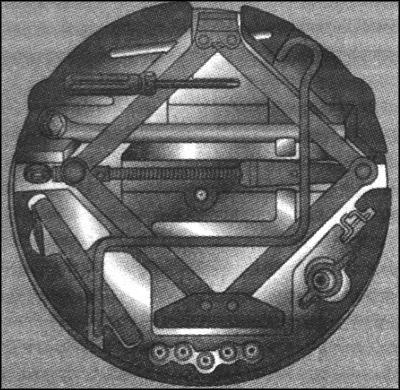

Fig. 1.254. Procedure advertisement domkra-ta and Road Instrument

Instead of the spare wheel vehicle can be equipped with a tire repair kit. During the replacement wheels for your own safety Perform preparatory work described below. Set the car on a flat, firm and skid pad. Turn on hazard warning lights, tighten the parking brake, the automatic transmission, set the gear lever in park position P, on the manual transmission or Easytronic box including 1-S transmission or reverse. Exhibitions, in accordance with the requirements of the law, warning triangle. Remove the spare tire from the trunk. Before the rise of the car give front-wheel drive in a direct position.

NOTICE Categorically prohibited same time as change some wheels.

Block the wheel, located diagonally to the changing, resting in front of and behind the wheel of wedges or similar items. Please only use the jack for changing wheels. In soft ground put a jack under sustained maximum thickness of the lining of 1 cm Use thicker pads can cause damage to the jack and the car. In the lifted car should not be people or animals. Do not crawl under the raised car jack. Do not start the engine when the car upright.

Replacement procedure

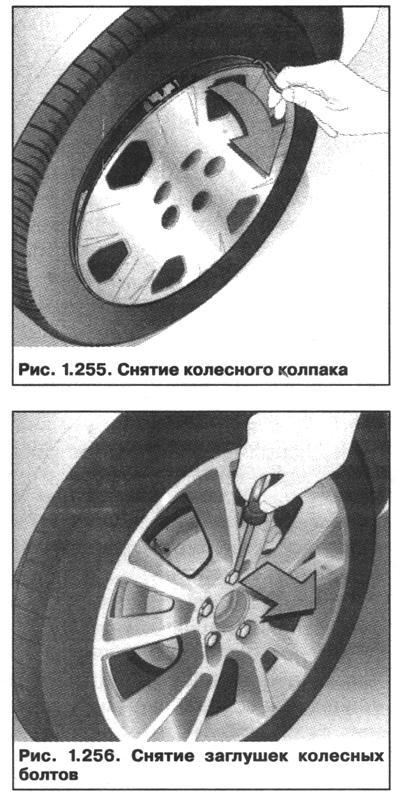

Remove the wheel cap with a hook (Fig. 1.255). On alloy wheels with a screwdriver, release the cap bolts and remove their wheels (Fig. 1.256). Loosen the wheel bolts with a special Socket wrenches inserting it until it stops (Figure 1.257).

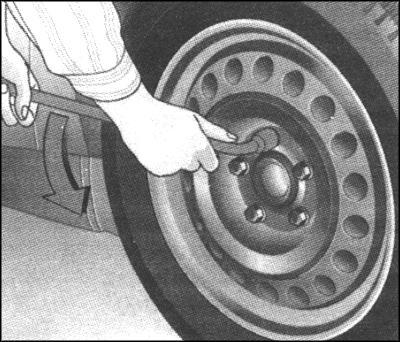

Fig. 1.257. Untwisting Wheeled Bolts

NOTE Places for Installation jack bottom Vehicle given from-tag on lower edge body (Fig. 1.258).

Before installing the ram manually adjust the height by turning the lugs. Jack-mouth novlivayte so that it covered the seizure of the vertical edge and was a slot in it (Fig. 1.259). Check the reliability of the installation. Toe jack mount on the ground vertically podtochkoy installation.
