1.25 Passive safety system

NOTE It Required comply with the instructions supplied to system-me ensure Security de Tei ISO - FIX. Allowed use only allowed for this type auto mobil system ensure safety Children ISO - FIX. Cargo Box

Folding box located under the hood floor and serves to separate the luggage compartment (Fig. 1.205).

Fig. 1.205. Cargo box

In the cargo box, you can download something only when fixed in an upright position back rest. Removal cargo box remove cover sex, first right and then left him half. On cars with trailer coupling should release fastening strap ball bearing and pass it through the eyelet. Assembling the box is carried out in reverse order of removal.

Belts Security

Seat belts help reduce the likelihood of severe injuries in an accident and emergency braking of the car. All seats are equipped with bias-seat belts. These belts are equipped with an inertia reel, which retracts the unused seat belt. Inertia reels provide convenience for the driver and passenger in a normal driving conditions. In the case of collision inertia reel block the issuance of the belt and keep the driver and passenger of dangerous movements. In the back seat installed diagonally-seat belts with inertia reels. Always WEAR YOUR SAFETY BELT, and see to it that all the passengers were also wearing or using appropriate restraints. Nepristegivanie belt is extremely dangerous. In the case of an accident, the driver and passengers not wearing seat belts, can hit each other or the elements of the body, and can be thrown from the car. And they can get seriously injured or even killed. Do not operate the vehicle with faulty seat belts. In the collision of a car seat belt strap is used may be damaged. Damaged belt does not provide effective protection in a collision a car. When an accident front airbags and pyrotechnic seat belt retractors triggered simultaneously. Irrespective of whether the front passenger seat or not worked or not any airbags or belt tensioners need to check whether your seat belt installed on the front, and serviceability of all bags. If necessary, replace the defective air bags and seat belts. Do not use twisted belt. Twisting strap dangerous. In the collision of the vehicle inertia load of body weight will be perceived not the whole width of the strap, but only part of it. This increases the load on the bones of the chest, located under the strap, which can lead to serious injuries or death. Do not buckle a seat belt, two (or more) people simultaneously. In this case, a safety belt does not ensure the proper distribution of the dynamic loads from the impact of car, and the passengers fastened a belt, will cause each other serious injury, or may die. Always follow the rule: for each passenger - his belt. Instructions for use of seat belts Seat belts must be based on those parts of the body, which are strong bones of the skeleton. The belt must pass over the pelvic bone, chest and shoulder, rather than lying on his stomach. Need to adjust the belt so that it is maximally close to the body, while maintaining the convenience of landing. Only in this case, the belt is able to effectively carry out its protective function, for which it is installed on the car. Sagging seat belt greatly reduces the efficiency of passive protection of the passenger. Make sure to strap on the seat belt did not get wax, oil and other chemicals, especially the electrolyte used in the battery. To clean the seat belt use a neutral soap and water. You should replace a safety belt, if the strap is worn, dirty or has traces of damage. Make sure to replace the seat belt assembly, if it was used by the driver or passenger in a strong collision of a car, even if there are no visible signs of damage to the belt.

Never use a seat belt if the strap is twisted. Each safety belt must be used only one passenger at a time. It is dangerous to buckle a seat belt and child passenger, sitting on his lap. Prohibited any changes in design of safety belts, which violate the normal operation of devices for automatic selection of slacks strap or belt with the difficult adjustment to eliminate its sagging. Retraction of the belt inertial reel can be difficult if the strap and the intermediate guide bracket contaminated. So check to see that portion of the belt and the guide bracket were clean (Fig. 1.206).

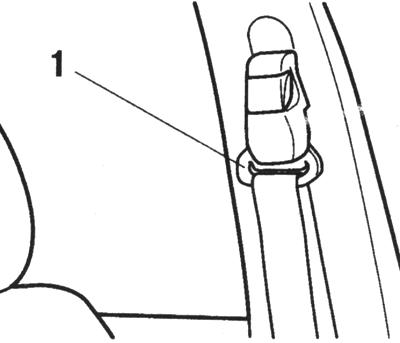

Fig. 1.206. Mounting belt áåçîïàñíîñ-ti:

1 - slide clamp If the seat belt drawn on the coil, it will work in emergency mode locking. In this mode, a safety belt does not violate the convenience of passengers. In the case of collision inertia reel blocks the issuance of safety-belt that holds the passenger in place. If fully stretch belt with a coil, then it switches to auto-lock belt. If there is a strong belt tension, or it impedes the movement of the passenger on a stationary car or while driving, the possible reason for switching is an inertia reel in the auto lock mode, after the belt was too long from the coil. In order to return the inertial reel in a more convenient mode of interlocking safety, stop the car in a safe place on a horizontal platform and fully Pass the belt inertial reel. This coil switches to emergency locking belt. Then, pull the seat belt to the required length, in order to buckle up.

Three-way security system

The structure of this system include: - Three-point belts; - Stoppers seatbelt in the front seat; - Airbag system for driver, front passenger and rear outer seats. Depending on the severity of the accident components of the three-tiered security system included in turn. Auto lock safety belt prevents the extraction of belt that allows you to keep the passengers in the seats. Castles in the front seat belts drawn back. Due to this safety belt immediately adjacent to the body, which reduces the load on the body. Systems airbags triggered further in severe accidents and form a protective cushion for passengers. Actuation of the front airbags are depending on the severity of the accident in two phases.

Seat belts

Evenly pull the belt reel, and not perekruchivaya, drag it over the body.

Fig. 1.207. Installing belt

Snap the tongue of the buckle, lock (Fig. 1.208).

The back of the front seat should not be tilted too far back, as it adversely affects the performance of safety belts. The recommended angle is about 25 on. Lap belt should fit snugly to the body without twisting. During the visit it from time to time should be tightened, pulling the shoulder strap. Belt (especially when seat-pregnant women) should take place as far as possible down the thighs to avoid pressure on the lower abdomen. A thick layer of outer clothing violates close fitting belt. Belt not impose on the firm or fragile items in the pockets of clothing (eg, keys, pens or glasses), as this can lead to injury. Between the belt and the body should not be any items such as handbags or mobile phones.

Adjusting the height of the upper guide element of the front and rear belts.

Lightly pull the belt. Press the down button on the sliding regulator. Move the slide knob up or down. Lock the sliding knob until it clicks tangible.

Fig. 1.209. Adjustment height upper guide element anterior and rear belts

NOTICE Not adjust height belt during movement.

Adjust the height of the belt so that it passed through the shoulder and tight to him. Never belt should not pass on the neck or upper arm.

Removing the belt

To remove the belt, press the red button on the lock, the belt is automatically wound on the roller (Fig. 1.210).

Fig. 1.210. Withdrawal belt Three-point safety belt middle rear seat space

Belt is pulled from the pulling device only if the back of the rear seat is fixed in an upright position in their holders.

Test belts

All parts of seat belts should be from time to time to check for damage and serviceability. Damaged parts, stretched belts in the accident and worked stoppers locks must be replaced.

NOTICE Nothing not change in belts safety, their fixtures, automatic ethical mechanisms winding and in Vice-tuples belts. Not Avoid damage rem-It Security acute of the objects-ter or clamping belts. System bags «Opel Full Size »

System of airbags «Opel Full Size» consists of several separate systems (Fig. 1.211).

System front airbags

System front airbags triggered by severe frontal collisions and form a safety bumper for driver and front passenger. Progress seated forward dramatically slowed down and, thus, significantly decreasing the risk of injury to the upper body and head.

System of side airbags

Side airbag system fires in side collisions and form a safety bumper for the driver or front passenger in the zone corresponding to the front door. Thus a side collision is significantly reduced risk of injury to the upper and pelvic parts of the body (Fig. 1.212).

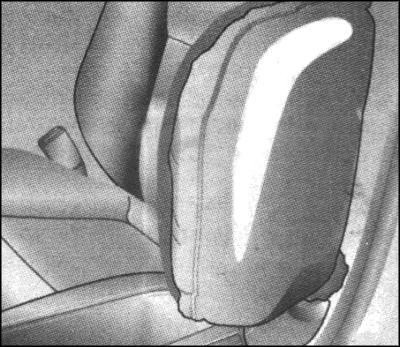

Fig. 1.212. Side airbag system «Opel Full Size»

Inflatable curtains security

Inflatable curtains security system triggered in side collisions and forms a safety zone in the shock of the head on the corresponding side of the car. Thus a side collision is significantly reduced risk of injury to the head (Fig. 2.213).

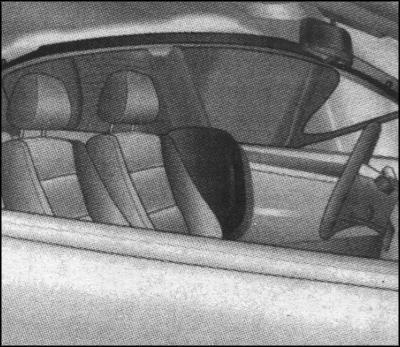

Fig. 1.213. Inflatable curtains security «Opel Full Size»

Front airbag

The presence of front airbags marked with the inscription «AIRBAG» on the steering wheel and above the anterior compartment (Fig. 2.214).

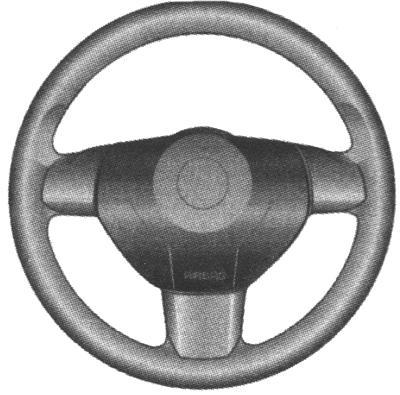

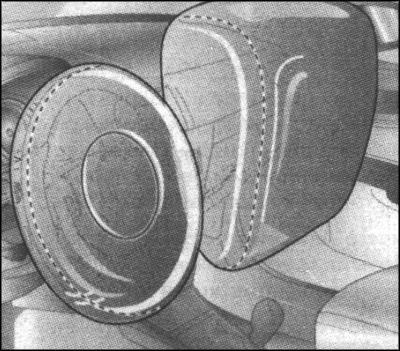

Fig. 1.214. The airbag module driver

System front airbags include: - Air cushion with a gas generator placed in the steering wheel, and in the dashboard; - Control electronics with sensors collision; - Alarm systems, airbags on dashboard; - System of identification of employment seat; - Alarm systems, ensuring the safety of children with transponders in the dashboard. System front airbag is triggered in the following cases: - An accident of some gravity; - Depending on the type of collision; - In the zone of action, as shown in Figure 1.215; - Irrespective of the side airbags and inflatable curtains.
