1.9 Power Windows - Windowlifter

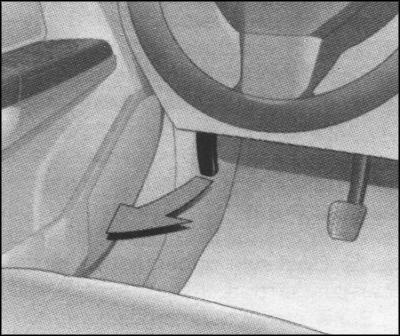

Fig. 1.28. Handle opening bonnet

Castle is unlocked, and the hood will open slightly. Return the handle to its original position. At the bottom of the hood latch handle is - then it up and open the hood (Figure 1.29).

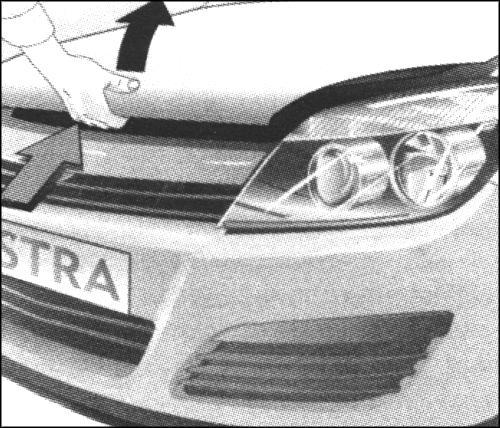

Fig. 1.29. Opening bonnet

NOTE Be careful: dirt or snow are on hood when open-vanii may fall on Frontal stack lo and clog intake.

Hood is automatically kept in the open position. To close the hood, pull it down and give it slammed shut. Check the fixation of the hood, pulling it over the front edge. If the hood is not, repeat the previous operation.

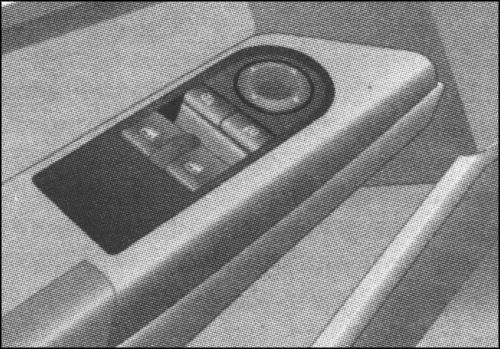

Electronic control window Electronic control window work when the ignition key. In addition, the functions of windows continue to work within 5 minutes after the ignition is turned off and within 5 minutes when you turn the ignition key to position 1. When you open the driver's door using the function becomes impossible. Central Control Panel window Central Control Panel window is located on the driver's door (Fig. 1.30).

Fig. 1.30. Opening bonnet

The front keys are designed to control the glass on the doors of the driver and front passenger. Rear keys open and close the glass rear door. Additional control buttons are located on the front passenger door and rear door panels. For the gradual movement of the glass, briefly press the forward or backward. To automatically open or close hold the keys pressed so far as is necessary. Safety function In the case of resistance during the automatic closing of glass above the middle of the window movement immediately stopped and the window re-opens. If tugogo progress, for example due to the presence of frost, repeatedly press the key corresponding to the window until it closes. Lock opening rear windows. To lock, press the switch between the two rear buttons on the handle of the driver's door (Fig. 1.31).

Fig. 1.31. Key lock rear windows

If you press the switch forward (see red box) - glass rear doors are blocked. If you press the switch back (see green box) - glass rear door unlocked. Faulty windows If the automatic opening and closing windows is not possible, an electronic management system windows must be activated. To do this, close the doors, turn on the ignition and open the windows. Then close the window and hold not less than 5 seconds.

NOTE Procedure must repeat for each windows in separately.

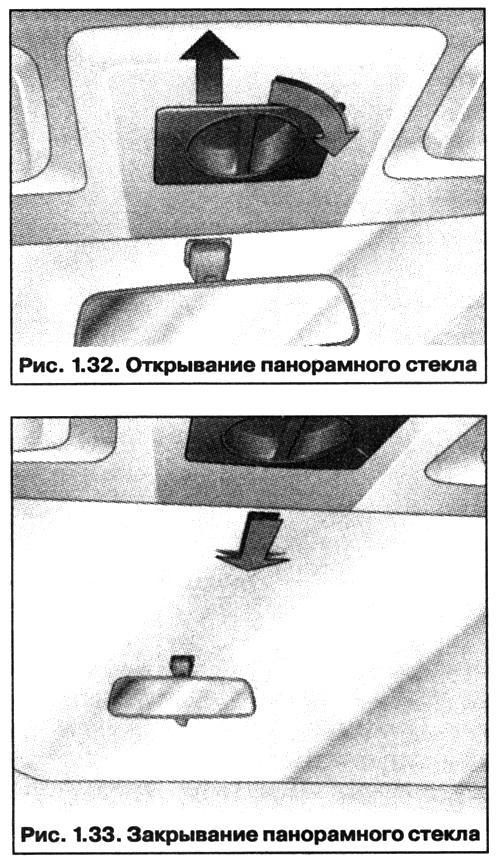

Panoramic glass To open the panoramic windows, turn the knob to the right and slide back into the right position lining the ceiling (Figure 1.32). To open the panoramic glass roof sheeting move forward from any position behind. In its most forward position lining locks (Figure 1.33).

NOTE When move plating ceiling fold sun ace-ki up. Sunroof

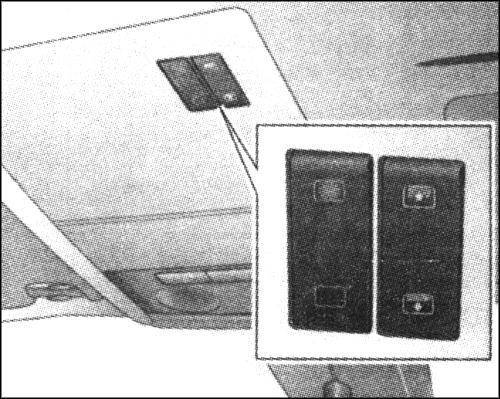

Luc control keys on the console on the roof (Figure 1.34).

Fig. 1.34. Keys Management hatch roof

For the gradual movement of the hatch, press the button briefly. To automatically open or close hold them pressed.
