D ifferential Bearing Cap

SPECIAL TOOLS

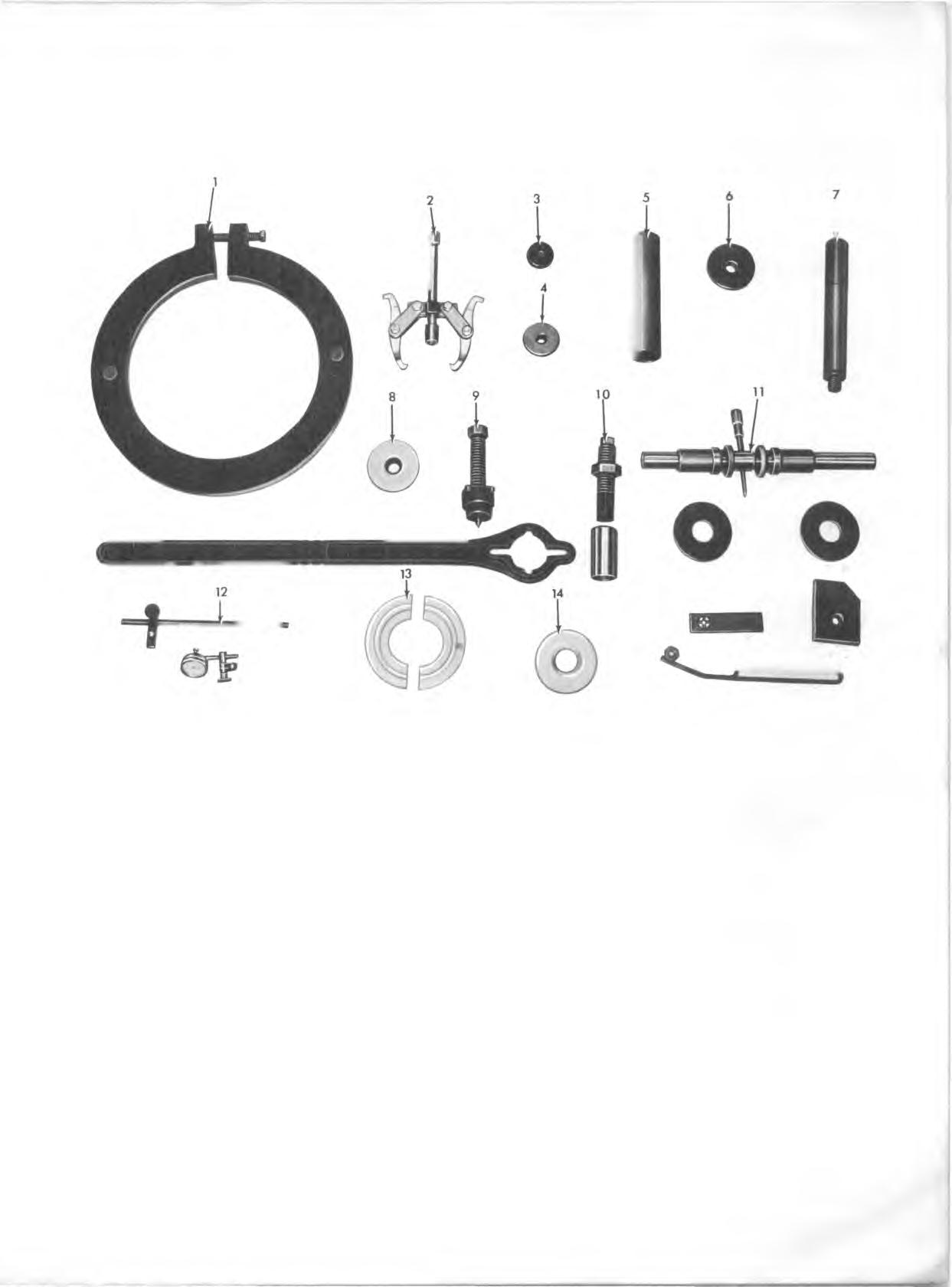

Fig. 2--Four-Wheel Drive D ifferential Special Tools

1. J-52 3 1-01 Spreader - Axle Carrier. 9. J-86 14 Holder and Remover 2. J -2 2 8 8 8 Puller - D ifferential side Com panion Flange. bearing. 10. J -2 3 4 7 6 Installer - Companion Flange 3. J-81 07 -4 A da pter - D ifferential side (use w ith J-8459-5 adapter) bearing. (not shown). 4. J-2 2 1 7 5 Installer - D ifferential side 11. J-5341 Gauge - Pinion depth Consists bearing. of parts: 5. J-5 5 9 0 Installer - Pinion inner and (1) SE 1065-1, (2)-5, (2)-6, outer bearing cone. (2)-9SS, (1)-10, 6. J-6 3 6 8 Installer - Carrier pinion outer (1 )-58 w ith 1" m icrometer. bearing cup (use w ith J-8092). 12. J-8001 Dial in d ica to r set. 7. J-8 0 9 2 Driver Handle - Carrier pinion 13. J-2 2 8 7 2 Remover - Pinion bearing inner outer bearing cup (use w ith cup. J-63 68 ) 14. J -2 3 4 9 4 Installer - Pinion oil seal. 8. J-92 76 -2 Installer - Pinion inner bearing cup (set against shims).
