Keys to Planning, Designing, and Permitting Resilient Coastal Restoration Projects Matthew Starr and Jeffrey Tabar new set of challenges are affecting the ability to plan, design, and permit successful projects in the coastal environment. In no particular order, climate change, sea level rise, funding, extreme storms, regulatory policy, political pressures, and coastal zone management issues all introduce unique challenges to implementing a successful coastal restoration project. It’s estimated that about 40 percent of the world’s population lives within 60 miles of a coastline. This coastal population—and the coastal infrastructure it relies on for economic viability—is highly vulnerable in the face of global climate change. This vulnerability will be exacerbated by projected increases in the frequency of intense tropical storms. More-intense storms could result in morefrequent barrier island overwash, storm damage to coastal infrastructure, shoreline retreat, loss of coastal wetlands, saltwater intrusion into aquifers, and increased coastal flooding. This article provides an overview of these challenges, discusses their importance in today’s political climate, and provides examples of projects that carefully and successfully maneuvered through these elements. Restoration examples from Florida and other east and gulf coast locations will be provided. Stantec was involved in the largest postHurricane Sandy restoration project ($40 million), which demonstrated how various phases of a project—from planning, design, and permitting, through construction—were completed. Considering the very active 2017
A
hurricane season, the projected RESTORE funding for Florida can’t come at a more important time for the maintenance, preservation, and restoration of its coastline.
Defining Coastal Resilience According to Webster’s Dictionary, the definition of resilience is “the capability of a strained body to recover its size and shape after deformation caused especially by compressive stress.” This definition is broad at best, but can be used to begin the discussion on coastal resilience. Resiliency can mean many different things depending on the subject: S Preparedness S Survivability S Hazard mitigation S Sustainability S Best practices S Disaster recovery S Adaptive management A strategy that may be successful in one region of a country may not be appropriate elsewhere. Each community must assess its own hazard risk and community vulnerability. This is accomplished by collecting data and gathering information as it relates to coastal impacts. This data will help identify solutions that may help provide protection from hurricanes, storm surge, wave impacts, and sea level rise. With solutions determined early in the process, restoration and mitigation efforts can be implemented in time to provide the necessary protection. The proactive approach will ultimately provide a level of protection that’s better than current scenarios. The effectiveness of these actions may not be seen immediately, but when the next super storm approaches the United States, or another part of the world, the risk reduction strategies implemented now will have overwhelmingly positive effects on the local community.
assess community risk, the collection process can begin. This process will allow data gaps to be determined, and new data can then be identified to build an inventory to be used throughout the design, permitting, and implementation phases. Due to everchanging advances in technology, the database systems that are developed must be able to be updated and adapted throughout the process—and into the future. An excellent example of this planning was the creation of the Southeast Florida Regional Compact Climate Change, which was formed in 2009 by a group of four counties in south Florida: S Palm Beach S Broward S Miami-Dade S Monroe
Planning Having a well-defined plan is key to the success of a coastal resiliency program. This begins with collecting data and conducting research on local issues. By defining what data is needed to
4
July 2018 • Florida Water Resources Journal
The counties recognized and understood the need for proactive planning and action to be taken to protect their communities from the effects of global warming and sea level rise. Continued on page 6
Continued from page 4
Designing With the planning and data collection phases complete, the alternatives analysis of the design can be developed. Designs should incorporate both recent and historic data, and be science-based. The design should incorporate current land use patterns, but also plan for future population growth. High hazard areas should integrate sustainability with long-term environmental and economic benefits. As with any project, the design must balance risk reduction, provide protection, and meet stakeholder objectives. The reality is that these solutions to provide coastal resiliency are often so large and expensive that they must be approached in a “phased” way to provide short-term results for communities, while being part of an overall larger project. While each project is unique, some solutions will inevitably cause impacts to existing environmental resources, which may require mitigation. This is the where the balance between protection versus environment must be examined and vetted among multiple stakeholders, as mitigation projects can provide enhanced benefits beyond the existing conditions. By monitoring the performance of the design, and the implementation that follows, success criteria can be determined. An important aspect of any project is reviewing and understanding what was completed satisfactorily and what features can be improved upon for the future. These “lessons learned” are vital to the successful development of a coastal resiliency program.
6
July 2018 • Florida Water Resources Journal
Summary Coastal resiliency can have many different interpretations and applications, depending on the location and goals of all stakeholders involved. Communities should consider taking a long-term and phased approach to accomplish these goals: S Guide growth and development away from high-risk locations S Make sound science and engineering decisions S Understand that there is value to restoring ecosystems that goes beyond financial benefits
These impacts are just now gaining media attention and are new to many industries and stakeholders. As with the southeast compact, cities and organizations should support and encourage forward-looking leadership, while understanding that resiliency takes time. With a well-defined plan of action and a proactive approach to resiliency, coastal risk can be reduced and planned for accordingly. Matthew Starr, P.G., is an associate, southeast coastal team leader, and Jeffrey Tabar, P.E., D.CE, is principal coastal engineer with Stantec Consulting Services in Naples. S
Nutrient Removal Impacts on Other Treatment Processes Patrick Dube s states push nutrient discharge limits lower for water resource recovery facilities (WRRFs), utilities must implement different technologies to make sure that they comply with them. While many different nitrogen (N) and phosphorus (P) removal technologies can help meet these limits, WRRFs must carefully select them to avoid unintended consequences on dewatering processes and costs.
A
Nitrogen Removal When it comes to N removal from waste streams, two methods are typically used: physicochemical (ion exchange, air stripping, etc.) and biological. Although both methods can remove nutrients, biological nutrient removal often makes more fiscal sense. By using the natural nitrogen cycle of the bacteria in a WRRF, nitrogen is removed via nitrification–denitrification. Ammonia is transformed to nitrite (NO2-) and then nitrate (NO3-) during nitrification before a different set of bacteria transforms nitrate into nitrogen gas (N2)
during denitrification. The gas then escapes into the atmosphere. The entire process is driven by bacteria under either anaerobic or aerobic conditions. Oftentimes, these processes occur in separate tanks (nitrification is an aerobic process and denitrification is an aerobic process), but it can all be completed in one tank if anaerobic zones exist. Aside from aeration, nitrification–denitrification requires ample carbon for the bacteria to use as building blocks. Optimization of the process, important to achieve high removal, requires balanced temperature, dissolved oxygen, pH, and solids retention time. As shown in Figure 1, balancing carbon is also important; the carbon used for nutrient removal lessens the amount available for anaerobic digestion to generate biogas, and therefore, energy.
Phosphorus Removal

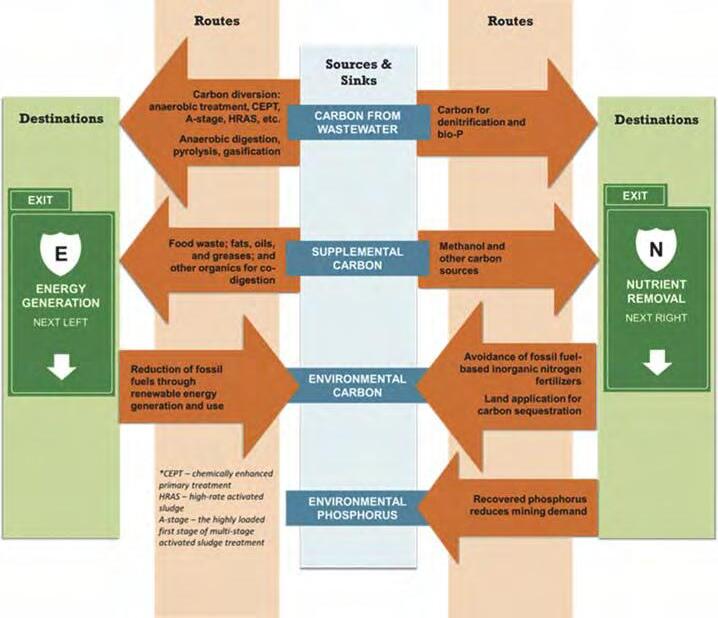

Figure 1. Both energy generation and nutrient removal require carbon.
8
July 2018 • Florida Water Resources Journal
Phosphorus removal presents a different challenge. Unlike N, P cannot be removed as a gas; instead, it must be removed as a solid. Many methods can remove P, such as chemical, biological, combined chemical and biological, and nano processes. Membrane filtration, including reverse osmosis, nanofiltration, and electrodialysis reversal all fall under the nano process category. Chemical methods rely on such chemicals as alum or ferric chloride to bind to phosphorus and precipitate it out as a solid, which can be collected. The quality and type of phosphorus precipitate is dictated by optimizing wastewater pH, chemical addition, mixing, and other factors. Biological P removal uses anaerobic conditions, followed by aerobic conditions to promote P uptake by phosphorus-accumulating organisms (PAOs). Anaerobic conditions promote the consumption of volatile fatty acids (VFAs) by the PAOs, which forces them to release phosphorus. Once the PAOs switch to aerobic conditions, they uptake the released phosphorus as they replenish stores and multi-
ply, resulting in more P removed than was released. The phosphorus-rich PAOs are then removed as settled solids, resulting in a low phosphorus liquid wastewater effluent.
Effects on Dewatering It turns out that N and P removal also affect solids dewatering quite a lot. Figure 2 shows that nutrient removal can hinder dewatering. This means using more polymer to get the same dewatering results and increased costs for one of the most cost-intensive parts of treatment. A decrease in solids dewaterability by as much as 6 percent total solids leads to two to three times the polymer needed. Decreased dewaterability also means more cost to haul away the solids to landfills or composting, or more fuel needed to incinerate the solids. Nutrient removal in and of itself isn’t the cause of poor dewatering performance as some methods, such as nitrification–denitrification, have no negligible effect. Studies and realworld performance show that specific types of phosphorus removal can directly affect dewatering. For example, chemical P removal can
help with dewatering, while biological P removal hinders it. When biological phosphorus removal is combined with anaerobic digestion and lowmetal ions (iron and aluminum), dewatering efficiency decreases. This causes higher polymer demand and, therefore, increased costs (Figure 3). Other studies have investigated the effect of biological phosphorus removal on dewatering and identified extracellular polymeric substances (EPS) as the culprit, which are released by anaerobic microbial communities. Dewatering decreased as the EPS content increased after anaerobic digestion, showing a correlation between the two and leading researchers to conclude that removing EPS may increase dewaterability. Anaerobic digestion, followed by aerobic treatment using zero valent ions and other technologies, has minimal effects on dewaterability. The research is not completely settled, and it is up to WRRFs to investigate the wide range of nutrient removal technologies available and see which can help meet their goals, while maintaining high dewaterability.

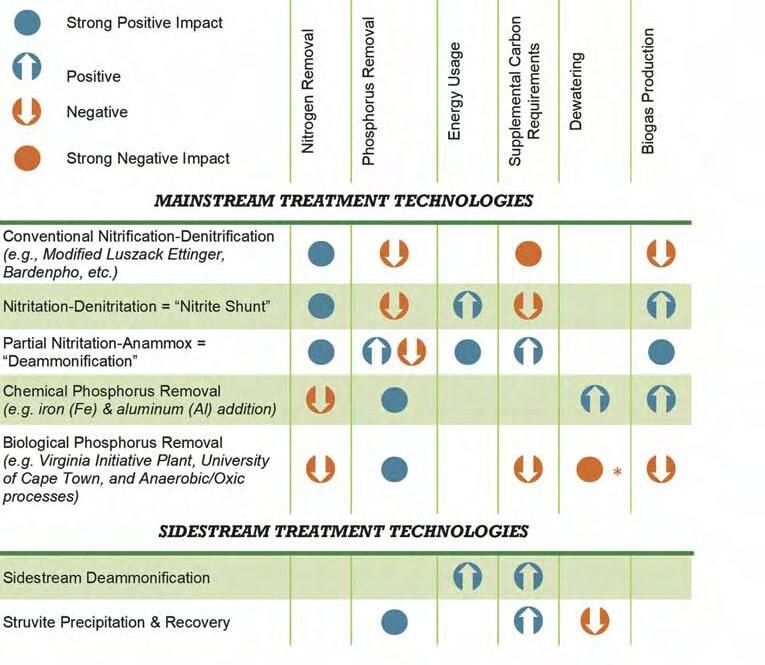

Figure 2. Interrelationships between N and P removal and other WRRF operations.
Balancing the Scales The N and P removal are necessary for WRRFs to meet discharge limits and keep the environment safe and healthy; however, tradeoffs exist, such as the effects that these technologies can have on dewatering. Each of these financial and operational implications must be considered, as each WRRF is a unique system and nutrient removal technologies must be chosen based on such factors as influent flow and loading, economic considerations, and permit limits. Patrick Dube is a technical program manager in the Water Science & Engineering Center at the Water Environment Federation (Alexandria, Va.). He manages the Residuals and Biosolids Committee and the Air Quality and Odor Control Committee and can be contacted at PDube@wef.org. S
Figure 3. Biological phosphorus removal increases dewatering polymer demands.
Florida Water Resources Journal • July 2018
9
FWRC 2018 – Awesome!
Highlights From the 2018 Florida Water Resources Conference Holly Hanson With 3,300 attendees and 350 exhibitors, the Florida Water Resources Conference (FWRC), held April 15-18 in Daytona Beach, energized participants and fueled ideas for the future of the water industry. The robust educational opportunities and networking events brought to life the many ways that water professionals are growing and thriving in their jobs. With the various opportunities and challenges they face on a daily basis, the broad array of technical presentations, roundtables, and symposiums may have provided many answers for them. The FWRC has become synonymous with the state of the art in the assessment of competence for water and wastewater employees, bringing together both experts and those new to the profession, facilitating networking and collaboration. It has also propelled the event into being the second largest joint utility conference in the United States. The 100,000-square-foot exhibit hall in the Ocean Center Convention Center had a smooth flow on the floor and extra room for comfort—for the exhibits and for all of the other events that took place there. Water For People and the Social Media Scavenger Hunt
10
were given prime locations in the middle of the hall near the Operations Challenge competition. This first visit to Daytona Beach for the conference was well received, and the attendees enjoyed the easy access from the hotel to the convention center, the comfortable surroundings, and the beautiful and natural setting near the beach. Each year we try to highlight elements to make this annual event as interesting and informative as possible. This was the second year we worked with the Water Environment Research Foundation to patronize the Innovation Showcase, an opportunity for startups and small businesses to promote themselves and new concepts. The Operations Challenge competition was held in the center of the exhibit hall. Other significant components included the Student Design Competition, which brings the brightest young minds and their wastewater and environmental designs to the conference; the Women of Water Forum, where panelists and audience members celebrated the contributions of women to the water industry; the Operators Showcase, with operators addressing the issues of the day; the Contractor’s Council, discussing project risks; and a diverse technical program of interest to industry professionals who are in every facet of the water business.
July 2018 • Florida Water Resources Journal
Students and Young Professionals: The Future of the Industry Emphasis was placed on young professionals and university students as we ramped up new activities to maintain their interest and involvement. A Social Media Scavenger Hunt that involved all attendees in promoting FWRC on social media was a great success, and the winner went home with a $250 gift card. It was a winwin for everybody! The Young Professionals Symposium, a joint endeavor by FSAWWA and FWEA, presented a roundtable discussion, with guest speakers sharing their career stories. The Student Design Competition teams represented these Florida universities: S Florida International University S Florida Agricultural & Mechanical University/Florida State University S University of Florida S University of South Florida S Florida Gulf Coast University Each team presented its real-world findings to an assigned problem or task in both environmental and wastewater interests. This competition is intended for both undergraduate and graduate students, typically completing a capstone project. This year, the University of Florida won the environmental competition and University of South Florida won the wastewater competition. These winning teams will move on to the national contest at the Water Environment Federation Technical Exhibition and Conference (WEFTEC) in October in New Orleans. As an added bonus, a resume writing workshop was held to assist the students in preparing a sharp resume for future employment consideration. The Student Poster Contest was in full swing Monday afternoon in the rear stage area of the hall. Nadezhda Zalivina, with the University of South Florida, won the student category with her poster, “Application of an AnnamoxEnhanced Zeolite System for Nitrogen Removal from Anaerobic Digestion Sidestreams.” Pranjali Kumar, with Carollo Engineers, won the young professional category with her poster, “Removal of Trace Organics and Biological Activity in Ozone-Biofiltration Based Direct Potable Reuse.”
Each student won a Visa gift card. A “Daytona International Speedway” theme prevailed at the student and young professionals social that was held in the evening, a salute to the local racing industry.
Technical Sessions and Workshops: Peers Share Their Expertise The technical program, loaded with valuable content, was coordinated by Tim Madhanagopal, with Orange County Utilities, who serves as conference vice president, and his technical review committee, which is composed of industry experts from a variety of government and privately owned facilities and agencies. The committee members read and graded the submitted abstracts by subject, and the top five in each group were selected for presentation. The workshop presentations included: S Water Sector Resiliency S Biological Nutrient Removal (BNR) Wikipedia for Operators and Engineers S Integrated Water Reuse in Florida and Related Legislative and Regulatory Issues Update S Infiltration and Inflow From Cradle to Grave S Operational Consideration to Improve Water Quality in Buildings S Lessons Learned From Hurricane Irma S Strategic Thinking in the Water World S Biosolids and Energy Recovery Considerations to Promote Sustainability Two days of solid technical content included technical sessions that covered issues like utility management, nutrient removal, disaster management, sustainability and climate change, potable water treatment, biosolids technologies, collections, disinfection and pub-
lic health, distribution, supply, treatment, resource recovery, utility rates, operations and maintenance, reclamation and reuse, and modeling/GIS and computer applications.

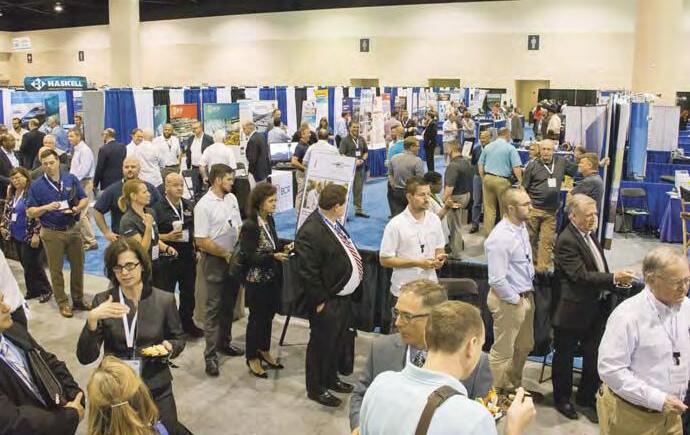

In the Exhibit Hall: Ingenuity, Innovation, and Inspiration The Sunday president’s reception, always a well-attended event, was the first of many networking opportunities in the exhibit hall. At this year’s FWRC, one of the most exciting and rewarding in recent memory, the exhibitors here were proud to showcase their products and services. The South's premier water and wastewater conference was buzzing, and the focus was on promoting new industry trends and technologies. Discussions on case studies, regulatory issues, and subjects pertaining to Florida’s challenge of supplying, conserving, and reusing its precious water resources took place throughout the week. Tom King, past president of the Florida Water and Pollution Control Operators Association (FWPCOA), served again this year as
honorary master of ceremonies in the hall. His warm personality and ability to entertain the audience, while keeping everyone informed of the conference goings-on, was enjoyed and appreciated. The Innovation Showcase, a unique and new concept, which is presented at the national level at WEFTEC, was staged this year at FWRC, and it highlighted an invited selection of the newest and most exciting breakthroughs in the industry. Many innovations start small, and this opportunity provides a platform for those ideas that are not quite large enough for a full paper or presentation, but can still provide pertinent information that makes a difference in the way we work and think about water. Six 30-minute segments at the Exhibitor’s Showcase were available on Monday and Tuesday on the rear stage in the exhibit hall that provided a focused opportunity for vendors to promote accelerated development and implementation of innovative technologies and approaches.
Florida Water Resources Journal • July 2018
11
FWRC 2018 – Awesome! Thanks to our Sponsors The conference sponsors help to enrich the experience at FWRC. We appreciate their interest in the conference’s vision and are grateful for their support. We encourage all FWRC attendees to give these sponsors the opportunity to earn their business. S AECOM S ARCADIS S Black & Veatch S Brown and Caldwell S Cardno Inc. S Carter And VerPlanck Inc. S CDM Smith S Custom Controls Technology S Delta Electronics (Americas) Ltd. S Gannett Fleming S Garney Construction S GHD S Greeley and Hansen S GreenTechnologies LLC S Grundfos Americas S Hydra Service Inc. S Jacobs Engineering Group/CH2M S Jones Edmunds & Associates Inc. S Kimley-Horn and Associates S Miller Pipeline S Mott MacDonald S P C Construction S PCL Construction Inc.
12
S S S S S S S S S
Reiss Engineering Stantec Synagro Technologies Tetra Tech Inc. U.S. Submergent Technologies U.S. Water Services Corp. USP Technologies Wharton Smith Wright-Pierce
Networking and Annual Events: Information Sharing and Industry Recognition Many activities went on at FWRC, in additional to the educational forums, technical sessions, and committee meetings. The Operators Showcase packed the room as operators from around the state and the region discussed best practices, new trends, and reoccurring issues. Hosted by FWPCOA, Tom King once again served as emcee for this great venue, with positive feedback from attendees. Over 600 people attended the Monday Awards Luncheon. Scott Kelly, FWRC president, hosted the proceedings; the boards of FSAWWA, FWEA, FWPCOA, and FWRC were in attendance; and awards were given. Tom Baber, Ph7, with Litkenhaus and As-
July 2018 • Florida Water Resources Journal
sociates, once again hosted the Florida Select Society of Sanitary Sludge Shovelers (FSSSSS) inductions at the Monday lunch. Assisted by comedian Scott Orbany, they kept the audience entertained with zany one-liners about the three inductees. This exclusive award honors the recipients based on merit for their “outstanding and meritorious service above and beyond the call of duty to the water industry.” This year’s recipient were Ron Cavalieri, Carollo Engineers; Ray Bordner, retired from City of St. Petersburg; and David Harwig, Carter and VerPlanck Inc. Tuesday’s FWEA Annual Meeting and Awards Luncheon hosted Lynn Broaddus, who is a Water Environment Federation (WEF) board trustee, and included review of the organization’s annual report, election of officers, passing of the gavel, and incoming president’s remarks. This luncheon was also popular, with over 400 attendees and award recipients present. The Monday Night networking party held at the hotel featured the band Switch, Back to the Eighties. The open bar and live music got folks on the dance floor as they enjoyed the atmosphere and the delicious food.
Contests and Competitions The FSAWWA hosted the annual “Best Tasting Drinking Water Contest” on Tuesday, where municipalities representing the section’s 12 regions entered their drinking water samples for close examination and various testing. Lee County was selected by the five judges as this year’s winner. With preparations starting in January, anticipation was high this year as the Operations Challenge competition had seven team entries. Coordinated by Chris Fasnacht and Ada Levy, both with the Orange County Utilities, the competing teams were: S City of Boynton Beach - Steam Team S City of St. Cloud - Methane Madness S City of St. Petersburg - Dirty Birds
S S S S
Destin Water Users - Positive Influents Gainesville Regional - Utilities True Grit JEA - Fecal Matters Orange County - Treatment Outlaws
A discernible undercurrent of excitement was present as tough competition in each of the five categories took place. The winning team, Orange County’s Treatment Outlaws, took the top spot, with JEA’s “Fecal Matters” coming in second. Both teams will compete at the 91st annual WEFTEC, to be held at the Morial Convention Center in New Orleans from September 30 to October 4. The Top Ops Competition, which was held Tuesday afternoon and coordinated by Andrew Greenbaum, Tampa Bay Water, hosted the following teams: S City of Palm Coast - Water Buoys S FWPCOA - Region #9 S Pasco County Utilities - Justice League Teams were encouraged to promote their team theme and colors throughout the conference. Water Buoys, the winning team, com-
peted at the American Water Works Association Annual Conference and Exposition (ACE18) in June at the Mandalay Bay Convention Center in Las Vegas. Other yearly events included the FSSSSS annual members breakfast and the FSAWWA regional chairs and volunteers breakfast. Various association meetings and forums were also held.
Volunteers: The Backbone of the Conference The FWRC has many moving parts and I would especially like to thank all of our talented speakers who truly are experts in their fields; staff members of FSAWWA, Water For People, FWPCOA, WEF, and FWEA; all the many people who volunteered their time at registration, as part of the technical review committee, and workshop coordinators; attendees at educational events and committee meetings; and all the other people behind the scenes who make this event so successful. You are all good stewards of Florida’s clean water environment with your commitment to FWRC.
Thanks and Save the Date Let’s get ready for fun and sun at the 2019 Florida Water Resources Conference, which is scheduled for April 13-17 at the Convention Center in Tampa. The FWRC strives to be your prevailing source for technical and educational information and we look forward to another great conference next year! Holly Hanson is the executive director of the Florida Water Resources Conference.
The conference boss with “The Boss.”
Florida Water Resources Journal • July 2018
13
FWRC 2018 – Awesome! EXHIBITION The Latest Products and Innovations The exhibit hall this year included more than 350 exhibitors, with company employees and representatives discussing cutting-edge technologies, services, and processes with the attendees at their booth. The Technology and Exhibitors Spotlight provided introductions to an exhibitor’s latest innovation, equipment, or technology during unopposed stage time in the rear of the exhibit hall. In the same area, the Innovation Showcase provided a platform for new ideas that are not at the stage for a presentation in the technical program, but can still make a difference in the industry. Booths for FSAWWA, FWEA, and FWPCOA has staff and volunteers available to talk about programs and products from the three organizations. The hall was also the site for the evening receptions; prize giveaways; Top Ops, Operations Challenge, and “Best of the Best” Drinking Water Contest; poster session; and some of the awards presentations.
14
July 2018 • Florida Water Resources Journal
WORKSHOPS AND TECHNICAL SESSIONS Sharing Knowledge and Expertise The eight workshops at the conference covered the topics of water sector resiliency, biological nutrient removal, integrated water reuse and related legislative and regulatory issues, infiltration and inflow, operational consideration to improve water quality in buildings, lessons learned from Hurricane Irma, strategic thinking in the water world, and biosolids and energy recovery considerations to promote sustainability. The two-day technical program included sessions on utility management, wastewater treatment, nutrient removal, stormwater and climate change, collection systems, direct and indirect potable reuse, facility operations and maintenance, biosolids, phosphorus removal, reclamation and reuse, sustainability, potable water treatment, resource recovery, and modeling/geographic information systems/automation. Pictured are some of the workshops and sessions.
Florida Water Resources Journal • July 2018
15
FWRC 2018 – Awesome!
Third Women of Water Forum Held at Conference Celebrating the importance of, and contributions by, women in the water industry, the third Women of Water (WOW) forum was presented at the conference on April 16. The comoderators for the session were: S Marjorie Craig, P.E., utilities director of water, wastewater, and reclaimed water services, City of Delray Beach S Shelby Hughes, E.I., environmental consultant, Kimley-Horn and Associates The two-hour session attracted more than fifty people, and the interaction among the panelists, moderators, and audience members (new to the industry, seasoned professionals, and somewhere in between; predominantly female, with some men) produced a lively and informative discussion. The panelists for the program were: S Lynn Broaddus, Ph.D., MBA, president and founder of Broadview Collective Inc. and currently on the board of directors of the Water Environment Federation
S Kristiana Dragsh, P.E., project manager and associate, Carollo Engineers Inc. is the president-elect of the Florida Water Environment Association (FWEA) S Jo Ann Jackson, P.E., director of water, wastewater, and reuse division, City of Altamonte Springs is a member of the statewide Potable Water Reuse Commission and on the board of the FWEA Utility Council S Grace Johns, Ph.D., senior associate and economist, Hazen and Sawyer, and immediate past chair of the Florida Section of the American Water Works Association S Jo Ann Macrina, P.E., deputy director of utilities, City of Daytona Beach, and board member of the Florida Water Reuse Board S Mandi Rice, P.E., assistant executive director, Southwest Florida Water Management District S Mike Sweeney, Ph.D., P.E., deputy executive director, Toho Water Authority and vice president of FWEA

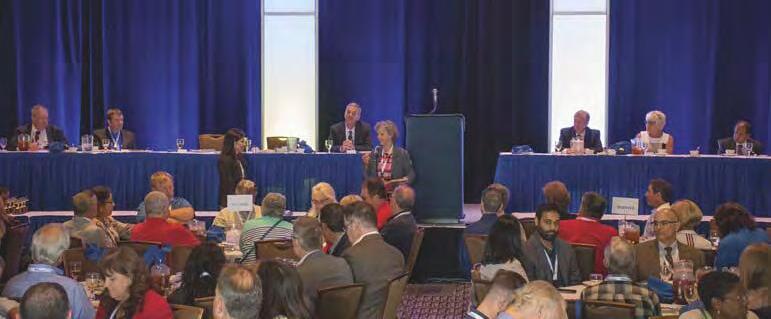

Attendees listen to a panelist respond to a question from the audience.
Moderators Shelby Hughes (left) and Marjorie Craig (center).
16
July 2018 • Florida Water Resources Journal
Introductions Craig welcomed everyone to the session. She was excited about the turnout and noted the commitment that many in the water industry have made to increase and improve the opportunities for women—and, more importantly, to support each other. She shared two conclusions of the session last year: S The experiences that women have in the workplace are often common for both genders S Include a man on the panel to add to the panel’s perspective The panelists gave a brief introduction about their experiences working as and/or with women, in the workplace. Hughes noted that while women make up almost one-half of the workforce in the United States, they only hold 14 percent of the jobs in engineering and 21 percent of the jobs in information technology. As the only male on the panel, Sweeney noted that he grew up with a strong mother and had other positive female role models. As a manager, he feels that a lot of women have attributes that many men don’t, such as listening to all sides of an issue and getting as much input as possible before making a decision; most men, on the other hand, want to solve the problem right away and move on the next one. He stated that, “to be successful, a woman has to work twice as hard and be twice as good as a man to get ahead.” Johns was taught that a woman should be selfsufficient and not rely on a man for financial security. She got where she is in her career by standing up for herself, but also by finding mentors who coached her on how to have a successful career. Rice worked with men on many construction jobs in the water industry and didn’t really
Panelists (left to right) Jo Ann Macrina, Lynn Broaddus, and Jo Ann Jackson.
Panelists Grace Johns and Mike Sweeney.
feel that different being a woman. She knew she had to prove herself, be of service, and be someone who people wanted to work with. She found that there were times when being a woman can have advantages. “When I was pregnant, I went to a board of commissioners meeting, and afterward, the commissioner kindly said, ‘I let you off easy because you’re pregnant.’ After that, the agency sent me to every board meeting.” Jackson started in environmental science as a consultant and worked her way up to a division director position. “People think I must be good because I’ve been around a long time,” she said. “A woman can’t ever be average; you have to look really hard for the opportunities to stand out and prove yourself. If you have an idea, you really have to push it, because a man can have the same idea later, and then it’s acknowledged, but not necessarily when you first suggest it.” Broaddus reflected that when she was growing up, women received messages from an early age about being likable and popular, being marriage material, and not really thinking about an education or a career. “I didn’t really buy into that. I got my degree, got a job, and had good and bad experiences. I had many male bosses who treated me like a daughter and not as an equal. Women get different messages today, but things are still challenging, especially when it comes to pay equity.” Macrina grew up as a military “brat” and began her career as an aeronautical engineer, then worked in the public and private sector for small and larger consulting firms. “I quickly married, had a daughter, and became a single parent, but I didn’t allow my personal life to affect my work life. I was initially paid less than my male counterparts, but I worked hard, paid my dues, and kept moving forward, economically and professionally, and still maintained my integrity and work ethic.” Dragash is married to a teacher and has a child, and her husband is very supportive, both of the family and her career. “The water industry chose me, and I’ve had many supportive mentors who’ve taught me that you can learn something from everyone.” In her career and other work-related activities, she has had success at a fairly early age. “I
Some attendees in discussion before the session starts.
have, as do a lot of women, the ‘imposter syndrome,’ wondering if I’m good enough and really deserve what I have. This can have disadvantages, of course, but it also makes me work harder.”
Challenges and Advantages in the Workplace Hughes asked the panelists and attendees to name some challenges that women have in the workplace, and the following were given: S You always have to prove yourself. S Women try to solve everyone’s problems and end up doing other workers’ jobs in addition to their own. S Women do the work; men get the credit. S Administrative employees (very often women) can be harder on female bosses than male bosses. S Being forceful and direct without appearing demanding or “bitchy.” S Managing men, especially older men, who may have a different mindset about women in the workplace. S Balancing work and family life, particularly for unpartnered mothers. S Not taking things too personally. If a situation is not going the way you want, is isn’t necessarily because you’re a woman; there could be other factors in play. S People can and will take advantage of you, if you let them. S Picking your battles; not everything is worth going to the mat for. S Being too nice and accommodating, which can make it harder to command respect, give direction, and provide leadership. S Women have to second-guess how an email, memo, report, or personal interaction will be perceived: Am I coming across too hard or too soft? S Not all women (just like not all men) are alike and it’s important to be seen as individuals. S Women are usually not natural self-promoters, and it’s hard for them to speak up for themselves. Hughes then asked those in the room what advantages women bring to work, and these responses were made:
Panelist Mandi Rice.
S Getting as much information as possible, and including all viewpoints, before arriving at a decision. S Being able to say, “I don’t know.” S Serving as mentors to younger women. S Seeing differences in people as strengths, not weaknesses. S There is power in being a lady, in the best sense of that word.
Sexual Harassment: The Recent Focus The #MeToo movement has shed a new spotlight on women and the workplace, highlighting the sexual harassment and inequality that some women have experienced. The accusations against many high-profile men in many industries has put the issue front and center and allowed women to publicly share their stories. It was suggested that any anger that a woman feels should be used constructively to change the system. If help isn’t available at work, through a boss, human resources, or upper management, resources can usually be found at the local, state, and federal level. It was noted, however, that recourse isn’t always easy (and harassment can be a problem for men, too), and it will take time (if ever) before this is no longer an issue. Some women do use their sex to get advantages, which makes it difficult for women who don’t. When face with an incident, it was suggested that a woman be calm, but assertive, in her actions and be as unambiguous as possible. The group recognizes that all workers are faced with problems and challenges, and sex, gender, education, position, and life experiences make each situation unique. People should focus on their similarities and their common humanity when trying to find solutions that will benefit everyone. If you would like to make suggestions, submit questions, or recommend panelists for next year’s forum, please email Marjorie Craig at craigm@mydelraybeach.com. We are interested in providing more time for networking among attendees and welcome your input. Can’t wait to see you next year!
Florida Water Resources Journal • July 2018
17
FWRC 2018 – Awesome! OPERATORS SHOWCASE
Operators Discuss Timely Issues in the Water Industry Tom King On April 15 we gathered together at the Operators Showcase to have a beer and discuss current topics in the water utility industry. Thanks to all who attended and to those who submitted topics. The showcase continues to grow each year, with new topics and lively, somewhat animated conversations (probably due to the beer!). This year we discussed the following: S Ethics as it pertains to signing off on license experience (and what constitutes actual experience and ways of documenting it) S First responder status for utility personnel S Direct potable reuse (DPR) license requirements
Actual Experience Documents Nothing gets our blood flowing like the stories of some “undeserving person” getting his or her actual experience signed off by another operator or supervisor. If I asked for all of the anonymous stories or misguided loyalties that helped someone cheat the system, it would fill all my allowed space here.
The Florida Water and Pollution Control Operators Association (FWPCOA), along with the Florida Department of Environmental Protection (FDEP), has in the past dealt with these and other issues concerning a lack of ethics, and when notified, will continue to do so. Two things you can be sure of: first, we cannot deal with an issue that we are not made aware of; and second, the integrity of the license process is worth protecting. The attendees all agreed on taking the issue seriously and utilizing methods of collecting data to substantiate a “well-rounded experience.” At the showcase I asked for examples of utilities that have training programs and maintain records on trainees to help put together a model for documenting different types of experiences. I will repeat that request at the end of this article and will post my email address for feedback. I will use all the data we collect to produce various methods and models to record the experiences. I will hand these out at next year’s showcase for discussion and make them available through future articles. There is an ethical standard we violate when we fudge or make up data to justify someone’s approval to sit for a state certification. I have on
Tom King, moderator.
18
July 2018 • Florida Water Resources Journal
Several women attend the session.
many occasions produced articles discussing the integrity and responsibility associated with being in the family of utility management and maintenance. We are the caretakers of the most important natural resources on the planet. No matter your background, politics, or religion, the need for water makes us equal. No matter what role you play in the family of utility management caretakers, you are held to a higher standard. Help us police the process and make sure those who misuse their authority to violate the process are reported.
First Responder Status Who is a first responder? We all got emotional as we discussed the topic of first responder status at the showcase. I believe we will continue this discussion until we get some satisfaction for our service. During the last hurricane season, I heard stories of brave and committed utility professionals who were out repairing water and sewer lines, working on lift stations, setting up generators, and operating water and wastewater plants in horrible weather conditions. We (based on many examples) put aside our own personal losses and damage to our homes to go above and beyond the call of duty to restore utility services to those who depend on us. This is not to take anything away from firefighters, police officers or any other “first responders” who jeopardize their lives to protect and defend ours. We hold them in the highest esteem. We, as an industry that is vital to the safety and well being of our customers, also put ourselves out there in the middle of storms and flooding events. We heard many stories of utility worker heroes as they responded to broken water lines and other problems. We heard of the hardship of the requirements of utility workers to show up for work after a storm or be disciplined—up to termination. The action of utility personnel before, during, and after storms certainly puts them in a category that deserves recognition. We will soon be asking for input through a survey for opinions and ideas on this issue. Maybe there is another equivalent term we could use to reward our fellow workers who give so much of themselves. Many businesses reward first respon-
ders with discounts and financial rewards for their service. When we, as utility professionals, do what we do because we are committed to the industry, it would be nice to be rewarded with a recognized title showing the respect that’s deserved.
Direct Potable Reuse It’s now evident that direct potable reuse (DPR) is a part of the solution to the water shortage that is becoming more critical each year. The challenges of using DPR were discussed during the showcase event: S Training associated with this opportunity will be required for both wastewater and water treatment operators. S There will be courses designed to deal with the organic load of DPR on water treatment plants, as well as water distribution systems. S Permit requirements for wastewater treatment plants that use DPR as a disposal method will change. Other states have responded to direct potable reuse (DPR) with a new license; should FDEP require changes in the licenses that exist, or create a new license for plants that use DPR as a resource? There were several technical presentations on DPR at this conference and we expect more at future events throughout the state. While the use of DPR could benefit the total water resource chain, there could also be negative affects on systems that depend on the reuse of wastewater effluent for irrigation. Wastewater reuse systems are also used to augment wetland systems, so the consequences of long-term use of DPR will have to be evaluated. Public trust is another aspect of any system that would use DPR as a supplemental water resource. Nationally publicized water issues, like those in Flint, Mich., have damaged the public’s belief in the integrity of water treatment. We must do our very best to produce good-quality water, with a zero tolerance for mistakes that could lead to a public health incident. It’s inevitable that we will have to meet the growing demands for potable water with new and innovative ideas and we must do so with an even greater level of professionalism. This is an exciting challenge facing the water industry. The way Florida will address the license and training requirement associated with DPR is still being formulated. I believe we will deal with this new opportunity the way we dealt with those of the past—as a group of caring professionals. I am still an idealist when it comes to our profession and the commitment I believe we have to fulfill our roles with integrity. The importance of this commitment will never be more important than
during the implementation of systems using DPR.
Looking for Feedback I welcome input on all of these issues; feel free to contact me at Thomas.j.king1@NASA.gov. Please respond to the surveys you will see on the FWPCOA home page. We will also create a survey next year prior to the Florida Water Resources Conference to pick topics for the next showcase, and the issues of DPR and the inclusion of utility workers as first responders will be addressed in future articles and as ongoing showcase topics. I will also share information gathered from the surveys on methods of quantifying actual experience. We have volunteers who will be addressing the first responder issue, and based on the responses from the surveys, we will give them all the support possible. Mike Darrow (right) makes a comment.
Tom King is utility manager for Kennedy Space Center Utilities in Orlando.
Moderator King (right) engages with one of the participants.

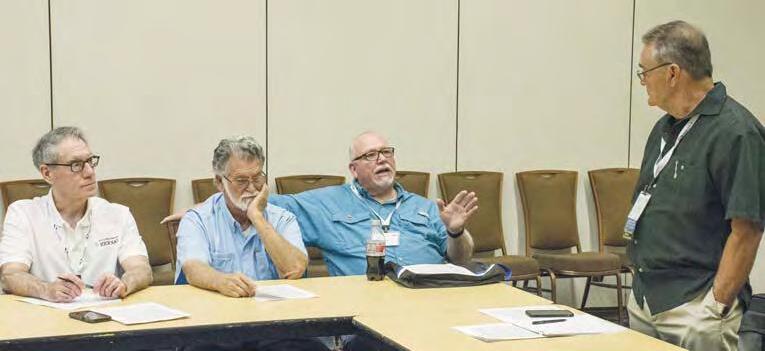

The hollow-square room setup facilitates the open discussion.
Florida Water Resources Journal • July 2018
19
FWRC 2018 – Awesome! STUDENTS AND YOUNG PROFESSIONALS Scavenger Hunt, Student Design Competition, Symposium and Resume Workshop, and Evening Social
Resume writing workshop.
Several events were held at the conference for students and those who are new to the industry. A Social Media Scavenger Hunt invited attendees to promote the conference with social media posts. It was a great success, and the winner went home with a $250 gift card. The Young Professionals Symposium, a joint endeavor by FSAWWA and FWEA, presented a roundtable discussion, with guest speakers sharing stories about their careers and personal development. The Student Design Competition teams represented several Florida universities. Each team presented its real-world findings to an assigned problem or task in both environmental and wastewater interests. This competition is intended for both undergraduate and graduate students, typically completing a capstone project. A resume writing workshop was also held to assist students and young professionals in preparing a top-notch resume for future employment considerations. The Daytona International Speedway was the theme at the student and young professionals social, a salute to the local racing industry. The social included music, food and drinks, and a lively game of Cornhole.
Photos show participants and judges at the Student Design Competition.
20
July 2018 • Florida Water Resources Journal
Poster Session Social for students and young professionals.

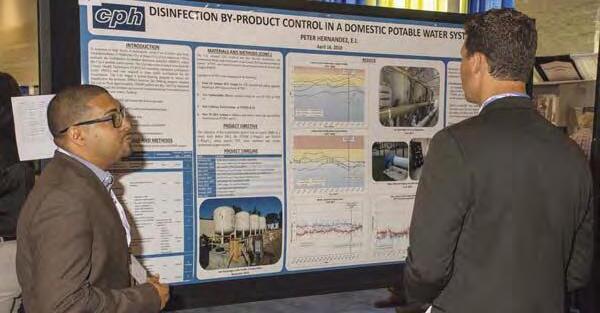

University Students Present and Discuss Their Research A poster session was held in the exhibit hall, where students from various Florida universities presented their research methods and outcomes on various water topics. The poster authors were available at several times during the conference to discuss their findings with attendees and answer questions. The session serves as a good venue for students to meet with their colleagues and industry professionals.
