Rig Right.

Remote release hooks make your life easier.

When crane operators want a way to make jobsite lifts safer and more efficient, what do you do?

Count on Caldwell.

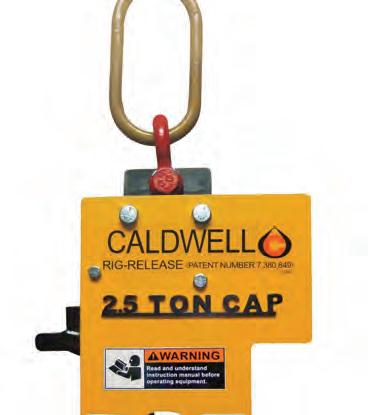

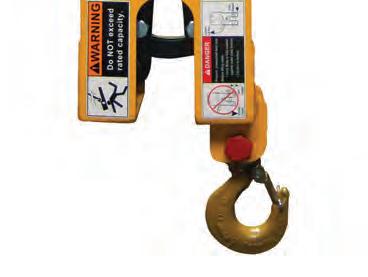

With a Rig-Release® Hook, everything gets better. First, a patented mechanism locks the rigging under load so it cannot accidentally release. Then, once the load is set, the pull of a rope or the push of a button releases the load from a safe distance. There’s no need to have a boom lift on site or to hire additional crew to crawl out … or up … just to disconnect slings, chokers or baskets. Choose from manual or radio-controlled units with capacities ranging from 2.5 to 15 tons. Or, let the Caldwell engineers design one specifically for your unique project.

You can’t go wrong with the right equipment.

FREE Construction Lifters Catalog

Request your copy at 800.628.4263 or visit caldwellinc.com/caldwell-catalog-library/

800.628.4263

• caldwellinc.com

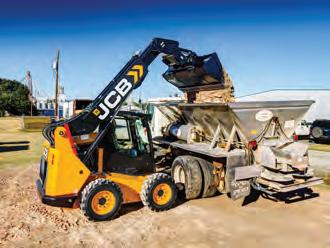

JCB Teleskid

Available in tracked and wheeled versions, the Teleskid can perform the work of a telescopic handler, masted forklift, compact loader and skid steer, all in one easily serviced machine.

• Telescopic boom combines vertical and radial lift capability

• Provides a forward reach of 8 ft., a lift height of 13 ft. and can dig below the chassis to a depth of 3 ft.

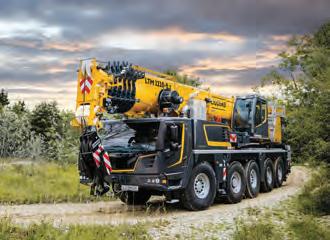

Liebherr LTM 1110-5.2 Mobile Crane

The 121-ton LTM 1110-5.2 five-axle mobile crane features a new driver's cab, the LICCON3 next-generation crane control and ZF TraXon DynamicPerform gearbox.

• 197-ft. telescopic boom and variable axle loads enable maximum mobility

• Touchscreen function on the large display in superstructure cab enables easier and more comfortable control

• Bucket-positioning leveling system allows the level to be set and maintained throughout range of movement

• 74-hp JCB Ecomax Tier 4 Final engine provides high torque at low rpm

• JCB myCHOICE software allows control responsiveness and joystick sensitivity

• Cab includes a multifunction steering wheel, improved instruments and modules plus new displays and climate control system

• DynamicPerform clutch module delivers almost zero wear starting and maneuvering for the modular gearbox

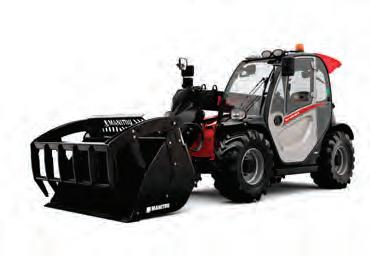

Manitou MLT 420 Compact Telescopic Loader

The compact MLT 420 AG telescopic loader offers the advantages of a loader, telehandler and industrial forklift combined.

• Measures just 58 in. wide and 79 in. high yet has a maximum lift capacity of 4,400 lbs. and a maximum lift height of 14 ft. 4 in.

• Full-size operator's cab offers full 360° visibility

• Two-speed hydrostatic transmission with directional and gear change on the JSM (joystick, switch, and move)

• JSM joysticks enable control of all hydraulic functions with one hand

• Standard auto reversing fan

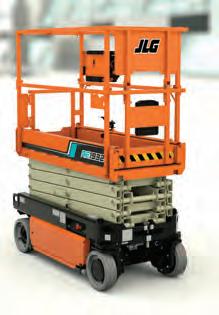

JLG AE1932 All-Electric Davinci Series Scissor Lift

The AE1932 is the first all-electric lift for JLG in the Davinci series. The AE1932 has minimal environmental impact with zero emissions – resulting in clean, quiet operation.

• Powered by lithium-ion battery.

• 19-ft. platform height and 32-in. wide.

• Platform capacity of 600 lbs. both indoors and outdoors.

• Compliant to A92.20 standards.

• Travels 2x faster than a standard scissor lift.

• Each wheel controlled independently for less tire wear

• Comes standard with QuikFold rails, JLG Mobile Control.

Genie Lift Tools Access Deck for Booms and Scissor Lifts

The Lift Tools Access Deck for Genie Z articulating booms, S telescopic booms and GS-1930 scissor lifts provides operators with a secondary working surface by elevating them 22 in. above the platform floor.

• Deck for booms weighs roughly 27 lbs., provides more than 3 sq. ft. of additional work area, has a 300lb. capacity and comes with a handle that provides operators with three points of contact when working at height

• Deck for scissor lifts weighs about 25 lbs., has a 225lb. capacity and installs to the inside of the extension deck guardrails on GS-1930 scissor lift platforms

• Both versions can be installed by one person without tools in less than 5 minutes, and fold flat for storage

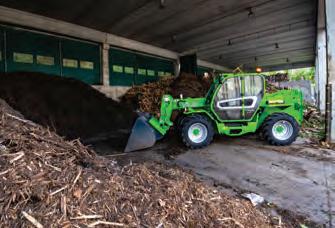

Merlo P72.10Plus Telehandlers

The P72.10PLUS is powered by a 115-hp Perkins engine with eco power drive (EPD). To improve efficiency, the EPD automatically controls and adjusts engine speed, hydrostatic pump flow rate and hydrostatic engine displacement. Features include:

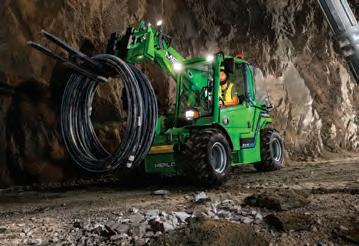

Merlo eWorker Electric Telehandler

The Merlo eWorker has a maximum load capacity of 5,511-lbs. It features a maximum lift of 15-ft., 7-in. and a load capacity of 3,307lbs. at maximum lift. The no-flex boom has a maximum reach of 8-ft., 5-in. handling a maximum load of 1,984-lbs. The eWorker can put in a full day’s (eight hours) work without recharging. It is a compact machine with dimensions similar to those of an industrial forklift. Equipped with a telescopic boom, the machine has a low center of gravity. Stability is gained by positioning the battery in the middle of the vehicle. The telescopic boom operates from its own electric motor that is connected to a load sensing hydraulic pump. A dedicated electronic control unit manages the rpm of the electric motor and the oil flow of the hydraulic distributor. In addition, the telescopic boom descends by gravity via a valve controlled by the same control unit.

Genie’s S-60 DC and S-60 FE Boom Lifts

Genie's S-60 DC and S-60 FE boom lifts are hybrid telescopic booms that are lightweight offerings in the 60-foot height class. With a 67-ft., 2-in. working height and a 6-ft., 2-in. platform height, both the S-60 DC and the S-60 FE can be used indoors and outdoors, and can deliver a full day of 100 percent electric, four-wheel drive performance on a single battery charge. The S-60 FE can also work more than one week on a single tank of fuel. Additionally, the FE boom’s intelligent control system keeps the batteries charged and machine ready to work by using both regenerative braking technology and automatic engine start and stop.

• Maximum load capacity of 15,800 lbs

• The low pivot, no-flex boom has a lift height up to 31 ft., 3 in.

• Top load at full height is 9,000 lbs.

• Maximum reach of 17 ft., 1 in. easily manages 4,500 lbs.

• A load sensing hydraulic pump with flow sharing distributor is designed to supply the P72.10PLUS with efficiency, performance and smooth operation.

JLG 2733 High-Capacity Telehandler

Bobcat TL519 Telehandler

The new TL519 telehandler is the most compact telehandler in Bobcat's lineup, at just 6-ft. wide. It features a 74-hp engine, a 2-speed hydrostatic transmission and a standard Power Bob-Tach mounting system that allows operators to swap attachments without leaving the cab. The TL519 has a lift capacity of 5,500-lbs. and a lift height of more than 19-ft. The TL519 also comes equipped with four steering modes and five operation modes for operator versatility. The advanced Tier 4, turbo-charged engine delivers high-torque performance and achieves emissions compliance without the use of a diesel particulate filter (DPF) or selective catalyst reduction (SCR). The engine features cold weather starting and a variety of features that support maintenance and service.

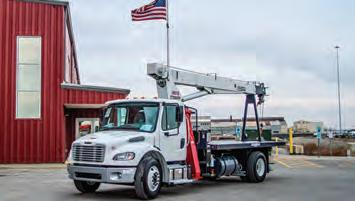

Load King Stinger MU16 Boom Truck

The Load King Stinger MU16 boom truck provides a 47 ft. fully synchronous telescopic keel boom and features a maximum lifting capacity of 10 tons (20,000 lbs).

Features include a 47-ft. boom length, 57-ft. maximum tip height, electronic-rated capacity indicator and quick reeving boom head. Three-section, full-power, fully-synchronized telescopic keel boom. 370° non-continuous rotation or optional 360° continuous rotation. Hoist line pull: 7,900 lbs.

The 2733 has a 26,600-lb. maximum capacity and is purpose-built to handle and haul heavy, bulky materials, load and unload trucks and trailers and help maintenance and repair personnel work on larger fleet equipment. It offers 33 ft. of maximum lifting height and an 8,000-lb. capacity at maximum reach. A two-speed hydrostatic transmission with optional ride control and boom float allow for load stability. The unit comes standard with the Load Stability Indication (LSI) system, which senses when the telehandler reaches forward load capacity. It also includes precision gravity lowering and soft stop boom controls. The SmartLoad Technology option is also available.
