BIG DIG? NO SWEAT.

If you have the will to turn the earth upside down in pursuit of success, we have the machine that can do it and then some: R2-Series compact excavators from Bobcat.

Link-Belt 145 X4 Minimumswing Radius (MSR) Excavator

The 32,100-lb. Link-Belt 145 X4 Spin Ace delivers up to 3% faster cycle times and up to 6% better fuel economy than previous models. It has a 19-ft. 9-in. maximum dig depth and up to 21,400 lbf. of bucket digging force with Auto Power Boost. An electronically-controlled 102-hp Isuzu engine meets Tier 4 Final without the need for a diesel particulate filter. The unit includes two electrically-controlled Kawasaki variable-displacement axial piston pumps and one Kawasaki gear pump. Its ROPS and FOPS-certified cab features an automotive-grade suspended seat and a 7-in. LCD color monitor. The standard rear view camera is accessible through the monitor. RemoteCARE telematics is free for six years.

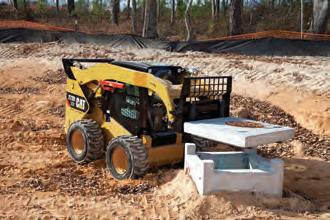

Caterpillar D Series Loaders

The 272D and 272D XHP skid steers and 299D and 299D XHP compact track loaders feature an electronically controlled C3.8 Tier 4 Interim engine with Cat NOx Reduction System.

• "Intelligent Leveling" system (ILEV) includes Electronic Dual Self Level, Work Tool Return to Dig and Work Tool Positioner features

• Rated operating capacities from 2,975 to 3,600 lbs.

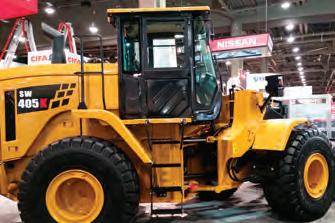

Sany SW405K Wheel Loader

The SW405K has an operating weight of 40,786 lbs., a full turn tipping load of 28,881 lbs. and is powered by a 252-net-hp Deutz TCD 7.8, four-cycle, turbocharged, electronic-controlled diesel engine.

• Z-bar linkage design delivers nearly 40,000 lbs. of breakout force

• Comes with a 4.2-cu.-yd. bucket capacity and has a 123-in. maximum dump height

• High-pressure, load-sensitive hydraulics offer a 10% to 15% reduction in energy usage

• Features a boom suspension system, bucket self-leveling, return-to-dig and automatic transmission kickdown

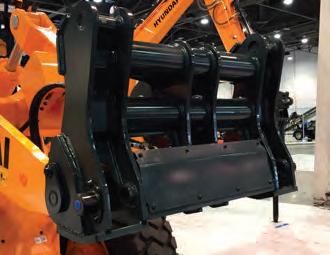

Hyundai Quick Coupler for HL900 Series Wheel Loaders

A redesigned quick coupler as an available option on the Z-bar models of the HL900 series wheel loaders.

• ISO 23727 standard-compliant coupler accommodates multiple attachment types

• Precision designed for safe operation, good centerline visibility and optimum performance

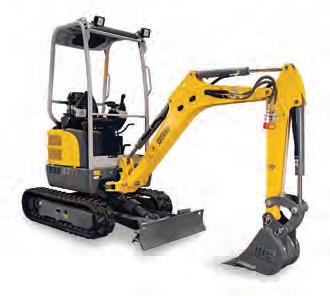

Wacker Neuson EZ 17 Compact Excavator

The 1.7-tonne EZ 17 zero tailswing compact excavator combines a compact footprint, expandable undercarriage and two-speed drive for maximum maneuverability and accessibility.

• Provides a maximum digging depth of 8 ft. 2 in. and a bucket breakout force of 4,204 lbf.

• Expandable undercarriage adjustable from 39 to 51 in.

• 17.2-hp Yanmar Tier 4 Final diesel engine

• Two-speed drive allows travel speeds up to 2.9 mph

• LUDV load-sensing hydraulic system for smoother operation and improved performance when using multiple functions

• Operator’s station provides increased leg room, easy to reach controls and selectable ISO or SAE pattern control

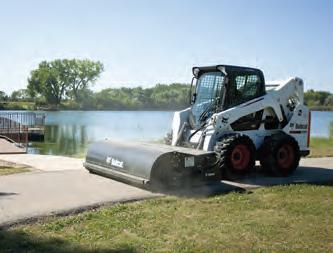

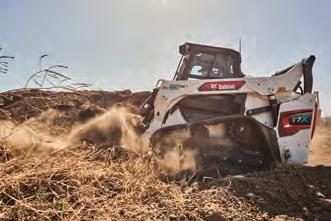

Bobcat S650 and T650 M-Series Loaders

The S650 skid-steer loader has a 2,690-lb. rated operating capacity and an 8,327-lb. operating weight, while the T650 compact track loader has a 2,570-lb. ROC and an operating weight of 9,440 lbs.

• Vertical-lift path design

• 74-hp Tier 4 Interim engine

• 23-gpm standard hydraulic flow

• 95-hp (net) 272D and 299D offer a 14% increase in peak torque

• XHP high-flow models produce 106 hp and 277 lbs.-ft. peak torque and deliver 40 gpm of flow at 4,061 psi

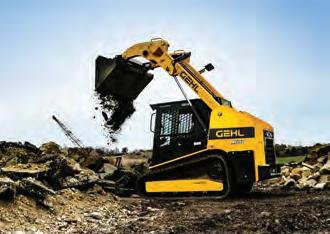

Gehl RT255 Pilot Series Track Loader

The RT255 Pilot Series track loader offers proportional control over the drive system, with a hydraulic pilot control joystick that moves with the seat for less arm fatigue.

• Features a 2,550-lb. operating capacity at 35% tipping load and a 10-ft. 8-in. lift height

• Standard auxiliary hydraulic flow rates of 29.07 gpm or 37.7 gpm with high-flow

• 74.3-hp Deutz four-stroke turbo engine with 243 ft.-lbs. of torque

• Custom-designed undercarriage with IdealTrax tension system and HydraGlide

• Optional rear back up camera, IdealAccess fold-up door and Easy MANAGER telematics

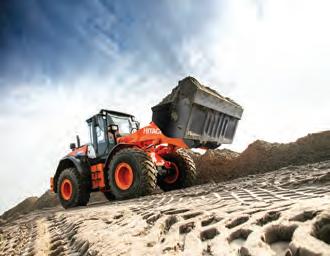

Hitachi ZW220-6 Mid-size Wheel Loader

The 38,910-lb. ZW220-6 has a 200-hp Cummins Tier 4 Final, no-DPF engine and delivers 34,170 lbs. of breakout force. The heaped bucket capacity is 4.2 to 4.7 cu. yds., with loading heights up to 13.5 ft. Parallel tilt & lift movement smooths out digging operations and Tandem function prioritizes bucket while dumping. The Power Mode switch puts a 10% burst in engine rpm for immediate access to extra acceleration, rimpull and breakout force without limiting top speed. The unit includes an automatic return-to-dig function, auto shutdown feature, auto power-up, ride control, telematics and an operator-friendly LCD color monitor. Optional E-Stick steering system is controlled via a fingertip lever mounted just in front of the armrest.

• 10-ft. 4-in. height to hinge pin

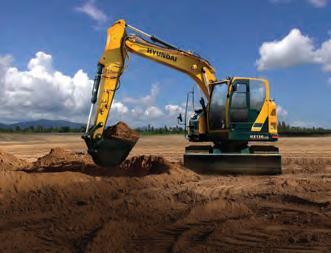

Hyundai HX130LCR Compact Radius Excavator

• Optional Selectable Joystick Controls and high-flow hydraulics

• Roller Suspension system available on the T650

The 29,750-lb. HX130LCR has a 73.6-hp Perkins 854F Tier 4 Final diesel engine and delivers an overall fuel efficiency improvement of up to 10%. It also features computer-aided power optimization based on load demand. The advanced hydraulic system includes a Boom Float mode for better grading control, Fine Swing mode for improved load control when swinging and up to 13% faster cycle speeds. The unit has an 18-ft. 4-in. maximum dig depth and bucket digging force of 22,860 lbf. It comes with an 8-in. touchscreen cluster-monitor, and is available with a 360° virtual operating view and moving object detection system, which warns when objects come within 16.5 ft.

CASE Minotaur DL550 Compact Dozer Loader

• Features a six-way blade and a C-frame that attaches directly into the chassis and primary coupler of machine for stability and a smooth operating plane

• Hydraulically detach C-frame and blade to match up with skid-steer and compact track loader attachments

The roughly 18,000-lb., 114-hp DL550 leverages the footprint of a compact track loader with the chassis-integrated C-frame and blade of a dozer to create a two-in-one machine for grading and loading applications. Provides a vertical lift geometry and a rated operating capacity of 5,500 lbs. (at 50% tipping load) True dozer-style undercarriage available in steel or rubber track configurations

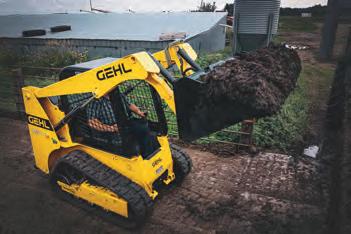

Gehl RT135 Compact Track Loader

The 6,510-lb. RT135 has an overall width of just 57 in. and height of 76 in., yet can lift up to 110 in. and 1,350 lbs. at 35% operating capacity. Its 46.6-hp Yanmar engine uses automatic regeneration and zero fuel additives. A cab-forward design incorporates a Level II FOPS, robust operator station, pilot joystick controls and strong, all-around visibility. It also features Gehl’s IdealTrax automatic track tensioning system. The All-Tach universal attachment system comes standard on the RT135, or buyers can purchase an optional Power-A-Tach system.

LBX Link-Belt 80 X3 Spin Ace Excavator

The 18,900-lb. Link-Belt 80 X3 Spin Ace has a 54-net-hp Isuzu Tier 4 Final turbocharged, no-DPF diesel engine that features one-touch idle and auto idle functions and auto engine warm-up.

• Speed Priority, Heavy, Applied engine modes

• Open-center hydraulics system with two Kawasaki variable-displacement axial-piston pumps and a Kawasaki gear pump

• Delivers a 13-ft. 9-in. maximum dig depth, 22-ft. 9-in. reach at ground level and 12,800 lb. of force

• Roomy ROPS/FOPS Level 1 certified pressurized cab with fully adjustable seat, ergonomic, low-effort joysticks, high-definition 7-in. LCD monitor and rear view camera

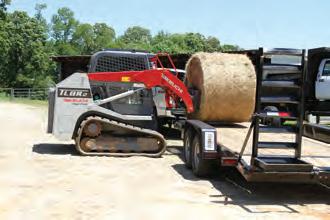

Takeuchi TL8R2 Compact Track Loader

The redesigned TL8R2 offers a tipping load of 6,041 lbs. with an operating weight of 9,182 lbs.

• 74.3-hp turbocharged, Tier 4 Finalcompliant engine features a diesel oxidation catalyst (DOC) and diesel particulate filter (DPF)

Caterpillar Next Generation

395 Large Excavator

The Cat 395 features:

• Dedicated hydrostatic swing circuit

• Power, Smart, and Eco modes

• Cooling system with on-demand fan

• New Cat air filter

• Fuel system filters synchronized for service at 1,000 hours — a 100% increase over the previous filters

• Engine: Cat C18

• Operating weight: 205,471 lb

• Max. reach at ground level*: 48’3”

• Max. loading height*: 30’4”

•Engine power (ISO 14396): 543 hp

•Max. digging depth*: 31’8”

*GP 27’7” boom, R 14’5” stick, 6.0 cu.yd.

GD bucket

Morooka MST-3000VDR Rubber Track Carrier

The U.S.-built MST-3000VDR rubber track carrier features enhanced hydraulics and a larger bed.

• Upperstructure can rotate 360° in either direction independently from the undercarriage and tracks to reduce surface damage when turning and to aid operation in limited spaces

• Powered by a 300-hp Caterpillar C7.1 engine and can handle a maximum load of 36,000 lbs.

• Creep Mode standard on models with high-flow auxiliary hydraulics and enables forward speed to be precisely matched to a particular attachment

• Automotive-styled operator station includes a 5.7-in. multi-informational

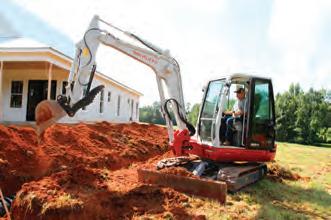

Takeuchi TB250-2 Compact Hydraulic Excavator

The TB250-2 weighs 10,957 lbs. (canopy) and features a long arm with integrated thumb mount and a maximum dig depth of 12 ft. 4.8 in.:

• Four-pump hydraulic system provides multi-function capability

• Precision pilot joysticks

• Primary auxiliary circuit supplies 24.2 gpm and is controlled via a proportional slide switch on the left-hand joystick

• Spacious cabin with automotive-styled interior, high-capacity HVAC system, deluxe high-back suspension seat and large multi-function monitor

• Multiple presets allow attachments to be exchanged quickly and easily

• Standard Takeuchi Fleet Management telematics system the left hand joystick

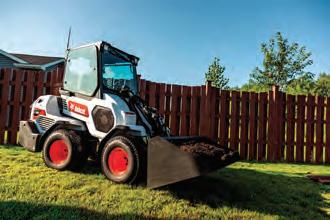

Bobcat L23 and L28 Small Articulated Loaders

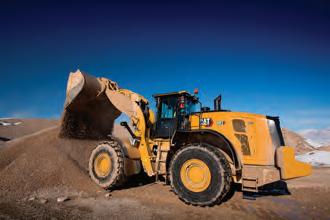

Caterpillar 980 and 982 Wheel Loaders

The 30,344-lb. 980 and 35,510-lb. 982 have 420- and 432-hp Cat C13 Tier 4 Final diesel engines that enable a full turn static tipping load of 20,965 and 22,418 lbs. and breakout force of 51,008 and 59,060 lbs.

• 980 XE and 982 XE feature a continuous variable transmission (CVT), fine rimpull modulation capability and virtual gears

• Come with Cat Payload with Assist or optional Cat Advanced Payload

• Autodig with Auto Set Tires can automate the complete bucket loading cycle

• Cab features include a high-resolution touchscreen display and seat-mounted electrohydraulic joystick steering system

The 3,790-lb., 25-hp L23 and 3,740-lb. L28 small articulated loaders offer rated operating capacities of up to 1,395 and 1,534 lbs. with tip capacities up to 2,789 and 3,068 lbs. and lift heights of 85.4 in. and 104.3 in. A telescoping lift arm includes a dual-cylinder design that keeps the load level as operators move the bucket. The units have the ability to fit into backyards and their tight-turning articulation and light overall footprint limit cuts or tears on surfaces when turning or hauling a load. Two traction modes are automatically enabled based on operation. High traction mode provides optimal control and mobility over rough or slippery terrain, while turf-safe mode keeps the wheels from scrubbing on the ground while actively steering. Fingertip auxiliary or telescopic controls facilitate quick, simple operation.

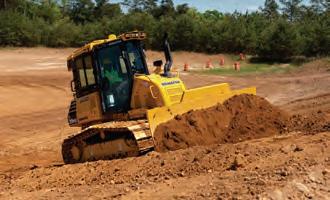

Komatsu D39i-24 Dozer

With the factory-installed, integrated intelligent Machine Control, 3D design data can be programmed into the 105-hp D39i-24, enabling auto dozing from rough cut to finish grade.

• Proactive dozing control measures the terrain the dozer tracks over and uses that data to plan the next pass

• Tilt steering control automatically tilts the blade to maintain straight travel color display with rear view camera and sealed rocker switch bank, standard low-effort pilot controls and proportional auxiliary switches

• Optional pressurized cab available

• Lift layer control puts in repeated consistent lifts at the press of a button

• Temporary design surface can be created using quick surface creation

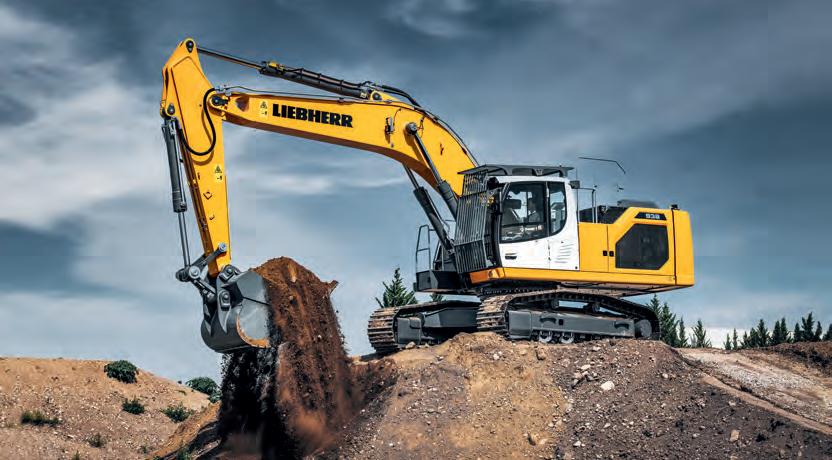

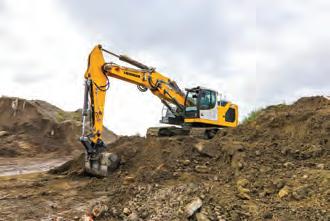

Liebherr R 928 G8 Crawler Excavator

The R 928 G8 crawler excavator has a total weight of less than 30 tonnes in various configurations and is characterized by high drawbar pull, enhanced load-bearing capacity and a large bucket.

• Optimized weight allows for easier transport

• Develops higher tear and breakout forces, plus the torque of the superstructure has been increased

• Features include an optimized load curve and improved inertia in the rotary drive

• Robust X-form undercarriage

• Top speed of 8 mph and exerts a ground pressure of 3.6 to 8.0 psi

• Includes a spacious, air conditioned cab with fully retractable front window, pneumatic seat and high-resolution touchscreen

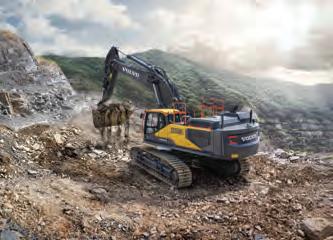

Volvo EC530E and EC550E Excavators

Volvo CE entered the 50-ton excavator class with the EC530E and EC550E, which feature the speed and power normally found in 60-ton machines, making them perfect for heavy-duty digging, mass excavation and large-scale site preparation. These models feature the highest engine power in their class, providing high tractive force and swing torque. When coupled with a large bucket, the EC530E and EC550E are perfectly suited to fill 30- to 40-ton haulers, requiring fewer passes and reducing cycle times. This combination can boost productivity by up to 20%. The optional Dig Assist machine control system and On-Board Weighing function improve efficiency and help operators monitor load per bucket, truck or day.

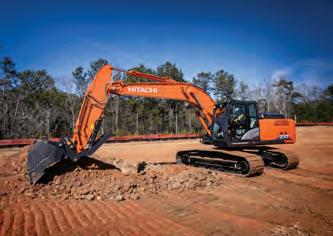

Hitachi ZX210LC-6 HP Excavator

Hitachi Construction Machinery Americas Inc. (HCMA) introduces the 50,265-lb (22,800-kg) ZX210LC-6 HP excavator, which will redefine power and speed while reducing fuel consumption.

The ZX210LC-6 HP offers power, speed and precision to meet the most demanding job-site requirements. A highpower HP Mode increases engine speed and hydraulic-pump output torque when extra speed or heavy-duty work required.

The TRIAS II hydraulic system features three pumps that supply an optimal amount of pressurized oil to each actuator. The pumps are controlled electrically for precise oil flow for sensitive front attachment control and lower fuel consumption.

Ditch Witch C24X Walk-Behind Trencher

Ditch Witch's updated C24X walk-behind trencher maintains the same efficient design as other CX-series models but with a 24-hp Honda engine that is now fuel-injected to improve performance and reduce maintenance frequency. The new engine also has eliminated the choke to ease machine startup and includes throttle by wire to simplify maintenance. The unit is able to put more head shaft horsepower to the ground, and an updated auger shaft support allows any bricks and rocks to pass more easily. It is able to reach a trench depth of 36 in. and a width of 6 in. The CX track system features a longer right track to keep more track on the ground and a shorter left track to ensure maneuverability.

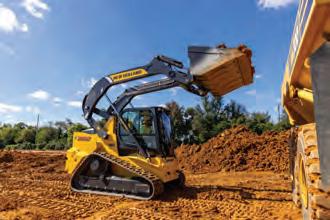

New Holland C362 Compact Track Loader

The C362 features 114 gross hp, a rated operating capacity of 6,200 lbs. and a breakout force of 12,900 lbs.

Frame design incorporates a heavy-duty steel rear door and rear hood In-cab 8-in.

The C362 featuers an LCD display with EZ EH custom screen settings. Electrohydraulic controls feature multiple speed and sensitivity settings, including creep mode and automatic straightline tracking. The C362 also offers full 360° visibility with the low-profile Super Boom arm and shoulder design, an integrated rear camera and LED front work lights.

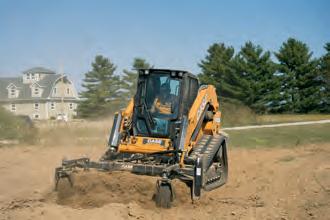

Case Construction Equipment TV620B Compact Track Loader

Case Construction Equipment's 114-hp TV620B has a 6,200-lb. rated operating capacity, a bucket breakout force of 12,084 lbs. and 74 in. of track on the ground.

• Heavy-duty undercarriage and 17.7-in. rubber tracks allow for 6.1-psi ground pressure

• Standard adjustable electrohydraulic controls, high-flow hydraulics, auto ride control, one-way self-leveling, hydraulic coupler, auto-reversing fan and LED light

• Cab features a redesigned operator interface, 360° visibility and an 8-in. LCD multifunction display

• Rear view camera visible in a split-screen display with machine data

ASV MAX-Series VS-75 and RS-75 Skid-steer Loaders

The radial lift 75-hp RS-75 has a 2,600-lb. rated operating capacity (ROC) and a 5,845-lb. breakout force and the 75-hp vertical lift VS-75 has a 3,500-lb. ROC and 5,920-lb. breakout force.

• 10.5 in. of ground clearance

• Next-generation cab with 360° visibility, roomier operator area, comfortable seat, touchscreen display

• Enhanced visibility via standard LED lighting, optional side lighting, all-clear sides, frameless door

• Standard safety features include a roof escape hatch, ROPS and reinforced windows for impact resistance

• Optional pressurized cab, fully suspended seat, 7-in. touchscreen display, dual throttle and more

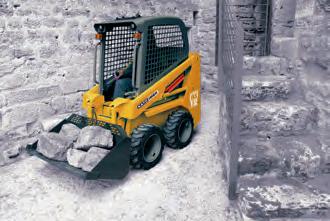

KATO AS12 Skid-Steer Loader

The 21-net-hp AS12 radial lift skid steer delivers enhanced performance in a compact package that comes as narrow as 3 ft. 1 in. and has an overall length of 8 ft. 6 in.

• Operating weight of just over 3,000 lbs. with a rated operating capacity of 728 lbs.

• Features 1,641 lbs. of breakout force and a tipping load of 1,455 lbs.

• 8-ft. 4-in. height to hinge pin

• 9.25-gpm standard hydraulic flow

• Interior offers clearance of up to 28 in., a comfortable adjustable seat and easy to operate controls

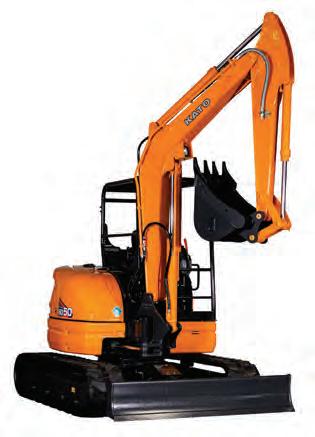

Kato 50V-5 Compact Excavator

The 50V5 has a 12-ft. 7-in. dig depth, 9,100 lbs. of breakout force at the bucket and weighs in at an easily towable 10,830 lbs.

• Kubota V2403-CR-E5B diesel engine rated at 43.5 hp at 2,400 rpm

• 43-gpm total hydraulic system flow and 16-gpm maximum auxiliary hydraulic flow

• Features an offset boom, stable track frame and 6-ft. 6-in. dozer blade

• Operating environment comes in open canopy or cab configurations with highly responsive pilot controls and easy to read instrument panels

• Wide-opening access panels and large compartments ensure ease of service

Hitachi ZW100-6 Wheel Loader

The ZW100-6 has an operating weight of 17,042 lbs., a bucket capacity of 1.4 cu. yds. and a 101-hp Tier 4 Final DPF-free engine.

• Hydrostatic transmission control system makes it easy to maneuver and intuitive to operate

• Oscillating rear axle provides more stability and traction

• Traction control system helps avoid tire slippage when working in sensitive ground conditions

• Cab offers 360° panoramic visibility, an optional rear view camera, improved sound insulation and several storage compartments

• Updated heavy-duty axles, a heavy center pin and robust box frame enhance machine durability

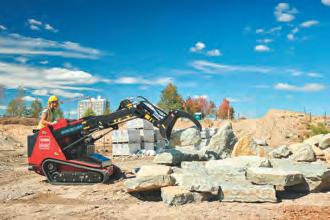

Toro Dingo TX 1300

The Toro Dingo TX 1300 brings a new combination of power, reach, and convenient control to the Toro Dingo lineup. When you have a lot of material to move, the Dingo TX 1300 provides the power to do it efficiently. It’s ideal for landscape, hardscape and tree care jobs, though its versatility allows it to be used for much more. The Dingo TX 1300 features an exclusive Intelliscope loader arm with SmartLoad technology, giving the operator an additional 26 in. of reach. An impressive hinge-pin height of 109 in. allows for loads to be lifted up and over the side of a dumpster or truck, another major convenience. The goal of these features is to help users reach maximum productivity.

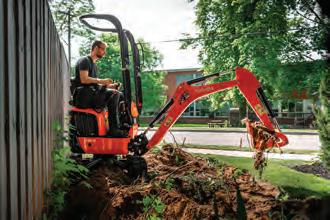

Kubota K008-5 and U10-5 Compact Excavators

The all-new U10-5 minimal tail swing excavator, taking an in-demand spot in the U Series minimal tail swing lineup. The U10-5 is Kubota’s answer to the rental or professional customer who requires a compact excavator in the 0–1-ton range. With a more compact frame and minimal tail swing, the U10-5 provides superior flexibility when working in tight spaces with very minimal overhang at 0.6 of an inch over the tracks, ensuring excellent balance, stability, and fast operation for both residential and commercial work. The new model is available now at Kubota dealerships nationwide.

Sunward SWE90UF Zero Tailswing Excavator

The 9-ton SWE90UF with zero tailswing has a maximum digging depth of 14 ft., 11 in., a lifting capacity up to 10,500 lbs. and a reach of up to 25 ft.

• Includes a 62-gross-hp Yanmar engine, Bosch Rexroth hydraulic pump, valves and joysticks, Flutek travel motor and KYB swing motor

• 42.3-gpm hydraulic flow

• 35° gradeability

• Designed for enhanced performance, comfortable and safe operation and convenient maintenance

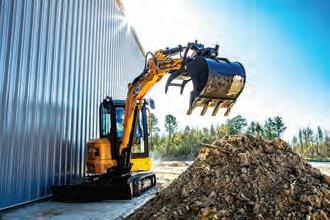

JCB 35Z-I Zero Tailswing Compact Excavator

The 3.5-metric ton 35Z-I is powered by a 24.7-hp Perkins Tier 4/Stage V diesel engine that meets EPA emissions requirements with no need for electronic control, DPF or EGR.

• Max digging depth of 10 ft., 5 in. and nearly 7,200 lbs. of bucket tearout force

• Programmable auto-idle and four different engine modes reduce fuel consumption

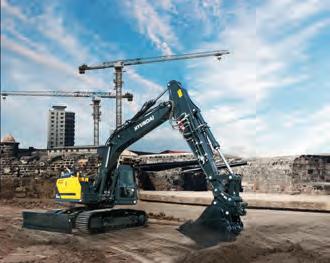

Hyundai HX160AL Mid-sized Excavator

The HX160AL has a 152-net-hp Cummins-B4.5 Stage V-compliant diesel engine with a new emissions system equipped with a diesel particulate filter (DPF) that incorporates passive regeneration.

• Integrated Intelligent Power Control (IPC) mode and improved RCV levers enable finer, more precise control and reduce operator fatigue

• Lift mode simultaneously controls power/speed and maintains it throughout the lift cycle

• Auto safety lock prevents unintended hydraulic operation

• Bosch-Rexroth variable displacement, load-sensing, electro-proportional pump

• High-flow, electro-proportional, doubleacting auxiliary hydraulics deliver 18.5gpm flow

• Standard electro-proportional joystick controls

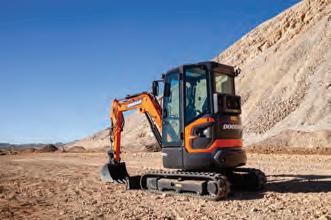

Doosan Next-generation Mini-excavators

The 6,168-lb. DX272-7 conventional and 8,807-lb. DX35Z-7 and 12,121-lb. DX50Z-7 zero tailswing mini-excavators come with the DoosanCONNECT Telematics management system.

• Powered by 24.7- to 48.8-hp diesel engines and provide maximum digging depths from 8 ft. 8 in. to 11 ft. 5 in.

• DX27Z-7 includes a rear view camera, 3-ft. 7-in. standard thumb-ready arm and an 11.8in. rubber track undercarriage

• DX35Z-7 has a large auxiliary hydraulic flow, wider enclosed cabin, high luminous LED lamp and 5.7-in. full-color LCD monitor

• DX50Z-7 has a standard enclosed cab

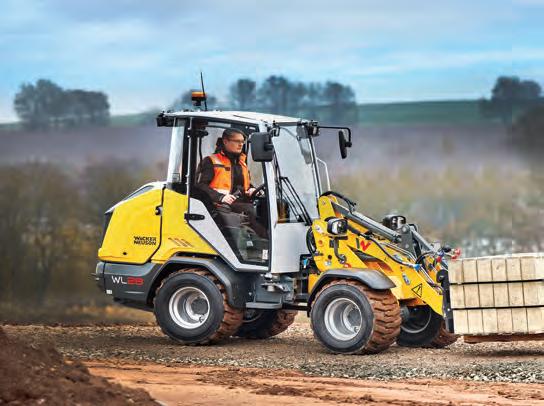

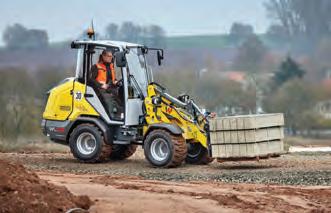

Wacker Neuson WL28

Articulated Wheel Loader

The 3-ton, .5-cu.-yd. WL28 has a compact design with minimized tailswing and optimized steering angle that allow navigation in tight spaces.

• 45- or 54-hp Yanmar Stage V engine offers an efficient regeneration system, optimal power-to-weight ratio and lower fuel consumption

• Electronic regulated drive system provides improved pushing power, speeds up to 18.6 mph and an electronic parking brake with hill-hold function

• Standard auto/eco mode and optional attachment mode

• Cab offers increased operator space, improved ergonomics with intuitive controls, air conditioning and increased visibility on all sides

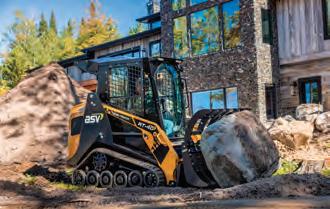

ASV Repowered RT-40 PosiTrack Compact Track Loader

The repowered ASV RT-40 Posi-Track Compact Track Loader now features a 38.2-hp Yanmar three-cylinder, Tier 4 diesel engine that delivers a power boost over the previous version. The model includes:

• Offers a 48.3-in. width, 8.4-ft. lift height, 931-lb. rated operating capacity and 7.1mph top speed

• Idler wheels full-metal-face seal package increases rated operating capacity to 1,008 lbs.

• Standard variable auxiliary hydraulic flow: 13.3-gpm pump capacity, 3,000 psi

• Tall, pressurized cab offers easier entry and exit, a single-sided lap bar, adjustable armrests, 4.3-in. color display and hydraulic joystick controls

• Dedicated frame results in a 10.8-in. ground clearance

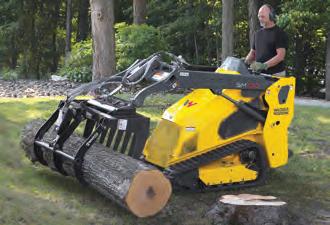

Wacker Neuson SM100 Utility Track Loader

Powered by a 24.7-hp Yanmar turbocharged diesel engine, the SM100 has a 1,000-lb. rated operating capacity at 35% of its 2,857-lb. tipping load.

• Optimized radial lift path enables a hinge pin height of 85.7 in.

• Undercarriage includes 9-in.-wide tracks for low ground pressure and triple-flanged rollers to reduce wear, de-tracking and maintenance

• Large, spring-suspended operator platform with ergonomic padding and an operator presence system

• 35.5-in. width allows access in confined spaces and 3,300-lb. weight enables easy transport

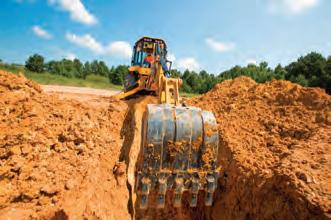

Sany SLB95 Backhoe-loader

The SLB95 backhoe-loader has a 17,637-lb. operating weight, a 14-ft. 3-in. maximum digging depth and 12,354 lbf. of backhoe bucket breakout force.

• Low-maintenance Deutz TCD3.6-L4 Tier 4

Final engine rated at 95 net hp at 2,200 rpm

• Four-wheel-drive powershift transmission with limited-slip differential for traction

• 41.2-gpm load-sensing hydraulic system with pilot controls and ISO/SAE pattern changer

• Loader includes full float function and return-to-dig

• Auxiliary circuit or breakers, attachments

Bobcat T7X All-electric Compact Track Loader

The Bobcat T7X is powered by lithium-ion batteries. The T7X features a fully electric drive system in place of a traditional hydraulic work group. It’s built with about half the parts and components required for a diesel-engine loader—driving down maintenance and overall ownership costs to levels never reached before. Producing zero emissions, the all-electric platform offers instantaneous power with no need for a hydraulic system to build up power. The T7X offers an exceptional operator experience with drastically reduced noise and vibration and significantly less fluids, ideal for urban areas where noise restrictions can limit work hours.
