EARTHMOVING Products

Kato 17V5 Compact Excavator

The 4,261-lb. 17V5 zero tailswing compact excavator is powered by a 14-hp Yanmar engine and features a maximum dig depth of 7 ft., 2 in. and a maximum digging height of 11 ft., 10 in. It also offers a gradeability of 30° and 7-gpm auxiliary hydraulic flow. The V5 generation machine includes an easy entry ROPS canopy design for a roomier operator environment. Its hydraulic expandable tracks and folding push blade extend/ retract from 39 to 51 in. wide, allowing maneuverability and stability in tight workspaces. The standard pattern change valve is conveniently located under the operator's floor mat. Wide-swinging access doors allow for easier maintenance work. It also features an easily visible monitor, centralized switches, increases leg room and cabin room and more.

KOBELCO Next-generation SK55SRX-7 Compact Excavator

ROPS canopy design

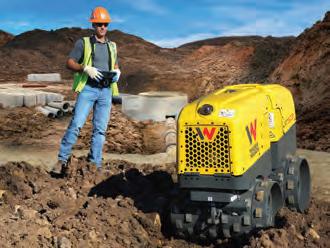

Wacker Neuson RTLx-SC3 Articulated Trench Roller

The RTLx-SC3 (Smart Control 3) offers below-the-axle exciters that produce a more efficient transfer of compaction energy to the soil. The simple lower end design is fully sealed with lifetime lubricated drive gears and maintenancefree exciter gears and bearing. All the hydraulic hoses have been shortened and re-routed to avoid wear and improve serviceability. The unit is powered by a 19.8-hp Kohler diesel engine and produces a high and low compaction force (15,400/7,700 lbf.) to provide flexibility depending on the application. The drums can be converted from 32 to 22 in. to fit the application/trench. A line-of-sight infrared remote control enables safe operation.

Kobelco SK45SRX-7 Compact Excavator

The next-generation SK45SRX-7 weighs in at 10,030 lbs. with canopy and 10,300 lbs. with cab and has a 37-hp Yanmar Tier 4 Final diesel engine. Maximum digging height with the standard arm is 18 ft. 10 in., maximum reach at ground level is 18 ft. 8 in. and maximum digging depth is 11 ft. 3 in. The unit includes an Energy Conservation mode as well as a standard auto-deceleration switch to reduce fuel use. A new hydraulic system shortens the digging cycle time by up to 7% over the previous model, while redesigned travel motors increase travel speed by up to 5%. A two-way dozer blade with float comes standard or a four-way (power angle) dozer blade with float is an available option.

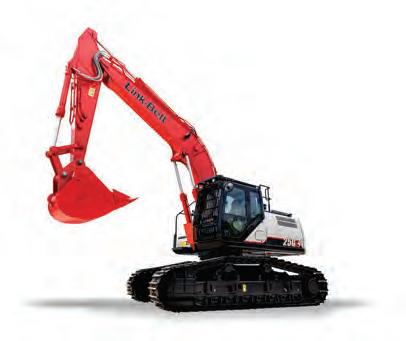

Link-Belt 210 X4 HD, 250 X4 HD, and 300 X4 HD Excavators

The 210 X4 HD, 250 X4 HD and 300 X4 HD come factory equipped with a high-wide and heavy-duty undercarriage with larger components for added durability, strength and performance.

• Feature an 11% to 17% wider stance and 40% to 50% higher ground clearance for enhanced stability and increased lift capacities

• Traveling performance improved with up to a 30% increase in drawbar pull

• HD attachments feature a high lift bracket for a greater working range and added lift capacities

• Isuzu Tier 4 Final engines offer more power, use less fuel

Volvo L200H High Lift Wheel Loader

The L200H high lift wheel loader features a 27% increase in lifting capacity and a 13% larger grapple than the L180H model it replaces. This means the L200H can handle more timber per hour. A new loading unit features a reinforced lift arm system, cross beam and rotator unit. This increases the machine’s maximum lifting capacity from 19,401 lbs. on the L180H high lift to 24,600 lbs. To accommodate this extra capacity and ensure the stability of the loader, larger 875-type low-profile L4 tires come standard. With the ability to stack logs to almost 23 ft. high, 60% higher than a conventional wheel loader. The L200H high lift enables reaching logs on the stack thanks to 360° rotation and the ability to tilt. A new external axle oil cooling system reduces the temperature of the axles.

Mini excavator models play a key role in any jobsite, large and small. The nextgeneration SK55SRX-7 Mini Excavator from KOBELCO Construction Machinery USA packs more digging power and practical performance features into a small package while maintaining a short tail swing. A new hydraulic system shortens the digging cycle by 7% and travel speed is faster by 12% empowering operators to get tough jobs done faster and easier. And with the continued Performance X Design concept for enhanced design and operator comfort, KOBELCO is proud to design smaller machines with the same quality, feel and comfort as large excavators.

Takeuchi TB20e Electric Compact Excavator

The TB20e is Takeuchi’s first designed-and-built, battery-powered compact excavator. When fully charged, the TB20e offers a continuous working time ranging from four to eight hours, depending on the application and environment. The excavator has an operating weight of 4,255 lbs., a bucket capacity of 1.34 cu. ft. and a primary auxiliary flow of 9.0 gpm. Maximum reach is 13 ft., 4 in. and maximum digging depth is 7 ft., 10.1 in. A spacious and comfortable operator’s station features a new high-definition, multiinformational color display. Zero exhaust emissions and reduced noise and vibration levels make the TB20e an environmentally friendly, sustainable choice that doesn’t sacrifice power or performance.

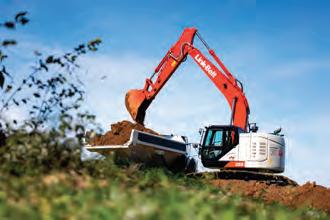

Link-Belt 355 X4S Excavator

The 78,709-lb. Link-Belt 355 X4S minimum swing radius excavator has a maximum digging depth of 22 ft. 10 in., maximum reach at ground level of 34 ft. 8 in. and a bucket digging force of 39,340 lbf. An Isuzu AQ-6HK1X 6-cyl., Tier 4 engine produces 205 net hp at 1,800 rpm. Four work modes offer varying levels of selectable rpm settings. The new Eco mode maximizes fuel economy and the new Lifting mode ensures power boost is always on during lower rpm crane tasks. The full-size cab offers more room and comfort, a high-back air suspension seat, improved cab layout and a 10-in. LCD monitor. Two high-resolution cameras are standard with the optional WAVES camera system providing a 270° view around the machine.

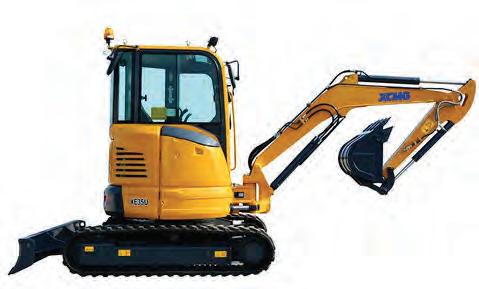

XCMG XE35U Excavator

The XE35U hydraulic excavator uses multifunctional working tools to complete tasks such as excavation, loading, leveling, trenching, crushing, drilling, clamping and lifting in hydropower, transportation, gardening, farmland transformation, and working with oil pipelines. The XE35U is used widely throughout construction and production. It has a tailless shape that allows it to be flexible and maneuver through small spaces such as urban streets and basements. The ultra-small radius of the slewing provides convenience and improves safety.

Yanmar ViO80-1A and SV100-2A

The ViO80 features Yanmar’s zero tail-swing, and the SV100 includes an ultra-tight tailswing. The ViO80’s zero tail-swing design, a feature pioneered by Yanmar, allows the excavator to rotate next to a structure with less risk of hitting it. The larger SV100’s ultratight tail swing has 6.7 in. of overhang. Both designs allow work in tight jobsites, as found in residential construction or road and utility work. The 8-ton-class ViO80 weighs in at 18,136 lbs. with 56.9 hp and a maximum digging depth of 15 ft., 4 in., while the 10-ton class SV100 has a 21,550-lb. operating weight while providing 72 hp and a maximum digging depth of 15 ft., 9 in. Standard features include ECO Mode, Auto-Decel Mode and auto shift 2-speed travel. The mini excavators’ auto shift 2-speed travel design shifts the machines between low and high range automatically.
