To guard against really tough weeds and manage weed resistance, you need better protection than glyphosate alone.
DuPont™ Guardian® herbicide delivers high-performing, residual control of your toughest weeds, including dandelion, yellow nutsedge and annual sow-thistle.
NEW! From burn-down to early pre-emergence in no-till IP and glyphosate-tolerant soybeans,new DuPont™ Guardian® Plus herbicide delivers the extra power you need, with enhanced residual control of troublesome weeds like eastern black nightshade and herbicide resistant pigweeds and lamb’s-quarters.
Kevin Yaworsky • 403.304.9822 kyaworsky@annexweb.com
SALES ASSISTANT
Mary Burnie • 519.429.5175 888-599-2228 ext. 234 mburnie@annexweb.com
PRODUCTION ARTIST
Kelli Kramer
GROUP PUBLISHER
Diane Kleer dkleer@annexweb.com
PRESIDENT Michael Fredericks mfredericks@annexweb.com
PUBLICATION MAIL AGREEMENT #40065710
RETURN UNDELIVERABLE CANADIAN ADDRESSES TO CIRCULATION DEPT.
P.O. BOX 530, SIMCOE, ON N3Y 4N5
e-mail: mweiler@annexweb.com
Printed in Canada ISSN 1717-452X
CIRCULATION
e-mail: mweiler@annexweb.com
Tel.: 866.790.6070 ext. 211
Fax: 877.624.1940
Mail: P.O. Box 530, Simcoe, ON N3Y 4N5
SUBSCRIPTION RATES
Top Crop Manager West - 8 issuesFebruary, March, Mid-March, April, June, October, November and December - 1 Year - $44.25 Cdn. plus tax
Top Crop Manager East - 7 issuesFebruary, March, April, August, October , November and December - 1 Year - $44.25 Cdn. plus tax
Specialty Edition - Potatoes in CanadaFebruary - 1 Year - $8.57 Cdn. plus tax
All of the above - $76.19 Cdn. plus tax
Occasionally, Top Crop Manager will mail information on behalf of industry-related groups whose products and services we believe may be of interest to you. If you prefer not to receive this information, please contact our circulation department in any of the four ways listed above.
BioStacked® means greater plant vigour, root biomass and more nitrogen-fixing nodules on every plant. Only HiStick® N/T and HiCoat® N/T S225 are BioStacked® –which in turn means increased performance, superior Return-on-Investment and most importantly, added yield potential.
In the planter or in the bag – ask your retailer about BioStacked® HiStick® N/T inoculant and HiCoat® N/T S225 pre-inoculant system – Canada’s #1 soybean inoculants.
PESTS AND DISEASES
PHOTO BY RALPH PEARCE
Underseeding winter wheat to red clover and in-crop weed control: two top management practices that benefit yields in winter wheat and subsequent crops.
Mextrol® 450 is guaranteed safe on clover, and controls all the standard weeds in wheat.
• Superior control of buckwheat, lamb’s quarters, mustards and ragweed.
• Everyday affordability. No frustrating grower programs.
• Fully serviced by Nufarm.
Connect to a world of
Informed Advice…
Successful growers understand the value of knowledge and the benefit of dealing with a team of experts who understand the business of farming, like you do.
When you deal with Cargill, you are connecting to a team of thousands of agri-business professionals, a vast network of hundreds of business partnerships and a world of countless opportunities.
When it comes to the business of farming, Cargill can connect you to a world of expertise.
Staying ahead of Asian soybean rust
by Heather Hager, PhD
ALL PHOTO COURTESY OF ALBERT TENUTA, OMAFRA.
PLANT BREEDING
Fusarium rolls across the land. Ugly and unstoppable.
PHOTO BY RALPH PEARCE
New control options help growers manage fusarium head blight
PHOTO BY RALPH PEARCE
PESTS AND DISEASES
Until now. Because true Fusarium management has finally arrived.
CARAMBA® manages Fusarium head blight and delivers exceptional control of leaf diseases. Registered for spring and winter wheat, barley, durum, oats and rye, it’ll help you keep your yields on track.
PHOTO COURTESY OF BASF CANADA
PESTS AND DISEASES
Integrating management practices for anthracnose control
by Bruce Barker
ALL PHOTOS COURTESY OF CHRIS GILLARD, UNIVERSITY OF GUELPH
CONSIDER THIS YOUR TICKET TO A GREAT DEAL
This year, step into the field with equipment that works as hard as you do. Right now, Case IH is making it easier than ever by offering great deals on everything you need for your livestock, dairy or small farm operation. Hurry in to your Case IH dealer. Offer ends soon!
PESTS AND DISEASES

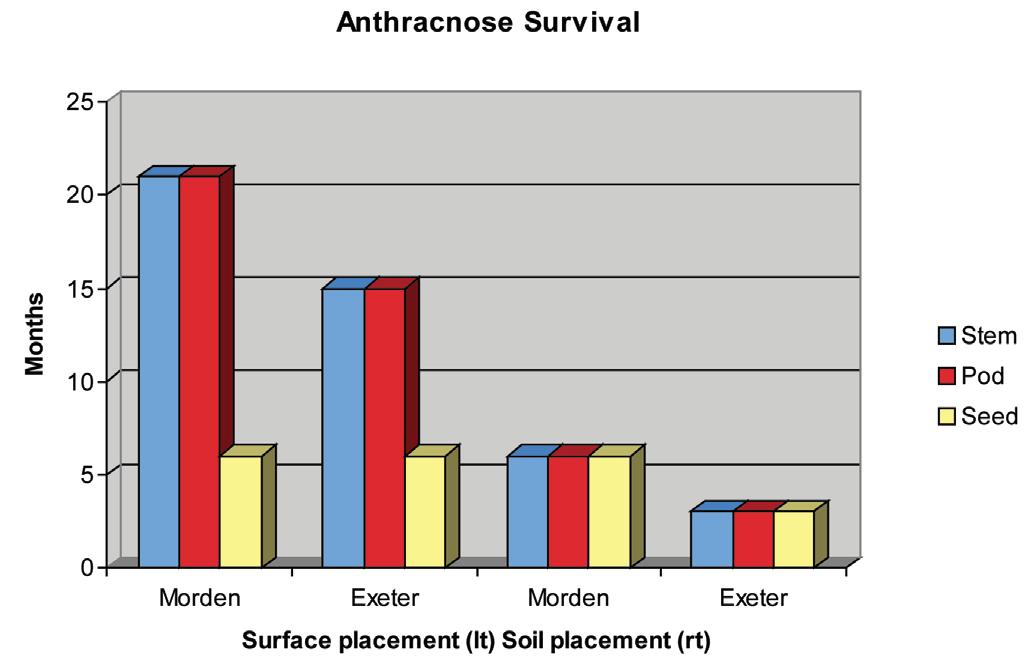

SOURCE: GILLARD, 8TH CANADIAN PULSE RESEARCH WORKSHOP
SOURCE: GILLARD, 8TH CANADIAN PULSE RESEARCH WORKSHOP

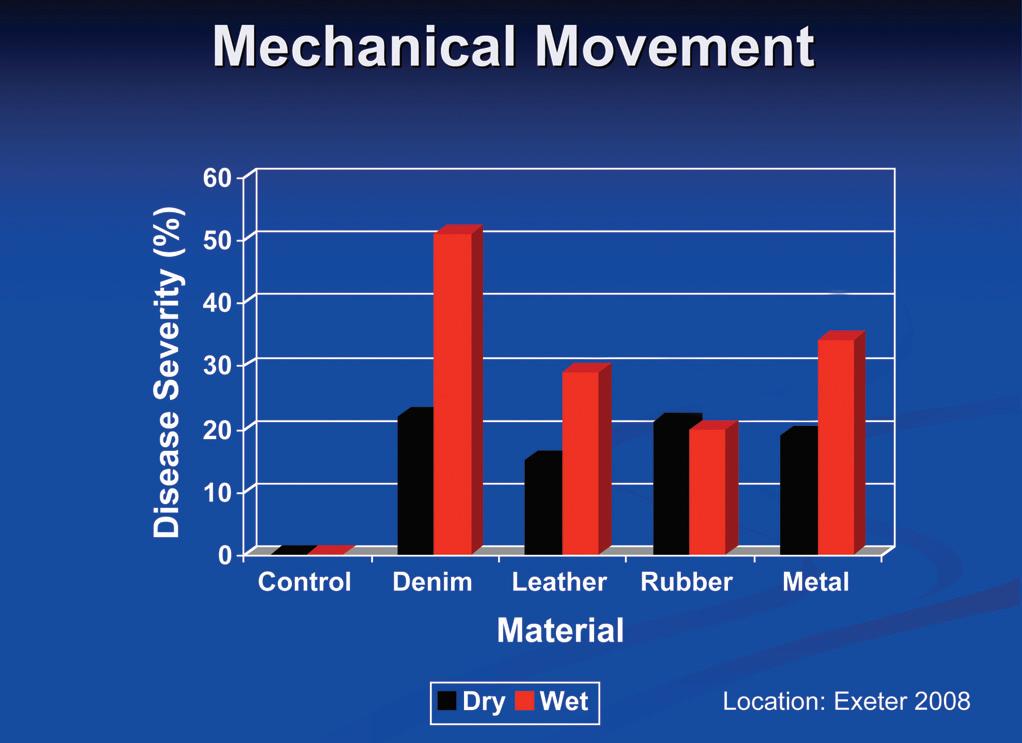

Figure 1
Figure 2
THE CLEAR CHOICE FOR TOUGH WEEDS.
INCLUDING EASTERN BLACK NIGHTSHADE.
Fight tough soybean weeds with Valtera™ Herbicide. Valtera provides excellent residual control against tough weeds such as Eastern black nightshade and even weeds resistant to Group 2 and Group 5 herbicides. And with great rotational flexibility, there are no rotational restrictions or carryover into next year’s crop.
by Blair Andrews
PHOTOS BY RALPH PEARCE
The strong don’t just survive. They get stronger.
Unleash the power of PROWL ® H 2O. Eliminate annual grasses and select broadleaf weeds with the residual control of the new water-based PROWL H2O. Less staining. Less odour. Same bite. Learn more by visiting agsolutions.ca or calling AgSolutions® by BASF at 1-877-371-BASF (2273).

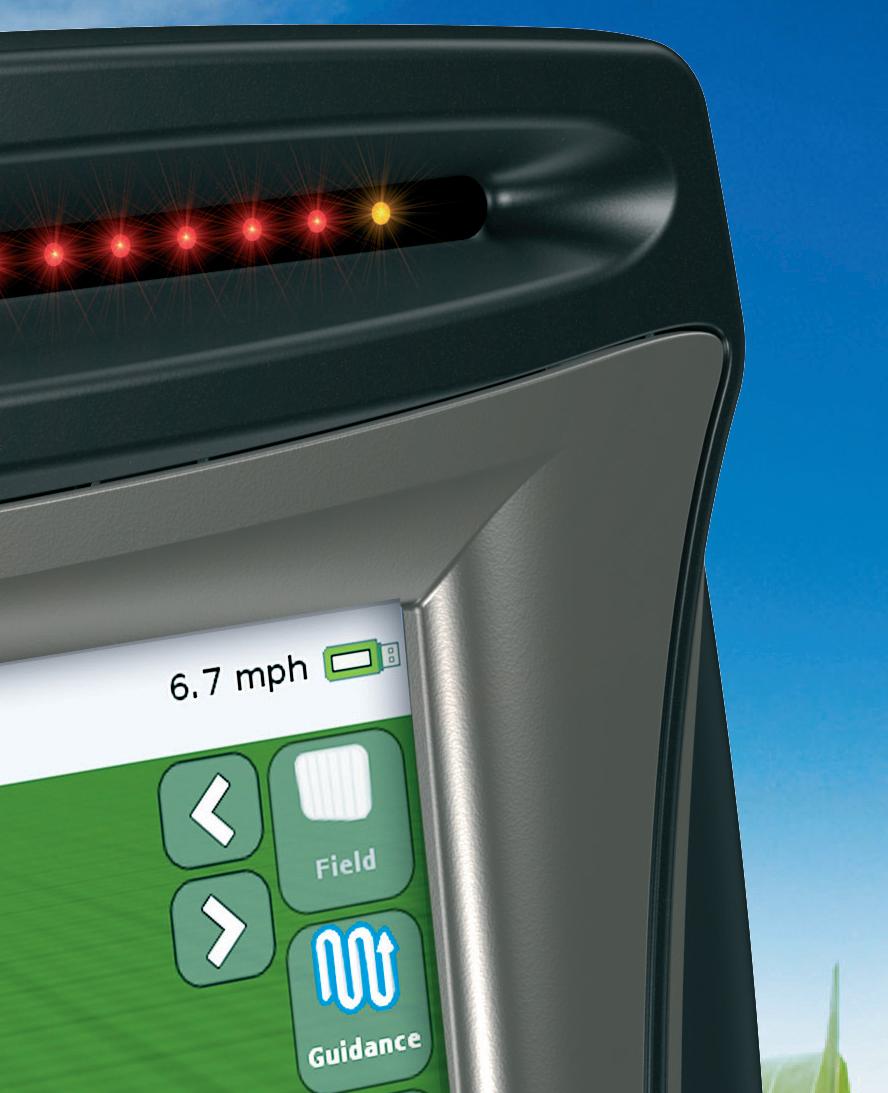

EASY GUIDANCE REDEFINED

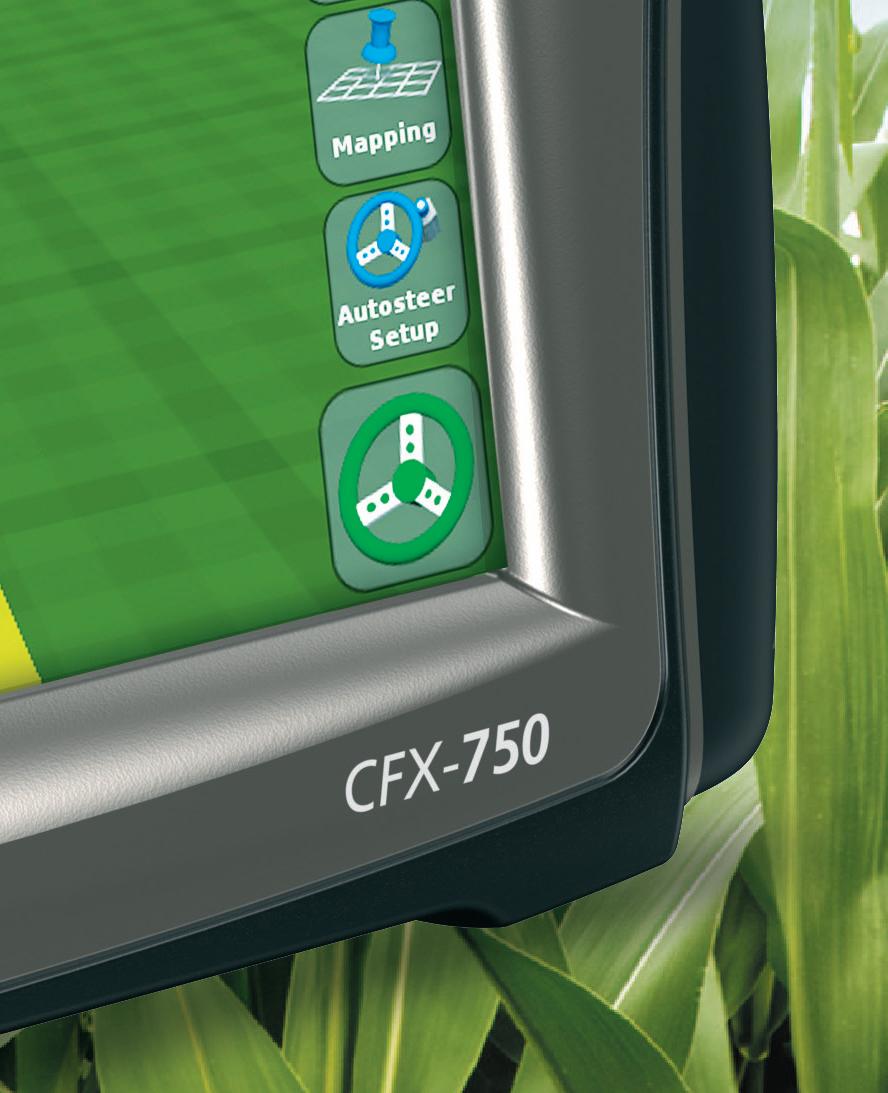

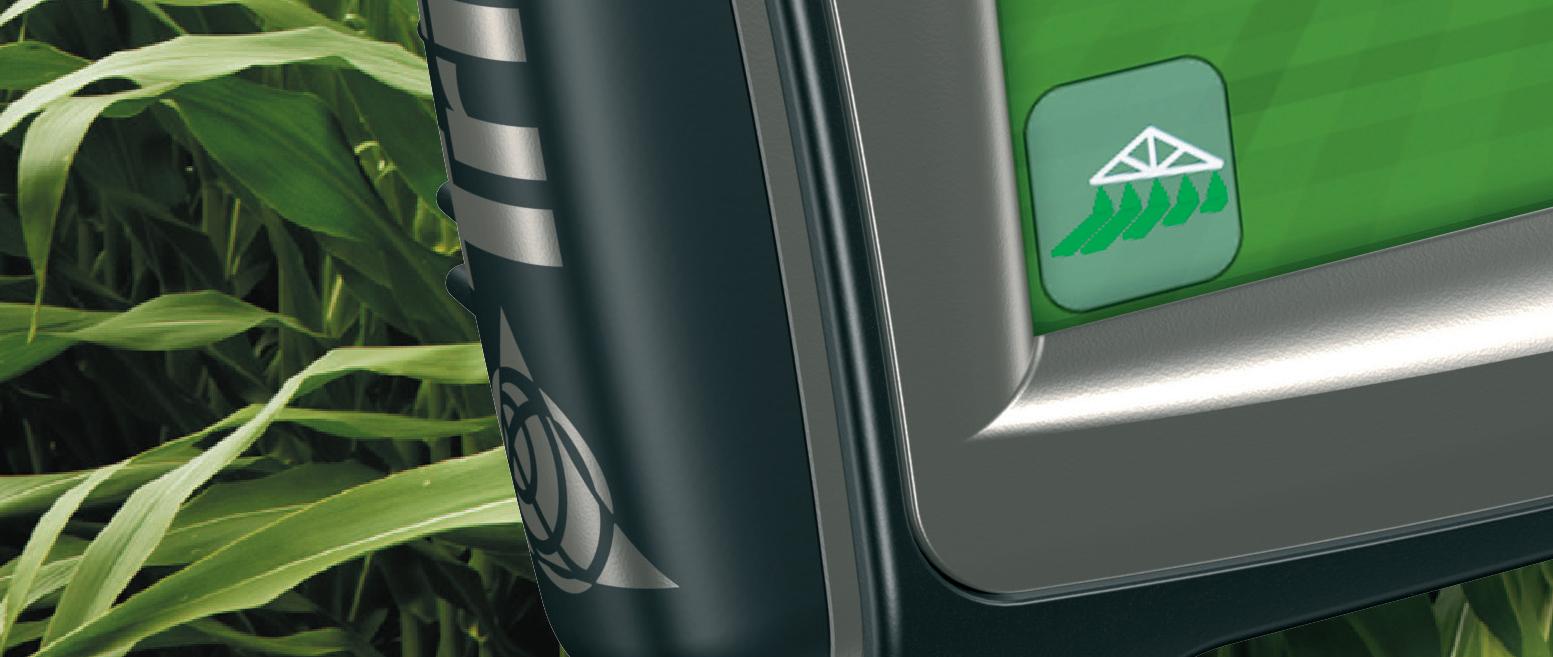

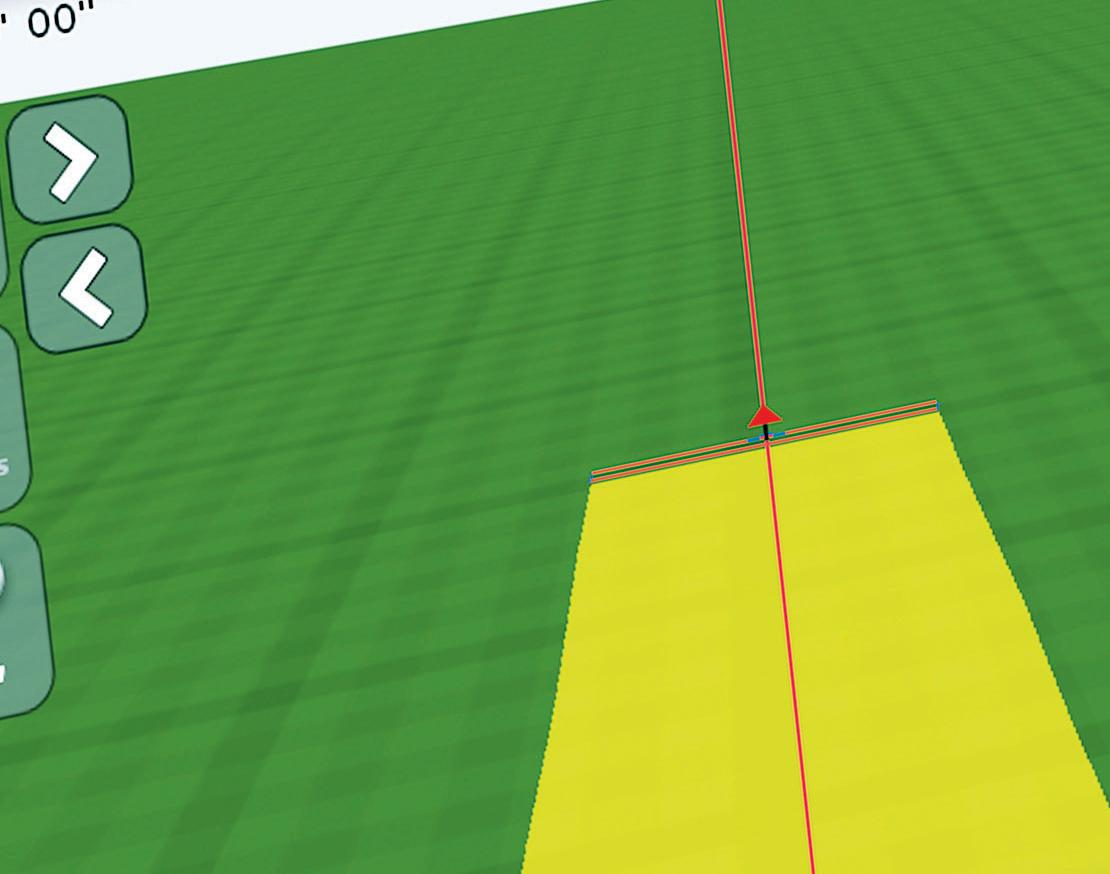

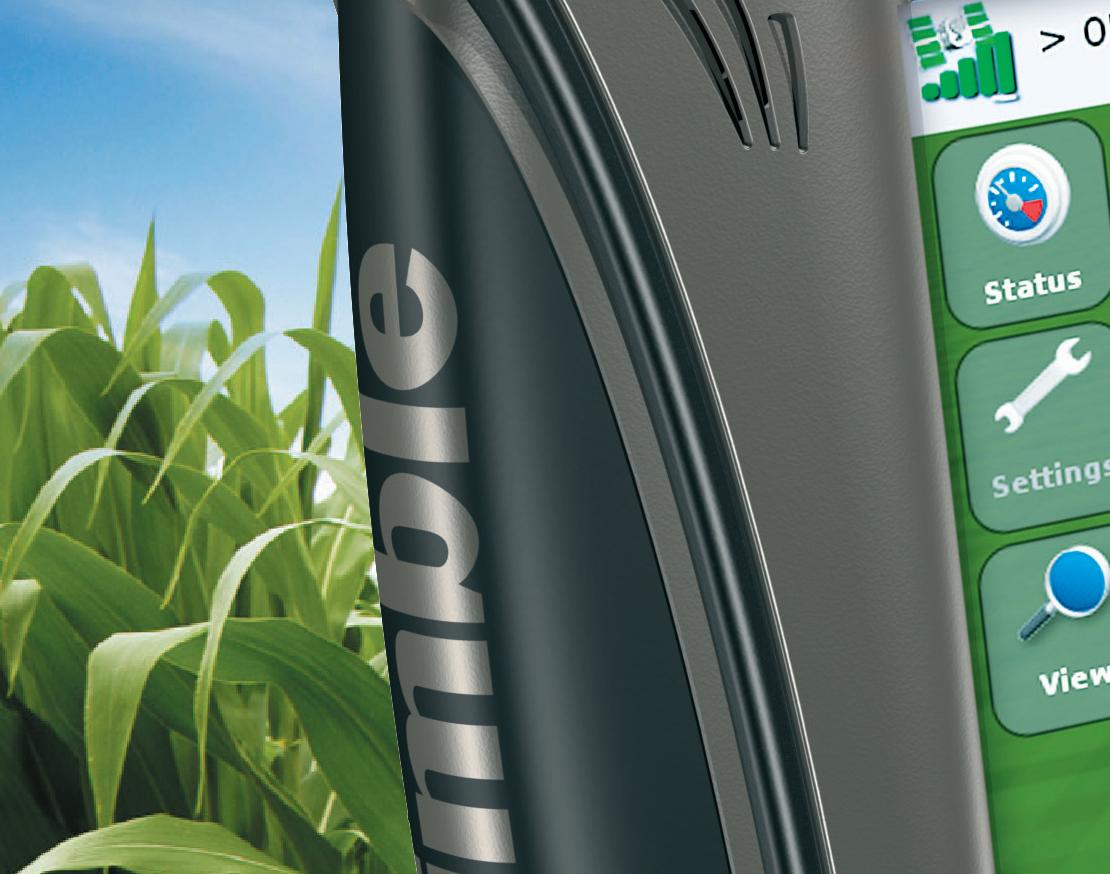

The CFX-750™ display is the newest touchscreen display from Trimble offering affordable guidance, steering and precision agriculture capabilities. Building on past successes, the CFX-750 display elevates guidance to the next level with its easy-to-use 8" color touchscreen.
Upgrade the CFX-750 display to receive GLONASS satellites and increase your satellite availability. Add the Trimble® Field-IQ™ crop input control system to provide section and rate control when planting, spraying, spreading and strip tilling. You’ll farm more precisely, more productively and more profitably.
For more information, visit www.trimble.com/agriculture or see your dealer.
A PRECISION AGRICULTURE SYSTEMS – MACHINERY MANAGER
Unprecedented levels of machine control and accuracy now are provided with the AGCO System 150, the highly advanced but simple-to-use automatic steering system from AGCO’s Advanced Technology Solutions group. System 150 removes much of the tedium of field operations, leaving drivers free to focus on equipment and performance. Using satellite navigation, System 150 steers tractors, combines and other vehicles on the concept that every pass will be parallel to the first, and it ensures that the first pass itself is straight. The system is easily transferred between ‘Auto-Guide Ready’ vehicles by moving the Topdock and GX-45 console.
In addition to steering and mapping, System 150 aids with machine management and precision application. It provides remote diagnostics and automatic monitoring as well as records of machine movements.
AGCO precision farming tools support variable rates of application for fertilizer, pesticides and seed, matched to the yield potential of specific parts of individual fields. Fieldstar II uses a large, clear, touch-sensitive screen. Logged data is transferred by SD card to the office PC. Fieldstar II provides the operator with streams of information and the ability to alter settings.
C1000: This in-cab screen can be used in Massey Ferguson, AGCO and Challenger wheeled tractors. It will control both brands’ ISOBUScompliant big balers and MF and White planters. It is operated with a series of buttons and a rotary dial.
C2000: This unit performs the same functions as the C1000 with a larger, touch-sensitive screen. It operates the Fieldstar II system on machines such as combine harvesters and Falcon VT on application machines. It can also be used to control White and MF planters
AGCOC1000C2000GX-45
Installation Factory onlyFactory or kitField install only
Go to www.machinerymanager.ca for further specifications and links to manufacturer websites.
PRECISION AGRICULTURE SYSTEMS – MACHINERY MANAGER
ent ses e vehicle is not nicians can addition a
ParaDyme Automated Steering is one of the most advanced automated steering systems in the field. The patented dual-antenna roof module allows operators to steer with sub-inch accuracy, improving product placement and fuel efficiency while significantly reducing operator fatigue. With the dual-antenna roof module, ParaDyme uses Logic 7D technology to track pitch, roll and yaw as well as vehicle position and heading at all times, even when the vehicle is not moving. With remote diagnostics capability, through Ag Leader’s INTEGRA or EDGE display, dealer service technicians can make system adjustments remotely. ParaDyme integrates GPS via WAAS/EGNOS, OmniStar XP/HP or RTK. In addition, a built-in cell modem offers CORS network support and the receiver is GLONASS capable.

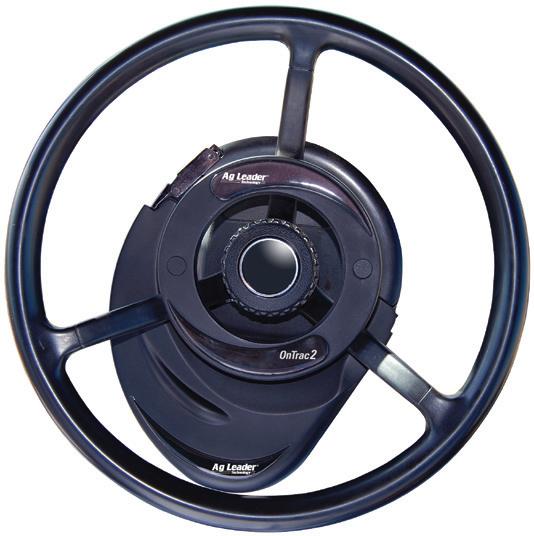

OnTrac2 Assisted Steering is an economical and easy-to-install solution that adds assisted steering to eliminate skips and overlaps, reduce fuel consumption and reduce operator fatigue. This new assisted steering solution features quick and easy installation. The unique split-gear design of OnTrac2 does not require removal of the steering wheel; instead, it simply latches on and off for easy transfer across multiple brands and types of vehicles. The high-torque, positive gear drive of OnTrac2 delivers the turning power needed for agricultural vehicles. OnTrac2 has a precision electro-mechanical drive unit that provides quiet operation.
In addition to these guidance options, both the EDGE and INTEGRA displays include a full-featured, integrated on-screen guidance lightbar, offering the option for full-screen guidance with a perspective view. Operators can save, load and reset patterns, and import or export patterns to software and to other Ag Leader displays.
Go to www.machinerymanager.ca for further specifications and links to manufacturer websites.
Case IH industry-leading Advanced Farming System (AFS) tools include everything you need to achieve repeatable accuracy from sub-inch levels and beyond, reduce overlaps and cut input costs, and maximize yield potential.
Case IH is proud to introduce the industry’s first complete factory-installed autoguidance system. Or, autoguidance-completing kits can be ordered and installed at a later date.
AFS AccuGuide eliminates guesswork from row swath spacing to ensure each swath is identical, while reducing tight headland turns and overlaps. AccuGuide also maintains perfectly straight and repeatable rows with RTK accuracy, allows data storage for later analysis and benchmarking, controls traffic patterns, decreases compaction and reduces operator stress and fatigue. Now, all Magnum, Steiger and 7120, 8120 and 9120 combines come AccuGuide Ready, standard from the factory.
and

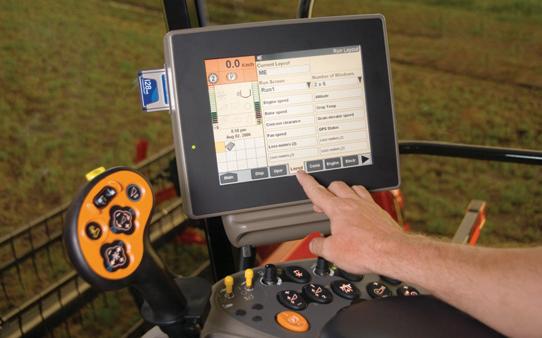

The AFS Pro 600 colour display user interface is ISO11783-compliant and provides unmatched portability. It moves easily among pieces of equipment to provide automated adjustments and control for each task. Any of the six run screens can be fully customized, allowing the operator to view as much or as little information as desired. As well, simply change the operator name to change the screen layout.
For Axial-Flow 7120, 8120 and 9120 combines, machine function and control are incorporated into the AFS Pro 600. For all Axial-Flow models, the AFS Pro 600 displays yield, moisture, mapping and AFS AccuGuide autoguidance functions.
Now Case IH Patriot Sprayers can control sprayer function as well as Autoguidance, all from the AFS Pro 600 Display. Features such as AutoBoom, AccuBoom and AutoFold Plus make the Patriot Sprayer the machine to consider.
Case IH
Installation
Screen
AFS Pro 600
Factory or dealer-installed kit
10.4-inch colour touch
Accuracy WAAS, Omnistar, RTK
Steering method
Steering re-engage
Patterns*
Line acquisition
Variable Rate
Swap time
Other
Hydraulic
Touchscreen, console button or headland management
Go to www.machinerymanager.ca for further specifications and links to manufacturer websites.
ases
PRECISION AGRICULTURE SYSTEMS – MACHINERY MANAGER
John Deere is the only agricultural equipment manufacturer that currently develops its own precision farming products right from the vehicle on the ground to the differential correction signal. GreenStar Ag Management Solutions (AMS) has an extensive lineup of GPS-based vehicle and implement guidance systems.
The new GreenStar 3 (GS3) family of displays – the GS3 2630 display and the GS3 CommandCenter – are able to run applications such as AutoTrac and Swath Control Pro. Select models are now designed with video capability. The GS2 and GS3 colour displays comply with ISO 11783, meaning you may be able to control ISO-compliant air seeders, fertilizer applicators and planters from one display, reducing cab clutter.
Standard automated guidance systems:
• New Starfire 3000 GPS receiver providing roll, yaw and now “fore and aft” tilt terrain compensation as well as free access to GLONASS constellation corrections for enhanced system response and reliability.
• Integrated AutoTrac for John Deere vehicles with factory or field installed integrated steering control systems.
• AutoTrac Controller for controlling select non-John Deere platforms that have integrated steering.
• AutoTrac Universal steering system that fits more than 400 older Deere and non-Deere platforms.
Advanced Automated Guidance systems:
• iSteer is the newest John Deere guidance enhancement. It is able to steer both the tractor and the implement independently.
• iGuide is a passive implement guidance system that will steer the tractor offline to keep the implement online on slopes or curves.
• Surface Water Pro, Surface Water Pro Plus and iGrade provide automatic guidance while performing elevation surveying, automated ditching and levee operations.
10.4-inch colourSeven-inch colour
Accuracy SF1 ±10 in. to RTK sub inch, based on 15-minute pass to pass, 95 percent of the time
Steering means Integrated or ATU
Steering re-engage
Patterns*
Line acquisition
Variable Rate
Resume switch
A,B,C,D,E,F,G,H,I,J
45 degrees of travel angle and 1/3 of track width
Included in baseManual variable rate
Swap time 15 minutes
Other Documentation and map-based prescriptionsCoverage mapping
Other ISO 11783-compliant
Other Terrain compensation; video input; Access managerTerrain compensation
*Patterns: A-boxed rounds; B-contours; C-curves; D-circles; E-spirals; F-forward/reverse; G-overhead view; H-perspective view; I-elevation view; J-swath skipping Go to www.machinerymanager.ca for further specifications and links to manufacturer websites.

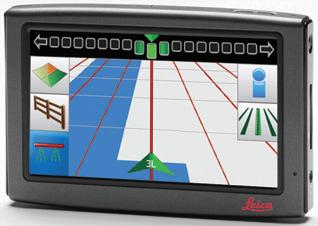

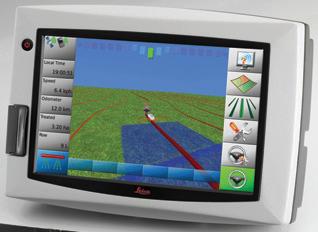

The Leica mojo3D guidance display is a smarter precision guidance system, loaded with industry leading advances designed to help save time and money for years to come. The versatile guidance display has multiple upgrade options; customize it to fit your individual needs.
Right out of the box, Leica mojo3D is a unique manual guidance system with robust features. Work any field the way you want. AB Parallel, A+ Heading, Fixed Contour and Pivots are the four standard guidance patterns. In addition, Leica’s new Ultimate Curve option provides guidance along any area already covered and works seamlessly with any other guidance options. Plus, revolutionary new steer-to-the-line technology produces straighter, more even, lines with any of our guidance patterns.
The Leica mojo3D advanced boundary recording system gives you the most accurate area calculations. Determine input requirements more precisely, saving money and reducing waste. And, Leica’s standard section control feature provides more accurate implement placement information for more precise operation of sections.
Save time with the Virtual Wrench support. When you need help or have a question, do not wait for service; Leica lets you get in-field service, support and new features at the touch of a button.
Upgrade options:
• Improve accuracy and increase work time with the new Leica GeoPRO antenna + GLONASS.
• Reduce operator fatigue and increase accuracy by upgrading Leica mojo3D to an auto-steer system with an Electric Steer Kit.
• Gain access to true RTK networks and the most precise steering options by adding the Leica mojoRTK auto-steer console.
• Reduce input costs and environmental impact by adding automated multi-section control.
Go to www.machinerymanager.ca for further specifications and links to manufacturer websites.
PRECISION AGRICULTURE SYSTEMS – MACHINERY MANAGER

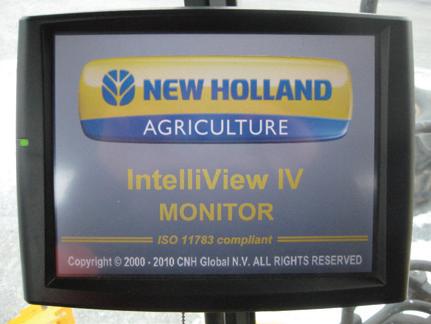

The IntelliSteer System from New Holland allows you to plant, spray, harvest or till using the same monitor and same row positioning every time throughout the season. Available from the factory on the T6000, T7000, T8000, and T9000 series tractors as well as the CX8000 and CR9000 series combines.
Choose the monitor to run the IntelliSteer System:
• The Intelliview III is a seven-inch colour touchscreen.
• The Intelliview IV is a 10.4 inch colour touchscreen with full mapping capabilities.
• Both monitors also provide fingertip access, control and monitoring of key tractor functions including fuel consumption, wheel slippage, hydraulic flow control, custom headland management and are ISO11783 compatible to connect to implements of any brand.
• With GPS in a CR9000 or CX8000 series combine, either display will create on-the-go yield and moisture maps as well as datalog the information to a USB thumbdrive.
Choose the accuracy with the New Holland 262 antenna:
• IntelliSteer DGPS (Differential GPS) has a typical accuracy in the +/- 10-inch range.
• IntelliSteer DGPS XP (Differential GPS Extra Performance) provides accuracy from +/- three to five inches.
• IntelliSteer DGPS HP (Differential GPS High Performance) provides a higher accuracy from +/- two to four inches.
• IntelliSteer RTK (Real Time Kinematics) provides the highest level of accuracy at +/- one inch.
New Holland
Installation
Screen
Intelliview IVIntelliview III
Dealer / factoryDealer / factory
10.4-inch colour touchSeven-inch colour touch
Accuracy WAAS to RTKWAAS to RTK
Steering means HydraulicHydraulic
Steering re-engage ButtonButton
Patterns*
A,B,C,D,E,G,H,I,JA,B,C,D,E,G,H,I,J
Line acquisition AnywhereAnywhere
Variable Rate
Up to seven productsNone
Swap time 10 minutes basic10 minutes basic
Other
Other
Three camera inputsThree camera inputs
Two RS232 inputsOne RS232 input
*Patterns: A-boxed rounds; B-contours; C-curves; D-circles; E-spirals; F-forward/reverse; G-overhead view; H-perspective view; I-elevation vew; J-swath skipping Go to www.machinerymanager.ca for further specifications and links to manufacturer websites.
For 2011, Hemisphere GPS proudly offers new Outback Guidance products that deliver the highest level of precision farming performance and an electric steering wheel solution that adds even more flexibility to its popular eDrive product line.

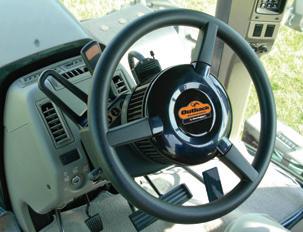

eDriveX steer-by-wire solutions and automated turns
New features have been added to further enhance Outback eDriveX. steer-by-wire solutions combine eDriveX electronics, an Outback S3 and cabling to quickly outfit automated steering-ready vehicles with eDriveX functionality.
Automated turning is a much-anticipated feature of eDriveX that will allow customers to perform row-end turns with the touch of a button. Once customers configure their system and activate the automated turn, they simply press a button to confirm the command and eDriveX automatically steers the entire turn. Several turning patterns are possible that will fit most fields and applications.
eDriveVSi
Farmers have come to rely on the Outback eDrive product line for their automated steering needs. Additional flexibility and portability is now available with eDriveVSi. The eDriveVSi’s electrically controlled steering wheel adds to the versatility and ease of automated steering, as it can quickly be added to a variety of swathers (windrowers).
Coupled with an Outback Guidance system, eDriveVSi delivers decimeter-level steering control accuracy ideal for swathing applications. Operators can easily complete the installation and transfer the automated steering system from one machine to another. The electrically controlled steering wheel replaces the existing steering wheel in the vehicle and interfaces with eDrive to support farm machinery where automated hydraulic steering interfaces are not practical.
OutbackS3 with eDriveX
Installation
Screen
Accuracy
Steering method
Steering re-engage
Patterns
Line acquisition
Self-installation
8.4-inch colour touch
Centimetre-level accuracy pass-to-pass with RTK
Automatic
Turn the wheel
Versatile straight, contour (free-form), circle pivot
Proportional hydraulic control
Go to www.machinerymanager.ca for further specifications and links to manufacturer websites.
PRECISION AGRICULTURE SYSTEMS – MACHINERY MANAGER
Since 1978, Raven has helped define the concept of precision agriculture – and continues to create groundbreaking ideas and products that improve the position of growers around the world. From field computers to boom controls, from GPS guidance to steering systems, Raven leads the way for precision ag technology. Raven offers two high-quality field computers: the Envizio Pro II and Viper Pro.
Envizio Pro II: This multi-function field computer puts you in complete control of your precision ag system, and allows you to get more out of every phase of your farming operation. It is easy to set up, easy to run, and even easier to expand. Choose from integrated dual-frequency GPS technology upgradable to RTK, advanced data mapping and record keeping to dual-product control, boom management, planter controls, and assisted steering. No matter the selection, Envizio Pro II works seamlessly to deliver greater efficiency and performance. Popular upgrades include variable rate planting and fertilizing, as well as RTK correction.
Viper Pro: The Viper Pro multi-function field computer is the best in its field with extra power and capability to drive even the most advanced system functions with ease. For professional operators and larger growers looking for the ultimate in productivity and performance, Viper Pro is built to deliver with its large 10.4-inch vertical touchscreen display, more memory, faster processing and wireless Internet capability. Viper Pro is equipped to handle five different product applications at the same time, each with its own variable application rate for maximum savings and performance. It is slingshot ready for high-speed Internet access, wireless data transfer, remote support and more.
RavenEnvizio Pro IIViper Pro
Installation Kit
Screen Colour touch, 6.5-inch. with day and night modesTouch, 10.4-inch
Accuracy WAAS to RTKExternal GPS, scalable up to RTK
Assisted Steer Available
Auto-engage Foot switch
Patterns
Line acquisition
Variable rate
Straight A-B, Fixed Contour, Last Pass, Pivot
89 degrees of travel angle and 1/2 swath width
One product VRA capableFive product rate control
Swap time 60 seconds
Other 1 Slingshot ready for high speed Internet, wireless data transfer, remote support and more
Other 2 Enhanced record keeping
Other 3 Field review screenWindows XP operating system Go to www.machinerymanager.ca for further specifications and links to manufacturer websites.

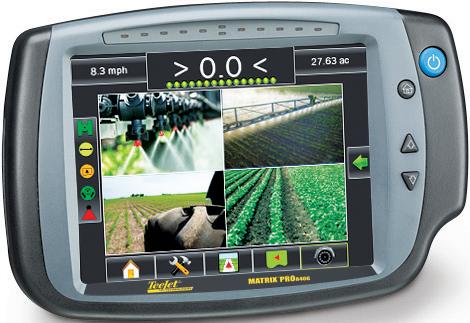

Exclusive RealView Guidance over Video and several new productivity enhancing features are offered in the 2011 Matrix Pro Guidance System from TeeJet Technologies.
Matrix is the only system available that displays guidance and live video simultaneously, improving accuracy and efficiency in field operations. Up to eight RealView cameras can monitor multiple machine operations while, at the same time, guidance information can be viewed. Growers can choose Matrix Pro 570 with a 5.7-inch display or Matrix Pro 840 with an 8.4-inch display.
Matrix Pro saves time by storing multiple field boundaries and multiple guidelines. Two-way data transfer allows uploading and downloading of job data, boundaries, no spray zones, AB lines and other features. Matrix Pro’s unique NextRow feature guides operators through turns in row crop environments, helping them find the correct rows to steer-between for the next pass.
Matrix Pro is ready for auto steer and automatic boom section control (ABSC). Adding FieldPilot, TeeJet’s hydraulic auto-steer system, can be accomplished in about half a day and for a cost considerably less than competitive steering systems. Adding BoomPilot ABSC is economical and easy as well. In just a few minutes, growers can experience automatic control of up to 15 boom sections to help reduce chemical consumption. Matrix Pro is able to multi-task so auto-steer, section control and RealView monitoring can be used in unison.
Additional Matrix Pro features include:
• Painted screen which provides graphical display of field coverage, including skips and overlaps.
• Bright, easy-to-read display in all lighting conditions.
• Built-in lightbar for full-time guidance no matter what is on display.
• Easy-to-use PC utility simplifies creating and maintaining client/farm/field/job data.
Accuracy
Assisted steer
Auto-engage
Patterns
Line acquisition
Variable Rate
Swap time
WAAS eight to 12 inches
Ready for FieldPilot auto-steer
N/A
A-B, Curved A-B, A+ Heading, Last Pass, Circle Pivot, Next Row
With engage switch
N/A
Portable, easy transfer between machines
Other RealView Guidance over Video with split-screen four-camera view
Go to www.machinerymanager.ca for further specifications and links to manufacturer websites.
PRECISION AGRICULTURE SYSTEMS – MACHINERY MANAGER

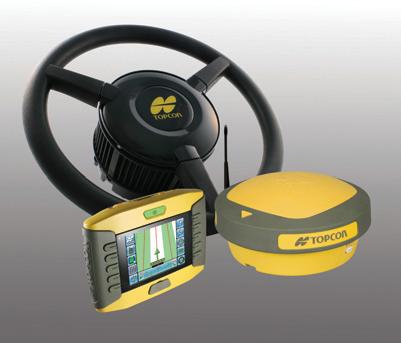

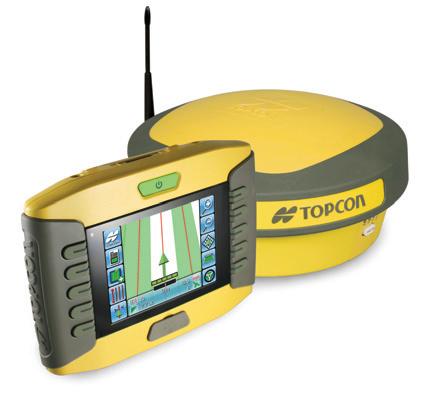

New from Topcon Precision Agriculture, the AES-25 Electric Steering System provides the convenience of electric steering with the performance of hydraulic systems. AES-25 is an advanced solution for all platforms, from basic steering to those striving for high-accuracy results. AES-25 is fully compatible with Topcon’s field-proven System 150 and delivers smooth operation and precise steering control.
System 150 is a complete AutoSteering system featuring flexible accuracy options from basic WAAS up to full RTK with network correction capability. Combined with AES-25, System 150 is a compact control package that is easy to transfer between machines. Well suited for steer-ready machines, System 150 offers optional auto-section and liquid rate control.
The AGI-3 receiver is a complete integrated steering solution featuring Topcon’s G3 satellite receiver plus state-of-the-art inertial sensors and steering control with superior line acquisition and holding capabilities. WAAS, CDGPS, and EGNOS are standard. As needed, install RTK with confidence to achieve full two centimetre accuracy. Simply snap in the upgrade module for Omnistar or RTK with 900 mHz, digital UHF, or GSM options (compatible with Topcon base stations, GSM and CORS networks).
Topcon’s unique Paradigm G3 triple constellation receiver chip allows the AGI-3 to receive signals from all available satellites; GPS, GLONASS and Galileo. More satellites mean improved accuracy, better reception around hills and trees and round-the-clock operation.
The GX-45 control console features a high-visibility colour screen with multiple guidance views, simple on-screen setup, and automatic coverage mapping with exportable reports and shape files.
The AES-25 can also be used with the System 200/250 console, Topcon’s advanced touchscreen, multi-task, VRC-capable controller.
Go to www.machinerymanager.ca for further specifications and links to manufacturer websites.
Trimble’s newest Global Navigation Satellite System (GNSS) guidance product offers a wide range of precision agriculture applications in a single package. AgGPS FmX integrated display is the first in the industry to work as either a stand-alone manual guidance system or as part of an automated guidance, implement control or steering system.
The FmX features two integrated, high-performance GNSS receivers, so no additional receivers are necessary to control a tractor and implement. Each receiver has GPS and GLONASS (L1/L2/G1/G2) capability, offering a range of accuracy levels and robust positioning even in difficult environments. For RTK applications, optional 450 or 900 MHz radios are integrated into the display.
It integrates easily with the Trimble AgGPS FmX Autopilot automated steering system TrueTracker for precision guidance of an implement or with the FieldLevel II system for dual and tandem scraper control. It also works with the Trimble EZ-Steer systems.
Farmers can also vary crop inputs, control a planter, map fields and view the input from up to four external video cameras, all with one display.
The FmX touch screen display is 12.1 inches, approximately 35 percent larger than the industry standard 10.4-inch screen, yet the display requires no more space in the cab than its predecessor, the AgGPS FieldManager display. Crisp graphics and a brighter screen make the FmX easier to see.
Transcend technology, a proprietary Trimble positioning capability, is integrated into the FmX display, providing high accuracy, flexible solutions for the most challenging agriculture applications and environments.
TrimbleAgGPS EZ-SteerAgGPS Autopilot System
Installation
Screen
Accuracy
Steering method
Steering re-engage
Patterns
The integrated components allow farmers to purchase the FmX at a functionality level and price that fits today’s needs, with the option to easily upgrade.
Mounted on steering column bracket, fits more than 1000 vehicle models
Hydraulic kit, for virtually any modern hydraulically steered vehicle
12.1-inch AgGPS FmX touch
Sub-metre to sub-inch RTK repeatable accuracySub-metre to sub-inch RTK repeatable accuracy
Assisted, friction wheelAutopilot built into tractor hydraulic steering
Assisted steeringAutomated steering
Multi headland, Pivot, A-B, Identical Curve, Headland, A+Pattern, Freeform
Line acquisition ManualAutomated
Variable Rate Yes
Swap time
30 minutes to switch between vehiclesSeveral hours to install hydraulic kit
Other T2@ terrain compensationT3@ terrain compensation
Other GPS+GLONASS dual receivers
Other TrueGuide passive implement guidance option
TrueTracker active implement steering; TrueGuide passive implement guidance option
Go to www.machinerymanager.ca for further specifications and links to manufacturer websites.
For unparalleled yield and quality in your wheat and barley crop, choose new Prosaro ® fungicide.
Prosaro delivers a complete disease protection package to control FHB, reduce DON levels and control leaf diseases. With two leading actives for both curative and protective activity, Prosaro delivers the highest level of protection available for leaf and head diseases in cereals. Rest easy with Prosaro.
PROSARO
Western bean cutworm poses a new threat to Eastern Canada corn growers. This rapidly spreading pest can decrease corn yields and also impact grain quality by making it easier for ear diseases and rots to gain a foothold.
Pioneer offers the broadest lineup of hybrids with the Herculex® insect protection traits on the market. We can deliver high performing hybrids for all maturities in the trait combinations you want. You can protect your grain yields and quality for no additional premium.
Make sure your fields are protected.Talk to your local Pioneer sales representative for a hybrid recommendation for each of your fields.
