Non weather-related water damage claims are among the most frequent and most costly home insurance claims each and every year.
By Steve Goldie
24 MARKETING BUILDING TRUST
Online reviews are the new word of mouth for contractors.
By Jillian Morgan
GUEST EDITORIAL THINK AHEAD…
Hydronic system designers need to think carefully what their systems will look like 25 years, or perhaps 50 years from now.
By John Siegenthaler
CON TENTS
MH7
VENTING

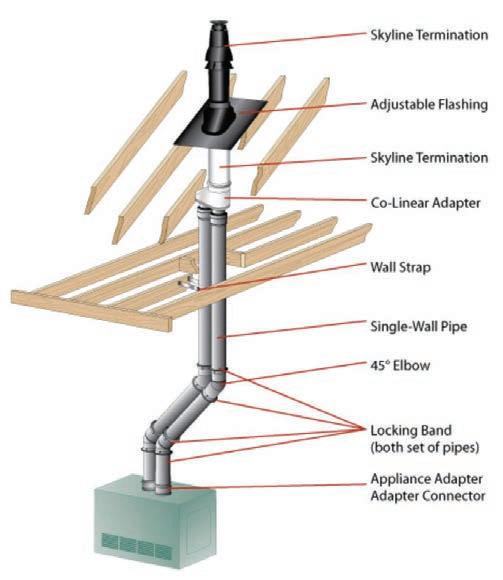

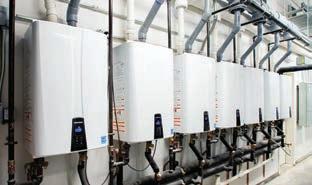

DEALING WITH THE PRODUCTS OF COMBUSTION: PART 1

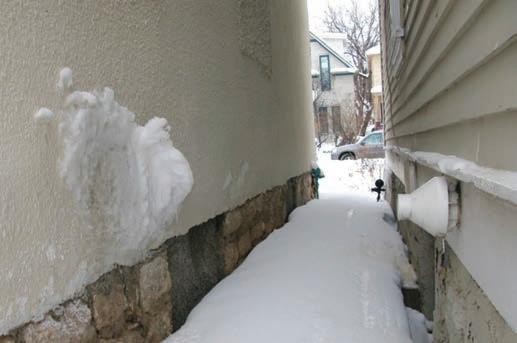

Look closely at project’s unique venting requirements to avoid venting woes.
By Robert Waters

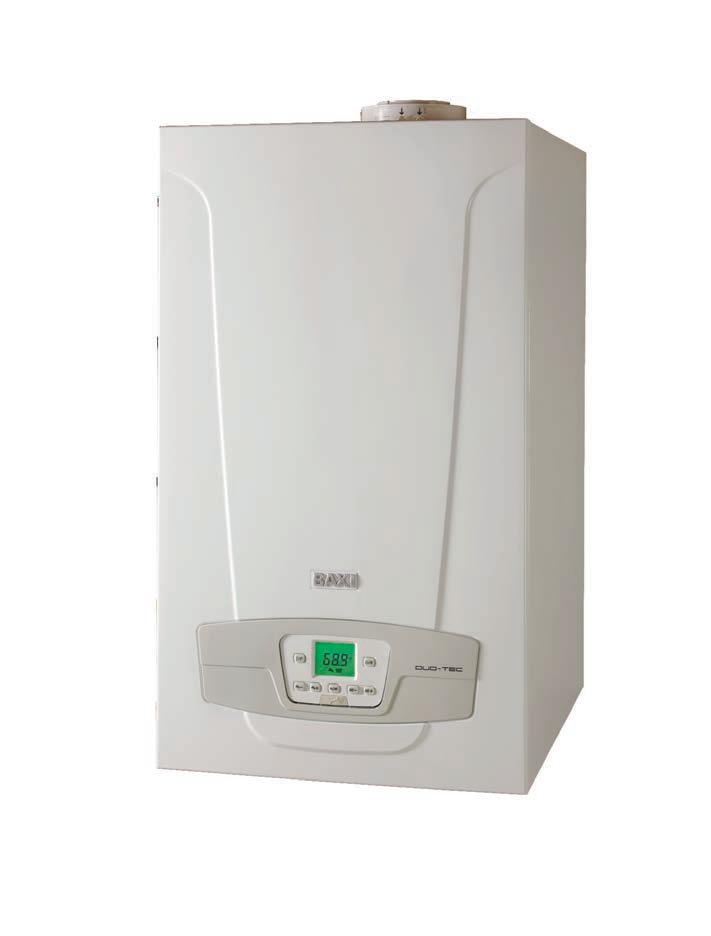

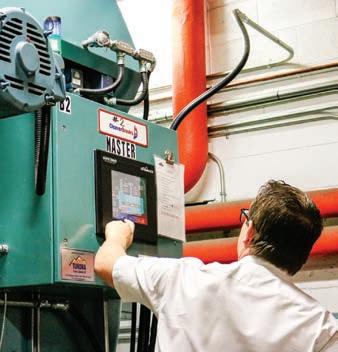

MH14 BOILERS

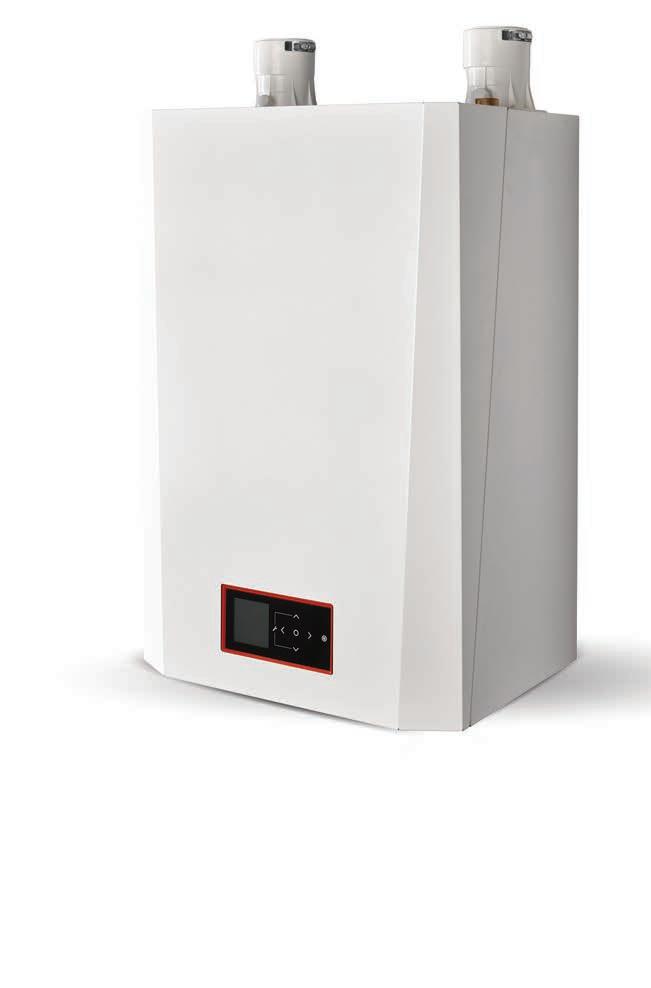

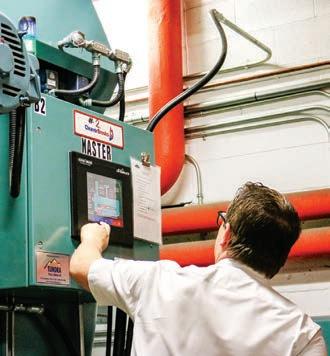

WHAT FACTORS SHOULD BE CONSIDERED WHEN SPECIFYING BOILERS
The smallest design details may have the greatest impact on a boiler’s value and performance over time, so choose wisely.
By John Miller
MH16
ENERGY EFFICIENCY
BENEFITS SIMILAR TO A NEW SYSTEM
Tips on major retrofit options available to minimize energy loss and maximize fuel savings.
By Rakesh Zala
MH18

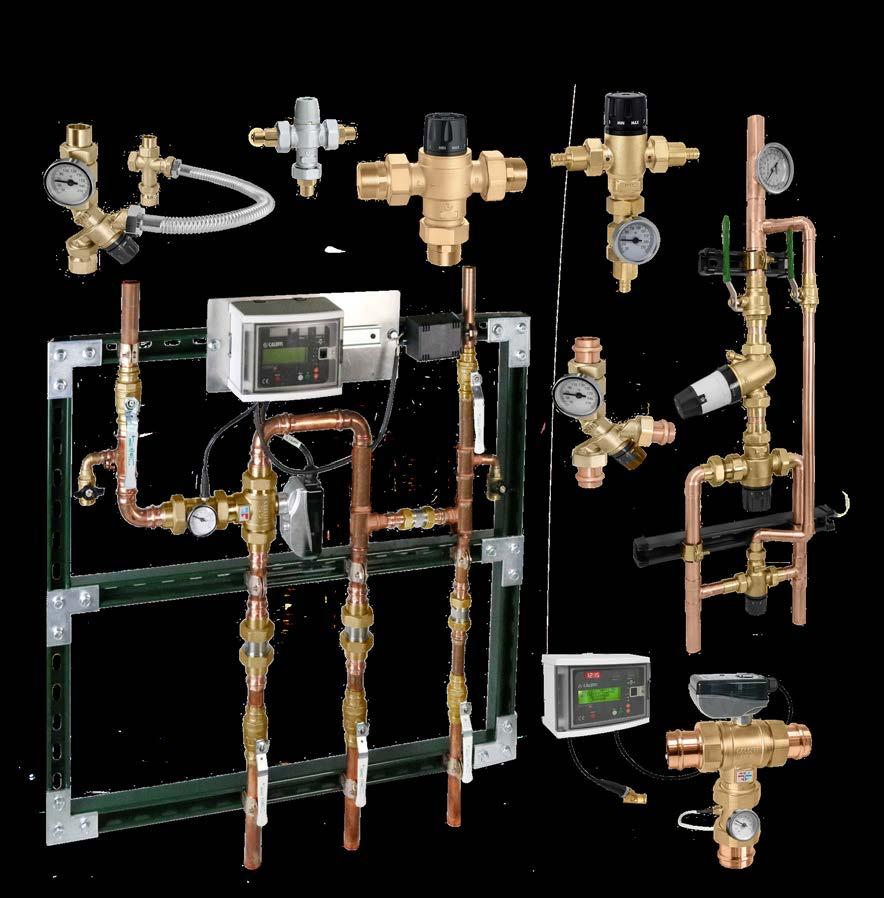

HYDRONIC PRODUCT SHOWCASE
MH26
NEW TECHNOLOGY

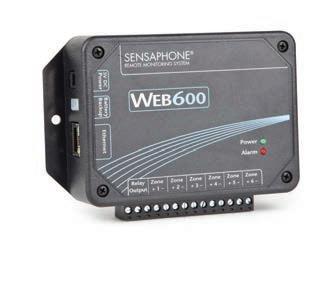

EMBRACING THE INEVITABLE IoT has permeated the market and contractors have no choice but to get on board.
By Curtis Bennett

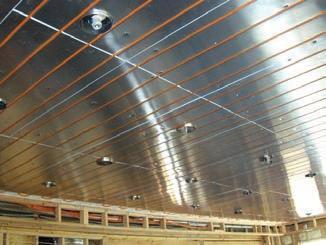

MH30

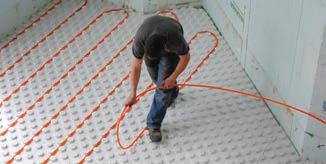

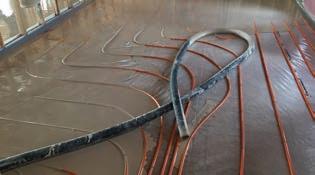

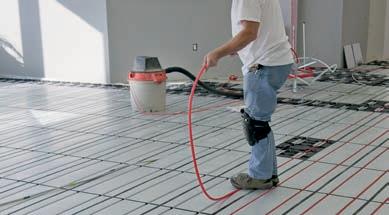

CEILING RADIANT
THE FORGOTTEN SOLUTION
Forward thinking and creative professionals use ceiling radiant as a supplement or as the primary radiant source.
By Steve Gibbs
MH 34

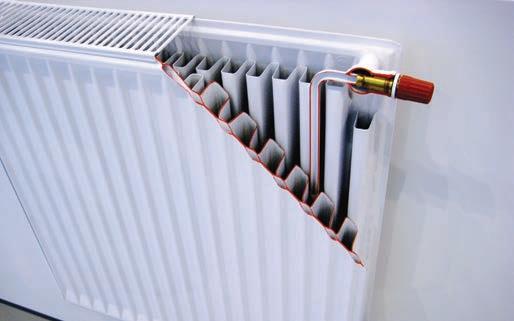

HEAT EMITTERS

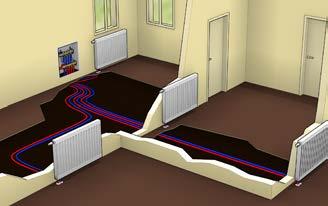

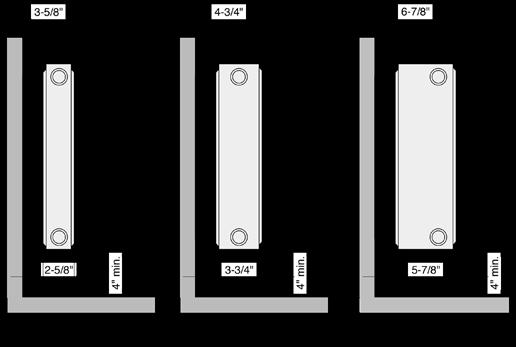

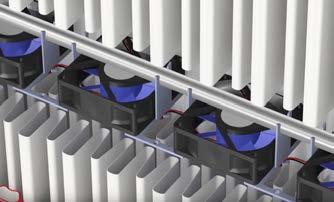

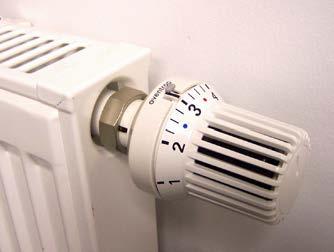

HAVE YOU CONSIDERED PANEL RADIATORS?
This hydronic market niche is poised for growth in North America.
By John Siegenthaler
65
REFRIGERATION

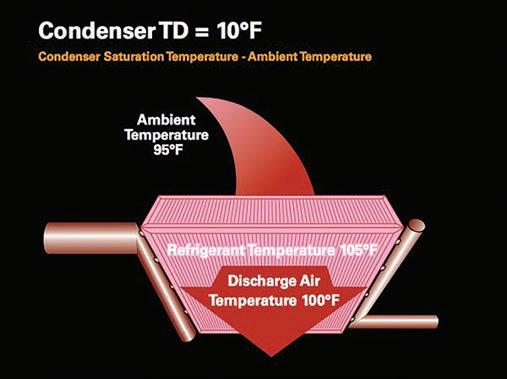

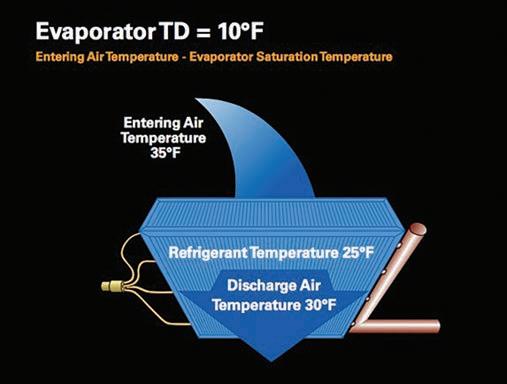

HOW TO SELECT HEAT TRANSFER SURFACES
There are many factors to consider when specifying condensers and evaporators.
By Dave Demma
70
EVENT REPORT
GETTING CONNECTED
Industry meets in Charlottetown for CIPH ABC.
By Jillian Morgan
74
PLUMBING
GO WITH THE FLOW
Best practices for maintaining water movement in plumbing systems.
By David Desjardins
82 MANAGEMENT
Top 10 Tips to getting paid
By Dan Leduc
SECURES ZERO
DESIGN CERTIFICATION FOR BUILDING RETROFIT
We build our products for you, the professional. That means on every job, you can count on:
• Cutting-Edge Innovation. Our engineers embrace the latest technology to develop innovative new products and improve our current products.
• Every Possible Online Tool. We help you save time and get the job done right, with sales materials, tech videos, spec sheets, sizing tools and more.
• The Right Products to Help You Meet Your Customers’ Needs. We provide you with a wide variety of quality products so you can meet the specific needs of your customers.
Our products deserve a skilled, professional installation from pros like you. That’s why our business is being here for your business.
We are proudly built For the ProTM .
< UPFRONT
JUST HUMMING ALONG
WE TRULY EXPERIENCED THE DOG DAYS OF SUMMER THIS YEAR AND THEY PROMPTED A BIG CHANGE IN OUR HOME, largely influenced by our dog. He needs tons of exercise and a load of grooming. Despite being a herding dog, his tolerance for exercise in the heat is next to zero. As the temperature rose this summer the walks shortened and his lethargy grew. There was no reprieve from the heat.
And so began our conversation about air conditioning. Ours is an old Toronto home with heat losses that would make you cry (in unrenovated spaces) and heat gain that is slow to manifest but impossible to dispel once it has settled in.
We have managed without AC for 17 years but this year, day after day of blistering heat proved to be our undoing.
The dog was unhappy. Summer noise was making us crazy (me in particular). Every window was open, the ceiling fans were whirring and all the loud people, cars and garden equipment in Toronto seemed to congregate in front of our house under the open windows.
Making the leap would be a win win.
Our options were limited – no ductwork and an inaccessible attic made the choice a simple one.
We got a couple of quotes and chose the contractor and set a date for installation. The contractor arrived on time to scope things out and the installation went off without a hitch on the day it was scheduled.
In hindsight, the brutal heat really dictated our life at home: what we cooked and how we cooked it; where we sat; when we had company; what chores were left for cooler days; and so on. Ask your customers how their hot house impacts their lives as they hum and hah about air conditioning.
I noticed when I walked the dog the other day there was a quiet hum in the hood. Central systems, splits, heat pumps and mini ducts were all working hard. That was when I realized we were probably one of the last holdouts in the neighbourhood.
Now, we are happy to be part of the cool crowd.
Editor
Be sure to visit hpacmag.com where you can search products, manufacturers and wholesalers through the online buyer's guide. You can also access the current issue of HPAC magazine and archived editions. Click on digital archives from the top menu to access this valuable resource. Are you a contractor with an installation or troubleshooting question? Chances are you will find the answer in a past issue of HPAC. If not, send us a note (kturner@hpacmag.com) and we will look at covering the topic in an upcoming issue. Follow us on Twitter @hpacmag; connect with us on LinkedIn.
HPAC MAGAZINE
111 Gordon Baker Road, Suite 400, Toronto, ON M2H 3R1
TEL: 416.442.5600 FAX: 416.510.5140
www.hpacmag.com
EDITOR
ASSISTANT EDITOR
ASSOCIATE PUBLISHER
ACCOUNT MANAGER
MEDIA DESIGNER
ACCOUNT COORDINATOR
CIRCULATION MANAGER
PUBLISHER
VICE PRESIDENT
COO
PRESIDENT & CEO
Kerry Turner (416) 510-5218
KTurner@hpacmag.com
Jillian Morgan
David Skene (416) 510-6884
DSkene@hpacmag.com
Vince Naccarato (416) 510-5118
VNaccarato@hpacmag.com
Brooke Shaw
bshaw@annexwbusinessmedia.com
Kim Rossiter (416) 510-6794
krossiter@hpacmag.com
Urszula Grzyb (416) 442-5600 ext. 3537
ugrzyb@annexbusinessmedia.com
Peter Leonard (416) 510-6847 PLeonard@hpacmag.com
Tim Dimopoulos (416) 510-5100
tdimopoulos@annexbusinessmedia.com
Scott Jamieson
Mike Fredericks
PUBLICATIONS MAIL AGREEMENT NO. 40065710
Heating Plumbing Air Conditioning (established 1925) is published 7 times per year by Annex Publishing & Printing Inc. HPAC Magazine is the leading Canadian business publication for the owner/manager of mechanical contracting businesses and their supply partners.
To subscribe, renew your subscription or to change your address or information please visit us at www.hpacmag.com.
Subscription Price per year: $43.00 (plus tax) CDN; Outside Canada per year: $84.50 US; Elsewhere: 1 year $92.50; Single copy Canada: $5.00 CDN. Heating Plumbing Air Conditioning is published 7 times per year except for occasional combined, expanded or premium issues, which count as two subscription issues.
MAIL PREFERENCES: From time to time we make our subscription list available to select companies and organizations whose product or service may interest you. If you do not wish your contact information to be made available, please contact us via one of the following methods: Tel: 416-442-5600 ext. 3552, Fax: 416-510-6875 or 416442-2191; E-mail: blao@annexbusinessmedia.com; or by mail: 111 Gordon Baker Rd., Suite 400, Toronto ON M2H 3R1
HPAC Magazine receives unsolicited materials (including letters to the editor, press releases, promotional items and images) from time to time. HPAC Magazine, its affiliates and assignees may use, reproduce, publish, re-publish, distribute, store and archive such unsolicited submissions in whole or in part in any form or medium whatsoever, without compensation of any sort.
NOTICE: HPAC Magazine, Annex Publishing & Printing Inc., their staff, officers, directors and shareholders (hence known as the “Publisher”) assume no liability, obligations, or responsibility for claims arising from advertised products. The Publisher also reserves the right to limit liability for editorial errors, omissions and oversights to a printed correction in a subsequent issue. HPAC Magazine’s editorial is written for management level mechanical industry personnel who have documented training in the mechanical fields in which they work. Manufacturers’ printed instructions, datasheets and notices always take precedence to published editorial statements.
Proud member of:
energy saving potential in today’s buildings and industrial processes
is realizing a more energy efficient city infrastructure
Canadian infrastructure investments are on the rise, and with ambitious climate and energy targets in place, Danfoss has been helping make Canadian cities more efficient and sustainable for 65 years. Heating and cooling consume as much as 40 percent of a building’s total energy use. Danfoss solutions like AC drives, variable speed compressors and hydronic control valves help cut energy consumption and improve comfort and control. City-wide, Danfoss’ innovative district heating solutions amplify efficiencies — cost-effectively boosting energy productivity, minimizing environmental impacts and helping cities plan for a sustainable future. With Danfoss, our cities can get more out of less without sacrificing performance or reliability.
Discover how we’re Engineering Tomorrow at danfoss.ca
NEWS FEATURE
HUMBER SECURES ZERO CARBON DESIGN CERTIFICATION FOR BUILDING RETROFIT
The green overhaul of a 30-year old structure on Humber College’s North Campus has earned the institution a zero carbon design certification from the Canada Green Building Council, making it the first retrofit project to secure the designation.
Renovations to the 48,269 sq. ft., fivestorey Building NX – led by B+H Architects and Bird Construction – included a building envelope retrofit and energyefficient upgrades to the heating and cooling systems.
Toronto-based firm Morrison Hershfield is acting as the sustainability consultant and electrical, mechanical and structural engineer for the project. RDH Building Science is the energy engineer.
“One of the biggest challenges to reducing greenhouse gas emissions in Canada is finding ways to heat buildings at a reasonable cost without burning fossil fuels. Humber wanted to be an example to the Canadian design and construction industries on how a deep energy retrofit can contribute positively to our country’s climate,” said Spencer Wood, Humber’s director of facilities management.

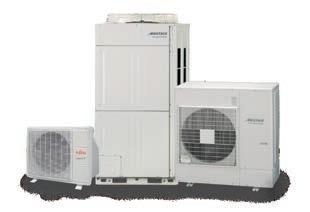

The building will use an air-source Variable Refrigerant Flow-Heat recovery system (VRF), which recovers and transfers heat between zones but exchanges heat with ambient air instead of the plant’s water loop.

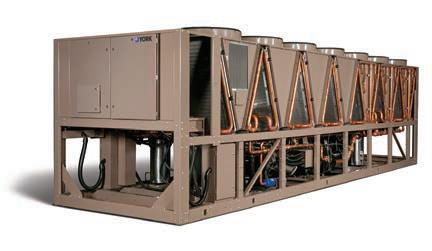

To keep the temperature consistent across the building, two air-cooled VRF heat pumps were installed on the fifth floor, and fan-coil units were installed for each thermal zone. Given the north entrance tended to be colder in the winter, an electric radiant flooring system was installed as well, according to the college.
Other upgrades to the structure include a new building envelope featuring ultra-
high-performance skin and engineered transitions, designed to provide air control and mitigate thermal bridging. In addition, new windows were installed for better energy efficiency.
The project is expected to be completed this fall, just over a year after work got
underway. It’s part of Humber’s 20-year plan to reduce energy and water consumption and greenhouse gas emissions.
The college expects the NX building will produce 70 per cent less energy than before. www.humber.ca <>

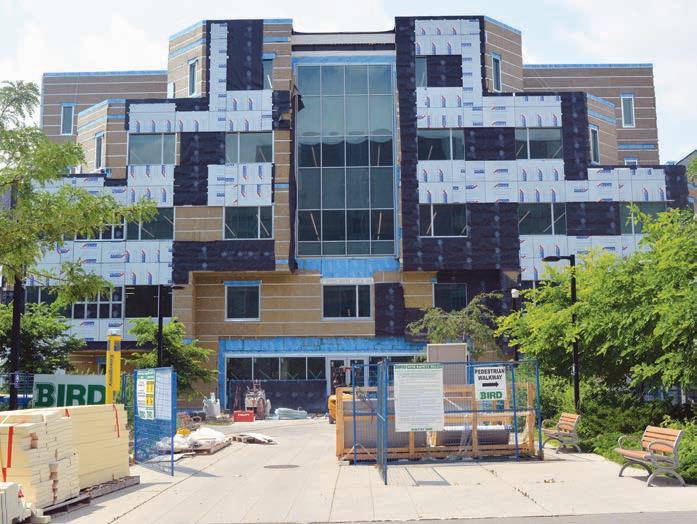

The exterior of the building, currently under construction.

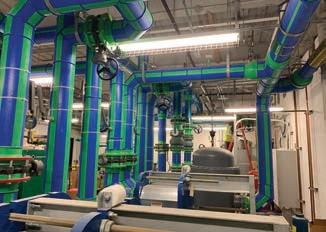

Inside Building NX.
INDUSTRY NEWS
BRITISH COLUMBIA BOLSTERS REBATES FOR ENERGY-EFFICIENT HOME, BUSINESS RENOVATIONS
British Columbia is boosting rebates offered through the CleanBC Better Buildings program — formerly EfficiencyBC — in an effort to encourage energy-efficient renovations at homes and businesses across the province.
The expansion of incentives includes an added $1,000 for those making the switch to high-efficiency electric heat pumps, bringing the total rebate to $3,000.
CleanBC, launched in December 2018, provides up to $14,000 for a home and up to $220,000 for a commercial business. Incentives are available for a variety of measures, such as replacing fossil fuel heating systems with an electric air-source heat pump, improving insulation and upgrading to a high-efficiency natural gas furnace, among others.
Commercial building owners can receive up to $20,000 to complete energy studies that identify cost-effective building improvements up to $200,000 for the improvements themselves. www.cleanbc.gov.bc.ca
CONSORTIUM ENTERS $750 MILLION CONTRACT TO BUILD NL HOSPITAL; MEMBERS INCLUDE CAHILL GROUP, JOHNSON CONTROLS
Newfoundland and Labrador has signed off on a $750 million contract with the Corner Brook Health Partnership consortium to build an acute care hospital on the west coast of the island.
The project to build the seven-storey, 600,000 square foot facility in Corner Brook took a major step forward June 28 when Premier Dwight Ball announced the partnership — consisting of Plenary Group Ltd., PCL Constructors Canada Inc., Marco Services Ltd. and Johnson Controls Canada — to design, build, finance and maintain the structure.
St. John’s, NL-based Cahill Group and Plan Group, headquartered in Toronto, will serve as the mechanicalelectrical contractors for the project. Johnson Controls will
head up facilities management.
The building, which will replace the aging Western Memorial Regional Hospital, will incorporate a geothermal system. The technology will be more costly than standard electric heating, but Plenary Group said it offers greater sustainability benefits and long-term energy savings.
Opting for geothermal will also allow for optimization of the hospital’s energy performance, allowing it to potentially achieve LEED energy points, according to Plenary Group.
Over the course of construction, the province estimates 4,000 person years of employment will be created.
Work on the hospital is expected to get underway before the fall and wrap up in 2023. www.gov.nl.ca
ASHRAE APPOINTS CANADIAN AS 2019-20 PRESIDENT
ASHRAE installed its 2019-20 president, Darryl Boyce, during its 2019 Annual Conference, held June 22-26 in Kansas City, MO.
Boyce is special advisor to the vicepresident (Finance and Administration) at Carleton University in Ottawa, ON. He succeeds outgoing president Sheila Hayter.
During his inaugural presidential address, Boyce announced the new society theme: “Building for People and Performance: Achieving Operational Excellence.”
“People must succeed within the buildings we create,” Boyce said. “ASHRAE is committed to preparing building professionals through learning opportunities, engagement and adopting better practices.”
Saskatchewan-based William Dean, regional site operations manager at the National Research Council of Canada, will serve a one-year term on the board.
More than 1,600 attendees joined ASHRAE at its conference, of which 89 were Canadian. The five-day event included both educational and entertainment opportunities, as well as awards recognizing members.
The society also announced its five-year strategic plan, which sets out its mission, vision and values from 2019 to 2024. It outlines two areas: Built Environment for the Future and the Future of ASHRAE.
Key action items included promotion of best practices for resiliency of buildings, accelerating thought leadership, streamlining the organization’s internal governance and chapter engagement.
The 2020 ASHRAE Winter Conference will be held from February 1 to 5 in Orlando, FL.
Continued on p12
Rendering of the hospital.
Darryl Boyce giving a speech at the ASHRAE conference in Kansas City.
INDUSTRY NEWS
BC CONTRACTOR WINS CALEFFI INSTAGRAM CONTEST, AWARDED GRAND PRIZE
Caleffi North America has announced the winner of its Instagram photo contest, #CaleffiMarchMania. Trevor Groeneveld, owner of Ridge Meadows Mechanical in Abbotsford, British Columbia, was presented with $1000 worth of Caleffi product.
Eight “teams” were paired up for the opening round and posted an install photo or video showing Caleffi product(s) with the #CaleffiMarchMania hashtag on their Instagram
feed. Groeneveld’s installation photos received the most likes, advancing him during each round of the competition. www.caleffi.com
‘RECORD ATTENDANCE’ FORECASTED FOR CMPX 2020 Organizers behind the Canadian Mechanical and Plumbing Exposition (CMPX) are expecting a “sold-out show and record attendance” for the 2020 event. More than 500 exhibitors in over 850 booths are expected to be present at the show, which will be held from March 25 to 27 at the Metro Toronto Convention Centre (North Building). Trade attendance is forecasted to top 14,000.
For the first two days, attendees can take in exhibitors and sessions from 10 a.m. to 6 p.m. Show hours run from 10 a.m. to 4 p.m. on the 27th. Dennis Kozina of Emerson Climate Technologies is show chairman, and Joanna Woo of Emco Ltd. isvice chair.
Jointly produced by the Heating, Refrigeration and Air Conditioning Institute (HRAI) and the Canadian Institute of Plumbing and Heating (CIPH) since 1972, the CMPX is a national trade show for the mechanicals industry. www.cmpxshow.ca

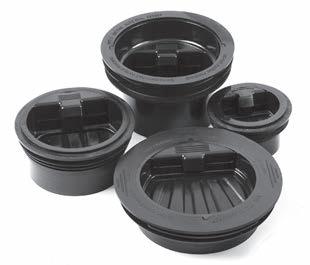

• Quick press-fit installation effectively solves odors and bug problems associated with infrequently used floor drains.
• Patented memory hinge and pressure release valve deliver superior, longer lasting operation.
• Sizes to fit all standard iron or plastic floor drains.
(Left to right) Pierre Huneault (Equipco, Ltd.) and the Ridge Meadows crew - Ken Groeneveld, Trevor Groeneveld and Kris Markgraf. Groeneveld is holding his grand prize: Z55 Series Z-one zone valves.
FEDS COMMIT $1.45 BILLION THROUGH CARBON TAX PROCEEDS FOR BUSINESSES MAKING ENERGY-EFFICIENT UPGRADES
The four Canadian provinces slapped with Ottawa’s carbon tax will get back a portion of that money in the form of rebates for small- and medium-sized businesses implementing energy-efficient projects.
Proceeds from the fuel charge imposed on Manitoba, New Brunswick, Ontario and Saskatchewan will unlock $1.45 billion over the next five years.
Environment and Climate Change Minister Catherine McKenna unveiled details of the first stream of funding, the Climate Action Incentive Fund (CAIF) SME Project, May 30. The funds would cover up to 25 per cent of the cost of larger, energy-efficient retrofit projects, such as building retrofits, fuel switching and renewable energy production, for example.
The CAIF Rebate will cover between 25 and 50 per cent of eligible costs of specified energy-efficient appliances, such as heating and cooling equipment. The minister expects the rebate will be limited to a maximum amount of $20,000 per applicant.
Another $10 million in funding will be made available through the Low Carbon Economy Fund Partnerships program for small businesses taking on smaller projects, with funding levels ranging between $20,000 and $250,000.
Over the next year, $150 million in rebates will be made available, based on the percentage of revenue collected within each province. www.canada.ca
MONTREAL TO PHASE OUT OIL HEATING OVER NEXT DECADE, EARMARKS $4M TO REPLACE SYSTEMS IN MUNICIPAL BUILDINGS BY 2021
The City of Montreal has set out its plan to phase out oil heating over the next decade, earmarking $4 million to replace
the century-old energy source in municipal buildings by 2021.
Mayor Valérie Plante said the city will also table a by-law in the next year effectively banning oil heating systems in new buildings. The phase-out is part of Montreal’s efforts to reach carbon neutrality for municipal
Continued on p14
INDUSTRY NEWS
buildings and new construction by 2030, and for all existing buildings by 2050.
The ban and mandatory removal of heating oil will be undertaken gradually as of 2025, and until 2030, in industrial, institutional and commercial sectors, and will end with the residential sector.
According to the city, heating oil accounts for 28 per cent of its greenhouse gas (GHG) emissions in the residential sector, and 14 per cent of GHG emissions in the commercial and institutional sectors. www.ville.montreal.qc.ca
CONSORTIUM WINS $2.6 BILLION CONTRACT TO UPGRADE HEATING, COOLING PLANTS IN OTTAWA
Innovate Energy has inked a $2.6 billion contract to design, build and maintain a new district energy system in Ottawa.
The federal government tapped the consortium — comprising PCL Constructors Canada Inc., PCL Investments Canada Inc., Black & McDonald Ltd., and Engie Services Inc. — to modernize the aging infrastructure used to heat and cool more than 80 structures in the city, including the Parliament Buildings.
The current system, built between 50 and 100 years ago,
connects to central plants using more than 14 kilometres of underground piping to provide heating by steam and cooling by chilled water.
Along with design partners BBB Architects Ottawa and WSP Canada, the design-build team will convert the existing system to low-temperature hot water for heating and electric chillers for cooling.
The project also includes building and decommissioning plants and upgrading existing facilities in Ottawa and Gatineau, QC. Construction is slated to wrap up in 2025.
“This project will be one of the country’s most significant projects to reduce greenhouse gas emissions, save operational costs, and improve safety,” said Tony Cook, construction manager at PCL Constructors Canada Inc.
Part of the federal government’s Energy Services Acquisition Program, the project also includes the use of smart building technology to “pinpoint opportunities for better energy efficiency.”
Carbon neutral fuels such as biomass and bio-oil will be tested to replace natural gas and other fossil fuels.
The federal government plans to expand the network from 80 buildings to upwards of 600 in the future. www.canada.ca

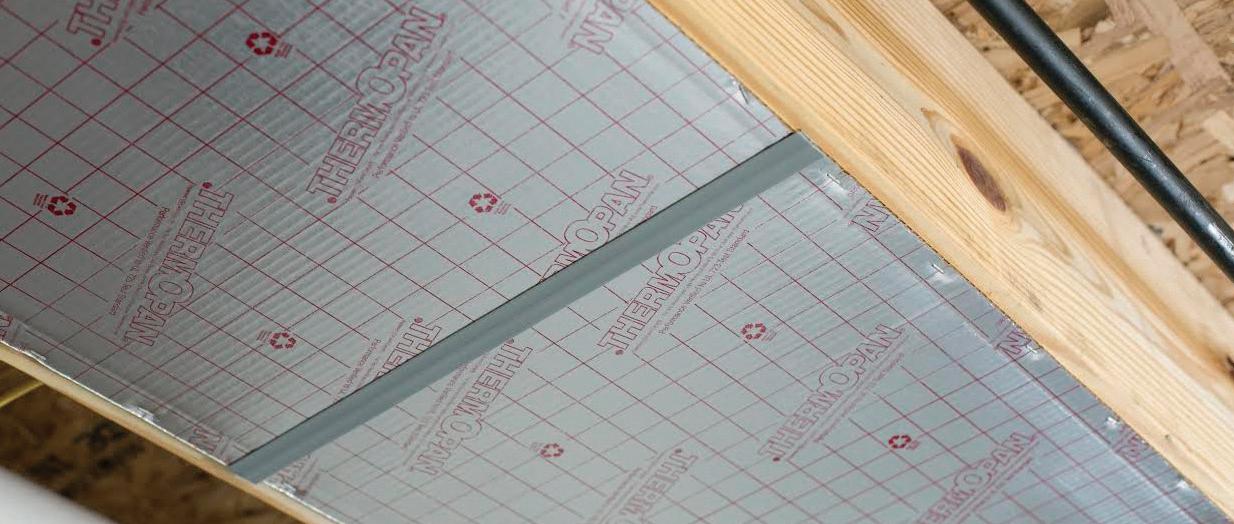

The Original Manufacturer of Thermopan
FLEX YOUR VISION

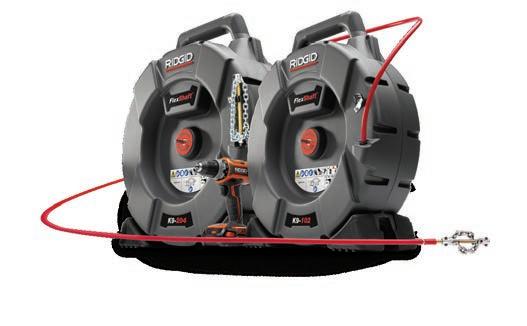

ABILITY TO KEEP YOUR INSPECTION CAMERA IN-PIPE WHILE YOU CLEAN WITH
RIDGID® FlexShaft™ Machines deliver wall-to-wall clean with astonishing speed. Lightweight and portable, FlexShaft Machines can be operated with your SeeSnake® inspection camera in the line while you run it. Fully clear scale and soft blockages faster with FlexShaft Machines. Learn more at RIDGID.COM/FLEXSHAFT
INDUSTRY NEWS
NORTHERN QUEBEC COMMUNITY TO SWITCH FROM DIESEL TO HYDROELECTRICITY WITH CONSTRUCTION OF $125M GENERATING STATION
Partners of the Innavik project inked an agreement to build a $125 million hydroelectric generation station in one of Quebec’s northernmost, diesel-fueled communities.
Hydro-Québec, Pituvik Landholding Corporation and Innergex Renewable Energy Inc. say the 7.5-megawatt station on the Inukjuak River will bring renewable energy to residents of Inukjuak, Nunavik, an Inuit community situated on the north bank of the river.
Officials estimate the community of 480 homes could see 700,000 fewer tonnes of greenhouse gas emissions over the next 40 years and a considerable reduction in hydrocarbon consumption.
“Switching to hydropower will enable us to replace diesel and reduce greenhouse gas emissions for our basic electricity and heating needs, while saving on fuel costs,” said Eric Atagotaaluk, president of Pituvik.
The provincial government will support a program to convert fuel-fired water and space heating systems to electricity as part
of the project. Innergex will head up construction and operation of the run-of-river generator, with site preparation slated for the fourth quarter of 2019. Construction will begin in 2020, and the station is expected to be operational by late 2022. www.innavikhydro.com

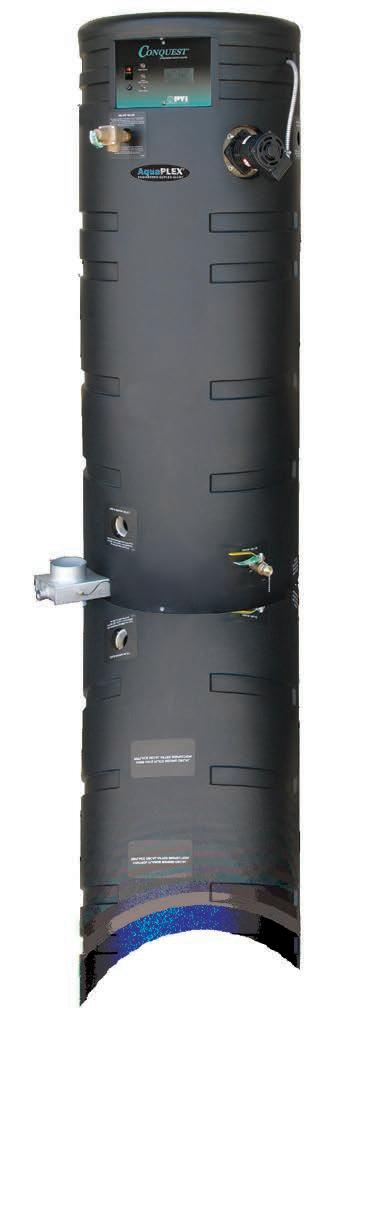

The Only Canadian Water Heater Manufacturer
Giant Factories Inc. manufactures a complete line of residential and commercial - electric, gas and oil-fired water heaters using the best raw materials available in Canada. Our plants, equipped with state-of-the-art machinery, enable us to revolutionize the industry with competitive products that meet your daily hot water needs !
For more information, visit our website www.giantinc.com

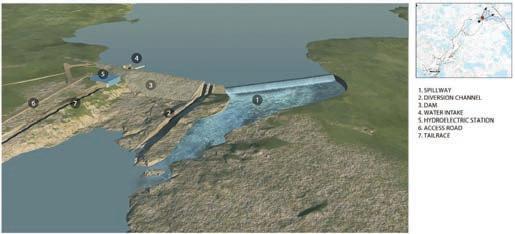

A drawing of the hydro facility.
IS THE INTERNET OF THINGS AN HVAC THING?
BY IAN MCTEER
Ideveloped an intense interest in science and technology while watching the adventures of Captain Kirk and crew on the starship Enterprise on an old black and white television as a kid in the 1960s. Cruising through the heavens at many times the speed of light, teleporting crews to various planets, and diagnosing illness or injury using a handheld device among many other feats of fancy; yes, these could be real one day. Yet, thinking about it now, I wonder if Kirk’s refrigerator could order fresh supplies or if his advanced mobile device could, using geofencing, open his garage door, turn on some lights and activate the HVAC system. Oh, but the Internet of Things (IoT) was probably old hat for Kirk and his contemporaries.
I advanced from cleaning furnace pilot burners to setting up a local Z-wave network in what seem to be a progression comparable to the speed of light. In 2008, my job as a field service represen-
tative with the residential business of Trane Canada took a dramatic shift into the world of internet based technology. Ingersoll Rand (IR) had acquired Trane that year promising shareholders a great adventure in finding the elusive corporate synergy needed to “enhance the potential for improved growth, earnings and cash flow.” Just a few weeks later, I was introduced to the people behind IR’s pioneering entrance into IoT. A sister company called Schlage, a door hardware and security business, had developed a line of high security residential deadbolt door locks that talked to the internet using a Z-wave bridge through a portal called SchlageLink.
WHERE IS THE SYNERGY?
The newly integrated door lock and HVAC business units, under IR’s umbrella, talked about how a busy HVAC company might want to offer a customer a new deadbolt door lock and Wi-Fi camera as an add-on sale to the HVAC ticket.
It could work, right? What HVAC contractor wouldn’t want to make a few extra dollars changing out a door lock? I quickly learned that not all doors are the same, especially the hole size and lock set-back from the door’s edge. Schlage’s original deadbolt lock body required a 2 1/8 in. (54 mm) hole in the door. Being a door hole neophyte, I discovered after trying to install a lock at my house, the hole made in my door was only 1 ½ in. (38 mm) and it was chopped out with a chisel, not professionally drilled with a hole saw (as shown in Figure 1).

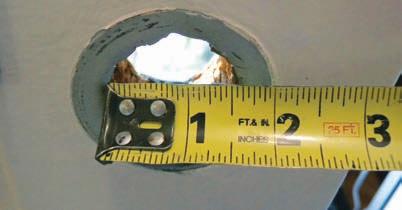

Figure1
How does one enlarge such an opening to the required size? I discovered that I could utilize a widely available jig made for undrilled doors to help in enlarging the existing hole out to the 2 1/8” requirement. As you can see in Figure 2, the body of the new lock covered the leftover screw holes.

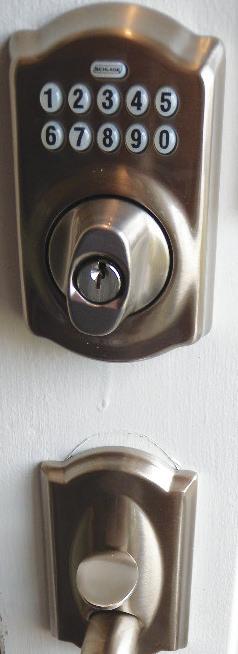

The so-called starter kit consisted of a deadbolt door lock, one Wi-Fi camera, a Z-wave light module and a Z-wave internet portal often called a “bridge” or “hub.” In theory, the consumer would be interested in having the ability to enter several codes into the door lock, maybe one code for the kids, another for mom and dad, and perhaps another for the babysitter.
The system could have been configured so that a child entering his or her code into the deadbolt would not only allow access but also turn on the camera pointed at the door and perhaps a nearby light. The image of the children entering the house would be recorded for the parents to review later or a real time alert may have been sent to one or both parents indicating the children’s codes had been entered.
EARLY ADOPTERS
IR’s home automation kit proved to be ahead of the curve, the term Internet of Things didn’t yet exist in the lexicon. Except for the really tech savvy HVAC diehards, very few industry people knew enough about local area networks (LAN), SSID’s, IP addresses and password protection security.
The starter kit proved to be a non-starter with HVAC contractors. Once we discovered the difficulties involved in setting up a customer’s LAN (including asking embarrassing
questions such as “What is your router password”) and the issues related to home routers, the whole exercise fell into the bin of unrequited synergy. The internet was such an innocent place then – leaving the router default password unchanged was no more unusual than leaving one’s front door unlocked back in the day.
THE INTERNET IS A DARK, MYSTERIOUS PLACE
Since my first adventures in the IoT field, a cornucopia of IoT devices has flooded the market. At one time, getting a Z-Wave hub into a customer’s home meant additional Z-Wave device sales, but that is so 2008 now.
The hubs sold at big box stores or other supply houses can deal with any radio frequency now – although integrating some of the third-party devices into any given network may not be easy. As well, Apple’s “Siri”, Google’s “Nest Hub” and Amazon’s “Echo” operate as smart hubs that link to many IoT devices.
The internet is commonly described as a global network of interconnected computers. There are so many ways the internet adds value to everyday financial and social transactions that the benefits are incalculable. However, the internet was not designed to resist iniquitous behaviour by criminals and has become something akin to a gladiatorial arena for many users. Even simple coding errors can cause massive disruptions for many. Some examples:
• In 2013, hackers stole an HVAC company’s login credentials for Target Stores building automation system and leveraged this access to upload malware onto the Point of Sale system thus gaining access to information about 40 million debit and credit cards in the U.S. Russia and Brazil.
• CBC’s TV program, Marketplace, hired benevolent hackers to force entry into a family’s DIY home automation system purchased at a big box store. The hackers successfully manipulated the door lock, lights and HVAC system from a vehicle parked in front of the house.
• WikiLeaks revealed that the CIA had developed spyware software called “Weeping Angel.” It was used to turn on the microphone in television sets manufactured by a large South Korean conglomerate. The TV’s software also contains credit card details for in-app purchases.
• Anything you or your kids say after the wake-up words like “okay Google” or “Alexa” can be overheard and recorded by Amazon and Google. Theoretically, after the command instruction has been enabled, the device should turn off. However, if Alexa hears you talking about buying a new car, expect auto industry ads to start popping up on your social media feeds. Actor James Franco quipped: “My wife asked me why I spoke so softly in the house. I said I was afraid Mark Zuckerberg was listening! She laughed. I laughed. Alexa laughed. Siri laughed.”
Figure 4
Figure 2. A beautful hole, indeed.
Figure 3. What a great installation.
• In January 2016, a smart thermostat manufacturer pushed out a buggy update that created untold numbers of no-heat situations. The company’s service agreement forbids end-users from suing for damages caused by thermostats failing to operate the furnace properly. This past winter, another manufacturer’s buggy software update caused many furnaces to overheat the building while others simply failed to call for heat.
THEY ARE WRECKING EVERYTHING!
Whether it is a state actor or a bored teenager, there seems to be a concerted effort by the dark internet underbelly of demented players to hobble an otherwise important tool at least as significant as the Industrial Revolution. IoT devices, cynically known as “malware ready” by those eager to destroy them, are particularly vulnerable. Bot networks containing Trojan horses and other malware aimed at your network may not crash your devices. Your computer or smart device may be used to attack some other device or turn your device into a storage medium for child pornography and
“There are so many ways the internet adds value to everyday financial and social transactions that the benefits are incalculable.”
such, all without your knowledge.
In 2017, malware known as “BrickerBot” attacked IoT devices between April and December. BrickerBot’s unknown author claimed to have permanently destroyed over ten million IoT devices.
Recently, a 14-year-old hacker going by the pseudonym “Light Leafon” destroyed over 2000 (and counting) IoT devices using malware he calls “Silex.” Light Leafon boasted on social media that his “project” started as a joke but, as he is having so much fun, it is now become a full-time obsession causing him to drop all his other botnet activities. Wherever wireless networks exist, there is potentially someone looking to break into it. Hackers known as “war drivers” search for Wi-Fi networks from a moving vehicle using a laptop computer or smartphone to troll a network of interest. Using a GPS device, war
drivers can record and later map the location of vulnerable wireless networks. And, wouldn’t you know it, war driving software is freely available on, you guessed it, the internet!
THERE MUST BE AN UPSIDE
The internet is an awesome tool. HVAC engineers and designers have quick access to mechanical and electrical specifications including submittals and product catalogues; service and installation departments use online Installation, Operation and Maintenance materials and, of course, have the all-important access to parts information. Technicians with smart phones can gather not only written materials about specific products but some manufacturers provide QR codes and other methods to offer video instructions to on-site personnel. Manufacturers now offer their HVAC customers to remotely monitor end user equipment from a web portal or smartphone app. Some homeowner and commercial Wi-Fi thermostats can transmit precious data to HVAC contractors saving time and money when things go wrong. In fact, a smart thermostat connected to a communicating
Continued on p20
unit control will send alerts to the service contractor often before the customer knows anything is wrong. The end-user must agree to monitoring, it is as simple as checking a box on the webpage that says something like this: “Allow my registered HVAC dealer to perform remote diagnostics for my air conditioning and/or heating system.”
Smart thermostat manufacturers may offer free lifetime access to the end-user; if the portal can support other smart devices, then the customer might incur an extra monthly fee. For example, Venstar Skyport Cloud Service works with non-aligned HVAC contractors offering a fee-based remote equipment monitoring services to residential and commercial facilities such as health
YOUR COMPLETE SUITE OF HVAC & IAQ EQUIPMENT
clinics, restaurants and offices. Nexia Home Intelligence is aligned with Trane dealers, while a Carrier dealer can offer remote services through its Infinity System.
MISSING THE SIMPLICITY OF BYGONE DAYS
TSI is your one-stop-shop for ventilation and indoor air quality instrumentation. Simplify your equipment portfolio while working with the most accurate instruments available on the market today.
TSI o ers a full line of:
+ Capture Hoods
+ Micromanometers
+ Hydronic Manometers
+ Velocity Meters
Considering the nefarious side of the internet, HVAC contractors, may want to shy away from IoT. Web enabled thermostats will continue to work even if internet connection is lost for whatever reason, but, as we have seen, connected thermostats are not immune from buggy software and botnet attacks designed to destroy the device. Perhaps, as in the animal world, large herds of caribou are somewhat “immune” from predator attacks because it is typically only the weakest members who get taken: the old, the sick and the young are most vulnerable.
In truth, the predators actually perform a service for the herd by removing diseased members and preventing overpopulation. Thus, in the IoT world, the strong security/16-character password types (the herd) are the least likely to be attacked by evil hackers (the predators); then again, perhaps my analogy is a bit too simple?
+ Thermal Anemometers
+ Indoor Air Quality Monitors
When things do not work in the internet world, what is an HVAC contractor to do? Maybe the furnace is working, but when it is not talking to the internet whose fault is that? Or, a bot just trashed the thermostat and your e-mail is subsequently spammed with ten-thousand calls for service.
“Captain Kirk, time-warp back and fix our internet, please!” <>
Ian McTeer is an HVAC consultant with 35 years experience in the industry. He was most recently a field rep for Trane Canada DSO. McTeer is a refrigeration mechanic and Class 1 Gas technician.
GET SMART ABOUT LEAK DETECTION < PLUMBING
Non weather-related water damage claims are among the most frequent and most costly home insurance claims each and every year.
BY STEVE GOLDIE
It was a beautiful summer day when I got the phone call: “Steven, I hate to bother you but water is coming out of your house.”
I was sitting on a patio enjoying a craft beverage, halfway through a well-deserved long weekend away. My neighbour called me to tell me water was literally leaking out of my house, through the bricks from the inside out. As I have stated, it was a beautiful summer day, hot and sunny and we had not seen a drop of rain in days, so the source of the water leaking from my home was not likely weather related.
My planned long weekend vacation had just come to an abrupt and unwelcome end. I immediately called a trusted friend who had a key to my house to go over and shut off my main water valve at the meter. I sadly left my craft beer unfinished, packed up my stuff and set out on the two-hour drive to whatever home was left.
By the time I arrived, the insurance company had been notified and they jumped into action, immediately scheduling a contractor to be there first thing the next morning to begin the clean up and drying out. The cause of the leak was a nut on a toilet supply tube that decided to split. I estimated water had been spraying out full bore for at least a day and a half.
If you need a visual, imagine the contents of a backyard in-ground swimming pool being poured out on the upper floor
of your house, my subsequent water bill confirmed that was roughly the amount of water that leaked. My house is a side split and the leak was on the upper floor so one side of my home was completely flooded, plaster walls and ceilings were saturated, hardwood floors had buckled and split.
The outside wall cavities filled up completely and water was seeping right through the brick to the outside, which is what had alerted my neighbour. Half of my house had to be completely gutted and rebuilt, and I was displaced for months before I could finally move back in.
When it was all said and done, that failed part worth a few dollars resulted in about $70,000 of damages. I was fortunate since my homeowner’s insurance covered most of that. Had I been out of my house for a day or two more without having made provision for somebody to check in I may not have been so lucky. The lesson learned here; always read the fine print on your insurance policies.
Believe me, the irony of such an incident happening in the home of a plumber is not lost on me and I have heard all the jibes and jokes. The reality is however that water damage claims, and specifically non weather-related water damage claims, are among the most frequent and most costly home insurance claims each and every year.
As they say, s**t happens and often at the most inopportune of times. Granted, frozen pipes in winter account for a large percentage of these claims but even when everything is installed correctly and the best materials and components are used, sometimes things simply and inexplicably fail.
The supply nut that failed in my house had been in place without any sign of
trouble for over 20 years and nothing had been changed prior to the break. How is one to predict such an occurrence?
I don’t write this to make excuses for my own experience, I write it to ask the question, is there a place for whole house leak prevention systems and what might that look like?
Is there a place for whole house leak detection? Absolutely yes, and I am not the least bit biased. Seriously though, over half of all insurance property claims are related to water damage, and over half of these are the result of burst water lines or plumbing components.
Insurance companies are very much in favour of some form of leak detection and most offer policy discounts to homeowner’s who have had systems installed. One major insurance provider lists nine preapproved systems on its website. I would not be surprised to see the insurance providers eventually moving towards making leak detection systems mandatory when home insurance is purchased.
With respect to the technology being available and effective, I would have to give a resounding yes to this question also. My incident happened two years ago and in those two years there has been a veritable flood of new products entering this market.
As with just about everything these days, most of these products are Wifi capable and/or web based and they break down into two types, sensor based systems and flow based systems.
Sensor based systems rely on water sensors located primarily in high-risk locations around the home such as bathrooms, kitchens, hot water heaters, washing machines, etc. A wide variety of sensors are available, some wired, some wireless.
“...imagine the contents of a backyard in-ground swimming pool being poured out on the upper floor of your house, my subsequent water bill confirmed that was roughly the amount of water that leaked.”
Many are simply early warning systems; when water is detected they send either an e-mail notification or trigger an audible alarm alerting the homeowner of the problem. They are not connected to the shut off valve and are therefore not capable of shutting off the supply. These sensors are relatively inexpensive but in my opinion they do not do the whole job. Had I had this type of system in place two years ago, I still would have incurred some significant damage considering I was two hours away and would have had no quick and easy way to shut off my water supply.
If you opt for a sensor based system, be sure to choose one that does include controls that automatically shut off the main water supply when water is detected. There are many options of this type, many of which can be monitored through Wifi and a smart phone.

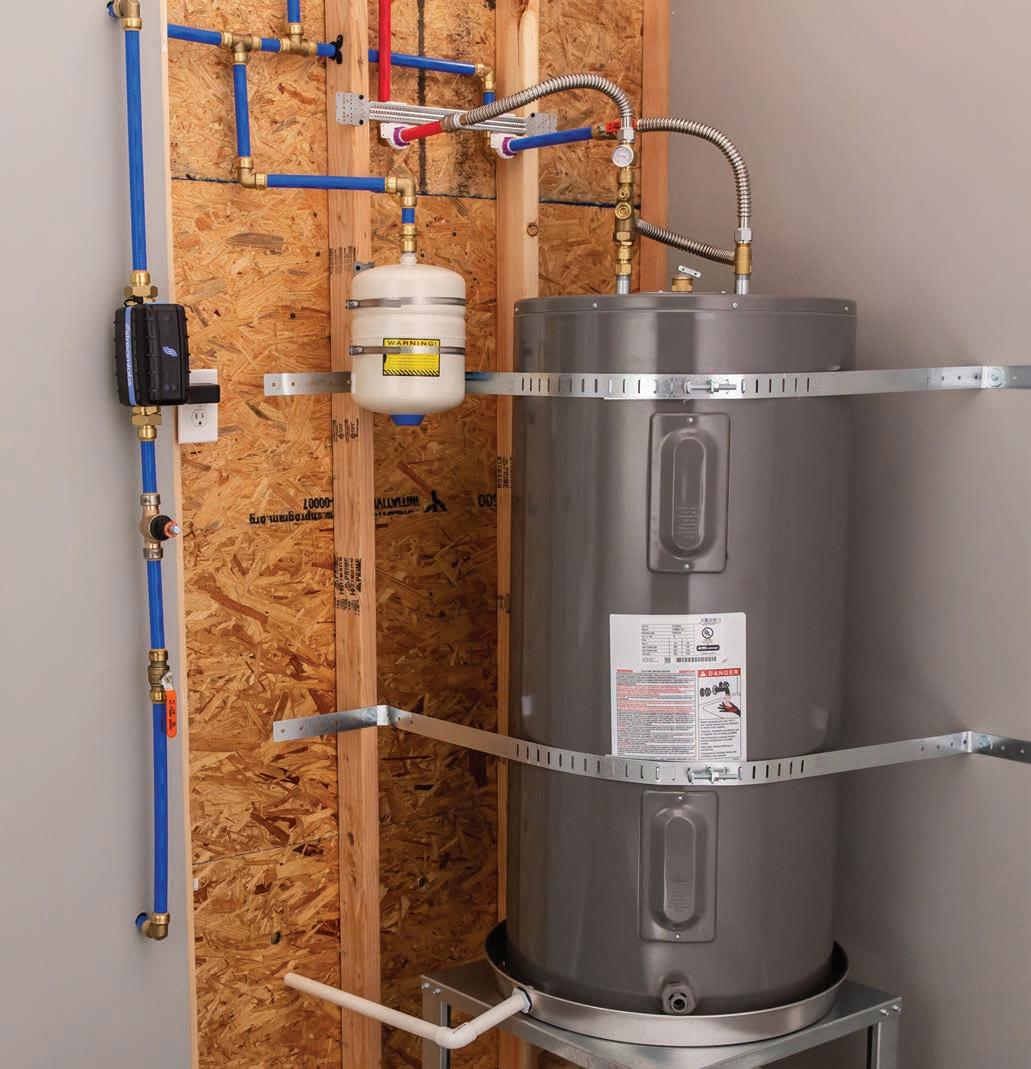

Flow based systems rely on a highly sensitive flow meter and automatic water shutoff valve. These systems are pretty much all web enabled and can be
monitored and controlled with a smartphone and downloadable app. These systems can react to atypical or unusually high water usage and can alert the homeowner.
One system leaves the decision to shut the system off in the hands of the user where another gives the user the option of automatic shut down or user enabled shut down. The system I liked best incorporates a proprietary artificial intelligence that actually learns the water usage of the home, making detection of potential leaks more accurate. It also runs continuous tests of the systems looking for pressure issues and detecting micro leaks as small as one drop per minute, alerting the user of dripping taps or toilets that run on otherwise imperceptibly. These systems can also monitor temperature, shutting the valve in case of potential pipe bursts due to freezing. Most of the sensor-based systems also offer this functionality.
Sensor-based systems by far make up the majority of what is currently avail-
able, although I would not take this to mean they are superior. In my opinion, the problem with sensor-based systems is twofold; if the sensor triggers, this means there is already a leak and some damage may already have occurred. Secondly, you cannot always predict where the water is going to originate or end up; if the sensors are not in the correct location your home could still sustain significant water damage.
For my money, the flow-based systems are the way to go. These are virtually water usage management systems that not only help anticipate and avoid costly leaks such as the one I experienced, but they also help a homeowner reduce overall water usage.
I for one will be purchasing and installing one on my home very soon, that way if I ever get so rudely interrupted again, I can simply pick up my phone, shut off my water, and finish my beer. <>
Steve Goldie learned his trade from his father while working as plumber in the family business. After 21 years in the field, he joined the wholesale side of the business in 2002. His expertise is frequently called on to troubleshoot systems and advise contractors. He can be reached at sgoldie@nextsupply.ca.
BUILDING TRUST
Online reviews are the new word of mouth for contractors. BY
JILLIAN MORGAN
For mechanical contractors building their digital presence, online reviews are unavoidable. The potential customers searching for HVAC and plumbing contractors can be quickly enticed – or thwarted – by star rankings on websites such as Google, Yelp and Facebook.
Positive or negative, online reviews can seriously impact a company’s reputation.
Matt Plouffe, account manager at Toronto-based digital marketing agency Hooplah Inc., says most consumers will read reviews before calling or visiting a company’s website.
“Reviews are becoming more valuable than even word of mouth, because it’s sort of the online word-of-mouth, when you’re seeing individuals talking about businesses and their experience with these businesses and their company,” he says.
THE RESPONSE
The visibility and permanency of negative reviews can be overwhelming. For Leslie Hartsman, the agency’s president, the key is responding effectively.
When faced with an unfavourable review, Hartsman recommends responding to the disgruntled customer and asking them to reach out to the company directly.
After resolving the issue directly, he suggests going a step further by replying to the original comment, thanking the customer.
“99 per cent of the time, the person who was irate or had a problem will respond and say, ‘Thank you for providing that information,’” Hartsman says. “It’s usually about three to four pieces of communication within that negative stream. If it’s left unheard and unanswered, it looks much worse than responding.”
Though, businesses should avoid leaving canned responses. For customers who leave detailed reviews, Plouffe says the company should put in the same effort.
“When you have people writing paragraphs or essays about their experience, actually take the time to think about your response and put the same effort into the response as they did their initial complaint or review,” he says. “These are all transparent, everyone can see these online. So, you are also presenting yourself as a business when you are responding to these reviews.”
For reviews that are false or particularly “nasty,” Plouffe says it’s possible to remove them – but it can be a tricky process.
“There’s different types of people who are going to be posting negative reviews,” Plouffe said. “Some of them will be like, ‘This place sucks.’ Short and sweet – those are the kinds of people that you’re not going to be able to sway.”
COMMUNITY MANAGEMENT
Responding to negative reviews is just one part of the equation.
Encouraging happy customers to leave positive reviews online can bolster online ratings. Even more, negative comments can be outweighed by positive reviews to build back trust.
“The key is not to concentrate on the negative,” Hartsman says. “A lot of companies only respond when it’s negative. You should respond for everything. If there’s a positive review out there, you should say, ‘Thank you very much. Looking forward to seeing you again.’”
With so many platforms available for customers to voice their concerns, it can be difficult for businesses to know where to focus their efforts.
“When it comes to your online presence, Google is going to be one of the more valuable review sites,” Plouffe says. “Reviews on [Google My Business] do help with rankings and presence online. If your Yelp review is a three and your Google review is a four, people will compare the two. But with Google, specifically, it’s also going to help with your [search engine optimization] elements within Google search.”
Though, managing reviews on social media platforms such as Facebook, Twitter and Instagram will also give contractors an edge.
“At the end of the day, it’s an extension of your social media, it’s like community management,” Hartsman says. “If you’re a business that makes a billion dollars a year or you’re a business that makes $250,000 a year, unfortunately, these days, everyone has to go through the same steps.” <>
MODERN HYDRONICS FALL 2019
DEALING WITH THE PRODUCTS OF COMBUSTION

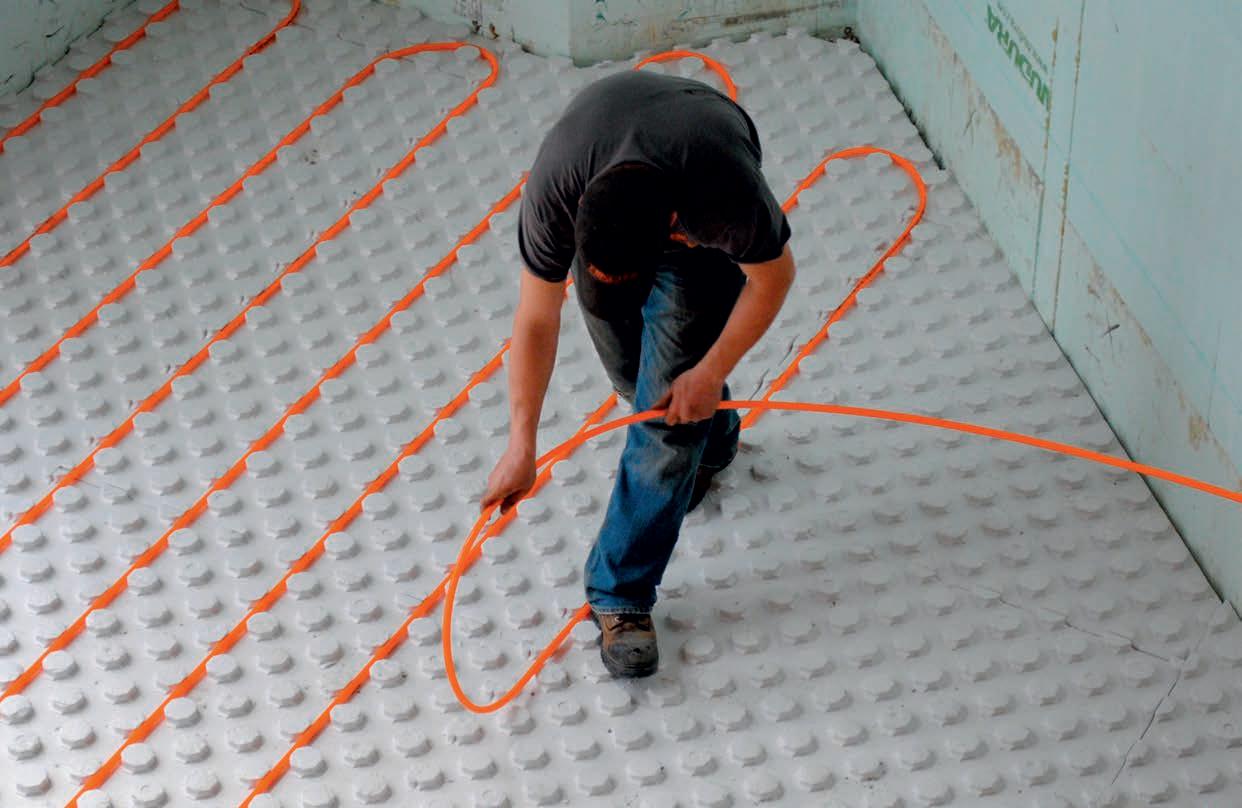

FORWARD THINKING PROS USE CEILING RADIANT
CHOOSE WISELY: FACTORS TO BE CONSIDERED WHEN SPECIFYING BOILERS
THINK AHEAD…
What will systems look like in the future?
ALSO IN THIS ISSUE:
IOT PERMEATES THE MARKET
HYDRONIC MARKET NICHE POISED FOR GROWTH
TIPS FOR BOILER RETROFITS
HYDRONIC PRODUCT SHOWCASE
Endless hot water...
Your customers demand it.
The NEW Vitotrans 300 provides it!

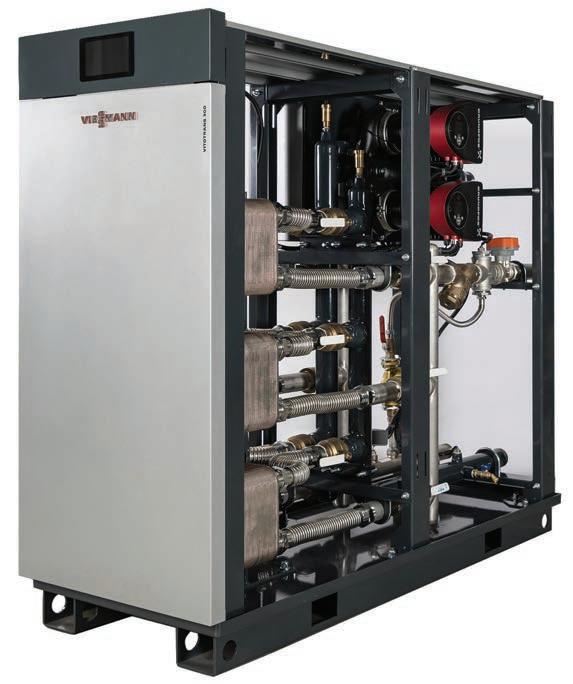

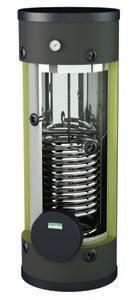

VITOTRANS 300
Commercial high-output DHW heating station
The new Vitotrans 300 is a compact, pre-assembled and self-contained DHW heating station, designed to provide large volumes of on-demand hot water to commercial and industrial applications.
Powerful. Cost Effective. No Downtime.
Works seamlessly with any new or existing hydronic heat source to provide a reliable and consistent supply of endless hot water at flow rates of up to 180 GPM.
Eliminates the need for dedicated DHW heating boilers, batteries of direct or indirect-fired DHW tanks, or cascades of tankless water heaters for maximum cost savings.
Multi-heat exchanger design provides built-in redundancy and eliminates costly downtime during service and maintenance.
MH4 GUEST EDITORIAL
Think ahead…
Hydronic system designers need to think carefully what their systems will look like 25 years, or perhaps 50 years from now.
BY JOHN SIEGENTHALER
MH7 VENTING
Dealing with the products of combustion: Part 1
Look closely at a project’s unique venting requirements to avoid venting woes.
BY ROBERT WATERS
MH14 BOILERS
What factors should be considered when specifying boilers
The smallest design details may have the greatest impact on a boiler’s value and performance over time, so choose wisely.
BY JOHN MILLER
MH16 ENERGY EFFICIENCY
Benefits similar to a new system
Tips on major retrofit options available to minimize energy loss and maximize fuel savings.
Embracing the inevitable IoT has permeated the market and contractors have no choice but to get on board.
BY CURTIS BENNETT
MH30 CEILING RADIANT
The forgotten solution
Forward thinking and creative professionals use ceiling radiant as a supplement or as the primary radiant source.
BY STEVE GIBBS
MH34 HEAT EMITTERS
Have you considered panel radiators?
This hydronic market niche is poised for growth in North America.
BY JOHN SIEGENTHALER
THINK AHEAD…
Hydronic system designers need to think carefully about what their systems will look like 25 years, or perhaps 50 years from now.
BY JOHN SIEGENTHALER
Although I have worked with hydronic heating for four decades and designed systems around just about every possible heat source, I would be hard pressed to predict what might be available as hydronic heat sources 25 years from now. Fifty years from now I doubt that I will be predicting anything, and yet, hydronic heating, in some form, will hopefully still exist. If comfort, efficiency, and lasting value, rather than first cost, become established as the market “drivers” hydronics might even be the dominant method of heat delivery. Imagine that.
By the latter half of the 20th century, the North American hydronics industry got used to the fact that some hydronic heat sources could last for several decades. It was not uncommon for a well-applied cast-iron boiler to have a useful life of 30 to 40 years. These boilers usually became technologically obsolete before they were incapable of operating due to some major failure. This was just fine when fuel prices were reasonably cheap and stable, and product development occurred at a somewhat slower pace compared to today. Back then, most North Americans cared little about the “box in the basement,” provided it responded when the dial on the T-86 got turned up in the fall.
Today, some fuel costs are approaching 400 per cent of what
they were 15 years ago. Predictably, more consumers are interested in what’s happening within that box in the basement. Our industry has responded with a wide spectrum of heat sources from boilers, to heat pumps, to solar collectors. Still, you won’t find many manufacturers, who, in all candor, will tell you these contemporary heat sources are likely to last over 20 years.
In contrast, a well-designed, correctly installed, and properly maintained hydronic distribution system can last for many decades, potentially even longer than the building it is installed in.
So, based on these differences in expected life, it appears likely that most of the hydronic distribution systems currently being installed will be supplied by different heat sources over their useful life. This raises an obvious question: What can designers do today to ensure that the distribution systems they create are compatible with future heat sources?
The answer should consider the materials used in the system, how the system will be maintained, and at what conditions will the system operate?
From the standpoint of materials, most of the present-day polymer tubes, when applied at temperatures and pressures well below their maximum ratings, should last upwards of 100 years. I have even heard speculation of 200-year lifetimes for PEX. To achieve such lives, these materials should be installed so that
they are not abraded due to expansion/ contraction movement. They should also be protected from ultraviolet light, and not exposed to hydrocarbon solvents. In my opinion oxygen barrier tubing should be used on all hydronic systems.
Copper and copper alloys such as brass should not be exposed to acids such as contained in residual soldering flux, or degraded glycol antifreeze. They should also not be exposed to water with high concentrations hydrogen sulfide. Flow velocities in copper tubing should be limited to four feet per second.
All piping circuits containing soldered copper or threaded iron or steel piping should be internally cleaned with proper hydronic detergents to remove residual solder flux and cutting oils that would otherwise remain in the system, potentially causing corrosion or impaired thermal performance due to fouled heat transfer surfaces. Systems should be operated with demineralized water. When glycol-based antifreeze is used it should be tested annually to verify a pH between 7.5 and 8.0.

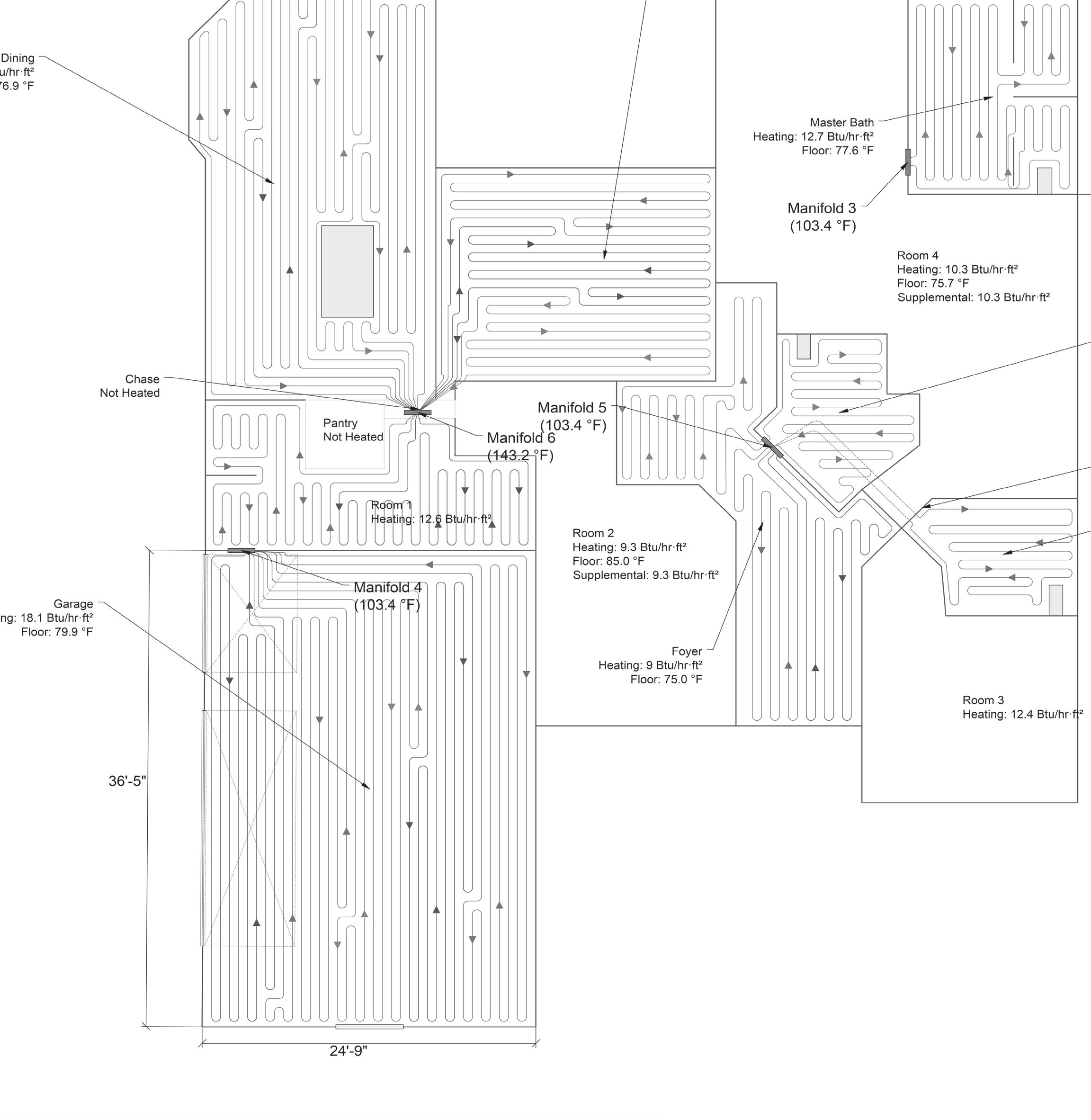

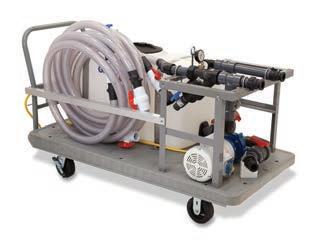

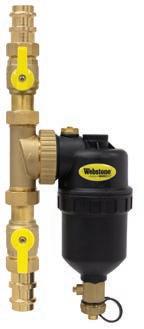

Magnetic particle separation should be used to gather up iron oxide and allow it to be periodically flushed from the system. This is especially important for the new generation of circulators using permanent magnet motors.
From the standpoint of design, the concept can be summarized with three words: low water temperature.
The one prediction that I am willing to make about future hydronic heat sources is that they will operate best at low water temperatures.
So, when you size up radiant panels, panel radiators, and even fin-tube baseboard, I recommend that you design all you hydronic heating systems so that they can supply design load conditions using water no warmer than 120F (about 49C). Even lower
supply water temperatures are preferred when possible and practical. This allows those distribution systems to be compatible with a wide range of contemporary hydronic heat sources.
I urge those who design hydronic systems to think carefully what your systems will look like 25 years, or perhaps 50 years from now.
Will those who install the next heat source in these systems see that you considered the long lifespan of a well-planned and easily maintained distribution system, or will they find it necessary to “shoe horn” in supplemental heat emitters?
Will the controls that operate this system still work, or will they add to the growing tonnage of electronic waste that we are already producing?
Are your present distribution system designs truly “sustainable,” or will they succumb to a “tear out and replace” by the
next generation of hydronic pros? Do what you can now to “future proof” the hydronic distributions systems you create. Those who follow will appreciate your forethought. <>
John Siegenthaler, P.E., is a mechanical engineering graduate of Rensselaer Polytechnic Institute and a licensed professional engineer. He has more than 35 years experience in designing modern hydronic heating systems. Siegenthaler’s latest book is Heating with Renewable Energy (see www.hydronicpros.com for more information).
• See the newest hydronic products
• Take part in a variety of seminars delivered by your favourite HPAC writers on the hottest hydronic trends
• Enjoy lunch, dinner and drinks
DEALING WITH THE PRODUCTS OF COMBUSTION: PART 1
Look closely at project’s unique venting requirements to avoid venting woes.
ROBERT WATERS
Contractors who install gas-fired condensing boilers know that dealing with the products of combustion is a big challenge when installing these appliances. Flue gases exiting the appliance are laden with moisture, and liquid condensing from the combustion chamber and vent pipe is acidic and corrosive.
Dealing with this low temperature flue gas and liquid condensate must be done properly to avoid damages to the building and the appliance, costly call backs and angry customers. This is especially true when retrofitting new modern condensing appliances into old buildings, where contractors face challenging building and lot restrictions, and difficulty accessing drainage.
Part 1 of this article will look at the issues and solutions for dealing with venting of flue gas from condensing appliances. Part 2 in HPAC October will look at disposing of liquid condensate.
Condensing furnaces, water heaters and boilers have been gaining market share steadily over the last 15 years. Recent changes to the federal energy efficiency standards mean that the push to condensing products is going to get even stronger.
NRCan Amendment 15 was published in the Canada Gazette, Part II on June 3, 2019 and introduces higher minimum efficiency regulations for a wide range of HVAC products.
Condensing level regulations have been introduced for gas boilers and certain sizes and types of gas water heaters. For gas-fired boilers, all products must be condensing (>90 per cent) by 2023 for residential (<300 MBH), and 2025 for commercial (>300 MBH). Gas-fired instantaneous water heaters are also all going to condensing levels in 2020.
Approximately 75 per cent of the new residential gas boilers currently sold in Canada are already at or above this efficiency level so the issues of dealing with flue gas and condensate are not new to the industry. However, now with these new regulations in place, all installations must go with condensing
boilers and contractors will no longer have the option to install non-condensing. Many existing buildings that currently use non-condensing boilers will have to be upgraded to condensing boilers when it is time for replacement of the old unit. In some cases, this will result in very challenging retrofits.
Over the last 15 years many lessons have been learned related to dealing with the products of combustion from condensing appliances. Venting products and techniques have been introduced to provide solutions for new heating technology. Consultations with many experts in the venting field has shown me this is an area where the good, the bad and the ugly certainly applies. Currently industry veterans that have been at it for many years see many issues going on now with installations.
The most common venting materials used for condensing boilers are PVC and CPVC pipe, polypropylene pipe and stainless steel with the latter two materials both available in rigid and flexible pipes. All of these products have different temperature ratings, and long-term safety must be considered when choosing. What happens if the boiler set point temperature is turned up to the maximum, or the boiler heat exchanger scales up over time? Both of these conditions can cause the flue gas

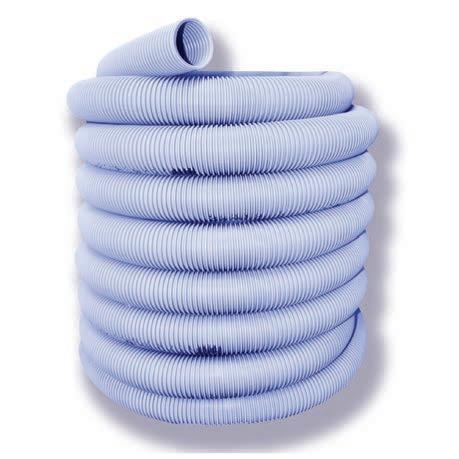

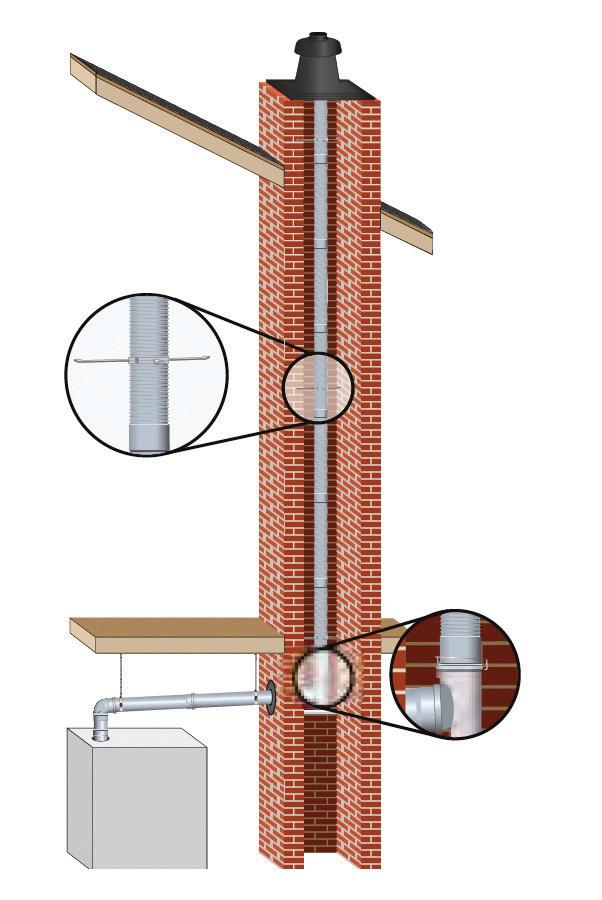

Figure 1 flexible polypropolene venting
temperature to go higher than what would normally be expected. Will the vent material safely stand up to these conditions? Vent pipe operating above its rated temperature may become compromised over time and create unsafe situations.
All of these venting materials have pros and cons and it is usually up to the individual contractor to choose which product they prefer and which is best suited for the application. The installer must consult the appliance manufacturer’s installation manual to check what venting is approved for the specific appliance. For commercial buildings, the combustible (plastic) vent piping must meet all Part 3 requirements of the Ontario or National Building Code, especially related to Flame/Smoke Ratings and firestop requirements. Installation problems can occur with any material if the manufacturer’s installation guidelines are not followed properly.
Contractors must carefully follow all the guidelines related to making fitting connections, pipe support requirements, wall and roof penetrations and terminations, etc. The reality in some projects is that sometimes not a lot of thought is put into the choice of vent product. Whatever is the cheapest, whatever is readily available at the distributor and whatever is fastest and easiest in terms of installation are sometimes determining factors. This does not always lead to the best longterm results for the customer.
PVC vent pipe is generally the most commonly used product due to its lower cost and wide availability, however it is only rated up to 65C/149F and can only be used for certain appliances. CPVC is rated up to 90C/194F which makes it suitable for a wider range of products, but it carries a higher price tag.
PVC/CPVC pipe and fittings are very rugged Schedule 40 thickness and provide excellent beam strength, durability and resistance to puncture. PVC/CPVC
both rely on solvent welded joints which provides a very permanent and reliable connection.
Problems can occur when care is not taken with the installation, especially if the wrong solvent is used or if the solvent welding procedure is not followed. Joints cannot be taken apart once welded, and in cold weather, joints must be primed prior to gluing below 0C.
Polypropylene venting material is rated up to 110C/230F and is gaining favour with some due to its higher temperature rating, ease of use, lighter weight, versatility and fast installation time. The connection joints use a gasketed male-female connection that require the use of a locking band after the fitting has been installed. Problems can occur if the bands are not used or installed improperly. If the pipe is sloped incorrectly then it is possible for the joints to leak. One industry veteran told me he no longer uses CPVC as the gluing of joints can be messy and he likes polypropylene as it is fast and easy to work with and uses simple non-glued joints. Stainless steel venting offers the
highest temperature rating of up to 249C/480F, and also uses a gasket connection on rigid pipe. Flexible pipe for relining chimneys is available in both polypropylene and stainless steel, with stainless steel being the most popular. Care must be taken when cutting any plastic pipe to length. The pipe end must be cut as square as possible to provide the best seal with the fitting. A wheel cutter is recommended for use on CPVC rigid pipe, but these cutters do create a raised edge on the pipe end, which must be removed with a reamer.
If a blade or chop saw is used on any pipe, the pipe end must be completely de-burred inside and out, and the end may need to be bevelled on the outside. Failure to do this can create problems with a glued fitting or damage the gasket on a polypropylene fitting.
Side wall venting has become the most common method of venting condensing appliances, to the point where everyone just thinks “that’s the only way it’s done now right?” The reality is that this is the area where most venting
Continued on MH10

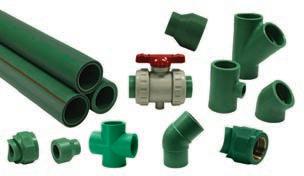

Figure 2 Polypropylene venting materials

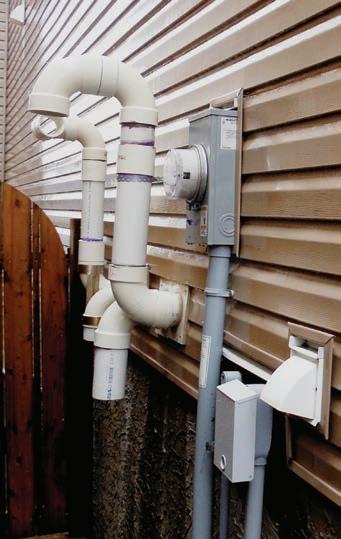

Figure 3 Congested side wall venting with signs of moisture formation
problems and issues occur. Flue gas exiting at the side of the building close to the ground comes in contact with walls, windows, driveways, swirling winds, plants and sometimes people. This can create issues with large visible plumes of moist flue gas, damage to the façade, angry neighbours, dead plants, ice formations and flue gas recirculation.
The issue is exacerbated by how little space is between houses in new subdivisions, and the fact architects love open plans and make no allowances for vertical venting. The issue has become severe enough that municipalities in Alberta and BC are starting to put restrictions on side wall venting of appliances. Minimum distances have been increased and redirecting of the vent plume must be addressed.
One of the most serious side wall venting issues in relation to the appliance itself is flue gas recirculation. This is where flue gases are drawn back into the combustion air inlet pipe then re-enter the appliance. Flue gas recirculation is usually caused by problems with the location of the vent terminal. Swirling wind can whirlpool flue gas, causing it to have a tumbling effect and hang close to the ground.
It is important to recognize and avoid vent terminations that are too close together, located in building corners or with unusual wind patterns. Recirculated flue gas can be very damaging to the appliance and can eat away components such as the inlet venturi and radial fan bearings.
Recirculation often results in very poor combustion, high CO levels and unsafe conditions. Intermittent burner lockouts will often result due to this recirculation and they can be hard to diagnose. By the time the technician gets in to service the appliance, the wind may have dropped and the appliance can be running fine again.
Frost and ice formation is the other major issue with side wall venting. Ice and frost can form on the walls, windows and landscaping near the vent terminal. When the vent terminates in the space between two buildings ice and frost can form on the walls and windows of the adjacent buildings. Ice that
builds up on driveways and sidewalks creates very unsafe conditions. These ice and frost issues are often very contentious issues with neighbours.
Icing issues can be made much worse when the venting is sloped incorrectly. Venting should always be sloped continuously back towards the appliance so it can be easily drained away inside the building. When the slope is in the wrong direction, condensate will run towards the outside of the building and drip out the vent pipe. This will result in large formations of ice at the terminal, and it is not uncommon to see huge icicles forming all the way to the ground.
Although not as common, frost can also build up on first 6 in. of the inlet air pipe of the appliance. This can sometimes build up to the point of a burner lock-out.
All the venting professionals I consulted advocate for vertical venting as being the best option for almost any situation. Vertical venting may not be the cheapest or easiest solution, but it can successfully make all of the problems listed earlier disappear. When flue gas is terminated up above the roof line, flue gas is dispersed into the atmosphere well above the level of people, plants and buildings.
Two pipe and concentric pipe options are available for vertical venting. Some contractors will use a hybrid approach with the vent exhaust pipe going vertical and the inlet air pipe coming horizontally from the side of the building.
When retrofitting an older building with an existing chimney, Continued on MH12
Figure 4 Side wall venting causing ice formation on adjacent building
Figure 5 Vertical venting with rigid pipe
Save time and money by reducing install, startup and operating costs
Simplify startup and maintenance
Strengthen system performance and efficiency

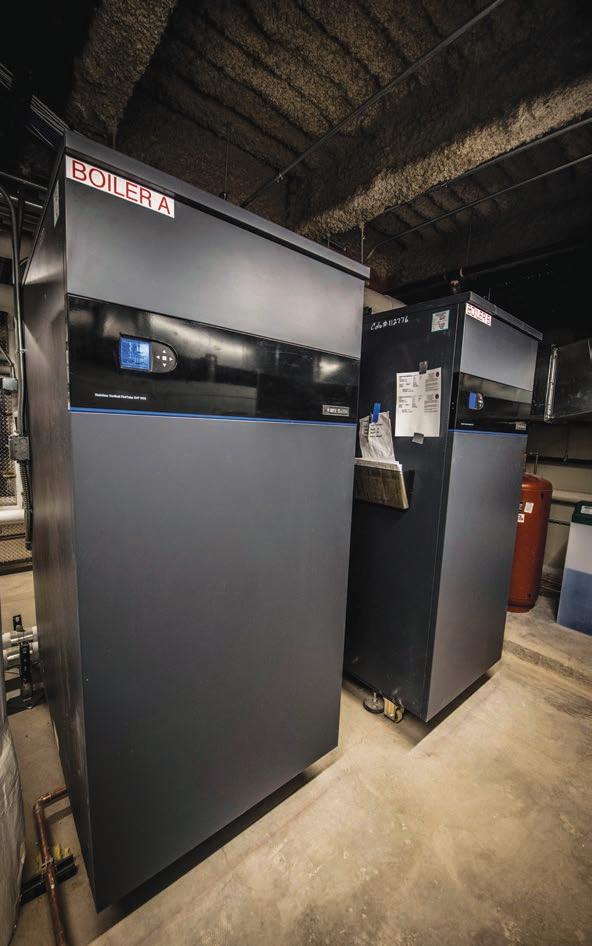

Benchmark® Platinum
Gives You the Edge

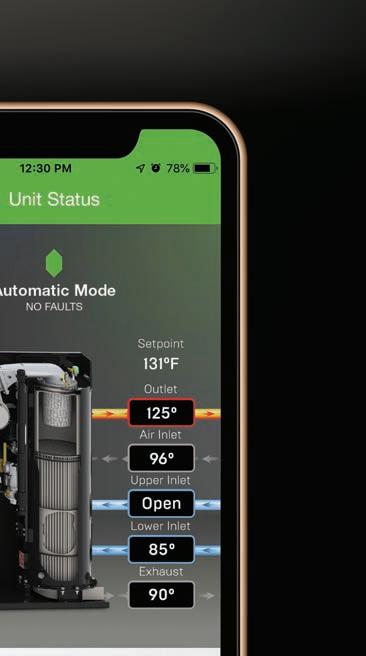

Edge Controller and Mobile App
With advanced features such as EZ Setup and Combustion Calibration Assist, AERCO’s Edge Controller saves time and money with simplified startups and maintenance. Edge mobile app offers additional capabilities and enhanced diagnostics with freedom to move around while setting up and operating the unit. Together with AERtrim patented O2 trim, dual returns and onAER Predictive Maintenance, Benchmark Platinum optimizes your hydronic system and delivers the lowest cost of ownership.
flexible liners of polypropylene or stainless steel offer a reliable vertical venting solution. Flex venting can be run up existing masonry or B-vent chimneys. However according to one vent supplier, many contractors are not aware, or do not often consider this method as a venting option.
A service contractor in Toronto I spoke with says he sees too many instances where contractors don’t think about the neighbours when venting. He loves flexible chimney liners and refers to them as a “peacekeeper,” as it avoids any issues with sidewall venting and dealing with neighbours in tight retrofits.
I have heard many side wall venting horror stories involving driveways covered in ice, seven-foot long icicles, stucco and masonry walls severely damaged by water egress and freezethaw cycles, trees killed, appliances locking out and internally damaged, and neighbours almost coming to blows. After listening to these tales of venting woes, I believe that it is prudent for contractors to take a long hard look at the unique logistics of each job and inform their customers of their venting options, both horizontal and vertical. Most customers are not aware of the issues of sidewall venting, and are relying on the contractor to guide them to the best option for their building.
Heating & Cooling REIMAGINED
Dealing with the products of combustion from high efficiency equipment must be re-evaluated by everyone involved in the mechanical world. Architects and engineers must reconsider side wall venting and avoid open plans with no allowance for vertical venting.
Contractors often do not look closely enough at the project’s unique venting requirements and get caught underpricing the job. This is what leads to the quick, inexpensive venting job, and can end up leaving the building owners stuck with hefty façade or equipment repairs, angry neighbours, unsafe ice buildup, and unsightly flue gas plumes, and equipment lock-outs. We should all strive to make sure these things do not happen. <>
