The Panorama Voyage

Alvin Kwek Guan Ting

The Panorama Voyage Given the existing site conditions and the architectural diversity of the surrounding buildings, the varied elevations present an opportunity to utilise the roofscape.

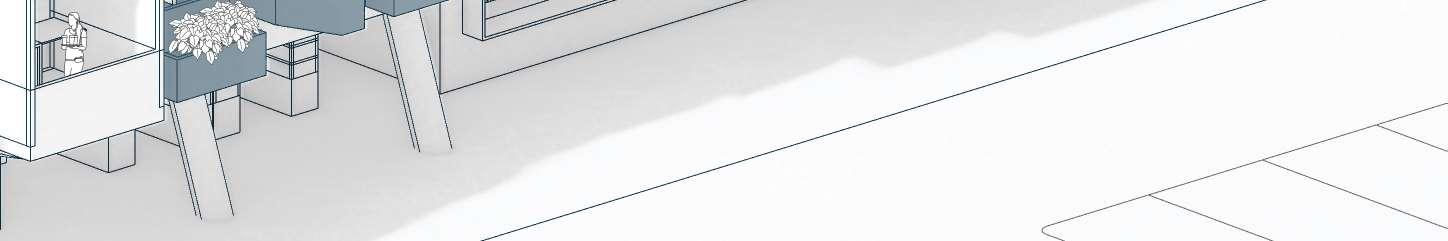

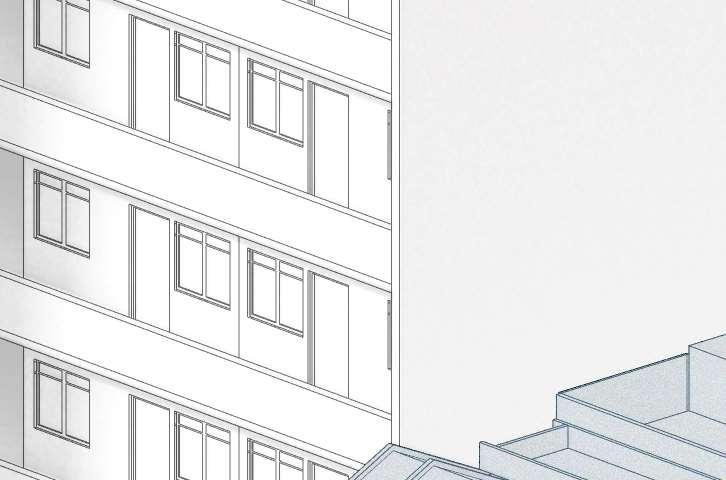

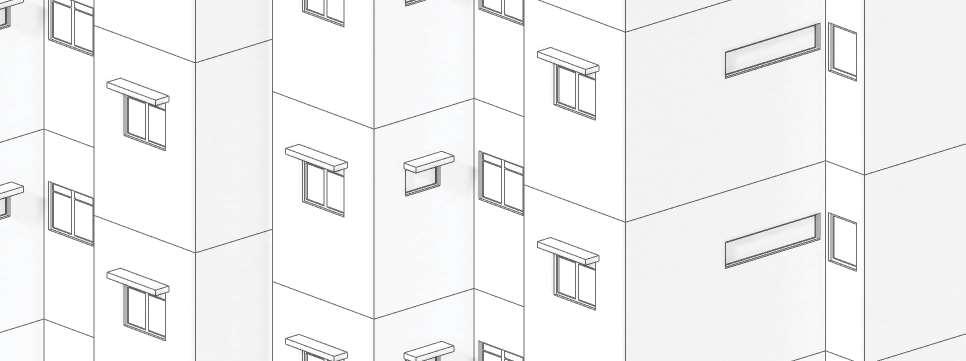

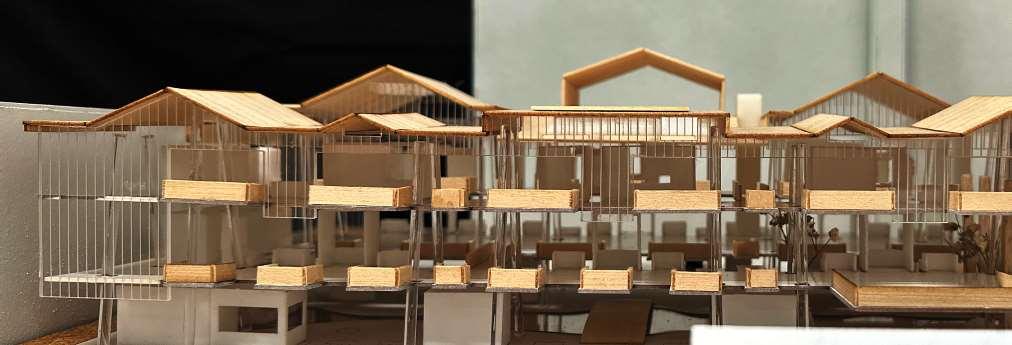

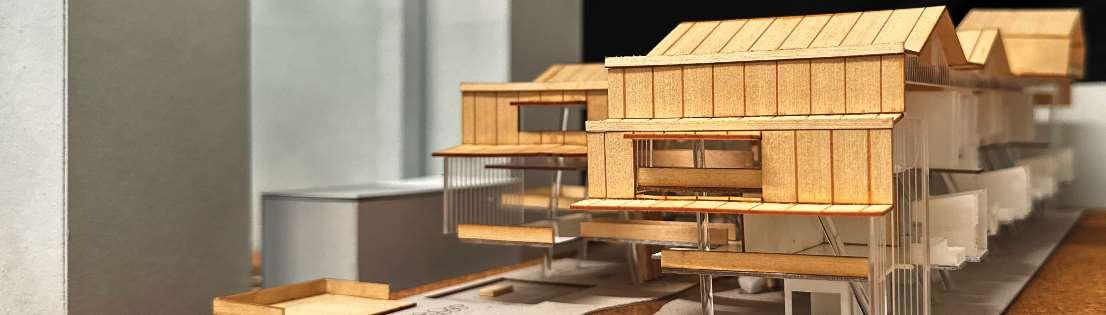

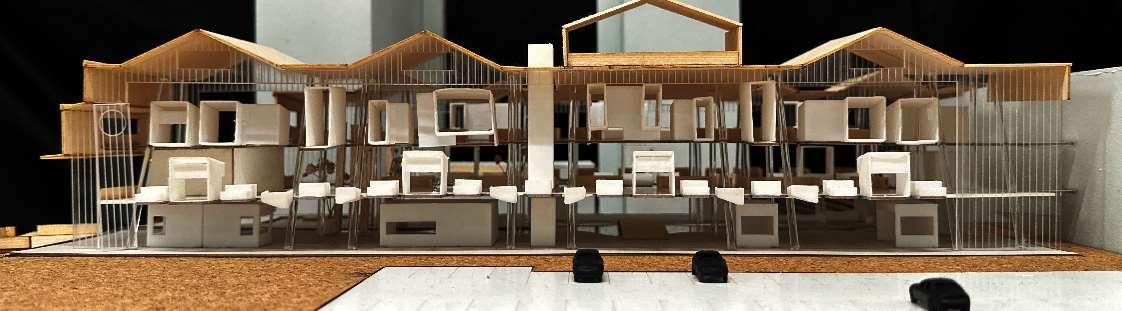

This “fifth facade” aims to energise the surrounding built environment, drawing both residents and the public. The design objective is to create a performance facade using two primary elements: balconies and the roof. The Panorama Voyage features a viewing facade from all sides and the roof. For instance, the balconies on the north facade are food stalls and dining areas, while the roof cleverly segments the balconies to create interactive and performance spaces, highlighting the relationship between hawkers and residents on the north facade and the adjacent HDB corridor, respectively. Furthermore, the roof in the centre hosts an amphitheatre to foster community engagement with the neighbouring HDB blocks. Architecturally, the food stalls are thoughtfully arranged according to the different meals of the day. Inside, the roof’s configuration facilitates effective spatial zoning. The first level is centred around a bio-swale, an innovative feature for stormwater management collected on the roof, and stimulates a variety of horticulture-centric community activities at ground level, supported by sustainable food waste management practices onsite. The bio-swale enhanced both functionality and visual appeal. It is seamlessly integrated into the existing drainage on the slope facing the park connector.This integration not only ensures effective water management but also enriches the views from within the building, complementing the sequence of balconies. The design of the roof thus subtly enhances the functionality and visuals of the balconies, crafting a cohesive and interactive architectural experience.

8

The Panorama Voyage

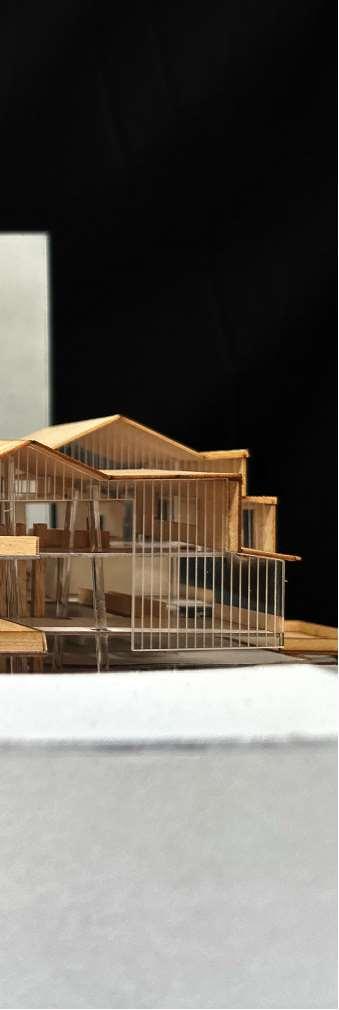

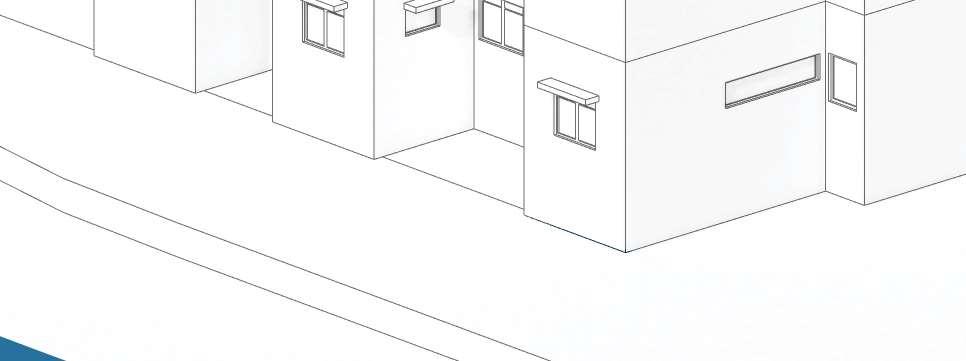

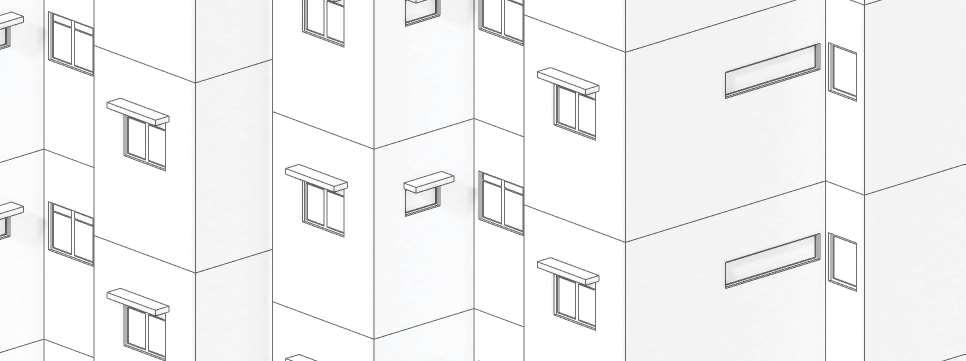

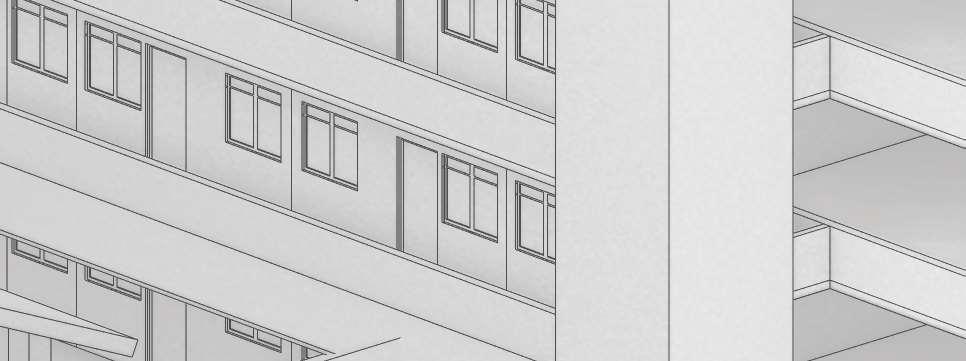

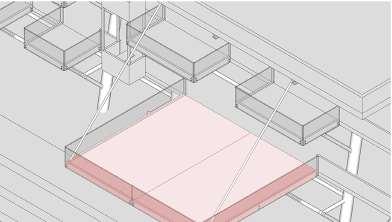

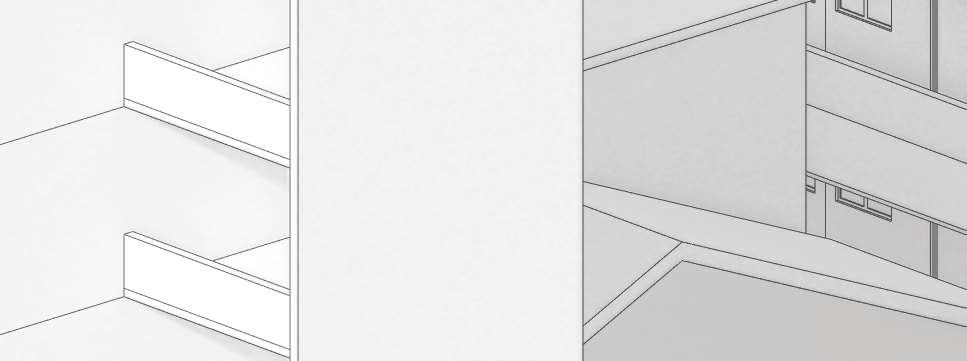

Balcony as Corridor

Balcony as Bridge

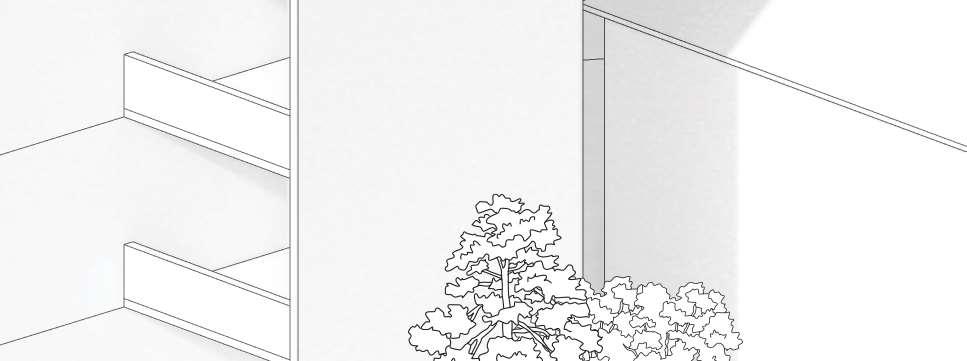

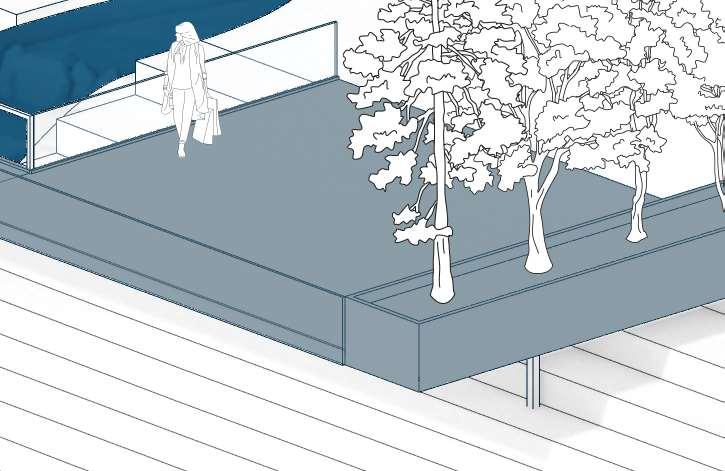

Balcony as Garden

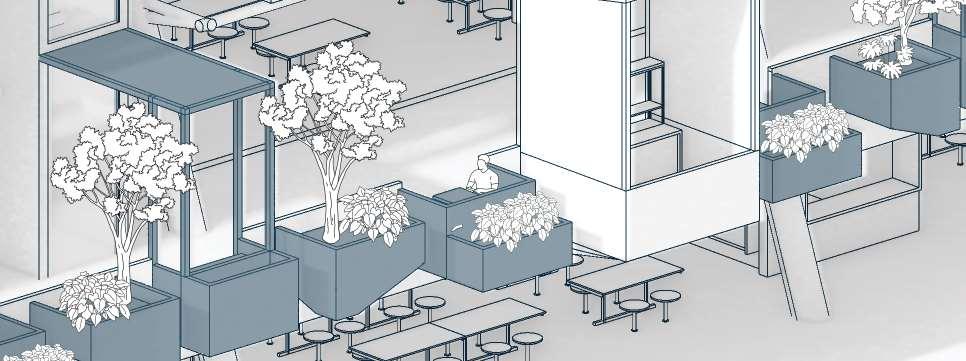

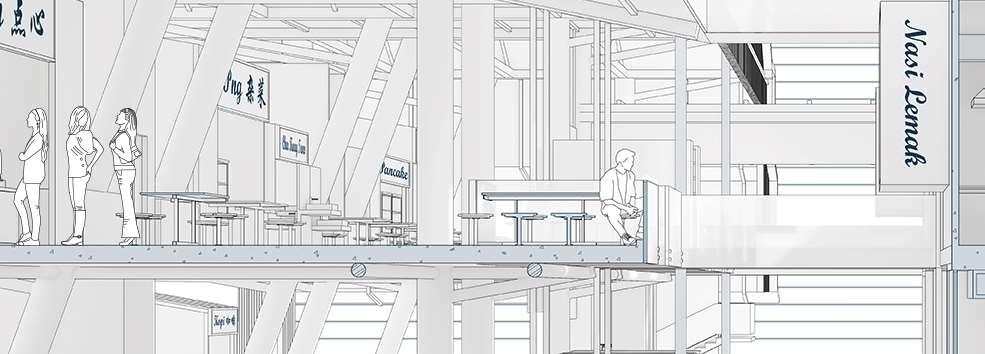

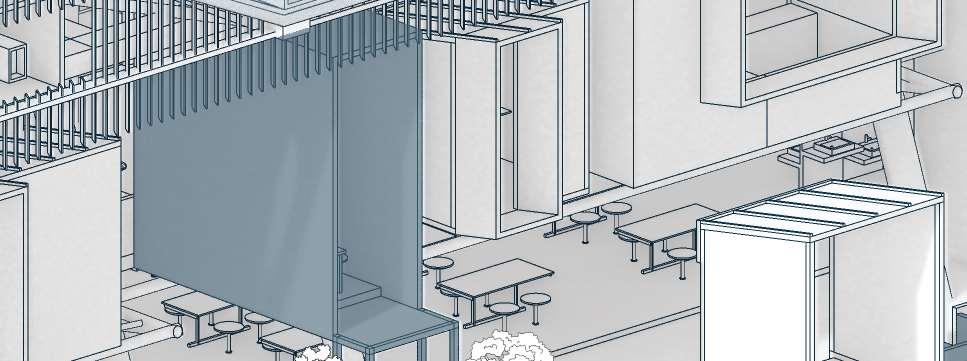

Balcony as Eating Space

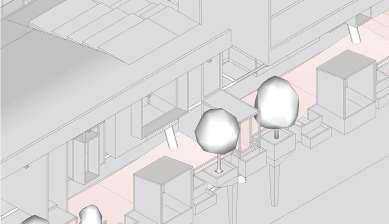

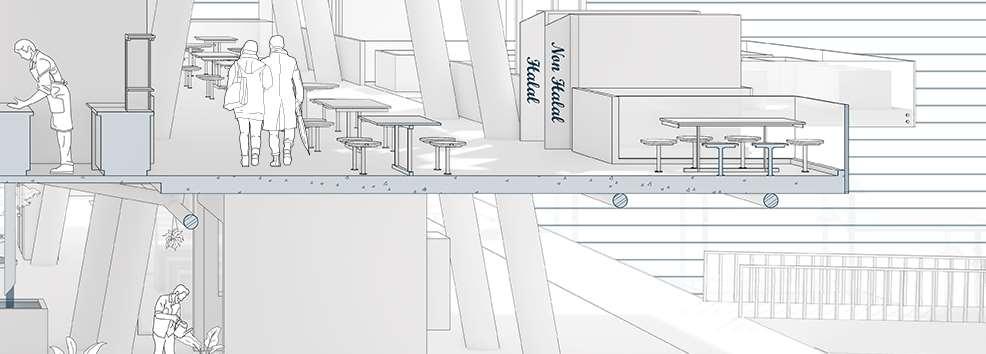

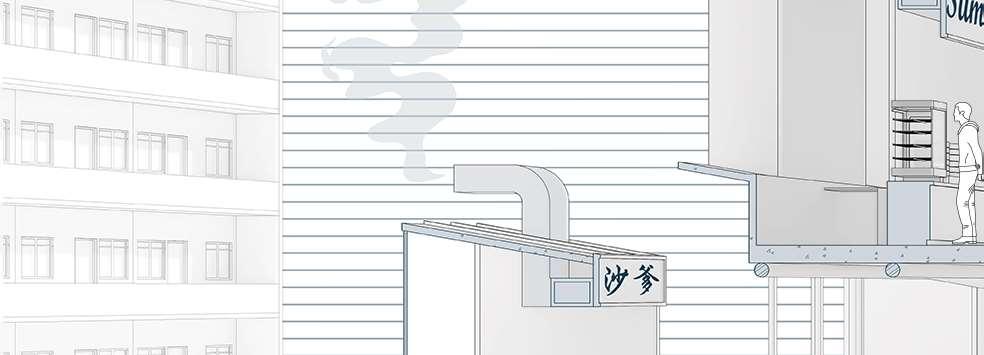

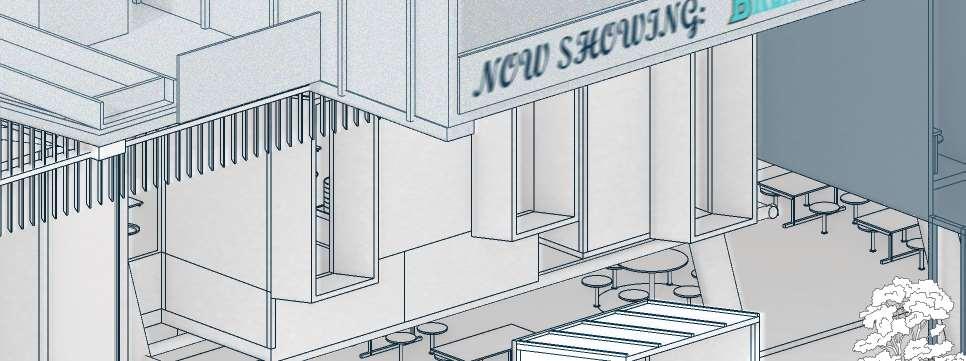

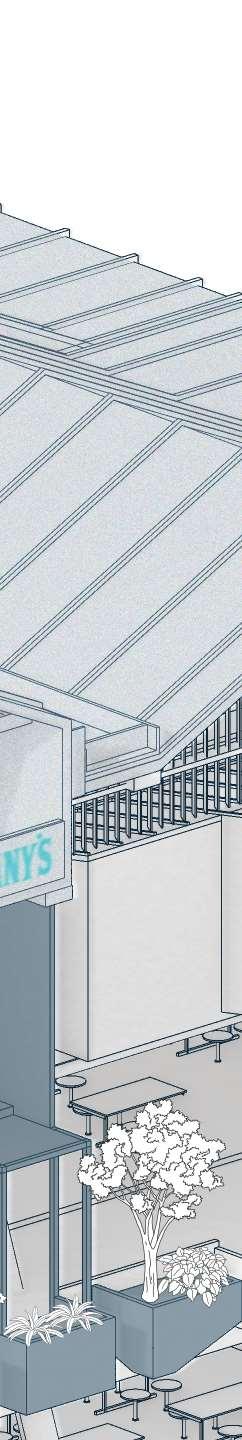

Balcony as Food Stall

Balcony as Return Tray Point

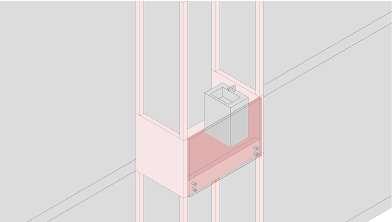

Balcony as Handwashing Area

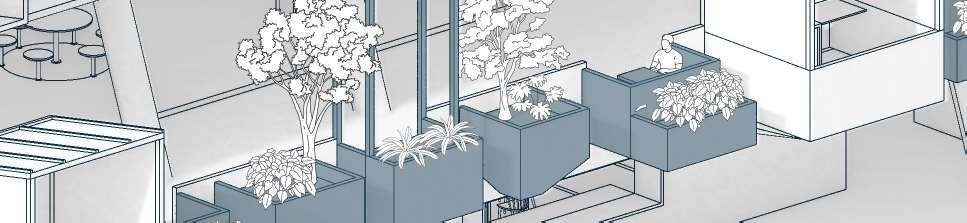

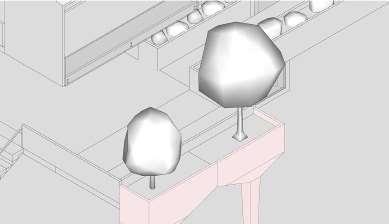

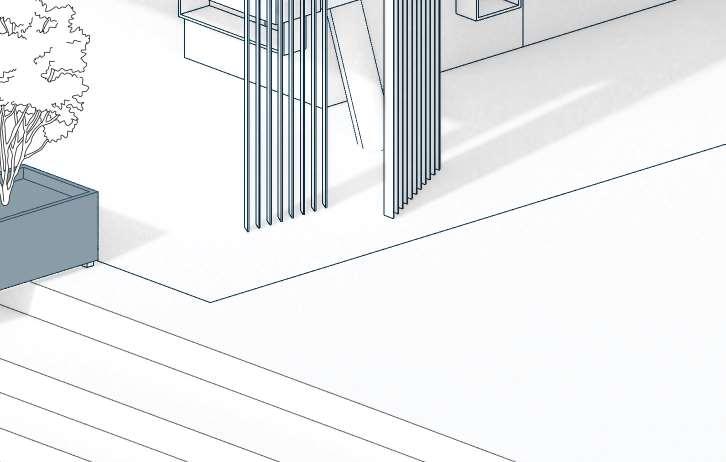

Balcony as Planter Box

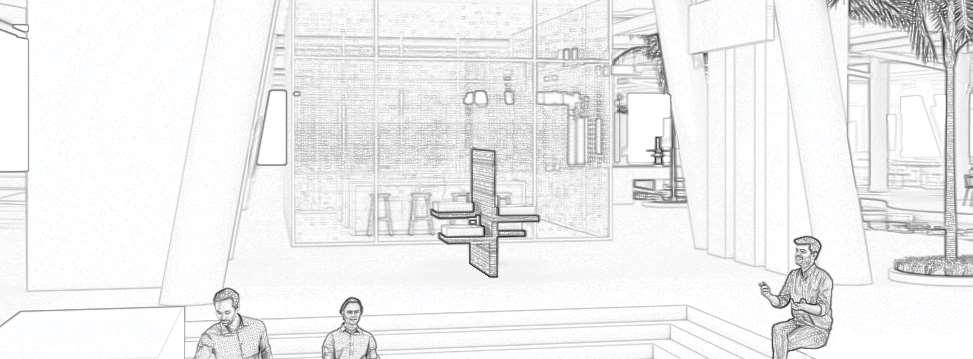

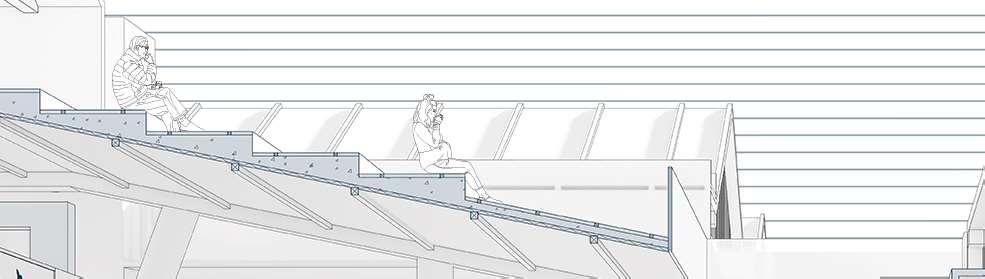

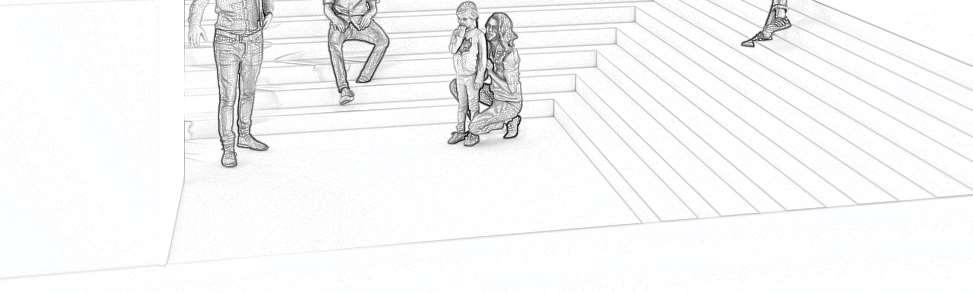

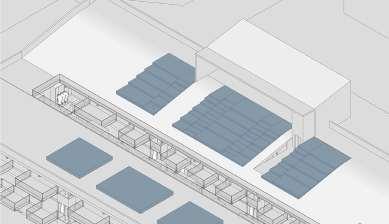

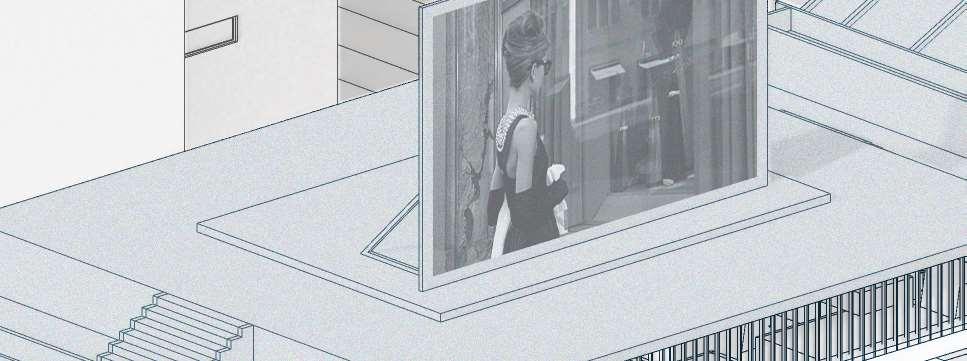

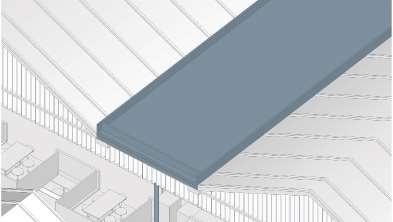

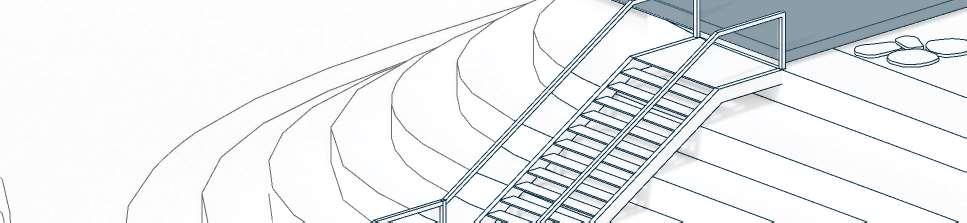

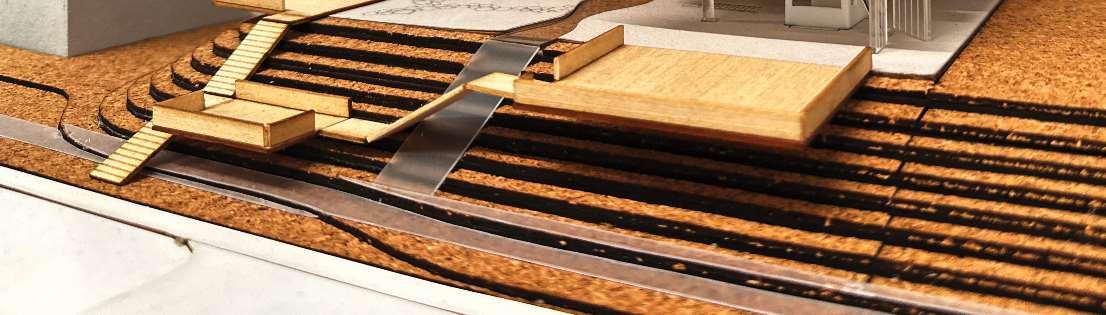

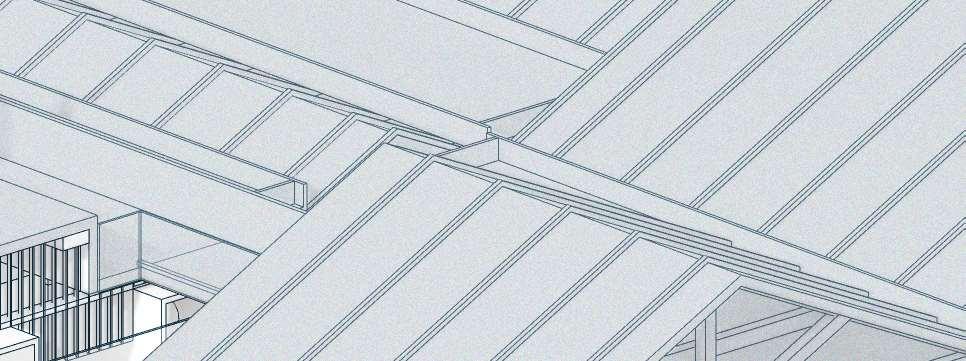

Roof as Amphitheatre

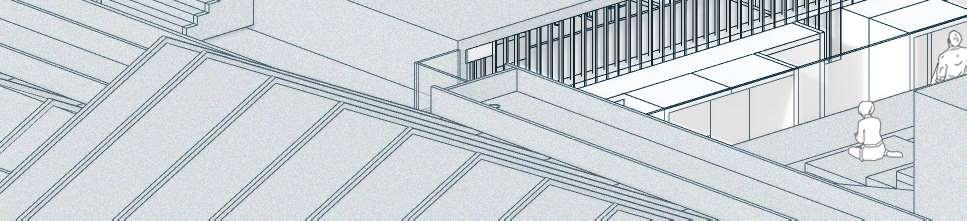

Roof as Zoning

Roof as Viewing Guide

Roof as Segregation of Space

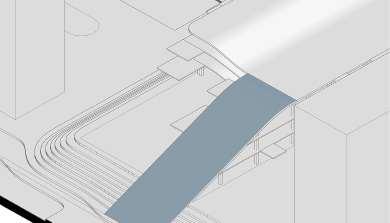

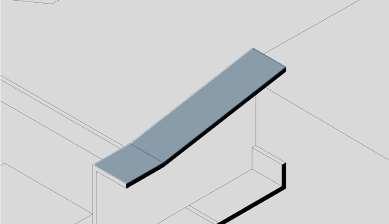

Roof as Ramp

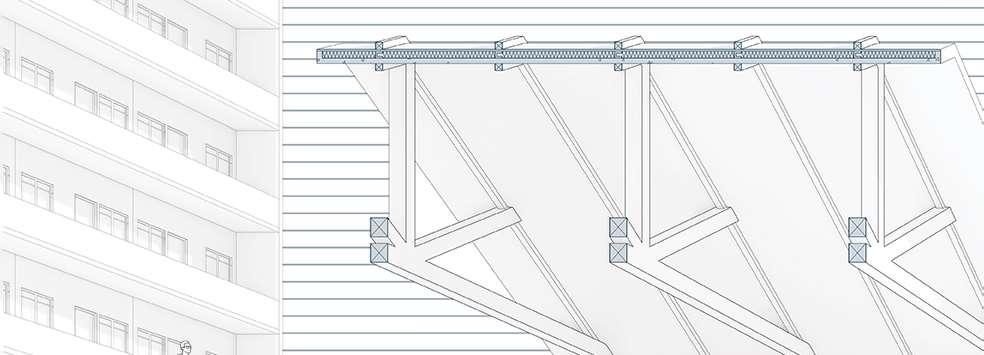

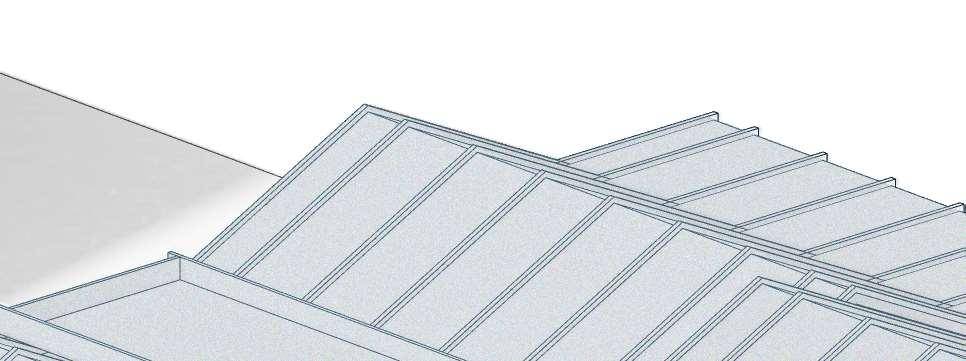

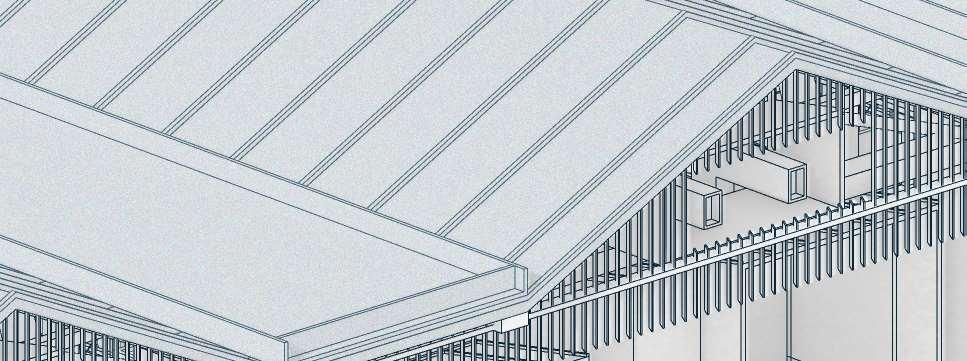

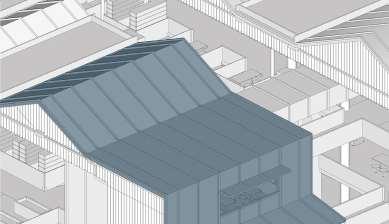

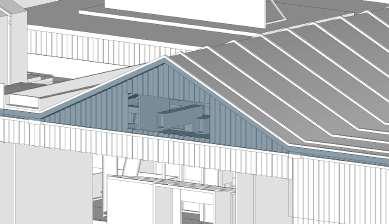

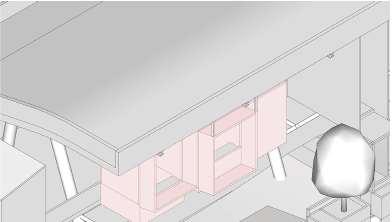

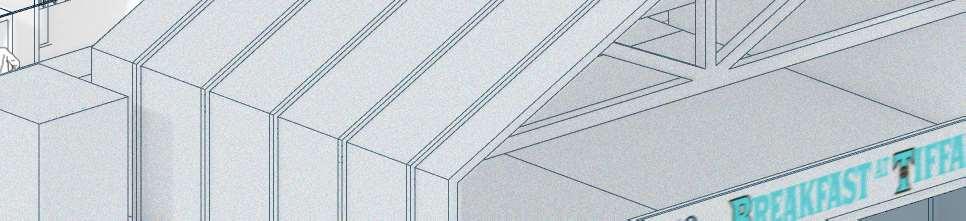

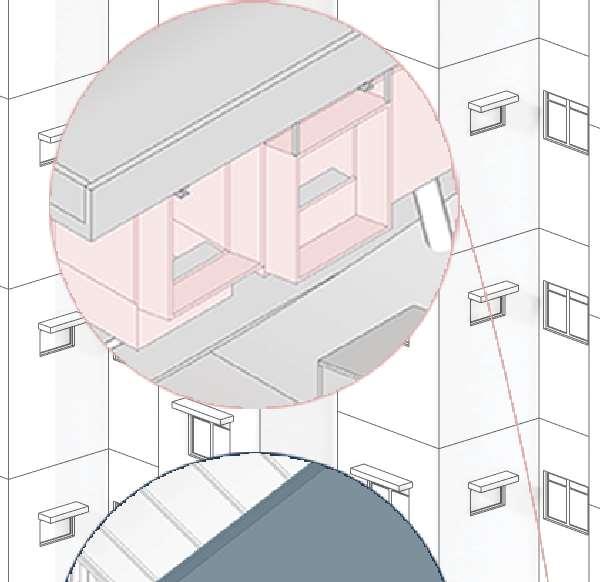

Roof as Facade

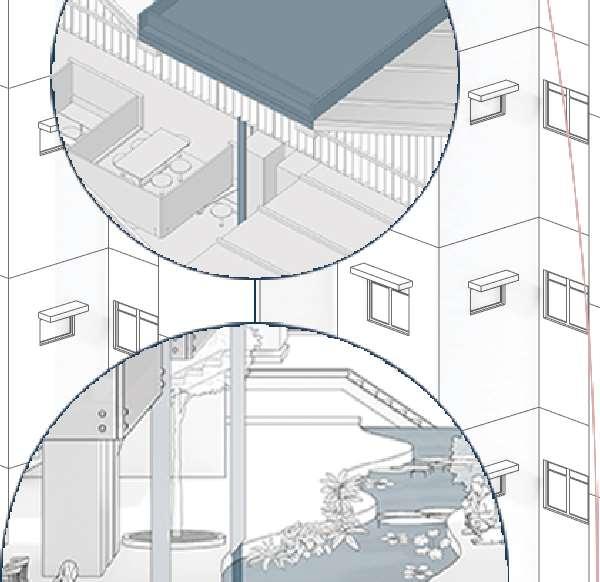

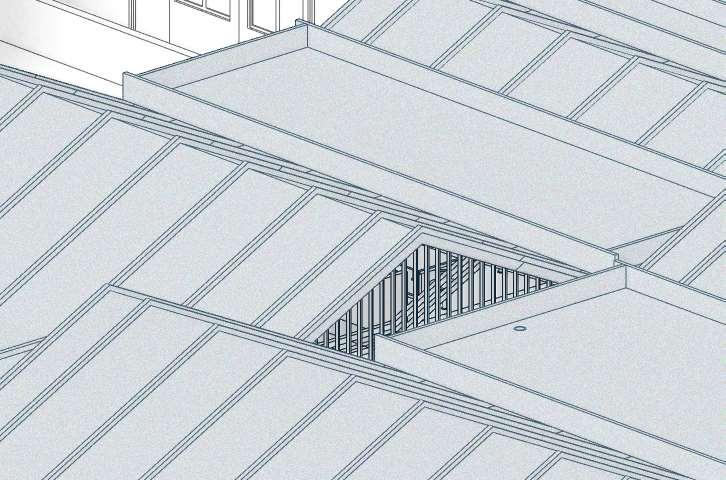

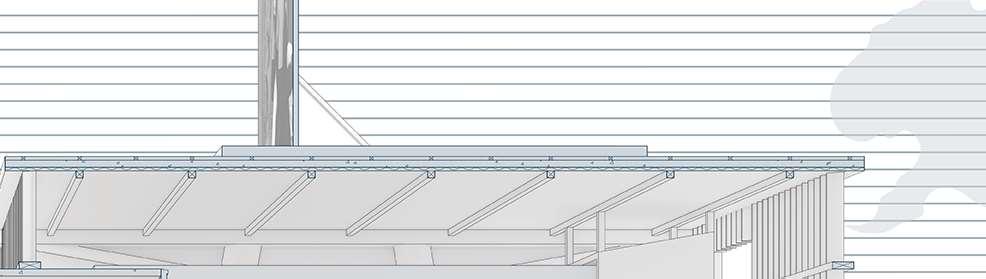

Roof as Rainwater Collection

The Panorama Voyage

9

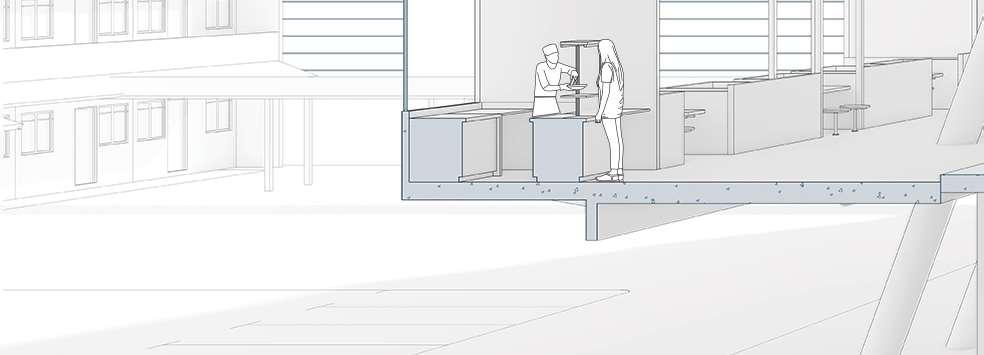

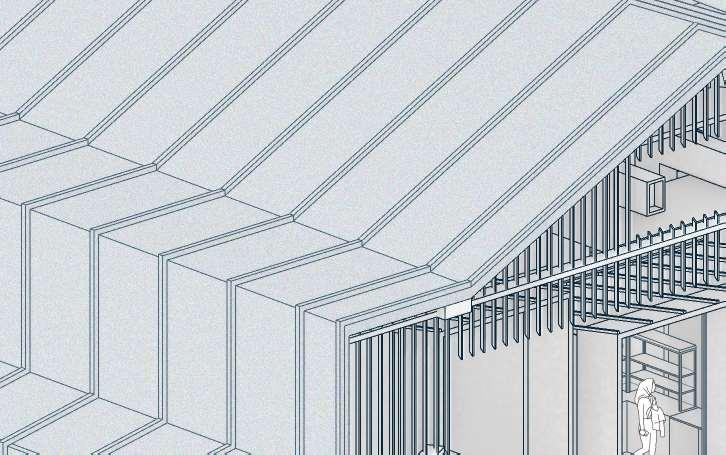

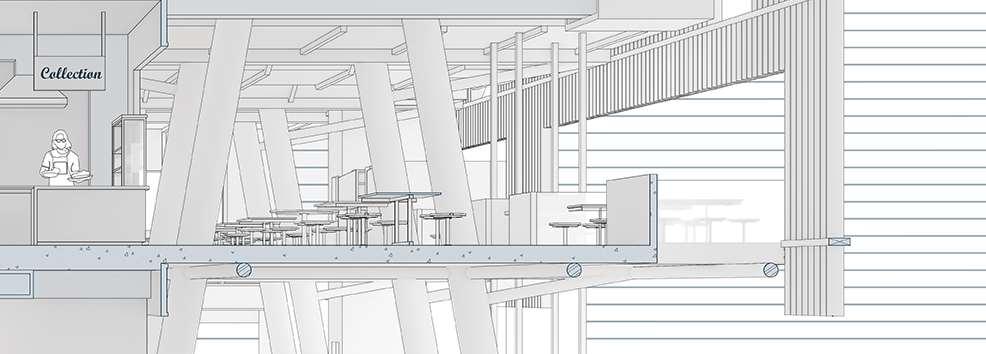

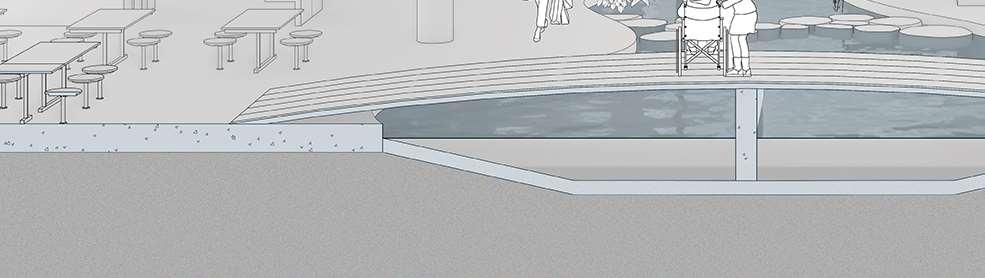

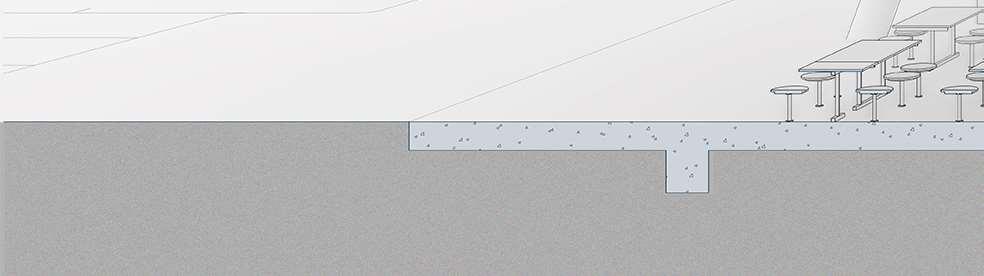

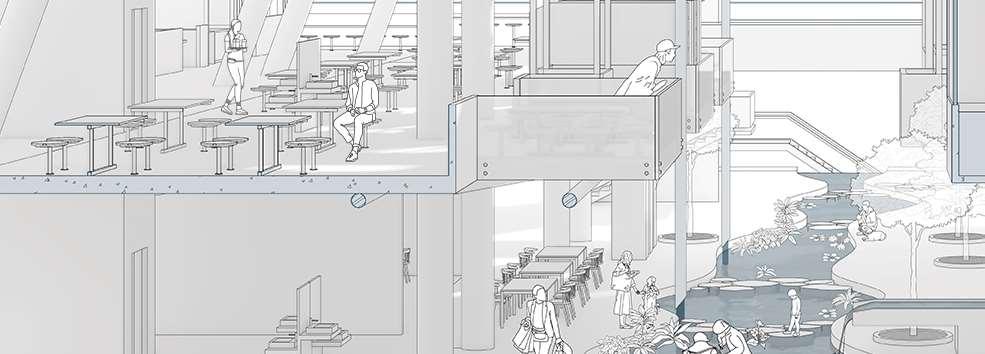

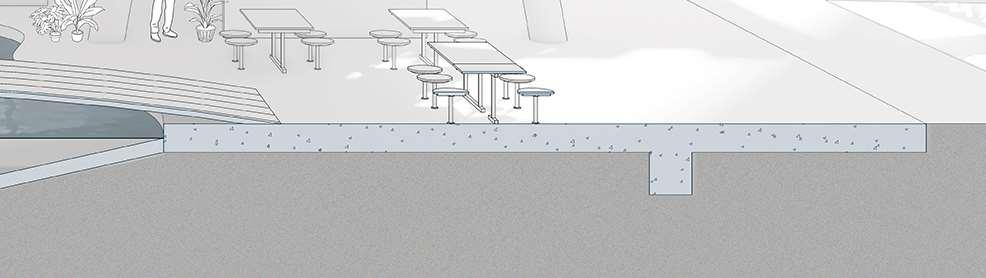

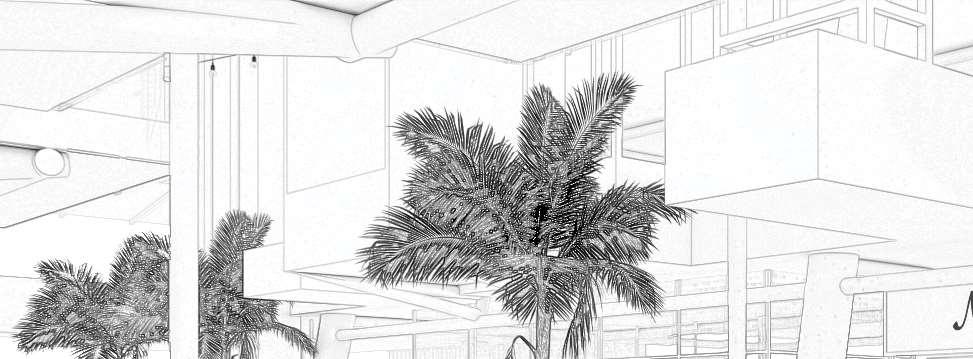

Sectional Perspective AA

10

The Panorama Voyage

The Panorama Voyage

11

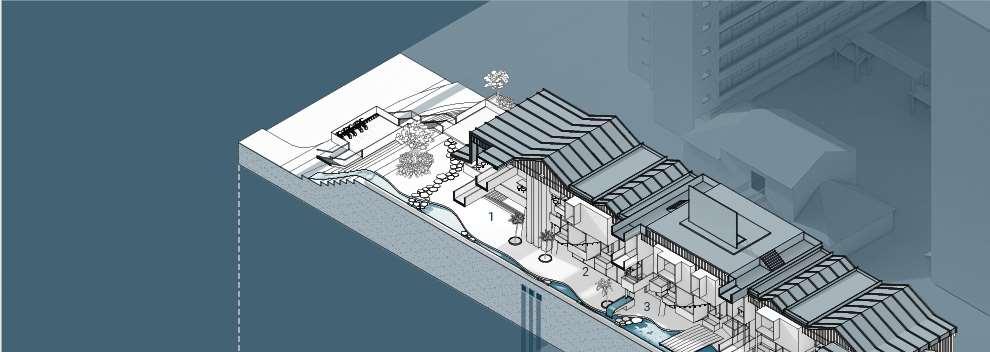

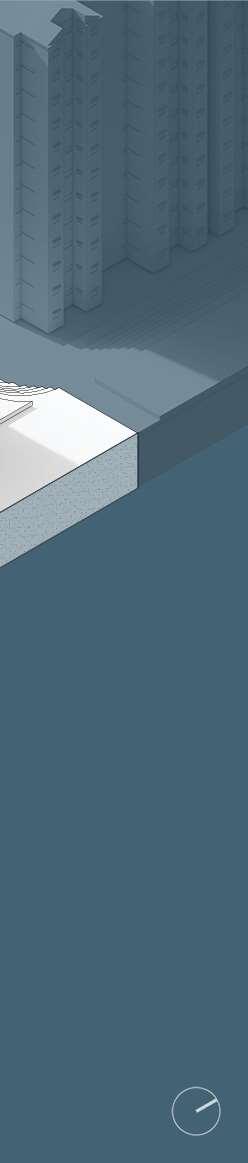

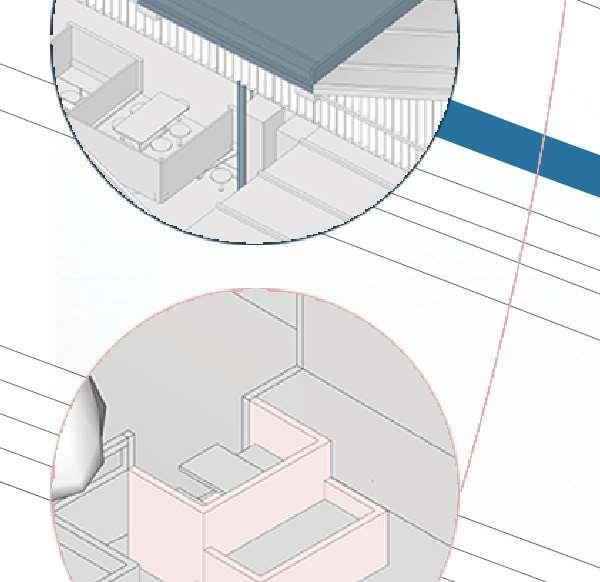

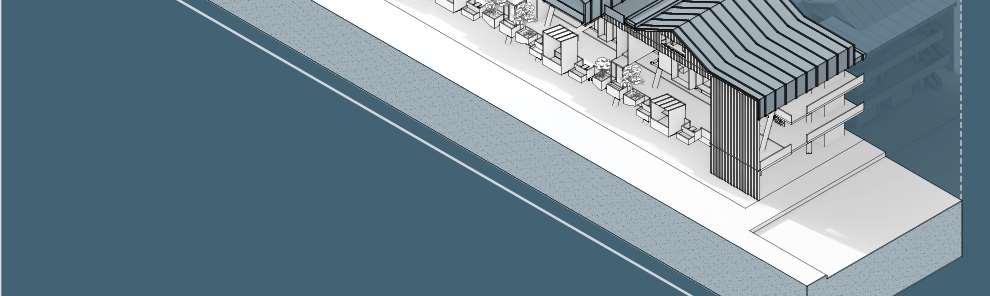

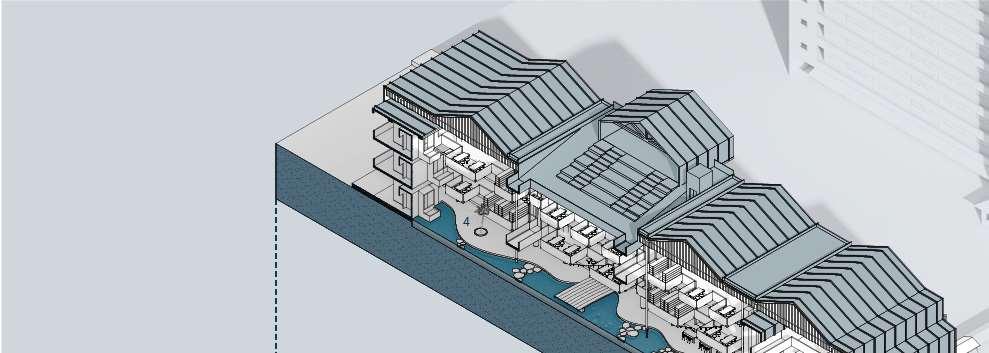

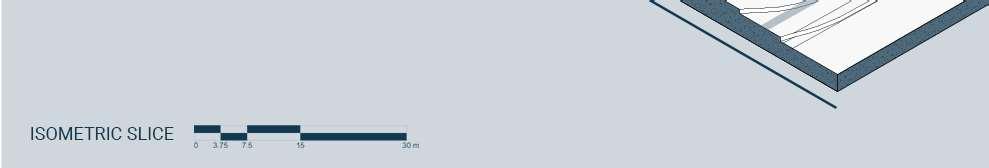

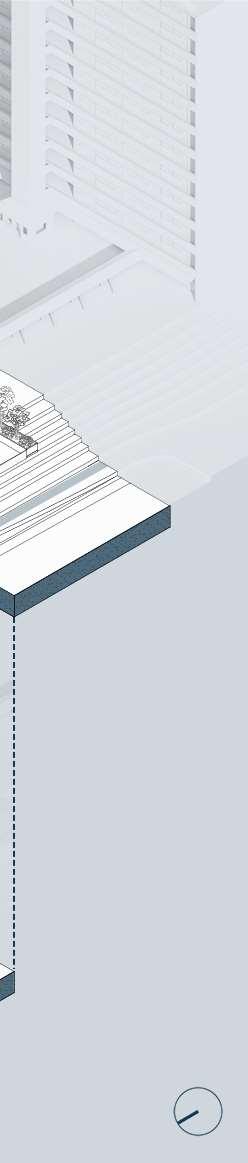

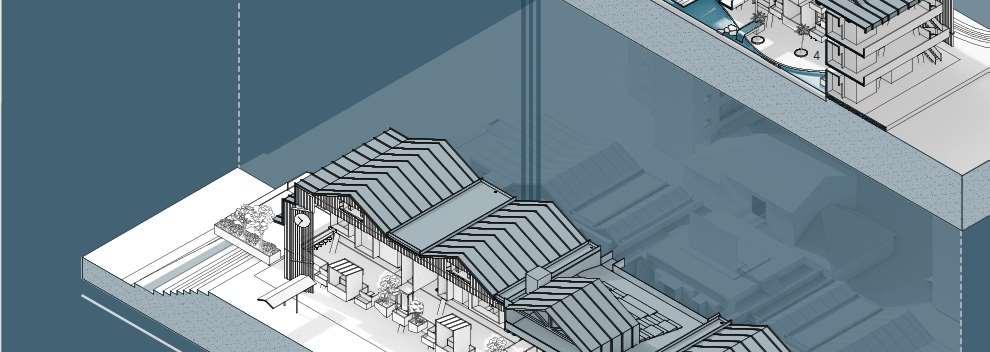

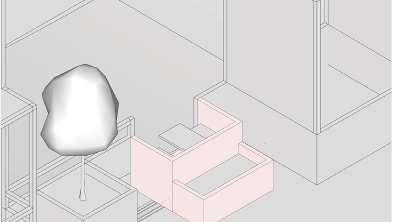

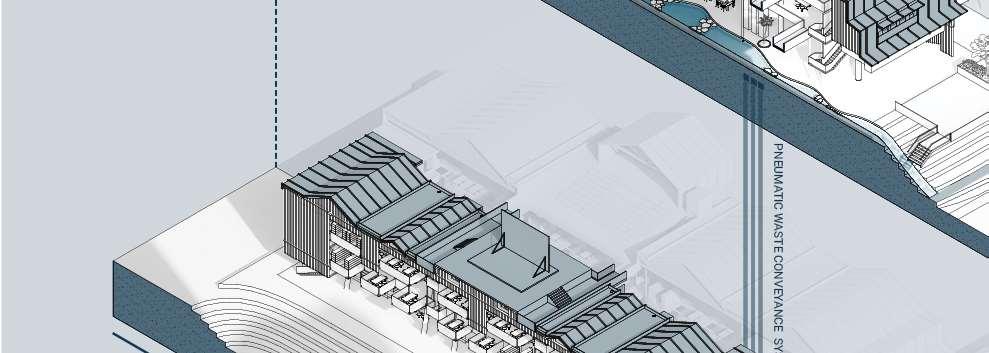

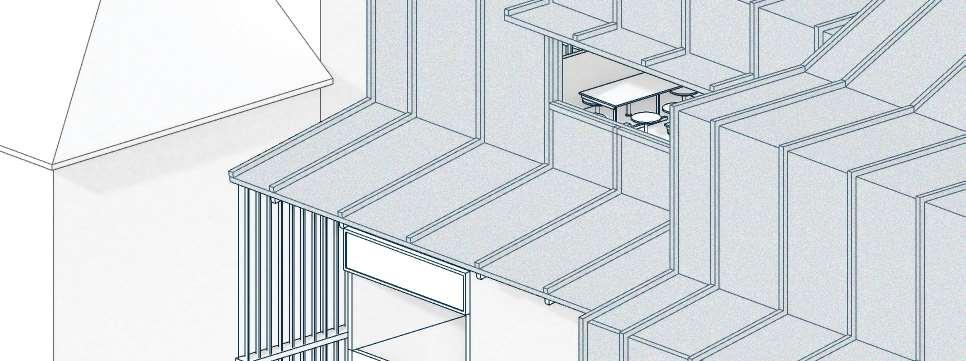

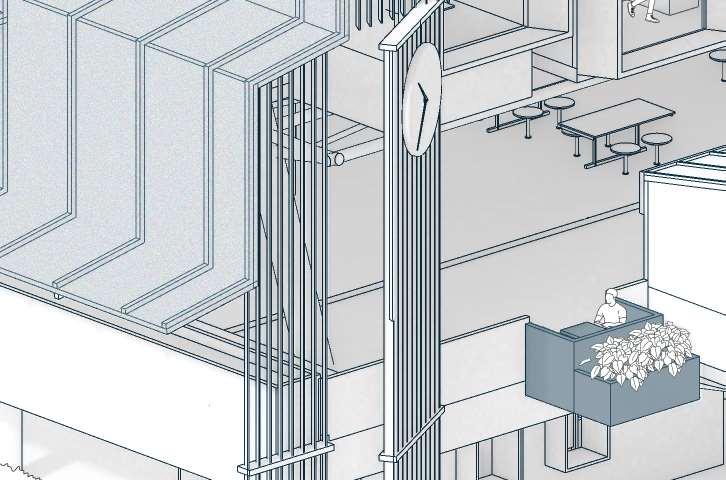

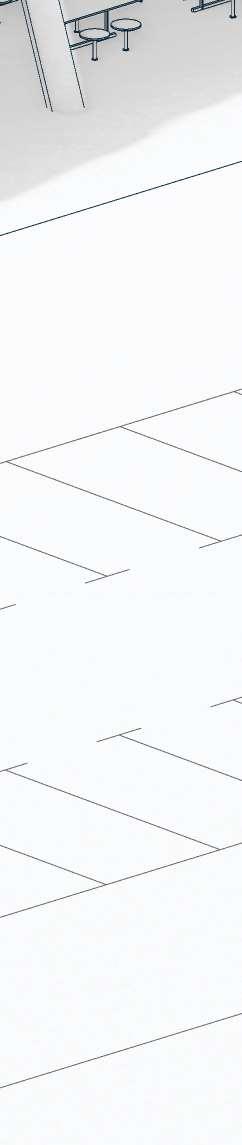

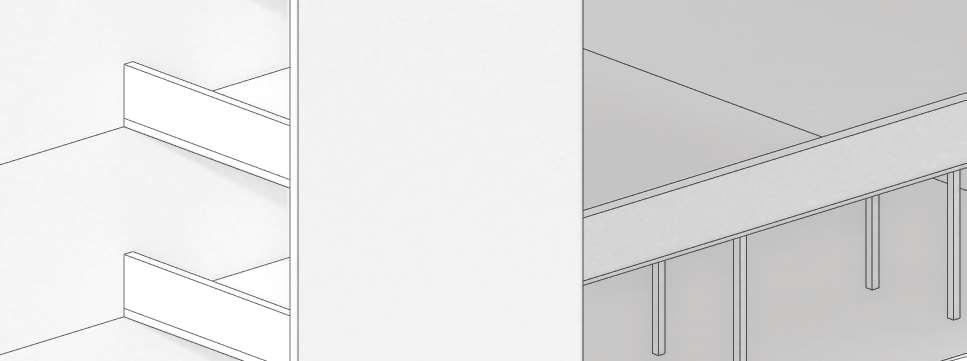

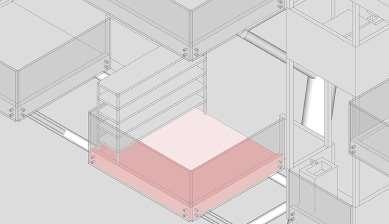

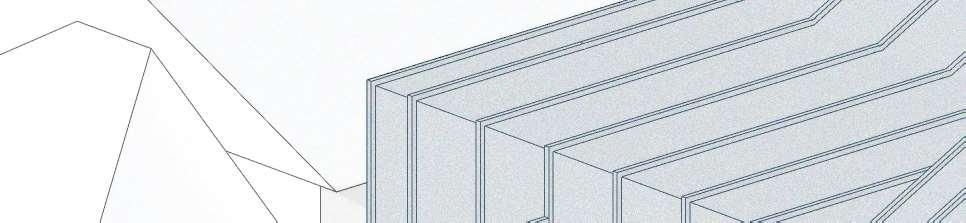

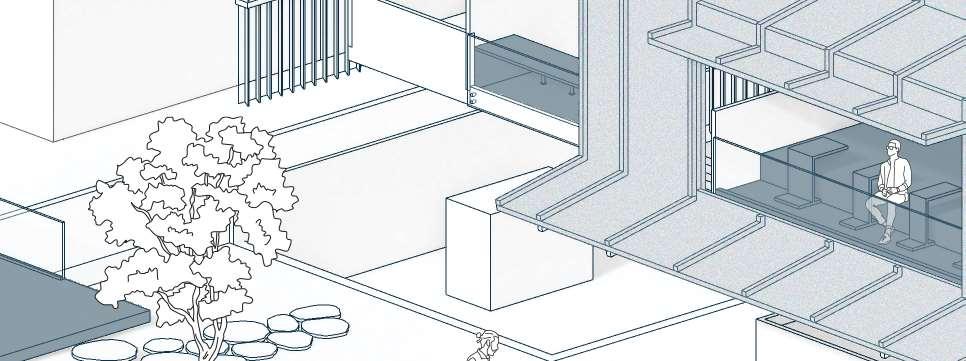

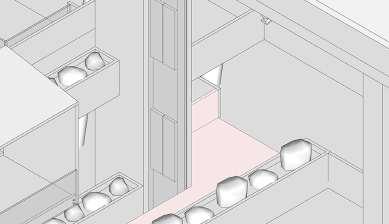

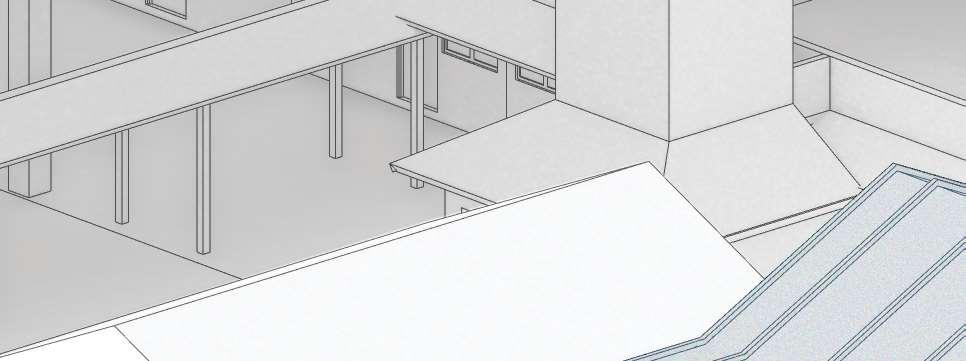

Isometric Slice

1

10

Food Composter Deck

The Panorama Voyage

2

Allotment Garden

3

Workshop & Nursery

4

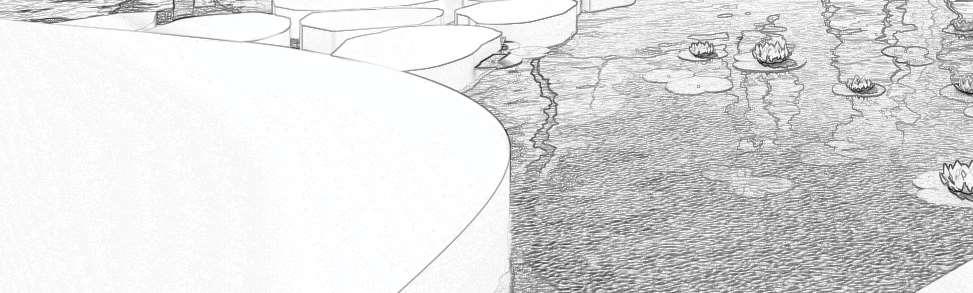

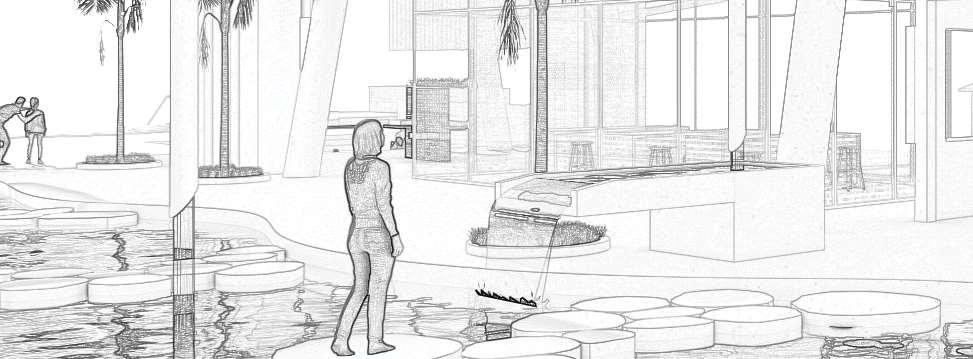

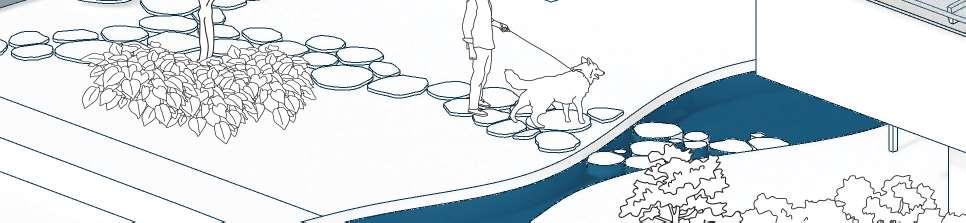

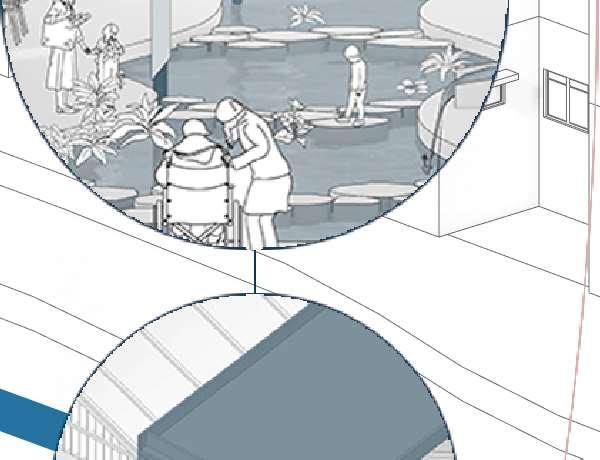

Start of Bio-Swale

The Panorama Voyage

11

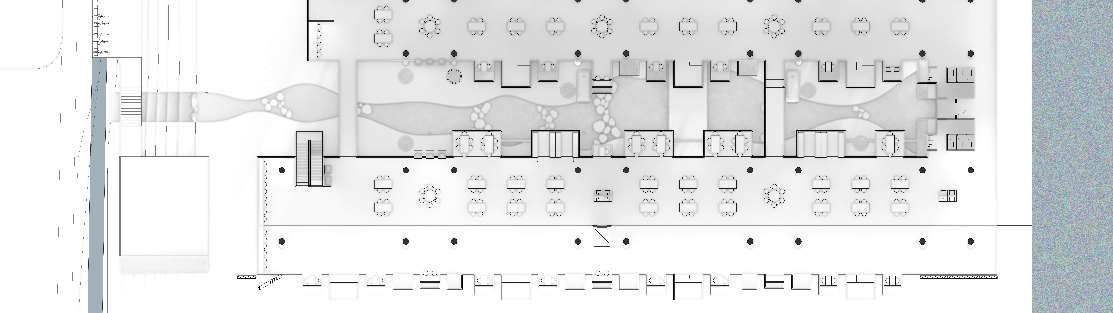

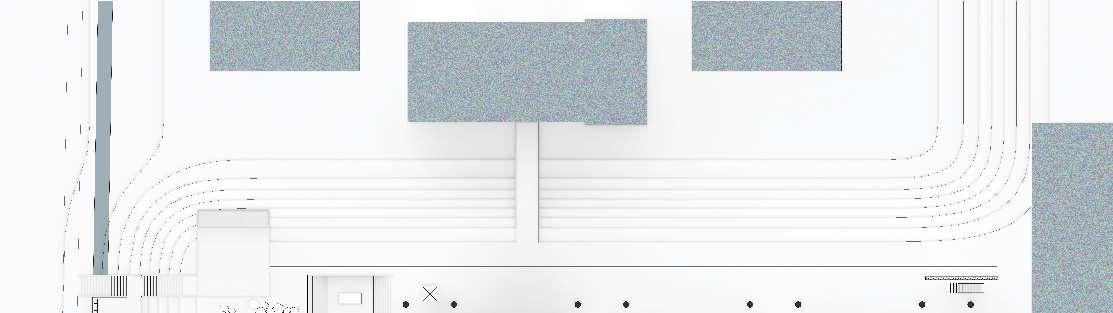

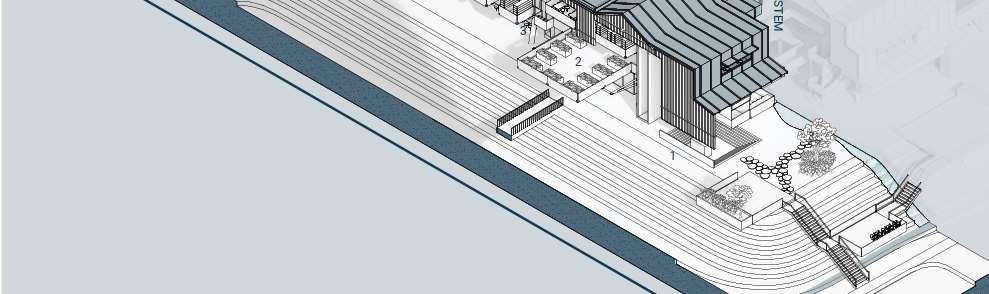

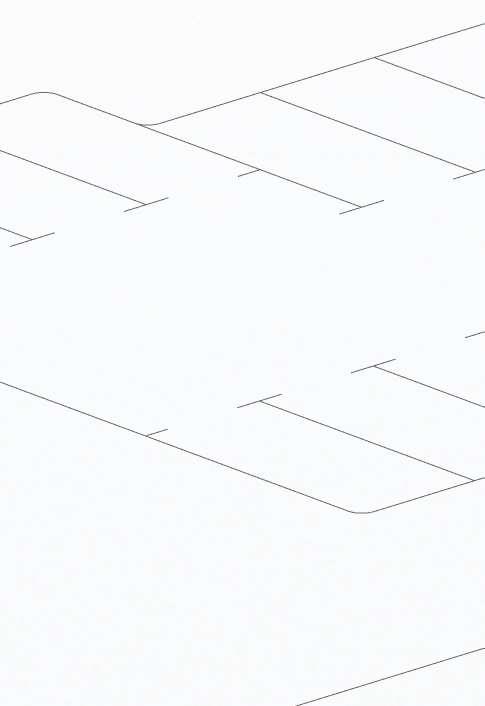

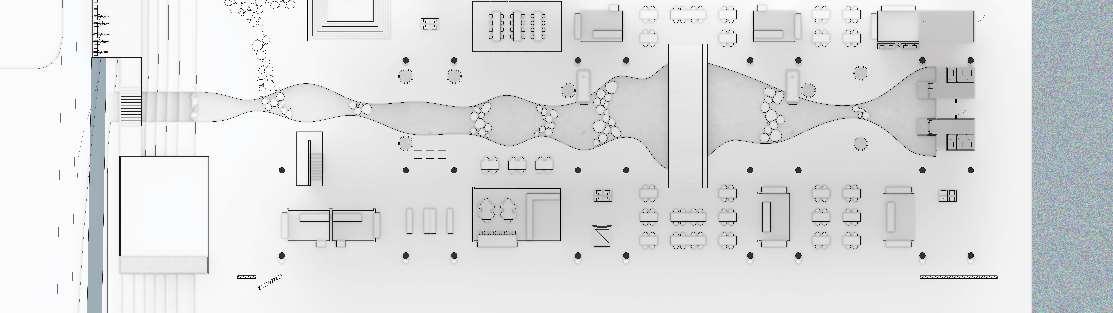

Ground Plan

Level 2

Level 3
