Globalux Nora Globalux Sunpark RP Sunpark
RDL-5-10-120D-930-WH-BULK
NLOPAC-R4509T2430W
SKY-52-4-18-120D-830-WH-WH-WC
P058-1-62
4910-BN-3

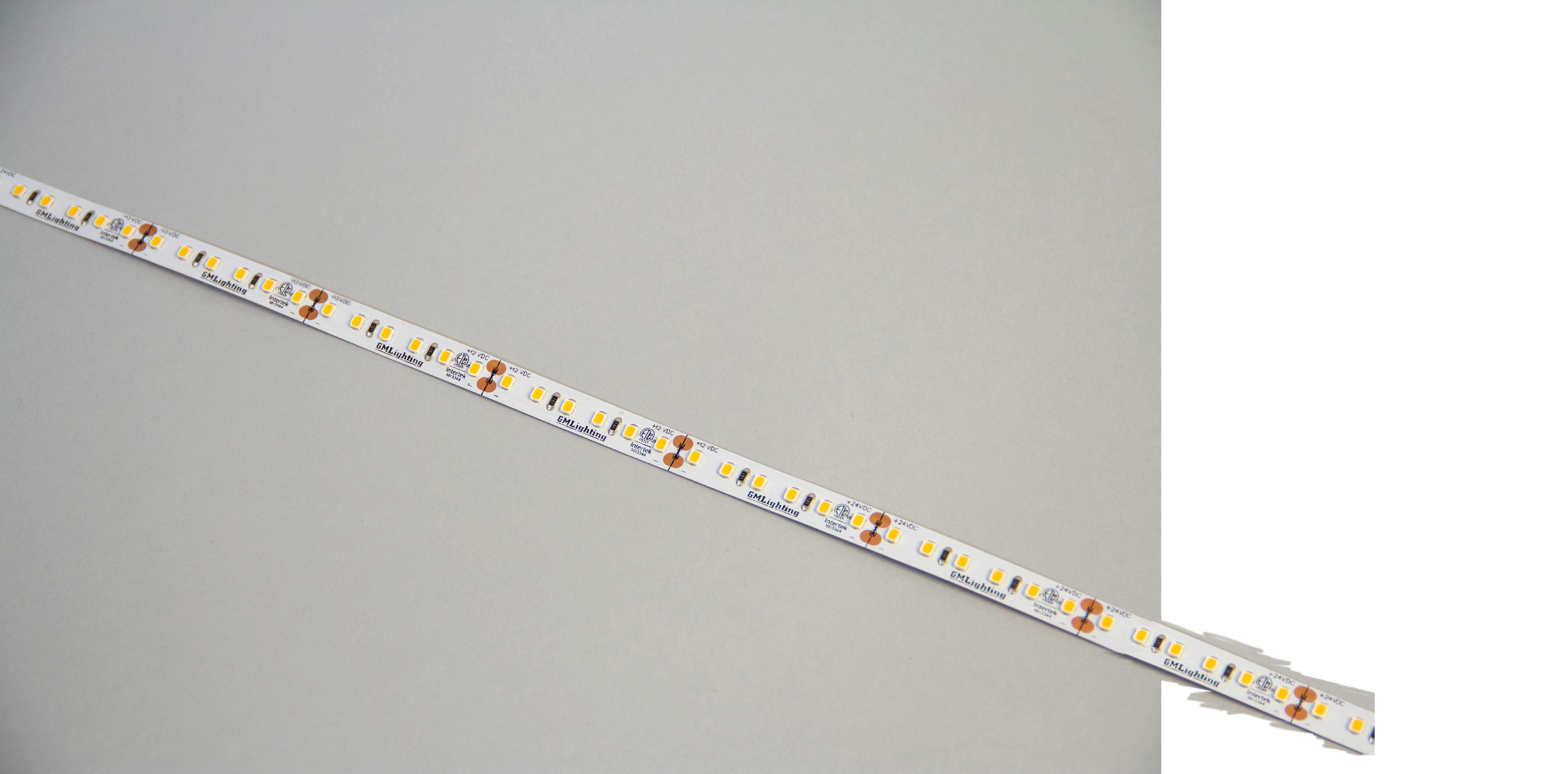

FL0224D-VT-3000K-62
TYPE A SPEC HELM BAY LANDING

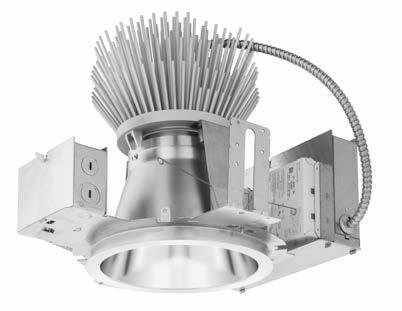

FEATURES & SPECIFICATIONS
INTENDED USE — Typical applications include corridors, lobbies.
CONSTRUCTION — Galvanized steel mounting/plaster frame; galvanized steel junction box with bottomhinged access covers and spring latches.
Vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4" total adjustment. Cchannel T-bar fastener options available.
Two combination ½"-3/4" and four ½" knockouts for straight-through conduit runs. Capacity: 8 (4 in, 4 out). No. 12 AWG conductors, rated for 90°C.
Accommodates 12"-24" joist spacing
Passive cooling thermal management; light engine and drivers are accessible from above or below ceiling Max ceiling thickness 1-1/2"
OPTICS — LEDs are binned to a 3-step MacAdam Ellipse; 80 CRI minimum.
Diffusing lens covers optical chamber
General illumination 1.0 S/MH
55° cutoff to source and source image
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes.
UGR — UGR is zero for fixtures aimed at nadir with a cut-off equal to or less than 60deg, per CIE 117-1996
Discomfort Glare in Interior Lighting.
ELECTRICAL — Multi-volt 0-10V dimming available.
0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled
LUMEN MAINTENANCE — 70% lumen maintenance at 50,000 hours
LISTINGS — Certified to US and Canadian safety standards. Damp location standard (wet location, covered ceiling optional). Drivers are RoHS compliant.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
LDN8 STATIC WHITE
HELM BAY LANDING TYPE A ALT
NM4-RDC

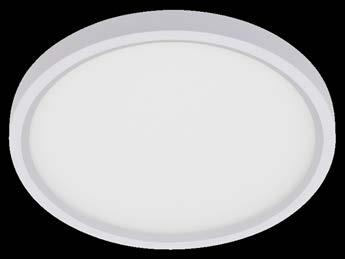

4" M4 Round LED Recessed Downlight
Source: 15W LED 1100lm
PRODUCT DESCRIPTION
4" M4 Round LED downlight are ideal for remodel or new constructions in residential and light commercial applications. IC Air-Tight rated luminaires require no housing, making installation easy.
FEATURES
No housing required - IC Airtight rated
· Easy installation for remodel or new construction applications
Square trim available for an alternative appearance
Quick disconnect allows for extended lengths
2700K or 3000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
cETLus Listed for Wet Locations
SPECIFICATION
Construction: Die-cast aluminum trims with a powdercoated finish. Optional field changeable square trim is available.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM 283 air tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes four 1/2" trade size knockouts and snap on cover with 7" quick connect wire. Luminaire includes 6 1/2" quick connect wire.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in s are available, see mounting accessories.
ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: 1100lm / 15W
Color Temperature: 2700K or 3000K
Color Rendering Index: 90+CRI
Beam Spread: 37° Narrow Flood
Operating Temperature: 0°C to 25°C
Lifetime: 50,000 hours @ L70
Dimming: Dimmable down to 10% with Triac or ELV
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL TRIM ACCESSORIES
NM4-SDT: Square Baffle Trim for NM4-RDC, Black or White
NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK-23LEDUNV
Emergency: Luminaire is compatible with NEPK-2 3LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet Locations
· 5-Year Limited Warranty FCC compliant
Certified to the high efficacy requirements of California Title 24 JA8-2025
4" M4 Round Can-less LED Recessed Downlight
Color Temperature Finish
NM4-RDC27 = 2700K
NM4-RDC30 =
Square Trim Accessory Description
NM4-SDTB = Square Baffle Trim, Black Finish NM4-SDTMPW = Square Baffle Trim, White Finish NM4-SDT Square Baffle Trim
Example: NM4-RDC30MPW = 4" M4 Round Can-less LED Recessed Downlight, 1100lm / 15W, 3000K, White Finish
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
NPS80EZER nLight® dimming pack controls 0-10V eldoLED drivers (EZ1). ER controls fixtures on emergency circuit.
N80 nLight™ Lumen Compensation
NLTAIR2 nLight® Air enabled
NLTAIRER2 nLight® AIR Dimming Pack Wireless Controls. Controls fixtures on emergency circuit, not available with battery pack options
NLTAIREM2 nLight® AIR Dimming Pack Wireless Controls. UL924 Emergency Operation, via power interrupt detection. Available with battery pack options.
‡ Option Value Ordering Restrictions
HAO ‡ High ambient option (40°C)
CP ‡ Chicago Plenum
RRL__RELOC®-ready luminaire connectors enable a simple and consistent factory installed option across all ABL luminaire brands. Refer to RRL for complete nomenclature. Available only in RRLA, RRLB, RRLAE, and RRLC12S.
BAA Buy America(n) Act and/or Build America Buy America Qualified
90CRI High CRI (90+)
SF ‡ Single fuse
Option valueRestriction
LDN8
Marked Spacing for 8000 lumens and above.
WR, BR Not available with finishes.
347V 347V is 3' x 3' x 6" overhead marked spacing. 347V only available with EZ1 driver options. Supplied with step-down transformer. Not available with emergency options.
SF Voltage-specific 120, 277V. TRW, TRBL Only available with AR finish. NPP16D, NPP16DER, NPS80EZ, NPS80EZER
Specify voltage. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed. See UL 924 Sequence of Operation table.
N80 Fixture begins at 80% light level. Must be specified with NPS80EZ or NPS80EZ ER. Only available with EZ1 drivers. NLTAIR2, NLTAIRER2 Not available with CP, NPS80EZ, NPS80EZER, NPP16D, NPP16DER or N80 options. Not recommended for metal ceiling installations. Reloc® Options Refer to RRL specification sheet on acuitybrands.com for further details.
RRLAE Commercial fixtures should disconnect the TSPL before unplugging the RRL so it does not go into discharge mode. RRLC12S RRLC12S option is to be used with the OnePass OCU, OCS, OD, OFC and OD for 0-24V integrated single-circuit or 0-10V low voltage controls applications. Not available with integral dimming sensors. TRALTBD, FRALTBD RALTBD for pricing only. Replace with applicable RAL number and finish when ready to order. See the RAL BROCHURE for available color options. TCPC, FCPC CPC options for pricing only. Custom color chip needs to be sent in to your Customer Resolution specialist before order can be processed. Click HERE for more details
Accessories: Order as separate catalog number.
EAC ISSM 375 Compact interruptible emergency AC power system
EAC ISSM 125 Compact interruptible emergency AC power system
GRA810 JZ Oversized trim ring with 10" outside diameter
SCA8 Sloped Ceiling Adapter. Degree of slope must be specified (5D, 10D, 15D, 20D, 25D, 30D). Ex: SCA8 10D
Square Trim for NM4-RDC
NM4-SDTB Black Finish
NM4-SDTMPW White Finish
Converts the round trim included with NM4-RDC downlight into a square trim
New Construction Frame-In with Collar
NFC-R375
For new construction pre-wiring and easier layout planning.
Quick Connect Extension Linkable Cables
NM2-EW-4 4’ Cable
NM2-EW-10 10’ Cable
Use to extend the length between luminaire and driver enclosure. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
23W Emergency LED Driver with Remote Test Switch
NEPK-23LEDUNV
120-277V Emergency battery operates luminaire for 90 minute emergency operation with a fully charged battery. Requires 24 hours to charge the battery.
Ribbon Test Switch for NEPK-23LEDUNV
NEPKA-20/23LEDRTS
Ribbon test switch replaces remote test switch included with emergency driver. Double sided tape is pre-installed.
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
TYPE AE SPEC HELM BAY LANDING
FEATURES & SPECIFICATIONS
INTENDED USE — Typical applications include corridors, lobbies.
CONSTRUCTION — Galvanized steel mounting/plaster frame; galvanized steel junction box with bottomhinged access covers and spring latches.
Vertically adjustable mounting brackets with commercial bar hangers provide 3-3/4" total adjustment. Cchannel T-bar fastener options available.
Two combination ½"-3/4" and four ½" knockouts for straight-through conduit runs. Capacity: 8 (4 in, 4 out). No. 12 AWG conductors, rated for 90°C.
Accommodates 12"-24" joist spacing
Passive cooling thermal management; light engine and drivers are accessible from above or below ceiling Max ceiling thickness 1-1/2"
OPTICS — LEDs are binned to a 3-step MacAdam Ellipse; 80 CRI minimum.
Diffusing lens covers optical chamber
General illumination 1.0 S/MH
55° cutoff to source and source image
Self-flanged anodized reflectors in specular, semi-specular, or matte diffuse finishes.
UGR — UGR is zero for fixtures aimed at nadir with a cut-off equal to or less than 60deg, per CIE 117-1996
Discomfort Glare in Interior Lighting.
ELECTRICAL — Multi-volt 0-10V dimming available.
0-10V dimming drivers mounted to junction box, 10% or 1% minimum dimming level
0-10V dimming fixture requires two (2) additional low-voltage wires to be pulled
LUMEN MAINTENANCE — 70% lumen maintenance at 50,000 hours
LISTINGS — Certified to US and Canadian safety standards. Damp location standard (wet location, covered ceiling optional). Drivers are RoHS compliant.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
LDN8 STATIC WHITE
HELM BAY LANDING TYPE AE
NM4-RDC
4" M4 Round LED Recessed Downlight
Source: 15W LED 1100lm
PRODUCT DESCRIPTION
4" M4 Round LED downlight are ideal for remodel or new constructions in residential and light commercial applications. IC Air-Tight rated luminaires require no housing, making installation easy.
FEATURES
No housing required - IC Airtight rated
· Easy installation for remodel or new construction applications
Square trim available for an alternative appearance
Quick disconnect allows for extended lengths
2700K or 3000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
cETLus Listed for Wet Locations
SPECIFICATION
Construction: Die-cast aluminum trims with a powdercoated finish. Optional field changeable square trim is available.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM 283 air tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes four 1/2" trade size knockouts and snap on cover with 7" quick connect wire. Luminaire includes 6 1/2" quick connect wire.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in s are available, see mounting accessories.
ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: 1100lm / 15W
Color Temperature: 2700K or 3000K
Color Rendering Index: 90+CRI
Beam Spread: 37° Narrow Flood
Operating Temperature: 0°C to 25°C
Lifetime: 50,000 hours @ L70
Dimming: Dimmable down to 10% with Triac or ELV
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL TRIM ACCESSORIES
NM4-SDT: Square Baffle Trim for NM4-RDC, Black or White
NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK-23LEDUNV
Emergency: Luminaire is compatible with NEPK-2 3LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet Locations
· 5-Year Limited Warranty FCC compliant
Certified to the high efficacy requirements of California Title 24 JA8-2025
4" M4 Round Can-less LED Recessed Downlight
Color Temperature Finish
NM4-RDC27 = 2700K
NM4-RDC30
Square Trim Accessory Description
NM4-SDTB = Square Baffle Trim, Black Finish NM4-SDTMPW = Square Baffle Trim, White Finish NM4-SDT Square Baffle Trim
Example: NM4-RDC30MPW = 4" M4 Round Can-less LED Recessed Downlight, 1100lm / 15W, 3000K, White Finish
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
NPS80EZER nLight® dimming pack controls 0-10V eldoLED drivers (EZ1). ER controls fixtures on emergency circuit.
N80 nLight™ Lumen Compensation
NLTAIR2 nLight® Air enabled
NLTAIRER2 nLight® AIR Dimming Pack Wireless Controls. Controls fixtures on emergency circuit, not available with battery pack options
NLTAIREM2 nLight® AIR Dimming Pack Wireless Controls. UL924 Emergency Operation, via power interrupt detection. Available with battery pack options.
‡ Option Value Ordering Restrictions
HAO ‡ High ambient option (40°C)
CP ‡ Chicago Plenum
RRL__RELOC®-ready luminaire connectors enable a simple and consistent factory installed option across all ABL luminaire brands. Refer to RRL for complete nomenclature. Available only in RRLA, RRLB, RRLAE, and RRLC12S.
BAA Buy America(n) Act and/or Build America Buy America Qualified
90CRI High CRI (90+)
SF ‡ Single fuse
Option valueRestriction
LDN8
Marked Spacing for 8000 lumens and above.
WR, BR Not available with finishes.
347V 347V is 3' x 3' x 6" overhead marked spacing. 347V only available with EZ1 driver options. Supplied with step-down transformer. Not available with emergency options.
SF Voltage-specific 120, 277V. TRW, TRBL Only available with AR finish. NPP16D, NPP16DER, NPS80EZ, NPS80EZER
Specify voltage. ER for use with generator supply EM power. Will require an emergency hot feed and normal hot feed. See UL 924 Sequence of Operation table.
N80 Fixture begins at 80% light level. Must be specified with NPS80EZ or NPS80EZ ER. Only available with EZ1 drivers. NLTAIR2, NLTAIRER2 Not available with CP, NPS80EZ, NPS80EZER, NPP16D, NPP16DER or N80 options. Not recommended for metal ceiling installations. Reloc® Options Refer to RRL specification sheet on acuitybrands.com for further details.
RRLAE Commercial fixtures should disconnect the TSPL before unplugging the RRL so it does not go into discharge mode. RRLC12S RRLC12S option is to be used with the OnePass OCU, OCS, OD, OFC and OD for 0-24V integrated single-circuit or 0-10V low voltage controls applications. Not available with integral dimming sensors. TRALTBD, FRALTBD RALTBD for pricing only. Replace with applicable RAL number and finish when ready to order. See the RAL BROCHURE for available color options. TCPC, FCPC CPC options for pricing only. Custom color chip needs to be sent in to your Customer Resolution specialist before order can be processed. Click HERE for more details
Accessories: Order as separate catalog number.
EAC ISSM 375 Compact interruptible emergency AC power system
EAC ISSM 125 Compact interruptible emergency AC power system
GRA810 JZ Oversized trim ring with 10" outside diameter
SCA8 Sloped Ceiling Adapter. Degree of slope must be specified (5D, 10D, 15D, 20D, 25D, 30D). Ex: SCA8 10D
Square Trim for NM4-RDC
NM4-SDTB Black Finish
NM4-SDTMPW White Finish
Converts the round trim included with NM4-RDC downlight into a square trim
New Construction Frame-In with Collar
NFC-R375
For new construction pre-wiring and easier layout planning.
Quick Connect Extension Linkable Cables
NM2-EW-4 4’ Cable
NM2-EW-10 10’ Cable
Use to extend the length between luminaire and driver enclosure. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
23W Emergency LED Driver with Remote Test Switch
NEPK-23LEDUNV
120-277V Emergency battery operates luminaire for 90 minute emergency operation with a fully charged battery. Requires 24 hours to charge the battery.
Ribbon Test Switch for NEPK-23LEDUNV
NEPKA-20/23LEDRTS
Ribbon test switch replaces remote test switch included with emergency driver. Double sided tape is pre-installed.
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
TYPE AG SPEC HELM BAY LANDING

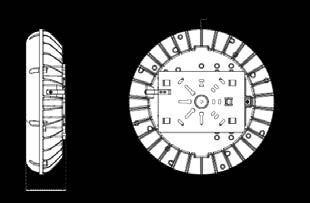

Garage & Canopy SoftView
SVPG with comfort optics

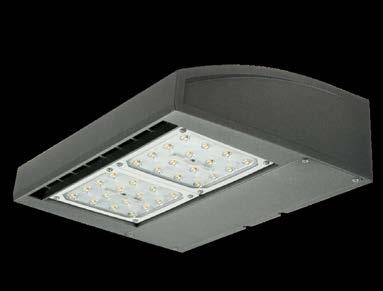

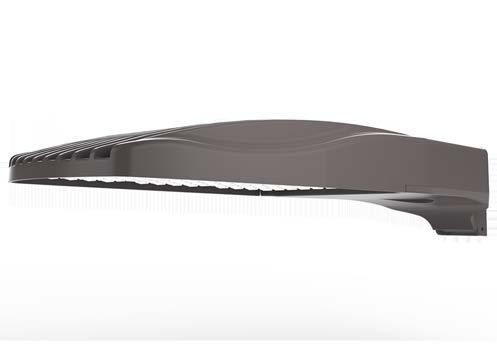

Gardco SoftView LED parking garage luminaires feature edge lit technology, providing visual comfort with minimal glare to enhance the user experience. An added uplight feature reduces the cave effect for an increased sense of security. SoftView features multiple optical distributions, lumen packages and mounting options providing you with the ideal solution for your garage lighting and low bay needs. Optional emergency battery backup available for path of egress lighting and is integral to the luminaire.
Ordering guide
Project:
Location:
Cat.No:
Type:
Lamps: Qty:
Notes:
Example: SVPG-A06-840-5RD-SUR-UNV-BLBT-L3-SP2-MG
BL203,4,5,10,13 Bi-level set at 20% dimming MW5,7,13 Microwave Sensor
Single Fuse (120V, 277V, or 347V)
Fuse (208V, 240V, or 480V)
Fuse Canadian double pole (208V, 240V, or 480V)
BLBT3,4,5,10,13 Bi-level with motion sensor, Bluetooth programming, set at 20% dimming L25 L35 L75 PIR Sensor, #2 lens PIR Sensor, #3 lens PIR Sensor, #7 lens Surge Protection blank SP2 SP1 Surge Protector 10kV / 10kA (standard) Surge Protector 20kV / 10kA (option) (All sensing is factory customizable, contact factory11 )
WIAP3,5,8,14,15 Wireless Interact (includes SR driver and SR receptacledo NOT select SRDR) LW5 HW5 Low (7'-15' mounting height) sensor, white color housing High (15'-40' mounting height) sensor, white color housing
1. T3A not available with A06, A07, A08, A09, A10 or A11 configurations due to thermal an d fit restrictions.
2. TRN n ot available with combination of both DLEA and EM options due to fit restrictions; TRN is available with each individually (either DLEA or EM).
3. Cho ose only 1 Dimming Controls option: either DLEA or SRDR or BL20 or BLBT or WIAP.
4. 0-1 0V dimming driver standard.
5. BL20 must be combined with MW Microwave Sensor. BLBT must be combined with Sensing option L2, L3 or L7. WIAP must be combined with Sensing option LW or HW. Choose only 1: either BL20-MW or BLBT-L# or WIAP-xW.
6. DLEA luminaire has 0-10V dimming wires exiting the luminaire for dimming controls by others.
7. MW available with 120V, 208V, 240V, 277V, UNV or 347V only.
8. Ava ilable with 120V, 208V, 240V, 277V or UNV only.
9. Mus t specify applicable specific input voltage, not available with UNV or HVU.
10. Cho ose either Emergency option EM or EC cold. EM only available with A01, A02, A03 or A06 and EC cold only available with A01, A02, A03, A04, A06 or A07 due to thermal restrictions. EC cold not available with DLEA or BL20-MW or BLBT-L# due to fit restrictions; EM is available with DLEA or BL20-MW or BLBT-L# (does fit).
11. Mus t contact factory prior to ordering - these items are ETO Specials.
12. Extended lead times apply. Contact factory for details.
13. A09, A10, A11 each have 2 drivers therefore due to fit restrictions not available with 347V, 480V, HVU, BL20-MW, or BLBT.
05/24 page 1 of 7
14. SRD R or WIAP not available with Emergency options EM or EC cold due to thermal and fit restrictions.
15. ER1 00 suitable for use in 40C ambient with A01, A02, A03, A04, A06 or A07 (72W max.); suitable for use in 35C ambient with A05 or A08 (90W max.); not available above 90W: no A09, A10 or A11. ER100 must be installed in conjunction with a UL 1008 device (such as a transfer switch at the electrical panel) and only for use with Wireless Interact dimming sensor (WIAP-xW). ER100 is 120V-277V. For PI Detection with TRN TrunnionETO Special, must be wired at factory.
16. Whe n ordering SRDR, controller (by others) to be plugged into socket must be SR compatible (see Specifications for more details). Consult factory for lead time.
17. Fai lure to properly select the “BAC” suffix could result in you receiving product that is not BAA compliant product with no recourse for an RMA or refund. This BAC designation hereunder does not address (i) the applicability of, or availability of a waiver under, the Trade Agreements Act, or (ii) the “Buy America” domestic content requirements imposed on states, localities, and other non-federal entities as a condition of receiving funds administered by the Department of Transportation or other federal agencies.
SPECIFICATIONS
HOUSING
- Heavy duty sealed die cast aluminum housing - Corrosion reistant powder coat
- White finish standard, black and dark bronze also available
EM -Emergency Battery BK -Black Housing (white standard)
-Bronze Housing (white standard)
TYPE AW SPEC HELM BAY LANDING
FEATURES & SPECIFICATIONS
INTENDED USE — Ideal for damp/wet locations such as outdoor venues, canopies and locker rooms. Not for use or installation in direct outdoor sunlight. Must be installed under canopy or covered ceiling. For direct sunlight installations, please refer to the FEX product family. Certain airborne contaminants can diminish integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components
Luminaire Surge Protection Level: Designed to withstand up to 2.5kV/0.75kA per ANSI C82.77-5-2015. For applications requiring higher level of protection additional surge protection must be provided.
INSTALLATION
- Surface (wall, ceiling) using standard brackets (301 stainless steel) includes bail for chain hanging
- Suspended (chain, cable) using standard brackets (301 stainless steel) LISTINGS
- CSA Certified to UL & C-UL Standards for wet location
- IP65, IP66 rated per IEC60529
- NSF Splash zone rated
- FCC Title 47, Part 15 Subpart B compliant
- 2.5kV/0.75kA Surge Rated per ANSI C82-77-5-2015
- IK10 rated
- CSA Ambient Listings on Page 3
- Lumen Maintenance Listed on Page 3
DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® or XPoint™ Wireless control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details

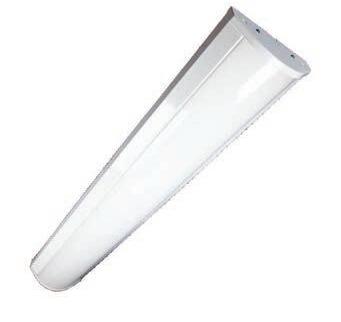

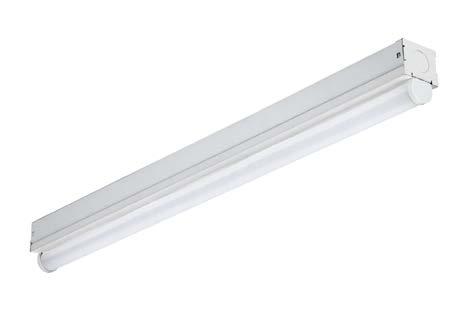

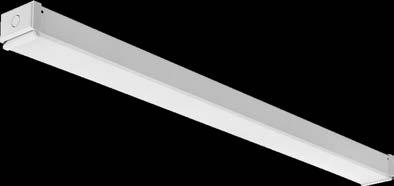

LED SURFACE MOUNT LINEAR VAPOR TIGHT - HIGH OUTPUT
TYPE AW SPEC HELM BAY LANDING

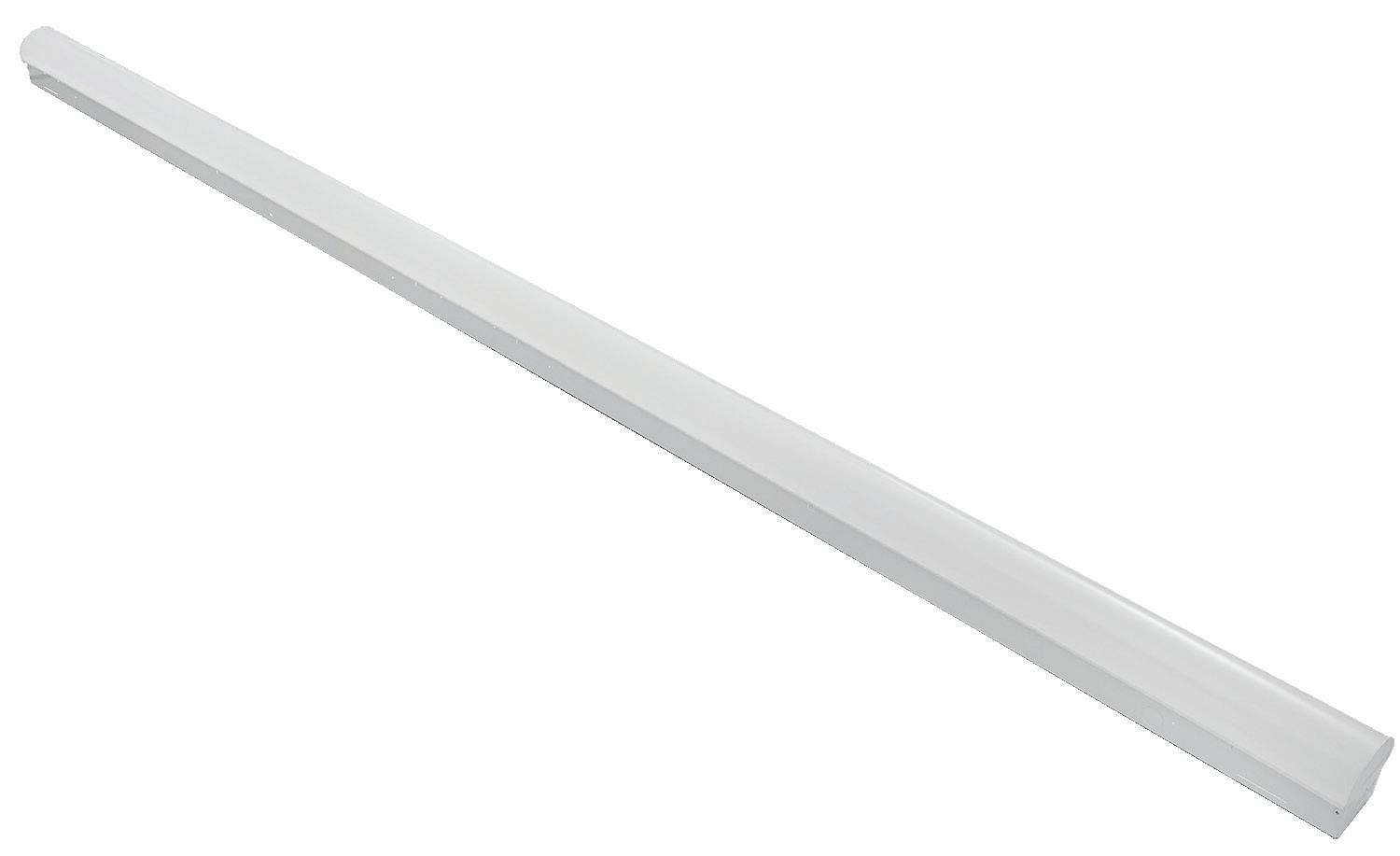

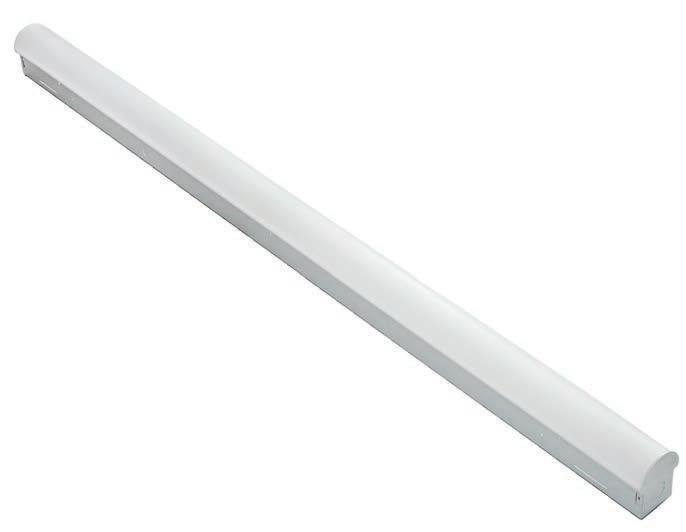

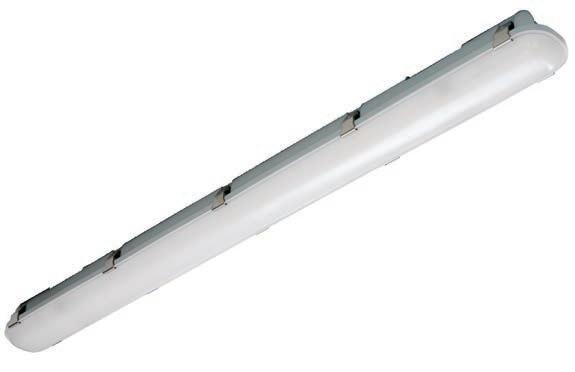

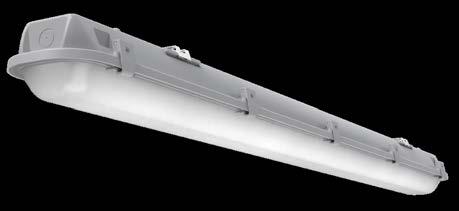

CSVT Vapor Tight LED Strip Light
Looking for Contractor Select readily available configurations? Click here to visit Contractor Select™ spec sheet or go to www.contractorselect.com
ORDERING
Series
CSVT Linear LED Vapor Tight
A+ Capable options indicated by this color background.
IE7WCP Emergency battery pack, 7W, CA Title 20 Noncompliant ‡
E7W 7W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User select able Self- Diagnostic, AC Activate with Integral Test Switch ‡
E10W 10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User select able Self- Diagnostic, AC Activate with Integral Test Switch ‡
WLFEND2 Wet location fitting (fittings out both ends) ‡
Individual Controls ‡
SBOR10 360° integral low mount motion sensor (standard on/off operation)
SBOR10 D 3V360° integral low mount motion sensor with dimming (low trim set at 30%)
SBOR10 P 360° integral low mount motion sensor with photocell
nLight Wireless Controls ‡ NLTAIR2 RSBOR10 nLight (wireless) gen 2 low mount occupancy & daylight sensor
35K, 40K, 50K Not available with ALO lumen packages. 3000LM, 4000LM, 5000LM, 6000LM, 8000LM, 10000LM, 12000LM Not available with SWW3.
CSVT STSL LATCH Requires two for L96 IE7WCP, E7W, E10W Not available with 347V.
Individual Controls Not available with WLFEND2 option. nLight Wireless Controls Not available with WLFEND2 option. WLFEND2 Not available with cord set or sensor options.
Accessories: Order as separate catalog number.
CSVT STSL LATCHStainless steel latch kit (Set of 10) ‡
CSVTRMBA Angle mount bracket (QTY of 2) (316 stainless steel)
CSVTRMBU Rigid mount U-bolt bracket (QTY of 2) (316 stainless steel)
CSVTRMBK Rigid mount bracket (QTY of 2) (316 stainless steel)
CSVTSMB Replacement standard mounting brackets (QTY of 2) (301 stainless steel)
MHCH36SS 36" stainless steel chain (QTY of 2)
How to Estimate Delivered Lumens in Emergency Mode
Use the formula below to estimate the delivered lumens in emergency mode
Delivered Lumens = 1.25 x P x LPW
P = Output power of emergency driver. P = 10W for IE10WCPHE
LPW = Lumen per watt rating of the luminaire. This information is available on the ABL luminaire spec sheet. The LPW rating is also available at Designlight Consortium
HELM BAY LANDING
DESCRIPTION
LED48/VT/3CCT/3WO/UNV/HO
LED48/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO+EM+MS
LED48/VT/3CCT/3WO/UNV/HO+MS
LED96/VT/3CCT/3WO/UNV/HO
LED96/VT/3CCT/3WO/UNV/HO+EM
DESCRIPTION
LED48/VT/3CCT/3WO/UNV/HO
LED48/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO+EM+MS
LED48/VT/3CCT/3WO/UNV/HO+MS
TYPE B SPEC HELM BAY LANDING
FEATURES & SPECIFICATIONS

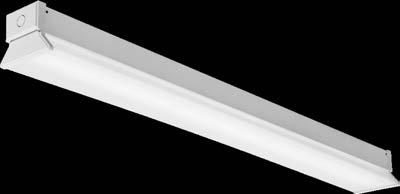

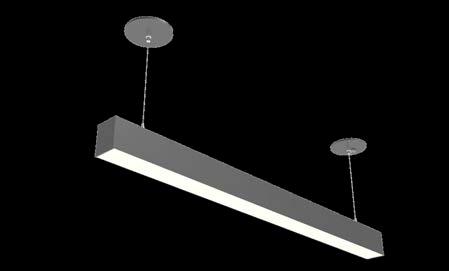

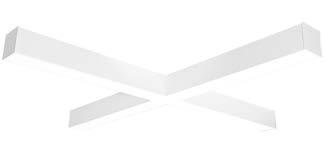

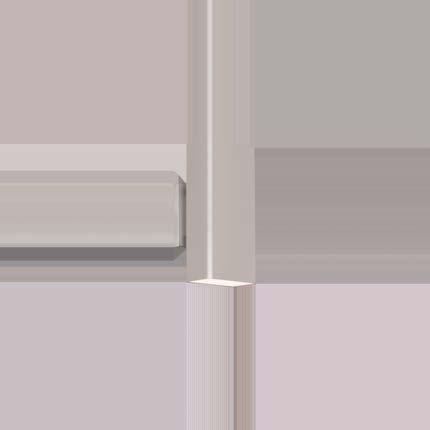

INTENDED USE — The CLX is a linear lighting solution that is available in multiple lengths, lumen packages and distributions. Designed for versatility, the CLX can address virtually any indoor lighting need. The CLX is also offered in standard and high efficacy configurations and capable of being continuous row mounted or installed as a stand-alone fixture. Ideal for uplight and downlight in commercial, retail, manufacturing, warehouse, and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Channel and cover are formed from code-gauge cold-rolled steel. Housing and lens endcaps are injection molded plastic to provide a more architectural look and feel. The endcaps come standard with a 7/8" knock out for continuous mounting but can be ordered without.
Finish: Paint options include high-gloss, baked white polyester (WH), galvanized (GALV), matte black (MB) and smoke gray (SKGY). Five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS — Offered with acrylic lens and less lens configurations. Provides a choice of optical distributions including, wide, narrow, and aisle.
Models with wide diffuse lens provide up to 12% uplight. Please check the IES file for specific uplight value.
ELECTRICAL — Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring cool-running operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications. (See PLR_ ordering information on page 9.) Electronic LED driver is multi-volt input and 0-10V dimming standard (see Operational Data on page 6 for actual wattage consumption). This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided. Color Variation within 3-step MacAdam ellipse (3SDCM).
L70>100,000 hours at 25˚C.
LEDs provide nominal 80 CRI or 90 CRI at 3000 K, 3500 K,4000 K, or 5000 K. Lumen output up to 2,500 lumens per foot.
INSTALLATION — Fixture may be ceiling or wall mounted (with or without THCLX hanger or angle mounted with CLXANGBKT), pendant or stem mounted with appropriate mounting options.
WARNING — Removing the lens and opening the fixture during installation exposes the LEDs, putting them at risk for damage.
If you plan to surface mount the fixture, we recommend using the THCLX. This eliminates the need to open the fixture.
If you plan to continuous row mount, we recommend using the PLR wiring harness option. This eliminates the need to open the fixture.
Damage to the LEDs caused during installation will not be covered under the warranty.
LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -4°F (-20°C) and 104°F (40°C). Optional High Ambient (HA) ranging to 122°F(50°C) available on certain lumen packages (See ambient temperature chart for additional information).
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Capable Luminaire
L48 3000LM SEF FDL MVOLT GZ10 40K 80CRI WH 00191723525816
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products. All configurations of this luminaire are calibrated and tested to meet the Acuity Brands' specifications for chromatic consistency – including color rendering, color fidelity, and color temperature tolerance around standard CIE chromaticity coordinates.
To learn more about Acuity A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
Flat Diffuse Lens
Round Diffuse Lens
Wide Diffuse Lens

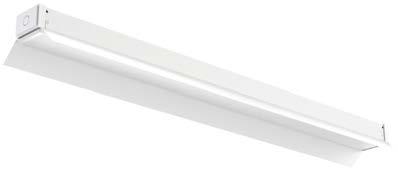

CLX with Reflector
TYPE B SPEC HELM BAY LANDING
6,000 lumens
Aisle, 24° off center
E10W 10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch [LINK ] ‡
E10WSTAR Emergency battery pack, Enabled with STAR ‡
BGTDGenerator transfer device, not available with E10W ‡
OCS 5', 18/3 Reloc selectable One Pass cable (fixture will bear dry location label) ‡
HA High ambient, for use in ambient temperatures up to 50°C ‡
EPNKO Decorative endplate, no knock out ‡
OUTCTR Wiring leads pulled through back center of fixture ‡
OUTEND Wiring leads pulled through end of fixture ‡
Cord Sets: ‡
CS1W 6' Staight blade plug, 120V ‡
CS3W NEMA twist-lock plug, 120V ‡
CS7W Staight blade plug, 277V ‡
CS11W NEMA twist-lock plug, 277V ‡
CS25W NEMA twist-lock plug, 347V ‡
CS97W NEMA twist-lock plug, 480V ‡
CS93W 600V SEOOW white cord, no plug (no voltage required) ‡
CS6WG16STOWD5D 6' white cord, 16/5, no plug, includes low voltage dimming wires (no voltage required) ‡
PLR__ Plug-in wiring, see page 9 for ordering information
PLR1G Plug-in wiring, single circuit, Ground
PLR1LVG Plug-in wiring, single circuit, low-voltage dimming, Ground ‡
RRL__ RELOC®-ready luminaire. See page 10 for ordering information
SPD Surge protection device, provides up to 6kV protection ‡
BAA Buy America(n) Act and/or Build America Buy America Qualified
nLight® Wireless:
NLTAIR2 RES7 nLight AIR Generation 2 enabled PIR integral occupancy sensor with automatic dimming photocell ‡
NLTAIR2 RES7EM nLight AIR Generation 2 enabled PIR integral occupancy sensor with automatic dimming photocell and UL924 Emergency operation, via power interrupt detection‡
NLTAIR2 RES7PDT nLight AIR Generation 2 enabled dual technology integral occupancy sensor with automatic dimming photocell ‡
NLTAIR2 RES7PDTEM nLight AIR Generation 2 enabled dual technology integral occupancy sensor with automatic dimming photocell and UL924 Emergency operation, via power interrupt detection‡
NLTAIR2 RIO No sensor control ‡
NLTAIR2 RIOEM No sensor, Control Input function only and UL924 Emergency operation, via power interrupt detection ‡
nLight® Wired: N100 nLight® without lumen management
N100EMG nLight® without lumen management For use with generator supply EM power ‡
NES7 nLight® nES 7 PIR integral occupancy sensor ‡
NESPDT7 nLight® nES PDT 7 dual technology integral occupancy control ‡
NES7ADCX nLight® nES 7 ADCX PIR integral occupancy sensor with automatic dimming photocell ‡
NESPDT7ADCX nLight® nES PDT 7 dual technology integral occupancy sensor with automatic dimming photocell ‡
Individual controls: ‡
MSD7 PIR integral occupancy sensor
MSDPDT7 PDT 7 dual technology integral occupancy control
MSD7ADC PIR integral occupancy sensor with automatic dimming control photocell
MSDPDT7ADC PDT integral occupancy sensor with automatic dimming control photocell
WH White
GALVW Galvanized with white lens end caps
GALVB Galvanized with black lens end caps
MBMatte black
SKGYW Smoke gray with white lens end caps
SKGYB Smoke gray with black lens end caps
See Accessories and footnotes on next page
Design Select options indicated by this color background.
LED48/LINEAR/3CCT/3WO/UNV/D/HO
LR25185+EM
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM
LR25185+MS
LED48/LINEAR/3CCT/3WO/UNV/D/HO+MS
LR25185+EM+MS
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM+MS
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
TYPE BE SPEC HELM BAY LANDING
FEATURES & SPECIFICATIONS
INTENDED USE — The CLX is a linear lighting solution that is available in multiple lengths, lumen packages and distributions. Designed for versatility, the CLX can address virtually any indoor lighting need. The CLX is also offered in standard and high efficacy configurations and capable of being continuous row mounted or installed as a stand-alone fixture. Ideal for uplight and downlight in commercial, retail, manufacturing, warehouse, and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Channel and cover are formed from code-gauge cold-rolled steel. Housing and lens endcaps are injection molded plastic to provide a more architectural look and feel. The endcaps come standard with a 7/8" knock out for continuous mounting but can be ordered without.
Finish: Paint options include high-gloss, baked white polyester (WH), galvanized (GALV), matte black (MB) and smoke gray (SKGY). Five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS — Offered with acrylic lens and less lens configurations. Provides a choice of optical distributions including, wide, narrow, and aisle.
Models with wide diffuse lens provide up to 12% uplight. Please check the IES file for specific uplight value.
ELECTRICAL — Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring cool-running operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications. (See PLR_ ordering information on page 9.) Electronic LED driver is multi-volt input and 0-10V dimming standard (see Operational Data on page 6 for actual wattage consumption). This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided. Color Variation within 3-step MacAdam ellipse (3SDCM).
L70>100,000 hours at 25˚C.
LEDs provide nominal 80 CRI or 90 CRI at 3000 K, 3500 K,4000 K, or 5000 K. Lumen output up to 2,500 lumens per foot.
INSTALLATION — Fixture may be ceiling or wall mounted (with or without THCLX hanger or angle mounted with CLXANGBKT), pendant or stem mounted with appropriate mounting options.
WARNING — Removing the lens and opening the fixture during installation exposes the LEDs, putting them at risk for damage.
If you plan to surface mount the fixture, we recommend using the THCLX. This eliminates the need to open the fixture.
If you plan to continuous row mount, we recommend using the PLR wiring harness option. This eliminates the need to open the fixture.
Damage to the LEDs caused during installation will not be covered under the warranty.
LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -4°F (-20°C) and 104°F (40°C). Optional High Ambient (HA) ranging to 122°F(50°C) available on certain lumen packages (See ambient temperature chart for additional information).
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Capable Luminaire
L48 3000LM SEF FDL MVOLT GZ10 40K 80CRI WH 00191723525816
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products. All configurations of this luminaire are calibrated and tested to meet the Acuity Brands' specifications for chromatic consistency – including color rendering, color fidelity, and color temperature tolerance around standard CIE chromaticity coordinates.
To learn more about Acuity A+ standards, specifications, and testing visit www.acuitybrands.com/aplus
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect.
*See ordering tree for details
Flat Diffuse Lens
Round Diffuse Lens
Wide Diffuse Lens
CLX with Reflector
TYPE BE SPEC HELM BAY LANDING
Aisle, 24° off center
E10W 10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch [LINK ] ‡
E10WSTAR Emergency battery pack, Enabled with STAR ‡
BGTDGenerator transfer device, not available with E10W ‡
OCS 5', 18/3 Reloc selectable One Pass cable (fixture will bear dry location label) ‡
HA High ambient, for use in ambient temperatures up to 50°C ‡
EPNKO Decorative endplate, no knock out ‡
OUTCTR Wiring leads pulled through back center of fixture ‡
OUTEND Wiring leads pulled through end of fixture ‡
Cord Sets: ‡
CS1W 6' Staight blade plug, 120V ‡
CS3W NEMA twist-lock plug, 120V ‡
CS7W Staight blade plug, 277V ‡
CS11W NEMA twist-lock plug, 277V ‡
CS25W NEMA twist-lock plug, 347V ‡
CS97W NEMA twist-lock plug, 480V ‡
CS93W 600V SEOOW white cord, no plug (no voltage required) ‡
CS6WG16STOWD5D 6' white cord, 16/5, no plug, includes low voltage dimming wires (no voltage required) ‡
PLR__ Plug-in wiring, see page 9 for ordering information
PLR1G Plug-in wiring, single circuit, Ground
PLR1LVG Plug-in wiring, single circuit, low-voltage dimming, Ground ‡
RRL__ RELOC®-ready luminaire. See page 10 for ordering information
SPD Surge protection device, provides up to 6kV protection ‡
BAA Buy America(n) Act and/or Build America Buy America Qualified
nLight® Wireless:
NLTAIR2 RES7 nLight AIR Generation 2 enabled PIR integral occupancy sensor with automatic dimming photocell ‡
NLTAIR2 RES7EM nLight AIR Generation 2 enabled PIR integral occupancy sensor with automatic dimming photocell and UL924 Emergency operation, via power interrupt detection‡
NLTAIR2 RES7PDT nLight AIR Generation 2 enabled dual technology integral occupancy sensor with automatic dimming photocell ‡
NLTAIR2 RES7PDTEM nLight AIR Generation 2 enabled dual technology integral occupancy sensor with automatic dimming photocell and UL924 Emergency operation, via power interrupt detection‡
NLTAIR2 RIO No sensor control ‡
NLTAIR2 RIOEM No sensor, Control Input function only and UL924 Emergency operation, via power interrupt detection ‡
nLight® Wired: N100 nLight® without lumen management
N100EMG nLight® without lumen management For use with generator supply EM power ‡
NES7 nLight® nES 7 PIR integral occupancy sensor ‡
NESPDT7 nLight® nES PDT 7 dual technology integral occupancy control ‡
NES7ADCX nLight® nES 7 ADCX PIR integral occupancy sensor with automatic dimming photocell ‡
NESPDT7ADCX nLight® nES PDT 7 dual technology integral occupancy sensor with automatic dimming photocell ‡
Individual controls: ‡
MSD7 PIR integral occupancy sensor
MSDPDT7 PDT 7 dual technology integral occupancy control
MSD7ADC PIR integral occupancy sensor with automatic dimming control photocell
MSDPDT7ADC PDT integral occupancy sensor with automatic dimming control photocell
WH White
GALVW Galvanized with white lens end caps
GALVB Galvanized with black lens end caps
MBMatte black
SKGYW Smoke gray with white lens end caps
SKGYB Smoke gray with black lens end caps
See Accessories and footnotes on next page
Design Select options indicated by this color background.
LED48/LINEAR/3CCT/3WO/UNV/D/HO
LR25185+EM
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM
LR25185+MS
LED48/LINEAR/3CCT/3WO/UNV/D/HO+MS
LR25185+EM+MS
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM+MS
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
BLANK
HELM BAY LANDING TYPE
COMPATIBLE
DIMENSIONS
LR35120, LR35121 - SPECIFICATIONS
Garage & Canopy SoftView
SVPG with comfort optics
Gardco SoftView LED parking garage luminaires feature edge lit technology, providing visual comfort with minimal glare to enhance the user experience. An added uplight feature reduces the cave effect for an increased sense of security. SoftView features multiple optical distributions, lumen packages and mounting options providing you with the ideal solution for your garage lighting and low bay needs. Optional emergency battery backup available for path of egress lighting and is integral to the luminaire.
Ordering guide
BL203,4,5,10,13 Bi-level set at 20% dimming MW5,7,13 Microwave Sensor
BLBT3,4,5,10,13 Bi-level with motion sensor, Bluetooth programming, set at 20% dimming L25 L35 L75 PIR Sensor, #2 lens PIR Sensor, #3 lens PIR Sensor, #7 lens
(All sensing is factory customizable, contact factory11 )
WIAP3,5,8,14,15 Wireless Interact (includes SR driver and SR receptacledo NOT select SRDR) LW5 HW5 Low (7'-15' mounting height) sensor, white color housing High (15'-40' mounting height) sensor, white color housing
1. T3A not available with A06, A07, A08, A09, A10 or A11 configurations due to thermal and fit restrictions.
2. TRN not available with combination of both DLEA and EM options due to fit restrictions; TRN is available with each individually (either DLEA or EM).
3. Choo se only 1 Dimming Controls option: either DLEA or SRDR or BL20 or BLBT or WIAP.
4. 0-10V dimming driver standard.
5. BL20 m ust be combined with MW Microwave Sensor. BLBT must be combined with Sensing option L2, L3 or L7. WIAP must be combined with Sensing option LW or HW. Choose only 1: either BL20-MW or BLBT-L# or WIAP-xW.
6. DLEA luminaire has 0-10V dimming wires exiting the luminaire for dimming controls by others.
7. MW available with 120V, 208V, 240V, 277V, UNV or 347V only.
8. Avai lable with 120V, 208V, 240V, 277V or UNV only.
9. Must s pecify applicable specific input voltage, not available with UNV or HVU.
10. Choo se either Emergency option EM or EC cold. EM only available with A01, A02, A03 or A06 and EC cold only available with A01, A02, A03, A04, A06 or A07 due to thermal restrictions. EC cold not available with DLEA or BL20-MW or BLBT-L# due to fit restrictions; EM is available with DLEA or BL20-MW or BLBT-L# (does fit).
11. Must c ontact factory prior to ordering - these items are ETO Specials.
12. Exte nded lead times apply. Contact factory for details.
13. A09, A10, A11 each have 2 drivers therefore due to fit restrictions not available with 347V, 480V, HVU, BL20-MW, or BLBT.
Project:
Location:
Cat.No:
Type:
Lamps: Qty:
Notes:
Example: SVPG-A06-840-5RD-SUR-UNV-BLBT-L3-SP2-MG
14. SRDR o r WIAP not available with Emergency options EM or EC cold due to thermal and fit restrictions.
15. ER10 0 suitable for use in 40C ambient with A01, A02, A03, A04, A06 or A07 (72W max.); suitable for use in 35C ambient with A05 or A08 (90W max.); not available above 90W: no A09, A10 or A11. ER100 must be installed in conjunction with a UL 1008 device (such as a transfer switch at the electrical panel) and only for use with Wireless Interact dimming sensor (WIAP-xW). ER100 is 120V-277V. For PI Detection with TRN TrunnionETO Special, must be wired at factory.
16. When o rdering SRDR, controller (by others) to be plugged into socket must be SR compatible (see Specifications for more details). Consult factory for lead time.
17. Fail ure to properly select the “BAC” suffix could result in you receiving product that is not BAA compliant product with no recourse for an RMA or refund. This BAC designation hereunder does not address (i) the applicability of, or availability of a waiver under, the Trade Agreements Act, or (ii) the “Buy America” domestic content requirements imposed on states, localities, and other non-federal entities as a condition of receiving funds administered by the Department of Transportation or other federal agencies.
SPECIFICATIONS
HOUSING
- Heavy duty sealed die cast aluminum housing - Corrosion reistant powder coat
- White finish standard, black and dark bronze also available
EM -Emergency Battery BK -Black Housing (white standard)
-Bronze Housing (white standard)
TYPE BGE SPEC HELM BAY LANDING
Garage & Canopy SoftView
SVPG with comfort optics
Gardco SoftView LED parking garage luminaires feature edge lit technology, providing visual comfort with minimal glare to enhance the user experience. An added uplight feature reduces the cave effect for an increased sense of security. SoftView features multiple optical distributions, lumen packages and mounting options providing you with the ideal solution for your garage lighting and low bay needs. Optional emergency battery backup available for path of egress lighting and is integral to the luminaire.
Ordering guide
BL203,4,5,10,13 Bi-level set at 20% dimming MW5,7,13 Microwave Sensor
or 347V)
Fuse (208V, 240V, or 480V)
Fuse Canadian
BLBT3,4,5,10,13 Bi-level with motion sensor, Bluetooth programming, set at 20% dimming L25 L35 L75 PIR Sensor, #2 lens PIR Sensor, #3 lens PIR Sensor, #7 lens Surge Protection
WIAP3,5,8,14,15 Wireless Interact (includes SR driver and SR receptacledo NOT select SRDR) LW5 HW5 Low (7'-15' mounting height) sensor, white color housing High (15'-40' mounting height) sensor, white color housing
1. T3A not available with A06, A07, A08, A09, A10 or A11 configurations due to thermal and f it restrictions.
2. TRN not available with combination of both DLEA and EM options due to fit restrictions; TRN is available with each individually (either DLEA or EM).
3. Choos e only 1 Dimming Controls option: either DLEA or SRDR or BL20 or BLBT or WIAP.
4. 0-10V dimming driver standard.
5. BL20 mu st be combined with MW Microwave Sensor. BLBT must be combined with Sensing option L2, L3 or L7. WIAP must be combined with Sensing option LW or HW. Choose only 1: either BL20-MW or BLBT-L# or WIAP-xW.
6. DLEA luminaire has 0-10V dimming wires exiting the luminaire for dimming controls by others.
7. MW available with 120V, 208V, 240V, 277V, UNV or 347V only.
8. Avail able with 120V, 208V, 240V, 277V or UNV only.
9. Must sp ecify applicable specific input voltage, not available with UNV or HVU.
10. Choos e either Emergency option EM or EC cold. EM only available with A01, A02, A03 or A06 and EC cold only available with A01, A02, A03, A04, A06 or A07 due to thermal restrictions. EC cold not available with DLEA or BL20-MW or BLBT-L# due to fit restrictions; EM is available with DLEA or BL20-MW or BLBT-L# (does fit).
11. Must co ntact factory prior to ordering - these items are ETO Specials.
12. Exten ded lead times apply. Contact factory for details.
13. A09, A1 0, A11 each have 2 drivers therefore due to fit restrictions not available with 347V, 480V, HVU, BL20-MW, or BLBT.
05/24 page 1 of 7
Project:
Location:
Cat.No:
Type:
Lamps: Qty:
Notes:
Example: SVPG-A06-840-5RD-SUR-UNV-BLBT-L3-SP2-MG
14. SRDR or W IAP not available with Emergency options EM or EC cold due to thermal and fit restrictions.
15. ER100 s uitable for use in 40C ambient with A01, A02, A03, A04, A06 or A07 (72W max.); suitable for use in 35C ambient with A05 or A08 (90W max.); not available above 90W: no A09, A10 or A11. ER100 must be installed in conjunction with a UL 1008 device (such as a transfer switch at the electrical panel) and only for use with Wireless Interact dimming sensor (WIAP-xW). ER100 is 120V-277V. For PI Detection with TRN TrunnionETO Special, must be wired at factory.
16. When ordering SRDR, controller (by others) to be plugged into socket must be SR compatible (see Specifications for more details). Consult factory for lead time.
17. Failu re to properly select the “BAC” suffix could result in you receiving product that is not BAA compliant product with no recourse for an RMA or refund. This BAC designation hereunder does not address (i) the applicability of, or availability of a waiver under, the Trade Agreements Act, or (ii) the “Buy America” domestic content requirements imposed on states, localities, and other non-federal entities as a condition of receiving funds administered by the Department of Transportation or other federal agencies.
HELM BAY LANDING
SPECIFICATIONS
HOUSING
- Heavy duty sealed die cast aluminum housing - Corrosion reistant powder coat
- White finish standard, black and dark bronze also available
EM -Emergency Battery BK -Black Housing (white standard)
-Bronze Housing (white standard)
TYPE D SPEC HELM BAY LANDING
Downlighting
ModuLyte LED
ModuLyte LED
4", 6", & 8" Round Downlight
ModuLyte LED 4", 6" & 8" downlights provide the optimal balance of field flexibility, performance, and commercial appeal. Light engines are designed to be installed without need of frames making ModuLyte flexible to accommodate new construction, remodel, and retrofit applications. Field selectable correlated color temperature and lumens in addition to field installable optics including wall wash allow ModuLyte to adapt to a variety of applications such as office, institution, healthcare, retail, and public. Complete luminaire = Frame (optional) + Engine/Trim + Accessories (optional)
Project:
Location:
Cat.No:
Type:
Qty: :
Notes:
All options are 90CRI with Accurender
round
M8GRW 8" round
Field-installed emergency Accessory
MLEM6 Bodine 6" BSL06 battery pack kit for fieldinstallation with ModuLyte engines. Includes mounting plate for remote switch.
Round Cylinders
field-installable accessories for use with Stock Ready light engines 11
M4CRW 4" cylinder, white
M4CRB 4" cylinder, black
M6CRW 6" cylinder, white
M6CRB 6" cylinder, black
(factory-installed trim flange gasket)
EM6R Emergency battery pack wit remote test switch 9 EM6I Emergency battery pack w/ integral test switch to trim 10
1. IC rated up to 1500lm.
2. IC rated up to 2000lm.
3. Integral lensed wall wash optic factory installed. Order with wide (W) beam only. May also be field installed with M_RLW accessory with DL style light engine/trim.
4. Select either selectable or fixed options for both lumens and CRI/CCT. Must be consistent with selectable or fixed for both lumens and CRI/CCT.
5. The 4000, 4500, and 5000lm flux are marked spacings. Refer to page 7 for details.
6. Available only with M6 and M8.
7. The 347V (3) and LC (Chicago plenum) options not available with EM6R and EM6I emergency options.
8. Stock Ready light engines include factory-installed gasket and are AirSeal in compliance with ASTM E283. All other configurations require air-tite (AT) option to be selected for factory-installed gasket.
9. Factory installed Bodine BSL06 6W battery pack for remote mount test switch. Ceiling mounting plate included. May also be field installed with MLEM6 accessory.
10. Factory installed Bodine BSL06 6W battery pack for mounting test switch integrally to trim.
11. 3000lm maximum flux for both sizes. Must order CACK or CASK accessory when cylinders are pendant mounted. Cylinders not available for use with EM options or accessories.
HELM BAY LANDING TYPE D
NM4-RDC
4" M4 Round LED Recessed Downlight
Source: 15W LED 1100lm
PRODUCT DESCRIPTION
4" M4 Round LED downlight are ideal for remodel or new constructions in residential and light commercial applications. IC Air-Tight rated luminaires require no housing, making installation easy.
FEATURES
No housing required - IC Airtight rated
· Easy installation for remodel or new construction applications
Square trim available for an alternative appearance
Quick disconnect allows for extended lengths
2700K or 3000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
cETLus Listed for Wet Locations
SPECIFICATION
Construction: Die-cast aluminum trims with a powdercoated finish. Optional field changeable square trim is available.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM 283 air tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes four 1/2" trade size knockouts and snap on cover with 7" quick connect wire. Luminaire includes 6 1/2" quick connect wire.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in s are available, see mounting accessories.
ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: 1100lm / 15W
Color Temperature: 2700K or 3000K
Color Rendering Index: 90+CRI
Beam Spread: 37° Narrow Flood
Operating Temperature: 0°C to 25°C
Lifetime: 50,000 hours @ L70
Dimming: Dimmable down to 10% with Triac or ELV
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL TRIM ACCESSORIES
NM4-SDT: Square Baffle Trim for NM4-RDC, Black or White
NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK-23LEDUNV
Emergency: Luminaire is compatible with NEPK-2 3LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet Locations
· 5-Year Limited Warranty FCC compliant
Certified to the high efficacy requirements of California Title 24 JA8-2025
4" M4 Round Can-less LED Recessed Downlight
Color Temperature Finish
NM4-RDC27 = 2700K
NM4-RDC30
Square Trim Accessory Description
NM4-SDTB = Square Baffle Trim, Black Finish NM4-SDTMPW = Square Baffle Trim, White Finish NM4-SDT Square Baffle Trim
Example: NM4-RDC30MPW = 4" M4 Round Can-less LED Recessed Downlight, 1100lm / 15W, 3000K, White Finish
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
NEPK-23LEDUNV = 23W Emergency LED Driver w/ Remote Test Switch
NEPKA-20/23LEDRTS = Ribbon Test Switch for NEPK-23LEDUNV
TYPE DE SPEC HELM BAY LANDING
Downlighting
ModuLyte LED
ModuLyte LED
4", 6", & 8" Round Downlight
ModuLyte LED 4", 6" & 8" downlights provide the optimal balance of field flexibility, performance, and commercial appeal. Light engines are designed to be installed without need of frames making ModuLyte flexible to accommodate new construction, remodel, and retrofit applications. Field selectable correlated color temperature and lumens in addition to field installable optics including wall wash allow ModuLyte to adapt to a variety of applications such as office, institution, healthcare, retail, and public. Complete luminaire = Frame (optional) + Engine/Trim + Accessories (optional)
Project:
Location:
Cat.No:
Type:
Qty: :
Notes:
All options are 90CRI with Accurender
round
M8GRW 8" round
Field-installed emergency Accessory
MLEM6 Bodine 6" BSL06 battery pack kit for fieldinstallation with ModuLyte engines. Includes mounting plate for remote switch.
Round Cylinders
field-installable accessories for use with Stock Ready light engines 11
M4CRW 4" cylinder, white
M4CRB 4" cylinder, black
M6CRW 6" cylinder, white
M6CRB 6" cylinder, black
(factory-installed trim flange gasket)
EM6R Emergency battery pack wit remote test switch 9 EM6I Emergency battery pack w/ integral test switch to trim 10
1. IC rated up to 1500lm.
2. IC rated up to 2000lm.
3. Integral lensed wall wash optic factory installed. Order with wide (W) beam only. May also be field installed with M_RLW accessory with DL style light engine/trim.
4. Select either selectable or fixed options for both lumens and CRI/CCT. Must be consistent with selectable or fixed for both lumens and CRI/CCT.
5. The 4000, 4500, and 5000lm flux are marked spacings. Refer to page 7 for details.
6. Available only with M6 and M8.
7. The 347V (3) and LC (Chicago plenum) options not available with EM6R and EM6I emergency options.
8. Stock Ready light engines include factory-installed gasket and are AirSeal in compliance with ASTM E283. All other configurations require air-tite (AT) option to be selected for factory-installed gasket.
9. Factory installed Bodine BSL06 6W battery pack for remote mount test switch. Ceiling mounting plate included. May also be field installed with MLEM6 accessory.
10. Factory installed Bodine BSL06 6W battery pack for mounting test switch integrally to trim.
11. 3000lm maximum flux for both sizes. Must order CACK or CASK accessory when cylinders are pendant mounted. Cylinders not available for use with EM options or accessories.
HELM BAY LANDING TYPE DE ALT
NM4-RDC
4" M4 Round LED Recessed Downlight
Source: 15W LED 1100lm
PRODUCT DESCRIPTION
4" M4 Round LED downlight are ideal for remodel or new constructions in residential and light commercial applications. IC Air-Tight rated luminaires require no housing, making installation easy.
FEATURES
No housing required - IC Airtight rated
· Easy installation for remodel or new construction applications
Square trim available for an alternative appearance
Quick disconnect allows for extended lengths
2700K or 3000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
cETLus Listed for Wet Locations
SPECIFICATION
Construction: Die-cast aluminum trims with a powdercoated finish. Optional field changeable square trim is available.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM 283 air tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes four 1/2" trade size knockouts and snap on cover with 7" quick connect wire. Luminaire includes 6 1/2" quick connect wire.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in s are available, see mounting accessories.
ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: 1100lm / 15W
Color Temperature: 2700K or 3000K
Color Rendering Index: 90+CRI
Beam Spread: 37° Narrow Flood
Operating Temperature: 0°C to 25°C
Lifetime: 50,000 hours @ L70
Dimming: Dimmable down to 10% with Triac or ELV
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL TRIM ACCESSORIES
NM4-SDT: Square Baffle Trim for NM4-RDC, Black or White
NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK-23LEDUNV
Emergency: Luminaire is compatible with NEPK-2 3LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet Locations
· 5-Year Limited Warranty FCC compliant
Certified to the high efficacy requirements of California Title 24 JA8-2025
Square Baffle Trim
4" M4 Round Can-less LED Recessed Downlight
Color Temperature Finish
NM4-RDC27 = 2700K
NM4-RDC30
Square Trim Accessory Description
NM4-SDTB = Square Baffle Trim, Black Finish NM4-SDTMPW = Square Baffle Trim, White Finish
Example: NM4-RDC30MPW = 4" M4 Round Can-less LED Recessed Downlight, 1100lm / 15W, 3000K, White Finish
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
NEPK-23LEDUNV = 23W Emergency LED Driver w/ Remote Test Switch
NEPKA-20/23LEDRTS = Ribbon Test Switch for NEPK-23LEDUNV
TYPE EX SPEC HELM BAY LANDING
Sure-Lites
DESCRIPTION
SLX Series LED exit is a steel unit suitable for commercial, institutional, and multi-housing applications. With the new advanced standard features and industry leading innovations, they are now the most universal, energy friendly, easiest to stock and install, and safest Exits in their class.
Catalog #
SPECIFICATION FEATURES
Electrical
- General Features
- Field selected red and green sign capability standard on all units (units shipped red, field convert to green with supplied parts)
- Dual Voltage Input 120/277 VAC,60Hz
- AC Only
- Optional 2C (Two circuit, FTBR) available in 120/277 VAC in standard and emergency operation
- Self Powered
- Sure-Lites EZ Key patented external battery disconnect feature
– prevents unnecessary battery drainage, saves on installation time
- Solid-state Voltage Limited Charger
- Brownout Circuit
- Low-Voltage Disconnect
- Test Switch/Power Indicator Light
- Standard 24 hour recharge time (max)
- Eagle Eye™ Self-Diagnostic Standard
Housing Construction
- 20-gauge steel housing
- Universal pattern knockouts on rear for direct mounting to junction box
- Knockouts for chevron directional indicators
- Canopy allows ceiling or end Mounting
- Universal styles offer complete installation flexibility with canopy, backplate, and two stencil faces
Battery (Self Powered Only)
- Sealed Nickel Cadmium
- Maintenance-Free, Long-Life
- Full Recharge Time, 24 hrs. (max)
Code Compliance
- UL 924 Listed
- UL Damp Location (0-40C
- Life Safety NFPA 101
- NEC/OSHA
- Most State and Local Codes
- NOM Certified
- UL Listed for 2C (FTBR)
Warranty
- Exit – 5 year
- Battery: 5-Year pro-rata
Lamp Data
- AC LED: Red and green LED lamps provide uniform diffused illumination
- DC: Red and green LED DC lamps (Brighter in emergency mode)
SLX SERIES
STEEL EXIT
SURFACE MOUNT LED LAMPS
EXIT LIGHTING
ENERGY DATA
Maximum power consumption under all charge conditions:
AC Only, 120V - Red
Amps: 0.07
Watts: 0.98
Power Factor: 0.12
AC Only, 120V - Green Amps: 0.07
Watts: 1.02
Power Factor: 0.13
AC Only, 277V - Red Amps: 0.07
Watts: 1.04
Power Factor: 0.06
AC Only, 277V - Green Amps: 0.07
Watts: 1.12
Power Factor: 0.06
Self Powered, 120V - Red Amps: 0.07
Watts: 0.98
Power Factor: 0.12
Self Powered, 120V - Green Amps: 0.07
Watts: 1.00
Power Factor: 0.13
Self Powered, 277V - Red Amps: 0.07
Watts: 1.03
Power Factor: 0.06
Self Powered, 277V - Green Amps: 0.07
Watts: 1.09
Power Factor: 0.05 TD505021EN
HELM BAY LANDING TYPE EX
Type Project
Recessed Adjustable LED Edge-Lit Exit Sign
Source: 5W LED
PRODUCT DESCRIPTION
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: 3W normal / 5W emergency operation
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery (NX-815-LED): Replaceable NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
5-Year Limited Warranty
& Municipal Certified to the energy efficiency standards of California Title 20
Blank EXIT sign = R Red letter, Red LED = G Green letter, Green LED = B Blue letter, White LED =
SD90 Self Diagnostics with Fire Alarm Interface Capability (SLX7 Only) =
Notes:
1 Consult factory for additional custom signage options.
2 Blue Letters, White LED does not have the “SD” option.
3 Units ordered with “Salida” signage (e.g., SLX6SR2) will use a steel stencil that outlines the word “Salida”, while all other signage options will be open-face.
TECHNICAL DATA
Lamps
SLX Series Exits use energy efficient, long life LED’s to provide uniform diffuse illumination of the exit face. These red and green LEDs require no maintenance and consume less than one watt, on average.
Housing Construction
Exit housing is constructed of durable 20-gauge cold rolled steel with corrosion resistant polyester powder coat paint finish. All exits can be mounted and wired through knockouts located on the top and side. Surface mount back panel has knockouts for direct mounting to junction box. The mounting canopy is made of impact resistant thermoplastic with complementary finish. Stencil face exits are supplied with knockout chevron directional indicators for easy conversion to directional exits. Exit stencil and backplate install in channels in the exit housing to eliminate light leaks.
Lens
Lenses for the SLX Series Exits are made from durable, impact resistant polycarbonate. All exit faces are designed with full 3/4” stroke snap-out or snap-in chevron directional indicators to insure maximum visibility and compliance with the latest codes. Units come with red lenses installed and green lenses included for field selectable red or green signs.
Sure-Lites EZ Key External Battery
Disconnect (Self Powered Only)
Patented technology that allows installers to externally control the battery connection. Better than line latching, allows installers to choose when the battery is connected so that it stays fresh longer. Allows battery to be disconnected after installation but before building is occupied, enabling emergency circuit to be shut down for power savings.
Blank EXIT sign = 1 “AREA OF RESCUE” = 2 “SALIDA” = 3 “STAIRS” = 4 “AREA OF REFUGE” = 5 “IN USE” = 6 “NOT AN EXIT” = 7 (WHEEL CHAIR SYMBOL) = 8 “X-RAY ON” = 9 “LASER IN USE” = 10 “DO NOT ENTER” =
Available Accessories (Order Separately)
Protection Devices WG10 Wall mount wire guard = VS1 Polycarbonate Vandal Shield = VS1WP Polycarbonate Vandal Shield, Weather Proof = WGS11 Ceiling or End mount wire guard =
Brownout Circuit (Self Powered Only)
The brownout circuit on Sure-Lites’ exits monitors the flow of AC current to the exit and activates the emergency lighting system when a predetermined reduction of AC power occurs. This dip in voltage will cause most ballasted fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
Solid-State Transfer (Self Powered Only)
The SLX Series Exit incorporates solid-state switching which eliminates corroded and pitted contacts or mechanical failures associated with relays. The switching circuit is designed to detect a loss of AC voltage and automatically energizes the lamps using DC power. Upon restoration of AC power, the DC power will be disconnected and the charger will automatically recharge the battery.
Low Voltage Disconnect (Self Powered Only)
When the battery’s terminal voltage falls, the low-voltage circuitry disconnects the lighting load. The disconnect remains in effect until normal utility power is restored, preventing deep battery discharge.
Test Switch/Power Indicator Light (Self Powered Only)
A test switch located on the side of the exit permits the activation of the emergency circuit for a complete operational systems check. The Power Indicator Light provides visual assurance that the AC power is on.
Sealed Nickel Cadmium Battery (Self Powered Only)
Sure-Lites sealed nickel cadmium batteries are maintenance-free with a life expectancy of 15 years. The sealed rechargeable nickel cadmium battery offers high discharge rates and stable performance over a wide range of temperatures,
notice.
Pendant Kit
PK18PKWH 18˝ Pendant Kit, White =
PK18PKHTWH 18˝ Hang True Pendant Kit, White =
PK18PKBK 18˝ Pendant Kit, Black =
PK18PKHTBK 18˝ Hang True Pendant Kit, Black =
from 0-40° C. The specially designed re-sealable vent automatically controls cell pressure, assuring safety and reliability. This battery is best suited for harsh ambient temperatures because the electrolyte is not active in the electrochemical process.
“2C” (AC Only)
he “2C” Option enables the Exits to operate per the requirements of UL 924 when connected simultaneously to both normal and emergency power circuits (two circuit operation–UL Category FTBR–Emergency Lighting and Power Equipment). The “2C” Option alters the standard Exit such that it complies with and is UL Listed under the FTBR Category. This option should only be used for exits which are intended to be connected simultaneously to normal and emergency power circuits, but cannot support two hot inputs. Only one of the normal or emergency circuits can be powered. If both are powered simultaneously, it will make the Exit inoperable. Both circuits have universal 120/277 VAC standard.
Eagle Eye™ Self Diagnostics Standard on SLX7
The self-diagnostic unit will automatically perform all tests required by UL924, and NFPA 101. The system indicates the status of the exit at all times using the LED indicator near the test switch on the side of the unit. A 90 minute battery power (emergency mode) simulation test will occur randomly once every 12 months. A 30 second battery power simulation test will occur every 30 days.
Warranty
All Sure-Lites’ products are backed by a firm one-year warranty against defects in material and workmanship. Maintenance-free, long-life, sealed nickel cadmium batteries carry a fifteenyear pro-rata warranty.
BLANK
FEATURES & SPECIFICATIONS
INTENDED USE — Ideal for wet location areas requiring exit signs for AC only or battery back-up power that are subject to saturation with non-mechanically delivered water. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — White, compact, contemporary design. Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion-proof. Universal directional Chevron inserts are easily removed and reinserted. UL94V-0 flame rating. UV-stable resin resists discoloration from natural and man-made light sources. Rugged, heavy-duty, polycarbonate clear housing lens. Housing also available in black or gray. Letters 6" high with 3/4" stroke, with 100 ft. viewing distance rating, based upon UL924 standards.
OPTICS — Low energy consumption — fewer than 5 watts. The typical life of the exit LED lamp is 5 years, based on 24/7 operation.
ELECTRICAL — Dual voltage input capacity (120/277V).
Battery: (EL Option) – Sealed, maintenance free nickel-cadmium battery delivers 90 minutes rated capacity. Test switch provides manual activation of 30-second diagnostic testing for on-demand visual inspection. Self-diagnostic testing (SD Option Only) for 30 seconds every 30 days, 30 minutes every 180 days and a 90-minute annual test. Diagnostic evaluation of LED light source, charging and battery condition.
INSTALLATION — Universal mounting canopy for top or end mount. Back mount standard for single face only. Junction box hole pattern for 4" octagon mounting. Flexible conduit entry.
LISTINGS — UL listed. Wet location listed. Standard cold temperature rating -4°F to 122°F (-20°C to 50°C). Meets UL 924, NFPA 101 (current Life Safety Code) and NFPA 70-NEC, Meets all applicable FCC Title 47, Part 15, Subpart B requirements.
WARRANTY — 5-year limited warranty. (Battery is prorated.) This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/ terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
† Exit Signs Certified in the CA Title 20 Appliance Efficiency Database.
Specifications
Length: 12-1/2 (31.8)
Depth: 2-1/2 (6.4)
Height: 8-1/8 (20.6)
Weight: 4.1 lbs (1.9 kg)
All dimensions are inches (centimeters) unless otherwise indicated.
HELM BAY LANDING TYPE EXW
Source: 2.2W
PRODUCT DESCRIPTION
LED exit sign with battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids, and dripping may occur.
FEATURES
Universal Mounting - Wall, Ceiling, or Side Mounting
UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
Self-Diagnostic Testing
Polycarbonate plastic enclosure with flame retardant and wet location rated
Push-To-Test Switch
High temperature maintenance free NiCad battery
· 120/277VAC input
6" Letters and 3/4" stroke
Cold weather option includes heating pad to maintain operating temperature
ELECTRICAL
Voltage: 120/277VAC 60Hz input
Wattage: 2.2W
Battery: 3.6V Replaceable 400mAh NiCad battery
Recharge Time: 24 hours
Operating Temperature:
Standard: 0°C to 50°C
Cold Weather Option: -25°C to 50°C
FACE
Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" letters with 3/4" stroke and field selectable directional chevrons included.
EMERGENCY
During loss of power, NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
MOUNTING
Mounting hardware included for ceiling, wall, or side mount applications. Listed for installations indoor, outdoor or wet locations.
BROWNOUT CIRCUIT
Brownout circuit monitors the flow of AC current to the unit and triggers the exit light once a set reduction of AC power occurs. This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred.
SHORT CIRCUIT PROTECTION
Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur. The overload current protection eliminates the need for fuses or circuit breakers for the DC load.
TESTING
Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self-tests and diagnostics on battery, charging board, transfer circuit, and exit sign.
If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
COLD WEATHER OPTION
Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
LABELS AND LISTINGS
5-Year Limited Warranty
· UL 924 Listed for Wet Locations NFPA 70 & NFPA 101 Life Safety Code California Energy Commission (CEC) Compliant Title 20 Compliant
PRODUCT IMAGES AND DIMENSIONS
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 www.noralighting.com
A highly flexible solution for spaces of all kinds, the Glaze multipoint flushmount features two adjustable, pivoting arms with four frosted glass lights with stained ivory crackle ceramic shades. The design offers users the ability to customize the blackened steel fixture's layout to the space, casting light where it is needed. This flush mount is an excellent option for transitional spaces like foyers and hallways, also bringing drama to areas with lower ceilings. Finish will vary.
Intersecting ovals of faux travertine resin give a kinetic feel to our Collins pendant. Encircling a single frosted bulb, and suspended on an English bronze canopy, this earring-inspired fixture can be displayed on its own or in multiples for extra impact. Finish will vary.
APPEARANCE
Materials Resin, Steel
Finishes Faux Travertine, English Bronze
Finish Will Vary Yes
Top Coat/SealantYes
DIMENSIONS
Overall
Canopy
Maximum Hanging
Dia: 10.0 in x H: 23 in
Dia: 5.0 in x H: 1 in
Height as Sold 53 in
Minimum Hanging Height as Sold 23 in
Pendant
WIRING
Dia: 10.0 in x H: 17 in
Wire Rating Damp
Cord 10 FT, Clear/Silver, SVT
Socket 1, Type A - E26
Suggested Bulb Type G16.5
Maximum Wattage 60.0
Voltage 110-120 V
CERTIFICATIONS & COMPLIANCY
Certifications Mexico, United States, Canada
Compliancy UL/ETL
SHIPPING
Product Weight
CONTRACT
Contract SuitabilityContract Suitable As Is
COMPONENTS
Pipe or Chain Included(1)4", (1) 6", (2) 12" Pipes
ADDITIONAL PARTS AVAILABLE
PIPE-588 (1)4", (1) 6", (1) 12"
REPLACEMENT PARTS
CANOPY-714

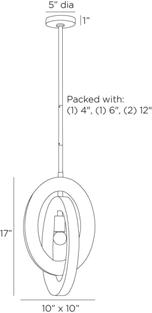

COLLINS PENDANT
DPC15
Faux Travertine, Resin
Intersecting ovals of faux travertine resin give a kinetic feel to our Collins pendant. Encircling a single frosted bulb, and suspended on an English bronze canopy, this earring-inspired fixture can be displayed on its own or in multiples for extra impact. Finish will vary.
APPEARANCE
Materials Resin, Steel
Finishes Faux Travertine, English Bronze
Finish Will Vary Yes
Top Coat/SealantYes
DIMENSIONS
Overall
Canopy
Maximum Hanging
Dia: 10.0 in x H: 23 in
Dia: 5.0 in x H: 1 in
Height as Sold 53 in
Minimum Hanging Height as Sold 23 in
Pendant
WIRING
Dia: 10.0 in x H: 17 in
Wire Rating Damp
Cord 10 FT, Clear/Silver, SVT
Socket 1, Type A - E26
Suggested Bulb Type G16.5
Maximum Wattage 60.0
Voltage 110-120 V
CERTIFICATIONS & COMPLIANCY
Certifications Mexico, United States, Canada
Compliancy UL/ETL
SHIPPING
Product Weight
CONTRACT
Contract SuitabilityContract Suitable As Is
COMPONENTS
Pipe or Chain Included(1)4", (1) 6", (2) 12" Pipes
ADDITIONAL PARTS AVAILABLE
PIPE-588 (1)4", (1) 6", (1) 12"
REPLACEMENT PARTS
CANOPY-714
P. 1.855.855.8926
CANADA:19054 28TH Avenue Surrey - BC V3Z 6M3
USA: 3035 E. Lone Mountain Rd - Las Vegas, NV, 89081
BONDI PD631416
FIXTURE DIMENSIONS
D16-1/8" x H9-3/8"
LAMP TYPE E26
MAX WATTAGE 60W
BULB QTY 1
BULBS INCLUDED No VOLTAGE 120V
MATERIAL Steel + Rattan
WIRE LENGTH 72" Max
MINIMUM HANG HEIGHT 12"
SLOPED CEILING ADAPTABLE Yes
ILLUMINATION DIRECTION Omni-directional
LOCATION Damp
CANOPY DIMENSIONS
D4-5/8" x H5/8"
PAINT FINISH BG01; MB01; [ D - Diameter, L - Length, W - Width, H - Height, E - Extension ]
Our ivory faux vellum stretches over a strong-lined frame of English bronze-plated steel. Suspended from a natural rope-wrapped pipe, its echoing form evokes the movement of a dance. Open at the bottom to let the light permeate. Certified for damp locations and intended for interior use. Finish will vary.
APPEARANCE
Materials
Faux Vellum, Steel, Rope
Finishes Ivory, English Bronze, Natural
Finish Will Vary Yes
Top Coat/SealantYes
DIMENSIONS
Overall
Canopy
Dia: 26.0 in x H: 23 in
Dia: 5.0 in x H: 1 in
Maximum Hanging Height as Sold 53 in
Minimum Hanging Height as Sold 23 in
Pendant
WIRING
Dia: 26.0 in x H: 18 in
Wire Rating Damp
Cord 10 FT, Black/White, SVT
Socket 1, Type A - E26
Suggested Bulb Type G30
Maximum Wattage 60.0
Voltage 110-120 V
CERTIFICATIONS & COMPLIANCY
Certifications
Middle East, European Union, United Kingdom, Australia, Mexico, United States, Canada
Compliancy RoHS, UL/ETL, CB
SHIPPING
Shipping RequirementsTruck Ship
Product Weight 5.2 lbs
Gross Weight 1 7.0 lbs
Shipping Box 1 W: 20.67 in x D: 28.15 in x H: 28.15 in
CONTRACT
Contract SuitabilityContract Suitable As Is
COMPONENTS
Pipe or Chain Included(1)4", (1) 6", (2) 12" Pipes
ADDITIONAL PARTS AVAILABLE
PIPE-605 (1)4", (1) 6", (1) 12"
REPLACEMENT PARTS
PIPE-605

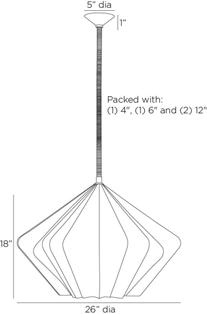

FAZEKAS PENDANT
DMC27
Ivory, Faux Vellum
Our ivory faux vellum stretches over a strong-lined frame of English bronze-plated steel. Suspended from a natural rope-wrapped pipe, its echoing form evokes the movement of a dance. Open at the bottom to let the light permeate. Certified for damp locations and intended for interior use. Finish will vary.
APPEARANCE
Materials
Faux Vellum, Steel, Rope
Finishes Ivory, English Bronze, Natural
Finish Will Vary Yes
Top Coat/SealantYes
DIMENSIONS
Overall
Canopy
Dia: 26.0 in x H: 23 in
Dia: 5.0 in x H: 1 in
Maximum Hanging Height as Sold 53 in
Minimum Hanging Height as Sold 23 in
Pendant
WIRING
Dia: 26.0 in x H: 18 in
Wire Rating Damp
Cord 10 FT, Black/White, SVT
Socket 1, Type A - E26
Suggested Bulb Type G30
Maximum Wattage 60.0
Voltage 110-120 V
CERTIFICATIONS & COMPLIANCY
Certifications
Middle East, European Union, United Kingdom, Australia, Mexico, United States, Canada
Compliancy RoHS, UL/ETL, CB
SHIPPING
Shipping RequirementsTruck Ship
Product Weight 5.2 lbs
Gross Weight 1 7.0 lbs
Shipping Box 1 W: 20.67 in x D: 28.15 in x H: 28.15 in
CONTRACT
Contract SuitabilityContract Suitable As Is
COMPONENTS
Pipe or Chain Included(1)4", (1) 6", (2) 12" Pipes
ADDITIONAL PARTS AVAILABLE
PIPE-605 (1)4", (1) 6", (1) 12"
REPLACEMENT PARTS
PIPE-605

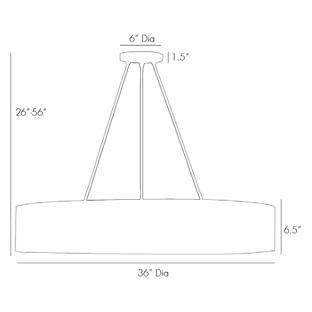

MARSHA LARGE CHANDELIER
89023
H: 26 IN, Dia: 36.00 IN
Black Microfiber, Frosted Acrylic
Contract Suitable As Is
Clean, sophisticated and practical, this six-light chandelier has a sleek, narrow silhouette perfect for hanging over an island in the kitchen or over a table that wants to be the center of attention. Constructed in steel with matte black microfiber and antique brass-finished accents. Acrylic diffusers at the top and bottom filter the light. Black cloth cord.
APPEARANCE
Material Brass, Microfiber, Steel
Material Type Stainless
Finish Antique Brass, Black, Matte Black
Top Coat/Sealant true
Link Welded
DIMENSIONS
Chandelier H: 6.5 IN, Dia: 36.00 IN
Minimum Hanging Height 26 IN
Maximum Hanging Height 68 IN
Canopy H: 1.5 IN, Dia: 6.00 IN
WIRING
Rating Indoor Only
Cord 10 FT, Black, SVT
Socket 6, Type A- E26 Keyless
Maximum Watt 40
Voltage 110-120 V
CERTIFICATIONS
Mexico
Certifications European Union, United Arab Emirates, United States, Canada
COMPLIANCY
UL/ETL Yes
CB Yes
RoHS true
SHIPPING
Product Weight 21 LBS
Gross Weight 1 31 LBS
Shipping Box 1 H: 9 IN, L: 39 IN, W: 39 IN
ADDITIONAL INFO
Features Assembly Required
REPLACEMENT PARTS
Replacement Part 1 CANOPY-233
Replacement Part 1 Dim 1" x 6" Dia
CONTRACT
Contract Suitable true

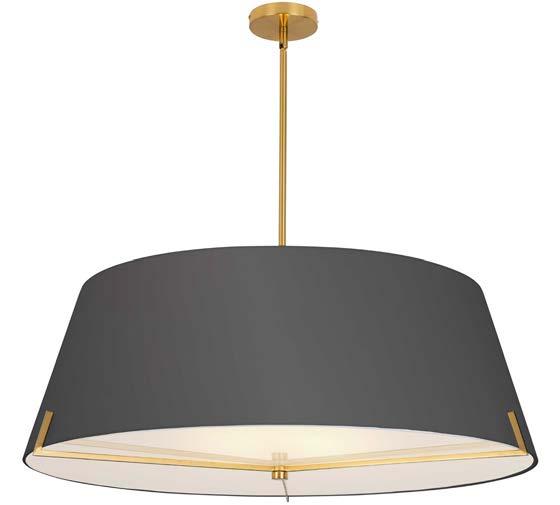

4 Light Incandescent Pendant Aged Brass with Black Fabric shade
Body Material Fabric
Finish/Color Black Second Finish/Color Aged Brass Second Type of Finish Electroplated

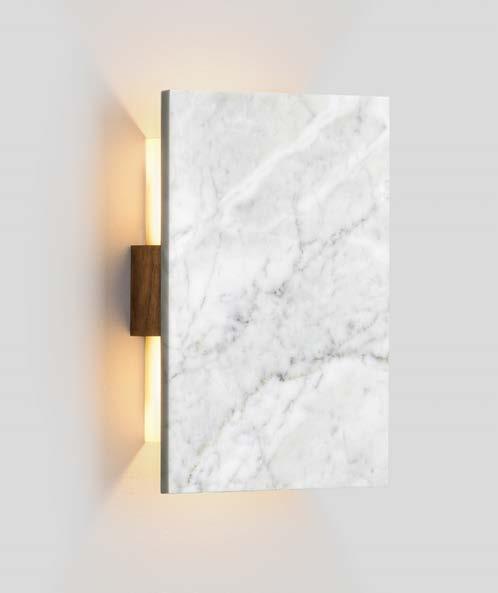

The Tersus is an example of the simplest form unlocking a myriad of design possibilities. The long reaching light pattern cast on the wall coupled with the numerous finishes and materials offered makes the Tersus well versed for all kinds of compositions and applications.
Nick Sheridan, Designer
Tersus
Dimensions: 10.75" x 7.25" x 2.75"
Materials: solid wood, polymer, metal option, stone option
Product weight: 2 lb (5 lb marble)
Light source: integrated LED
Light output: 1130 Lumens (source)
Light color: 2700 K, 3000K, or 3500 K
Color accuracy: 90+ CRI
Power usage: 13 W
Dimmable (see driver below)
Wood grain and stone will vary Specifications subject to change
MATERIAL & FINISH OPTIONS
Tersus sconce part # 03-136- -
Wood Body walnut (CM-001)
dark stained walnut (CM-002)
maple (CM-005)
white washed oak (CM-095)
Optional Face Material
brushed aluminum (CM-012)
brushed rose gold (CM-046)
brushed brass (CM-047)
carrara marble (CM-078)
none (leave blank)
Input
walnut, brushed rose gold
dark stained walnut
sconce
walnut, carrara marble
walnut (CM-001)
dark stained walnut (CM-002)
maple (CM-005)
HELM BAY LANDING TYPE
The Tersus is an example of the simplest form unlocking a myriad of design possibilities. The long reaching light pattern cast on the wall coupled with the numerous finishes and materials offered makes the Tersus well versed for all kinds of compositions and applications.
Nick Sheridan, Designer
Tersus
Dimensions: 10.75" x 7.25" x 2.75"
Materials: solid wood, polymer, metal option, stone option
Product weight: 2 lb (5 lb marble)
Light source: integrated LED
Light output: 1130 Lumens (source)
Light color: 2700 K, 3000K, or 3500 K
Color accuracy: 90+ CRI
Power usage: 13 W
Dimmable (see driver below)
Wood grain and stone will vary Specifications subject to change
MATERIAL & FINISH OPTIONS
Tersus sconce part # 03-136-
Wood Body walnut (CM-001)
dark stained walnut (CM-002)
maple (CM-005)
white washed oak (CM-095)
Optional Face Material
brushed aluminum (CM-012)
brushed rose gold (CM-046)
brushed brass (CM-047)
carrara marble (CM-078)
none (leave blank)
Input
walnut, brushed rose gold
dark stained walnut
sconce
walnut, carrara marble
walnut (CM-001)
dark stained walnut (CM-002)
maple (CM-005)

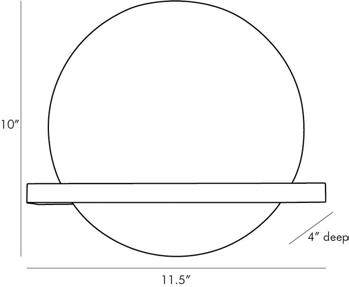

SAVION SCONCE
49673
White, Alabaster
Gorgeous polished white onyx creates a warm filtered light and adds natural sophistication to any space. The bulb beneath accentuates the stone’s organic veins and features brilliantly as it rests perfectly in the frame. The fixture mounts directlyfrom a steel frame finished in bronze. Approved for use in covered outdoor areas. Onyx will vary naturally in tone and texture.
APPEARANCE
Materials Alabaster, Alabaster, Steel
Finishes White, White, Bronze
Finish Will Vary Yes
Top Coat/SealantNo
DIMENSIONS
Overall
W: 11.5 in x D: 4 in x H: 10 in
Backplate W: 5 in x D: 0.5 in x H: 5 in
Center of Mount from Bottom H: 4.5 in
WIRING
Wire Rating Indoor Only
Cord 1 FT, Black/White, SVT
Socket 1, Type B - E12
Suggested Bulb Type T6
Maximum Wattage 60.0
Voltage 110-120 V
CERTIFICATIONS & COMPLIANCY
Certifications
Middle East, European Union, United Kingdom, Mexico, United States, Canada
Compliancy RoHS, UL/ETL, CB
SHIPPING
Product Weight 6.5 lbs
Gross Weight 1 7.5 lbs
Shipping Box 1 W: 12.6 in x D: 13.8 in x H: 8.1 in
ADDITIONAL INFO
Features ADA
CONTRACT
Contract SuitabilityContract Suitable As Is
SAVION SCONCE
49673
White, Alabaster
Gorgeous polished white onyx creates a warm filtered light and adds natural sophistication to any space. The bulb beneath accentuates the stone’s organic veins and features brilliantly as it rests perfectly in the frame. The fixture mounts directlyfrom a steel frame finished in bronze. Approved for use in covered outdoor areas. Onyx will vary naturally in tone and texture.
APPEARANCE
Materials Alabaster, Alabaster, Steel
Finishes White, White, Bronze
Finish Will Vary Yes
Top Coat/SealantNo
DIMENSIONS
Overall
W: 11.5 in x D: 4 in x H: 10 in
Backplate W: 5 in x D: 0.5 in x H: 5 in
Center of Mount from Bottom H: 4.5 in
WIRING
Wire Rating Indoor Only
Cord 1 FT, Black/White, SVT
Socket 1, Type B - E12
Suggested Bulb Type T6
Maximum Wattage 60.0
Voltage 110-120 V
CERTIFICATIONS & COMPLIANCY
Certifications
Middle East, European Union, United Kingdom, Mexico, United States, Canada
Compliancy RoHS, UL/ETL, CB
SHIPPING
Product Weight 6.5 lbs
Gross Weight 1 7.5 lbs
Shipping Box 1 W: 12.6 in x D: 13.8 in x H: 8.1 in
ADDITIONAL INFO
Features ADA
CONTRACT
Contract SuitabilityContract Suitable As Is
TYPE LT-10 SPEC HELM BAY LANDING
Fixture Type:
Catalog Number:
Project:

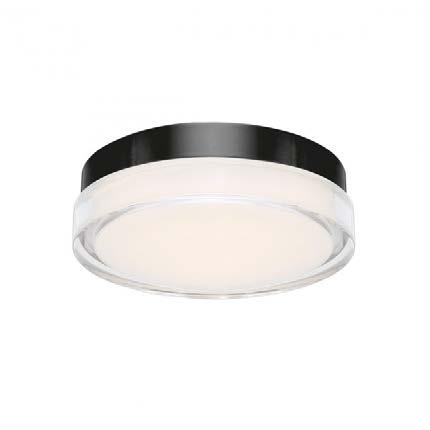

Dot
Ceiling Mount
Location:
Example: FM-W57809F-35-BK
•For 277V special order, add an "F" before the finish: FM-W57809F-35-SS
For custom requests please contact customs@waclighting.com
DESCRIPTION
Optimal diffuser amplifies the rightness on this durable waterproof outdoor flush mount.
• 277V option available for 9", 12" & 15" sizes (special order)
• Built in color temperature adjustability. Switch from 2700K/3000K/3500K
• Compact 3CCT switch installs within the junction box
• Option to pre-select color temperature or adjust in the field
• 0-10V dimming option (LDS065M010AFE-LO1) available (special order), unit dimensions: 3.4" x 1.2" x 0.5"
• ACLED driverless technology
• 5 year warranty
SPECIFICATIONS
Color Temp: 2700K,3000K,3500K
Input: 120 VAC,50/60Hz
CRI 90
Dimming: ELV: 100-10% , TRIAC: 100-10%
Rated Life: 50,000 Hours
Mounting: Can be mounted on ceiling or wall in all orientations
Standards: ETL, cETL, Title 24 JA8 Compliant, ADA, Wet Location Listed Construction Weather-resistant 316 stainless steel body with thick acrylic shade
FINISHES:
Black Stainless Steel

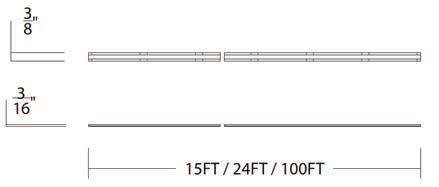

GEMINI LED Tape
DESCRIPTION
Flexible, customizable, uniform illumination, with the lowest profile. Linear Alpine delivers seamless line of light and performance with premium light quality without the need for additional diffused covers or accessories. Strong 3M adhesive bond for easy installation.
FEATURES
• Damp Location listed
• Title 24 Compliant
• UL/cUL listed
• Available in convenient spools up to 100ft
• Cut and securely reconnect with ease
• May be cut every 2 inches
• Good color rendering
• 50,000 hour rated life
• 5 year product warranty
• Closet Rated options (T24-GE1 & T24-GE2)
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFICATIONS
Construction: Flexible Light Strip
Cutting Interval: 2"
Input: 24VDC
Lumens: 100/200/300 lm/ft
CRI: 90
McAdams Steps: 3
Color Temp: 2700K, 3000K, 3500K, 4000K
Rated Life: 50,000 Hours
Operating Temp: -4°F to 104°F (-20°C to 40°C)
Standards: UL, cUL, Damp Location Listed, Title 24 Compliant
Max Run:
Length of Lead Wire Between Power Supply to Tape
25ft25ft16ft16ft10ft10ft
19ft19ft12ft12ft7ft7ft
T24-GE2 200+ lm/ft 24ft (60W), 30ft (96W)2.2W/ft
T24-GE3 300+ lm/ft 15ft (60W), 24ft (96W)3.9W/ft
Example: T24-GE3-24-27WT
Gemini LED tape light kits provide all the necessary components for seamless single-CCT linear lighting installations. Tailored for lighting professionals, these kits ensure optimal compatibility and ease of setup. Simply integrate a power supply, and you're ready to go. Enhance your efficiency and eliminate guesswork with our precisely curated installation kits, designed to deliver superior performance and reliability for any lighting project.
Example: T24-GE3-15-27KIT
LTR-P Professional Series
4.5W, 24VDC LED Tape Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 20’
• Includes Sure-Tite connectors
SPECIFICATIONS
•24V •4.5 watts per foot
•90+ CRI
•-4°F to 122°F
• For proper
BLANK
HELM BAY LANDING
LTR-P Professional Series ®
4.5W, 24VDC LED Tape
Specification Sheet
Kelvin temperature (color) ±100K. 16’-4” and 100’ reel includes 48” lead affixed to tape. 16’-4” reel includes (3) ESTW-60 Sure-Tite connectors. 100’ reel includes (10) ESTW-60 Sure-Tite connectors
COMPATIBLE CONTROLLERS
SWD-40W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 40W, 12VDC
SWD-60W-12VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 12VDC
SWD-60W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC
SWD-100W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 100W, 24VDC
HC-RF-UNV-5CH Universal 1-5 Channel RF Remote Control
CM-RF-UNV-5CH Universal 1-5 Channel Control Module
LED-CHL2-6-WH White channel, whilte lens, (4) mounting clips, (4) screws
LED-CHL2-6-BK Black channel, whilte lens, (4) mounting clips, (4) screws
LED-CHL2 LENS-4-BK Lens in black for LED-CHL2-4
LED-CHL2 LENS-6-BK Lens in black for LED-CHL2-6
LED-CHL2-ECG (2) End caps for LED-CHL2-CA: light gray, one solid, one with hole
LED-CHL2-ECW (2) End caps for LED-CHL2-WH: white, one solid, one with hole
LED-CHL2-ECB (2) End caps for LED-CHL2-BK: black, one solid, one with hole
LED-CHL2-MC (2) Mounting clips and (2) screws
LED-CHL2-AMC (2) Adjustable mounting clips and (2) screws
AND
Beam Direct Series
This linear down light fixture can fulfill a number of lighting needs. It is available in 2 foot, 4 foot, 6 foot and 8 foot lengths and in white, black, or silver finishes. It can be surface, wall*, recessed* and pendant mounted. Mix and match fixture lengths with L, X, Y, and T shaped connectors.
Operating Temperature -20° C to 40° C (-4° F to 104° F)
Lumens 4400-4800
Voltage 120-277v Lens Polycarbonate Frosted
Product Dimensions 47.32" L x 2.76" W x 3.35" H
Shipping Dimensions 48.62" L x 2.99" W x 3.74" H
Finish Black, White and Silver
*Hardware purchased separately.
Product Weight 6.61 lbs.
Shipping Weight 7.72 lbs
Warranty 5 Years
HELM BAY LANDING TYPE LT-12 ALT
L-Line LED Direct Linear with Selectable Lumens & CCT
Source: 10W to 82W LED 2400lm to 9700lm
PRODUCT DESCRIPTION
L-Line series offers a clean and modern appearance with a sleek extruded aluminum housing. Symmetrical light distribution will evenly illuminate surfaces with a diffused lens, making the L-Line ideal for commercial, retail, healthcare and education applications. Available in surface or pendant mounting options. Series can be connected with seamless luminous L, X or T connectors.
FEATURES
Two integral switches to change the lumen output and color temperature
· Selectable CCT switch changes color temperature from 3000K / 3500K / 4000K
Surface mount or pendant mounting kits available 120-277V input and 0-10V dimming
Luminaires can be connected together or individually installed
Remote or integral emergency options
SPECIFICATION
Construction: One piece extruded aluminum housing with solid end caps. Includes diffused polycarbonate lens for symmetrical light distribution.
Tunable Switches: Each luminaire includes two switches on the top of the driver enclosure. Selectable Lumen switch changes the lumen output and wattage. Seletable CCT switch changes the color temperature.
Mounting: Luminaires include an extruded slot for surface mounting or pendant mounting. Junction box cover is available for surface mounting applications. When pendant mounting , it is recommended to use two hanging points (NLIN-CC) per fixture. Power mounting kit includes two hanging points.
ELECTRICAL
Input Voltage: 120-277V
Lumens / Wattage: See chart below
Color Temperature: Selectable CCT (3000K/3500K/4000K)
Color Rendering Index: 80+ CRI
Beam Spread: 110° Wide Flood
Operating Temperature:
NLINSW-2 = 0˚C to 30˚C
NLINSW-4 = 0˚C to 30˚C
NLINSW-8 = 0˚C to 30˚C
NLINSW-X = 0˚C to 27˚C
NLINSW-T = 0˚C to 27˚C
NLINSW-L = 0˚C to 27˚C
Dimming: 0-10V dimming down to 10%
Maximum Run Length: 80' (60' with pendant mounted EM)
MOUNTING KITS & ACCESSORIES
A variety of mounting kits and accessories on pages 2 and 3.
Remote Emergency: Luminaire is compatible with NEPK20LEDUNV (ordered separately). Battery operates luminaire at 20W for 90 minutes during power loss on full charge.
Integral Emergency (Factory Installed)
4' and 8' Linear luminaires can be specified with an emergency battery with integral test switch. Battery operates for 90 minutes during power loss on full charge. Note: Integral emergency units are not compatible with X, L, T. 60' Maximum run length when pendant mounted.
NEPK-20LEDUNV = 20W Emergency Battery w/Remote Test Switch
NLINSW-LENS/41 = 41' Continuous Lens (field cuttable - special order)
NLINSW-LENS/82 = 82' Continuous Lens (field cuttable - special order)
TYPE LT-12 SPEC HELM BAY LANDING
Mud Flange Kit
Recessed Flange Kit
BLANK
AND
Beam Direct Series
This linear down light fixture can fulfill a number of lighting needs. It is available in 2 foot, 4 foot, 6 foot and 8 foot lengths and in white, black, or silver finishes. It can be surface, wall*, recessed* and pendant mounted. Mix and match fixture lengths with L, X, Y, and T shaped connectors.
Operating Temperature -20° C to 40° C (-4° F to 104° F)
Lumens 4400-4800
Voltage 120-277v Lens Polycarbonate Frosted
Product Dimensions 47.32" L x 2.76" W x 3.35" H
Shipping Dimensions 48.62" L x 2.99" W x 3.74" H
Finish Black, White and Silver
*Hardware purchased separately.
Product Weight 6.61 lbs.
Shipping Weight 7.72 lbs
Warranty 5 Years
HELM BAY LANDING TYPE LT-13 ALT
L-Line LED Direct Linear with Selectable Lumens & CCT
Source: 10W to 82W LED 2400lm to 9700lm
PRODUCT DESCRIPTION
L-Line series offers a clean and modern appearance with a sleek extruded aluminum housing. Symmetrical light distribution will evenly illuminate surfaces with a diffused lens, making the L-Line ideal for commercial, retail, healthcare and education applications. Available in surface or pendant mounting options. Series can be connected with seamless luminous L, X or T connectors.
FEATURES
Two integral switches to change the lumen output and color temperature
· Selectable CCT switch changes color temperature from 3000K / 3500K / 4000K
Surface mount or pendant mounting kits available 120-277V input and 0-10V dimming
Luminaires can be connected together or individually installed
Remote or integral emergency options
SPECIFICATION
Construction: One piece extruded aluminum housing with solid end caps. Includes diffused polycarbonate lens for symmetrical light distribution.
Tunable Switches: Each luminaire includes two switches on the top of the driver enclosure. Selectable Lumen switch changes the lumen output and wattage. Seletable CCT switch changes the color temperature.
Mounting: Luminaires include an extruded slot for surface mounting or pendant mounting. Junction box cover is available for surface mounting applications. When pendant mounting , it is recommended to use two hanging points (NLIN-CC) per fixture. Power mounting kit includes two hanging points.
ELECTRICAL
Input Voltage: 120-277V
Lumens / Wattage: See chart below
Color Temperature: Selectable CCT (3000K/3500K/4000K)
Color Rendering Index: 80+ CRI
Beam Spread: 110° Wide Flood
Operating Temperature:
NLINSW-2 = 0˚C to 30˚C
NLINSW-4 = 0˚C to 30˚C
NLINSW-8 = 0˚C to 30˚C
NLINSW-X = 0˚C to 27˚C
NLINSW-T = 0˚C to 27˚C
NLINSW-L = 0˚C to 27˚C
Dimming: 0-10V dimming down to 10%
Maximum Run Length: 80' (60' with pendant mounted EM)
MOUNTING KITS & ACCESSORIES
A variety of mounting kits and accessories on pages 2 and 3.
Remote Emergency: Luminaire is compatible with NEPK20LEDUNV (ordered separately). Battery operates luminaire at 20W for 90 minutes during power loss on full charge.
Integral Emergency (Factory Installed)
4' and 8' Linear luminaires can be specified with an emergency battery with integral test switch. Battery operates for 90 minutes during power loss on full charge. Note: Integral emergency units are not compatible with X, L, T. 60' Maximum run length when pendant mounted.
NEPK-20LEDUNV = 20W Emergency Battery w/Remote Test Switch
NLINSW-LENS/41 = 41' Continuous Lens (field cuttable - special order)
NLINSW-LENS/82 = 82' Continuous Lens (field cuttable - special order)
TYPE LT-13 SPEC HELM BAY LANDING
Mud Flange Kit
Recessed Flange Kit
BLANK
TYPE PA SPEC HELM BAY LANDING
Site and Area
OptiForm
OPF-S Small
Gardco OptiForm site and area luminaires are available in three sizes: small, medium and large. Featuring the latest in LED technology, OptiForm achieves up to 192 lumens per watt. Eleven optical distributions are available, suitable for a range of outdoor lighting applications. OptForm features a unique mounting system with a two-piece housing for hassle-free installation. Mounting options include a standard arm, mast arm, and wall mount bracket. Service Tag is a standard feature with every OptiForm luminaire, providing maintenance or upgrade assistance throughout the life of the product.
Ordering guide
Project:
Location:
Cat.No:
Type:
Lamps: Qty:
Notes:
none
DLEA5,10
FAWS5,6,10
0-10V dimming driver
Dimming leads externally accessible (controls by others)
Field adjustable wattage selector
PIR sensor, #2 lens (Required if BL50 is selected)
PIR sensor, #3 lens (Required if BL50 is selected)
The following options include SR/DALI Driver WIAP sensor options
WIAP5,8,13
SRDR5,8,13
Wireless Interact (includes SR drive and SR receptacle)
SR driver connected to Zhaga socket (D4i)
DynaDimmer: Automatic Profile Dimming
CS505,13
CM505,13
CS305,13
CM305,13
Security 50% dimming, 7 hours
Median 50% dimming, 8 hours
Security 30% dimming, 7 hours
Median 30% dimming, 8 hours
1. Extended leadtime applies. Consult factory for details.
Low (7'-15' mounting height) sensor, black color housing, wireless Interact, integral
Low (7'-15' mounting height) sensor, white color housing
High (15'-40' mounting height) sensor, black color housing
High (15'-40' mounting height) sensor, white color housing
2. Mounts to a square pole with knockout for 4-5" OD round pole.
3. Mounts to a horizontal 2-3/8" OD x 5" Long tenon.
4. Must be ordered with mounting accessory. Photocell option (TR7) must be selected with mounting accessory. See Page 2 for options
5. Not available with other dimming control options (mutually exclusive).
6. Not available with motion sensor (physical restriction).
7. Must be specified with a motion sensor lens (L2).
Meets the requirements of the Buy American Act of 1933 (BAA) EM12,14,15 Emergency
with
or RAL, consult factory
color (must supply color chip, requires factory quote)
13. Not available with lumen packages P01, P02 in UNV [120-277] and with lumen packages A01-A03, P01-P05 in HVU [347-480].
14. Not available for lumen packages P04-P09
15. Not available with Dynadimmer, SRDR, FAWS, FS1, FS2, DLEA, BL50 (physical restriction)
16. Precision Plus Optics (P01-P09) available only with T2M, T3M, T4M, and T5M optical distributions and are non-rotatable.
17. OPF-RMB accessory recommended for retrofit applications.
18. Failure to properly select the “BAC” suffix could result in you receiving product that is not BAA compliant product with no recourse for an RMA or refund. This BAC designation hereunder does not address (i) the applicability of, or availability of a waiver under, the Trade Agreements Act, or (ii) the “Buy America” domestic content requirements imposed on states, localities, and other non-federal entities as a condition of receiving funds administered by the Department of Transportation or other federal agencies.
OPF-S
HELM BAY LANDING TYPE PA
VIENTO AREA LUMINARE
FEATURES
• Lumen packages ranging from 5000L to 65000L.
• Outstanding photometric performance results in excellent uniformity, optimal pole spacing and lower power density.
• Low profile architectural design offers a contemporary appearance with excellent light output.
XtraLight® reserves the right to change specifications without notice.

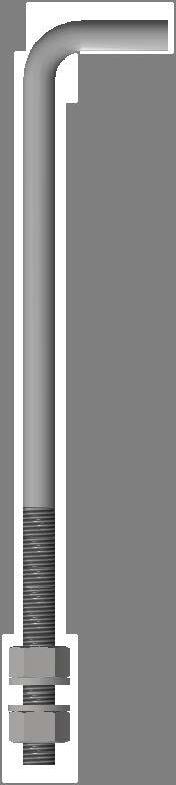

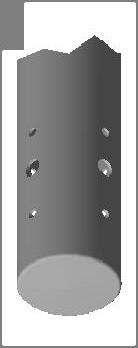

Type PA Pole
No Specification
TYPE PB SPEC HELM BAY LANDING
Site and Area
OptiForm
OPF-S Small
Gardco OptiForm site and area luminaires are available in three sizes: small, medium and large. Featuring the latest in LED technology, OptiForm achieves up to 192 lumens per watt. Eleven optical distributions are available, suitable for a range of outdoor lighting applications. OptForm features a unique mounting system with a two-piece housing for hassle-free installation. Mounting options include a standard arm, mast arm, and wall mount bracket. Service Tag is a standard feature with every OptiForm luminaire, providing maintenance or upgrade assistance throughout the life of the product.
Ordering guide
Project:
Location:
Cat.No:
Type:
Lamps: Qty:
Notes:
none
DLEA5,10
FAWS5,6,10
0-10V dimming driver
Dimming leads externally accessible (controls by others)
Field adjustable wattage selector
PIR sensor, #2 lens (Required if BL50 is selected)
PIR sensor, #3 lens (Required if BL50 is selected)
The following options include SR/DALI Driver WIAP sensor options
WIAP5,8,13
SRDR5,8,13
Wireless Interact (includes SR drive and SR receptacle)
SR driver connected to Zhaga socket (D4i)
DynaDimmer: Automatic Profile Dimming
CS505,13
CM505,13
CS305,13
CM305,13
Security 50% dimming, 7 hours
Median 50% dimming, 8 hours
Security 30% dimming, 7 hours
Median 30% dimming, 8 hours
1. Extended leadtime applies. Consult factory for details.
Low (7'-15' mounting height) sensor, black color housing, wireless Interact, integral
Low (7'-15' mounting height) sensor, white color housing
High (15'-40' mounting height) sensor, black color housing
High (15'-40' mounting height) sensor, white color housing
2. Mounts to a square pole with knockout for 4-5" OD round pole.
3. Mounts to a horizontal 2-3/8" OD x 5" Long tenon.
4. Must be ordered with mounting accessory. Photocell option (TR7) must be selected with mounting accessory. See Page 2 for options
5. Not available with other dimming control options (mutually exclusive).
6. Not available with motion sensor (physical restriction).
7. Must be specified with a motion sensor lens (L2).
Meets the requirements of the Buy American Act of 1933 (BAA) EM12,14,15 Emergency
with
or RAL, consult factory
color (must supply color chip, requires factory quote)
13. Not available with lumen packages P01, P02 in UNV [120-277] and with lumen packages A01-A03, P01-P05 in HVU [347-480].
14. Not available for lumen packages P04-P09
15. Not available with Dynadimmer, SRDR, FAWS, FS1, FS2, DLEA, BL50 (physical restriction)
16. Precision Plus Optics (P01-P09) available only with T2M, T3M, T4M, and T5M optical distributions and are non-rotatable.
17. OPF-RMB accessory recommended for retrofit applications.
18. Failure to properly select the “BAC” suffix could result in you receiving product that is not BAA compliant product with no recourse for an RMA or refund. This BAC designation hereunder does not address (i) the applicability of, or availability of a waiver under, the Trade Agreements Act, or (ii) the “Buy America” domestic content requirements imposed on states, localities, and other non-federal entities as a condition of receiving funds administered by the Department of Transportation or other federal agencies.
OPF-S
HELM BAY LANDING TYPE
VIENTO AREA LUMINARE
FEATURES
• Lumen packages ranging from 5000L to 65000L.
• Outstanding photometric performance results in excellent uniformity, optimal pole spacing and lower power density.
• Low profile architectural design offers a contemporary appearance with excellent light output.
• Standard LED blended optics for wide area coverage up to 15’ mounting
Emergency Battery Pack Option
• Field installed remote mount UNV battery pack available, 7 and 14 watts, ships separately
• Batteries provide 90 minutes of backup power
• Factory installed battery pack not available
Installation
• Surface or suspended mount capable
• ST1 can be chain mounted using standard AYC chain-set
• ST2 uses HBAYC hanger or toggle mounting kits
• Channel and end knockouts (7/8") for conduit entry and continuous row
• Wire nuts and aligner included
Compliance
• UL/cUL listed for damp location
• Rated for 0F (-20C) to 104F (40C) ambient operating temperatures
• RoHS compliant
• LED complies with IESNA LM-79 and LM-80
• Suitable for use in closet storage spaces when installed in accordance with NFPA-70 and NEC 410.16 spacing requirements
Limited Warranty Five-year limited warranty
LED48/LINEAR/3CCT/3WO/UNV/D/HO
LR25185+EM
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM
LR25185+MS
LED48/LINEAR/3CCT/3WO/UNV/D/HO+MS
LR25185+EM+MS
LED48/LINEAR/3CCT/3WO/UNV/D/HO+EM+MS
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
3500K - 139
4000K - 140
5000K - 141
3500K - 136
4000K - 137
5000K -138
3500K - 133
4000K - 134
5000K - 138
BLANK
HELM BAY LANDING
COMPATIBLE
DIMENSIONS
LR35120, LR35121 - SPECIFICATIONS
NO SPEC
Select Series Stair Lighter
Product Specifications
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
• Wattage selectable 35/45/55W
• Color Selectable 35/40/50K
• Optional battery backup
Ideal Applications
• Commercial settings
• Stair ways
• Bi-l evel dimming microwave motion sensor
• Surface or pendant mounting
• Industrial settings
• Warehouses
BLANK
Select Series Stair Lighter
Features
• Lightweight, quick-install construction
• Standard frosted lens for glare control
• No shadows; smooth, even lighting
• Damp location rated
• 0-10V smooth, no-flicker dimming
• Operating temperature: -4°F to 122°F
• Sharkward bi-level dimming microwave motion sensor included
Pendant mount or surface installation: Before installation, please consult your local ordinances and building codes.
Field Installed Accessories: YTGHANGER - 10’ adjustable cable hang kit
TYPE SA SPEC HELM BAY LANDING
D-Series Size 1 LED Area Luminaire
Introduction
The modern styling of the D-Series features a highly refined aesthetic that blends seamlessly with its environment. The D-Series offers the benefits of the latest in LED technology into a high performance, high efficacy, long-life luminaire.
The photometric performance results in sites with excellent uniformity, greater pole spacing and lower power density. D-Series outstanding photometry aids in reducing the number of poles required in area lighting applications with typical energy savings of 65% and expected service life of over 100,000 hours.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
*See ordering tree for details
Shipped installed
NLTAIR2 PIRHN nLight AIR gen 2 enabled with bi-level motion / ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc. 11, 12, 20, 21
PIR High/low, motion/ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc 13, 20, 21
PER NEMA twist-lock receptacle only (controls ordered separate) 14
PER5 Five-pin receptacle only (controls ordered separate)14, 21
PER7 Seven-pin receptacle only (controls ordered separate) 14, 21
FAO Field adjustable output 15, 21
BL30 Bi-level switched dimming, 30% 16, 21
BL50 Bi-level switched dimming, 50% 16, 21
DMG 0-10v dimming wires pulled outside fixture (for use with an external control, ordered separately) 17
DS Dual switching 18, 19, 21
Shipped installed
SPD20KV 20KV surge protection
HS Houseside shield (black finish standard) 22
L90 Left rotated optics 1
R90 Right rotated optics 1
CCE Coastal Construction 23
HA 50°C ambient operation 24
BAA Buy America(n) Act and/or Build America Buy America Qualified
• Upgraded door to provide better protection from water intrusion.
MOUNTING
• Integral arm with key hole slot facilitates quick and easy installation.
• Adjustable slip fitter, round pole adaptor, universal pole adaptor, and other mounting options available as accessories.
• voltage: 120-277v or 347-480v AC input
• Driver: Class 1, constant current, calibrated to lumen package (0-10v dimming standard)
• Surge Protection: 20kA standard.
• Operating temperature: -40°C to +50°C (-40°F to +122°F)
WARRANTY
• Backed by XtraLight’s limited 5-year warranty.
Fixture Controls IR Smart Sensor, 20’H/40’D IR Smart Sensor, 40’H/100’D Bluetooth Smart Sensor, 20’H/40’D Bluetooth Smart Sensor, 40’H/100’D Casambi Controlled Autani Controlled Synapse Controlled Sensorworx Controlled Custom Sensor (Factory Installed)
XtraLight® reserves the right to change specifications without notice.
BLANK
VIENTO AREA LUMINARE
S
Scheduled Dimming, Standard voltage
Scheduled Dimming, High voltage
Constant All-night Dimming, Standard voltage
Constant All-night Dimming, High voltage
Shorting Cap
DESCRIPTION
• Sholder-to-Sholder Adaptor
• EPA: 0.90 sq. ft. - 27 LB
DESCRIPTION
• tenon Mount Adaptor
• Dimensions (S): 4”/5”/6”
• Dimensions (R): 4”/5” DIA
• EPA: 0.4 sq. ft. 10 - 16 LB
DESCRIPTION
• Universal Pole Mount Adaptor
DESCRIPTION
• Dimming Control
• Standard voltage: 105-305 vAC
• High voltage: 312-530 vAC
• Frequency: 50/60 Hz
DESCRIPTION
• Shorting Cap
• Shorting cap required if no other controls are being used in fixture receptacle.
Type SA Pole
No Specification
25’ AFG Concrete
TYPE SB SPEC HELM BAY LANDING
D-Series Size 1 LED Area Luminaire
Introduction
The modern styling of the D-Series features a highly refined aesthetic that blends seamlessly with its environment. The D-Series offers the benefits of the latest in LED technology into a high performance, high efficacy, long-life luminaire.
The photometric performance results in sites with excellent uniformity, greater pole spacing and lower power density. D-Series outstanding photometry aids in reducing the number of poles required in area lighting applications with typical energy savings of 65% and expected service life of over 100,000 hours.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
*See ordering tree for details
Shipped installed
NLTAIR2 PIRHN nLight AIR gen 2 enabled with bi-level motion / ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc. 11, 12, 20, 21
PIR High/low, motion/ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc 13, 20, 21
PER NEMA twist-lock receptacle only (controls ordered separate) 14
PER5 Five-pin receptacle only (controls ordered separate)14, 21
PER7 Seven-pin receptacle only (controls ordered separate) 14, 21
FAO Field adjustable output 15, 21
BL30 Bi-level switched dimming, 30% 16, 21
BL50 Bi-level switched dimming, 50% 16, 21
DMG 0-10v dimming wires pulled outside fixture (for use with an external control, ordered separately) 17
DS Dual switching 18, 19, 21
Shipped installed
SPD20KV 20KV surge protection
HS Houseside shield (black finish standard) 22
L90 Left rotated optics 1
R90 Right rotated optics 1
CCE Coastal Construction 23
HA 50°C ambient operation 24
BAA Buy America(n) Act and/or Build America Buy America Qualified
• Upgraded door to provide better protection from water intrusion.
MOUNTING
• Integral arm with key hole slot facilitates quick and easy installation.
• Adjustable slip fitter, round pole adaptor, universal pole adaptor, and other mounting options available as accessories.
• voltage: 120-277v or 347-480v AC input
• Driver: Class 1, constant current, calibrated to lumen package (0-10v dimming standard)
• Surge Protection: 20kA standard.
• Operating temperature: -40°C to +50°C (-40°F to +122°F)
WARRANTY
• Backed by XtraLight’s limited 5-year warranty.
Fixture Controls IR Smart Sensor, 20’H/40’D IR Smart Sensor, 40’H/100’D Bluetooth Smart Sensor, 20’H/40’D Bluetooth Smart Sensor, 40’H/100’D Casambi Controlled Autani Controlled Synapse Controlled Sensorworx Controlled Custom Sensor (Factory Installed)
XtraLight® reserves the right to change specifications without notice.
BLANK
VIENTO AREA LUMINARE
S
Scheduled Dimming, Standard voltage
Scheduled Dimming, High voltage
Constant All-night Dimming, Standard voltage
Constant All-night Dimming, High voltage
Shorting Cap
DESCRIPTION
• Sholder-to-Sholder Adaptor
• EPA: 0.90 sq. ft. - 27 LB
DESCRIPTION
• tenon Mount Adaptor
• Dimensions (S): 4”/5”/6”
• Dimensions (R): 4”/5” DIA
• EPA: 0.4 sq. ft. 10 - 16 LB
DESCRIPTION
• Universal Pole Mount Adaptor
DESCRIPTION
• Dimming Control
• Standard voltage: 105-305 vAC
• High voltage: 312-530 vAC
• Frequency: 50/60 Hz
DESCRIPTION
• Shorting Cap
• Shorting cap required if no other controls are being used in fixture receptacle.
Type SB Pole
No Specification
25’ AFG Concrete
TYPE SC SPEC HELM BAY LANDING
D-Series Size 1 LED Area Luminaire
Introduction
The modern styling of the D-Series features a highly refined aesthetic that blends seamlessly with its environment. The D-Series offers the benefits of the latest in LED technology into a high performance, high efficacy, long-life luminaire.
The photometric performance results in sites with excellent uniformity, greater pole spacing and lower power density. D-Series outstanding photometry aids in reducing the number of poles required in area lighting applications with typical energy savings of 65% and expected service life of over 100,000 hours.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
*See ordering tree for details
Shipped installed
NLTAIR2 PIRHN nLight AIR gen 2 enabled with bi-level motion / ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc. 11, 12, 20, 21
PIR High/low, motion/ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc 13, 20, 21
PER NEMA twist-lock receptacle only (controls ordered separate) 14
PER5 Five-pin receptacle only (controls ordered separate)14, 21
PER7 Seven-pin receptacle only (controls ordered separate) 14, 21
FAO Field adjustable output 15, 21
BL30 Bi-level switched dimming, 30% 16, 21
BL50 Bi-level switched dimming, 50% 16, 21
DMG 0-10v dimming wires pulled outside fixture (for use with an external control, ordered separately) 17
DS Dual switching 18, 19, 21
Shipped installed
SPD20KV 20KV surge protection
HS Houseside shield (black finish standard) 22
L90 Left rotated optics 1
R90 Right rotated optics 1
CCE Coastal Construction 23
HA 50°C ambient operation 24
BAA Buy America(n) Act and/or Build America Buy America Qualified
• Upgraded door to provide better protection from water intrusion.
MOUNTING
• Integral arm with key hole slot facilitates quick and easy installation.
• Adjustable slip fitter, round pole adaptor, universal pole adaptor, and other mounting options available as accessories.
• voltage: 120-277v or 347-480v AC input
• Driver: Class 1, constant current, calibrated to lumen package (0-10v dimming standard)
• Surge Protection: 20kA standard.
• Operating temperature: -40°C to +50°C (-40°F to +122°F)
WARRANTY
• Backed by XtraLight’s limited 5-year warranty.
Fixture Controls IR Smart Sensor, 20’H/40’D IR Smart Sensor, 40’H/100’D Bluetooth Smart Sensor, 20’H/40’D Bluetooth Smart Sensor, 40’H/100’D Casambi Controlled Autani Controlled Synapse Controlled Sensorworx Controlled Custom Sensor (Factory Installed)
XtraLight® reserves the right to change specifications without notice.
BLANK
VIENTO AREA LUMINARE
S
Scheduled Dimming, Standard voltage
Scheduled Dimming, High voltage
Constant All-night Dimming, Standard voltage
Constant All-night Dimming, High voltage
Shorting Cap
DESCRIPTION
• Sholder-to-Sholder Adaptor
• EPA: 0.90 sq. ft. - 27 LB
DESCRIPTION
• tenon Mount Adaptor
• Dimensions (S): 4”/5”/6”
• Dimensions (R): 4”/5” DIA
• EPA: 0.4 sq. ft. 10 - 16 LB
DESCRIPTION
• Universal Pole Mount Adaptor
DESCRIPTION
• Dimming Control
• Standard voltage: 105-305 vAC
• High voltage: 312-530 vAC
• Frequency: 50/60 Hz
DESCRIPTION
• Shorting Cap
• Shorting cap required if no other controls are being used in fixture receptacle.
Type SC Pole
No Specification
Type SC Pole Alt
25’ AFG Concrete
TYPE SD SPEC HELM BAY LANDING
D-Series Size 1 LED Area Luminaire
Introduction
The modern styling of the D-Series features a highly refined aesthetic that blends seamlessly with its environment. The D-Series offers the benefits of the latest in LED technology into a high performance, high efficacy, long-life luminaire.
The photometric performance results in sites with excellent uniformity, greater pole spacing and lower power density. D-Series outstanding photometry aids in reducing the number of poles required in area lighting applications with typical energy savings of 65% and expected service life of over 100,000 hours.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
*See ordering tree for details
Shipped installed
NLTAIR2 PIRHN nLight AIR gen 2 enabled with bi-level motion / ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc. 11, 12, 20, 21
PIR High/low, motion/ambient sensor, 8-40’ mounting height, ambient sensor enabled at 2fc 13, 20, 21
PER NEMA twist-lock receptacle only (controls ordered separate) 14
PER5 Five-pin receptacle only (controls ordered separate)14, 21
PER7 Seven-pin receptacle only (controls ordered separate) 14, 21
FAO Field adjustable output 15, 21
BL30 Bi-level switched dimming, 30% 16, 21
BL50 Bi-level switched dimming, 50% 16, 21
DMG 0-10v dimming wires pulled outside fixture (for use with an external control, ordered separately) 17
DS Dual switching 18, 19, 21
Shipped installed
SPD20KV 20KV surge protection
HS Houseside shield (black finish standard) 22
L90 Left rotated optics 1
R90 Right rotated optics 1
CCE Coastal Construction 23
HA 50°C ambient operation 24
BAA Buy America(n) Act and/or Build America Buy America Qualified
• Upgraded door to provide better protection from water intrusion.
MOUNTING
• Integral arm with key hole slot facilitates quick and easy installation.
• Adjustable slip fitter, round pole adaptor, universal pole adaptor, and other mounting options available as accessories.
• voltage: 120-277v or 347-480v AC input
• Driver: Class 1, constant current, calibrated to lumen package (0-10v dimming standard)
• Surge Protection: 20kA standard.
• Operating temperature: -40°C to +50°C (-40°F to +122°F)
WARRANTY
• Backed by XtraLight’s limited 5-year warranty.
Fixture Controls IR Smart Sensor, 20’H/40’D IR Smart Sensor, 40’H/100’D Bluetooth Smart Sensor, 20’H/40’D Bluetooth Smart Sensor, 40’H/100’D Casambi Controlled Autani Controlled Synapse Controlled Sensorworx Controlled Custom Sensor (Factory Installed)
XtraLight® reserves the right to change specifications without notice.
BLANK
VIENTO AREA LUMINARE
S
Scheduled Dimming, Standard voltage
Scheduled Dimming, High voltage
Constant All-night Dimming, Standard voltage
Constant All-night Dimming, High voltage
Shorting Cap
DESCRIPTION
• Sholder-to-Sholder Adaptor
• EPA: 0.90 sq. ft. - 27 LB
DESCRIPTION
• tenon Mount Adaptor
• Dimensions (S): 4”/5”/6”
• Dimensions (R): 4”/5” DIA
• EPA: 0.4 sq. ft. 10 - 16 LB
DESCRIPTION
• Universal Pole Mount Adaptor
DESCRIPTION
• Dimming Control
• Standard voltage: 105-305 vAC
• High voltage: 312-530 vAC
• Frequency: 50/60 Hz
DESCRIPTION
• Shorting Cap
• Shorting cap required if no other controls are being used in fixture receptacle.
Type SD Pole
No Specification
25’ AFG Concrete
TYPE SW SPEC HELM BAY LANDING
Specifications
Luminaire
Width: 13-3/4” (34.9 cm)
Depth: 10” (25.4 cm)
Height: 6-3/8” (16.2 cm)
Ordering Information
D-Series Size 1 LED Wall Luminaire
Back Box (BBW, ELCW)
Width: 13-3/4” (34.9 cm)
Depth: 4” (10.2 cm)
Height: 6-3/8” (16.2 cm)
DSXW1 LED 10C 10 LEDs (one engine)
20 LEDs (two engines) 1
For 3/4” NPT side-entry conduit (BBW only)
Catalog Number
Notes Type
Hit the Tab key or mouse over the page to see all interactive elements.
Introduction
The D-Series Wall luminaire is a stylish, fully integrated LED solution for building-mount applications. It features a sleek, modern design and is carefully engineered to provide long-lasting, energy-efficient lighting with a variety of optical and control options for customized performance. With an expected service life of over 20 years of nighttime use and up to 74% in energy savings over comparable 250W metal halide luminaires, the D-Series Wall is a reliable, low-maintenance lighting solution that produces sites that are exceptionally illuminated.
Shipped included (blank) Surface mounting bracket BBW Surfacemounted back box (for conduit entry) 5
installed
Accessories
Ordered and shipped separately.
DSXWHS UHouse-side shield (one per light engine)
DSXWBSW U Bird-deterrent spikes
DSXW1VG UVandal guard accessory
1 20C 1000 is not available with PIR, PIRH, PIR1FC3V or PIRH1FC3V.
2 MVOLT driver operates on any line voltage from 120-277V (50/60 Hz).
3 Single fuse (SF) requires 120, 277 or 347 voltage option. Double fuse (DF) requires 208, 240 or 480 voltage option.
4 Only available with 20C, 700mA or 1000mA. Not available with PIR or PIRH.
5 Back box ships installed on fixture. Cannot be field installed. Cannot be ordered as an accessory.
6 Photocontrol (PE) requires 120, 208, 240, 277 or 347 voltage option. Not available with motion/ambient light sensors (PIR or PIRH).
7 Reference Motion Sensor table on page 3.
8 Cold weather (-20C) rated. Not compatible with conduit entry applications. Not available with BBW mounting option. Not available with fusing. Not available with 347 or 480 voltage options. Emergency components located in back box housing. Emergency mode IES files located on product page at www.lithonia.com
9 Not available with SPD.
10 Not available with ELCW.
11 Also available as a separate accessory; see Accessories information.
12 Not available with ELCW.
HELM BAY LANDING TYPE
VIENTO WALL PACK
APPLICATIONS
• Exterior Lighting
• Safety & Security
APPROVALS
• EtL Listed
FEATURES
• Lumen packages ranging from 3000L to 15000L.
• Uniform light distribution, ideal for building facades, entry ways, sidewalks and general security or accent lighting.
• LED provides a significant energy savings over HID.
• Designed for ease of installation.
CONTROLS
• Smart sensor and button photocell control options available.
CONSTRUCTION
• Suitable for wet locations
• IP66 Rated
• BAA Compliant
• RoHS Compliant
• walkways
• Accent Lighting
• Complies with UL 1598 and CSA C22.2
• AtAL tested www.ata-labs.com
• two-piece die-cast aluminum with integral heat sink fins.
• Powder coat finish with custom colors are available (consult factory)
• Silicone gasket is included to prevent leakage and provide weather-tight protection.
• Driver: Class 2, constant current, calibrated to lumen packages (0-10v dimming standard)
WARRANTY
• Operating temperature: -40°C to +50°C (-40°F to +122°F)1,2
• Backed by XtraLight’s limited 5-year warranty.
• Select models DLC Qualified. For a complete list of DLC Qualified products visit: www.xtralight.com/dlc or qpl.designlights.org 1.
XtraLight® reserves the right to change specifications without notice.
TYPE SWE SPEC HELM BAY LANDING
Specifications
Luminaire
Width: 13-3/4” (34.9 cm)
Depth: 10” (25.4 cm)
Height: 6-3/8” (16.2 cm)
Ordering Information
D-Series Size 1 LED Wall Luminaire
Back Box (BBW, ELCW)
Width: 13-3/4” (34.9 cm)
Depth: 4” (10.2 cm)
Height: 6-3/8” (16.2 cm)
DSXW1 LED 10C 10 LEDs (one engine)
20 LEDs (two engines) 1
For 3/4” NPT side-entry conduit (BBW only)
Catalog Number
Notes Type
Hit the Tab key or mouse over the page to see all interactive elements.
Introduction
The D-Series Wall luminaire is a stylish, fully integrated LED solution for building-mount applications. It features a sleek, modern design and is carefully engineered to provide long-lasting, energy-efficient lighting with a variety of optical and control options for customized performance. With an expected service life of over 20 years of nighttime use and up to 74% in energy savings over comparable 250W metal halide luminaires, the D-Series Wall is a reliable, low-maintenance lighting solution that produces sites that are exceptionally illuminated.
Shipped included (blank) Surface mounting bracket BBW Surfacemounted back box (for conduit entry) 5
installed
Accessories
Ordered and shipped separately.
DSXWHS UHouse-side shield (one per light engine)
DSXWBSW U Bird-deterrent spikes
DSXW1VG UVandal guard accessory
1 20C 1000 is not available with PIR, PIRH, PIR1FC3V or PIRH1FC3V.
2 MVOLT driver operates on any line voltage from 120-277V (50/60 Hz).
3 Single fuse (SF) requires 120, 277 or 347 voltage option. Double fuse (DF) requires 208, 240 or 480 voltage option.
4 Only available with 20C, 700mA or 1000mA. Not available with PIR or PIRH.
5 Back box ships installed on fixture. Cannot be field installed. Cannot be ordered as an accessory.
6 Photocontrol (PE) requires 120, 208, 240, 277 or 347 voltage option. Not available with motion/ambient light sensors (PIR or PIRH).
7 Reference Motion Sensor table on page 3.
8 Cold weather (-20C) rated. Not compatible with conduit entry applications. Not available with BBW mounting option. Not available with fusing. Not available with 347 or 480 voltage options. Emergency components located in back box housing. Emergency mode IES files located on product page at www.lithonia.com
9 Not available with SPD.
10 Not available with ELCW.
11 Also available as a separate accessory; see Accessories information.
12 Not available with ELCW.
HELM BAY LANDING
VIENTO WALL PACK
APPLICATIONS
• Exterior Lighting
• Safety & Security
APPROVALS
• EtL Listed
FEATURES
• Lumen packages ranging from 3000L to 15000L.
• Uniform light distribution, ideal for building facades, entry ways, sidewalks and general security or accent lighting.
• LED provides a significant energy savings over HID.
• Designed for ease of installation.
CONTROLS
• Smart sensor and button photocell control options available.
CONSTRUCTION
• Suitable for wet locations
• IP66 Rated
• BAA Compliant
• RoHS Compliant
• walkways
• Accent Lighting
• Complies with UL 1598 and CSA C22.2
• AtAL tested www.ata-labs.com
• two-piece die-cast aluminum with integral heat sink fins.
• Powder coat finish with custom colors are available (consult factory)
• Silicone gasket is included to prevent leakage and provide weather-tight protection.
• Driver: Class 2, constant current, calibrated to lumen packages (0-10v dimming standard)
WARRANTY
• Operating temperature: -40°C to +50°C (-40°F to +122°F)1,2
• Backed by XtraLight’s limited 5-year warranty.
• Select models DLC Qualified. For a complete list of DLC Qualified products visit: www.xtralight.com/dlc or qpl.designlights.org 1.
XtraLight® reserves the right to change specifications without notice.
Wall Mount

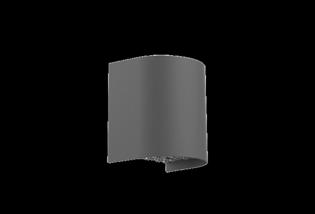

GeoForm
GCS LED wall sconce
Gardco GeoForm cylinder small LED wall sconce features a compact geometric design that will complement a range of architectural styles. GeoForm is available with two light engines: highly efficient precision plus optics which feature type 2, 3, and 4 distributions, as well as light effects optics which offer wall wash, spot, and pencil beam distributions. GeoForm with light effects may be inverted for a wet location uplight option. Emergency battery backup option provides path-of-egress illumination and multiple control options further enhance energy savings.
Project:
Location:
Cat.No:
Type:
Lamps: Qty:
Notes:
1. Only available from 120-277V, or in UNV.
2. Only one option can be selected from Dimming Controls column.
3. Not available with Emergency battery pack.
4. Only available from 120-277V, must specify voltage.
Dimming Leads Externally Accessible (controls by others) FAWS2 Field Adjustable Wattage Selector
Leave blank (10kV kA surge protection standard)
SP2 Surge Protector 20kV/10kA (option)
FS1 Single Fuse (120, 277, or 347VAC)
FS2 Double Fuse (208V, 240V, or 480V)
PCB4 Photocontrol Button (120-277V)
of
Medium Gray
specified OC Specify optional color or RAL, contact factory SC Special Color (must supply color chip, requires factory quote)
5. Failure to properly select the “BAC” suffix could result in you receiving product that is not BAA compliant product with no recourse for an RMA or refund. This BAC designation hereunder does not address (i) the applicability of, or availability of a waiver under, the Trade Agreements Act, or (ii) the “Buy America” domestic content requirements imposed on states, localities, and other non-federal entities as a condition of receiving funds administered by the Department of Transportation or other federal agencies.
6. Consult Signify to confirm whether specific accessories are BAA-compliant.
Accessories (order
Ordering guide
HELM BAY LANDING
TUBE ARCHITECTURAL DS-WS05
LED Wall Mounts
PRODUCT DESCRIPTION
The latest energy efficient LED technology in an appealing cylindrical profile delivers accent and wall wash lighting. Comes in various light distribution and beam angle options.
FEATURES
• High performance exterior rated LED wall mount light
• Fixture can install upside down to alter light distribution
• Solid aluminum construction
• 5 year warranty
DS-WS0517 5” 17W
Example: DS-WS05-F930A-WT
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFICATIONS
Input:
Dimming:
Light Source:
Finish:
Standards:
Operating Temp:
Reference Output 1
Universal voltage 120V - 277VAC, 50/60Hz
Electronic low voltage (ELV) : 100% - 5%
0-10V: 100% - 1%
High output 3 Step Mac Adam Ellipse COB
Rated life of 60,000 hours at L70
Electrostatically powder coated, white, black, bronze and graphite IP65 rated, ETL & cETL wet location listed, Energy Star® 2.2 rated Title 24 JA8-2016 Compliant -13°F to 122°F (-25°C to 50°C)
1Reference output shows 25W output. Multiply by 0.7 to determine output for 17W combinations.

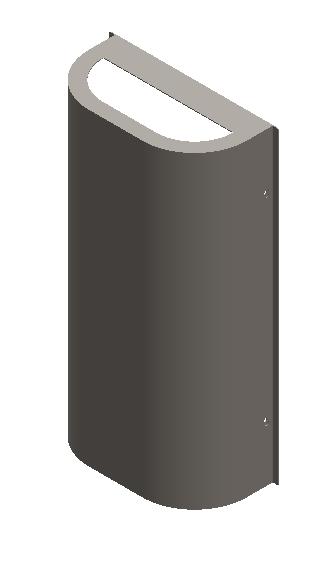

1 OVLW-12X6-12W-MBK-A-40K-FRAME 22 GAUGE 1
2 OVLW-12X6-12W-MBK-A-40K-END CAP 22 GAUGE 2
3 OVLW-12X6-12W-MBK-A-40K-BACKPLATE 22 GAUGE 1
4 OVLW-12X6-12W-MBK-A-40K-LED BRACKET 22 GAUGE 2
5 OVLW-12X6-12W-MBK-A-40K-ACRYLIC ACRYLIC 1
6 EspenTECH_120277V_SKU808076 DRIVER 1
7 AltalLED_PN1012_RevD LED 2
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL .003
ANGULAR: MACH .01 BEND
TWO PLACE DECIMAL
THREE PLACE DECIMAL .001
HELM BAY LANDING

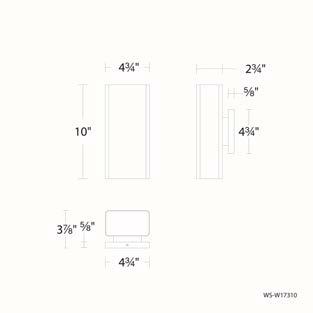

Edgey
Outdoor Wall Sconce
Fixture Type:
Catalog Number:
Project:
Location:
Example: WS-W17310-40-WT
For custom requests please contact customs@waclighting.com
DESCRIPTION
Precision, framed. A sleek design with sophisticated up and downward illumination.
FEATURES
• Top and bottom illumination
• Built in color temperature adjustability. Switch from 3000K/3500K/4000K
• Slide-on canopy with minimal hardware
• Option to pre-select color temperature or adjust in the field
• ACLED driverless technology
• 5 year warranty
SPECIFICATIONS
Color Temp: 3000K,3500K,4000K
Input: 120 VAC,50/60Hz
CRI 90
Dimming: ELV: 100-5% , TRIAC: 100-5%
Rated Life: 60,000 Hours
Mounting: Can be mounted on wall vertically or upside down
Standards: ETL, cETL, ADA, Wet Location Listed Construction Aluminum body with glass diffuser
• Choice of thirteen high-efficiency, patented AccuLED Optics
• Downward and inver ted wall mounting configurations
• Eight lumen packages from 3,215 up to 17,056
• Efficacies up to 154 lumens per watt
Dimensional Details
Product Features
Product Certifications
Connected Systems
• WaveLinx PRO Wireless
• WaveLinx LITE Wireless
Wall Mount Luminaire
GWC Galleon Wall

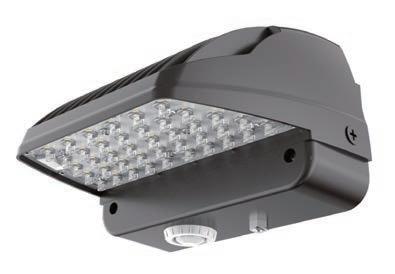

AKT WALL PACK
The AKT LED Wall Pack features cutoff distribution, die-cast aluminum housing with integrated heat sink for superior heat dissipation, and options for Emergency back-up, photocontrol, and sensor. Lumen ranges from 1500lm to 14400lm make this an ideal option for landscape, wall/ surface, low level pathway, apartment buildings, schools, and multi-use facilities.
TECHNICAL DATA
Wattage 15W, 20W, 24W, 30W, 42W, 60W, 80W, 120W
CCT 3000K, 4000K
Driver 0-10V Dimming Standard
CRI 70 is standard 80 is optional
CCT Input Voltage 120-277V, 50/60Hz
Projected Lifetime L70-100,000 Hours
Operating Temp. -40°F to 104°F (-40°C to 40°C)
Certifications cUL listed
Suitable for wet locations RoHs compliant
Power Factor >0.9
Harmonic Distortion <20% at full load
FEATURES
▪ Cutoff distribution design.
▪ Lumen ranges from 1500lm to 14400lm.
▪ Emergency back up, photocontrol and sensor available as option.
SPB1= Dimming Occupancy Sensor with Bluetooth Interface, <8’ Mounting 19, 32
SPB2= Dimming Occupancy Sensor with Bluetooth Interface, 8’ - 20’ Mounting 19, 32
SPB4= Dimming Occupancy Sensor with Bluetooth Interface, 21’ - 40’ Mounting 19, 32 Z4 =Zhaga 4-pin receptacle 9
MS-LXX=Motion Sensor for On/Off Operation 17, 18, 19
MS/DIM-LXX=Motion Sensor for Dimming Operation 17, 18, 19
WPS2XX=WaveLinx Pro, SR Driver, Dimming Motion and Daylight, WAC Programmable, 7’ - 15’ Mounting 29, 30, 39
WPS4XX=WaveLinx Pro, SR Driver, Dimming Motion and Daylight, WAC Programmable, 15’ - 40’ Mounting 29, 30, 39
WLS2XX=WaveLinx Lite, SR Driver, Dimming Motion and Daylight, Bluetooth Programmable, 7’ - 15’ Mounting 30, 40
WLS4XX=WaveLinx Lite, SR Driver, Dimming Motion and Daylight, Bluetooth Programmable, 15’ - 40’ Mounting 30, 40
1. DesignLight Consortium® Qualified. Refer to www.designlights.org, Qualified Products List under Family Models for details.
2. Two light squares with CBP options limited to 25°C. CBP not available in combination with sensor options at 1200mA.
3. Narrow-band 590nm +/- 5nm for wildlife and observatory use. Choose drive current A; supplied at 500mA drive current only.Exact luminaire wattage available in IES files. Available with 5WQ, 5MQ, SL2, SL3 and SL4 distributions. Can be used with HSS option.
4. Not available with HA option.
5. Coastal construction finish salt spray tested to over 5,000-hours per ASTM B117, with a scribe rating of 9 per ASTM D1654.
6. Require the use of a step down transformer. Not available in combination with sensor options at 1200mA.
7. 480V not to be used with ungrounded or impedance grounded systems.
8. DuraVolt drivers feature added protection from power quality issues such as loss of neutral, transients and voltage fluctuations. Visit www.signify.com/duravolt for more information.
9. Cannot be used with other control options.
10. Low voltage control leads extended 18” from fixture.
11. Not available in 1200mA. When used with CBP or HA options, only available with single light square.
12. Not available in 1200mA, UPL or CBP options. Available with single light square.
13. Not available with HA, CBP, PR or PR7 options.
14. Operates a single light square only. Operates at -20°C to +40°C. Backbox is non-IP rated.
15. Compatible with standard 3-PIN photocontrols, 5-PIN or 7-PIN ANSI controls.
16. Requires the use of BPC photocontrol or the PR7 or PR photocontrol receptacle with photocontrol accessory. See After Hours Dim supplemental guide for additional information.
17. The FSIR-100 configuration tool is required to adjust parameters such as high and low modes, sensitivity, time delay and cutoff. Consult your lighting representative at Cooper Lighting Solutions for more information.
18. Replace LXX with L08 (<8’ mounting), L20 (8’-20’ mounting) or L40W (21’-40’ mounting.)
19. Includes integral photosensor.
20. White sensor shipped on all housing color options.
21. Not available with HSS or GRS options.
22. Not for use with 5NQ, 5MQ, 5WQ or RW optics. The light square trim plate is painted black when the HSS option is selected.
23. CE is not available with the 1200, DALI, LWR, MS, MS/DIM, BPC, PR or PR7 options. Available in 120-277V only.
24. One required for each light square.
Product Specifications
Construction
• Driver enclosure thermally isolated from optics for optimal thermal performance
Die-cast aluminum heat sinks
• IP66 rated housing
• 1.5G vibration rated
• Vandal resistant with IK10 impact rated housing and optics
• LED driver assembly mounted for ease of maintenance
• Standard with 0-10V dimming
• Optional 10kV or 20kV surge module
• Suitable for operation in -40°C to 40°C ambient environments; Optional 50°C high ambient (HA) configuration
25. Requires PR7.
26. Not for use with T4FT, T4W or SL4 optics.
27. Set of 4 pcs. Once set required per Light Square.
OA/RA1013=Photocontrol Shorting Cap
OA/RA1016 =NEMA Photocontrol - Multi-Tap 105-285V
OA/ RA1201=NEMA Photocontrol - 347V
OA/ RA1027=NEMA Photocontrol - 480V
MA1252=10kV Circuit Module Replacement MA1059XX=Thru-branch Back Box (Must Specify Color)
BB/GWCXX=Back Box (Must Specify Color)
LS/HSS=Field Installed House Side Shield 22, 24
LS/GRSBK-2PK=Glare Shield, Black 24, 26
LS/GRSWH-2PK=Glare Shield, White 24, 26
LS/PFS =Perimeter Shield, Black 27 FSIR-100 =Wireless Configuration Tool for OccupancySensor 17
WOLC-7P-10A=WaveLinx Outdoor Control Module (7-pin) 25, 28
28. Cannot be used in conjunction with additional photocontrol or other controls systems (BPC, PR, PR7, MS, LWR).
29. WAC Gateway required to enable field-configurability: Order WAC-PoE and WPOE-120 (10V to PoE injector) power supply if needed.
30. Replace XX with sensor color (WH, BZ, or BK).
31. Specify 120V or 277V.
32. Smart device with mobile application required to change system defaults. See controls section for details.
33. Only product configurations with these designated prefixes are built to be compliant with the Buy American Act of 1933 (BAA) or Trade Agreements Act of 1979 (TAA), respectively. Please refer to DOMESTIC PREFERENCES website for more information. Components shipped separately may be separately analyzed under domestic preference requirements.
34. For BAA or TAA requirements, Accessories sold separately will be separately analyzed under domestic preference requirements. Consult factory for further information.
35. Not available in 1 square configuration at 800mA or below. Not available with any control option except SPB.
36. 2L not available with FF, AHD or DALI options. Controls and/or battery packs operate only one of the two circuits when 2L is specified. 2L with controls options not available with 347V or 480V.
37. Not available with CBP or CBP-CEC options.
38. Cannot be used with PR7 or other motion response control options.
39. Customer specific specifications utilizes standard products with small adjustments to meet unique requirements such as packaging, labels, wattage adjustments, etc.
40. Controls system is not available with photocontrol receptacles (PR , PR7) or other controls systems (FADC, SPBx).
41. Only product configurations with these prefixes are built to be compliant with the Buy American Act of 1933 (BAA) or the Build America Buy America Act (BABA). BABA is the minimum Government compliance requirement for the Build America Buy America standards which is part of the Infrastructure and Investment Jobs Act (IIJA). Please refer to the DOMESTIC PREFERENCES website or consult the CLS Domestic Preferences team for more information. Components shipped separately may be separately analyzed under domestic preference requirements.
• Luminaire available with the field adjustable dimming controller (FADC) to manually adjust wattage and reduce the total lumen output and light levels. Comes pre-set to the highest position at the lumen output selected
Mounting
• Gasketed and zinc plated rigid steel mounting attachment
• “Hook-N-Lock” mechanism for easy installation Finish
• Housing finished in super durable TGIC polyester powder coat paint, 2.5 mil nominal thickness
• Heat sink is powder coated black
• RAL and custom color matches available
• Coastal Construction (CC) option available
Compliance
• IDA Certified for 3000K CCT and warmer only.
• This Cooper product is manufactured in the US and meets the BABA cost of components rule. To verify a configured product with specific accessories and options meets BABA Domestic Preference Requirements; submit this catalog number to Cooper Lighting Quotation team for validation by our Engineering and Manufacturing teams. Our BABA designation is based on the minimum compliance requirement for BABA. Individual Government Agencies may have more stringent compliance standards.
• Please refer to the DOMESTIC PREFERENCES website or consult the CLS Domestic Preferences team for more information. Components shipped separately may be separately analyzed under domestic preference requirements
Typical Applications
• Exterior Wall, Walkway Warranty
• Five year limited warranty, consult website for details. www.cooperlighting.com/legal
AKT WALL PACK
ORDERING INFORMATION
EXAMPLE: AKT60401-III-BK
NOTE:
1. PIR Sensor is not available for 15W, 20W and 24W. PIR Sensor kits is sold separately and field installed for 30W and 42W. PIR Sensor is pre-installed in the fixture for 60W, 80W and 120W. Mounting height is 40ft (12m) max.
2. Emergency battery backup is not available for 15W/20W/24W. It is Emergency battery backup kits sold separately and field installed for 30W and 42W. The Emergency battery backup is built in the fixture housing for 60W/80W/120W. Ambient working temperature for Emergency battery backup is 32°F to 95°F(0°C to 35°C).
3. Black finish is standard. Custom color is available for a premium setup fee. Consult customer service for additional information.
Apartment Lighting & Electrical
HELM BAY LANDING
RDL
LED Round Low Profile Flush
RDL series LED Disk Light provides versatile lighting on standard line voltage, yet produces the high energy savings you desire from LED fixtures. The RDL series allows for easy upgrade to your downlighting from the traditional recessed cans to a more modern looking, energy efficient solution. This Disk Light can be mounted on to a junction box or retrofitted into an existing recessed can with the optional hardware mounting adapter (not included).
RDL
5-5” 7-7” 9-9” 12-12” 15-15”
5” Housing 10- 10W, 750 Lumens
12- 12W, 875 Lumens
7” Housing
15- 15W, 1050 Lumens
18- 18W, 1300 Lumens
9” Housing
18- 18W, 1300 Lumens
12” Housing
22- 22W, 1540 Lumens
15” Housing 30- 30W, 2100 Lumens
120D- 120V Dimming, 10-100%
277- 277V Triac Dimming
930- 3000K, 90CRI
940- 4000K, 90CRI
MCT- 2700K, 3000K, 3500K, 4000K, 5000K CCT Selectable, 90CRI BL- Black BN- Brushed Nickel WH- White ORB- Oil Rubbed Bronze BULK- Bulk (Case of 12) BLANK- Individual Packaging
OPTIONS / ACCESSORIES
Options
EM2-RDL-7-WH 7” Emergency Battery
EMBX-RDL-7-WH 7” Blank Box
EM2-RDL-12-WH 12” Emergency Battery
EMBX-RDL-12-WH 12” Blank Box
EMTB Fixture w/ Emergency Test Button (Compatible only with EML-JB-AC2 & EM2-RDL / Available in case of 12)
The AC Opal LED Series LED fixture is designed to surface mount over a standard junction box. The low profile dimmable luminaire produces even illumination and is cETLus listed for wet locations.
FEATURES
AC LED (No Driver)
Dimmable
2700K, 3000K, 4000K or 5000K @ 90+ CRI
White, black, bronze or natural metal finishes
Mount on standard 4" junction box
SPECIFICATION
Construction: One piece aluminum die formed housing and trim. Aluminum body dissipates heat and extends life.
Mounting: Surface mount luminaire is compatible with 3" or 4" junction boxes and 1/2" deep pancake boxes for ceiling or wall mount applications.
Optics: Nora specified and designed precision molded lens for optimal lumen output and even distribution.
Finishes: Available in white, black, bronze and natural metal finishes.
Ratings: IC rated when used with a 4" electrical junction box rated for direct contact with insulation. Fire rated when used with a fire rated junction box.
Retrofit: Each luminaire includes a retrofit kit with medium base socket adapter to mount over 4" recessed housings. Kit also includes torsion blades that hold luminaire flush against ceiling. Retrofit kit is intended to be used with a lighting fixture as a lamp replacement.
ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: 700lm / 10.5W
Color Temperature: 2700K, 3000K, 4000K, 5000K
Color Rendering Index: 90+
Operating Temperature: 0°-45°C
Lifetime: 50,000 hours @ L70
Dimming: 5% with Triac or 10% with ELV
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
LISTING
cETLus Listed for wet locations
cETLus classified for retrofit 5-Year Limited Warranty
Certified to the high efficacy requirements of California Title 24 JA8-2022
Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16 (C)(1)
FCC Compliant
4" AC Opal - LED Surface Mount
Description
NLOPAC-R4509T2427BZ = 2700K / Bronze
NLOPAC-R4509T2427NM = 2700K / Natural Metal
NLOPAC-R4509T2427W = 2700K / White
NLOPAC-R4509T2430B = 3000K / Black
NLOPAC-R4509T2430NM = 3000K / Natural Metal
NLOPAC-R4509T2430W = 3000K / White
NLOPAC-R4509T2440B = 4000K / Black
NLOPAC-R4509T2440NM = 4000K / Natural Metal
NLOPAC-R4509T2440W = 4000K / White
NLOPAC-R4509T2450W = 5000K / White
Example: NLOPAC-R4509T2430W = 4" AC Opal, 700lm / 10.5W, 3000K, White finish
52" Decorative ceiling fan in white finish, switch control.

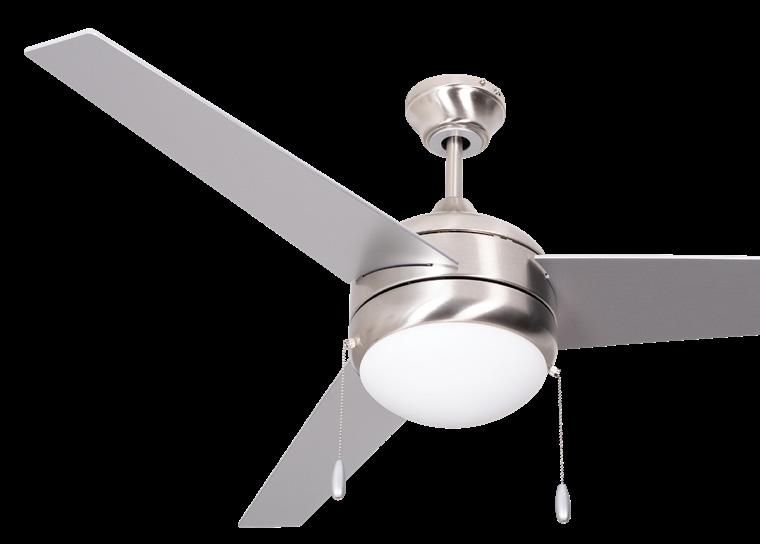

SKY
SkyLux 52” Ceiling Fan
The SKY series are a family of ceiling fans featuring a simple 3 blade design. The clean lines and modern design of this AC Motor LED fan makes an elegant addition to your contemporary home décor. The reversible feature makes this fan perfect to use during every season. (While supplies last)
3YR WARRANTY
5-Step MacAdams Ellipse 50,000hrs (Based on 3hrs a Day)
E26 LED Bulb: 9W, Energy Star Listed, Color Temperature, 3000K, 4000K
Certification
UL/cUL Listed
CFL Type
Note: H1- Hanging Cable Length
Sunpark Electronics Corp. Phone: (310) 324-8880
are
to 4/22/25 Page 1 of 1 16200 S. Figueroa St., Gardena, CA90248 Fax: (310) 324-4020 change without notice.
ntegris/101-0001-425 3-light bath vanity
in chrome finish

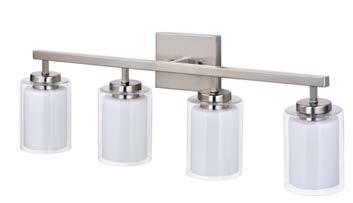

HELM BAY LANDING
DESCRIPTION
See yourself in the best light with the 4910 Inner Opal Glass LED Vanity Light that can be mounted in direct or in-direct positions. This JA8 vanity light is damp location rated and is energy efficient. Choose from an updated, attractive 2-light, 3-light, or 4-light configuration to accent your bathroom vanity area.
DESIGN FEATURES
Construction
• Heavy duty, steel construction
• Clear Outer Glass with Inner Opal Glass
Electrical
• 120V-60Hz
• Dimmable TRIAC or ELV, 10-100%
• E26 Socket | 9W A19 LED Lamps Included
• 3000K | 90 CRI | 800 lms per lamp
Installation
• 5” x 6” Canopy and Mounting Plate included for installations with 3” or 4” J-Box applications
• Fixture can be mounted with glass shades facing up or down
Dimensions
• 4910-2: 11” H x 13-3/4 L x 5-3/4” D
• 4910-3: 11” H x 22-3/4 L x 5-3/4” D
• 4910-4: 11” H x 31-3/4 L x 5-3/4” D
Lens
• Inner Opal glass lens replacement: 4606G-FR
•Outer clear glass lens replacement: 4606G-CL
Certifications
• cETLus listed for damp locations
• CEC JA8 Compliant *
• 1 Year Limited Warranty
BLANK

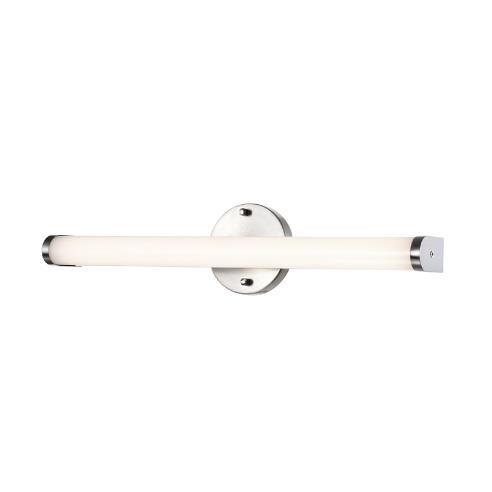

Features
Housing
Aluminum Extrusion with Die-Form Cold-Rolled Steel Ends
