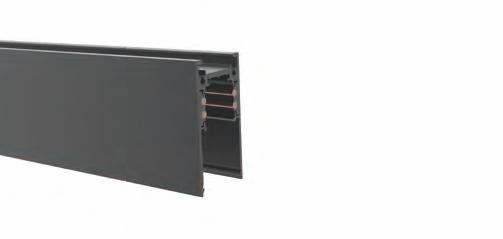

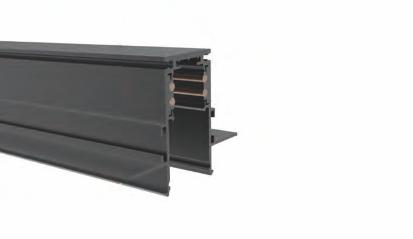

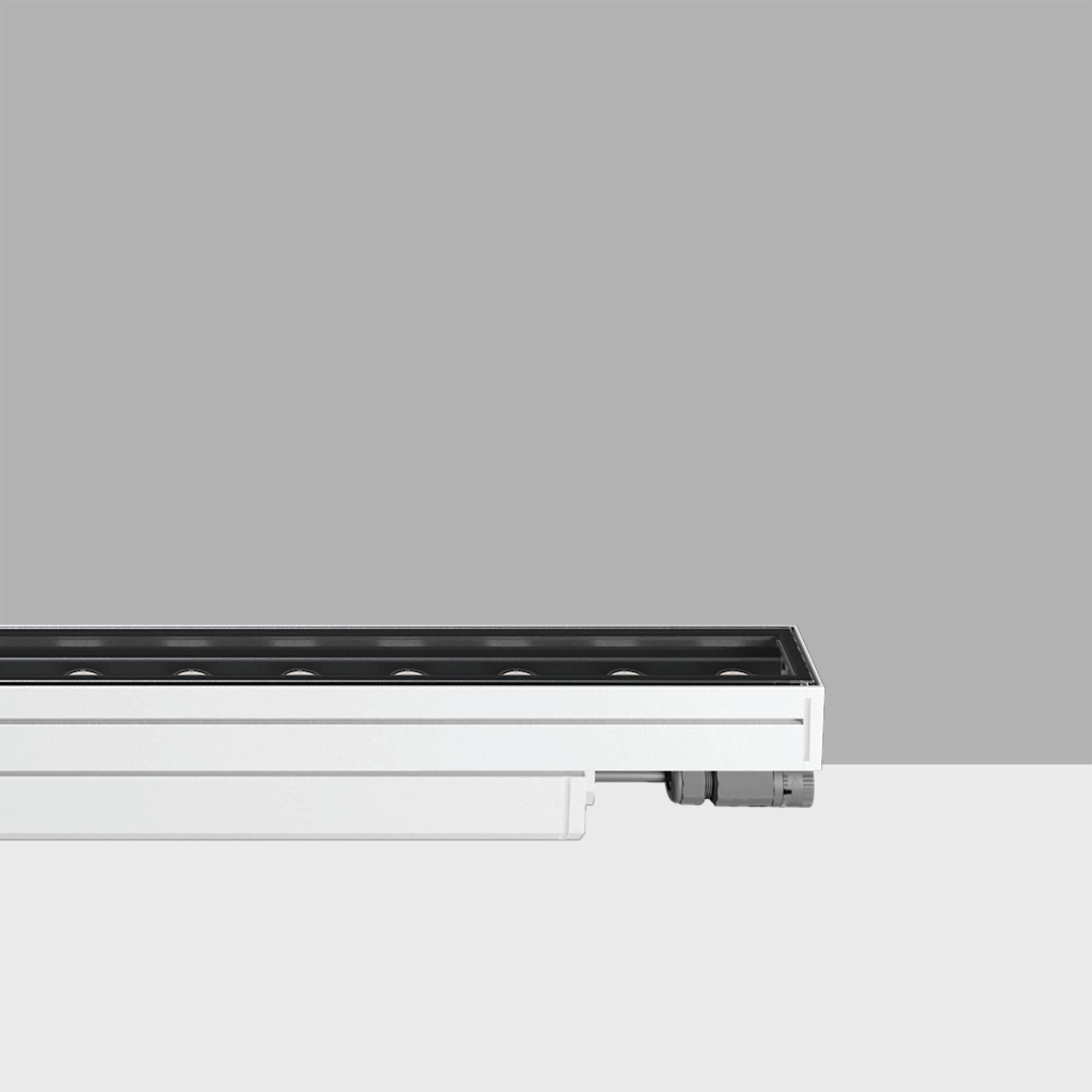

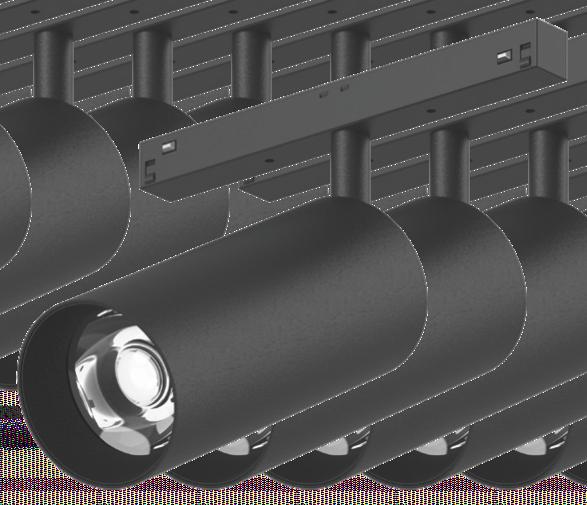

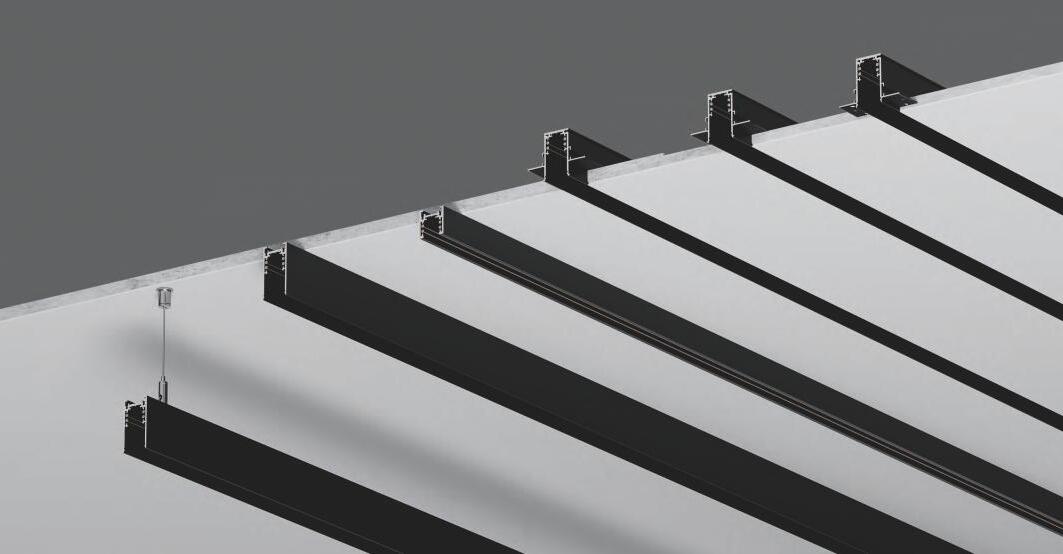

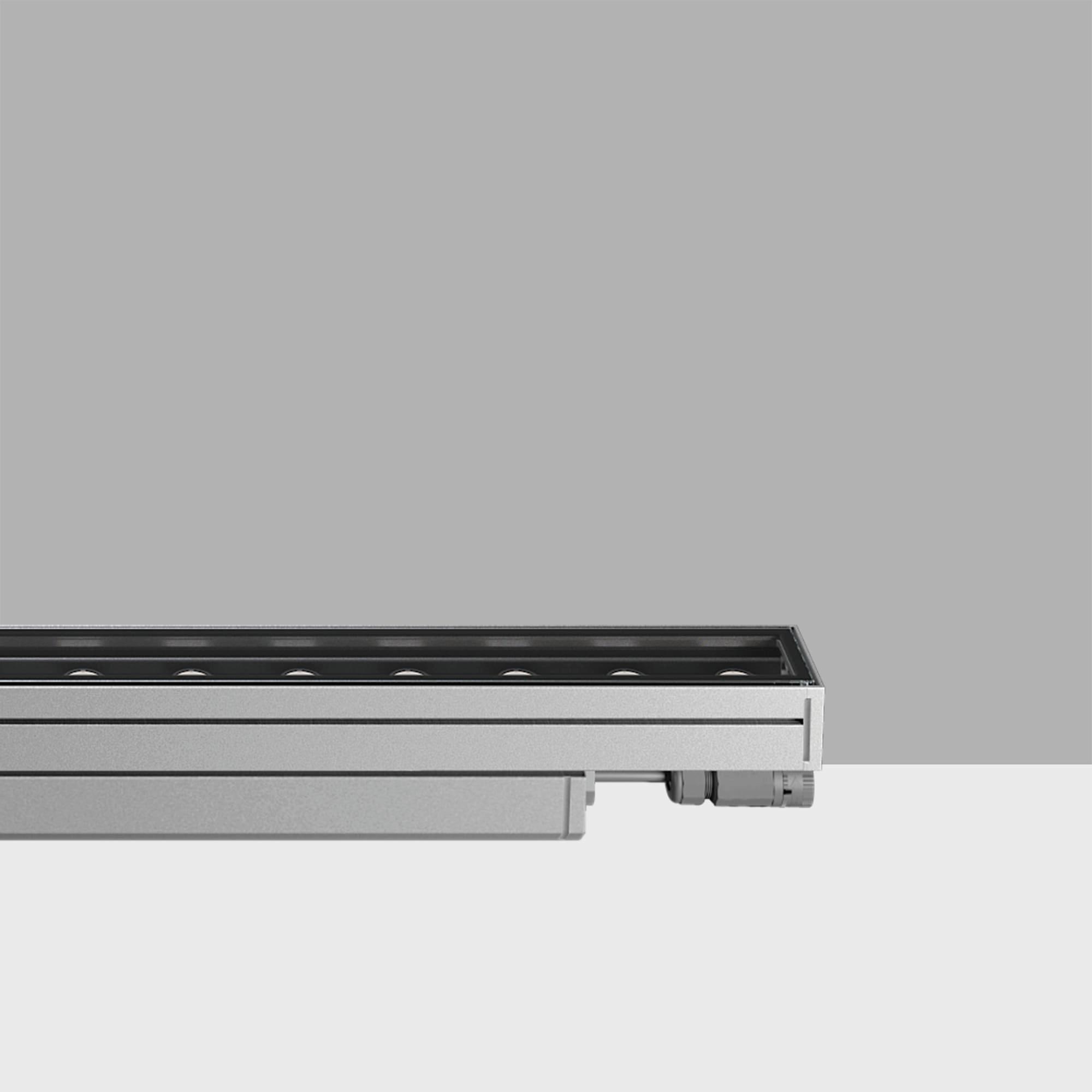

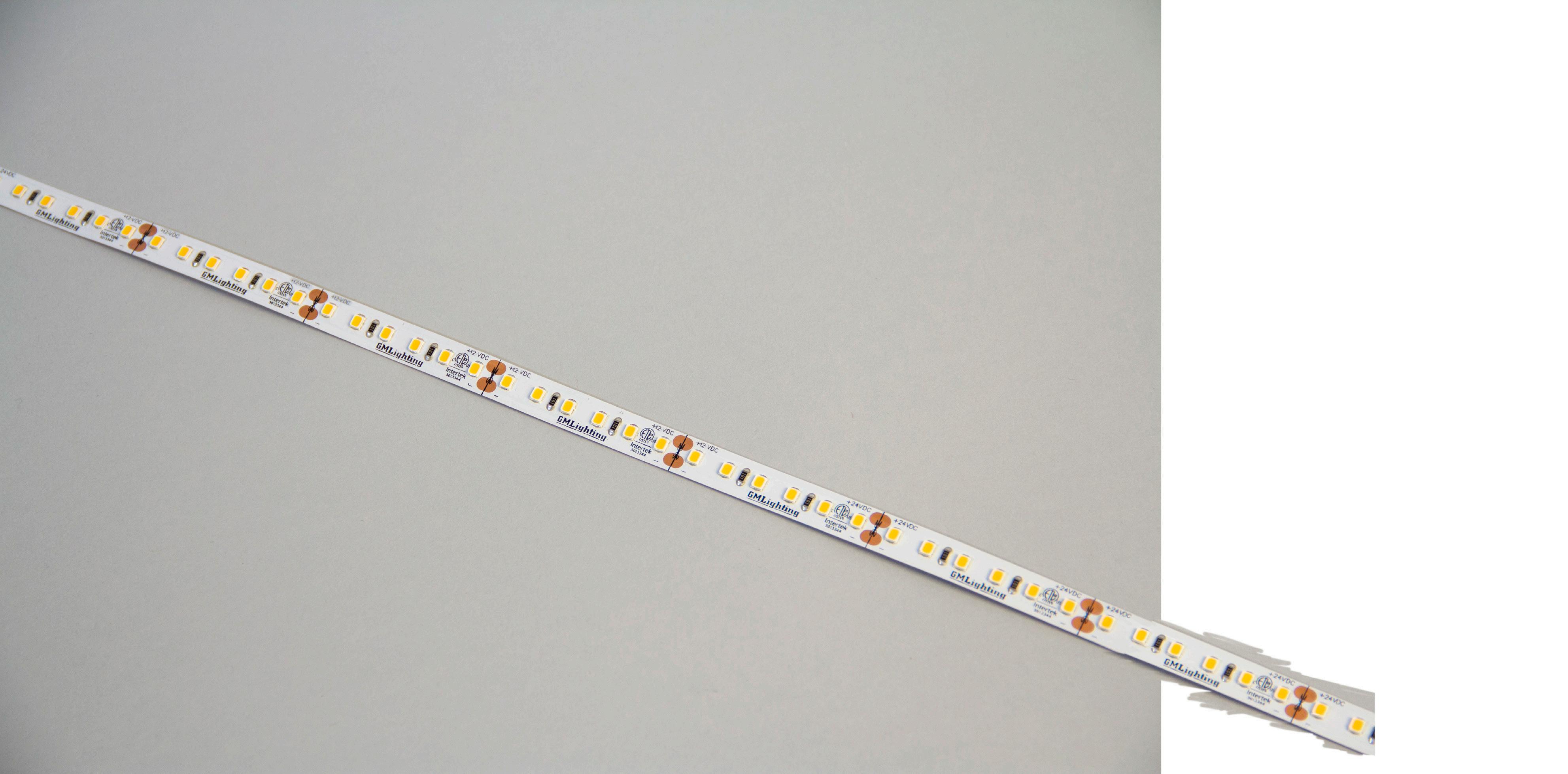

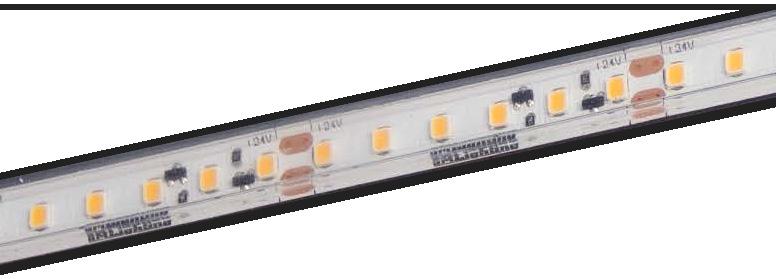

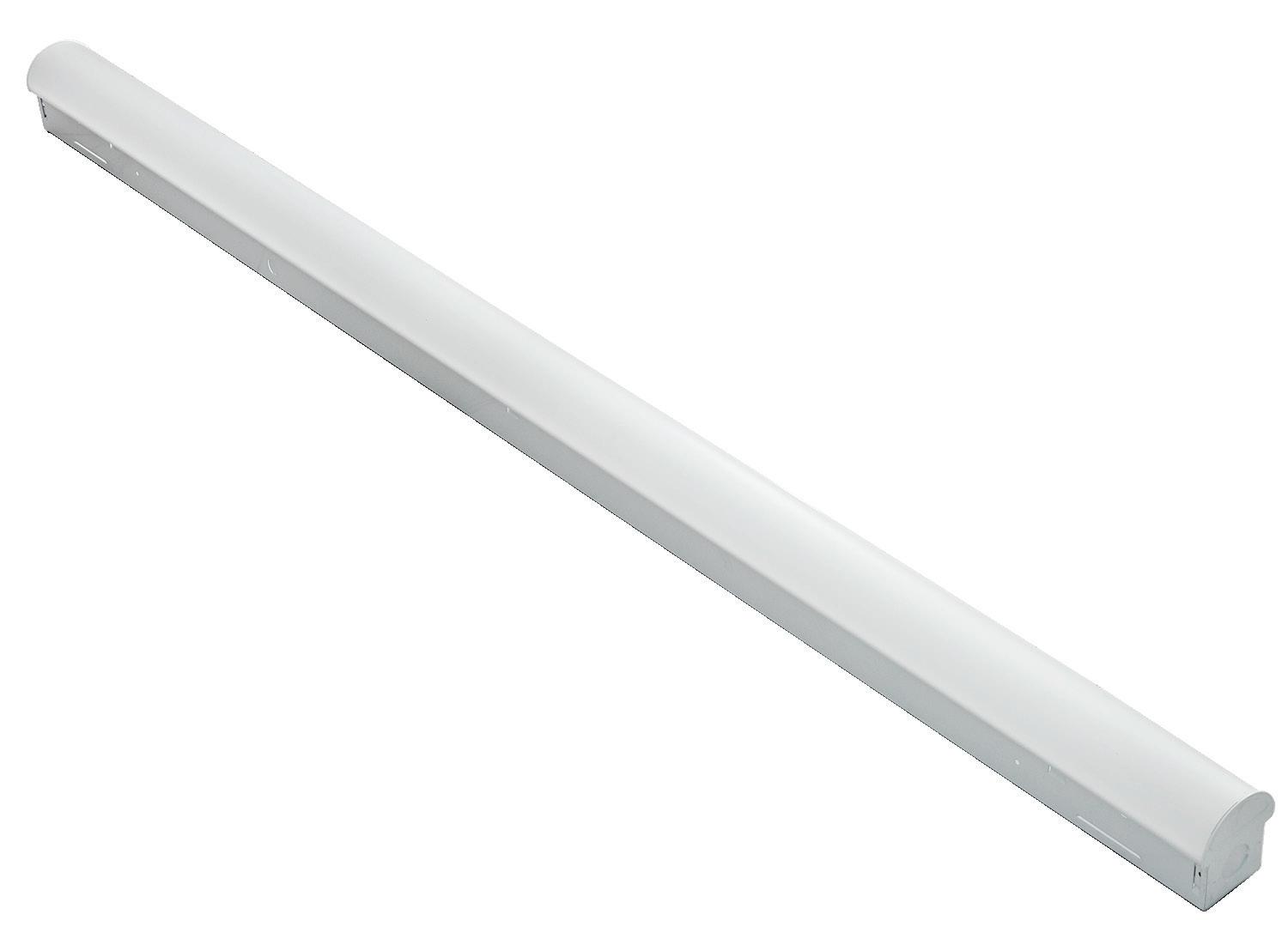

$74,128.00, CREDIT TO USE LED TAPE BELOW NON-LIT MIRROR

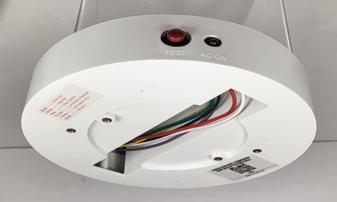

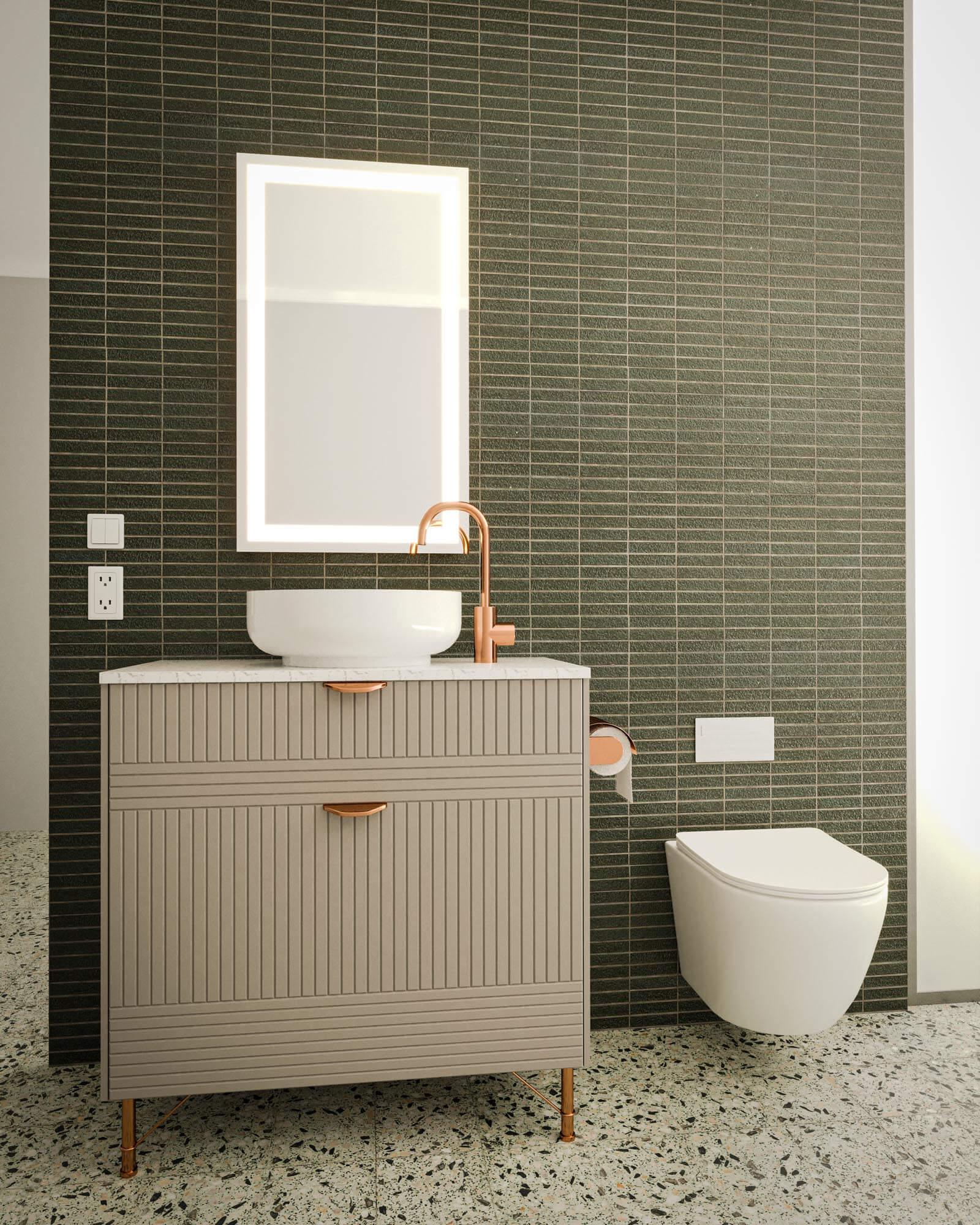

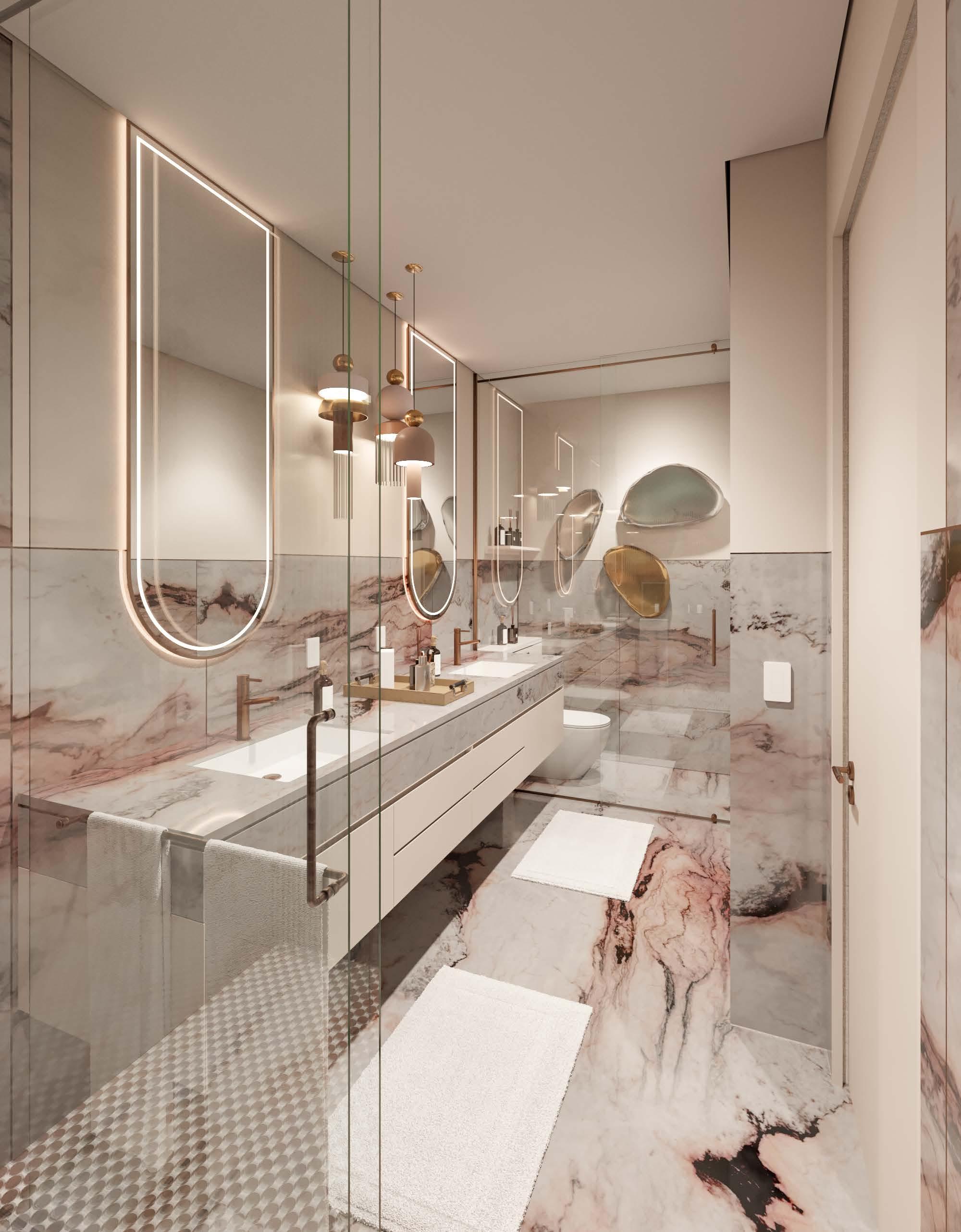

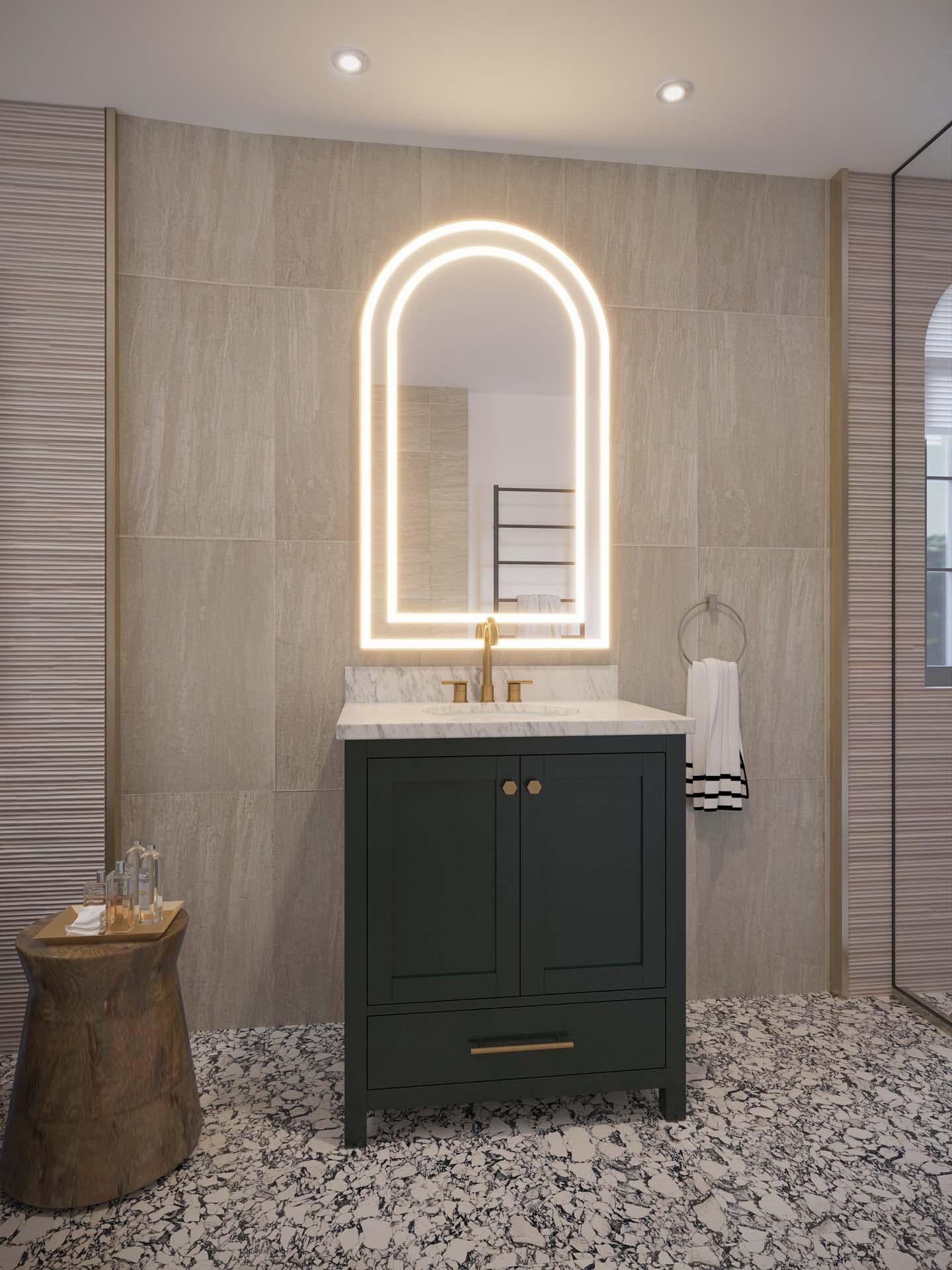

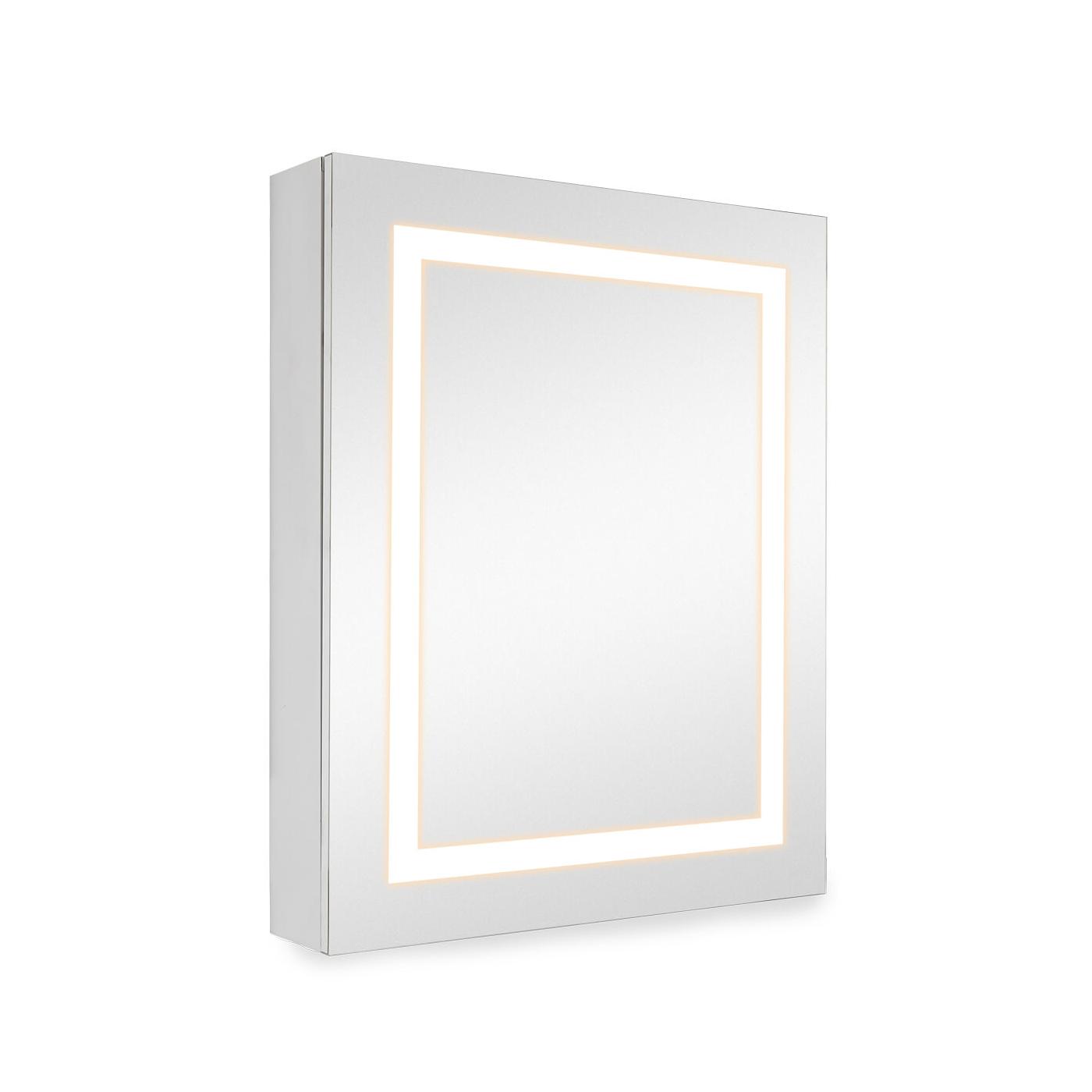

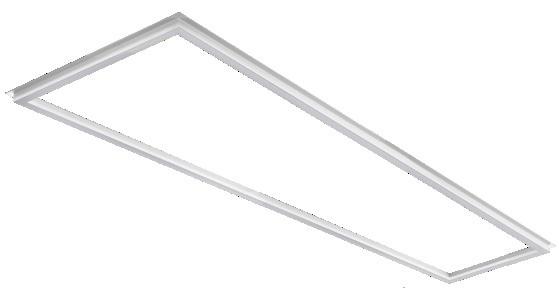

ASTRO LIT-MIRROR , 24.5''W X 48.5''H

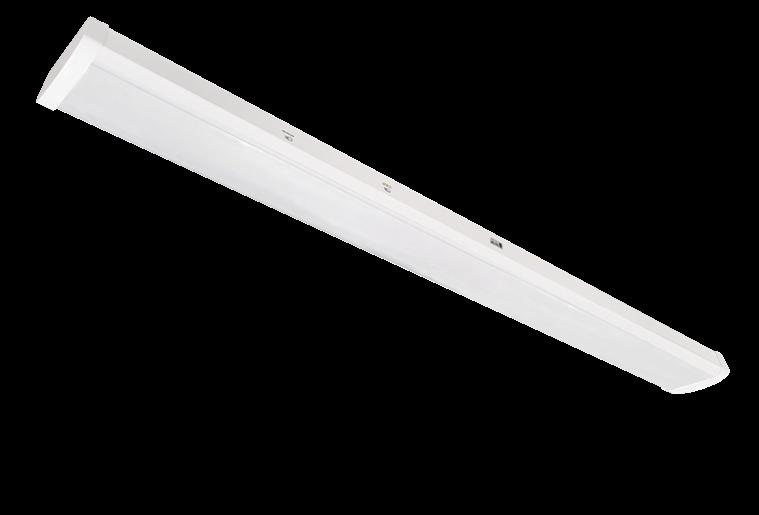

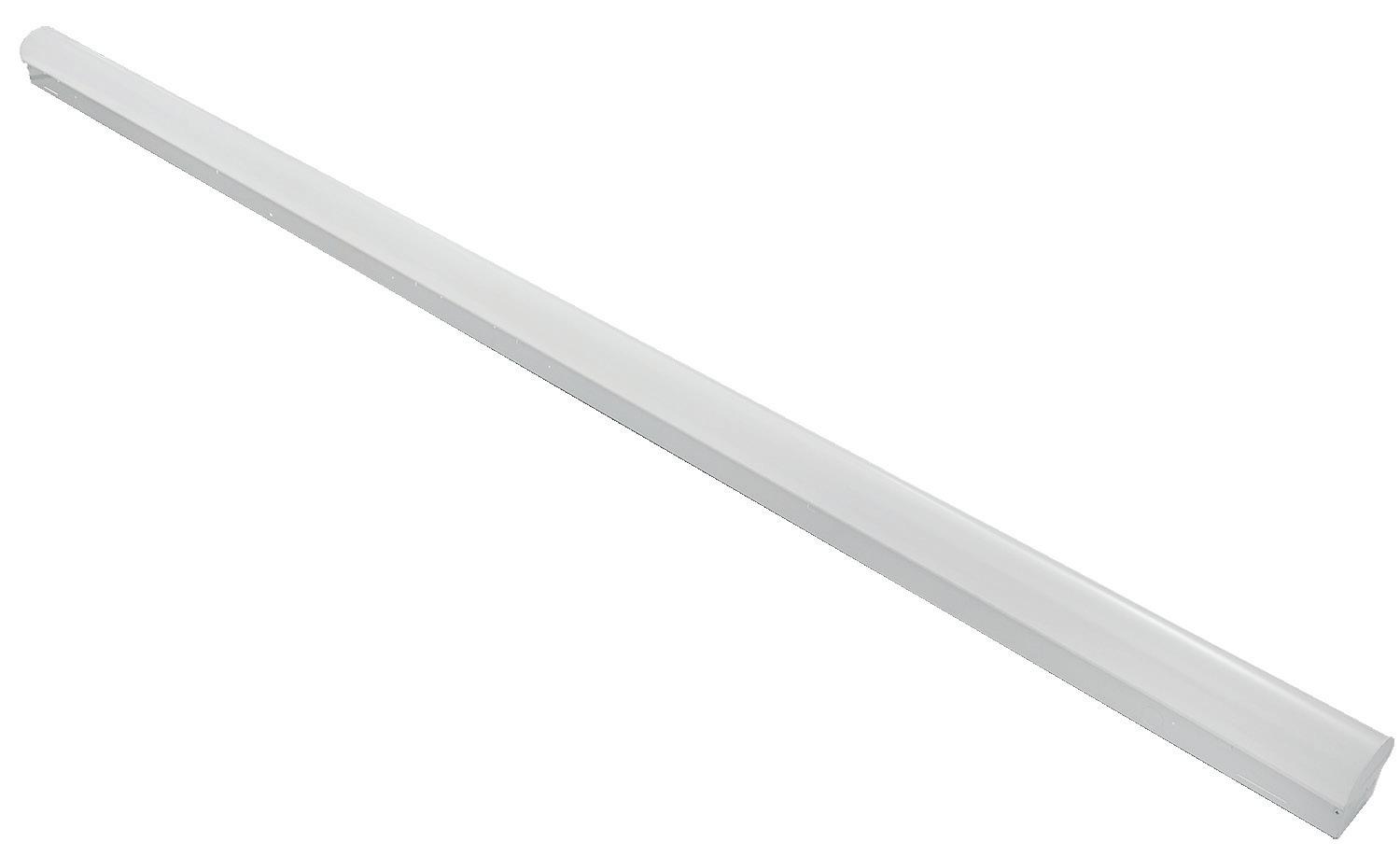

NELOCAC-6RL130W

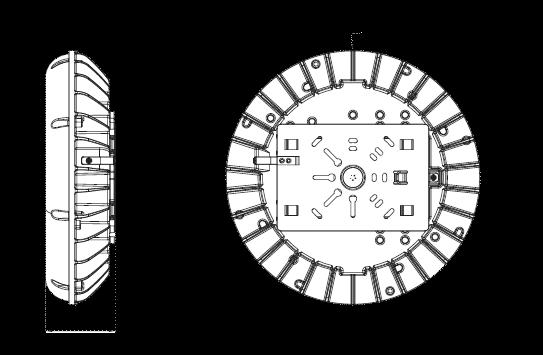

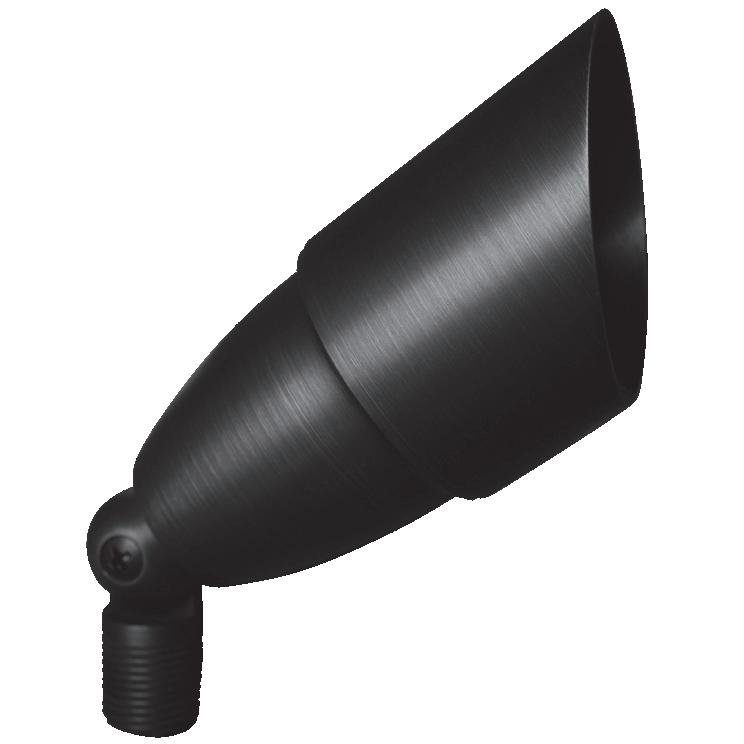

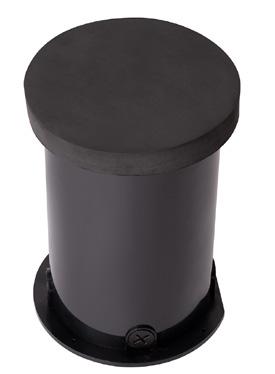

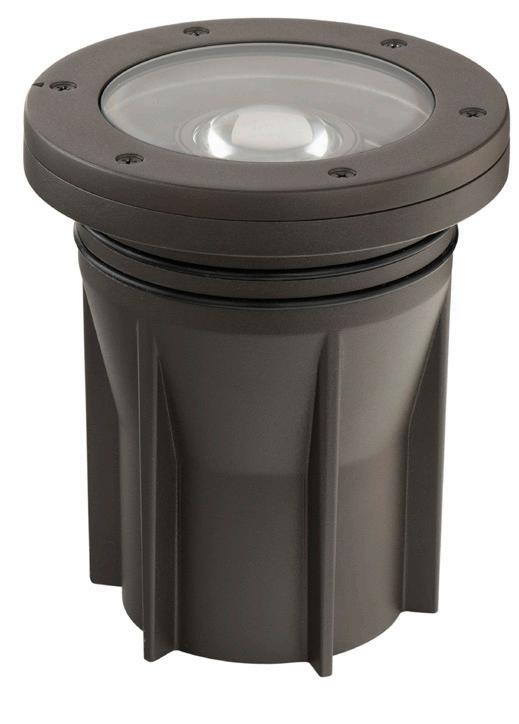

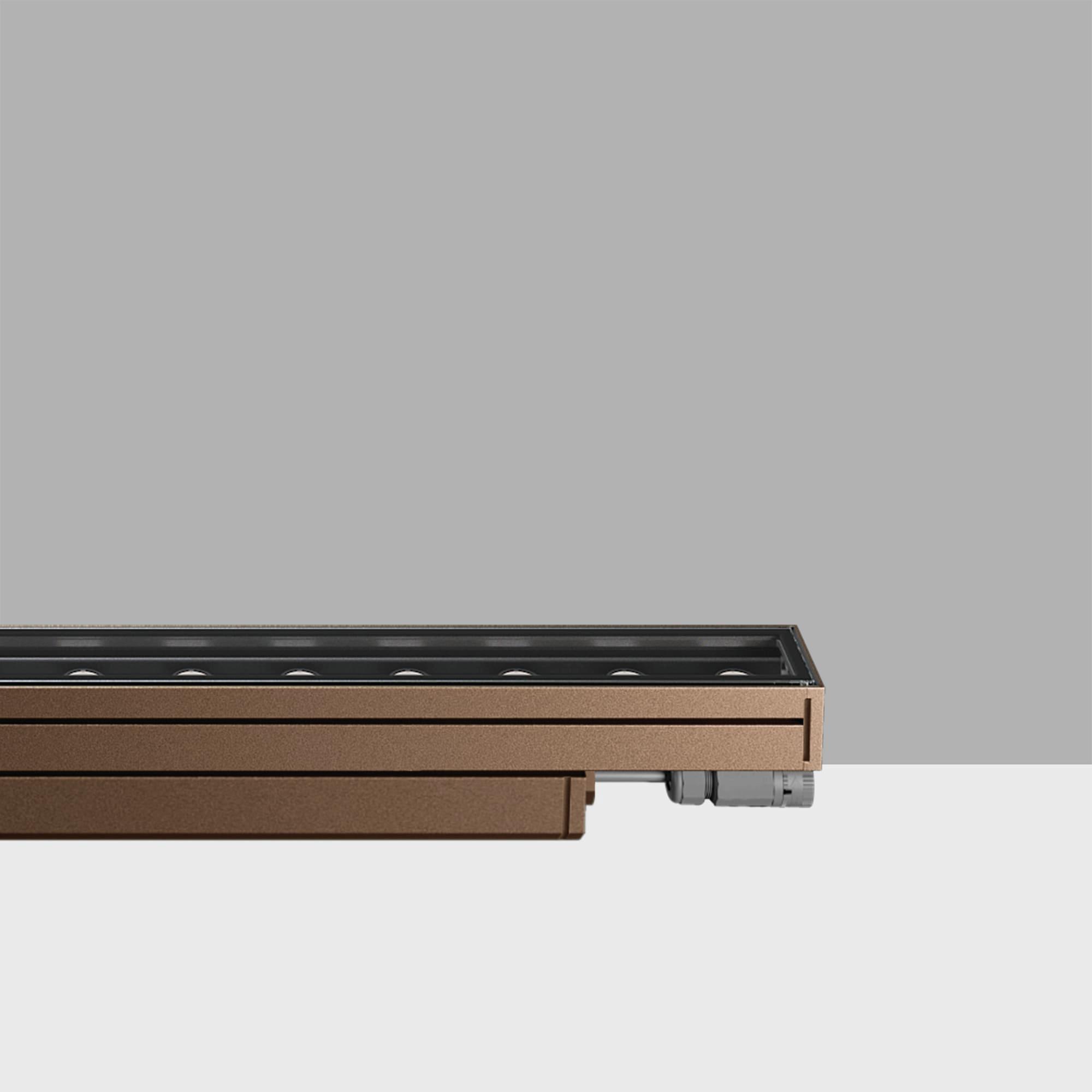

ALLOWANCE FOR INGROUND LIGHT FOR SCULPTURE
ALLOWANCE FOR SEATING AREA, FLEX NEON

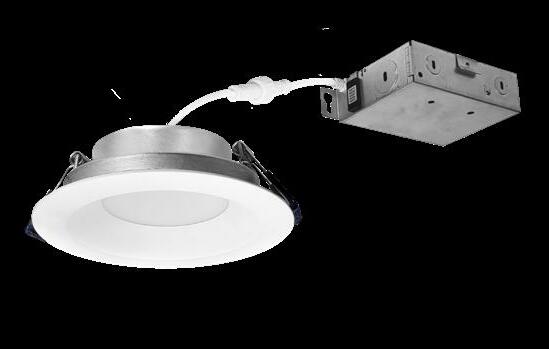

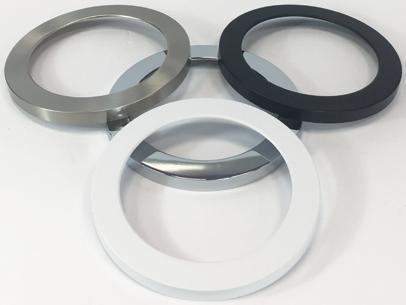

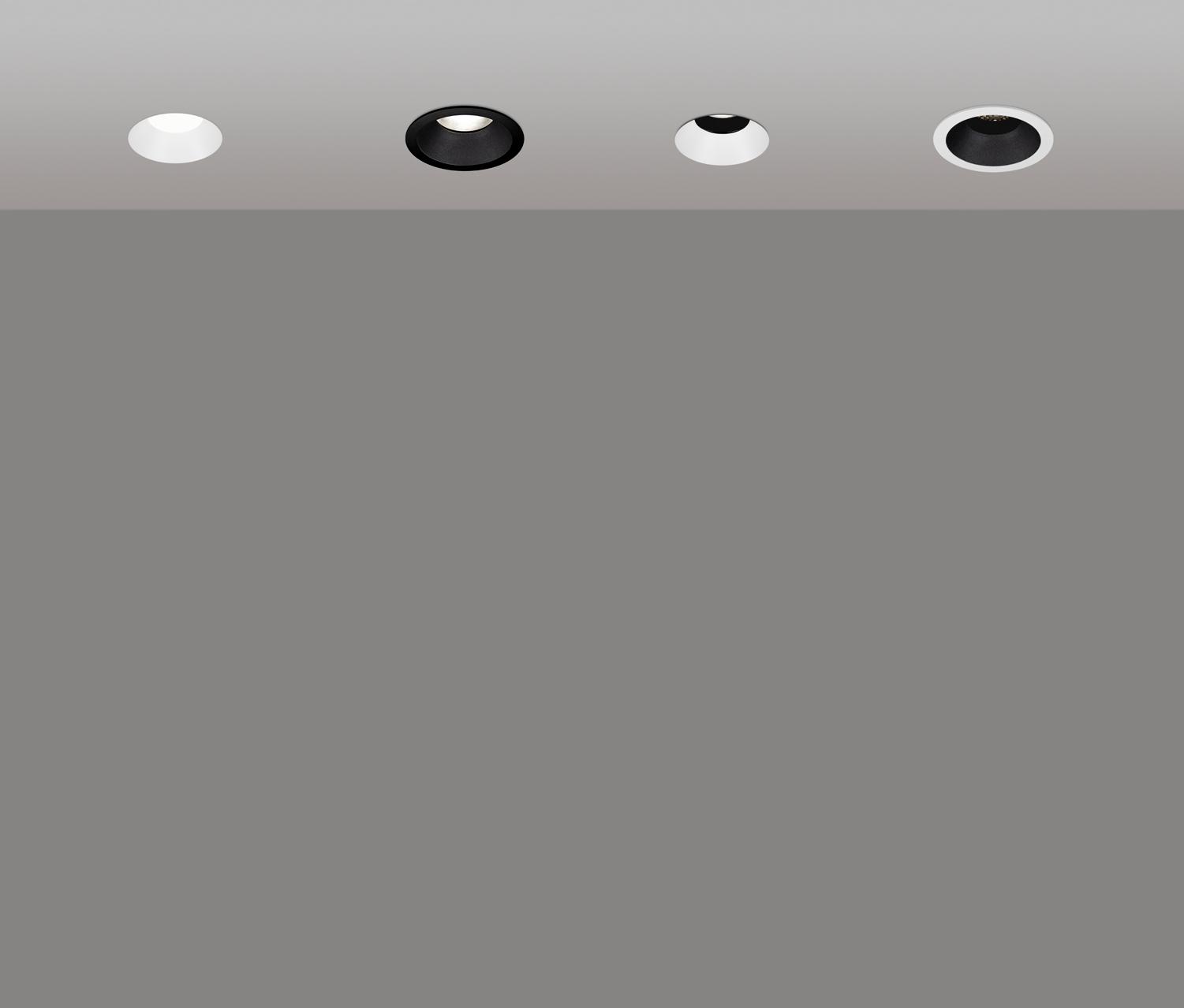

ECANA 3" DOWNLIGHT
ROUND RECESSED

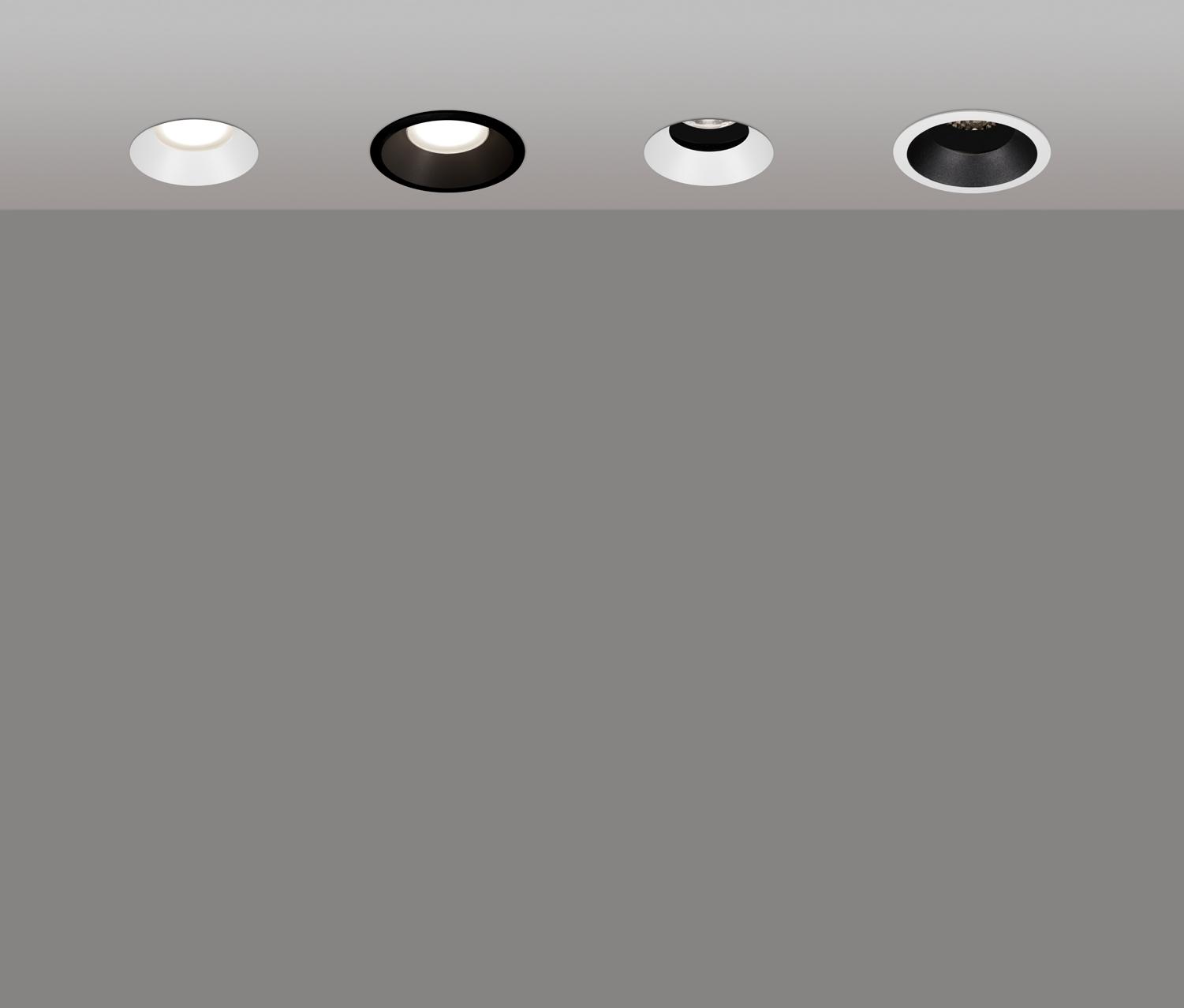

The Ecana downlight family is designed as round or square fixtures with simple detailing, available in 3", 4", and 6" sizes. The family includes fixed, adjustable, and wall wash configurations and blends effortlessly into various settings, enriching small and large-scale projects with practical, cost-effective, and finely tuned lighting.
Plenum Clearance
As low as 4"
Performance
Light Source
Static White SOLA - Dim-to-Warm DUO - Tunable White
Ceiling Types
DrywallMillworkAcoustic Tile
Beam Angles
ROCHE BOBOIS
NIOB-2RNDC
2" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
LSDL - Soft diffused lens, Solite LFDL - Frosted diffused lens LS - Linear spread HEX 24 - Hex louver NA - None SDL - Soft diffused lens, Solite
22 If two options are specified, separate codes with a "+", e.g. LSDL+LS.
23 LSDL and LFDL cannot be combined. LS and HEX cannot be combined. 24
25 For remodel (RM) installation type, TLMW adapter must be installed from above the ceiling or before ceiling is installed. At baffle (choose 1 option)
- None 26 Must be specified with the flanged trim (TRM), and either SDL, FDL, or CL lens options.
ROCHE BOBOIS
2" Iolite Accessories
2" Iolite Round Reflector with Round Aperture
FIELD CHANGEABLE OPTICS
Type Project Catalog No.
Notes
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted optics are available. Note: Frosted optics and Premium TIR optics are not compatible with /HL LED modules.

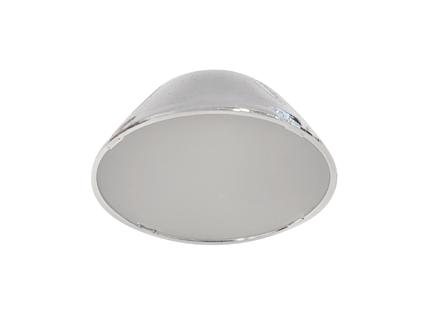

Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
ACCESSORIES
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.

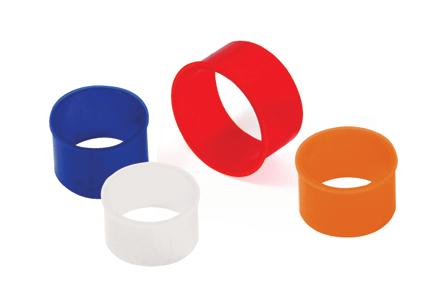

Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
FLUSH MOUNT

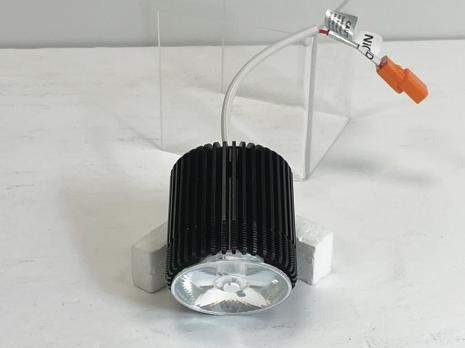

10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
2" Iolite trims can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.

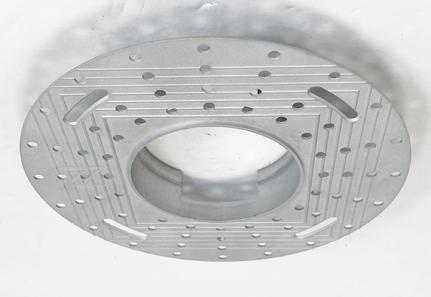

Flush Mount Mud Ring
NIO-FMMR-2R Round Mud Ring
Mounts trim flush to ceiling with flange visible. Mud ring attaches to drywall. Only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIOB-2R trims. Dimensions: 7-7/8" diameter 1/2" thick
The Ecana downlight family is designed as round or square fixtures with simple detailing, available in 3", 4", and 6" sizes. The family includes fixed, adjustable, and wall wash configurations and blends effortlessly into various settings, enriching small and large-scale projects with practical, cost-effective, and finely tuned lighting.
Plenum Clearance
As low as 4"
Performance
Light Source
Static White SOLA - Dim-to-Warm DUO - Tunable White
Ceiling Types
DrywallMillworkAcoustic Tile
Angles
ROCHE BOBOIS
NIOB-2RNDC
2" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
LSDL - Soft diffused lens, Solite LFDL - Frosted diffused lens LS - Linear spread HEX 24 - Hex louver NA - None SDL - Soft diffused lens, Solite
22 If two options are specified, separate codes with a "+", e.g. LSDL+LS.
23 LSDL and LFDL cannot be combined. LS and HEX cannot be combined. 24
25 For remodel (RM) installation type, TLMW adapter must be installed from above the ceiling or before ceiling is installed. At baffle (choose 1 option)
- None
26 Must be specified with the flanged trim (TRM), and either SDL, FDL, or CL lens options.
2" Iolite Accessories
2" Iolite Round Reflector with Round Aperture
FIELD CHANGEABLE OPTICS
Type Project Catalog No.
Notes
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted optics are available. Note: Frosted optics and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
ACCESSORIES
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
FLUSH MOUNT
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
2" Iolite trims can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Flush Mount Mud Ring
NIO-FMMR-2R Round Mud Ring
Mounts trim flush to ceiling with flange visible. Mud ring attaches to drywall. Only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIOB-2R trims. Dimensions: 7-7/8" diameter 1/2" thick
2" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+ CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty RoHS Compliant Certified to the high efficacy requirements of California Title 24 JA8-2022
The Ecana downlight family is designed as round or square fixtures with simple detailing, available in 3", 4", and 6" sizes. The family includes fixed, adjustable, and wall wash configurations and blends effortlessly into various settings, enriching small and large-scale projects with practical, cost-effective, and finely tuned lighting.
Plenum Clearance
As low as 4"
Performance
Light Source
Static White SOLA - Dim-to-Warm DUO - Tunable White
Ceiling Types
DrywallMillworkAcoustic Tile
Angles
NIOB-2RG
2" Iolite Round Adjustable Gimbal
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Die-cast adjustable surface gimbals adjust to aim the light source in desired direction.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing s only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
LSDL - Soft diffused lens, Solite LFDL - Frosted diffused lens LS - Linear spread HEX 24 - Hex louver NA - None SDL - Soft diffused lens, Solite
22 If two options are specified, separate codes with a "+", e.g. LSDL+LS.
23 LSDL and LFDL cannot be combined. LS and HEX cannot be combined. 24
25 For remodel (RM) installation type, TLMW adapter must be installed from above the ceiling or before ceiling is installed. At baffle (choose 1 option)
- None
26 Must be specified with the flanged trim (TRM), and either SDL, FDL, or CL lens options.
ROCHE BOBOIS
2" Iolite Accessories
2" Iolite Round Adjustable Gimbal
FIELD CHANGEABLE OPTICS
Notes
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted optics are available. Note: Frosted optics and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
ACCESSORIES
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
FLUSH MOUNT
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
Black
2" Iolite trims can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Flush Mount Mud Ring
NIO-FMMR-2R Round Mud Ring
Mounts trim flush to ceiling with reflector flange visible. Mud ring attaches to drywall. Requires and only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIOB-2R trims. Dimensions: 7-7/8" diameter 1/2" thick
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com
nora@noralighting.com
to change without notice.
NIO-HC
ECANA 4" DOWNLIGHT
ROUND RECESSED
The Ecana downlight family is designed as round or square fixtures with simple detailing, available in 3", 4", and 6" sizes. The family includes fixed, adjustable, and wall wash configurations and blends effortlessly into various settings, enriching small and large-scale projects with practical, cost-effective, and finely tuned lighting.
Plenum Clearance
As low as 4 1/8"
Performance
Light Source
Static White
SOLA - Dim-to-Warm DUO - Tunable White
Ceiling Types
DrywallMillworkAcoustic Tile
ROCHE BOBOIS TYPE
NIO-4RNDC
4" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
= Comfort Dim †
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
e-mail:

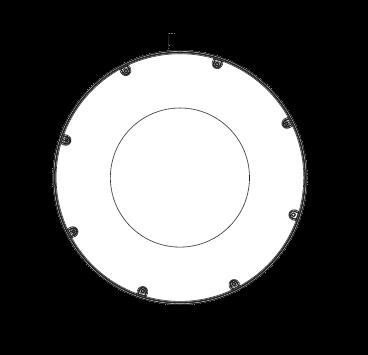

PRODUCT IMAGES & DIMENSIONS
NIO-4RNDC
Compatible Housings
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
16 A remote driver box is provided, see page 3 for details.
17 Available with 120V only.
18 On-site commissioning is required.
19 Not available with 28 W output.
20 For emergency battery, code will be like the following example: RD1+EB
26 If two options are specified, separate codes with
e.g.
27 LSDL and LFDL cannot be
LS and HEX cannot be combined.
28 Not available with 80°/90° beam options.
LSDL or LFDL
23
4" Iolite Accessories
4" Iolite Round Reflector with Round Aperture
FIELD CHANGEABLE OPTICS
Type Project
Catalog No.
Notes
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted and TIR optics are also available.
Note: Frosted and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
ACCESSORIES
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Trim
FLUSH MOUNT
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Hex Cell Louver
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
4" Iolite trims can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Flush Mount Mud Ring
NIO-FMMR-4R Round Mud Ring
Mounts reflector flush to ceiling with flange visible. Mud ring attaches to drywall. Only for use with NHIOICD-48 or NHIOICDCP-48 new construction housings and NIO-4R trims. Dimensions: 7-7/8" diameter 1/2" thick
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com
The Ecana downlight family is designed as round or square fixtures with simple detailing, available in 3", 4", and 6" sizes. The family includes fixed, adjustable, and wall wash configurations and blends effortlessly into various settings, enriching small and large-scale projects with practical, cost-effective, and finely tuned lighting.
Plenum Clearance
As low as 4 1/8"
Performance
Light Source
Static White
SOLA - Dim-to-Warm DUO - Tunable White
Ceiling Types
DrywallMillworkAcoustic Tile
ROCHE BOBOIS TYPE
NIO-4RNDC
4" Iolite Round Reflector with Round Aperture
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations 5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
= Comfort Dim †
* 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm only and 1" Iolite uses a different dimming
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com
e-mail:
PRODUCT IMAGES & DIMENSIONS
NIO-4RNDC
Compatible Housings
NHIOICD-48 = ICAT New Construction / 800-1000lm / 14W
16 A remote driver box is provided, see page 3 for details.
17 Available with 120V only.
18 On-site commissioning is required.
19 Not available with 28 W output.
20 For emergency battery, code will be like the following example: RD1+EB
26 If two options are specified, separate codes with
e.g.
27 LSDL and LFDL cannot be
LS and HEX cannot be combined.
28 Not available with 80°/90° beam options.
LSDL or LFDL
ROCHE BOBOIS TYPE
4" Iolite Accessories
4" Iolite Round Reflector with Round Aperture
FIELD CHANGEABLE OPTICS
Type Project
Catalog No.
Notes
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted and TIR optics are also available.
Note: Frosted and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
ACCESSORIES
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Trim
FLUSH MOUNT
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Hex Cell Louver
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
4" Iolite trims can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Flush Mount Mud Ring
NIO-FMMR-4R Round Mud Ring
Mounts reflector flush to ceiling with flange visible. Mud ring attaches to drywall. Only for use with NHIOICD-48 or NHIOICDCP-48 new construction housings and NIO-4R trims. Dimensions: 7-7/8" diameter 1/2" thick
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com

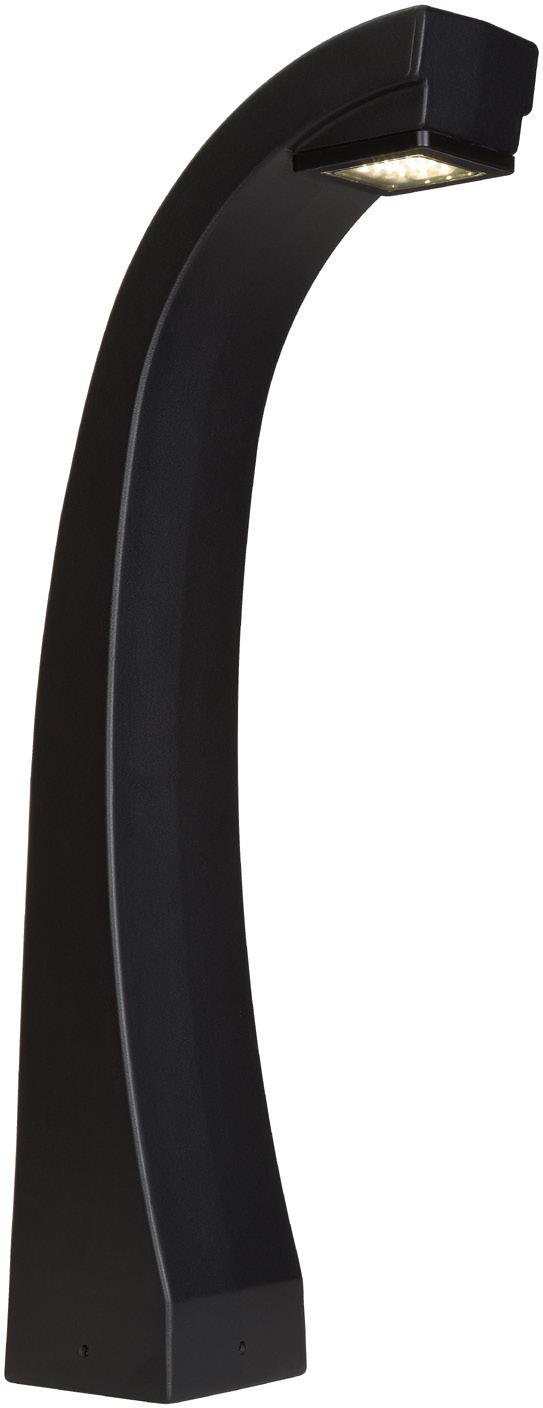

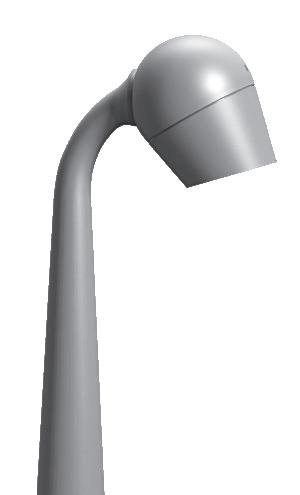

The Eco-Revolution nautically inspired ECB9Q Curve Bollard provides pedestrian and parking area lighting with a seaside flair. The specially designed UV-stabilized polycarbonate optics offer full-cutoff, excellently controlled uniform lighting designed to replace HID lighting systems up to 70w MH or HPS. These fixtures are ideal for a wide range of applications including parking areas, walkways and landscape accents.
Housing:
Listing & Ratings:
Finish:
Durable One-Piece Sand Cast Aluminum Housing Features ½" Thick Walls. Includes Flush Mounting Base & Vandal-Resistant Screws, Internal Driver Tray for Easy Maintenance.
ETL: Listed for Wet Locations, ANSI/UL 1598, 8750 IP65
Textured Architectural Bronze or Black Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Options: Mounting Kit with 8 Zinc-Plated Anchor Bolts, Included.
ThermaLED LED: Aluminum Boards
Wattage:
Driver:
12w: Array 12w, System 13.6w; 18w: Array 18.2w, System 20.4w
Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Warranty: 5-Year Warranty for -40°C to +50°C Environment.
See Page 3 for Projected Lumen Maintenance Table.
BLANK
ECBREBASE* Bollard Retrofit Base Kit Adapts New Bollards to Most Existing Bolt Patterns. Fits all Eco-Revolution Bollards. Die Cast with Powdercoat Finish, Hardware Included. 11½ Dia. x 1½ H
ECB9QC1X18U5K Grid in feet, Mounting Height = 3 ft.
ECB9LFB Lens Frame, Black Finish ECBOADP1 Adapter Plate with Gaskets for Outlet Boxes. Fits Eco-Revolution Round Bollards. Die Cast with Bronze Powdercoat Finish.
ECANA 4" DOWNLIGHT
ROUND RECESSED
The Ecana downlight family is designed as round or square fixtures with simple detailing, available in 3", 4", and 6" sizes. The family includes fixed, adjustable, and wall wash configurations and blends effortlessly into various settings, enriching small and large-scale projects with practical, cost-effective, and finely tuned lighting.
Plenum Clearance
As low as 4 1/8"
Performance
Light Source
Static White
SOLA - Dim-to-Warm DUO - Tunable White
Ceiling Types
DrywallMillworkAcoustic Tile
ROCHE BOBOIS
NIO-4RD
4" Iolite Round Deep Adjustable Reflector
Source: 14W to 24W LED 800lm to 2000lm
PRODUCT DESCRIPTION
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Die-cast adjustable reflectors optimize visual cut-off and adjustable to aim the light source in desired direction.
FEATURES
· 800lm, 1000lm, 1500lm or 2000lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2000lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48
ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.

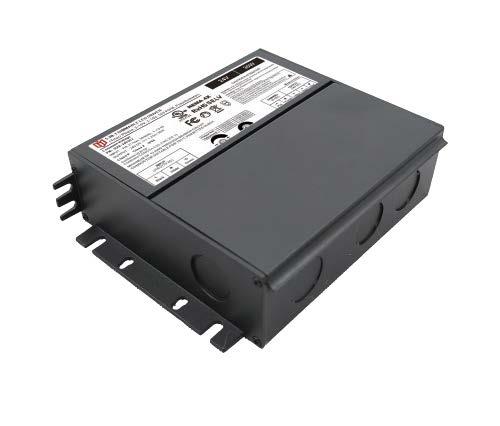

16 A remote driver box is provided, see page 3 for details.
17 Available with 120V only.
18 On-site commissioning is required.
19 Not available with 28 W output.
20 For emergency battery, code will be like the following example: RD1+EB
26 If two options are specified, separate codes with
e.g. LSDL+LS. 27 LSDL and LFDL cannot be combined. LS and HEX cannot be combined.
28 Not available with 80°/90° beam options.
LSDL or LFDL
23
ROCHE BOBOIS
4" Iolite Accessories
FIELD CHANGEABLE OPTICS
Notes
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted and TIR optics are also available.
Note: Frosted and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
ACCESSORIES
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
FLUSH MOUNT
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
4" Iolite trims can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Flush Mount Mud Ring
NIO-FMMR-4R Round Mud Ring
Mounts reflector flush to ceiling with flange visible. Mud ring attaches to drywall. Only for use with NHIOICD-48 or NHIOICDCP-48 new construction housings and NIO-4R trims. Dimensions: 7-7/8" diameter 1/2" thick
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com
4" Iolite LED downlights require a dedicated Iolite new construction or remodel housing. Die-cast adjustable reflectors optimize visual cut-off and adjustable to aim the light source in desired direction.
FEATURES
· 800lm, 1000lm, 1500lm or 2000lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2000lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48
ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHRIOIC-48 ICAT Remodel 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted and TIR optics are also available.
Note: Frosted and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
ACCESSORIES
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
FLUSH MOUNT
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
4" Iolite trims can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Flush Mount Mud Ring
NIO-FMMR-4R Round Mud Ring
Mounts reflector flush to ceiling with flange visible. Mud ring attaches to drywall. Only for use with NHIOICD-48 or NHIOICDCP-48 new construction housings and NIO-4R trims. Dimensions: 7-7/8" diameter 1/2" thick
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com
One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS: Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.

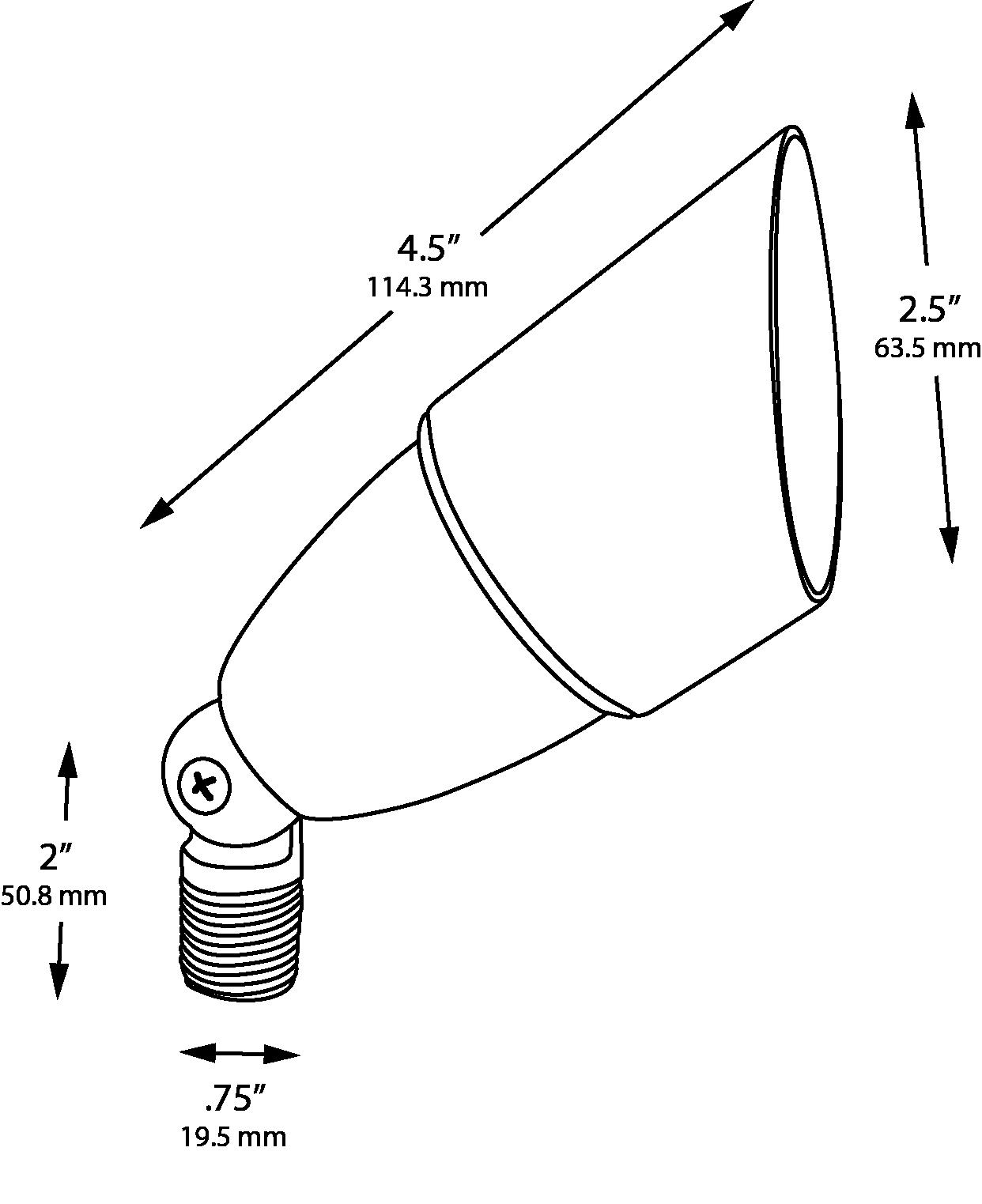

DIMENSIONS:
Type:
Model:

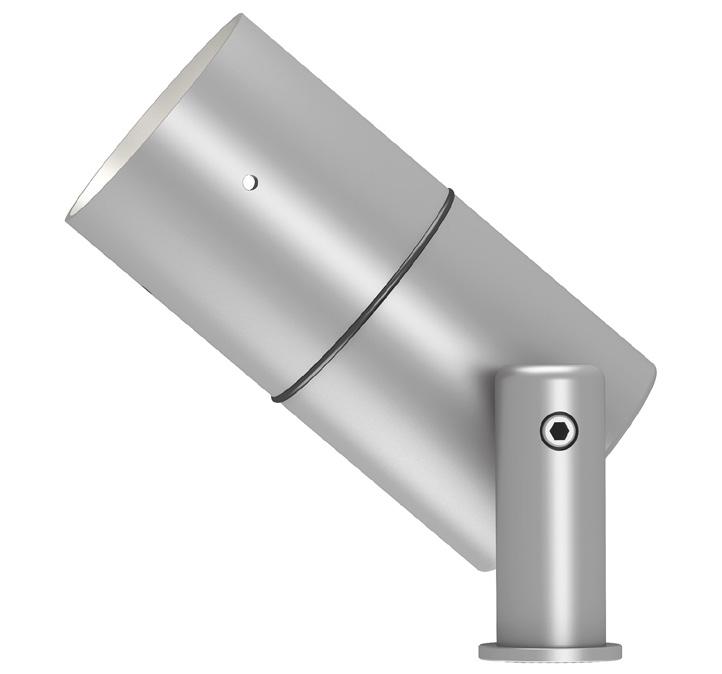

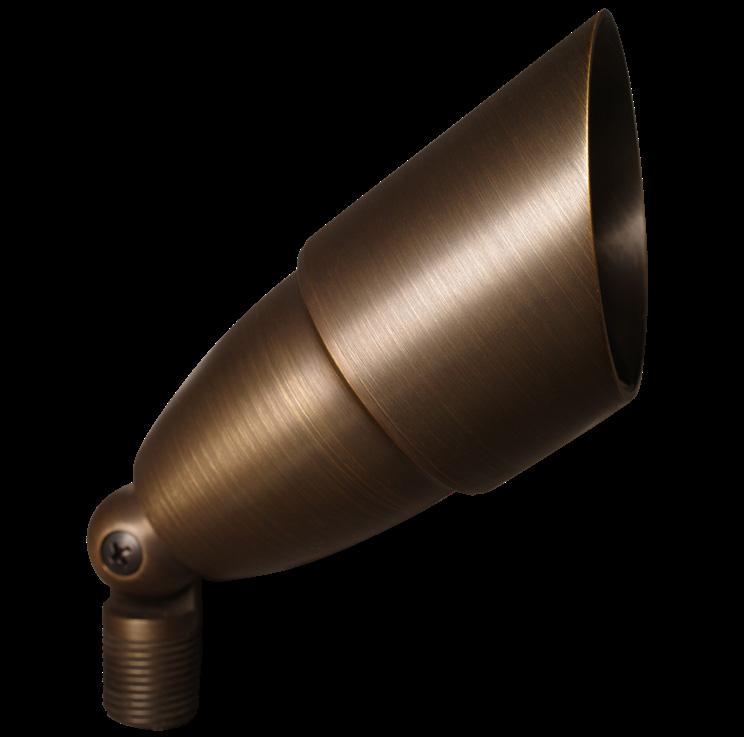

The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
TYPE EF SPEC ROCHE BOBOIS
Order Information
Optical Accessories - Order Separately
F71=Peach Dichroic
F72=Amber Dichroic
F73=Green Dichroic
F74=Medium
=Dark
=Light
Dichroic
=Neutral Density Dichroic F80=Magenta Dichroic
F22=Red Color
F33=Blue Color
F44=Green Color
F55=Yellow Color
F66=Mercury Vapor
=Linear Spread Lens (elongates standard beam spread)
=Diffused lens (provides even illumination)
=Overall Spread Lens (increases standard beam spread)
Mounting Accessories - Order Separately
GS01=1-1/2″x 6-3/4″ (38mm x 171mm) cast zinc ground spike
GS03=2-3/8″ x 6-5/8″ (960mm x 168mm) aluminum ground spike with integral 12V wiring compartment. Specify powder paint finish (BK,BZ,CS,VE,WT)
GS04=1″ x 16-1/2″ (25mm x 419mm) aluminum ground spike with integral 12V wiring compartment. Specify powder paint finish (BK,BZ,CS,VE,WT)
GS05=1″ x 16-1/2″ (48mm x 438mm) black polycarbonate ground spike with 2″-13″ height adjustment - requires fixture with extended stem.
GS08=1-7/8″ x 8″ (48mm x 203mm) black ABS ground spike
GS13=3-3/4″ x 4-1/2″ (95mm x 114mm) brass/stainless steel 3 prong ground spike
Notes
(4) Accessories sold separately will be separately analyzed under domestic preference requirements. Consult factory for further information
FS1=2-7/8″x 4-5/8″ (73mm x 117mm) rectagular wall plate or box cover with single 1/2 NPS mounting hole
FS2=2-7/8″x 4-5/8″ (73mm x 117mm) rectagular wall plate or box cover with dual 1/2 NPS mounting holes
RS1=4-1/2″ (144mm) machined aluminum standard round wall plate with single 1/2 NPS mounting hole
RS2=4-1/2″ (114mm) machined aluminum standard round wall plate with single 1/2 NPS mounting hole
TM01=2-3/16″ x 1-1/2″ (71mm x 38mm) round mount for installation on trees or other wood surfaces with 1/2 NPS mounting hole
TM05=3-7/8″ x 2″ (98mm x 51mm) rectangular tree/surface mount with wiring compartment and single 1/2 NPS mounting hole
Notes
TM04=2-1/2″ x 4-1/4″ (64mm x 108mm) expanding tree strap with self adjusting tension release for one fixture mount. Designed for a maximum tree diameter of 24″ (610mm)
TM04-2=two fixture mount
TM04-3=three fixture mount
TM04-4=four fixture mount
TR07=tree friendly ring with adjustable stand-offs. Accomidates 18″-24″ (457mm - 610mm) tree diameter
TR07-2=two fixture mount
TR07-3=three fixture mount
TR07-4=four fixture mount
TR07-6=six fixture mount
Notes
(5) Available in galvanized stainless steel finish only
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 60°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
SPECIFICATION SHEET Page 2 MIGHTY MIGHT LED Uplight Fixture
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 490003-4W-25-2700K-MS-R2
490003-FS (floating socket)
490003-FS-BLK (floating socket)
stake (incl.) 490034
Trident Heavy-Duty 3-Prong Stake 490036 PM Round pier mount 490057
Round tapered 3-hole surface mount 490048
PVC/Brass post stake 490037
Brass gutter mount 490047
Prepared by Notes
Interactive Menu
• Order Information page 2
• Product Specifications page 3
• Cambria 203 LED Photometric Data page 4
• Cambria 203 MR16 Halogen Photometric Data page 5
One fixed ceramic bi-pin socket accepts bi-pin lamps with G4, GU5.3 or GY6.35 base.
LENS: Clear tempered glass.
LAMP TYPE:
12V MR16. LED recommended. 30W halogen or 7W LED maximum.
MOUNTING:
Stem threaded with 1/2” NPT. Heavy-duty composite stake included.
WIRING:
Pre-wired with 5' pigtail of 18/2 cable.
WARRANTY: Lifetime.
DIMENSIONS:
Type:
Model:
The Mighty Might uplight features a shroud with O-rings for long-lasting protection. Mounting options are plentiful. Dozens of MR16 LED lamp choices available.
TYPE EFT SPEC ROCHE BOBOIS
Order Information
Optical Accessories - Order Separately
F71=Peach Dichroic
F72=Amber Dichroic
F73=Green Dichroic
F74=Medium
=Dark
=Linear Spread Lens (elongates standard beam spread)
=Diffused lens (provides even illumination)
=Overall Spread Lens (increases standard beam spread)
Dichroic
=Neutral Density Dichroic F80=Magenta Dichroic
F22=Red Color
F33=Blue Color
F44=Green Color
F55=Yellow Color
F66=Mercury Vapor
Mounting Accessories - Order Separately
GS01=1-1/2″x 6-3/4″ (38mm x 171mm) cast zinc ground spike
GS03=2-3/8″ x 6-5/8″ (960mm x 168mm) aluminum ground spike with integral 12V wiring compartment. Specify powder paint finish (BK,BZ,CS,VE,WT)
GS04=1″ x 16-1/2″ (25mm x 419mm) aluminum ground spike with integral 12V wiring compartment. Specify powder paint finish (BK,BZ,CS,VE,WT)
GS05=1″ x 16-1/2″ (48mm x 438mm) black polycarbonate ground spike with 2″-13″ height adjustment - requires fixture with extended stem.
GS08=1-7/8″ x 8″ (48mm x 203mm) black ABS ground spike
GS13=3-3/4″ x 4-1/2″ (95mm x 114mm) brass/stainless steel 3 prong ground spike
Notes
(4) Accessories sold separately will be separately analyzed under domestic preference requirements. Consult factory for further information
FS1=2-7/8″x 4-5/8″ (73mm x 117mm) rectagular wall plate or box cover with single 1/2 NPS mounting hole
FS2=2-7/8″x 4-5/8″ (73mm x 117mm) rectagular wall plate or box cover with dual 1/2 NPS mounting holes
RS1=4-1/2″ (144mm) machined aluminum standard round wall plate with single 1/2 NPS mounting hole
RS2=4-1/2″ (114mm) machined aluminum standard round wall plate with single 1/2 NPS mounting hole
TM01=2-3/16″ x 1-1/2″ (71mm x 38mm) round mount for installation on trees or other wood surfaces with 1/2 NPS mounting hole
TM05=3-7/8″ x 2″ (98mm x 51mm) rectangular tree/surface mount with wiring compartment and single 1/2 NPS mounting hole
Notes
TM04=2-1/2″ x 4-1/4″ (64mm x 108mm) expanding tree strap with self adjusting tension release for one fixture mount. Designed for a maximum tree diameter of 24″ (610mm)
TM04-2=two fixture mount
TM04-3=three fixture mount
TM04-4=four fixture mount
TR07=tree friendly ring with adjustable stand-offs. Accomidates 18″-24″ (457mm - 610mm) tree diameter
TR07-2=two fixture mount
TR07-3=three fixture mount
TR07-4=four fixture mount
TR07-6=six fixture mount
Notes
(5) Available in galvanized stainless steel finish only
LED LAMP SPECIFICATIONS
LAMP TYPE:
12V Dauer MR16 lamp with 5-year warranty, dimmable, and suitable for enclosed luminaires.
OPTICS:
Integral optics providing available beam spreads from 15° to 60°.
COLOR TEMPERATURES:
Color temperature options provide the following qualities: 2700K or 3000K. Decorative color light options include amber, blue, green, red and purple.
SPECIFICATION SHEET Page 2 MIGHTY MIGHT LED Uplight Fixture
FIXTURE ORDERING INFORMATION
To order a lamped fixture with mounting options, select the appropriate choice from each column as in the following example:
EXAMPLE: 490003-4W-25-2700K-MS-R2
490003-FS (floating socket)
490003-FS-BLK (floating socket)
stake (incl.) 490034
Trident Heavy-Duty 3-Prong Stake 490036 PM Round pier mount 490057 MR Round tapered 3-hole surface mount 490048
PVC/Brass post stake 490037
Brass gutter mount 490047
TYPE EG SPEC ROCHE BOBOIS
IG Series

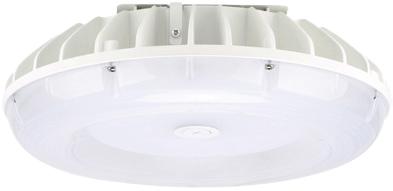

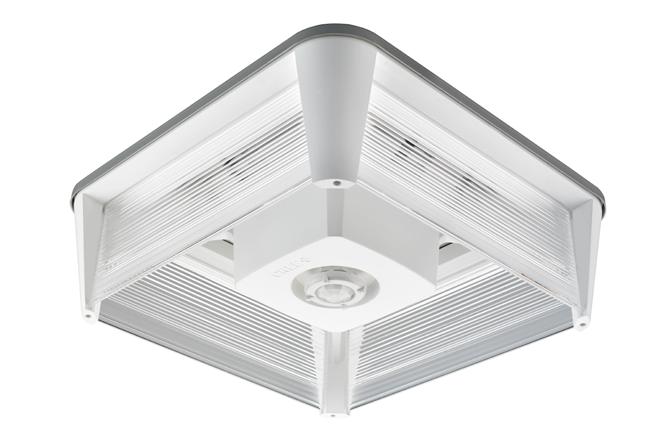

IG™ LED Parking Garage Luminaire
Product Description
Cree Lighting innovates again to reset the performance benchmark in parking garage applications with the IG Series featuring WaveMax® Technology, our innovative optical waveguide platform. Available in 33-100 watt, four lumen packages are offered to satisfy IES RP-8-21 and IES Security Zone G-1-03 requirements for environments seeking higher light levels for improved safety and security. The streamlined design breaks away from dated traditional designs, blending form and function, to deliver superior low-glare illumination.
For enhanced performance and versatility, a range of optional integrated lighting controllers bring advanced capabilities and energy savings to the IG Series. From the stand-alone multi-level (BML) option to the Synapse® wireless control options, the IG Series provides the features and flexibility designed to meet the needs of today's most demanding parking garage applications.
Applications: Parking garages
Performance Summary
Utilizes WaveMax® Technology
Initial Delivered Lumens: 3,860 - 12,525 lumens
Input Power: 33 - 100 watts
Efficacy: Up to 136 LPW
Optic: Type V Short Distribution
Assembled in the USA by Cree Lighting from US and imported parts
CCT: 3000K, 3500K, 4000K, 5700K
CRI: Minimum 80 CRI
Limited Warranty†: 10 years for luminaire; 5 years for BML option; up to 5 years for Synapse® accessories; 1 year for luminaire accessories
† See https://www.creelighting.com/resources/warranties/ for warranty terms. For Synapse accessories, consult Synapse spec sheets for details on warranty terms.
Ordering Information
Fully assembled luminaire is composed of two components that must be ordered separately:

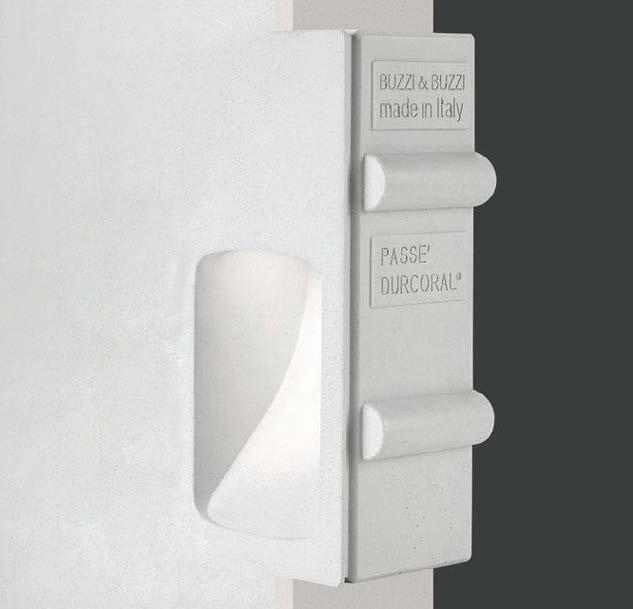

The Passé IP65 is a recessed wet label wall or ceiling mounted fixture made of DurCoral® which is perfect for path or wall lighting. It is unfinished for painting and available in white light with 70° wide beam optic.
TECHNICAL DATA
Wattage / Input 5W (500mA)
Power Supply Remote, not included. See page 2.
Construction Body: DurCoral®
CCT 3000K (2700K, 4000K on request)
CRI >90
Delivered Lumens 585 lm (3000K)
Efficacy 117 lm/W (3000K)
Optics 70°
Finishes DurCoral® - Unfinished
Cut-Out Dimensions 5.51” x 10.24”
Fixture Dimensions 5.12” w x 9.65” h
Aperture 3.15” x 5.12”
Fixture Weight 5.51 lbs
LED Source COB professional LED IP Rating IP65
The body is made of DurCoral®, a high-performance “hi-tech” material born from the union of Coral® and cement. It is an aggregate twice as hard as concrete, which allows very high performances in terms of quality, flow and resistance and that, above all, differs from other outdoor materials, for the possibility of being treated with any type of paint and finish. Distinguished by the ability to resist abrasion, insensitive to ultraviolet rays, pollution and atmospheric agents is certainly the ideal material to be placed outdoors.
ORDERING INFORMATION
Example: BU1508.30.DC.US. Power Supplies ordered separately.
BU1508 DC US
Model No. CCT Finish
BU150827 - 2700K DC - DurCoral® US
30 - 3000K
40 - 4000K
Job Name/Date: Fixture Type Designation:
DATE:
PROJECT:
FIRM:
CATALOG NO: COMMENTS:

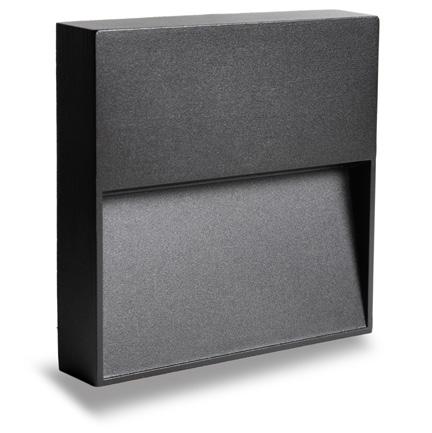

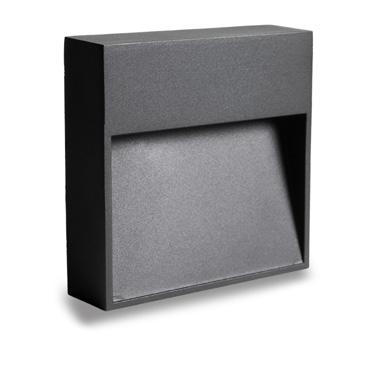

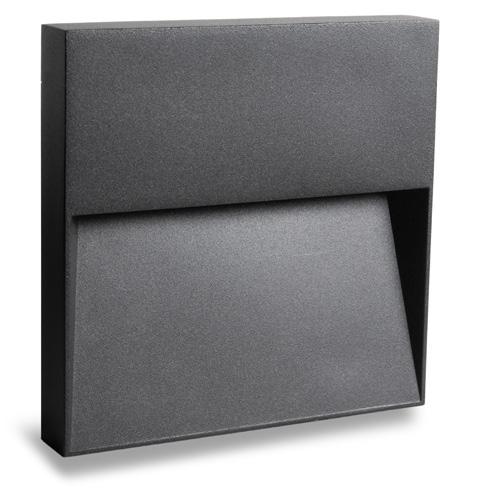

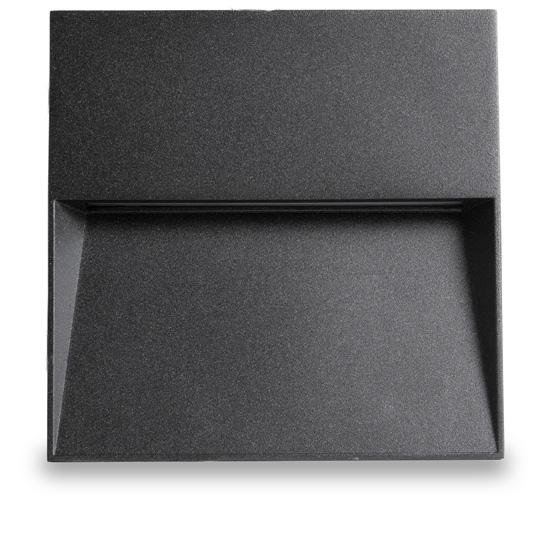

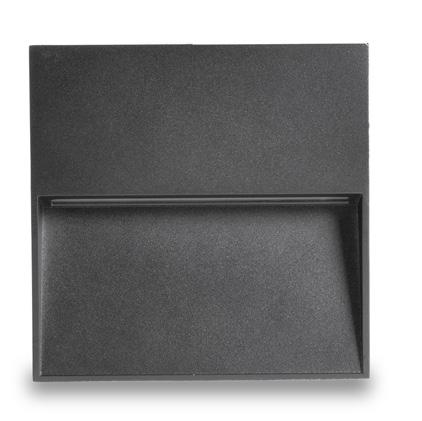

STEP LIGHT SLS1000
The SLS Series luminaires from Lumux are elegant architectural step lights, precision engineered for durability and performance.
SLS1000 is a low glare step light with a distinctively modern, minimalist design. Ideal for illuminating steps, facades, and walls along access ways, SLS Series step lights are powerful ADA LED solutions, energy-efficient for long-lasting indoor and outdoor applications, with field-selectable color temperature.
SLS1000 Series luminaires feature a durable powder coated diecast aluminum housing retaining an impact-resistant glass diffuser, with an integrated glare-hood to shield the light source.
BLANK
DATE:
PROJECT:
FIRM:
CATALOG NO: COMMENTS:
STEP LIGHT SLS1000
SLS1000 is an elegant ADA step and wall light with a modern design and recessed glare-hood, perfect for campus, resort & residential use.
Ordering Guide
1Consult factory for additional options
2Consult factory for additional pricing
Performance Specifications
SLS1000-8: 13W, Flux: 525 lm, LER: 41 lm/W
SLS1000-6: 8W, Flux: 225 lm, LER: 28 lm/W
SLS1000-4: 4W, Flux: 150 lm, LER: 40 lm/W
Integrated 0-10v Dimming 120-277v input voltage
Catalog No.:
Lumen Maintenance*: Osram Duris S 5 Starting temp. rated to -20˚F
Environmental Specifications
SLS1000-8 BUG rating: B0-U0-G1 SLS1000-8 Dark Sky Compliant
CRI 80; Field-selectable CCT: 3000K, 4000K, 5000K
IP65
ETL listed for wet-locations
Effective Projected Area < 1 sq.ft. Marine Grade option
5-year limited warranty Made in the USA
Delivered Lumens & Wattage per color temperature:
Dimensions
*Lumen Maintenance Report: Osram Duris S 5
For higher lumen packages, please consult the Lumux sales team.
Light Engine: Constant current driver with integrated 0-10v dimming, powering high quality LEDs, with field-selectable color temperature.
Housing: The SLS1000 Series features a powder coated housing surface mounted to a standard junction box (not provided) with vandal-resistant stainless steel screws.
Gasket: Closed-cell silicone foam gasket that seals out moisture, dust, and insects, for weather tight operation.
Mounting: Surface-mounted with mounting bracket to standard 3" or 4" junction box.
Installation: Please refer to installation instructions.
Finish: Zinc-polyester powder coat finish in black, white, silver, bronze, or any custom RAL color. Consult factory for marine grade or anti-microbial finish.
7803 Industry Ave, Pico Rivera, CA 90660 sales@lumux.com
Content of specification sheet subject to change
SLS1000-8
SLS1000-6
SLS1000-4
TYPE GA SPEC ROCHE
BRIGHT 3.F
The Bright 3.F is a small, powerful IP69K outdoor recessed fixture. It is available in white light with 7 different optics options and can be installed in-grade, wall or ceiling mount. Not suitable for use in swimming pools or fountains. Drive-over rated up to 11,000 lbs. The Bright 3, Smoothy 5 and Litus 5 series all use the same LED.
TECHNICAL DATA
Wattage / Input 10W, 13W (24VDC)
Power Supply Remote, not included. See page 2.
Construction Body: Anodized Aluminum EN AW 6082
Trim: AISI 316L Stainless Steel Lens: Tempered Serigraphed-Gray and Transparent Extra-Clear Glass Cable Length: 4.92’ standard
CCT 2700K, 3000K, 4000K
CRI >80, >90
BUG Rating
B0-U3-G0 (3000K, 10W, P)
B0-U4-G0 (3000K, 10W, S, M, L, K, W, D)
B0-U4-G0 (3000K, 13W, S, M, P, W, D)
B0-U5-G0 (3000K 13W, L, K)
Delivered Lumens See Delivered Lumens Chart
Efficacy
84.5-75.9 lm/W (10W), 86.5 lm/W-70.1 (13W)
Optics 7 Standard (see below)
Finishes Stainless Steel
Fixture Dimensions Ø4.41” x 2.95” h
Cut-out Size Ø3.78” (for ceiling or wall installations)
Fixture Weight 1.72 lbs
LED Source 1 COB LED High Density
Lumen Maintenance L95, B10 >50,000hrs (Ta 25°C)
Color Consistency 3-Step MacAdam
Operating Temp. -4°F to +113°F
IP Rating IP68, IP69 (Tested to EN / IEC 60598-1)
IK Rating IK10
ORDERING INFORMATION
Lumens (3000K, 55°)
Example: CB3F001000F0MI or CB3F001000F0MI-1. Accessories / Power Supplies ordered separately.
Honeycomb Louvre only available with 16°, 21°, 38°, 55° optics Not available with diffuse optics or compatible with honeycomb louvre.
020 - None - Diffuse
Job Name/Date:
GRAND INGROUND 120V
PRODUCT DESCRIPTION
Landscape high output In-ground luminaire with dynamic beam changing and integral on-board dimming.
FEATURES
• Tiltable and adjustable beam angle
• Integral dimmer
• IP67 rated, protected from temporary immersion under water
• Drive over up to 4500lbs
• Solid diecast brass or corrosion resistant aluminum
• Available concrete pour kit
• 6’ lead wire and direct burial gel filled wire nuts included
• Maintains constant lumen output against voltage drop
• UL 1598 Listed
ORDERING NUMBER
5034-30____
Example: 5034-30BBR
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFICATIONS
Input:
IEC safety Standard Walk over Drive over Resistance to static load test Yes (1125lbs) Yes (4496lbs) Resistance to torque and shear loads test N/A Yes
SUGGESTED POWER SUPPLIES
Suggested Lutron Compatible
DRIVERS IN NEMA ENCLOSURE
Remote 24VDC - ELV / TRIAC / 0-10V
For other power supply options consult factory.
Job Name/Date:
PPLT00715
ROCHE BOBOIS
GRAND INGROUND 120V
Rock Guard
Protects the fixture face
5830-GRD-BZ
5830-GRD-BBR
Concrete Pour Kit
For installation in concrete Five 2” NPt threaded holes, PC

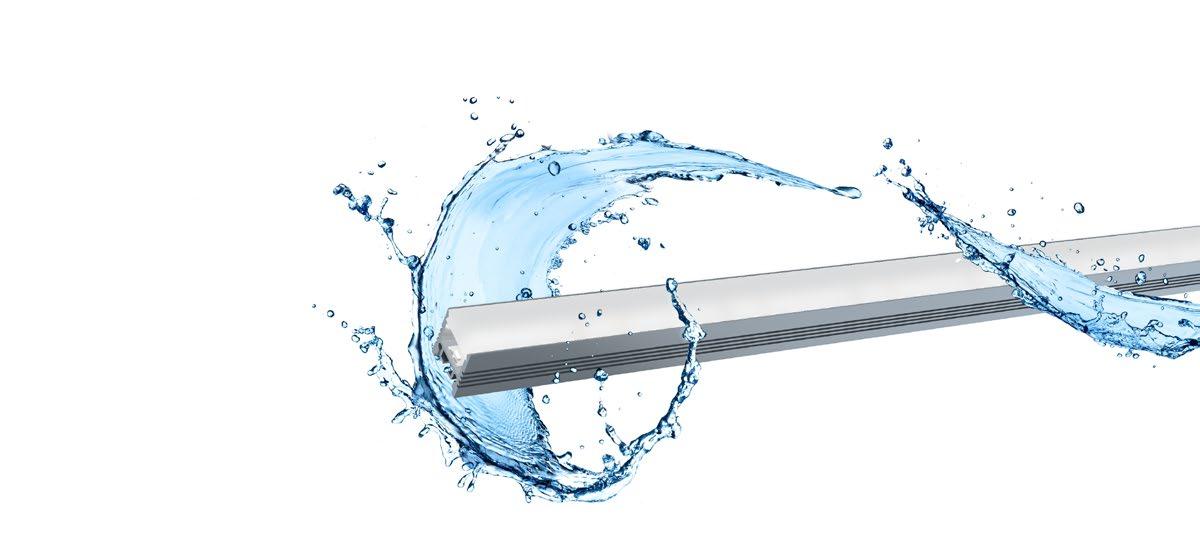

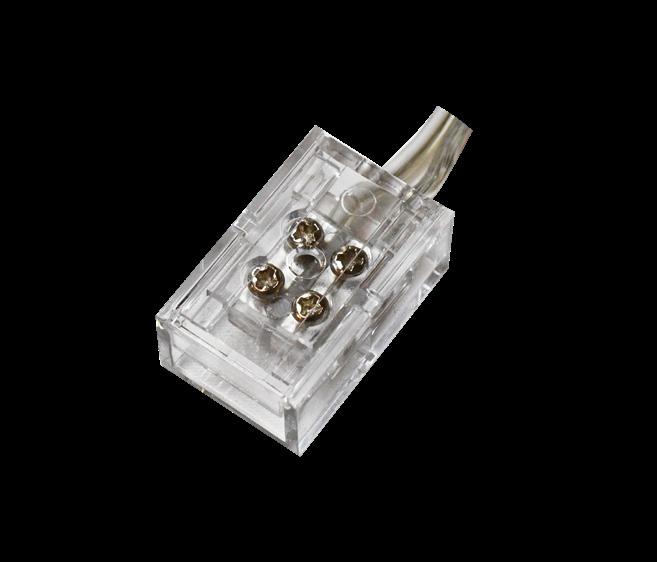

GM’s Professional Outdoor Series Flexible LED Tape combines style and technology with reliability for wet location. Designed for professional installations that demand a high level of quality, the LTR-P Series boasts a wide array of key features and is available in 16’-4” (5M), 98’-6” (30M) reels or custom cuts. Do not submerge in water.
FEATURES
• 24VDC
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K as well as Amber, Red, Green, Blue color temps
• Remote control with GM’s LUXcontrol™ App and controllers (requires NEMA box - by others)
• LM80 / IP65
• 120 LEDs per meter
• Cuttable every 2”
• Wet location
• Optical clear UV protected silicone sheath
• Premium diodes
• 120° viewing angle
• Dimmable
• Maximum run on a given lead is 60’ (1.5W), 32’-8” (3.0W), 16’-4” (5.8W)
SPECIFICATIONS
ELECTRICAL
•24V
•1.5W, 3W and 5.8 watts per foot
OPTICS
•90+ CRI
•-4°F to 122°F
• For proper thermal management, we recommend to mount this product in a channel
ORDERING INFORMATION
CERTIFICATION
•UL
•May comply with Title 24 with select power supplies
•Class 2
•Closet Rated. Compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5), excluding colors -AM, -BL, -RD, -GR and LTR-P-WP-24V-1.5W
WARRANTY
•5-year warranty when paired with GM power supply
Note: Do not install in an application that is not easily accessed for service. Our warranty covers product only and does not cover any labor or incidental charges related to service or warranty.
BLANK
ROCHE BOBOIS
LTR-P Professional Series ®
Wet Location, 24VDC 1.5W / 3.0W / 5.8W
LED Tape Specification Sheet
COMPATIBLE CONTROLLERS
SHWC LUXcontrol Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage
SHWD LUXcontrol Smart 2.4 GHz WiFi Dimmer, Standard 12V/24V Low Voltage
SWD-60W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC
SWD-100W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 100W, 24VDC
HC-RF-UNV-5CH Universal 1-5 Channel RF Remote Control
CM-RF-UNV-5CH Universal 1-5 Channel Control Module
NOTE: Please see our website for updated power supply specifications and information.
DIMENSION
BLANK
LTR-P Professional Series ®
Wet Location, 24VDC 1.5W / 3.0W / 5.8W
LED Tape Specification Sheet
COMPATIBLE CHANNELS - FIT CONNECTORS ON PG. 1
EXTRA DEEP
LED-CHL-XD
LED-CHL-XD-6

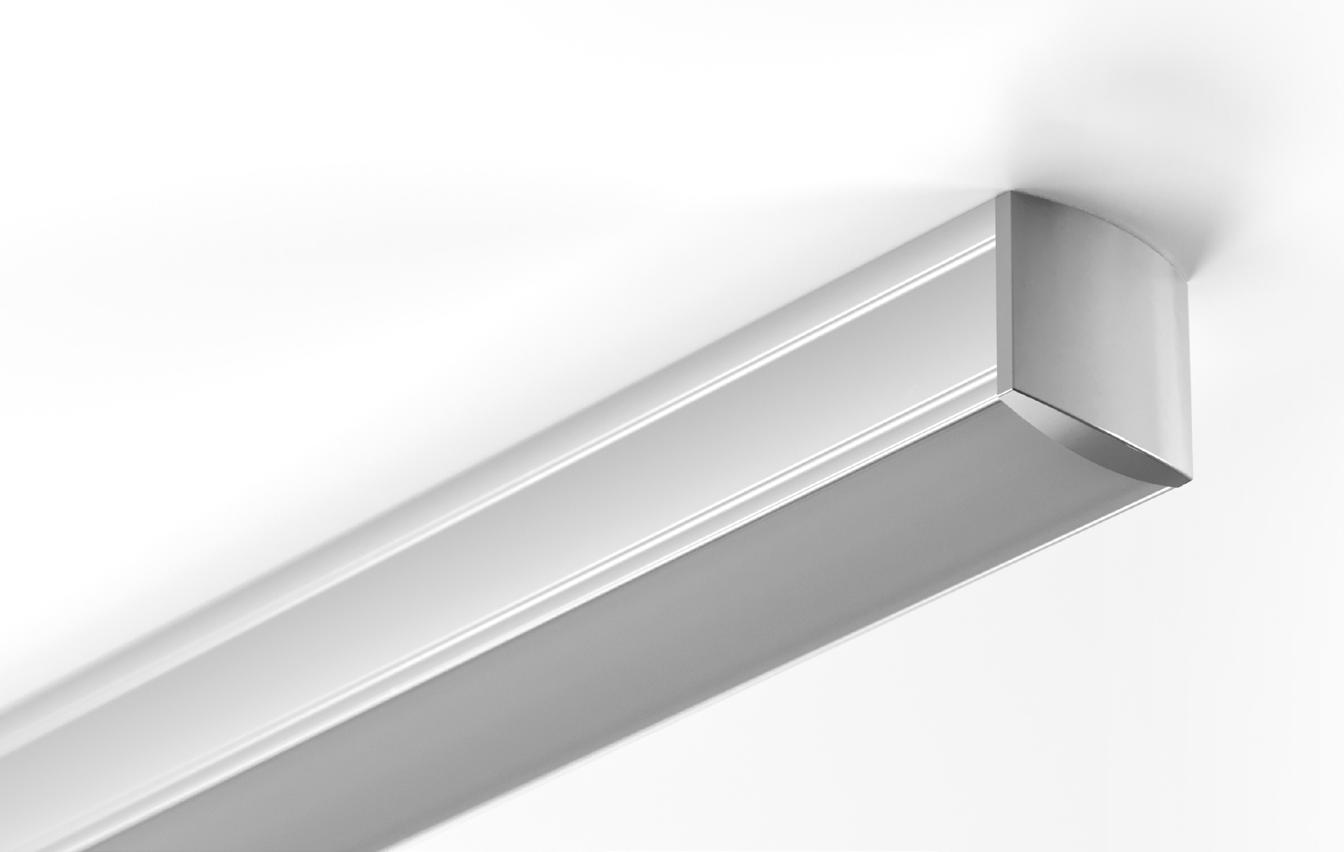

Extra deep format extruded channel. Includes snap-on frosted lens with mounting clips and screws. 4’
Extra deep format extruded channel. Includes snap-on frosted lens with mounting clips and screws. 6’
LED-CHL-XD-AMC (2) Adjustable mounting brackets for LED-CHL-XD N/A
LED-CHL-XD-EC (2) End caps for LED-CHL-XD. One solid, one with hole. N/A
LED-CHL-XD-MC (2) Mounting clips and screws for LED-CHL-XD N/A
EXTRA DEEP FLANGED
LED-CHL-XD-F
LED-CHL-XD-F-6
Extra deep format extruded channel with flange. Includes snap-on frosted lens with mounting clips and screws. 4’
Extra deep format extruded channel with flange. Includes snap-on frosted lens with mounting clips and screws. 6’
LED-CHL-XD-F-DC (2) Drywall mounting brackets for LED-CHL-XD-F N/A
LED-CHL-XD-F-EC (2) End caps for LED-CHL-XD-F. One solid, one with hole.
45º LARGE ANGLE MOUNT
LED-CHL-45-1200
Extruded angled (45°) channel. Includes snap-on frosted lens with mounting clips and screws. 4’
LED-CHL-45-1200-EC (2) End caps for LED-CHL-45 - one solid, one with hole N/A
LED-CHL-45-1200-MC (2) Additional mounting clips for LED-CHL-45-1200 N/A
TYPE LD1 SPEC ROCHE BOBOIS
THE L50 INCLUDES PATENTED OPTICAL DESIGN THAT DELIVERS THE WIDEST RANGE OF BEAM ANGLE OPTIONS FOR PRECISE COVE, WALL GRAZING, WALL WASHING OR LINE OF LIGHT APPLICATIONS. EXCLUSIVE FLIP TO FLAT™ HINGE DESIGN PROVIDES FLEXIBILITY WHEN MANAGING SMALL COVE DETAILS. TROV OFFERS SMOOTH, FLICKER FREE DIMMING DOWN TO 0%.
FEATURES :
• DIM TO 0%, ELV REVERSE PHASE
• 24 BEAM ANGLES
• MULTI-VOLT FLIP TO FLAT™
• 6 CCT OPTIONS
• 80+ AND 90+ CRI OPTIONS
• IP66 EXTERIOR OPTIONS
BUILD TO ORDER SHIPPING
EXAMPLE: L50-E-48-10-27-90-MULT-15x65
ALL LUMEN DATA IS FROM 4000K 80CRI FIXTURES. PLEASE SEE PHOTOMETRY SPEC SHEET FOR ADDITIONAL LUMEN DATA. * CALCULATIONS FOR LED FIXTURES ARE BASED ON MEASUREMENTS THAT COMPLY WITH IES LM-80 TESTING PROCEDURES AND IES
NOTE: Information on this Spec Sheet is subject to change, please visit ecosenselighting.com/resources for the most updated information.
White LED (LM-80), 2200K: 80CRI, 2700K: 80CRI, 3000K: 80CRI, 3500K: 80CRI, 4000K: 80CRI.
80% of initial lumens at 100 000 hours (L80 B10) Ta 77°F and 104°F (25°C and 40°C)
Symmetrical optics: Spot, flood, wide flood or general light.
Wall grazer optics: Spot, medium or wide flood. Elliptical optic: Spot 26°x35° and flood 41°X87°.
Body: Extruded aluminum
End caps: Die-cast aluminum alloy
Protective screen: 5⁄32" (4mm clear glass)
Optic diffuser: PMMA (polymethyl methacrylat)
Hardware: Stainless steel.
Ceiling, floor or wall mounted with arm accessories. Ground installation with arms on spike.
Integral high efficiency LED driver, rated at 50 000 hours. 6AMP, 120V/277V. Supplied with cables and connectors between modules and 6.5' (2000mm) feed cable for 5.9' and more continuous row compositions.
0-10V dimming (120-277V), down to 1% or DMX-RDM control (120-277V), down to 1%.
Temperature of operation: -22°F to 122°F (-30°C to 50°C)
Finish:
Black (RAL9005), Gray (RAL9007), Rust Brown (RAL8017) and White (RAL9016) painted with a high level of weather and UV resistance. The semi-gloss finish coating is electrostatically applied durable acrylic enamel baked at high temperatures for superior color retentive finish. We provide RAL numbers that are similar, but we cannot guarantee an exact color match. For a more accurate color and gloss match, please contact customer service for a sample chip.
Weight: 1.9lb/ft (0.86kg/ft)
Warranty: 5 year limited warranty.
Ratings: IP66, IK06
Certification: cULus listed for wet location
BLANK

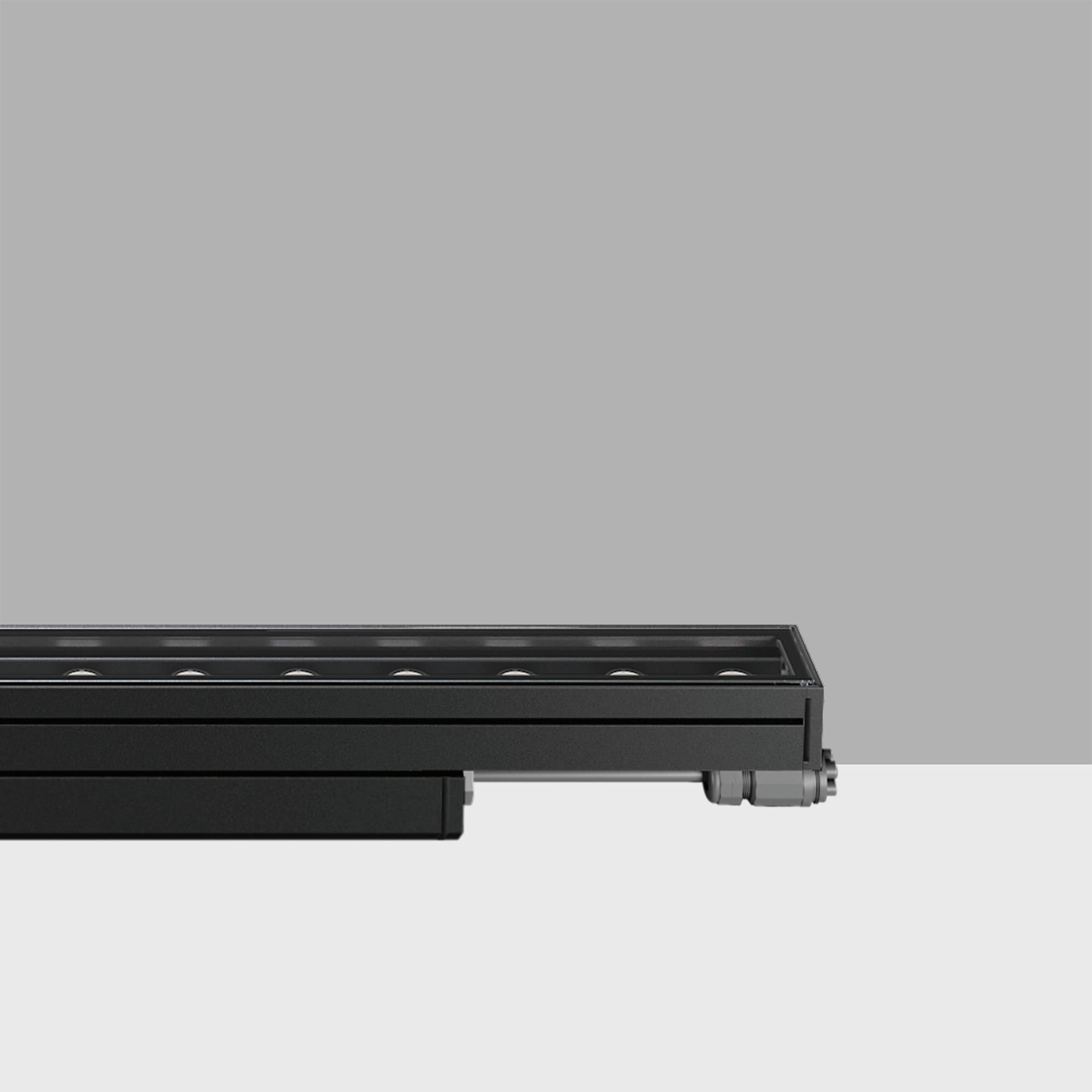

Linealuce 47 Surface - Integral
(1) Length 5.9' and more are module composition in continuous row. The composition length includes the
continuous row application. See page 5 for details.
(2) Ground spike with 3⅞" adjustable arms (G4) not compatible with external accessories (A1, A2).
(3) Available for surface (M) mounting only.
(4) Not available for 1.1' module.
(5) Before ordering, see optical accessories compatibility page 3.
LENGTH FOR CONTINUOUS ROW LINEALUCE
Qty refers to the quantity of 4.9’ (1502mm) module. The maximum length is calculated with 4.9’ (1502mm) module.
INCLUDED IN PRODUCT CODE
* Cable is included for 5.9' and more. For single module, order cable separately.
TYPE LD4 SPEC ROCHE BOBOIS
THE L50 INCLUDES PATENTED OPTICAL DESIGN THAT DELIVERS THE WIDEST RANGE OF BEAM ANGLE OPTIONS FOR PRECISE COVE, WALL GRAZING, WALL WASHING OR LINE OF LIGHT APPLICATIONS. EXCLUSIVE FLIP TO FLAT™ HINGE DESIGN PROVIDES FLEXIBILITY WHEN MANAGING SMALL COVE DETAILS. TROV OFFERS SMOOTH, FLICKER FREE DIMMING DOWN TO 0%.
FEATURES :
• DIM TO 0%, ELV REVERSE PHASE
• 24 BEAM ANGLES
• MULTI-VOLT FLIP TO FLAT™
• 6 CCT OPTIONS
• 8 0+ AND 90+ CRI OPTIONS
• IP 66 EXTERIOR OPTIONS
BUILD TO ORDER SHIPPING
: L50-E-48-10-27-90-MULT-15x65
/ RATED
ALL LUMEN DATA IS FROM 4000K 80CRI FIXTURES. PLEASE SEE PHOTOMETRY SPEC SHEET FOR ADDITIONAL LUMEN DATA. * CALCULATIONS FOR LED FIXTURES ARE BASED ON MEASUREMENTS THAT COMPLY WITH IES LM-80 TESTING PROCEDURES AND
NOTE: Information on this Spec Sheet is subject to change, please visit ecosenselighting.com/resources for the most updated information.
White LED (LM-80), 2200K: 80CRI, 2700K: 80CRI, 3000K: 80CRI, 3500K: 80CRI, 4000K: 80CRI.
80% of initial lumens at 100 000 hours (L80 B10) Ta 77°F and 104°F (25°C and 40°C)
Symmetrical optics: Spot, flood, wide flood or general light.
Wall grazer optics: Spot, medium or wide flood. Elliptical optic: Spot 26°x35° and flood 41°X87°.
Body: Extruded aluminum
End caps: Die-cast aluminum alloy
Protective screen: 5⁄32" (4mm clear glass)
Optic diffuser: PMMA (polymethyl methacrylat)
Hardware: Stainless steel.
Ceiling, floor or wall mounted with arm accessories. Ground installation with arms on spike.
Integral high efficiency LED driver, rated at 50 000 hours. 6AMP, 120V/277V. Supplied with cables and connectors between modules and 6.5' (2000mm) feed cable for 5.9' and more continuous row compositions.
0-10V dimming (120-277V), down to 1% or DMX-RDM control (120-277V), down to 1%.
Temperature of operation: -22°F to 122°F (-30°C to 50°C)
Finish:
Black (RAL9005), Gray (RAL9007), Rust Brown (RAL8017) and White (RAL9016) painted with a high level of weather and UV resistance. The semi-gloss finish coating is electrostatically applied durable acrylic enamel baked at high temperatures for superior color retentive finish. We provide RAL numbers that are similar, but we cannot guarantee an exact color match. For a more accurate color and gloss match, please contact customer service for a sample chip.
Weight: 1.9lb/ft (0.86kg/ft)
Warranty: 5 year limited warranty.
Ratings: IP66, IK06
Certification: cULus listed for wet location
BLANK
Linealuce 47 Surface - Integral
(1) Length 5.9' and more are module composition in continuous row. The composition length includes the
continuous row application. See page 5 for details.
(2) Ground spike with 3⅞" adjustable arms (G4) not compatible with external accessories (A1, A2).
(3) Available for surface (M) mounting only.
(4) Not available for 1.1' module.
(5) Before ordering, see optical accessories compatibility page 3.
LENGTH FOR CONTINUOUS ROW LINEALUCE
Qty refers to the quantity of 4.9’ (1502mm) module. The maximum length is calculated with 4.9’ (1502mm) module.
INCLUDED IN PRODUCT CODE
* Cable is included for 5.9' and more. For single module, order cable separately.
TYPE LE4 SPEC ROCHE BOBOIS
THE L50 INCLUDES PATENTED OPTICAL DESIGN THAT DELIVERS THE WIDEST RANGE OF BEAM ANGLE OPTIONS FOR PRECISE COVE, WALL GRAZING, WALL WASHING OR LINE OF LIGHT APPLICATIONS. EXCLUSIVE FLIP TO FLAT™ HINGE DESIGN PROVIDES FLEXIBILITY WHEN MANAGING SMALL COVE DETAILS. TROV OFFERS SMOOTH, FLICKER FREE DIMMING DOWN TO 0%.
FEATURES :
• DIM TO 0%, ELV REVERSE PHASE
• 24 BEAM ANGLES
• MULTI-VOLT FLIP TO FLAT™
• 6 CCT OPTIONS
• 8 0+ AND 90+ CRI OPTIONS
• IP 66 EXTERIOR OPTIONS
BUILD TO ORDER SHIPPING
: L50-E-48-10-27-90-MULT-15x65
/ RATED
ALL LUMEN DATA IS FROM 4000K 80CRI FIXTURES. PLEASE SEE PHOTOMETRY SPEC SHEET FOR ADDITIONAL LUMEN DATA. * CALCULATIONS FOR LED FIXTURES ARE BASED ON MEASUREMENTS THAT COMPLY WITH IES LM-80 TESTING PROCEDURES AND
NOTE: Information on this Spec Sheet is subject to change, please visit ecosenselighting.com/resources for the most updated information.
White LED (LM-80), 2200K: 80CRI, 2700K: 80CRI, 3000K: 80CRI, 3500K: 80CRI, 4000K: 80CRI.
80% of initial lumens at 100 000 hours (L80 B10) Ta 77°F and 104°F (25°C and 40°C)
Symmetrical optics: Spot, flood, wide flood or general light.
Wall grazer optics: Spot, medium or wide flood. Elliptical optic: Spot 26°x35° and flood 41°X87°.
Body: Extruded aluminum
End caps: Die-cast aluminum alloy
Protective screen: 5⁄32" (4mm clear glass)
Optic diffuser: PMMA (polymethyl methacrylat)
Hardware: Stainless steel.
Ceiling, floor or wall mounted with arm accessories. Ground installation with arms on spike.
Integral high efficiency LED driver, rated at 50 000 hours. 6AMP, 120V/277V. Supplied with cables and connectors between modules and 6.5' (2000mm) feed cable for 5.9' and more continuous row compositions.
0-10V dimming (120-277V), down to 1% or DMX-RDM control (120-277V), down to 1%.
Temperature of operation: -22°F to 122°F (-30°C to 50°C)
Finish:
Black (RAL9005), Gray (RAL9007), Rust Brown (RAL8017) and White (RAL9016) painted with a high level of weather and UV resistance. The semi-gloss finish coating is electrostatically applied durable acrylic enamel baked at high temperatures for superior color retentive finish. We provide RAL numbers that are similar, but we cannot guarantee an exact color match. For a more accurate color and gloss match, please contact customer service for a sample chip.
Weight: 1.9lb/ft (0.86kg/ft)
Warranty: 5 year limited warranty.
Ratings: IP66, IK06
BLANK
Linealuce 47 Surface - Integral
(1) Length 5.9' and more are module composition in continuous row. The composition length includes the
continuous row application. See page 5 for details.
(2) Ground spike with 3⅞" adjustable arms (G4) not compatible with external accessories (A1, A2).
(3) Available for surface (M) mounting only.
(4) Not available for 1.1' module.
(5) Before ordering, see optical accessories compatibility page 3.
LENGTH FOR CONTINUOUS ROW LINEALUCE
Qty refers to the quantity of 4.9’ (1502mm) module. The maximum length is calculated with 4.9’ (1502mm) module.
INCLUDED IN PRODUCT CODE
* Cable is included for 5.9' and more. For single module, order cable separately.
Trident - IP68 & IK10 Rated Linear Profile. The Trident is designed for applications where your space is exposed to wet conditions. It is our first linear profile designed with the LED encapsulation process in mind to ensures a properly cured, vandal resistant seal with hard resin. With many options available, it is highly modular, versatile and easy to install.
Ordering Code
Product Specifications
DWSO . LLDW68SO Dynamic White Standard Output
DWHO LLDW68HO Dynamic White High Output
RGBSO LLRGB42SO Color changing Standard Output
RGBHO LLRGB42HO Color changing High Output
RGBWSO LL-RGBW36-SO Color changing Standard Output
RGBWHO LL-RGBW36-HO Color changing High Output
NOTE: For Channels and Lenses over 90”, incremental shipping charges will apply
ROCHE BOBOIS TYPE
1400 PROFILE
The 1400 series is a rectangular and flangeless profile with a sleek and minimalist design. Integrate into different types of walls or ceilings, or recess within a flangeless drywall system for clean lines of light. The 1400 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
PRODUCT FEATURES
• A channel for wire management, secure connections between channels, and pattern assembly
• Recessed flangeless installation with the Gypsum Groove drywall insert
• Motion sensor ready for static white and warm dim options
• Recess into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• Mounting hardware for peace of mind integration
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Internal groove guide for easy application of LED strip when field installation is needed
• A selection of lenses to meet task at hand
• Aluminum construction for superior heat dissipation
• UL 2108 listed - Suitable for storage and closet areas
SUGGESTED APPLICATIONS
BLANK
ROCHE BOBOIS
0 - Anodized aluminum finish
1 - Anodized black finish
2 - Painted white finish
X - Custom color provide RAL #
3 MOUNTING
MC11 - Flat surface bracket
MC12 - 45° Corner bracket
MC18 - Swivel 180°
MC10 - Phantom bracket
MI10 - Magnetic bracket
MI12 - Surface 2-side bracket
MI11 - Surface 1-side bracket
MI13 - Surface 90-degree bracket
MI14 - Surface 45-degree bracket
MNO - No mounting
7 APPLICATION
AID - Indoor dry locations
AIM - Indoor damp locations
For damp location applications, LED strip will be put inside a waterproof silicone sleeve.
8 POWER FEED
FH3 - Hardwire, 3ft wire
FH6 - Hardwire, 6ft wire
FH9 - Hardwire, 9ft wire
FHX - Hardwire, custom length wire
FC3 - DC plug, 3ft wire
FC6 - DC plug, 6ft wire
FC9 - DC plug, 9ft wire
FCX - DC plug, custom length wire
9 INPUT / OUTPUT
WSE - Simple lead-in, end feed
WSB - Simple lead-in, back feed
WS1 - Simple lead-in, side feed 1
WS2 - Simple lead-in, side feed 2
WPE - Pass-through, end feed
WPB - Pass-through, back feed
WP1 - Pass-through, side 1
WP2 - Pass-through, side 2
4 OPTICS
DC10 - Clear
DX10 - Optiflex lens
DO10 - Opal lens
DR10 - Prime lens
DB10 - Black lens
DS10 - Silens
DOD10 - 3D Opal lens
DNO - No lens
5 LUMEN PACKAGE
LP1 - 1.5
K24 - 2400K
K27 - 2700K
K30 - 3000K
K35 - 3500K
K40 - 4000K
K62 - 6200K
K24 - 2400K
K27 - 2700K
K30 - 3000K
K35 - 3500K
K40 - 4000K
K53 - 5300K
10 EXACT/OPTIMAL
QE - Exact
QO - Optimal
Exact - length specified in section 10 with end caps without flanges. Optimal - length specified in section 10, rounded down to the closest LED cut section to minimize dark spots.
11 LENGTH*
Length of the luminaire in inches.
*Includes end caps, excludes flanges (when applicable). length no flange flange
12 MOTION SENSORS
SI05 - 30 sec., embedded
SE05 - 30 sec., external
SI4 - 4 min., embedded
SE4 - 4 min., external
SIP - embedded proximity hand motion sensor
SNO - No sensor
All motion sensors can only be used with non-dimmable power supplies
- Max 36W / 12V or 72W / 24V
- Compatible only with indoor dry applications
TBD
LTR-P Professional Series ®
Wet Location, 24VDC 1.5W / 3.0W / 5.8W
LED Tape Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Outdoor Series Flexible LED Tape combines style and technology with reliability for wet location. Designed for professional installations that demand a high level of quality, the LTR-P Series boasts a wide array of key features and is available in 16’-4” (5M), 98’-6” (30M) reels or custom cuts. Do not submerge in water.
FEATURES
• 24VDC
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K as well as Amber, Red, Green, Blue color temps
• Remote control with GM’s LUXcontrol™ App and controllers (requires NEMA box - by others)
• LM80 / IP65
• 120 LEDs per meter
• Cuttable every 2”
• Wet location
• Optical clear UV protected silicone sheath
• Premium diodes
• 120° viewing angle
• Dimmable
• Maximum run on a given lead is 60’ (1.5W), 32’-8” (3.0W), 16’-4” (5.8W)
SPECIFICATIONS
ELECTRICAL
•24V
•1.5W, 3W and 5.8 watts per foot
OPTICS
•90+ CRI
•-4°F to 122°F
• For proper thermal management, we recommend to mount this product in a channel
ORDERING INFORMATION
CERTIFICATION
•UL
•May comply with Title 24 with select power supplies
•Class 2
•Closet Rated. Compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5), excluding colors -AM, -BL, -RD, -GR and LTR-P-WP-24V-1.5W
WARRANTY
•5-year warranty when paired with GM power supply
Note: Do not install in an application that is not easily accessed for service. Our warranty covers product only and does not cover any labor or incidental charges related to service or warranty.
BLANK
LTR-P Professional Series ®
Wet Location, 24VDC 1.5W / 3.0W / 5.8W
LED Tape Specification Sheet
COMPATIBLE CONTROLLERS
SHWC LUXcontrol Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage
SHWD LUXcontrol Smart 2.4 GHz WiFi Dimmer, Standard 12V/24V Low Voltage
SWD-60W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC
SWD-100W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 100W, 24VDC
HC-RF-UNV-5CH Universal 1-5 Channel RF Remote Control
CM-RF-UNV-5CH Universal 1-5 Channel Control Module
NOTE: Please see our website for updated power supply specifications and information.
DIMENSION
BLANK
LTR-P Professional Series ®
Wet Location, 24VDC 1.5W / 3.0W / 5.8W
LED Tape Specification Sheet
COMPATIBLE CHANNELS - FIT CONNECTORS ON PG. 1
EXTRA DEEP
LED-CHL-XD
LED-CHL-XD-6
Extra deep format extruded channel. Includes snap-on frosted lens with mounting clips and screws. 4’
Extra deep format extruded channel. Includes snap-on frosted lens with mounting clips and screws. 6’
LED-CHL-XD-AMC (2) Adjustable mounting brackets for LED-CHL-XD N/A
LED-CHL-XD-EC (2) End caps for LED-CHL-XD. One solid, one with hole. N/A
LED-CHL-XD-MC (2) Mounting clips and screws for LED-CHL-XD N/A
EXTRA DEEP FLANGED
LED-CHL-XD-F
LED-CHL-XD-F-6
Extra deep format extruded channel with flange. Includes snap-on frosted lens with mounting clips and screws. 4’
Extra deep format extruded channel with flange. Includes snap-on frosted lens with mounting clips and screws. 6’
LED-CHL-XD-F-DC (2) Drywall mounting brackets for LED-CHL-XD-F N/A
LED-CHL-XD-F-EC (2) End caps for LED-CHL-XD-F. One solid, one with hole.
45º LARGE ANGLE MOUNT
LED-CHL-45-1200
Extruded angled (45°) channel. Includes snap-on frosted lens with mounting clips and screws. 4’
LED-CHL-45-1200-EC (2) End caps for LED-CHL-45 - one solid, one with hole N/A
LED-CHL-45-1200-MC (2) Additional mounting clips for LED-CHL-45-1200 N/A

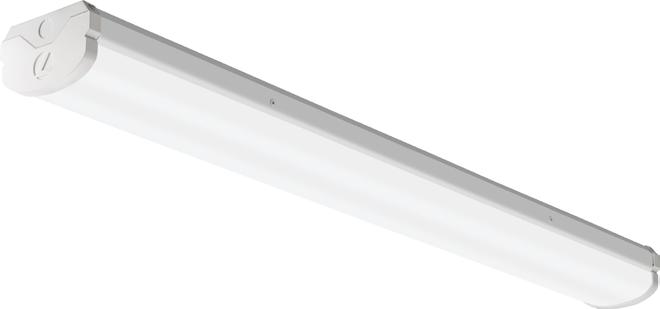

FEATURES & SPECIFICATIONS
INTENDED USE — Built on the compact, low-profile Z strip channel, this LED strip offers long maintenance-free life, several color temperatures, lumen outputs and lengths. Ideal for new construction and retrofit applications in T8 lengths. Ideal for use in commercial, retail, manufacturing, warehouse, and display applications. Certain airborne contaminants can diminish the integrity of acrylic and/ or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Compact-design channel and cover are formed from code-gauge cold-rolled steel. Easy to install six-point row aligner included for continuous row mounting.
Finish: Paint options include high-gloss, baked white enamel (WH), or matte black (MB). After fabrication, five-stage iron phosphate pre-treatment ensures superior paint adhesion and rust resistance.
OPTICS — Standard diffuse snap on/snap off lens eliminates pixels, improves uniformity and minimizes glare.
ELECTRICAL — Utilizes high-output LEDs integrated on a two-layer circuit board, ensuring coolrunning operation. Optional internal pluggable wiring harness for reduced labor cost in row mounting applications (see PLR_ ordering information on page 5). Electronic LED driver is rated for 75 input watts maximum (see Operational Data on page 4 for actual wattage consumption), multi-volt input and 0-10V dimming standard. This fixture is designed to withstand a maximum line surge of 2.5kV at 0.75kA combination wave for indoor locations, for applications requiring higher level of protection additional surge protection must be provided.
LEDs provide 80CRI or 90 CRI at 3000 K, 3500 K,4000 K or 5000 K. Lumen output up to 1,500 lumens per foot. Luminaire should be installed in applications where ambient temperatures do not exceed 86°F (30°C).
INSTALLATION — Fixture may be surface mounted (with or without ZSPRG hanger), pendant or stem mounted with appropriate mounting options. Six-point aligner locks in place for easy continuous row mounting.
LISTINGS — CSA certified to US and Canadian safety standards. For use in damp locations between -40°F (-40°C) and 86°F (30°C).
DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® or control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details

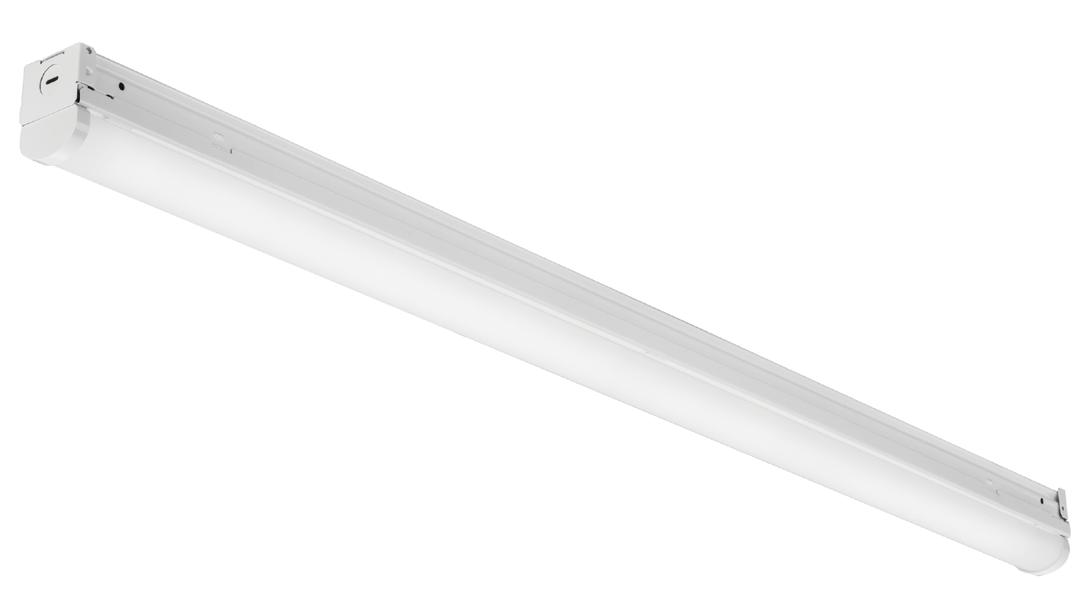

ZL1D LED Striplight
A+ Capable options indicated by this color background.
ORDERING INFORMATION
Lead times will vary depending on options selected. Consult with your sales representative.
ZL1D LED striplight
PLR__ Plug-in wiring ‡
PLR1LVG Plug-in wiring-low voltage ‡
E7W 7W Emergency battery pack, constant power, Certified in CA
Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
2E7W (2) 7W Emergency battery pack, constant power, Certified in CA
Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
E10W 10W Emergency battery pack, constant power, Certified in CA
Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
2E10W (2)10W Emergency battery pack, constant power, Certified in CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK )‡
E15WLCP Emergency battery pack, 15W Linear Constant Power, Certified in CA Title 20 MAEDBS ‡
OUTEND Cord set to exit endplate of fixture
BAA Buy America(n) Act and/or Build America Buy America Qualified nLight® Wireless
NLTAIR2 RLSXR10 nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights) (LINK )
NLTAIR2 RLSXR10EM nLight® Air Generation 2 enabled, 360° low mount sensor, (7 to 15’ heights),UL 924 Emergency Operation, via power interrupt detection (not available with battery pack) (LINK ) ‡
Individual Controls ‡
LBOZU 360° low mount LSXR PIR sensor, (7-15' mounting heights), ON/OFF occupancy, pre-wired (LINK ) ‡
LBH0SZU 360° low mount LSXR PIR sensor, (7-15' mounting heights), high/low occupancy dimming, pre-wired (LINK ) ‡
LBPZU 360° low mount LSXR PIR sensor, (7-15' mounting heights), ON/OFF photocell, pre-wired (LINK ) ‡
LBM0SZU 360° low mount LSXR PIR sensor, (7-15' mounting heights), dimming and switching photocell, pre-wired (LINK ) ‡
Cord sets: ‡
CS1W Cord with NEMA 5-15P, 120V straight blade plug, 18 gauge, 3 conductors, white, 6ft
CS3W Cord with NEMA L5-15P, 120V twist lock plug, 18 gauge, 3 conductors, white, 6ft
CS7W Cord with NEMA 7-15P, 277V straight blade plug, 18 gauge, 3 conductors, white, 6ft
CS11W Cord with NEMA L7-15P, 277V twist lock plug, 18 gauge, 3 conductors, white, 6ft
CS25W Cord with NEMA L24-20P, 347V twist lock plug, 18 gauge, 3 conductors, white, 6ft
CS97W Cord with NEMA L8-20P, 480V twist lock plug, 18 gauge, 3 conductors, white, 6ft
CS93W Cord only (no plug), 18 gauge, 3 conductors, white, 6ft
WH White
MBMatte black
GALVB Galvanized fixture with black plastic lens endcaps
GALVW Galvanized fixture with white plastic lens endcaps
Accessories: Order as separate catalog number.
HC36 M12 Hanger chain, 36" (1 pair)
ZACVH M100 Adjustable 10' aircraft cable with Y hanger (1 pair)
ZLANGBKT Luma-tilt™ angle bracket for shelf or ledge mounting only
SQ_ Swivel stem hanger (specify length in 2" increments up to 48")

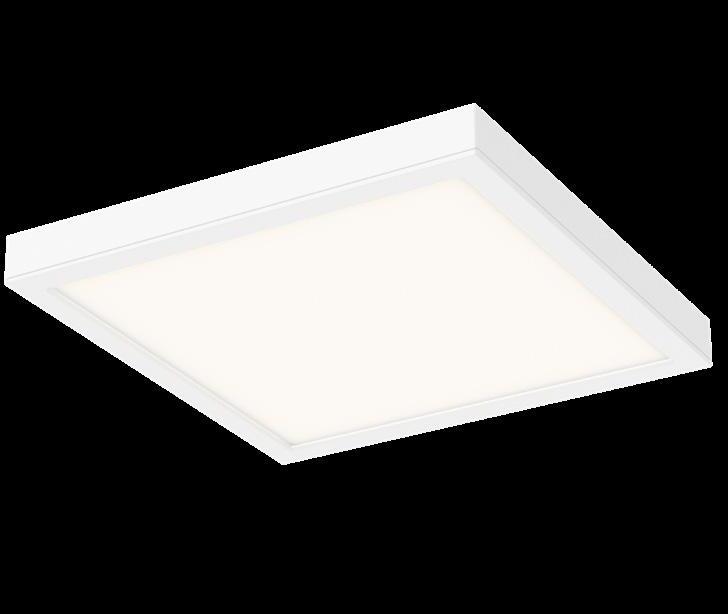

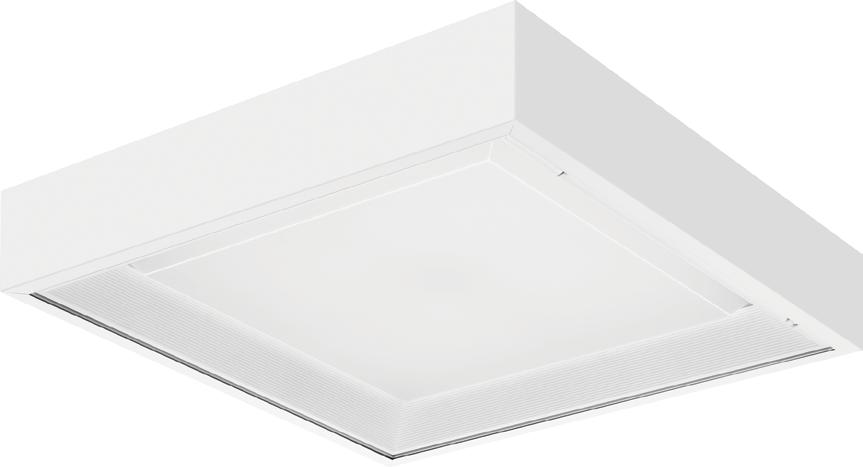

INTENDED USE The AC Series LED surface mount combines digital LED lighting and control technologies with a high performance optical system to deliver general ambient lighting for many applications such as schools, offices, and hospitals. High efficacy light engine delivers long life and excellent color, ensuring a superior quality light installation that is highly efficient and sustainable. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION Housing formed from cold-rolled steel. Housing is painted after fabrication for superior finish.
Smooth hemmed sides and smooth inward formed end flanges for easy handling.
Standard deep regressed door frame with step baffles provides unique architectural appearance. Door frame is painted after fabrication standard. Powder painted rotary cam latches provide easy secure door closure. Integral T-bar clips standard. Acrylic shielding material 100% UV stabilized.
OPTICS — Frosted acrylic tile provides superior efficiency and a clean quite appearance in the ceiling.
ELECTRICAL — Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and quality of illumination for extended service life. 90% LED lumen maintenance at 60,000 hours (L90/60,000).
nLight® embedded controls make each luminaire addressable - allowing it to digitally communicate with other nLight enabled controls such as dimmers, switches, occupancy sensors and photocontrols. Simply connect all the nLight enabled control devices and the luminaires using standard Cat-5 cabling. Unique plug-and-play convenience as devices and luminaires automatically discover each other and self-commission.
Lumen Management: Unique lumen management system (option N80) provides onboard intelligence that actively manages the LED light source so that constant lumen output is maintained over the system life, preventing the energy waste created by the traditional practice of over-lighting.
Step-level dimming option allows system to be switched to 50% power for compliance with common energy codes while maintaining fixture appearance.
eldoLED driver options deliver choice of dimming range, and choices for control, while assuring flicker-free, low-current inrush, 89% efficiency and low EMI.
Driver disconnect provided where required to comply with US and Canadian codes.
INSTALLATION — Surface mount. Drivers and internal components accessible from floor. LED boards include plug in connectors for easy replacement or servicing. Suitable for damp location.
LISTINGS — CSA certified to meet US and Canadian standards.
Protected by one or more of US Patent Nos. D677,817; D677,819.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
All dimensions are inches (centimeters) unless otherwise indicated. Specifications
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.
• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® control networks when ordered with drivers marked by a shaded background*
• This luminaire is part of an A+ Certified solution for nLight control networks, providing advanced control functionality at the luminaire level, when selection includes driver and control options marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus
*See ordering tree for details

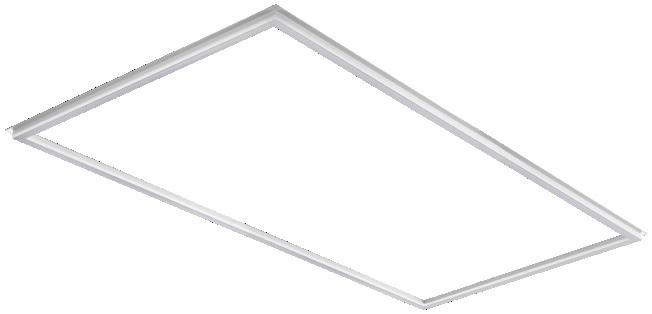

1X4’, 2X2’, 2X4’
LED LAY IN BACKLIT FLAT PANEL - 5CCT & WATTAGE SELECTABLE
WATTAGE SELECTABLE 3 OPTIONS 1X4’ 20W30W40W
COLOR SELECTABLE
BATTERY BACKUP
*OPTION AVAILABLE
EMERGENCY OPTION ALSO AVAILABLE 2X4’ 30W40W50W
LR24290+EM
LR24293+EM LR24295+EM
2ACLX2 Surface Mount LED Lighting
A+ Capable options indicated by this color background.
ORDERING INFORMATION Lead times will vary depending on options selected. Consult with your sales representative.
2ACLX2
Series Lumens1
2ACLX2
(blank) MVOLT (120-277)
EZ1 eldoLED dims to 1% (0-10 volt dimming)
EZB eldoLED dims to dark (0-10 volt dimming)3
GZ1 Dims to 1% (0-10V dimming)3
GZ10 Dims to 10% (0-10V dimming)3
EDBeldoLED DALI4
EXB eldoLED DMX/RDM4
SLD Step-level dimming4
nLight ® Control Accessories:
Order as separate catalog number. Visit www.sensorswitch.com/nLight for complete listing of nLight controls.
WallPod stationsModel numberOccupancy sensors Model number On/Off nPODM [color]Standard range 360°, ceiling (PIR / dual tech)nCM
USA: 3035 E. LONE MOUNTAIN ROAD - LAS VEGAS, NV 89081
TBD
JTLS-MT20IB110 -Decorative Luminaires
PRODUCT OVERVIEW
Material: AL6063-T5,spraying surface
Coating: Black (RAL9005)/White (RAL9003)
Size: Ø110mm (4.33")
IP grade: IP20
CCT: 2700K,3000K,4000K optional
·CRI: 90
SDCM: <3 Step (ANSI)
·Beam angle: 360°
Light efficiency: 85 LM/W
Input voltage: DC24V-48V
Lighting direction: Non-dimming, DALI-2, CASAMBI
Dimming options: Downward Application: Indoor
Warranty: 5 years SPECIFICATIONS
Note:
1. The output data is based on the testing result of Ra90, 4000K CCT;
2 The tolerance of output data can be vary up to 5%;
3. The output data is typical value.
0-10 DIM
172mm (6 77") 18mm (0 71") 1500mm (59 06")
(4.33")
Ø110mm

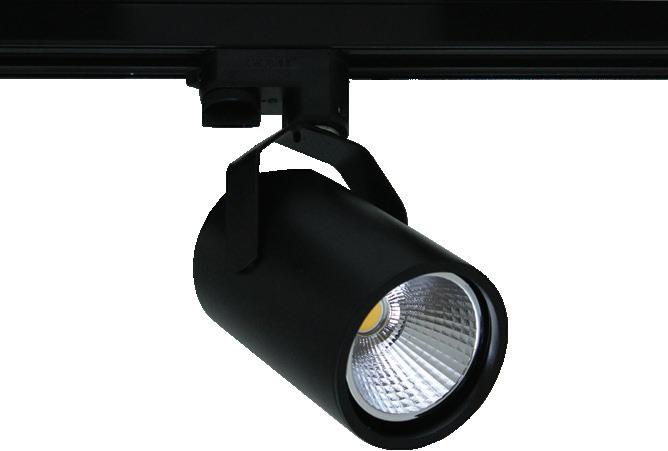

ACR 900 - 2000
CREE LED
MANUFACTURED IN THE UNITED STATES - IBEW
• Cree XLamp LED array
The ACR Series emphasizes efficiency and economy and boasts the highest lumens per watt rating of any Times Square Lighting fixture to date. It is designed for a short to medium throw applications. The ACR Series can be fitted with up to three accessories, including barn doors, louvers and lenses. This versatile fixture is available with a wide variety of mounting and dimming options, allowing for a huge range of customization possibilities.
The ACR Series is available in standard black, white, or silver finishes. Custom colors are available upon request.
• Color Temperature Options: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K
• CRI: 80 standard or 92 optional
• Lumen Maintenance: 90% of initial lumen output at 33,000 hours on LM-80 testing
• No UV or IR
CONSTRUCTION
• Aluminum housing with black, white or silver finish
• Accepts up to 3 accessories
• Weight: 3 lbs.
OPTICS | 20°, 40°, and 60° Field-Changeable Reflectors
ELECTRICAL
• Integral electronic driver
• 100-277V, 50/60Hz
• Meets FCC 47 CFR Part 15/18 Requirements
Testing done at 3000K, 80 CRI.

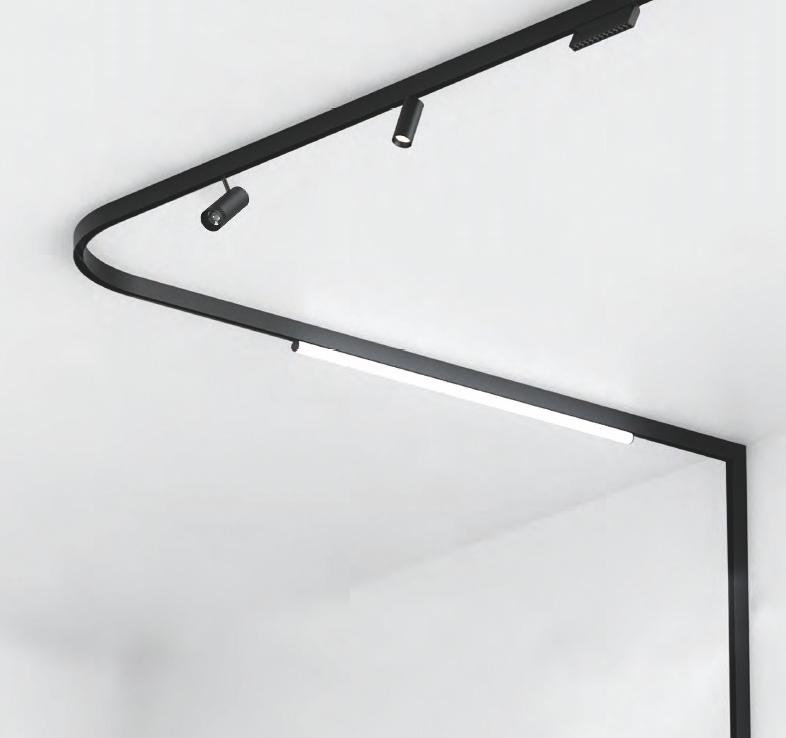

JTLS-MT20 SERIES
MAGNETIC TRACKS
PRODUCT DESCRIPTION
JTLS-MT20 Magne c Track is a DC24V-48V magne c track system of 20mm width. Its magne c design offers great DIY convenience for flexibly combining linear luminaires, spotlights, pendant lights and decora ve neon flex in one system, achieving all your ligh ng demands, such as basic flood ligh ng, accent ligh ng or decora ve ligh ng, suitable for residen al villas, hotel clubs, entertainment venues,commercialexhibi ons,etc.
TRACKS TYPES
LINKS FOR PAGES: STRAIGHT TRACKS & CURVED TRACKS / ACCESSORIES

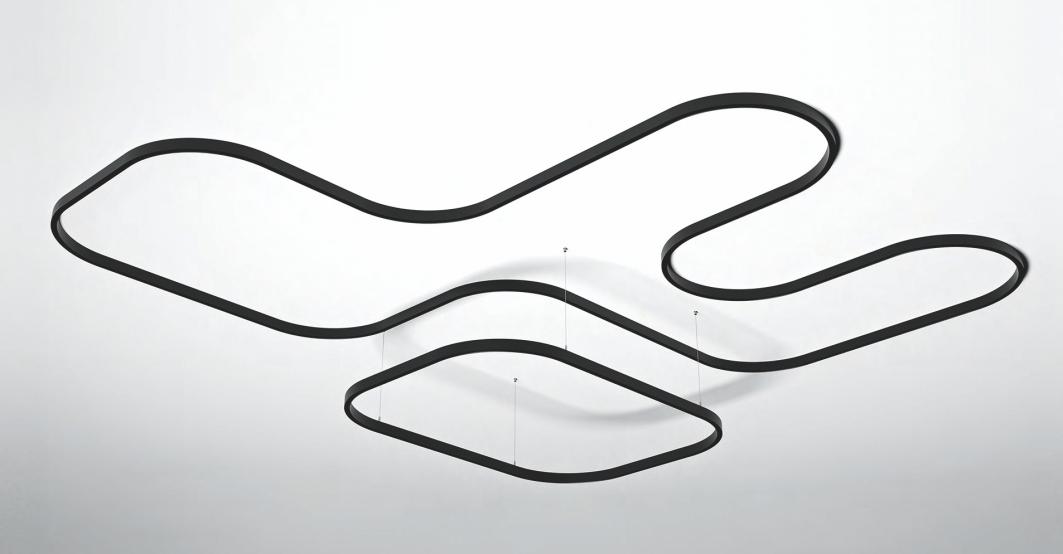

VARIETY OF DESIGNS
SPECIFY:
10 = 10°
20 = 20º
25 = 25°
40 = 40º
60 = 60º
ZO = 14° - 40° Zoom Optics
See Mounting Options for Ordering Codes
See Accessory Options for Ordering Codes
Ambient Temperature: 35°C Maximum Operating Angle: 45° from vertical * 277V TE Dimming Available on 1800, 2500 & 3000 Lumen, 80 CRI and 1500 & 2700 Lumen, 92 CRI only ** 120V Only † See “Notes on Dimming” ∏ Non-Dim or 0-10V Dimmiing Only
0-10 DIM (Group dimming) / With DALI & CASAMBI Individually Addressible
PRODUCT DETAILS & DIMENSIONS
172mm (6 77")
Quotations: quotes@jademar.com To place an order: orders@jademar.com Tel: (305) 640.0465 ǀ Fax: (305) 640.0468 WWW.JADEMAR.COM
BLANK
SPECIFICATIONS
3 CCT tunable (Dial switch)
3 CCT JTLS-MT20S-62(N) tunable (Dial switch)
3 CCT JTLS-MT20S-62(N) tunable (Dial
Note:
1. The output data is based on the testing result of Ra90, 4000K CCT;
2 The tolerance of output data can be vary up to 5%;
3. The output data is typical value.
Quotations: quotes@jademar.com To place an order: orders@jademar.com Tel: (305) 640.0465 ǀ Fax: (305) 640.0468 WWW.JADEMAR.COM
ACR 900 - 2000
CREE LED
MANUFACTURED IN THE UNITED STATES - IBEW
• Cree XLamp LED array
The ACR Series emphasizes efficiency and economy and boasts the highest lumens per watt rating of any Times Square Lighting fixture to date. It is designed for a short to medium throw applications. The ACR Series can be fitted with up to three accessories, including barn doors, louvers and lenses. This versatile fixture is available with a wide variety of mounting and dimming options, allowing for a huge range of customization possibilities.
The ACR Series is available in standard black, white, or silver finishes. Custom colors are available upon request.
• Color Temperature Options: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K
• CRI: 80 standard or 92 optional
• Lumen Maintenance: 90% of initial lumen output at 33,000 hours on LM-80 testing
• No UV or IR
CONSTRUCTION
• Aluminum housing with black, white or silver finish
• Accepts up to 3 accessories
• Weight: 3 lbs.
OPTICS | 20°, 40°, and 60° Field-Changeable Reflectors
ELECTRICAL
• Integral electronic driver
• 100-277V, 50/60Hz
• Meets FCC 47 CFR Part 15/18 Requirements
Testing done at 3000K, 80 CRI.
JTLS-MT20 SERIES
MAGNETIC TRACKS
PRODUCT DESCRIPTION
JTLS-MT20 Magne c Track is a DC24V-48V magne c track system of 20mm width. Its magne c design offers great DIY convenience for flexibly combining linear luminaires, spotlights, pendant lights and decora ve neon flex in one system, achieving all your ligh ng demands, such as basic flood ligh ng, accent ligh ng or decora ve ligh ng, suitable for residen al villas, hotel clubs, entertainment venues,commercialexhibi ons,etc.
TRACKS TYPES
LINKS FOR PAGES: STRAIGHT TRACKS & CURVED TRACKS / ACCESSORIES
VARIETY OF DESIGNS
SPECIFY:
10 = 10°
20 = 20º
25 = 25°
40 = 40º
60 = 60º
ZO = 14° - 40° Zoom Optics
See Mounting Options for Ordering Codes
See Accessory Options for Ordering Codes
Ambient Temperature: 35°C Maximum Operating Angle: 45° from vertical * 277V TE Dimming Available on 1800, 2500 & 3000 Lumen, 80 CRI and 1500 & 2700 Lumen, 92 CRI only. ** 120V Only † See “Notes on Dimming” ∏ Non-Dim or 0-10V Dimmiing Only
0-10 DIM (Group dimming) / With DALI & CASAMBI Individually Addressible
PRODUCT DETAILS & DIMENSIONS
172mm (6 77")
Quotations: quotes@jademar.com To place an order: orders@jademar.com Tel: (305) 640.0465 ǀ Fax: (305) 640.0468 WWW.JADEMAR.COM
BLANK
SPECIFICATIONS
3 CCT tunable (Dial switch)
3 CCT JTLS-MT20S-62(N) tunable (Dial switch)
3 CCT JTLS-MT20S-62(N) tunable (Dial
Note:
1. The output data is based on the testing result of Ra90, 4000K CCT;
2 The tolerance of output data can be vary up to 5%;
3. The output data is typical value.
Quotations: quotes@jademar.com To place an order: orders@jademar.com Tel: (305) 640.0465 ǀ Fax: (305) 640.0468 WWW.JADEMAR.COM
FEATURES & SPECIFICATIONS
INTENDED USE — The BLWP LED Wrap/ Wall bracket expands the BLT family with the features and aesthetics of the popular BLT and BLTR center basket design with a clean, versatile style and volumetric distribution. High efficacy LED light engines deliver energy savings and low maintenance compared to traditional sources. An extensive selection of configurations and options make the BLWP the perfect choice for many lighting applications including schools, offices, stairwells and other commercial spaces. With multiple mounting options, easy installation, and controls configurations, the BLWP is an excellent choice for renovation and new construction.
CONSTRUCTION — BLWP enclosure components are die-formed for dimensional consistency. For 2' and 4' product, hinged door frame allows easy access to electrical components and mounting locations without having to remove additional parts. For 8' product, suspension aircraft cables allow easy access to electrical components and mounting locations without having to remove additional parts. Available in three paint finishes: white (pre-paint), painted after fabrication white, and natural aluminum. Diffusers are extruded from impact modified acrylic for increased durability. Optional polycarbonate lens available for additional impact resistance, as well as Tamper Proof screws.
OPTICS — Volumetric illumination is achieved by creating an optimal mix of light to walls, partitions and vertical and horizontal work surfaces – rendering the interior space, objects and occupants in a more balanced, complimentary luminous environment. High performance extruded acrylic diffusers conceal LEDs and efficiently deliver light in a volumetric distribution. Five diffuser choices available - curved and square designs with ribbed, a smooth frosted finish, and a smooth polycarbonate finish.
ELECTRICAL — Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and qualityof illumination for extended service life. 80% LED lumen maintenance at 60,000 hours (L80/60,000). Replaces 2 lamp fluorescent.
Configurable BLWP: Available in High Efficiency (HE) versions for applications where a lower wattage (over the standard product) is required. The High Efficiency versions deliver >130 LPW and can be specified via the Lumen Package designations in the Ordering Information on page 2.
eldoLED driver options deliver choice of dimming range, and choices for control, while assuring flicker-free, low-current inrush, 89% efficiency and low EMI.
Lumen Management: Unique lumen management system (option N80) provides on board intelligence that actively manages the LED light source so that constant lumen output is maintained over the system life, preventing the energy waste created by the traditional practice of over-lighting. Driver disconnect provided where required to comply with US and Canadian codes.
CONTROLS — Standalone Embedded Controls BLWP is available with (wired or wireless) standalone embedded controls by SensorSwitch. A wired SensorSwitch or wireless SensorSwitch AIR (sensor and/or control device) can be embedded within this luminaire.
Networked Embedded Controls BLWP is available with (wired or wireless) networked embedded controls by nLight®, addressing requirements of Luminaire Level Lighting Controls (LLLC).
A wired nLight or wireless nLight AIR (sensor and/or control device) can be embedded within this luminaire.
INSTALLATION — Intended for surface or suspend mounting. For row mounting and quick mounting to junction boxes see accessories section. Suitable for damp location.
LISTINGS — CSA Certified to meet U.S. and Canadian standards.
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at www. designlights.org/QPL to confirm which versions are qualified.
GOVERNMENT PROCUREMENT — BAA – Product with the BAA option qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product with the BAA option also qualifies as manufactured in the United States under DOT Buy America regulations. BABA – Build America Buy America: Product with the BAA option also qualifies as produced in the United States under the definitions of the Build America, Buy America Act. Please refer to www.acuitybrands.com/buy-american for additional information.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
2' Dimensions
Length: 24 (60.96)
Width: 5.50 (13.97)
Depth: 3.50 (8.89)
4' Dimensions
Length: 48 (121.92)
Width: 5.50 (13.97)
Depth: 3.50 (8.89)
8' Dimensions
Length: 96 (243.84)
Width: 5.50 (13.97)
Depth: 3.50 (8.89)
All dimensions are inches (centimeters) unless otherwise specified.
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning when used with Acuity Brands controls products.
All configurations of this luminaire are calibrated and tested to meet the Acuity Brands' specifications for chromatic consistency – including color rendering, color fidelity, and color temperature tolerance around standard CIE chromaticity coordinates.
To learn more about Acuity A+ standards, specifications, and testing visit www.acuitybrands.com/aplus.
Items marked by a shaded background qualify for the Design Select program and ship in 15 days or less. To learn more about Design Select, visit www.acuitybrands.com/designselect
*See ordering tree for details
ROCHE BOBOIS TYPE WS ALT
4' Wraparound with Selectable Lumens & CCT
Source: 55W to 65W LED 7000lm to 8100lm
PRODUCT DESCRIPTION
4' Wraparound Light includes an integral CCT switch to change the color temperature at any time! Surface mounted, it’s ideal for commercial, residential, industrial, and retail applications, such as stairwells, hallways, garages, schools, offices, and more. Easy to install and great for replacing outdated fluorescents with an energy efficient, cost saving alternative. The luminaire’s lens is designed to uniformly spread and soften the appearance of the light while maximizing its distribution and output. Each luminaire includes two tunable switches; Selectable Lumens easily allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance so it is perfectly customized to your needs.
FEATURES
cULus Listed
Selectable Lumen switch changes output from 7000lm to 8100lm
Field selectable color temperature (3000K / 3500K / 4000K)
0-10V dimming
Emergency and motion sensor options
DLC Listed
SPECIFICATION
Construction: Steel stamped body. Finished in white powder coat. Top, end and cap knockouts.
Tunable Switches: Each luminaire includes two switches on the top of the driver enclosure. Selectable Lumen switch changes the lumen output and wattage. Seletable CCT switch changes the color temperature.
Mounting: Luminaires can be surface mounted, wall mounted or suspended with pendant kit (ordered separately: NLWPSWA-PK).
ELECTRICAL
Input Voltage: 120-277Vac
Lumens / Wattage: Selectable Lumens: 7000lm / 55W, 7500lm / 60W and 8100lm / 65W (Note: Preset to 65W)
Color Temperature: Selectable CCT (3000K / 3500K / 4000K) (Note: Preset to 3000K)
Color Rendering Index: 80+ CRI
Beam Spread: 100° Wide Flood
Operating Temperature: 0˚C to 45˚C
Lifetime: 60,000 hours @ L70
Dimming: 0-10V
OPTIONAL ACCESSORIES
NLWPSWA-PK : 8' Pendant Kit (aircraft cable and hooks)
NLSTRA-MSCONT2 : Remote Control for Motion Sensor (not required)
Optional motion sensor: Microwave motion sensor can detect motion up to 17' away and 120˚ under the luminaire. All MS are preset to dim from 100% to 50% after 1 minute, then turn off after another minute without detected motion. The light sensor is enabled to keep fixture inactive when detecting light levels of 50 Lux or higher for daylight savings. Dip switches or remote control (ordered separately) can be used to change the motion sensor settings). After each power cycle, the fixture will perform a start-up cycle and resume normal operation. Note: 0-10V dimmer cannot be used with MS and EMMS configurations.
Emergency: Luminaire can be specified with an emergency battery with integral test switch. Battery operates luminaire at 8W for 90-minute emergency operation on fully charged battery. Battery may take up to 24 hours to fully charge.
LABELS AND LISTINGS
DLC Listed (Direct Linear, Stairwell and Passageway)
cULus Listed for Damp Locations
5-Year Limited Warranty
FCC Compliant
Suitable for use in closets when installed in accordance to
4'
with Selectable Lumens & CCT
NLWPSW-4L334W = 4’ Wraparound
NLWPSW-4L334W/EM = 4' Wraparound with Integral Emergency
NLWPSW-4L334W/MS = 4' Wraparound with Integral Motion Sensor
NLWPSW-4L334W/EMMS = 4' Wraparound with Integral Emergency & Motion Sensor
Example: NLWPSW-4L334W = 4' Wraparound with Selectable Lumens & CCT
EZ1 eldo LED dims to 1% (0-10v dimming) GZ1 Generic dims to 1% (0-10v dimming) ‡
GZ10 Generic dims to 10% (0-10v dimming) ‡
SLD Step-level dimming ‡
LP830 82CRI, 3000K
LP83582CRI, 3500K
LP840 82CRI, 4000K
LP850 82CRI, 5000K
LP930 90CRI, 3000K
LP93590CRI, 3500K
LP940 90CRI, 4000K
LP950 90CRI, 5000K
nLight Interface ‡ Control ‡
nLight Wired (blank) no nLight® interface
N80 nLight with 80% lumen management
N80EMG nLight with 80% lumen management. For use with generator supply EM power ‡
N100 nLight without lumen management
N100EMG nLight without lumen management. For use with generator supply EM power ‡
nLight Wireless
(blank) no nLight® interface
NLTAIR2 nLight AIR Generation 2 enabled ‡
nLight Wired (blank) no nLight control
NES7 nLight™ nES 7 PIR integral occupancy sensor ‡
NESPDT7 nLight™ nES PDT 7 dual technology integral occupancy control ‡
NES7ADCX nLight™ nES 7 ADCX PIR integral occupancy sensor with automatic dimming photocell ‡
NESPDT7ADCX nLight™ nES PDT 7 dual technology integral occupancy sensor with automatic dimming photocell ‡
nLight Wireless (blank) no nLight control
RES7 nLight AIR control with PIR integral occupancy sensor and automatic dimming photocell ‡
RES7PDT nLight AIR control with PDT dual technology integral occupancy sensor and automatic dimming photocell ‡ RIO nLight AIR radio module without sensor ‡
RES7EM nLight AIR PIR integral occupancy sensor with automatic dimming photocell and UL924 Emergency Operation, via power interrupt detection ‡
RES7PDTEM nLight AIR microphonics dual technology occupancy sensor with automatic dimming photocell & UL924 Emergency Operation, via power interrupt detection ‡
RIOEM nLight AIR radio module less sensor, with UL924 Emergency Operation, via power interrupt detection ‡
Standby mode ‡ Options
(blank) Fixture with embedded sensor turns off when unoccupied
DIM10 Fixture with embedded sensor dims to approximately 10% light output when unoccupied ‡
DIM50 Fixture with embedded sensor dims to approximately 50% light output when unoccupied ‡
NOC Occupancy sensor disabled ‡
Standalone Control
MSD7ADCX PIR integral occupancy sensor with automatic dimming control photocell ‡
MSDPDT7ADCX PDT integral occupancy sensor with with automatic dimming control photocell ‡
SSAIR Wireless standalone embedded control by SensorSwitch ‡
SSAIR VAPIR Wireless standalone embedded control by SensorSwitch with Passive Infrared Occ sensor with autodimming photocell ‡
E10WLCP EM Self-Diagnostic battery pack, 10W Constant Power, Certified in CA Title 20 MAEDBS
E7W Emergency Battery Pack, 7W, CA Title 20 Noncompliant ‡
E10W Emergency battery pack, 10W Linear Constant Power, Certified in CA Title 20 MAEDBS, CA Title 20 MAEDBS, User selectable Self-Diagnostic, AC Activate with Integral Test Switch (LINK) ‡
BGTDBodine Generator Transfer Device ‡ QMB Quick Mount Bracket ‡ TRS Tamper Resistant Screw ‡ CRE Continuous row, end, one end cap included ‡ GLR Fast-blowing fuse ‡ GMF Slow-blowing fuse ‡ FAO Field Adjustable Output ‡ PLR1G Plug-in wiring, see page 10 for ordering information ‡ PLR1LVG Plug-in wiring, low voltage dimming ‡ BAA Buy America(n) Act and/or Build America Buy America Qualified
BDP Factory Installed Ballast Disconnect Plug (blank) Standard pre-paint white PAF Paint After Fabrication White DNA Paint After Fabrication Natural Aluminum
NOTE: ‡ indicates option value has ordering restrictions. Please reference the Option Value Ordering Restictions chart on the next page. Options are sorted alphanumerically.
Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
BODY
Galvanized steel housing with die-cast cover plate and acrylic panel.
FACE
Edge-lit Exit is available in either single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling, or sloped applications.
MOUNTING
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling.
ELECTRICAL
Voltage: Dual 120/277VAC (0.038A / 0.017A)
LED Wattage: 3W normal / 5W emergency operation
Emergency Circuit (NX-814-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
Battery (NX-815-LED): Replaceable NiCad battery provides 90 minutes of illumination during emergency operation
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level
LABELS AND LISTINGS
5-Year Limited Warranty
State & Municipal Certified to the energy efficiency standards of California Title 20
The Ecana downlight family is designed as round or square fixtures with simple detailing, available in 3", 4", and 6" sizes. The family includes fixed, adjustable, and wall wash configurations and blends effortlessly into various settings, enriching small and large-scale projects with practical, cost-effective, and finely tuned lighting.
Plenum Clearance
As low as 4"
Performance
Light Source
Static White SOLA - Dim-to-Warm DUO - Tunable White
Ceiling Types
DrywallMillworkAcoustic Tile
Beam Angles
ROCHE BOBOIS
NIO-2RTLNDC
PRODUCT DESCRIPTION
2" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm or 1000lm LED packages
Comfort Dim (warm dimming) also available in 800lm only 2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit trimless downlight and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to trimless mud ring. A trimless mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
ELECTRICAL
Lumens / Wattage: 800lm / 14W, 1000lm / 14W
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. A trimless mud ring is required per trimless downlight.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
LSDL - Soft diffused lens, Solite LFDL - Frosted diffused lens LS - Linear spread HEX 24 - Hex louver NA - None SDL - Soft diffused lens, Solite
22 If two options are specified, separate codes with a "+", e.g. LSDL+LS.
23 LSDL and LFDL cannot be combined. LS and HEX cannot be combined. 24
25 For remodel (RM) installation type, TLMW adapter must be installed from above the ceiling or before ceiling is installed. At baffle (choose 1 option)
- None 26 Must be specified with the flanged trim (TRM), and either SDL, FDL, or CL lens options.
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted optics are available.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Die-cast Trim
ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Module
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Die-cast Trim
TRIMLESS
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
2" Iolite trimless downlights have no exposed trim flange and the result is a minimalist knife edge appearance. A trimless mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Trimless Mount Mud Ring
NIO-TLMR-2RA
Mounts trimless downlight with no exposed flange and no extension beyond ceiling plane. Mud ring attaches to drywall. Only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIO-2RTLNDC or NIO-2RTLA.
Assist removing trimless downlight from finished ceiling after installation. For maintenance on trimless downlight.
Hex Cell Louver
NIO-HC Black
Suction Cup
Mud Ring
LED Module
Optic
ECANA 3" DOWNLIGHT
ROUND RECESSED
The Ecana downlight family is designed as round or square fixtures with simple detailing, available in 3", 4", and 6" sizes. The family includes fixed, adjustable, and wall wash configurations and blends effortlessly into various settings, enriching small and large-scale projects with practical, cost-effective, and finely tuned lighting.
Plenum Clearance
As low as 4"
Performance
Light Source
Static White SOLA - Dim-to-Warm DUO - Tunable White
Ceiling Types
DrywallMillworkAcoustic Tile
Angles
ROCHE BOBOIS
NIO-2RTLNDC
PRODUCT DESCRIPTION
2" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm or 1000lm LED packages
Comfort Dim (warm dimming) also available in 800lm only 2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit trimless downlight and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to trimless mud ring. A trimless mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
ELECTRICAL
Lumens / Wattage: 800lm / 14W, 1000lm / 14W
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. A trimless mud ring is required per trimless downlight.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
LSDL - Soft diffused lens, Solite LFDL - Frosted diffused lens LS - Linear spread HEX 24 - Hex louver NA - None SDL - Soft diffused lens, Solite
22 If two options are specified, separate codes with a "+", e.g. LSDL+LS.
23 LSDL and LFDL cannot be combined. LS and HEX cannot be combined. 24
25 For remodel (RM) installation type, TLMW adapter must be installed from above the ceiling or before ceiling is installed. At baffle (choose 1 option)
- None
26 Must be specified with the flanged trim (TRM), and either SDL, FDL, or CL lens options.
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted optics are available.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Die-cast Trim
ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Module
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Die-cast Trim
TRIMLESS
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
2" Iolite trimless downlights have no exposed trim flange and the result is a minimalist knife edge appearance. A trimless mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Trimless Mount Mud Ring
NIO-TLMR-2RA
Mounts trimless downlight with no exposed flange and no extension beyond ceiling plane. Mud ring attaches to drywall. Only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIO-2RTLNDC or NIO-2RTLA.
Assist removing trimless downlight from finished ceiling after installation. For maintenance on trimless downlight.
Hex Cell Louver
NIO-HC Black
Suction Cup
Mud Ring
LED Module
Optic
ECANA 3" DOWNLIGHT
ROUND RECESSED
The Ecana downlight family is designed as round or square fixtures with simple detailing, available in 3", 4", and 6" sizes. The family includes fixed, adjustable, and wall wash configurations and blends effortlessly into various settings, enriching small and large-scale projects with practical, cost-effective, and finely tuned lighting.
Plenum Clearance
As low as 4"
Performance
Light Source
Static White SOLA - Dim-to-Warm DUO - Tunable White
Ceiling Types
DrywallMillworkAcoustic Tile
Angles
ROCHE BOBOIS
NIO-2RTLNDC
PRODUCT DESCRIPTION
2" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm or 1000lm LED packages
Comfort Dim (warm dimming) also available in 800lm only 2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit trimless downlight and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to trimless mud ring. A trimless mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
ELECTRICAL
Lumens / Wattage: 800lm / 14W, 1000lm / 14W
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. A trimless mud ring is required per trimless downlight.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
LSDL - Soft diffused lens, Solite LFDL - Frosted diffused lens LS - Linear spread HEX 24 - Hex louver NA - None SDL - Soft diffused lens, Solite
22 If two options are specified, separate codes with a "+", e.g. LSDL+LS.
23 LSDL and LFDL cannot be combined. LS and HEX cannot be combined. 24
25 For remodel (RM) installation type, TLMW adapter must be installed from above the ceiling or before ceiling is installed. At baffle (choose 1 option)
- None
26 Must be specified with the flanged trim (TRM), and either SDL, FDL, or CL lens options.
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted optics are available.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Die-cast Trim
ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Module
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Die-cast Trim
TRIMLESS
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
2" Iolite trimless downlights have no exposed trim flange and the result is a minimalist knife edge appearance. A trimless mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Trimless Mount Mud Ring
NIO-TLMR-2RA
Mounts trimless downlight with no exposed flange and no extension beyond ceiling plane. Mud ring attaches to drywall. Only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIO-2RTLNDC or NIO-2RTLA.
Assist removing trimless downlight from finished ceiling after installation. For maintenance on trimless downlight.
Hex Cell Louver
NIO-HC Black
Suction Cup
Mud Ring
LED Module
Optic
ECANA 3" DOWNLIGHT
ROUND RECESSED
The Ecana downlight family is designed as round or square fixtures with simple detailing, available in 3", 4", and 6" sizes. The family includes fixed, adjustable, and wall wash configurations and blends effortlessly into various settings, enriching small and large-scale projects with practical, cost-effective, and finely tuned lighting.
Plenum Clearance
As low as 4"
Performance
Light Source
Static White SOLA - Dim-to-Warm DUO - Tunable White
Ceiling Types
DrywallMillworkAcoustic Tile
Angles
ROCHE BOBOIS
NIO-2RTLNDC
PRODUCT DESCRIPTION
2" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm or 1000lm LED packages
Comfort Dim (warm dimming) also available in 800lm only 2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit trimless downlight and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to trimless mud ring. A trimless mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
ELECTRICAL
Lumens / Wattage: 800lm / 14W, 1000lm / 14W
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Specified by housing Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. A trimless mud ring is required per trimless downlight.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 | www.noralighting.com | e-mail: nora@noralighting.com
LSDL - Soft diffused lens, Solite LFDL - Frosted diffused lens LS - Linear spread HEX 24 - Hex louver NA - None SDL - Soft diffused lens, Solite
22 If two options are specified, separate codes with a "+", e.g. LSDL+LS.
23 LSDL and LFDL cannot be combined. LS and HEX cannot be combined. 24
25 For remodel (RM) installation type, TLMW adapter must be installed from above the ceiling or before ceiling is installed. At baffle (choose 1 option)
- None
26 Must be specified with the flanged trim (TRM), and either SDL, FDL, or CL lens options.
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted optics are available.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Die-cast Trim
ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Module
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Die-cast Trim
TRIMLESS
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
2" Iolite trimless downlights have no exposed trim flange and the result is a minimalist knife edge appearance. A trimless mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Trimless Mount Mud Ring
NIO-TLMR-2RA
Mounts trimless downlight with no exposed flange and no extension beyond ceiling plane. Mud ring attaches to drywall. Only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIO-2RTLNDC or NIO-2RTLA.
Assist removing trimless downlight from finished ceiling after installation. For maintenance on trimless downlight.
Hex Cell Louver
NIO-HC Black
Suction Cup
Mud Ring
LED Module
Optic
TYPE
NO SPEC
ROCHE BOBOIS TYPE V.E.
NM4-RDC
4" M4 Round LED Recessed Downlight
Source: 15W
PRODUCT DESCRIPTION
4" M4 Round LED downlight are ideal for remodel or new constructions in residential and light commercial applications. IC Air-Tight rated luminaires require no housing, making installation easy.
FEATURES
No housing required - IC Air-Tight rated · Easy installation for remodel or new construction applications
Square trim available for an alternative appearance
Quick disconnect allows for extended lengths
2700K or 3000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
cETLus Listed for Wet Locations
SPECIFICATION
Construction: Die-cast aluminum trims available in matte black or matte powder white finish. Optional field changeable square trim is available.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Junction Box: Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes four 1/2" trade size knockouts and snap on cover with 7" quick connect wire. Luminaire includes 6 1/2" quick connect wire.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-ins are available, see mounting accessories.
ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: 1100lm / 15W
Color Temperature: 2700K or 3000K
Color Rendering Index: 90+CRI
Beam Spread: 37° Narrow Flood
Operating Temp.: 0°C to 25°C ambient temperature
Lifetime: 50,000 hours @ L70
Dimming: Dimmable down to 10% with Triac or ELV
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL TRIM ACCESSORIES
NM4-SDT: Square Baffle Trim for NM4-RDC, Black or White
NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK-23LEDUNV
Emergency: Luminaire is compatible with NEPK-23LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet Locations
· 5-Year Limited Warranty
FCC compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
$105,719.00, CREDIT FOR MIDDLE ROAD DOWNLIGHT OPTION NM4
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com
NEPK-23LEDUNV = 23W Emergency LED Driver w/ Remote Test Switch
NEPKA-20/23LEDRTS = Ribbon Test Switch for NEPK-23LEDUNV
TYPE
NO SPEC
ROCHE BOBOIS TYPE V.E. #2

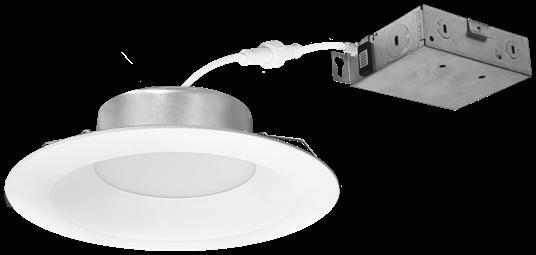

NCSC-R4D
/
NCSC-R6D 4" & 6" Can-less LED Downlights
PRODUCT DESCRIPTION
Can-less LED recessed downlights are designed for easy installation into new construction or remodel applications. Each downlight includes a Selectable CCT switch located on the junction box. The deep reflector provides excellent glare control, quality of light, and efficiency.
FEATURES
Packaged in case quantities of 12
Five color temperatures in each fixture
(2700K / 3000K / 3500K / 4000K / 5000K)
No housing required and includes pre-wired junction box
Quick installation and cost savings
IC Air-Tight rated
cETLus Listed for Wet Locations
5-year limited warranty
SPECIFICATION
Construction: Dead front (non-metallic) luminaire with spring clips for easy installation. Gasket included for airtight and wet location listing without additional caulking.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Junction Box: Pre-wired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two 1/2 " and two 3/8 " knockouts and snap on cover. Maximum of 4 No. 12 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 6" and Junction box wire length: 10"]
Mounting: No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8 " to 5/16 ". New construction frame-ins are available, see accessories.
Minimum clearance: “IC” Insulated ceiling luminaires are direct contact rated; no minimum clearance is required.
Click Here or check complete dimmer list at www. NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL ACCESSORIES
NEFLINTW-EW-4: 4' Quick Connect Linkable Cable
NEFLINTW-EW-20 : 20' Quick Connect Linkable Cable
NEPK-20LEDUNV: 20W Emergency with Remote Test Switch
NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK drivers
NF-R246 : Universal New Construction Frame-In for 4" only
NFC-R4 30 : New Construction Frame-In with Collar for 4"
NFC-R55: New Construction Frame-In with Collar for 6"
Emergency: Luminaire is compatible with 2 0W or 23W Emergency LED Driver (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet locations
Certified to the requirements of CA Title 24 JA8-2025
Universal New Construction Frame-In for 4" Downlight only
NF-R246
New construction frame-in can be used to assist installing can-less recessed downlighting. Helps indicate wiring location and cutting guide.
New Construction Frame-In with Collar for 4" Downlight
NFC-R430
New construction frame-in can be used to assist installing can-less recessed downlighting.
New Construction Frame-In with Collar for 6" Downlight
NFC-R55
New construction frame-in can be used to assist installing can-less recessed downlighting.
Use to extend the length between luminaire and driver enclosure. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40’. For longer remote driver remote run length, consult factory.
20W Emergency Battery with Remote Test Switch
NEPK-20LEDUNV
100-347V 20W emergency battery operates luminaire for 90 minute emergency operation with a fully charged battery. Requires 24 hours to for full charge.
23W Emergency LED Driver with Remote Test Switch
NEPK-23LEDUNV
120-277V Emergency battery operates luminaire for 90 minute emergency operation with a fully charged battery. Requires 24 hours to charge the battery.
Ribbon Test Switch for Remote Emergency LED Drivers
NEPKA-20/23LEDRTS
Ribbon test switch replaces remote test switch included with emergency driver. Double sided tape is pre-installed. Compatible with NEPK-23LEDUNV.
$156,345.00, CREDIT TO USE LESS EXPENSIVE DOWNLIGHT OPTION NCS4
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M) and 100’ (30M) reels.
FEATURES
• 12VDC or 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Remote control with GM’s LUXcontrol™ App and controllers
• Maximum run on a given lead is 16’-4”(12V) and 32’-8”(24V)
• Dry location
• 120 LEDs per meter
• Cuttable every 2”
• Custom lengths available - consult factory
• Includes Sure-Tite connectors
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
SPECIFICATIONS
CERTIFICATION
•ETL (12V) / UL (24V)
•Title 24 compliant when used with used with specific drivers. Consult factory.
•Class 2
•Closet Rated: Complies with NEC code (NFPA70) 410.16, Suitable for installation within the clothes closet storage space
WARRANTY
•5-year warranty when paired with GM power supply
Note: Do not install in an application that is not easily accessed for service. Our warranty covers product only and does not cover any labor or incidental charges related to service or warranty.
LED Tape Specification Checklist:
BLANK
LTR-P Professional Series ®
3W, 12VDC and 24VDC
LED Tape Specification Sheet
RECOMMENDED DRIVERS
LD-XD-UNV LineDrive Electronic Multi-Dimmable Power Supply, 12VDC or 24VDC 20W, 40W, 60W, 96W, 180W, 200W, 300W
LD-E-UNV LineDrive Electronic Non-Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 200W, 300W
LD-MD-UNV LineDrive Magnetic Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 150W, 200W, 300W View Spec Sheet
LD-EDM LineDrive Electronic Dimmable MINI Power Supply, 12VDC or 24VDC 60W
LTP Cord and Plug Power Supply, 12VDC or 24VDC 25W, 48W, 60W, 90W
PSD Electronic Dimmable Power Supply, 12VDC or 24VDC 15W, 24W, 60W, 90W
DIMENSION
16’-4” (5M reel) 100’ (30M reel)
(8mm)
.039” (1mm) Cuttable every 2” (51mm)
CONNECTORS
BLANK
LTR-P Professional Series ®
3W, 12VDC and 24VDC
LED Tape Specification Sheet
LED-CHL
LED-CHL-6
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
LED-CHL-AMC (2) Adjustable mounting brackets for LED-CHL
LED-CHL-EC (2) End caps for LED-CHL - one solid, one with hole. N/A
LED-CHL-MC (2) Additional mounting clips for LED-CHL
45º MINI ANGLE MOUNT
LED-CHL-45-MINI
LED-CHL-45-MINI-B
Extruded angled (45°) silver channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
Extruded angled (45°) black channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
LED-CHL-45-MINI-EC (2) End caps for LED-CHL-45-MINI: light gray, one solid, one with hole N/A
LED-CHL-45-MINI-EC-B (2) End caps for LED-CHL-MINI-B: black, one solid, one with hole N/A
LED-CHL-45-MINI-MC (2) Mounting clips and (2) screws for LED-CHL-45-MINI N/A
LED-CHL-45-M-LENS-BK Lens in black for LED-CHL-45-MINI 4'
1.5W, 12VDC and 24VDC LED Tape Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Series Flexible LED Tape combines style and technology with reliability. Designed for professional installations that demand a high level of quality, the LTR-P Series includes a wide array of key features and is available in 16’-4” (5M), 100’ (30M) and 250’ (76M) reels.
FEATURES
• 12VDC or 24VDC models
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K color temps
• Maximum run on a given lead is 32’-8”(12V) and 60’(24V)
• Remote control with GM’s LUXcontrol™ App and controllers
• Custom lengths available - consult factory
• Includes Sure-Tite connectors
• 120 LEDs per meter
• Cuttable every 2”
• Dry location
• Premium diodes
• 120° viewing angle
• 3M adhesive back
• Dimmable
SPECIFICATIONS
ELECTRICAL
•12V/24V
•1.5 watts per foot
OPTICS
•90+ CRI
BLANK
ROCHE BOBOIS
LTR-P Professional Series ®
1.5W, 12VDC and 24VDC
LED Tape Specification Sheet
RECOMMENDED DRIVERS
LD-XD-UNV LineDrive Electronic Multi-Dimmable Power Supply, 12VDC or 24VDC 20W, 40W, 60W, 96W, 180W, 200W, 300W
LD-E-UNV LineDrive Electronic Non-Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 200W, 300W
LD-MD-UNV LineDrive Magnetic Dimmable Power Supply, 12VDC or 24VDC 30W, 60W, 96W, 150W, 200W, 300W
LD-EDM LineDrive Electronic Dimmable MINI Power Supply, 12VDC/24VDC 60W
LD-ED010 LineDrive Electronic Dimmable 0-10V Power Supply, 12VDC or 24VDC 60W, 96W
LTP Cord and Plug Power Supply, 12VDC or 24VDC 25W, 48W, 60W, 90W
PSD Electronic Dimmable Power Supply, 12VDC or 24VDC 15W, 24W, 60W, 90W View Spec Sheet
Please see our website for updated power supply specifications and information.
DIMENSION
(5M reel)
(30M reel)
(8mm)
(10mm) .039” (1mm)
Cuttable every 2” (51mm)
EST SERIES CONNECTORS
BLANK
ROCHE BOBOIS TYPE
LTR-P Professional Series ®
1.5W, 12VDC and 24VDC
LED Tape Specification Sheet
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
LED-CHL-AMC (2) Adjustable mounting brackets for LED-CHL
LED-CHL-EC (2) End caps for LED-CHL - one solid, one with hole. N/A
LED-CHL-MC (2) Additional mounting clips for LED-CHL
45º MINI ANGLE MOUNT
LED-CHL-45-MINI
LED-CHL-45-MINI-B
Extruded angled (45°) silver channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
Extruded angled (45°) black channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
LED-CHL-45-MINI-EC (2) End caps for LED-CHL-45-MINI: light gray, one solid, one with hole N/A
LED-CHL-45-MINI-EC-B (2) End caps for LED-CHL-MINI-B: black, one solid, one with hole N/A
LED-CHL-45-MINI-MC (2) Mounting clips and (2) screws for LED-CHL-45-MINI N/A
LED-CHL-45-M-LENS-BK Lens in black for LED-CHL-45-MINI 4'
CC

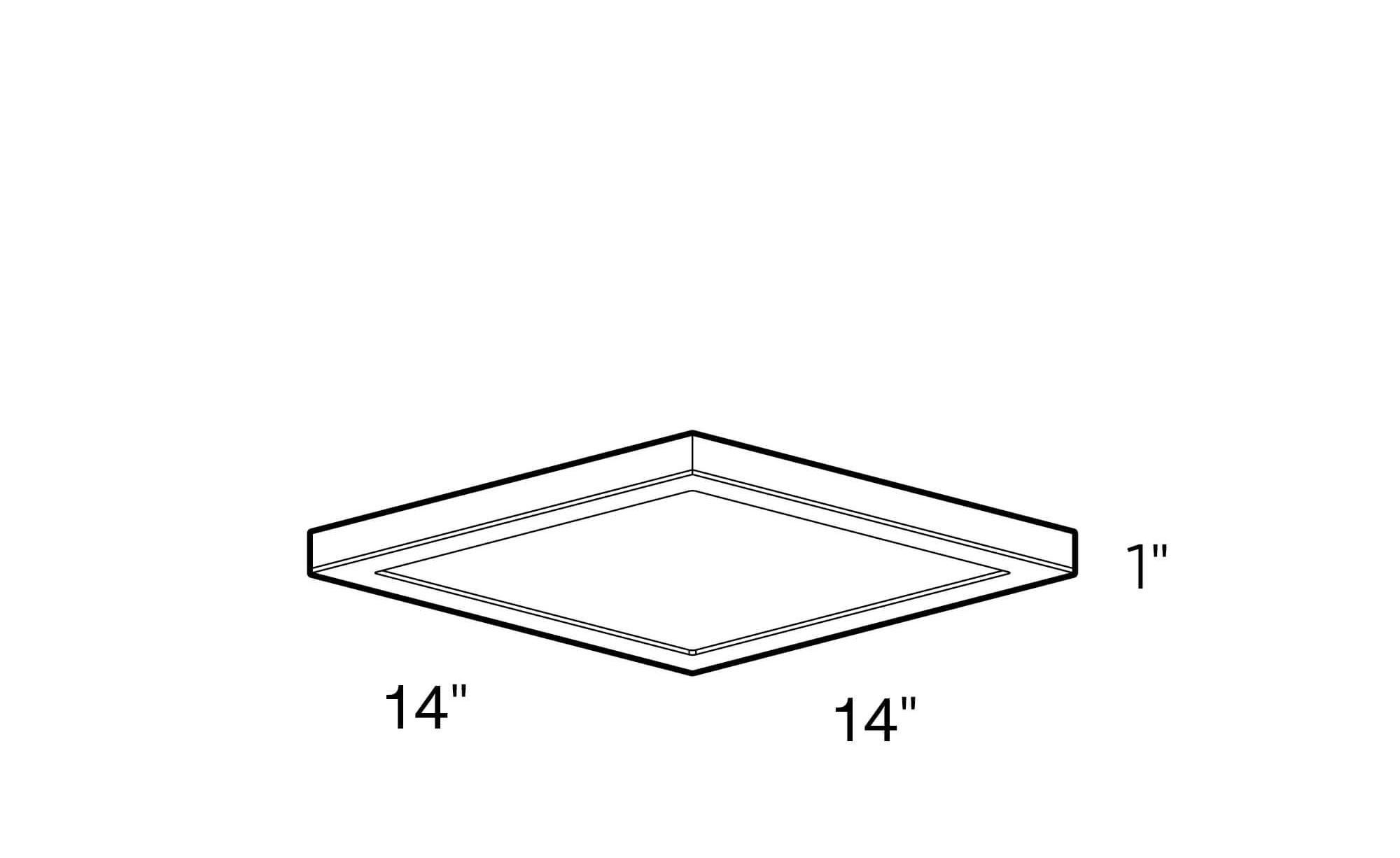

14” Square Flush Mount
Our LED flush mounts incorporate edge-lit technology, eliminating hot spots and glare. Can be installed indoors or out and icludes five switch-selectable CCT settings.
C Canada 80, de la Seigneurie blvd., E. Blainville, Quebec J7C 4N1
to
ROCHE BOBOIS
14” Square Flush Mount
Our LED flush mounts incorporate edge-lit technology, eliminating hot spots and glare. Can be installed indoors or out and icludes five switch-selectable CCT settings. CFLEDSQ14-CC
Simple yet elegant with its clean lines, The Strand Medicine Cabinet features a glowing continuous frame of led lighting on the front mirror panel. Features standard soft close hinges, interior glass shelves, interior mirrored door, and an electrical outlet.
Custom sizes available.
Size in stock:
24 W x 30 H x 5.5 D
Dimmable and compatible with most LED dimmers.
ADDITIONAL INFORMATION
W x 30 H x 5.5 D
SKU: Strand-MC
Categories: Medicine Cabinets
Tags: Backlit LED Medicine Cabinet Mirror
TYPE
NO SPEC
STRAND V
Download Product Spec Sheet
ADDITIONAL INFORMATION
Shape Rectangle, Square
SKU: Strand-V
Categories: Multifamily Quick Ship Program
Tags: LED Mirror, Multifamily, Quick Ship Program
$50,285.00, CREDIT TO USE NON MEDICINE LIT MIRROR
TYPE
NO SPEC
ROCHE BOBOIS TYPE V.E. #2
NCSC-R4D
/
NCSC-R6D 4" & 6" Can-less LED Downlights
PRODUCT DESCRIPTION
Can-less LED recessed downlights are designed for easy installation into new construction or remodel applications. Each downlight includes a Selectable CCT switch located on the junction box. The deep reflector provides excellent glare control, quality of light, and efficiency.
FEATURES
Packaged in case quantities of 12
Five color temperatures in each fixture
(2700K / 3000K / 3500K / 4000K / 5000K)
No housing required and includes pre-wired junction box
Quick installation and cost savings
IC Air-Tight rated
cETLus Listed for Wet Locations
5-year limited warranty
SPECIFICATION
Construction: Dead front (non-metallic) luminaire with spring clips for easy installation. Gasket included for airtight and wet location listing without additional caulking.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Junction Box: Pre-wired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two 1/2 " and two 3/8 " knockouts and snap on cover. Maximum of 4 No. 12 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 6" and Junction box wire length: 10"]
Mounting: No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8 " to 5/16 ". New construction frame-ins are available, see accessories.
Minimum clearance: “IC” Insulated ceiling luminaires are direct contact rated; no minimum clearance is required.
Click Here or check complete dimmer list at www. NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL ACCESSORIES
NEFLINTW-EW-4: 4' Quick Connect Linkable Cable
NEFLINTW-EW-20 : 20' Quick Connect Linkable Cable
NEPK-20LEDUNV: 20W Emergency with Remote Test Switch
NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK drivers
NF-R246 : Universal New Construction Frame-In for 4" only
NFC-R4 30 : New Construction Frame-In with Collar for 4"
NFC-R55: New Construction Frame-In with Collar for 6"
Emergency: Luminaire is compatible with 2 0W or 23W Emergency LED Driver (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LABELS AND LISTINGS
cETLus Listed for Wet locations
Certified to the requirements of CA Title 24 JA8-2025
Universal New Construction Frame-In for 4" Downlight only
NF-R246
New construction frame-in can be used to assist installing can-less recessed downlighting. Helps indicate wiring location and cutting guide.
New Construction Frame-In with Collar for 4" Downlight
NFC-R430
New construction frame-in can be used to assist installing can-less recessed downlighting.
New Construction Frame-In with Collar for 6" Downlight
NFC-R55
New construction frame-in can be used to assist installing can-less recessed downlighting.
Use to extend the length between luminaire and driver enclosure. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40’. For longer remote driver remote run length, consult factory.
20W Emergency Battery with Remote Test Switch
NEPK-20LEDUNV
100-347V 20W emergency battery operates luminaire for 90 minute emergency operation with a fully charged battery. Requires 24 hours to for full charge.
23W Emergency LED Driver with Remote Test Switch
NEPK-23LEDUNV
120-277V Emergency battery operates luminaire for 90 minute emergency operation with a fully charged battery. Requires 24 hours to charge the battery.
Ribbon Test Switch for Remote Emergency LED Drivers
NEPKA-20/23LEDRTS
Ribbon test switch replaces remote test switch included with emergency driver. Double sided tape is pre-installed. Compatible with NEPK-23LEDUNV.
$156,345.00, CREDIT TO USE LESS EXPENSIVE DOWNLIGHT OPTION NCS4
ELO family of LED luminaires are a thin 1/2" surface mounted luminaire with dedicated color temperature. Luminaire is available in 4", 6", 8", 11" or 16" sizes and mounts easily over a standard or fire rated junction boxes.
FEATURES
Dedicated color temperatures at 90 CRI
Surface mounted or retrofit into existing recessed housings with torsion spring kit
Available in five sizes (4", 6", 8", 11", or 16")
Dimmable with Triac or ELV dimmers
ELO+ Series includes an integral magnet allows optional finish ring to attach seamlessly*
Optional battery backup enclosure
5-year limited warranty
SPECIFICATION
Construction: Surface mounted luminaire includes integral driver. Luminaires include an integral magnet for decorative rings in black, brushed nickel, chrome or matte powder white finish (ordered separately).
Mounting: Steel bracket can be used to surface mount on junction box. Optional torsion springs are available for retrofitting 5" or 6" recessed housings.
Retrofit: Each luminaire includes a retrofit kit with medium base socket adapter to mount over 5" or 6" recessed housings. Kit also includes torsion spring brackets that hold luminaire flush against ceiling. Retrofit kit is intended to be used with a lighting fixture as a lamp replacement.
ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: 700lm / 12W
Color Temperature: 2700K, 3500K, 4000K, 5000K
Color Rendering Index: 90 CRI
Operating Temperature: 0-45°C
Dimming: Triac (Leading Edge) or ELV (Trailing Edge)
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
OPTIONAL ACCESSORIES
NSEM-6WDW: Surface mount enclosure with emergency driver and integral test switch.
NSEM-6NDW: Decorative surface mount enclosure without an emergency driver. Used to match the appearance of NSEM6WDW.
NLOCAC-6R: Decorative metal rings attach magnetically
(Note: Decorative rings are held in place with integral magnets. Installations that might have heavy vibrations should be tested.)
LABELS AND LISTINGS
cETLus Listed for Damp Locations
cETLus classified for retrofit
FCC certified
5-Year Limited Warranty
· Certified to the high efficacy requirements of California Title 24 JA8-2022 (ELO+ only)
Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16 (C)(1)
