Foreword Enclosed in this report is a community profile of the Village of Oak Park, a design framework plan, and design concept proposal for the Madison Street Corridor in Oak Park. This report was prepared by 11 students in the Masters of City Design program at University of Illinois at Chicago in accordance with the fall 2022 Urban Edge Studio.

The Urban Edge Studio explores design, planning, and development opportunities along corridors in communities that straddle the urban/suburban continuum- the “urban edge.”

This document is intended for use as a design framework plan at the intermediate urban scale, focusing on the Madison Street Corridor in Oak Park. The ideas put forward in the latter half of this framework plan may be used as inspiration for transforming underutilized suburban corridors in communities across North America.

5 P2301049 Booklet 92pgs.indd 4-5

11/28/22 4:37 PM

Defining Study Area

This map shows Oak Park’s location in relation to Chicago as well as the major transportation corridors that serve the community. The red line here indicates the 1.5-mile Madison street corridor.

6 P2301049 Booklet 92pgs.indd 6-7

11/28/22 4:37 PM

Process and methods

8 P2301049 Booklet 92pgs.indd 8-9

9 11/28/22 4:37 PM

01.

COMMUNITY PROFILE

10 P2301049 Booklet 92pgs.indd 10-11

11 11/28/22 4:37 PM

Neighborhood History

Community Profile P2301049 Booklet 92pgs.indd 12-13

13 11/28/22 4:37 PM

Demographics Population

Race and Ethnicity

In comparison to the neighboring regions and to Cook County as a whole, Oak Park has seen an increase in total population over the last two decades. The increase in population and median household income in Oak Park over the last 10 years, coincides with a fast-paced, luxury housing development strategy in Downtown Oak Park.

Maps of population patterns with regards to race and ethnicity help to visualize this sense of an “urban edge.” A strong contrast between Oak Park and Austin’s racial composition emerges, with Austin’s black population reaching almost 90%, and Oak Park’s landing at closer to 20%. This map also shows that more Black residents live along the eastern edge of Oak Park.

Age Range Percentage

Forest Park

Oak Park

Austin

Cook County

Lake St

16.00% 14.00% 12.00%

Madison St

10.00% 8.00% 6.00%

Race & Ethnicity data

4.00%

Black as % of population.

2.00%

Percentages 8% - 14%

0.00% 0 to 9

10 to 19

20 to 29

30 to 39

40 to 49

50 to 59

Median Age

Oak Park

Cook County

60 to 69

70 to 79

80+

15% - 19% 20% - 24% 25% - 30% 31% - 37%

14

Community Profile

P2301049 Booklet 92pgs.indd 14-15

Community Profile

15 11/28/22 4:37 PM

Income, Poverty annd Unemployment Oak Park’s median household income is 1.4 times higher than that of Cook County as a whole. Furthermore, there has been a 2.5% increase in the Median household income of Oak Park Village in 2020- notable given severe economic challenges during the pandemic.

Though Oak Park is overall a prosperous community in comparison to its neighbors, census tracts around the Madison corridor contain the lowest median household incomes, the highest percentages of poverty, and highest percentages of unemployment within the community

Income Median Household Income Value (in $)

$58994.11 - $61868.00 $61868.01 - $68333.29 $68333.30 - $116127.82 $116127.83 - $142110.75 $142110.76 - $224858.31

Poverty Status Percentage Proverty Percentages

2.33% - 3.41% 3.41% - 5.30% 5.30% - 9.13% 9.13% - 12.43% 12.43% - 16.42%

Unemployment Percentage unemployment Percentages

0.00% - 0.33% 3.41% - 5.30% 5.30% - 9.13% 9.13% - 12.43% 12.43% - 16.42%

Community Profile P2301049 Booklet 92pgs.indd 16-17

17 11/28/22 4:37 PM

Transportation Historically, Oak Park has leveraged its proximity to Chicago and connection to transit systems as development opportunities- such as the development of Lake Street right at the Oak Park Green Line stop. Despite the high availability of transit, most Oak Park residents drive to work.

Additionally, Madison lies just outside the reach of Oak Park’s rich transit network. The suspension of the Madison Street Pace bus route in 2020, coupled with the fact that Madison is just beyond a 0.5 mile walking shed of multiple transit stations along the Blue and Green CTA lines, contribute to this “just out of reach” position. As a consequence, Madison is known to Oak Park residents as a car-centric, east-west thoroughfare.

18

Community Profile

P2301049 Booklet 92pgs.indd 18-19

CTA Blue

Metra Train

CTA Green

PACE Bus routes

Bike Paths

Community Profile

19 11/28/22 4:37 PM

Apart from its “just out of reach” position in the overall transit scheme of Oak Park, the existing street design of Madison itself presents several assets and opportunities for improvement. Existing bike lanes, green medians, and tree cover on the eastern section of the corridor contribute to an overall ease of walkability and micro-mobility. A high prevalence of underutilized surface parking lots throughout Madison, as well as a lack of connected bike infrastructure and tree coverage on the western section of the corridor, contributes to an overall carcentric environment.

Shared Bike Lane

Parking Lots

Bike Share Station

Public Parking Garage

Great IL Trail Designated Bike Lane

20

Community Profile

P2301049 Booklet 92pgs.indd 20-21

Community Profile

21 11/28/22 4:37 PM

Housing Oak Park is a residential suburban community with historic housing stock and a growing high-end housing market. The Village has seen growth in local population and revenue. Village-wide, Oak Park has a strong historic character, and tall new buildings along Lake street establish a strong sense of place.

Property taxes from housing are an important contributor to Oak Park’s economic structure, and have increased in recent years- however, there hasn’t been a stark change in property values near Madison (unlike downtown).

Home Value Median Home value in oak park (2020) Owner-Occupied Housing units Value (in $)

< $250,000 $250,000 - $300,000 $300,000 - $400,000 $400,000 - $500,000 $500,000 +

Census tracts along the Madison corridor have a higher availability of rental housing on the northern side of Madison. Census data also shows that rents along the Madison corridor are moderate in comparison to census tracts in other parts of the village.

Rents - 2020 Median Contract Rent in Oak Park, 2020 (2020 Dollars) Value (in $)

$500 - $1000 $1000 - $1200 $1200 - $1500 $1500+

22

Community Profile

P2301049 Booklet 92pgs.indd 22-23

Community Profile

23 11/28/22 4:37 PM

Economy Introduction With a lack of large revenue-generating institutions in Oak Park, this looks into the economics of Oak Park and Madison focuses on jobs, existing businesses, and new developments as a significant share of village revenue comes from property and commercial tax revenues. Overall, the Madison corridor operates at the neighborhood-level as a service-based economy, whereas downtown Oak Park generates revenue for the entire village as a commercial, big-box retailer economy.

1. Existing Businesses Downtown Oak Park has an abundance of luxury, high-end commercial properties, concentrated within a short walking distance and located on the ground floor.

Madison, on the other hand, has a good deal more of neighborhood-based, independently owned businesses and service-based enterprises, such as beauty salons, barber shops, health clinics.

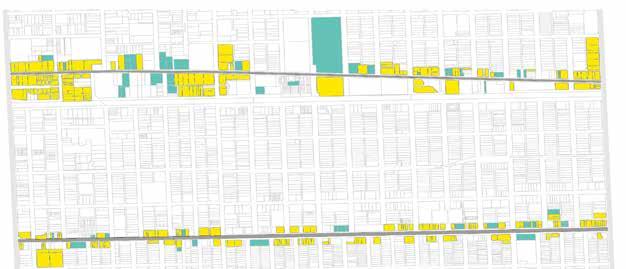

Revenue generating Non - Revenue generating

Food & Beverage Retail 24

Community Profile

P2301049 Booklet 92pgs.indd 24-25

Community Profile

25 11/28/22 4:37 PM

2. Jobs

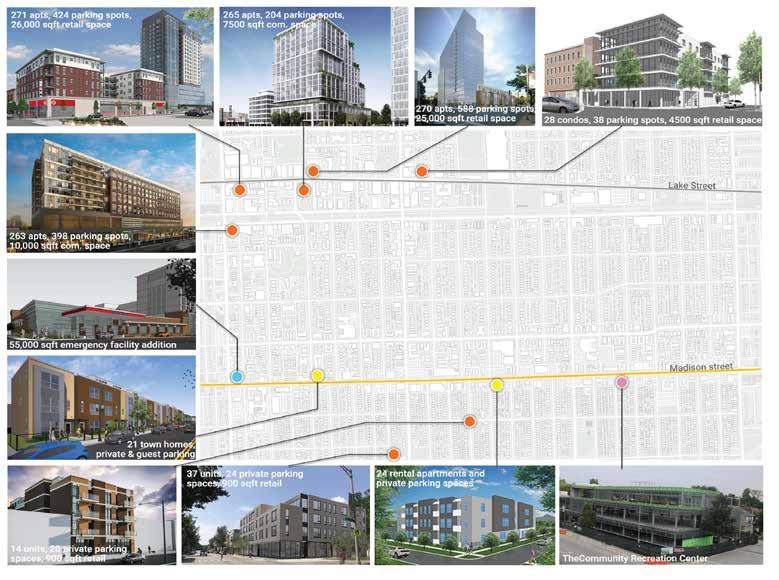

3. New Developments
