I N D U S T R I A L B A L L VA LV E S
www.australianpipelinevalve.com.au
QUALITY VALVE MANUFACTURER
QUALITY COMMITMENT Quality is Our First Priority. Consistent product quality and a proven track record makes Australian Pipeline Valve a dependable choice where total reliability is the number one concern. Since its founding, APV’s philosophy has been focused on quality. Our valves are manufactured in full compliance to worldwide standards (such as ASME/ANSI, API, EN, ISO, BS, AS).
70-78 Stanbel Road Salisbury Plain South Australia 5109 Telephone +61 (0)8 8285 0033 email: admin@australianpipelinevalve.com.au
www.australianpipelinevalve.com.au
CONTENTS 1 Piece Body 1000 PSI Ball Valve APL190/APL197
4
2 Piece Body 1000 PSI Ball Valve 660
5
2 Piece Body 2000 PSI Ball Valve 660-HP
6
3 Piece Body 1000 PSI Ball Valve VT-3-L30
8
3 Piece Body 1000 PSI Ball Valve VT-3-M30
9

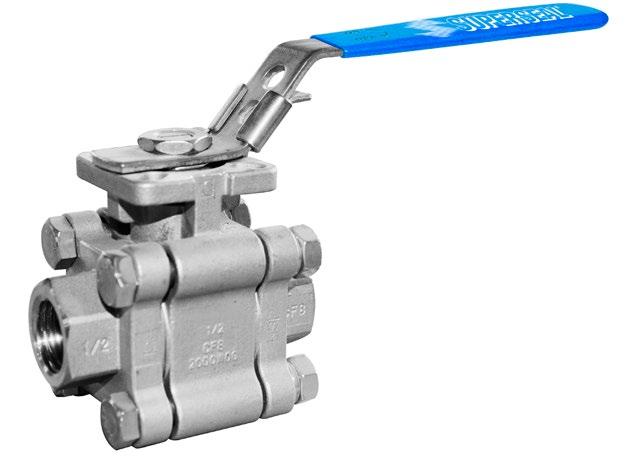

3 Piece Body 2000 PSI Ball Valve BV100-L80
12
3 Piece 1500 PSI / 2000 PSI Ball Valve BV100-370
13
3 Piece 1500 PSI / 2000 PSI Ball Valve HVT-3
16
High Pressure 3000 PSI WOG HP Series
18

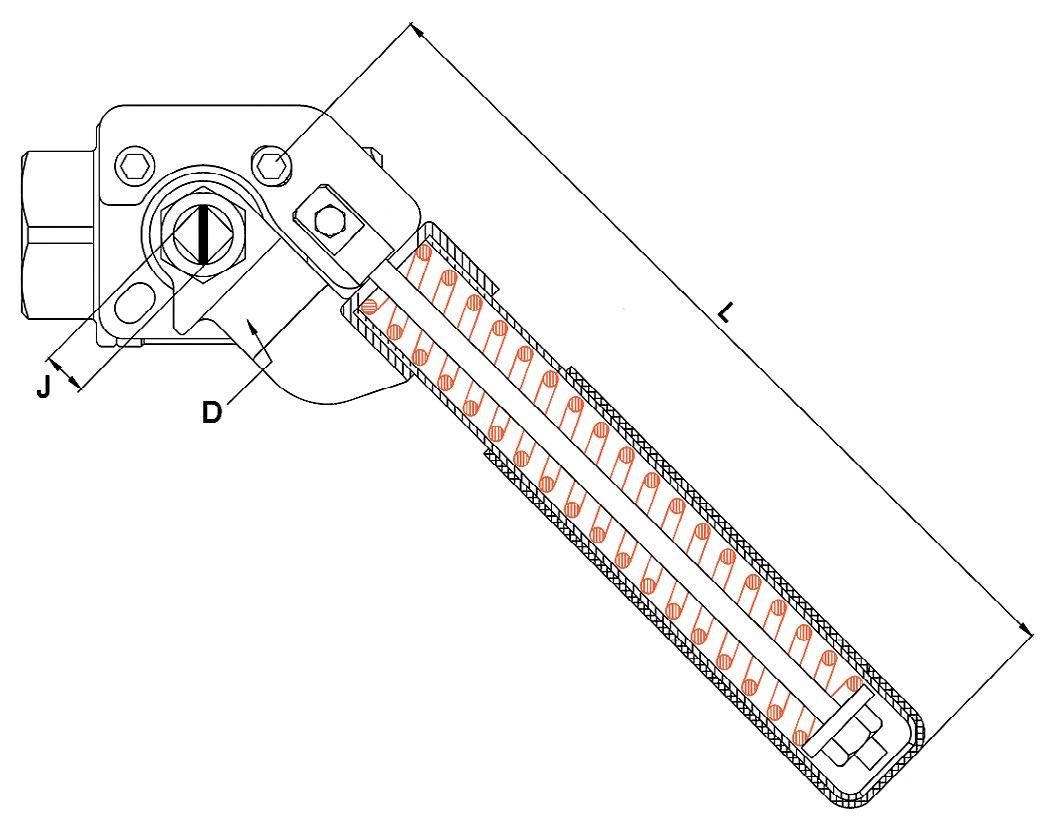

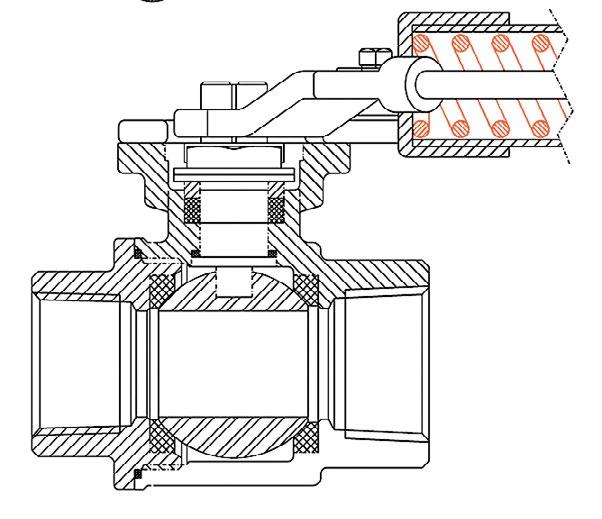

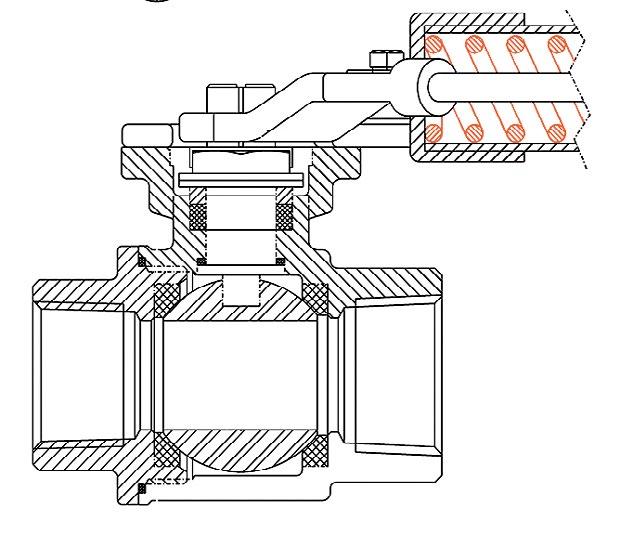

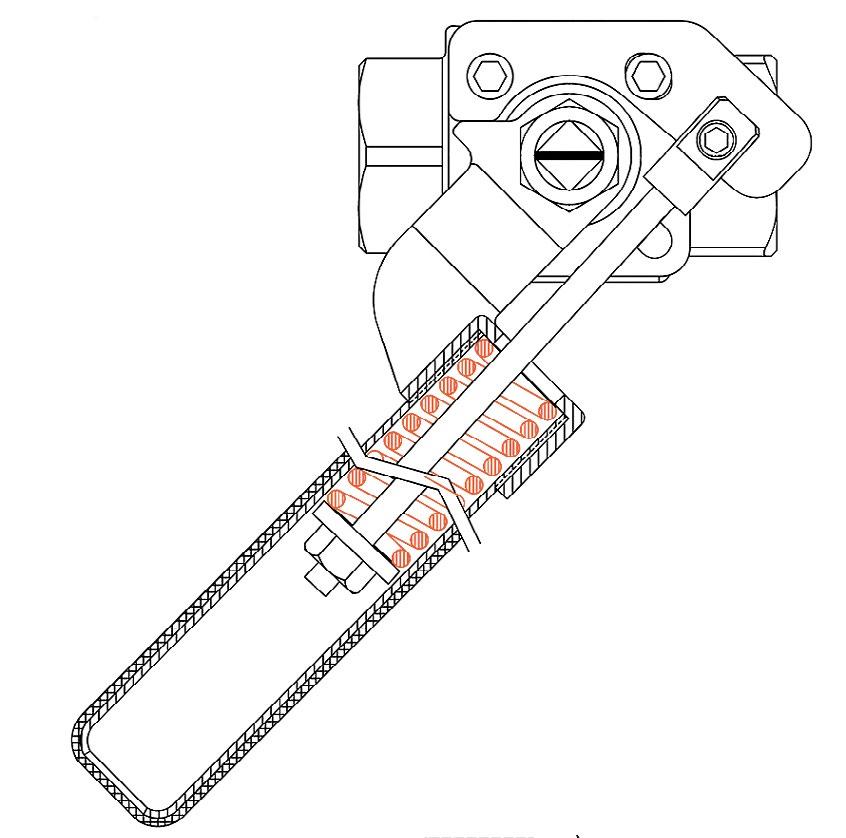

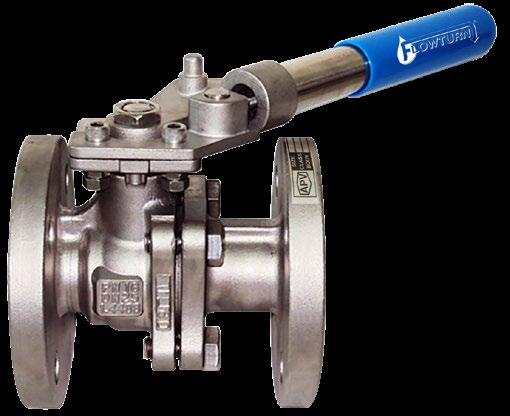

Spring Return Deadman Handle
19

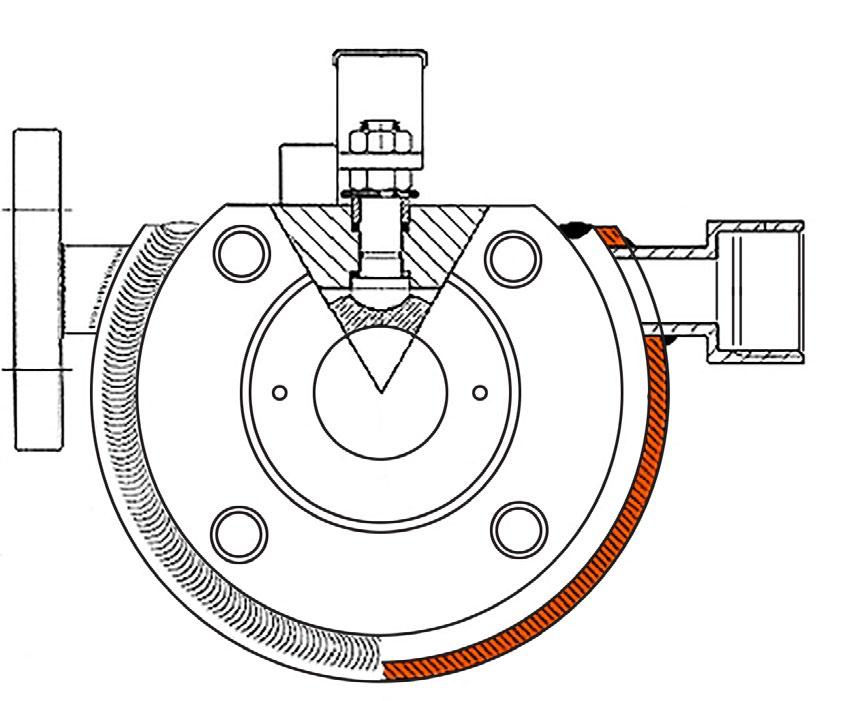

Steam Jacketed Ball Valve Wafer Style
21

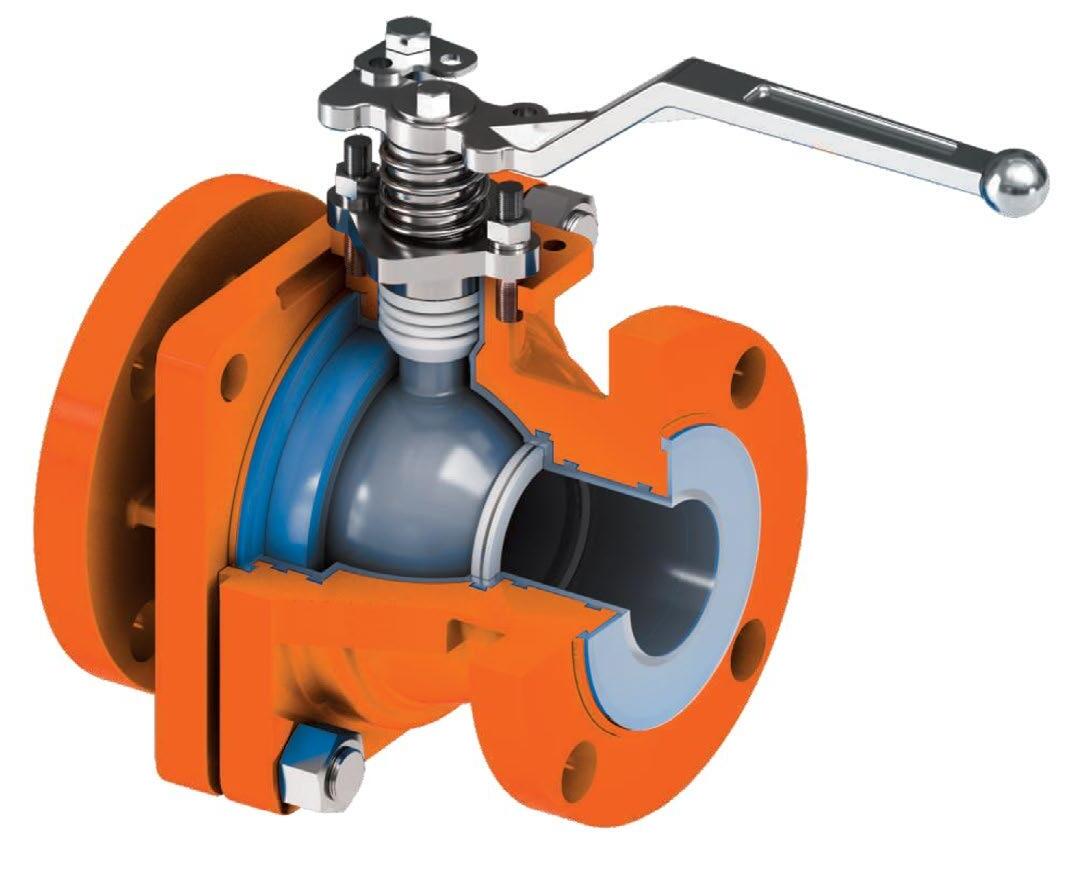

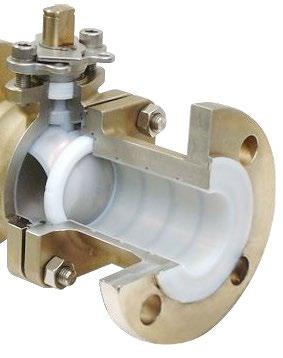

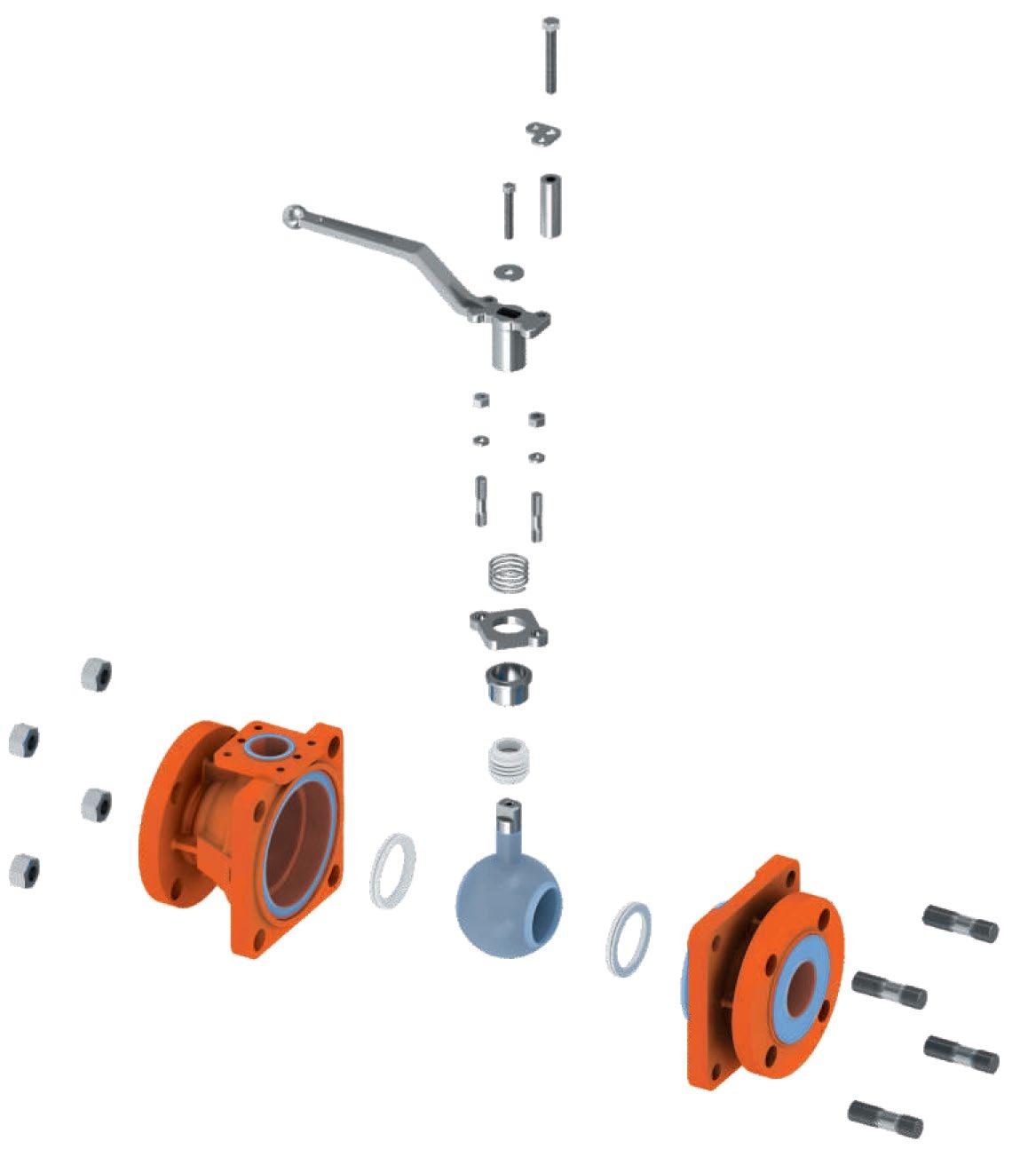

PFA/FEP Lined Ball Valve
22
Lined Ball Valves DO Series
24

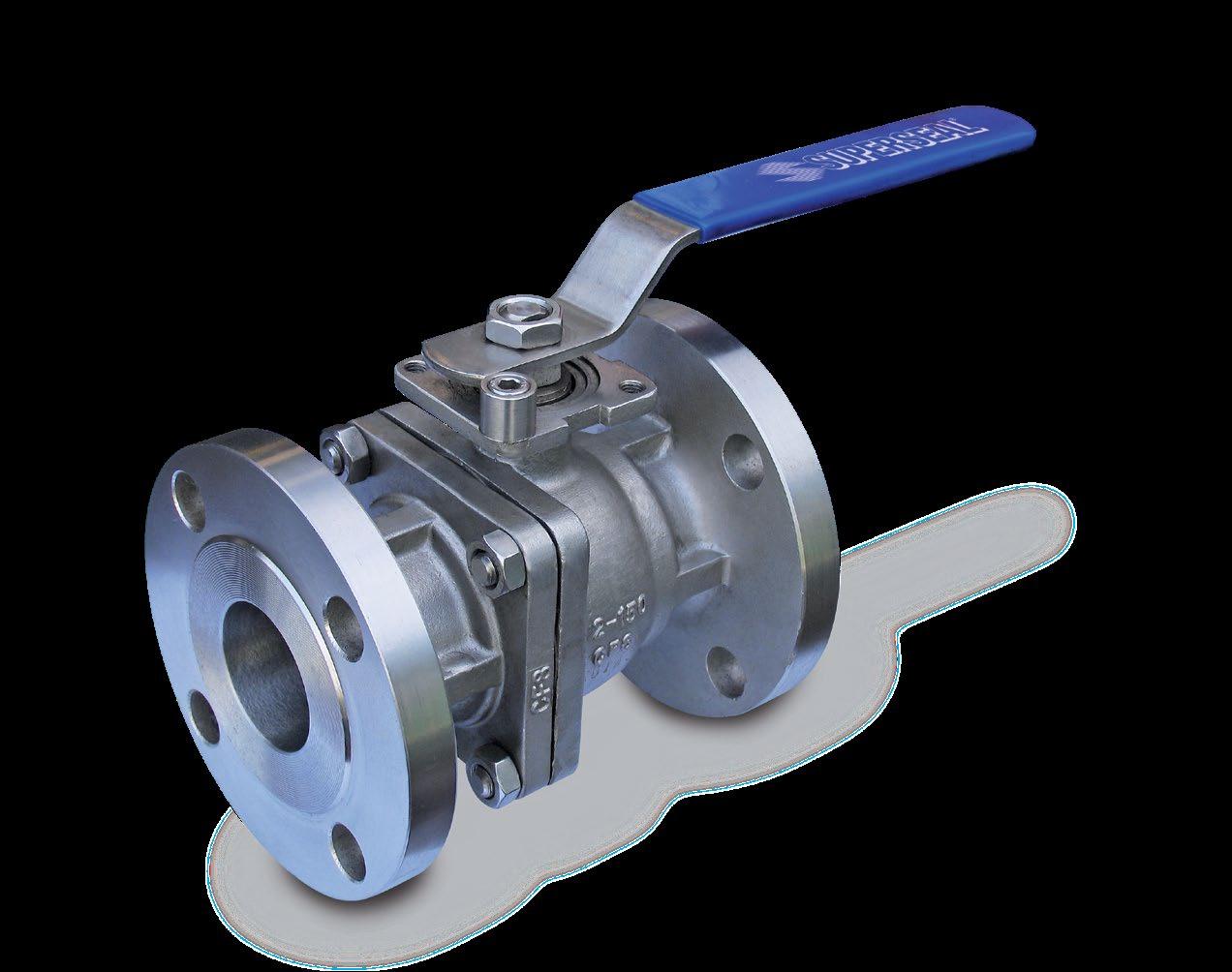

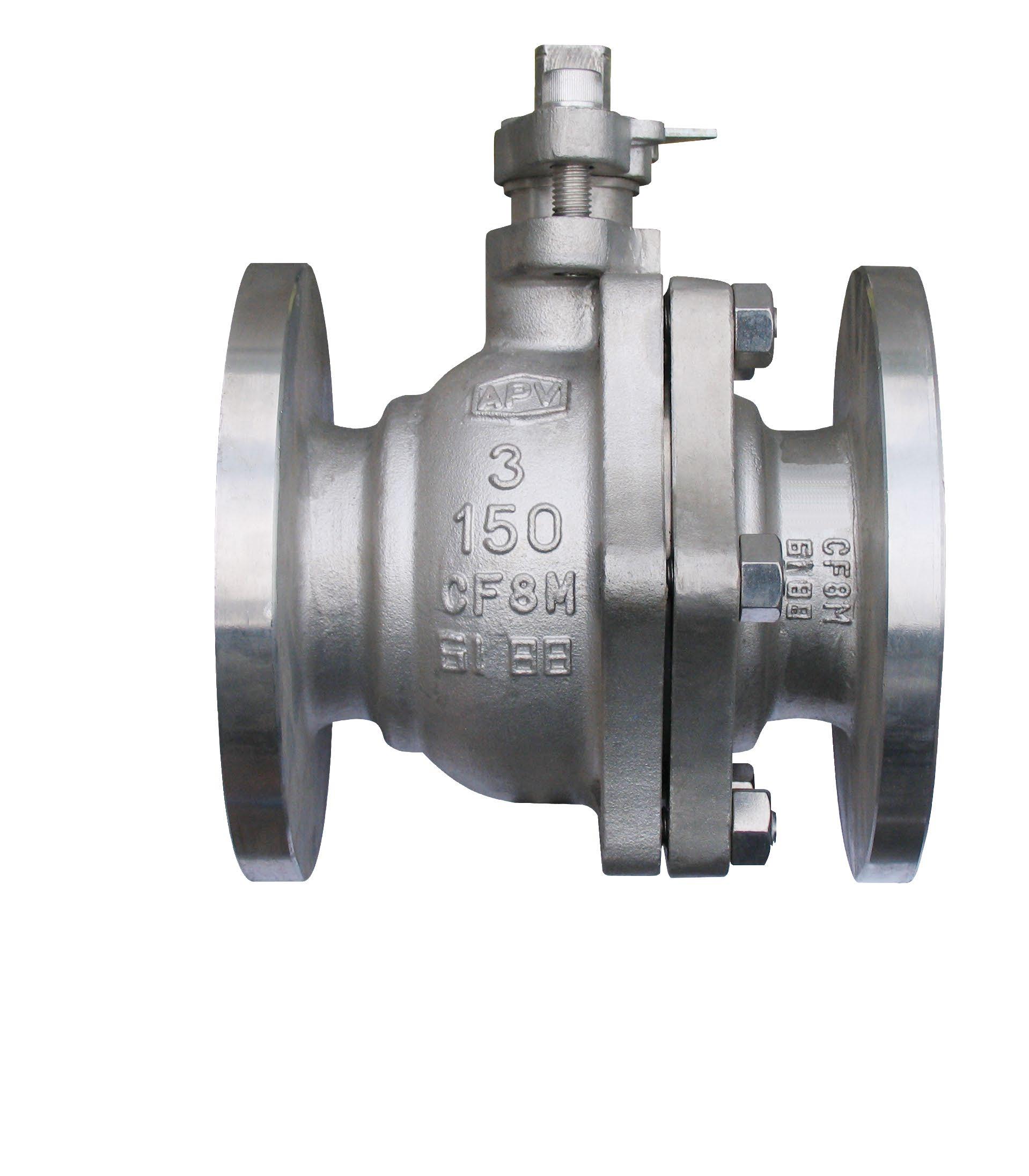

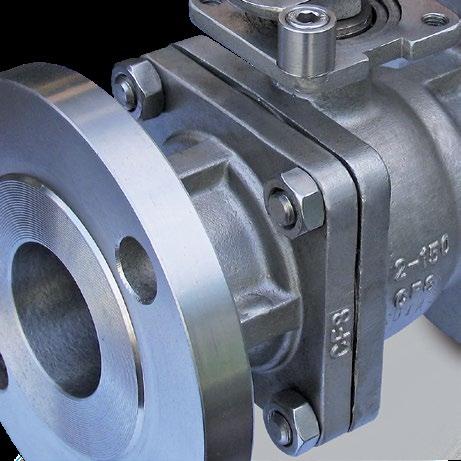

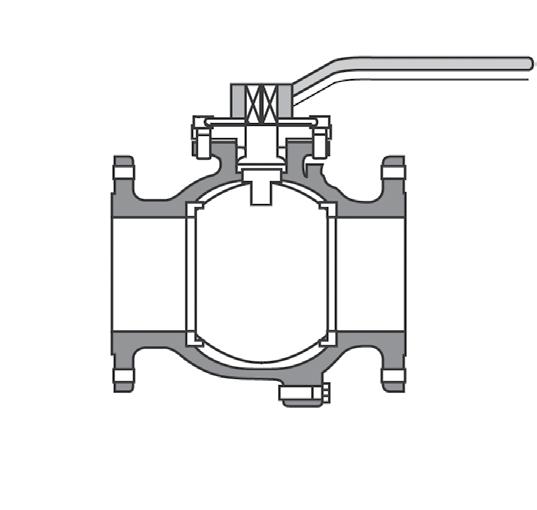

Flanged 2 Piece Type Ball Valve SLBV01 Series
26
Hygienic Quarter Turn Valves
28
© Copyright Australian Pipeline Valve 1990 - 2023 Edition Catalogues, photos, brochures and technical publications are the exclusive property of Australian Pipeline Valve. Any unauthorised reproduction in total or in part, shall result in prosecution. Products and data sheets in this publication are subject to change at anytime without notice. Australian Pipeline Valve reserves the right to carry out amendments to products and materials.
S U P E R S E A L - Industrial Ball Valves
3

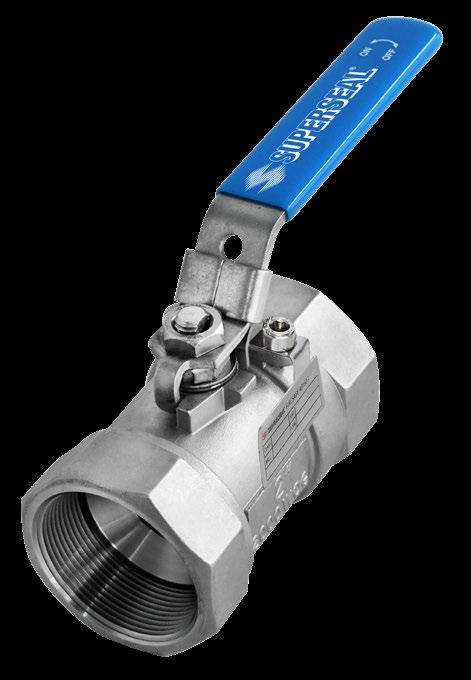

L190 SERIES
1 PIECE BODY 1000/2000 PSI BALL VALVES APL190/APL197 FEATURES • L190 1000PSI, L197 2000PSI up to 50NB. • Reinforced TFE seats increase durability. • Self adjusting Belleville packing spring. • Bottom-loaded blow-out proof stem. • NPT threaded ends complies with ANSI B1.20.1. • BSP threaded ends complies with BS 21, ISO 7/1. • Tested according to MSS SP-110/API 598. • Optional Mount Pad.
MATERIALS LIST
W
Item 1 2 3 4 5 6 7 8 9 10 11 12 13 14
B
14
A
11
12
13
10 9 8
H
7
Parts Stainless Steel Carbon Steel Pcs Body ASTM A351 CF8M ASTM A216 WCB 1 Body Insert ASTM A351 CF8M/316 ASTM A216 WCB/A108 1 Ball ASTM A351 CF8M/316 ASTM A351 CF8/304 1 Seat PTFE PTFE 2 Thrust Washer PTFE PTFE 1 Body Gasket PTFE PTFE 1 Stem Packing PTFE PTFE 1 Belleville Spring AISI 301 AISI 301 2 Stem ASTM A276 316 ASTM A276 304 1 Spring Washer AISI 304 AISI 304 1 Handle Nut AISI 304 AISI 304 1 Handle AISI 304 Zinc Plated Steel 1 Sleeve Vinyl Plastisol Vinyl Plastisol 1 Locking Device AISI 304 AISI 304 1v
PRESSURE/TEMPERATURE RATING ØD
5 4
-51
3 2
PSI
L
1
-12.8

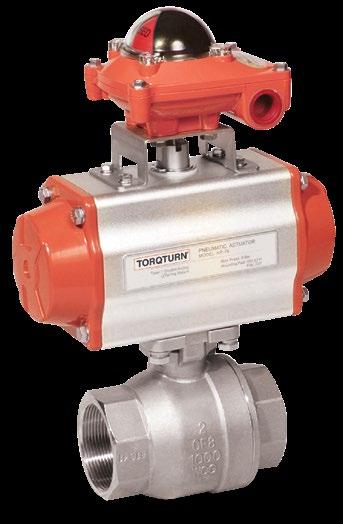

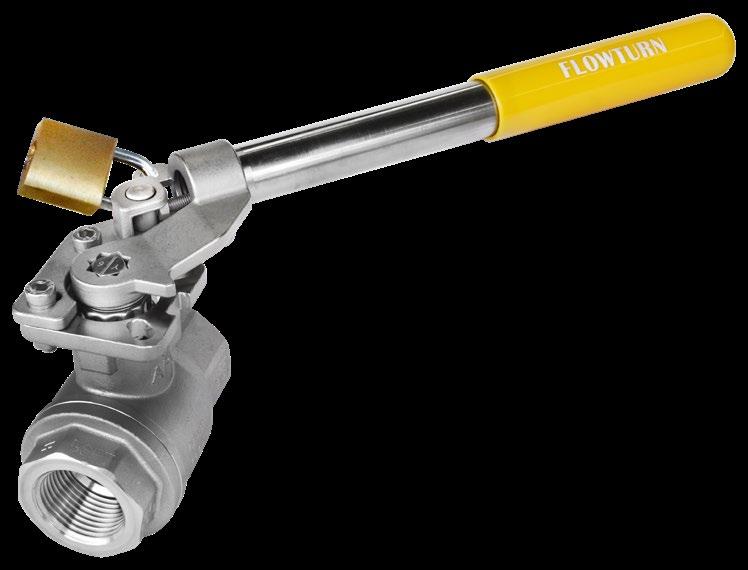

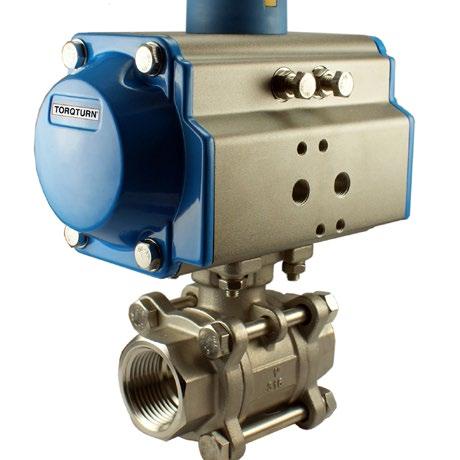

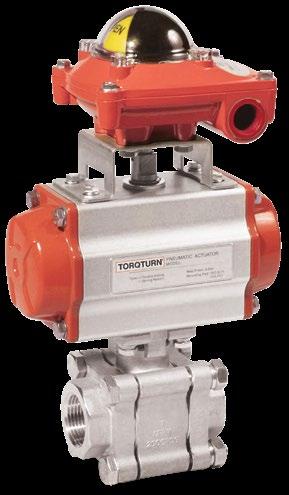

L Locking Device V Vented Ball P Equipped with Pneumatic Actuator M Mounting Pad
204.4
232.2
1200
84
1000
70
800
56
600
PTFE
400
OPTIONS
TEMPERATURE °C 37.8 93.3 148.9
RPTFE
42 28
200
14
50
3
0 -60
0
100 200 300 TEMPERATURE °F
mm 33 35 42 46 50 56 66 72
in 2.68 3.11 3.54 3.54 4.09 4.09 4.96 4.96
400
BAR
6
0 450
DIMENSIONS Size in 1/4” 3/8” 1/2” 3/4 ” 1” 1-1/4” 1-1/2” 2”
ØD dn 8 10 15 20 25 32 40 50
in 0.20 0.28 0.35 0.49 0.63 0.79 0.98 1.26
L mm 5 7 9 12 16 20 25 32
in 1.54 1.77 2.20 2.36 2.80 3.03 3.27 3.94
H mm 39 45 56 60 71 71 83 100
in 1.30 1.38 1.65 1.81 1.97 2.20 2.60 2.83
W
We reserve the rights to modify our product design or construction for improvement without prior notice.
4
S U P E R S E A L - Industrial Ball Valves
mm 68 79 90 90 104 104 126 126
Weights KG 0.1 0.1 0.2 0.3 0.4 0.6 0.9 1.4

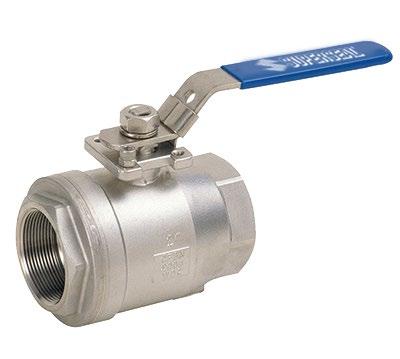

660 SERIES

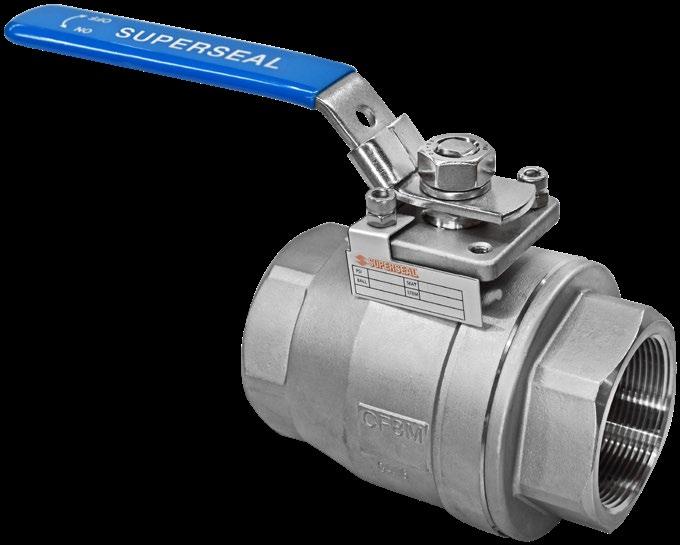

2 PIECE BODY 1000 PSI BALL VALVES 660 FEATURES • Adjustable packing gland. • Bottom-loaded blow-out proof stem. • Low operating torque. • Optional mounting pad complies with ISO 5211 for ease and interchangeability of actuation. • Basic design complies with MSS SP-110. • NPT threaded ends complies with ANSI B 1.20.1. • BSP threaded ends complies with BS 21, ISO 7/1. • Tested according to MSS SP-110/API 598.
No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14
I
M
ØG 14
W
11 12
9
13
8 7 6
-51
ØD
5 4
ASTM A351-CF8M ASTM A351-CF8M PTFE ASTM A351-CF8M PTFE PTFE PTFE ASTM A276-316 AISI 304 AISI 304 AISI 304 AISI 304 PVC AISI 304
PRESSURE/TEMPERATURE RATING
H
K
10
Parts Body End Cap Seat Ball Gasket Thrust Washer Stem Packing Stem Gland Handle Washer Handle Nut Handle Handle Cover Stop Screw
-12.8
1200
TEMPERATURE °C 37.8 93.3 148.9
204.4
84
PTFE
1000
232.2
70
800
56
2
600
42
400
28
200
14
50
3
PSI
3
L
1
OPTIONS
L Locking Device V Vented Ball P Equipped with Pneumatic Actuator M Mounting Pad
0 -60
0
100 200 300 TEMPERATURE °F
400
BAR
Optional
MATERIALS LIST
0 450

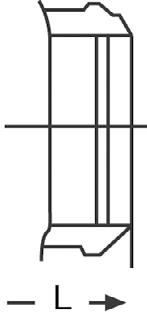

L Buttweld Ends
DIMENSIONS Size in 1/2” 3/4” 1” 1-1/4” 1-1/2” 2” 2-1/2” 3”
mm 15 20 25 32 40 50 65 80
ØD mm 15 20 25.4 32 38 50 65 80
L mm 63 73 85 97 / 102 108 / 115 124 / 134 163 / 168 185 / 191
I mm 5 6 8 8 8 8 12 12
K mm 12 13.5 18 18 18 18 29 29
ØG mm 36 36 42 42 50 50 70 70
H mm 62 68 80 86 86 95 132 143
W mm 100 121 153 153 180 180 265 265
M mm M5 M5 M5 M5 M6 M6 M8 M8
We reserve the rights to modify our product design or construction for improvement without prior notice.
S U P E R S E A L - Industrial Ball Valves
5
660 SERIES

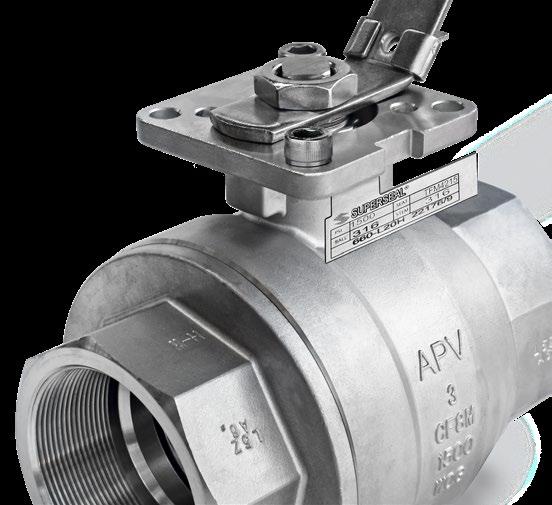

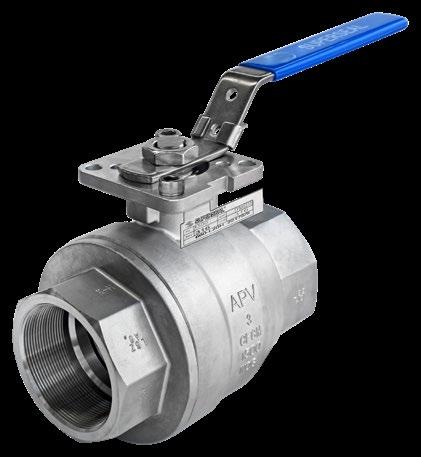

2 PIECE BODY 1500/2000 PSI BALL VALVES 660-HP FEATURES • Reinforced TFE seats increase durability. • Adjustable packing gland. • Bottom-loaded blow-out proof stem. • Low operating torque to reduce automation costs. • Mounting pad complies with ISO 5211 for ease and interchangeability of actuation. • Basic design complies with MSS SP-110. • NPT threaded ends complies with ANSI B 1.20.1. • BSP threaded ends complies with BS 21, Buttweld also available. • Tested according to MSS SP-110/API 598. Optional
MATERIALS LIST No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
I
M
ØG 14
W
11
K
10 12
9
Parts Body End Cap Seat Ball Gasket Thrust Washer Stem Packing Stem Gland Handle Washer Handle Nut Handle Handle Cover Stop Screw O-Ring
ASTM A351-CF8M/CF8 ASTM A351-CF8M/CF8 RPTFE/PTFE ASTM A351-CF8M/CF8 PTFE PTFE PTFE ASTM A276-316 AISI 304 AISI 304 AISI 304 AISI 304 PVC AISI 304 Viton
ASTM A216-WCB ASTM A216-WCB RPTFE/PTFE ASTM A351-CF8/304 PTFE PTFE PTFE ASTM A276-304 AISI 304 AISI 304 AISI 304 Zinc Plated Steel PVC Carbon Steel FKM
13
H
8 7
15
6 5
PRESSURE/TEMPERATURE RATING
3
L
2
OPTIONS
M W
1600
W
PSI
204.4
232.2 165 138 103
(2-1/2” - 3”)
1500
56
800
28
400
14
50
3
0 -60
Option - Seal welded body version also available
TEMPERATURE °C 37.8 93.3 148.9 (1/4” - 2”)
2000
M
Locking Device Vented Ball Equipped with Pneumatic Actuator Mounting Pad Seal Welded
-12.8
2400
Buttweld Ends
L
1
L V P
-51
0
100 200 300 TEMPERATURE °F
400
BAR
ØD
4
0 450
DIMENSIONS in 1/4” 3/8” 1/2” 3/4” 1” 1-1/4” 1-1/2” 2” 2-1/2” 3”
Size
mm 8 10 15 20 25 32 40 50 65 80
ØD mm 11.6 12.7 15.0 20.0 25.4 32.0 38.0 50.0 65.0 80.0
L mm 54 60 61 / 63 73 85 97 / 102 108 / 115 124 / 134 163 / 168 185 / 191
I mm 5 6 8 8 8 8 12 12
K mm 12.0 13.5 18.0 18.0 18.0 18.0 29.0 29.0
ØG mm 36 36 42 42 50 50 70 70
H mm 50 50 62 68 80 86 86 95 132 143
* For 4” refer to separate drawing We reserve the rights to modify our product design or construction for improvement without prior notice.
6
S U P E R S E A L - Industrial Ball Valves
W mm 96 96 100 121 153 153 80 180 265 265
M mm M5 M5 M5 M5 M6 M6 M8 M8
660 SERIES
H I G H C YC L E S T E M S E A L S YS T E M 2 0 0 0 P S I 2 P I E C E BA L L VA LV E S 6 6 0 - L 2 0 H MATERIALS LIST
FEATURES • • • • • • • • • • • •
High Cycle Triple Barrier Stem Seal System V-Type Packing for Maximum Stem Sealing Full Port DN 8NB~80NB (1/4”- 3”) 2000PSI (13790 kPa) for 25NB 1500PSI (10342 kPa) for 32~80NB Long life for Actuated Valve Applications Belleville Washer Set for Automatic Compression of Stem Sealing Direct Mount Pad (ISO 5211) TA Luft Fugitive Emission Compliant Precision Investment Heavy 2 Piece Cast Body Blow-Out Proof Stem Available in Carbon Steel or Stainless Steel Various End Connections Available (NPT, ISO 7/1, ISO 228/1, BSP, DIN 2999, DIN 259, etc.)
No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
18 17
Part Name Body End Cap Ball Ball Seat Stem Antistatic Device Body Gasket Energised Stem Seal O-Ring Stem Packing Set Bushing Gland Belleville Washers Stem Nut Stop-Lock Cap Handle Gland Handle Nut Lock Device Handle Handle Sleeve Stop Bolt Stop Nut
Quantity Material 1 WCB/CF8M 1 WCB/CF8M 1 SUS316 2 TFM4215/TFM 1600/(RPTFE) 1 SUS316 1 SUS316 1 PTFE/TFM1600 1 PTFE/TFM1600/RTFE 1 FKM 2 or 4 PTFE V- Rings 2 50% SS+50% PTFE 1 SUS316 2 SUS301 1 A194-8/SUS304 1 SUS304 1 SUS304 1 A194-8/SUS304 1 SUS304 1 SUS304 1 Vinyl Plastic 1 A2-70/SUS304 1 A2-70/SUS304
Direct Mount Pad 20
19
16 15 14 13
J
9
21
12
8
11
X
10 22
h 6
Y
5
10. PTFE V-Ring Stem Packing Set
4
H 7
2
A 1
4
3
PRESSURE/TEMPERATURE RATING Full Bore - 2000 PSI (8~25NB) 1500 PSI (32~80NB) 2000
151.7
1/4”~ 1”
PRESSURE PSI
1600
si WC
1 1/4”~ 3”
96.5
1500psi W
82.7
1500psi
68.9
CB
1/4”~ 3”
800
TFM1600 TM4215
600
CF8M
55.2 41.4
400 0 -30 0 -34 -18
M
27.6 13.8
Saturated Steam 100 38
200 93
300 149
TEMPERATURE
400 204
L
DIMENSIONS & TORQUE
110.3
si CF8
1200
200
124.1
B
2000p
1400 1000
137.9
2000p
PEEK
1800
0 500oF 260oC
BAR
2200
L1
Pressure Balance Hole
(MM & NM)
8
10
15
20
25
A h H L L1 J X Y
1/4” 10.6 9.0 43.1 62 29.0 9 147 74
3/8” 12.7 9.0 43.1 62 29.0 9 147 74
1/2” 15.0 9.0 43.1 75 34.5 9 147 74
3/4” 20.0 9.0 50.7 80 37.0 9 147 82
1” 1-1/4” 1-1/2” 25.0 32.0 38.0 11.0 11.0 14.0 58.5 63.0 73.5 90 110 120 45.0 51.0 60.0 11 11 14 177 177 197 90 94 107
2” 2-1/2” 3” 50.0 63.5 76.0 14.0 17.0 17.0 83.0 102.3 110.7 140 185 205 70.0 92.5 102.5 14 17 17 197 267 267 117 151 160
Torque Nm
7
8
8
9
16
55
Size
32
26
40
37
50
65
85
80
146
This catalogue is general in it’s nature and design and can vary at any time. This catalogue is to be used as a guide only.
S U P E R S E A L - Industrial Ball Valves
7

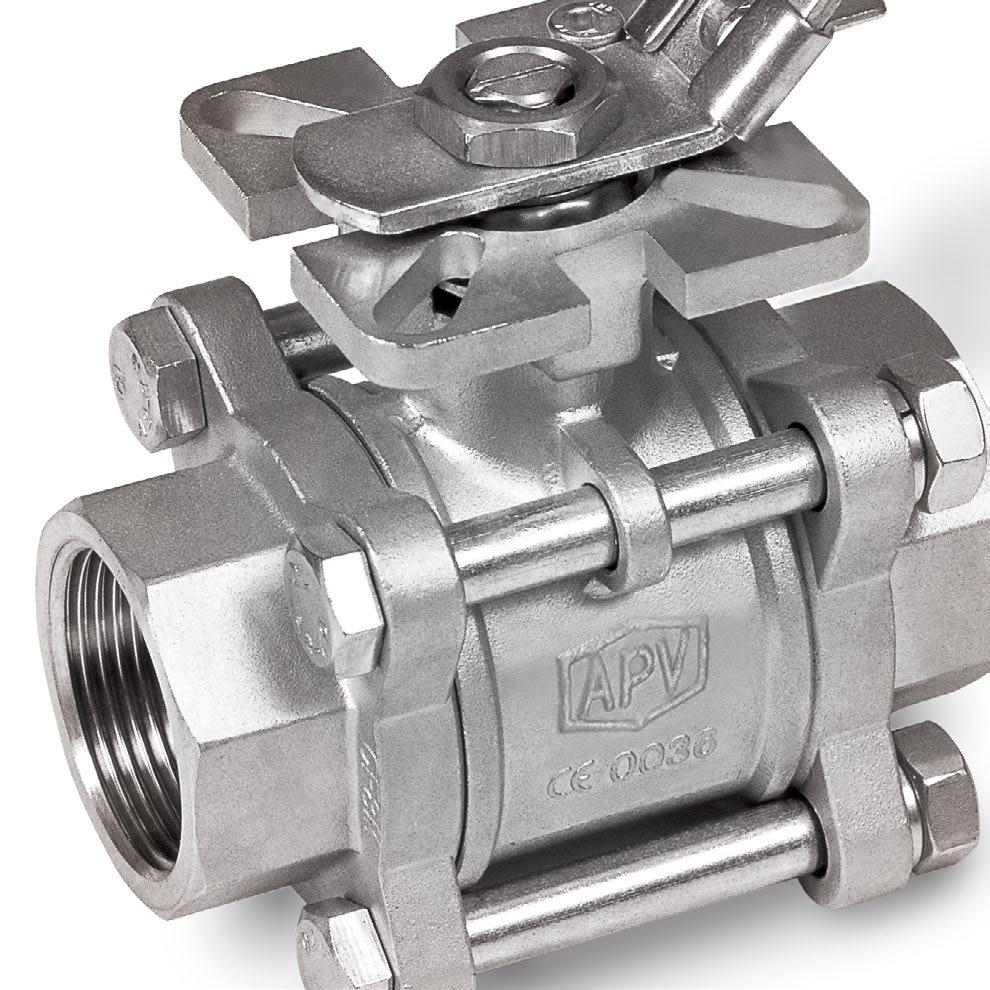

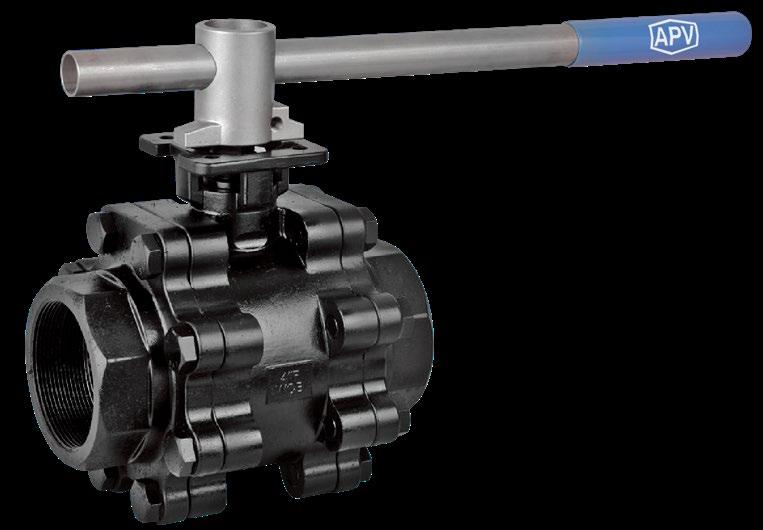

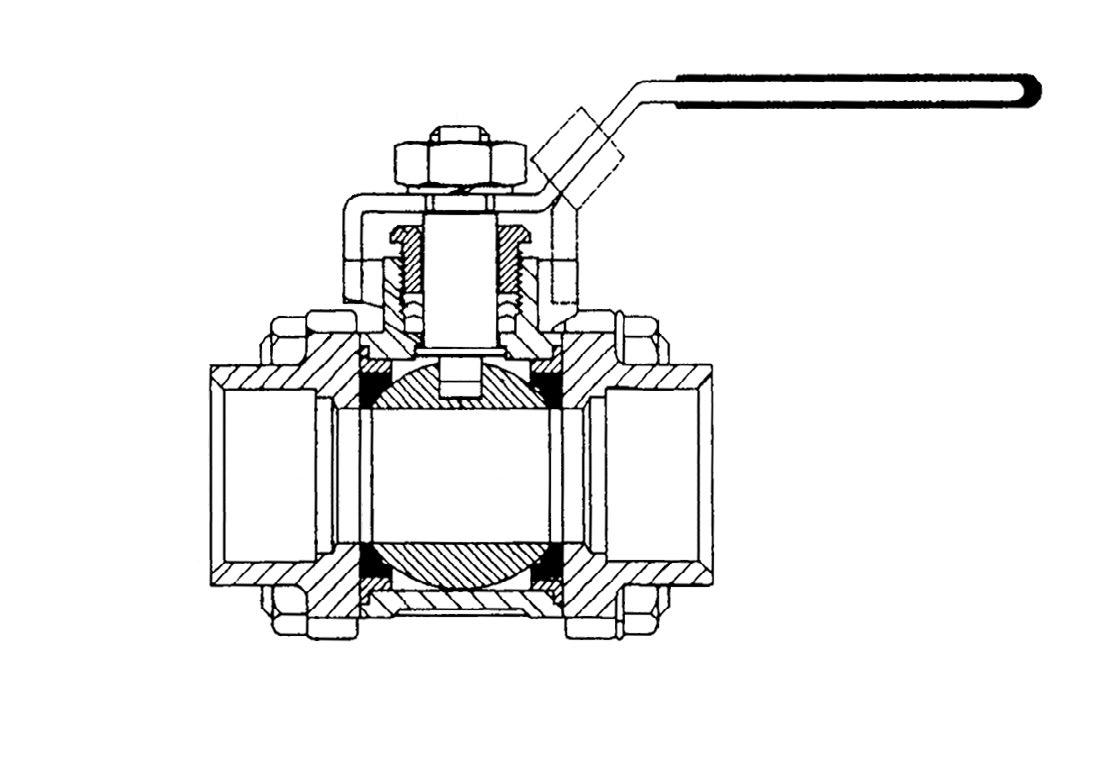

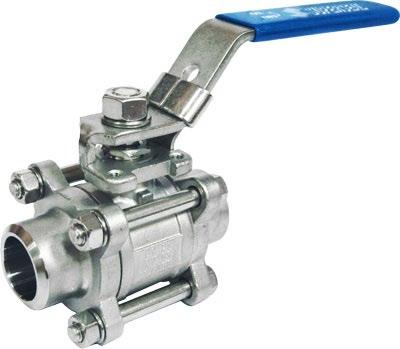

VT-3 SERIES
H I G H C YC L E S T E M S E A L S YS T E M 1 0 0 0 P S I 3 - P I E C E BA L L VA LV E S V T- 3 - L 3 0 MATERIALS LIST
FEATURES • • • • • • • • • • • •
High Cycle Triple Barrier Stem Seal System V-Type Packing for Maximum Stem Sealing Full Port DN 8NB~100NB (1/4”- 4”) 1000PSI (6895 kPa) Long life for Actuated Valve Applications Belleville Washer Set for Automatic Compression of Stem Sealing Direct Mount Pad (ISO 5211) TA Luft Fugitive Emission Compliant Precision Investment Heavy 3 Piece Cast Body Blow-Out Proof Stem Available in Carbon Steel or Stainless Steel Various End Connections Available (NPT, BSP, SW, BW etc.) 17
18
No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
19
Handle Type for 8 ~ 80NB
16 15
10. PTFE V-Ring Stem Packing Set
20
14 13 12
9
11
Part Name Quantity Body 1 End Cap 1 Ball 1 Seats 2 Stem 1 Antistatic Device 1 Body Gasket 1 Energised Stem Seal 1 O-Ring 1 Stem Packing Set 2 or 4 Bushing 2 Gland 1 Belleville Washer 2 Stem Nut 1 Stop-Lock Cap 1 Handle Gland 1 Handle Nut - 8~80NB (1/4”~3”) 1 Handle - 8~80NB (1/4”~3”) 1 Sleeve - 8~80NB (1/4”~3”) 1 Lock Device - 8~80NB (1/4”~3”) 1 Stop Bolt 1 Stop Nut 1 Bolts 4 Nuts 4 Bolt Washer 4 Handle Adaptor - 100NB (4”) 1 Set Screw - 100NB (4”) 1 Bolting - 100NB (4”) 1 Pipe Handle - 100NB (4”) 1 Handle Sleeve - 100NB (4”) 2
21
8
Handle Type for 100NB
22
6
29
10
5 Pressure balance hole
Material WCB/CF8M WCB/CF8M SUS316 PTFE SUS316 SUS316 PTFE/TFM1600 PTFE/TFM1600/RTFE FKM PTFE V-Rings 50% SS+50% PTFE SUS316 SUS301 A194-8/SUS304 SUS304 SUS304 A194-8/SUS304 SUS304 Vinyl Plastic SUS304 A2-70/SUS304 A2-70/SUS304 A193-B8 A193-8 SUS304 A351-CF8 A2-70/SUS304 A2-70/SUS304 A53+Plated Zn Vinyl Plastic
Direct Mount Pad 30
2 27
26
23 24 25
J 28 2
7
4
1
3
4
X
7
h
H
Y
A Butt Weld End
Extended Butt Weld End
Socket Weld End
DIMENSIONS & TORQUE 8
10
15
20
25
1/4” A 10.6 h 9.0 H 42 L 75 J 9.0 X 147 Y 72 Torque Nm 4.5
3/8” 12.7 9.0 42 75 9.0 147 72 4.5
1/2” 15.0 9.0 42 75 9.0 147 72 5
3/4” 20.0 9.0 48.5 80 9.0 147 79 6
1” 1-1/4” 1-1/2” 25.0 32.0 38.0 11.0 11.0 14.0 58.5 63 71.3 90 110 120 11.0 11.0 14.0 177 177 197 89 93 103 11 19 26
Size
Threaded End
L 32
(MM & NM)
40
50
80
100
2” 2-1/2” 3” 50.0 63.5 76.0 14.0 17.0 17.0 78.2 100 108.5 140 185 205 14.0 17.0 17.0 197 267 267 110 150 159 38 59 101
4” 100 22.0 140.0 240 22.0 400 212 148.0
This catalogue is general in it’s nature and design and can vary at any time. This catalogue is to be used as a guide only.
8
S U P E R S E A L - Industrial Ball Valves
65
VT-3 SERIES
H I G H C YC L E S T E M S E A L S YS T E M 1 0 0 0 P S I 3 - P I E C E BA L L VA LV E S V T- 3 - M 3 0 MATERIALS LIST
FEATURES High Cycle Triple Barrier Stem Seal System V-Type Packing for Maximum Stem Sealing Full Port DN 8NB~80NB (1/4”- 3”) 1000PSI (6895 kPa) for 8~80NB Long life for Actuated Valve Applications Belleville Washer Set for Automatic Compression of Stem Sealing Mount Pad (ISO 5211) TA Luft Fugitive Emission Compliant Precision Investment Heavy 3 Piece Cast Body Blow-Out Proof Stem Available in Carbon Steel or Stainless Steel Various End Connections Available Lock device (NPT, BSP, SW, BW etc.) 20
15
14
G
Ball
24

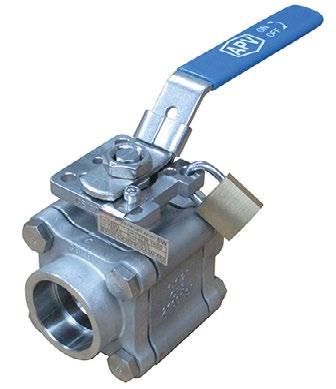

Lock device SEAT DETAIL
17
Live Flexible Lip Seat Design
0
S
21
Seat
23
13
H
22
anced hole
ØE
12
Ød
4-U 22
16
10
Threaded
24 18
9
1
L1
W
23
B1
20
11
Lock device H1
19
Body
Material WCB/CF8M WCB/CF8M CF8M PTFE/TFM1600 ASTM A276 316 SUS316 PTFE V-Type PTFE 50% SS+50% PTFE AISI 316 AISI 301 ASTM A194-8 AISI 304 ASTM A351 CF8 ASTM A194-8 AISI 304 Vinyl Plastic FKM PTFE AISI 304/316 ASTM A193-B8/BM AISI 304/316 A2-70 AISI 304/316
7
8
L L:Socket Weld End
H
5 Pressure balanced hole
W
11
12
17 19
2
8. PTFE V-Ring Stem Packing Set
1
16
15
14
13
3
23 24
Lock device 21
9 20
19
G
H1
18
8
21
7 6
L
4
10
Butt Weld End
Threaded
22
S
ØE
holeWeld End Extended Butt WeldPressure End balanced Socket
(MM & KG)
4-U
Size DN
8
10
15
20
25
32
40
50
65
Size inch
1/4”
3/8”
1/2”
Threaded 3/4”
1”
1-1/4”
1-1/2”
2”
A
Ød
5 DIMENSIONS & WEIGHT
Lock device
0
2-1/2”
3”
L
68.0
68.0
73.0
80.0
90.0
110.0
120.0
140.0
185.0
205.0
d H
10.6
4
29.5
12.7
3
29.5
2
1
80
15.0
20.0
25.0
32.0
38.0
50.0
63.5
76.0
35.5
38.5
45.5
51.0
60.5
68.5
86.5
94.5
H1
76.0
76.0
83.0
88.0
98.0
103.0
110.0
119.0
147.0
155.0
W
135
135.0
135.0
135.0
170.0
170.0
200.0
200.0
250.0
250.0 102.0
L
E
42.0
42.0
42.0
42.0
50.0
50.0
70.0
70.0
102.0
G
6.3
6.3
6.3
6.3
9.0
9.0
9.6
9.6
16.0
16.0
K
3/8-24UNF
3/8-24UNF
3/8-24UNF
3/8-24UNF
3/16-18UNF
3/16-18UNF
3/16-18UNF
5/8-18UNF
7/8-14UNF
7/8-14UNF M10
U
M5
M5
M5
M5
M6
M6
M8
M8
M10
A
17.3
17.3
20.3
20.3
23.3
23.3
23.8
23.8
42.5
42.5
J
10.4
10.4
11.8
11.8
12.5
12.5
15.1
15.1
23.5
23.5
ISO 5211
F04
F04
F04
F04
F05
F05
F07
F07
F10
F10
Weight
0.64
0.65
1.50
2.09
3.09
4.87
6.59
9.92
18.5
27.1
J
4
19
1
Ød
6
H
18
H1
16
Part Name End Cap Body Ball Seats Stem Antistatic Spring/Ball Stem Thrust Seal Packing Bushing Gland Belleville Washer Set Stem Nut Stop-Lock-Cap Handle Handle Nut Lock Device Handle Sleeve O-Ring Body Gasket Nuts Bolts Washers Stop Bolt Washer
J
• • W 17 • • • •
No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
A
• • • • • •
This catalogue is general in it’s nature and design and can vary at any time. This catalogue is to be used as a guide only.
S U P E R S E A L - Industrial Ball Valves
9

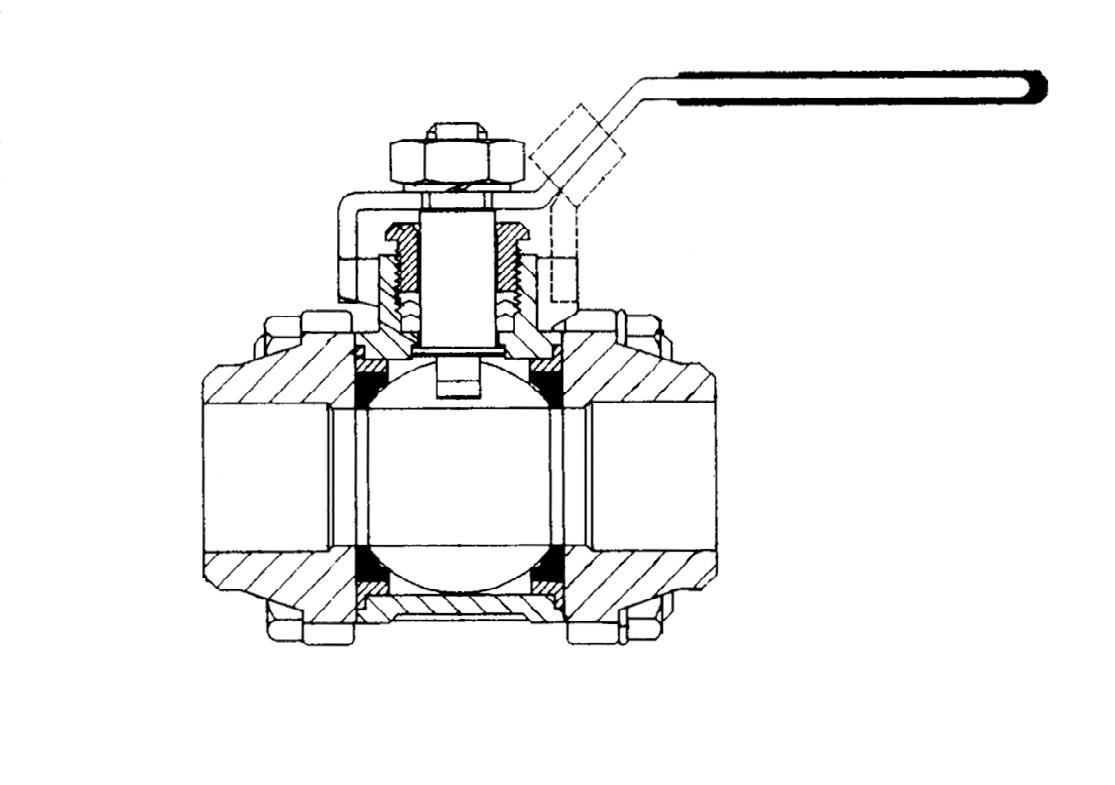

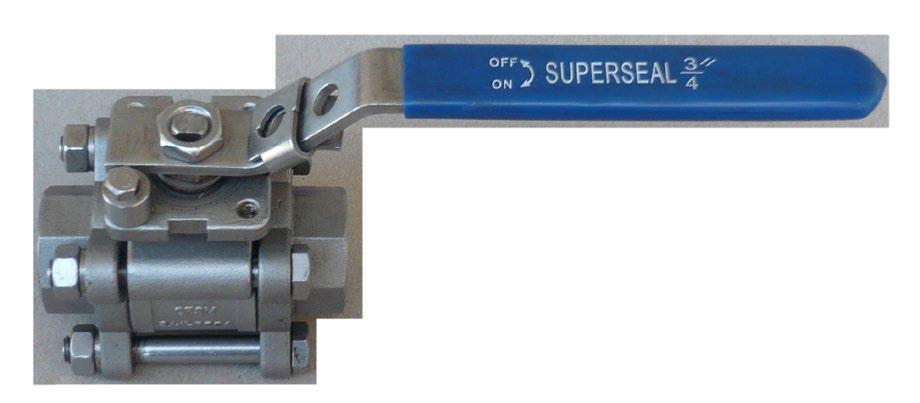

VT-3 SERIES
3-PIECE 1000 PSI BALL VALVE VT-3 FEATURES • Full Port • Pipe thread in accordance with ANSI B2.1, B2.21 1973, DIN 259/2999, BSP BS 21 • Blow-out proof stem • -50°C to 220°C (CF8M/CF8) • -29°C to 220°C (WCB) • Carbon Steel, Stainless Steel • Size - DN 8NB~80NB (1/4”- 3”) • Threaded End
PRESSURE/TEMPERATURE RATING PTFE SEATS -12.8
1200
PSI 10
56 42
400
28
200
14
50
3
18 14
9
15
8
16
7
D
6 5
ØA 4 3 2 1
DIMENSIONS (FULL PORT) NPT/BSP ENDS Size Inch mm 1/4” 8 3/8” 10 1/2” 15 3/4” 20 1” 25 1-1/4” 32 1-1/2” 40 2” 50 2-1/2” 65 3” 80
A mm 11.6 12.7 15.0 20.0 25.0 32.0 38.0 50.0 65.0 80.0
C mm 65 65 74 83 94 105 120 152 186 223
D mm 51.0 56.0 61.0 64.0 73.0 78.0 87.0 96.0 145.0 155.0
E mm 90 90 100 100 135 135 170 170 260 260
0
ISO 5211*
KG
F03 F03 F03 F03 F04 F04 F05 F05 F07 F07
0.35 0.35 0.56 0.75 1.04 1.74 2.41 3.66 7.1 10.5
No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18*
Parts Body Ball Seat Cap Stem Nut Washer Handle Cover Handle Stem Nut Washer Gland Bushing Stem Packing Thrust Washer Joint Gasket Bolt Locking Pad O-Ring*
400
Material CF8M 316 / CF8M RPTFE / PTFE CF8M 316 304 304 Plastic 304 304 304 304 PTFE PTFE PTFE 304 304 Viton*
* Only mount pad version has Viton O-Ring. For direct mount pad version refer to separate drawing.
* Optional mount pad
10
100 200 300 TEMPERATURE °F
0 450
MATERIALS LIST
17
C
70
600
0 -60
E 11
84
800
Mounting Pad ISO 5211 as option
12
232.2
(1/4” - 3”)
1000
13
204.4
BAR
-51
TEMPERATURE °C 37.8 93.3 148.9
S U P E R S E A L - Industrial Ball Valves

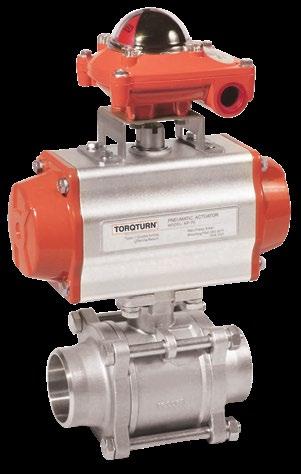

OPTIONS L Locking Device V Vented Ball P Equipped with Pneumatic Actuator M Mounting Pad
Pcs 1 1 2 2 1 4 4 1 1 1 1 1 1 set 1 2 4 1 1
VT-3 SERIES
VT-3 E
VT-3S
13
SIZE - DN 8NB~80NB (1/4”- 3) SOCKET WELD END
12
11
10
14
9
17
15
8
18
D
7
16
6
øA
F
5 4 3 2 1
P
(Optional Mount Pad)
C
E
VT-3W
13
SIZE - DN 8NB~80NB (1/4”- 3) BUTT WELD END
12
11
10
14
9 17
15
8
18
D
7
16
6
øA
F
5 4 3 2
37 °
.5
1
C
MATERIALS LIST
DIMENSIONS (FULL PORT) BW/SW END Size
A
C1
F
Parts
Material
Pcs
1
Body
CF8M
1
2
Ball
316 / CF8M
1
3
Seat
RPTFE
2
4
Cap
CF8M
2
5
Stem
316
1
6
Nut
304
4
7
Washer
304
4
8
Handle Cover
Plastic
1
C2
D
E
Inch mm mm mm
mm mm
mm
mm
BW
P (SW) KG KG SW mm (SW) (BW)
1/4”
8
11.6 28.5
65
65
50.0
100
13.5
14.1
10
0.35
0.35
9
Handle
304
1
3/8”
10
11.6 28.5
65
65
50.0
100
17.2
17.5
10
0.35
0.35
10
Stem Nut
304
1
1/2”
15
12.7 32.8
75
75
60.0
130
21.3
21.7
10
0.56
0.56
11
Washer
304
1
3/4”
20
20.0 38.1
80
83
64.0
130
26.7
27.1
13
0.75
0.75
12
Gland Bushing
304
1
1”
25
25.0 43.0
90
94
71.0
165
33.7
33.8
14
1.00
1.04
13
Stem Packing
PTFE
1 set
1-3/4” 32
32.0 51.4
110
105
78.0
165
42.4
42.5
16
1.70
1.70
14
Thrust Washer
PTFE
1
1-1/2” 40
38.0 59.5
120
120
86.0
190
48.3
49.5
17
2.41
2.41
15
Joint Gasket
PTFE
2
2”
50
50.0 65.7
140
152
95.0
190
60.3
61.0
19
3.66
3.80
16
Bolt
304
4
2-1/2” 65
65.0 82.3
185
186
130.0 250
76.1
77.0
19
7.10
7.6
17
Locking Pad
304
1
3”
80.0 91.3
205
223
148.0 250
88.9
90.0
20
10.50
11.8
18
O-Ring*
Viton*
1
80
B
No.
* Only mount pad version has O-Ring. For direct mount pad version refer to separate drawing.
S U P E R S E A L - Industrial Ball Valves
11
BV100 SERIES
3 - P I E C E BA L L VA LV E S 2 0 0 0 P S I B V 1 0 0 - K L 8 0 MATERIALS LIST
FEATURES • • • • •
High Cycle Triple Barrier Stem Seal System True Swing Out Centre V-Type Packing for Maximum Stem Sealing Full Port DN 8NB~50NB (1/4”- 2”) 2000PSI (13790 kPa) for 25NB 1500PSI (10342 kPa) for 32~50NB Long life for Actuated Valve Applications Belleville Washer Set for Automatic Compression of Stem Sealing 50NB Direct Mount Pad (ISO 5211) Inside Bolting TA Luft Fugitive Emission Compliant Precision Investment Cast Heavy 3 Piece Body Blow-Out Proof Stem Antistatic Design Various End Connections Available (NPT, BSP, SW, BW etc.)
• • • • • • • • •
20
19
18
No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
17
Quantity Material 1 WCB/CF8M 1 WCB/CF8M 1 SUS316 2 TFM4215/TFM 1600/(RPTFE) 1 SUS316 1 SUS316 1 PTFE/TFM1600 1 PTFE/TFM1600/RTFE 1 FKM 2 or 4 PTFE V-Rings 2 50% SS+50% PTFE 1 SUS316 2 SUS301 1 A194-8/SUS304 1 SUS304 1 SUS304 1 A194-8/SUS304 1 SUS304 1 SUS304 1 Vinyl Plastic 1 A2-70/SUS304 1 A2-70/SUS304 4 A193-B8/A2-70/SUS304 4 A193-8/A2-70/SUS304 4 SUS304 X
Direct Mount Pad
21
10. PTFE V-Ring Stem Packing Set
Part Name Body End Cap Ball Ball Seat Stem Antistatic Device Body Gasket Energised Stem Seal O-Ring Stem Packing Set Bushing Gland Belleville Washers Stem Nut Stop-Lock Cap Handle Gland Handle Nut Lock Device Handle Handle Sleeve Stop Bolt Stop Nut Bolting Bolt Nut Bolt Washer
16
h
15 14
Y
9
13 12
11
H
8
10
A
J
22 6
Threaded Ends
5
L 25 23 24 2
7
4
1 3
4
8NB~32NB
7 2
PRESSURE/TEMPERATURE RATING Full Bore - 2000 PSI (8~25NB) 1500 PSI (32~80NB) 2000
151.7
1/4”~ 1”
PRESSURE PSI
1600
si WC
1 1/4”~ 2”
si CF8
1200
1500psi
800
TFM1600
600
CB
CF8M
TM4215
400 0 -30 0 -34 -18
M
1500psi W
1/4”~ 2”
200
B
2000p
1400 1000
137.9
2000p
1800
124.1 96.5 82.7 68.9 55.2 41.4 27.6 13.8
Saturated Steam 100 38
200 93
300 149
TEMPERATURE
400 204
Butt Weld End
110.3
0 500oF 260oC
BAR
2200
Extended Butt Weld End
Socket Weld End
DIMENSIONS & TORQUE Size A h H L J X Y Torque Nm
(MM & NM)
8
10
15
20
25
32
40
50
1/4” 10.6 9.0 43 75 9.0 147 73 7
3/8” 12.7 9.0 43 75 9.0 147 73 8
1/2” 15.0 9.0 43 75 9.0 147 73 8
3/4” 20.0 9.0 51 80 9.0 147 81 9
1” 25.0 11.0 58 90 11.0 177 88 16
1-1/4” 32.0 11.0 63 110 11.0 177 93 26
1-1/2” 38.0 14.0 75 120 14.0 197 107 37
2” 50.0 14.0 86 140 14.0 197 118 55
This catalogue is general in it’s nature and design and can vary at any time. This catalogue is to be used as a guide only.
12
S U P E R S E A L - Industrial Ball Valves
BV100 SERIES
HIGH PRESSURE 1500/2000PSI 3 - P I E C E BA L L VA LV E S B V 1 0 0 - 3 7 0 MATERIALS LIST
FEATURES
Stainless Steel
Carbon Steel
Quantity
1
Body
ASTM A351 CF8M
ASTM A216 WCB
1
2
End Cap
ASTM A351 CF8M
ASTM A216 WCB
2
3
Ball
ASTM A351 CF8M/316 ASTM A351 CF8/304
1
4
Seats
PTFE / R-TFE
PTFE / R-TFE
2
5-1
Body Gasket - Outer
Graphite/PTFE
Graphite / PTFE
2
5-2
Body Gasket - Inner
PTFE
PTFE
2
Graphite/PTFE
Graphite/PTFE
1
PTFE
PTFE
1
6-1 6-2
Part Name
Thrust Washer
7
Stem Packing
Graphite/PTFE
Graphite/PTFE
2
8
Gland
AISI 304
AISI 304
1
9
Belleville Washer
AISI 301
AISI 301
2
10
Stem
ASTM A276 316
ASTM A276 304
1
11
Gland Nut
AISI 304
AISI 304
1
12
Lock Clip
AISI 304
AISI 304
1
13
Flat Washer
AISI 304
AISI 304
14
Body Bolt
ASTM A193 B8
ASTM A193 B7
12-16
15
Handle
ASTM A351 CF8
CARBON STEEL
1
16
Steel Pipe
AISI 304
CARBON STEEL
1
19
17
Sleeve
Vinyl Plastisol
Vinyl Plastisol
1
18
18
Fixing Screw (Pipe)
AISI 304
CARBON STEEL
1
12
19
Fixing Screw (Stem)
AISI 304
CARBON STEEL
1
14
20
Stop Pin
AISI 304
CARBON STEEL
1
21
Stem O-Ring
Viton / NBR
Viton / NBR
1
22
Antistatic Device
AISI 316
AISI 316
1
(NPT, ISO 7/1, ISO 228/1, BSP, SW, BW, etc.) X J
9
11
12
13
15
16
1
17
8 7 21
h
6
( APV )
37.5
10
Y
5
AS 4617
°
H
3
A
22
C
Butt Weld
2
ØB
4
ØD
• • • • •
No.
Socket Weld
L
1
PRESSURE/TEMPERATURE RATING
DIMENSIONS, WEIGHT & TORQUE (MM, KG & NM)
Full Bore - 2000 PSI (65~80NB) 1500 PSI (100NB) 2200 2000
151.7
2 1/2”~ 3”
2000p
si WC
1800 1600
4”
B
2000p
si CF8
1400 1200
M
1500psi W
1000
TM4215
800
1500psi
CB
CF8M
124.1 110.3 96.5 82.7 68.9 55.2
600
41.4
400
27.6
200 0 -30 0 -34 -18
13.8
Saturated Steam 100 38
200 93
300 149
400 204
0 500oF 260oC
65
80
100
A h H L J X Y ØB ØD C ISO 5211 Weights Kg
2-1/2” 65 24 116.5 185 22 460 173 73.9 76.3 17 F07-F10 13.4
3” 80 24 127.0 205 22 460 184 89.8 89.1 17 F07-F10 21.0
4” 100 29 159.0 240 27 600 242 115.2 114.3 20 F10 34.4
Torque Nm
85
96
185
Size
137.9
BAR
• •
High Cycle Triple Barrier Stem Seal System Full Port DN 65NB~100NB (2 1/2”- 4”) 2000PSI (13780 kPa) 65NB~80NB 1500PSI (10335 kPa) 100NB Long life for Actuated Valve Applications Belleville Washer Set for Automatic Compression of Stem Sealing Direct Mount Pad (ISO 5211) Precision Investment Heavy 3 Piece Cast Body Blow-Out Proof Stem Available in Carbon Steel or Stainless Steel Various End Connections Available
PRESSURE PSI
• • •
TEMPERATURE This catalogue is general in it’s nature and design and can vary at any time. This catalogue is to be used as a guide only.
AU S T R A L I A N P I P E L I N E VA LV E
13
BV100 SERIES
3 PIECE BODY 2000 PSI BV100 - AGA FEATURES
BILL OF MATERIALS - 800 CLASS ONLY
• Screwed end, socket weld end to ASME B16.11, butt weld end to ASME B16.11 • True swing-out centre • Design to ANSI B16.34/API 608 • High Cycle Triple Barrier Stem Seal System • V-Type Packing for Maximum Stem Sealing • Full Port DN 8NB~50NB (1/4”- 2”) • 2000PSI (13790 kPa) for 8~50NB • Belleville Washer Set for Automatic Compression of Stem Sealing • Direct Mount Pad (ISO 5211) • 3 Piece Enclosed Bolting Design • Precision Investment Cast Heavy 3 Piece Body • Antistatic design to API 608 • Vacuum service (PTFE Seat) down to 20 microns (133 pascals) • Firesafe Certified Version Available • Blow-Out Proof Stem • Various End Connections Available (NPT, ISO 7/1, ISO 228/1, BSP, BSPT, etc.)
No.
Parts
Specification
1
Body
A351-CF8M/316 A216-WCB/A105 A351-CN7M/A20 A352-LCB/LF2
2
End Cap
A351-CF8M/316 A216-WCB/A105 A351-CN7M/A20 A352-LCB/LF2
3
Ball
A276-316
A276-316
B437-A20
B437-A20
4
Seat
RTFE/Delrin
RTFE/Delrin
RTFE/Delrin
RTFE/Delrin
5
Gaskets
PTFE/Graphite
PTFE/Graphite
PTFE/Graphite
PTFE/Graphite
6
Thrust Washer
PTFE/Graphite
PTFE/Graphite
PTFE/Graphite
PTFE/Graphite
7
Stem Packing
PTFE/Graphite
PTFE/Graphite
PTFE/Graphite
PTFE/Graphite
8
Packing Gland
316
304
A20
A20
9
Belleville Washer
301SS
301SS
301SS
301SS
10
B437-A20
Stem
A276-316
A276-316
B437-A20
11 Gland Nut
SS304
SS304
SS304
SS304
12
301SS
301SS
A20
301SS
Spring Washer
13
Stem Nut
14
Bolt
15 16
SS304
SS304
A20
SS304
A193 Gr. B8M
A194 Gr. B7
A193 Gr. B8
A320 Gr. L7
Handle
SS
SS/Galv
SS
SS/Galv
Cover
Plastic
Plastic
Plastic
Plastic
17
Stop Washer
304SS
304SS
A20
304SS
18
Stem O-Ring*
PTFE/Viton
Viton
PTFE/Viton
Viton
19
Stop Pin
304SS
304SS
A20
304SS
20
Anti-Static Device
304SS
304SS
A20
304SS
*Elastomer free versiom available 19 14
12
ISO 15848-1 Class C02 Fugitive Emission Certified
AS 4617, AS 4629
Endurance Test Certified 11
13
17 10
50NB 800 Class
9 8 15
16 7

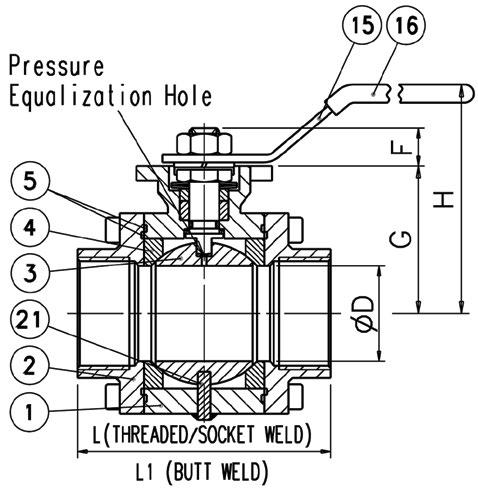

Pressure Equalisation Hole
18 6 20
5
37.5
4
°
37.5
P-T RATINGS P-T RATINGS
°
3
C
ØB
C
ØB
2
ØA
ØA
8NB~40NB 800 Class
1
BUTT WELD BUTT WELD SOCKET WELD SOCKET WELD
BUTTWELD (L1)
SOCKETWELD
DIMENSIONS & WEIGHT Size N 1/4” 3/8” 1/2” 3/4” 1” 11/4” 11/2” 2”
ØD DN 8 10 15 20 25 32 40 50
L
H
in
mm
in
mm
0.43
11.0
2.55
65.0
0.55 0.80 0.98 1.24 1.45 1.96
14.0 20.5 25.0 31.5 37.0 50.0
2.95 3.14 3.54 4.33 4.72 5.51
75.0 80.0 90.0 110.0 120.0 140.0
11 12 11 13 12 13
W
ØA
in
mm
in
mm
2.75
70.0
5.51
140.0
3.54 3.93 4.40 4.52 5.23
90.0 100.0 112.0 115.0 133.0
7.08
180.0
8.46
215.0
in 0.54 0.68 0.85 1.07 1.34 1.68 1.91 2.38
(MM & KG)
ØB mm 13.8 17.3 21.7 27.2 34.0 42.7 48.6 60.5
in 0.56 0.69 0.86 1.07 1.33 1.68 1.92 2.41
C mm 14.2 17.6 21.8 27.2 33.9 42.7 48.8 61.2
in
mm
0.39
10.0
0.51
13.0
0.59
15.0
0.63 0.67
16.0 17.0
Dimensions are indicative 17 only 17 and vary according to body style. Refer to actual drawing. * For Reduced port all sizes refer to separate drawings.
10 This10catalogue is general in it’s nature and design and can vary at any time. This catalogue is to be used as a guide only. 9
14
9
8
8
7
7
18
18
6
6
S U P E R S E A L - Industrial Ball Valves
Weights KG 1.1 1.1 1.1 1.6 2.2 3.3 4.6 7.3
BV100 SERIES
H I G H C YC L E S T E M S E A L S YS T E M 2 0 0 0 P S I 3 - P I E C E BA L L VA LV E S B V 1 0 0 FEATURES
True Swing-out Centre Elastomer & Graphite Free C High Cycle Triple Barrier Stem Seal System V-Type Packing for Maximum Stem Sealing Full Port DN 8NB~50NB (1/4”- 2”) 2000PSI (13790 kPa) BUTTWELD (L1) SOCKETWELD Long life for Actuated Valve Applications Belleville Washer Set for Automatic Compression of Stem Sealing Direct Mount Pad (ISO 5211) Inside Bolting MATERIALS LIST TA Luft Fugitive Emission Compliant No. Parts Specification Precision Investment Heavy 3 Piece Cast Body A351-CF8M/316 A216-WCB/A105 A351-CN7M/A20 A352-LCB/LF2 1 Body Blow-Out Proof Stem Various End Connections Available (NPT, BSP, SW, BWeld, etc) 2 End Cap A351-CF8M/316 A216-WCB/A105 A351-CN7M/A20 A352-LCB/LF2 ØB
ØA
19
W
14
15
High Cycle Elastomer Free Energised Stem Seal
16
Pressure Equalisation Hole
Ball
A276-316
A276-316
B437-A20
B437-A20
Seat
RTFE
RTFE
RTFE
RTFE/Delrin
5
Gaskets
PTFE
PTFE
PTFE
PTFE
6
Thrust Washer
PTFE
PTFE
PTFE
PTFE
7
Stem Packing
PTFE
PTFE
PTFE
PTFE
8
Packing Gland
316
304
A20
A20
9
Belleville Washer
301SS
301SS
301SS
301SS
10 Stem
5
A276-316
A276-316
B437-A20
B437-A20
11 Gland Nut
SS304
SS304
SS304
SS304
12 Spring Washer
301SS
301SS
A20
301SS
13 Stem Nut
SS304
SS304
A20
SS304
A193 Gr. B8M
A194 Gr. B7
A193 Gr. B8
A320 Gr. L7
15 Handle
SS
SS/Galv
SS
SS/Galv
16 Cover
Plastic
Plastic
Plastic
Plastic
17 Stop Washer
304SS
304SS
A20
304SS
19 Stop Pin
304SS
304SS
A20
304SS
20 Anti-Static Device
304SS
304SS
A20
304SS
14 Bolt
H
4
3 4
ØD
3
Thrust Seal
2
Stem Area
1
L
PRESSURE/TEMPERATURE RATING
ADJUSTABLE PRELOADED GLAND - ELASTOMER FREE . Ensures even packing adjustment without need for continuous adjustment. HANDLE NUT GLAND PLATE Full SS
STEM NUT
HANDLE
GLAND
LOCKING CAP
Full SS
2000 1800
7. PTFE V-Ring Stem Packing Set
Full SS
Full SS
Secures gland nut position
PACKING RETAINER
BELLEVILLE SPRING SET PACKING
Full SS
PEEK STEM SEAL TFM THRUST SEAL
Moulded packing set
ANTI-STATIC STEM DEVICE
Triple barrier stem seal system combined with live loaded packing utilising a Belleville Spring set provides assurity of low emissions and low maintenance.
N 1/4” 3/8” 1/2” 3/4” 1” 11/4” 11/2” 2”
137.9
R-PTFE/ TFM 1600
124.1
PTFE
PEEK
110.3 96.5
1200
82.7
1000
68.9
800
55.2
600
41.4
400
27.6
200
13.8
0 -38 0 -34 -18
100 38
200 93
300 149
400 204
0 500oF 260oC
TEMPERATURE
ØD DN 8 10 15 20 25 32 40 50
1/4”~ 2”
1400
DIMENSIONS (MM) Size
151.7
1600
PRESSURE PSI
Full SS
2200
BAR
• • • • • • • • • • • • • •
AS 4617, AS 4629
L
H
in
mm
in
mm
0.43
11.0
2.55
65.0
0.55 0.80 0.98 1.24 1.45 1.96
14.0 20.5 25.0 31.5 37.0 50.0
2.95 3.14 3.54 4.33 4.72 5.51
75.0 80.0 90.0 110.0 120.0 140.0
W
ØA
in
mm
in
mm
2.75
70.0
5.51
140.0
3.54 3.93 4.40 4.52 5.23
90.0 100.0 112.0 115.0 133.0
7.08
180.0
8.46
215.0
in 0.54 0.68 0.85 1.07 1.34 1.68 1.91 2.38
ØB mm 13.8 17.3 21.7 27.2 34.0 42.7 48.6 60.5
S U P E R S E A L - Industrial Ball Valves
in 0.56 0.69 0.86 1.07 1.33 1.68 1.92 2.41
C mm 14.2 17.6 21.8 27.2 33.9 42.7 48.8 61.2
in
mm
0.39
10.0
0.51
13.0
0.59
15.0
0.63 0.67
16.0 17.0
Weights kg 1.1 1.1 1.1 1.6 2.2 3.3 4.6 7.3
15
HVT-3 SERIES
3-PIECE 1500 PSI/2000 PSI BALL VALVES HVT-3 FEATURES • • • • • • •
Full Port Size - DN 8NB~65NB (1/4”- 2 1/2”) Threaded ends to ANSI B1 20.1, BS 21 BSP Blow-out proof stem -46ºC to 220ºC (CF8M/CF8) -29ºC to 220ºC (WCB) Carbon Steel, Stainless Steel
PRESSURE/TEMPERATURE RATING RPTFE SEATS ⁄4” to 2”
1
Mounting Pad ISO 5211 as option
1200
83
800
28
400
14
0 0
100 50
12
11
10
17
400 200
500°F 250°C
No
Parts
Material
Pcs
1
Body
WCB/CF8/CF8M
1
2
Ball
316
1
6
3
Seat
RTFE
2
5
4
Cap
WCB/CF8/CF8M
2
5
Stem
316
1
4
6
Nut
304
4
3
7
Washer
304
4
2
8
Handle Cover
Plastic
1
1
9
Handle
304
1
10
Stem Nut
304
1
11
Washer
304
1
12
Gland Bushing
304
1
13
Stem Packing
PTFE
1 set
14
Thrust Washer
PTFE
1
15
Joint Gasket
PTFE
2
16
Bolt
304
4
17
Locking Pad*
304
1
O-Ring
Viton
1
14
9
15
8
16
7
D
ØA
C
DIMENSIONS (FULL PORT) NPT/BSP ENDS A
C
D
E
ISO 5211*
KG
Inch
mm
mm
mm
mm
mm
1/4”
8
11.6
65
56.0
135
F03
0.4
3/8”
10
12.7
65
56.0
135
F03
0.4
1/2”
15
15.0
74
61.0
135
F03
0.56
3/4”
20
20.0
83
67.0
135
F03
0.75
1”
25
25.0
94
72.0
165
F04
1.04
1-1/4”
32
32.0
106
78.0
165
F04
1.74
1-1/2”
40
38.0
120
92.0
175
F05
2.6
2”
50
50.0
136
100
175
F05
4.7
2-1/2”
65
65.0
167
145
260
F07
7.6
18 * Option
* Optional mount pad
16
300 150
MATERIALS LIST
18
Size
200 100
TEMPERATURE
E 13
138 103 97
21⁄2”
BAR
PRESSURE PSI
2000 1500 1400
S U P E R S E A L - Industrial Ball Valves
OPTIONS L V P
Locking Device Vented Ball Equipped with Pneumatic Actuator M Mounting Pad
HVT-3 SERIES
HVT-3 E
HVT-3S
13
SIZE - DN 8NB~65NB (1/4”- 2 1/2”) SOCKET WELD END
12
11
10
14
9 17
15
8
D
7
16
6
øA
F
5 4 3 2 1
P C1
E
HVT-3W
13
SIZE - DN 8NB~65NB (1/4”- 2 1/2”) BUTT WELD END
12
11
10
14
9 17
15
8
18
16
D
7 6
øA
F
5 4 3 2
.5
37 °
1
C2

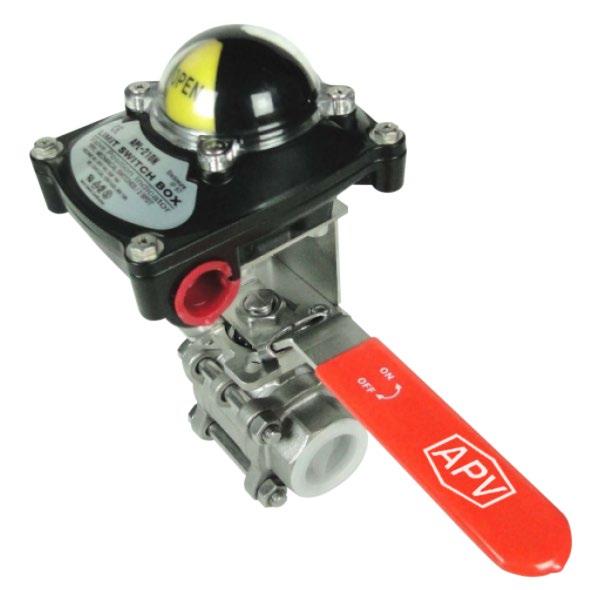

MATERIALS LIST Limit Switch Box Option
DIMENSIONS (FULL PORT) BW/SW ENDS Size
A
C1
C2
D
E
F
P (SW)
KG (SW) 0.4
Inch
mm
mm
mm mm
mm
mm
BW
SW
mm
KG (BW)
1/4”
8
11.6
65
56.0
135
13.5
14.1
10
0.4
3/8”
10
12.7
65
65
56.0
135
17.2
17.5
10
0.4
0.4
1/2”
15
15.0
74
74
61.0
135
21.3
21.7
11
0.56
0.56
3/4”
20
20.0
83
83
67.0
135
26.7
27.1
13
0.75
0.75
1”
25
25.0
94
94
72.0
165
33.7
33.8
14
1.04
1.04
1-1/4”
32
32.0
105
105
78.0
165
42.4
42.6
16
1.74
1.75
65
No.
Parts
Material
1
Body
WCB/CF8/CF8M
Pcs 1
2
Ball
304 / 316
1
3
Seat
RTFE
2
4
Cap
WCB/CF8/CF8M
2
5
Stem
316
1
6
Nut
304
4
7
Washer
304
4
8
Handle Cover
Plastic
1
9
Handle
304
1
10
Stem Nut
304
1
11
Washer
304
1
12
Gland Bushing
304
1
13
Stem Packing
PTFE
1 set
14
Thrust Washer
PTFE
1
15
Joint Gasket
PTFE
2
1-1/2”
40
38.0
120
120
92.0
175
48.3
49.5
16
2.6
2.6
16
Bolt
304
4
2”
50
50.0
136
152
100
175
60.3
61.0
19
5.2
4.7
17
Locking Pad
304
1
2-1/2”
65
65.0
167
186 145.0 260
76.1
77.0
19
8.5
7.6
18
O-Ring
Viton
1
S U P E R S E A L - Industrial Ball Valves
17

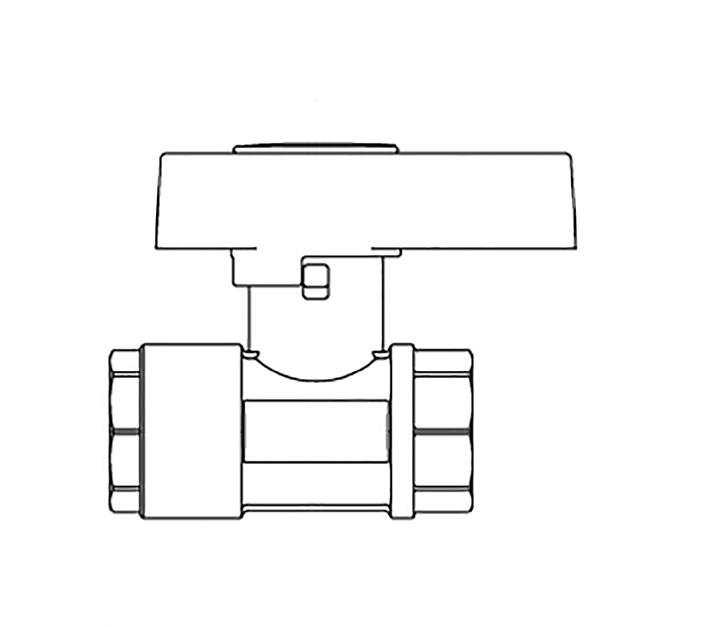

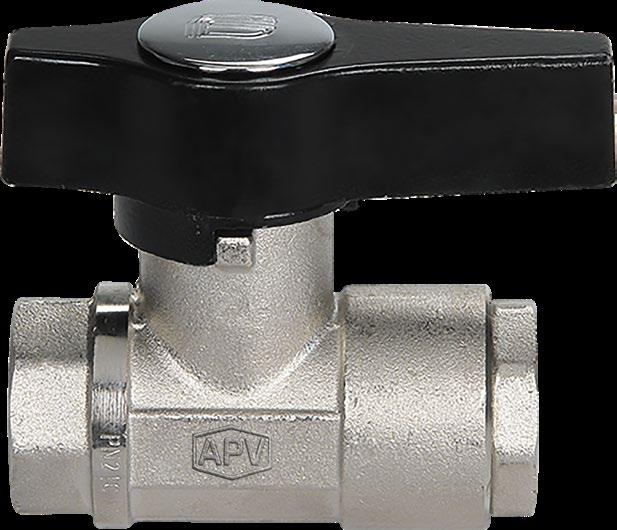

HIGH PRESSURE BALL VALVE
HIGH PRESSURE BALL VALVE 3000 PSI/210 BAR WOG HP SERIES FEATURES From -20 to + 80ºC 210 bar as a maximum Hydraulics, pneumatics, general industrial installations Female according to BSP / UNI-ISO 7/1 (UNI EN 10228) Also available in NPT Triple barrier stem seals, 2 self adjusting cone shape PTFE seats, O-ring and PTFE packing
B
• Anti blowout design
E
ØC
• Threaded Ends
A
ØD
• Temperature • Pressure • Application Fields
F L
No.
Part
1
T-handle protection cover
Chromium Plated Brass
2
T-handle nut
Zinc Plated Steel
3
T-handle
Die-cast aluminium alloy, polyurethane coated
4
Stem
Machined from Brass bar OT 58
5
Anti-friction ring
Virgin PTFE (Cone Shape)
6
Gland Ring
Virgin PTFE (Cone Shape)
150
7
Stem Packing
Filled PTFE
100
8
Stem Seal
O-ring VITON
50
9
Ball
Machined from Brass Bar
0
10
Seat
DELRIN
11
End Seal
O-ring VITON
12
Body with Female End
Hot stamped from Brass Bar OT 58
13
Female End
Hot stamped from Brass Bar OT 58
(Bar)
PRESSURE/TEMPERATURE DIAGRAM
250
(3/8”- 1”)
200
-10
0 3
20 2
40
60
80
95 100(°C)
1
4
Materials
5 6
PORT CAPACITY AND LOSS OF HEAD DIAGRAM
7
The Kv is the index port capacity expressed in cubic metres per hour, causing a pressure drop of 1 bar with water at 15ºC.
8 9
bar 1
10
12
3/4” Kv=20.2
0.8
11
0.6
13
18
15 1/2” 12 73 56 36 43 47 85 0.630
20 3/4” 16 110 75 45 68 54 95 1.160
25 1” 20 110 77 53 68 56 105 1.550
0.2
1” Kv=25.3
10 3/8” 8 73 54 30 43 44 75 0.480
1/2” Kv=12.9
Nominal diameter mm Size in inches ø bore mm A mm B mm øC mm E mm F mm L mm Weight Kg.
3/8” Kv=5.2
0.4
DIMENSIONS
0.1
1
5
10
S U P E R S E A L - Industrial Ball Valves
50
100
500
1000 m3/h
SPRING RETURN DEADMAN HANDLE
D E A D M A N S P R I N G R E T U R N BA L L VA LV E H I G H C YC L E 6 6 0 - L 2 0 H + S 7 1 - 5 0 8 ~ 5 1 0 - 0 1 - Z
FEATURES
MATERIALS LIST
• •
No. 1 2 3 4 4A 5 6 7 8 9 10 10A 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 27A 28
• • • • • • • • • •
Full Port DN 8NB~80NB (1/4”- 3”) 2000PSI (13790 kPa) for 25NB 1500PSI (10342 kPa) for 32~80NB Spring Return Handle (Dead Man Handle) for Auto Default Position High Cycle Triple Barrier Stem Seal System V-Type Packing for Maximum Stem Sealing Belleville Washer Design for Automatic Compression of Stem Sealing Direct Mount Pad (ISO 5211) TA Luft Fugitive Emission Compliant Precision Investment Heavy Hex 2 Piece Cast Body Blow-Out Proof Stem Available in Carbon Steel or Stainless Steel Various End Connections Available (NPT, BSP, ISO 7/1/ ISO 228/1, BW, etc.) E1 E2 E2
1
U2 U2
K
3
LOC
12
4A 4A
U1 U1
E
4 4 5
25
66
PP
11
7 7
P P
26 23
19
27
22
Quantity 1 1 1 1 1 1 1 1 1 1 2 2 1 1 1 1 1 2 1 1 1 1 4 1 2 1 1 1 1 1 1
Material AISI 304/CF8 AISI 304/CF8 SUS304 AISI 304/SUS316 SUS304 55CrSi/SUS301 AISI 304 PVC AISI 304 AISI 304 A2-70 304SS SUS304 AISI 304 A194-8 CF8M CF8M SUS316 RPTFE TFM4215 PTFE PTFE Viton A276 316 PTFE V-Rings AISI 316 AISI 301 AISI 304 AISI 304 A194-8 A-270 304SS A-270 304SS AISI 316 3
2 18
24
Part Name Handle Head Anchor Shaft Bolt Spring Shaft Spring Rod Anchor Spring Handle Sleeve Tension Adjustment Washer Hex Nut Hex Screws Lock Nuts (Nylon Insert) Stop Lock Cap Handle Nut Body Cap Ball Seats Body Gasket Primary Stem Seal (Tapered) O-Ring Stem Stem Packing Set Gland Belleville Washer Bushing Gland Stem Nut Stop Bolt Stop Bolt Nut Antistatic Device
10 10A
8
1
6
12
11 26
9
21
24 25 20
27A
13
16
28
18. Taperseal Stem Seal
16
17
H1
21 14
19
17
13
14
15
21. PTFE V-Ring Stem Packing Set
Pressure Balance Hole
H L
DIMENSIONS (MM)
TORQUE (NM) & WEIGHT (KG)
Inch
DN
PSI
L
d
E
H
H1
T
P
M
E1
E2
U1
U2
Hex. B ISO 5211
Valve
Deadman
NM
Lever
Weight
1/4” 3/8” 1/2” 3/4” 1” 1-1/4” 1-1/4” 1-1/2” 2” 2”
8 10 15 20 25 32 32 40 50 50
2000 2000 2000 2000 2000 1500 1500 1500 1500 1500
62 62 75 80 90 110 110 120 140 140
10.6 12.7 15.0 20.0 25.0 32.0 32.0 38.0 50.0 50.0
170 170 170 207 275 280 450 450 450 520
43.1 43.1 43.1 50.7 58.5 51.0 51.0 60.0 70.0 70.0
74 74 74 82 90 74 74 87 97 97
29.0 29.0 34.5 37.0 45.0 -
9 9 9 9 11 11 11 14 14 14
9 9 9 9 11 -
36 36 36 36 42 42 50 50 50 50
42 42 42 50 50 70 70 70 70 70
6 6 6 6 6 6 6 7 7 7
6 6 6 7 7 9 9 9 9 9
23.5 23.5 28.0 33.0 45.0 51.0 51.0 59.0 73.0 73.0
7 8 8 9 16 26 26 37 47 53
15 15 15 20 30 32 56 56 56 100
S71-504-00-Z S71-504-00-Z S71-504-00-Z S71-507-00-Z S71-508-00-Z S71-508-01-Z S71-509-01-Z S71-509-01-Z S71-509-01-Z S71-510-01-Z
1.10 1.10 1.20 1.30 1.50 2.94 3.52 4.60 6.00 7.95
F03~F04 F03~F04 F03~F04 F03~F05 F04~F05 F04~F07 F05~F07 F05~F07 F05~F07 F10
NM
This catalogue is general in it’s nature and design and can vary at any time. This catalogue is to be used as a guide only.
S U P E R S E A L - Industrial Ball Valves
19
SPRING RETURN DEADMAN HANDLE
SPRING RETURN DEADMAN HANDLE KITS F O R Q UA R T E R T U R N VA LV E S S 7 1 ( - Z )
FEATURES • • • • •
All components of lever are stainless steel Operating torque should be sized according to valve torque, media, pressure and safety. Can be fitted on 1P, 2P, 3P valve Available in ISO F03 to F07 55CrSi Spring Material
MATERIALS LIST Item 1 2 3 4 4A 5 6 7 8 9 10 11 12
OPEN
Part Name Handle Head Anchor Anchor Screw Spring Rod Spring Rod Anchor Spring Handle Extension Sleeve Washer Hex Nut Socket Head Screws Washer Nut
Quantity 1 1 1 1 1 1 1 1 2 2 2 1 1
Materials CF8 CF8 SS 304 SS 304 SS 304 SS 301 SS 304 PVC SS 304 SS 304 SS 304 SS 304 SS 304
12 10
11
3
2
4A
10 10
5
1
11 12 10 8
1
9
3 6
4A
4
7
NO. PART NA
5 6 7
1
HANDEL
2
HANDLE
3
HANDLE
4
2
DIMENSIONS & TORQUE CLOSE
8
Kit Part No. S71-504-00-Z S71-507-00-Z S71-507-01-Z S71-508-00-Z S71-508-01-Z S71-509-01-Z
9
4
*Available unmachined SADDLE
BARRED PLATE
LOCK Locking device
20
S U P E R S E A L - Industrial Ball Valves
L 170 207 220 275 280 450
J* 9 9 11 11 14 14
D (ISO 5211) Torque NO. PART NAME F03/F04 1 HANDEL GLAND 15Nm 2 HANDLE BOLT F03/F04 3 HANDLE 20Nm F04/F05 4 WASHER 20Nm F04/F05 5 NUT 30Nm F05/F07 6 HANDEL HEX 30Nm 7 BOLT F05/F07 8 SPRING 55Nm
MATERIAL CF8 SS304
WASHE
5
NUT
6
HANDEL
7
BOLT
8
SPRING
9
WASHE
10 NUT Q'TY 11 HANDLE 1 12 HANDLE 2
CF8
1
SS304
1
SS304
1
SS304
1
SS304
1 1
9
WASHER
SWP SS304
10
NUT
SS304
2
11
HANDLE
SS304
1
12
HANDLE SLEEVE
VINYL
1
Model S71 (100NM Torque) see Flowturn Multiway & Deadman Ball Valves Catalogue
1
JACKETED BALL VALVES

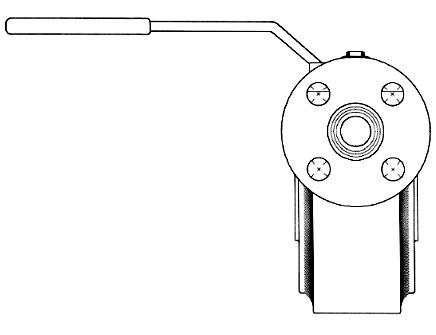

WAFER STYLE FULL BORE STEAM JACKETED BALL VALVE FEATURES
MATERIALS LIST
• Wafer jacketed ball valve • Jacket connections - threaded, flanged, oversized (on request). • Oversized and /or special jackets in carbon and stainless steel. • Adjustable packing gland. • Also available in 150 to 600 class • Bottom-loaded blow-out proof stem. • Low operating torque to reduce automation costs. • Optional mounting pad complied with ISO 5211 for ease and interchangeability of actuation. • Tested according to MSS SP-110/API 598.
Name
Material
Body
ASTM A105/WCB
Bolt
SS. F316/CF8M
8.8 Zinc Plated
Body Cap
ASTM A 105
SS. F 316
Stem
SS. F 316
SS. F 316
Ball
SS. F 304/316
SS. F 316
Seat
RPTFE
RPTFE
Body Gasket
RPTFE
RPTFE
Stem Gasket
RPTFE
RPTFE
Gland
Stainless steel
Handle
Zinc Plated Carbon Steel*
Lever and Gland Nut
Zinc Plated Carbon Steel*
Socket Springs
Zinc Plated Carbon Steel*
Stop Pin
Zinc Plated Carbon Steel*
Stop Plate
Zinc Plated Carbon Steel*
* Or Stainless Steel on request.
HEATING JACKET FLANGE CONNECTION
HEATING JACKET THREADED CONNECTION
HEATING CHAMBER JACKET
DIMENSIONS 150 & 300 CLASS DN
15
20
25
32
40
50
65
80
100
125
150
NPS
1/2”
3/4”
1”
1” 1/4
1” 1/2
2”
2” 1/2
3”
4”
5”
6”
ØD
88
98
108
128
138
148
168
188
220
250
280
H
78
87
91
106
111
120
157
161
181
205
220
L
35
42
46
55
66
72
98
120
140
177
210
M
150
185
185
280
280
280
380
380
480
480
480
A
50
60
65
80
90
96
132
139
160
180
200
C
19
23
23
29
30
32
53
48
55
65
68
Kg
1.5
2
2.7
3.8
6.5
8
15
20
30
47
69
S U P E R S E A L - Industrial Ball Valves
21
LINED BALL VALVE

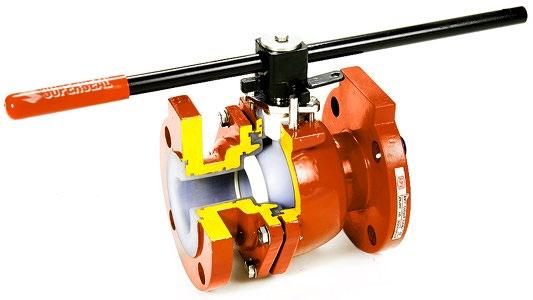

PFA/FEP LINED BALL VALVE RFFL SERIES The Superseal RFFL lined ball valve utilises PFA lining which has the same chemical inertness as PTFE. Due to its chemical composition, PFA retains a high amount of mechanical strength at elevated temperatures. Up to 200°C (400°F). The Superseal Model RFFL Energised Flexible Seat gives the ball a light loaded cushioning effect in all positions. The line pressure against the floating ball further energises the seat. Therefore the higher the pressure the tighter the seal, whilst at low pressures the valve is easier to turn than other brands. The inherent lubricity properties of the PTFE seat give the Ball a cushioning effect and this combined with the PTFE coated Ball & integral stem ensures no jamming or stem breakage. The resilient cushioning effect also extends the life of the valve. Traditional 2 piece ball & stem design, with ‘Flat’ teflon seats place more strain on all components. In larger sizes a trunnion mounted ball is also available to further ensure no stem or seat leakage, caused by the operator forcing the ball off axis due to particulates jamming the seating area. W
LEGEND
C
OD
RF
T N#
L
MATERIALS Parts Body Body End Ball with Integral Stem Seat Ring - Energised Stem Bearing Gland Box Bush Gland Packing Gland Nut Gasket Lever Holder Stud Nut Hex-Bolt Socket-Head screw Stopper Plate Hex-Bolt Lever Lining
L = Face to Face N# = Number of Holes OD = Flange Diameter HS = Size of Hole TH = Flange Thickness W = Lever Length FR = Raised Face Diameter G = Gear Length T = Raised Face Thickness C = Centre of Flange to Height of Body PCD = Pitch Circle Diameter
Material PFA/FEP Lined Ductile Iron/WCB/CF8M Teflon Coated DI/WCB/316 PTFE PTFE Ductile Iron PTFE PTFE ASTM A 276 Type 316 PTFE Steel SS SS SS SS Steel + ZP Steel Steel + ZP PFA, FEP, PP or ETFC
* Full Trunnion Mount also available
PCD N# HS
TORQUE AND CV VALUE 150LB Size Break - Away Torque inch Lbs (Nm) inch mm 1 25 75 (8.5) 1.5 40 245 (28 2 50 305 (35) 3 80 565 (64) 4 100 870 (98) 6 150 2150 (243)
Start- Break - Away Torque Running - 60% of B.A.T. Close - 80% of B.A.T.

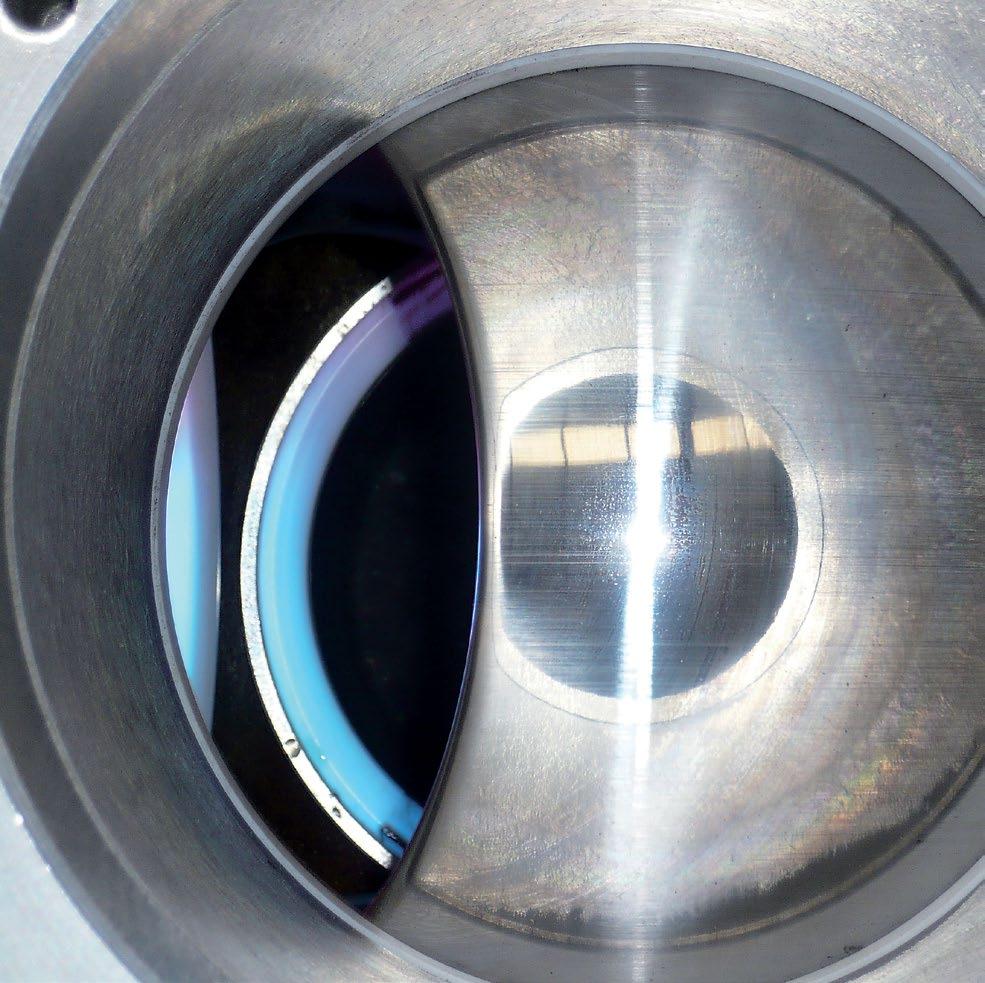

When the ball rotates into closed position, the minute gap between the body and the seat further energises the seat against the ball, ensuring the ball and stem are not tilted on an angle (which can cause seat & stem leakage) giving the ball a trunnion like effect during closing and once closed.
Valve Open
22
Flow Rate (Value) Cv 41 173 317 682 1495 3558
Valve Closed
S U P E R S E A L - Industrial Ball Valves
Model RFFL superior integral fully Teflon encapsulated ball and stem design.
LINED BALL VALVE
RFFL SERIES DIMENSIONS 150LB Size (mm) Size (in)
L
FØ
F.T.
RFØ
RFT
PCD
N#
HS
W
G
C
15
1/2
4.25
3.50
.44
1.38
.125
2.38
4
.63
6.38
-
2.75
20
3/4
4.63
3.88
.44
1.69
.125
2.75
4
.63
6.38
-
2.88
25
1
5.00
4.25
.44
2.00
.125
3.13
4
.63
8.75
-
3.50
40
1 1/2
6.50
5.00
.56
2.88
.125
3.88
4
.63
12.50
-
4.13
50
2
7.00
6.00
.63
3.63
.125
4.75
4
.75
18.00
-
4.50
65
2 1/2
8.00
7.50
.75
4.13
.125
5.50
4
.75
24.00
70
3
8.00
7.50
.75
5.00
.125
6.00
4
.75
24.00
100
4
9.00
9.00
.94
6.19
.125
7.50
8
.75
30.00
150
6
10.50
11.00
1.00
8.50
.125
9.50
8
.88
*
18
7.50
200
8
11.50
13.50
1.13
10.63
.125
1.75
8
.88
*
18
9.00
5.13 -
5.13 6.00
*Gear Operator
Design Standards
Lining Specifications
Design Standard
BSEN ISO 17292:2004 / BS 5351
Lining Thickness
3.0 to 5.0
Testing Standard
EN 12266-1 & 2 (2003) / API 598
Spark Test
15 KVDC
Face to Face
ASME B 16.10, DIN/EN 558-1
Service Temperature
Max. 200°C
Top Flange
ISO 5211
A variety of liner material is available - FEP, PP and ETFE
AF Series - Lining / Body Join Dovetail groove for better grip of lining. ‘V’ Groove for zero leakage.
S U P E R S E A L - Industrial Ball Valves
23
LINED BALL VALVES

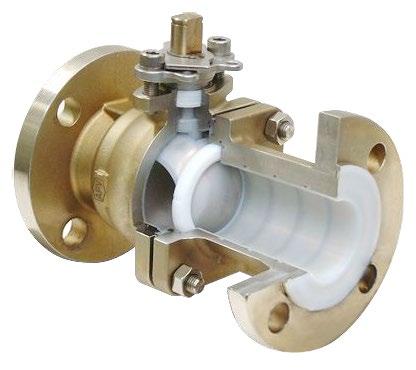

LINED BALL VALVES DO SERIES
SPECIFICATIONS
The DO Series ball valves are ideally suited for corrosive applications, requiring reliable performance, tight shutoff, and constant torque The valves successfully handle a multitude of corrosive applications in industries such as chemical, petrochemical, pharmaceutical, pulp and paper, foundries and mining like sulphuric acid, etc.
Size Pressure Design Standard Connection Testing P/T Body Material
1/2” -12” Class 150 API 608 Flanged, ASME B16.5 API 598 ASME B16.34 ASTM A216 WCB, A351-CF8, Ductile Iron, etc.
Lining Material
PFA, PTFE, FEP, ETFE Anti-static spring
Locked-out standard on valves Adjustable nuts and studs for packing adjustment with valve inline
ISO 5211 universal mounting pad permits easy automation even with the valve in the pipeline
lnnovative ”maze type” packing (elastic, moves with the stem, maintaining a constant seal ).
Lined one piece type ball & stem (anti-blowout prevents stem blowout even in the event of topworks disassembly) Lined securely locked into the body by ”T” slots and locking grooves,completely encapsulated ball and stem permits vacuum services
Epoxy coating paint Thick liner 100% inspected at 14000 VDC for defects is made from highly corrosion resistant
PTFE seats (easy to replace pop-out & pop-in seats)
Metal to metal contact (ensures that no part of lining can be deformed)
Multiple international standards flange available
DIMENSIONS DN mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300
24
NPS in 0.5 0.75 1 1.25 1.5 2 2.5 3 4 5 6 8 10 12
L 108 117 127 140 165 178 190 203 229 / 267 292 533 610
ASME 150LB H W 126 160 126 160 131 160 131 160 160 200 170 200 170 200 230 260 265 313 265 313 347 535 Gear Box
L 130 150 160 180 200 230 290 310 350 400 480 600 730 850
JIS 10K H 126 126 131 131 160 170 170 230 265 265 347
W 160 160 160 160 200 200 200 260 313 313 535
Gear Box
L 130 150 160 180 200 230 290 310 350 400 480 600 730 850
DIN PN10 H 126 126 131 131 160 170 170 230 265 265 347
W 160 160 160 160 200 200 200 260 313 313 535
Gear Box
S U P E R S E A L - Industrial Ball Valves
A ISO 5211 F05 F05 F05 F05 F07 F07 F07 F07 F10 F10 F12 F14 F14 F16
Weight kg 3.5 4.6 5 5.5 11 14 19 28.8 44.8 51 96.2 118 330 460
CV 20 20 55 55 210 310 310 684 1456 1546 3262 4565 10250 17500
Torque N.m 9 9 9 20 20 26 26 65 91 91 143 364 455 494
LINED BALL VALVES
DO SERIES
15 17 16 14
12 10 8 7 6
4
1
3
2
3
1
5
MATERIALS No.
Description
Qty.
1
Body
2
2
One-Piece Ball
1
3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
Seat Ring Stud Bolt Nut Packing Material Shaft Sleeve Gland Anti-Static Spring Stud Bolt Washer Nut Handle Washer Bolt Lever Stop Locker
2 4 4 1 1 1 1 2 2 2 1 2 2 1 1
Materials Carbon Steel+PFA/FEP/ETFE Stainless Steel+PFA/FEP/ETFE Ductile lron+PFA/FEP/ETFE Carbon Steel+PFA/FEP/ETFE Stainless Steel+PFA/FEP/ETFE Ductile lron+PFA/FEP/ETFE PTFE Stainless Steel Stainless Steel PTFE Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
ASME A216WCB A351 CFS ASTM A395 A216WCB A351 CFS ASTM A395 A 182 F304 A 182 F304 A 182 F304 A 182 F304 A 182 F304 A 182 F304 A 182 F304 A 182 F304 A 182 F304 A 182 F304 A 182 F304 A 182 F304 A 182 F304
Materials According to Norms JIS DIN G5151-SCPH2 GS-45(1.0446) G5121 SCS13A G-X6CrNiMo1810 FCD40 GGG-40 ( 0.7040) G5151-SCPH2 GS-45(1.0446) G5121 SCS13A G-X6CrNiMo1810 FCD40 GGG-40 ( 0.7040) G4303-SUSF304 X5CrNi18 10 DIN 1.4301 G4303-SUSF304 X5CrNi18 10 DIN 1.4301 G4303-SUSF304 X5CrNi18 10 DIN 1.4301 G4303-SUSF304 X5CrNi18 10 DIN 1.4301 G4303-SUSF304 X5CrNi18 10 DIN 1.4301 G4303-SUSF304 X5CrNi18 10 DIN 1.4301 G4303-SUSF304 X5CrNi18 10 DIN 1.4301 G4303-SUSF304 X5CrNi18 10 DIN 1.4301 G4303-SUSF304 X5CrNi18 10 DIN 1.4301 G4303-SUSF304 X5CrNi18 10 DIN 1.4301 G4303-SUSF304 X5CrNi18 10 DIN 1.4301 G4303-SUSF304 X5CrNi18 10 DIN 1.4301 G4303-SUSF304 X5CrNi18 10 DIN 1.4301
S U P E R S E A L - Industrial Ball Valves
25
SLBV01 SERIES

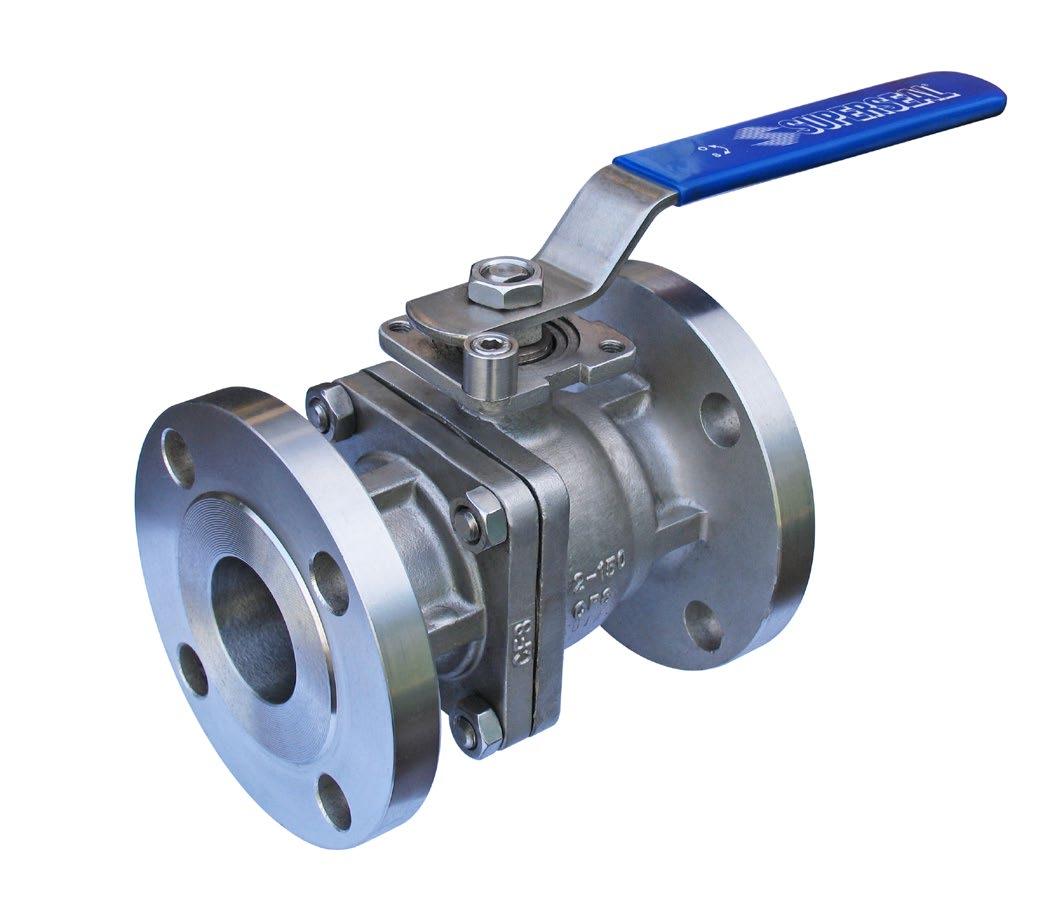

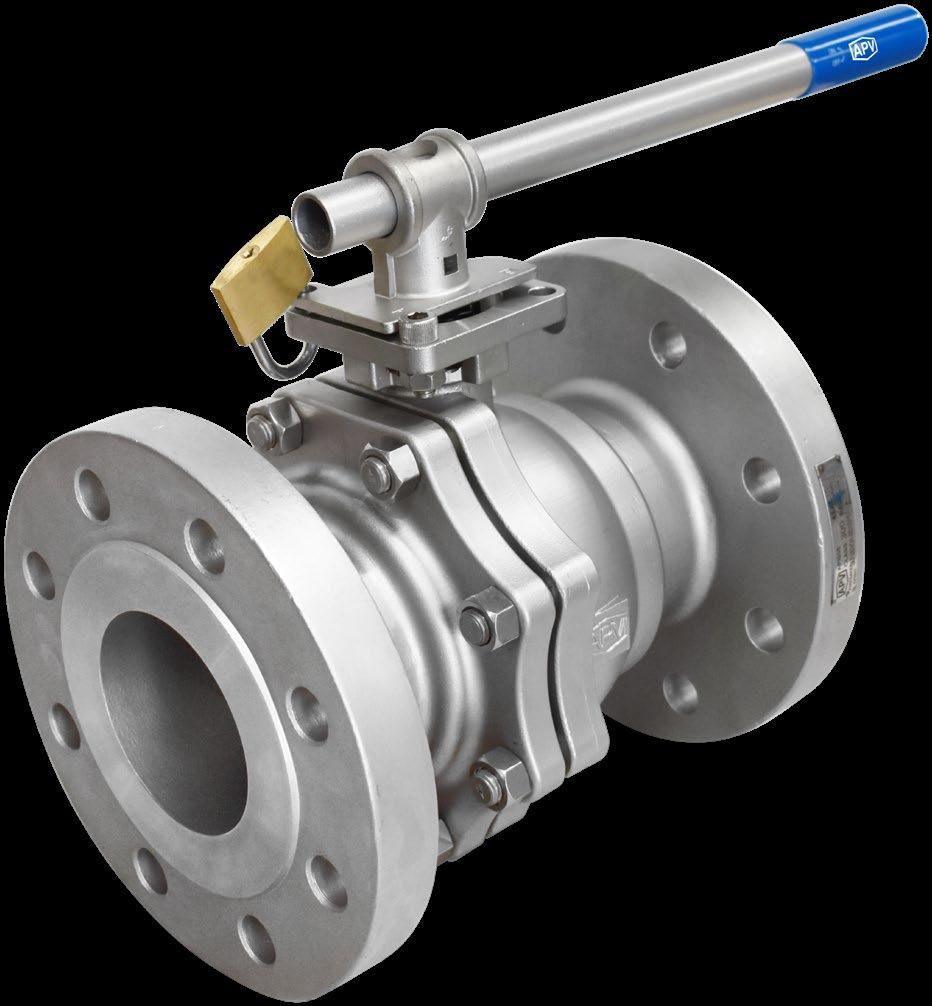

F L A N G E D 2 P I E C E BA L L VA LV E SLBV01 SERIES 3
14 9
6 7 8
5 4 2 13 1
Direct Mount Pad Version ( APV )
AS 4617
26
S U P E R S E A L - Industrial Ball Valves
SLBV01 SERIES • Full or reduced bore, solid ball • 2 piece split body design • Temperature range -25 to 220°C • Lever operated • Floating Ball design, bidirectional sealing • Vacuum service to 20 microns (133 pascals) • ISO mount pad available. • Also available in flanged AS 2129 Table D/E, AS 4087 PN10, PN14, PN16, PN25 and EN 1066-2 PN10, PN16, PN25
PRESSURE RATINGS WITH REINFORCED - PTFE
800
Temperature °C
-50 0
50
100
700
204
50
CF8M CF8
600
40
500 400
C
10K (150Lbs) WCB
300
CF8M
B
A
30
D
20
PRESSURE kg/cm2
PRESSURE PSI
150
20K (300Lbs) WCB
9 11
200 100
CF8
CAST IRON
-30
0
100
200
300
No. Description Iron S/S S/S Steel 1 Body FC-20 CF8 CF8M WCB 2 Body Cap FC-20 SUS304 SUS316 WCB 3 Stem 304 or CR13 SUS304 SUS316 316 4 Ball 304 or CR13 SUS304 SUS316 SUS304 5 Ball Seat PTFE PTFE PTFE PTFE 6 Gland Packing PTFE PTFE PTFE PTFE 7 Stem Seal PTFE PTFE PTFE PTFE 8 Joint Gasket PTFE PTFE PTFE PTFE 9 Gland Flange FC-20 SUS304 SUS304 WCB 10 Travel Stopper SS41 SUS304 SUS304 SS41 11 Handle FC-20 FC-20 FC-20 FC-20 12 Gland Bolt SS41 SUS304 SUS304 SS41 13 Body Stud/Nut B7/2H SUS304 SUS304 B7/2H 14 Cap Bolt SS41 SUS304 SUS304 SS41 Indicative bill of material only. Refer as built drawing. * Style shown Bolted Gland. Gland nut style also available. Direct Mount Pad version also available, refer as built drawing.
400
A. Valve size 15A (1/2”) to 25A(1”) B. Valve size 40A (-1/2”) to 65A(2-1/2”) C. Valve size 80A (3”) to 100A(4”) D. Valve size 125A (5”) to 250A(10”) Carbon PTFE will do higher temperatures. PEEK, bronze PTFE and metal seat also available.
ANSI 125 & 150

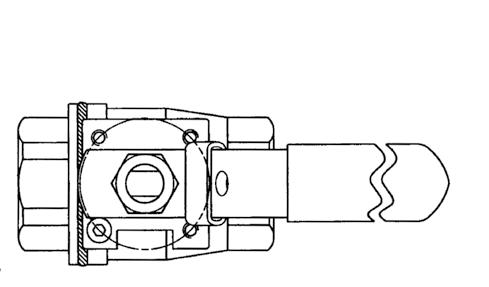

DIMENSION LIST Inch mm
d L L1 (Iron Body) D H I KG CV * †
1/2 15 15 108
3/4 20 20 117
1 25 25 127
1-1/4 1-1/2 32 40 32 38 140 165
89 90 75 3 10
98 90 75 3 20
108 110 75 4 50
117 110 75 5 130
2 50 50 178 200 152 140 230 11 330
127 130 230 10 160
2-1/2 65 64 190 220 178 155 340 17 450
1
12
MATERIALS LIST
Temperature °F
Size
8
10
10
UNIT/MM 3 80 78 203 250 190 180 340 23 600
4 100 98 230 280 229 180 340 40 1200
5 125 123 356 320 254 230 380 100 2700
6 8 10 150 200 250 148 200 250 394 457 533 360 292/452 279 343 406 260 290 420 510 720 † 105 170 239 3300 9000 12000
7
6
9
D d
Torque is maximum breakaway at maximum differential (running torque is 1/3 of breakaway). Only a 20% safety factory is included. Over 200NB (8”) are gear operated.
DIMENSION LIST Inch mm
Size d L D H I KG CV
†
I
H
2 1
*
3
ANSI 300LB 1 25 25 165 125 94 160 5 50
1-1/2 40 38 190 156 115 230 10 150
2 50 50 216 165 120 230 16 330
2-1/2 65 64 241 191 155 400 22 450
UNIT/MM 3 80 78 283 210 162 400 31 600
4 100 98 305 254 191 750 52 1200
6 150 148 403 318 290 1000 105 3300
8 200 200 502 381 340 † 170 9000
5
4
13
* L1 is iron body
L/L1*
Buttweld ends also available
Torque is maximum breakaway at maximum differential (running torque is 1/3 of breakaway). Only a 20% safety factory is included. Over 150NB (6”) are gear operated. This brochure is general and subject to change without notice
S U P E R S E A L - Industrial Ball Valves
27
HYGIENIC VALVES
H YG I E N I C Q UA R T E R T U R N VA LV E S A variety of options are available in weld ends, screwed ends or wafer “flangeless” type. Trim is teflon and stainless but for hygienic service the ball / disc can also be coated with teflon or polished (or lined if required). 2 way, 3 way, 4 way & 5 way available. A detailed data sheet can be supplied on items of interest. TYPE FV01
TYPE FV02 Ball valve, 3 piece, available in Buttweld (tube or pipe), BSP or socket weld. For extra cost valves can be supplied to hygienic specification.
TYPE FV03
Hygienic Butter-ball. Does the same job as the traditional food / wine ball valve but at a lower cost. Available in special male threads as well as in flangeless configuration.
TYPE FV04 Hygienic ball type available with various end connections.
3/4 way ball valve traditional milk valve style. TYPE FV05 Standard 3-4 or 5 way ball valve, (also available in flanged ends in larger sizes).
TYPE FV06 Hygienic ball valve.
28
WAFER STYLE 2014 Flangeless (wafer style) teflon lined butterfly valve. Also available in lugged.
S U P E R S E A L - Industrial Ball Valves
AUSTRALIAN PIPELINE VALVE BRAND RANGE - CATALOGUES
COMPLETE PRODUCT LINE “Australian Pipeline Valve
Product Brochure
Ball Valves Floating & Trunnion Mounted
Ball Valves Floating Small Bore
Ball Valves Special Service
Gate, Globe & Check Valves - Cast Steel
Gate, Globe & Check Valves - Forged Steel
Plug Valves Lubricated, Sleeved & Lined
Oilfield Products Valves & Wellheads
produces isolation, control and flow reversal protection products for severe and critical service media in utility, steam, pipelines, oil & gas and process industries. APV valves and pipeline products form the most
APV FAMILY OF BRANDS RANGE - CATALOGUES
competitive portfolio in the market.”
Diamond Gear Gearboxes
Flowturn Ball Valves Multiway & Deadman
Flowturn Gate, Globe & Check Valves
Flowturn Instrument Valves
Flowturn Strainers & Sight Glasses
Steamco Steam Valves
Supercheck Wafer Check Valves
Superseal Butterfly Valves
Superseal Industrial Ball Valves
Torqturn Actuators
TwinLok Tube Fittings
Uniflo Check Valves
Contact us for your local stockist/distributor View our catalogues at www.australianpipelinevalve.com.au
www.australianpipelinevalve.com.au LOCAL DISTRIBUTOR
QUALITY ASSURANCE AND CERTIFICATION We are continually improving all facets of quality assurance. Full metallurgical and test certificates are always supplied for all pressure retaining parts, we also provide it on all major trim components. We have endeavoured to provide a broad outline of our range and capabilities. Because we are continually developing new products for our customers this catalogue will, to some extent be incomplete. This catalogue is a general overview only, individual drawings and data sheets can be furnished on request. If you have any requirement in the field of valves, please contact us for a prompt response. Continuous development of Australian Pipeline Valve products may necessitate changes in the design or manufacturing processes. Australian Pipeline Valve reserves the right to effect any such changes without prior notice.
© Australian Pipeline Valve 1990 - 2023 Edition
