Steamco Steam Valves Catalogue

Page 1


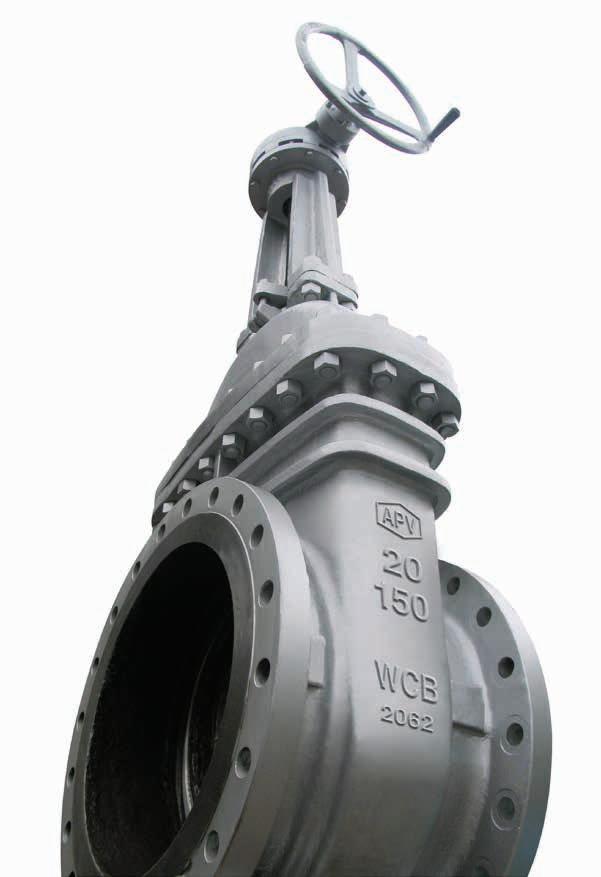

CAST STEEL STEAM VALVES

QUALITY VALVE MANUFACTURER

QUALITY COMMITMENT

Quality is Our First Priority.

Consistent product quality and a proven track record makes Australian Pipeline Valve a dependable choice where total reliability is the number one concern.

Since its founding, APV’s philosophy has been focused on quality. Our valves are manufactured in full compliance to worldwide standards (such as ASME/ANSI, API, EN, ISO, BS, AS).

FIGURE NUMBER SYSTEM

Bonnet gasket:

Blank Standard:- SS + GRP (BB), Pressure Seal Ring (PSB). N/A:- (WB). A SS + PTFE B S318 03 Spiral C PTFE

D SS + PTFE + GRP E Ring Z Special

Stem packing: Blank Standard:- Graphite. N/A:- (Check Valves) L Live Loaded F Fugitive Emission GRP I Fugitive Emission PTFE J Special P Graphite + PTFE T PTFE

Denotes special suffix - Packing/Gasket

Operator: Blank Handwheel or N/A A Actuator C Counter-Weight D Dampner G Gear H Hammer Blow Handwheel L External Lever

End connection: Blank RF (B16.5) BA RF B16.47A (MSS SP44)

BB RF B16.47B (API 605) RJ RTJ BW Buttweld FF Flat Face SP is special drilling UD Undrilled UM Unmachined for RF/RJ

Bonnet: Blank Bolted C Cryogenic H Pillar & Bridge L Low Temperature P Pressure Seal S Bellows Sealed W Welded

Body material: - see page 5. (WCB is Blank)

Denotes special suffix - Body/Bonnet/Ends/Operator

Blank Non NACE N NACE

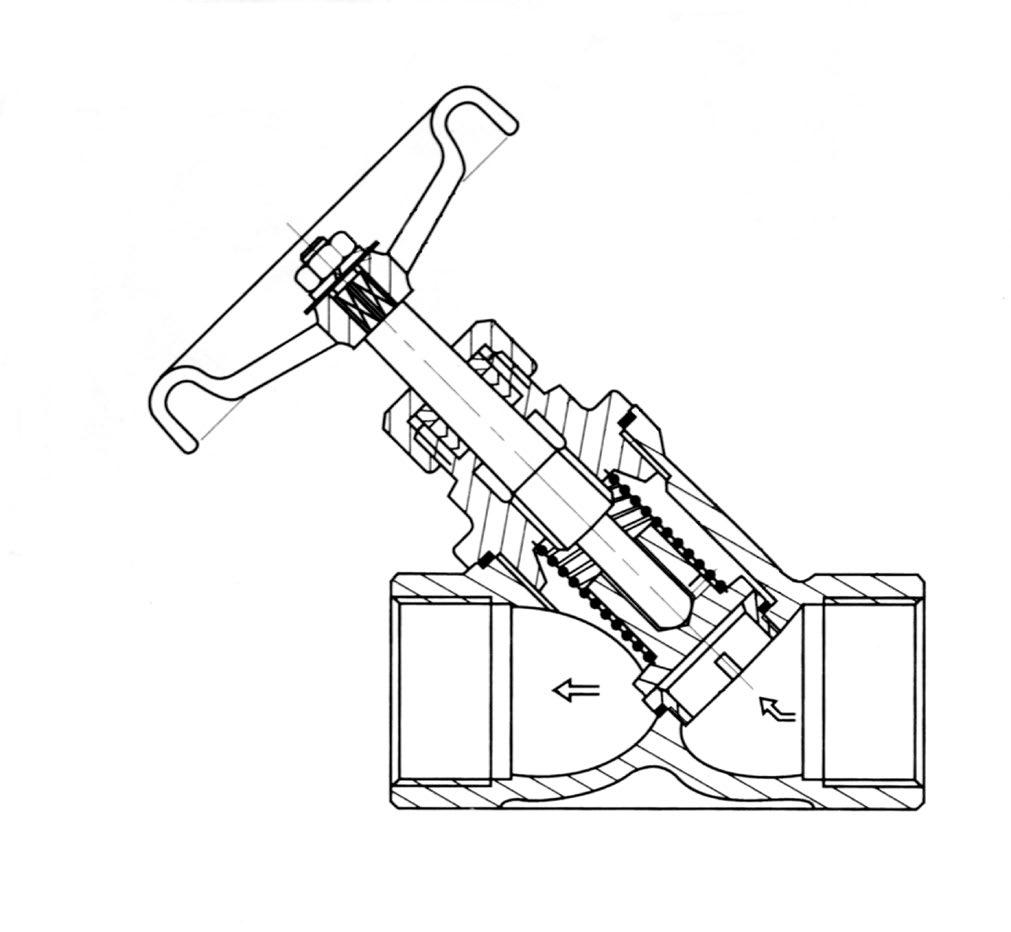

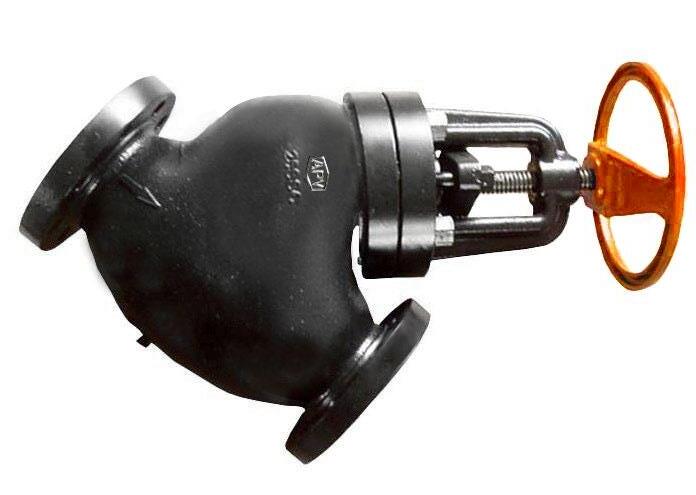

Blank Standard Configuration (Example Solid Wedge) A S Bend Globe D Globe-Stop Check

DG Globe - Stop Check Guided F Flexible Disc Gate J Slab Gate K Expanding Gate L Lever (Swing Check)

P Full Opening Swing Check (API 6D) Q Full Opening Piston Check (API 6D) R Right Angle S Parallel Slide Y Inclined Bonnet Z c/w Spring

Denotes trim - Code & Modifier (see below)

Basic identifier number denoting valve class and valve type (As shown in catalogue)

Prefix: Blank APV FZV APV-FZV J.V.

Valve Size

TRIM CODES

FIGURE NUMBER CODES

BODY MATERIAL CODE • BODY/BONNET MATERIALS

A890/A995-4A/CD3MN Duplex (F51)

A995-6A/CD3MWCuN

AL-Bronze

Duplex (F55)

B62/LG2/B148

A995-5A/CE3MN Super Duplex (F53) 22 A296 M-35 Monel 23 A296 CW-12M Hastelloy C 24 A484 CU-5M CUC Inconel 825 25 A494 CY40 Inconel 600

A494 CW6MC Inconel 625

B367 GR.C2

Titanium (F2) 28 B367 GR.C3

Titanium (F3) 29 A358 LC4 Low Temp. 4-1/2% Nickel Steel 30 A358 LC9 9% Nickel Steel

31 A358 CA6NM 18-1/2% Chromium, Nickel-Molybdenum Steel

32 A217 WC4

33 A217 WC5

34 A217 WC11

35 A217 C12

36 A217 C12A

37 A217 CA15

0 SPECIAL

Nickel Chromium Molybdenum

Nickel Chromium Molybdenum

Chromium Molybdenum

Chromium Molybdenum

Chromium Molybdenum Vanadium

Chromium Steel

PHYSICAL & CHEMICAL PROPERTIES

PHYSICAL & CHEMICAL PROPERTIES

MATERIALS

FERRITIC STEELS

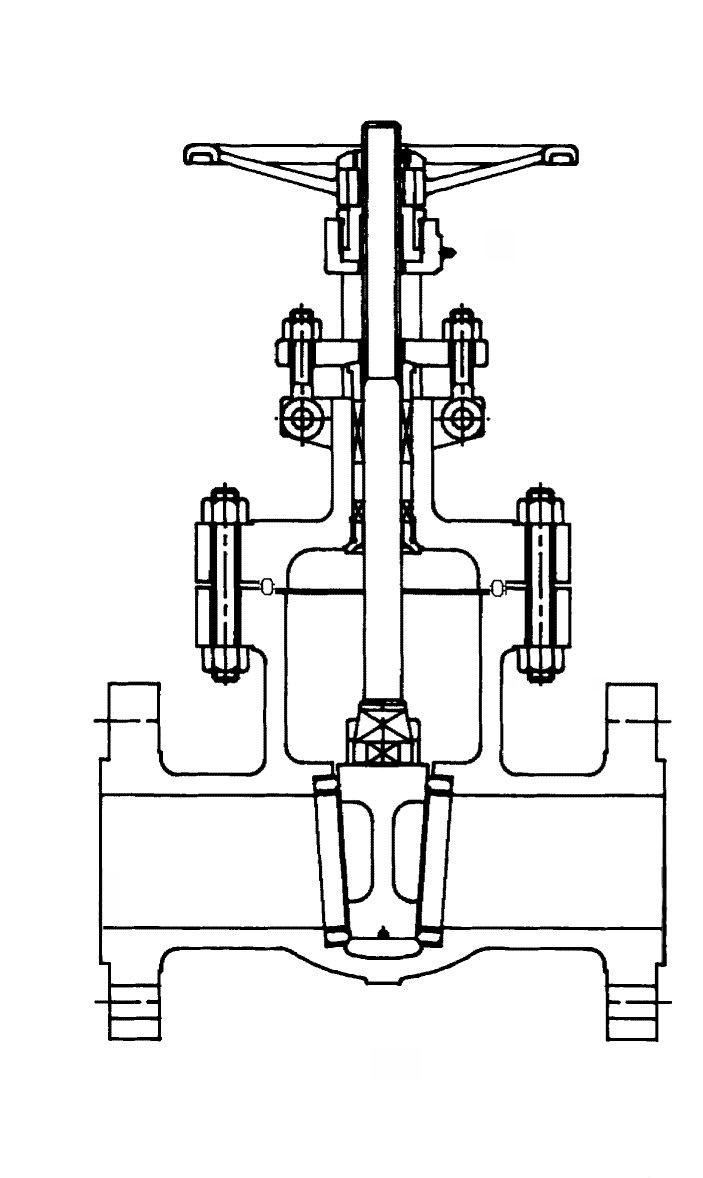

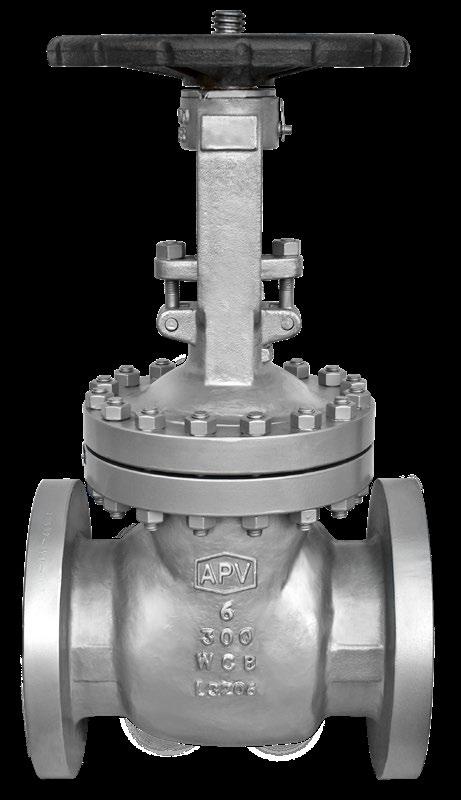

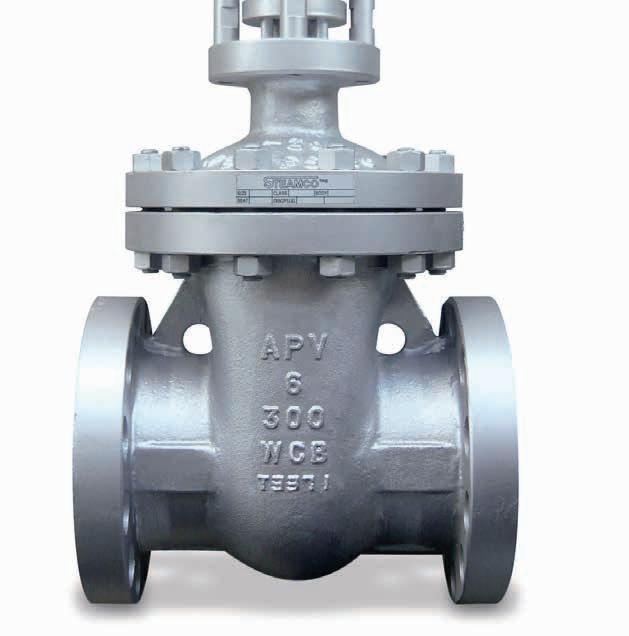

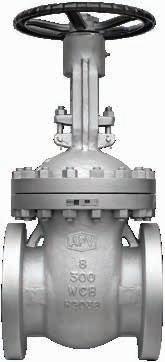

SLIDE GATE VALVE

CAT P316S CLASS 150-900

For superheated steam etc. consult chart.

for

For installation in applications such as industrial, mining and mechanical services. Suitable for super-heated steam, H.T.H.W steam condensate and water.

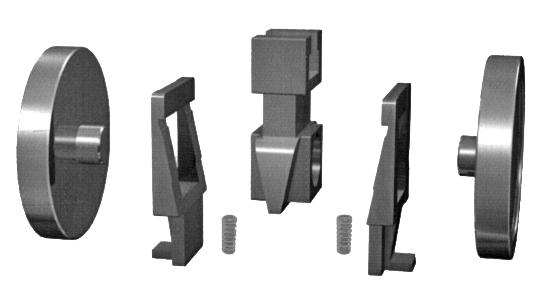

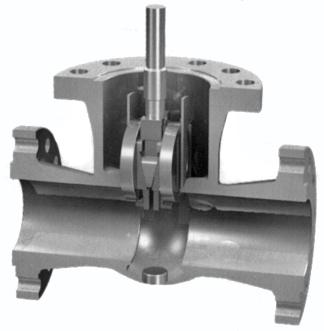

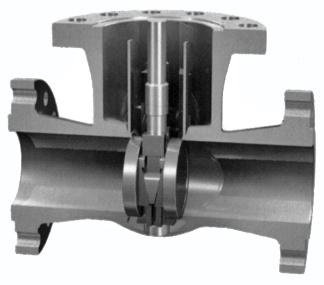

This design consists of two discs, kept in contact with parallel body seats, using the line pressure and seating action to effect tight closure.

Temperature changes in the line are accommodated by the expanding disc & do not affect the action of the valve. When being opened or closed, the discs slide across the seat faces, dislodging any foreign matter. The valve operating stem is outside screw rising through the handwheel.

These valves are suitable for full bore steam use, where a low pressure drop across the valve is required. Also suitable for water, oil, gas, etc.

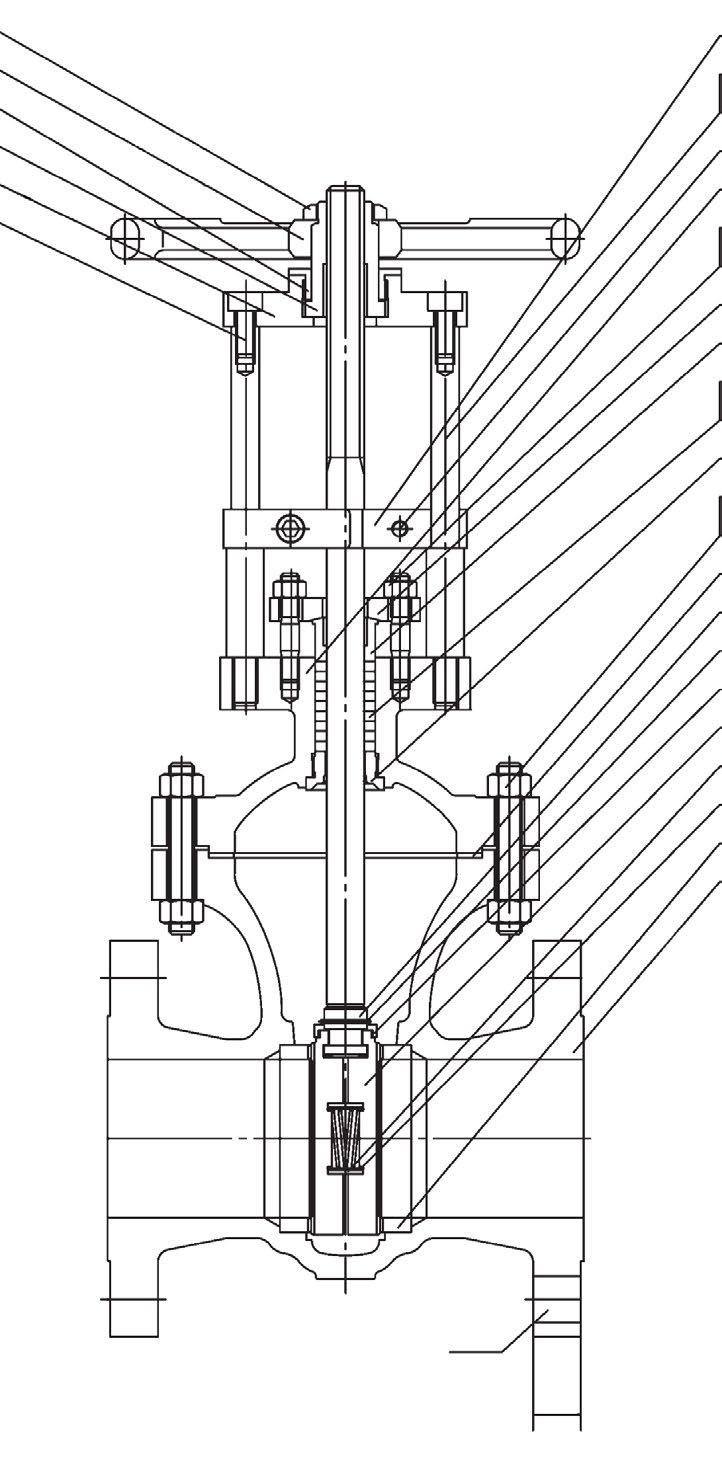

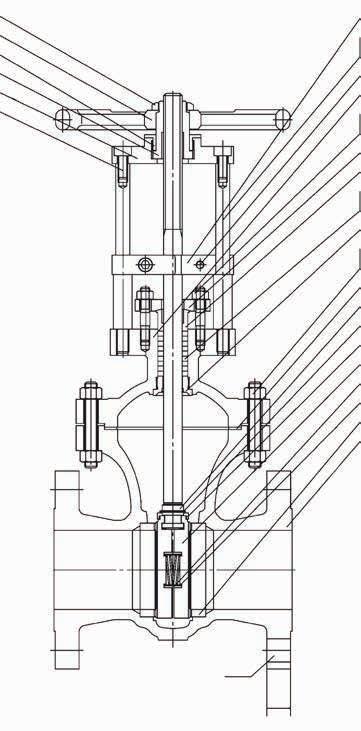

STANDARD MATERIAL SPECIFICATIONS

Part Material

1 Body ASTM A216 WCB

2 Seat ASTM A105+ST#6

3 Spring Inconel X-750

4 Disc Support Guide ASTM A105

5 Disc ASTM A105+ST#6 6 Stem (1) ASTM A182 F6A 7 Bolt ASTM A193 B7 8 Nut ASTM A194 2H

9 Gasket Spiral Wound SS316 + Graphite 10 Bonnet ASTM A216 WCB

11 Back Seat ASTM A274 410SS

12 Packing (2) Flexible Graphite

12A Packing (2) Braided Graphite

13 Spacer Ring ASTM A276 410SS

14 Gland ASTM A276 410SS

15 Yoke Flange ASTM A276 WCB

16 Nut ASTM A194 2H

Bolt ASTM A193 B7 18 Pin AISI 1020

Yoke ASTM A216 WCB

Grease Nipple SS304

Stem Nut ASTM A439 D2 22 Gland Nut AISI 1035 23 Handwheel Malleable Iron 24 Locking Nut AISI 1035 (1) Stem smoothness Ra ≤ 0.80 µm (2) Stuffing box smoothness Ra ≤ 3.2 µm (superior to API 600)

STANDARDS COMPLIANCE

Basic Design API 600, ANSI B16.34, BS 5157

Face to Face Dimension ANSI B16.10

End to End Dimension ANSI B16.10

Flanged Ends ANSI 16.5

B.W. Ends ANSI B16.25

Drilling to ANSI or BS/AS 2129 Table D to H or AS 4087 / AS 4331 / ISO 7005-1 PN 10 to 250

Pressure/Temperature Ratings to ANSI B16.5

O.S. & Y. Rising Stem Full Port, Expanded Parallel Slide Gate Valve, Double Disc, Pressure Seal or Bolted Bonnet, Welded-in or Threaded Seat Rings. Mechanically loaded seating for low and high pressure sealing.

Parallel slide dual loaded discs ensure superior shut off and allow by-pass/bleed fitment (double block and bleed requires soft seat inserts).

Pressure/temperature charts available on request.

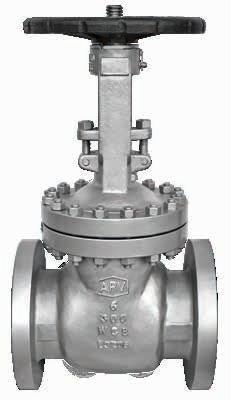

PARALLEL SLIDE GATE VALVE

CAT P316S CLASS 150-900

TRIM MATERIAL CODES (TO API 600)

* Add XU modifier to end of model suffix if stellite seat, if stellite seat & disc add U modifier to end.

OVERALL DIMENSIONS (MM) & WEIGHT (KG)

Note: 15mm to 40mm NB 150 ~ 2500 Class also available refer to individual drawings.

PARALLEL SLIDE GATE VALVE

PRESSURE/ TEMPERATURE WCB BODY

The P316H style parallel slide is the same dimensions as the P316S except has pillar & bridge type top works. The P316H has spring energised discs. For installation in applications such as industrial, mining and mechanical services. Suitable for super-heated steam, H.T.H.W steam condensate and water.

This design consists of two discs, kept in contact with parallel body seats, using the tension spring to effect tight closure.

Temperature changes in the line are accommodated by the energised discs and do not affect the action of the valve. When being opened or closed, the discs slide across the seat faces, dislodging any foreign matter. The valve operating stem is outside screw rising through the handwheel (OSY).

These valves are suitable for full bore steam use, where a low pressure drop across the valve is required. Also suitable for water, oil, gas, etc.

STANDARD MATERIAL SPECIFICATIONS

Spring Inconel X750

Spring Coil AISI 410

Parallel Disc ASTM

For superheated steam etc. consult chart. * WC6 chrome-moly available body for high temperature applications.

Yoke Plate 1025

Bolt ASTM A194 Gr. 2H

Supporting Disc 1025

Stem Nut D-2

Retaining Nut 1035

Handwheel A47

Handwheel Nut 1035

STANDARDS COMPLIANCE

Basic Design API 600/BS EN 1984/S 5157/ANSI B16.34

Face to Face Dimension ANSI B16.10

End to End Dimension ANSI B16.10

Flanged Ends ANSI 16.5

B.W. Ends ANSI B16.25

Drilling to ANSI, BS/AS 2129 Table D to H or AS 4087/AS 4331.1/ISO 7005-1/EN 1092-1/PN10 to 250

Pressure/Temperature Ratings to ANSI B16.34/BS 1560

O.S. & Y. Rising Stem, Full Port, Expanded Parallel Slide Gate Valve, Double Spring energised Discs, Pressure Seal or Bolted Bonnet, Welded-in or Threaded Seat Rings. Spring energised loaded seating for low and high pressure sealing.

Parallel slide dual loaded discs ensure superior shut off and allow by pass/bleed fitment (double block and bleed requires soft seat inserts).

PARALLEL SLIDE GATE VALVE

CAT P316H CLASS 150-1500

TRIM MATERIAL CODES (TO API 600)

* Add XU modifier to end of model suffix if stellite seat, if stellite seat & disc add U modifier to end. OVERALL

DIMENSIONS

(MM) & WEIGHT (KG)

Note: 15NB to 40NB 150 ~ 2500 Class also available. Refer to drawings.

CAT P316K CLASS 150-1500

FEATURES

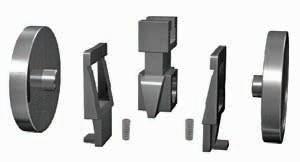

Expanding style parallel slide gate valve suitable for super-heated steam, H.T.H.W steam condensate and water.

Temperature changes in the line are accommodated by the expanding disc and do not affect the action of the valve. When being opened or closed, the discs slide across the seat faces, dislodging any foreign matter. These valves are suitable for full bore steam use, where a low pressure drop across the valve is required.

Also suitable for water, oil, gas, etc.

O.S. & Y. Rising Stem Full Port, Expanded Parallel Slide Gate Valve, Double Disc, Pressure Seal or Bolted Bonnet, Welded-in or Threaded Seat Rings. Mechanically loaded seating for low and high pressure sealing.

Parallel slide dual loaded discs ensure superior shut off and allow by-pass/bleed fitment (double block and bleed requires soft seat inserts).

Pressure/temperature charts available on request.

STANDARD MATERIAL SPECIFICATIONS

For superheated steam etc. consult chart. WC6 chrome-moly available body for high temperature applications.

Part Material

1 Body ASTM A217 WCB

2 Seat Ring ASTM A105+STL.6

3 Wedge Blocks ASTM A743 CA40

4 Discs ASTM A105+STL.12

5 Springs Inconel X-750

6 Disc Yoke ASTM A743 C40

7 Guides C.S.

8 Stem ASTM A182 F6A

9 Studs ASTM A193 B7

10 Nuts ASTM A194 2H

11 Gasket 304SS+GRAPHITE

12 Bonnet ASTM A216 WCB

13 Back Seat ASTM A276 410

14 Packing FLEXIBLE GRAPHITE

15 Packing 316+BRAIDED GRAPHITE

16 Gland ASTM A276 410

17 Gland Flange ASTM A217 WCB

18 Pins AISI 1035

19 Eyebolts ASTM A193 B7

20 Nuts ASTM A194 2H

21 Stem Nut ALUMINIUM BRONZE

22 Retaining Nut AISI 1035

23 Handwheel MALLEABLE IRON

24 Nuts AISI 1035

Rivets 316SS

Bearings SUB-ASSEMBLY

Yoke ASTM A216 WCB

Studs ASTM A193 B7

Nuts ASTM A194 2H 31 Grease Nipple BRASS

* Also available with expanding wedge energiser (no spring) style - refer to drawing.

PARALLEL SLIDE GATE VALVE (EXPANDING)

CAT P316K CLASS 150-1500

SPECIFICATIONS

Basic Design API 600, ANSI B16.34

Face to Face Dimension ANSI B16.10

End to End Dimension ANSI B16.10

Flanged Ends ANSI 16.5

B.W. Ends ANSI B16.25

Drilling to ANSI or BS/AS 2129 Table D to H or AS 4087 / AS 4331.1 / ISO 7005-1 PN 10 to 250

Pressure/Temperature ratings to ANSI B16.5

PARALLEL SLIDE GATE VALVES - CAST STEEL * Add XU

TRIM MATERIAL CODES (TO API 600)

OVERALL DIMENSIONS (MM) & WEIGHT (KG)

Note: 15mm to 40mm NB 150 ~ 2500 Class also available refer to individual drawings.

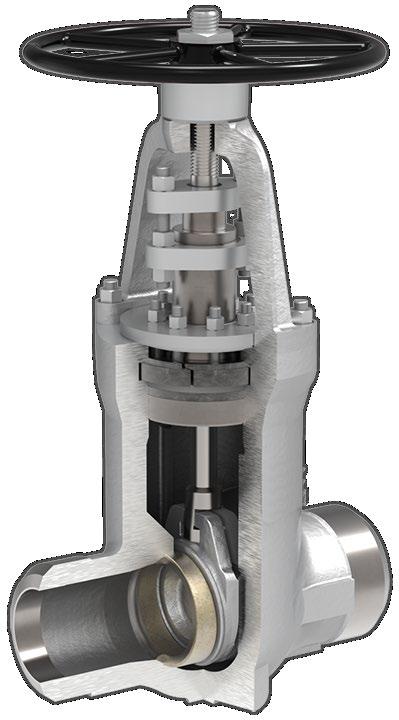

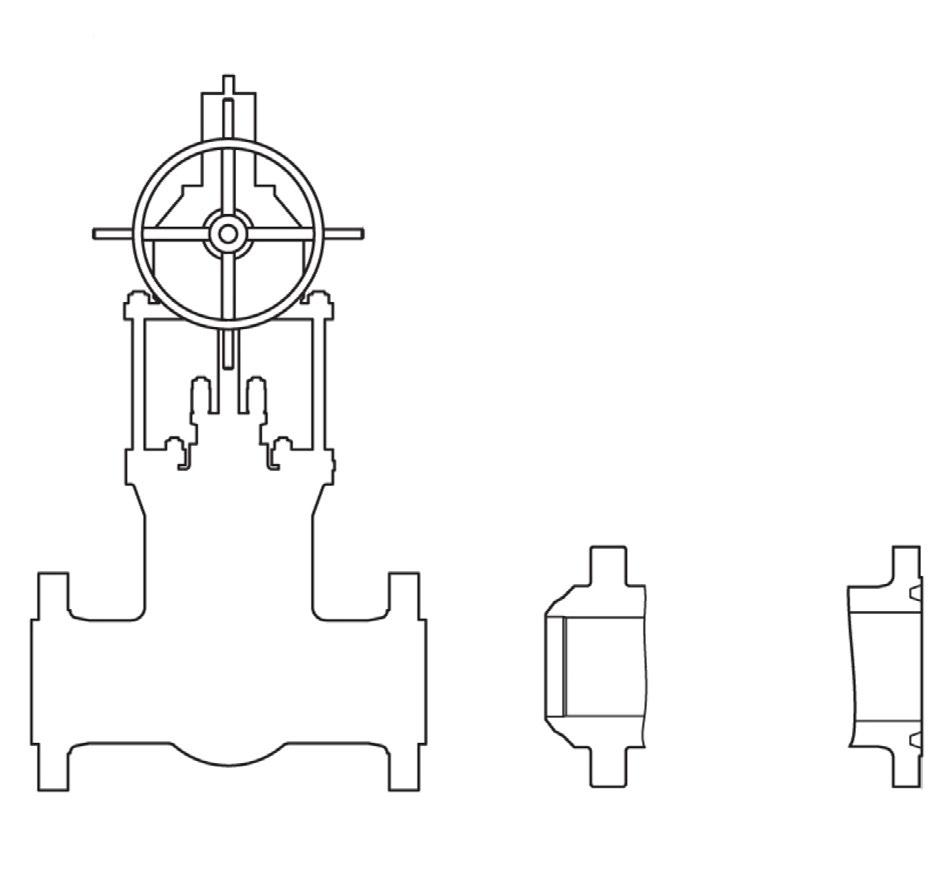

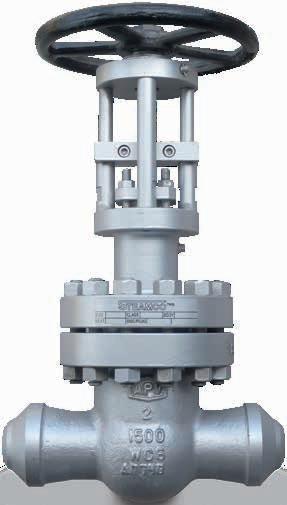

PARALLEL SLIDE GATE VALVE

FEATURES

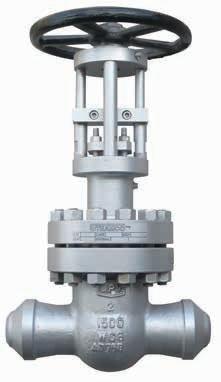

Pressure seal bonnet

Complete flow isolation in either direction

Minimum pressure drop

Inherent self cleaning action

Freedom from leakage, resistant to temperature or pressure changes

In line maintenance

By pass available upon request

SPECIFICATIONS

Basic Design ASME B16.34

Face to Face Dimension ASME B16.10

End Flange ASME B16.5

B.W. Ends ASME B16.25

Test and Inspection API 598

PARALLEL SLIDE GATE VALVE

(AS/BST D to F)

(AS/BST H to J)

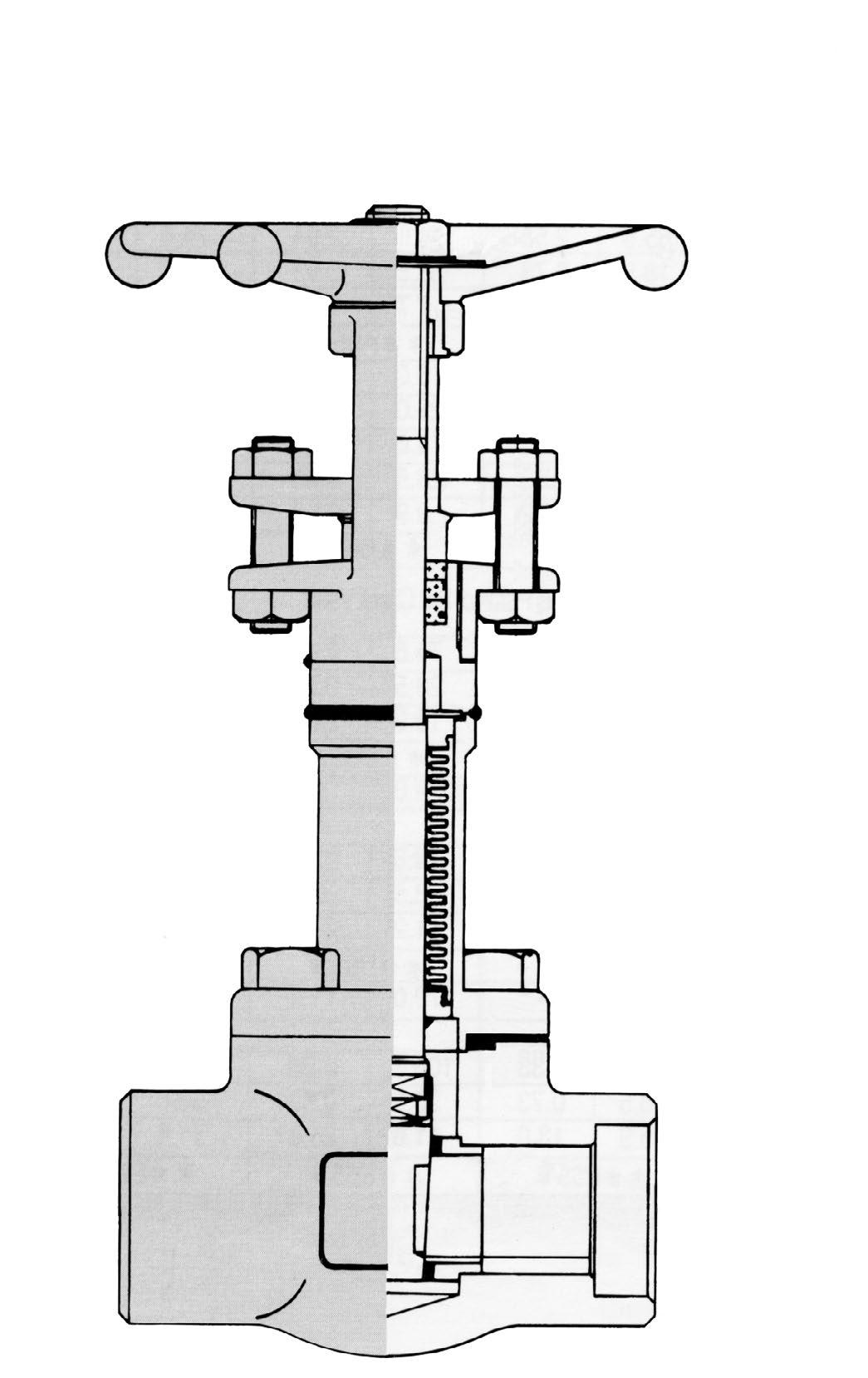

SLIDE GATE VALVE

For installation in applications such as industrial, mining & mechanical services Suitable for super-heated steam, H.T.H.W steam condensate & water. This design consists of two discs, kept in contact with parallel body seats, using the line pressure and sprung seating action to effect tight closure.

Temperature changes in the line are accommodated by the expanding disc & do not affect the action of the valve. When being opened or closed, the discs slide across the seat faces, dislodging any foreign matter. The valve operating stem is outside screw rising through the handwheel.

These valves are suitable for steam use, where a low pressure drop across the valve is required. Also suitable for water, oil, gas, etc.

STANDARDS COMPLIANCE

Basic Design API 602/ANSI B16.34, BS 5157

Face to Face Dimension ANSI B16.10

End to End Dimension ANSI B16.10

Flanged Ends ANSI 16.5

B.W. Ends ANSI B16.25

S.W. Ends ANSI B16.11

Drilling to ANSI or BS/AS 2129 Table D to H or AS 4087 / AS 4331 / ISO 7005-1 PN 10 to 250

Pressure/Temperature Ratings to ANSI B16.5

TRIM MATERIAL CODES

O.S. & Y. Rising Stem Full Port, Expanded Parallel Slide Gate Valve, Double Disc, Pressure Seal or Bolted Bonnet, Welded-in or Threaded Seat Rings. Mechanically loaded seating for low and high pressure sealing.

Parallel slide dual loaded discs ensure superior shut off and allow by-pass/bleed fitment (double block and bleed requires soft seat inserts).

Pressure/temperature charts available on request. Available in A105N, F22, F11, F5, 316, 304 etc.

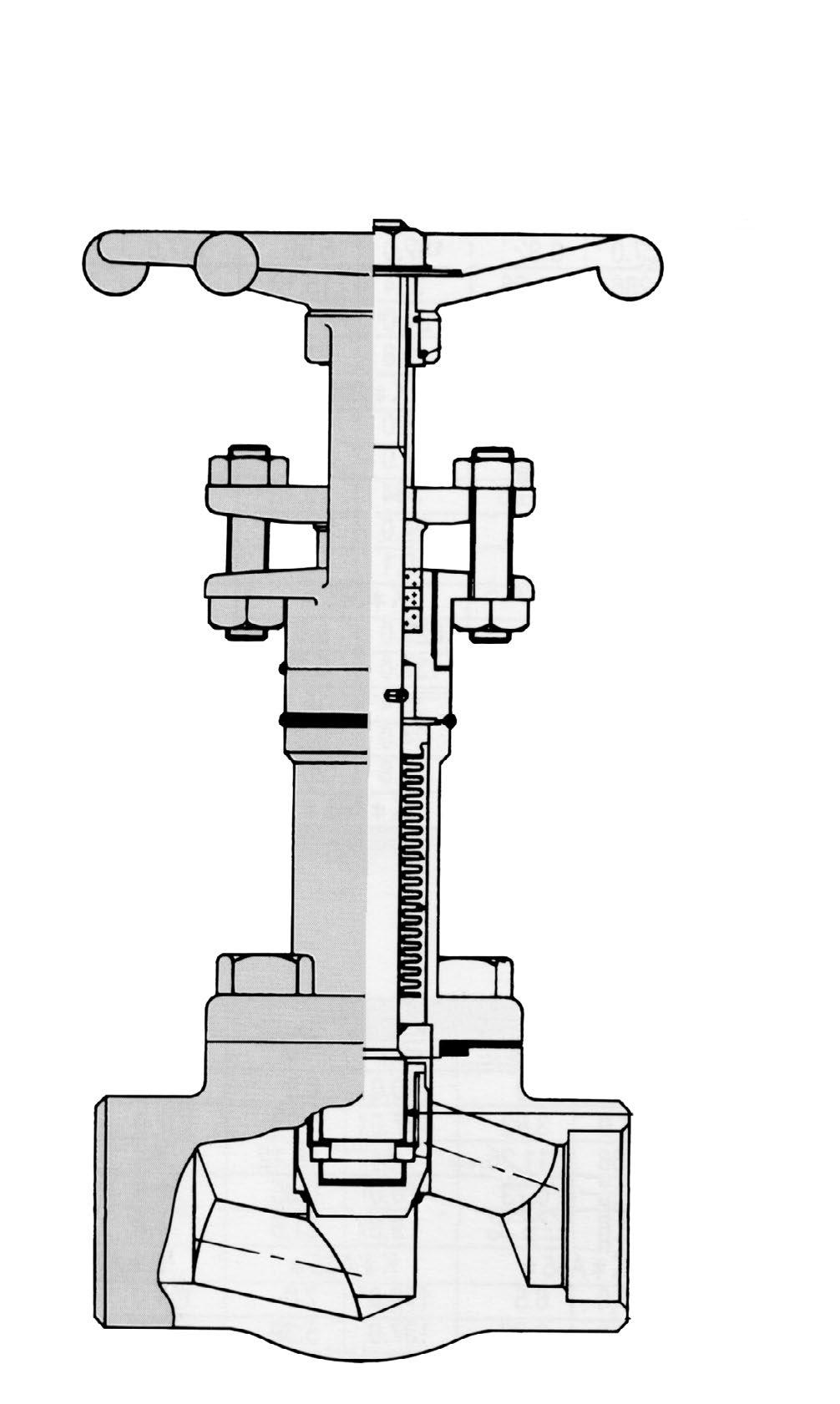

PARALLEL SLIDE GATE VALVE

For installation in applications such as industrial, mining and mechanical services Suitable for super-heated steam, H.T.H.W steam condensate and water. This design consists of two discs, kept in contact with parallel body seats, using the line pressure and sprung seating action to effect tight closure.

Temperature changes in the line are accommodated by the expanding disc & do not affect the action of the valve. When being opened or closed, the discs slide across the seat faces, dislodging any foreign matter. The valve operating stem is outside screw rising through the handwheel.

These valves are suitable for full bore steam use, where a low pressure drop across the valve is required. Also suitable for water, oil, gas, etc.

PRESSURE/TEMPERATURE A105N BODY

(AS/BST D to F)

For superheated steam etc. consult chart. F11, F22, F5 chrome-moly available body for

STANDARDS COMPLIANCE

Basic Design API 600, ANSI B16.34, BS 5157 Face to Face Dimension ANSI B16.10

End to End Dimension ANSI B16.10

Flanged Ends ANSI 16.5

B.W. Ends ANSI B16.25

S.W. Ends ANSI B16.11

Drilling to ANSI or BS/AS 2129 Table D to H or AS 4087 / AS 4331 / ISO 7005-1 PN 10 to 250

Pressure/Temperature Ratings to ANSI B16.5

Bolted Bonnet O.S. & Y. Rising Stem Full Port, Expanded Parallel Slide Gate Valve, Double Disc, Pressure Seal or Bolted Bonnet, Welded-in or Threaded Seat Rings. Mechanically loaded seating for low and high pressure sealing.

Parallel slide dual loaded discs ensure superior shut off and allow by-pass/bleed fitment (double block and bleed requires soft seat inserts).

Pressure/temperature charts available on request.

Available in A105N, F22, F11, F5, 316, 304 etc. (Pillar & Post style bonnet also available.)

PARALLEL SLIDE GATE VALVE

For installation in applications such as industrial, mining and mechanical services. Suitable for super-heated steam, H.T.H.W steam condensate and water. This design consists of two discs, kept in contact with parallel body seats, using the line pressure and sprung seating action to effect tight closure. Temperature changes in the line are accommodated by the expanding disc and do not affect the action of the valve. When being opened or closed, the discs slide across the seat faces, dislodging any foreign matter. The valve operating stem is outside screw rising through the handwheel. These valves are suitable for full bore steam use, where a low pressure drop across the valve is required. Also suitable for water, oil, gas, etc.

PRESSURE/TEMPERATURE

(AS/BST D to F)

(AS/BST H to J) 300-P316SFXU-S

For superheated steam etc. consult chart. F11, F22, F5 chrome-moly available body for high temperature applications.

MATERIAL CODES

Hastelloy B Hastelloy B Hastelloy B Hastelloy B

to end.

Contact us for detailed drawing.

STANDARDS COMPLIANCE

Basic Design API 600, ANSI B16.34, BS 5157

Face to Face Dimension ANSI B16.10

End to End Dimension ANSI B16.10

Flanged Ends ANSI 16.5

B.W. Ends ANSI B16.25

S.W. Ends ANSI B16.11

Drilling to ANSI or BS/AS 2129 Table D to H or AS 4087 / AS 4331 / ISO 7005-1 PN 10 to 250

Pressure/Temperature Ratings to ANSI B16.5

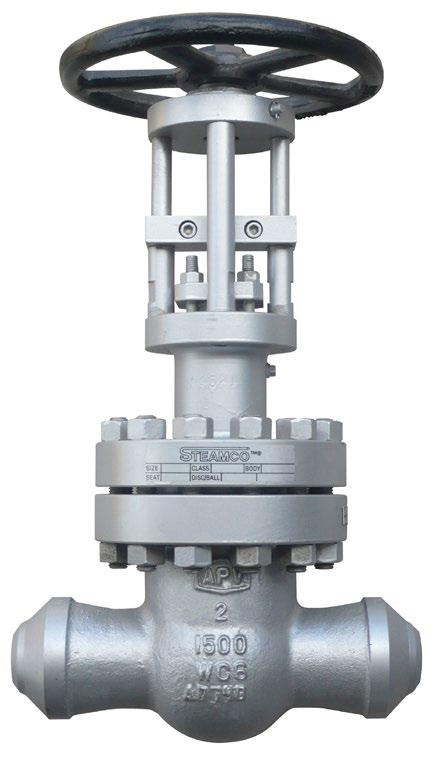

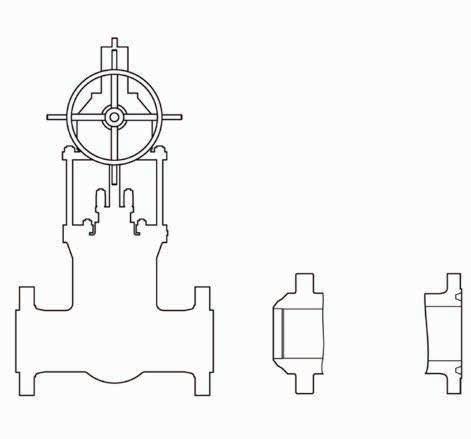

Pressure Seal Bonnet O.S. & Y. Rising Stem

Full Port, Expanded Parallel Slide Gate Valve, Double Disc, Pressure Seal or Bolted Bonnet, Welded-in or Threaded Seat Rings. Mechanically loaded seating for low and high pressure sealing.

Parallel slide dual loaded discs ensure superior shut off and allow by-pass/bleed fitment (double block and bleed requires soft seat inserts).

Pressure/temperature charts available on request. Available in A105N, F22, F11, F5, 316, 304 etc. (Pillar & Post style bonnet also available.)

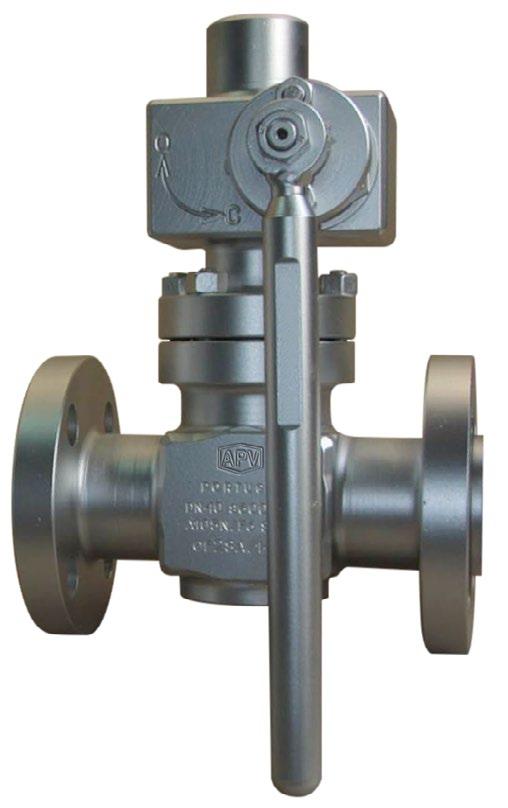

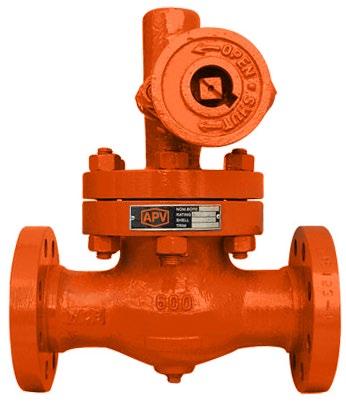

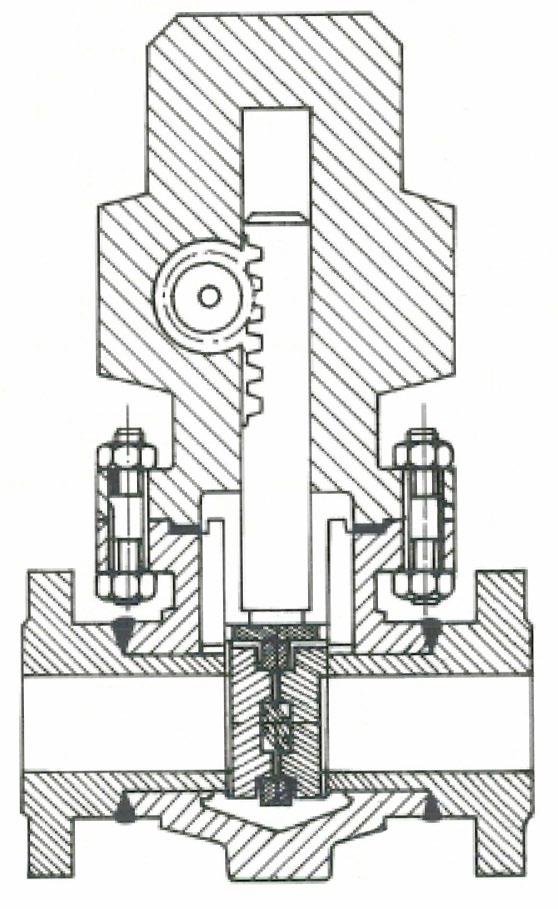

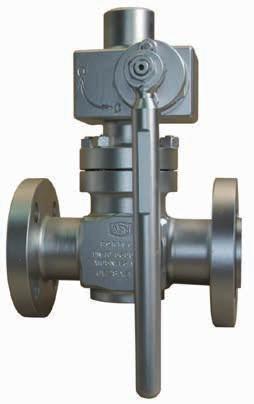

PARALLEL SLIDE BLOWDOWN VALVE RACK & PINION - QUICK ACTING

PRESSURE/TEMPERATURE A105N BODY

Quick acting - Uniflo style lever or key operated continuous boiler blow down valves (blow off) for installation in applications such as industrial, mining and mechanical services. Suitable for super-heated steam, H.T.H.W steam condensate and water.

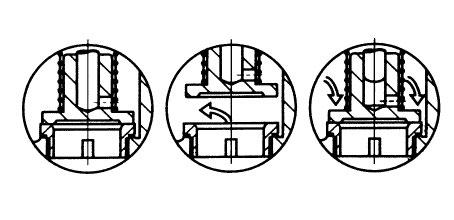

This design consists of two discs, kept in contact with parallel body seats, using the line pressure & sprung seating action to effect tight closure. Temperature changes in the line are accommodated by the expanding disc and do not affect the action of the valve. When being opened or closed, the discs slide across the seat faces, dislodging any foreign matter. The valve operating stem is outside screw rising through the handwheel. These valves are suitable for full bore steam use, where a low pressure drop across the valve is required. Also suitable for water, oil, gas, etc. Also available in Globe style, quick acting.

STANDARDS COMPLIANCE

Basic Design ANSI B16.34, BS 5157

Face to Face Dimension ANSI B16.10

End to End Dimension ANSI B16.10

Flanged Ends ANSI 16.5

150 (AS/BST D to F)

300 (AS/BST H to J)

For superheated steam etc. consult chart. F11, F22, F5 chrome-moly available body for high temperature applications.

TRIM MATERIAL CODES

B.W. Ends ANSI B16.25

S.W. Ends ANSI B16.11

Drilling to ANSI or BS/AS 2129 Table D to H or AS 4087 / AS 4331 / ISO 7005-1 PN 10 to 250

Pressure/Temperature Ratings to ANSI B16.5

O.S. & Y. Rising Stem Full Port, Expanded Parallel Slide Gate Valve, Double Disc, Bolted Bonnet, Integral Seal Rings - Metal to Metal. Mechanically loaded seating for low and high pressure sealing.

Parallel slide dual loaded discs ensure superior shut off and allow by-pass/bleed fitment (double block and bleed requires soft seat inserts).

Pressure/temperature charts available on request. Available in A105N, F22, F11, F5, 316, 304 etc.

A182 F5/F5A

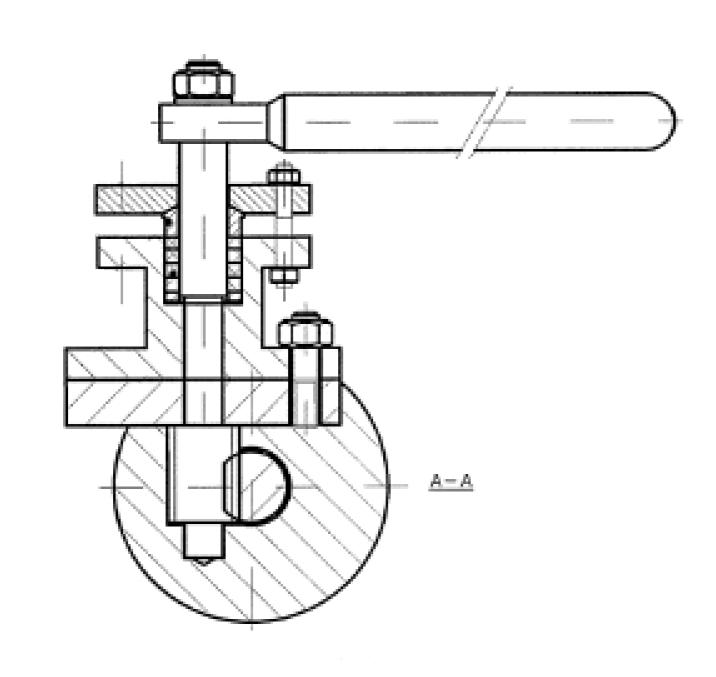

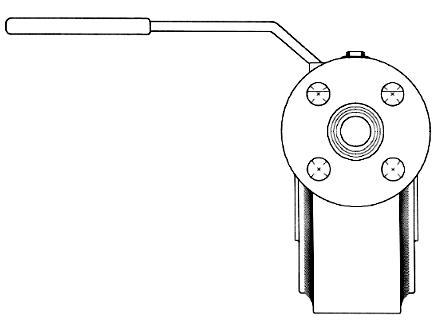

Key Operated Version (Integral Flanges)

RACK & PINION - QUICK ACTING

Description

Body

Bonnet

Disc

Stem

Hand

Seat

Back

Yoke Sleeve

Sleeve

Gland

Gland

Bonnet

Bonnet

Gland

Gland

Gland

Grease

DIMENSIONS (MM)

DIMENSIONS (MM)

Body

Bonnet

Disc

Stem

Hand

Seat Ring

Back Seat Ring

Yoke Sleeve

Sleeve Gland

Gland Flange

Gland

Bonnet

Gland

Gland

Gland

Bearing

Grease

(MM)

(MM)

Chesterton #1600 packing

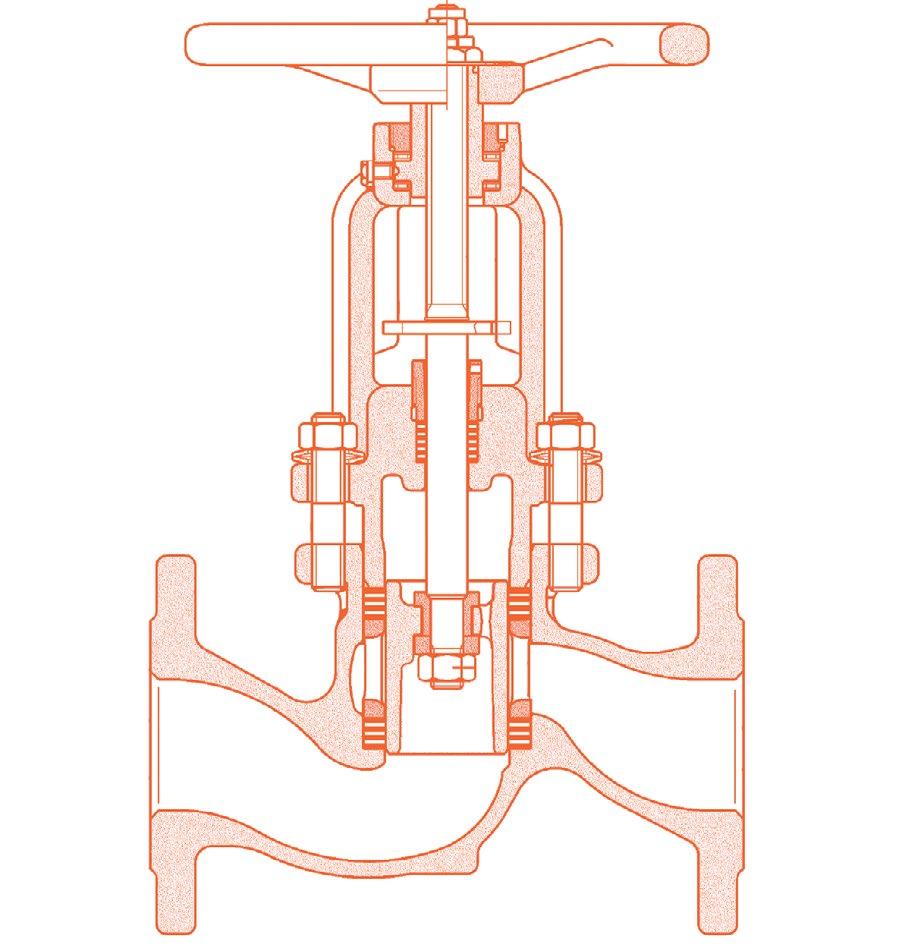

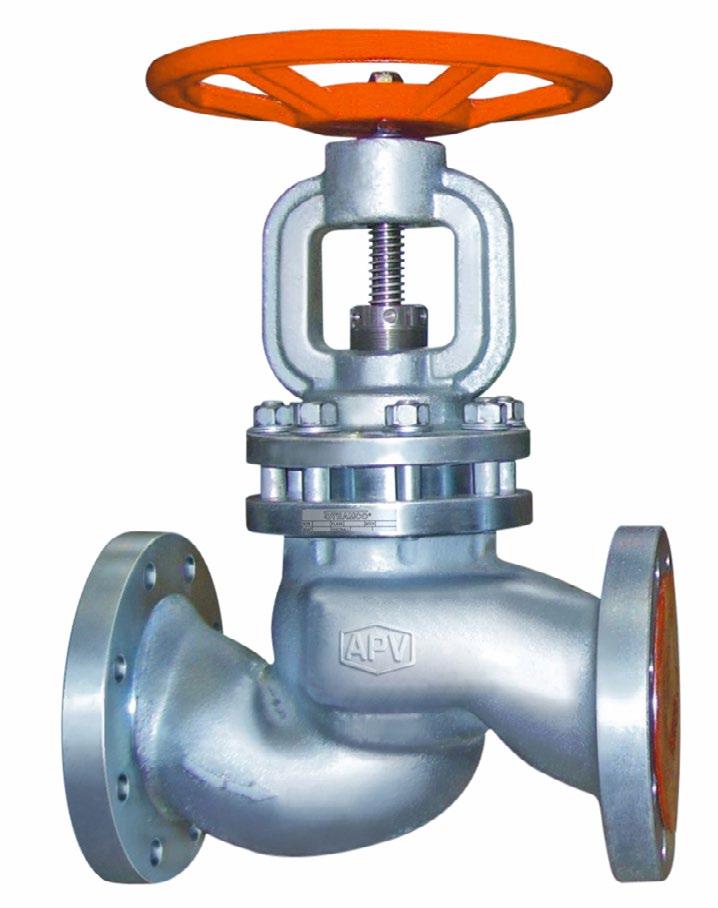

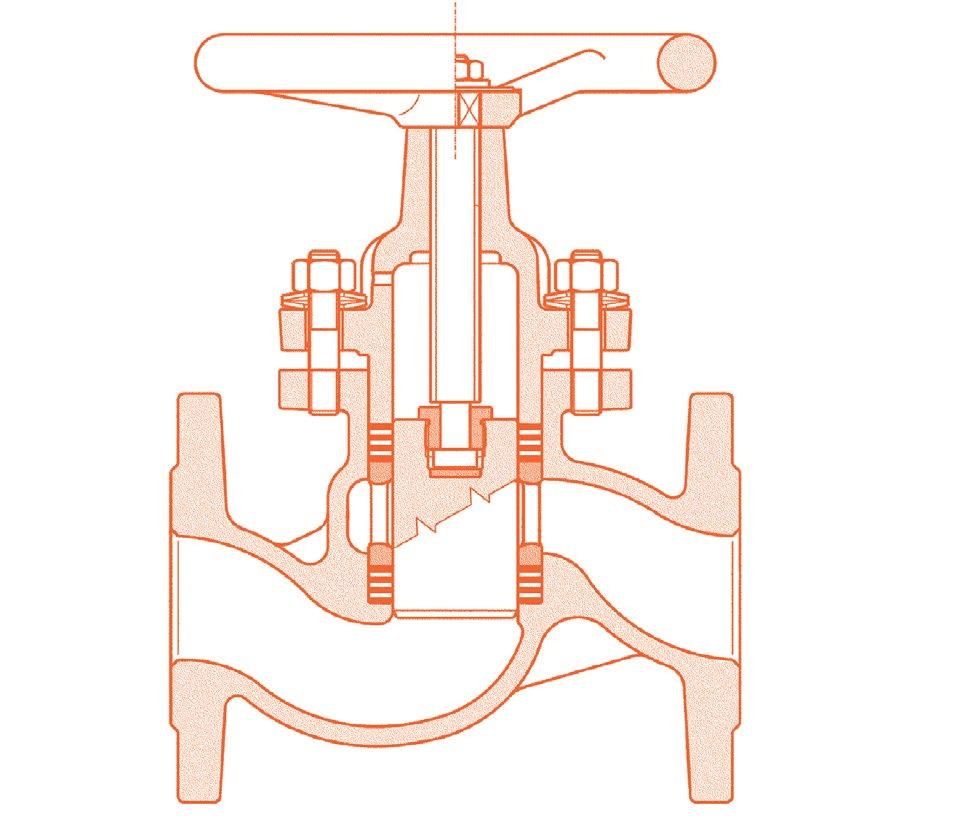

STOP CHECK GLOBE VALVE SCREW DOWN NON RETURN

STANDARD MATERIAL SPECIFICATIONS

Part Name Materials

1 Body ASTM A216 Gr. WCB

For horizontal installations in applications such as industrial, mining and mechanical services, suitable for H.T.H.W., steam, condensate and water.

WORKING PRESSURE

P143XXXXXXXXXX XU-D 150 CLASS

280 PSI CWP (WOG)

170 PSI Saturated Steam (at 260ºC)

P151XXXXXXXXXX XU-D 300 CLASS

720 PSI CWP (WOG)

600 PSI Saturated Steam (at 260ºC)

P171XXXXXXXXXX XU-D 600 CLASS

1440 PSI CWP (WOG) 1100 psi at 260°C, 825 psi at 400°C.

OVERALL DIMENSIONS (MM & IN) & WEIGHT (KG)

2 Seat Ring ASTM A105 with HF overlay 3 Disc ASTM A105 with F6 overlay 4 Stem ASTM A182 Gr.

* Fitted on larger sizes & higher classes.

† Gearboxes on larger sizes

FEATURES

Screw-Down Non-Return Globe Valve

Guided loose disc for combination check & stop. Bolted Bonnet, O.S. & Y., Swivel Disc.

STANDARDS COMPLIANCE

Basic Design API 600/BS 1873 & ANSI B16.34

Face to Face Dimension ANSI B16.10

End to End Dimension ANSI B16.10

Flanged Ends ANSI 16.5

B.W. Ends ANSI B16.25

Drilling to ANSI or BS/AS 2129 Table D to H or AS 4087/AS 4331.1/ISO 7005-1/EN 1092-1/PN10 to PN100

*Available in undrilled to accommodate AS/BS or PN/JIS table drilling. ANSI flanges can also be machined to AS/BS table thickness to allow face to face dimension alteration. 1/2” to 1-1/2” see page 44 of APV Cast, Gate, Globe, Check Catalogue (Full Version).

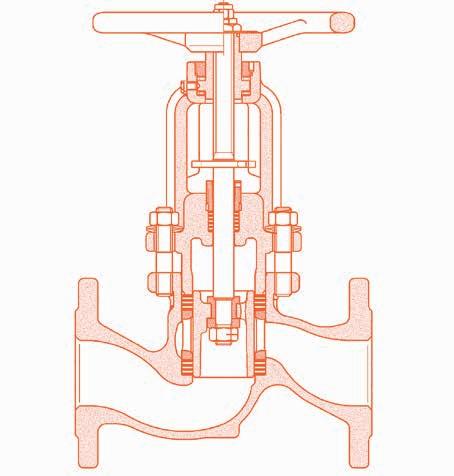

STOP CHECK GLOBE VALVE SCREW DOWN NON RETURN

For horizontal installations in applications such as industrial, mining and mechanical services, suitable for super-heated steam, H.T.H.W., steam, condensate and water.

WORKING PRESSURE

P143XXXXXXXXXX XU-D 150 CLASS

280 PSI CWP (WOG)

170 PSI Saturated Steam (at 260ºC)

P151XXXXXXXXXX XU-D 300 CLASS

720 PSI CWP (WOG)

600 PSI Saturated Steam (at 260ºC) For superheated steam consult pressure/temp chart

P171XXXXXXXXXX XU-D 600 CLASS

1440 PSI CWP (WOG)

1100 psi at 260°C, 825 psi at 400°C. For other temperatures consult chart.

OVERALL DIMENSIONS (MM & IN) & WEIGHT (KG)

FEATURES

Screw-Down Non-Return Globe Valve Cage guided disc for combination check & stop. Bolted Bonnet, O.S. & Y., Swivel Disc

STANDARDS COMPLIANCE

Basic Design API 600/BS 1873 & ANSI B16.34

Face to Face Dimension ANSI B16.10

End to End Dimension ANSI B16.10

Flanged Ends ANSI 16.5

B.W. Ends ANSI B16.25

Drilling to ANSI or BS/AS2129 Table D to H or AS 4087/AS 4331.1/ISO 7005-1/EN 1092-1/PN10 to PN100

Pressure/Temperature Ratings to ANSI B16.34

*Available in undrilled to accommodate AS/BS or PN/JIS table drilling. ANSI flanges can also be machined to AS/BS table thickness to allow face to face dimension alteration. 1/2” to 1-1/2” see page 44 of APV Cast, Gate, Globe, Check Catalogue (Full Version).

STANDARD MATERIAL SPECIFICATIONS

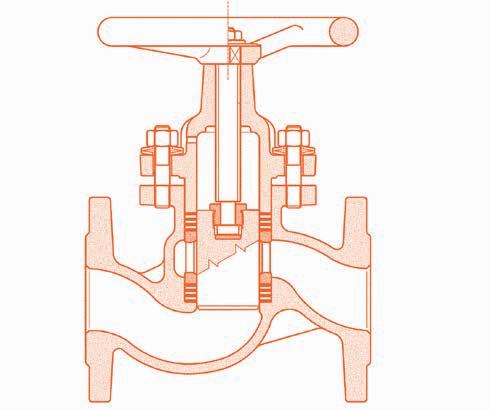

FEATURES

Screw-Down Non-Return Globe Valve Fully guided disc for combination check & stop. Bolted Bonnet, O.S. & Y, Swivel Disc

STANDARDS COMPLIANCE

Basic Design API 623 & ANSI B16.34

Face to Face Dimension ANSI B16.10

End to End Dimension ANSI B16.10

Flanged Endss ANSI 16.5

Globe Valve, Model 250AP151XUD-G, SDNR, NPS 10” (DN250) Class 300, RF, FP, BBOSY, Gearbox

B.W. Ends ANSI B16.25

Drilling to ANSI or BS/AS2129 Table D to H or AS 4087/AS 4331.1/ISO 7005-1/EN 1092-1/PN10 to PN260

Pressure/Temperature Ratings to ANSI B16.34

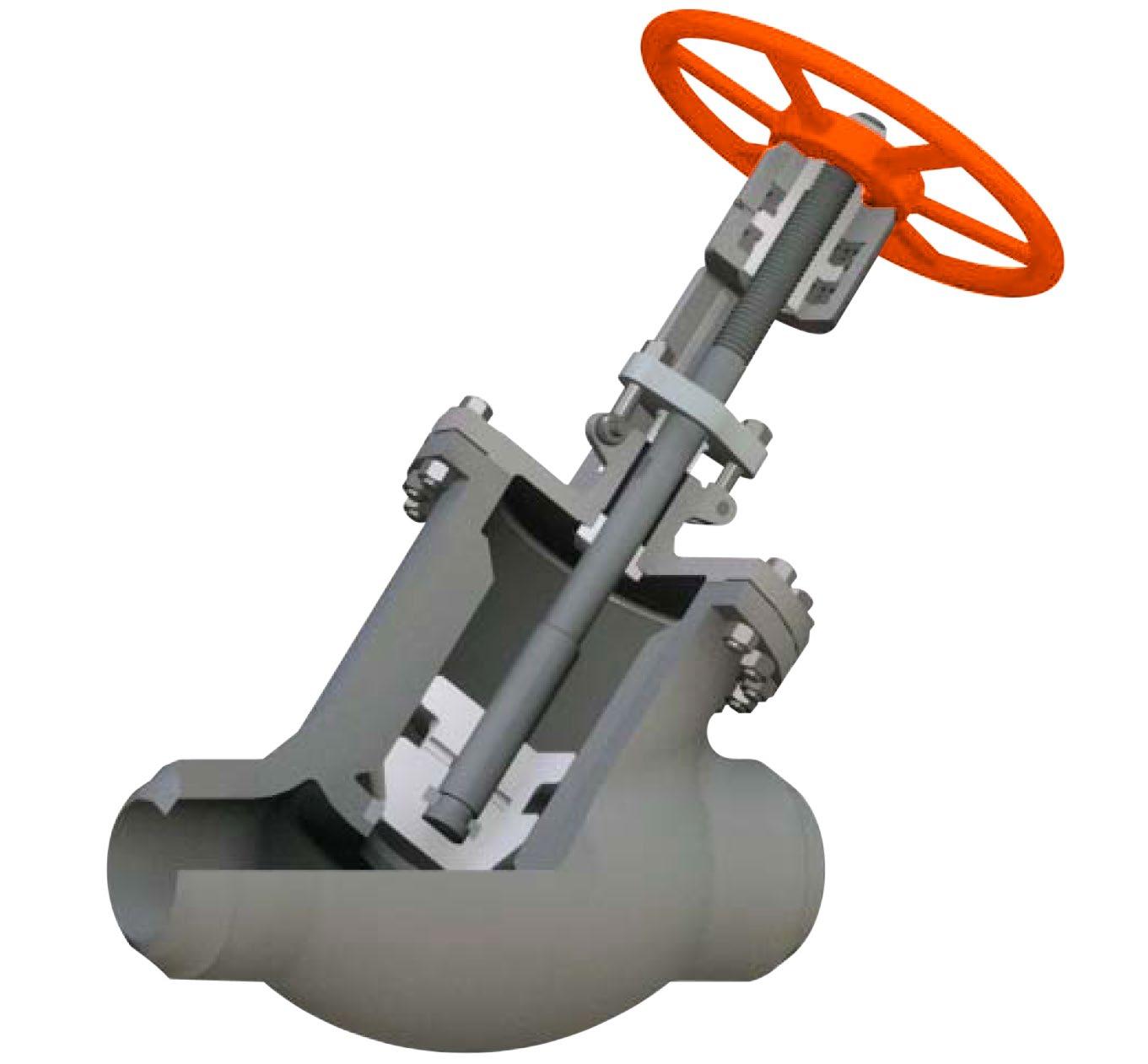

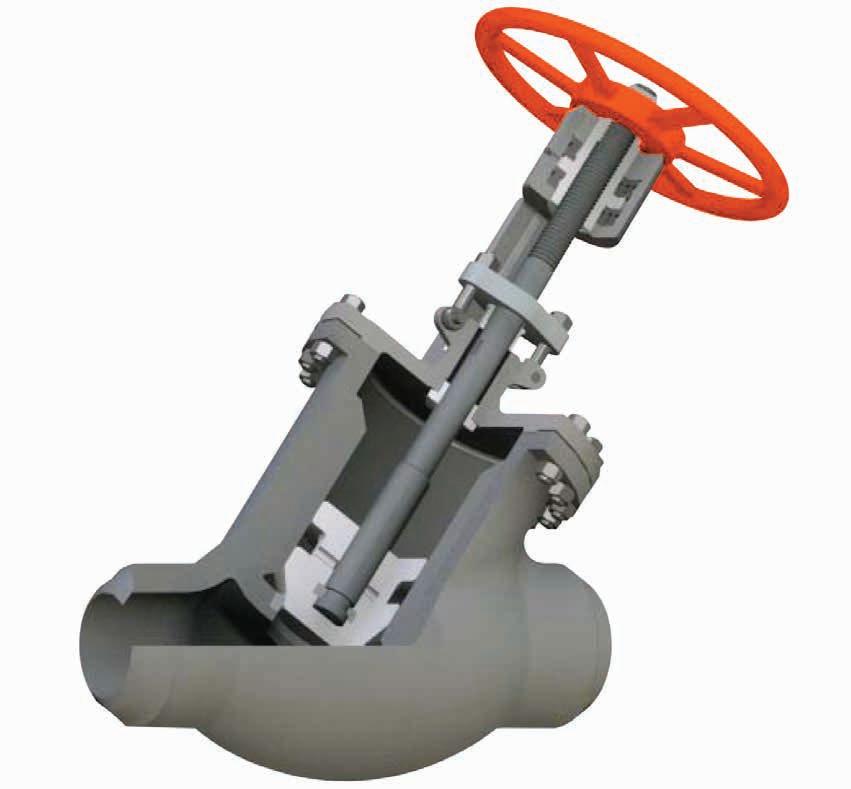

STOP CHECK GLOBE VALVE

Buttweld ends

For horizontal and vertical (with upwards flow) installations in applications such as industrial, mining and mechanical services. Suitable for super-heated steam, H.T.H.W., steam, condensate & water. Available as a stop valve or stop-check valve.

WORKING PRESSURE

P143XXXXXXXX XU-D-Y 150 CLASS

280 PSI CWP (WOG)

170 PSI Saturated Steam (at 260ºC)

P151XXXXXXXX XU-D-Y 300 CLASS

720 PSI CWP (WOG)

Customer must specify flow direction (Horizontal or Vertical)

600 PSI Saturated Steam (at 260ºC) For superheated steam consult pressure/temp chart

P171XXXXXXX XU-D-Y 600 CLASS 1440 PSI CWP (WOG)

1100 psi at 260°C, 825 psi at 400°C. For other temperatures consult chart.

OVERALL DIMENSIONS (MM & IN) & WEIGHT (KG)

* Fitted on larger sizes & higher classes.

† Gearbox or Hammer Blow wheel on larger sizes.

Other Body and Trim materials available such as WC6, ductile iron (250 Class), bronze, etc. see ‘overview brochure’.

DESIGN

Y-Pattern bonnet design allows a straightway flow path which provides a lower pressure drop at equal flow rates compared to conventional straight pattern ‘T-Pattern’ globe valves

FEATURES

Screw-Down Non-Return Globe Valve. Guided loose disc for combination check & stop. Bolted Bonnet, O.S. & Y., Swivel Disc in plug type or parabolic shape.

STANDARDS COMPLIANCE

Basic Design API 600/BS 1873, ANSI B16.34

Face to Face Dimension ANSI B16.10

End to End Dimension ANSI B16.10

Flanged Ends ANSI 16.5

B.W. Ends ANSI B16.25

Drilling to ANSI or BS/AS 2129 Table D to H and PN 10 to 100 Pressure/Temperature Ratings to ANSI B16.34.

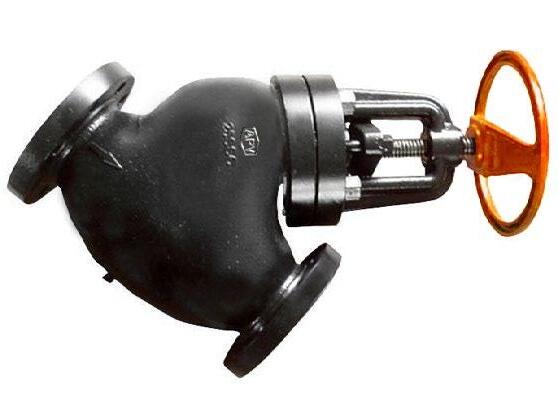

For horizontal and vertical (with upwards flow) installations in applications such as industrial, mining and mechanical services. Suitable for super-heated steam, H.T.H.W., steam, condensate & water. Available as a stop valve or stop-check valve.

WORKING PRESSURE

P151XXXXXXXXX XU-D-Y 300 CLASS

720 PSI CWP (WOG) 600 PSI Saturated Steam (at 260ºC) For superheated steam consult pressure/temp chart

† Gearbox or Hammer Blow wheel on larger sizes. Other Body and Trim materials available such as WC6, ductile iron (250 Class), bronze, etc.

DESIGN

Y-Pattern bonnet design allows a larger flow path which provides a lower pressure drop at equal flow rates compared to conventional straight pattern angle globe valves

FEATURES

Screw-Down Non-Return Globe Valve. Guided loose disc for combination check & stop. Bolted Bonnet, O.S. & Y., Swivel Disc in plug type or parabolic shape.

STANDARDS COMPLIANCE

Basic Design BS 1873, ANSI B16.34

Face to Face Dimension ANSI B16.10

End to End Dimension ANSI B16.10

Flanged Ends ANSI 16.5

B.W. Ends ANSI B16.25

Drilling to ANSI or BS/AS 2129 Table D to H and PN 10 to 100

Pressure/Temperature Ratings to ANSI B16.34.

to drawing 15NB

RIGHT ANGLE GLOBE VALVE

Globe Valve (combination globe & check valve), Bolted Bonnet, O.S. & Y., Swivel Disc (guided loose disc for combination check & stop). Can also be supplied as standard globe stop valve. Drilling to ANSI, AS 2129 Table D to H or AS 4331.1 /ISO 7005-1 / AS 4087 PN10 to 100.

For installations in application such as industrial, mining & mechanical services. Suitable for super-heated steam, H.T.H.W, steam, condensate and water. Stem is guided for smooth operation. Also available in Bronze, Iron, chrome-moly etc.

Customer must specify flow direction (Horizontal or Vertical)

OVERALL DIMENSIONS (MM) & WEIGHT (KG)

VALVE SIZE (NPS)

CLASS 300 (Table F

A105+STL#6 overlay

Disc ASTM A105+13CR

Disc Cover ASTM A276 410

Stem ASTM A182 F6A

Gasket SS316+Graphite

Bonnet ASTM A216 WCB

Back Seat ASTM A276 410

Bolt ASTM A193 B7

Nut ASTM A194 2H

Packing Graphite

Gland ASTM A216 410

Gland Flange ASTM A216 WCB

Bolt ASTM A193 B7

Nut ASTM A194 2H

Pin AISI 1035

Stem Nut Copper Alloy

Set Screw ASTM A193 B7

Handwheel Malleable Iron

Washer A3+ZP 21 Locking Nut ASTM A194 2H 22 Guide Pin AISI 1035 23 Guide Cage AISI 1035

Note: Other body & trim materials are available upon request, such as bronze.

WORKING PRESSURE

P143XXXXXXR 150 CLASS

280 PSI CWP (WOG)

170 PSI Saturated Steam (at 260ºC)

P151XXXXXXR 300 CLASS

720 PSI CWP (WOG)

600 PSI Saturated Steam (at 260ºC)

For superheated steam consult pressure/temp chart

P171XXXXXXR 600 CLASS

1440 PSI CWP (WOG)

WC6 body is available for high temperature applications, consult P/T chart.

RIGHT ANGLE GLOBE VALVE

Globe Valve, Bolted Bonnet, O.S. & Y., Swivel Disc (guided loose disc for combination check & stop). Can also be supplied as standard globe stop valve. Drilling to ANSI, AS 2129 or Table D to H or A 4087/AS 4331.1 / ISO 7005-1 PN10 to 100.

For installations in application such as industrial, mining & mechanical services. Suitable for super-heated steam, H.T.H.W, steam, condensate and water. Stem is guided for smooth operation. Also available in Bronze, Iron, chrome-moly etc.

OVERALL DIMENSIONS (MM) &

Customer must specify flow direction (Horizontal or Vertical) Buttweld ends

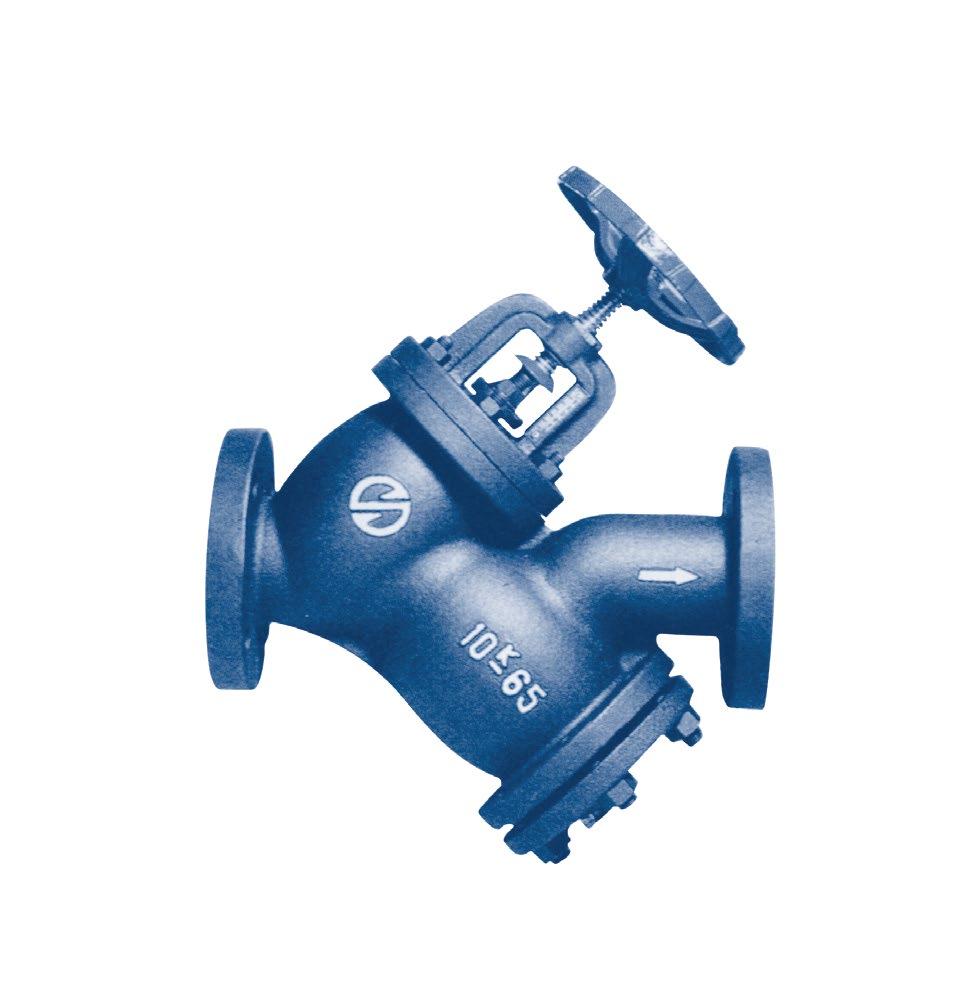

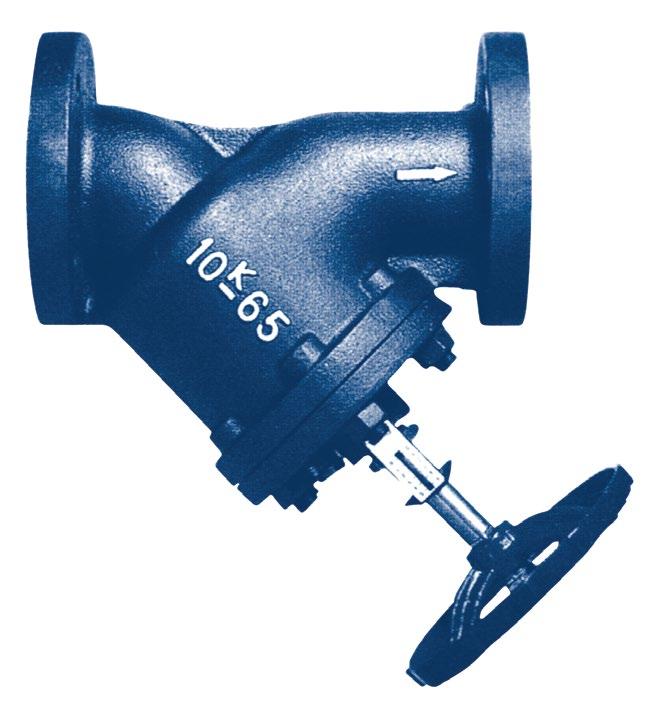

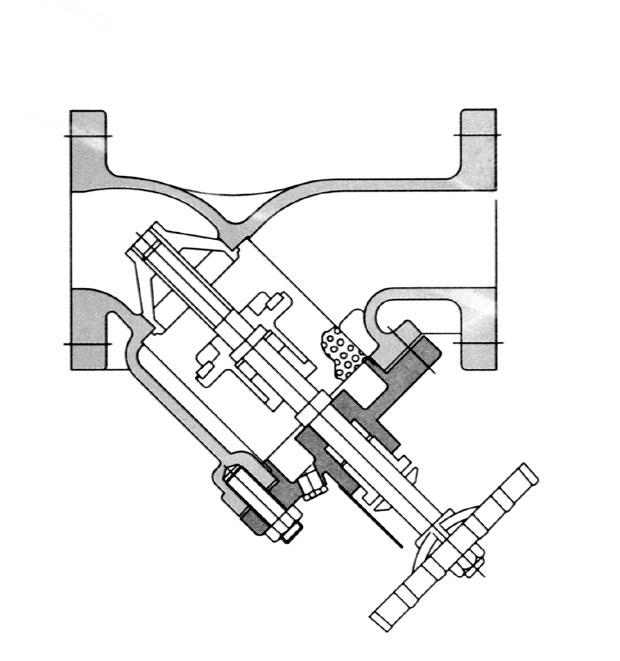

COMBINATION Y GLOBE/STOP/CHECK/STRAINER

BS/AS TABLE D, E, ANSI 125, PN10, JIS10

FEATURES

• Y Type for large flow area.

• As a valve having both valve and strainer functions, it is light weight, & can be installed with minimum piping space & effort.

• As Teflon (PTFE) is used for the stem packing, superior corrosion resistance, cold-resistance & abrasion-resistance are achieved. There is no leakage at all, & the valve operates smoothly.

• An indicator is attached to the valve to make it is easy to check the open/close status and to make the fluid volume control possible.

• The valve is designed to eliminate pressure spot in order to prevent fluid resistance or concentration of pressure and thus increase the volume of fluid.

• The open area of strainer screen is 3 times larger than bore area to minimize presssure loss.

• Foreign substances inside the screen can be removed at any time via the drain plug, without removing the bonnet.

• Available with strainer and tamper switch as options (available ISY & OSY)

SPECIFICATIONS

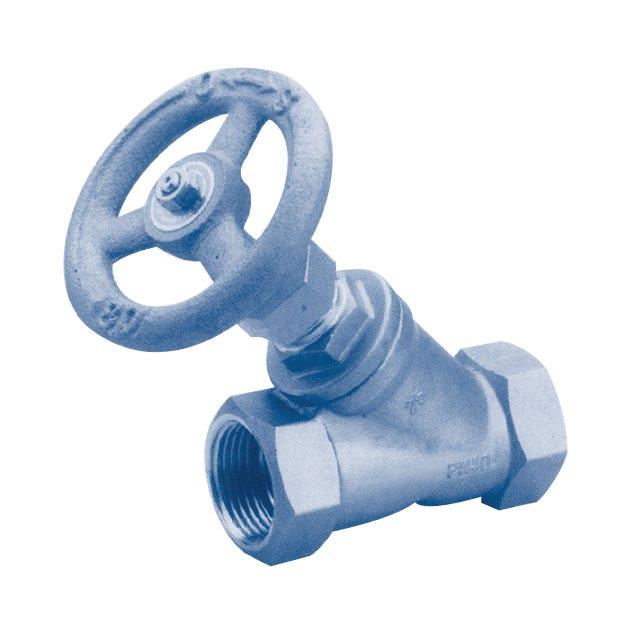

Y TYPE STOP CHECK VALVE SCREWED ENDS

DIMENSIONS

S.D.N.R. GLOBE Y-TYPE 600PSI

Suitable for W.O.G. saturated steam, chemicals etc

Body and bonnet quality investment casting

Metal to metal seat design

100% air tested under water, at 100 psi, open and closed positions.

Hydrostatic test pressure - 1,200 psi

SPECIFICATIONS

Working Pressure PN40 (600psi) WOG

Temperature Rang -40 to 450°F

End Type Threaded ANSI B2.1, BS21, DIN

ASME B16.10 Class 150, 300 & 800

Face to Face Dimension to ASME B16.10

Also Available in PN16, PN40 & PN63 Flanging Design to ASME B16.34 & EN 12526-2

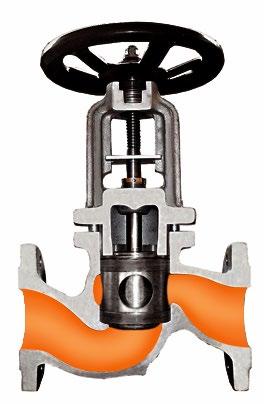

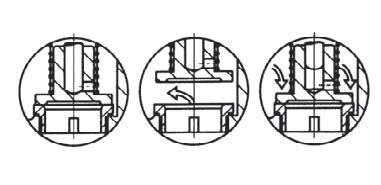

Piston valves are used to regulate and control steam as well as highly aggressive media in the chemical industry as well as for fine regulating in the oil industry. Piston valves are leak tight on the seat (ANSI CL VI) as well as through the body to the atmosphere.

Steamco piston valves are a true isolation valve whilst still allowing a degree of flow regulation. The Piston valve has a superior system to a conventional globe valve, it has a cylindrical piston & two resilient, replaceable jointing rings. Balance piston option is available to address high torque requirements in sizes above 65NB.

Advantages of Piston valves -

• Exceptional leak tightness across the ports and to atmosphere

• Insensitive to impurities due to the combination sealing system

• Maintenance free

• Unaffected by wire drawing in steam service

• Environmentally safe and energy efficient

• Inherently fugitive emission design

• Valve rings are replaceable in line

• Excellent control statistics

• Inherently fire safe design

• High return on investment across full service life compared to globe valves

Cast Iron, Carbon Steel, Stainless Steel Valves ASME Class 125, 150, 300, 800 – PN 16/40/63

• Size 6NB to 200NB (¼” to 8”)

• Standard female screwed ends:

- B.S.P. – NPT – ASME B1.20.1

• Socket weld ends – SW to:

- ASME B16.11

• Butt weld ends to:

- ASME B16.25 and pipe Sch 160

• Flanged ends to:

- ASME B16.5

- AS 2129

- AS 4087

- AS 4331 (ISO 75005-1)

- EN 1092

RANGE

Materials/Class (End Connections)

Cast Steel/Class 150 (Flanged End)

Cast Steel/Class 300 (Flanged End)

Cast Steel/Class 300 (Screwed/Socket-weld)

Cast Steel/Class 150 (Flanged End)

Forged #800: DN15, 20, 25 - Angle pattern; DN25, 40 - Straight pattern. Weld-on flanges available

PISTON CHECK - LIFT TYPE

Non return Piston Check valve, lift type, bolted bonnet, guided disc. Flange drilling ANSI 150 to 600 and AS2129 table D to H and PN10 to 100.

For horizontal installations in applications such as industrial, mining and mechanical services. Suitable for super-heated steam, H.T.H.W., steam, condensate and water. Guiding of stem assures smooth operation. Other body materials like Bronze and WC6 also available.

STANDARD MATERIAL SPECIFICATIONS

(Guiding mechanism varies according to size class, refer to drawing)

WORKING PRESSURE

SLCLXU-Z 150 CLASS

280 PSI CWP (WOG)

170 PSI Saturated Steam (at 260°C)

SLCLXU-Z 300 CLASS

720 PSI CWP (WOG)

600 PSI Saturated Steam (at 260°C) For superheated steam consult pressure/temp chart

SLCLXU-Z 600 CLASS

1440 PSI CWP (WOG)

1100 PSI at 260°C, 825 psi at 400°C. Consult chart for other temperatures WC6 body is available for high temperature applications

OVERALL

DIMENSIONS

(Table D to F) (PN10~21)

CLASS 300 (Table F to H) (PN25~50)

(RF-BW)

Gasket Stainless Steel/Graphite

Bonnet/Guide ASTM A216 Gr. WCB

Bonnet Nut ASTM A194 Gr. 2H

Bonnet Bolt ASTM A193 Gr. B7

Spring Inconel X750

Gasket Graphite

*1 Spring Optional. *2 Drain Optional.

STANDARDS COMPLIANCE

Basic Design API 600/BS 1873 and ANSI B16.34

Face to Face Dimension ANSI B16.10

End to End Dimension ANSI B16.10

Flanged Ends ANSI 16.5

B.W. Ends ANSI B16.25

Drilling to ANSI or BS/AS 2129 Table D to H and PN10 to 100

(MM & INCHES) & WEIGHT (KG)

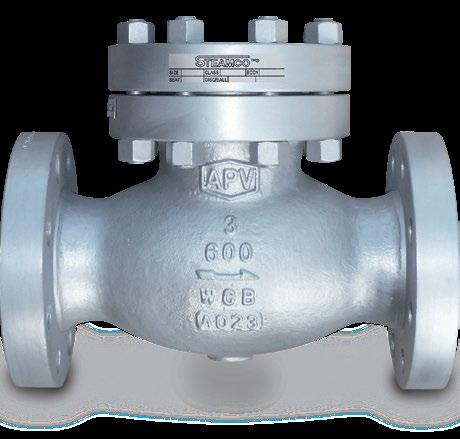

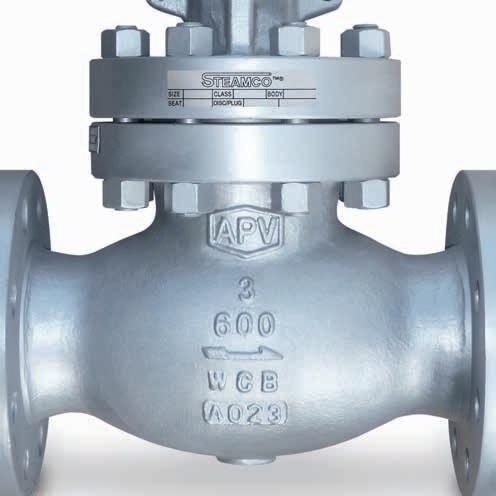

PISTON CHECK - LIFT TYPE

Non return Piston Check valve, lift type, bolted bonnet, guided disc. Flange drilling ANSI 150 to 600 & BS/AS2129 table D to H, and PN10 to 100.

For horizontal installations in applications such as industrial, mining and mechanical services. Suitable for super-heated steam, H.T.H.W., steam, condensate and water.

Guiding of stem assures smooth operation.

Other body materials like Bronze and WC6 also available. (S-Bend Type Body shown)

STANDARD MATERIAL SPECIFICATIONS

1 Body/Guide ASTM A216 Gr. WCB 2 Seat Ring ASTM A105 with HF overlay

WORKING PRESSURE

SLCLXU-Z 150 CLASS

280 PSI CWP (WOG)

170 PSI Saturated Steam (at 260°C)

SLCLXU-Z 300 CLASS

720 PSI CWP (WOG)

600 PSI Saturated Steam (at 260°C) For superheated steam consult pressure/temp chart

SLCLXU-Z 600 CLASS

1440 PSI CWP (WOG)

1100 PSI at 260°C, 825 psi at 400°C. Consult chart for other temperatures WC6 body is available for high temperature applications

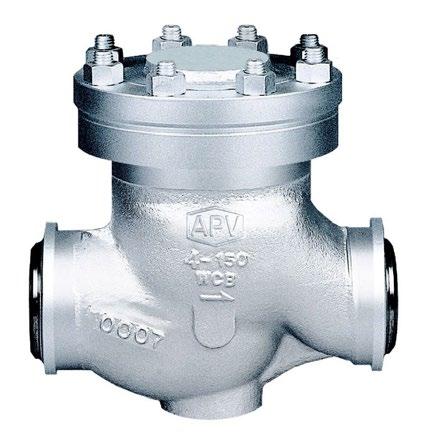

Spring Activated Buttweld

Inconel X750 10 Gasket Graphite 11*2 Drain Plug A105N

*1 Spring Optional. *2 Drain Optional.

STANDARDS COMPLIANCE

Basic Design API 600/BS 1873 and ANSI B16.34

Face to Face Dimension ANSI B16.10

End to End Dimension ANSI B16.10

Flanged Ends ANSI 16.5

B.W. Ends ANSI B16.25

Drilling to ANSI, BS/AS 2129 Table D to H or PN10 to 100

OVERALL DIMENSIONS (MM & INCHES) & WEIGHT (KG)

(Table D to F) (PN10~21)

CLASS 300 (Table F to H) (PN25~50)

PISTON CHECK - LIFT TYPE

Non return Piston Check valve, lift type, bolted bonnet, guided disc. Flange drilling ANSI 150 to 600 and AS 2129 table D to H and AS 4087/EN/ISO PN10 to 100. Guide pin and cage and/or bonnet guide cage as required (refer to drawings). For horizontal installations in applications such as industrial, mining and mechanical services. Suitable for super-heated steam, H.T.H.W., steam, condensate and water. Guiding of stem assures smooth operation. Other body materials like Bronze and WC6 also available.

STANDARD MATERIAL SPECIFICATIONS

Centre Guided Style

WORKING PRESSURE

SLCLXU-Z 150 CLASS

280 PSI CWP (WOG)

170 PSI Saturated Steam (at 260°C)

SLCLXU-Z 300 CLASS

720 PSI CWP (WOG)

600 PSI Saturated Steam (at 260°C) For superheated steam consult pressure/temp chart

SLCLXU-Z 600 CLASS

1440 PSI CWP (WOG)

1100 PSI at 260°C, 825 psi at 400°C. Consult chart for other temperatures WC6 body is available for high temperature applications

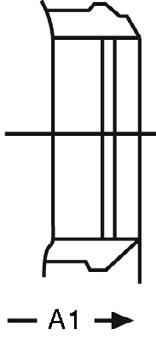

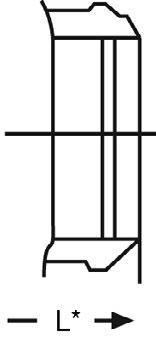

OVERALL DIMENSIONS

(Table D to F) (PN10~21)

CLASS 300 (Table F to H) (PN25~50)

5 Gasket SS304+GRAPHITE/SS316+GRAPHITE 6 Cover/Guide

STANDARDS COMPLIANCE

Basic Design ASME B16.34/BS 1873 or API 6D or API 623

Face to Face Dimension ASME B16.10

End to End Dimension ASME B16.10

Flanged Ends ASME 16.5

B.W. Ends ASME B16.25

Drilling to ANSI or BS/AS 2129 Table D to H and PN10 to 100

(MM & INCHES) & WEIGHT (KG)

OVERVIEW

• ASME B16.34 Design

• 15NB - 50NB (1/2 - 2”) Bolted Bonnet

• Flange Ends, SW, NPT, BSP or Buttweld ends available 150 to 2500 Class

• Design - API 602, BS 5352, MSS SP11, ANSI/ASME B16.34

• End Connections Socket Weld - ANSI/ASME B16.11 Thread - ANSI/ASME B1.20.1

• Test and Inspection - API 598 / BS 5146

MATERIALS

* Stem Smoothness ≤ Ra 0.80 µm

** Stuffing Box Smoothness ≤ Ra 3.2 µm

DESIGN FEATURES

• Inconel or 321SS Bellows

- For longer life

- Maximum corrosion resistance

• Flanged, screwed or welded end connections

• Welded or bolted bonnet design

• Zero stem leakage

- Eliminates media loss

- Satisfies environmental regulations

• Zero maintenance

- Lower operating costs/no downtime

• Three stem seals for safety

- Metallic bellows

- Graphite packing

- Backseat in open position

• Reduce monitoring costs

• Hardfaced seating surface - Stellite 6 for long life

• Valve designed, manufactured and tested

- To ANSI B16.34/API 602 & 598

• Additional alloy and trims available

• For applications where leakage into or out of the valve is unacceptable

Heat transfer oil

OVERVIEW

• ASME B16.34 Design

• 15NB - 50NB (1/2 - 2”) Bolted Bonnet

• Flange Ends, SW, NPT, BSP or Buttweld ends available 150 to 2500 Class

• Design - API 602, BS 5352, MSS SP11, ANSI/ASME B16.34

• End Connections Socket Weld - ANSI/ASME B16.11

Thread - ANSI/ASME B1.20.1

Butt Weld - ANSI/ASME B16.25

Flange - ANSI/ASME B16.5

• Test and Inspection - API 598 / BS 5146

MATERIALS

* Stem Smoothness ≤ Ra 0.80 µm

** Stuffing Box Smoothness ≤ Ra 3.2 µm

• Inconel or 321SS

- For longer

- Maximum

• Flanged, screwed or welded end connections

• Welded or bolted bonnet design

• Zero stem leakage

- Eliminates media loss

- Satisfies environmental regulations

• Zero maintenance

- Lower operating costs/no downtime

• Three stem seals for safety

- Metallic bellows

- Graphite packing

- Backseat in open position

• Reduce monitoring costs

• Hardfaced seating surface - Stellite 6 for long life

• Valve designed, manufactured and tested

- To ANSI B16.34/API 602 & 598

• Additional alloy and trims available

• For applications where leakage into or out of the valve is unacceptable

- Heat transfer oil

- Toxic fluids

- Steam - Regulated media DESIGN FEATURES

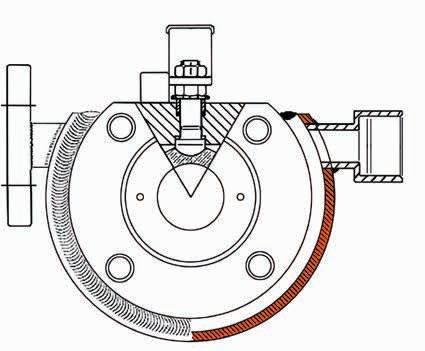

STEAM JACKETED BALL VALVE

WAFER STYLE FULL BORE STEAM JACKETED BALL VALVE

FEATURES

• Wafer jacketed ball valve

• Jacket connections - threaded, flanged, oversized (on request).

• Oversized and /or special jackets in carbon and stainless steel.

• Adjustable packing gland.

• Also available in 150 to 600 class

• Bottom-loaded blow-out proof stem.

• Low operating torque to reduce automation costs.

• Optional mounting pad complied with ISO 5211 for ease and interchangeability of actuation.

• Tested according to MSS SP-110/API 598.

HEATING JACKET FLANGE CONNECTION

HEATING JACKET THREADED CONNECTION

HEATING CHAMBER JACKET

* Or Stainless Steel on request.

DIMENSIONS 150 & 300 CLASS

COMPLETE PRODUCT LINE

“Australian Pipeline Valve produces isolation, control and flow reversal protection products for severe and critical service media in utility, steam, pipelines, oil & gas and process industries. APV valves and pipeline products form the most competitive portfolio in the market.”

APV FAMILY OF BRANDS RANGE - CATALOGUES

Oilfield Products Valves & Wellheads
Gate, Globe & Check Valves - Forged Steel
Plug Valves Lubricated, Sleeved & Lined

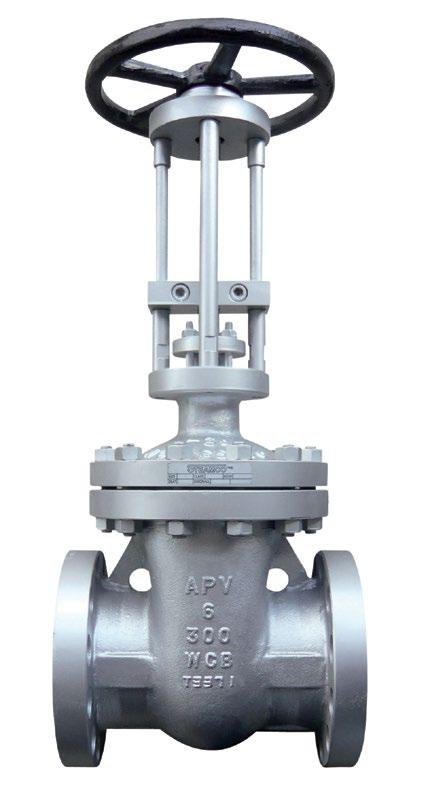

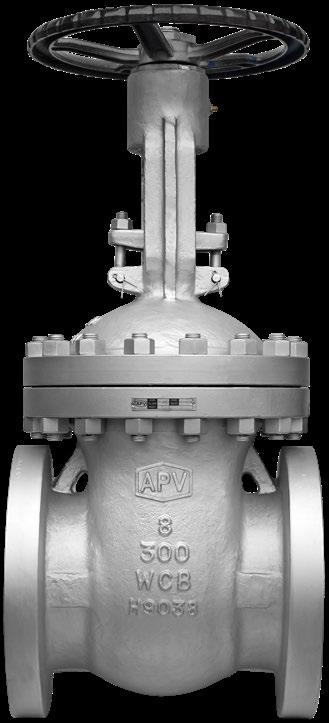

Gate, Globe & Check Valves - Cast Steel
Diamond Gear Gearboxes
Flowturn Gate, Globe & Check Valves
Flowturn Instrument Valves
Flowturn Ball Valves Multiway & Deadman
Flowturn Strainers & Sight Glasses
Supercheck Wafer Check Valves
Superseal Butterfly Valves
Steamco Steam Valves
Superseal
Industrial Ball Valves
TwinLok Tube Fittings
Uniflo Check Valves
Torqturn Actuators
Ball Valves Floating & Trunnion Mounted
Ball Valves Floating Small Bore Ball Valves Special Service
Product Brochure

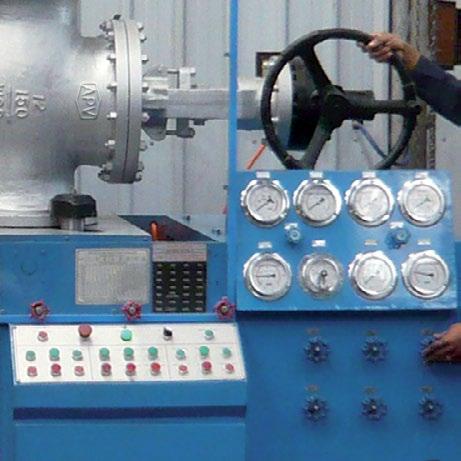

QUALITY ASSURANCE AND CERTIFICATION

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
