Durable and cost-effective, profiled steel sheets are available in various profiles, colours and lengths. Suited to agricultural, industrial and residential buildings.
Profile Steel Roofing Sheets
Extensive ranges in stock - cut to size available
Colours and coatings
As well as stocking an extensive range of colours and finishes off the shelf, we are also able to supply an extended colour and finish range to order.
Steel sheet finishes

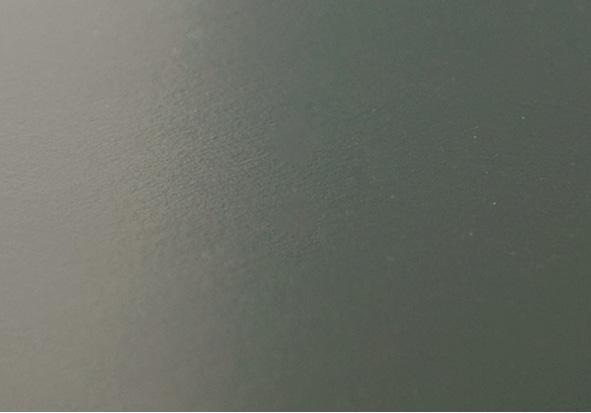

POLYESTER PAINTED
Features a UV-resistant painted coating that provides a smooth, matt appearance. Although the coating is considered durable once installed, care must be taken when handling the sheets to avoid scratching.

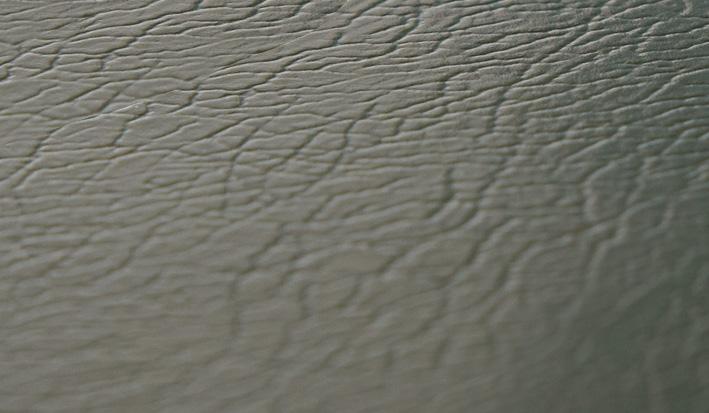

PLASTIC COATED LEATHERGRAIN
A plastic coating, known as ‘Plastisol’, provides a durable 200-micron thick leathergrain-effect layer. This finish is highly UV and scratch resistant.
PLAIN GALVANISED
Plain galvanised steel sheets have no extra coating and feature a classic spangled appearance. Initially shiny with a mottled pattern, the sheet will dull over time, providing durable corrosion protection.
GREY ALKYD
Non-prime and rolled back to front, with a light grey internal primer on the top side of the sheet. These cost-effective sheets are ideal for certain applications.
Please note: the underside could feature a mix of different colours and finishes.
GA
Grey Alkyd
PG
Plain Galvanised
Anthracite Grey AG Goosewing Grey GG
Juniper Green JG
Vandyke Brown VB Black BL
Plastisol Polyester

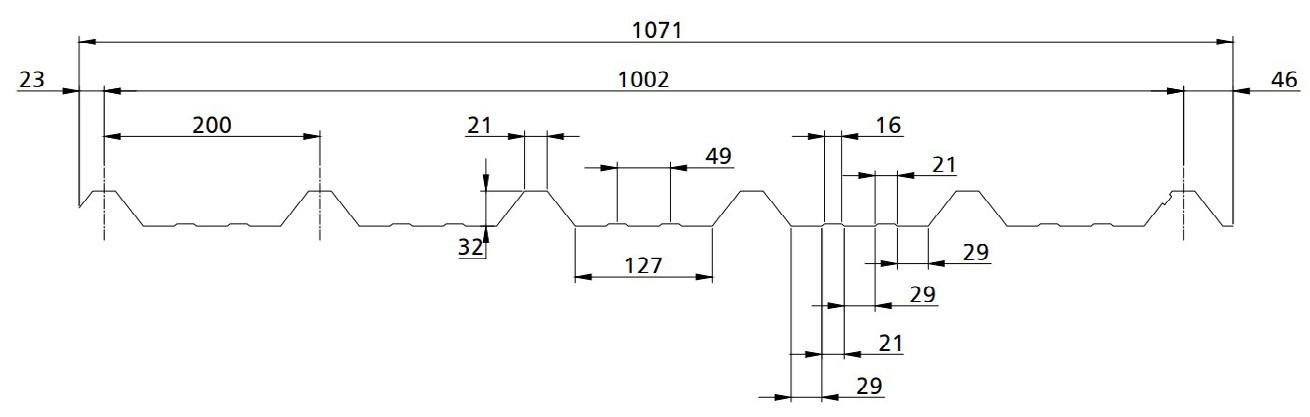

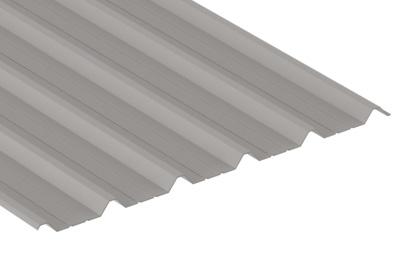

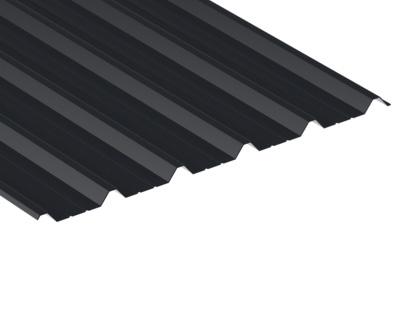

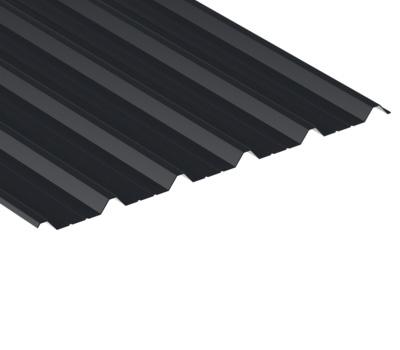

32/1000 H Box profile sheets
Box profile (or trapezoidal) steel sheeting, is a modern alternative to the traditional corrugated metal sheets
0.5mm thick Polyester Painted Finish
Code colour sizes
0.5mm thick Plastic Coated Leathergrain Finish
Code colour sizes
0.7mm thick Plastic Coated Leathergrain Finish
See page 6 for GRP and PVC Rooflights to match steel sheet profiles See page 5 for steel flashings to match sheeting colour and finish

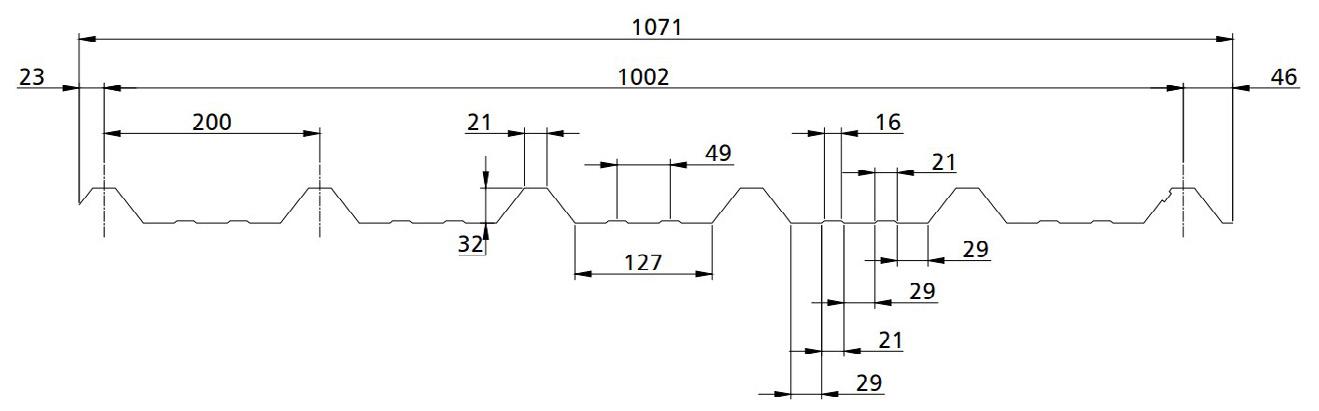

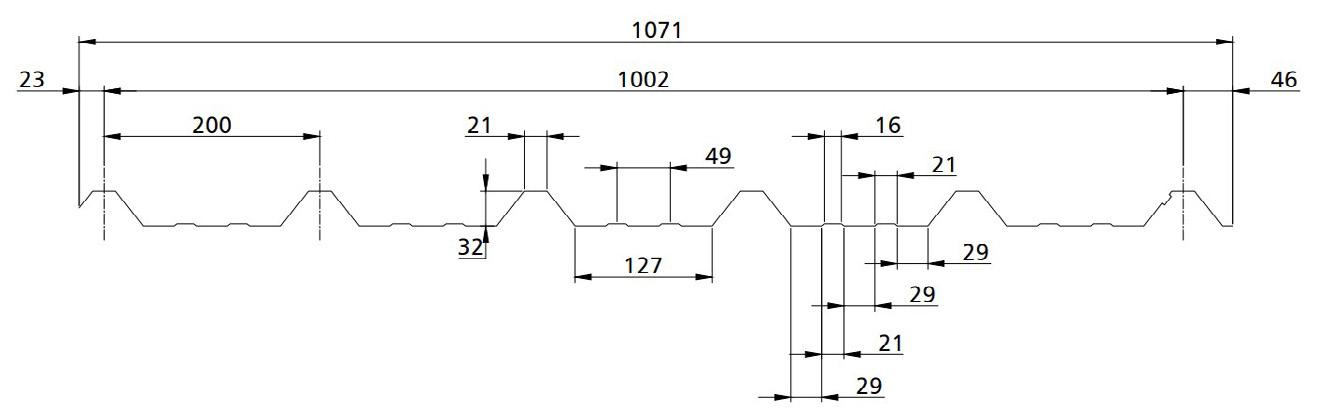

32/1000 H Box profile sheets
Non-Prime Grey Alkyd (Primer) Finish (could be mixed thickness and mixed underside colours)
Non-Prime Grey Alkyd (Primer) Finish
Code colour sizes

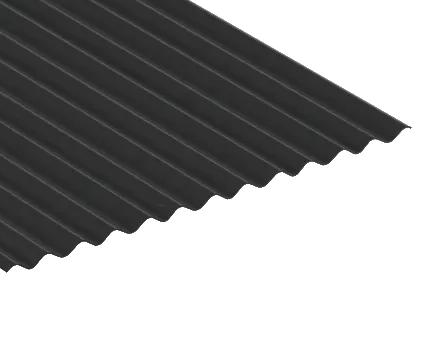

13.5/3 Corrugated profile sheets
Traditional 3” corrugated profile with wide 991mm coverage
0.5mm thick Plastic Coated, Leathergrain Finish Code colour sizes
0.5mm thick Galvanised, Plain Galvanised Finish

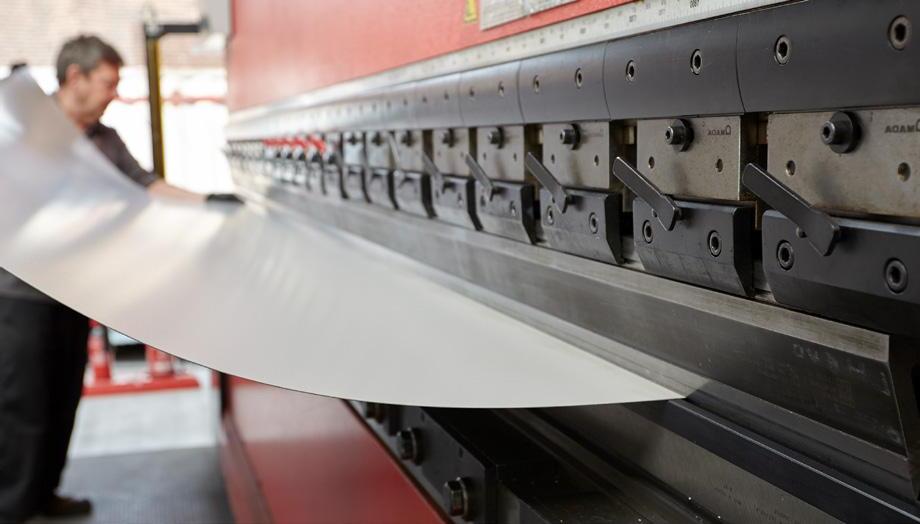

Need a special flashing?
We can also fabricate manufactured to order flashings and gutters, contact sales for more details and pricing

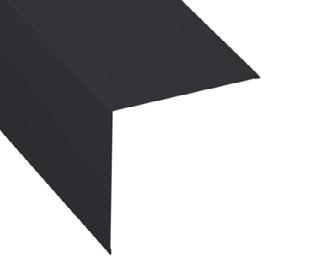

Steel flashings

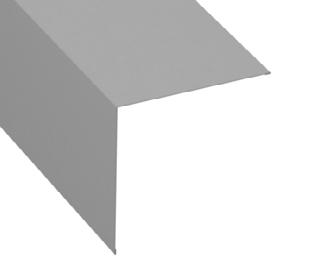

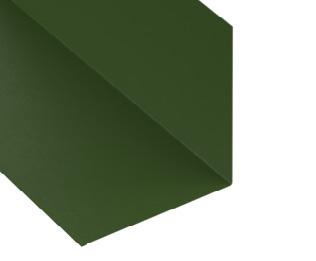

3.000m long, External Corner, 190mm x 190mm x 90°

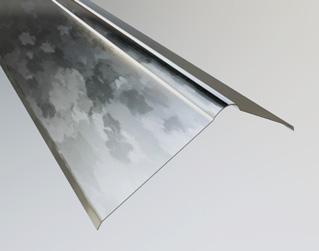

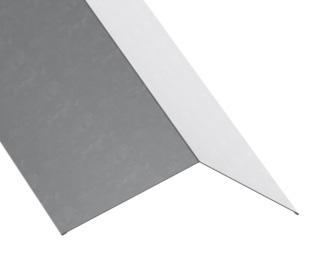

3.000m long, Ridge Cap, 190mm x 190mm x 120°
Code
3.000m long, External Corner, 250mm x 250mm x 90°
3.000m long, Ridge Cap, 250mm x 250mm x 120°

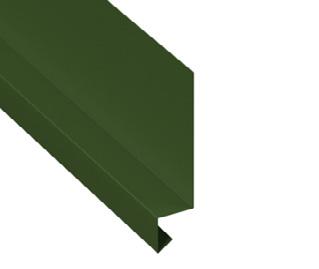

3.000m long Abutment Flashing, 190mm x 190mm x 100°
3.000m long Slip Flashing, 22mm x 30mm x 25mm
3.000m long Drip Flashing, 100mm x 40mm x 40mm x 20mm Code
1.800m roll top Ridge Cap, 150mm x 150mm x 120°
Bespoke flashings with various wing dimensions, angles, colours, and finishes are
PVC and GRP rooflights
PVC rooflights, iron profile 8x3”
3.050m (10ft) long iron profile PVC rooflight 8x3” corrugated giving, 610mm (2ft) cover heavy weight grade: 1.1mm thk
Code sizes

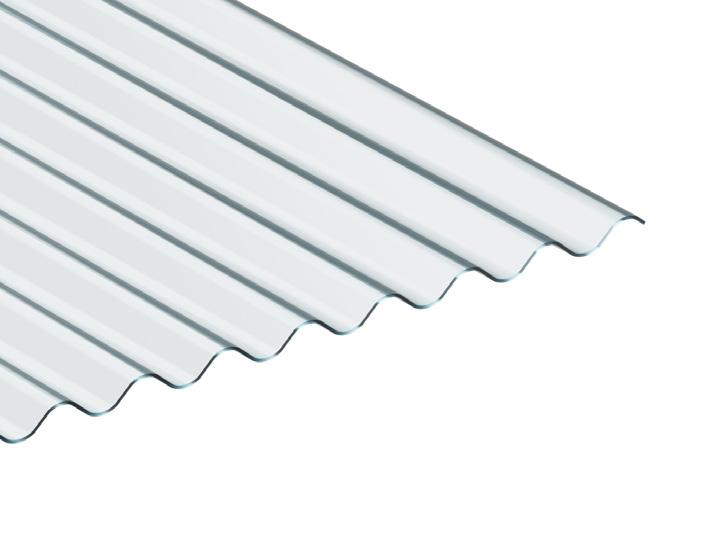

GRP rooflights, 13.5x3”
13.5x3” corrugated translucent GRP rooflight, 991mm coverage, Fire class 3, weight 1.83kg/sqm (6oz)
Code sizes
GR1Z13H318-*.*
(6ft) 2.440m (8ft) 3.050m (10ft)

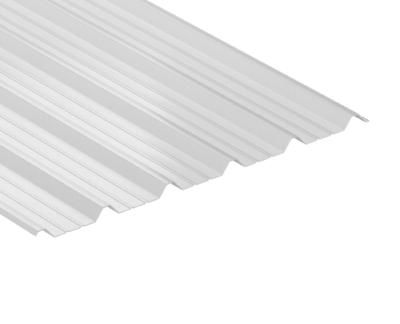

GRP rooflights, 32/1000 H
32/1000 H box profile translucent GRP rooflight, fire class 3, 1.83 kg/sqm (6oz) weight
Code sizes GR1Z32H318-*.* 2.440m (8ft) 3.050m (10ft) 3.660m (12ft)
TRANSLUCENT to suit corrugated galvanised sheets to suit corrugated galvanised sheets
TRANSLUCENT to suit our 32/1000 steel sheets
Fixings and accessories
Fixings and accessories for GRP sheets
PVC fixing pack
PVC Fixing pack (for fixing sheets into timber) pack of 10 Code: FD1PVCPACK
38mm heavy duty drillscrew with 29mm washer for fixing box profile GRP (box profile GRP into steel thicker than 3mm) pack of 100 Code: FD1HD38W29
Bonded washer laplock
25mm long x 19mm diameter bonded washer laplock (for box profile GRP joints) pack of 100 Code: FB1LAP25B19

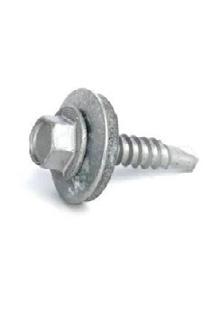

Fixings for box profile sheets
45mm Woodtek drillscrews
Woodtek drillscrews with 19mm washer (for steel sheets into timber) pack of 100 Code: FD1WT45W19
25mm Woodtek drillscrews
Woodtek drillscrews with 19mm washer (for steel sheets into timber) pack of 100 Code: FD1WT25W19
25mm Light section drillscrew
Light section drillscrew c/w 19mm washer (for sheets up to 3mm thick) pack of 100 Code: FD1LS25W19
38mm long Seala washer
38mm long seala washer (28mm dia) laplock, CLEAR (for joining GRP Sheets) Code: FB1LAP38S28CL
45mm Woodtek Drillscrew
with moulded head, 29mm washerin Poppy Red Code: FD1FXWT4504E53

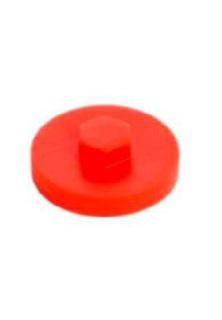

29mm red cover cap
29mm red cover cap for rooflight screws pack of 100
Code: FC1CAP2904E53
38mm heavy duty drillscrew
38mm heavy duty drillscrew c/w 19mm (for steel sheets into steel thicker than 3mm) pack of 100 Code: FD1HD38W19
22mm Stitcher drillscrew
22mm stitcher drillscrew c/w 16mm washer for fixing sheet laps and flashings) pk of 100 Code: FD1ST22W15
19mm dia coloured screw cap
19mm diameter coloured screw cap to suit above screws (8mm head), pack of 100 Code: FC1CAP
Fixings and accessories
Foam filler
For profiles MW5, 1000/32B & 1000/32CW
1m long, pair polyethylene, bi-colour (black/white) Code: FF1Z32C

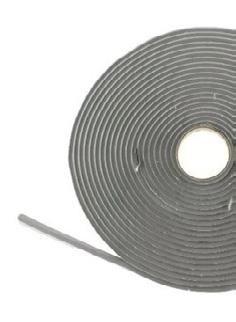

Lap mastic
Lap mastic (for side and end laps on sheeting) 5mm wide x 6mm thk 9.6m per roll
Code: FS1MASTL5X6
Fixings and accessories 13.5/3 corrugated
65mm springhead nails
65mm long galvanised springhead nails (requires M8 spat washers) pack of 100 Code: FN1SP65
80mm Woodtek drillscrews
80mm woodtek drillscrews with 19mm washer (for fixings to timber) requires Seala washer and DEEP cap pack of 100 Code: FD1WT80W19
75mm light section drillscrew
75mm light section drillscrew c/w 19mm washer (for fixings into steel thicker than 3mm) Requires Seala washer and DEEP cap pack of 10 Code: FD1LS75W19
Enquiries - our depots
Stock holding depot South East
Hill Place Farm, Turners Hill Road, East Grinstead, West Sussex RH19 4LX Tel: 01342 315 300
Disclaimer:
8mm magnetic drill socket
8mm magnetic drill socket for drillscrews
Code: FA1SOCKM8

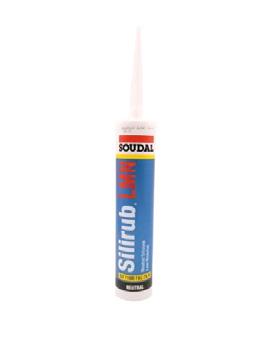

Silicone sealant - clear
Soudal Silirub LMN, Low Modulus Neutral Cure Silicone, 310ml Tube Code: FS1SILCLS
Gun mastic - grey
Soudal Butyrub Butyl based gun mastic For Sealing foam fillers, 300ml cartridge Code: FS1BRUB-GY

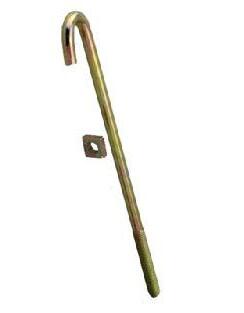

Hookbolt and nut
In passivated finish, requires Seala washer and DEEP cap OR M8 spat washer with M8 top hats Code: FH1HB
80mm
heavy duty drillscrew
80mm heavy duty section drillscrew c/w 19mm washer (for fixings into steel thicker than 3mm) Requires Seala washer and DEEP cap pack of 10 Code: FD1HD80W19
We hold an extensive range of roofing and cladding fixings and accessories
If the hardware you require is not listed here, please search our website or contact a member of our sales team for assistance
Saint Hill Farm Business Park, West Hoathly Road, East Grinstead, West Sussex RH19 4NG Tel: 01342 315 300
Stock holding depot Midlands
Unit 4a and 4b
Wymeswold Business Quarter, Burton Lane, Wymeswold, Leicestershire LE12 5BS Tel: 01509 380 283
