Profile Steel

Roofing Sheets

Our selection of profiled steel sheets available from stock

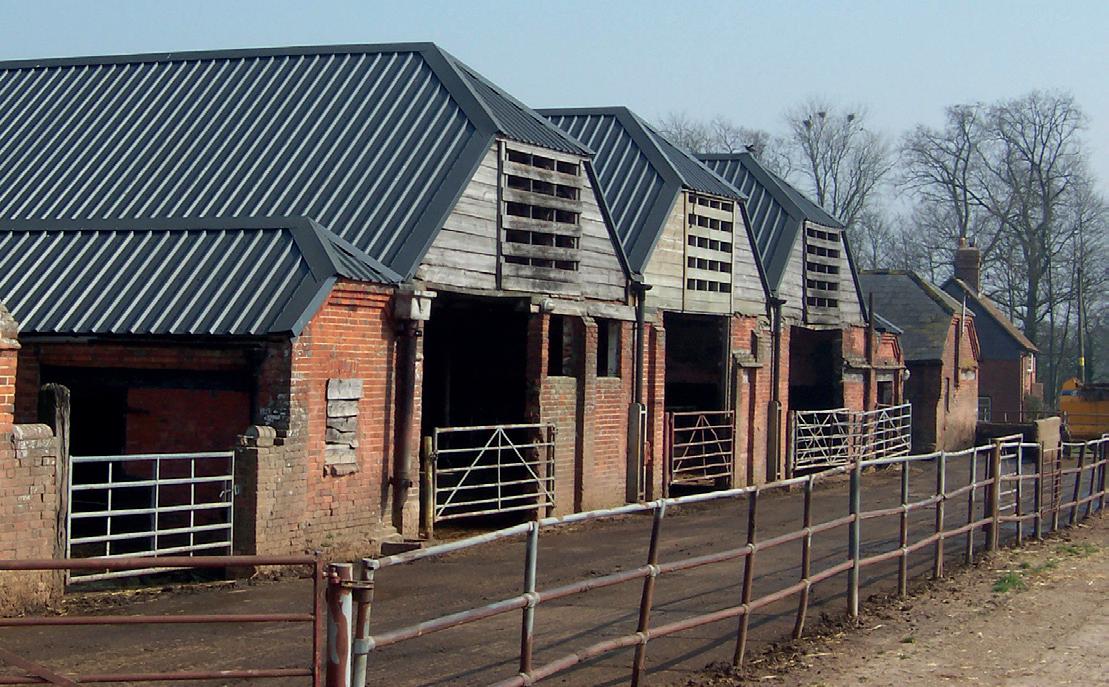

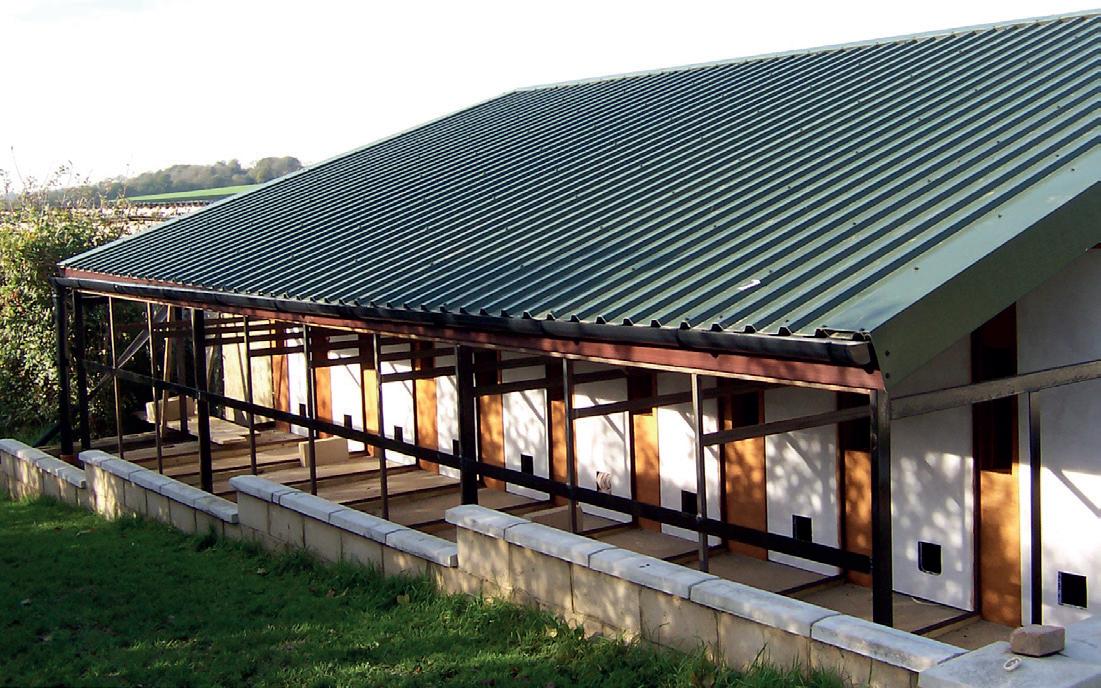

Profiled steel roofing and cladding sheets are widely utilised for agricultural and industrial buildings. Their cost-effectiveness and durability also make them an excellent choice for domestic applications, including sheds, workshops, garden rooms, and garages.

We offer these sheets in various lengths directly from our stock. Custom cut-to-length sheets are also available.

Options include box profile or traditional corrugated profile sheeting, available in a range of colours, thicknesses, and finishes to suit your application, aesthetic preferences and budget.

Enquiries - our depots

South East

Hill Place Farm, Turners Hill Road, East Grinstead, West Sussex RH19 4LX

Tel: 01342 315 300

Saint Hill Farm Business Park, West Hoathly Road, East Grinstead, West Sussex RH19 4NG

Midlands

Unit 4a and 4b Wymeswold Business Quarter, Burton Lane, Wymeswold, Leicestershire LE12 5BS

Tel: 01509 380 283

Colours and coatings

As well as stocking an extensive range of colours and finishes off the shelf, we are also able to supply an extended colour and finish range to order.

Steel sheet finishes

POLYESTER PAINTED

Features a UV-resistant painted coating that provides a smooth, matt appearance. Although the coating is considered durable once installed, care must be taken when handling the sheets to avoid scratching.

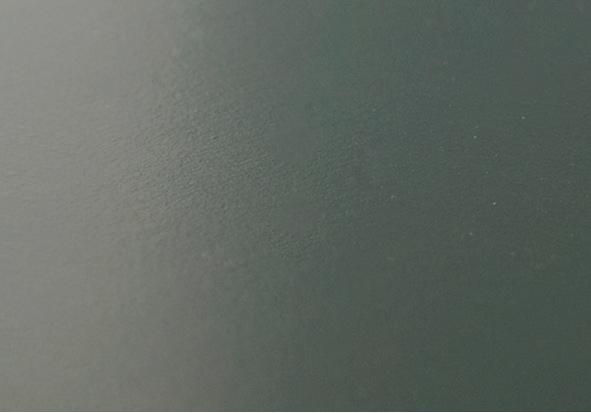

PLASTIC COATED LEATHERGRAIN

A plastic coating, known as ‘Plastisol’, provides a durable 200-micron thick leathergrain-effect layer. This finish is highly UV and scratch resistant.

PLAIN GALVANISED

Plain galvanised steel sheets have no extra coating and feature a classic spangled appearance. Initially shiny with a mottled pattern, the sheet will dull over time, providing durable corrosion protection.

GREY ALKYD

Non-prime and rolled back to front, with a light grey internal primer on the top side of the sheet. These cost-effective sheets are ideal for certain applications.

Please note: the underside could feature a mix of different colours and finishes.

Grey Alkyd

Plain Galvanised

Anthracite Grey AG Goosewing Grey GG

Juniper Green JG

Vandyke Brown VB Black BL

Plastisol Polyester

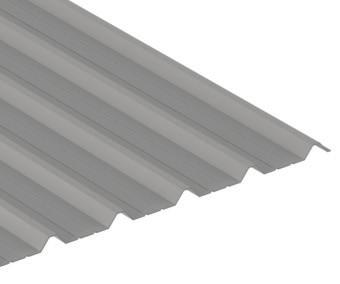

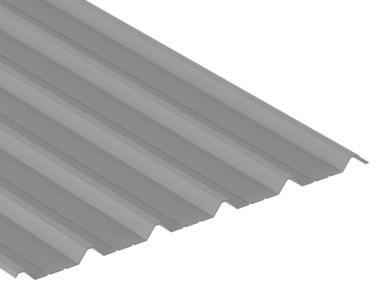

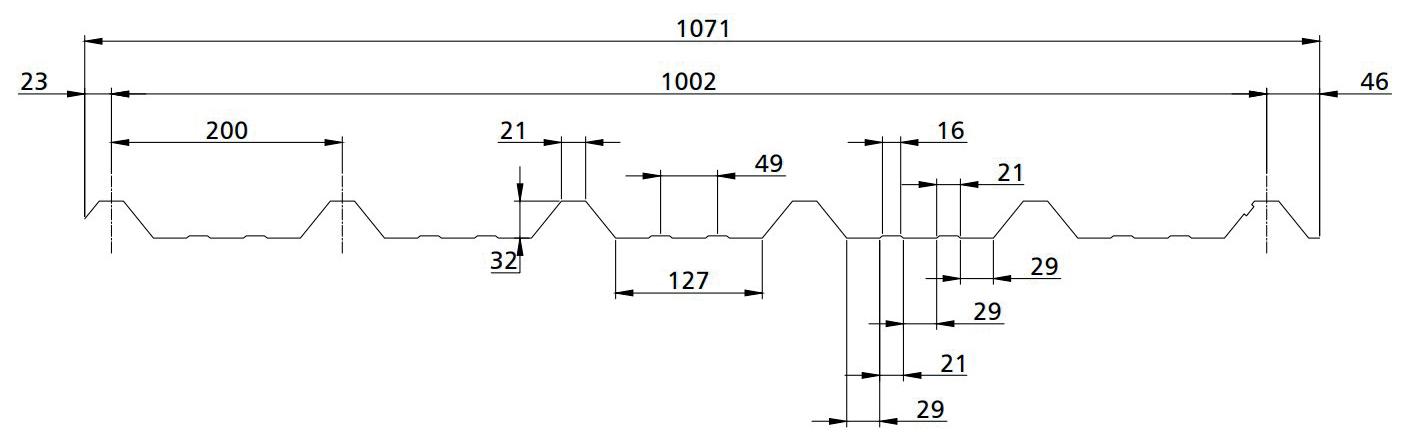

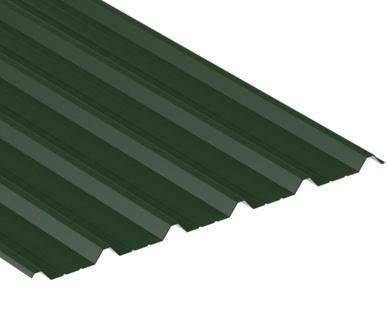

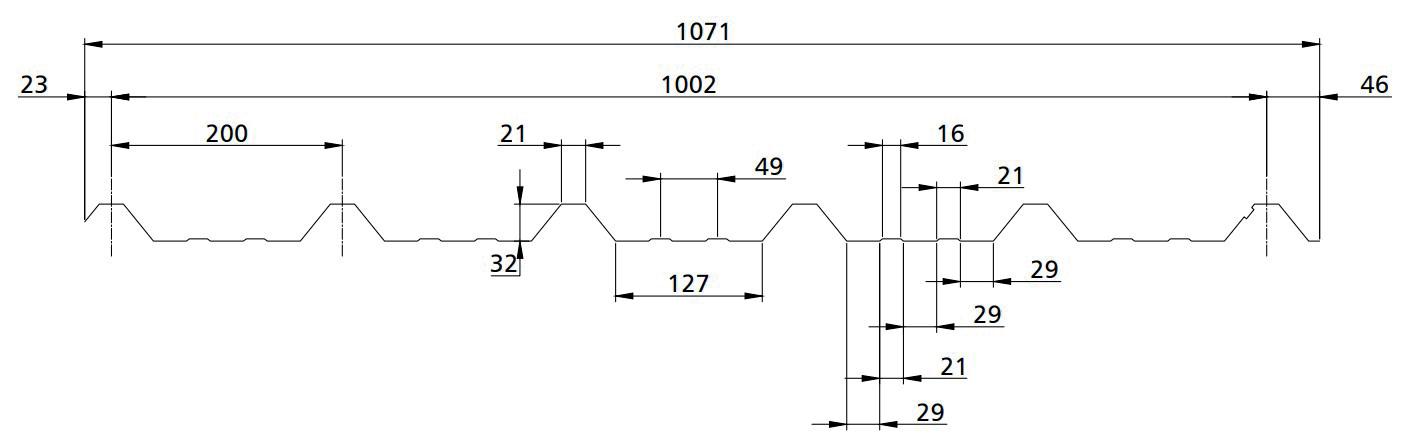

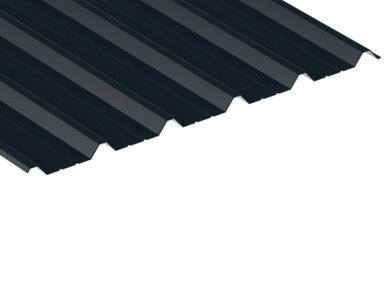

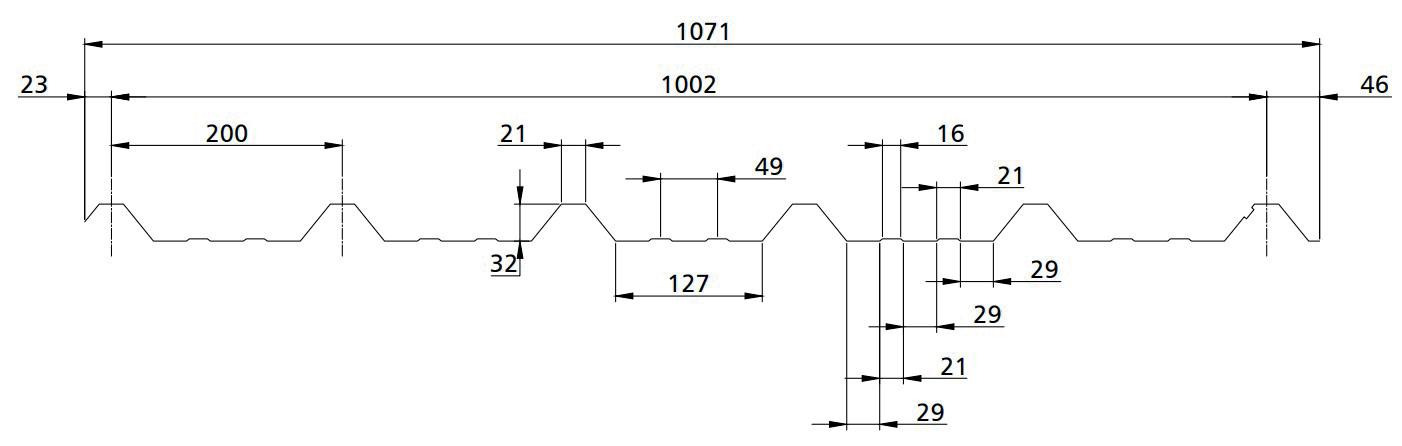

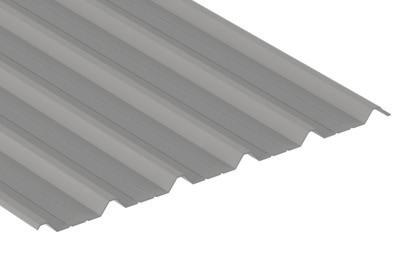

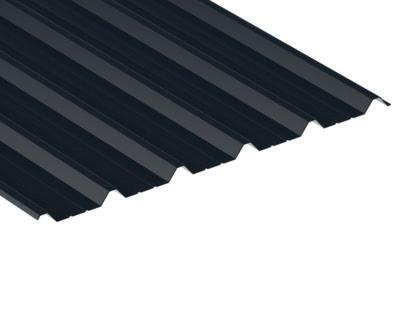

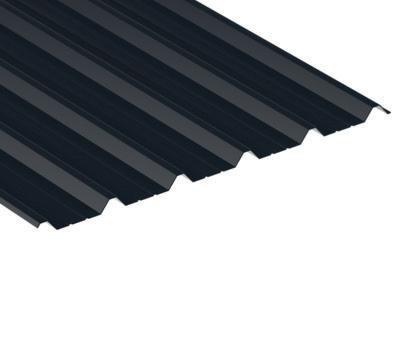

32/1000 H Box profile sheets

Box profile (or trapezoidal) steel sheeting, is a modern alternative to the traditional corrugated metal sheets

0.5mm thick Polyester Painted Finish

Code colour sizes

0.5mm thick Plastic Coated Leathergrain Finish

Code colour sizes

0.7mm thick Plastic Coated Leathergrain Finish

Code

See page 6 for GRP and PVC Rooflights to match steel sheet profiles See page 5 for steel flashings to match sheeting colour and finish

32/1000 H Box profile sheets

Non-Prime Grey Alkyd (Primer) Finish (could be mixed thickness and mixed underside colours)

Non-Prime Grey Alkyd (Primer) Finish

Code colour sizes

(8ft)

(10ft)

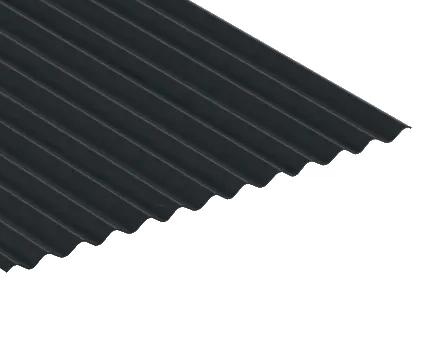

13.5/3 Corrugated profile sheets

Traditional 3” corrugated profile with wide 991mm coverage

0.5mm thick Plastic Coated, Leathergrain Finish

Code colour sizes

(8ft)

(12ft)

0.5mm thick Galvanised, Plain Galvanised Finish

(9ft)

(12ft)

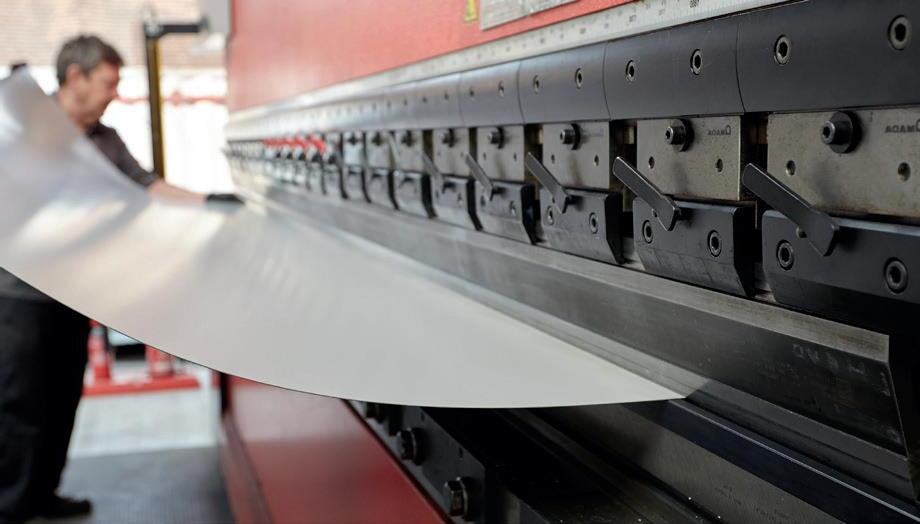

Need a special flashing?

We can also fabricate manufactured to order flashings and gutters, contact sales for more details and pricing

(10ft)

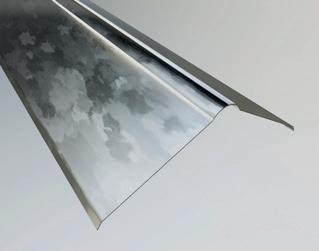

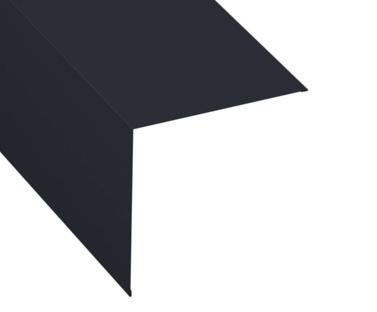

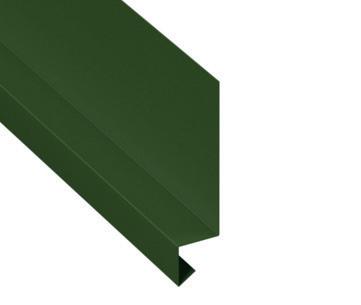

Steel flashings

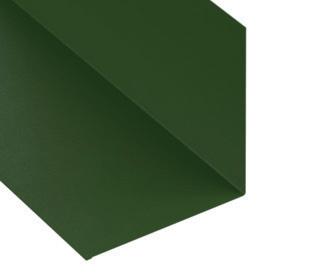

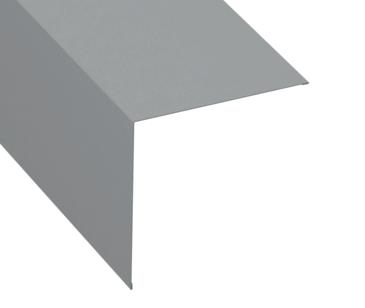

3.000m long, External Corner, 190mm x 190mm x 90°

Code

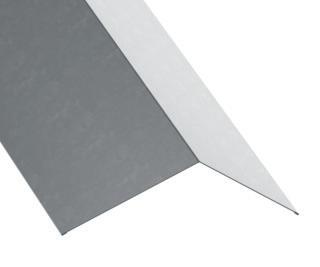

3.000m long, Ridge Cap, 190mm x 190mm x 120°

Code

3.000m long, External Corner, 250mm x 250mm x 90°

Code

3.000m long, Ridge Cap, 250mm x 250mm x 120°

Code

3.000m long Abutment Flashing, 190mm x 190mm x 100°

Code

3.000m long Slip Flashing, 22mm x 30mm x 25mm

Code

3.000m long Drip Flashing, 100mm x 40mm x 40mm x 20mm

Code

1.800m roll top Ridge Cap, 150mm x 150mm x 120°

Code

Bespoke flashings with various wing dimensions, angles, colours, and finishes are available to order

PVC and GRP rooflights

PVC rooflights, iron profile 8x3”

3.050m (10ft) long iron profile PVC rooflight 8x3” corrugated giving, 610mm (2ft) cover heavy weight grade: 1.1mm thk

Code sizes PV1IRON 3.048m (10ft)

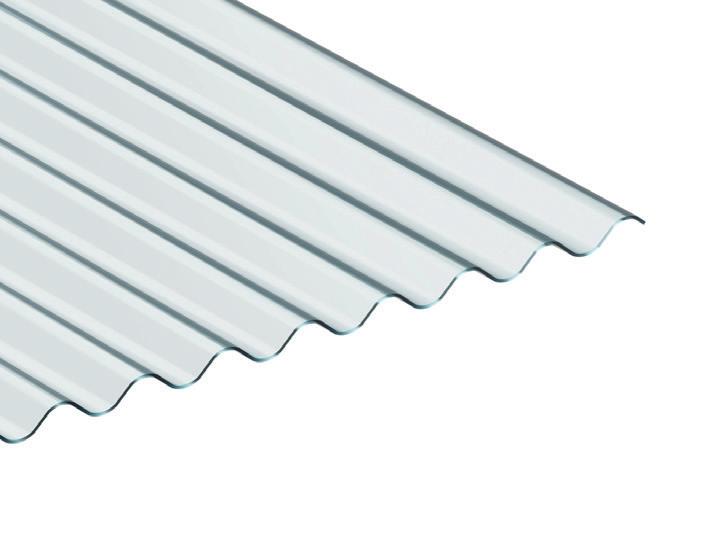

GRP rooflights, 13.5x3”

13.5x3” corrugated translucent GRP rooflight, 991mm coverage, Fire class 3, weight 1.83kg/sqm (6oz)

Code sizes

GR1Z13H318-*.*

1.825m (6ft) 2.440m (8ft) 3.050m (10ft)

GRP rooflights, 32/1000 H

32/1000 H box profile translucent GRP rooflight, fire class 3, 1.83 kg/sqm (6oz) weight

Code sizes

GR1Z32H318-*.* 2.440m (8ft) 3.050m (10ft) 3.660m (12ft)

TRANSLUCENT to suit corrugated galvanised sheets to suit corrugated galvanised sheets

TRANSLUCENT to suit our 32/1000 steel sheets

Fixings and accessories

Fixings and accessories for GRP sheets

PVC fixing pack

PVC Fixing pack (for fixing sheets into timber) pack of 10 Code: FD1PVCPACK

38mm heavy duty drillscrew with 29mm washer for fixing box profile GRP (box profile GRP into steel thicker than 3mm) pack of 100 Code: FD1HD38W29

Bonded washer laplock

25mm long x 19mm diameter bonded washer laplock (for box profile GRP joints) pack of 100 Code: FB1LAP25B19

Fixings for box profile sheets

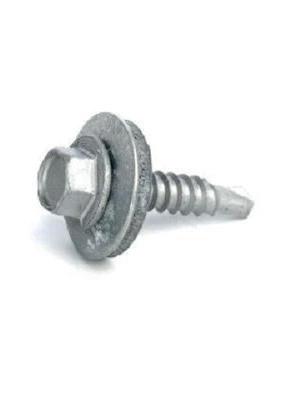

45mm Woodtek drillscrews

Woodtek drillscrews with 19mm washer (for steel sheets into timber) pack of 100 Code: FD1WT45W19

25mm Woodtek drillscrews

Woodtek drillscrews with 19mm washer (for steel sheets into timber) pack of 100 Code: FD1WT25W19

25mm Light section drillscrew

Light section drillscrew c/w 19mm washer (for sheets up to 3mm thick) pack of 100 Code: FD1LS25W19

38mm long Seala washer

38mm long seala washer (28mm dia) laplock, CLEAR (for joining GRP Sheets)

Code: FB1LAP38S28CL

45mm Woodtek Drillscrew

with moulded head, 29mm washerin Poppy Red

Code: FD1FXWT4504E53

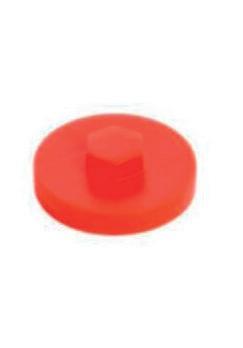

29mm red cover cap

29mm red cover cap for rooflight screws pack of 100

Code: FC1CAP2904E53

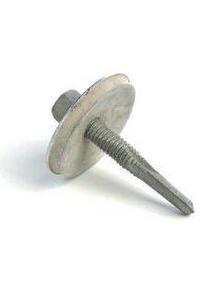

38mm heavy duty drillscrew

38mm heavy duty drillscrew c/w 19mm (for steel sheets into steel thicker than 3mm) pack of 100 Code: FD1HD38W19

22mm Stitcher drillscrew

22mm stitcher drillscrew c/w 16mm washer for fixing sheet laps and flashings) pk of 100

Code: FD1ST22W15

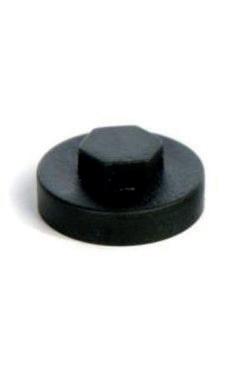

19mm dia coloured screw cap

19mm diameter coloured screw cap to suit above screws (8mm head), pack of 100

Code: FC1CAP

Fixings and accessories

Accessories

Foam filler

For profiles MW5, 1000/32B & 1000/32CW 1m long, pair polyethylene, bi-colour (black/white) Code: FF1Z32C

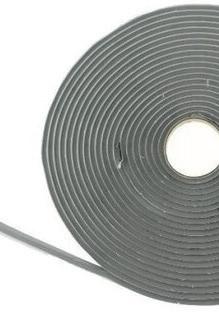

Lap mastic

Lap mastic (for side and end laps on sheeting) 5mm wide x 6mm thk 9.6m per roll Code: FS1MASTL5X6

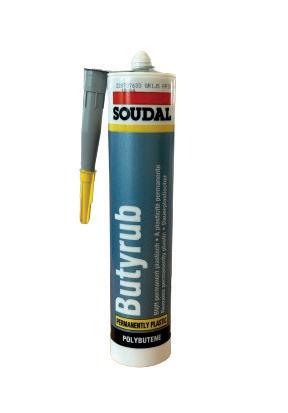

Gun mastic - grey

Soudal Butyrub Butyl based gun mastic For Sealing foam fillers, 300ml cartridge Code: FS1BRUB-GY

Fixings and accessories 13.5/3 corrugated

65mm springhead nails

65mm long galvanised springhead nails (requires M8 spat washers) pack of 100 Code: FN1SP65

80mm Woodtek drillscrews

80mm woodtek drillscrews with 19mm washer (for fixings to timber) requires Seala washer and DEEP cap pack of 100 Code: FD1WT80W19

75mm light section drillscrew

75mm light section drillscrew c/w 19mm washer (for fixings into steel thicker than 3mm) Requires Seala washer and DEEP cap pack of 10 Code: FD1LS75W19

8mm magnetic drill socket

8mm magnetic drill socket for drillscrews Code: FA1SOCKM8

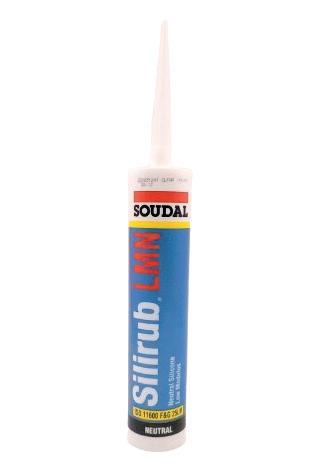

Silicone sealant - clear

Soudal Silirub LMN, Low Modulus Neutral Cure Silicone, 310ml Tube Code: FS1SILCLS

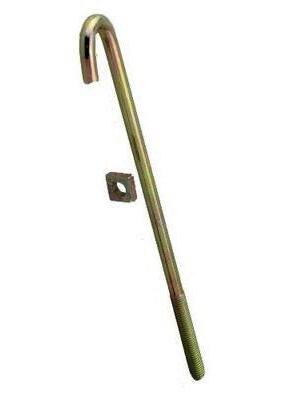

Hookbolt and nut

In passivated finish, requires Seala washer and DEEP cap OR M8 spat washer with M8 top hats Code: FH1HB

80mm heavy duty drillscrew

80mm heavy duty section drillscrew c/w 19mm washer (for fixings into steel thicker than 3mm) Requires Seala washer and DEEP cap pack of 10 Code: FD1HD80W19

We hold an extensive range of roofing and cladding fixings and accessories

If the hardware you require is not listed here, please search our website or contact a member of our sales team for assistance
