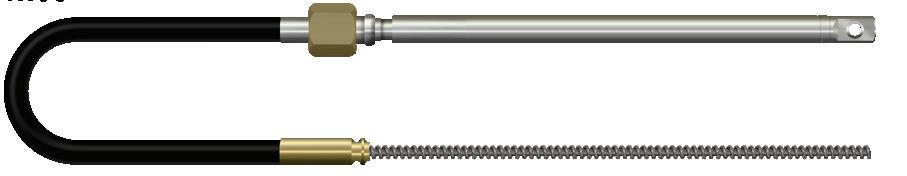

Mechanical Steering Cables

653

Hydraulic Steering Systems

659

Mechanical Steering Cables . . . . . . . 654-655 Mechanical Steering Spares & Accessories . . . 656 Steering Grommets . . . . . . . . . . . 657 Rigging Hose & Accessories . . . . . . . . 658

How The System Works . . . . . . . . . . 659 Helms & Cylinders Cross Reference . . . . . . 659 How To Select An Outboard Hydraulic Steering System Suggestions & Warnings. . . . 660 Outboard Hydraulic Steering System . . . . . 661 115HP Gotech Hydraulic Steering Kits. . . . . 662 175HP Hytech Hydraulic Steering Kits . . . 663-664 300HP Nautech 1 Hydraulic Steering Kits. . 665-666

Twin Engine Single Cylinder Universal Kit 667 A88 Universal Tie Bar. . . . . . . . . . . 667

Twin Engine Single Cylinder Mercury®/Yamaha® Kit

668

Twin Engine Single Cylinder Honda®/Suzuki® Kit

669

A96 Tie Bar - Independent Tilting. . . . . . . 668

A96 Tie Bar - Independent Tilting. . . . . . . 669

Twin Engine Dual Cylinder - Fluid Link Kit 670 Helm, Hose & Bulkhead Fitting IHS Kits 671

To suit YAMAHA® Integrated Hydraulic Steering (IHS). . . . . . . . . . 671

Helm, Hose & Pigtail IHS Kits

672

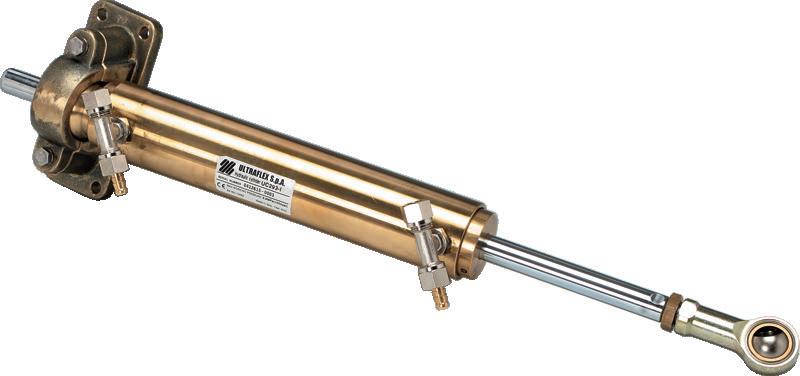

Hydraulic Outboard Cylinders

674

Hydraulic Quickfit Hose Kits

681

To suit YAMAHA® Integrated Hydraulic Steering (IHS). . . . . . . . . . 672 Hydraulic Steering Outboard Side Mount Cylinder & Inboard Kits . . . . . . . . . . 673

Tie Bars . . . . . . . . . . . . . . .

686

UP20 Helm Pumps. . . . . . . . . . . . 691 Front Mount. . . . . . . . . . . . . . 692 Tilt Mount . . . . . . . . . . . . . . 693 Rear Mount . . . . . . . . . . . . . . 694 SilverSteer™ Front Mount. . . . . . . . . 695 SilverSteer™ Tilt Mount . . . . . . . . . . 696 Bulkhead, Pigtails, Connectors & Bend Restrictors . 697 Hose Connectors, Fittings & Hose Bleed Tee's . .

698

Hydraulic Fluid Link Valves & Helm Spares 699 Hydraulic Cylinder Spares 700

Hydraulic Cylinder Link Arms & Cylinder Spares. . 700

Hydraulic Helm Accessories

701

Hydraulic Oil & BubbleBuster™ Steering System - Power Assisted

702 703

Engine Controls

709

Helm Tilt Mechanism, Helm Flange Adapters & Helm Position Kit. . . . . . . . . . . . . . 701

MasterDrive™ Systems Introduction. . . . . . 703 Single Cylinder Application. . . . . . . . . 704 Dual Cylinder Application . . . . . . . . . 705 Second Station Application. . . . . . . . . 706 MasterDrive™ System . . . . . . . . . . 707 MasterDrive™ Hydraulic Hose Kits . . . . . . 708 Side Mount Engine Controls . . . . . . . 709-711 Top Mount Engine Controls. . . . . . . 712-713 Two Lever - Single Function per Lever Engine Controls. . . . . . . . . . . . . 714 Single & Two Lever - Single Function per Lever Engine Controls. . . . . . . . . . .715 Engine Control Cables . . . . . . . . . 716-719 Engine Control Spares & Accessories . . . . 720-722

Front Mount Cylinders . . . . . . . . . 674-675 Single/Dual Nautech Ordering Guide. . . . . 676 SilverSteer™ Front Mount Cylinders. . . . . . 677 Single/Dual SilverSteer™ Ordering Guide. . . . 678 Side Mount Cylinders. . . . . . . . . 679-680 Hydraulic Quickfit Hose Kits . . . . . . . .

682

www.samallen.com.au

640

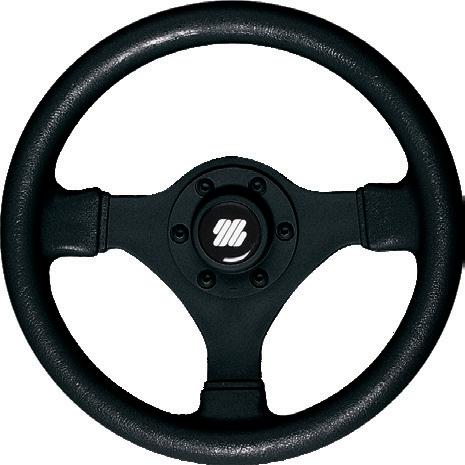

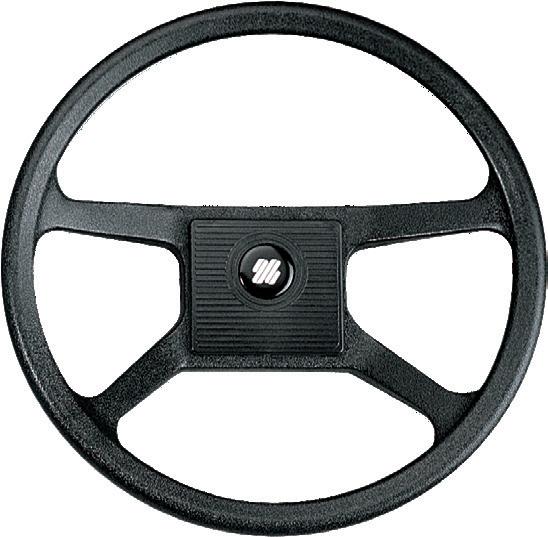

Steering Wheels Steering Wheels - Thermoplastic

83721

Grip/Spokes

V32B

Black Plastic

Depth (mm)

Wheel Dia Ø (mm)

Part No.

(in)

335

83746

13.2"

Spare Black Cap suits 83720 fits 79mm Bore, 3 Spade

• Certified CE, NMMA and ABYC P22 safety standards. • Thermoplastic anti-shock material. • Hub suits a standard 3/4" tapered shaft. • Hard touch grip.

Wheel Dia Ø

Model

Grip

Spokes

Depth (mm)

(mm)

(in)

V45

Black Plastic

Black Aluminium

280

11"

• Certified CE, NMMA and ABYC P22 safety standards. • Thermoplastic anti-shock material. • Hub suits a standard 3/4" tapered shaft. • Soft touch grip. • Hub and cap included.

92mm

82mm

DELETED 90mm Ø

335mm Ø

83720

90mm Ø

83720

Model

280mm Ø

Part No.

Steering Wheel - Thermoplastic Soft Grip

83721

31.5mm Ø 24.6mm Ø

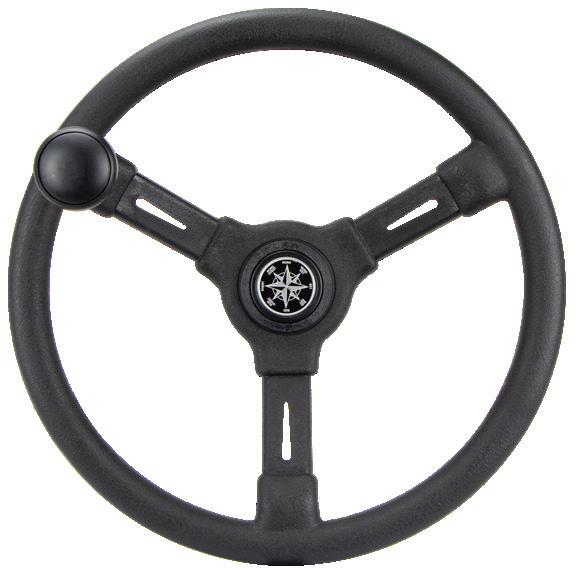

Steering Wheel - Riviera with Knob Part No.

Grip

Spokes

Riviera Black with Knob Hard Plastic Plastic

Wheel Dia Ø

Depth (mm)

(mm)

115

Part No.

(in)

350

13.8"

83739

Wheel Dia Ø

Model

Grip

Spokes

Depth (mm)

(mm)

(in)

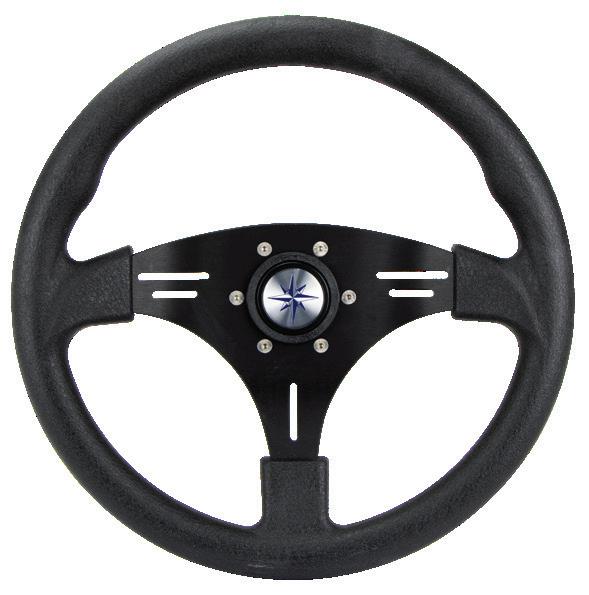

Manta

Soft Plastic

Black Aluminium

100

350

13.8"

• Ideal for all types and size boats from leisure to fishing. • Hub suits a standard 3/4" tapered shaft. • Soft touch grip. • Hub and cap included.

• Ideal for smaller boats with mechanical or hydraulic steering. • Control knob included. • Hub suits a standard 3/4" tapered shaft. • Hub and cap included. 55mm 115mm • Hard touch grip.

100mm

25mm Ø

33mm Ø

Steering Wheels - Thermoplastic Part No.

83730

Model

V33B

Grip/Spokes

Black Plastic

Depth (mm)

105

Steering Wheels - Corsica White Soft Grip

Wheel Dia Ø (mm)

(in)

342

13.4"

• Certified CE, NMMA and ABYC P22 safety standards. • Thermoplastic anti-shock material. • Hub suits a standard 3/4" tapered shaft. • Hard touch grip.

88mm Ø

350mm Ø

65mm Ø

350mm Ø

50mm

Steering & Controls

83728

Model

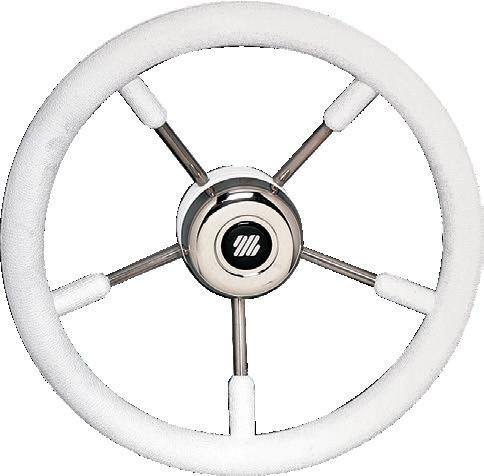

Steering Wheel - Manta Soft Grip

Part No.

83755W

Model

Corsica W/S

Grip

Spokes

Silver White Soft Anodised PVC Aluminium

Wheel Dia Ø

Depth (mm)

(mm)

(in)

350

13.8"

• Certified CE, NMMA and ABYC P22 safety standards. • Patented hub allows the steering wheel to be aligned when installed. • Hub suits a standard 3/4" tapered shaft. • Supplied with a centre cap.

105mm

DELETED 83755W

Ø86mm

Ø350mm

91mm Ø

342mm Ø

88mm

25.4mm Ø

641

www.samallen.com.au

Ø31mm

Steering Wheels Steering Wheels - Corsica Soft Grip

83755

Corsica B/S

83755BB

Corsica B/B

Grip

Spokes

Silver Black Soft Anodised PVC Aluminium Black Black Soft Anodised PVC Aluminium

Depth (mm)

Wheel Dia Ø (mm)

(in)

350

13.8"

350

13.8"

Grip

Spokes

Depth (mm)

(mm)

(in)

83697

Black PU Grip

Stainless Steel

350

13.8"

• Anti-shock polyurethane PU grip. • Hub suits a standard 3/4" tapered shaft. • Symmetrical design is ideal for hydraulic steering applications. 93mm • 3 polished 316G stainless steel spokes. • Supplied with a centre cap.

Ø350mm

• Certified CE, NMMA and ABYC P22 safety standards. • Patented hub allows the steering wheel to be aligned when installed. 88mm • Hub suits a standard 3/4" tapered shaft. • Supplied with a centre cap.

Wheel Dia Ø

Part No.

Ø86mm

Model

Ø350mm

Part No.

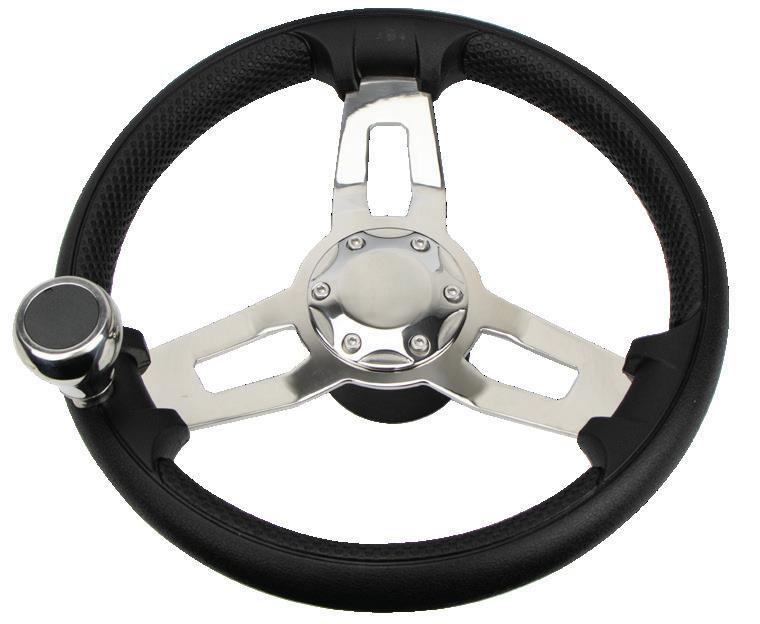

Steering Wheel - 3 Spoke S/S PU Grip

DELETED

Ø86mm

83755

29mm 38mm

Ø31mm

83755BB

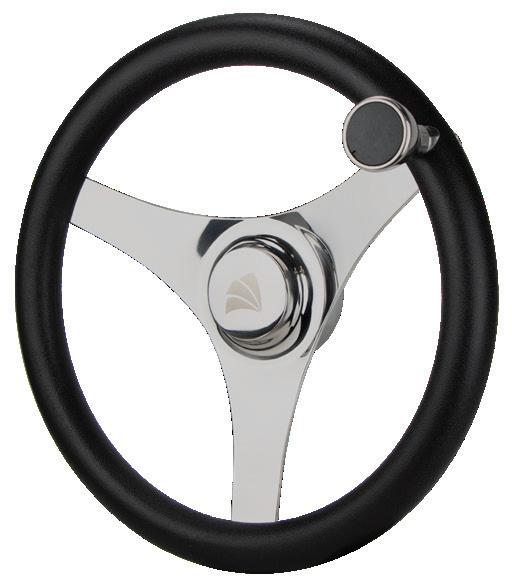

Steering Wheel - 3 Spoke S/S PU Grip with Knob

Model

83803

Santorini

Grip

Spoke

Black PU Silver w/ Silver Anodised Insert Aluminium

Wheel Dia Ø

Depth (mm)

(mm)

(in)

350

13.8"

Depth (mm)

(mm)

(in)

83696

Black PU Grip w/ Knob

Stainless Steel

350

13.8"

• Anti-shock polyurethane PU grip with control knob. • Hub suits a standard 3/4" tapered shaft. • Symmetrical design is ideal for hydraulic steering applications. 62mm 93mm • 3 polished 316G stainless steel spokes. • Supplied with a centre cap. Ø350mm

• Certified CE, NMMA and ABYC P22 safety standards. • Polyurethane "leather look" grip with silver inserts. • Patented hub allows the steering wheel to be aligned when installed. 91mm • Hub suits a standard 3/4" tapered shaft. • Supplied with a centre cap.

Spokes

Ø86mm

Part No.

Grip

29mm

Ø350mm

38mm

Ø86mm

DELETED

Steering & Controls

Steering Wheels - Santorini Soft Grip

Wheel Dia Ø

Part No.

Ø32mm

Steering Wheels - V25B Non-Magnetic S/S Part No.

83698B

Description

Suits

83783

Quick Disconnect Hub and Button

3/4" tapered shaft

83784

Hub and Button with Alloy Centre

3/4" tapered shaft

83784B

Replacement Black Cap suits 83784

50mm Bore

83786

Black Screws (Set of 6)

83787

Silver Screws (Set of 6)

Spokes

Depth (mm)

(mm)

(in)

V25B

Black PU Grip

Stainless Steel

350

13.8"

• Certified CE, NMMA and ABYC P22 safety standards. • Non-magnetic stainless steel wheel eliminates compass interference. • Anti-shock polyurethane PU grip. 92mm • Hub suits a standard 3/4" tapered shaft. • Centre cap included.

DELETED

111mm Ø

Part No.

Grip

350mm

Steering Wheel - Hub & Button

Wheel Dia Ø

Model

• Suits Ultraflex® steering wheels. 83786

31mm Ø

83784B 83783

83787 83784

www.samallen.com.au

642

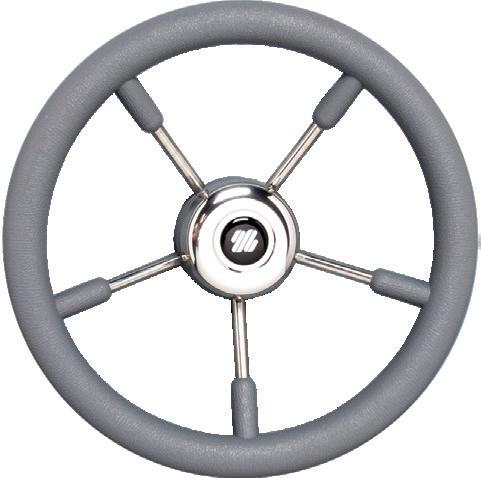

Steering Wheels Steering Wheels - V52 Non-Magnetic S/S Part No.

Model

83701B

V52

83701G

V52

Grip

Spokes

Black Stainless Polyurethane Steel Grey Stainless Polyurethane Steel

Depth (mm)

Steering Wheels - Non-Magnetic S/S

Wheel Dia Ø (mm)

Wheel Dia Ø

Spokes

Depth (mm)

(mm)

(in)

Relaxn Black Stainless S/S Polyurethane Steel

350

13.8"

Part No. Description

(in)

Grip

325

12.8"

83700

325

12.8"

• Non-magnetic stainless steel wheel eliminates compass interference. • Symmetrical design is ideal for hydraulic steering applications. • Anti-shock polyurethane grip. • Hub suits a standard 3/4" tapered shaft. • Supplied with a centre cap.

• Certified CE, NMMA and ABYC P22 safety standards. • Non-magnetic stainless steel wheel eliminates compass interference. • Symmetrical design is ideal for hydraulic steering applications. • Polyurethane grip. • Hub suits a standard 3/4" tapered shaft. • Centre cap included.

70mm

90mm Ø

325mm Ø

DELETED

90mm Ø

350mm Ø

70mm

31mm Ø

30.5mm Ø

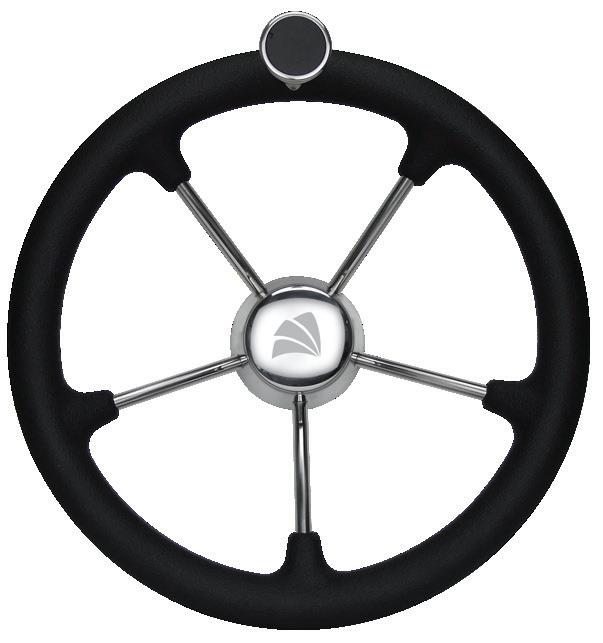

Steering Wheel - with Knob

Part No.

Model

83700W

V57

83702

V57

Grip

Spokes

White Stainless Polyurethane Steel Grey Stainless Polyurethane Steel

Wheel Dia Ø

Depth (mm)

(mm)

(in)

350

13.8"

350

13.8"

Description

83698 83699

Relaxn S/S with Knob Relaxn S/S with Knob

62125

Replacement Control Knob

Black Stainless Polyurethane Steel Black Stainless Polyurethane Steel

Wheel Dia Ø

Depth (mm)

(mm)

(in)

293

11.5"

100

355

14"

55mm

Depth

Wheel Dia Ø 92mm Ø

75mm

350mm

Spokes

• Symmetrical design is ideal for hydraulic steering applications. • Anti-shock polyurethane grip. • Hub suits a standard 3/4" tapered shaft. • Stainless steel control knob. • Polished stainless steel spokes. 62125 • Supplied with a centre cap.

32mmØ

DELETED

643

Grip

www.samallen.com.au

90mm Ø

Steering & Controls

Steering Wheels - V57 Non-Magnetic S/S

Part No.

32mm Ø

Steering Wheels Steering Wheel - 3 Spoke Poly Grip & Knob Part No.

Description

62095

304G S/S Wheel with Grip & Knob

62125

Replacement Control Knob

Steering Wheels - 3 Spoke Grip S/S

Wheel Dia Ø

Depth (mm)

(mm)

(in)

355

14"

• Anti-shock polyurethane grip with control knob.. • Hub suits a standard 3/4" tapered shaft. • Symmetrical design is ideal for hydraulic steering applications. • Polished stainless steel control knob. • Polished stainless steel spokes. • Supplied with a centre cap. 55mm

Part No.

Description

Wheel Dia Ø

Depth (mm)

(mm)

(in)

62102

304G S/S Wheel with Grip

340

13.4"

62100

304G S/S Wheel with Grip

390

15.3"

• Polished 304G stainless steel 3 spoke wheel with cap. • Finger indents around rim. • Hub suits a standard 3/4" tapered shaft. • Dish-style steering wheel. • 4mm spoke thickness. 82mm

Depth

Steering Wheels - 3 Spoke Stainless Steel

Wheel Dia Ø (mm)

(in)

62098

304G S/S Wheel with Grip & Knob

340

13.4"

62096

304G S/S Wheel with Grip & Knob

390

15.3"

62097

Centre Hub Cap To Suit 62098

Part No.

62101 62064

Description

Depth (mm)

Wheel Dia. Ø (mm)

(in)

Steering Wheel with 5/8" UNF Dome 85 343 13.5" Nut - S/S M12 Threaded Dome Nut Suits New Ultraflex Helms - Sold Separately

• Highly polished 304G stainless steel, wheel and centre nut. • Bore suits a standard 3/4" tapered shaft. • Dish-style. • Includes 5/8" UNF dome nut.

• Hub suits a standard 3/4" tapered shaft. • Polished stainless steel with cap. • Polished stainless steel control knob. • Finger indents around rim. • 4mm spoke thickness.

85mm

Depth

Ø29mm

4.0mm

18.5mm

Ø 91mm

Wheel Dia Ø

343mm Ø

54mm

Steering & Controls

4mm Spokes

Steering Wheels - 3 Spoke Grip & Knob S/S Depth (mm)

4.0mm

25mmØ

Ø 32mm

Description

91mm Ø

Ø 91mm

Polished Cap

Control Knob

Part No.

Wheel Dia. Ø

Ø 355mm

62100 & 62102

30mm Ø 25mm

4mm Spokes

Locking shaft Nut

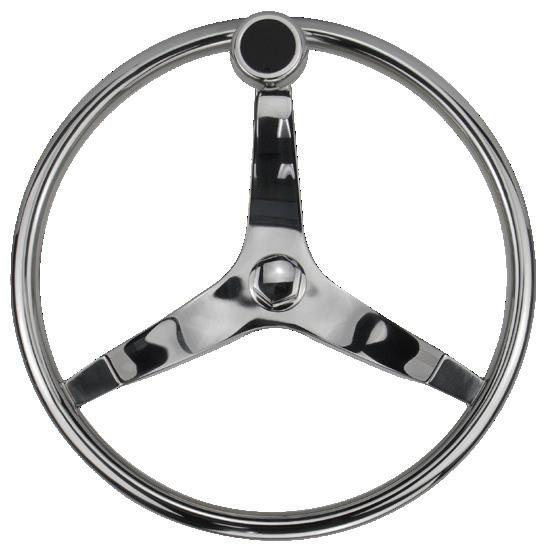

Steering Wheels with Control Knob - Stainless Steel Wheel Dia. Ø

Part No.

Description

Depth (mm)

(mm)

(in)

62099

Steering Wheel with Control Knob - S/S

343

13.5"

40mm 85mm

Shaft Dome Nut

Control Knob

www.samallen.com.au

29mm Ø

343mm Ø

• Highly polished 304G stainless steel 3 spoke wheel. • Hub suits a standard 3/4" tapered shaft. • Dish-style. • Control knob with smooth bearing. • Includes 5/8" UNF dome nut.

18.5mm 30mm

644

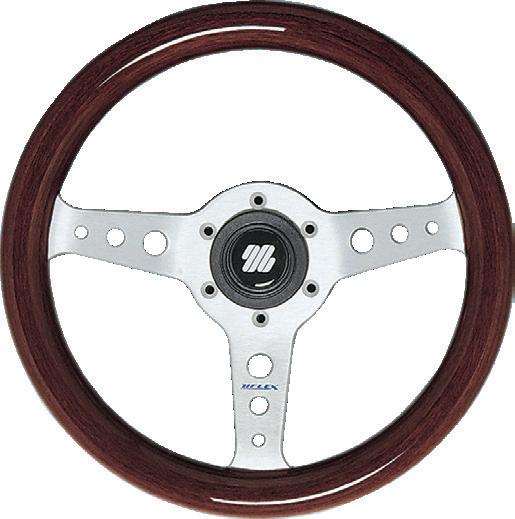

Steering Wheels - Non-Magnetic / Mahogany & Stainless Steel Steering Wheels - 6 Spoke - Stainless Steel

Steering Wheels - Capri - Mahogany Grip Part No.

Model

83753

Grip

Spokes

Silver Mahogany Anodised Grip Aluminium

Capri

Depth (mm)

Wheel Dia Ø (mm)

(in)

320

12.6"

DELETED

Wheel Dia Ø

Part No.

Description

Depth (mm)

(mm)

(in)

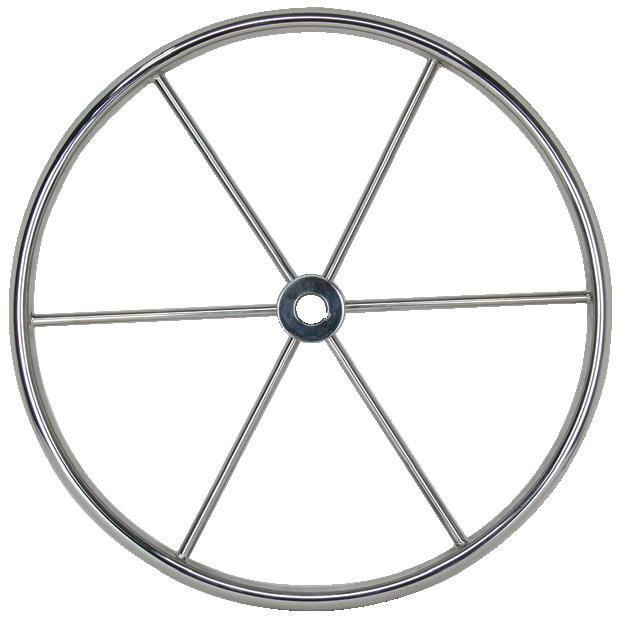

62115

Flat, No Dish - 1" Parallel Shaft

500

20"

62116

Flat, No Dish - 1" Parallel Shaft

609

24"

62120

Flat, No Dish - 1" Parallel Shaft

750

30"

• Polished 304G stainless steel flat wheel, 6 spokes and 1" Parallel Shaft. • Stainless steel dome wheel nut ordered separately (See below).

86mm Ø

320mm Ø

87mm

Depth

Steering Wheels - V62 Non-Magnetic S/S Part No.

83706

V62

Wheel Dia Ø

Spokes

Depth (mm)

(mm)

(in)

Mahogany Grip Stainless & Centre Cap Steel

104

350

13.8"

Model

Grip

• Certified CE, NMMA and ABYC P22 safety standards. • Non-magnetic stainless steel wheel eliminates compass interference. • Genuine mahogany timber grip. • Hub suits a standard 3/4" tapered shaft. • Centre cap included.

60mm Ø

Steering & Controls

Wheel Dia. Ø

30mm Ø

25.4mm Ø

1" Parallel Shaft

Steering Wheel - Dome Nut - S/S Large

DELETED

Part No. 104mm

62062

Description

Dome Wheel Nut

Thread

O.D. (mm)

5/8" UNF

86mm Ø

350mm Ø

• 316 Grade Stainless Steel. • Dome Nuts suits 62115, 62116 & 62120 (See Steering Wheels above).

50mm

41mm

25mm

30mm Ø

645

Courtesy of Riviera

www.samallen.com.au

Thread

Steering Wheels with Control Knob Steering Wheel - Dome Nut - S/S Small Thread

O.D. (mm)

62064

Dome Wheel Nut

M12

62066

Dome Wheel Nut

5/8" UNF

• 316 Grade Stainless Steel Nut.

40mm

30mm

23.5mm

Wheel Dia Ø

Part No.

Description

Dish Angle

Depth (mm)

(mm)

(in)

62104

Steering Wheel 5 Spoke Dish

25°

343

13.5"

62105

Steering Wheel 5 Spoke Dish

25°

106

394

15.5"

62106

Steering Wheel 5 Spoke Dish

10°

394

15.5"

62109

Steering Wheel 5 Spoke Dish

10°

457

18"

62112

Steering Wheel 5 Spoke Dish

20°

112

508

20"

• High-quality welds, polished 304G stainless steel dish-style wheel with 5 spokes. • Hub suits a standard 3/4" tapered shaft. • Centre cap included.

Thread

Steering Wheel Knobs - Stainless Steel

Depth

Description

Type

Fits Rim Size

62124

Steering Wheel Knob

Clamp on

3/4" x 1"

62125

Steering Wheel Knob

Bolt Through (8 mm)

3/4" x 1"

Dish Angle

Wheel Dia. Ø

Part No.

• Suits stainless steel wheels. • Detachable. NOTE: For hydraulic use only.

17.5mm 25.6mm

62125 62124 Tapered Hub

94mm

Ø 19mm x 25mm

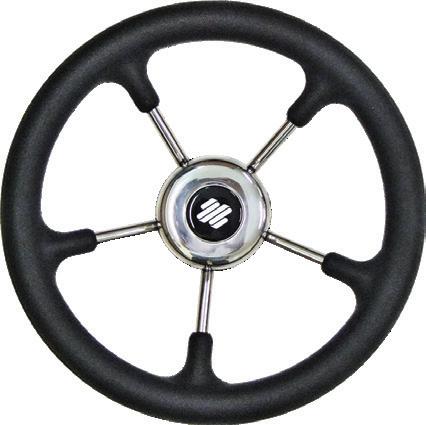

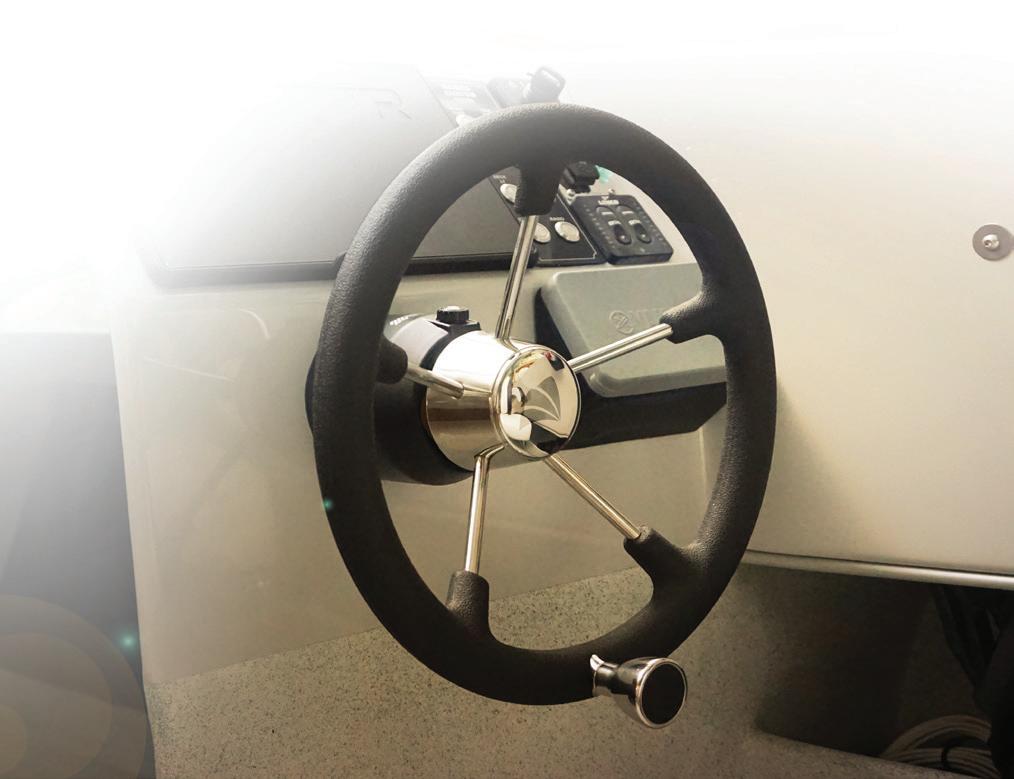

Steering Wheels - Flat - 5 Spoke Stainless Steel Ø 8mm Bolt

Ø 19mm x 25mm

76mm

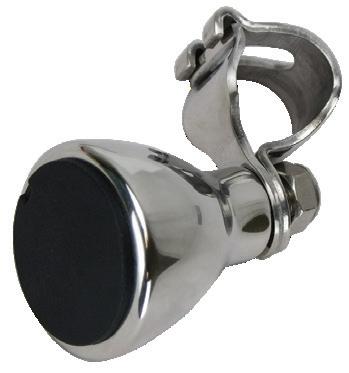

Steering Wheel Knob - Clamp On Part No.

Description

62126

Steering Wheel Knob suits Round or Oval Tube

Fits Wheel Rim Sizes (mm) Rim Size A

Rim Size B

Rim Size C

18 x 25.6 20.5 x 30

Ø 31.2

Wheel Wheel Dia Ø Grip - Finger Depth (mm) (mm) (in) Indents

Part No.

Description

62107

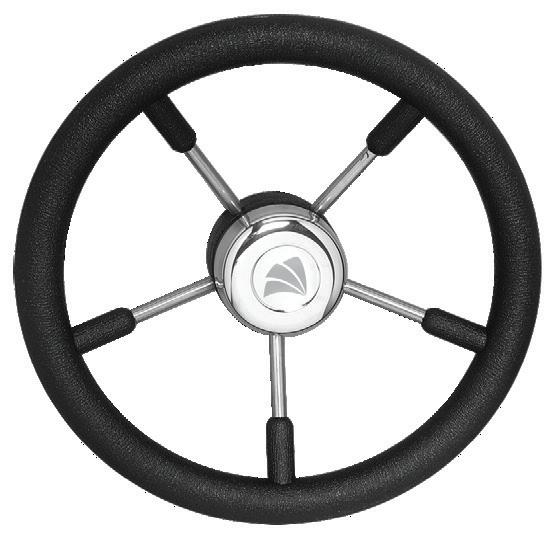

Steering Wheel 5 Spoke - Flat

Indents

394

15.5"

62110

Steering Wheel 5 Spoke - Flat

Smooth

457

18"

62114

Steering Wheel 5 Spoke - Flat

Smooth

508

20"

62117

Steering Wheel 5 Spoke - Flat

Smooth

600

24"

Steering & Controls

Description

90.5mm Ø

Part No.

Steering Wheels - Dish - 5 Spoke Stainless Steel

• High-quality welds, polished 304G stainless steel flat wheel with 5 spokes. • Hub suits a standard 3/4" tapered shaft. • Centre cap included.

• Suits most types of round and oval steering wheel rims. • Three clamps included to suit various rim sizes. • 304G Stainless Steel. • Easy to install.

Wheel Dia. Ø

90.5mm Ø

Depth

NOTE: For hydraulic use only.

17.5mm 25.6mm

Tapered Hub

www.samallen.com.au

646

Choosing A Mechanical Steering System Steering System Selection Guide Recommended & Max HP Rating Mechanical Steering Guide

APPLICATIONS

• S peed, hull, horsepower, engine type, displacement and size are major factors in boat performance and handling characteristics. This selection guide should be used as a general reference only. We recommend consulting with a SAW sales consultant.

OUTBOARD

•O ne of the major factors in selecting a steering system is proper cable length. Due to specific routing in each boat, these approximate lengths will vary. Final selection should be made with the assistance of a qualified technician.

INBOARD

Steering & Controls

• Ultraflex mechanical steering systems should not be used on boats equipped with engines that exceed the maximum horsepower rating of the boat.

ENGINE POWER

STEERING SYSTEM

up to 40 kW (55cv)

T67

BOAT LENGTH

up to 30' (9m)

T85 - T71FC - T81FC - T73NRFC - T83NRFC - T91 - T93ZT Twin cable rotary steering systems

up to 35' (10.5m)

T71FC - T81FC T73NRFC - T83NRFC - T91 - T93ZT Twin cable rotary steering systems

STERNDRIVE

Always follow engine manufacturer's instructions.

T85 - T71FC - T81FC - T91

POWER ASSISTED

Twin cable rotary steering systems NOTE: Sterndrive engines not equipped with power steering can create very high steering loads. Our hydraulic steering systems are recommended for these type of boats. For any further information please contact our Technical Service Department.

How To Measure For New Steering Cable Installation Add. A + B + C and subtract 10 cm (4") for each 90° bend in the cable.

For installation through the engine tilt tube, add 30.5 cm (1 ft) to the measure calculated above.

To order cable sized in feet, divide by 30.5 and round up to the next whole foot.

Tilt Tube Mounting - Fig. 1

Transom Support or Splashwell Mounting - Fig. 2-3

Example (dimensions in cm):

A (50) + B (250) + C (80) = 380 - 20 for two 90° bends = 360 + 30.5 For a thru-tube installation 390.5cm : 30.5 = 12.8ft; round off to 13ft.

A (50) + B (250) + C (80) = 380 - 20 for two 90° bends = 360:30.5 = 11.8ft; round off to 12ft.

How to measure for replacement steering cables + 56cm

D = Conduit length

Order Length: "D" dimension + 56 cm To order in foot length, divide for 30.5 and round up to the next whole foot Example: D= 305 cm + 56 cm = 361 : 30.5 = 11'8". Round up to 12 ft

647

Ultraflex hydraulic steering systems are recommended for boats that exceed 50 mph.

www.samallen.com.au

Mechanical Steering

Helm, Bezel and Cable Kits Mechanical Steering Kits - Rotary Gear Helm - T85

2.5 Turns

Part No.

T85 Helm - 83525

Description

83510B

10ft M66 Cable, T85 Helm and Bezel Kit

83511B

11ft M66 Cable, T85 Helm and Bezel Kit

83512B

12ft M66 Cable, T85 Helm and Bezel Kit

83513B

13ft M66 Cable, T85 Helm and Bezel Kit

83514B

14ft M66 Cable, T85 Helm and Bezel Kit

83515B

15ft M66 Cable, T85 Helm and Bezel Kit

• T85 Fast Connect Rotary Helm is recommended for use with engines up to 75HP. Kits Contains: • 1 x 83525 - T85 Rotary Helm and Ø105mm Bezel. (Refer to "Mechanical Steering Helm Rotary Gear - T85" on page 650). • 1 x M66 - Steering Cable. (Refer to "Steering Cables - Fast Connect - M66" on page 654).

M66 Fast Connect Cable

NOTE: Steering wheel not included in kit refer to page 642. Refer to "How To Measure For New Steering Cable Installation" on page 647.

Mechanical Steering Kits - Planetary Gear Helm - T71FC Part No. PLANETARY

Bezel - 83545

T71FC Helm - 83526

Description

83511PB

11ft M66 Cable, T71FC Helm and Bezel Kit

83512PB

12ft M66 Cable, T71FC Helm and Bezel Kit

83513PB

13ft M66 Cable, T71FC Helm and Bezel Kit

83514PB

14ft M66 Cable, T71FC Helm and Bezel Kit

83515PB

15ft M66 Cable, T71FC Helm and Bezel Kit

83516PB

16ft M66 Cable, T71FC Helm and Bezel Kit

83517PB

17ft M66 Cable, T71FC Helm and Bezel Kit

83518PB

18ft M66 Cable, T71FC Helm and Bezel Kit

• T71FC Planetary Gear Helm is recommended for use with engines up to 150HP. Kits Contains: 1 x 83526 - T71FC Planetary Helm (Refer to "Mechanical Steering Helms - Planetary Gear T71FC / T72FC" on page 650). 1 x 83545 - X34 90° Bezel. (Refer to "Mechanical Steering Mounting Bezel Kits" on page 655). 1 x M66 - Steering Cable. (Refer to "Steering Cables - Fast Connect - M66" on page 654).

M66 Fast Connect Cable

Steering & Controls

3.8 Turns

NOTE: Steering wheel not included in kit refer to page 642. Refer to "How To Measure For New Steering Cable Installation" on page 647.

Mechanical Steering Kits - High Performance - Planetary Gear Helm - T91

4.2 Turns

Part No. PLANETARY

nce rforma e P h ig H

83545

T91 - 84600

xibility High Fle ore Steel C s s le in Sta

Description

83482

12ft M90 Cable, T91 Helm and Bezel Kit

83483

13ft M90 Cable, T91 Helm and Bezel Kit

83484

14ft M90 Cable, T91 Helm and Bezel Kit

83485

15ft M90 Cable, T91 Helm and Bezel Kit

83486

16ft M90 Cable, T91 Helm and Bezel Kit

83487

17ft M90 Cable, T91 Helm and Bezel Kit

83488

18ft M90 Cable, T91 Helm and Bezel Kit

• The T91 Planetary Gear Helm Kit utilises high-end material to increase performance, flexibility and durability. • Centred on the main drive shaft, this helm requires less room behind the dash and is a direct “drop in” replacement for competing systems; requiring no new holes for installation. • T91 single cable steering is recommended for use with engines up to 150HP. Kits Contains: 1 x 84600 - T91 High Performance Planetary Gear Helm (Refer to "Mechanical Steering Helm - High Performance Planetary Gear - T91" on page 651). 1 x 83545 - X34 90° Bezel. (Refer to "Mechanical Steering Mounting Bezel Kits" on page 655). 1xM 90 Mach - Steering Cable (Patented). (Refer to "Steering Cables - Fast Connect M90 Mach" on page 655). NOTE: Steering wheel not included in kit refer to page 642. Refer to "How To Measure For New Steering Cable Installation" on page 647.

www.samallen.com.au

648

Helm, Bezel and Cable Kits Mechanical Steering Kits - Non-Feedback Helm - T73NRFC

3.8 Turns

Part No. PLANETARY

Description

83512NFP 12ft M66 Cable, T73NRFC Helm and Bezel Kit

edback Non-Fe

83513NFP 13ft M66 Cable, T73NRFC Helm and Bezel Kit 83514NFP 14ft M66 Cable, T73NRFC Helm and Bezel Kit 83515NFP 15ft M66 Cable, T73NRFC Helm and Bezel Kit 83516NFP 16ft M66 Cable, T73NRFC Helm and Bezel Kit 83517NFP 17ft M66 Cable, T73NRFC Helm and Bezel Kit 83518NFP 18ft M66 Cable, T73NRFC Helm and Bezel Kit • The T73NRFC Non-Feedback Planetary Helm is recommended for use with engines up to 150HP. Kits Contains: 1 x 83531 - T73NRFC Planetary Helm (Refer to "Mechanical Steering Helms - Planetary Gear - Non-Feedback - T73NRFC / T74NRFC" on page 651). 1 x 83545 - X34 90° Bezel. (Refer to "Mechanical Steering Mounting Bezel Kits" on page 655). 1 x M66 - Steering Cable. (Refer to "Steering Cables - Fast Connect M66" on page 654).

Bezel - 83545

T73NRFC Helm - 83531

NOTE: Steering wheel not included in kit refer to page 642. Refer to "How To Measure For New Steering Cable Installation" on page 647.

Steering & Controls

M66 Fast Connect Cable

Mechanical Steering Kits - High Performance - Non-Feedback Planetary Helm - T93ZT

4.2 Turns

Part No. PLANETARY

edback Non-Fe ce forman r e P h Hig

Description

83492

12ft M90 Cable, T93ZT Helm and Bezel Kit

83493

13ft M90 Cable, T93ZT Helm and Bezel Kit

83494

14ft M90 Cable, T93ZT Helm and Bezel Kit

83495

15ft M90 Cable, T93ZT Helm and Bezel Kit

83496

16ft M90 Cable, T93ZT Helm and Bezel Kit

83497

17ft M90 Cable, T93ZT Helm and Bezel Kit

83498

18ft M90 Cable, T93ZT Helm and Bezel Kit

• The T93ZT Non-Feedback Planetary Gear Helm Kit utilises high-end material to increase performance, flexibility and durability. • Centred on the main drive shaft, this helm requires less room behind the dash and is a direct “drop in” replacement for competing systems; requiring no new holes for installation. • T93ZT single cable steering is recommended for use with engines up to 150HP.

83545

T93ZT - 83480

xibility High Fle ore Steel C s s le in Sta

Kits Contains: 1 x 83480 - T93ZT High Performance Non-Feedback Planetary Gear Helm. (Refer to "Mechanical Steering Helm - High Performance Non-Feedback - Planetary Gear - T93ZT" on page 652). 1 x 83545 - X34 90° Bezel. (Refer to "Mechanical Steering Mounting Bezel Kits" on page 655). 1 x M90 Mach - Steering Cable (Patented). (Refer to "Steering Cables - Fast Connect - M90 Mach" on page 655). NOTE: Steering wheel not included in kit refer to page 642. Refer to "How To Measure For New Steering Cable Installation" on page 647.

649

www.samallen.com.au

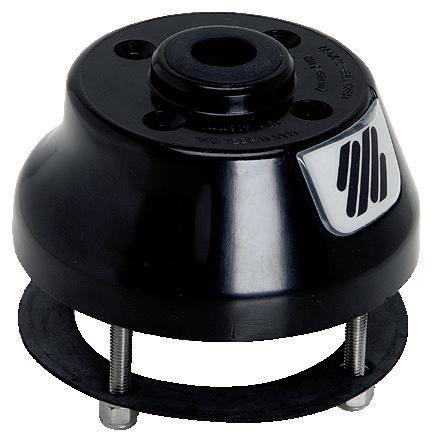

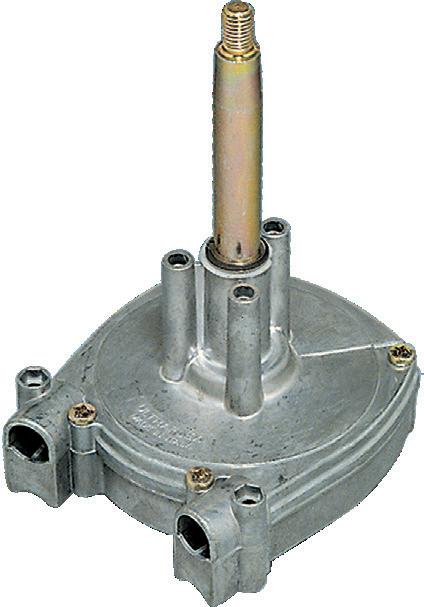

Mechanical Steering Helms Only Mechanical Steering Helm - Light Duty - Rotary Gear - T67

2.5 Turns

76.6mm

145.6mm

69mm

59.7mm

96.5mm

123mm

105mm

Part No.

Description

Model

83524

Light Duty Helm and Bezel

T67

• Fast connect and simple installation. • Corrosion resistant materials. • Standard friction externally adjustable. • Includes Black 90° Bezel mounting kit. • Standard 3/4" tapered shaft. • Four optional helm positions to facilitate steering cable installation. • Steering wheel turns approximately 2.5 times lock to lock. • Maximum allowable steering wheel diameter 380mm (15"). • Uses M58 steering cable. • For use with outboard engines with a maximum of 50HP. • Exceeds both EN 29775 and ABYC P17 safety standards.

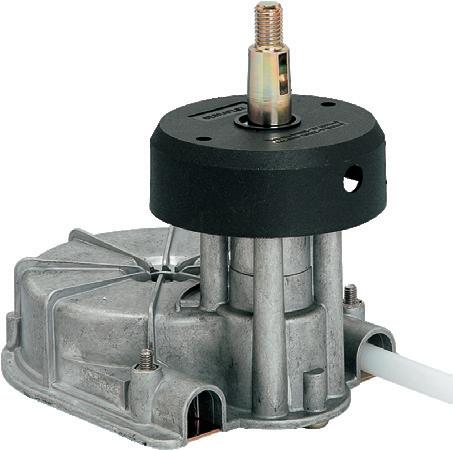

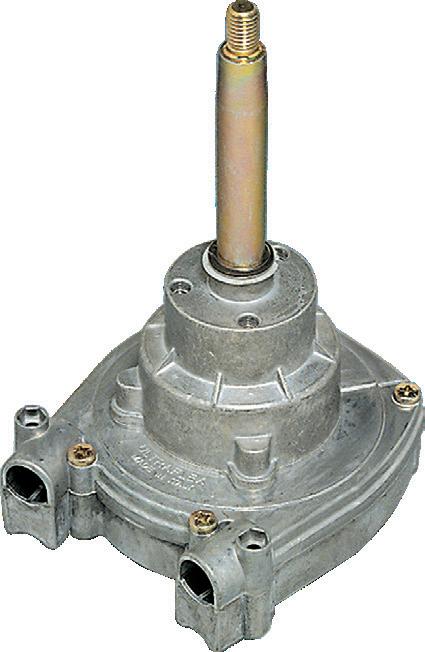

Mechanical Steering Helm - Rotary Gear - T85 Part No.

Description

83525

176 (6.9”)max 93 (3.6”)

4.77°

102.5 (4”)

Model

Rotary Steering Helm and Bezel

T85

199.5 (7.85”)

• Fast connect and simple installation. • Corrosion resistant materials. • Particularly suitable where clearance is limited. • Steering wheel turns approximately 3.5 times lock to lock. • Includes Black 90° Bezel mounting kit (105mm diameter). • Standard 3/4" tapered shaft. • Maximum allowable steering wheel diameter: 406 mm (16"). • Compact mounting. • Uses M66 Ultraflex® Cable or a Seastar SSC62 style cable. • Exceeds both EN 28848 and ABYC P17 safety standards.

Steering & Controls

3.5 Turns

105mm

Mechanical Steering Helms - Planetary Gear - T71FC / T72FC

3.8 Turns

Part No. PLANETARY

83526 83527

Description

Model

83526

Planetary Steering Helm - Single Cable

T71FC

83527

Planetary Steering Helm - Dual Cable

T72FC

• Fast connect and simple installation. • Corrosion resistant materials. • Particularly suitable where clearance is limited. • Standard 3/4" tapered shaft. • Steering wheel turns approximately 3.8 times lock to lock. • Maximum allowable steering wheel diameter 406mm (16"). • Compact mounting. • Uses M66 Ultraflex® cable or a Seastar SSC62 style cable (the T72FC helm requires two cables). • Mounting bezels required (Not Included): X34 - 83545 - black, 90° mounting X34W - 83545W - white, 90° mounting X35 - 83540 - black, 20° mounting • For boats exceeding 50mph the twin cable steering system T72FC is recommended. • Exceeds both EN 28848 and ABYC P17 safety standards.

www.samallen.com.au

650

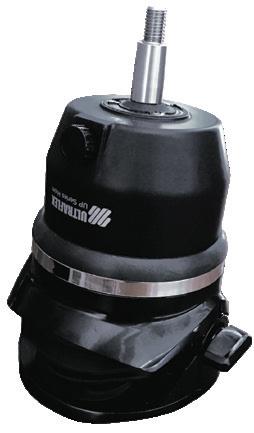

Mechanical Steering Helms Only Mechanical Steering Helm - High Performance Planetary Gear - T91

4.2 Turns

Part No. PLANETARY

nce rforma High Pe

84600

Description

Model

Planetary High Performance Helm

T91

• Specifically designed for high performance and high efficiency applications. • Fast connect, simple installation, patented end fitting. • Corrosion resistant materials. • Particularly suitable where clearance is limited. • Standard 3/4" tapered shaft. • Steering wheel turns approximately 4.2 times lock to lock. • Maximum allowable steering wheel diameter 406mm (16"). • Compact mounting. • The T91 is perfect for Outboard, Inboard and Power Assisted applications. • Uses the Ultraflex M90 Mach cable.

150

Mounting bezels required: X34 - 83545 - black, 90° mounting X34W - 83545W - white, 90° mounting X35 - 83540 - black, 20° mounting • For boats faster than 50mph, dual mechanical cable or hydraulic steering systems are recommended. • Exceeds both EN 28848 and ABYC P17 safety standards.

Steering & Controls

73.5

126

127.5

Mechanical Steering Helms - Planetary Gear - Non-Feedback - T73NRFC / T74NRFC

3.8 Turns

Part No. PLANETARY

edback Non-Fe

83531

Description

Planetary Steering Helm - NFB Single Cable

T73NRFC

83528

Planetary Steering Helm - NFB Dual Cable

T74NRFC

• Non-Feedback d esign incorporates a patented mechanism, which eliminates continuous load on the operator caused by propeller torque. • Fast connect and simple installation. • Ideal for outboards • Standard 3/4" tapered shaft. • Corrosion resistant materials. • Steering wheel turns approximately 3.8 times lock to lock. • Maximum allowable steering wheel diameter 406mm (16"). • Compact mounting. • Uses M66 Ultraflex® cable or a Seastar® SSC62 style cable.

83528

Mounting bezels required (Not Included): X34 - 83545 - black, 90° mounting X34W - 83545W - white, 90° mounting X35 - 83540 - black, 20° mounting • For boats exceeding 50mph the twin cable steering system T74NRFC is recommended. • Exceeds both EN 28848 and ABYC P17 safety standards. NOTE: Not suitable for power assisted steering, stern drives.

651

Model

83531

www.samallen.com.au

Mechanical Steering Helms Only Mechanical Steering Helm - High Performance Non-Feedback - Planetary Gear - T93ZT

4.2 Turns

Part No. PLANETARY

edback Non-Fe nce rforma e P h ig H

83480

Description

High Performance Non-Feedback Helm

Model

T93ZT

• Specifically designed for high performance, Non-Feedback and high efficiency applications. • Fast connect, simple installation, patented end fitting. • Corrosion resistant materials. • Particularly suitable where clearance is limited. • Standard 3/4" tapered shaft. • Steering wheel turns approximately 4.2 times lock to lock. • Maximum allowable steering wheel diameter 406mm (16"). • Compact design for mounting. • The T93ZT is perfect for outboard, inboard and power assisted applications. • Uses the Ultraflex M90 Mach cable.

73.5

126

127.5

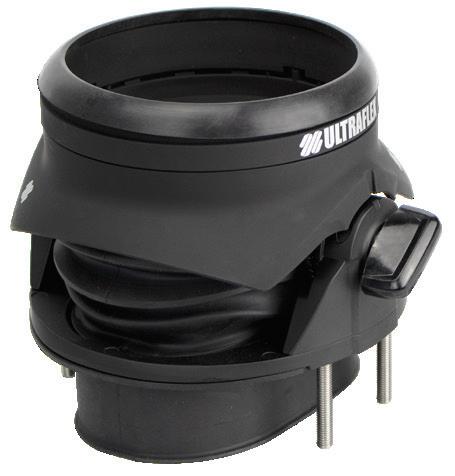

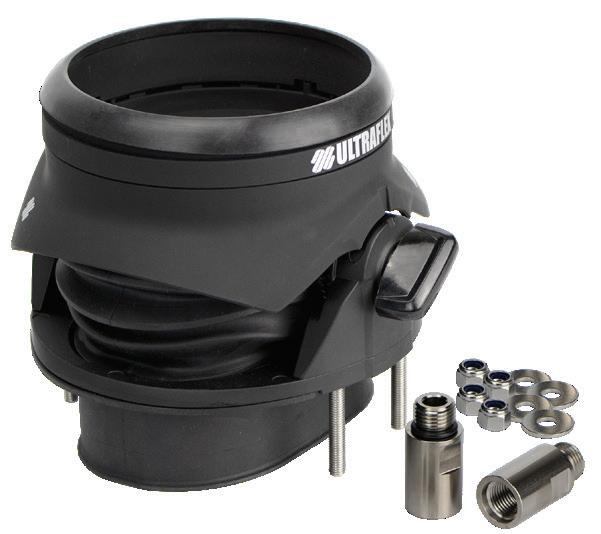

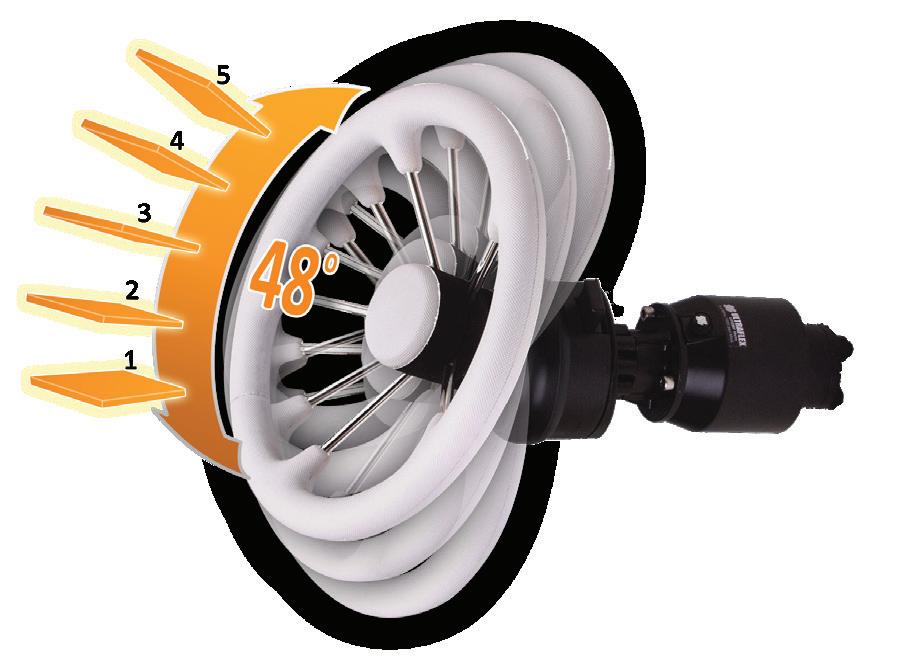

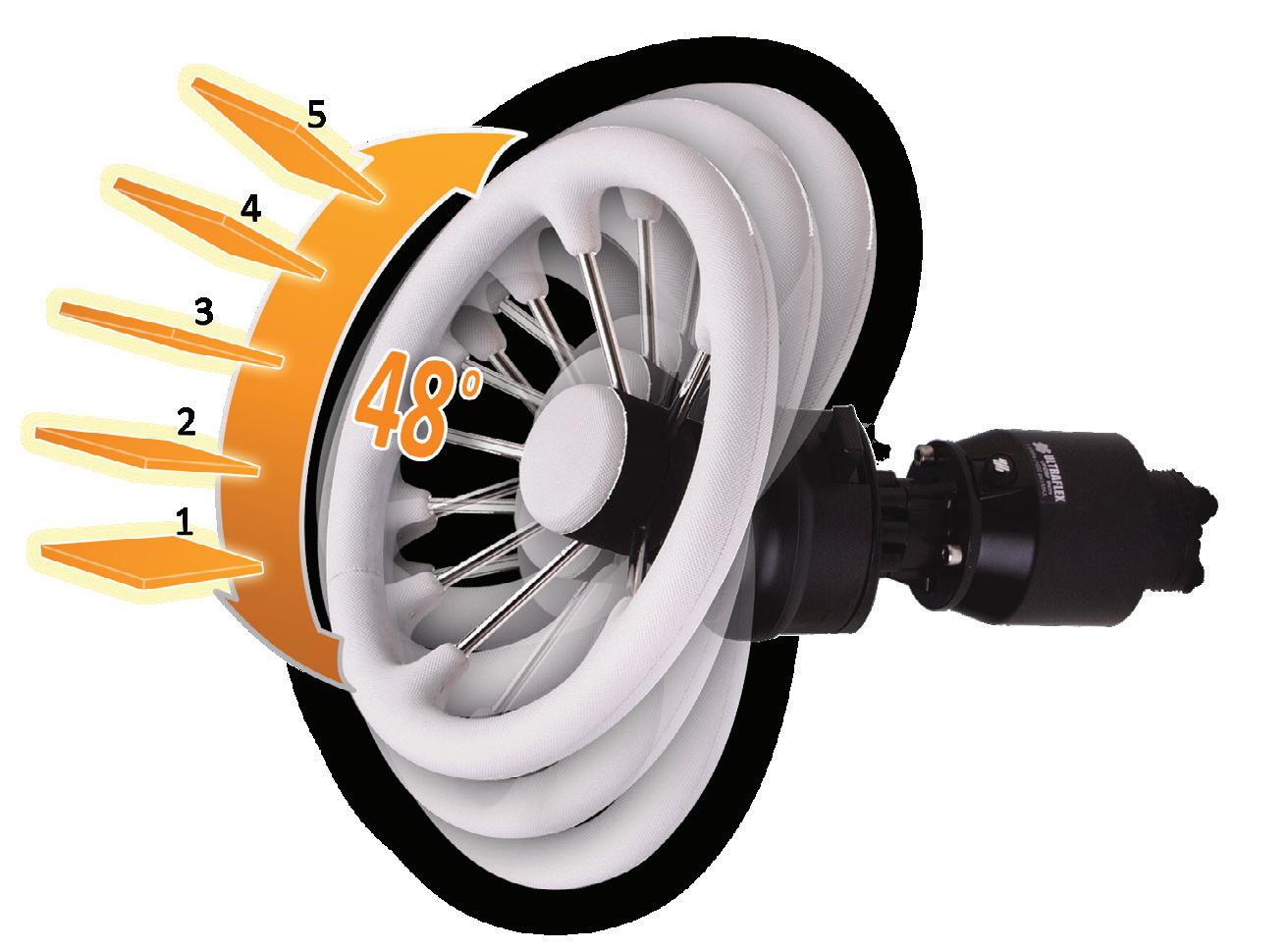

Mechanical Steering Helm With Tilt - Planetary Gear - T81FC & X52

3.8 Turns

Part No. PLANETARY

Description

Model

83534

Planetary Tilt Steering Helm (Part A)

T81FC

83533

Tilt Mechanism 5 Position (Part B)

X52

Steering & Controls

150

Mounting bezels required: X34 - 83545 - black, 90° mounting X34W - 83545W - white, 90° mounting X35 - 83540 - black, 20° mounting • For boats faster than 50 mph, dual mechanical cable or hydraulic steering systems are recommended. • Exceeds both EN 28848 and ABYC P17 safety standards.

• Each part sold seperately. • Tilt range of 48° and five locking positions. • Fast connect, simple installation. • Tilt device eliminates under dash movement. • Standard 3/4" tapered shaft. • Corrosion resistant materials. • Lock to lock steering wheel turns approximately 3.8 times. • Maximum allowable steering wheel diameter 406 mm (16"). • Uses M66 Ultraflex® cable. • Exceeds both EN 28848 and ABYC P17 safety standards. NOTE T81FC Helm and X52 Tilt Mechanism sold separately.

www.samallen.com.au

652

Mechanical Steering Cables Replacement Cable Guide Cable

M58

Helm Model

Adapter Required

T67 - Ultraflex C230/C231 - Morse® Compac - T® - Teleflex®

Replacement Cable P/N

83401 to

�one

83403 M58

805 TX®

T85 - T71FC - T72FC - T73NRFC -

Steering & Controls

T74NRFC - T81FC - T83NRFC Ultraflex Safe - TQC® - NFB Safe

�one

-TII® - NFB 4.2®

M66

Teleflex® - D290 Morse®

83408 to

83535 K66

83424 M66

T71 - T72 - T73NR - T74NR - T81 T83NR Ultraflex (discontinued)

T91 - T93ZT T101 - T103ZT

M90 Mach (Patented)

T85 - T71FC - T72FC - T73NRFC T74NRFC - T81FC - T83NRFC Ultraflex Safe - TQC® - NFB Safe TII® NFB 4.2® Teleflex® - D290 Morse®

NOTE: ULTRAFLEX guarantee is null and void if some ULTRAFLEX components are installed on a steering system together with products of other brands, with the exception of those brands clearly specified in the above chart.

653

www.samallen.com.au

�one

84712 to 84719

Mechanical Steering Cables Steering Cables - Fast connect - M58 Part No.

Model

Length (ft)

Length (m)

83401

M58

2.44

83402

M58

2.74

83403

M58

3.05

• Light duty for use with T67 helm only and outboards up to 50hp. • Fast connect and simple installation. • All stainless steel cable output ends as per ABYC P17 safety standards. • Attaches directly to the tilt tube on all popular brands. • Stroke length 230mm (9"). • Minimum steering cable bend radius 200mm (7.9"). • Exceeds both EN 29775 and ABYC P17 safety standards. NOTE: Refer to "How to measure for replacement steering cables" on page 647.

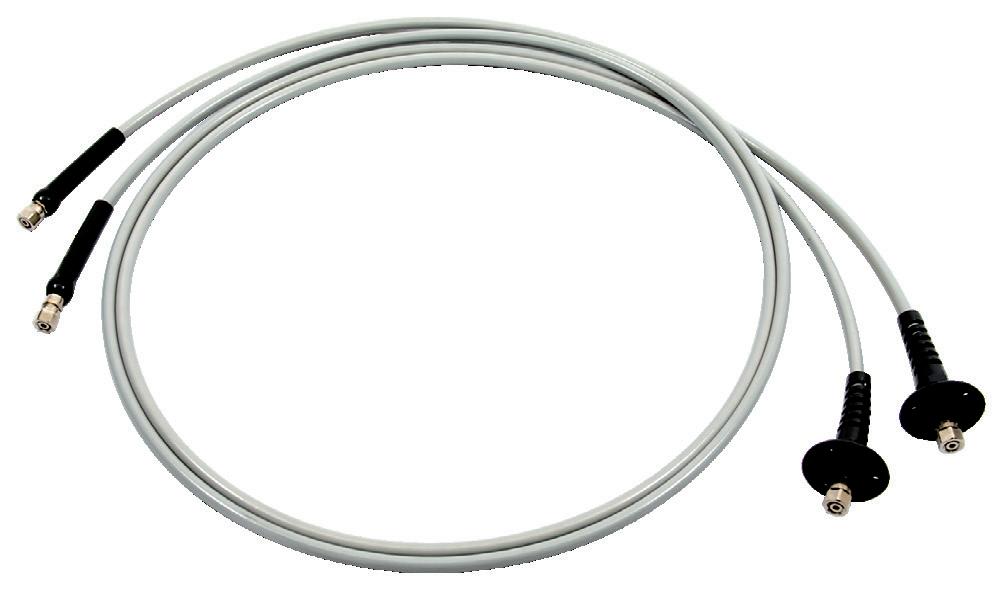

Steering Cables - Fast Connect - M66 Model

83408

M66

83409

M66

83410

M66

83411

M66

83412

M66

83413

M66

Length Length (ft) (m)

Part No.

Model

2.44

83417

M66

5.18

2.74

83418

M66

5.48

3.05

83419

M66

5.79

3.35

83420

M66

6.10

3.66

83421

M66

6.40

3.96

83422

M66

6.70

83414

M66

4.27

83423

M66

7.01

83415

M66

4.57

83424

M66

7.32

83416

M66

4.88

Steering & Controls

Length Length (ft) (m)

Part No.

• Fast connect and simple installation. • All stainless steel cable output ends as per ABYC P17 safety standards. • Attaches directly to the tilt tube on all popular brands. • Stroke length 228mm (9"). • Minimum steering cable bend radius 200mm (7.9"). • The M66 steering cable is also compatible with the Seastar Helms which use the SSC62 style of cable. • Exceeds both EN 28848 and ABYC P17 safety standards.

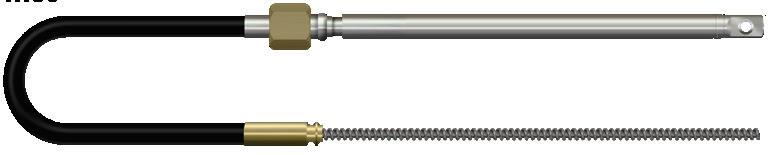

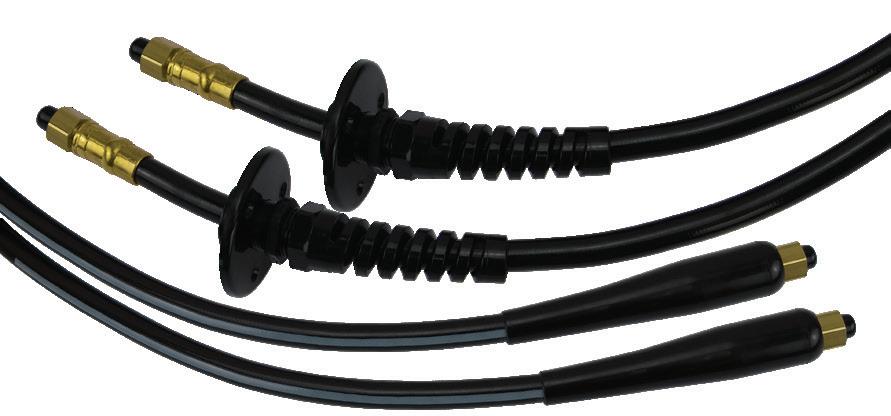

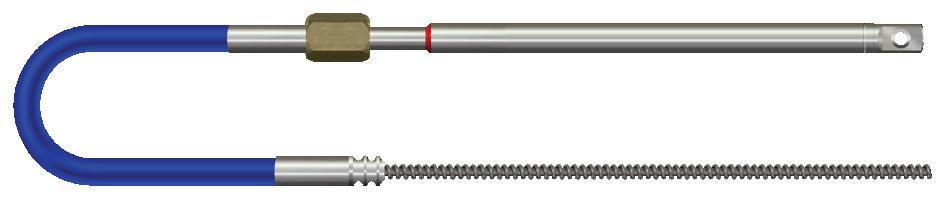

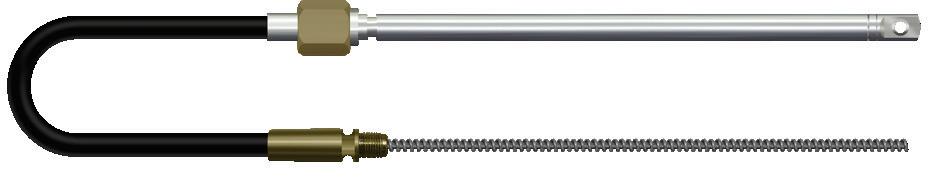

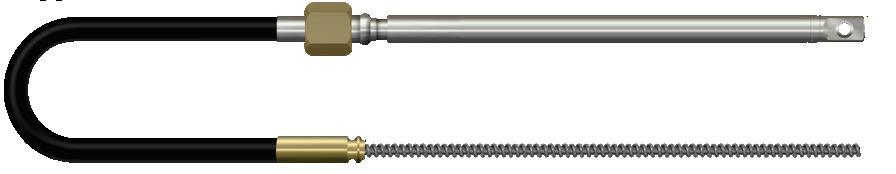

M66 Fast Connect Cable

NOTE: For measuring Steering Cables refer to page 647.

Mechanical Steering Cable Adapters Part No.

Description

83535

K66 Steering Cable Adapter converts the M66 fast connect into a M47 cable, Nut to Nut Connection

83536

K46 Steering Cable Adapter converts the M47 Nut to Nut Connection into a M66 fast connect cable

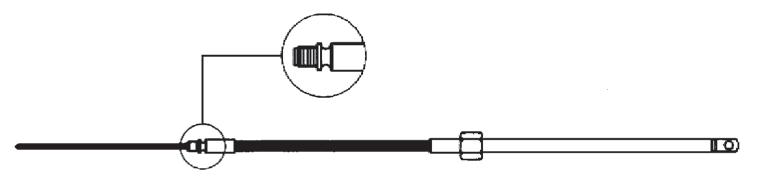

• The K66 Steering Cable Adapter converts the M66 fast connect cable into a M47 nut to nut cable which fits the old T71, T72, T73NR T74NR and T81 helms. • The K46 converts the old M47 nut to nut cable into a M66 fast connect which fits the T85, T71FC, T72FC, T73NRFC, T74NRFC and T81FC helms.

83536

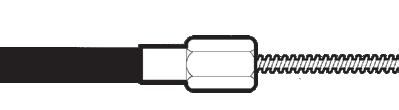

M47 Cable

www.samallen.com.au

83535

M66 Cable

654

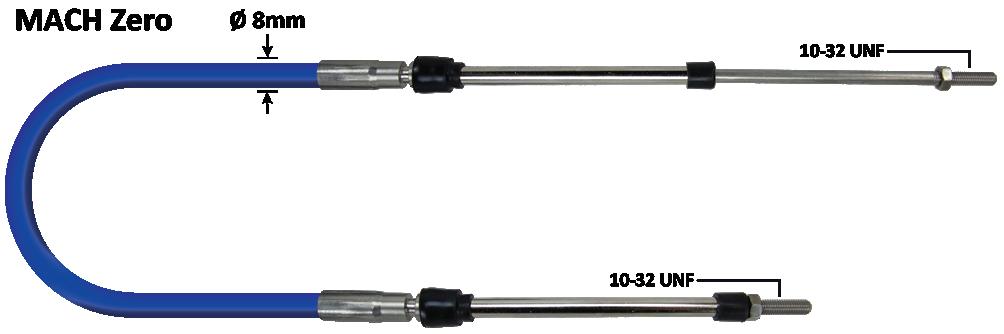

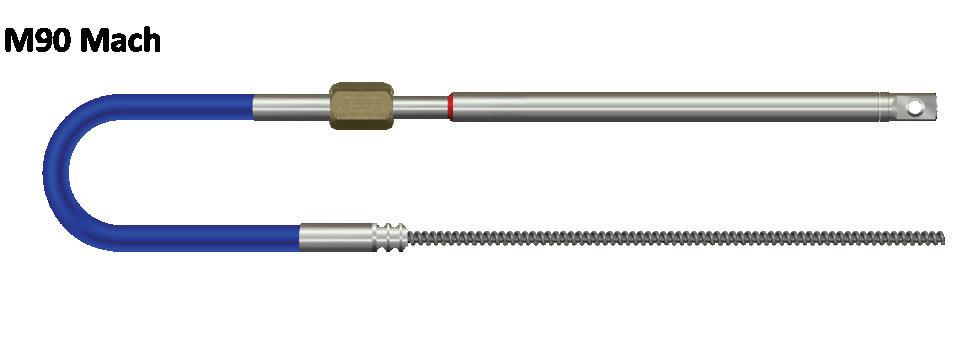

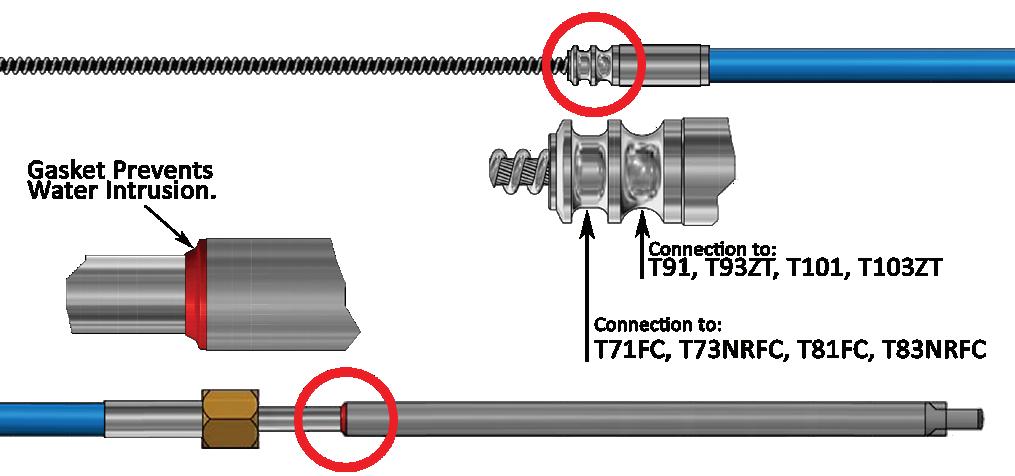

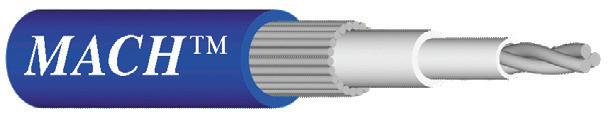

Mechanical Steering Cables M90 Mach Patented Technology The M90 Mach is specially designed for high-performance and high-efficiency applications. It offers increased flexibility and durability through the use of top-quality materials and construction. • Ideal solution for long cable runs and tight bend applications. • Corrosion resistant materials, stainless steel engine side output fitting. • Fast connect, simple installation, patented end fitting. • Stainless steel cable output end featuring patented gasket, engine side.

Steering Cables - Fast Connect - M90 Mach Part No.

Model

Length Length (ft) (m)

Part No.

Model

Length Length (ft) (m)

84712

M90

3.66

84716

M90

4.88

84713

M90

3.96

84717

M90

5.18

84714

M90

4.27

84718

M90

5.48

84715

M90

4.57

84719

M90

5.79

M90 Mach

Steering & Controls

xibility High Fle ore Steel C s s le in Sta

• M90 Mach patented high performance cable combines top quality materials that increase durability and the life of the cable. • Ideal for long cable runs and tight bend applications. • Fast connect and simple installation. • Suits both M90 and M66 installations • Stainless steel core and output ends for ultra-long service life. • Patented Gasket wiper seal protects against water intrusion extending the life of the cable. • Stroke length 228mm (9"). • Minimum steering cable bend radius 150mm (5.9"). • M90 Patented end fitting make it suitable for T85, T71FC, T72FC, T73NRFC, T74NRFC, T81FC, T83NRFC, T91 and T93ZT Ultraflex steering helms. • Also suits Teleflex NFB 4.2 and Morse D290. • Exceeds both EN 28848 and ABYC P17 safety standards.

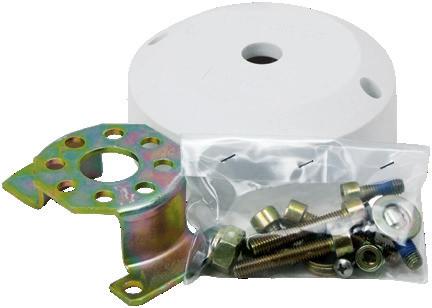

Mechanical Steering Mounting Bezel Kits Part No.

Model

Mount Angle

Diameter (mm)

Height (mm)

Colour

83540

X35

20°

130

Black

83545

X34

90°

130

Black

83545W

X34W

90°

130

White

• Use with T71FC, T72FC, T73NRFC, T74NRFC, T91 & T93ZT Helms. 83545

83540

83545W

655

www.samallen.com.au

Mechanical Steering Spares & Accessories Steering Cable - Engine Connection Kit Guide Type

Cable Support + Engine Connection Kit

S39 83560 Clamp Block

S61+ A75 83566 + 83580

S62 + A75 83564 + 83580

S40 + A75 83835 + 83580

Splashwell

S55 + A75 83616 + 83580

Tilt Tube

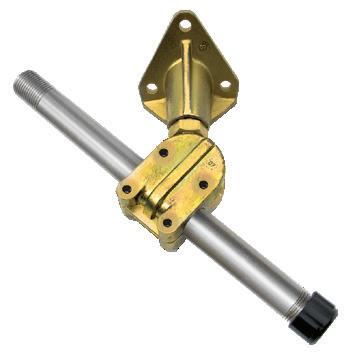

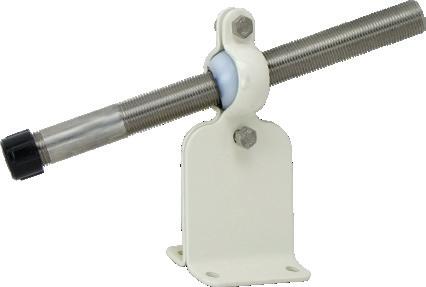

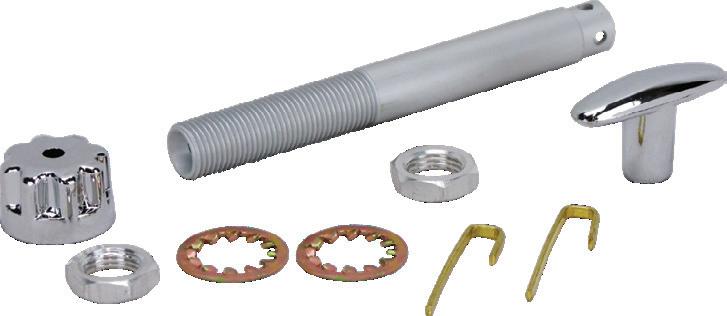

Transom Mount - Swivel Clamp Block Part No.

Description

Model

83560

Swivel Clamp Block & Alloy Tube

S39

83561

Swivel Clamp Block & S/S Tube

S39SS

83563

S/S Tube Only suits 83561

S39T

Transom Mount Kits Type

• S39 Swivel clamp block in die-cast alloy with aluminium tube. • S39SS Swivel clamp block with stainless steel tube. • S39T Stainless steel tube suits 83561.

Part No.

Description

Model

Height (mm)

83566

Transom Mount Kit

S61

117

83564

Transom Mount Kit

S62

83837

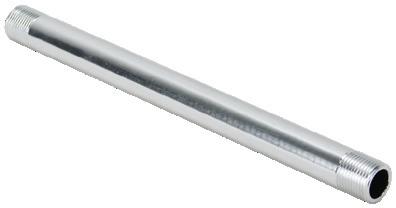

Alloy Tube Only suits 83564

• Corrosion resistant painted steel clamp block. • Tube length is 283mm. • S61 supplied with a stainless steel tube • S62 supplied with an aluminium tube

Type

283m

117mm

55mm

83563

83561

83560

A74 83575

83566

83564

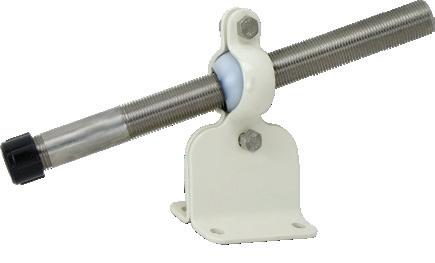

Steering Cable - 90° Rudder Support Steering Cable - Splashwell Mount Part No.

Description

Model

83835

Splashwell Mounting Kit

S40

83837

Alloy Tube Only suits 83835

S40T

Type

• S40 aluminium tube with 78mmØ external stainless steel ball clamping plates and 90mmØ steel inner backing plate. • S40 Includes 6mm mounting bolts. • S40T Aluminium tube suits 83835.

Part No.

Description

Model

83616

90° Rudder Support

S55

Type

• Corrosion resistant 90° rudder support, with marine aluminium tube and stainless steel ball clamping plates. • Used in inboard engine steering applications.

Steering & Controls

90° Rudder Support

A73 83570

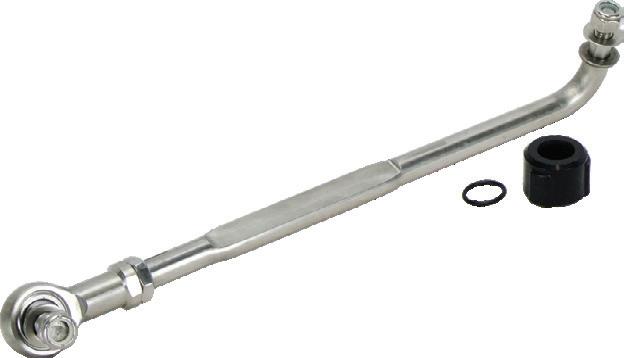

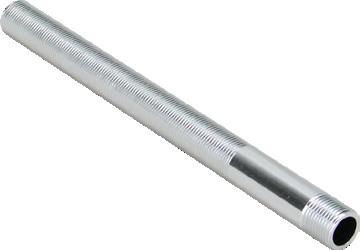

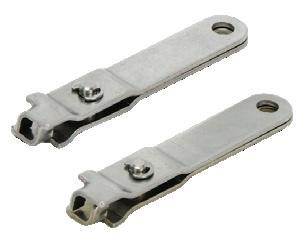

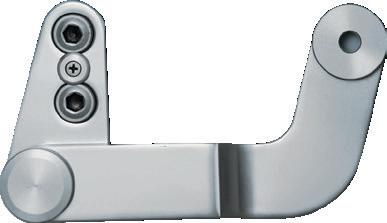

Steering Cable - Tilt Tube Drag Link Arm Part No. 83837

83835

83570 83575

Steering Cable - Connectors Part No.

Description

Model

Suits Cables

83580

Stainless Steel Clevis

A75

M66

83591

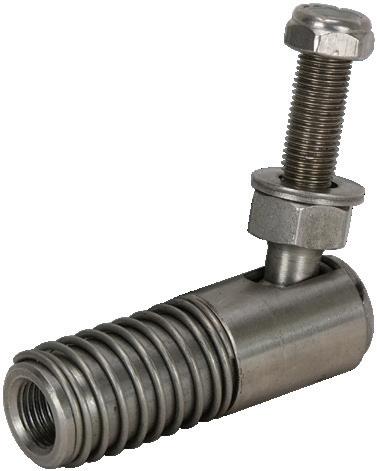

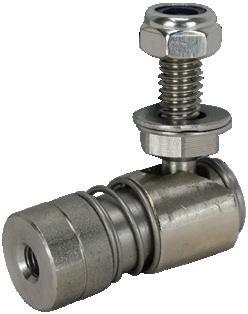

Stainless Steel Ball Joint Clevis

Quick Release

M66

Type

Model

Suits Outboard Engine

A73SS

Mercury®

A74SS

Johnson® Evinrude®

Description

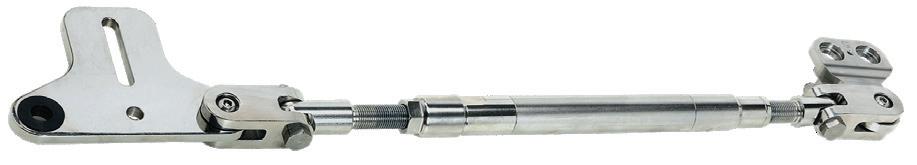

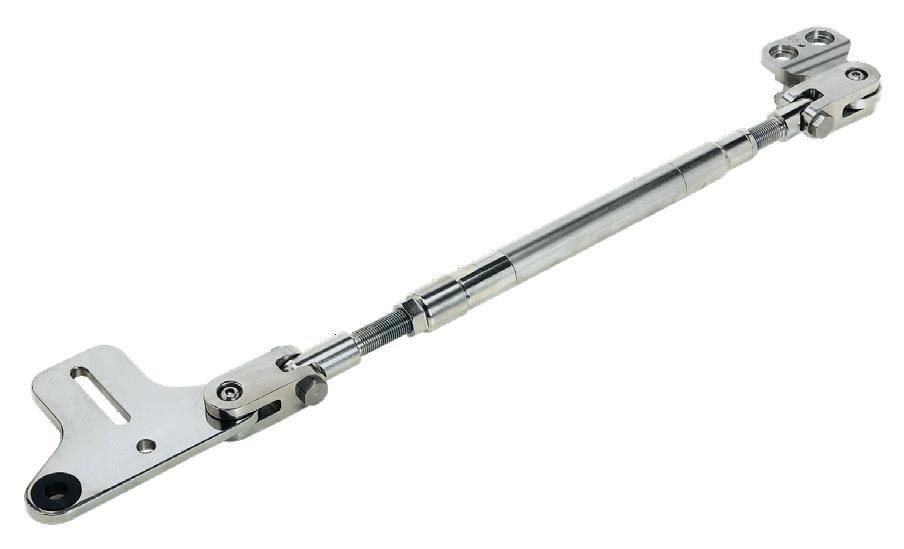

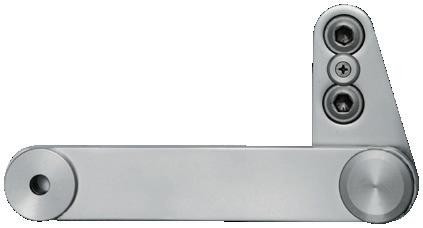

Stainless Steel Tilt Tube Drag Link Arm Stainless Steel Tilt Tube Drag Link Arm

Type

• The A73SS and A74SS stainless steel drag link arm has an adjustable end to accommodate the centring of the motor. WARNING: A73 and A74 tiller arms are recommended for mechanical steering systems only. 83570

• The Swivel Assembly suits transom mounted and splash well mounted installations, allowing the motor to be tilted without damaging the cable.

83575

Steering Cable - Nylon Bush 83580

83591

Part No.

Description

84100

Nylon Bush to Connect Spent Tube to Fast Connect Helm

www.samallen.com.au

656

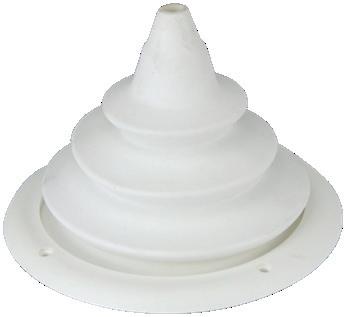

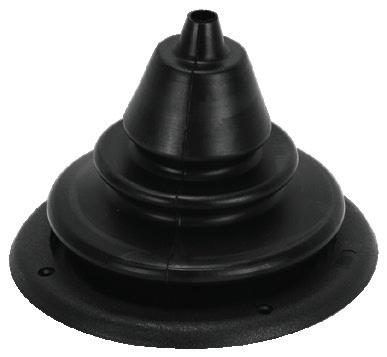

Steering Grommets Steering Grommets - Ultraflex

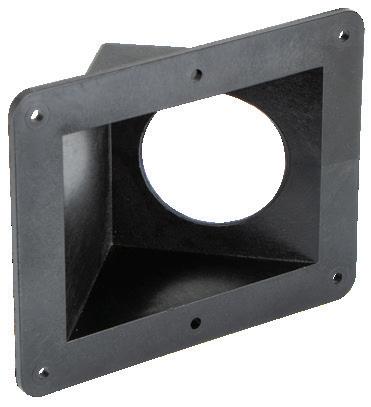

Steering Grommets - Flange Mount

Part No.

Model

Size

Height (mm)

Outside Ø (mm)

Min Outlet Ø (mm)

83554

Large

110

152

83556

Small

105

Part No.

Size

295094

Small

295095

Large

295100

Large

295098

Small - Dual

• Commonly used to tidy / waterproof the fuel line, steering and control cable cutouts in bulkheads or outboard motor wells. • Flange mount. • Premium quality, made in Italy. 83556

83554

Height (mm)

Outside Ø (mm)

Black

105

Black

110

152

White

110

152

Black

105

Colour

Min Outlet Ø (mm)

• Available in two single and one dual versions to lead throttle and gear shift cables, thinner hydraulic steering hoses and fuel lines through bulkheads or motor wells. • Polyurethane Grommets. Ø 6 mm

Outside Ø (mm)

83555

Adjustable

105

83558

Adjustable

155

295100

Ø 5 mm

Ø 10 mm

83558

85 mm

Steering & Controls

• Adjustable throat is closed with the heavy duty cable tie provided. • Wide opening facilitates fuel line, steering cable or hoses and control cables in one cutout. 295098

110 mm

Height (mm)

130 mm

Size

83555

150 mm

Model

50 mm

Part No.

Steering Grommets - Retro-Fit

Steering Grommets - Cut Out Mount Part No.

Size

Height (mm)

Outside Ø (mm)

Cutout Ø (mm)

Min Outlet Ø (mm)

295096

Small

295097

Large

100

Part No.

Colour

Material

Diameter (mm)

Height (mm)

295092

Black

PVC

115

135

• Allows replacement of a damaged grommet without detaching cables and hoses from the engine. • Neatly split the grommet and apply the cable ties in the dedicated grooves to hold the grommet tightly on the rigid inner core, keeping its natural shape.

• Friction fits into a round cutout. • Commonly used to tidy / waterproof cutouts in bulkheads and outboard motor wells to run fuel lines, steering and control cables.

295097

295096

Ø 6 mm

50 mm

100 mm

84 mm

Ø 8 mm

657

85 mm

295094

105 mm

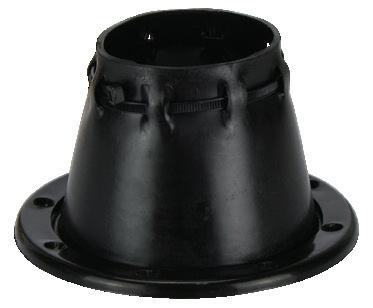

Steering Grommets - Adjustable

105 mm

63 mm

295095

69 mm

www.samallen.com.au

Rigging Hose & Accessories Slop Stoppers

Trim Rings Outside Dia.

Cut Out Cut Out Thickness

A (mm)

B (mm)

C (mm)

D (mm)

295082 Trim Ring Round

295086 Trim Ring Round

6.1

Part No.

Model

Shape

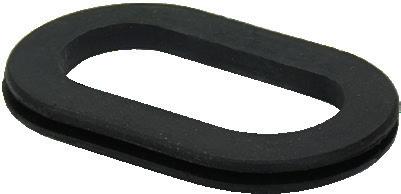

295084 Trim Ring

Oval 135 x 83 120 x 60

4.5

I.D

Cut Out Cut Out Thickness

A (mm)

B (mm)

Part No.

Model

Black

295087

Black

295088

Slop 87 64.5 Stopper Round Slop 87 62.5 Stopper Round Slop Stopper Oval 136 x 81 116 x 59

100 x 46 Black

• Rubber trim rings installed in cutouts in bulkheads or motor wells, providing protection and a neat finish. • 295082 suits 50mm Rigging Hose (76266) for water tight fit.

295090

Shape

Outside Dia.

Colour

I.D

Colour

C (mm)

D (mm)

4.6

White

6.1

Black

4.6

100 x 46 Black

• Rubber slop stoppers installed in cutouts in bulkheads or motor wells, providing a neat finish, abrasion and water resistance.

295087

A B D

295082

295090 295088

Rigging Kit - 50mm & Flange

295086

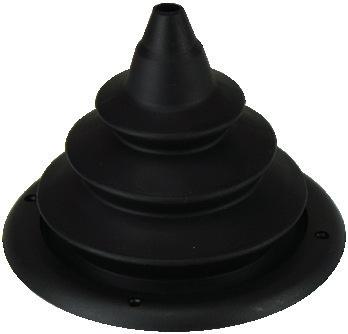

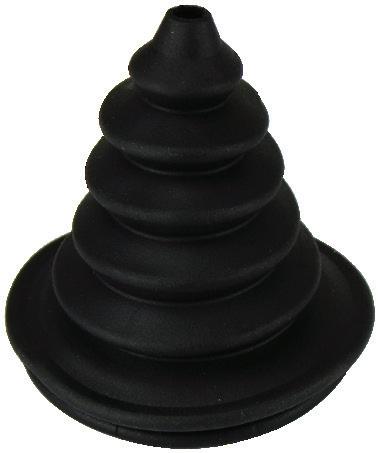

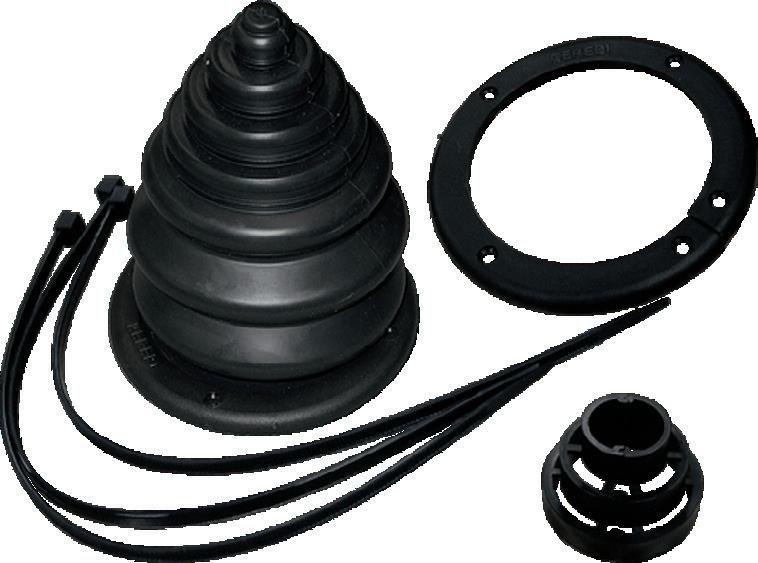

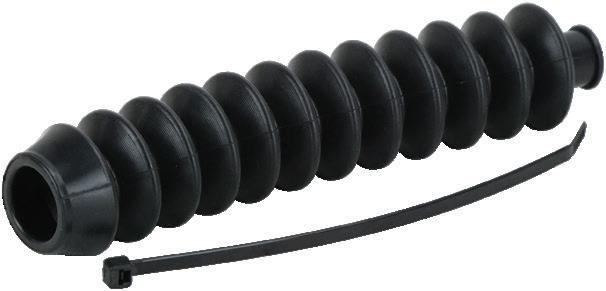

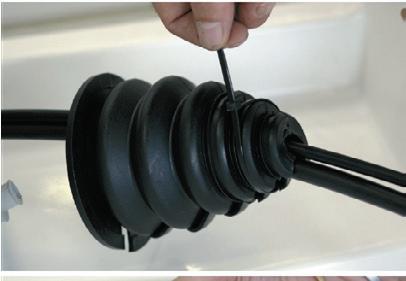

Steering Cable Bellow Part No.

Description

500535K CEF® Steering Cable Bellow

External Ø (mm)

Internal Ø (mm)

Cutout Ø (mm)

• High quality, synthetic rubber bellows designed to waterproof a mechanical steering cable through the tilt tube.

Hose Length Hose I.D (m) Ø (mm)

Part No.

Colour

76250

Black

76251

Black

1.5

Flange Ø (mm)

Cut Out Ø (mm)

102

• Conceals and protects outboard motor cables and wires against abrasion, dirt, salt corrosion and UV damage. • This system makes the installation tidy and professional. • UV resistant polyethylene conduit tubing. • Heavy-duty hose is flexible and kink resistant. • 76253 Flange included.

Steering & Controls

295084

Rigging Flanges Part No.

Description

Colour

Hose I.D Ø (mm)

Dimensions (mm)

76253

Rigging Flange

Black

53 x 102 Ø

Black

129 x 114 Ø

Black

100 x 65 Ø

Black

160 x 124 x 60

76272 76270 76258

Rigging Flange with 20mm Fuel Hose Port Rigging Hose Union with 20mm Fuel Hose Port Rigging Flange 50mm Recessed

• Designed to install rigging hoses through the hull. • Internal thread to hold 76266 Rigging Hose in position. • 76272 & 76270 provides entry point for fuel hose into rigging tube. • Flanged versions holes to suit 6 gauge mounting screws. 76270

Flange

Rigging Hose - 50mm Part No.

76266

Description

50mm Rigging Hose

Colour

Length (m)

Hose I.D Ø (mm)

Black

• Conceals and products outboard motor cables and wires against abrasion, dirt, salt corrosion and UV damage. • UV resistant heavy duty polyethylene conduit tubing. • Flexible and kink resistant. • Suits 295082 Steering Grommet and 50mm rigging flanges.

76253

76272 76258

www.samallen.com.au

658

Hydraulic Steering Systems How The System Works

Hydraulic Steering Systems

the cylinder rod. The fluid going out from the other chamber of the cylinder is returned to the helm via the 2nd hydraulic line.

All the components of Ultraflex® hydraulic steering systems are made specifically for the marine environment, using materials and working processes which offer long life and safety for the most extreme conditions.

How The System Works A hydraulic steering system consists of a steering pump, a cylinder attached to the rudder, outboard or sterndrive and the connecting tubing. Under normal operating conditions, a turn of the steering wheel will send the oil from the helm into one of the two connecting hydraulic lines. The oil will be pumped into one of the cylinders and either extend or retract

There are two basic components in all the hydraulic steering systems: the helm unit and the cylinder, connected by flexible hose. The helm unit consists of both a hydraulic pump and a valve assembly. The valve assembly prevents outgoing fluid from returning along the same line, isolates each steering station, locks the rudder and eliminates rudder "feedback" to the helm. The cylinders are double acting and may be balanced or unbalanced (in which case the rod extends through only one end of the cylinder).

Suggestions and Warnings When Selecting A Hydraulic Steering System

Other factors that can influence steering effort are:

The strength required to drive a boat equipped with a hydraulic steering system is inversely proportional to the number of turns of the wheel lock-to-lock. This is determined by the ratio between the cylinder volume and the pump displacement. The larger the helm pump in relation to the hydraulic cylinder, the fewer turns lock to lock in your steering system.

• Rudder dimension, or engine power

• Vessel speed • Propeller selection • Hull type (displacement, planing, etc.) • Sea conditions • Oil viscosity

Steering & Controls

Helms & Cylinders Cross Reference Cross Reference This Cross Reference chart has been drawn to facilitate a functional comparison among brands and should be used as general reference only. For further information please contact our Sales Team at Sam Allen Wholesale. HELM PUMPS

659

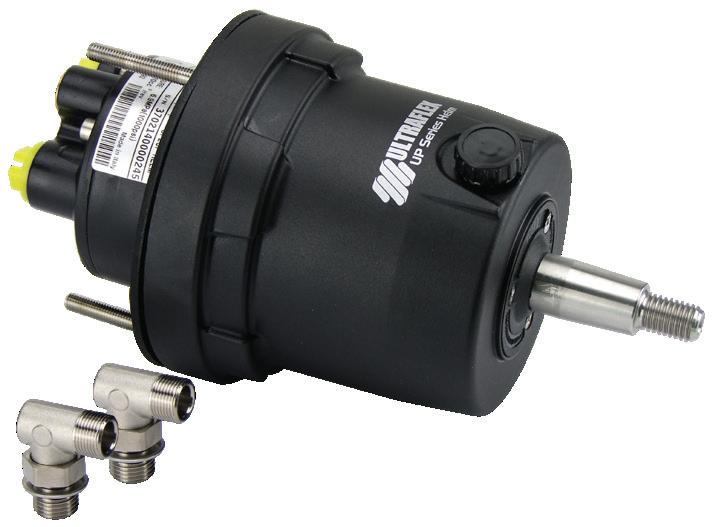

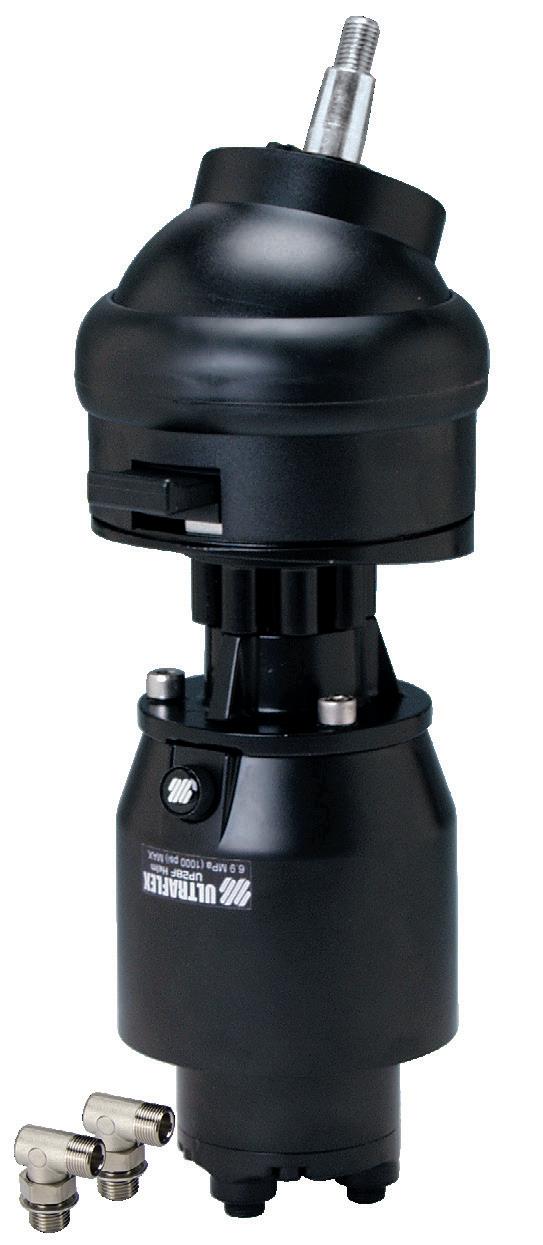

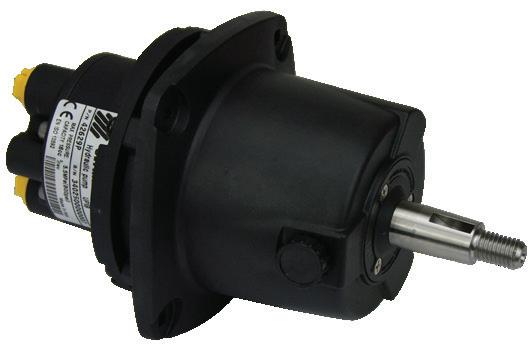

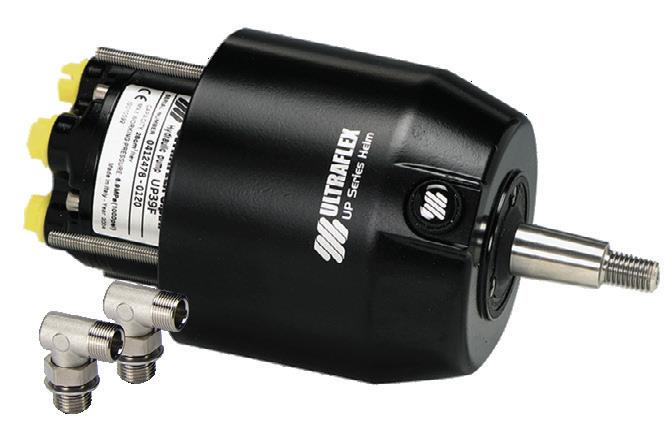

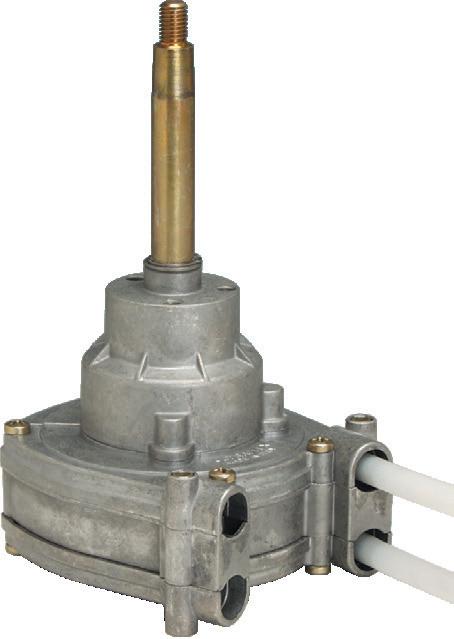

HELM PUMPS

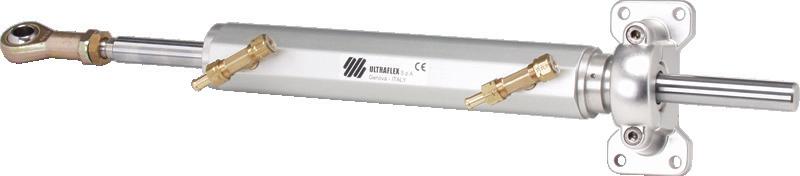

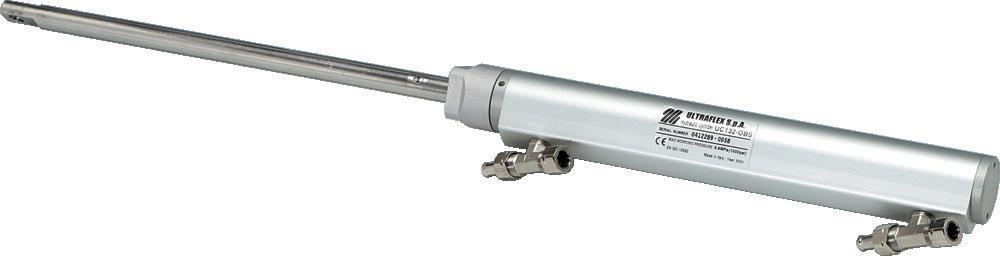

CYLINDERS

ULTRAFLEX®

TELEFLEX®

ULTRAFLEX®

TELEFLEX®

UC68-OBS

UP18

BayStar™ HH4311

UP39 R

Seastar™ 2.4 HH5262

UC132-OBS

Seastar™ HC5370/5328

UP20 F

BayStar™ HH4314

UP28 F-SVS

Seastar™ PRO - HH5779

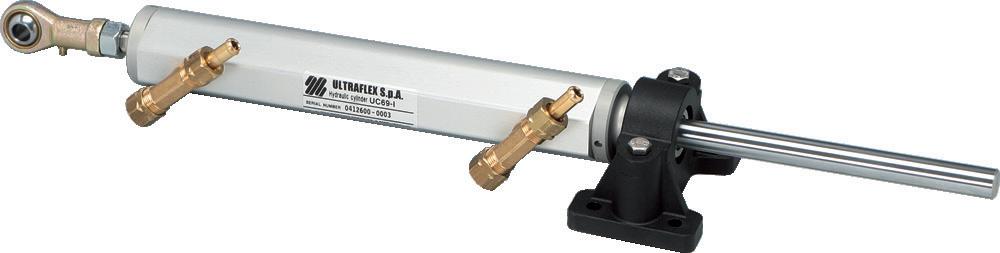

UC69-I

Baystar™ HC4461-3

UP20 T

BayStar™ HH4315

UP28 T-SVS

Seastar™ PRO – HH6573

UC116-1

Seastar™ HC5312

UP25 F

Seastar™ 1.4 HH5269

UP33 F-SVS

Seastar™ PRO - HH5770

UC168-I

Seastar™ HC5314

UP25 T

Seastar™ 1.4 HH6544

UP33 T-SVS

Seastar™ PRO – HH6574

UC215-I

Seastar™ HC5319

UP28 F

Seastar™ 1.7 HH5271

UP39 F-SVS

Seastar™ PRO - HH5772

UC293-I

UP28 T

Seastar™ 1.7 HH6541

UP39 T-SVS

Seastar™ PRO - HH6188

UC378-I

UP 28 R

Seastar™ 1.7 HH5261

UP33 F

Seastar™ 2.0 HH5273

ULTRAFLEX®

TELEFLEX®

UP33 T

Seastar™ 2.0 HH6543

UC81-OBF

UP33 R

UC95-OBF

Baystar™ HC4645

UP39 F

Seastar™ 2.4 HH5272

UC128-OBF

Seastar™ HC5345

UP39 T

Seastar™ 2.4 HH6542

UC130-SVS

Seastar™ HC6345

CYLINDERS

www.samallen.com.au

How To Select An Outboard Hydraulic Steering System Suggestions & Warnings OUTBOARD CYLINDERS Maximum Power Rating Applicable Double Engine Single Cylinder

Cylinder Model

Double Engine Double Cylinder

Single Engine Single Cylinder Non Counter Rotating Propellers

Counter Rotating Propellers

Non Counter Rotating Propellers

Counter Rotating Propellers

Max Hp Power

UC81-OBF

115

not applicable

UC95-OBF

175

not applicable

UC128-OBF

300

500

600

UC130-SVS

350

600

700

UC132-OBS

250

300

STEERING WHEEL TURNS - Single Cylinder Cylinder Model

UP18 18cc

UP20 20cc

UP25 25cc

UP28 28cc

UP33 33cc

UP 39 39cc

UP28-SVS 28cc

UP33-SVS 33cc

UP39-SVS 39cc

UC81-OBF

4.5

UC95-OBF

4.7

UC128-OBF

5.1

4.3

3.6

3.1

UC130-SVS

4.6

3.9

3.3

UC68-OBS

3.4 / 5.0

UC132-OBS*

5.6 / 6.9

4.7/5.8

4.0/4.9

3.4/4.2

UC133-IOB

5.6

4.7

4.0

3.4

Steering & Controls

WARNING: These recommendations should be used as a general reference only. Final selection should be made with the assistance of a qualified installation technician. For any further information please contact our Sam Allen Wholesale Sales Team.

Recommended * Unbalanced cylinder - the number of turns lock to lock in not equal

STEERING WHEEL TURNS - Double Cylinder Cylinder Model

UP28 28cc

UP33 33cc

UP 39 39cc

UP33-SVS 33cc

UP39-SVS 39cc

UC128-OBF

7.3

6.2

UC130-SVS

7.9

6.7

UC132-OBS*

8.0 / 9.8

6.8 / 8.4

UC133-IOB

8.0

6.8

Recommended * Unbalanced cylinder - the number of turns lock to lock in not equal

www.samallen.com.au

660

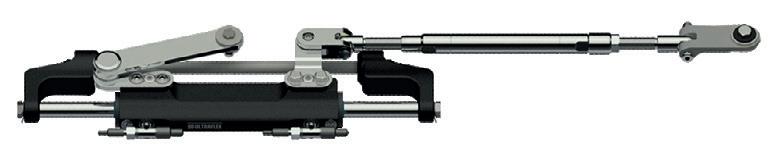

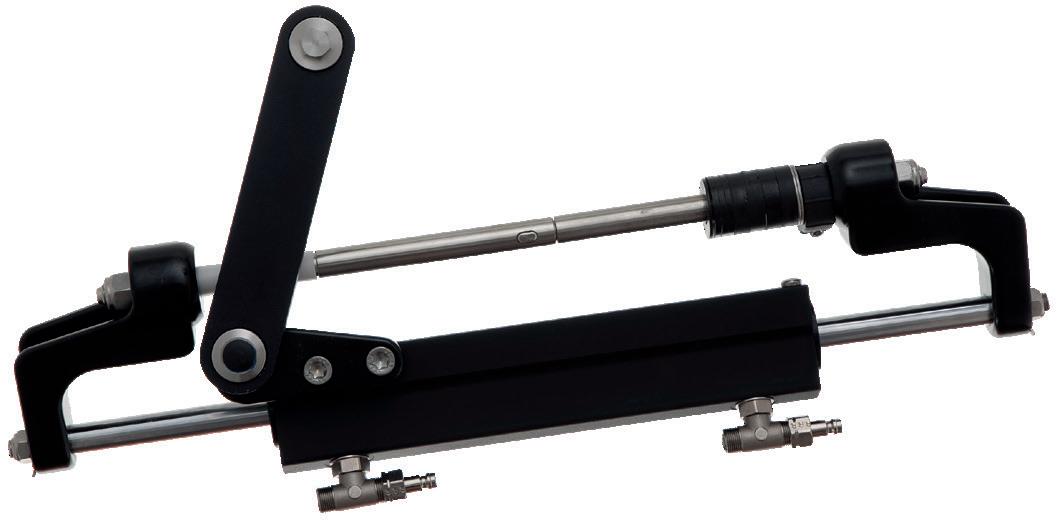

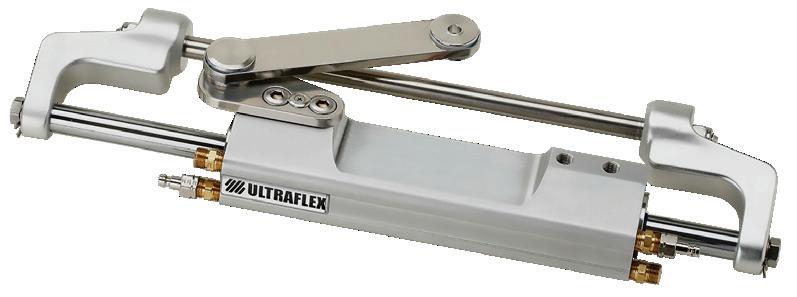

Outboard Hydraulic Steering System Single Station / Single Cylinder

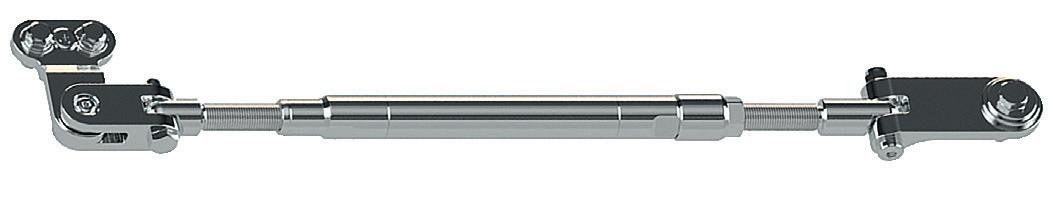

Single Station / Dual Cylinder with Tiebar

5 3

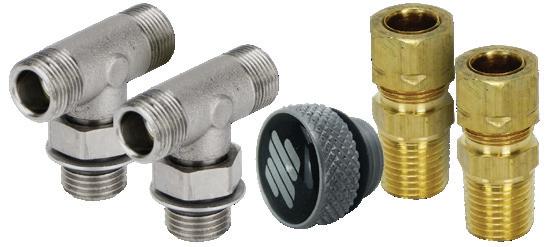

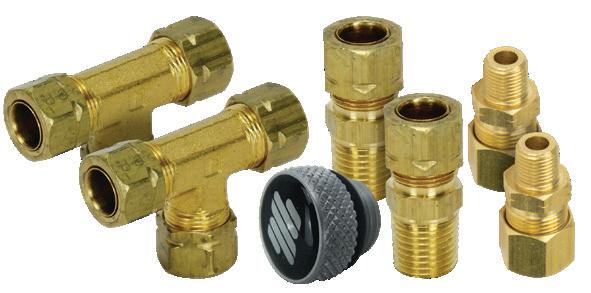

1. Helm 2. Starboard cylinder 3. Port cylinder 4. “T” ﬁ�ngs 5. Bleed valves 6. Tie bar 7. Kit OB-2C (Kit OB-2C-SVS for SilverSteer™)

Steering & Controls

1. Helm 2. Starboard cylinder 3. Bleed valves

Dual Station / Single Cylinder

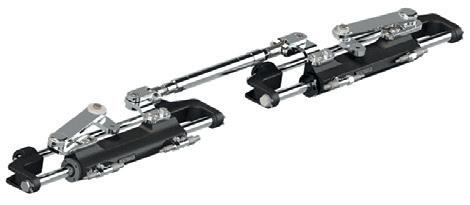

Dual Station / Dual Cylinder with Tiebar

7 4

3 6

1. Upper station helm 2. Lower station helm 3. Starboard cylinder 4. Bleed valves 5. Kit OB-2S

661

1. Upper station helm 2. Lower station helm 3. Starboard cylinder 4. Port cylinder 5. “T” ﬁttings 6. Bleed valves 7. Tie bar 8. Kit OB-2C (Kit OB-2C-SVS for SilverSteer™) 9. Kit OB-2S

www.samallen.com.au

115HP Gotech Hydraulic Steering Kits Hydraulic Steering Kit - 115HP Gotech - UC81-OBF

Up to 115HP

The UltraFlex® Gotech Steering Kit is designed for outboard engines up to 115HP. It includes a Front Mount Cylinder, Helm Pump, hydraulic oil and premium heavy-duty HiFlex QuickFit hose, everything for a simple installation*. • For outboard engines rated up to 115HP. • Zero feedback for super smooth steering. • 4.5 turns lock to lock, balanced. • Heavy-duty QuickFit HiFlex hose and fittings included.

Cylinder Reference Type:

NOTE: Steering wheels not included in kits.

Cylinder

Helm/ Turns

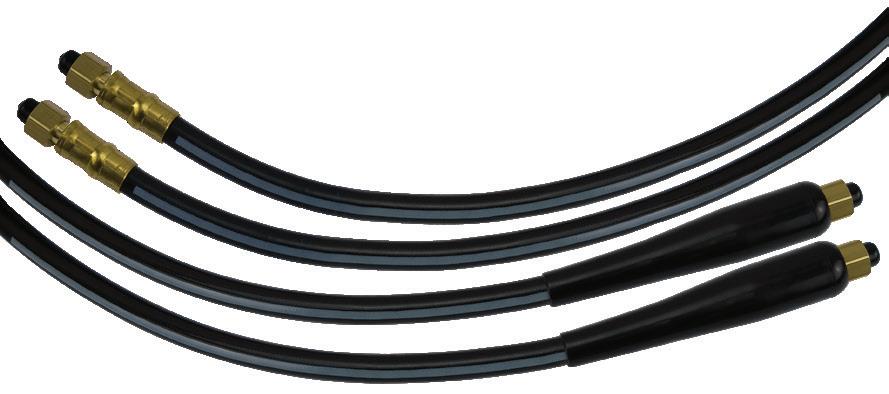

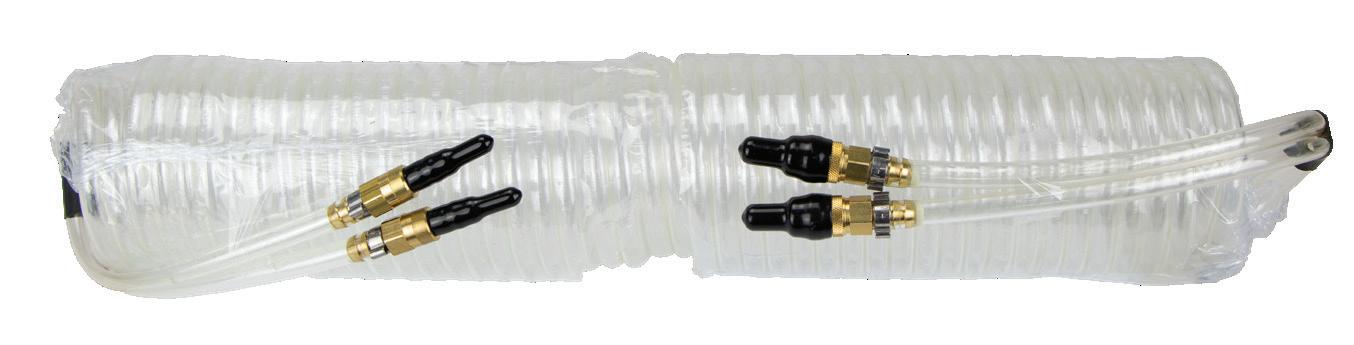

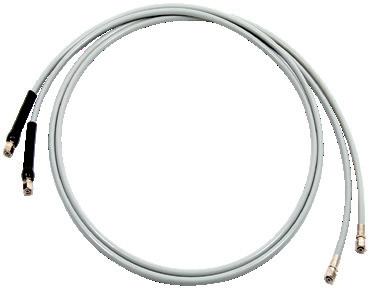

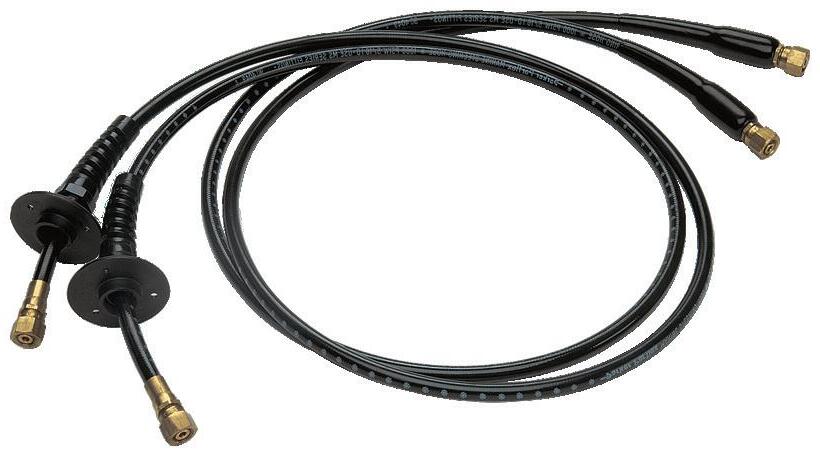

Hose Type & Length (m)

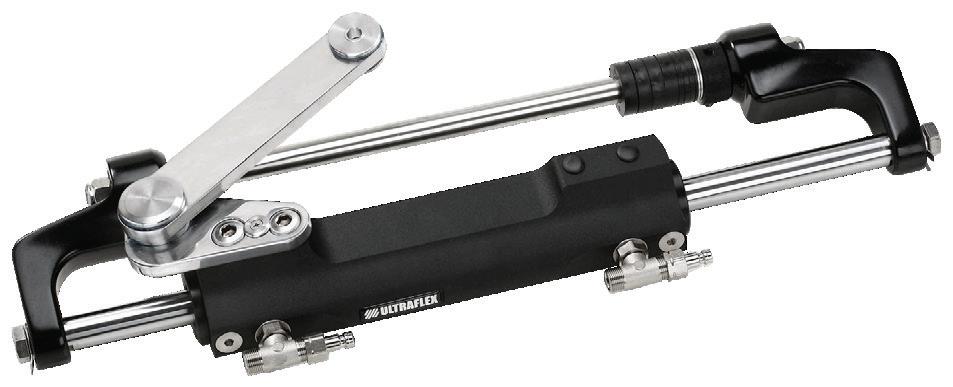

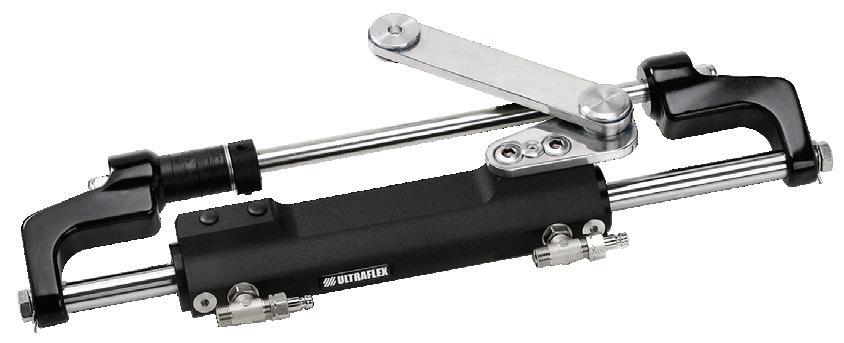

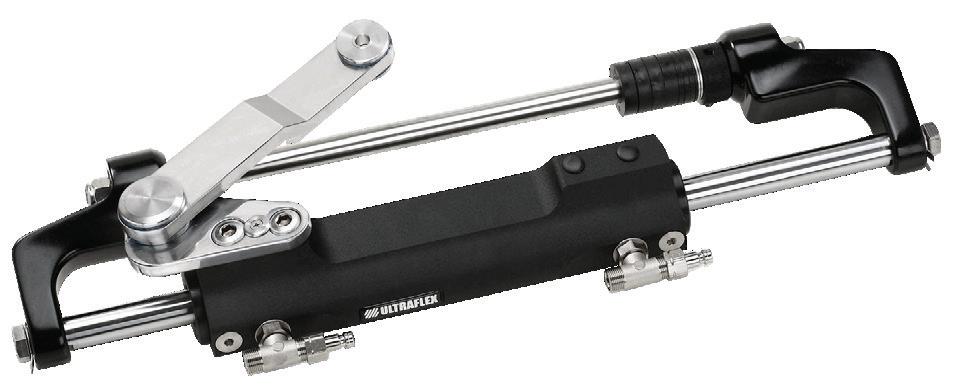

Front Mount UC81-OBF/1 83917

4.5 Turns UP18 83918

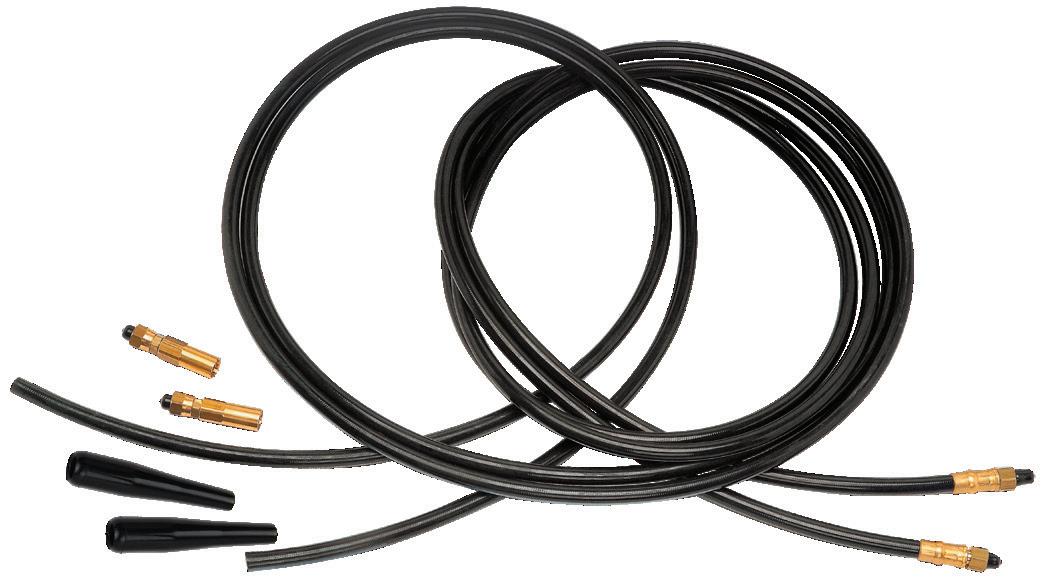

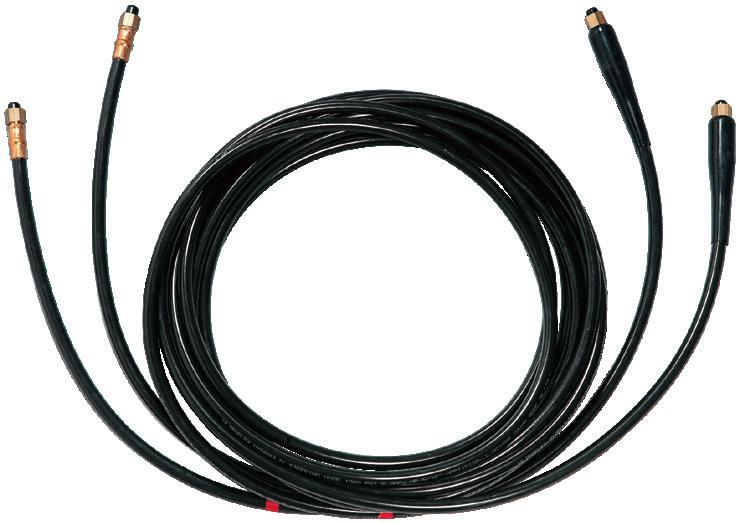

QuickFit 2 x 6 Metre 84163

Description

Hydraulic 83918/1 Gotech Steering Kit 83917

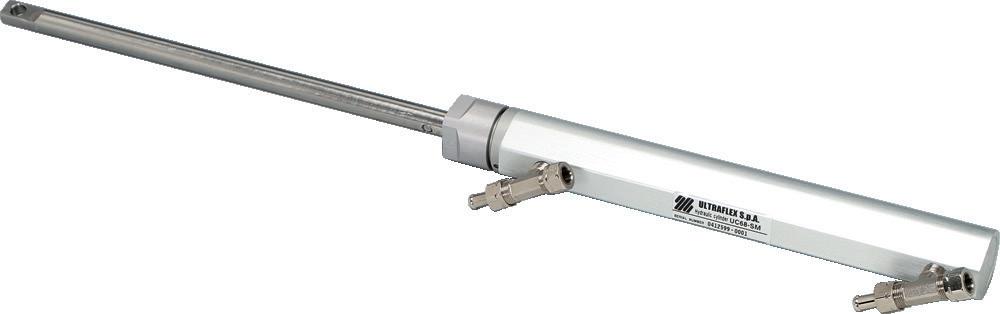

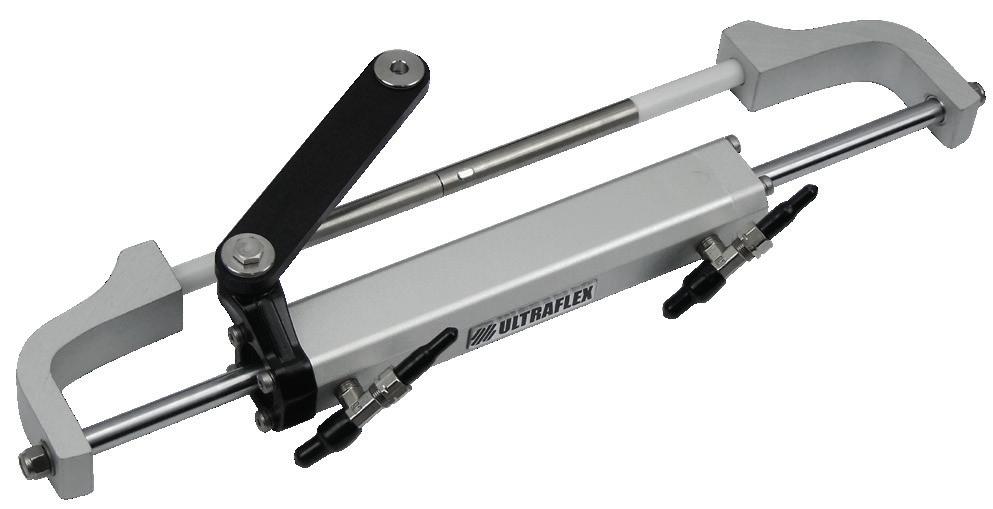

UC81-OBF Front Mount Cylinder Only

83918

UP18 Front Mount Helm Pump Only

84163

QuickFit 6 Metre Gotech Hoses - Pair

Kit Ref.

83917

Kit Contains: 1 x 83917 - UC81-OBF front mount cylinder (Refer to chart below). 1 x 83918 - UP18 front mount helm pump 18cc. 2 x 84115 - 1 litre hydraulic oil. 1 x 84163 - 6m (19.7") x 1/4" I.D. hoses, pre-assembled at one end and QuickFit Brass Connectors - Pair.

84115

NOTE: *Suzuki® DF100-115 4T engines built from 1998 to 2008 installing UC81-OBF cylinder require 83919 kit page 700.

Steering & Controls

Part No.

83917

83918

Splashwell Minimum Dimension Requirements A

590 mm - 23.23”

152 mm - 5.98”

152 mm - 5.98"

Rear View

Heavy-duty hose and fittings

Side View Splashwell

84163

Transom

C Transom

Engine Guide forView Gotech Hydraulic Steering Kit Rear

Engine Guide for Gotech Hydraulic Steering Kit

Engine

A POWER

Year

Evinrude®

E40-E50-E55-E60 2S C E75-E90 2S E115 2S V4Transom

2004-2020 2004-2020 1995-2020

UC81-OBF/1 83918/1

Honda®

BF40-50-60-75-90 4S 1995 to date Side View BF115D 1998-2009 BF115A 2009 to date Splashwell BF90 V-TEC 4S C 2008 to date

UC81-OBF/1 83918/1

Johnson®

BJ90-115 4S BJ60-70 4S J90-115 V4 2S B

Mercury® Mariner®

Cylinder

Kit

Kit Ref

Engine

Selva®

POWER

40XS-50 Madeira 2S 40XS-50 Bull shark 2S 40XS-60 Grey shark 2S 40XS-70 Mako Shark 2S 40XS-60 St.Tropez 2S 80 Portofino/Tigershark 2S 25 Kingfish 4S 40 Aruana 4S 40XS-40XSR-50-60 Dorado EFI 4S 40XSR EFI Murena 4S 80XS-100-100XSR EFI Marlin 4S 115-115XSR EFI Tarpon 4S 115 EFI Narwhal 4S DF40-50-60-70-80-90 4S DF100-115 4S DF100-115 4S NEW MODEL

Year

1995 to date

Cylinder

Kit

Kit Ref

UC81-OBF/1 83918/1

2001-2007 2001-2007 Transom1995-2007

UC81-OBF/1 83918/1

50 – 75 – 90 2S 115 EFI 2S 75 – 90 – 115 Optimax 2S 40 – 50 – 60 EFI 4S 75 – 80 – 90 EFI 4S 100 – 115 EFI 4S

1990-2008 1990-2007 2004-2018 2004-2018 2000 to date 2007 to date

UC81-OBF/1 83918/1

Neander Shark®

DTORQUE 111

2020 to date

UC81-OBF/1 83918/1

Nissan® Tohatsu®

75-115 2S 40-50-60-70-90-115 TLDI 4S BFT 60-75-80-90-100 4S BFT 115 4S 40-50-60-70-90 2S MFS 50-60-75-90-100-115 4S

2004 to date 2004 to date 2015 to date 2015 to date 2004 to date 2018 to date

UC81-OBF/1 83918/1

Parsun®

F40 - F50 - F60

2007 to date

UC81-OBF/1 83918/1

* Suzuki® DF100-115 4T engines built from 1998 to 2008 installing UC81-OBF cylinder require 83919 kit.

PureCraft®

50 HP

2020 to date

UC81-OBF/1 83918/1

Single engine up to 115 hp and where the boat speed does not exceed 45 mph (40 knots)

Suzuki®

Torqueedo® Deep Blue 25, 50

Yamaha®

www.samallen.com.au

60-70 2S 75C-90 2S 115C 2S F40G-F70 4S F30-F40-F60-F75-F80 EFI 4S F90-F100-F115 EFI 4S F115 F80-F100 4S F40D-F50F-F60C EFI 4S

2000 to date 1998 to date 1998-2008 2008 to date

UC81-OBF/1 83918/1

2022 to date

UC81-OBF/1 83918/1

1984-2008 1998-2008 1990-2008 2010 to date 1999-2007 1999-2007 2004 to date 1999-2007 2000 to date

UC81-OBF/1 83918/1

662

175HP Hytech Hydraulic Steering Kits Hydraulic Steering Kits - 175HP Hytech - UC95-OBF

Up to 175HP Cylinder Reference Type:

The UltraFlex® Hytech Steering Kits are designed for outboard engines rated up to 175HP. Constructed from high grade materials and features the Patented split pinned mounting rod and bushings for easy installation preventing friction with the engine tilt tube. All Hytech Steering Kits come standard with a Front Mount Cylinder, Helm pump and hydraulic oil. • For outboard engines rated up to 175HP. • Zero feedback for super smooth steering. • 4.7 turns lock-to-lock, balanced. • Adjustable slip nut style fittings for easy installation. • High resistance stainless steel connection bolt (ULTRABOLT). • Replaceable cylinder end caps. • Steering wheels not included in kits.

Type 1 - 83994/1

Kits are Available in 2 Options:

A Hydraulic Steering Kits with Hose (see below). B Hydraulic Steering Kits without Hose (see opposite page).

A Hydraulic Steering Hytech Kits - QuickFit Hose Kit

4.7 Wheel Turns

Kit No.

Description

Steering & Controls

Hytech-OBF 83995/1 Hydraulic Steering Type 1 Hytech-OBF 83997/1 Hydraulic Steering Type 1

Helm Turns

Hose Type & Length (m)

Front Mount UC95-OBF/1 83994/1 Front Mount UC95-OBF/1 83994/1

4.7 Turns UP20F 83920 4.7 Turns UP20F 83920

QuickFit Kit OB 2 x 6 Metre 84186 QuickFit Kit OB 2 x 9 Metre 84187

Kit Ref.

83994/1 UC95-OBF/1 Front Mount Cylinder Only 83994/1

n ed Desig v o r p m I

83920

84115

83920

UP20F Front Mount Helm Pump Only

84186

QuickFit Kit 2 x 6 Metre OB Hose

84187

QuickFit Kit 2 x 9 Metre OB Hose

Kits Contains: 1 x 83994/1 - UC95-OBF Front Mount Cylinder (Refer to "Engine Guide" chart on opposite page*). 1 x 83920 - UP20F Front Mount 20cc Helm Pump. 2 x 84115 - 1 litre hydraulic oil. 1 x 84186 - QuickFit OB-M Hose Kit Hose Kit Contains: Two 5/16" I.D. (1000psi) 6 metre hoses with precrimped Brass Fittings at one end. Supplied with two QuickFit Brass Connectors and two Bend Restrictors. or 1 x 84187 - QuickFit OB-M Hose Kit Hose Kit Contains: Two 5/16" I.D. (1000psi) 9 metre hoses with precrimped Brass Fittings at one end. Supplied with two QuickFit Brass Connectors and two Bend Restrictors.

QuickFit se Kit B-M Ho O it F k Quic

84186 / 84187

663

Cylinder

www.samallen.com.au

175HP Hytech Hydraulic Steering Kits B Hydraulic Steering Hytech Kit without Hose Kit No.

Description

Hydraulic 83996/1 Hytech-OBF Steering Kit Type 1

4.7 Wheel Turns

Kit Ref.

Cylinder

Helm

Front Mount UC95-OBF/1 83994/1

4.7 Turns UP20F 83920

83994/1 UC95-OBF/1 Front Mount Cylinder Only 83920

UP20F Front Mount Helm Pump Only

Kits Contains: 1 x 83994/1 - UC95-OBF Front Mount Cylinder (Refer to Outboard Engine Guide on page 664). 1 x 83920 - UP20F Front Mount 20cc Helm Pump. 2 x 84115 - 1 litre hydraulic oil.

83994/1

NOTE: Refer to "Hydraulic Tubing, Hose & Connectors" on page 684.

n ed Desig Improv

Splashwell Minimum Dimension Requirements

84115

No. of Engines

540mm - 21.25"

152mm - 5.98"

Steering & Controls

Splashwell

Transom

76 mm

Side View

Rear View

83920

Transom 550 mm

Rear View

A Guide for Hytech Hydraulic Steering Kit *Engine ENGINE

ENGINE MODEL HP

*Engine Guide for Hytech Hydraulic Steering Kit

YEAR

P/N

2004 - 2020 2004 - 2020 1995 - 2020 1995 - 2020

83994/1* 83994/1* 83994/1* 83994/1*

1995 to date 2009 to date 2005 to date 2001 to date

83994/1 83994/1 83994/1 83994/1

2001 - 2007 2001 - 2007 1995 - 2007 1995 - 2007

83994/1 83994/1* 83994/1* 83994/1*

100 - 115 - 150 EFI 2S Transom 50 - 75 - 90 2S 75-90-115 Optimax 2S Mercury® 125 - 135 - 150 - 175 Optimax 2S Mariner® 40 - 50 - 60 EFI 4S 75 - 80 - 90 EFI 4S / PRO XS / SEAPRO 100 - 115 - 150 EFI 4S / PRO XS / SEAPRO 175 - V6 4S / SEAPRO

1991-2007 1990-2008 2004-2018 1999-2018 2004 to date 2000 to date 2007 to date 2018 to date

83994/1 83994/1 83994/3 83994/1 83994/1 83994/1 83994/1 83994/1

Neander DTORQUE 111 Shark®

2020 to date

83994/1

Parsun®

2007 to date

83994/1

E40 - E50 -CE55 - E60 2S - E90 2 Stroke Evinrude® E75 Transom E115 - E130 - E135 2 Stroke V4 E150 - 175 2 Stroke V6 Honda®

BF75 - 80 - 90 - 100 4S BF115A 4S Side View BF135 - 150 4S BF175Splashwell - 4S

BJ90 - 115 - 140 4S 4S Johnson® BJ70 J90 - 115 V4 2S J150 - 175 V6 2S

F60 - F85 - F115

Kit Ref.

ENGINE

ENGINE MODEL HP

80 Portofino/Tigershark 2S WHITE SHARK 2S Selva® 150 100EFI Marlin - 115 EFI Narwhal 100 - 150EFI Killer Whale 4S DF70 - 80 - 90 4S *Suzuki® DF100 - 115 - 140 4S DF150 - 175 4S 115 - 120 - 140 2S 70 - 90 - 115 TLDI 4S Tohatsu® BFT60 - 75 - 90 - 100 4S Nissan® BFT115 - 150 4S MFS 50 - 60 - 75 - 90 - 100 - 115 4S 60 - 70 2S 75C - 90 2S 115C - 130B - 150F 2S Yamaha® 150 - 175 HPDI VMAX 2S F60 - F75 - F80 EFI 4S F90 - F100 - F115 F150 EFI 4S F115 - F150 - F175 L4 4S

YEAR

P/N

1995 - 2008 2001 - 2007 2001 - 2007 2000 to date 1998 to date 2008 to date 2006 to date 2004 to date 2004 to date 2015 to date 2015 to date 2018 to date 1984 - 2008 1998 - 2008 1990 - 2008 2000 - 2007 1999 - 2007 1999 - 2007 2004 to date

83994/1 83994/1* 83994/1* 83994/1 83994/1* 83994/1 83994/1 83994/1* 83994/1 83994/1 83994/1 83994/1 83994/1 83994/1* 83994/1* 83994/1* 83994/1 83994/1 83994/1

Kit Ref.

*Suzuki® engines built from 1998 to 2008 installing 83994/1 cylinder require optional KIT SU - 83919 WARNING: The UC95-OBF (83994/1) front mount cylinder is recommended for use with outboard engines 175 hp total and less and where the boat speed does not exceed 55 mph (48 knots).

www.samallen.com.au

664

300HP Nautech 1 Hydraulic Steering Kits Hydraulic Steering Kits - 300HP Nautech 1 - UC128-OBF

Up to 300HP

n ed Desig Improv Cylinder Reference Type:

The UltraFlex® Nautech Steering Kits are designed for outboard engines rated up to 300HP. Constructed from high grade materials and features the Patented split pinned mounting rod and bushings for easy installation to prevent friction with the engine tilt tube. All Nautech 1 Steering Kits come standard with a Front Mount Cylinder, Helm and hydraulic oil. • Rated for outboard engines up to 300HP. • Zero feedback for super smooth steering. • 4.3 turns lock to lock balanced. NOTE: Steering wheels not included in kits. Available in 2 Options:

83913/1

83913/2 83913/2

83913/3

A Hydraulic Steering Kits without Hose. B Hydraulic Steering Kits with Premium Heavy-duty QuickFit Hose.

A Hydraulic Steering Kits - Nautech 1 without Hose

4.3 Wheel Turns

Kit No.

Steering & Controls

83913/1

84115 83928

Description

Cylinder

Helm

Front Mount UC128-OBF/1 83913/1 Front Mount UC128-OBF/2 83913/2 Front Mount UC128-OBF/3 83913/3

4.3 Turns UP28F 83928 4.3 Turns UP28F 83928 4.3 Turns UP28F 83928

83915/1

Nautech 1 Hydraulic Steering Kit Type 1

83915/2

Nautech 1 Hydraulic Steering Kit Type 2

83915/3

Nautech 1 Hydraulic Steering Kit Type 3

83913/1

UC128-OBF/1 Front Mount Cylinder Only

83913/2

UC128-OBF/2 Front Mount Cylinder Only

83913/3

UC128-OBF/3 Front Mount Cylinder Only

83928

UP28F Front Mount Helm Pump Only

Kit Ref.

Kits Contains: 1 x UC128-OBF Front Mount Cylinder (See "Engine Guide" on opposite page). 83913/1 - UC128-OBF/1 83913/2 - UC128-OBF/2 83913/3 - UC128-OBF/3 1 x 83928 - UP28F Front Mount 28cc Helm Pump. 2 x 84115 - 1 litre hydraulic oil. NOTE: *Refer to "Hydraulic Quickfit Hose Kits" on page 681.

B Hydraulic Steering Kits - Nautech 1 QuickFit Hose Kits

4.3 Wheel Turns

Kit No.

83983 83982

83913/1

84115

83928

QuickFit e Kit -M Hos B O it F Quick

84186 / 84187

665

Description

Nautech 1 Hydraulic Steering Kit Type 1 Nautech 1 Hydraulic Steering Kit Type 1

Cylinder

Helm

Hose Type & Length (m)

Kit Ref.

Front Mount 4.3 Turns QuickFit UC128-OBF/1 UP28F 2 x 6 Metre 83913/1 83928 84186 Front Mount 4.3 Turns QuickFit UC128-OBF/1 UP28F 2 x 9 Metre 83913/1 83928 84187

83913/1

UC128-OBF/1 Front Mount Cylinder Only

83928

UP28F Front Mount Helm Pump Only

84186

QuickFit 6 Metre Hose Kit Only

84187

QuickFit 9 Metre Hose Kit Only

Kits Contains: 1 x 83913/1 - UC128-OBF/1 Front Mount Cylinder (See "Engine Guide" on facing page). 1 x 83928 - UP28F Front Mount 28cc Helm Pump. 2 x 84115 - 1 litre hydraulic oil. 1 x 84186 - QuickFit 6 metre Hose Kit Hose Kit Contains: Two 5/16" I.D. 6 metre hoses with pre-crimped Brass Fittings at one end. Supplied with two QuickFit Brass Connectors and two Bend Restrictors. or 1 x 84187 - QuickFit 9 metre Hose Kit Hose Kit Contains: Two 5/16" I.D. 9 metre hoses with pre-crimped Brass Fittings at one end. Supplied with two QuickFit Brass Connectors and two Bend Restrictors.

www.samallen.com.au

300HP Nautech 1 Hydraulic Steering Kits Hydraulic Steering Kits - Nautech 1 QuickFit Hose Kits

Description

Cylinder

Helm

Hose Type & Length (m)

83986

Nautech 1 Hydraulic Steering Kit Type 2

Front Mount UC128-OBF/2 83913/2

4.3 Turns UP28F 83928

QuickFit 2 x 6 Metre 84186

83984

Nautech 1 Hydraulic Steering Kit Type 2

Front Mount UC128-OBF/2 83913/2

4.3 Turns UP28F 83928

QuickFit 2 x 9 Metre 84187

83913/2

UC128-OBF/2 Front Mount Cylinder Only

83928

UP28F Front Mount Helm Pump Only

84186

QuickFit 6 Metre Hose Kit Only

84187

QuickFit 9 Metre Hose Kit Only

Kit No.

Kit Ref.

83913/2

Kits Contains: 1 x 83913/2 - UC128-OBF/2 Front Mount Cylinder (See "Engine Guide" below). 1 x 83928 - UP28F Front Mount 28cc Helm Pump. 2 x 84115 - 1 litre hydraulic oil. 1 x 84186 - QuickFit 6 metre Hose Kit Hose Kit Contains: Two 5/16" I.D. (1000psi) 6 metre hoses with precrimped Brass Fittings at one end. Supplied with two QuickFit Brass Connectors and two Bend Restrictors. or 1 x 84187 - QuickFit 9 metre Hose Kit Hose Kit Contains: Two 5/16" I.D. (1000psi) 9 metre hoses with precrimped Brass Fittings at one end. Supplied with two QuickFit Brass Connectors and two Bend Restrictors.

560 mm 22.05" 1110mm 43.70"

83928

84115

QuickFit e Kit -M Hos B O it F Quick

84186 / 84187

For Additional Station Add:

Splashwell Dimension Requirements No. of Engines

4.3 Wheel Turns

152mm - 5.98"

1 x 83928 - Helm Pump. 1 x 84120 - Fitting kit. 1 x 84115 - 1 litre hydraulic oil.

*NOTE: For twin engine applications, the minimum distance between the two engine centres is 550 mm (21.6") Rear View

A C

Cylinder Reference Type:

Side View Splashwell

Transom

C Transom

83913/1

Engine Guide Rear View for Nautech Cylinders - UC128-OBF Engine

Evinrude®

Honda®

Johnson®

Mercury® Mariner®

Selva®

Suzuki®

A ENGINE MODEL HP

E75 - E90C2S E115 - E130 - E135 2S V4 Transom E150 - E175 - E200 - E225 - E250 - E300 2S V6 BF75 - BF90Side 4S View BF115 - BF130 4S BF135Splashwell - BF150 4S C BF150 V-TEC 4S BF175 - BF200 - BF225 - BF250 4S BJ90 - 115 - 140 4STransom B V4 2S J90 - 115 J150 - 175 V6 2S J200 - 225 V6 4S 115 - 125 - 150 EFI 2S 225 - 250 EFI 2S 75 - 90 - 115 OPTIMAX 135 - 150 - 175 OPTIMAX 200 - 225 - 250 OPTIMAX RACING 300 OPTIMAX 100 - 115 EFI 4S 250 SALTWATER EFI 4S 135 - 150 - 175 - 200 VERADO L4 FOURSTROKE / PRO XS 175-200 V6 FOURSTROKE / PRO XS 225-300 V8 80 PORTOFINO / TIGERSHARK 2S 150 WHITE SHARK 2S 100EFI MARLIN - 115 EFI NARWHAL 225 BEAKED WHALE 4S 100 - 150EFI KILLER WHALE 4S 200 SEI WHALE 4S DF70 - DF80 - DF90 4S DF100 - DF115 - DF140 4S DF150 - DF175 - DF200 L4 4S DF200 - DF225 - DF250 - DF300 V6 4S

Year

2004 to date 1995 - 2020 1995 - 2020 1995 to date 1998 to date 2005 to date 2008 to date 2001 to date 2001 - 2007 1995 - 2007 1995 - 2007 2004 - 2007 1990 - 2007 2000 - 2007 2004 - 2018 1999 - 2018 1999 - 2018 1999 - 2011 2007 to date 2007 - 2011 2004 - 2012 2018 to date 2018 to date 1995 - 2008 2001 - 2007 2000 to date 2019 to date 2000 to date 2000 to date 1998 to date 2008 to date 2006 to date 2004 to date

83913/2

Steering & Controls

83913/3

Engine Guide for Nautech Cylinders - UC128-OBF

Cylinder Kit Ref.

Engine

ENGINE MODEL HP

Year

83913/2 83913/2 83913/2 83913/1 83913/3 83913/1 83913/1 83913/1 83913/1 83913/2 83913/2 83913/2 83913/1 83913/1 83913/3 83913/1 83913/1 83913/1 83913/1 83913/1 83913/1 83913/1 83913/1 83913/1 83913/2 83913/2 83913/2 83913/1 83913/1 83913/2 83913/1 83913/1 83913/2

115 - 120 - 140 2S - 90 - 115 TLDI 4S Tohatsu® 70 50 - 60 - 75 - 90 - 100 - 115 4S Nissan® MFS BFT 115 - 150 - 200 - 225 - 250 4S BFT60 - 75 - 80 - 90 - 100 4S

2004 to date 2004 to date 2018 to date 2014 to date 2015 to date

83913/2 83913/1 83913/1 83913/1 83913/1

115C - 130B 2S 75C - 90 2S F70 4S 150F - 200F - 250G 2S 150 HPDI VMAX 2S Yamaha® 175 - 200 - 225 - 250 - 300 HPDI VMAX 2S F115 - F150 EFI 4S F200 - F225 - F250 4S F115 - F130 - F150D - F150F - F175A - F200F - F200G L4 F200 - F225 - F250 - F300 V6 4S

1990 - 2008 1998 - 2008 2010 to date 1990 - 2008 1996 - 2007 2000 - 2008 2000 - 2008 1999 - 2007 2002 to date 2002 to date 2004 to date

83913/2 83913/2 83913/1P 83913/2 83913/2 83913/2 83913/2 83913/2 83913/1 83913/1 83913/2

OXE®

125 - 150 - 175 - 200HP DIESEL 300HP DIESEL

2018 to date 2020 to date

83913/1 83913/1

COX®

300HP

2020 to date

83913/2

Neander DTORQUE 111 Shark®

2018 to date

83913/1

Parsun®

2023 to date

83913/2

F300

Cylinder Kit Ref.

NOTE: Suzuki® engines built from 1998 to 2008 installing UC128 - OBF/1 cylinder require optional 83919 For higher horsepower applications, high performance SilverSteer™ cylinder is recommended. WARNING: These recommendations should be used as a general reference only. Final selection should be made with the assistance of a qualified installation technician. For any further information please contact The Sam Allen Wholesale Sales Team.

www.samallen.com.au

666

Twin Engine Single Cylinder Universal Kit A88 Universal Tie Bar

Hydraulic Steering Kits - Twin Engine Single Cylinder - Mechanical Tie Bar Kit No.

84551 84552

Description

Cylinder

Twin Engine Single Cylinder - A88 Tie Bar - Hydraulic Steering Kit Type 1 Twin Engine Single Cylinder - A88 Tie Bar - Hydraulic Steering Kit Type 2

83913/1 Front Mount UC128-OBF/1 83913/2 Front Mount UC128-OBF/2

Helm

Hose

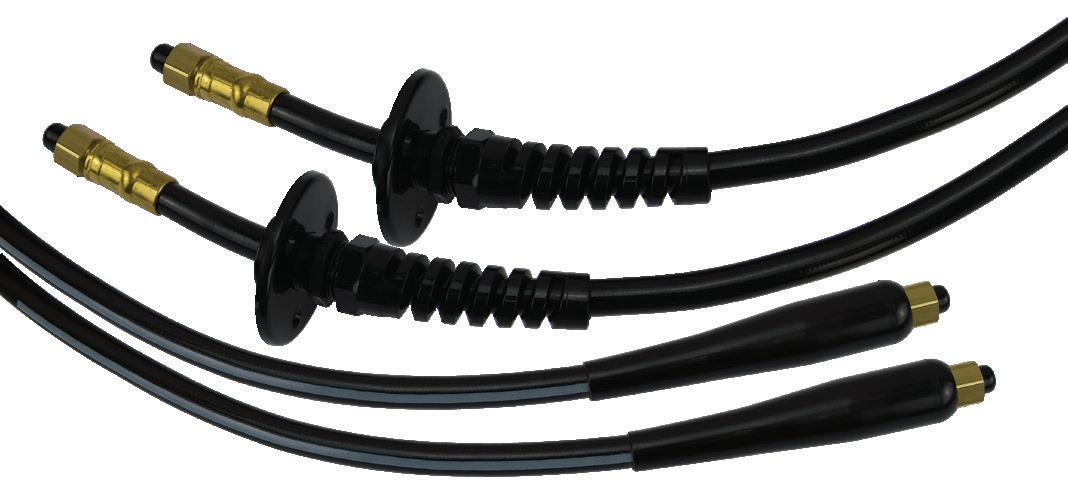

Bulkhead Bend Restrictors

83928 - UP28F 4.3 Turns

84187 - QuickFit KIT OB/M Hose 2 x 9 Metre Pair 84187 - QuickFit KIT OB/M Hose 2 x 9 Metre Pair

84119 - Bulkhead Mounted Bend Restrictors 84119 - Bulkhead Mounted Bend Restrictors

83928 - UP28F 4.3 Turns

Kit Ref.

Tie Bar

84188 - A88 Universal Tie Bar 84188 - A88 Universal Tie Bar

A Twin Engine Single Cylinder setup using a universal mechanical Tie Bar to connect both engines. This configuration does not allow independent engine tilting. Suitable for engines up to 300 hp (non-counter-rotating) or up to 500 hp (counter-rotating). Refer to the cylinder chart on page 675 to ensure your boat engine’s make and model match the correct cylinder. To suit older generation engines.

83913/1

84551 Kit Includes: 1 x Front Mount Cylinder 83913/1 (see Option 1) 84552 Kit Includes: 1 x Front Mount Cylinder 83913/2 (see Option 2)

QuickFit se Kit B-M Ho O it F k Quic

Steering & Controls

84551 and 84552 Kits include: • 1 x 83928 - UP28F Front Mount 28cc Helm Pump. For further helm information, see page 692. • 1 x 84187 - QuickFit KIT OB/M Hose - 2 x 9.0 Metre. For further hose information, see page 682. • 2 x 84119 - Bulkhead Mounted Bend Restrictors (Pigtails). • 2 x 84115 - 1 litre hydraulic oil. • 1 x 84188 - A88 Universal Tie Bar - Adjustable 650 to 950 mm engine centres. Does not allow tilting independently. For more Tie Bar information, see page 685.

83928

84187

*WARNING: On those applications where the clearance between engine tiller arms and cowling is not sufficient for the use of the A88, the A96 Tie Bar is recommended. NOTE: These recommendations are a general reference only. For any further information please contact the Sam Allen Wholesale Sales Team.

84119

84188

84115

Option 1

Option 2

83913/2 83913/2

83913/1

System

Cylinder Reference Type: Refer to the “Engine Guide for UC128-OBF Cylinders” on page 675 to match the correct cylinder to your engine model. Applications

Wheels Turn

Twin Engine Single Cylinder Up to 300 hp max (non-counter rotating engine)

4.3 (UP28F)

Components

Part No.

Model

Quantity

Cylinder

83913/1 or 83913/2

UC128-OBF/1 or UC128-OBF/2

Helm pump

83928

UP28F

Hose Kit

84187

KIT OB/M

Oil

84115

OL 150

Tie bar

84188

A88

Bulkhead Bend Restrictors

84119

Pigtails

Up to 500 hp max (counter rotating engine)

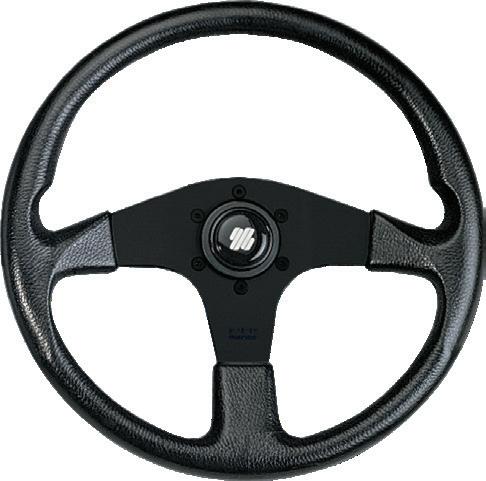

Steering wheel

667

www.samallen.com.au

Not Included (See wheel selection)

Twin Engine Single Cylinder - Mercury®/Yamaha® Kit

A96 Tie Bar - Independent Tilting

Hydraulic Steering Kits - Twin Engine Single Cylinder - Mercury® / Yamaha® Engines Kit No.

84561 84562

Description

Cylinder

Twin Engine Single Cylinder - A96M/Y Tie Bar - Hydraulic Steering Kit Type 1 Twin Engine Single Cylinder - A96M/Y Tie Bar - Hydraulic Steering Kit Type 2

83913/1 Front Mount UC128-OBF/1 83913/2 Front Mount UC128-OBF/2

Helm

Bulkhead Bend Restrictors

Hose

Kit Ref.

Tie Bar

84187 - QuickFit 84119 - Bulkhead 84196 - A96 suits KIT OB/M Hose Mounted Bend Mercury®/Yamaha® 2 x 9 Metre Pair Restrictors 84187 - QuickFit 84119 - Bulkhead 84196 - A96 suits KIT OB/M Hose Mounted Bend Yamaha® 2 x 9 Metre Pair Restrictors

83928 - UP28F 4.3 Turns 83928 - UP28F 4.3 Turns

A Twin Engine Single Cylinder setup using an A96 mechanical Tie Bar to connect two engines while allowing independent tilting. Suitable for Mercury® and Yamaha® engines up to 300 hp (non-counter-rotating) or up to 500 hp (counter-rotating). Refer to the cylinder chart on page 675 to ensure your boat engine’s make and model match the correct cylinder.

83913/1

84561 Kit Includes: 1 x Front Mount Cylinder 83913/1 (see Option 1) 84562 Kit Includes: 1 x Front Mount Cylinder 83913/2 (see Option 2)

83928

QuickFit se Kit B-M Ho O it F k Quic 84187

For further Tie Bar information, see page 686. NOTE: These recommendations are a general reference only. For any further information please contact the Sam Allen Wholesale Sale Team.

84196

84119 84115 A96 Tie Bar Engine Compatibility

83913/2 83913/2

83913/1

System

Cylinder Reference Type: Refer to the “Engine Guide for UC128-OBF Cylinders” on page 675 to match the correct cylinder to your engine model.

Applications

Engine

Model

Cylinder Type

Mercury®

135 - 150 - 175 - 200 - 225 - 250 OPTIMAX 175 - 200 - 250 PRO XS 135 - 150 - 175 - 200 VERADO 4S

83913/1 83913/1 83913/1

Yamaha®

F115 - F130 - F150D - F150F - F175A F200F - F200G L4 F200 - F225 - F250 - F300 V6 4S

83913/1 83913/2 83913/2

Wheels Turn

Twin Engine Single Cylinder Up to 300 hp max (non-counter rotating engine)

4,3 (UP28F)

A96 Tie Bar mounted to Cylinder

Components

Part No.

Model

Quantity

Cylinder

83913/1 or 83913/2

UC128-OBF/1 or UC128-OBF/2

Helm pump

83928

UP28F

Hose Kit

84187

KIT OB/M

Oil

84115

OL 150

Tie bar

84188

A96 - M/Y

Bulkhead Bend Restrictors

84119

Pigtails

Up to 500 hp max (counter rotating engine)

Steering & Controls

84561 and 84562 Kits include: 1 x 83928 - UP28F Front Mount 28cc Helm Pump. For further helm information, see page 692. 1 x 84187 - QuickFit KIT OB/M Hose - 2 x 9.0 Metre. For further hose information, see page 682. 2 x 84119 - Bulkhead Mounted Bend Restrictors (Pigtails). 2 x 84115 - 1 litre hydraulic oil. 1 x 84196 - A96 - M/Y Tie Bar suits 660 mm (26") to 736 mm (29") twin engine centres - Mercury® and Yamaha®. Allows tilting engines independently.

Steering wheel

www.samallen.com.au

Not Included (See wheel selection)

668

Twin Engine Single Cylinder Honda®/Suzuki® Kit A96 Tie Bar - Independent Tilting

Hydraulic Steering Kits - Twin Engine Single Cylinder - Honda®/Suzuki® Engines Kit No.

Description

Cylinder

84571

Twin Engine Single Cylinder - A96-H/S Tie Bar - Hydraulic Steering Kit Type 1

84572

Twin Engine Single Cylinder - A96-H/S Tie Bar - Hydraulic Steering Kit Type 2

83913/1 Front Mount UC128-OBF/1 83913/2 Front Mount UC128-OBF/2

Helm

Bulkhead Bend Restrictors

Hose

Kit Ref.

Tie Bar

84187 - QuickFit 84119 - Bulkhead 84198 - A96 KIT OB/M Hose Mounted Bend Honda® 2 x 9 Metre Pair Restrictors 84187 - QuickFit 84119 - Bulkhead 84198 - A96 KIT OB/M Hose Mounted Bend Suzuki®/ Honda® 2 x 9 Metre Pair Restrictors

83928 - UP28F 4.3 Turns 83928 - UP28F 4.3 Turns

A Twin Engine Single Cylinder setup using an A96 mechanical Tie Bar to connect two engines while allowing independent engine tilt. Compatible with Honda® and Suzuki® engines up to 300 hp (non-counter-rotating) or up to 500 hp (counter-rotating). Refer to the cylinder chart on page 675 to ensure your boat engine’s make and model match the correct cylinder.

83913/1

84571 Kit Includes: 1 x Front Mount Cylinder 83913/1 (see Option 1) 84572 Kit Includes: 1 x Front Mount Cylinder 83913/2 (see Option 2) 84571 and 84572 Kits include: 1 x 83928 - UP28F Front Mount 28cc Helm Pump. For further helm information, see page 692. 1 x 84187 - QuickFit KIT OB/M Hose - 2 x 9.0 Metre. For further hose information, see page 682. 2 x 84119 - Bulkhead Mounted Bend Restrictors (Pigtails). 2 x 84115 - 1 litre hydraulic oil. 1 x 84198 - A96 - H/S Tie Bar suits 660 mm (26") to 736 mm (29") twin engine centres Suzuki® and Honda®. Allows tilting engines independently. For further Tie Bar information, see page 686.

83928

QuickFit e Kit -M Hos B O it F Quick

Steering & Controls

84187

NOTE: These recommendations are a general reference only. For any further information please contact the Sam Allen Wholesale Sales Team.

84119 84115

84198 A96 Tie Bar Engine Compatibility Engine

Option 1

Model

Honda®

BF135 - BF150 4S BF200 - BF225 A6 4S

83913/1 83913/1

Suzuki®

DF150 - DF175 - DF200 L4 4S DF200 - DF250 - V6 4S

83913/1 83913/2

Option 2

Cylinder Reference Type: Refer to the “Engine Guide for UC128-OBF Cylinders” on page 675 to match the correct cylinder to your engine model.

83913/2 83913/2

83913/1 System

Applications

Wheels Turn

Twin Engine Single Cylinder Up to 300 hp max (non-counter rotating engine)

4,3 (UP28F)

Components

Part No.

Model

Quantity

Cylinder

83913/1 or 83913/2

UC128-OBF

Helm pump

83928

UP28

Hose Kit

84187

KIT OB/M

Oil

84115

OL 150

Tie bar

84198

A96 - H/S

Bulkhead Bend Restrictors

84119

Pigtails

Up to 500 hp max (counter rotating engine)

Steering wheel

669

Cylinder Type

www.samallen.com.au

Not Included (See wheel selection)

Twin Engine Dual Cylinder - Fluid Link Kit Hydraulic Steering Kits - Twin Engine Dual Cylinder - Fluid Link Kit Kit No.

84581 84582

Cylinder - Starboard

Cylinder - Port

Helm

Hose

Hose Fittings

Bulkhead Bend Restrictors

83913/1 Front Mount UC128-OBF/2 83913/2 Front Mount UC128-OBF/2

83913/1P Front Mount (Port) UC128P-OBF/2 83913/2P Front Mount (Port) UC128P-OBF/2

83939 UP39F 6.1 Turns 83939 UP39F 6.1 Turns

84102A Hose Hydraulic 5/16" ID - 1000psi 84102A Hose Hydraulic 5/16" ID - 1000psi

84103A Hose End Fitting 5/16" ID - 1000psi 84103A Hose End Fitting 5/16" ID - 1000psi

84119 - Bulkhead Mounted Bend Restrictors 84119 - Bulkhead Mounted Bend Restrictors

Kit Ref.

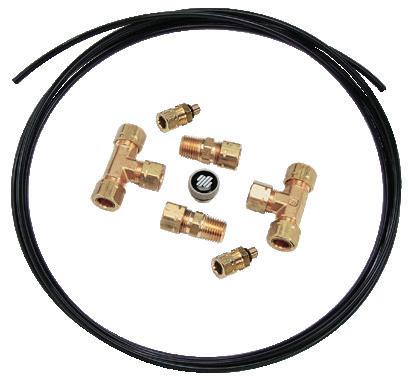

Fluid Link

84220 Fluid Link 84220 Fluid Link

Twin Engine Dual Cylinder with Fluid Link Steering kits are ideal for catamarans, supporting up to 500 hp for non-counter-rotating engines or up to 600 hp for counter-rotating engines. Refer to the cylinder chart on page 675 to ensure your boat engine’s make and model match the correct cylinder.

83913/1

84581 Kit Includes: 1 x Front Mount Starboard 83913/1 and 1 x Port Cylinder 83913/1P

83913/1P

84581 and 84582 Kits Include: 1 x 83939 - UP39F Front Mount 39cc Helm Pump. For further helm information, see page 692. 30 x 84102A - Hose Hydraulic - 5/16" ID - 1000psi (sold per metre). For further hose information, see page 682. 5 x 84103A - Hose End Fitting - 5/16" ID - 1000psi (sold in pairs). 2 x 84119 - Bulkhead Mounted Bend Restrictors (Pigtails). 3 x 84115A - 1 litre hydraulic oil. 1 x 84220 - Fluid Link. For further Fluid Link information, see page 686.

83939 84103A

NOTE: These recommendations are a general reference only. For any further information please contact the Sam Allen Wholesale Sales Team.

84102A

84119

84115A 84220

Starboard

Port

Starboard

83913/1P

83913/1 System

Port

83913/2P

83913/2 83913/2 Applications

Wheels Turn

Twin Engine Dual Cylinder

Components

Up to 500 hp max

Quantity

UC128-OBF/1 & UC128P-OBF/1

UC128-OBF/2 & UC128P-OBF/2

83939

UP39

Hose

84102A

Hose Fittings

84103A

Hose Hydraulic (per/m) 5/16" ID - 1000psi Hose End Fittings 5/16" ID - 1000psi

Oil

84115A

1 x Litre Ultramax 15 Oil

Fluid Link

84220

Fluid Link

Bulkhead Bend Restrictors

84119

Pigtails

Cylinder - Starboard & Port

(non-counter rotating engine)

6,1 (UP39)

Up to 600 hp max (counter rotating engine)

Cylinder Reference Type: Refer to the “Engine Guide for UC128-OBF Cylinders” on page 675 to match the correct cylinder to your engine model.

Model

Cylinder - Starboard & Port

Helm Pump

Steering wheel

www.samallen.com.au

Steering & Controls

84582 Kit Includes: 1 x Front Mount Starboard 83913/2 and 1 x Port Cylinder 83913/2P

Part No.

83913/1 & 83913/1P

83913/2 & 83913/2P

Not Included (See wheel selection)

670

Helm, Hose & Bulkhead Fitting IHS Kits

To suit YAMAHA® Integrated Hydraulic Steering (IHS) Hydraulic Helm, Hose & Bulkhead Fitting Kits - To Suit Yamaha Engines Description

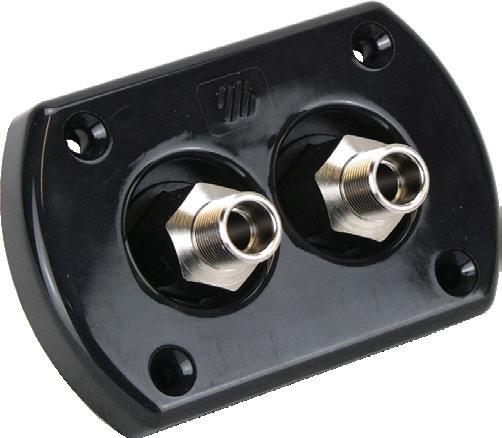

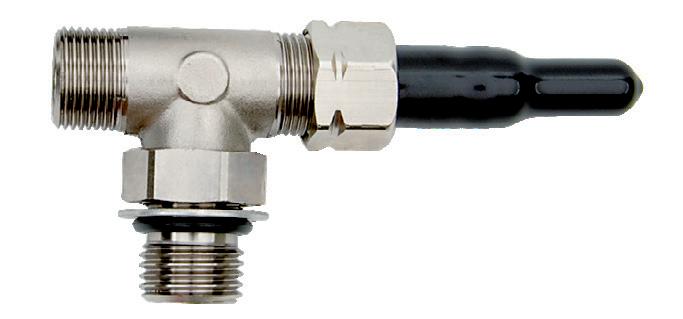

Bulkhead Fitting

83929

Ultraflex Hydraulic Helm, 6M Hose & Bulkhead Fitting Kit to suit Yamaha IHS Outboard

White

83930

Ultraflex Hydraulic Helm, 6M Hose & Bulkhead Fitting Kit to suit Yamaha IHS Outboard

Black

Kit Part No.

83931

Ultraflex Hydraulic Helm, 9M Hose & Bulkhead Fitting Kit to suit Yamaha IHS Outboard

White

83932

Ultraflex Hydraulic Helm, 9M Hose & Bulkhead Fitting Kit to suit Yamaha IHS Outboard

Black

• For single Yamaha outboard engines 150, 175 & 200 hp with Integrated Hydraulic Steering (IHS). • OB/M 5/16" I.D. flexible hose kits are pre-crimped at one end and can be cut to length with brass fittings and bend restrictors provided for easy installation. • Kit includes everything for a simple installation excluding steering wheel.

83928

83929/83930 Kit: • 1 x UP28F front mount helm pump (28cc). • 2 x 6 metre OB/M 5/16" 1000psi flexible hose. • 2 x 0.7 metre OB-2C 5/16" 1000psi flexible hose. • 1 x R9 Hydraulic Bulkhead fitting - (in Black or White). • 2 x 1 litre hydraulic oil. 83931/83932 Kit: • 1 x UP28F front mount helm pump (28cc). • 2 x 9 metre OB/M 5/16" 1000psi flexible hose. • 2 x 0.7 metre OB-2C 5/16" 1000psi flexible hose. • 1 x R9 Hydraulic Bulkhead fitting - (in Black or White). • 2 x 1 litre hydraulic oil.

Steering & Controls

6m or 9m 84186 / 84187

Yamaha Engine Application Guide Engine Model or 84279

YAMAHA®

84278

84259

Year

150hp F150LC F150XC LF150XC F150XCB 175hp F175LB F175XB F175XCB

83929 (6m)* 2023 to date

200hp F200LC F200XC LF200XC F200XCB

* NOTE: OB/M hose can be cut to length. 84115A

671

www.samallen.com.au

Kit

83930 (6m)* 83931 (9m)* 83932 (9m)*

Helm, Hose & Pigtail IHS Kits

To suit YAMAHA® Integrated Hydraulic Steering (IHS) Hydraulic Helm, Hose & Pigtail Kits - To Suit Yamaha Engines Kit Part No.

Description

83934

Ultraflex Hydraulic Helm, 6M Hose & Pigtail Kits to suit Yamaha IHS

83935

Ultraflex Hydraulic Helm, 9M Hose & Pigtail Kits to suit Yamaha IHS

83928

83934 Kit: • 1 x UP28F front mount helm pump (28cc). • 2 x 6 metre OB/M 5/16" 1000psi flexible hose. • 2 x Bulkhead Strain Reliefs (Pigtails). • 2 x 1 litre hydraulic oil. 83935 Kit: • 1 x UP28F front mount helm pump (28cc). • 2 x 9 metre OB/M 5/16" 1000psi flexible hose. • 2 x Bulkhead Strain Reliefs (Pigtails). • 2 x 1 litre hydraulic oil.

Yamaha Engine Application Guide

YAMAHA®

Engine Model

Year

150hp F150LC F150XC LF150XC F150XCB 175hp F175LB F175XB F175XCB

Kit 84119

2023 to date

200hp F200LC F200XC LF200XC F200XCB

83934 (6m)*

84115A

83935 (9m)*

Steering & Controls

6m or 9m 84186 / 84187

* NOTE: OB/M hose can be cut to length.

www.samallen.com.au

672

Hydraulic Steering Outboard Side Mount Cylinder & Inboard Kits Hydraulic Steering Kit - Outboard Side Mount - HYCO OBS - UC68 Cylinder Up to 150HP - 3.4 - 5 Wheel Turns

Kit Part No.

Description

83908

n ed Desig Improv

Model

Outboard Side Mount Cylinder Kit*

UC68-OBS

• For outboard engines up to 150 HP. • 3.4 or 5 turns lock to lock, unbalanced - the number of turns lock to lock is not equal port to starboard and vice-versa. • UC68-OBS side mount cylinder features a Patented turning nut for a fast and easy installation to the engine tilt tube. • Clearance required at the engine tube side is 340mm. • Recommended for use where maximum boat speed does not exceed 40mph (34 knots). NOTE: Hose not included*. Kits Contains: • 83908C - UC68-OBS side mount cylinder. • 83920 - UP20F front mount helm pump. • 84115 - 1 litre hydraulic oil x 2.

84115

NOTE: Refer to "Hydraulic Tubing, Hose & Connectors" on page 684. Steering wheel not included in kit. 329.3mm

Hydraulic Steering System Ordering Guide System

Application

Wheel Turns

Steering & Controls

Outboard 3.4 or 5 Single engine Up to 150HP turns lock to single maximum lock cylinder

Components

Model

Part No.

Qty

Kits

Cylinder Helm pump Hydraulic Oil

UC68-OBS UP20F OL 150

83908C 83920 84115

1 1 2

83908

Hose

Refer to "Hydraulic Tubing, Hose & Connectors" on page 684 Refer to wheel selection starting from page 641

Hose options Wheel options

1 1

Not Included

Steering Wheel

Hydraulic Steering Kit - Inboard HYCO-I Kit Part No.

83940

n d Desig e v o r p Im

Description

Model

Hydraulic Inboard Steering Kit*

HYCO-I

• For inboard engines. • 3.5 turns lock to lock, balanced. • HYCO-I steering system is suitable for inboard boats up to 8m (26ft) length and 25knots maximum speed. • Hose not included*. Kits Contains: • 83959 - UC69-I Inboard cylinder. • 83920 - UP20F front mount helm pump. • 84115 - 1 litre hydraulic oil x 2. NOTE: Refer to "Hydraulic Tubing, Hose & Connectors" on page 684. Steering wheel not included in kit.

84115

417mm

31.3mm

150mm

73mm mm 129

35.5

40mm

136mm

Hydraulic Steering System Ordering Guide System

Inboard

673

Application

Wheel Turns

Inboards up to 8m (26ft) length 3.5 turns and 25mph maximum speed.

Components

Model

Part No.

Qty

Kits

Cylinder Helm pump Hydraulic Oil

UC69-I UP20F OL 150

83959 83920 84115

1 1 2

83940

Hose

Refer to "Hydraulic Tubing, Hose & Connectors" on page 684. Refer to wheel selection starting from page 641

Hose options

1 1

Not Included

Steering Wheel

www.samallen.com.au

Wheel options

Hydraulic Outboard Cylinders Front Mount Cylinders

Hydraulic Outboard Cylinder - Front Mount - UC95-OBF Part No.

Description

Up to 175HP

Model

83994/1 UC95-OBF/1 175HP Cylinder Only

UC95-OBF/1

• For outboard engines up to 175 HP and where the boat speed does not exceed 55 mph (48 knots). • Balanced: the number of turns lock-to-lock is equal port to starboard or vice-versa. • Adjustable slip nut style fittings for easy installation. • High resistance stainless steel connection bolt (Ultrabolt). • Patented innovative design: split pinned cylinder mounting rod (tilt tube rod) and bushings for easy installation, preventing friction with engine tilt tube. • 83994/1 - UC95‑OBF/1: E vinrude®, Honda®, Johnson®, Mercury®, Mariner®, Suzuki®, Selva® Tohatsu®, Nissan®and Yamaha® NOTE: Not intended for use in racing applications.

UC95-OBF

Volume

94 cc - 5.7 cu. in

Output force

278 kg - 613 lbs

Inside diameter Stroke For high pressure flex hose

30 mm - 1.18" 186 mm - 7.3" 3/8" (9.5mm) Tube Fittings

Bleed fittings

DN5 Quick connect

551 mm

Splashwell Dimension Requirements No. of Engines

540 mm - 21.25"

152 mm - 5.98"

Steering & Controls

Specifications

78 mm

83994/1

Rear View

Side View Splashwell

Transom

B A

Transom

Rear View

C Engine Application Guide for Hydraulic Cylinder - UC95-OBF

ENGINE

ENGINE MODEL HP

YEAR

ENGINE

Transom

ENGINE MODEL HP

YEAR

BJ90 - 115 - 140 4S 4S Johnson® BJ70 J90 - 115 V4 2S J150 - 175 V6 2S

2001 - 2007 2001 - 2007 1995 - 2007 1995 - 2007

100 - 115 - 150 EFI 2S 50 - 75 - 90 2S - 135 - 150 - 175 Optimax 2S Mercury® 125 - 50 - 60 EFI 4S Mariner® 40 75 - 80 - 90 EFI 4S / PRO XS / SEAPRO 100 - 115 - 150 EFI 4S / PRO XS / SEAPRO 175 - V6 4S / SEAPRO

1991-2007 1990-2008 1999-2018 2004 to date 2000 to date 2007 to date 2018 to date

Side View 80 Portofino/Tigershark 2S WHITE SHARK 2S Splashwell Selva® 150 100EFI Marlin - 115 C EFI Narwhal 100 - 150EFI Killer Whale 4S DF70 - 80 - 90 4S Transom *Suzuki® DF100B- 115 - 140 4S DF150 - 175 4S 115 - 120 - 140 2S 70 - 90 - 115 TLDI 4S Tohatsu® BFT60 - 75 - 90 - 100 4S Nissan® BFT115 - 150 4S MFS 50 - 60 - 75 - 90 - 100 - 115 4S 60 - 70 2S 75C - 90 2S 115C - 130B - 150F 2S Yamaha® 150 - 175 HPDI VMAX 2S F60 - F75 - F80 EFI 4S F90 - F100 - F115 F150 EFI 4S F115 - F150 - F175 L4 4S

Neander DTORQUE 111 Shark®

2020 to date

*Suzuki® engines built from 1998 to 2008 installing 83994/1 cylinder require optional KIT SU - 83919

Parsun®

2007 to date

WARNING: The UC95-OBF (83994/1) front mount cylinder is recommended for use with outboard engines 175 hp total and less and where the boat speed does not exceed 55 mph (48 knots).

E40 - E50 - E55 - E60 2S - E90 2 Stroke Evinrude® E75 E115 - E130 - E135 2 Stroke V4 E150 - 175 2 Stroke V6

2004 - 2020 2004 - 2020 1995 - 2020 1995 - 2020

BF75 - 80 - 90 - 100 4S BF115A 4S BF135 - 150 4S BF175 - 4S

1995 to date 2009 to date 2005 to date 2001 to date

Honda®

F60 - F85 - F115

www.samallen.com.au

674

Front Mount Cylinders Hydraulic Outboard Cylinder - Front Mount - UC128-OBF

Up to 300HP

n ed Desig Improv

Starboard Side Cylinders

83913/1

UC128-OBF/2

UC128-OBF/3

83913/2

Description

Model

Starboard version Type 1 Cylinder Only

UC128-OBF/1

83913/2

Starboard version Type 2 Cylinder Only

UC128-OBF/2

83913/3

Starboard version Type 3 Cylinder Only

UC128-OBF/3

83913/1P

Port version Type 1 Cylinder Only

UC128P-OBF/1

83913/2P

Port version Type 2 Cylinder Only

UC128P-OBF/2

• For outboard engines up to 300 HP. • Balanced: the number of turns lock-to-lock is equal port to starboard or vice-versa. • Adjustable slip nut style fittings for easy installation. • High resistance stainless steel connection bolt (Ultrabolt). • The UC128 cylinder is built to last with heavy duty stainless steel cylinder rod, seals and link assemblies. • Constructed of top grade materials, this cylinder is simple to install and fits almost every 2 and 4 stroke outboard engine in the market. • The UC128 cylinders are recommended for use with UP25, UP28, UP33 and UP39 series helms and pre-assembled hoses (Kit OB and Kit OB/R5).

83913/1

UC128-OBF/1

Part No.

83913/1

83913/3

NOTE: For higher horsepower applications, high performance SilverSteer™ cylinder is recommended.

mm 76,2

Steering & Controls

83913/1P

Specifications

UC128-OBF

Volume Output force Inside diameter Stroke For high pressure flex hose Bleed fittings

128 cc - 7.3 cu. in 450 kg - 992 lbs 35 mm - 1.37" 185 mm - 7.28" 3/8" Tube Fittings DN5 quick connect

Splashwell Dimension Requirements

544mm

No. Of Engines

Port Side Cylinders UC128P-OBF/2

UC128P-OBF/1

1 540 mm - 21.25" 152 mm - 5.98" 152 mm - 5.98" 2* 1110 mm - 43.70" 152 mm - 5.98" 152 mm - 5.98" *NOTE: For twin engine applications minimum engine centre distance is 650 mm (26”) Rear View

Side View

Splashwell

Transom

83913/1P

83913/2P

C Transom

Engine Application Guide for Hydraulic Cylinder -Rear UC128-OBF View Engine

675

ENGINE MODEL HP

Year

Cylinder

Engine

ENGINE MODEL HP

Year

Cylinder

E75 - E90 2S 2004 to date UC128-OBF/2 83913/2 DF70 - DF80 - DF90C4S 1998 to date UC128-OBF/2 83913/2 - E130 - E135 2S V4 1995 - 2020 UC128-OBF/2 83913/2 DF100 - DF115 - DF140 4S 2008 to date UC128-OBF/1 83913/1 Transom Evinrude® E115 Suzuki® E150 - E175 - E200 2S V6 1995 - 2020 UC128-OBF/2 83913/2 DF150 - DF175 - DF200 L4 4S 2006 to date UC128-OBF/1 83913/1 E225 - E250 - E300 2S V6 1995 - 2020 UC128-OBF/2 83913/2 DF200 - DF225 - DF250 - DF300 V6 4S 2004 to date UC128-OBF/2 83913/2 Side View BF75 - BF90 4S 1995 to date UC128-OBF/1 83913/1 115 - 120 - 140Splashwell 2S 2004 to date UC128-OBF/2 83913/2 BF115 - BF130 4S 1998 to date UC128-OBF/3 83913/3 - 90 - 115 TLDI 4S 2004 to date UC128-OBF/1 83913/1 Tohatsu® 70 Honda® BF135 - BF150 4S 2005 to date UC128-OBF/1 83913/1 C MFS 50 60 75 90 100 115 4S 2018 to date UC128-OBF/1 83913/1 Nissan® BFT 115 - 150 - 200 - 225 - 250 4S BF150 V-TEC 4S 2008 to date UC128-OBF/1 83913/1 2014 to date UC128-OBF/1 83913/1 BF175 - BF200 - BF225 - BF250 4S 2001 to date UC128-OBF/1 83913/1 BFT60 - 75 - 80 - 90 - 100 4S 2015 to date UC128-OBF/1 83913/1 Transom BJ90 - 115 - 140 4S 2001 - 2007 UC128-OBF/1 83913/1 115C - 130B 2S B 1990 - 2008 UC128-OBF/2 83913/2 - 115 V4 2S 1995 - 2007 UC128-OBF/2 83913/2 75C - 90 2S 1998 - 2008 UC128-OBF/2 83913/2 Johnson® J90 J150 - 175 V6 2S 1995 - 2007 UC128-OBF/2 83913/2 F70 4S 2010 to date UC128P-OBF/1 83913/1P J200 - 225 V6 4S 2004 - 2007 UC128-OBF/2 83913/2 150F - 200F - 250G 2S 1990 - 2008 UC128-OBF/2 83913/2 150 HPDI VMAX 2S 1996 - 2007 UC128-OBF/2 83913/2 115 - 125 - 150 EFI 2S 1990 - 2007 UC128-OBF/1 83913/1 Yamaha® 175 - 200 - 225 - 250 - 300 HPDI VMAX 2S 2000 - 2008 UC128-OBF/2 83913/2 225 - 250 EFI 2S 2000 - 2007 UC128-OBF/1 83913/1 F115 F150 EFI 4S 2000 - 2008 UC128-OBF/2 83913/2 75 - 90 - 115 OPTIMAX 2004 - 2018 UC128-OBF/3 83913/3 F200 - F225 - F250 4S 1999 - 2007 UC128-OBF/2 83913/2 135 - 150 - 175 OPTIMAX 1999 - 2018 UC128-OBF/1 83913/1 F115 - F130 - F150D - F150F - F175A 2002 to date UC128-OBF/1 83913/1 - 225 - 250 OPTIMAX 1999 - 2018 UC128-OBF/1 83913/1 Mercury® 200 F200F - F200G L4 2002 to date UC128-OBF/1 83913/1 300 OPTIMAX 1999 - 2011 UC128-OBF/1 83913/1 Mariner® RACING F200 F225 F250 F300 V6 4S 2004 to date UC128-OBF/2 83913/2 100 - 115 EFI 4S 2007 to date UC128-OBF/1 83913/1 250 SALTWATER EFI 4S 2007 - 2011 UC128-OBF/1 83913/1 125 150 175 200HP DIESEL 2018 to date UC128-OBF/1 83913/1 OXE® 300HP DIESEL 135 - 150 - 175 - 200 VERADO L4 2004 - 2012 UC128-OBF/1 83913/1 2020 to date UC128-OBF/1 83913/1 FOURSTROKE / PRO XS 175-200 V6 2018 to date UC128-OBF/1 83913/1 FOURSTROKE / PRO XS 225-300 V8 2018 to date UC128-OBF/1 83913/1 COX® 300HP 2020 to date UC128-OBF/2 83913/2 80 PORTOFINO / TIGERSHARK 2S 1995 - 2008 UC128-OBF/1 83913/1 Neander DTORQUE 111 2018 to date UC128-OBF/1 83913/1 150 WHITE SHARK 2S 2001 - 2007 UC128-OBF/2 83913/2 Shark® MARLIN - 115 EFI NARWHAL 2000 to date UC128-OBF/2 83913/2 Selva® 100EFI 225 BEAKED WHALE 4S 2019 to date UC128-OBF/2 83913/2 Parsun® F300 2023 to date UC128-OBF/2 83913/2 100 - 150EFI KILLER WHALE 4S 2000 to date UC128-OBF/1 83913/1 NOTE: Suzuki® engines built from 1998 to 2008 installing UC128 - OBF/1 cylinder require optional 83919 200 SEI WHALE 4S 2000 to date UC128-OBF/1 83913/1 WARNING: These recommendations should be used as a general reference only. Final selection should be made with the assistance of a qualified installation technician. For any further information please contact the Sam Allen Wholesale Sales Team.

www.samallen.com.au

Single/Dual Nautech Ordering Guide Hydraulic Cylinder Ordering Guide - UC128-OBF

Single Cylinder Applications:

• The UC128‑OBF Starboard cylinder is available in three versions: - 83913/1 - UC128-OBF/1: H onda®, Johnson®, Mercury®Mariner®, Suzuki®, Selva® Tohatsu®Nissan®and Yamaha®. - 83913/2 - UC128-OBF/2: E vinrude®, Johnson®, Suzuki®, Selva® Tohatsu®Nissan®and Yamaha®. - 83913/3 - UC128-OBF/3: H onda® and Mercury®Mariner®.

Dual Cylinder Applications:

System

Application

Single engine single cylinder

Wheel Turns

Components

Cylinder

Up to 350HP Maximum

Helm pump* 4.8 (UP25) Hoses 4.3 (UP28) Oil Steering wheel

Model

Part No.

Qty

83913/1/2/3

UP25* or UP28*

83925* or 83928*

See hose options

UC128-OBF

OL 150 See wheel options

1 pair

84115

See wheel options

For a second station add: 1 x UP25 or UP28, 1 x KIT OB-2S fitting kit, 1 x Hose, 1 x OL 150, 1 x steering wheel Dual engine Single cylinder

Up to 350HP Maximum

Non-counter rotating engine

Up to 500HP Maximum

Counter rotating engine

83913/1/2/3

4.8 (UP25) Helm pump*

UP25* / UP28* / UP33*

83925* / 83928* / 83933*

Hoses 4.3 (UP28) Oil 3.6 (UP33) Tie bar

See hose options

Cylinder

Steering wheel

UC128-OBF

1 pair

84115

See tie bar options

See wheel options

OL 150

Steering & Controls

• In dual cylinder applications it is necessary to order both Starboard and Port Side Cylinders: - 83913/1 Starboard Cylinder with 83913/1P Port Cylinder - 83913/2 Starboard Cylinder with 83913/2P Port Cylinder • See appropriate section for alternative Tie Bars, required for dual engine/dual cylinder applications. • The UC128P-OBF port cylinder is available in two versions: - 83913/1P - UC128P-OBF/1: H onda®, Johnson®, Mercury®Mariner®, Suzuki®, Selva® Tohatsu®Nissan®and Yamaha® - 83913/2P - UC128P-OBF/2: E vinrude®, Johnson®, Suzuki®, Selva® Tohatsu®Nissan®and Yamaha®.

For a second station add: 1 x UP25, UP28 or UP33, additional hoses, 1 x OL 150, 1 x steering wheel and 1 x 84120 - KIT OB-2S fitting kit for remote branching. Dual engine Dual cylinder

Up to 500HP Maximum

Non-counter rotating engines)

Up to 600HP Maximum

Counter rotating engines

Cylinder Cylinder port Helm pump* Tie bar 6.1 (UP39) Oil Hoses Connection kit Steering wheel

UC128-OBF UC128P-OBF UP39* See tie bar options OL 150 See hose options KIT OB-2C See wheel options

83913/1 or/2 83913/1P or/2

1 1

83939* See tie bar options 84115 See hose options See length options See wheel options

1 1 3 1 pair 1 pair 1

For a second station add: 1 x UP39, additional hoses, 1 x OL 150, 1 x steering wheel, 1 x 84120 - KIT OB-2S fitting kit for remote branching. *Helm pumps are available in tilt, front and rear mount options, refer to "Hydraulic Helm Pumps" on page 691 NOTE: For high performance applications SilverSteer™ systems are recommended. WARNING: The UC128-OBF front mount cylinder is not recommended for use in installations where the boat speed exceeds 50 mph (43 knots) (60 mph (52 knots) in dual engine, dual cylinder and counter rotating engines application). Not intended for use in racing application.

www.samallen.com.au

676

SilverSteer™ Front Mount Cylinders Hydraulic Outboard Cylinder - Front Mount - SilverSteer™ UC130-SVS

Up to 350HP

n ed Desig Improv ce rforman e P h ig H

Part No.

Starboard Side Cylinders

84010/1

Starboard version Type 1 Cylinder Only

UC130/1-SVS

84010/2

Starboard version Type 2 Cylinder Only

UC130/2-SVS

84010/1P

Port version Type 1 Cylinder Only

UC130P/1-SVS

84010/2P

Port version Type 2 Cylinder Only

UC130P/2-SVS

UC130/2-SVS

84010/1

Model

• For outboard engines up to 350 HP. • Balanced: the number of turns lock-to-lock is equal port to starboard or vice-versa. • Cylinder end mounted hose connections and bleeders. • High resistance stainless steel connection bolt (Ultrabolt). • The UC130 cylinder is built to last with heavy duty stainless steel cylinder rod, seals and link assemblies. • Constructed of top grade materials, this cylinder is simple to install and fits almost every large 2 and 4 stroke outboard engine in the market. • The UC130 cylinders are recommended for use with UP25‑SVS, UP28‑SVS, UP33‑SVS and UP39‑SVS series helms and pre-assembled SilverSteer hoses (Kit OB-SVS and Kit OB/R5-SVS).

84010/1

UC130/1-SVS

Description

84010/2

Steering & Controls

Specifications

UC130-SVS & UC130P-SVS Range

Volume Output force Inside diameter Stroke 3/8" Tube Fittings

130 cc - 7.93 cu. in 492 kg - 1085 lbs 36 mm - 1.42" 185 mm - 7.28" For high pressure flex hose

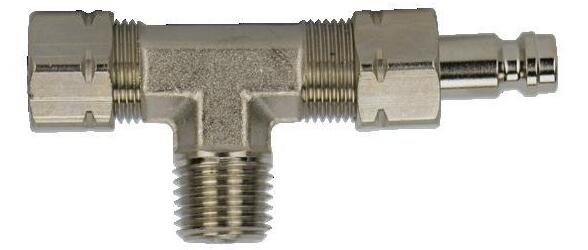

Bleed fittings

DN5 quick connect

Splashwell Dimension Requirements No. of Engines

560 mm - 22.05"

152 mm - 5.98"

2* 1110 mm - 43.70" 152 mm - 5.98" 152 mm - 5.98" *NOTE: For twin engine applications, the minimum distance between the two engine centres is 550 mm (21.6")

84010/1P

Port Side Cylinders

Rear View

A C

Side View Splashwell

Transom UC130P/1-SVS

84010/1P

UC130P/2-SVS

84010/2P

Transom

Engine Application Guide for Hydraulic Cylinder - SilverSteer™ UC130-SVS Rear View Engine

ENGINE MODEL HP

E115 - E130 - E135 2S V4 Evinrude® E150 - E175 - E200 2S V6 E225 - E250 - E300 2S V6 BF135 - BF150 4S Honda® BF150 V-TEC 4S BF175 - BF200 - BF225 - BF250 4S BJ90 - 115 - 140 4S - 115 V4 2S Johnson® J90 J150 - 175 V6 2S J200 - 225 V6 4S 115 - 125 - 150 EFI 2S 225 - 250 EFI 2S 135 - 150 - 175 OPTIMAX - 225 - 250 OPTIMAX Mercury® 200 300 OPTIMAX Mariner® RACING 250 SALTWATER EFI 4S 135 - 150 - 175 - 200 VERADO L4 FOURSTROKE 175 - 200 V6 FOURSTROKE 225 - 300 V8 80 PORTOFINO/TIGERSHARK 2S 150 WHITE SHARK 2S MARLIN -115 EFI NARWHAL Selva® 100EFI 225 BEAKED WHALE 4S 150EFI KILLER WHALE 4S - 200 SEI WHALE 4S

Year

Cylinder

P/N

Engine

1995 to date 1995 to date 1995 to date 2005 to date 2008 to date 2001 to date 2001 - 2007 1995 - 2007 1995 - 2007 2004 - 2007 1990-2007 2000-2007 1999-2018 1999-2018 1999-2011 2007-2011 2004-2012 2018 to date 2018 to date 1995-2008 2001-2007 2000 to date 2019 to date

UC130-SVS/2 UC130-SVS/2 UC130-SVS/2 UC130-SVS/1 UC130-SVS/1 UC130-SVS/1 UC130-SVS/1 UC130-SVS/2 UC130-SVS/2 UC130-SVS/2 UC130-SVS/1 UC130-SVS/1 UC130-SVS/1 UC130-SVS/1 UC130-SVS/1 UC130-SVS/1 UC130-SVS/1 UC130-SVS/1 UC130-SVS/1 UC130-SVS/1 UC130-SVS/2 UC130-SVS/1 UC130-SVS/2

84010/2 84010/2 84010/2 84010/1 84010/1 84010/1 84010/1 84010/2 84010/2 84010/2 84010/1 84010/1 84010/1 84010/1 84010/1 84010/1 84010/1 84010/1 84010/1 84010/1 84010/2 84010/1 84010/2

DF100 - 115 - C140 4S 2008 to date - 175 - DF200 L4 4S 2006 to date Suzuki® DF150 DF200 Transom - DF225 - DF250 V6 4S 2004 to date DF300 - DF350 V6 4S 2004 to date 115 - 120 - 140 2S 2004 to date Side View - 90 - 115 TLDI 4S 2004 to date Tohatsu® 70 50 - 60 - 75 - 90 - 100 - 115 4S 2018 to date Splashwell Nissan® MFS BFT 115 - 150 - 200 - 225 - 250C4S 2014 to date BFT60 - 75 - 90 - 100 4S 2015 to date 115C - 130B 2S 1990-2008 150F - 200F - 250G 2S 1990-2008 B 2S Transom 150 HPDI VMAX 1996-2007 175 - 200 - 225 - 250 - 300 HPDI VMAX 2S 2000-2008 Yamaha® F115 - F150 EFI 4S 2000-2008 F200 - F225 - F250 4S 1999-2007 F115 - F150 - F175 - F200 L4 2002 to date F200 - F225 - F250 - F300 V6 4S 2004 to date F350 4S V8 2006 to date 125 150 175 200HP DIESEL 2018 to date OXE® 300HP DIESEL 2020 to date 2020 to date COX® 300HP Neander DTORQUE 111 2018 to date Shark® Parsun® F 300 2022 to date

2000 to date UC130-SVS/1 84010/1

ENGINE MODEL HP

Year

Cylinder

P/N

UC130-SVS/1 UC130-SVS/1 UC130-SVS/2 UC130-SVS/2 UC130-SVS/2 UC130-SVS/1 UC130-SVS/1 UC130-SVS/1 UC130-SVS/1 UC130-SVS/2 UC130-SVS/2 UC130-SVS/2 UC130-SVS/2 UC130-SVS/1 UC130-SVS/2 UC130-SVS/1 UC130-SVS/2 UC130-SVS/1 UC130-SVS/1 UC130-SVS/1 UC130-SVS/2

84010/1 84010/1 84010/2 84010/2 84010/2 84010/1 84010/1 84010/1 84010/1 84010/2 84010/2 84010/2 84010/2 84010/1 84010/2 84010/1 84010/2 84010/1 84010/1 84010/1 84010/2

UC130-SVS/1 84010/1 UC130-SVS/2 84010/2

*NOTE: Suzuki® engines built from 1998 to 2008 installing UC130-SVS/1 cylinder require optional KIT SU - 83919

677

www.samallen.com.au

Single/Dual SilverSteer™ Ordering Guide Hydraulic Cylinder Ordering Guide - SilverSteer™ UC130-SVS System

Application

Wheel Turns

Single engine single cylinder 4.6 (UP28-SVS)

Up to 350HP Maximum

3.9 (UP33-SVS)

Components

Model

Part No.

Qty

Cylinder

UC130-SVS

84010/1/2

Helm pump*

UP28-SVS* / UP33‑SVS*

84028* / 84033*

Hoses

KIT OB-SVS

See "Silver Steer™ Kevlar™ OB-SVS" on page 683

Oil

OL 150

Steering wheel

See wheel selection See wheel selection

1 pair

84115

2 1

For a second station add: 1 x UP28-SVS or UP33-SVS 1 x KIT OB-2S fitting kit, 1 x Hose, 1 x OL 150, 1 x steering wheel Dual engine Single cylinder

Up to 350HP Maximum

Non-counter rotating engine

Up to 600HP Maximum

Cylinder

UC130-SVS

84010/1/2

Helm pump*

UP28-SVS* / UP33‑SVS*

84028* / 84033*

KIT OB-SVS

See "Silver Steer™ Kevlar™ OB-SVS" on page 683

4.6 (UP28-SVS) Hoses 3.9 (UP33-SVS) Oil

Counter rotating engine

1 pair

84115

Tie bar

See tie bar options

Steering wheel

See wheel selection

OL 150

Dual engine Dual cylinder

Up to 600HP Maximum

Non-counter rotating engines)

Up to 700HP Maximum

Cylinder Cylinder port

UC130-SVS UC130P-SVS

84010/1/2 84010/1P/2P

1 1

Helm pump*

UP39-SVS*

84039*

Tie bar

See tie bar options

84115

6.6 Oil (UP39-SVS)

Counter rotating engines

OL 150

See "Silver Steer™ Kevlar™ OB-SVS" on page 683

1 pair

KIT OB-2C-SVS

See length options

1 pair

See wheel selection

Hoses

KIT OB-SVS

Connection kit Steering wheel

For a second station add: 1 x UP39-SVS, additional hoses, 1 x OL 150, 1 x steering wheel, 1 x 84120 - KIT OB-2S fitting kit for remote branching. Alternative second station fitting kits are available for branching at the lower helm.

Steering & Controls

For a second station add: 1 x UP28-SVS or UP33-SVS 1 x Hose, 1 x OL 150, 1 x steering wheel and 1 x 84120 - KIT OB-2S fitting kit.

*NOTE: Helm pumps are available in tilt, front and rear mount options, Refer to "Hydraulic Helm Pumps" on page 691 WARNING: The UC130-SVS front mount cylinder is not recommended for use in installations where the boat speed exceeds 69 mph (60 knots); (75 mph (65 knots) in dual engine, dual cylinder and counter rotating engines application). Not intended for use in racing applications. The SilverSteer™ helm pumps should always be installed in conjunction with the UC130-SVS cylinder and the Kevlar reinforced hose kit KIT OB‑SVS.

Dual CYLINDER: Station / SIngle & Dual Cylinder Applications DUAL STATION / SINGLE DUAL STATION / DUAL CYLINDER: 1 1

7 4

3 9

6 2

1. Upper station helm 2. Lower station helm 3. Starboard cylinder 4. Bleed valves 5. Kit OB-2S

www.samallen.com.au

1. Upper station helm 2. Lower station helm 3. Starboard cylinder 4. Port cylinder 5. “T” ﬁttings 6. Bleed valves 7. Tie bar 8. Kit OB-2C-SVS 9. Kit OB-2S

678

Side Mount Cylinders Balanced versus Unbalanced Side Mount Outboard Cylinders Balanced vs. Unbalanced

How to Calculate Turns:

Balanced • Equal chamber sizes • Same turns port-to-starboard (e.g., 5.3 turns) • Larger installation space needed

• Cylinder Volume ÷ Helm Pump Volume = Turns • Example: 132 cc ÷ 25 cc = 5.3 turns

Unbalanced • Unequal chamber sizes • Different turns port-to-starboard • Compact, smaller space required Balanced A

Cylinder

Unbalanced A

Cylinder

Hose

Volume A is equal to volume B

Volume A is not equal to volume B

*NOTE: When selecting the right cylinder for your application please consult the Sam Allen Wholesale Sales Team.

Steering & Controls

Outboard Cylinder - Side Mount - UC68-OBS

Up to 150HP

Part No.

Description

83908C

Outboard Side Mount Cylinder Only

UC68-OBS

• For outboard engines up to 150HP. • Unbalanced: the number of turns lock-to-lock is not equal port to starboard and vice-versa. • UC68-OBS side mount cylinder features a patented turning nut for a fast and easy installation to the engine tilt tube. • Clearance required at the engine tube side is 340mm (13.3"). • Recommended for use where maximum boat speed do not exceed 40mph (40knots).

329.3mm

System

Single engine single cylinder

Specifications

Application

83908C - UC68-OBS

Volume

68/100 cc - 4.1/6.1 cu. in

Output force

185/270 kg - 408/595 lbs

Inside diameter

25 mm - 0.98"

Stroke

203 mm - 8"

3/8" (9.5mm) Tube Fittings

For high pressure flex hose

Hydraulic Steering System Ordering Guide Wheel Components Turns

Up to 150HP Maximum

679

Model

Part No.

Qty

Kit No.

Cylinder Helm pump Hydraulic Oil

UC68-OBS UP20 OL 150

83908C 83920 84115

1 1 2

83908

Hose Steering wheel

Hose options Wheel options

2 1

Not included

3.4 or 5

www.samallen.com.au

Side Mount Cylinders Outboard Cylinder - Side Mount - UC132-OBS Part No.

83914

Description

Model

Outboard Side Mount Cylinder Only

Up to 300HP

UC132-OBS

• For outboard engines up to 300 HP. • Unbalanced: the number of turns lock-to-lock is not equal. • UC132-OBS side mount cylinder features a patented turning nut for a fast and easy installation to the engine tilt tube. • Clearance required at the engine tube side is 375 mm (14.76"). • Recommended for use where maximum boat speed does not exceed 40mph (40knots). • The UC132 cylinders are recommended for use with UP25, UP28, UP33 and UP39 series helms and pre-assembled hoses (Kit OB and Kit OB/ R5). NOTE: UC132-OBS cylinder is not intended for use with 105 Bar (1500psi) SilverSteer Series Helms.

340mm

83914 - UC132-OBS

Volume

132 / 163 cc - 8 / 9.95 cu. in

Output force

464 / 574 kg - 1023 / 1265 lbs

Inside diameter

32 mm - 1.25"

Stroke

203 mm - 8"

3/8" (9.5mm) Tube Fittings

For high pressure flex hose

Outboard Side Mount Cylinder Ordering Guide - UC132-OBS System

Application

Wheel Turns

Single engine single cylinder

Up to 300HP Maximum

Components

Model

Part No.

Qty

Cylinder

UC132-OBS

83914

5.3/6.5 (UP25)

Helm pump*

UP25* or UP28*

83925* or 83928*

4.7/5.8 (UP28)

Hoses

Hose options

Oil

OL 150

Steering wheel

Wheel options

1 pair

84115

Wheel options

Steering & Controls

Specifications

For a second station add: 1 x UP25 or UP28, 1 x KIT OB-2S fitting kit for remote branching, additional hoses, 1 x OL 150, 1 x steering wheel Dual engine Single cylinder

Up to 300HP Maximum

Non-counter rotating engines

Up to 450HP Maximum

Counter rotating engines

Cylinder

UC132-OBS

83914

Helm pump*

UP25* / UP28* / UP33*

83925* / 83928* / 83933*

4.7/5.8 (UP28)

Hoses

See hose options

4 or 4.9 (UP33)

Oil

OL 150

Tie bar

A94 or A88

Steering wheel

See wheel options

5.3/6.5 (UP25)

1 pair

84115

84194 or 84188

See wheel options

For a second station add: 1 x UP25, UP28 or UP33, additional hoses, 1 x OL 150, 1 x steering wheel and 1 x 84120 - KIT OB-2S fitting kit for remote branching. Dual engine Dual cylinder

Up to 500HP Maximum

Non-counter rotating engines

Up to 600HP Maximum

Counter rotating engines

6.1 (UP39)

Cylinder

UC132-OBS

83914

Helm pump*

UP39*

83939*

84194 or 84188

84115

Tie bar

A94 or A88

Oil

OL 150

Hoses

Hose options

1 pair

Connection kit

KIT OB-2C

Hose options

Steering wheel

Wheel options

For a second station add: 1 x UP39, additional hoses, 1 x OL 150, 1 x steering wheel, 1 x 84120 - KIT OB-2S fitting kit for remote branching. *NOTE: Helm pumps are available in tilt, front and rear mount options, Refer to "Hydraulic Helm Pumps" on page 691 WARNING: This application requires that the threads on the tilt tube extend at least 15mm (0.6") from both sides.

www.samallen.com.au

680

Hydraulic Quickfit Hose Kits QuickFit Hose Kits The Hydraulic Hose QuickFit Solution

QuickFit Hose

The Hydraulic Hose QuickFit Solution is unparalleled in quality and versatility while cutting down on installation time. Ultraflex® have simplified Hydraulic Steering systems with the QuickFit hose range. Whatever, the type of hydraulic steering set-up Ultraflex has a QuickFit Hose solution to suit.

• HiFlex, HiFlow hose. • Simple and quick to install. • Heavy-duty for long lasting reliability. • Rated to 1000psi (70bar).

it QuickF

QuickFit SilverSteer Hose

The same unparalleled performance has been applied to the SilverSteer QuickFit Hydraulic Hose range, featuring Kevlar™ reinforced hose. Recommended for use with all Ultraflex® SilverSteer and Master Drive helms with 1500psi relief valves. The SilverSteer Hose is not available in the QuickFit OB-M Series.

• Kevlar™ reinforced. • Recommended for use with all SilverSteer and Master Drive helms with 1500psi (103bar) relief valves.

QuickFit Solutions QuickFit OB Hose Series

it QuickF

QuickFit OB-R5 Hose Series

it QuickF

Steering & Controls

The QuickFit OB Series has pre-assembled brass

The QuickFit OB-R5 Series is pre-assembled brass

fittings at both ends and bend restrictors at cylinder

fittings on both ends, 2 x Bend Restrictors and 2 x R5

end. Perfect for a standard hose installation. See

Strain Relief fittings at cylinder end. Perfect if you need

QuickFit OB Hoses Series for set lengths.

to pass through a bulkhead or transom.

QuickFit OB-M Hose Series*

it QuickF

QuickFit OB-C2 Hose Series

it QuickF

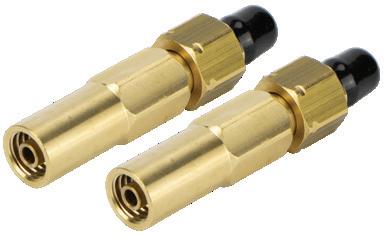

The QuickFit OB-M* Series has pre-assembled brass

The QuickFit OB-C2 Series is pre-assembled at both

fittings at one end and unassembled at the other end.

ends for transom to cylinder connection or twin

A pair of QuickFit Brass Connectors and pair of Bend

outboard engine and cylinder setup. Available in

Restrictors supplied unassembled for customised

lengths of 0.7m (2.3ft), 0.9m (2.95ft) and 1.2m (3.95ft).

fit. Simply cut hose to desired length and assemble restrictors and brass fittings. *QuickFit OB-M Series Hose is not available in the SilverSteer Hose.

Bulkhead Connection Panel - R9 The QuickFit R9 Bulkhead Kit provides a neat solution when installing a hydraulic hose through a bulkhead or transom. Available in black, white and chrome finish. Refer to "Hydraulic Hose Bulkhead Connection Panel - R9" on page 683

681

www.samallen.com.au

Hydraulic Quickfit Hose Kits QuickFit OB High Flex Kits Part No.

Model

84140

Length (m)

(ft)

13.2

QuickFit OB-R5 Thru-Bulkhead Kits

I.D. (in)

Sold As

Part No.

Model

5/16"

Pair

84240

OB/R5

Length (m)

(ft)

9.8

I.D. (in)

Sold As

5/16"

Pair

84145

4.5

14.8

5/16"

Pair

84242

OB/R5

13.2

5/16"

Pair

84146

16.4

5/16"

Pair

84244

OB/R5

16.4

5/16"

Pair

84147

5.5

5/16"

Pair

84245

OB/R5

5.5

5/16"

Pair

84160

19.7

5/16"

Pair

84246

OB/R5

19.7

5/16"

Pair

84165

6.5

21.3

5/16"

Pair

84247

OB/R5

6.5

21.3

5/16"

Pair

84170

22.9

5/16"

Pair

84248

OB/R5

22.9

5/16"

Pair

84175

7.5

24.6

5/16"

Pair

84249

OB/R5

7.5

24.6

5/16"

Pair

84180

26.3

5/16"

Pair

• Two 5/16" I.D. hose kits with pre-crimped Brass fittings on both ends, 2 x Bend Restrictors and 2 x R5 Strain Relief fittings. • Simple and quick to install. • Recommended for use with all Ultraflex® standard helms with 1000 psi (70 Bar) relief valves. • Highly flexible, high flow hose.

• Two 5/16" I.D. hose kits with pre-crimped brass fittings on both ends and bend restrictors at one end. • Simple and quick to install. • Recommended for use with all Ultraflex® standard helms with 1000 psi (70 Bar) relief valves. • Highly flexible, high flow hose.

NOTE: Not recommended for use with SilverSteer™ Series cylinders.

it QuickF

it QuickF R9 - Bulkhead Kit for Dual Hose

QuickFit OB-M for Custom Installations Part No.

Model

Length (m)

(ft)

Hose I.D. (in)

QuickFit OB-2C Dual Engine/Dual Cylinder Sold As

Part No.

Model

Length (m)

(ft)

Hose I.D. (in)

Sold As

84186

OB/M

19.7

5/16"

Pair

84256

OB-2C

0.7m

2.29

5/16"

Single

84187

OB/M

29.5

5/16"

Pair

84257

OB-2C

0.9m

2.95

5/16"

Single

84187A

OB/M

39.4

5/16"

Pair

84258

OB-2C

1.2m

3.93

5/16"

Single

84187B

OB/M

49.2

5/16"

Pair

84259

OB-2C

0.7m

2.29

5/16"

Pair

84260

OB-2C

0.9m

2.95

5/16"

Pair

84261

OB-2C

1.2m

3.93

5/16"

Pair

• Two 5/16" I.D. hose kits with pre-crimped brass fittings at one end. • Supplied with 2 QuickFit Brass Connectors and 2 Bend Restrictors. • Simple and quick to install. • Recommended for use with all Ultraflex® standard helms with 1000 psi (70 Bar) relief valves. NOTE: Not recommended for use with SilverSteer™ Series cylinders.

Steering & Controls

NOTE: Not recommended for use with SilverSteer™ Series cylinders.

• Designed to fit from the splashwell/bulkhead adapter to the cylinder or link two or more cylinders in two or more outboards applications. • Simple and quick to install. • High pressure flexible hoses with brass fittings and bend restrictors on both ends. ecommended for use with the QuickFit R9 - bulkhead kit for dual hose R applications, available in black - 84278, white - 84279 or chrome - 84280 finish.

on stallati n I m o t Cus

NOTE: Not recommended for use with SilverSteer™ Series cylinders.

it QuickF

it QuickF R9 - Bulkhead Kit for Dual Hose

www.samallen.com.au

682

SilverSteer™ Quickfit Hose Kits Silver Steer™ Kevlar™ OB/R5-SVS

Silver Steer™ Kevlar™ OB-SVS Part No.

Model

84292

Length

Sold As

Part No.

Model

(m)

(ft)

OB-SVS

3.3

Pairs

84320

84293

OB-SVS

1.5

4.9

Pairs

84294

OB-SVS

6.6

Pairs

84295

OB-SVS

2.5

8.2

84296

OB-SVS

84297

OB-SVS

3.5

84298

OB-SVS

84299

OB-SVS

4.5

84300

OB-SVS

84302

OB-SVS

84304

OB-SVS

84306

OB-SVS

84308

OB-SVS

84310

OB-SVS

84312

OB-SVS

Sold As

(m)

(ft)

OB/R5-SVS

16.4

Pair

84322

OB/R5-SVS

5.5

Pair

84324

OB/R5-SVS

17.7

Pair

Pairs

84326

OB/R5-SVS

6.5

21.3

Pair

9.8

Pairs

84328

OB/R5-SVS

22.9

Pair

11.5

Pairs

84330

OB/R5-SVS

7.5

24.6

Pair

13.1

Pairs

84332

OB/R5-SVS

26.3

Pair

14.8

Pairs

84333

OB/R5-SVS

8.5

27.8

Pair

16.4

Pairs

84334

OB/R5-SVS

29.5

Pair

5.5

Pairs

19.7

Pairs

6.5

21.3

Pairs

• Two high pressure Kevlar™ stranded flexible hoses with pre‑crimped fittings, R5 bulkhead fittings and bend restrictors on either end. • Recommended for use with all Ultraflex® SilverSteer™ helms with 1500psi relief valves.

22.9

Pairs

7.5

24.6

Pairs

26.3

Pairs

High

Steering & Controls

• Two high pressure Kevlar™ stranded flexible hoses with pre‑crimped fittings and bend restrictors on one end. • Recommended for use with all Ultraflex® SilverSteer™ helms with 1500psi relief valves.

High

it QuickF ance Perform

Kevlar™ OB-2C-SVS - Dual Engine/Dual Cylinder

Hydraulic Hose Bulkhead Connection Panel - R9 Part No.

Description

Model

Bulkhead Kit for Dual Hose

R9B

Black

84279

Bulkhead Kit for Dual Hose

R9W

White

84280

Bulkhead Kit for Dual Hose

R9CH

Chrome

Model

84342 84344

84278

68mm

49mm

68mm

Sold As

(ft)

OB-2C-SVS

0.9

2.95

Pair

OB-2C-SVS

1.2

3.93

Pair

DELETED

84280

84279

Length (m)

• Two high pressure Kevlar™ stranded flexible hoses with pre-crimped fittings and bend restrictors on both ends. • Recommended for use with all Ultraflex® SilverSteer™ helms with 1500psi relief valves. • Recommended for use with the QuickFit R9 - bulkhead kit for dual hose applications, opposite.

Colour

84278

Part No.

• Available in black, white or chrome finish. • Suitable for fibreglass, polyethylene and aluminium boats. • Reduces risk of corrosion on aluminium boats caused from chrome fittings touching aluminium and paintwork. • Reduces installation time for bulkhead fittings. • Suits all standard hydraulic hoses. • Chrome plated brass threaded fittings, ABS plastic flange supplied with 4 x stainless steel counter sunk self tapping screws.

683

Length

106mm

www.samallen.com.au

Hydraulic Tubing, Hose & Connectors Hydraulic Tubing - Semi Rigid

Hydraulic Tubing Kits - Semi Rigid

O.D. (in)

Working Pressure (PSI)

Part No.

3/8"

625

84182

• Nylon tube sold per meter. • Not recommended in application where total tubing run exceeds 30m (100ft) or on outboards more than 100hp.

84184

Part No.

84101

Description

Semi Rigid Hydraulic Nylon Tubing

NOTE: Each hose requires 2 x 84137 brass nut and olive connectors or 2 x 84138 chrome plated connectors.

Description

Length (m)

O.D. (in)

Working Pressure (PSI)

3/8"

625

3/8"

625

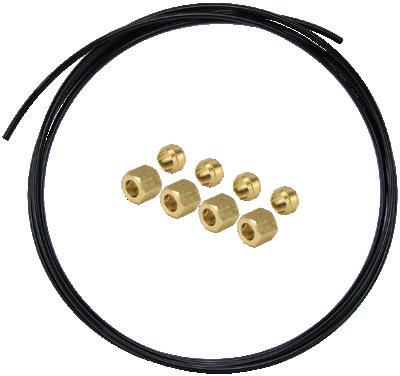

Semi Rigid Hydraulic Nylon Tubing Kits Semi Rigid Hydraulic Nylon Tubing Kits

• Pre-cut Nylon tube in available in 12m and 15m lengths. • Each kit includes 4 x 3/8" brass nut and olive connectors.

84182 & 84184

Part No.

Description

84120

Additional Station Kit - Fittings & Hose Additional Station Kit - Fittings Only

84113

Hydraulic Hose Connectors - 3/8" O.D. Tube

Length (m)

O.D. (in)

Model

Part No.

Description

3/8"

OB-2S (With Hose)

84112A

3/8"

OB-2S

84112B

3/8"

84113B

Autopilot Installation Kit suit UP28/33 Helms - Branched at Helm Autopilot Installation Kit suit UP28/33 Helms - Branched at Helm Second Station Kit suits New UP18/20 & UP28/33 Helms - Remote Branched Second Station Kit suit UP28/33 Helms Branched at Helm Second Station Kit suit UP28/33 Helms Branched at Helm

84116

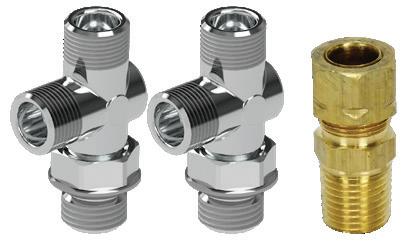

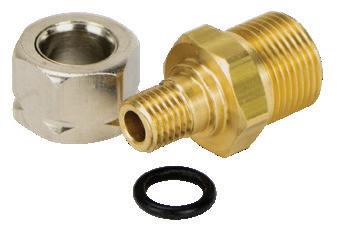

Hydraulic Hose Connector Straight 1/4" NPT x 3/8" O.D. Tube

3/8"

84116A

Hydraulic Hose Connector Straight M8 x 1.0 M - 3/8 O.D. Tube Fitting

3/8"

84116B

Hydraulic Hose Connector Straight 1/8" NPTM x 3/8 O.D. Tube Fitting

3/8"

84117

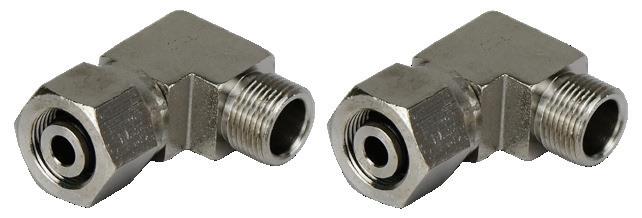

Hydraulic Hose Connector Elbow 1/4" NPT x 3/8" O.D. Tube

3/8"

84118

Hydraulic Hose Connector Tee suit 3/8" O.D. Tube

3/8"

841182

Hydraulic Hose Connector Elbow 3/8" O.D. Tube x 3/8" O.D. Tube

3/8"

• Branched remotely and requires additional flexible hoses. • 84113 Fitting kit for a second steering station or an autopilot installation. • 84120 includes all fittings and 8m (26.3ft) of 3/8" OD semi-rigid nylon tube for the balance line.

84113 84113A

Hydraulic Flexible Hose - 5/16" I.D. Part No.

84102

Description

Hose Hydraulic Ultraflex Flexible - Sold Per Metre

I.D. (in)

Working Pressure (PSI)

5/16"

1000

• 5/16" I.D. hose sold per meter for required length.

84112A

Suits O.D. Tube Ø

3/8" 3/8"

Steering & Controls

Additional Station Kit - OB-2S

84113

84112B

Hydraulic Hose Gotech Kit - OB-GT/M Part No.

84163

Description

QuickFit 2 x 6 Metre Gotech Hose

I.D. (in)

1/4" 84113A

• Kit consists of a pair of high pressure flexible hoses 1/4" I.D. with fittings featuring swivel nuts, pre-assembled at one end only and supplied with 2 non-assembled fittings for the other end. • Recommended for use with GOTECH™ steering systems ONLY. • Available in 6 m (19.7') standard length that can be cut to fit the desired application.

84116

84113B

84116A

84116B

84118 84117

www.samallen.com.au

841182

684

Tie Bars Tie Bars - A88 Part No.

84188

Tie Bars - A92

Description

Engine Centre Distance (mm)

Part No.

650 to 950

84192

Adjustable Tie Bar A88 for Twin Outboard Engine

• Tie bars suitable for twin outboard applications with single or dual cylinder up to 300 hp of maximum power. • Joins tiller arm to tiller arm. • Electropolished stainless steel ball joint. • Applicable to twin outboard engines using mechanical steering also. • All stainless steel components. • Adjustable from 650mm (25.6") to 950mm (37.4") engine centres. • Does not allow independent tilting of motors. • May not be suitable for some modern engines with large cowlings. WARNING: On those applications where the clearance between engine tiller arms and cowling is not sufficient for the use of the A88, the A92 Tie Bar is recommended

Adjustable Tie Bar A92 for Twin Outboard Engine

WARNING: Tiller arm positions and engine spacing may vary, potentially causing interference during tilting. Always thoroughly check tie bar installation before use.

Steering & Controls

Tie Bars - A90

Thread (in)

A (mm)

B Ø (in)

C (mm)

D (mm)

Part No.

Description

Suits Cylinders

Engine Centre Distance (mm)

84190

Twin Engine Cylinder Tie Bar A90

UC128-OBF

660 to 950

83970

3/8" UNF

3/8"

83971

1/2" UNF

1/2"

83972

5/8" UNF

5/8"

83973

3/4" UNF

3/4"

• Internal UNF threaded. • Ball - 440C Stainless steel head treated. • Body - Type 304 Stainless steel.

• Suitable for applications with dual UC128-OBF front mount cylinder. • Joins cylinder to cylinder. • All stainless steel. • Electropolished stainless steel ball joints. • Allows to tilt the engines independently. • Applicable to engine centres from 660mm (26") to 950mm (37.4"). • May not be suitable for some modern engines with large cowlings. NOTE: In the applications with dual UC128-OBF cylinder it is necessary to order a standard UC128-OBF cylinder (link arm attached to the starboard side of the cylinder) and a UC128P-OBF port cylinder (link arm attached to the port side of the cylinder).

685

550 to 700

• Applicable to twin outboard engines using mechanical or hydraulic steering up to 300 hp maximum total power. • Joins tiller arm to tiller arm. • Can be used with single or dual cylinders. • Easily adjustable before or after installation • All stainless steel components • Adjustable from 550 mm (21.6") to 700 mm (27.5") engine centres. • May not be suitable for some modern engines with large cowlings.

Tie Bar Rod Ends - Stainless Steel Part No.

Engine Centre Distance (mm)

Description

UC128 + 84190

www.samallen.com.au

Tie Bars Tie Bars - A96 Part No.

Description

Suits Cylinders

84196

Tie Bar A96 Twin Engine Tie Bar A96 Twin Engine Tie Bar A96 Twin Engine Tie Bar A96 Twin Engine

UC128-OBF UC130-SVS UC128-OBF UC130-SVS UC128-OBF UC130-SVS UC128-OBF UC130-SVS

660 to 736

Mercury® Yamaha® Mercury® Yamaha® Suzuki®/ Honda® Suzuki®/ Honda®

736 to 874 660 to 736 736 to 874

• Suitable for applications with single UC128-OBF or UC130-SVS front mount cylinder. • Links cylinder on one engine to the tiller arm on the other engine. • Allows tilting engines independently. • Stainless steel components • Electropolished stainless steel ball joints. 84196 / 84198 - 660 mm (26") to 736 mm (29") twin engine centres. 84197 / 84199 - 736 mm (29") to 874 mm (34.5") twin engine centres. NOTE: These recommendations are a general reference only. For any further information please contact the Sam Allen Wholesale Sales Team.

Part No.

Description

Suits Cylinders

84208

Tie Bar A95 Twin Cylinder Tie Bar A95 Twin Cylinder Tie Bar A95 Twin Cylinder Tie Bar A95 Twin Cylinder

UC128-OBF UC130-SVS UC128-OBF UC130-SVS UC128-OBF UC130-SVS UC128-OBF UC130-SVS

84209 84218 84219

Engine Centre Distance (mm)

Suits Engines

660 to 813

Mercury® Yamaha® Mercury® Yamaha® Suzuki®/ Honda® Suzuki®/ Honda®

813 to 952 660 to 813 813 to 952

• Suitable for applications with dual UC128-OBF or UC130-SVS front mount cylinder. • Links cylinder on ones engine to the cylinder on the other engine. • Allows to tilt the engines independently. • All stainless steel components. • Electropolished stainless steel ball joints. • 2 different lengths available. WARNING: In the applications with dual UC128-OBF or UC130-SVS cylinder it is necessary to order a standard UC128-OBF or UC130-SVS cylinder (link arm attached to the starboard side of the cylinder) and a UC128P-OBF or UC130P-SVS port cylinder (link arm attached to the port side of the cylinder).

Suits Cylinders 84196 / 84197

84198 / 84199

UC128

UC130

UC128-OBF/1 UC128-OBF/2 UC128-OBF/3

UC130-SVS/1 UC130-SVS/2 UC130-SVS/3

UC128P-OBF/1 UC130P-SVS/1 UC128P-OBF/2 UC130P-SVS/2

Steering & Controls

84199

Suits Engines

Starboard

84198

Engine Centre Distance (mm)

Port

84197

Tie Bars - A95

Hydraulic Fluid Link Valve UC128 + A96

UC130+ A96 Engine

Mercury®

Honda® Yamaha® Evinrude® Suzuki®

Part No.

Description

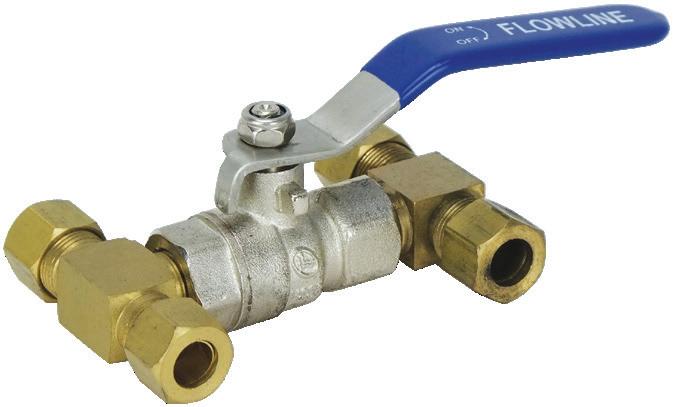

84220

Hydraulic Fluid Link Valve

Hose Size O.D. (in)

3/8"

• Fluid link valve for twin engine / twin cylinder applications where a mechanical Tie Bar is not feasible. • Engine centres must be at least 965mm apart as engines can periodically miss align. • Connect using standard KIT-OB or KIT-OB/R5 hoses.

Model

135-150-175 Optimax 2S 200-225 Optimax 2S 250 PRO XS 135-150-175 Verado 4S 200 Verado 4S 115-135-150 OHC BF 200 SOHC BF 225 A6 F115-150-200-225-250 4S E115-130-150-175-200 V6 E200-225-250-300 DF70-80-90 4S DF100-115-140-150-175 4S DF200-250-300 DOHC 4S

Single station dual engine with hydraulic fluid link

www.samallen.com.au

686

Hydraulic Inboard Cylinders Hydraulic Inboard Cylinder - UC69-I Part No.

83959

Description

Model

Hydraulic Inboard Cylinder Only

UC69-I

• For inboard engines. • Balanced: the number of turns lock-to-lock is equal. • Recommended for inboards up to 8m (26ft) where maximum boat speed does not exceed 25knots. • The UC69-I cylinders are recommended for use with UP20 series helms and pre-assembled hoses (Kit OB and Kit OB/R5).

31.3mm

417mm

Specifications

83959 - UC69-I

Volume

69 cc - 4.2 cu. in

Torque

32 kgm - 2783 lbs. in

150mm

73mm

mm 129

35.5

Output force

168 kg - 371 lbs

Inside diameter

25 mm - 0.98"

Stroke

150 mm - 5.9"

3/8" (9.5mm) Tube Fittings

For high pressure flex hose

136mm

40mm

Hydraulic Steering System Ordering Guide

Steering & Controls

System

Application

Inboard

Inboards up to 8m (26ft) length and 25knots maximum speed.

Wheel Turns

Components

Model

Part No.

Qty

Kits

3.5 turns

Cylinder Helm pump Hydraulic Oil

UC69-I UP20 OL 150

83959 83920 84115

1 1 2

83940

Hoses Steering wheel

Hose options Wheel options

1 pair 1

Not included

Hydraulic Inboard Cylinder - UC116-I Part No.

83960

Description

Model

Hydraulic Inboard Cylinder Only

UC116-I

• For inboard engines. • Balanced: the number of turns lock-to-lock is equal. • Maximum rudder torque 58kgm (5043 lbs. in). • The UC116-I cylinders are recommended for use with UP25 or UP28 series helms and pre-assembled hoses (Kit OB and Kit OB/R5). • Nylon tubing 3/8" 84101 can be used as an alternative to the standard flexible KIT-OB hose kit for plumbing the system. For these applications the fitting kit for the additional station is 84113 - OB-2S (hose not included). 102mm

466mm

83960 - UC116-I

Volume

116 cc - 7 cu. in

Torque

58 kgm - 5043 lbs. in 464 kg - 1023 lbs 32 mm - 1.25"

Stroke

178 mm - 7"

3/8" (9.5mm) Tube Fittings

For high pressure flex hose

Ø14mm 73mm

Output force Inside diameter

178mm

155

Specifications

35.5

° Ø8.5mm 40mm

127mm

Hydraulic Steering System Ordering Guide

687

System

Application

Wheel Turns

Components

Model

Part No.

Qty

Additional Station

Inboard

Max rudder torque: 58kgm (5043 lbs. in)

4.6 (UP25) or 4.1 (UP28)

Cylinder Helm pump Hydraulic Oil Hoses Steering wheel

UC69-I UP25 or UP28 OL 150 Hose options Wheel options

83960 83925 or 83928 84115 Hose options Wheel options

1 1 3 1 pair 1

1 UP25 or UP28 helm pump, 1 KIT OB-2S fitting kit, Additional hoses, Extra OL 150, 1 steering wheel

www.samallen.com.au

Hydraulic Inboard Cylinders Hydraulic Inboard Cylinder - UC168-I Part No.

83961

Description

Model

Hydraulic Inboard Cylinder Only

UC168-I

• For inboard engines. • Balanced: the number of turns lock-to-lock is equal. • Maximum rudder torque 87 kgm (7565 lbs. in). • The UC168-I cylinders are recommended for use with UP28 or UP33 series helms and pre-assembled hoses (Kit OB and Kit OB/R5). • Nylon tubing 3/8" 84101 can be used as an alternative to the standard KIT-OB hose kit for plumbing the system. For these applications the fitting kit for the additional station is 84113 - OB-2S (hose not included).

107.5mm

512mm 178mm Ø20mm

Specifications

83961 - UC168-I

105mm

Torque

87 kgm - 7565 lbs. in

Output force

673 kg - 1483 lbs

Inside diameter

40 mm - 1.57"

Stroke

178 mm - 7"

3/8" (9.5mm) Tube Fittings

For high pressure flex hose

168 cc - 10.25 cu.in

155

Volume

35.5

Ø8.5mm

127mm

40mm

Inboard

Application

Max rudder torque: 87kgm (7565 lbs. in)

Wheel Turns

Components

Model

Part No.

Qty

Additional Station

6 (UP28) or 5.1 (UP33)

Cylinder Helm pump Hydraulic Oil Hoses Steering wheel

UC168-I UP28 or UP33 OL 150 Hose options Wheel options

83961 83928 or 83933 84115 Hose options Wheel options

1 1 3 1 pair 1

1 UP28 or UP33 helm pump, 1 KIT OB-2S fitting kit, Additional hoses, Extra OL 150, 1 steering wheel

Hydraulic Inboard Cylinder - UC215-I Part No.

83962

Description

Model

Hydraulic Inboard Cylinder Only

UC215-I

• For inboard engines. • Balanced: the number of turns lock-to-lock is equal. • Maximum rudder torque 111 kgm (9652 lbs. in). • The UC215-I cylinders are recommended for use with UP33 or UP39 series helms and pre-assembled hoses (Kit OB and Kit OB/R5). • Nylon tubing 3/8" 84101 can be used as an alternative to the standard KIT-OB hose kit for plumbing the system. For these applications the fitting kit for the additional station is 84113 - OB-2S (hose not included).

Steering & Controls

Hydraulic Steering System Ordering Guide System

132.5mm

587mm 228mm Ø20mm

83962 - UC215-I

215 cc - 13.12 cu. in

Torque

111 kgm - 9652 lbs. in

Output force

673 kg - 1483 lbs

Inside diameter

40 mm - 1.57"

Stroke

228 mm - 9"

3/8" (9.5mm) Tube Fittings

For high pressure flex hose

35.5

Volume

105mm

199

Specifications

° Ø8.5mm 40mm

163mm

Hydraulic Steering System Ordering Guide System

Application

Wheel Turns

Components

Model

Part No.

Qty

Additional Station

Inboard

Max rudder torque: 111kgm (9652 lbs. in)

6.5 (UP33) or 5.5 (UP39)

Cylinder Helm pump Hydraulic Oil Hoses Steering wheel

UC215-I UP33 or UP39 OL 150 Hose options Wheel options

83962 83933 or 83939 84115 Hose options Wheel options

1 1 3 1 pair 1

1 UP33 or UP39 helm pump, 1 KIT OB-2S fitting kit, Additional Hoses, Extra OL 150, 1 steering wheel

www.samallen.com.au

688

Hydraulic Inboard Cylinders Hydraulic Inboard Cylinder - Brass UC293-I Part No.

Description

83964

Model

Hydraulic Inboard Brass Cylinder Only

UC293-I

• For inboard engines. • Balanced: the number of turns lock-to-lock is equal. • Maximum rudder torque 146.5 kgm (12816 lbs. in). • The UC293-I cylinders are recommended for use with UP39 series helms and pre-assembled hoses (Kit OB and Kit OB/R5). • Nylon tubing 3/8" 84101 can be used as an alternative to the standard KIT-OB hose kit for plumbing the system. For these applications the fitting kit for the additional station is 84113 - OB-2S (hose not included).

107mm

506mm 178mm Ø20mm

Specifications

83964 - UC293-I

Volume

293 cc - 17.8 cu. in

125mm

146.5 kgm - 12816 lbs. in 1155 kg - 2545 lbs

Inside diameter

50 mm - 1.97"

Stroke

178 mm - 7"

3/8" (9.5mm) Tube Fittings

For high pressure flex hose

163

Torque Output force

35.5

Ø8.5mm

134mm

40mm

Steering & Controls

Hydraulic Steering System Ordering Guide System

Application

Inboard

Max rudder torque: 146.5kgm (12816lbs. in)

Wheel Turns

Components

Model

Part No.

Qty

Additional Station

7.5 (UP39)

Cylinder Helm pump Hydraulic Oil Hoses Steering wheel

UC293-I UP39 OL 150 Hose options Wheel options

83964 83939 84115 Hose options Wheel options

1 1 3 1 pair 1

1 UP39 helm pump, 1 KIT OB-2S fitting kit, Additional Hoses, Extra OL 150, 1 steering wheel

Description

Model

Hydraulic Inboard Cylinder - Brass UC378-I Part No.

83963

Hydraulic Inboard Brass Cylinder Only

UC378-I

• For inboard engines. • Balanced: the number of turns lock-to-lock is equal. • Maximum rudder torque 187.6 kgm (16347lbs. in). • The UC378-I cylinders are recommended for use with UP39 series helms and 1/2" (12 mm) O.D. copper tube.

132.5mm

592mm

228mm Ø20mm

Specifications

83963 - UC378-I

Volume

376 cc - 22.94 cu. in

125mm 199 mm

Torque

187.6 kgm - 16347 lbs. in

Output force

1155 kg - 2545 lbs

Inside diameter

50 mm - 1.97"

Stroke

228 mm - 9"

Tubing and Fittings

1/2" (12 mm) O.D. copper

35.5

Ø8.5mm

163mm

40mm

Hydraulic Steering System Ordering Guide System

Inboard

689

Application

Wheel Turns

Max rudder torque: 187.6 kgm 9.6 (UP39) (16347lbs. in)

Components

Model

Cylinder Helm pump Hydraulic Oil Hoses Steering wheel

UC293-I UP39 OL 150 Wheel options

Part No.

Qty

Additional Station

83963 1 1 UP39 helm pump, 83939 1 1/2" O.D. (12 mm) copper tube and 84115 3 fittings, Extra OL 150, 1/2" O.D. Copper Tubing 1 pair 1 steering wheel Wheel options 1

www.samallen.com.au

Hydraulic Sterndrive Cylinders Hydraulic Sterndrive Cylinder - UC133-IOB Part No.

83965

Description

Hydraulic Sterndrive Cylinder Only

Model

UC133-IOB

• For sterndrive engines. • Balanced: the number of turns lock-to-lock is equal. • Maximum rudder torque 66 kgm (5738 lbs. in). • The UC133-IOB cylinders are recommended for use with UP28 or UP33 series helms and pre-assembled hoses (Kit OB and Kit OB/R5).

337mm

Hydraulic Side Mount Cylinder - UC132-OBS 83914

Description

Hydraulic Side Mount Cylinder Only

340mm

Model

UC132-OBS

• For sterndrive engines. • Unbalanced: the number of turns lock-to-lock is not equal. • UC132-OBS side mount cylinder features a patented turning nut for a fast and easy installation to the engine tilt tube. • Clearance required at the engine tube side is 375 mm (14.76"). • Recommended for use where maximum boat speed does not exceed 40knots. • The UC132 cylinders are recommended for use with UP25, UP28, UP33 and UP39 series helms and pre-assembled hoses (Kit OB and Kit OB/R5). WARNING: UC132-OBS cylinder is not intended for use with 105 Bar (1500psi) SilverSteer Series Helms.

UC133-IOB - 39429 M Balanced

UC132-OBS - 39430 W Unbalanced

Volume

132 cc - 8 cu. in

132 / 163 cc 8 / 9.95 cu. in

Torque

66 kgm - 5738 lbs. in

Output force

464 kg -1023 lbs

464 / 574 kg 1023 / 1265 lbs

Inside diameter

32 mm - 1.25"

Stroke

203 mm - 8"

For high pressure flex hose

Specifications

3/8"

(9.5mm) Tube Fittings

Hydraulic Sterndrive Cylinder - Application and Ordering Guide Sterndrive Cylinder

Engine

Year

Model

Non Power Assist Engine

Non Power Assist Features and Requirements

Power Assist Engine

Power Assist Features and Requirements

MerCruiser®

To date

Alpha Bravo One Bravo Two Bravo Three

UC133-IOB UC133-IOB UC133-IOB UC133-IOB

Balanced cylinder Clearance required at the engine tube side: 21.2" (540 mm)

UC132-OBS UC132-OBS UC132-OBS UC132-OBS

Unbalanced cylinder

275

UC168-I

Balanced cylinder

280 290 DP-E DP-G DP-S

UC133-IOB1 UC133-IOB1 UC133-IOB2 N/A N/A

Balanced cylinder Clearance required at the engine tube side: 21.2" (540 mm)

N/A UC132-OBS UC132-OBS N/A N/A UC132-OBS

Unbalanced cylinder

Volvo®

To date

Steering & Controls

Part No.

These Sterndrive Cylinder Applications should be used as general reference only and they apply to factory stock sterndrives only. For applications with sterndrive engines not listed above, please contact the Sam Allen Wholesale Sales Team. 1 2

Ultraflex® hydraulic cylinder can be installed as an alternative to a mechanical steering system only. The Volvo P. No. 872388 adapter fitting is required for the installation. Hydraulic Steering System Ordering Guide System A

Sterndrive

Wheel Turns

Balanced 4.7 Unbalanced 4.7 / 5.8

Components

Model

Part No.

Qty

Additional Station

Cylinder Helm pump Hydraulic Oil Hoses

See above Cylinder Applications UP28 OL 150 Hose options

83928 84115 Hose options

1 1 3 1 pair

Steering wheel

Wheel options

1 UP33 or UP39 helm pump, 1 KIT OB-2S fitting kit, Additional hoses, Extra OL 150, 1 steering wheel

Hydraulic Steering System Ordering Guide System B

Sterndrive

Wheel Turns

Balanced 4 Unbalanced 4/5

Components

Model

Part No.

Qty

Additional Station

Cylinder Helm pump Hydraulic Oil Hoses

See above Cylinder Applications UP33 OL 150 Hose options

83933 84115 Hose options

1 1 3 1 pair

Steering wheel

Wheel options

1 UP33 or UP39 helm pump, 1 KIT OB-2S fitting kit, Additional hoses, Extra OL 150, 1 steering wheel

www.samallen.com.au

690

Hydraulic Helm Pumps UP20 Helm Pumps

Hydraulic Helm Pumps - Front & Tilt Mount - UP20 Mounting

Displacement/ No. of Relief Valve Setting Max Wheel Dia Revolution Pistons

Part No.

Model

83920

UP20F Front Mount

20cc - 1.2cu.in

70Bar - 1000psi 508mm - 20"

83920T

UP20T With X52 Tilt

20cc - 1.2cu.in

70Bar - 1000psi 406mm - 16"

83533

X52

X52 Tilt Mechanism suits 83920T

83941

X74

X74 Square Adapter Flange suits New Style 83920 (As Pictured)

83949

X64

X64 Square Adapter Flange suits Old Style 83920

84108

Kit F

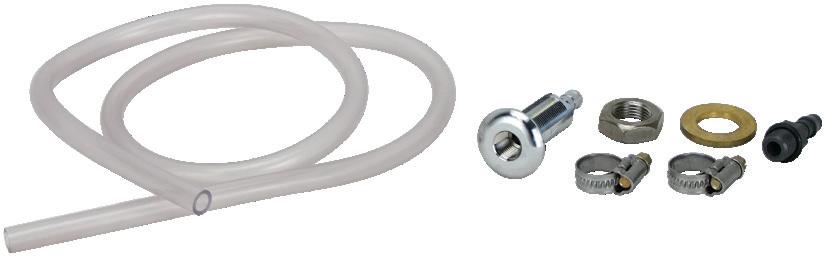

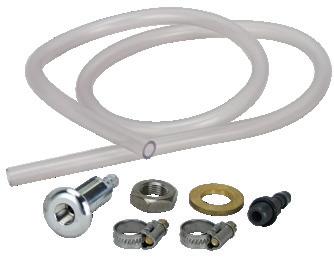

Remote Filler Kit suit Tilt Helm

• For use with UC95-OBF, UC68-OBS and UC69-I cylinders only. • Built-in lock valve for positive rudder lock. • Integrated relief valve for over-pressure protection. • Corrosion proof composite housing. • Easy accessible lock valve and shaft seal for replacement. • Includes 90° adjustable fittings for 3/8" hose. • 84108 - KIT F (optional): Remote fill kit suit tilt helm.

83920

83920 - Front Mount Helm Pump • 3/4" tapered stainless steal shaft. • Shaft nut M12 - takes 19mm spanner. • Corrosion proof composite housing. • Frontal oil distribution system extremely reliable and efficient.

Steering & Controls

83920 + 83941

NOTE: Use of X74 spare adaptor flange allows the UP20F helm to be installed in an intermediate dashboard position. The New 83920 footprint is fully compatible with previous UP20 model and fully interchangeable, M6 stud bolts are used instead of M8 from previous model. Suitable for single, dual or auto pilot installations with M8 fittings needed for the connection of the balance line (not compatible with old 1/8" NPT balance line fitting). 83920T - UP20T with X52 Tilt (Sold separately) • 3/4" tapered anodized aluminium shaft. • Tilt mechanism X52 - 83533 for UP20 T helm pump has a tilt range of 48° and five locking positions. NOTE: X52 tilt mechanism fits T81FC and T83NRFC Ultraflex® rotary mechanical helms as well as Ultraflex® UP20T, UP33T, UP39T tilt mount hydraulic pumps. On high performance SilverSteer systems use X70-SVS tilt mechanism. The NEW 83920 is NOT compatible with the previous X64 - 83949 square flange or X57 - 83954 round flange.

55.2mm

83920T with 83533 X52 Tilt Mechanism (Sold separately)

84108 Remote Filler Kit not included. Optional but recommended extra.

Ø 120mm

108.5mm

53.5mm

Ø 76mm

82mm

76mm

Dashboard

83920 Dimensions in mm 404mm

Ø 135mm

174mm

203mm

Ø 115mm Ø 76mm

Ø 127mm

X52 has a tilt range of 48° and five locking positions

6˚

691

Dashboard

83920T with 83533 Tilt Mechanism Dimensions in mm

www.samallen.com.au

Front Mount Hydraulic Helm Pumps - Front Mount No. of Pistons Relief Valve Setting Max Wheel Dia

Model

83925

UP25F Front Mount 25cc - 1.5cu.in

70Bar - 1000psi 710mm - 28"

83928

UP28F Front Mount 28cc - 1.7cu.in

70Bar - 1000psi 710mm - 28"

83933

UP33F Front Mount 33cc - 2.0cu.in

70Bar - 1000psi 710mm - 28"

83939

UP39F Front Mount 39cc - 2.4cu.in

70Bar - 1000psi 710mm - 28"

83944

X72

X72 Tilt Mechanism Ultraflex suits 83925, 83928, 83933, and 83939

83954

X57

X57 Round Adapter Flange suits 83925, 83928, 83933, and 83939

83949

X64

X64 Square Adapter Flange suits 83925, 83928, 83933, and 83939

84108A

Mounting

Displacement/ Revolution

Part No.

Replacement Filler Kit suits Front Mount Hydraulic Helms

• Available in four different displacement sizes. • Compact design. • Ball bearing piston race. • Built-in lock valves for positive rudder lock. • Integral relief valve for over-pressure protection. • 3/4" tapered stainless steel shaft. • Easily accessible shaft seal for replacement. • Cast iron rotor for greater durability and longer life. • Includes adjustable swivel nut elbow fittings for 3/8" tube.

83925, 83928, 83933 & 83939

NOTE: X64 - 83949 square flange or X57 - 83954 round flange allows the helm pumps to be installed in an intermediate dashboard position.

Steering & Controls

83944 - X72 Tilt Mechanism • The only available tilt in the market which can upgrade your standard front mount helm. • Tilt range of 60° and five locking positions. NOTE: X72 tilt mechanism does not suit to UP18 or UP20 helms

215mm 55mm

115mm

107mm

Ø 76mm

67mm

83925, 83928, 83933 & 83939 Dimensions in mm

Helm with 83944 - X72 Tilt Mechanism (Sold separately)

67mm

Dashboard 53mm

B B

84108A - Filler kit suits Ultraflex front mount hydraulic helms

83933 with 83949 Square Adapter Flange

83933 with 83954 Round Adapter Flange

154mm

132mm 67mm

67mm

Ø115

83954 Round Adapter Flange

Ø115

83949 Square Adapter Flange

www.samallen.com.au

692

Tilt Mount Hydraulic Helm Pumps - Tilt Mount Mounting

Displacement/ Revolution

No. of Pistons Relief Valve Setting Max Wheel Dia

Weight (kg)

Part No.

Model

83933T

UP33T Suits X52 Tilt 33cc - 2.0cu.in

70Bar - 1000psi 406mm - 16"

83939T

UP39T Suits X52 Tilt 39cc - 2.4cu.in

70Bar - 1000psi 406mm - 16"

83533

X52 Tilt Mechanism suit 83933T & 83939T

84108

Remote Filler Kit suit Tilt Helm • Available in four different displacement sizes. • Compact design. • Ball bearing piston race. • Built-in lock valve for positive rudder lock. • Integral relief valve for over-pressure protection. • Stainless steel shaft. • Easily accessible shaft seal for replacement. • Cast iron rotor for greater durability and longer life. • UP39 T helm pumps are ideal for dual cylinder, dual engine applications. • Tilt mechanism X52 - 83533 for UP20 T helm pump which has a tilt range of 48° and five locking positions.

NOTE: X52 tilt mechanism fits T81FC and T83NRFC Ultraflex® rotary mechanical helms as well as Ultraflex® UP20T, UP33T, UP39T tilt mount hydraulic pumps. On high performance SilverSteer systems use X70-SVS tilt mechanism. 83533 - X52

84108 (optional but recommended) Remote Filler Kit suit tilt helms not included.

Steering & Controls

83933T, 83939T, with 83533 X52 Tilt Mechanism (Sold separately)

84108 Remote Filler Kit not included. Optional but recommended. 397mm Ø 127mm

174mm

196mm

Ø 115mm Ø 76mm

Ø 127mm

6˚

83933T, 83939T, with 83533 Tilt Mechanism Dimensions in mm

X52 has a tilt range of 48° and five locking positions

693

www.samallen.com.au

Dashboard

Rear Mount Hydraulic Helm Pumps - Rear Mount Part No.

Model

Mounting

Displacement/ Revolution

No. of Pistons Relief Valve Setting Max Wheel Dia

83928R

UP28R

Rear Mount

28cc - 1.7cu.in

70Bar - 1000psi 710mm - 28"

83933R

UP33R

Rear Mount

33cc - 2.0cu.in

70Bar - 1000psi 710mm - 28"

83955

UP39R

Rear Mount

39cc - 2.4cu.in

70Bar - 1000psi 710mm - 28"

84108

Remote Filler Kit suit Rear Mount Helms

• Available in three different displacement sizes. • Compact design. • Ball bearing piston race. • Built-in lock valves for positive rudder lock. • Integral relief valve for over-pressure protection. • 3/4" tapered stainless steel shaft. • Easily accessible shaft seal for replacement. • Cast iron cylinder rotor for greater durability and longer life. • Includes adjustable swivel nut elbow fittings for 3/8" tube. • Complete with white bezel. NOTE: 84108 (optional but recommended) Remote Filler Kit suit rear mount helm not included.

Filler Port

Bezel (84108 Remote Filler Kit - op�onal)

Ø 115mm

Ø 76mm Ø 114mm

99mm

160mm

84108 Remote Filler Kit not included. Optional but recommended.

Steering & Controls

Dashboard

83928R, 83933R & 83955 Dimensions in mm

www.samallen.com.au

694

SilverSteer™ Front Mount Hydraulic Helm Pumps - Front Mount SilverSteer™

ce rforman e P h ig H

84028, 84033 & 84039

Part No.

Model

Mounting

Displacement/ Revolution

No. of Pistons Relief Valve Setting Max Wheel Dia

84028

UP28F-SVS Front Mount 28cc - 1.7cu.in

105Bar - 1500psi

710mm - 28"

84033

UP33F-SVS Front Mount 33cc - 2.0cu.in

105Bar - 1500psi

710mm - 28"

84039

UP39F-SVS Front Mount 39cc - 2.4cu.in

105Bar - 1500psi

710mm - 28"

83954

X57 Round Adapter Flange suits 84028, 84033 and 84039

83949

X64 Square Adapter Flange suits 84028, 84033 and 84039

84108A

Replacement Filler Kit suits Front Mount Hydraulic Helms • SilverSteer™ helm pumps have been specifically designed for high torque applications such as bass boats and boats with shallow dead rise and high horsepower. • Featuring a 1500 psi check valves and a patented pressure valve that enhances responsiveness, the SilverSteer™ helms will deliver very precise steering at all torque loads. • Available in three different displacement sizes. • Compact design. • Ball bearing piston race. • Built-in lock valves for positive rudder lock. • Integral relief valve for over-pressure protection 105Bar - 1500psi. • 3/4" tapered stainless steel shaft. • Easily accessible shaft seal for replacement. • Cast iron rotor for greater durability and longer life. • Includes stainless steel, adjustable, swivel nut elbow fitting for 3/8" tube.

Steering & Controls

NOTE: X64 - 83949 square flange or X57 - 83954 round flange allows the helm pumps to be installed in an intermediated dashboard position. Only use SilverSteer™ cylinders and SilverSteer™ hoses, which are also specifically designed for high torque applications.

215mm

115mm

107mm

55mm

Ø 76mm

67mm

Dashboard

83954 - Round Adapter Flange

53mm

84028, 84033 & 84039 Dimensions in mm

154mm

132mm 67mm

67mm

Ø115

83954 Round Adapter Flange

83949 - Square Adapter Flange

84108A - Filler kit suits Ultraflex front mount hydraulic helms

695

www.samallen.com.au

Ø115

83949 Square Adapter Flange

SilverSteer™ Tilt Mount Hydraulic Helm Pumps - Tilt Mount SilverSteer™ Model

Mounting

Displacement/ Revolution

No. of Pistons

Relief Valve Setting

Max Wheel Dia

Weight (kg)

84028T

UP28T-SVS Suits X70 Tilt 28cc - 1.7cu.in

105Bar - 1500PSI

406mm - 16"

84033T

UP33T-SVS Suits X70 Tilt 33cc - 2.0cu.in

105Bar - 1500PSI

406mm - 16"

84027

X70 Tilt Mechanism

84108

Remote Filler Kit suit Tilt Helms

• SilverSteer™ helm pumps have been specifically designed for high torque applications such as bass boats and boats with shallow dead rise and high horsepower. • Featuring a 1500 psi check valves and a patented pressure valve that enhances responsiveness, the SilverSteer™ helms will deliver very precise steering at all torque loads. • Available in two different displacement sizes. • Compact design. • Ball bearing piston race. • Built-in lock valves for positive rudder lock. • Integral relief valve for over-pressure protection. • Stainless steel shaft. • Easily accessible shaft seal for replacement. • Cast iron rotor for greater durability and longer life. • Includes elbow fittings. • Tilt mechanism X70 - 84027 has a tilt range of 48° and five locking positions.

ce rforman High Pe

NOTE: On high performance SilverSteer™ systems use X70‑SVS - 84027 tilt mechanism only. 84108 (optional but recommended) Remote Filler Kit suit Tilt Helms not included. 84028T, 84033T, with 84027 X70 Tilt Mechanism (Sold separately)

397mm Ø 127mm

174mm

196mm

Ø 115mm

Steering & Controls

Part No.

Ø 76mm

Ø 127mm

84108 Remote Filler Kit not included. Optional but recommended extra.

6˚

Dashboard

84028T, 84033T, with 84027 Tilt Mechanism Dimensions in mm

X70 has a tilt range of 48° and five locking positions

www.samallen.com.au

696

Bulkhead Hose Connectors

Bulkhead, Pigtails, Connectors & Bend Restrictors Hydraulic Hose Connection - R8 Part No.

84270 84271

Description

Through Outboard Well or Bulkhead Kit for Dual Hose Through Outboard Well or Bulkhead Kit for Dual Hose

Hydraulic Hose - Bulkhead Strain Relief

Model

Colour

Part No.

R8B

Black

84119

R8CH

Chrome

Bulkhead Hydraulic Hose Pig Tail Fitting

• Features a water tight gripper fitting and a bulkhead flange for hose protection. • Sold individually. 6 Ø4

• Connection flange available with a chrome or black finish. • Suitable for fibreglass, polyethylene and aluminium boats. • Reduces hose kinking.

Description

Ø6 8

122mm 34.5mm

Hydraulic Hose Fittings - Gotech 1/4" 84270

84271 68mm

68mm

49mm

Part No.

Description

Tube I.D.

Sold As

84099

Brass Hydraulic Hose Fitting Kit for Gotech™ Only

1/4"

Pair

• Two reusable quick connect fittings featuring swivel nut for use with 1/4" I.D. hydraulic hose for Gotech™ only.

106mm

Steering & Controls

Hydraulic Hose Connection - R9 Part No.

Description

Model

84099

Colour

84278

Bulkhead Kit for Dual Hose

R9B

Black

84279

Bulkhead Kit for Dual Hose

R9W

White

84280

Bulkhead Kit for Dual Hose

R9CH

Chrome

• Available in black, white or chrome finish. • Suitable for fibreglass, polyethylene and aluminium boats. • Reduces risk of corrosion on aluminium boats caused from chrome fittings touching aluminium and paintwork. • Reduces installation time for bulkhead fittings. • Suit all standard hydraulic hoses. • Chrome plated brass threaded fittings, ABS plastic flange supplied with 4 x stainless steel counter sunk self tapping screws.

Hydraulic Hose Fittings - 5/16" Part No.

Description

Tube I.D.

Sold As

84103

Brass Hydraulic Hose Fitting

5/16"

Pair

84104

Hose Bend Restrictors Kit

5/16"

Pair

• 84103: Two reusable quick connect fittings featuring swivel nut for use with 5/16" I.D. hydraulic hose and connection for 3/8" tube fitting. • 84104: Two bend restrictors for use with 5/16" I.D. hydraulic hose Note: Use with 84102 hose on page 684.

84103

84279

84278 84104

49mm

68mm

106mm

84280

697

Hydraulic Hose Elbow Slip-nut Connector Part No.

84276

Description

Hydraulic 90° 3/8" Tube Male x 3/8" Tube Slip-nut

Sold As

Pair

• Suits 3/8" compression fittings and all Ultraflex QuickFit hoses. • Ideally used to fit hose at 90 degrees to bulkhead fittings (opposite). • Slip nut allows alignment to various angles. • Nickel Plated Brass.

www.samallen.com.au

Hydraulic Hose Connectors

Hose Connectors, Fittings & Hose Bleed Tee's Hydraulic Hose Connectors - Nickel Plated Part No.

Description

83958

Hydraulic Hose Swivel Nut Elbow Connector - 9/16" orb x 3/8" Tube Suit Ultraflex Helms Hydraulic Hose Swivel Nut 'T' Connector - 9/16" orb x 3/8" Tube Suit Ultraflex Helms Hydraulic Hose Swivel Nut 'L' Connector - 9/16" orb x 3/8" Tube Suit Ultraflex Helms

83958T 83959T

• 9/16" orb x 3/8" tube for Ultraflex helm pumps. • Nickel or chrome plated brass.

83958T

83959T

Hydraulic Hose - Nut & Olive Assembly - Nickel Plated Suits O.D. Tube Ø

Description

84138

Nut & Olive Assembly suits Semi-rigid Nylon Tubing

3/8"

84137

Compression Nut & Olive Assembly Brass

3/8"

Suits O.D. Tube Ø

Part No.

Description

84112A

3/8"

84113B

84116

Hydraulic Hose Connector Straight 1/4" NPT x 3/8" O.D. Tube

3/8"

84116A

Hydraulic Hose Connector Straight M8 x 1.0 M - 3/8 O.D. Tube Fitting

3/8"

84116B

Hydraulic Hose Connector Straight 1/8" NPTM x 3/8 O.D. Tube Fitting

3/8"

84117

Hydraulic Hose Connector Elbow 1/4" NPT x 3/8" O.D. Tube

3/8"

84118

Hydraulic Hose Connector Tee suit 3/8" O.D. Tube

3/8"

841182

Hydraulic Hose Connector Elbow 3/8" O.D. Tube x 3/8" O.D. Tube

3/8"

84112B 84113 84113A

83958

Part No.

Hydraulic Hose Connectors - 3/8" O.D. Tube

3/8" 3/8" 3/8" 3/8"

Steering & Controls

• Nickle plated brass. 84112A 84112B 84138

84137

Hydraulic Cylinder - Bleed Tee -1/4" NPT Part No.

Description

Thread A

Thread B

83952

Cylinder Bleed Tee 1/4" NPT x 3/8" O.D. Tube

1/4" NPT

3/8" Tube

84113

• Nickel plated brass. • Includes 3/8" O.D. tube nut and olive. • Suits the UC81-OBF/1 Gotech Hydraulic Cylinder (83917). B B

84113A

A 84113B 84116

Hydraulic Cylinder - Bleed Tee - 9/16" ORB Part No.

Description

83957

Adjustable Bleed 'T' for Cylinder

83956

Quick Connect Bleeder Only

Thread A

Thread B

9/16" ORB

3/8" Tube

84116A

84116B

• Nickel plated, suits all cylinders except UC81-OBF/1. • Swivel nut allows Tee to be rotated to optimum angle. B

84117

B 84118

841182

A 83957

83956

www.samallen.com.au

698

Hydraulic Fluid Link Valves & Helm Spares Hydraulic Fluid Link Valve Part No.

Description

84220

Hydraulic Fluid Link Valve

Filler Plug Hose Size O.D. (in)

3/8"

Part No.

Description

84106

Vented Filler Plug

84107

Non-Vented Filler Plug*

*NOTE: For use with second station helm (fitted to lower helm).

84107

84106

Hydraulic Helm - Shaft Seal Part No. 84220

Description

Suits Helm Pump Models

84135/20

Shaft Seal Kit

UP20

84135

Shaft Seal Kit

UP25, UP28, UP33, UP39

84135S

Front Shaft Seal Only

UP25, UP28, UP33, UP39

Single station dual engine with hydraulic fluid link.

84135S

Steering & Controls

84135/20 & 84135

Hydraulic Helm - Seal and ‘O' Ring Part No.

Description

84136

Seal and 'O' Ring Kit suits UP20 Helm Pumps

By-pass Valve Part No.

84114

Description

By-pass Valve

Model

Suits O.D. Tube Ø

BP95

3/8"

• By-pass valve for 3/8" semi-rigid nylon or flexible hoses. • High quality version of the simple hydraulic fluid link valve above.

Remote Filler Kit - Rear & Tilt Helms Part No.

84108

Description

Model

Remote Filler Kit

Kit F

• Remote filler kit for rear mount and tilt mount helm pumps.

Filler Kit - Front Mount Helms Part No.

84108A

Description

Filler Kit suits Front Mount Hydraulic Helms

• Replacement filler kit for Front mount helm pumps. NOTE: Does not suit UP20F helm pumps.

699

www.samallen.com.au

Hydraulic Cylinder Spares

Hydraulic Cylinder Link Arms & Cylinder Spares Hydraulic Cylinder - Link Arms

Seal Kit suit Ultraflex UC81-OBF

Part No.

Model

Type

Suits

84122

LA1

Standard Link Arm

UC128-OBF/1 Cylinder

84121

LA1P

Port Link Arm

UC128P-OBF/1 Cylinder

84123

LA2

Standard Link Arm

UC128-OBF/2 Cylinder

84123P

LA2P

Port Link Arm

UC128P-OBF/2 Cylinder

84124

LA3

Standard Link Arm

UC128-OBF/3 Cylinder

Part No.

84098

Description

• Warning: LA1, LA2, LA3, LA1P and LA2P link arm kits are recommended for use on the first installation only and not as a retrofit. Installation has to be made by qualified technicians only. • Refer to tightening load described in the Installation Manual and mounting instructions supplied with the products.

84098

Hydraulic Cylinder Spares - UC94/UC95-OBF

84121

Part No.

84123P

84123

Description

84125

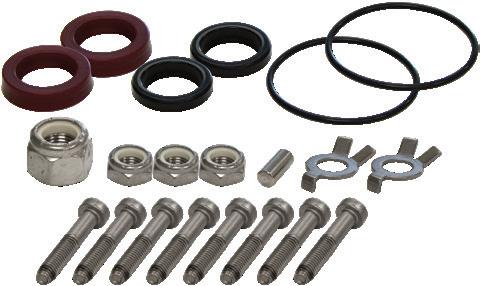

Seal Kit

UC94-OBF

Seal Kit includes Bolts

UC94-OBF

841338

Seal Cartridge Kit

UC95-OBF

84125

Suzuki Kit 1998-2008 83919

Suits Cylinder

84125KIT

84124

Part No.

UC81-OBF

84125KIT

Description

Suits

83918/1

Suzuki Kit 1998-2008

• Suzuki® engines DF100, DF115 built from 1998 to 2008 installing UC81OBF/1, UC95‑OBF/1, UC128-OBF/1, UC130/1-SVS cylinder require this optional kit.

Hydraulic Cylinder Spares - UC128-OBF Part No.

Description

Suits

84129

Seal Kit

UC128-OBF Cylinder

84130K

Seal Cartridge Kit

UC128-OBF Cylinder (New Models)

Steering & Controls

84122

Model

Replacement Cylinder Head, Seal & Tool Kit Suit UC81-OBF

• Suits UC128-OBF bullhorn cylinder.

Bull Horn Mounting Bracket - UC128-OBF / UC95-OBF Part No.

Description

Suits Cylinder

84133

Bull Horn Mounting Bracket

UC128-OBF / UC95-OBF

84129

84130K

Hydraulic Spares - UC128-OBF End Cap Part No.

84131

Description

Seal Cartridge Kit

Hydraulic Side Mount Seal Kit - UC132-OBS

Suits

Part No.

Description

Suits Cylinder

UC128-OBF Cylinder (Old Models)

84126

Side Mount Seal Kit

UC132-OBS

• Two required per cylinder.

www.samallen.com.au

700

Hydraulic Helm Accessories

Helm Tilt Mechanism, Helm Flange Adapters & Helm Position Kit Tilt Mechanism - X52 Part No.

Recess Adapter / Dress Flange Model

Part No.

X52

83954

Recess Adapter / Dress Flange

X57

Round

• Tilt range of 48° and five locking positions. • Suitable for use with T81FC and T83NRFC rotary mechanical helms, and the UP20T, UP33T, UP39T hydraulic helm pumps.

83949

Recess Adapter / Dress Flange

X64

Square

83533

Description

Tilt Mechanism

Description

Model

Shape

• Suits the 83925, 83928, 83933 and 83939 hydraulic helm pumps. • Used for recessing helm into dash or dress flange. NOTE: Use X74 -83941 square adaptor flange with 83920 UP20F helm pump.

154mm 67mm

Ø 135mm

Ø115

83954 404mm 174mm

Ø 127mm

203mm 132mm 67mm

Steering & Controls

Ø115

6˚

Dashboard

83949

Tilt Mechanism with Helm

Tilt Mechanism - X72 Part No.

83944

Description

Intermediate Helm Position Kit - Master Drive Model

Tilt Mechanism

X72

• Tilt range of 60° and five locking positions. • Compact size. • Suits standard helm pumps UP25F, UP28F, UP33F, UP39F, and SilverSteer helm pumps UP28F-SVS, UP33F-SVS, UP39F-SVS.

Part No.

Description

Model

Shape

84043

Master Drive K81 Intermediate Helm Position Kit

K81

Round

• The kit allows the MasterDrive™ helm to be installed in an intermediate dashboard position.

NOTE: Not suitable for UP18 or UP20 helms. 30°

73 mm

218 mm

30°

∅148 mm

30°

73 mm

218 mm

30°

∅148 mm

Helm installed (not included) 83944 - X72 Tilt Mechanism

701

Photo Courtesy of Riviera

www.samallen.com.au

Hydraulic Oil & BubbleBuster™ Hydraulic Oil - High Performance ISO15 Part No.

Description

Hydraulic Oil - Ultraflex

Size

Part No.

Description

Model

Size

OL 150

1Ltr

84115A

Hydraulic Oil Bottle

1Ltr

84115

84115B

Hydraulic Oil Bottle with Tap

20Ltr

• High quality hydraulic oil sold in 1 litre containers. • Hydraulic oil: 150 VG 15. • Solidification point: < -30°C. • Contamination according to NAS1638≤8. • Genuine Ultraflex product. • Made in Italy.

• Contains a balanced elastomer conditioning additive to prolong life of hoses and seals. • Fortified with anti-wear zinc additives. • Protection from corrosion, rust and oxidation. • Anti foaming. • Suitable for UltraFlex® hydraulic steering systems. • Made in Australia.

Hydraulic Oil

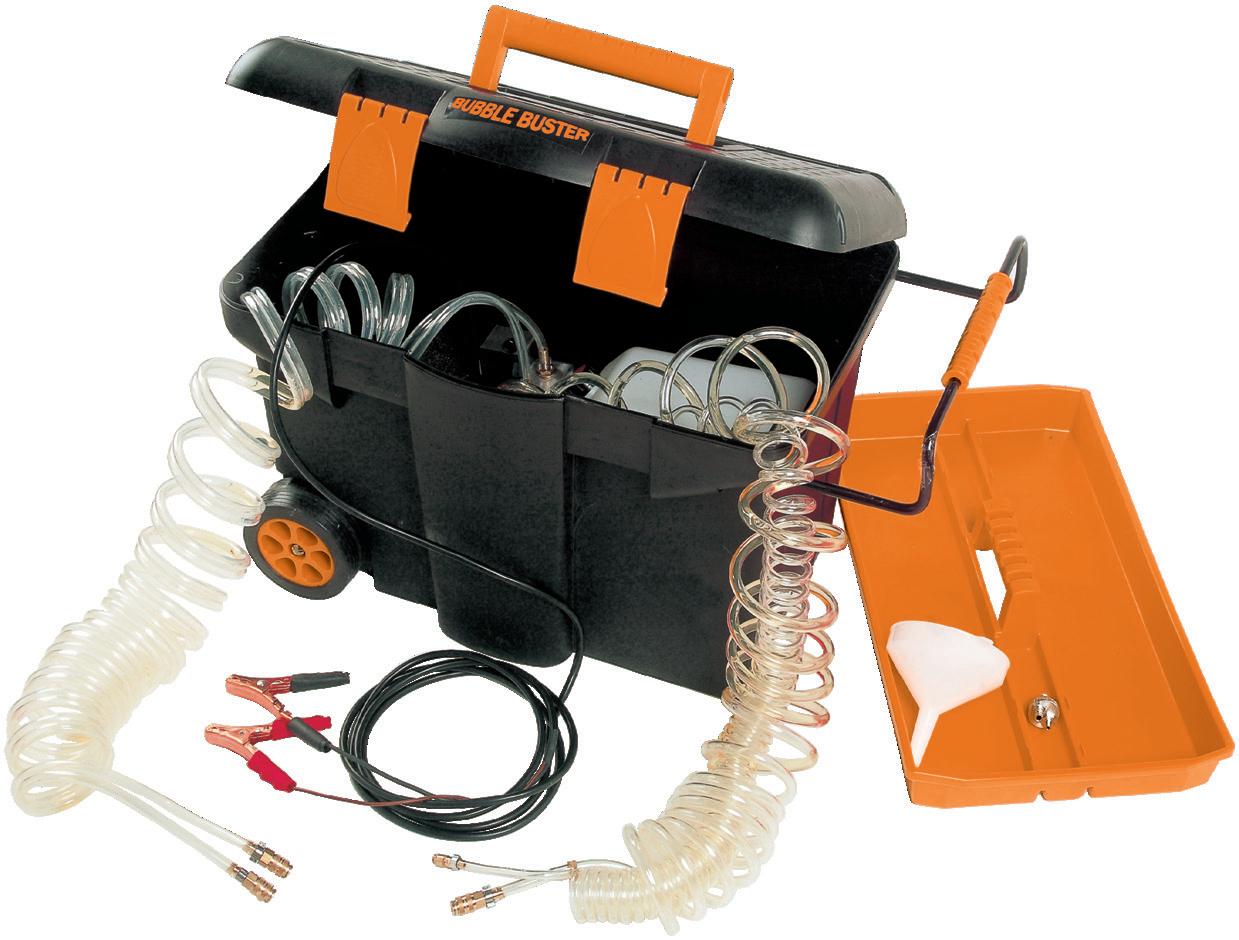

BubbleBuster™ - Ultraflex Part No.

Description

84200

BubbleBuster™ Complete Set

84201

15m Extension Hose Kit to suit BubbleBuster™

• Reduce time and simplify purging hydraulic steering systems with the self contained portable BubbleBuster™ purging unit. • Attach the hoses using the quick connect fittings to the helm and cylinder and with the push of a button the BubbleBuster™ begins cycling oil throughout the entire systems. • The BubbleBuster™ features a Zero Emulsion pump, a 3.8 litre capacity reservoir and is compatible with competing helms and cylinders. • 84201 - The double-spiraled extension hose easily connects to the BubbleBuster™ hose using quick connectors, providing an additional 15 meters of reach to access the boat cylinder.

Steering & Controls

NOTE: Oils must never be reused, once it has been used it becomes contaminated

Quick connectors provided on each Hose Extension Kit

84201 - 15m Extension Hose Kit

www.samallen.com.au

702

Steering System - Power Assisted MasterDrive™ Systems Introduction

MasterDrive™ Power Assisted Outboard Steering System Effortless steering for the most demanding applications! For the ultimate in steering performance, look no further then the MasterDrive™ power assisted outboard hydraulic steering system which delivers fingertip control regardless of speed or torque conditions. With installation similar to conventional manual hydraulic systems, the MasterDrive™ eliminates torque at the steering wheel. The system remains functional with manual hydraulic steering override in the event of a loss of power.

• Three different selectable levels of power give the boater the desired feeling on the wheel (Patented). • Automatically reverts to manual mode in case of power loss. • High efficiency, low Amp draw. • Immediate control in any sea conditions. • Equipped with safety switch ON/OFF (Smart Button). • Can be used on dual station installations. • Suitable for use with autopilot. • Low noise. • Voltage: 12VDC. • CE marked in conformity with ABYC P21, ISO 10592 safety standards. • Ignition protected (SAE J-1171 and UNI EN 28846).

Steering & Controls

When selecting a MasterDrive™ System please consult a sales representative at Sam Allen Wholesale or use the application selection guide below to select the most appropriate MasterDrive™ System for your application.

System Components for Single Cylinder application: 1 x Front or Tilt Mount MasterDrive™ Helm UH - 84032 or 84032T refer to "Power Assisted Helm Pumps - MasterDrive™ UH" on page 707. 1 x Power Unit UPMD - 84045, 15ft wiring harness included refer to "Power Assisted Helm Pump Unit - MasterDrive™ UPMD" on page 707. 1 x User Interface UCMD - 84046 refer to "Switch Panel Master Drive™ UCMD" on page 707. 1 x Silversteer™ Steering Cylinder UC130-SVS - 84010/1 to 84010/2 refer to "SilverSteer™ Front Mount Cylinders" on page 677. 1 x KIT OB-SVS SilverSteer™ - 84294 to 84314 high pressure hose kit complete with pre-assembled fittings refer to "Silver Steer™ Kevlar™ OB-SVS" on page 683. 1 x KIT OB-SVS SilverSteer™ - 84294 to 84314 high pressure hose kit complete with pre-assembled fittings refer to "Silver Steer™ Kevlar™ OB-SVS" on page 683. 4 x Hydraulic Oil.

703

MasterDrive™ System Features:

System Components for Dual Cylinder application: 1 x Front or Tilt Mount MasterDrive™ Helm UH - 84040 or 84042T refer to "Power Assisted Helm Pumps - MasterDrive™ UH" on page 707. 1 x Power Unit UPMD - 84045, 15ft wiring harness included refer to "Power Assisted Helm Pump Unit - MasterDrive™ UPMD" on page 707. 1 x User Interface UCMD - 84046 refer to"Switch Panel Master Drive™ UCMD" on page 707. 2 x Silversteer™ Steering Cylinders UC130-SVS - 84010/1 to 84010/2 refer to "SilverSteer™ Front Mount Cylinders" on page 677. Requires one starboard cylinder and one port. 1 x KIT OB-SVS SilverSteer™ - 84294 to 84314 high pressure hose kit complete with pre-assembled fittings refer to "Silver Steer™ Kevlar™ OB-SVS" on page 683. 1 x KIT OB-SVS SilverSteer™ - 84294 to 84314 high pressure hose kit complete with pre-assembled fittings refer to "Silver Steer™ Kevlar™ OB-SVS" on page 683. 1 x KIT OB-2C-SVS SilverSteer™ - 84342 to 84344 high pressure hose kit complete with pre-assembled fittings for cylinder connection (dual cylinder applications only) refer to "Kevlar™ OB-2C-SVS - Dual Engine/Dual Cylinder" on page 683. 4 x Hydraulic Oil.

www.samallen.com.au

Single Cylinder Application MasterDrive™ Single Station - Single Cylinder Kit Part No.

Description

Helm

84050

Master Drive™ Single Station Kit - Single Cylinder Kit

UH32-F

Master Drive™ UH32-F Kit Includes: 84032 - UH32-F x 1 Master Helm Pump. 84045 - UPMD x 1 Power Unit, 4.5 m (15') Wiring Harness. 84046 - UCMD x 1 User Interface Switch Panel. 84115 - OL 150 x 4 Litres Hydraulic Oil. Installation Manual x 1.

Components Ordered Separately: 1. SilverSteer™ hydraulic cylinders (refer to "SilverSteer™ Front Mount Cylinders" on page 677). UC130-SVS - Match the cylinder to your engine model. 2. Hydraulic hose kits (refer to "MasterDrive™ Hydraulic Hose Kits" on page 708 for hose lengths). OB-SVS - Select the desired length. OB-SVS - Select the desired length.

Optional Components:

Steering & Controls

1. 84060 - Second Station (refer to "MasterDrive™ Second Station Kits" on page 706). 2. Steering Wheels (refer to "Steering Wheels" on page 641).

MasterDrive™ Single Station - Single Cylinder Kit

User Interface

PORT

STBD

Helm UH32

STBD

2 Power Unit

UC130-SVS Cylinder

Wiring Harness

5 Kit OB-SVS - Hose 6 Kit OB-SVS - Hose

Key

Battery

www.samallen.com.au

704

Dual Cylinder Application MasterDrive™ Single Station - Dual Cylinder Kit Part No.

Description

Helm

Master Drive™ Single Station Kit - Dual Cylinder Kit

84051

UH40-F

Master Drive™ UH40-F Kit Includes:

84040 - UH40-F x 1 Master Helm Pump. 84045 - UPMD x 1 Power Unit, 4.5 m (15') Wiring Harness. 84046 - UCMD x 1 User Interface Switch Panel. 84115 - OL 150 x 4 Litres Hydraulic Oil. Installation Manual x 1.

Components Ordered Separately: 1. SilverSteer™ hydraulic cylinders (Refer to "SilverSteer™ Front Mount Cylinders" on page 677). UC130-SVS - Match the cylinder to your engine model. 2. Hydraulic hose kits (Refer to "MasterDrive™ Hydraulic Hose Kits" on page 708 for hose lengths). OB-SVS - Select the desired length. OB-SVS - Select the desired length. OB-2C-SVS - Select the desired length.

Optional Extras: 1. 84061 - UH40-F Second Station (Refer to "MasterDrive™ Second Station Kits" on page 706) 2. Tie Bars for dual cylinder application (Refer to "Tie Bars" on page 686). 3. Steering Wheel (Refer to "Steering Wheels" on page 641).

Steering & Controls

MasterDrive™ Single Station - Dual Cylinder Kit

PORT

Helm UH40

STBD

3 User Interface

PORT

STBD

2 Power Unit

PORT

4 UC130-SVS Cylinder

5 Kit OB-SVS - Hose 6 Kit OB-SVS - Hose

705

UC130-SVS Cylinder STBD

Wiring Harness

7 Kit OB-2CSVS - Hose

Key

Battery

www.samallen.com.au

Second Station Application MasterDrive™ Second Station Kits Part No.

Description

84060

Master Drive™ Second Station Kits Master Drive™ Second Station Kits

84061

Application

Model

Single Cylinder

UH32-F

Dual Cylinder

UH40-F

Master Drive™ Second Station Kit contains:

UH32-F/UH40-F - 1 x Slave helm pump. 84046 - UCMD x 1 User Interface Switch Panel. 7 metre electric cable for second station communications x 1. 3/8" straight fitting x 1. 3/8" T fittings x 2. 84115 - OL 150 x 1 Litres Hydraulic Oil. Installation Manual x 1.

Depending on the helm type, 2 versions are available: 84060 - UH32-F - 32cc Front Mount Helm included. 84061 - UH40-F - 40cc Front Mount Helm included.

Components Ordered Separately: Hydraulic hose kits (Refer to "MasterDrive™ Hydraulic Hose Kits" on

page 708 for hose lengths). OB-SVS select desired length to match distance from master helm pump to the slave helm pump. OB-SVS - select the desired length.

For dual cylinder applications, order:

User Interface

PORT

Master Station

STBD

Helm UH32/40

SLAVE HELM

User Interface

PORT

Second Station

STBD

Helm UH32/40

Steering & Controls

KIT OB-2C-SVS - select the desired length.

UC130-SVS Cylinder

STBD

PORT

Power Unit

4 UC130-SVS Cylinder

Wiring Harness

5 Kit OB-SVS - Hose 6 Kit OB-SVS - Hose 7 Kit OB-2CSVS - Hose Key

Battery

www.samallen.com.au

706

MasterDrive™ System Power Assisted Helm Pumps - MasterDrive™ UH Part No.

Description

Model

Mounting

Displacement/ Revolution

No. of Turns Lock to Lock

Max Wheel Dia

No. of Stations

84032

UH32-F Helm Pump

UH32-F

Front Mount

32cc - 1.95cu.in

3.75 turns single cylinder

406mm - 16"

84032T

UH32-T Helm Pump

UH32-T

With X66 Tilt

32cc - 1.95cu.in

3.75 turns single cylinder

406mm - 16"

84040

UH40-F Helm Pump

UH40-F

Front Mount

40cc - 2.44cu.in

6 turns dual cylinder

406mm - 16"

84040T

UH40-T Helm Pump

UH40-T

With X66 Tilt

40cc - 2.44cu.in

6 turns dual cylinder

406mm - 16"

84042

X66 Tilt Mechanism for MasterDrive™ Tilt Helm

84043

Master Drive K81 Intermediate Helm Position Installation Kit

84276

90° Two Fitting Kit - 3/8" Male to 3/8" Slip Nut for MasterDrive™ Helms (Optional)

m Premiu

84276

• Available in two different displacement sizes: 32cc (1.95 cu.in) and 40cc (2.44 cu.in). • Front Mount and Tilt Mount versions available. • Dual station installation use, 40cc displacement version only. • Built-in relief valve. • 3/4" tapered shaft. • Corrosion resistant painted body. • Waterproof. • Tilt mount versions use X66 - 84042 tilt mechanism (sold separately). • The X66 tilt range of 48° with five locking positions 32.4mm

10mm 175mm

Steering & Controls

Ø86mm

Ø104mm

84045

Description

Power Assisted Helm Pump Unit

• 12VDC Motor. • 90° swivelling fittings for easy installation. • Semitransparent 0.5 litre (0.11gal) tank gives immediate level vision. • Vented filler plug. • Bulkhead or floor mount. • Suitable for applications with autopilot. • Black galvanized motor case, salt water resistant. • 4.5 m (15') Wiring Harness included. • IP67 waterproof. • Ignition protected (SAE J-1171 and UNI EN 28846).

84032, 84032T 84040 & 84040T

Switch Panel - Master Drive™ UCMD

Model

Part No.

UPMD

84046

Description

Switch Panel for Power Assist

Model

UCMD

• Safety switch ON/OFF (smart button). • Three different power levels with light indicator (Patented). • Motor temperature visual indicator. • Twin engine key selection included. • Lighted panel for stand-by position. • Plug-in wiring harness. • Suitable for a second station installation.

198mm

416mm

474mm

203mm

84042 - X66 Tilt Mechanism (Sold separately)

Power Assisted Helm Pump Unit - MasterDrive™ UPMD Part No.

m 14 Ø1

84043 - K81 Helm Position Installation Kit

9.5

ø2

29.5

707

www.samallen.com.au

12.5

MasterDrive™ Hydraulic Hose Kits

Part No.

Model

84320

Length

Hydraulic Hose Kit - Silver Steer™ Kevlar™ OB-SVS

Sold As

Part No.

Model

(m)

(ft)

OB/R5-SVS

16.4

Pair

84292

84322

OB/R5-SVS

5.5

Pair

84324

OB/R5-SVS

17.7

Pair

84326

OB/R5-SVS

6.5

21.3

84328

OB/R5-SVS

84330

OB/R5-SVS

7.5

84332

OB/R5-SVS

84333

OB/R5-SVS

84334

OB/R5-SVS

Length

Sold As

(m)

(ft)

OB-SVS

3.3

Pairs

84293

OB-SVS

1.5

4.9

Pairs

84294

OB-SVS

6.6

Pairs

Pair

84295

OB-SVS

2.5

8.2

Pairs

22.9

Pair

84296

OB-SVS

9.8

Pairs

24.6

Pair

84297

OB-SVS

3.5

11.5

Pairs

26.3

Pair

84298

OB-SVS

13.1

Pairs

8.5

27.8

Pair

84299

OB-SVS

4.5

14.8

Pairs

29.5

Pair

84300

OB-SVS

16.4

Pairs

84302

OB-SVS

5.5

Pairs

84304

OB-SVS

19.7

Pairs

84306

OB-SVS

6.5

21.3

Pairs

84308

OB-SVS

22.9

Pairs

84310

OB-SVS

7.5

24.6

Pairs

84312

OB-SVS

26.3

Pairs

it QuickF nce rforma e P h ig H

Hose Connection Kits - Dual Engine / Dual Cylinder - OB-2C-SVS Part No.

Model

Length (m)

(ft)

Steering & Controls

Hydraulic Hose Kit -Silver Steer™ Kevlar™ OB/R5-SVS

Sold As

84342

OB-2C-SVS

0.9

2.95'

Pair

84344

OB-2C-SVS

1.2

3.93'

Pair

• Two high pressure Kevlar™ stranded flexible hoses with pre-crimped fittings and bend restrictors on either end. • Recommended for use with all Ultraflex® SilverSteer™ helms with 1500psi relief valves. • Suitable for use with the R9 - bulkhead kit for dual hose applications refer to "Hydraulic Hose Connection - R9" on page 697.

DELETED

nce rforma e P h ig H it QuickF

www.samallen.com.au

708

Engine Controls

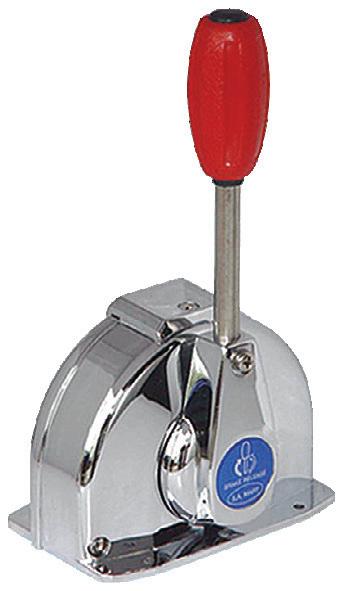

Side Mount Engine Controls Engine Control - Side Mount - Stainless Steel - B400 Series Part No.

127.4mm

77mm

30°

31.2mm

83838

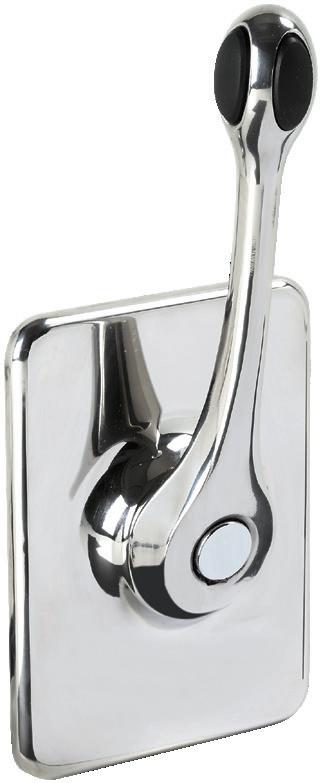

Stainless Steel Side Mount Control - Full Mechanical Version

B400

83673

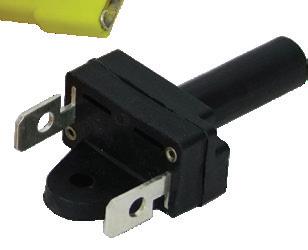

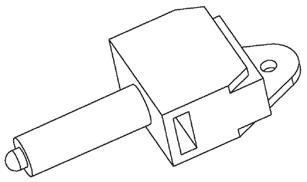

Neutral Safety Switch (Optional)

X41

268mm

161mm

185mm

80°

83838

Suitable Engine Control Cables: - C8 and MACH Zero.

46mm

80°

Model

• The B400 has an universal control mechanism that allows for both "push" or "pull" for throttle and shift. • Sleek modern design is ideal for sailboats. • 316G stainless steel lever and flange for better resistance in the marine environment. • Enables easy and safe shifting by preventing accidental gear engagement unless engine is idling. • Can be installed horizontally or vertically, on the starboard or port side of the boat. • Provided with an adjustable brake tension release system. • Push-in button for throttle operation in neutral for engine warm up. • Neutral safety switch X41 (optional) prevents in-gear starting. • Exceeds EN ISO 11547 standards when X41 safety switch is installed.

83673

30°

Description

Steering & Controls

83mm

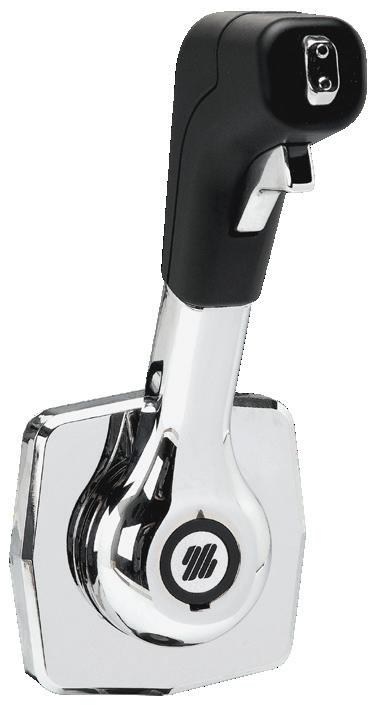

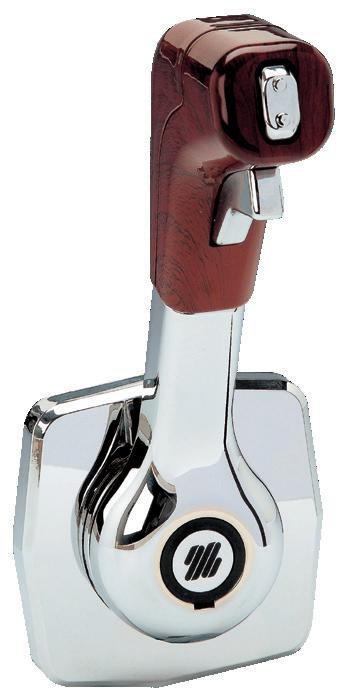

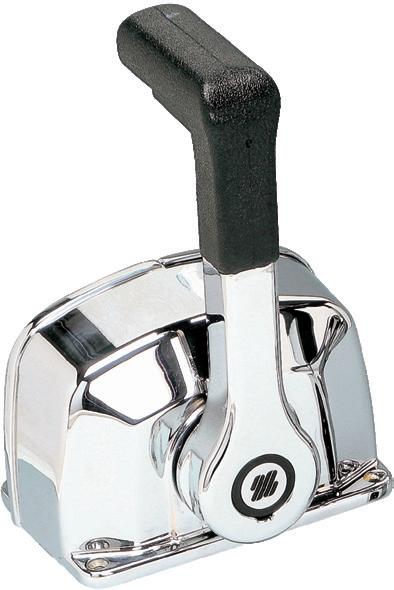

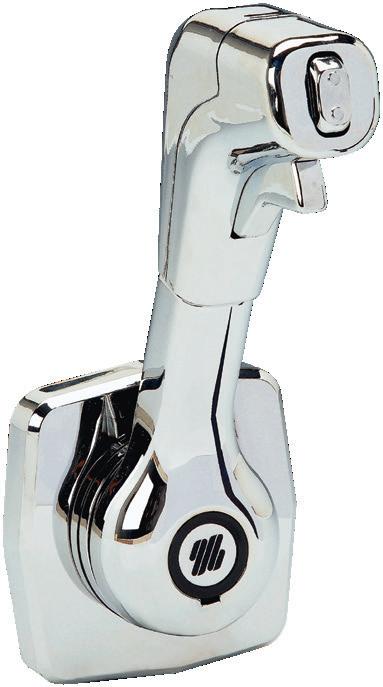

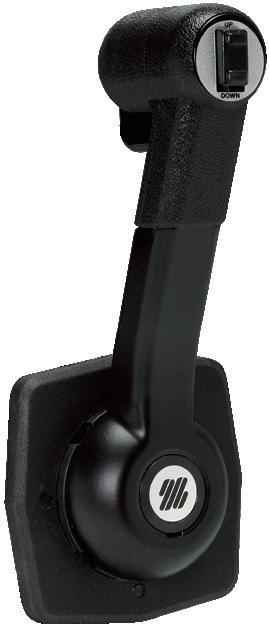

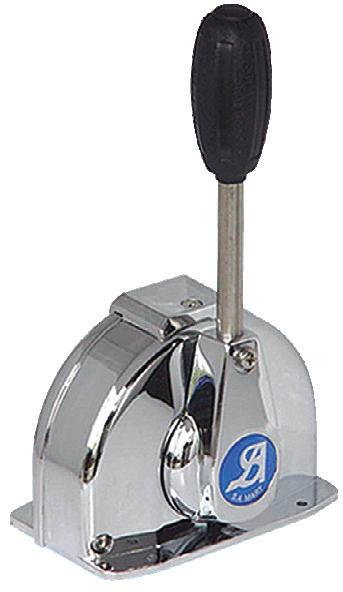

Engine Control - Side Mount - Trim - Chrome - B310 Series Part No.

83852 83670

Neutral Safety Switch (Optional)

83848 83849

83849 / 83852

83851

140mm

231mm

191.1mm

32.6mm

107mm

49.5mm

X12

• Dual Function Engine Controls: single lever operates both throttle and shift. • Suitable for any type of boats with outboard, inboard or I/O power plants. • Enables easy and safe shifting by preventing accidental gear engagement unless engine is idling. • Can be installed horizontally or vertically, on the starboard or port side of the boat. • Provided with an adjustable brake tension release system. • Pull-out handle disengages shift for engine warm up. • All models (except 83852) are provided with a power trim switch conveniently located in the handle grip that enables an easy tilting of the engine. • Provided with positive lock-in neutral to prevent accidental gear engagement. • Neutral safety switch X12 (optional) prevents in-gear starting. • Exceeds EN ISO 11547 standards when X12 safety switch is installed.

Suitable Engine Control Cables: 136.6mm

709

83670

Model

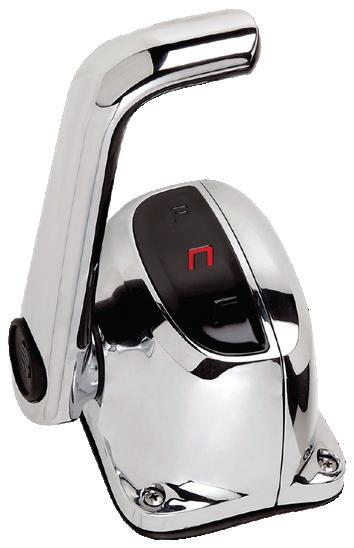

Chrome Side Mount Control with Positive Lock-In B310CH Neutral and Trim Switch Burl Wood Side Mount Control with Positive Lock- B310BR In Neutral and Trim Switch Black Side Mount Control with Positive Lock-In B310B Neutral and Trim Switch Black Side Mount Control with Positive Lock-In B310BNT Neutral and Without Trim Switch

83851

83848

Description

- C8, MACH Zero, C14 and MACH 14 cables require no connection kit. - C5, C16 and MACH 5 cables require K35 - 83637 connection kit.

www.samallen.com.au

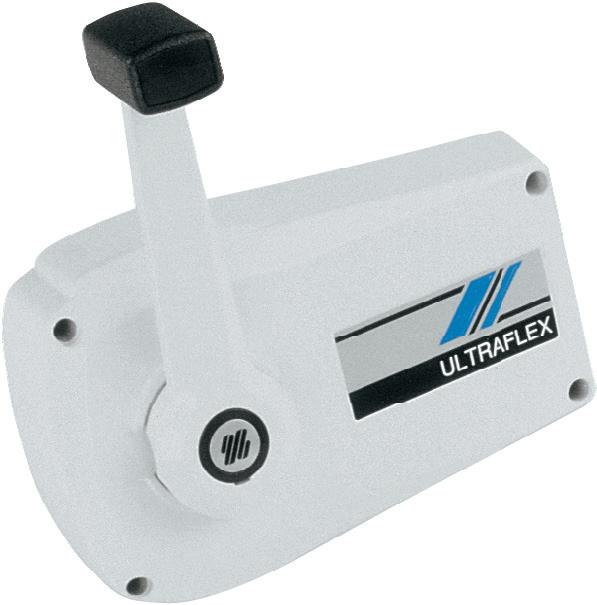

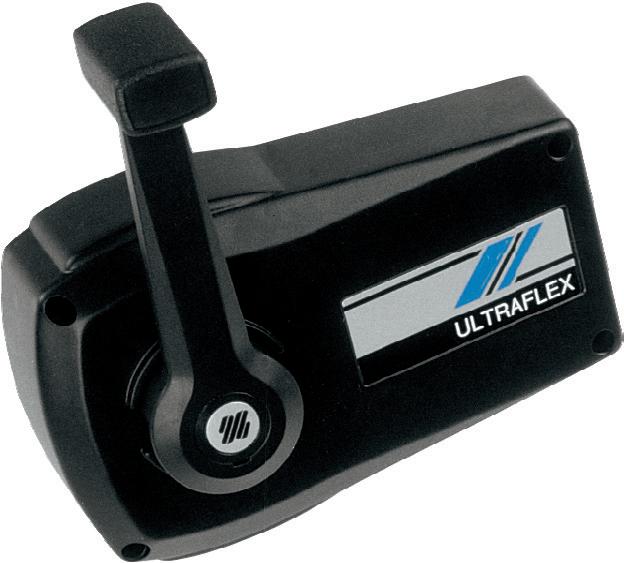

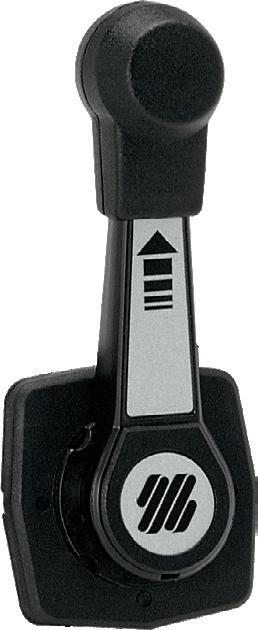

Side Mount Engine Controls Engine Control Box - Side Mount - Aluminium Description

Model

Colour

83855

B89

Ivory Finish

83858

Painted Aluminium Side Mount Control with Positive Lock-In Neutral Painted Aluminium Side Mount Control with Positive Lock-In Neutral

B90

Black Finish

83670

Neutral Safety Switch (Optional)

X12

Black

83855 83858

83670

152mm

241mm

140mm

Engine Control - Side Mount - Aluminium Part No.

Description

83845

B183

83850

Aluminium Side Mount Control, Positive Lock-In Neutral Aluminium Side Mount Control, Positive Lock-In Neutral and Trim Switch Aluminium Side Mount Control, smooth design for use on sailboats Positive Lock-In Neutral

83670

X12 Neutral Safety Switch (Optional)

X12

83847

83845

83847

83850

83670

Model

B184 B85

Steering & Controls

Suitable Engine Control Cables: - C8, MACH Zero, C14 and MACH 14 cables requires no connection kit. - C5, C16 and MACH 5 cables require K35 - 83637 connection kit.

R165mm

Lock-in neutral

Part No.

• Dual Function Engine Controls: single lever operates both throttle and shift. • Suitable for any type of boats with outboard, inboard or I/O power plants. • Enables easy and safe shifting by preventing accidental gear engagement unless engine is idling. • Can be installed horizontally or vertically, on the starboard or port side of the boat. • The lever assembly is made of painted marine aluminium. • Provided with an adjustable brake tension release system. • Pull-out handle disengages shift for warm-up. • Neutral safety switch X12 (optional) prevents in-gear starting. • Exceeds EN ISO 11547 standards when X12 safety switch is installed. • All models are provided with positive lock-in neutral to prevent accidental gear engagement. • B184 model is provided with a power trim switch conveniently located in the handle grip that enables an easy tilting of the engine. Suitable Engine Control Cables: - C8, MACH Zero, C14 and MACH 14 cables requires no connection kit. - C5, C16 and MACH 5 cables require K35 - 83637 connection kit.

83845 & 83847

83850

www.samallen.com.au

710

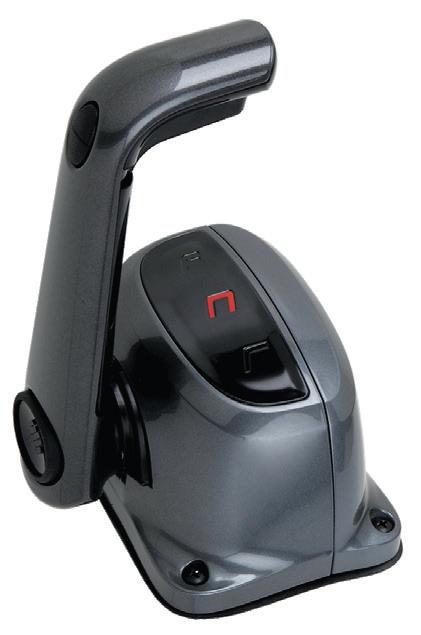

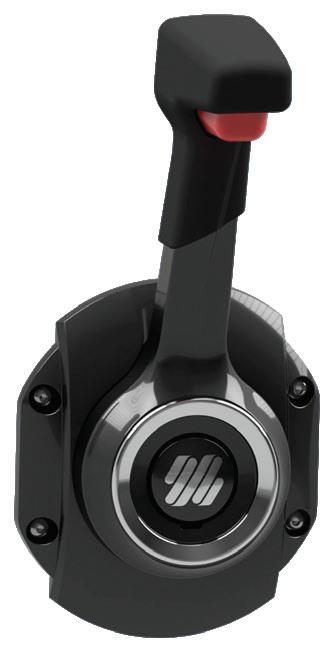

Side Mount Engine Controls Engine Control - Side Mount - Dual Function - Powder Coated Part No.

83872

Engine Control Side Mount Black, With Trim, With No Kill Switch Engine Control Side Mount Black, With Trim, With Kill Switch

83673

Neutral Safety Switch (Optional)

83870

83872

79.6mm

30°

125.2mm

° 95

189mm 289mm

65 °

° 65

83673

B110B/KS X41

Suitable Engine Control Cables: - C8 and MACH Zero cables require K59 connection kit (supplied). - C5 and MACH 5 cables require a K74 connection kit. - C14 and MACH 14 cables require K76 connection kit. - C36 and MACH 36 cables require K75 connection kit.

Steering & Controls

83mm

Engine Control - Top Mount - Dual Function - Low Profile Part No.

Description

83301C

83302B

Single Lever Control for One Engine, Chrome Plated Dual Lever Control for Two Engines, Chrome Plated Single Lever Control for One Engine, Black Dome, Chrome Plated Lever Dual Lever Control for Two Engines, Black Dome, Chrome Plated Lever

83670

Neutral Safety Switch (Optional) 1 per Engine

X12

83301K

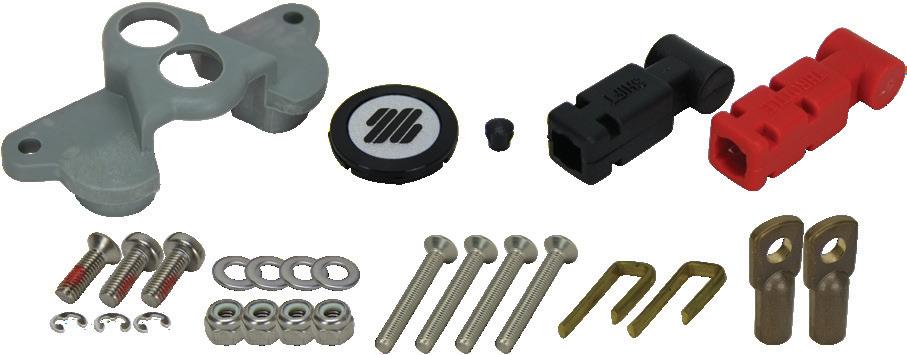

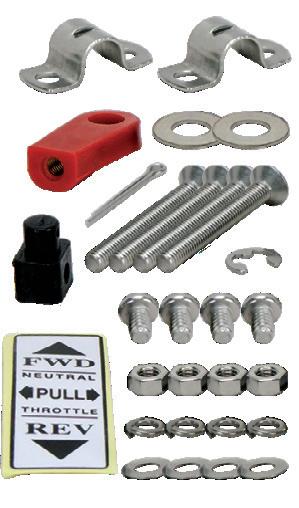

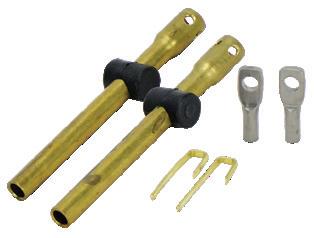

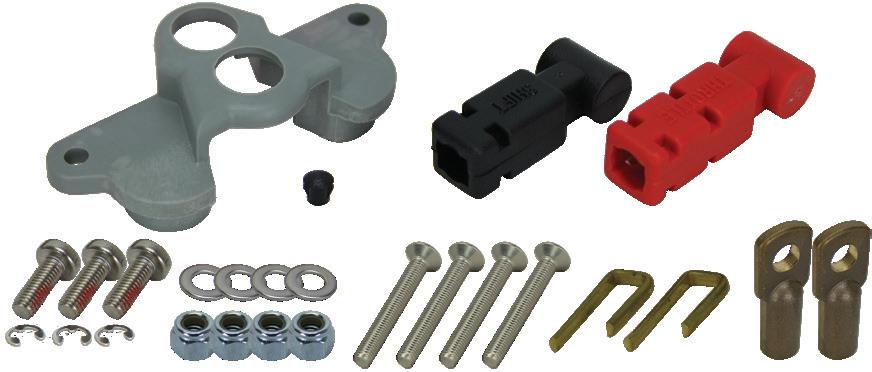

Connection Kit

K59

83302C 83301B

83301C

83301B

R18

R18 3

83302B

192

83301

148 161

B301CR B302CR B301B B302B

Suitable Engine Control Cables: - C8 and MACH Zero cables require K59 connection kit (supplied). - C14 and MACH 14 cables require no connection kit. - C5, C16 and MACH 5 cables require a K60 connection kit. - C36 cables require K62 connection kit.

83670

60 112

Model

• Dual Function Engine Controls: available in single or dual lever, operates both throttle and shift (dual lever for two engines). • Suitable for any type of boats with outboard, inboard or I/O power plants. • Compact single lever controls offering a unique low profile style compared to other controls available on the market. • Enables easy and safe shifting by preventing accidental gear engagement unless engine is idling. • Marine aluminium, chrome plated or powder coat finish. • Push in button disengages shift for warm-up. • Neutral safety switch X12 (optional) prevents in-gear starting. • Exceeds EN ISO 11547 standards when X12 safety switch is installed. • K59 connection kit is supplied with B301CR, B302CR, B301B and B301B.

83302C

Exclusive push button design

711

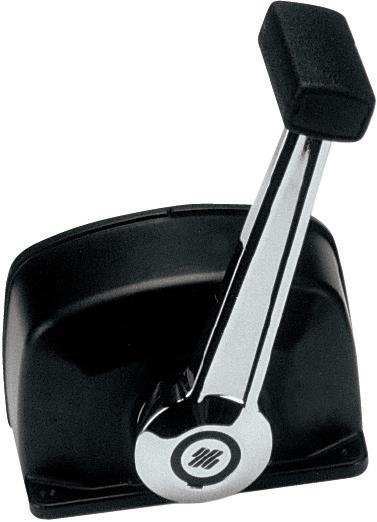

B110B

122.2mm

33.5mm

30°

Model

• Dual Function Engine Controls: operates both throttle and shift on a single engine. • Suitable for any type of boat with inboard, outboard engine, or sterndrive units. • Enables easy and safe shifting by preventing accidental gear engagement unless engine is idling. • Marine aluminium, black powder coat finish. • Push-in button for throttle operation in neutral (engine warm-up). • Lock in neutral trigger prevents accidental engaging. • X41 neutral safety switches prevents in-gear starting. IP67 Protection. (Optional) • Exceeds EN ISO 11547 standards when X41 safety switch is installed.

83870

° 95

Description

148 161

100 173

83302

www.samallen.com.au

Top Mount Engine Controls Engine Control - Top Mount - Dual Function Part No.

Description

Model

83645

B103 Single Lever / Dual Function for One Engine.

B103

83650

B104 Dual Lever / Dual Function for Two Engines.

B104

83675

Replacement Neutral Safety Switch 1 per Engine

X43

83645

Suitable Engine Control Cables: - C8 and MACH Zero cables require no connection kit.

83650

107

157

106 141

141

83650

83645

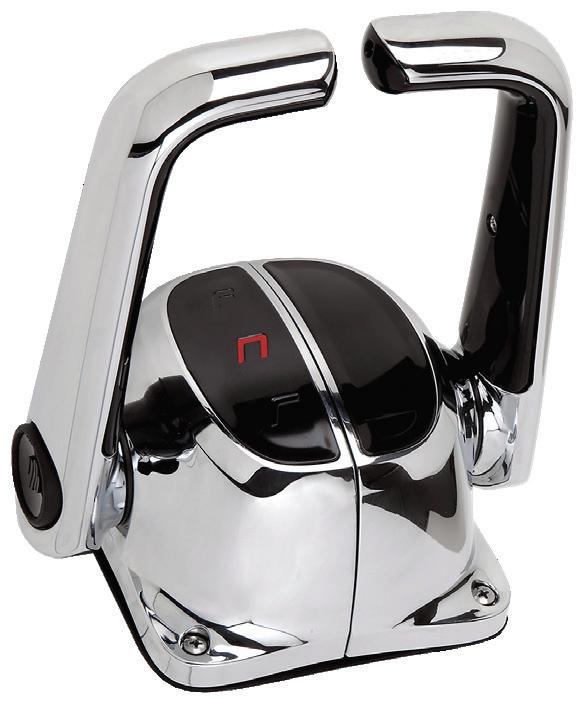

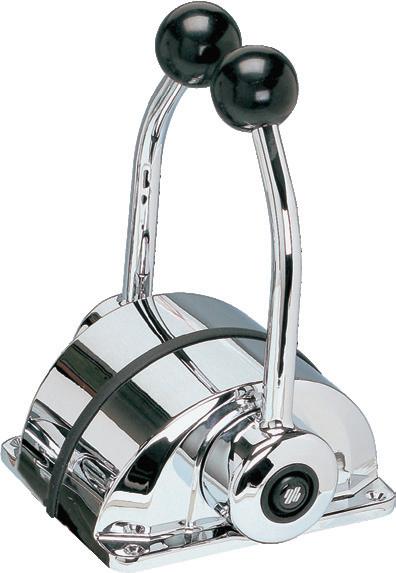

Engine Control - Top Mount - Dual Function - Chrome - B665, B666 Series Part No.

Description

Model

B665

83833

Single Lever Control for One Engine, Chrome Plated Twin Lever Control for Two Engines, Chrome Plated

83670

Neutral Safety Switch (Optional) 1 per Engine

X12

83832

B666

Steering & Controls

219

104

83675

158 157

83832

Suitable Engine Control Cables: - C8, C14, MACH Zero and MACH 14 cables require no connection kit. - C5, C16 and MACH 5 cables require a K35 - 83637 connection kit.

83833

108

135

Lock-in neutral

83670

138

160

185

160

83832

102 185

83833

www.samallen.com.au

712

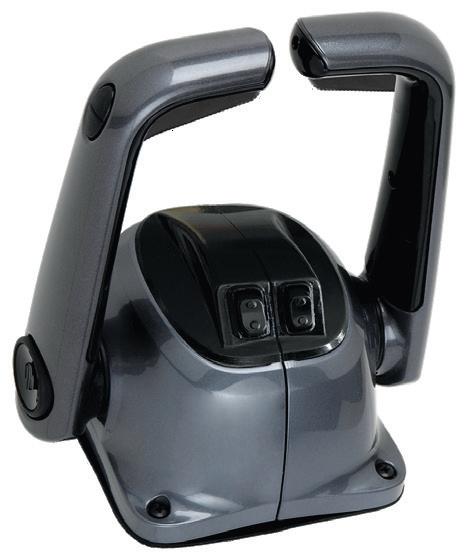

Top Mount Engine Controls Engine Control - Top Mount - Dual Function - B501 & B502 Series Description

83841

83857

Single Lever Control for One Engine Chrome Plated Twin Lever Control For Two Engine Chrome Plated Single Lever Control for One Engine w/ Trim & Lock-In Neutral - Gun Metal Grey Twin Lever Control For Two Engine w/ Trim & Lock-In Neutral - Gun Metal Grey

83670

Neutral Safety Switch - 1 per Engine (Optional)

83843 83856

83843

83841

83670

83856

83857 176 [6.91 in]

238 [9.38 in]

93 [3.68 in]

214 [8.41 in]

191 [7.51 in]

239 [9.40 in]

94 [3.71 in]

176 [6.91 in]

190 [7.49 in]

Steering & Controls

146 [5.75 in]

150 [5.89 in]

71 [2.81 in]

150 [5.89 in]

116 [4.58 in]

Lock-In Trim Neutral Included Included

Part No.

Model

B501

B502

Yes

B501BT/L

Yes

B502BT/L X12

• Dual Function Engine Controls: available in single or dual lever, operates both throttle and shift (dual lever for two engines). • Suitable for boats with inboard, outboard or I/O power plants. • Enables easy and safe shifting by preventing accidental gear engagement unless engine is idling. • The housing is made of high resistance ABS, with die cast levers, available in two versions: 83841 / 83843 - No Trim Switch or Lock-in Neutral included - Chrome Plated Housing and Levers. 83856 / 83857 - Trim Switch and Lock-In Neutral included - Gun Metal Grey Housing and Levers. • Trim can be operated simultaneously on both engines or one can choose to regulate the trim on the 2 engines independently of each other. • Enables easy and safe shifting by preventing accidental gear engagement unless engine is idling. • Push-in button to disengages shift for engine warm up. • Neutral safety switch X12 (optional) on 83841 and 83843 prevents in-gear starting. • Exceeds EN ISO 11547 standards when X12 safety switch is installed. Suitable Engine Control Cables: - C14 and MACH 14. - C8, MACHZero - K59 83301K connection kit (Included). - C5, C16 and MACH 5 cables. - C36 cables.

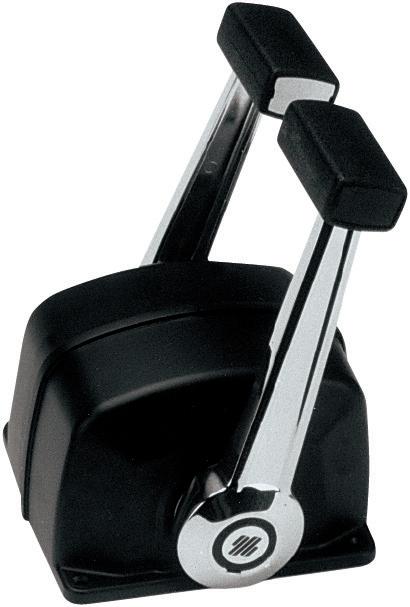

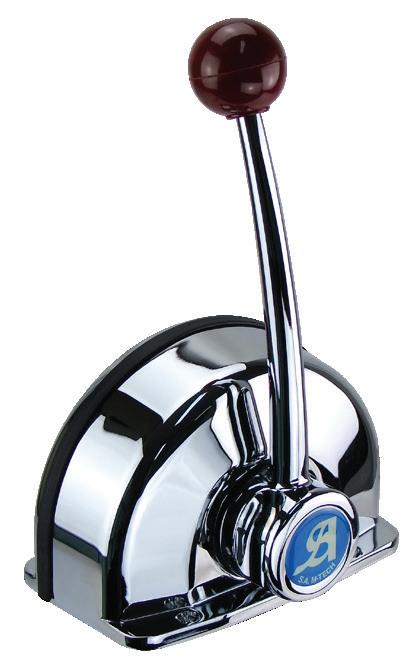

Engine Control - Top Mount - Dual Function - Black Powder Coated - B73, B74, B77 & B79 Part No.

Description

83825

B73

83831

Single Lever Control for One Engine, Black Powder Coated Dome, Chrome Plated Lever Single Lever Control For One Engine, Black Powder Coated Dome, Chrome Plated Lever, with Trim Twin Lever Control for Two Engines, Black Powder Coated Dome, Chrome Plated Lever Twin lever control for two engines, Black Powder coat finish, with Trim

83670

Neutral Safety Switch (Optional) 1 per Engine

X12

83826 83830

83825/ 83826

83830 83670

B77 & B79

713

108

133

Trim Switch 83826 & 83831 138

138

160

130

160

83825

83825 & 83826

100 200

83830 & 83830

Model

B77 B74 B79

• Dual Function Engine Controls: available in single or dual lever, operates both throttle and shift (dual lever for two engines). • Suitable for boats with inboard, outboard or I/O power plants. • Enables easy and safe shifting by preventing accidental gear engagement unless engine is idling. • Die-cast aluminium, chrome plated or black powder coat finish. • Pull-out handle disengages shift for warm up. • Neutral safety switch X12 (optional) prevents in-gear starting. • Exceeds EN ISO 11547 standards when X12 safety switch is installed. • 83826 - B77+B79 models have a power Trim switch conveniently located in the handle grip that enables for easy tilting of the engine. Suitable Engine Control Cables: - C8, C14, MACH Zero and MACH 14 cables require no connection kit. - C5, C16 and MACH 5 cables require a K35 83637 connection kit.

www.samallen.com.au

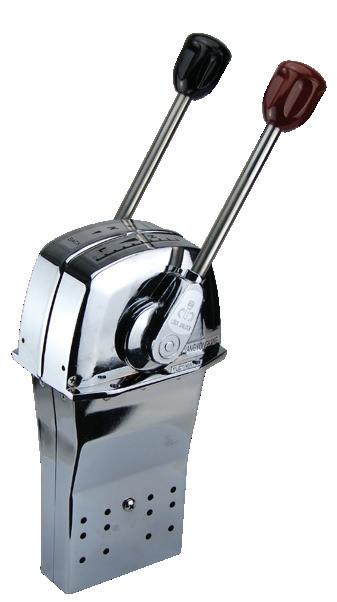

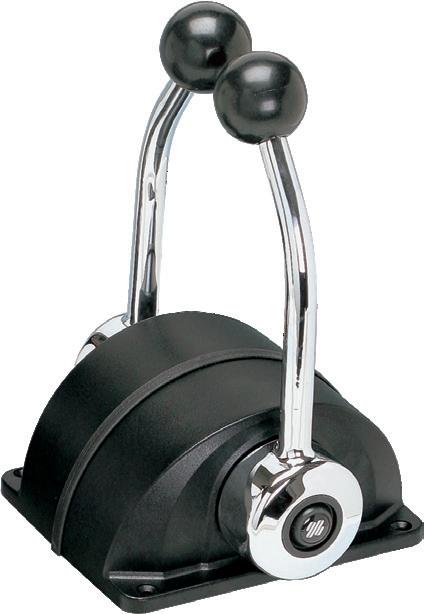

Two Lever - Single Function per Lever Engine Controls Engine Control - Top Mount - Slimline

83651 240

150

Description

Model

83651

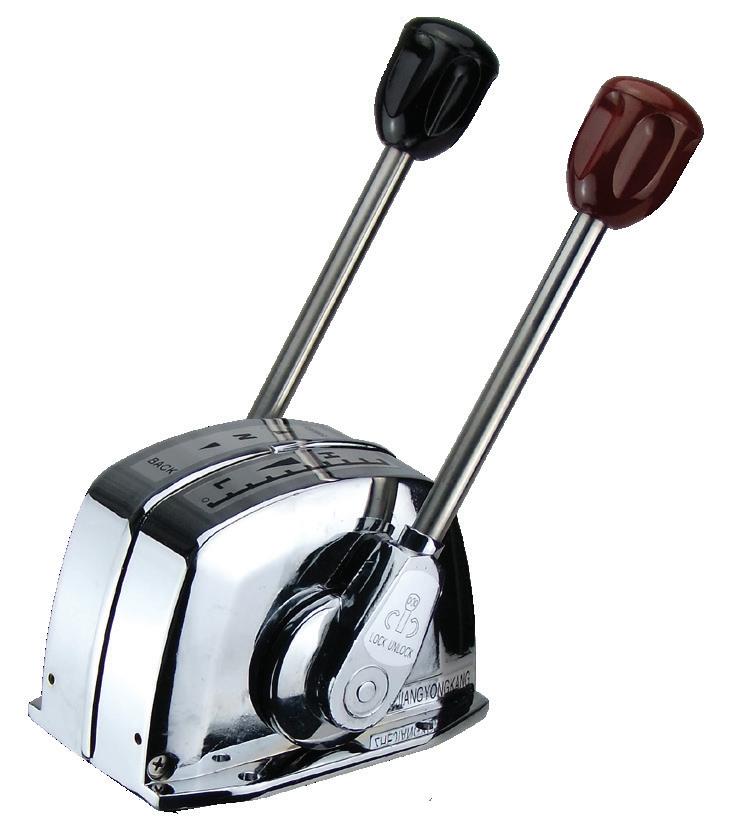

Two Lever Top Mount Control, Throttle and Shift

B46

83670

Neutral Safety Switch (Optional)

X12

• Single Function Engine Controls: Two lever / single function per lever engine control: each lever operates separately, either the throttle or the shift. • Suitable for use with outboard, inboard or I/O power plants. • Flush mount suitable for exposed positions such as a flybridge. • Die-cast aluminium with chrome plated lever and black powder coated housing. • Throttle lever is provided with adjustable brake tension release system and shift lever with forward, reverse and neutral detents. • Both the brake tension release and detents can be installed and adjusted from the outside. • Neutral safety switch X12 (optional) prevents in-gear starting. • Exceeds EN ISO 11547 standards when X12 safety switch is installed.

180

Part No.

83670

For use with engine control cables: - C8 and MACH Zero engine control cables.

Dimensions in millimeters

Part No.

Description

Model

83860

Control Box, Light Grey Finish

B47

83865

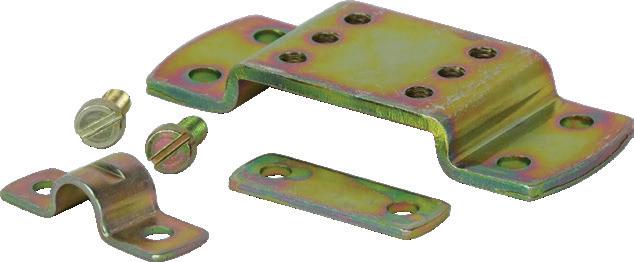

Kit to Connect B47 Controls to cables C8 & MACH Zero.

K25

• Single Function Engine Controls: Two lever / single function per lever engine control: each lever operates separately either the throttle or the shift. • Reinforced nylon fibreglass with anodized aluminium levers. • Left or right side mount installation. For use with engine control cables: - C5 and MACH 5 engine control cables require no connection kit. - C8 and MACH Zero cable require K25 - 83865 connection kit. - C14 and MACH 14 cables require K23 connection kit.

Steering & Controls

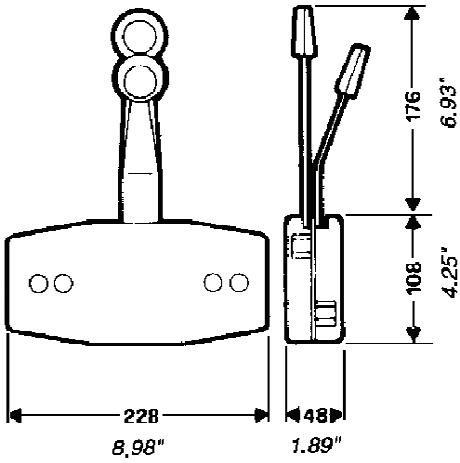

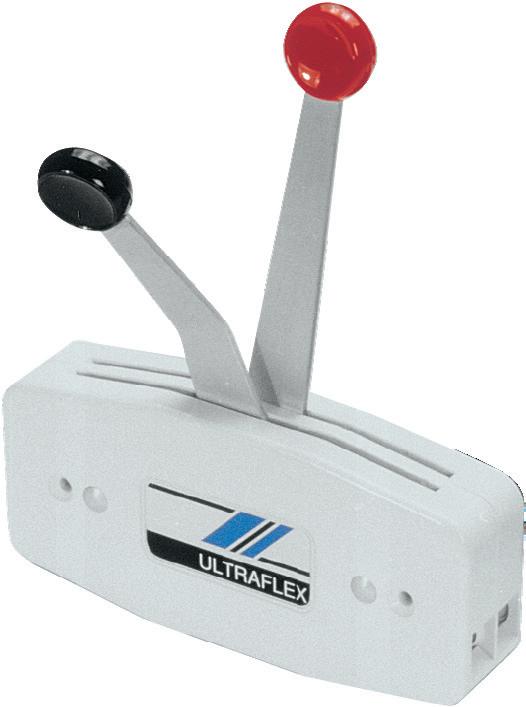

Engine Control Box - Side Mount

Courtesy of Riviera - 645-SUV

www.samallen.com.au

714

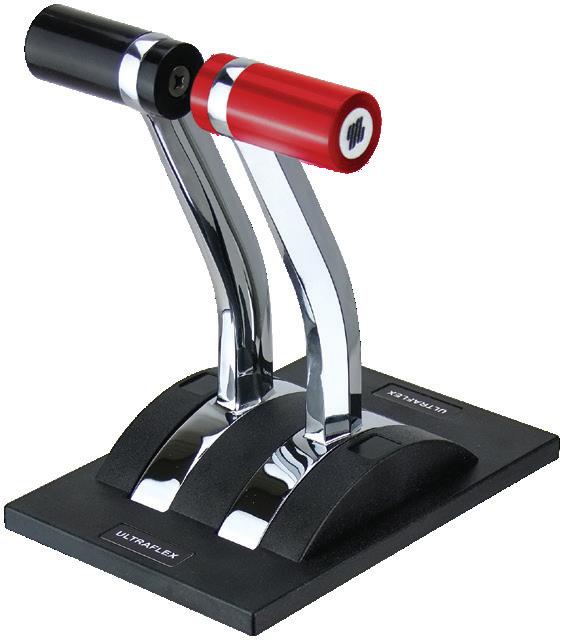

Single & Two Lever - Single Function per Lever Engine Controls Engine Control - Top Mount - Stainless Steel

alue Great V

Part No.

83656

Description

Two Lever Single Function Engine Controls - Straight Arms

• Single Function Engine Controls: Two lever / single function per lever engine control, each lever operates separately, either the throttle or the shift. • Suitable for use with outboard, inboard or I/O power plants. • 316G stainless steel engine controls, cast control arms and housing for a longer life. For use with engine control cables: - C8 and MACH Zero engine control cables.

150mm 130mm

308mm

138mm

83656

245mm

475mm

105mm

83mm

50mm

71mm

60mm

66mm 47mm

122mm

Steering & Controls

Engine Control - Top Mount Part No.

83840

83842

83844

Description

83840

Single Lever Top Mount Control, Red Lever - Throttle

83842

Single Lever Top Mount Control, Black Lever - Shift

83844

Two Lever Top Mount Control, Throttle and Shift

• Single Function Engine Controls: Single or two lever / single function per lever engine control, each lever operates separately, either the throttle or the shift. • These are heavy duty units with a positive brake and shut off position for heavy throttle. The throttle lever (red) is activated by turning in a clockwise direction. The gear lever (black) has a detent so that the operator can feel the positions of neutral, forward and reverse. • 83840 control is suitable for single throttle application. • 83842 control is suitable for single shift application. • 83844 one engine single function control with red and black levers for shift and throttle. For use with engine control cables: - C8 and MACH Zero engine control cables.

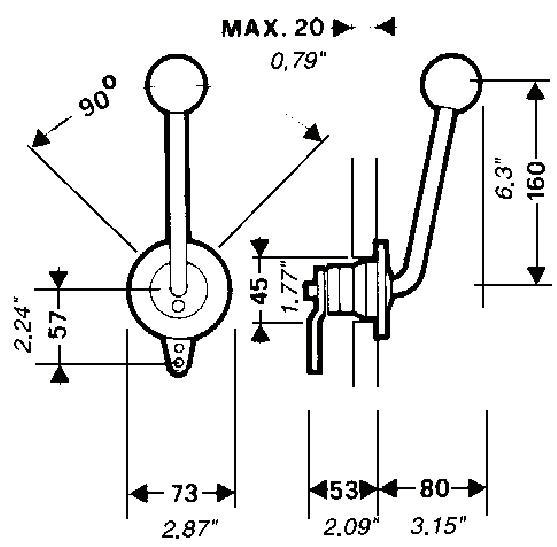

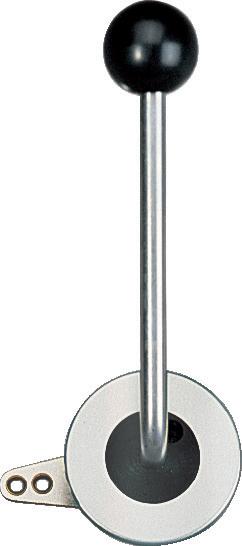

Engine Control - Flush Side Mount Part No.

83660

Description

Single Lever Control Box

Model

B35

• Single Function Engine Controls: lever operates separately, either the throttle or the shift. • Suitable for throttle control or hydraulic shift operation. • Provided with adjustable brake tension release and detents. • Flush side mount installation. • Lever and flange all stainless steel. For use with engine control cables: - C8 and MACH Zero engine control cables.

715

www.samallen.com.au

Engine Control Cables Engine Control Cables - C5 Part No. Model

(ft)

Part No. Model

(ft)

Part No. Model

(ft)

83309

83314

14'

83320

20'

83310

10'

83315

15'

83322

22'

83324

24'

83311

11'

83316

16'

83312

12'

83317

17'

83313

13'

83318

18'

• Stroke: 95mm. • For Mercury® and MerCruiser® Engines.

Part No.

Model

(ft)

Part No.

Model

(ft)

Part No.

Model

(ft)

Part No.

Model

(ft)

83006

83012

12'

83018

18'

83024

24'

83007

83013

13'

83019

19'

83026

26'

83008

83014

14'

83020

20'

83028

28'

83009

83015

15'

83021

21'

83010

10'

83016

16'

83022

22'

83011

11'

83017

17'

83023

23'

• Stroke: 87mm. • Suitable for outboard, inboard and sterndrive engines. • High efficiency for smooth operation. • Maintenance free. • Stainless steel cable and end fittings. • High resistance black outer jacket. • Solid stainless steel wire core.

Engine Control Cables - C14 Part No.

Model

(ft)

Part No.

Model

(ft)

Part No.

Model

(ft)

83209

C14

83213

C14

13'

83217

C14

17'

83210

C14

10'

83214

C14

14'

83218

C14

18'

83211

C14

11'

83215

C14

15'

83220

C14

20'

83212

C14

12'

83216

C14

16'

83222

C14

22'

Steering & Controls

Engine Control Cables - C8

• Stroke: 75mm. • For BRP, Evinrude engines manufactured after 1979.

Engine Control Cables - C16 Part No.

Model

(ft)

Part No.

Model

(ft)

83252

C16

12'

83256

C16

16'

83253

C16

13'

83257

C16

17'

83254

C16

14'

83258

C16

18'

83255

C16

15'

• Stroke: 80mm. • C16 Mariner Engines up to 40HP.

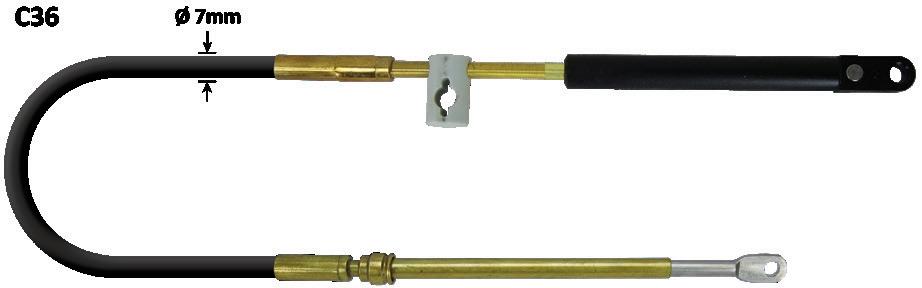

Engine Control Cables - C36 Part No.

Model

(ft)

Part No.

Model

(ft)

Part No.

Model

(ft)

83350

C36

10'

83354

C36

14'

83358

C36

18'

83351

C36

11'

83355

C36

15'

83359

C36

19'

83352

C36

12'

83356

C36

16'

83360

C36

20'

83353

C36

13'

83357

C36

17'

• Stroke: 87mm. • For Mercury® and MerCruiser® engines and Mercury® Generation II™ series controls.

www.samallen.com.au

716

Engine Control Cables MACH Series Engine Control Cables

MACH™ SERIES HIGH EFFICIENCY & FLEXIBILTY ENGINE CONTROL CABLES

For the ultimate in efficiency and response, the Mach™ Series cables deliver unmatched results. They have been specifically designed to make even the most complex of cable installations result in smooth, easy and precise shift and throttle movement.

Steering & Controls

MACH Zero

nce rforma High Pe

MACH 5

MACH 14

Available in the following configurations:

The PATENTED “high performance” MACH™ Cables are the result of decades of experience in producing high quality, long lasting, flexible cables. The innovative core design maximizes efficiency and minimizes lost motion, while the exclusive design of the conduit provides extremely high level of flexibility.

- MACHZero - Universal style (like C8) - MACH5 - Mercury® style (like C5) - MACH14 - BRP®Evinrude style (like C14) • Suitable for outboard – inboard and sterndrive engines. • High efficiency for smooth operation. • High flexibility for reduced bend radius. Ideal for long complex cable routings. • Maintenance free. • Stainless steel cables and end fittings. • High resistance blue outer jacket protects against abrasion, UV and chemicals. • Braided core increases strength and flexibility.

717

www.samallen.com.au

Engine Control Cables Engine Control Cables - MACH Zero Part No.

Model

(ft)

Part No.

Model

(ft)

Part No.

Model

(ft)

83107M

MACH Zero

83121M

MACH Zero

21'

83142M

MACH Zero

42'

83108M

MACH Zero

83122M

MACH Zero

22'

83144M

MACH Zero

44'

83109M

MACH Zero

83123M

MACH Zero

23'

83145M

MACH Zero

45'

83110M

MACH Zero

10'

83124M

MACH Zero

24'

83146M

MACH Zero

46'

83111M

MACH Zero

11'

83125M

MACH Zero

25'

83148M

MACH Zero

48'

83112M

MACH Zero

12'

83126M

MACH Zero

26'

83150M

MACH Zero

50'

83113M

MACH Zero

13'

83127M

MACH Zero

27'

83154M

MACH Zero

54'

83114M

MACH Zero

14'

83128M

MACH Zero

28'

83160M

MACH Zero

60'

83115M

MACH Zero

15'

83130M

MACH Zero

30'

83170M

MACH Zero

70'

83116M

MACH Zero

16'

83132M

MACH Zero

32'

MACH Zero

17'

83134M

MACH Zero

34'

MACH Zero

18'

83136M

MACH Zero

36'

83119M

MACH Zero

19'

83138M

MACH Zero

38'

83120M

MACH Zero

20'

83140M

MACH Zero

40'

nce rforma e P h ig H

DELETED

• Stroke 87mm. • MACH Zero for Universal Style engines. • Suitable for outboard – inboard and sterndrive engines. • Ideal for high performance applications, long cable runs and complex routing. • High resistance blue outer jacket against abrasion, UV and chemicals. • Stainless steel cables and end fittings.

Engine Control Cables - MACH 5 Part No.

Model

(ft)

Part No.

Model

(ft)

Part No.

Model

(ft)

833510

MACH 5

10'

833516

MACH 5

16'

833524

MACH 5

24'

833511

MACH 5

11'

833517

MACH 5

17'

833526

MACH 5

26'

833512

MACH 5

12'

833518

MACH 5

18'

833513

MACH 5

13'

833519

MACH 5

19'

833514

MACH 5

14'

833520

MACH 5

20'

833515

MACH 5

15'

833522

MACH 5

22'

nce rforma High Pe

Steering & Controls

83117M 83118M

• Stroke 95mm. • Ideal for high performance applications, blue colour jacket. • MACH 5 for Mercury® & MerCruiser® engines. • Blue colour jacket. • Braided stainless steel inner core.

Engine Control Cables - MACH 14 Part No.

Model

(ft)

Part No.

Model

(ft)

833710

MACH 14

10'

833717

MACH 14

17'

833711

MACH 14

11'

833718

MACH 14

18'

833712

MACH 14

12'

833719

MACH 14

19'

833713

MACH 14

13'

833720

MACH 14

20'

833714

MACH 14

14'

833722

MACH 14

22'

833715

MACH 14

15'

833724

MACH 14

24'

833716

MACH 14

16'

833726

MACH 14

26'

nce rforma e P h ig H

• Stroke 75mm. • Ideal for high performance applications. • MACH 14 for BRP, Evinrude engines manufactured after 1979. • Blue colour jacket. • Braided stainless steel inner core.

www.samallen.com.au

718

Engine Control Cables How To Measure For Control Cable Installation

Control Cable Installation:

For new installations, measure A and B distance from the control along an unobstructed cable routing to clutch and/or throttle connection. Round this dimension up to the next whole foot (305mm): you will have your cable length.

A Outboard 3ft

We recommend that the cable bends have a minimum radius of 200mm. For outboard engine installations, it is necessary to add three feet to the obtained length, in order to allow for the engine movement.

A + B + 3ft(90cm) = Length

To determine the required length of the REPLACEMENT CABLE, measure from tip to tip. When ordering, specify the cable length in feet, rounding the dimension up to the whole foot (305mm). If any kit is required to complete cable connection, consult accessories section.

A Inboard / Sterndrive

A + B = Length

Steering & Controls

Selection Of Engine Control Cables Engines Engine Control Cables Mercury® Outboard C5, MACH 5 Mariner® Outboard over 50HP C5, MACH 5 Force® Outboard C8, MACH Zero Selva® Outboard C8, MACH Zero Yamaha® Outboard C8, MACH Zero Suzuki® Outboard C8, MACH Zero Tohatsu® Outboard C8, MACH Zero Honda® Outboard C8, MACH Zero BRP-Evinrude® Outboard 1979 to Date C14, MACH 14 Sterndrive MerCruiser® C5, MACH 5 Sterndrive OMC® 1979 to Date C14, MACH 14 Sterndrive Volvo® Penta C8, MACH Zero Inboard C8, MACH Zero

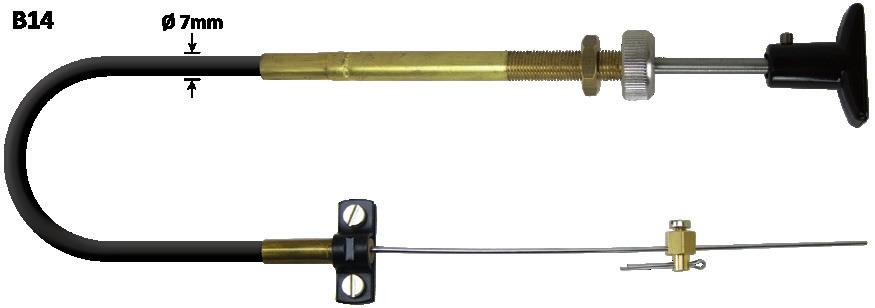

Engine Control Cables - Shut Off - B14 Part No. Model

(ft)

Part No. Model

(ft)

Part No. Model

(ft)

83806

B14

83814

B14

14'

83822

B14

22'

83808

B14

83816

B14

16'

83824

B14

24'

83810

B14

10'

83818

B14

18'

83812

B14

12'

83820

B14

20'

• Stroke: 70mm. • Designed for throttle, fuel shut off and other applications. • Supplied with L13 (83605) stop collar & L14 (83610) cable clamp block.

719

B14 Cable installed with Recessed Bulkhead (83627)

NOTE: Can be used with Recessed Bulkhead fitting (83627).

www.samallen.com.au

Engine Control Spares & Accessories Engine Control - Connection Kits

83864 K33

83865

83632 K51

K35

83637

83635

Part No.

Model

Suits Cables

83864

K23

83865

K25

C14 MACH 14 C8 MACH Zero

83632*

K32

C22

83647

K33

C22

83637

K35

C5 C16 MACH 5

83635

K51

C14 MACH 14

B89 B90

83636*

K56

Mercury®

83638

K57

C8 MACH Zero C2 C8 MACH Zero

BRP® Evinrude®

83644

K61

C22

B301CR B302CR B301B

83639*

Control Adapter Control Adapter

C8 Mach Zero C8 Mach Zero

Mercury® MerCruiser® BRP® Evinrude®

K57

K56

83647

83636

83638

K61

83644

83639

83640

83640*

Suits Control Box

Suits Engine

B47

Top Mount Two Lever B101 B103 Single Lever B183 B184 B85 B310CH B73 B74 B89 B90 B665 B666

*NOTE: 83632, 83639 and 83640 sold in pairs. 83636 suits Mercury engine end or control box end. Two kits required to do both.

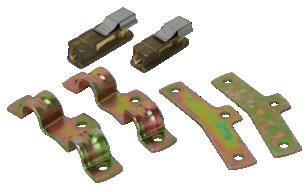

Engine Control - Installation Kits Part No.

Description

Steering & Controls

K32

K25

K23

Suits

83845K

Spare Installation Kit

83845

83847K

Spare Installation Kit

83847

83850K

Spare Installation Kit

83850

83845K

83847K

83850K

www.samallen.com.au

720

Engine Control Spares & Accessories Engine Control - Replacement Handle Part No.

84150B 84150R

Spline Shaft (mm)

Description

Replacement Chrome Handle with Black Knob Replacement Chrome Handle with Red Knob

Engine Control - Neutral Safety Switch Suits Engine Controls

83645 83650

Part No.

Description

Model

Suits Controls

83670

Neutral Safety Switch

X12

83301B 83302C 83648 83651 83654 83825 83826 83830 83832

83673

Neutral Safety Switch Neutral Safety Switch - (with IP67 Protection)

X41

83838

83833 83845 83847 83850 83848 83849 83851 83855 83858 83870 83872

X43

83645

83650

83675

Engine Control Cable - Clamp Retainer Part No.

83585

Description

Model

Cable Clamp Retainer

L2 83673 83670

83675

Engine Control Cable - Shim & Clamp Block

Steering & Controls

Part No.

Description

83590

Shim & Clamp Block

Model

Suits Cables

C8 MACH Zero

Engine Control Cable - Alloy Terminal Eye Part No.

B (mm)

C (mm)

D (mm)

Suits Cables

83598

10-32 UNF

32.4

7.5

C8 MACH Zero

Engine Control Cable - Ball Joint - S/S Part No.

Internal Thread

Ball Post

83593

Stainless Steel Ball Joint

Description

1/2" UNF

1/2"

83599

Stainless Steel Ball Joint

1/2" UNF

3/8"

83592

Stainless Steel Ball Joint

1/4" UNF

1/4"

83594

Stainless Steel Ball Joint

3/8" UNF

3/8"

83595

L7 Stainless Steel Ball Joint

10-32 UNF

83596

Stainless Steel Ball Joint

• 83595 - Fits C8 and MACH Zero cables.

• Replaces standard plastic eye terminal in kits.

B A

83592, 83595 & 83596

83593, 83594 & 83599

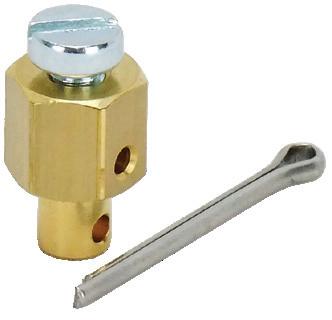

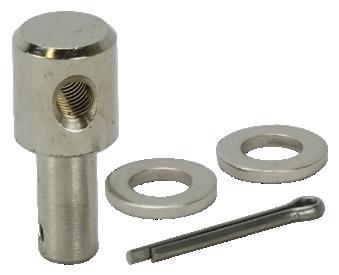

Engine Control Cable - Stop Collar Engine Control Cable - End Fitting Part No.

Description

83600

Cable End Pivot

83601

Cable End Pivot

Model

L12

Outer Ø Dimensions Inner H x Ø (mm) (mm)

Suits Cables

26 x 11

6.3

C8 MACH Zero

15.9 x 11

6.3

C8 MACH Zero

Part No.

83605

Stop Collar

• Used with B14 stop cables.

83600

721

Description

83601

www.samallen.com.au

Model

Suits Cables

L13

B14

Engine Control Spares & Accessories Engine Control - Dual Station Selector Unit - Ultraflex Part No.

83615

Description

Engine Control - Dual Station Selector Unit - S/S

Dimensions L x W x H (mm)

Model

Part No.

Description

Dimensions L x W x H (mm)

142 x 60 x 41

L23

83617

Control Cable Dual Station Selector Mechanical With Stainless Steel Body

143 x 55 x 50

Control Cable Dual Station Selector Mechanical With Nylon Body

• Selector unit for use with single lever controls in dual station applications. It enables independent control over throttle or shift from either the main station or the flybridge station. • Nylon body. • Only for inboard and sterndrive engines.

• Selector unit for use with single lever controls in dual station applications. It enables independent control over throttle or shift from either the main station or the flybridge station. • Stainless steel body. • Only for inboard and sterndrive engines.

NOTE: Before changing station, throttle must be on idling position and shift in neutral.

DELETED

Engine Control Cable - Stainless Steel Cable Hook Clip

Part No.

Description

Model

Suits Cables

Part No

Description

Suits Cables

83610

Cable Clamp Block

L14

C8 MACH Zero

83608

Control Cable Clamp Single With Quick Connect Hook - Stainless Steel Control Cable Clamp Double With Quick Connect Hook - Stainless Steel

C8 MACH Zero

83609

• Stainless Steel. DELETED

Engine Control Cable - Clevis Attachment Part No.

Internal Thread

Model

Suits Cables

83620

10-32 UNF

L25

C8 MACH Zero

83626

1/4" x 28 thread

L26

C22

• Single or double cable hook clip offers a secure attachment point for cables. • Stainless steel.

83608

Engine Control Cable - Fork Ends Part No.

Description

83622

Bronze Plated Steel Fork End Bronze Plated Steel Fork End

83624

Steering & Controls

Engine Control Cable - Clamp Block

83609

Engine Control - Shutoff Recess

Internal Thread

10-32 UNF

Part No.

83627

Description

Recessed Bulkhead

Dimensions Ø x D (mm)

Cut out (mm)

Model

Suits Cables

88 x 40

K68

B14

1/4"-28 UNF thread

Engine Control - One Function T Handle Part No.

Description

83641

One Function T Handle Operation

Ø 88mm 40mm

• One function T handle operation • Ideal for throttle, choke and air or fuel shutdown. • For use with C8 and MACH Zero cables

70mm

B14 Control Cable installed with Recessed Bulkhead
