2025 - Fuel Tanks, Outboard & Inboard

Fuel Tanks, Outboard & Inboard

Accessories

Fuel Tanks & Fittings

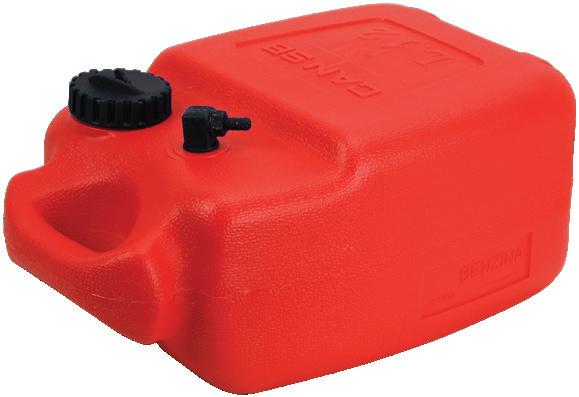

Outboard Fuel Tank - Economy Portable Polyethylene

• Economical and robust polyethylene

• Carry handle.

• Sight gauge on the side of tank for quick reference.

• Vented fuel cap.

• Includes pick up tube with tail suit 8mm I.D. hose.

• Italian made quality.

NOTE: Not suitable for diesel or commercial use

• Includes pick up tube with tail suit 8mm I.D. hose.

• Vented cap.

• Long pickup tube facilitates horizontal or vertical installation.

• Carry handle.

• Italian made quality.

NOTE: Not suitable for diesel or commercial use

• Moulded using high density polyethylene, suitable for petrol or diesel.

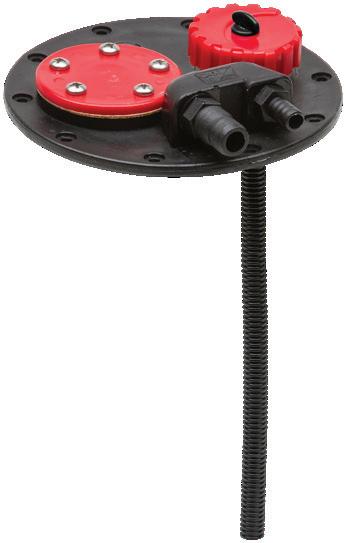

• Features include a removable inspection port, vented cap, stepped Ø 16mm (5/8") / Ø 19mm (3/4") tail for external breather, 10mm tail for fuel

blanked 1/4" BSP port for a second fuel pickup or diesel return and provision for a standard 5 hole fuel sender or gauge.

• End carry handles.

• Italian made quality.

• ISO 21487 CE certification.

*NOTE: Tank height dimension excludes fittings (+30mm). Not suitable for extended UV exposure

• Moulded using high density polyethylene, suitable for petrol or diesel.

• Features include a removable inspection port, vented cap, stepped Ø 16mm (5/8") / Ø 19mm (3/4") tail for external breather, 10mm tail for fuel hose, blanked 1/4" BSP port for a second fuel pickup or diesel return and provision for a standard 5 hole fuel sender or gauge.

• ISO 21487 CE certification.

*NOTE: Tank height dimension excludes fittings (+30mm).

Outboard Fuel Tank - Polyethylene

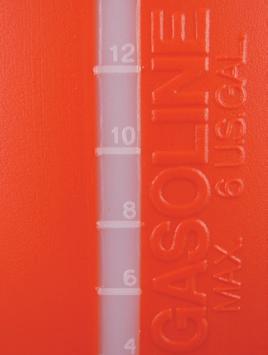

Clear strip to measure fuel levels
Fuel Tanks - Portable Polyethylene

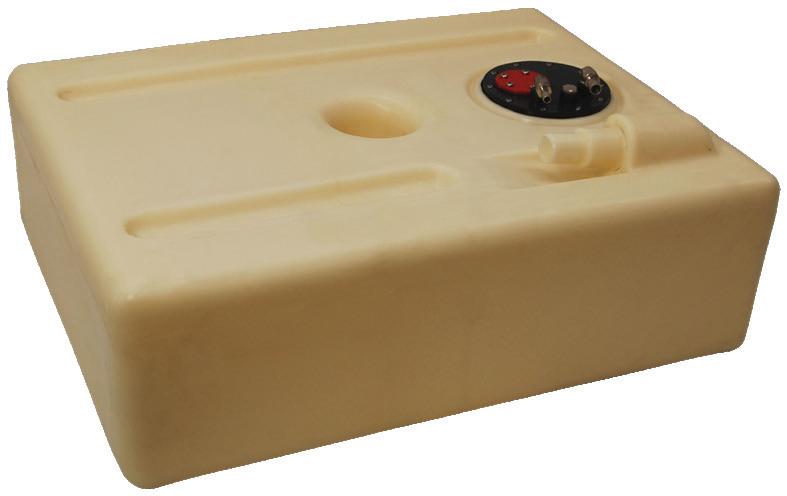

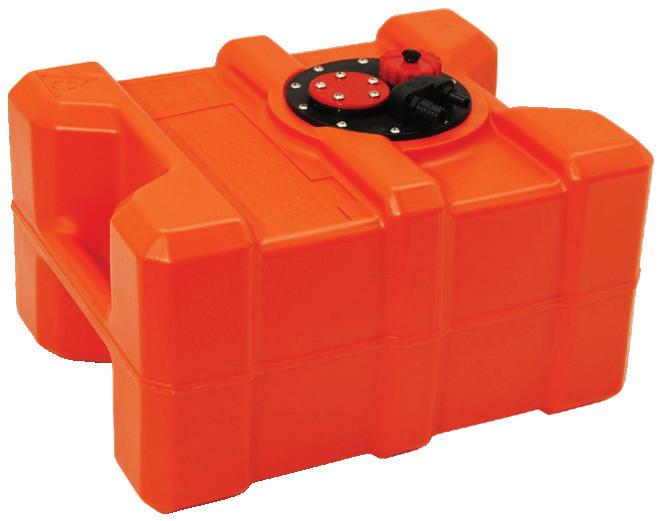

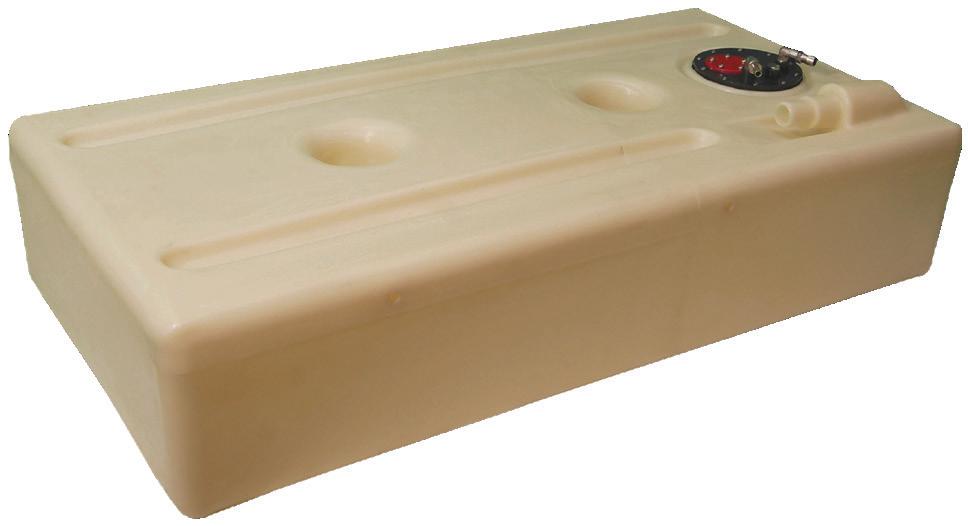

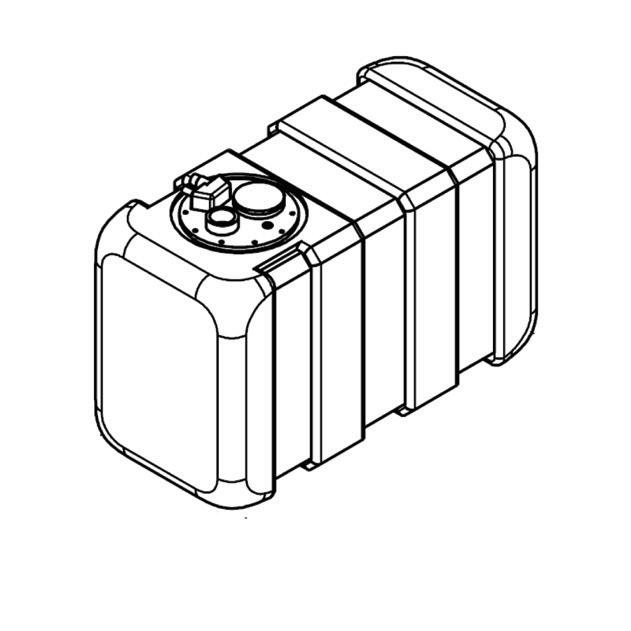

Underfloor Fuel Tanks - Low Profile Polyethylene

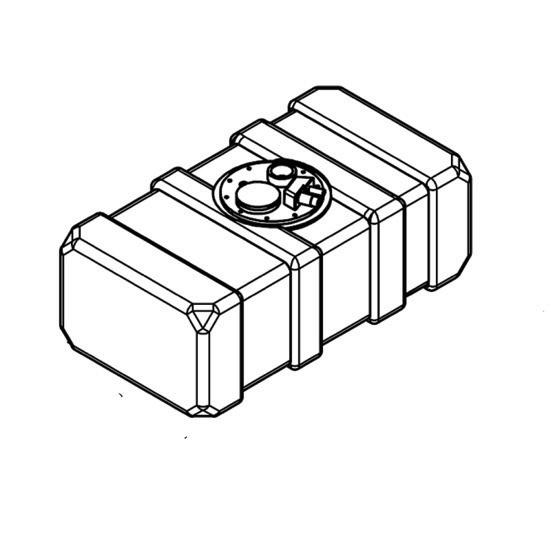

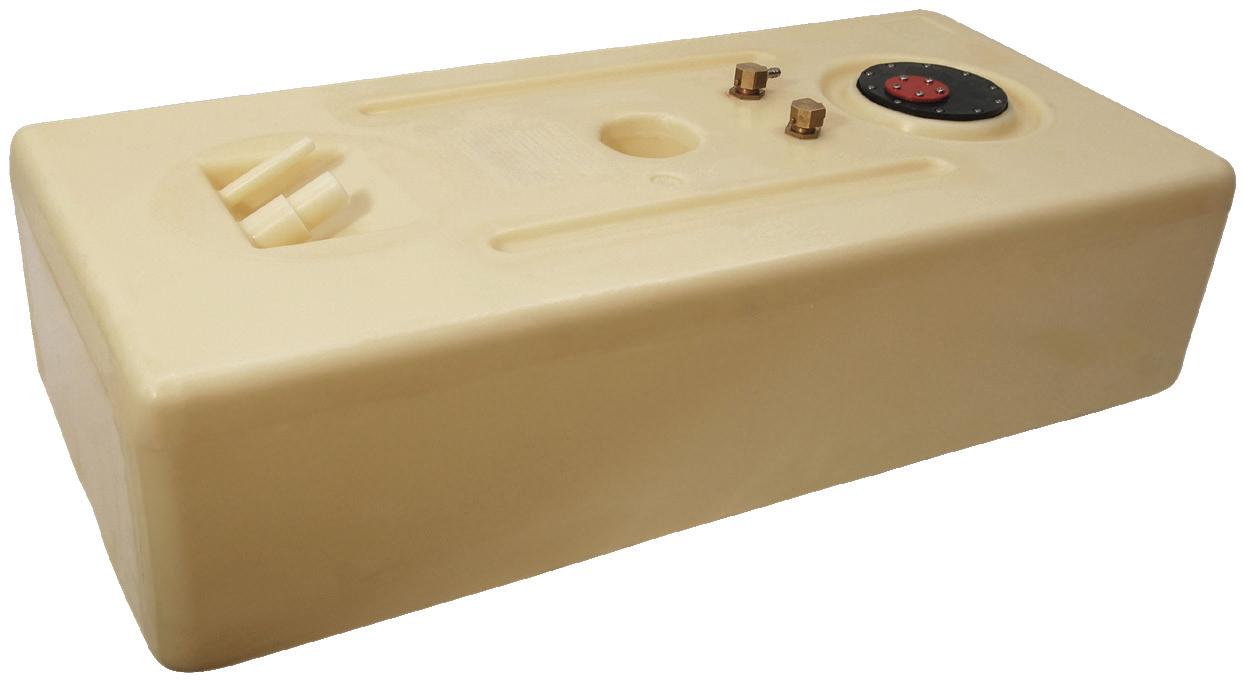

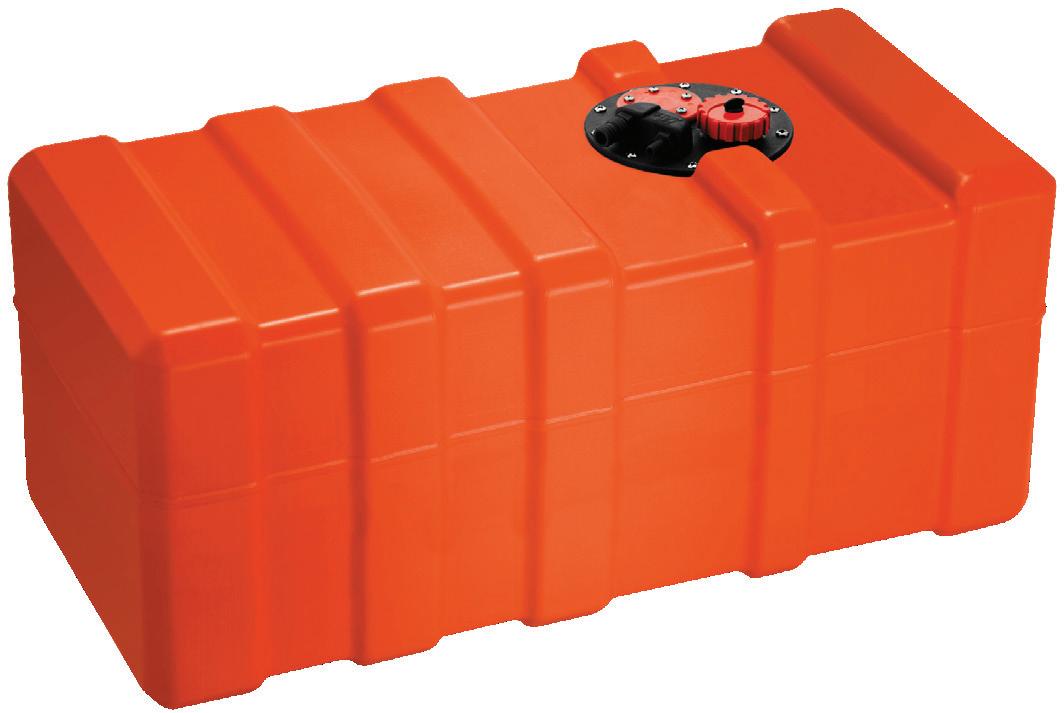

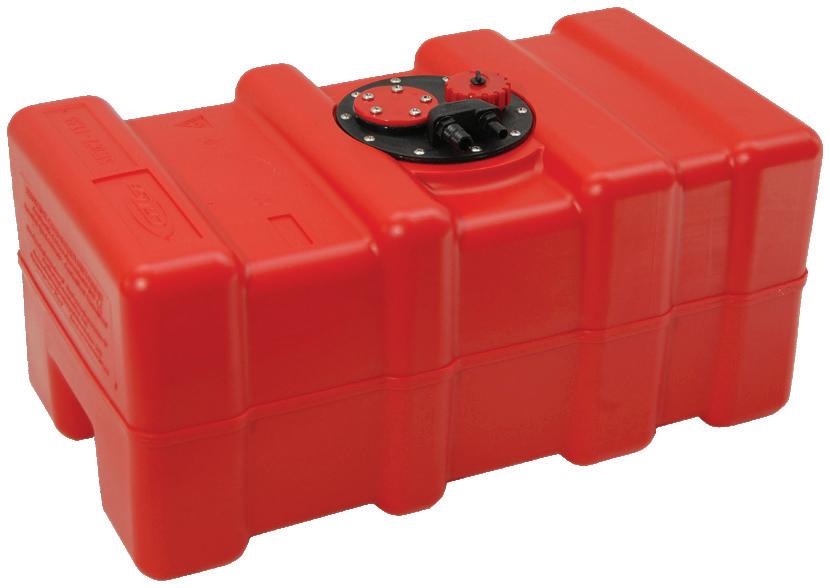

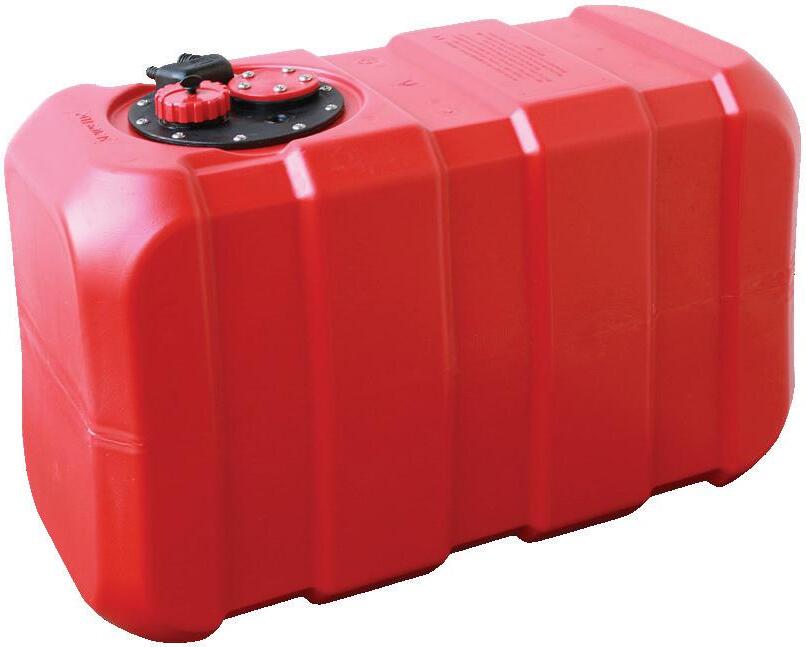

Underfloor Fuel Tanks - Polyethylene

• Moulded using high density polyethylene, suitable for petrol or diesel.

• Features include a removable inspection port, vented cap, stepped Ø 16mm (5/8") / Ø 19mm (3/4") tail for external breather, 10mm tail for fuel hose, blanked 1/4" BSP port for a second fuel pickup or diesel return and provision for a standard 5 hole fuel sender or gauge.

• ISO 21487 CE certification.

*NOTE: Tank height dimension excludes fittings (+30mm).

• Moulded using high density polyethylene, suitable for petrol or diesel.

• Features include a removable inspection port, vented cap, stepped Ø 16mm (5/8") / Ø 19mm (3/4") tail for external breather, 10mm tail for fuel hose, blanked 1/4" BSP port for a second fuel pickup or diesel return and provision for a standard 5 hole fuel sender or gauge.

• ISO 21487 CE certification.

*NOTE: Tank height dimension excludes fittings (+30mm).

• Portable caddy tank for refuelling via trigger handled pump and 3m flexible hose.

• Safe, easy and convenient product ideal for easily refuelling boats, generators, industrial machinery and more.

• Made in Italy from high strength, fuel resistant HDPE.

• Rolls on robust Ø 140mm wheels and has an ergonomically designed handle that makes it easy to move.

• The sturdy fuel dispenser allows for clean and safe fills, with a flow rate of around 8 L/min when siphoning.

• Flow rate is substantially reduced when hand pumping.

• The dual shut-off valves block off the tank from the hose during transport and refill.

37370 / 37374
Underfloor Fuel Tanks - Keel Polyethylene

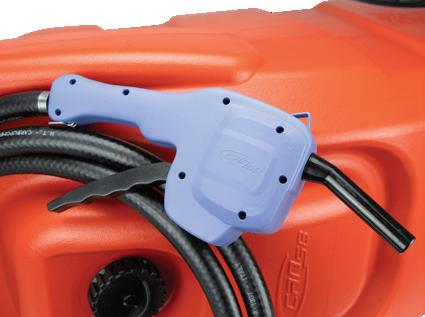

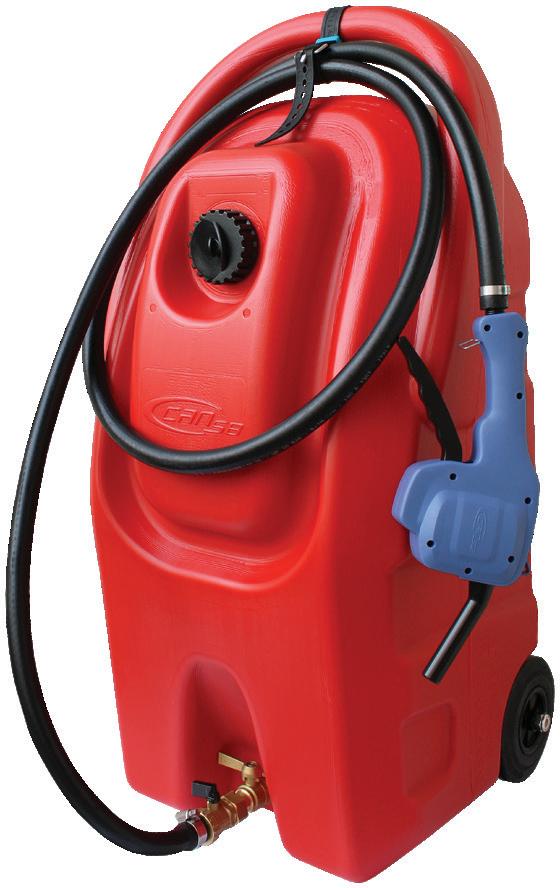

Fuel Tank - Portable Caddy

• Anti foam device prevents foaming and fuel coming out while filling the tank.

• Connected directly to the deck filler.

• 2 x rubber adaptors and a hose clamp included to suit deck fillers with 38mm or 50mm hose tails.

• Suits all types of fuel.

• These certified tanks are a useful and safe alternative to metal tanks and are suitable to hold any flammable liquid.

• Complete with a one way funnel-trap that makes it easier to transfer from tank to tank.

NOTE: Supplied with screw on spout. Not suitable for extended UV exposure.

• These certified tanks are a useful and safe alternative to metal tanks and are suitable to hold any flammable liquids.

• Locking teeth hold the cap in place.

• Cap will not vibrate loose.

• Non-spill valve in funnel.

• Push down spout to release the fuel.

Fuel Filler Device & Jerry Cans

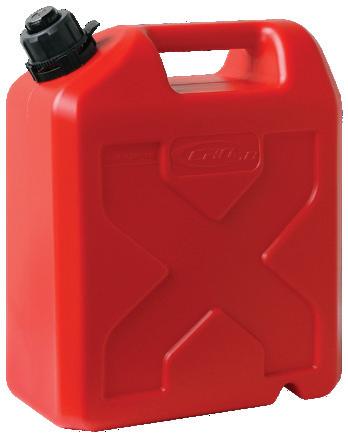

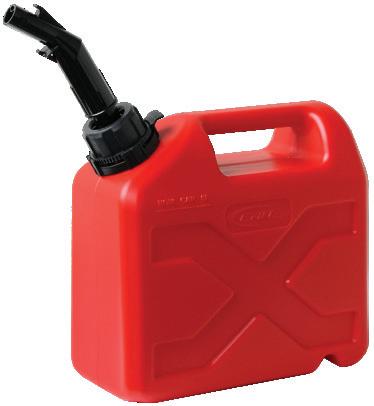

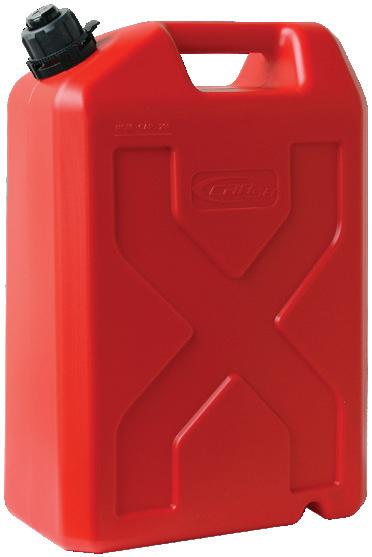

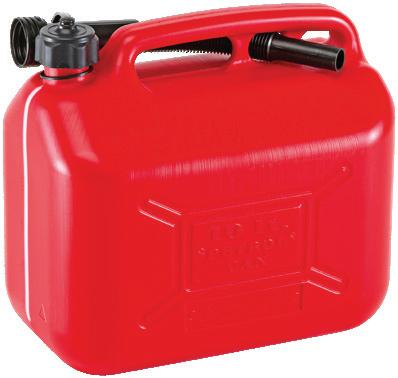

Fuel Jerry Can - Polyethylene
374005
374010
374020

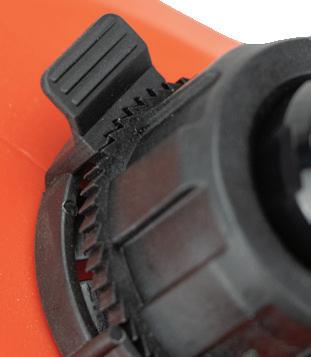

Locking teeth lock the cap in place.
Tab holds onto the fuel tank nozzle rim to release fuel.

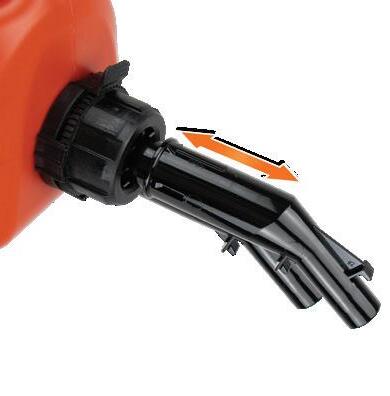

Press & Pour Fuel Jerry Can - Polyethylene HD

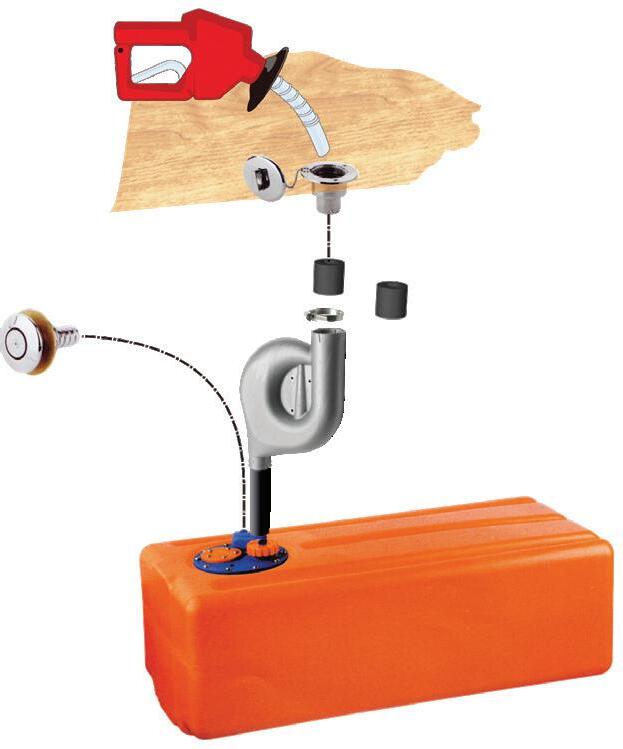

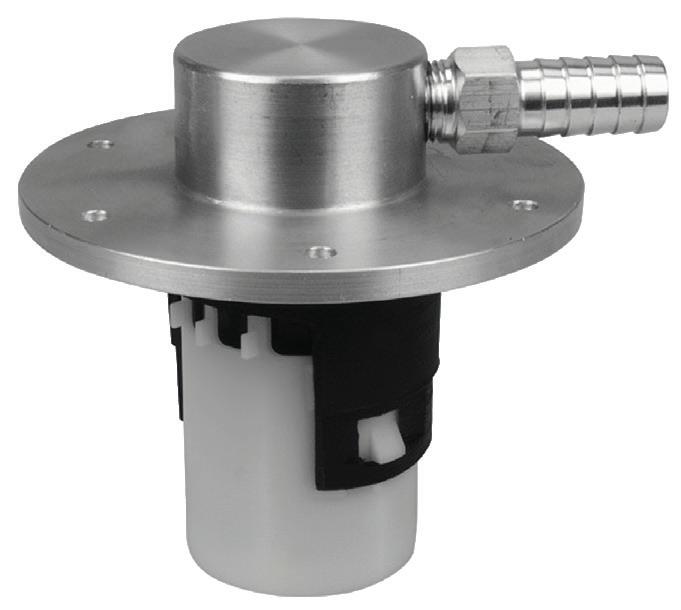

Fuel Filler Device - Anti Foam

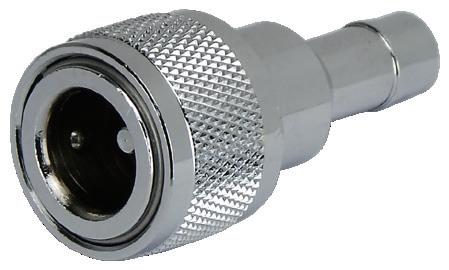

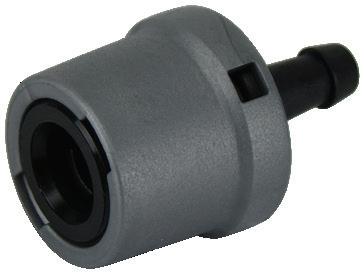

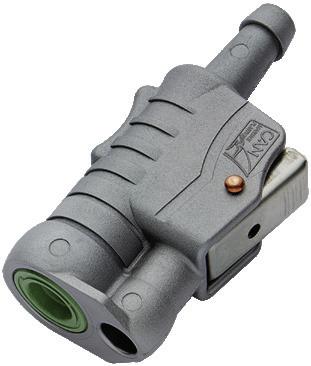

Fuel Tank Fittings - Quick Connect

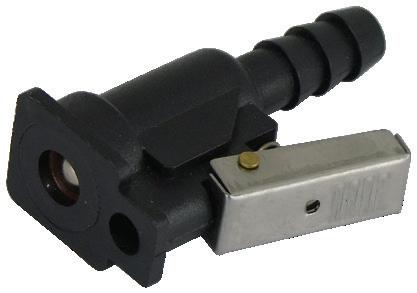

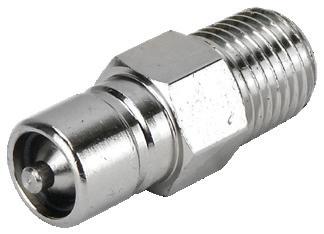

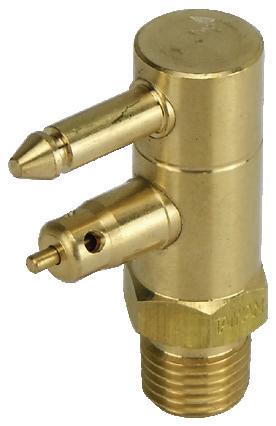

Fuel Tank Engine Fitting

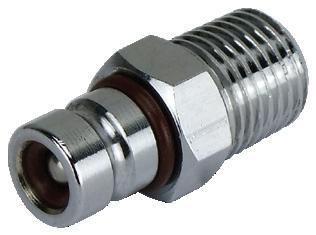

Fuel Tank Connectors - Male

Fuel Tank Connectors -

Hose Tails - Male Brass

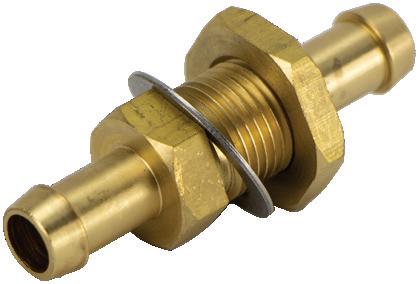

Hose Joiner - Brass

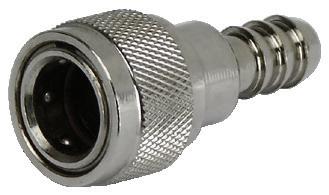

Fuel Line Connectors - Female Plastic

• Viton Seal, plastic spheroidal head, suitable for

• Available in female to female or male to female thread options.

• Nickel plated brass.

Primer Bulbs, Fuel Lines & Inline Fuel Filters

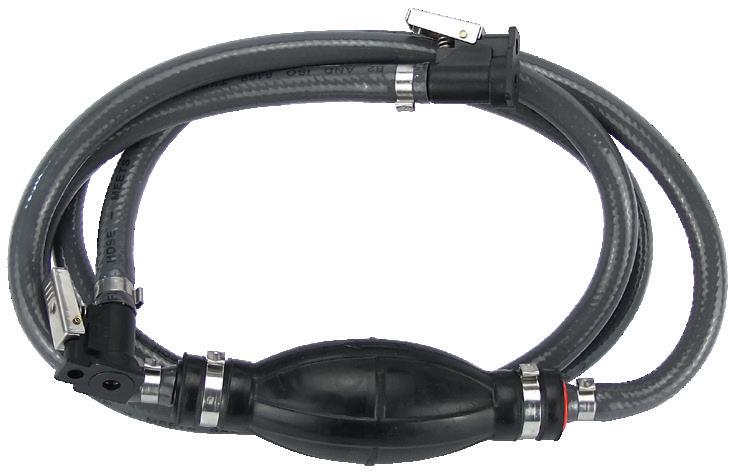

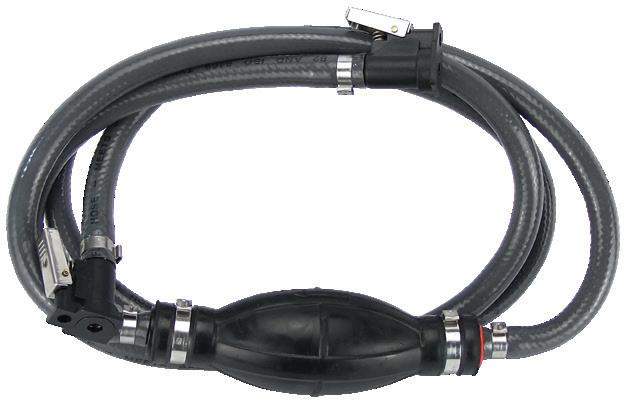

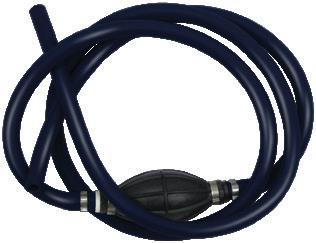

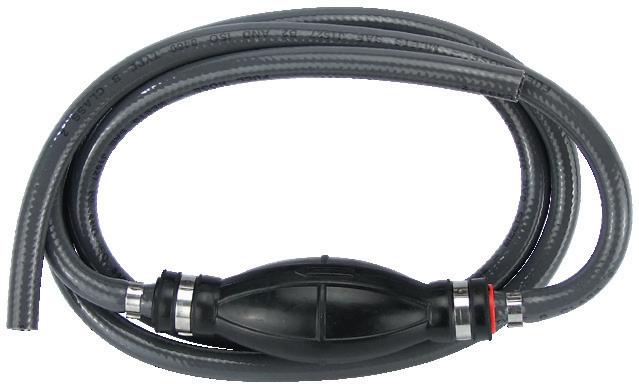

Fuel Line Assembly

NOTE:

• UV inhibitors protect bulb and line from UV damage.

• High performance rubber hose.

• Double check valves in primer bulb.

• Stainless steel hose clamps.

• Premium quality - Made in Italy.

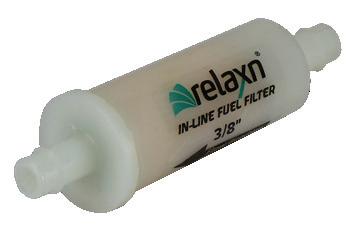

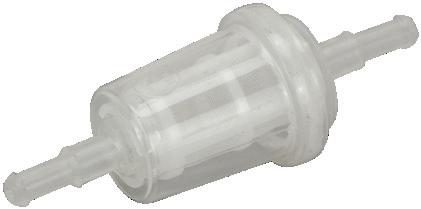

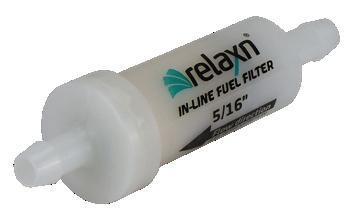

• 10 micron filters able to filter unseen materials from liquid to protect the fuel pump from dirt and other particles.

• Suits 2 stroke & 4 stroke outboard engines, will not impede on fuel/oil ratio.

• The opaque housing allows for a quick inspection of visible dirt/contamination.

• Disposable, recommended to replace the filter every 80 hours or 12 months.

NOTE: Outboard engines only.

NOTE:

• Disposable, recommended to be replaced regularly on visual inspection.

• Recommended for 2 and 4 stroke petrol and diesel engines.

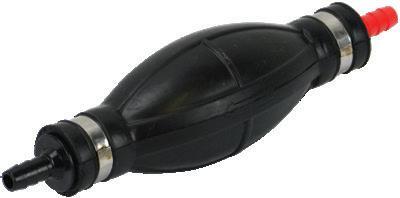

• Superior quality CEF® double valved fuel primer bulb - Made in Italy.

• Includes heavy duty zip ties for securing hose to tails.

Lucas Type & Griffin® Petrol Filters

Fuel Filter - High Flow Petrol Series Griffin®

• Suitable for petrol outboard engines only.

• High performance (99.8%) water filtration efficiency.

• Filtration blocks tiny solid contaminants to protect the engine.

• High capacity load and longer filter life.

• Enhance engine performance and reliability.

• Reduces exhaust gas pollution making it more environmentally friendly.

• Supplied with a blanking plug but without fuel hose tails.

• Single fuel filter with water settling bowl and bleeding screw, complete with an interchangeable cartridge. Suitable for engines to max of 3500cc.

• Efficient fuel filtration using paper element.

• Filters Petrol and Diesel, not suitable for 2 stroke.

• Pressure cast light alloy body. Max flow 50 Ltr/hour.

• 1/4" NPTF ports.

• 37280 - Includes 2 x blanking plugs, 1 x drain plug & 1 bleed screw but no hose tails.

• Login with your customer number and password

• Please contact SAW if you have not been issued a password and username. (Terms & Conditions Apply) STEP 3

• From here you can view your cart and retrieve an old or existing order OR

• Search a product and add it to the shopping cart

• Continue shopping or add known part numbers in the vacant field under 'PART NO.'

374229
374228
Fuel Filter - Lucas Type

Fuel Filter Kits / Elements

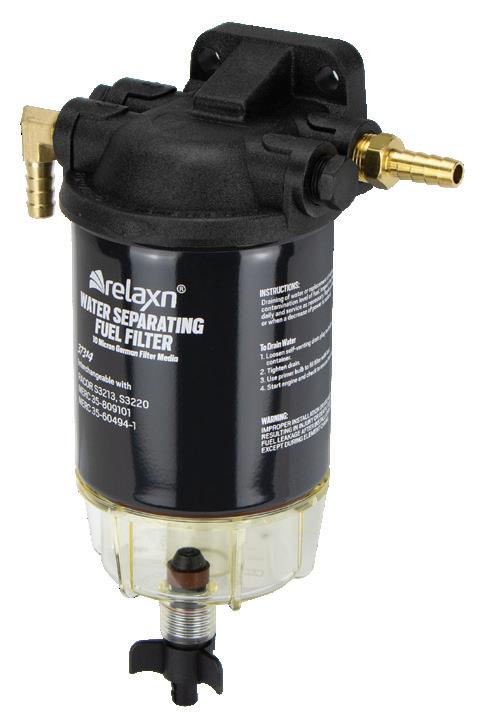

Relaxn® Fuel Filters

When it comes to water and fuel separation, Sam Allen Wholesale provides the best. Our Relaxn® filters are pressure tested to make sure they will work and keep on working within the harsh marine environment. Combining that with a 10 micron German engineered filter media, makes them one of the best filtration units available on the market.

Our filter elements are available to suit Mercury®, OMC® or Honda®/ Racor® threads. Relaxn® provide a filter for almost any make and model of marine outboard engine, at a competitive price.

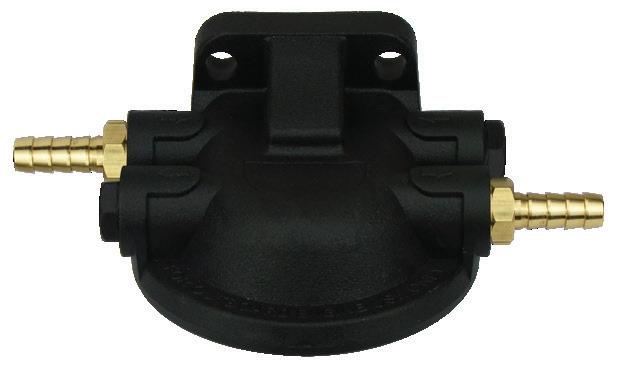

Anti-Corrosive Head

Fibreglass reinforced nylon multi-port head

German Filter Media

German manufactured high quality 10 micron filter media

100% Pressure Tested

Each Bowl is tested to 72.5 PSI (5 bar)

Viton O-ring Seal

Long lasting leak proof Viton seal

Long Service Life

For long lasting, reliable motor protection

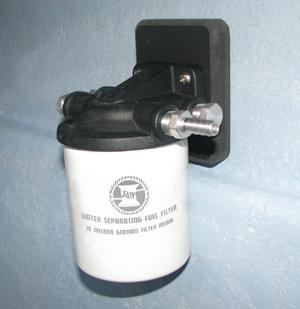

• Fuel Filter / Water Separating kits suitable for petrol and 2 stroke fuel, not suitable for diesel.

• High-quality German manufactured 10 micron filter media.

• Viton O-ring seal included provides a long lasting high quality seal.

• Max flow rate: 225 LPH.

• 37318 - Fuel Filter Complete Kit includes: 1 x Filter Head, 1 x Element, 1 x Clear Bowl with Drain Plug, 1 x Straight Tail, 1 x Elbow Tail, 2 x Blanking Plugs & 2 x Hose Clamps.

• 37308A - 1 x Filter Head, 1 x Straight Tail, 1 x Elbow Tail, 2 x Blanking Plugs & 2 x Hose Clamps.

NOTE: 571 Loctite thread sealant or Permatex thread sealant are recommended for sealing of tails to filter heads.

NOTE: Relaxn clear bowl should only be used with Relaxn filter elements.

• Fuel Filter / Water Separating kits suitable for petrol and 2 stroke fuel, not suitable for diesel.

• High-quality German manufactured 10 micron filter media.

• Viton O-ring seal included provides a long lasting high quality seal.

• Max flow rate: 225 LPH.

NOTE: Relaxn clear bowl should only be used with Relaxn filter elements.

37317 Replacement Clear Bowl Replacement to suit 37644

• Fuel Filter / Water Separating kits suitable for petrol and 2 stroke fuel, not suitable for diesel.

• High-quality German manufactured 10 micron filter media.

• Viton O-ring seal included provides a long lasting high quality seal.

• Max flow rate: 225 LPH.

NOTE: Relaxn clear bowl should only be used with Relaxn filter elements.

571 Loctite thread sealant or Permatex thread sealant are recommended for sealing of tails to filter heads

• Spin on filter removes 99.8% emulsified water and foreign particles as small as 10 microns.

• High-quality German manufactured 10 micron filter media.

• Suitable for petrol and 2 stroke fuel, not suitable for diesel.

• Max flow rate: 225 LPH.

• Does not accept clear bowl.

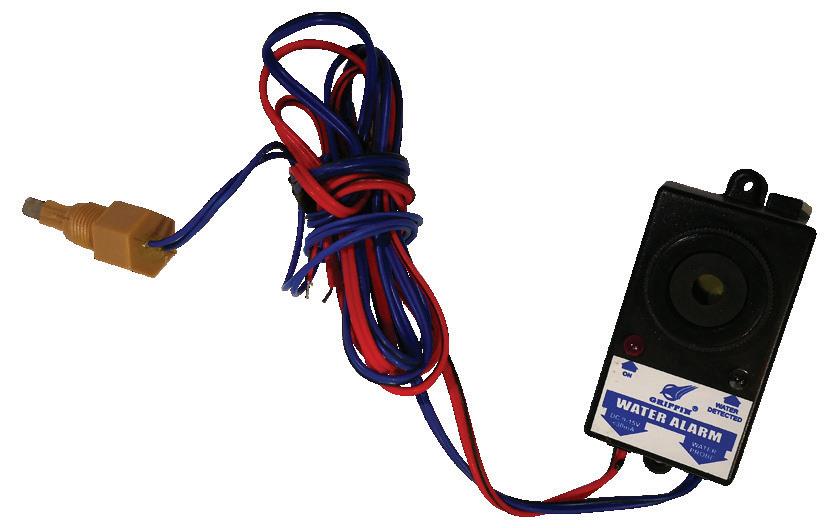

• Detects water contamination in fuel.

• Sensor activates at approximately 70% of the bowl’s capacity after 60 seconds.

• Suits Relaxn® filters with a water trap bowl compatibility.

• Built-in electronic sensor device.

• Operating temperature range - (-20) - (+75) °C.

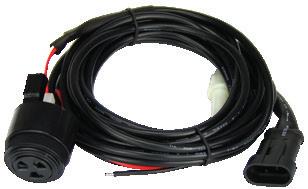

• Kit includes: 1 x Aluminium water collecting bowl. 1 x Buzzer alarm.

1 x Connecting cable - 4.3m. 1 x Instruction Manual.

NOTE: Not suitable for diesel applications. Matches with 37314, 37640, 37644 filter elements (not included).

37308A 37311

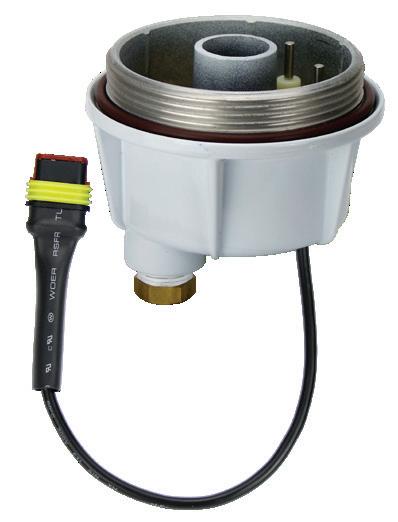

Fuel Filter - SmartBowl

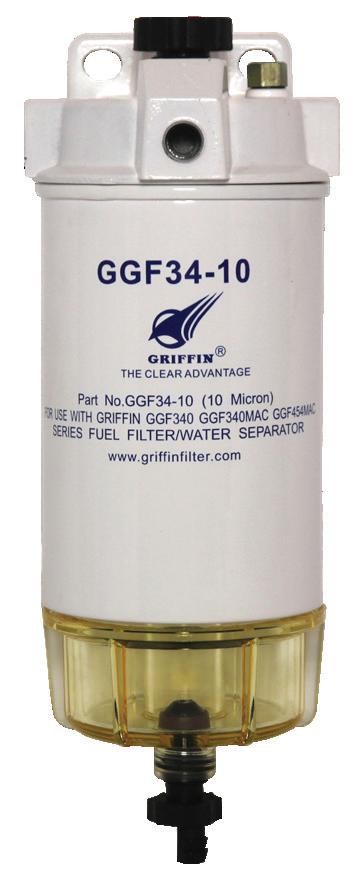

Griffin are The Experts in Fuel Filter Water Separation!

GRIFFIN® is a renowned filtration industry manufacturer, with over 40 years of experience. In 2003, they developed MICROBLOC®, a revolutionary filtration technology exclusively used in Griffin filtration systems.

Griffin® Filters Use A Four-Stage Process to remove Contaminants and Separate Water from fuel:

1. Centrifugal Stage: Separates larger solid contaminants and free water.

2. Coalescing Stage: Filters out smaller water droplets and solid contaminants using MICROBLOC® multigrade filtration media, causing them to coalesce and collect in the bowl.

3. MICRO Action I Stage: Removes the smallest water droplets and solid contaminants from fuel.

4. MICRO Action II Stage: A second micro action filtration ensures almost 100% pure fuel filtration.

GRIFFIN® Fuel Filter / Water Separators Are Ideal For:

• Marine engines.

• Power generators.

• Fuel storage polishing.

• Automotive engines.

• Construction / earth moving equipment.

• Agricultural / Forestry equipment.

• Biodiesel applications.

• Common rail engines.

The Clear Advantage is MICROBLOC® in Filtration!

99.8% Water Removal Efficiency

Griffin Fuel Filter / Water Separators, featuring MICROBLOC® Multigrade Filtration Media, remove water and other contaminants from your fuel, preventing corrosion and equipment failure. In PSB tests, 99.8% of water was removed within 30 minutes of operation.

Remove Damaging Contaminants

MICROBLOC® filters remove tiny particles as small as 2 microns to protect engines from damage caused by contaminants from each refuelling. Elements are available in 2, 10, and 30-micron ratings.

High Capacity And Longer Filter Life

MICROBLOC® elements provide multi-layered filtration, with corrugated filtration media to trap more contaminants and reduce replacement frequency. MICROBLOC® filtration efficiency is up to 10 times greater than conventional media.

Built To Last And Easy To Replace

Griffin Fuel Filter / Water Separators are built to last and easy to replace with no special tools needed. Marine-grade Turbine Series filters include S4 or S6 trim and come with Stainless Steel Hardware as standard. MICROBLOC® replacement elements surpass OEM specs.

Enhance Engine Power And Reduce Fuel Consumption

Griffin Fuel Filter / Water Separators improve engine performance, reliability, and lifespan, providing a cleaner running engine that operates more efficiently and uses less fuel.

Environmentally Friendly And Cost-Effective

Griffin Filters produce a cleaner exhaust by reducing exhaust pollution more effectively than other similar products. They are the superior choice for fuel filtration, backed by research, science, and technology, at a competitive price. With MICROBLOC® technology, Griffin filtration systems are the best performing and most cost-effective option for your filtration needs.

Turbine Diesel Filter

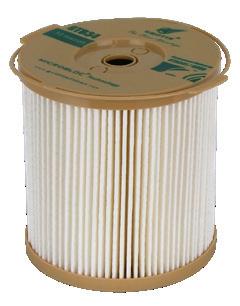

374104 Replacement 2 Micron Element GTB22-2

374105 Replacement 10 Micron Element GTB22-10

374106 Replacement 30 Micron Element GTB22-30

374108 Replacement Clear Bowl

374109 Replacement Clear Bowl with Drain Plug

• Provides unsurpassed fuel filtration and water separation and is a direct replacement or substitution for the Racor 500MA.

• MICROBLOC® Multigrade Filtration Media Elements have tested to be 99.8% effective in separating water from diesel and biodiesel fuels and can remove solid contaminants as small as 2 microns in size with that element. Elements are also available in 10 and 30 micron sizes.

• Supplied as standard with a 10 micron GRIFFIN® MICROBLOC® element.

NOTE: Hose fittings are not included.

• Provides unsurpassed fuel filtration and water separation and is a direct replacement or substitution for the Racor 75/500MAX.

• MICROBLOC® Multigrade Filtration Media Elements have tested to be 99.8% effective in separating water from diesel and biodiesel fuels and can remove solid contaminants as small as 2 microns in size with that element. Elements are also available in 10 and 30 micron sizes.

• Supplied as standard with a 10 micron GRIFFIN® MICROBLOC® element.

NOTE: Hose fittings are not included.

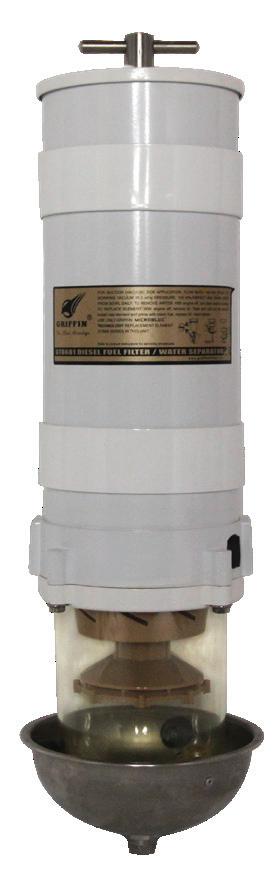

Diesel Filter - Turbine Series GTB228 Griffin®
Diesel Filter - Turbine Series GTB228DM Griffin®

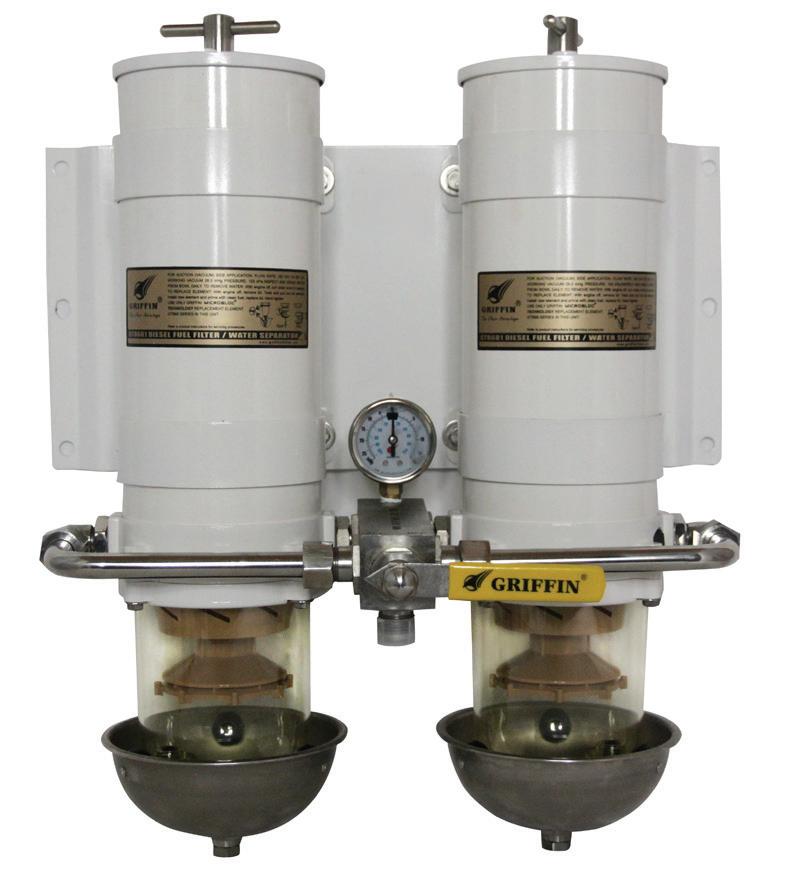

Griffin® GTB341 Diesel Filters

Replacement Clear Bowl with Drain Plug

• Provides unsurpassed fuel filtration and water separation and is a direct replacement or substitution for the Racor 900MA.

• MICROBLOC® Multigrade Filtration Media Elements have tested to be 99.8% effective in separating water from diesel and biodiesel fuels and can remove solid contaminants as small as 2 microns in size with that element. Elements are also available in 10 and 30 micron sizes.

• Supplied as standard with a 10 micron GRIFFIN® MICROBLOC® element.

NOTE: Hose fittings are not included.

Clear Bowl with Drain Plug

• Provides unsurpassed fuel filtration and water separation and is a direct replacement or substitution for the Racor 75/900MAX.

• MICROBLOC® Multigrade Filtration Media Elements have tested to be 99.8% effective in separating water from diesel and biodiesel fuels and can remove solid contaminants as small as 2 microns in size with that element. Elements are also available in 10 and 30 micron sizes.

• Supplied as standard with

NOTE: Hose fittings are not included.

element.

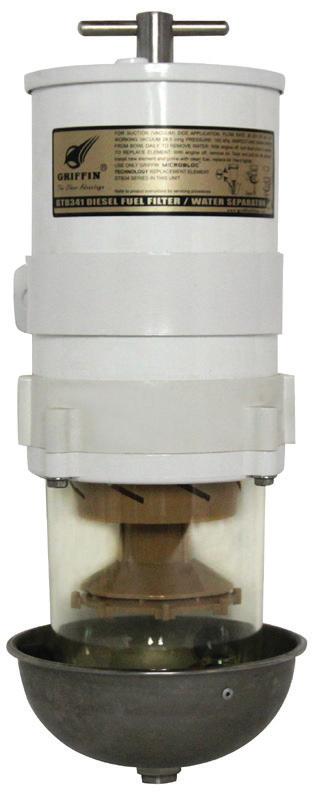

Diesel Filter - Turbine Series GTB341 Griffin®
Diesel

Replacement 10 Micron Element GTB68-10

Replacement 30 Micron Element GTB68-30 374138 Replacement Clear Bowl

374139 Replacement Clear Bowl with Drain Plug

• Provides unsurpassed fuel filtration and water separation and is comparable to the Racor Marine 1000 series filters.

• The GTB681 series filter use GRIFFIN® replacement elements GTB68, formerly designated as G2020, to remove contaminants as small as 2 microns with that size element. Elements are also available in 10 and 30 micron sizes.

• Supplied as standard with a 10 micron GRIFFIN® MICROBLOC® element.

NOTE: Hose fittings are not included.

NOTE: GTB68 elements are compatible with old style Racor® 1000 series filters, but not with the new 1000 series filters with the spring-loaded valve.

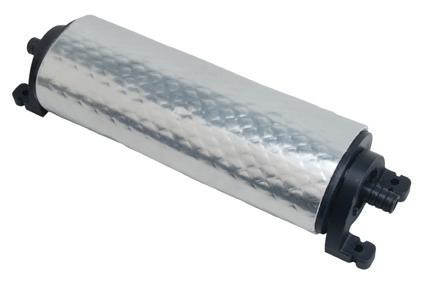

Replacement 10 Micron Element GTB68-10

Replacement 30 Micron Element GTB68-30 374138 Replacement Clear Bowl 374139 Replacement Clear Bowl with Drain Plug

• Provides unsurpassed fuel filtration and water separation, and is comparable to the Racor Marine 1000 series filters.

• The GTB681 series filter use GRIFFIN® replacement element GTB68, formerly designated as G2020, to remove contaminants as small as 2 microns with that size element. Elements are also available in 10 and 30 micron sizes.

• Supplied as standard with a 10 micron GRIFFIN® MICROBLOC® element.

NOTE: Hose fittings are not included.

Diesel Filter - Turbine Series GTB681 Griffin®
Diesel Filter - Turbine Series GTB681DM Griffin®

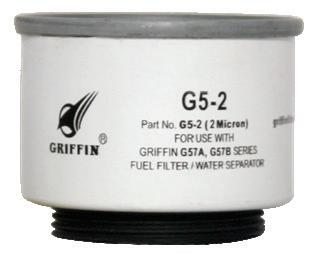

Diesel Filter - Spin-On Series G57A Griffin®

• GRIFFIN® Spin-on water/diesel separating filters with replaceable cartridge.

• The water-repellent filter element has 99.8% of effectiveness in separating water from diesel.

• Filtration efficiency is up to 10 times greater than conventional filters.

• GRIFFIN® filters with MICROBLOC technology are high capacity classified thanks to corrugated filtration media that means more surface area to trap contaminants.

• GRIFFIN® filters will give your engine longer life and reduced fuel consumption.

• Filter is supplied as standard with a 30 micron cartridge, 2 x aluminium blanking plugs but no hose tails.

• Cartridges can replace Racor® 120 A Series Spin-on filters.

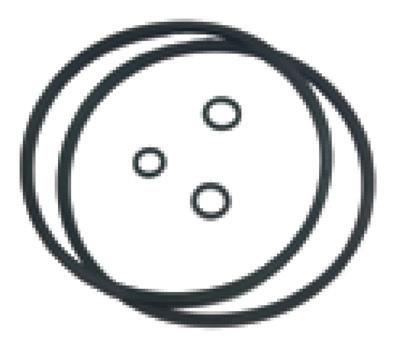

• Sealing service kit for GTB228./ GTB341 and GTB681.

• Fluid

• Use this gauge to help you determine the optimal time to replace your dirty element.

Diesel Filter Pressure Gauge - Griffin®

Splash Guard

• Moulded

Fuel Breather Streamline - Nylon

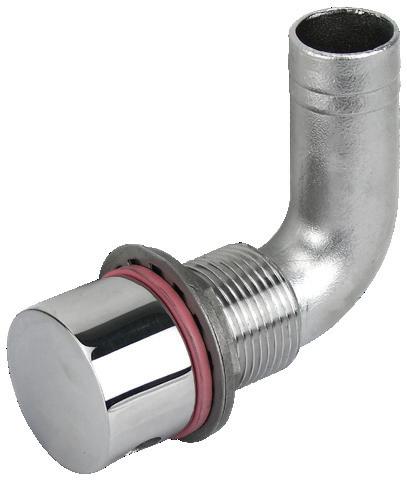

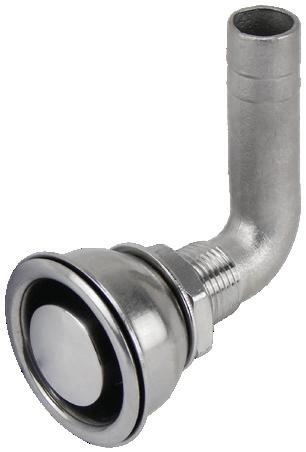

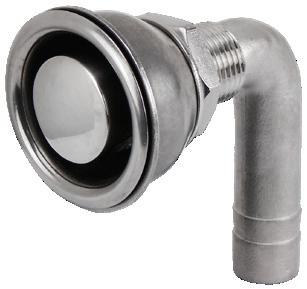

Fuel Breather - Round Head

• 316G stainless steel.

• No protruding cap to cause damage or be damaged by hull bumps or scrapes.

• Cap unscrews with hex allen key for easy cleaning of mesh screen and pressure testing of entire fuel system.

• Can be mounted with bend up, down or any convenient angle in between.

Inlet Check Valves, Surge Protectors & Breathers

Fuel Inline Surge Protector Breather Vent

• Valves designed for use with plastic or metal fuel tanks.

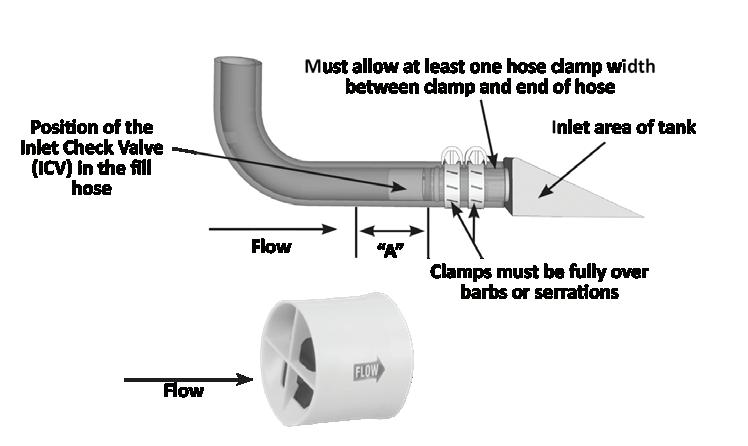

• Perko's new patent pending Flapper Valves fit inside the filler hose itself.

• In-hose ICVs mount inside standard 1-1/2" or 2" I.D. fill hose near the connection to the fuel tank.

• Replaces in-line ICVs, eliminating 4 hose clamps & 2 potential leak points.

• Pressure tested in accordance with ABYC H-24.

• Allows for full 68 LPM flow rates.

• Suits petrol and diesel.

Fuel Fill - Check Valve and Surge Protector

• Reduces fuel surges and backsplash during

• Reduces number of potential leak points.

• For use with 38mm (1-1/2") fill hose and 16mm (5/8") vent hose.

• Can be used with metal or plastic fuel tanks.

• Aids in automatic pump shutoff.

• Allows unobstructed airflow at fill rates up to 68 LPM.

• Suits petrol and diesel.

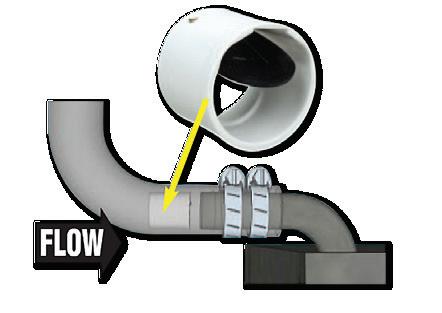

Easy To Install:

• Loosen hose clamps

• Remove hose.

• Insert valve in hose

• Re-install hose and tighten clamps.

• Check for leaks.

• Prevents fuel surges and back splash during re-fuelling.

• Perko's patent pending in-line surge protector functions both as a fill limit valve assisting in pump auto shut-off and a check valve to prevent wellback in the vent line.

• Polymer valve with aluminium Surge Float.

• Pressure tested in accordance with ABYC H-24.

Note: Must be installed within 30° of vertical if vented.

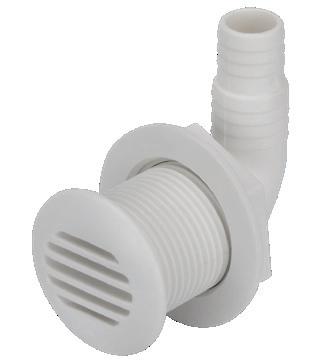

• Black polymer body with either black or white polymer vent cover.

• Can be used with 29305 splash guard.

• Allows vapour to vent from the tank during thermal expansion of fuel, and fresh air flow into the tank during thermal contraction of fuel and when the engine is running.

• Deflector-style vent opening reduces water volume entering assembly.

• Internal P-Trap and check valve prevent water from passing through assembly into the fuel system.

• 90° hose connection (to vent axis) to suit 16mm (5/8") I.D. hose.

29686
29687
29317
29319
Fuel Breather with P-Trap Vent Valve

Perko Fill Limit Valves & Vapour Canisters

Flanged Fill Limit Valve

• Used to establish ullage (expansion airspace) in the fuel tank and help prevent overfilling.

• Made from corrosion resistant aluminium with blue polymer valve.

• Flange mounted for use in aluminium or polymer tanks.

• Standard 5 hole sender pattern.

• Gasket is not included.

• Suits 16mm (5/8") I.D. hose, designed to vent to vented fuel filler or remote breather and not directly to carbon fuel vapour canisters.

• Alternative fuel fill limit valves are available to order with lesser ullage, swivel mount weld-in flange or 1" NPTM threaded for aluminium tanks.

• Used to establish ullage (expansion airspace) in the fuel tank and prevent overfilling.

• Manufactured from corrosion resistant aluminium with polymer valve.

• Flange mounted, designed for use on aluminium or polymer surfaces.

• Mounting gasket is not included.

• Suitable to push refuelling vapours through a carbon canister via the 16mm (5/8") hose barb tail.

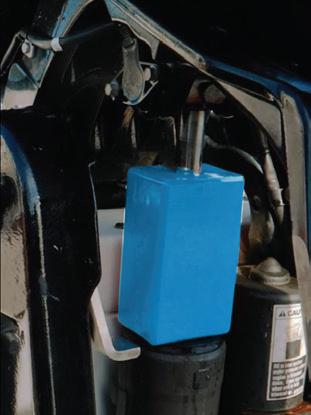

Carbon Fuel Vapour Canisters

• Designed to absorb hydrocarbons passing through the canister as fuel expands due to rising temperature. They are then released back into the tank at night as temperature drops, bringing in fresh air.

• No moving parts.

• Bracket mounted, between the fuel tank vent and the external breather, above the level of the tank.

• Can be mounted in any orientation.

• Overall height 95mm.

• Overall width 74mm.

• Available in alternative sizes to suit larger capacity fuel tanks.

• Alternative canisters with heat shields are available to order mounted in the engine compartment.

Fill Limit Valve - Canister
Vapour Tube Patented "floating bracket"
Shown with Optional Heat Shield

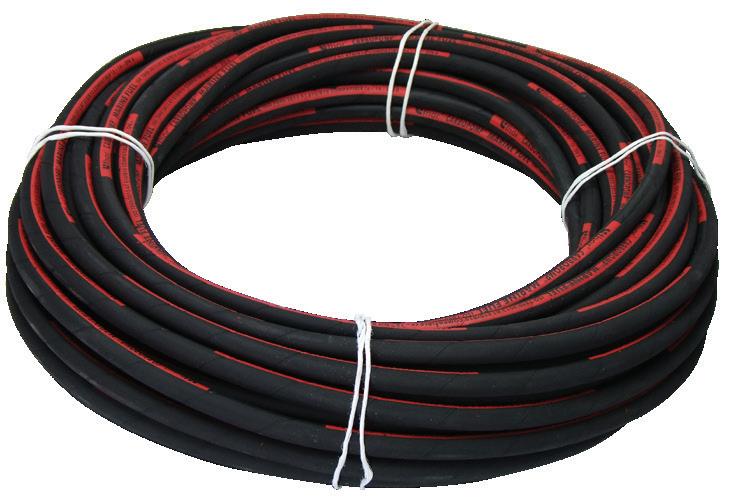

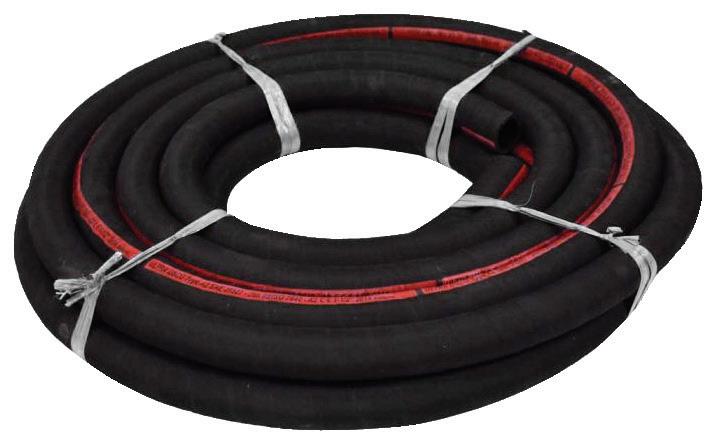

Premium Rubber Fuel Hose - Ethanol Compatible

Per Roll

Per Roll

Soft wall rubber hose suitable for supplying fuel to marine pleasure craft outboard and inboard engines on vessels up to 24 mtr length.

E10 fuel compatible.

Suitable for 95-98 octane unleaded fuel.

Smooth black NBR rubber core, resistant to petroleum products up to 50% aromatic content, biodiesel and unleaded fuel up to 15%

Smooth extruded, black fabric finished rubber cover provides resistance to abrasion, heat, fuel, oils and other marine agents.

• High strength synthetic textile yarn reinforced.

• Temperature range is -20°C to 80°C.

• Standards: ISO 7840:2013 A1 e SAE J 1527:2011 USCG A1.

• Approved: RINA e Lloyd's

NOTE: Sold in rolls only (no cut lengths).

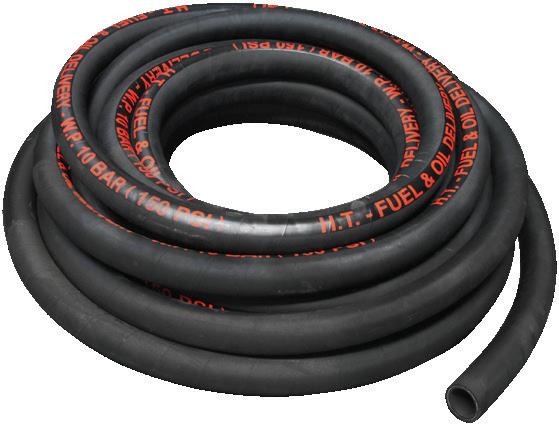

• Rubber hose suitable for supplying mineral oils, diesel and unleaded fuel.

• Not suitable for Ethanol blended or 98 octane fuels.

• Suitable for 91-95 octane unleaded fuel.

• Smooth black NBR rubber core, resistant to petroleum products up to 40% aromatic content.

• Smooth extruded nitrile rubber cover provides resistance to abrasion, fuels, oils and weathering.

• High strength synthetic textile yarn reinforced.

• Temperature range is -20°C to 80°C.

• H.T - CARBUPOMP/10NL - WP 10 BAR-R<1M Ω/m - ISO R1307 - ITALY.

NOTE: Sold in rolls only (no cut lengths).

• This marine fuel hose is designed for use in outboard fuel applications with PORTABLE OR ABOVE DECK MOUNTED FUEL TANKS

exposed hose routing.

• PVC Nitrile blend, non-reinforced fuel hose.

• Resistant to E10, unleaded and diesel fuels.

• Ideal for low pressure or light suction applications.

• Offers excellent durability and U.V. resistance.

• Australian made.

NOTE: DO NOT install below deck as fuel vapour will permeate through the PVC hose. Sold in rolls only (no cut lengths).

PVC Nitrile Outboard Fuel Hose
Rubber Fuel Hose

• Soft wall, flexible rubber hose suitable for supplying mineral oils, diesel and unleaded fuel.

• Smooth black NBR rubber core resistant to petroleum products up to 50% aromatic content.

• Smooth fabric finished NBR rubber cover provides resistance to abrasion, fuels, oils and weathering.

• High strength synthetic textile plies and anti static copper wire reinforced.

• Temperature range: -30°C to 80°C. NOTE: Sold in rolls only (no cut lengths).

• Smooth semi-flexible spiral rubber hose suitable for supplying diesel, biodiesel and unleaded fuel.

• E10 fuel compatible.

• Smooth black NBR rubber core, resistant to petroleum products up to 50% aromatic content, biodiesel and unleaded fuel up to 15% oxygenated.

• Smooth, fabric finished NBR rubber cover provides resistance to abrasion, fuels, oils, heat and other marine agents.

• Double steel wire helix and high strength synthetic textile yarn reinforced.

• Temperature range: -20°C to +80°C.

• Standards: ISO 7840: 2013 A1 e SAE J 1527: 2011 USCG A1.

• Approved: RINA e Lloyd's.

NOTE: Sold in rolls only (no cut lengths).

• Soft wall smooth cover rubber hose suitable for conveying hot water mixed with engine cooling liquids.

• The structure ensures high flexibility.

• Smooth black, heat resistant EPDM rubber core.

• Smooth, fabric finished EPDM rubber cover provides resistance to heat and abrasion.

• High strength synthetic textile plie reinforced.

• Temperature range: -40°C to +120°C.

• Standards: DIN 73411

NOTE: Sold per metre.

Rubber Fuel Deck FIller Hose - Softwall
Rubber Fuel Deck Filler Hose - Smooth Spiral

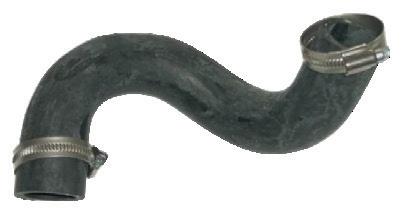

Radiator Hot Water Hoses

Exhaust Hoses & Accessories

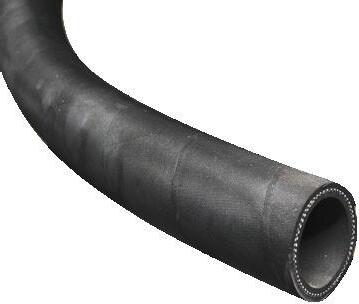

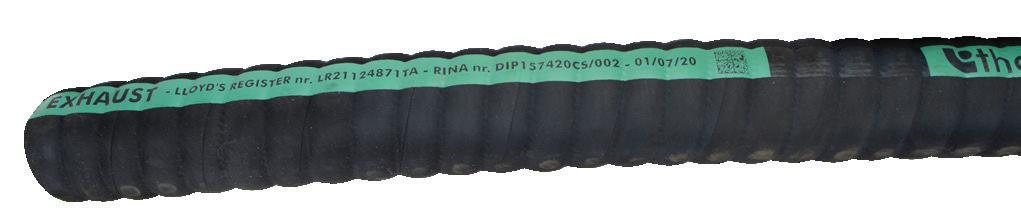

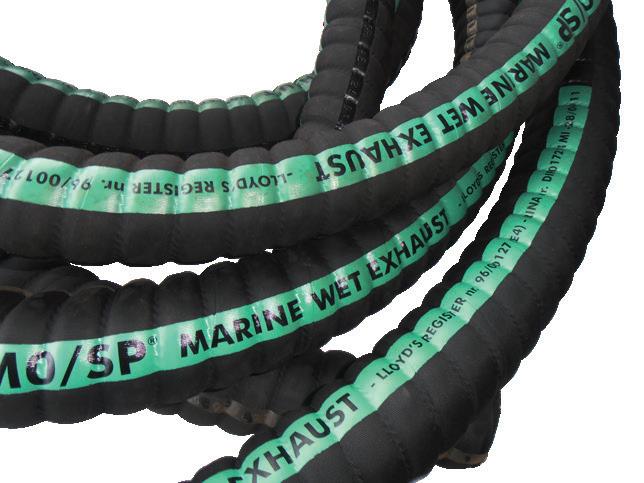

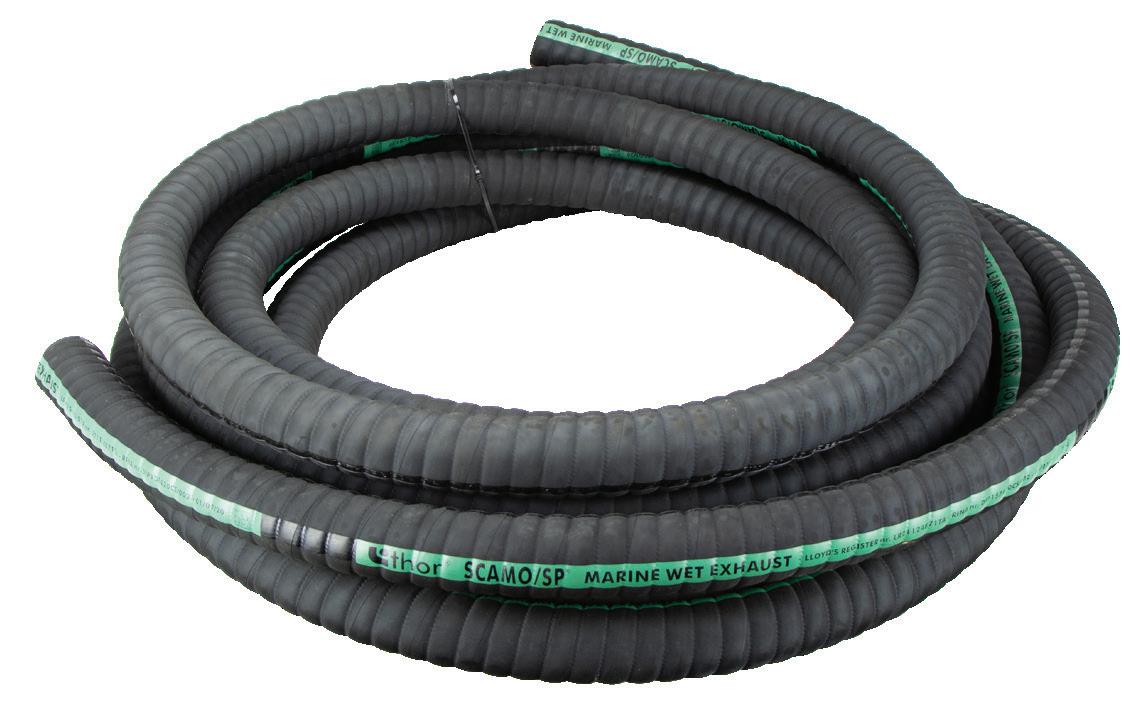

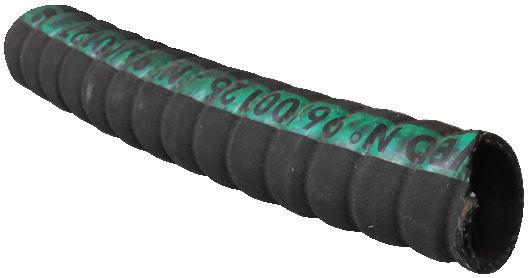

Exhaust Hose - Rubber

• Hard wall, flexible rubber, marine exhaust hose.

• Reinforced with double steel wire helix with high strength synthetic textile yarn.

• Also suitable for use with heat exchangers on pleasure boats up to 24m length.

• Smooth black rubber core resistant to inert gases, hot water, sea water and low concentrations of chemical products.

• Corrugated, fabric finished rubber cover provides resistance to abrasion, heat and weathering.

• Minimum bend radius of 1.5 x I.D.

• Temperature range: -30°C to +100°C.

• Standards: SAE J 2006:2003 R2 - ISO 13363:2004 Type 2 Class B

• Approved: LLOYD’S REGISTER N. 96/00127 - R.I. NA N. DIP 075110CS

NOTE: Sold in cut lengths per metre or in full 20m rolls.

Rubber Exhaust Guard

• Rubber flap guard to prevent sea water flowing back into the exhaust system.

• Adjustable sizing, simply cut rubber flange to size & clamp to desired size with a hose clamp.

NOTE: Hose clamp not supplied

• Cast 316G

• Rubber flap.

• 3 x M5 threaded mount

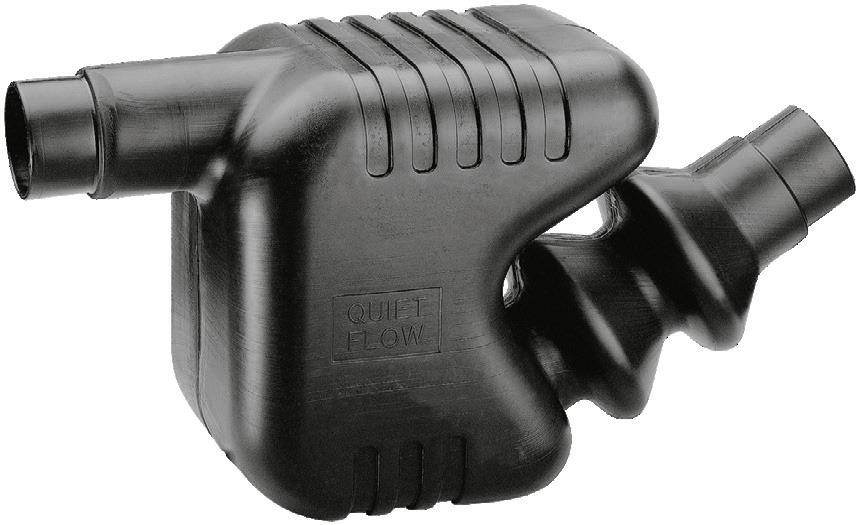

Exhaust Waterlock Silencers

• For use with water injected exhaust systems to prevent water entering the engine via the exhaust outlet.

• The inlet and outlet are stepped to suit multiple hose sizes - simply cut to your requirement.

• Also acts as a silencer.

Exhaust Gas / Water Separators

• Ideal for generators.

• Separates exhaust gas and cooling water allowing the water to be pumped out below the waterline, avoiding the spitting of a generator constantly running.

• Stepped inlet and outlet to suit multiple hose sizes.

• Doubles are a silencer.

Exhaust Anti Siphons

• Used in conjunction with a waterlock.

• The anti siphon is designed to further safeguard sea water entering into the exhaust system via the outlet.

• The anti siphon comes in two inlet angle configurations of 180° and 135°.

• The inlet is stepped with three hose sizes 40mm, 45mm & 50mm.

• The 50mm outlet comes in two angle configurations - Straight by simply cutting off the 90° bend or 90°.

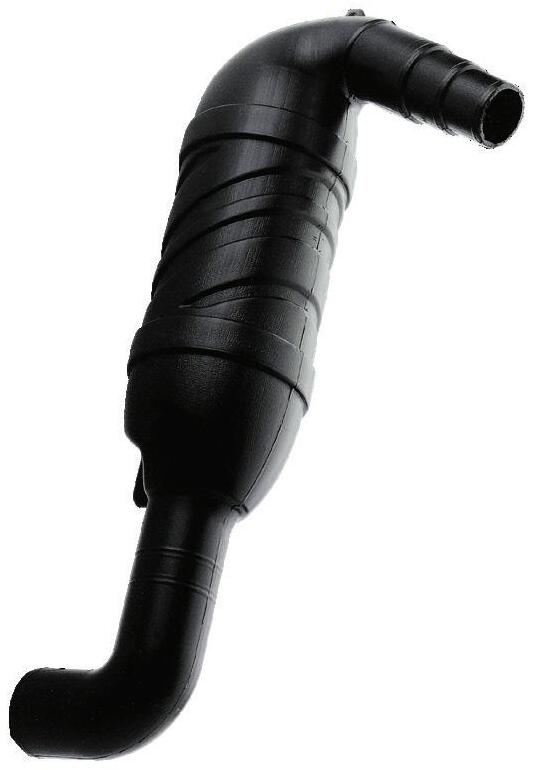

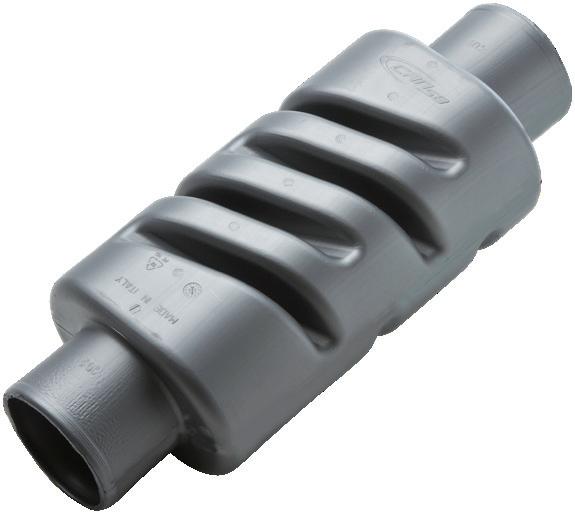

Exhaust Silencers

• The structure of the silencer drastically reduces exhaust noise emissions.

• For use in wet exhaust systems in conjunction with a waterlock.

• Not suitable for use in inboard ski boats.

45921
45922 / 45924
45920
45926
45928
Flow Direction

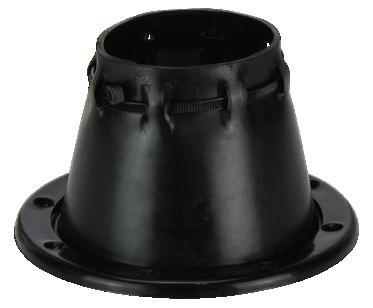

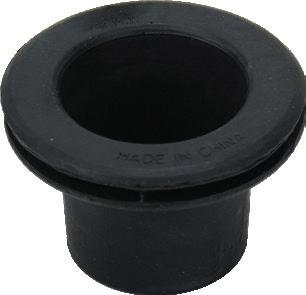

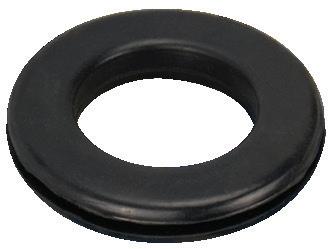

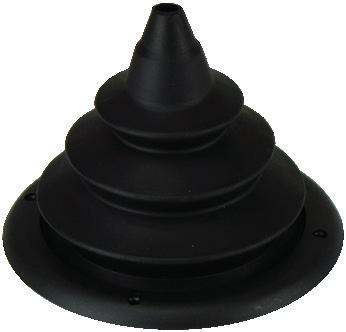

Cable Grommets - Flange Mount

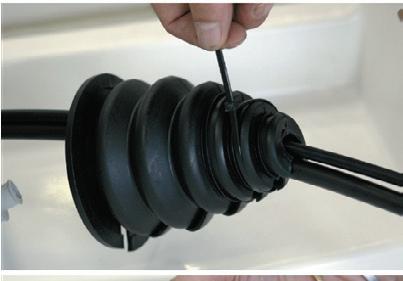

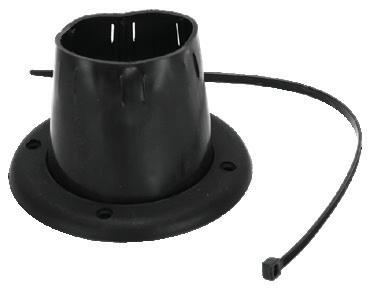

Cable Grommets - Adjustable

83555

83558

• Adjustable throat is closed with the heavy duty cable tie provided.

• Wide opening facilitates fuel line, steering cable or hoses and control cables in one cutout.

• Available in two single and one dual versions to lead throttle and gear shift cables, thinner hydraulic steering hoses and fuel lines through bulkheads or motor wells.

• Polyurethane Grommets.

Cable Grommets - Cut Out Mount Cable Grommets - Retro-Fit

295094
295098

Rigging Flanges

• Designed to install rigging hoses through the hull.

• Internal thread to hold 76266 Rigging Hose in position.

• 76272 & 76270 provides entry point for fuel hose into rigging tube.

• Flanged versions have holes to suit 6 gauge mounting screws.

Rigging Hose & Accessories

Rigging Kit - 50mm & Flange

• Conceals and protects outboard motor cables and wires against abrasion, dirt, salt corrosion and UV damage.

• This system makes the installation tidy and professional.

• UV resistant polyethylene conduit tubing.

• Heavy-duty hose is flexible and kink resistant.

• 76253 Flange included.

NOTE: End Cap not included.

Rigging Hose - 50mm

• Conceals and products outboard motor cables and wires against abrasion, dirt, salt corrosion and UV damage.

• UV resistant heavy duty polyethylene conduit tubing.

• Flexible and kink resistant.

• Suits 295082 Steering Grommet and 50mm rigging flanges.

Glide Through Water Like It's Air!

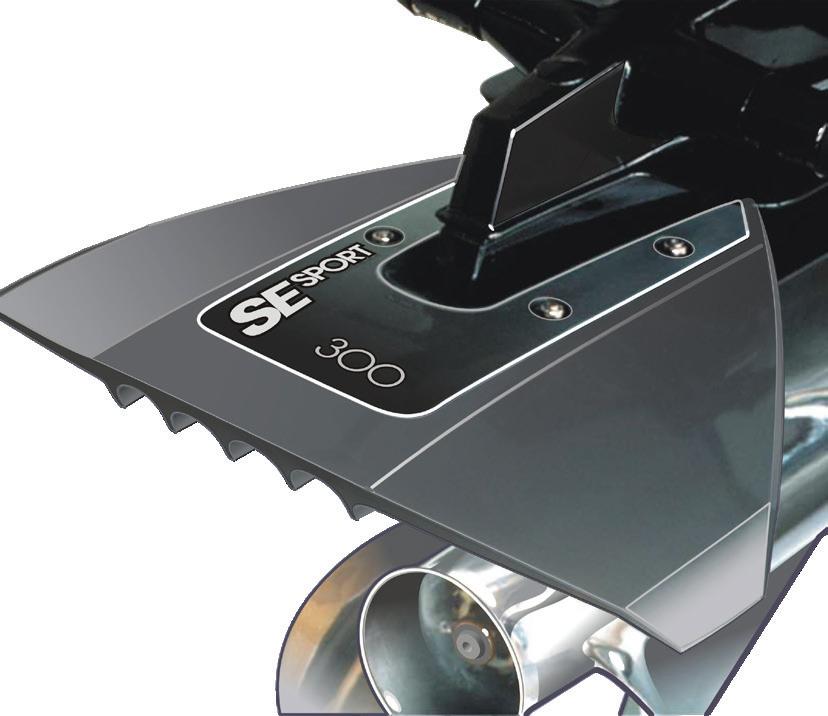

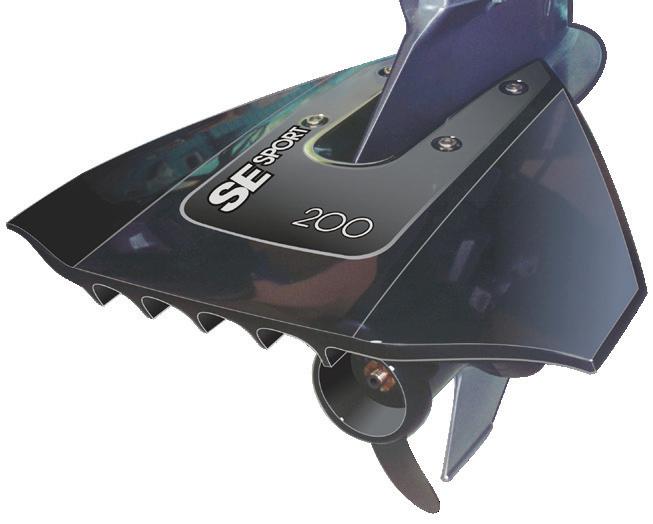

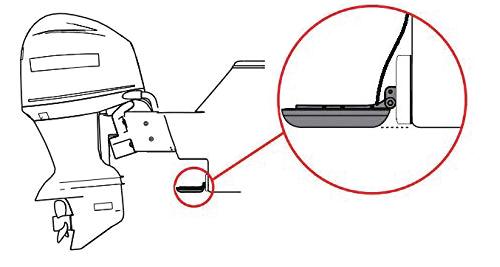

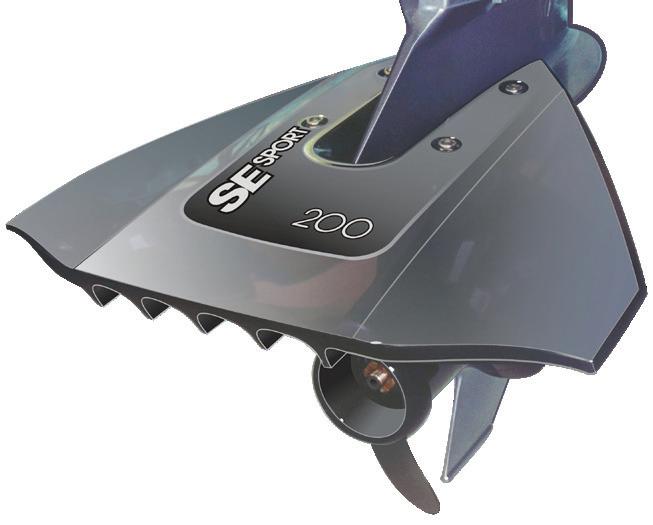

SE Sport 200, 300 and 400 Hydrofoils

High Performance Hydrofoils streamlined for speed in three models. The SE Sport will improve handling and provide better manoeuvrability with a smoother ride. Features Turbo Trac to enhance thrust and control. The Crescent shaped surface quickly funnels water for more thrust and the quickest hole shot. Boats will plane sooner and keep on the plane at lower speeds. Saves on fuel by quicker planing and better stability. Reduces or eliminates the problem of porpoising and prop ventilation.

• Reduces plane time dramatically.

• Narrower design with more surface area than most foils.

• Turbo Trac enhances thrust and control.

• Quick planing reduces fuel expense and increases safety.

• Reduces or eliminates porpoising, cavitation, chine walking and deep-V wander.

• Sleek shape complements today's new boat designs.

• One piece high strength engineering copolymer.

• Stainless steel hardware included.

• Manufacturer's lifetime warranty.

• Reduces plane time dramatically.

• Narrower design with more surface area than most foils.

• Turbo Trac enhances thrust and control.

• Rated fastest in independent tests

• Quick planing reduces fuel expense and increases safety.

• Reduces or eliminates porpoising, cavitation, chine walking and deep-V wander.

• Sleek shape complements today's new boat designs.

• One piece high strength engineering copolymer.

• Stainless steel hardware included.

• Manufacturer's lifetime warranty.

• Reduces plane time dramatically.

• Narrower design with more surface area than most foils.

• Turbo Trac enhances thrust and control.

• Quick planing reduces fuel expense and increases safety.

• Reduces or eliminates porpoising, cavitation, chine walking and deep-V wander.

• Sleek shape complements

244210
244212
244214
244220

Macs® Engine Flush Water Additive

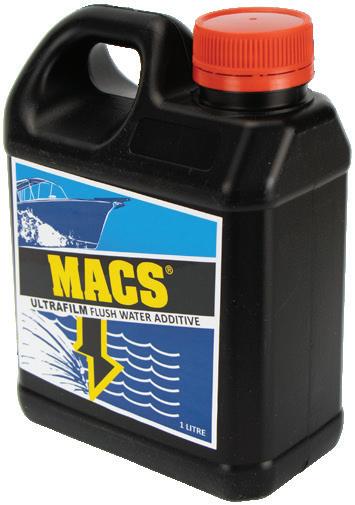

Macs® Ultrafilm Engine Flush Water Additive

• Macs® Ultrafilm is a patented formula specifically designed to protect most metal surfaces, both ferrous and non ferrous from the corrosive effects of salt and fresh water minerals.

• This complex formula of corrosion inhibitors, lubricants, filming agents and oils provides a maintenance system that cleans moving parts, seals and water pumps, reducing repair bills and minimising the risk of motor failure.

• A unique, cost effective, preventative maintenance system that inhibits corrosion and prolongs the life of your marine engine.

• Ideal for flushing inboards, outboards, stern drives and jet skis.

• Helps prevent salt and mineral damage inside your marine engine.

• Clears cooling channels.

• Removes sediments and buildup.

• Lubricates water pumps.

• Applies a protective Ultrafilm coat which protects from salt corrosion.

Directions - Apply MACS® Ultrafilm internally to engine cooling systems using the MACS® Injector and your normal flush system. Apply to external metal surfaces with a spray applicator.

NOTE: Not recommended for use in environmentally sensitive areas.

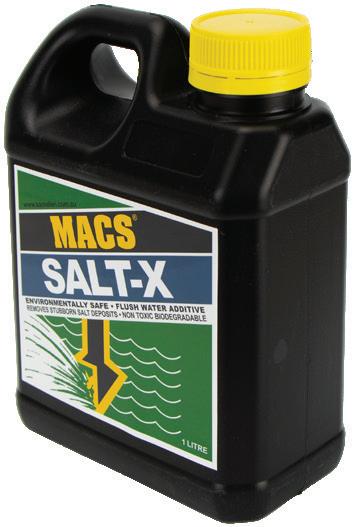

• Salt-X Hi-Tech concentrated additive designed to remove salt residue and stop salt corrosion in its tracks.

• Ideal for flushing your inboard or outboard engine in environmentally sensitive areas close to waterways.

• Great for washing down boats, trailers, jet skis, fishing tackle, 4x4s, SCUBA and spearfishing gear. Also suitable for treating your fishing lures, desalting sails and extending the life of your marine equipment.

• Hi-tech corrosion control for all gear exposed to salt water.

• Non-toxic biodegradable and environmentally safe. Suitable for use in marinas and regulated waterways.

• Non-oil based - water soluble.

• Concentrate: 1 litre makes 35 litres, use with MACS injector kit.

• Works with MACS® Ultrafilm or Salt-X additives.

• Connect to ear muff style flusher or cooling system intake.

• Unlike simple venturi Injector systems, the MACS® Injector has two tubes, a long one for the slow water feed and a short one for the uptake of a premixed solution via the main water flow.

• The Injector works consistently in all water pressures, flow rates and motor sizes.

• The Injector is unaffected by back pressure

• Once assembled, the unit is watertight.

• The body is glass-reinforced nylon.

• The clear polycarbonate bowl includes easy-to-read measurements.

180452 Macs® Flush Injector Kit

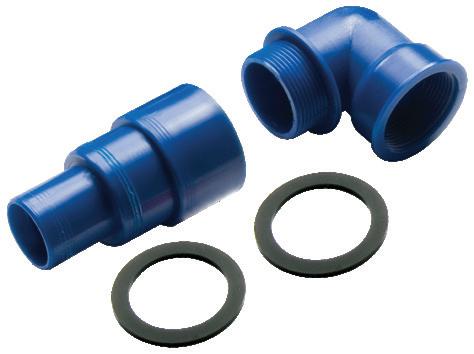

453123 3/4" x 3/4" BSP Male Straight Coupling Connects to Outboard Flusher
180452
Macs® Salt-X Washdown Additive
Macs® Flush Injector Kit

Outboard Accessories

Outboard Flushers & Accessories

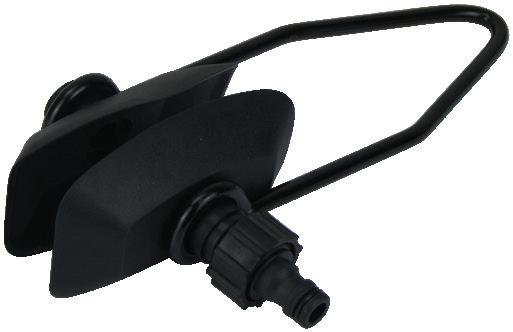

Outboard Motor Flushers

• Installs in seconds using a snap on garden hose connector.

• Remove internal salt and mineral build-up with regular freshwater flushing.

• Suitable for most outboard motor models.

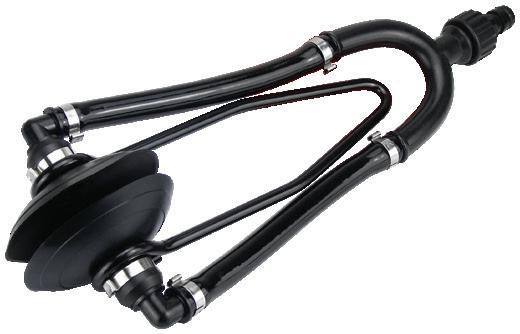

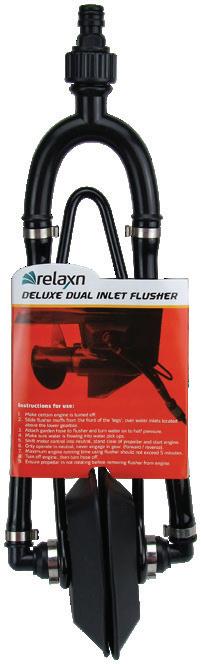

Outboard Motor Flushers - Deluxe Dual Inlet

• Dual inlet flusher feeds water intake from both sides for efficient water flow.

• Installs in seconds using a snap on garden hose connector.

• Suitable for most outboards and stern drives with side mounted water intakes.

• Regular freshwater flushing reduces internal corrosion and improves impeller life.

• Multi-hole mounting pattern suits

Stern Pads

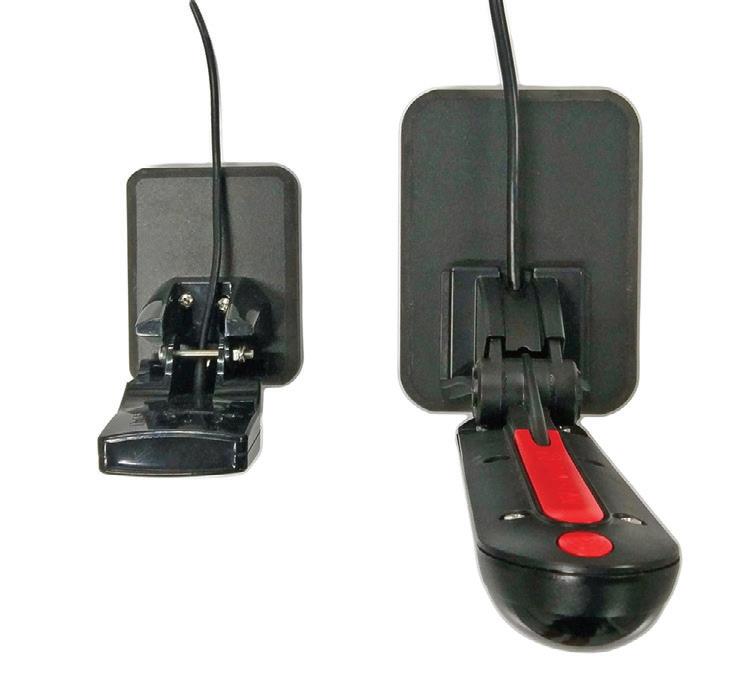

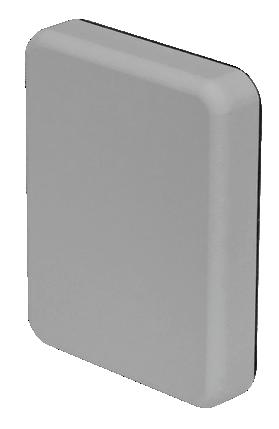

The Stern Pad

Do you know what the leading cause of transom damage is? Screw holes!

Sealant breaks down overtime and allows water to penetrate into the core through screw holes causing rot and delamination. Save your transom and maintain your boats value by using a Stern Pad instead of drilling holes.

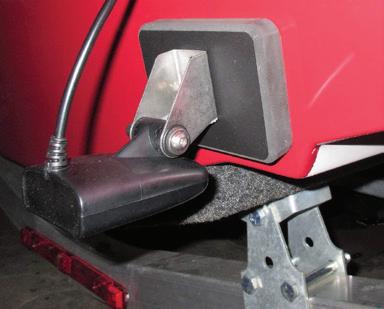

The Stern Pad is a mounting block for transducers, LED lights, pumps, antennas, and other devices that can be attached to a boat. The mounting block uses a special type of 3M VHB tape to adhere to the hull without the use of screws. The adhesive has been rigorously tested and has passed a 10 year submersion test in saltwater!

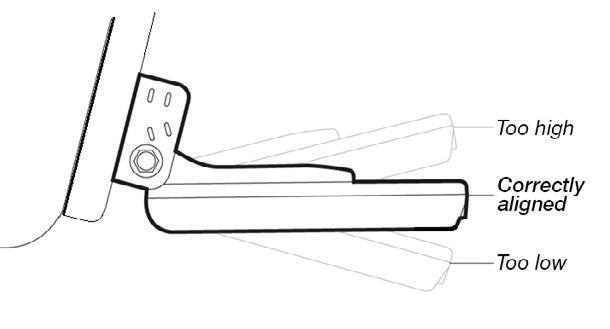

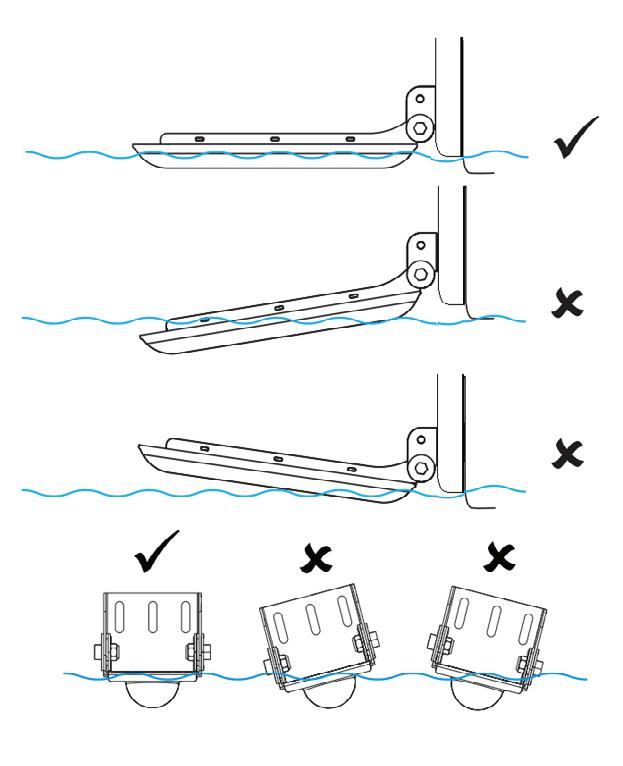

Transducers actually produce very little drag when installed correctly. The front profile of a modern transducer is slim and only a portion of the transducer should be in the water when the boat is on plane-- it should "skim" the water. This minimizes turbulence allowing accurate readings when the boat is underway.

Please reference the transducer mounting guidance from the leading transducer manufacturers shown above.

*Transducer not included in kit

114mm x 89mm x 19mm (For Standard Transducers)

*Transducer not included in kit

3D Scan Transducers)

• Stern Pad is a mounting block for transducers, LED lights, pumps, antennas, and other devices that can be attached to a boat.

• CNC machined from a specially treated synthetic plastic polymer.

• Save your transom and maintain your boats value by using a Stern Pad instead of drilling holes.

• Mounts using 3MTM VBHTM adhesive tape to adhere to the hull without the use of screws.

• The adhesive has been rigorously tested and has passed a 10 year submersion test in saltwater.

• Maximum strength is 200kg for the standard stern pad, the jumbo size has twice the bonding area and is therefore twice as strong.

• Can be painted if desired.

• Includes site preparation materials and 3 adhesive cable clips.

• Made in USA.

NOTE: Accessories should be attached to stern pad without drilling a pilot hole

Jumbo Size 165mm x 120mm x 25mm (For
Standard Size
Stern Pads

Transom Pads, Outboard Motor Locks & Steering Locks

Transom Pads

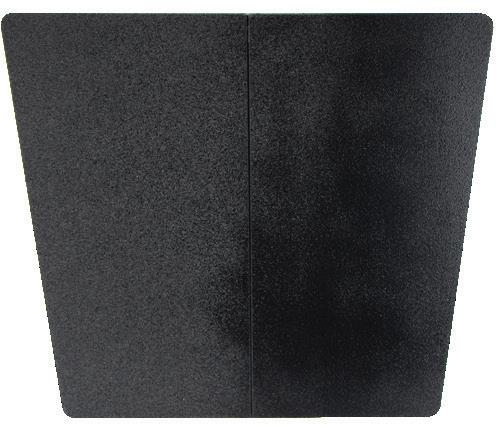

- Blank Polymer Boards

• 304G stainless steel.

• The deluxe outboard motor lock has been uniquely designed to provide secure protection for your portable outboard against theft .

• The inside layer of foam, stops any movement from occurring while providing a soft padding that will prevent any friction or wear to your outboard.

• Simply slides over the motor clamp handles, preventing them from being unscrewed.

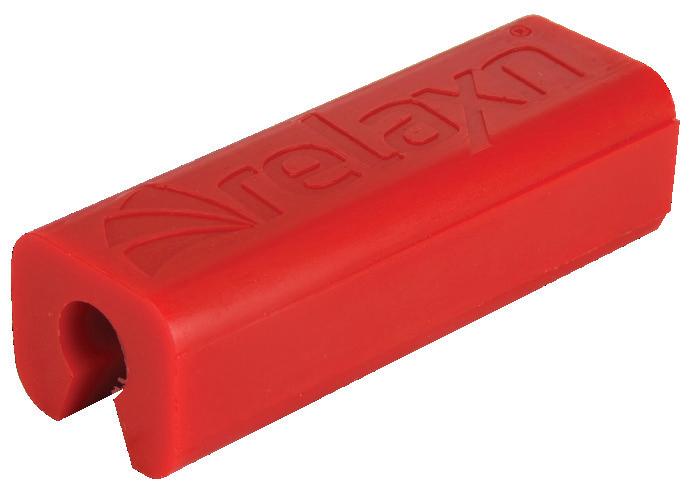

• Keeps hydraulic steering system centred when trailering.

• Moulded from high strength flexible polyurethane.

• Fits most steering cylinder push rods - 16mm to 20mm.

• Not suitable for Ultraflex Gotech cylinders.

• Simply clips over hydraulic cylinder push rod.

• We recommend using the Steering Lock with a Tilt/Trim Lock for safer trailering.

NOTE: *Can be cut down to suit your application. Remove Steering Lock before launching boat.

Transom Pads - Pre-Drilled

• UV stable and weather resistant.

• Pre-drilled to suit most common outboard motor models.

Outboard Motor Lock - Standard

• 304G stainless steel.

• The outboard motor lock has been uniquely designed to provide secure protection for your portable outboard against theft.

• There are six pairs of holes to provide different length settings to suit multiple outboard sizes.

• Slides over the motor clamp handles.

NOTE: Requires 501035 or 501045 long hasp stainless steel padlockNOT INCLUDED.

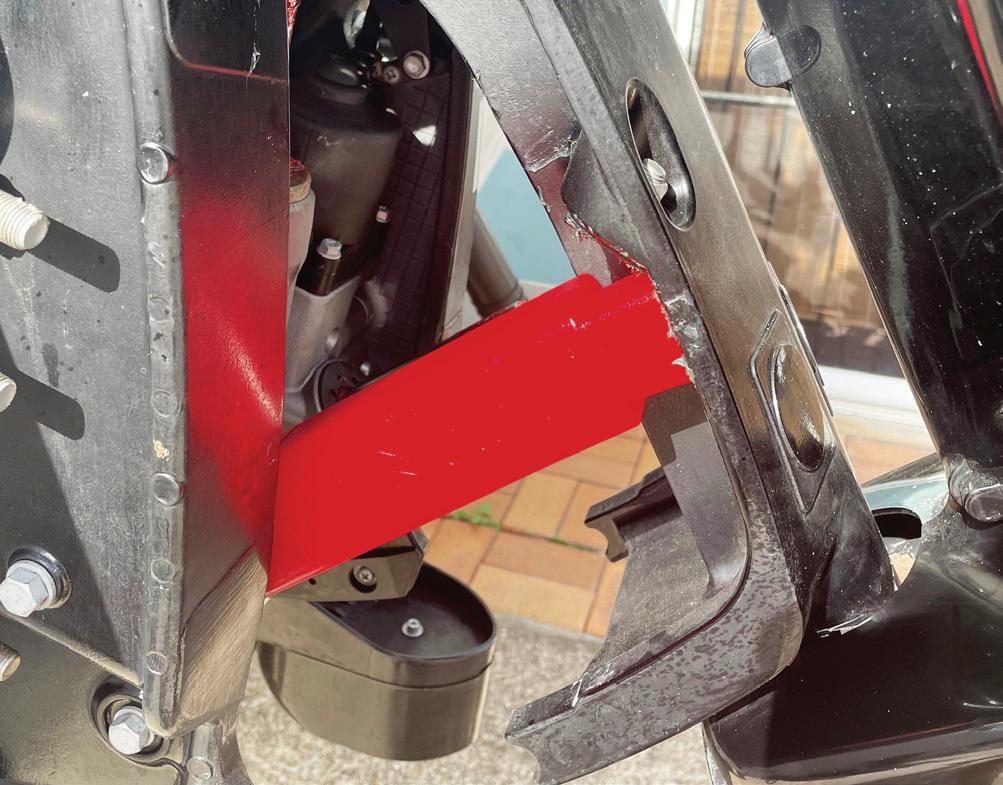

Outboard Trim / Tilt Blocks

Outboard Tilt / Trim Motor Support Block

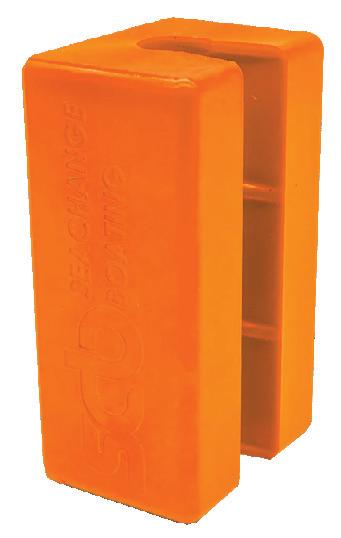

Outboard Trim / Tilt Block - SCB

84286 150 52 45 22 Polyurethane

• Designed for single ram tilt systems.

• Compatible with all leading brands of outboard.

• Helps protect your outboard when your boat is on the trailer.

• Simple and quick to install and remove.

• Locks around the tilt ram shaft.

• Moulded from high strength polyurethane.

NOTE: Remove Trim/Tilt Block before launching boat.

Outboard Tilt / Trim Motor Support High HP

84287 120 70 55 19 Polyurethane

84290 120 70 55 19 Polyurethane

• Four locking internal tabs to clip over tilt ram shaft.

• Machined ends to allow for extra grip.

• Can be cut shorter to suit application.

• Simple and quick to install and remove.

• Locks around the shaft.

• Moulded from high strength weather resistant polyurethane.

• Available in blue or orange.

NOTE: Remove Trim/Tilt Block before launching boat.

84288 225 50 50 20 Polyurethane

• Compatible with all leading brands of higher horsepower outboard motors.

• Helps protect your outboard when your boat is on the trailer.

• Simple and quick to install and remove.

• Slips over the ram of tilt/trim motor.

• Moulded from high strength polyurethane.

NOTE: Can be cut down to suit your application with handy cut lines to aid this

NOTE: Remove Trim/Tilt Block before launching boat.

70322

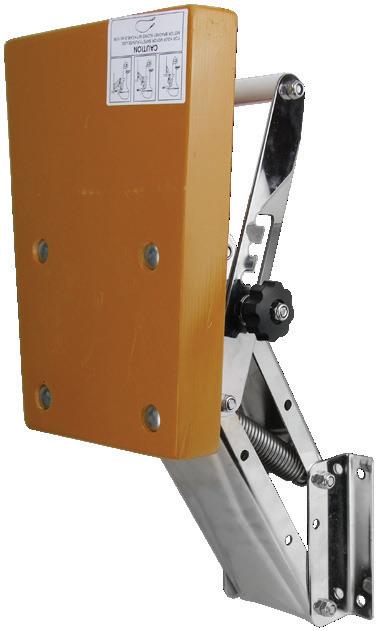

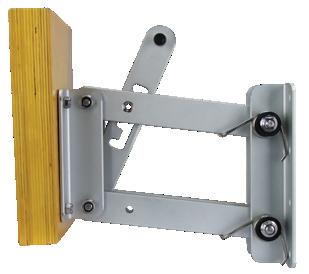

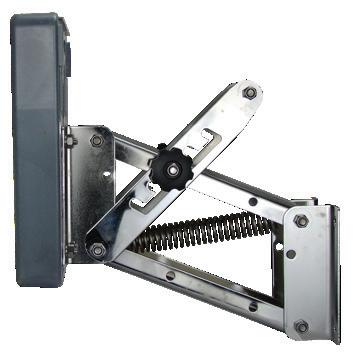

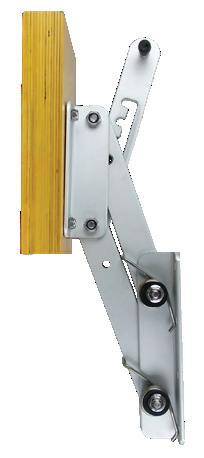

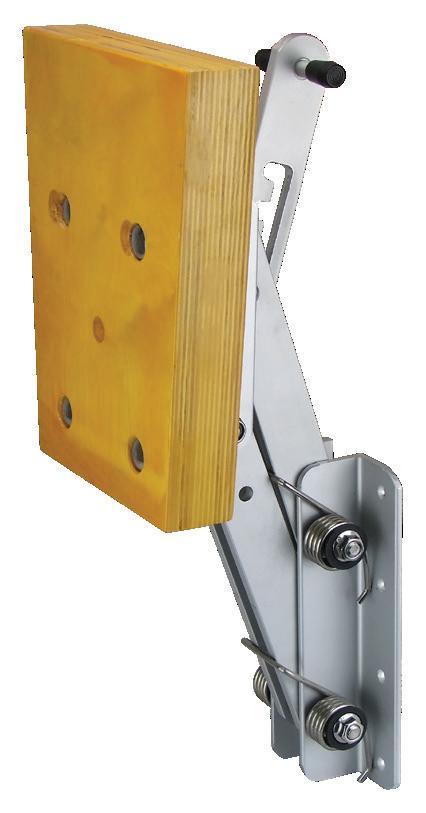

• Aluminium retractable bracket for auxiliary outboard motor.

• Plywood pad.

• Rugged anodised aluminium frame with stainless steel springs and bolts.

• 4 position locking height adjustment.

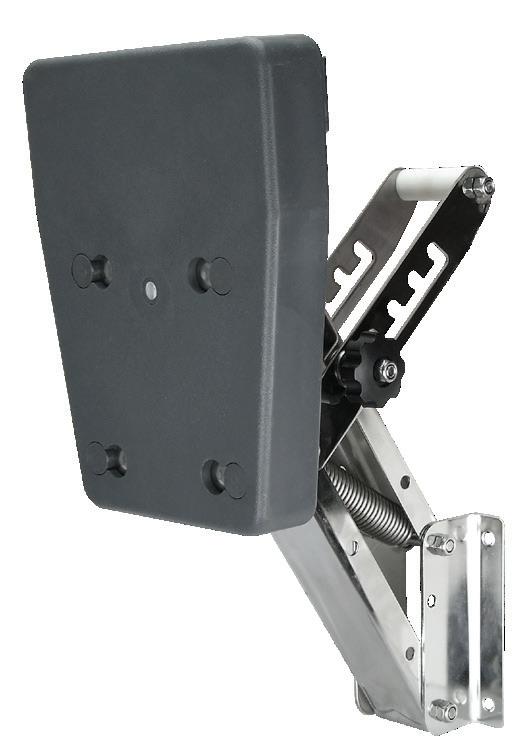

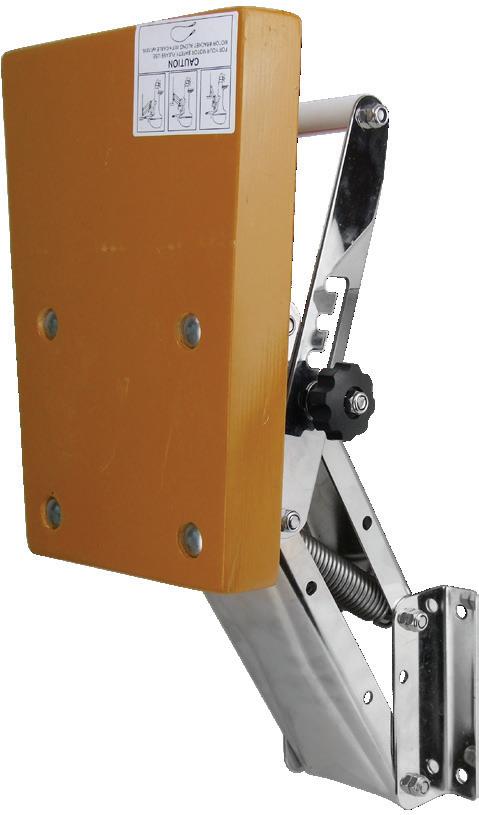

• Stainless steel, spring loaded adjustable bracket.

• Solid plastic mounting board.

• Easy to lift and lower – stainless springs help counter balance motor weight.

• Heavy duty stamped stainless components.

• Ideal for small to medium sized powerboats and yachts.

• 4 position locking height adjustment.

• Plywood mounting board.

• Easy to lift and lower – stainless springs help counter balance motor weight.

• Heavy duty stamped stainless components.

• Ideal for small to medium sized powerboats and yachts.

• 4 position locking height adjustment.

Outboard Motor Pads, Safety Accessories & Tiller Extensions

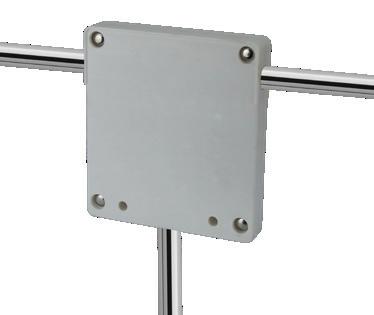

Outboard Motor Pad - Rail Mount

• Ideal to mount a small auxiliary outboard motor to a stern rail.

• Easy to install - 2 parts.

• Simply clamp together around a T intersection of the rail.

• Suits 1" O.D. rails and supplied with fastenings and set of adaptors to suit 7/8" O.D. rails.

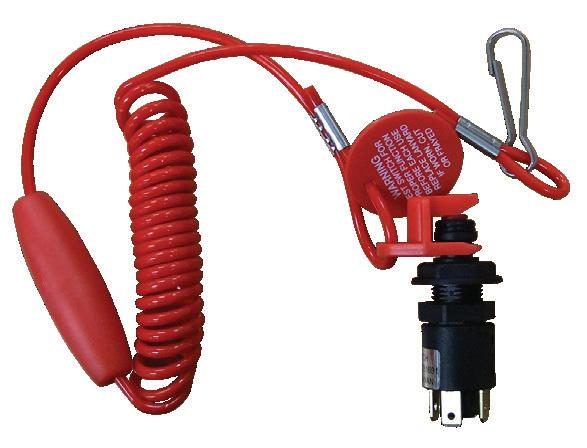

Safety Cut Off Switch and Cord

• Ignition safety cut out switch with clip.

• Coiled lanyard attaches to the driver.

• When clip is detached from the switch, the engine will cut out.

• Telescopic anodised aluminium handle which attaches to the outboard motor throttle handle via

• Allows the operator to sit or stand amidships of the dinghy to allow

Outboard Motor Trolley - Folding - S/S

• 304G stainless steel frame with soft rubber hand grips.

• Suits outboard motors up to approximately 20HP (max load 53kg).

• Large plywood support board.

• Used for transporting motor to and from boat or for storage.

• Folds flat.

• 176mm diameter, solid plastic wheels.

Safety Cut Off Cord

• Fixed length anodised aluminium handle which attaches to the outboard motor throttle handle via a wing nut fixed, locking collar.

• Easily and quickly fits to most tiller steered outboard motors.

• Includes a push button so engines with the off-switch at the end of the tiller handle can be activated without removing the extension.

Emergency Coil Cut Off Cord
Universal set of kill switch clips and lanyard (7 different clips).
Suit most brands of outboards.

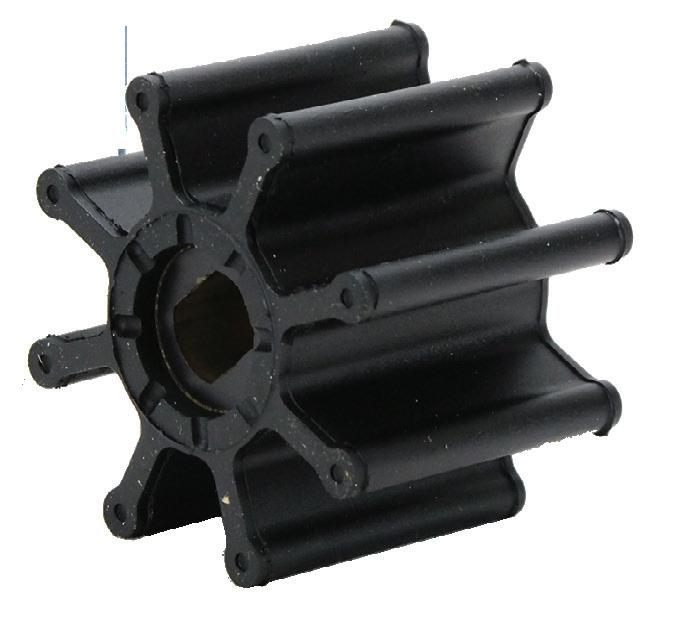

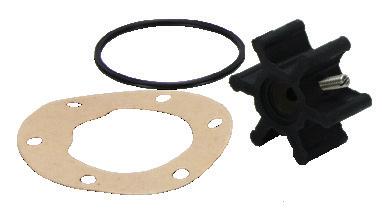

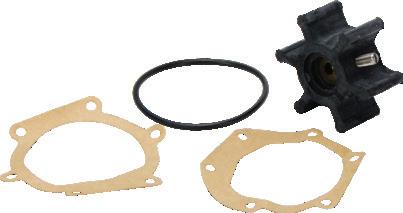

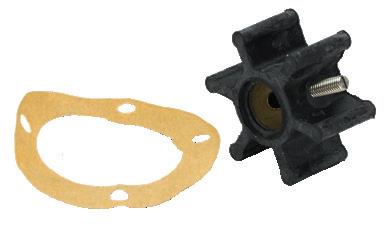

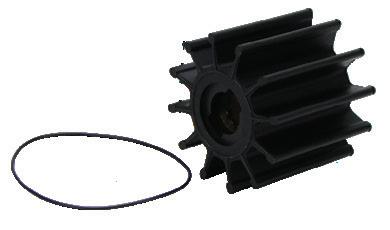

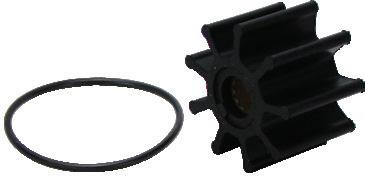

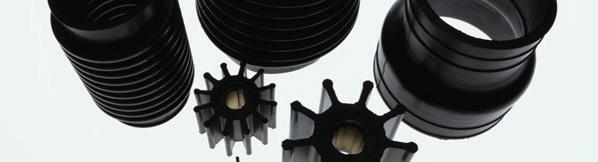

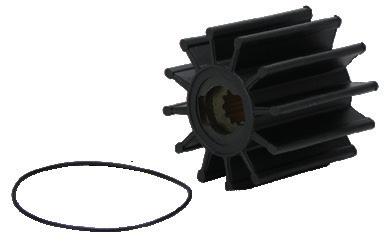

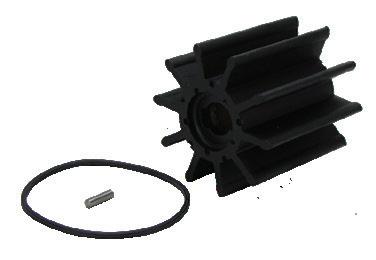

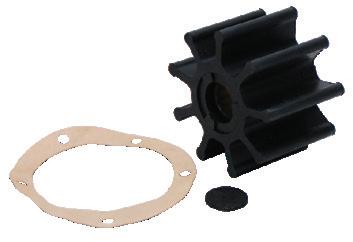

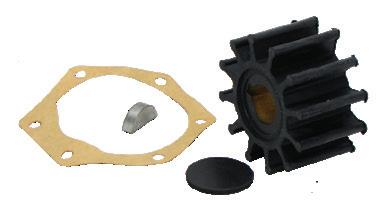

Italian made flexible impellers suit most brands of outboard and inboard motors, and are more economically priced than the original manufacturers replacement impellers.

Most engine manufacturers recommend that impellers be checked on a regular basis for signs of wear and tear. Some impellers come as a kit including a gasket or 'O' ring.

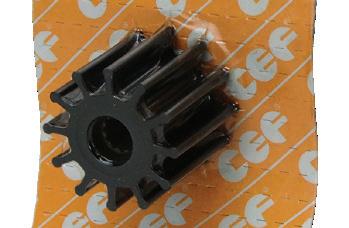

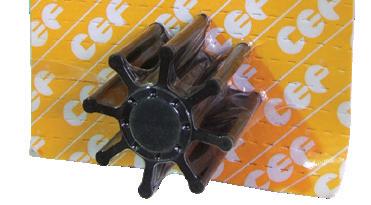

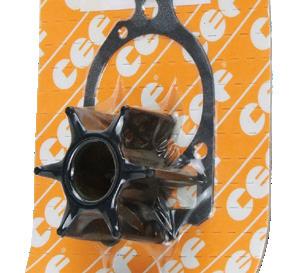

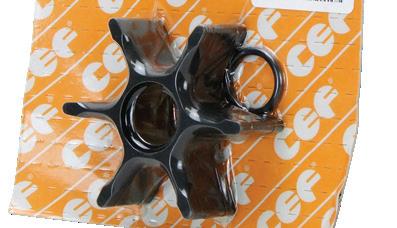

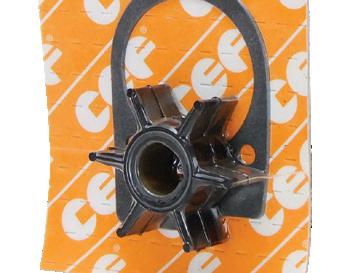

CEF® Impellers

Impellers - DJ Pump®

5.5

5-6

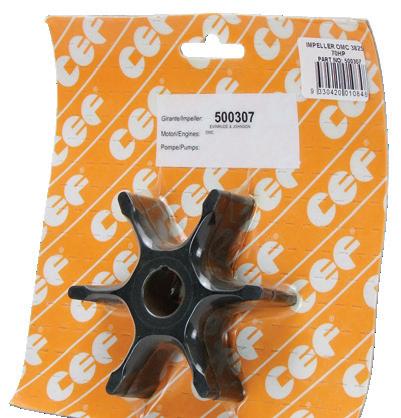

Impellers - Evinrude & Johnson®

Impellers - Evinrude & Johnson®

35 HP (1978-1979)

35 HP (1980-1997)

35 HP w/Thermostart (19581959)

40 HP (1960-1970)

40 HP (1984-1988)

40 HP (1989 -1994)

40 HP comm. (RP, RW) (19931994)

40 HP comm. (RP.RW) (19952002)

40 HP comm. (RS) (1991-2002)

40-48-50 HP (1989-2002)

HP (1995-1995)

40-50-55-60 HP (1979-1985)

45-55 HP comm. (1986-1994)

48

48

50

Impellers - Fischer Panda®
Impellers - Fynspray®

CEF® Impellers

CEF® Impellers

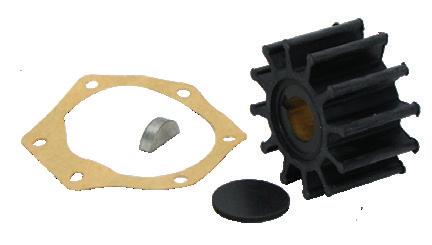

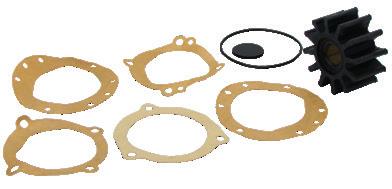

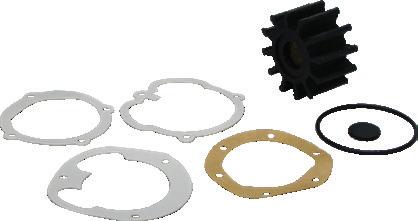

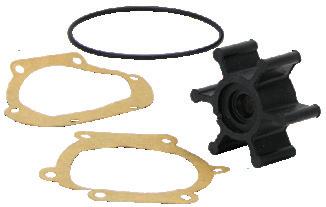

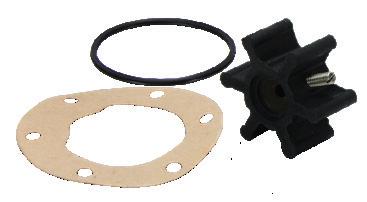

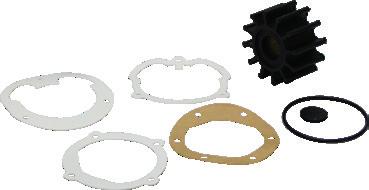

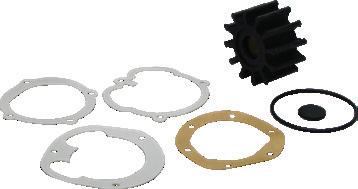

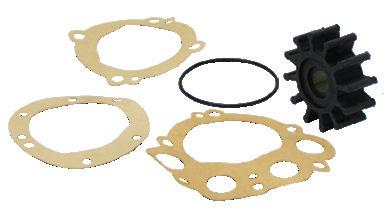

Impellers - Jabsco®

500100GX OE 4528-0001 500101GX OE 653-0001

500102T OE 4598-0001

500103GT OE 18838-0001

500104T OE 22120-0001

500105GT OE 836-0001

500106GT OE 920-0001

500107GT OE 1210-0001 OE 3085-0001

500108CGT

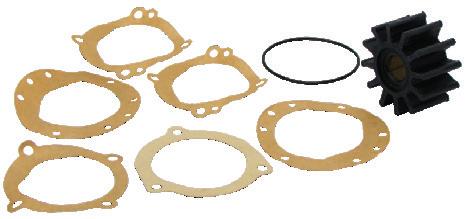

Impellers - Jabsco®

500114T OE 17937-0001

500116GX OE 673-0001

500120GT OE 18948-0001

500121GX OE 22405-0001

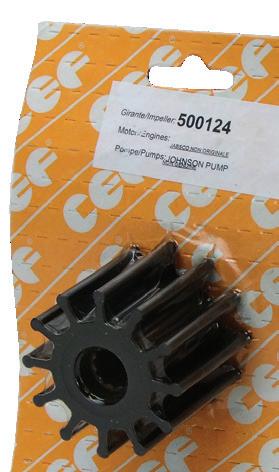

500124 OE 13554-0001

500129 OE 22799-0001

500130 OE 1414-0001 OE 14609-0001

500153G OE 18786-0001

500177GT OE 17018-0001 OE 17018-0001B

500201GX OE 653-0003

500205GT OE 836-0003

500206GT OE 920-0003

500207GT OE 1210-0003

500210 OE 7273-0003

500214T OE 17937-0003

500235T OE 17935-0003

500238 OE 6303-0003

500258 OE 17255-0003

Impellers - JMP®

5C

5C

Impellers - Lombardini®

Impellers - Mariner®

3.5

Impellers - Mercury®

4.5

4.5

Impellers - Mercury®

30

35

(941751-1224480)

(1571114-1812753)

35 HP (6445653-B110788)

40 HP (1279685-1476509)

40

40

40

40

40

40

40

45

(2874704-3336257)

(4362215-4860102)

(4862103-6445652)

(941751-1224480)

(1476510-1520983)

45 HP (1520984-1531568)

45 HP (5531630 >)

45 HP JET

50 HP (1421113-1639472)

50 HP (1521914-2305100)

50

50

50

50

50

55

60

(2305101-2858813)

(4357640-4962055)

(4962056 >)

(4Cyl)

(6428681 >)

65 HP (1542745-2309310)

65 HP (2309311-2803561)

65 HP (2803562-3293183)

70 HP (1413611-1566239)

70 HP (4571652-4977156)

70 HP (4977157-6428680)

70 HP (A996142 >)

70 HP (B240451 >)

75 HP (4Cyl.) (6432901 >)

75 HP (C222000-D283221)

75-90 HP 4T

80 HP (1335465-1398629)

80 HP (1398630-1566239)

80 HP (2559001-3493912)

80 HP (4831999-6432900)

80 HP (A996142 >)

80

(B240451 >)

EL HP (4590512-4831998)

85 HP (1460999-1766823)

85 HP (3493913-4366801)

85 XS HP (4366802-4831998)

90 HP (1766824-1869775)

90 HP (6Cyl.) (4845301-5299505)

90 HP (A996142 >)

(B240451 >)

(C222000-D283221)

HP (1869776-2318585)

HP (1464949-1768403)

HP (1768404-2318585)

HP (2318586-2836108)

HP (B209468-D283221)

HP (1870204-2314955)

HP (2836019-3255440)

(3502806-4865677)

(4868998-A904645)

HP (A904646 -)

HP (1B227000 & Up)

HP (4301235-6618750)

(5628028 -)

(1250V33HB)

(1275V34HD)

(all/tutti)

CEF® Impellers

Impellers - Onan® Impellers

Impellers - Renault®

Impellers - Selva®

Impellers - Sherwood®

500106GT

Impellers - Sole Diesel®

Impellers - Vetus®

Impellers - Volvo - Penta®

6

6/8

25

C80 (1997)

C85 (1989-1997)

C90 (1997-2001)

C115 (1991-1996)

CV25 (1990)

CV30 (1989-1990)

CV40 (1990)

CV55, Drive I (1989-1990)

CV55, Drive II (1989-1990)

CV85 (1989-1991)

E48 (1995-2000)

E60 (1995-2000)

E75 (1995-2000)

F2,5 HP (2003-2005)

F4 (2000-2005)

F6/F8 (2001-2005)

F9,9 (1985-1998)

F15 (1998-2005)

F25 (1998-2005)

F30 (2001-2002)

F40 (1999)

F40 (2000-2004)

F40 2,6L (1999)

F50 (1999-2005)

F60 (2002-2005)

F75 (2003-2005)

F80 (1999-2003)

F90 (2004-2005)

C115 (2000)

DX150 (1999-2004)

F115 (2000-2005)

F100 (1999-2003)

F180 (2003)

F200 (2005)

F225 (2002)

F250 (2005)

L130 (6L6) (1989-1992)

L130 (6N4) (1989-1996)

L130 (2000-2001)

L150 (6R0) (1986-1999)

L150 (6K0) (1986-1991)

L200 (6K1) (1986-1991)

L200 (6R1) (1986-1991)

L200 (1992-1999)

L225 (1994-1999)

L250 (1990-1999)

LF115 (2000-2004)

LF200 (2002-2005)

LF225 (2002-2005)

LF250 (2005)

LX150 (1999-2004)

LX200 (1999-2003)

LX225 (2000-2003)

LX250 (2000-2003)

Impellers - Yamaha®

LZ150 (2001-2005)

LZ200 (2000-2005)

P40 (1998)

P50 (1991-1993)

P50 (1995-1996)

P60 (1991-1999)

P75 (1996-1999)

LZ250 (2003-2005)

LZ300 (2004-2005)

P115 (62A) (1993-1996)

P150 (1986-1999)

P175 (62H) (1994-1999)

(1991-1999)

V150 (6J9) (1986-1989)

V150D (6N9) (1990)

VZ250 (2003-2005)

VZ300 (2004-2005)

Z150 (2001-2005)

Impellers - Westerbeke®

Impeller Chart

Impeller Chart

Impeller Chart

Hoses / Clamp Rings / Sail Drive Hull Seal

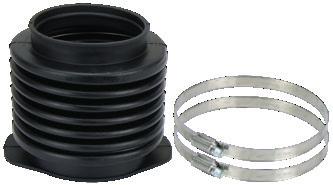

CEF® Bellows - Volvo - Penta®
CEF® Hoses - Volvo - Penta®
CEF® Clamp Rings - Volvo - Penta®

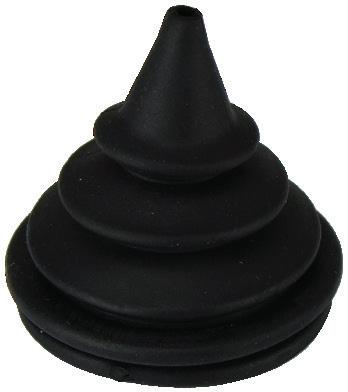

Sail Drive Hull Seal - Volvo - Penta®

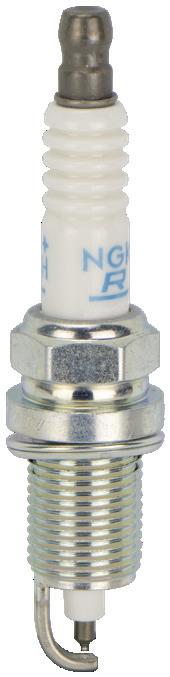

Spark Plugs NGK® Spark Plugs

An internal combustion engine requires three key ingredients to operate: air, fuel and spark. A spark plug is a critical engine component that provides the spark that ignites the air-fuel mixture that drives an engine.

A spark plug operates by directing electrical current to flow through a centre electrode, forming a spark across an electrode (or air) gap, completing the circuit to a ground electrode. The centre electrode is surrounded by a ceramic insulator which is non-conductive preventing current leakage and ensuring electricity flows in the desired direction.

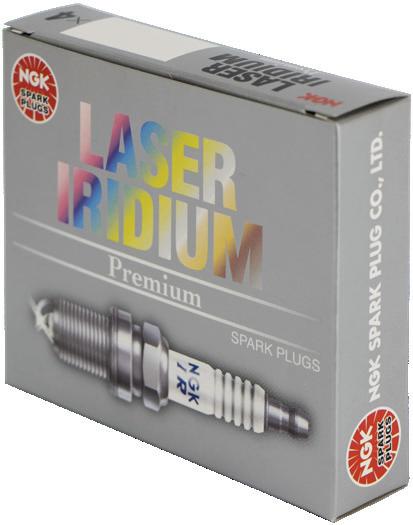

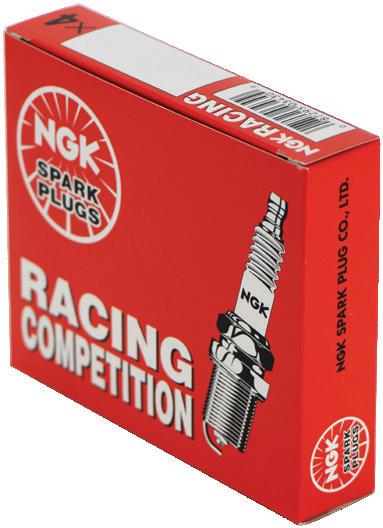

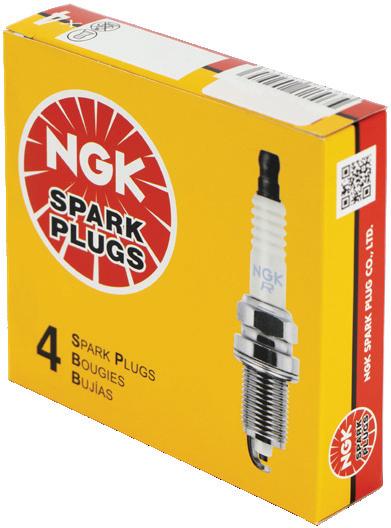

NGK® Spark Plugs

NGK® Spark Plugs

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
