Ocura Healthcare Furniture - 2023 Catalogue

Welcome

Our mission is to change lives and improve healthcare experiences for staff, patients and visitors.

We are here to support you with exceptional service aligned to excellent products that we know will enhance the outstanding work you undertake.

We work closely with all areas of healthcare; we pride ourselves on our deep understanding of healthcare through years of research and expertise.

We are passionate about working continuously with our customers, we care that your investment in our products delivers the healthcare solutions you need, and your patients and visitors’ many benefits.

Our purpose is to listen, understand and collaborate with caring staff to transform healthcare environments, so they can improve the outcome for patients and make a difference to their lives and those of their families

We are Ocura, we care – Our Promise

Our 6Es Ethos

We design products that are easy to use, ergonomic, increase efficiency, economic when looking at the life cycle value, support equality for all and we keep the environment in mind when designing our products. This unique approach ensures you have a product designed for healthcare that will truly deliver a better experience for patients, staff, and visitors.

Our Social

Working With You

We have dedicated members of the team who work with third parties to ensure newbuild refurbishments are furnished perfectly to complement the theme and scope of any project. Many of our products can be made in a multitude of colours, and tailored to match any design vision.

A key challenge within hospitals is to succeed in balancing two competing imperatives: maintaining the current operation regarding service, productivity, and exceptional caregiving against striving for transformation to improve the quality of surroundings and efficiency levels. This isn’t always achievable without a trusted partner that is experienced in interior project management.

Ocura’s objective is to take on board key projects, understand each organisation’s requirements and deliver tailored highquality furniture and space-saving solutions that match the most demanding of briefs. We provide exceptional customer service throughout the project by combining attention to detail with precise budget control and conscious awareness of assessing risk. We deliver all of this because we care.

Express Service 5-Day Delivery Range

Ocura understands the needs and requirements of a fast-paced hospital environment. Long wait times are not ideal and we recognise how vital our express range is to our customers. We have selected our most popular items and guarantee delivery within five working days. All the products within this range will be marked with throughout.

*Mainland UK Only, subject to stock availability.

Delivery

We have delivery options that are designed to suit all requirements. Our primary objective is to guarantee your furniture arrives and is installed with minimum disruption.

There is a delivery charge of £50 for all orders under £500.

We offer free delivery on all orders over £500 to mainland UK.

White Glove Delivery

By prior arrangement, we can deliver your products to a specific ward or department, remove all the packaging (to be disposed of in an environmentally friendly manner) and ensure all products are exactly how the customer requires them. In addition, we can assist in the setup of products and aid with training on our specialist chairs and trolleys for optimum product performance.

Our expanded express range delivers our most popular products within five working days of ordering.

Framework Partner

We are immensely proud to be an NHS approved supplier, resulting in our comprehensive range being available at the best possible prices. We operate under the national framework agreement and welcome orders placed through this method.

NHS Supply Chain Contract No. AA130898

Medical Equipment and Furniture

NHS Shared Business Services

SBS/19/MA/TYX/9363/5

Ward, Bedside and Non-Medical Theatre Equipment

2022 WINNER at The Healthcare Estates IHEEM Awards Healthcare Supplier of the Year

The Healthcare Estate Awards recognise excellence in the healthcare sector, our focus and hard work allowed us to win the prestigious national award of healthcare supplier of the year.

Our Carbon Neutral range - Odessa®, Equala® and Arvada®

Odessa® Page 52 Reception Seating

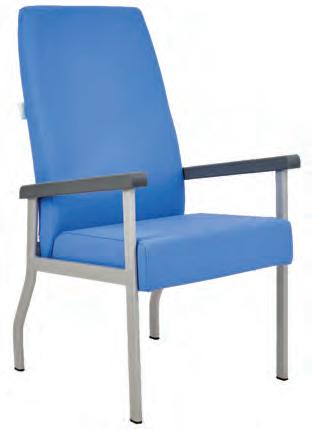

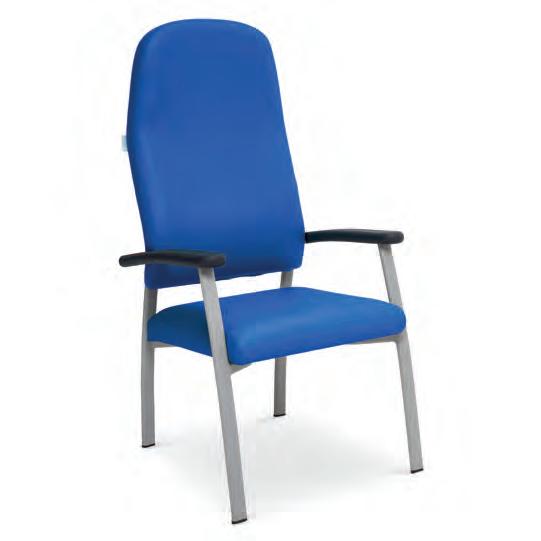

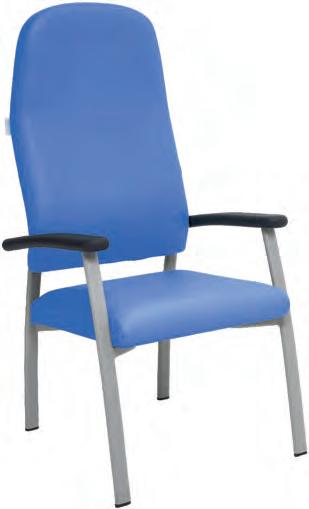

Arvada® Page 40 High-back Patient Chairs

Equala® Page 64 Reception Seating

New for 2023

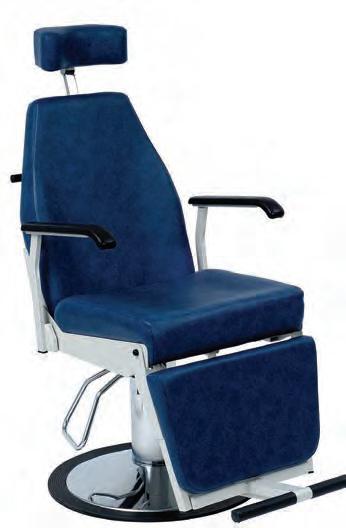

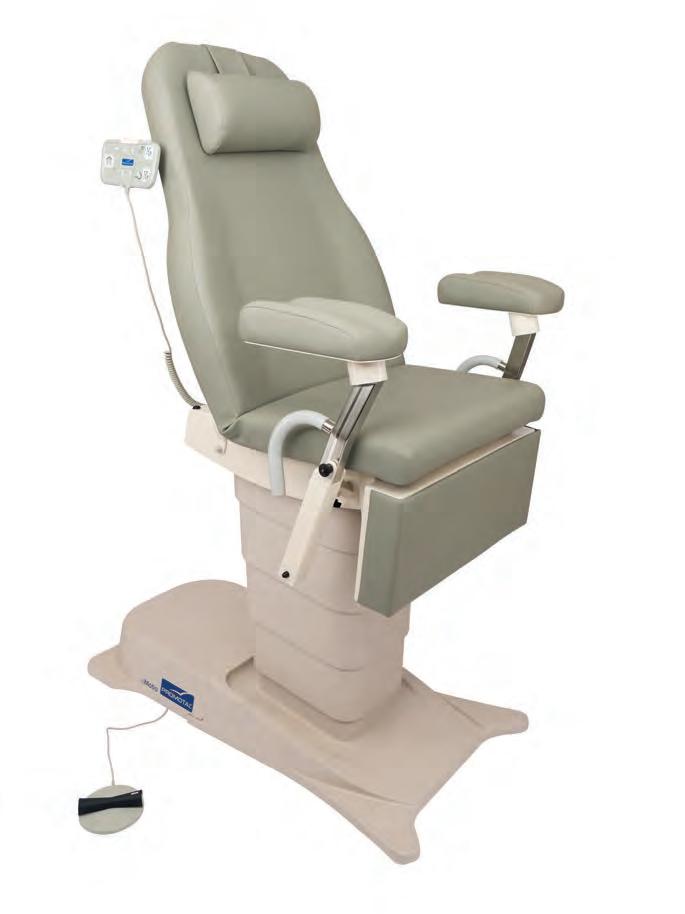

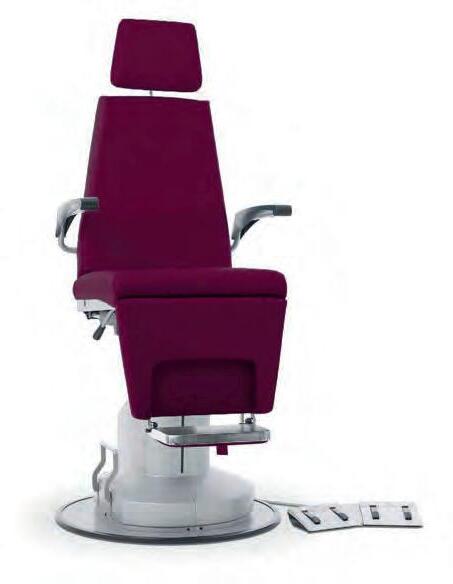

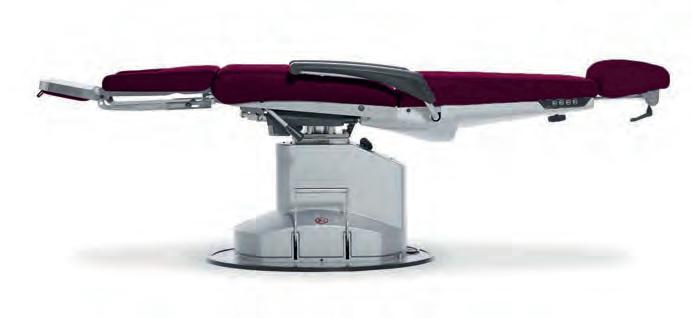

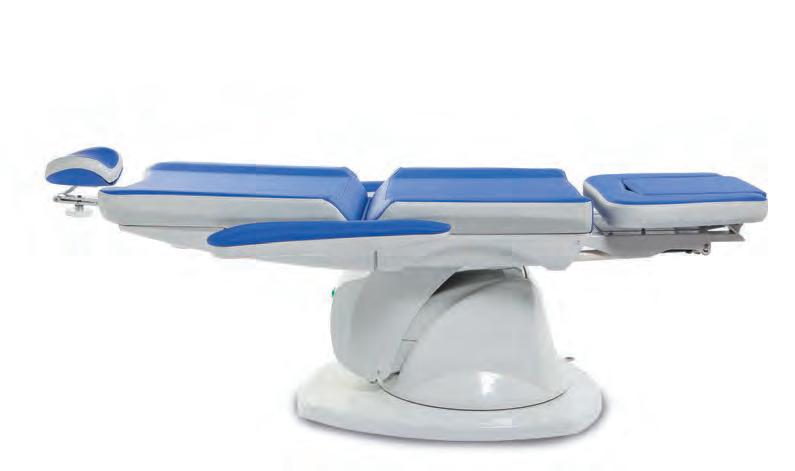

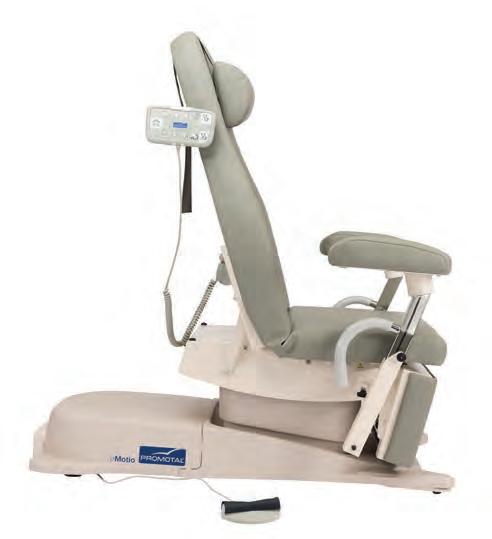

Como ENT Chair Page 164

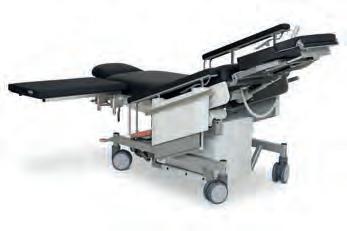

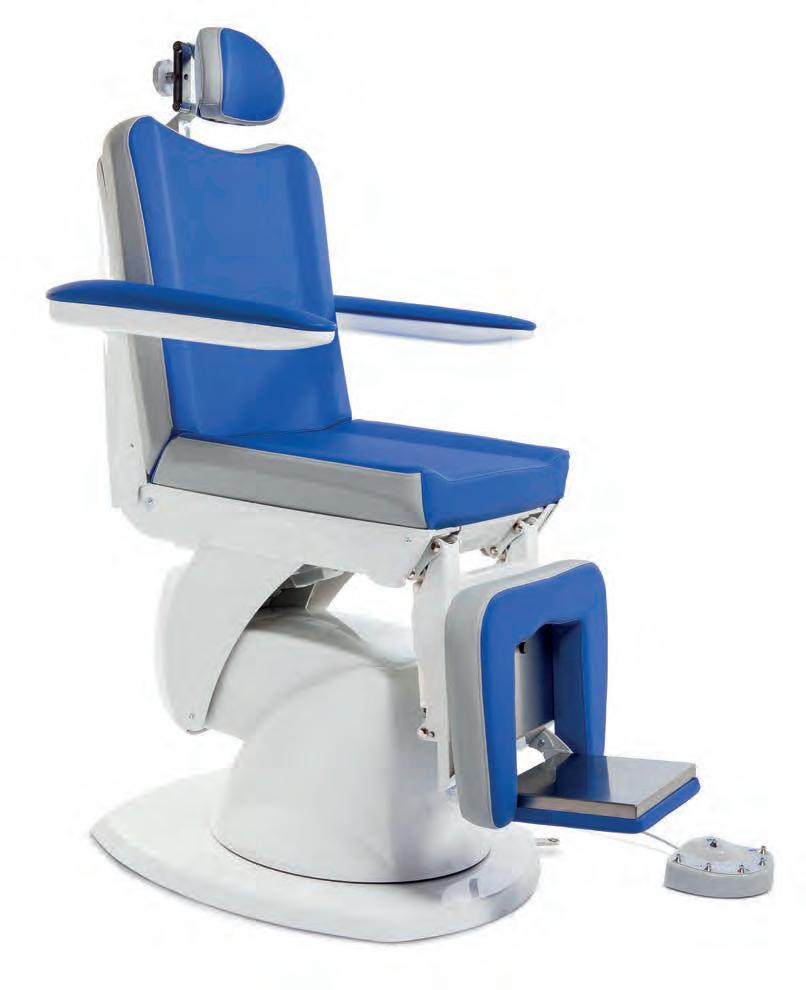

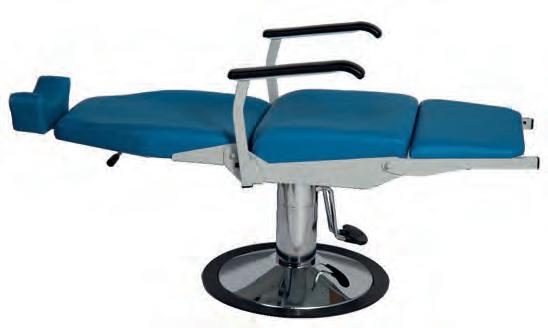

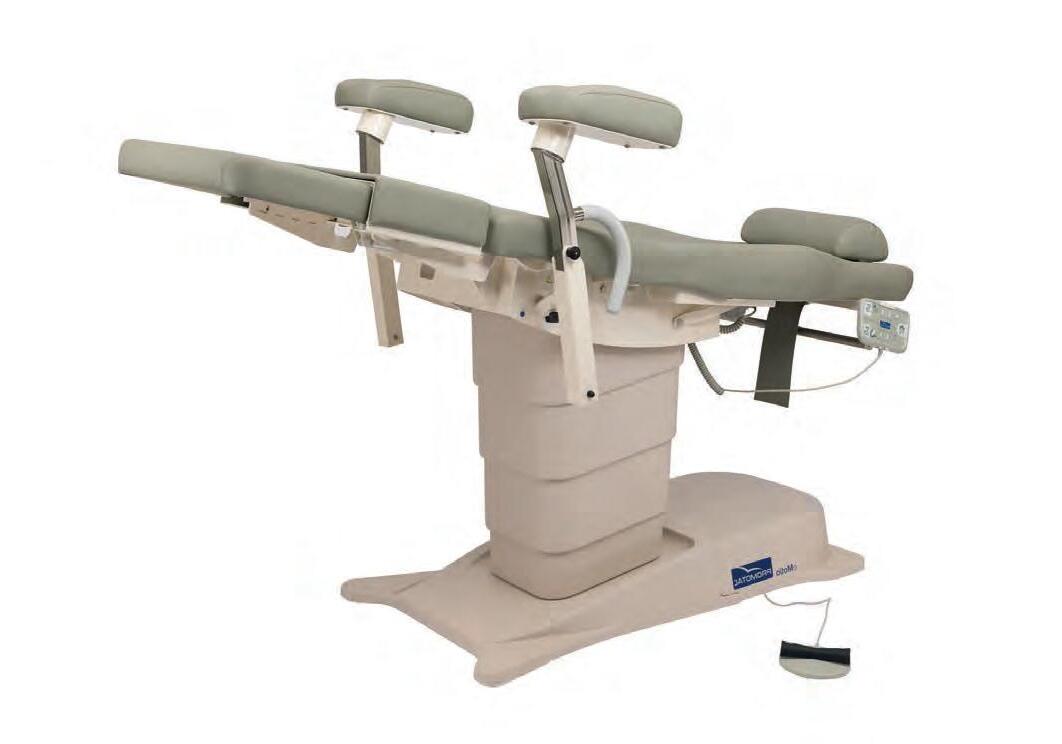

curaPRO ENT Ophthalmic Chair Page 161

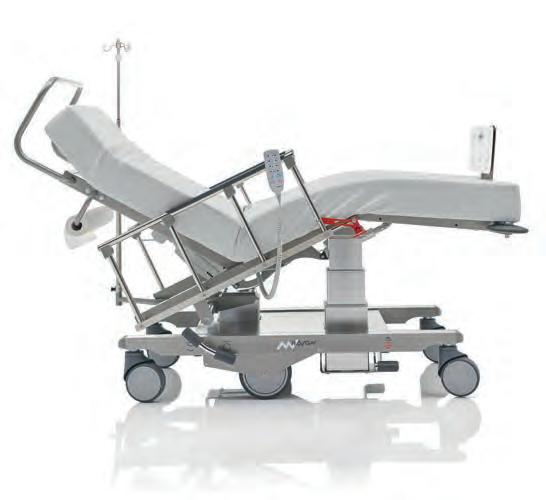

Novak M Day Hospital Chair ZeroG Page 168

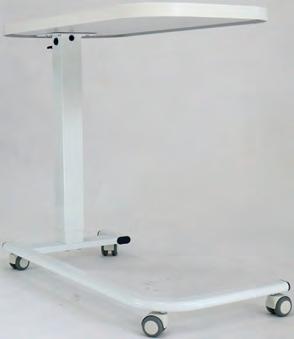

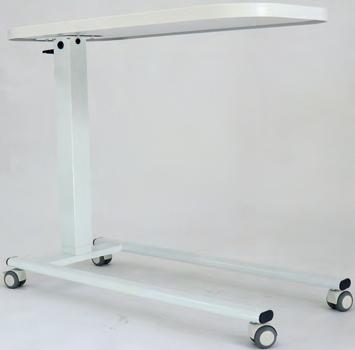

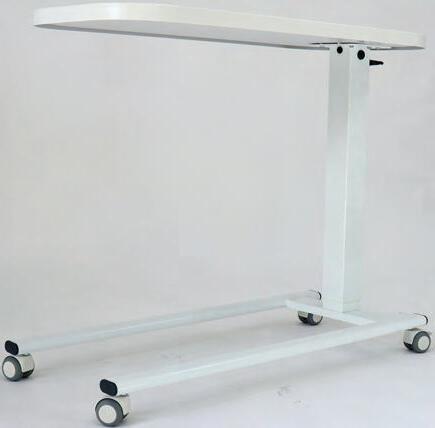

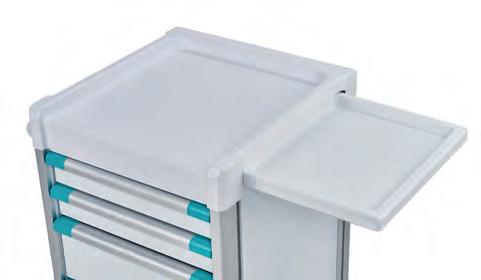

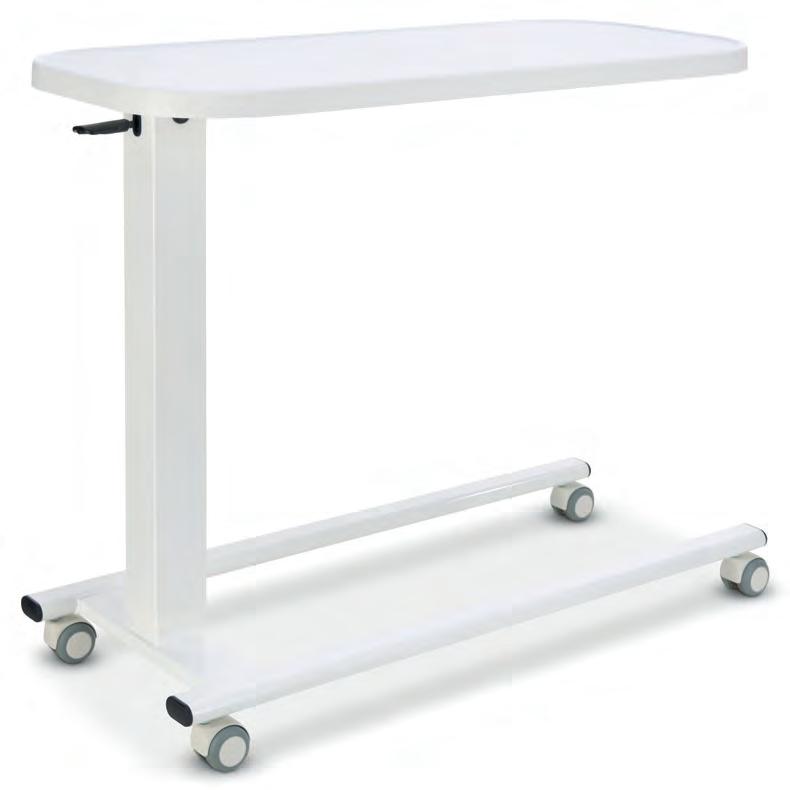

Overbed Table Page 104

curaPRO ENT Ophthalmic Chair Page 161

Patient Recliners Comparison

We understand making the right choice should be simple. We also understand the importance of your investment. We’ve created our recliner comparison so, at a glance, you can see which of our products best fits your needs.

Case

Study Partners staying overnight project – Nottingham University Hospitals

Location

Nottingham

The brief

The driver for this project started back in 2018, when NUH received results from the annual CQC Picker Survey that indicated they could do more to support women who were staying in maternity overnight. NUH decided to introduce ‘partners staying overnight’ and began a pilot project. The trust conducted pre and post implementation surveys as part of the project with service users and staff and did a lot of work with health and safety, governance, safeguarding, infection control, patient dignity champions and trade unions. The project was designed to make it easier for fathers and nonbirthing parents to be involved in the pregnancy and birth journey while in hospital.

The approach

As part of the project, NUH made a bid to the Nottingham Hospitals Charity to purchase five chairs for each of the four antenatal and postnatal wards, in total 20 chairs across both hospital site campuses. NUH then made the decision they would like to extend the pilot to every inpatient bed in maternity. This was to allow the hospital to welcome partners or a trusted companion to stay with any woman or birthing person who had to stay in hospital overnight. To do this, NUH submitted a funding proposal to Small Steps Big Changes (SSBC), who fund projects that are designed to give every child the best start in life. They are funded by the National Lottery’s Community Fund’s ‘A Better Start’ Programme.

One of SSBC’s objectives is to increase father inclusivity in the lives of their children. They had developed ‘an information pack for new fathers’ in collaboration with local Nottingham families and other professionals and stakeholders. The project team trialled three different models of chairs with staff and dads in different locations within the maternity unit. The Boston was a clear winner due to the comfort levels, simplicity of use, and more generous size that was comfortable for taller men.

The outcome

NUH and SSBC worked together to launch the two initiatives. Feedback from the project has been overwhelmingly positive from partners, and just as welcome from staff, who also see the benefit for both women and partners. The recliners work well for women who want to sit out of bed and feed their babies too.

One new dad described the Boston recliner as a ‘godsend’, another had a 6 -night stay on the ward and said, “The Boston is very comfy to sit in for long periods with my newborn, its the next best alternative to sleeping in a bed.” One dad whose partner and baby had been transferred to Nottingham for admission to the neonatal unit said that he was so glad to have somewhere comfortable to rest as a 5 hour’s drive home every night would not have been safe.

Staff report they love the colours and the new recliners are easy to clean and can be moved without creating any manual handling injury.

“The Boston recliner is a ‘godsend’

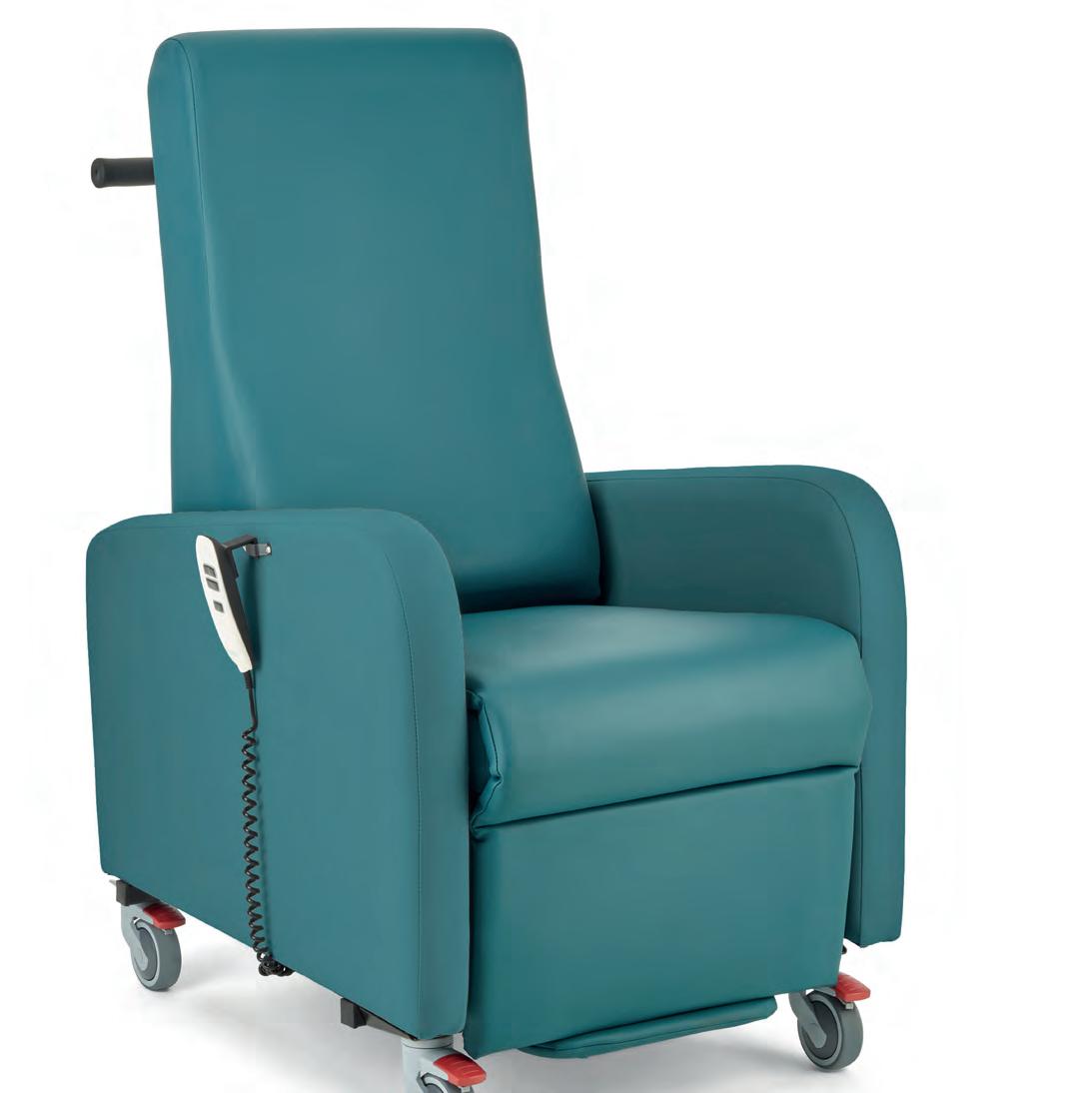

Denver & Toronto

Reclining Armchairs

“Staff report the recliners are easy and efficient to manoeuvre, staff particularly like the fact they can move the chair to a nearby area with a patient seated if they become unwell, giving the patient privacy to recover”

Key Features

The needs of both the patient and the clinician are incorporated into the Denver design. Ergonomically designed with a contoured back, the seat cushion works constantly to distribute the users weight, reducing pressure points on the body.

Every furniture brief has a purpose for us; when it came to the Toronto armchair, the Ocura team knew there was a need for a reclining chair that could shift seamlessly into the Trendelenburg position in the event of an emergency, whilst incorporating classic ergonomics to offer optimal patient comfort.

• Easy to clean antimicrobial vinyl to aid infection control

• 25 stone/160kg

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Pressure Care Colours

Designed to provide welcome relief when sitting for extended periods. Visit our website for more details.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA1930 Denver manual reclining hospital patient armchair

CA1940 Denver electric reclining hospital patient armchair

CA1942 Denver electric reclining mobile hospital patient armchair

CA1960 Denver electric fully reclining hospital patient armchair

CA1971 Toronto electric fully reclining ‘Trendelenburg’ hospital patient armchair

CA1981 Toronto electric fully reclining ‘Trendelenburg’ mobile hospital patient armchair

Models marked with are available from our 5-Day Express Range, in Atlantic.

Accessories

CA1919 Fold-down side table; white (CA1930/CA1971/CA1981 – please specify side)

CA1921 Removable armrest covers, pair (not with CA1919 or CA1920)

CA1922 Pressure care memory foam with gel pad cushioning

CA1923 Head pillow cushion

CA1920 Extra-wide armrests (not recommended for Denver manual version and not for Toronto chairs)

CA1931 Recliner USB port

CA1928 Protective head sleeve

Perle PE Schwarz SC Delft DE Atlantic AT Turkis TU

Amethyst AM Berry BY Kirsche KI Pink PK

BlueGreen Red Beige Dark Grey Black

CA1930

Denver manual reclining hospital patient armchair

CA1940

Denver electric reclining hospital patient armchair

• Electrical adjustment of backrest and legrest

• Rise recline mechanism, chair shown raised

CA1942

Denver electric reclining mobile hospital patient armchair

All the features of CA1960 plus:

• Large castors to allow patients to be moved from one area to another

• Pull -out footrest

• Push handles

CA1960

Denver electric fully reclining hospital patient armchair

All the features of CA1940 plus:

• Fully reclining backrest to enable patients to lie down

CA1971

Toronto electric fully reclining ‘Trendelenburg’ hospital patient armchair

• Electrical adjustment of backrest and legrest

• Push handles

• Can be reclined to Trendelenburg position

CA1981

Toronto electric fully reclining ‘Trendelenburg’ mobile hospital patient armchair

• Electrical adjustment of backrest and legrest

• Supplied on larger castors for ease of movement and push handles and pull-out footplate

• Can be reclined to Trendelenburg position

Dimensions

Height 1200mm Seat Height 480mm

Width 700m Seat Width 530mm

Depth 870mm Seat Depth 500mm

Reclined Length 1500mm

Dimensions

Height 1200mm Seat Height 480mm

Width 700m Seat Width 530mm

Depth 870mm Seat Depth 500mm

Reclined Length 1500mm

Dimensions

Height 12 20mm Seat Height 500mm

Width 700m Seat Width 530mm

Depth 1010mm Seat Depth 500mm

Reclined Length 17 70mm

Dimensions

Height 1200mm Seat Height 480mm

Width 700m Seat Width 530mm

Depth 870mm Seat Depth 500mm

Reclined Length 1900mm

Dimensions

Height 12 20mm Seat Height 500mm

Width 700m Seat Width 530mm

Depth 1010mm Seat Depth 500mm

Reclined Length 1830mm

Dimensions

Height 1245mm Seat Height 530mm

Width 700m Seat Width 530mm

Depth 1010mm Seat Depth 500mm

Reclined Length 1830mm

Case Study

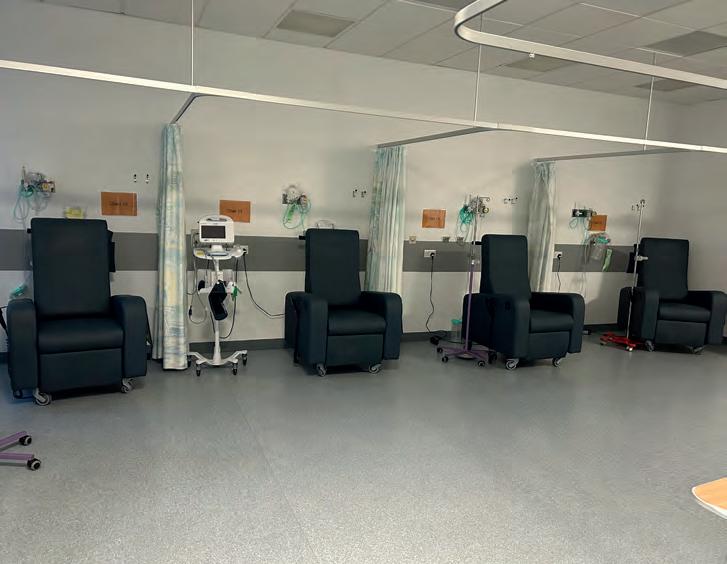

Newcastle Upon Tyne –Freeman Hospital

Location

Newcastle Upon Tyne

The brief

Freeman Hospital approached Ocura looking for new recliners for their chemotherapy day unit. The previous chairs at the unit were not fit for purpose, they were too low and did not recline easily, making it difficult for staff to assist patients who weren’t independent or who suddenly became unwell whilst in the chair. Ashleigh Hughes, Senior Sister told us shrinking floor space is an issue in the day unit, therefore the chairs needed to not only be comfortable for patients and easy for nurses to move and assist patients in line with moving and handling guidelines, the new recliners needed to be space efficient.

The approach

During the process of finding the perfect recliner, other suppliers and recliners were considered but didn’t meet the exact needs of the unit.

Our Toronto was the perfect fit due to the built in table option, allowing the unit to reduce additional furniture for space and ease of cleaning. Additionally the built in USB ports were a vital feature for patients who spend a lot of time on their devices whilst undergoing treatment. Lastly, fast access to the Trendelenburg position meant staff could quickly assist patients experiencing vasovagal episodes.

The outcome

Staff report the recliners are easy and efficient to manoeuvre, staff particularly like the fact they can move the chair to a nearby area with a patient seated if they become unwell, giving the patient privacy to recover. Patients report they feel comfortable seated in the recliners for long periods of time.

“ Staff report the recliners are easy and efficient to manoeuvre, staff particularly like the fact they can move the chair to a nearby area with a patient seated if they become unwell, giving the patient privacy to recover”

Colorado Wide Arm Chair

“The wide arm makes such a difference to our patients’ experience”

Key Features

Colorado features classic ergonomics that we know work well for comfort, we have also incorporated a curved back support and wider arms, making this recliner perfect for patients who require a cannula. The Colorado patient chair is available in both manual and electric versions.

• Ideal for oncology, dialysis, haematology, infusion, recovery areas

• Available with either a manual or electric recline mechanism

• Two motor operation enables part or full recline as required

• Tilt-in-space mechanism

• The electric model has the ability to recline but also to rise up to assist patients with entering and exiting the chair

• The ergonomically designed backrest offers patients optimal support and comfort when seated for longer periods

• Easy to clean antimicrobial vinyl to aid infection control

• 25 stone/160kg

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Pressure Care Colours

Designed to provide welcome relief when sitting for extended periods. Visit our website for more details.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Delft

Atlantic

Turkis

Amethyst

Berry

Kirsche

Pink

BlueGreen Red Beige Dark Grey Black

Boston Waterfall Back Reclining Armchair

“The Boston is very comfy to sit in for long periods with my newborn, it’s the next best alternative to sleeping in a bed”

Key Features

The Boston is suitable across a wide range of environments when a patient requires rest and recovery. As well as being a superior patient chair, the Boston is also an excellent overnight visitor chair.

• Boston's ergonomically designed contoured waterfall back provides incomparable comfort for patients who are seated for long periods of time

• The ergonomically designed seat cushion evenly distributes the user’s weight reducing pressure points on the body, providing good blood circulation

• Easy to clean antimicrobial vinyl to aid infection control

• Models include manual, electric, fully recline electric and bariatric

• 25 stone/160kg

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA1903 Boston manual waterfall back reclining hospital patient armchair

CA1907 Boston electric waterfall back reclining hospital patient armchair

CA1909 Boston electric waterfall back fully reclining hospital patient armchair

CA1906 Boston electric bariatric waterfall back reclining hospital patient armchair Bariatric

Pressure Care Colours

Designed to provide welcome relief when sitting for extended periods. Visit our website for more details.

Accessories

CA1917 Protective rubber bumper

CA1919 Fold-down side table (only for CA1903 – please specify side)

CA1921 Removable armrest covers, pair (not with CA1919 or CA1920)

CA1922 Pressure care memory foam with gel pad cushioning (not for CA1906)

CA1918 Pressure care memory foam with gel pad cushioning (for CA1906)

CA1920 Extra-wide armrests (not recommended for Boston manual version)

CA1931 Recliner USB port

Turkis

BlueGreen Red Beige Dark Grey Black

Models marked with are available from our 5-Day Express Range, in Atlantic.

“

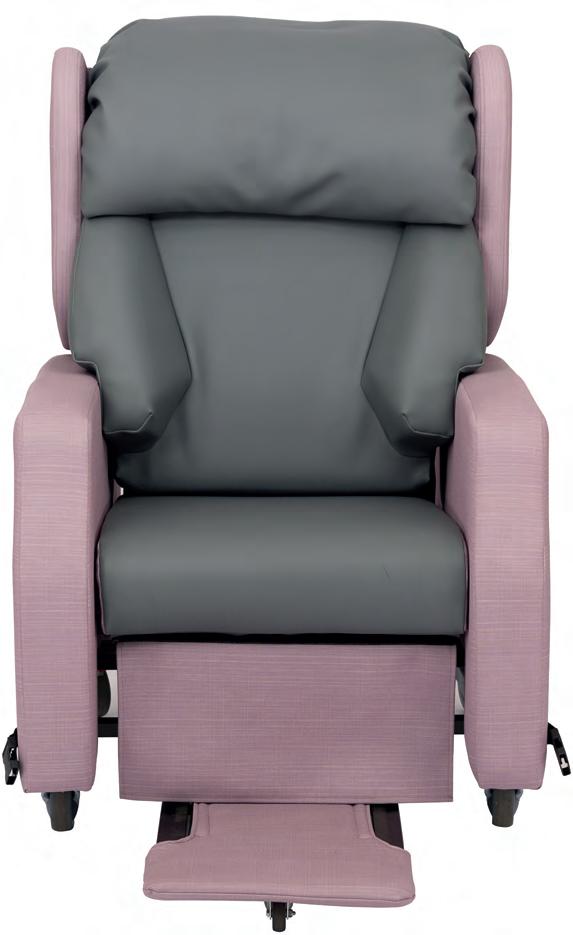

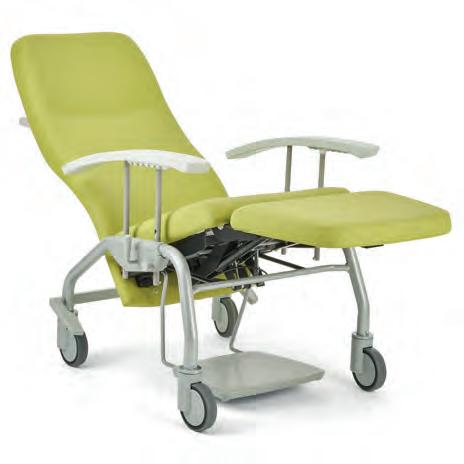

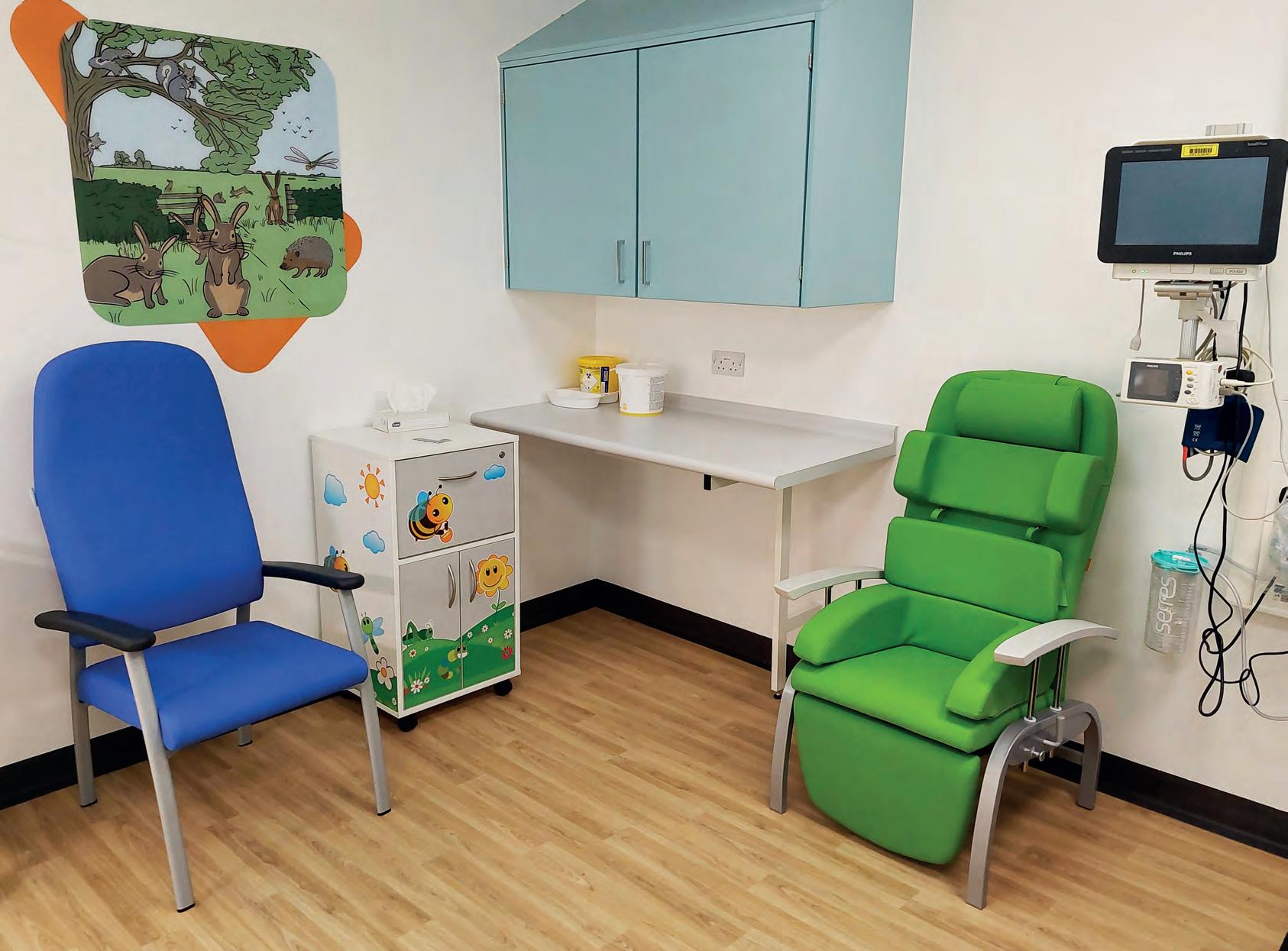

Albany Reclining Chair

Our ward cares for patients suffering from Parkinson’s but also dementia who can become a bit restless whilst in their beds. Prior to this chair’s arrival we used other recliners which weren’t very practical or comfortable and more importantly didn’t provide the necessary support to patients whose conditions mean they can become quite jerky.”

The Albany chair is designed for staff adjustment only

Key Features

The Albany is designed for a wide spectrum of users including the elderly or those with life-limiting conditions, ataxic movements, and aching joints, where any movement is painful. Albany is designed for staff adjustment only.

Viscoform pressure care seat cushion as standard to support patients seated for long periods, Albany can be used as part of a 24-hour postural management program to reduce pressure problems.

• Easy to clean antimicrobial vinyl to aid infection control

• Supplied on heavy-duty lockable castors

• Independent backrest recline with seat adjustments for angle and depth

• Sliding footplate to support patients feet during transport

Colour Options

• The recline and seat tilt functions are operated by controls on the push bar at the back of the chair

• 25 stone/160kg

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA1985 Albany postural management and transfer chair with waterfall backrest and memory foam seat cushion

CA1986 Albany postural management and transfer chair with lateral support backrest and memory foam seat cushion

CA1987 Albany postural management and transfer chair with extended lateral support backrest and memory foam seat cushion

Colour option is for the outside edge of chair. Seat and back cushions in Dark Grey as standard. Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Pressure Care Colours

Designed to provide welcome relief when sitting for extended periods. Visit our website for more details.

Accessories

CA1975 Large profile headrest for Albany

CA1976 Connecting strap for leg support block

CA1974 Pressure care Liquiform seat cushion

CA1977 Pressure care coolform gel pad cushioning

CA1978 Leg support block, requires CA1976

CA1979 Lap strap and pad

Dimensions

All Models

Height 1130mm

Seat Height 508mm

Depth 1030mm

There are multiple options for backrests and headrest cushions that provide ergonomic support for the patient, ensuring the chair can be adapted over time for changing conditions or new users.

Seat Depth 410mm (lateral backrest) 440mm (waterfall backrest)

Width 720mm

Seat Width 520mm

Reclined Length 1280mm

BlueGreen Red Beige Dark Grey Black

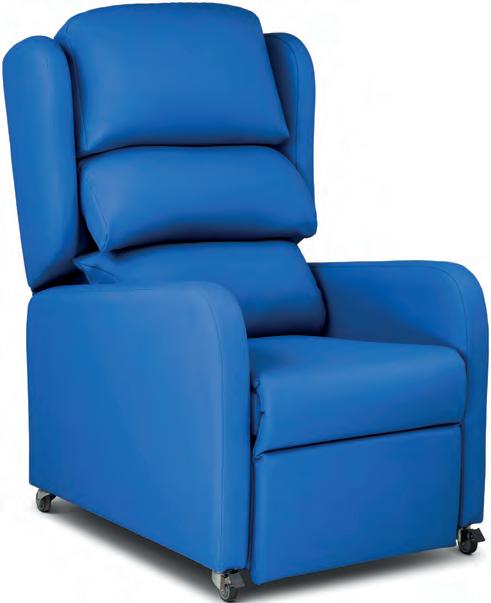

Richmond Reclining

Armchair Richmond is a stylish and robust recliner.

Available in manual and electric recline with an option of a winged headrest for additional head support or for patients who will be sleeping in the chair.

Key Features

• Easy to clean antimicrobial vinyl to aid infection control

• Ergonomically designed to offer comfort and support to the patient

• Easy to operate controls built into the armrest on the electric version

• 25 stone/160kg

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Pressure Care Colours

Designed to provide welcome relief when sitting for extended periods. Visit our website for more details.

BlueGreen Red Beige Dark Grey Black

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA1950 Richmond manual reclining hospital patient chair CA1951 Richmond electric reclining hospital patient chair

Perle PE Schwarz SC Delft DE Atlantic AT Turkis TU Amethyst AM Berry BY Kirsche KI Pink PK

Aesthetically pleasing whilst being suitable for a wide range of healthcare environments.

Talo Reclining Wooden Relax Chair

The Talo range of seating was designed with the patient in mind, however, the high comfort and supportive ergonomics make it perfect for staff well-being environments.

Key Features

The Talo is easy to adjust, with a simple light backward push the chair effortlessly adjusts to a relax seating position. Opening the human form to a 135-degree angle increases blood circulation, and reduces fatigue on the upper and lower back.

• Easy to clean antimicrobial vinyl to aid infection control

• Removable seat cushion for ease of cleaning

• Available with or without castors

• Available with legrest to provide increased comfort when reclined

Colour Options

• The ergonomically designed armrests assist with getting out of the chair, offering extra support

• 21 stone/135kg

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

BE2900 Talo wooden frame hospital patient reclining chair with legrest

BE2904 Talo wooden frame hospital patient reclining chair with legrest and housekeeping castors

BE2901 Talo wooden frame reclining hospital patient chair

BE2905 Talo wooden frame hospital patient reclining chair with housekeeping castors

BE2902 Talo wooden frame mobile hospital patient reclining chair with legrest

Dimensions

BE2900/BE2901/BE2904/BE2905 B E2902

Seat Width 535mm Seat Width 535mm

Seat Height 455mm Seat Height 475mm

Seat Depth 510mm Seat Depth 510mm

Accessories

BE2021 Pressure care seat cushion, dark blue

BE2003 Extra cost for non-standard vinyl

BE2012 Footrest option (recommended for BE2902)

Domus Recliner Armchair

The Domus incorporates a modern design and clean lines, perfect for staff rooms and making patients feel at home. The recliner features fully upholstered sides, backrest, seat and legrest, the high-backrest provides optimal comfort and support.

Key Features

The design of the armrests helps patients stand up out of the chair with greater ease, while the recline mechanism raises the legs first with the option of then reclining the backrest. The chair can be repositioned with subtle movements easily without the need of a lever. Available in both manual and electric versions with built in control.

• Easy to clean antimicrobial vinyl to aid infection control

• Removable seat cushion for ease of cleaning

• Hidden castors with brakes available on certain models

• 19.5 stone/125kg

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

BE2040 Domus manual reclining hospital patient chair

BE2041 Domus manual hospital patient reclining chair with hidden castors

BE2042 Domus manual hospital patient reclining chair with blue pressure care seat cushion

BE2043 Domus manual hospital patient reclining chair with hidden castors and blue pressure care seat cushion

BE2051 Domus electric reclining hospital patient chair

BE2052 Domus electric reclining hospital patient chair with hidden castors

BE2053 Domus electric reclining hospital patient chair with blue pressure care seat cushion

BE2054 Domus electric reclining hospital patient chair with hidden castors and blue pressure care seat cushion

Atlantic

Turkis

Amethyst

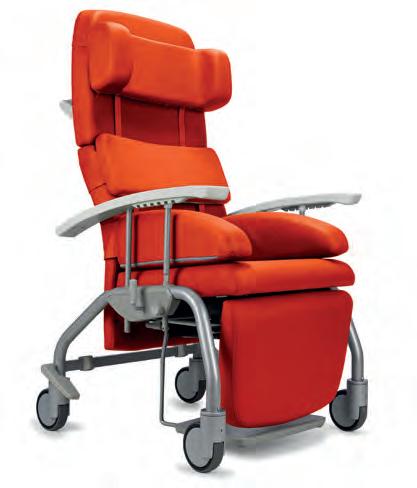

Mauro Relax Chair

“ The new Mauro reclining chair has allowed me to feel so much closer to my baby even though she has tubes attached, I can smell and cuddle her”

Dimensions

All Models

Width 720mm

Depth 840mm

Reclined Length 1550mm

Seat Width 535mm

Seat Depth 510mm

Armrest Width 75mm

BE2062

Height 1290mm

Seat Height 510mm

BE2061/BE2064

Height 1210mm

Seat Height 440mm

BE2060/BE2065/BE2073

Height 1270mm

Seat Height 510mm

*‘Zero-Gravity’ position This sitting/lying position is inspired by NASA data on a neutral physical position, which transforms all muscular strength into a biomedical equilibrium

Key Features

The Mauro relax chair is equipped with a relax mechanism that tilts the backrest, seat and legrest into a zero-gravity position inspired by NASA*

The seat shell was designed following the shape of the human spine (S-shape) offering exceptional support.

• Easy to clean antimicrobial vinyl and a removable seat cushion to aid infection control

• Ergonomic design offering exceptional support for the lower back and the shoulders

• Ef ficient relax movement reducing pressure points on the body providing good blood circulation

• Large castors for easy movement (on selected models)

• The ergonomic armrests are height-adjustable and support 3 height positions, at their lowest position they are level with the seat allowing easy side access for patients with mobility issues

• Side handles can lock the recline into any position for safe use by the patient

• 23.5 stone/150kg (Certain versions can be upgraded to 200kg, please enquire)

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

BE2060 Mauro Ergo-Line – synchronised manual movement of backrest and legrest hospital patient reclining chair

BE2061 Mauro Ergo-Line – synchronised manual movement of backrest and legrest hospital patient reclining chair with housekeeping castors

BE2062 Mauro hospital transfer chair with 300mm front castors

BE2064 Mauro Duo-Line – manual independently adjustable backrest and legrest hospital patient reclining chair with housekeeping castors

BE2065 Mauro Duo-Line – manual independently adjustable backrest and legrest hospital patient reclining chair

BE2073 Mauro electric backrest and legrest adjustment (independently or synchronised) hospital patient reclining chair

All chairs have 4 x 125mm castors unless specified otherwise, *65mm housekeeping castors not suitable for patient transfer.

Models marked with are available from our 5-Day Express Range, in Atlantic.

Accessories

BE2013 Mauro padded arm covers (pair)

BE2063 Anatomical reduction cushion – see page 117

BE2021 Mauro and Avento pressure care seat cushion

BE2071 Mauro/Avento detachable headrest

BE2076 Extra wide swing out armrests

BE2067 Mauro fully upholstered arm

Turkis

Amethyst

Berry

*65mm housekeeping castor not suitable for patient transfer

BE2062 – 300mm front castors for patient transport

ZenSo

The ZenSo is suited to every healthcare environment but what makes ZenSo unique is the perfect mix of functionality, aesthetics, and innovation. The lift function supports the user optimally whilst entering and exiting the chair.

Key Features

The innovative E-lift mechanism activates the brake system automatically. This helps the patient get up or sit down safely, making ZenSo the perfect solution to assist in caring for an aging population.

• Easy to clean antimicrobial vinyl to aid infection control

• Ergonomic design offering exceptional support for the lower back and the shoulders

• Ef ficient relax movement reducing pressure points on the body, providing good blood circulation

• Large castors for ease of movement that can be easily locked, this engages the chairs lift function

• Height-adjustable arms to facilitate patient transfer

• This is an electrically operated chair that includes separate and/or backrest and legrest adjustment

• The seat and legrest can be fully removed and both parts are fully upholstered for ease of cleaning

• 23.5 stone/150kg

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

BE2069 ZenSo E-lift – electric rise and recline hospital patient chair

Accessories

BE2011 IV pole

BE2013 Padded removable armrest covers (pair)

BE2068 ZenSo pressure care seat cushion

BE2067 Mauro and ZenSo fully upholstered arm

Dimensions

Height 1290mm

Width 680mm

Depth 71 0mm

Reclined Length 151 0mm

Seat Height 450mm

Seat Width 510mm

Seat Depth 500mm

Armrest Width 75mm

Avento Reclining Height-Adjustable Relax Chair

“The chairs are really versatile, easy to use, easy to wheel between rooms when needed, and easy to clean”

Key Features

The height-adjustable Avento enables clinicians to position the chair at a comfortable height to effectively deliver treatment and focus on the patient's needs whilst reducing back care issues for the clinician. There are three versions; manual with a hydraulic foot pump for height adjustment and gas strut assisted recline with a choice of central or individual locking castors or electric, with separate or combined electric height, backrest and legrest adjustment.

• Easy access to zero gravity position, with fewer pressure points on the body the position promotes good blood circulation

• Easy height adjustment between 490mm and 790mm. This feature allows clinicians to communicate at eye level with patients, delivering a different experience for both clinician and patient

• The ergonomic armrests are height-adjustable and support 3 height positions, at their lowest position they are level with the seat allowing easy side access for patients with mobility issues

• Easy to clean antimicrobial vinyl and a removable seat cushion to aid infection control

• The push handle on the back of the chair allows for easy patient transport and side handles can lock the recline into any position for safe use by the patient, this feature is particularly favourable in maternity and neonatal units

• 23.5 stone/150kg

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

BE2027 Avento manual height-adjustable hospital patient reclining chair with individually locking castors

BE2039 Avento manual height-adjustable patient reclining chair with central locking castors

BE2070 Avento electric height-adjustable hospital patient reclining chair, with central locking castors

Accessories

BE2075 Li-ion battery

BE2013 Padded removable armrest covers (pair)

BE2021 Mauro and Avento pressure care seat cushion

BE2067 Mauro fully upholstered arm

BE2011 IV pole

BE2011 Extra wide swing out armrests for Mauro/Avento

Dimensions

All Models

Width 740mm

Depth 750mm

Reclined Length 1580mm

Seat Width 535mm

Seat Depth 510mm

Armrest Width 85mm

BE2027

Height 1210-1510mm

Seat Height 490 -790mm

BE2039/BE2070

Height 1230-1530mm

Seat Height 530 -830mm

Schwarz

Delft

Atlantic

Turkis

Amethyst

Berry BY Kirsche KI Pink PK

Fero Reclining Relax Chair

“Staff, patients and partners loved the chairs and they made a real difference to their experience”

Key Features

The Fero excels in how it enables patients, clinicians, and visitors the flexibility of use. The compact footprint of the chair makes it ideal for bedside spaces that are often short on space. Fero is suited to a wide range of healthcare environments and is particularly loved by maternity and neonatal units due to the chair's support for kangaroo care.

Available in both manual recline, which is a combined leg and back action, and electric recline, which offers a choice of separate leg and back or combined adjustment.

• Side handles can easily lock the chair at any stage whilst in the recline position

• The mechanism allows the backrest, seat, and legrest to simultaneously tilt into a ‘zero gravity’ position providing good blood circulation

• The curved armrests act as an aid for entering and exiting the chair

• Easy to clean with a simple lift-out seat and antimicrobial vinyl to aid infection control

• 21 stone/135kg

Dimensions

All Models

Width 455mm Seat Depth 680mm

Depth 680mm Reclined Length 1580mm

Seat Width 680mm Armrest Width 75mm

BE2005/BE2006/BE2105

Height 1230mm Seat Height 520mm

BE2000/BE2002/BE2100

Height 1200mm Seat Height 455mm

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

BE2000Fero wooden frame hospital patient reclining chair with Ergo-Line – synchronised manual movement of backrest and legrest

BE2002Fero wooden manual adjustable reclining hospital patient chair with housekeeping castors

BE2005Fero wooden manual adjustable reclining hospital patient chair with locking castors

BE2006Fero wooden manual adjustable reclining hospital patient chair with height-adjustable arms

BE2100Fero wooden electric adjustable reclining hospital patient chair

BE2105Fero wooden electric adjustable reclining hospital patient chair with locking castors

Accessories

BE2003Extra cost for non-standard vinyl

BE2011IV Pole

BE2013Padded removable armrest covers (pair)

BE2021Pressure care seat cushion, dark blue

Sofia Sleeper Chair

“Sofia is the answer to short notice stays on my ward. A space efficient and super comfortable solution.”

Key Features

Utilising space effectively, the compact chair transforms from a comfortable armchair to a pull-out bed with ease.

• In one simple movement the chair transforms from a chair to a bed, saving vital space when not in use

• Ergonomically designed with deep foam cushions to ensure good rest for hardworking staff, recovering patients and tired visitors

• Heavy-duty lockable castors system for ease of moving

• Easy to clean antimicrobial vinyl to aid infection control

• 23.5 stone/150kg

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA1913 Sleeper Chair

CA1914 Sleeper Chair with upholstered front panel

Models marked with are available from our 5-Day Express Range, in Atlantic.

Dimensions

All Models/All Positions

Width 750mm

Seat Width 620mm

Height 750mm

Seat Height 440mm

Armrest Width 65mm

Chair Position

Chair Depth 960mm

Chair Seat Depth 590mm

Chaise Position

Chaise Length 1600mm

Chaise Seat Depth 1200mm

Bed Position

Bed Length 2300mm

Bed Seat Depth 1900mm

Turkis

Amethyst

Arvada® Patient Chair

“With the different models available under the same aesthetic it has allowed us to meet varying patients needs with ease”

Key Features

The Arvada® hospital chair is designed with an emphasis on premium patient support followed by comfort. The robust strong metal frame will withstand many years of maintenance-free use, while the removable seat cushion and clean lines are the perfect solution for supporting infection control. Arvada® is suited to a wide range of healthcare environments including wards, waiting areas and bed side spaces.

Models include height-adjustable arms, legs and housekeeping castors.

• Pressure care seat cushion options providing additional patient comfort for patients with a low to medium risk of pressure sores

• The ergonomically designed PU armrests are firm but comfortable to support patients getting in and out of the chair

• The removable seat cushion acts as an efficient solution to aid infection control

• Arvada® is carbon neutral – we offset Arvada® omissions by annual tree planting

• High levels of comfort support patients seated for long times, meaning they can spend more time out of bed and recover faster

• Easy to clean antimicrobial vinyl which aids infection control

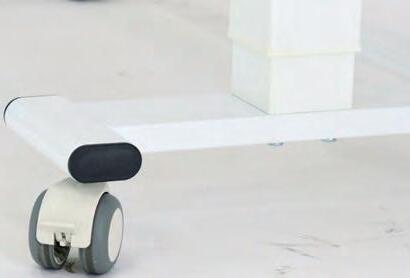

• Models with housekeeping castors allow the chair to be easily moved when unoccupied

• Models with height-adjustable arms allow for easy side access

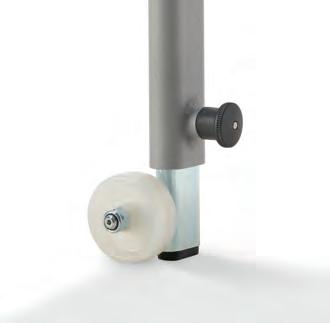

• Models with height-adjustable legs allow the chairs height to be positioned to met varying patients needs

• 31 stone/200kg (47 stone/300kg for bariatric models)

Dimensions

All Models

Depth 720mm

Seat Depth 480mm

Seat Height 480mm 480 -580mm (height-adjustable)

Armrest Width 80mm

Mid-back Height 935mm 935 -1035mm (height-adjustable)

High-back Height 1250mm 1250-1350mm (height-adjustable)

CA3258/CA3259

Bariatric

Width 770mm

Seat Width 650mm

Non-Bariatric Width 700mm (height-adjustable armrests) 645mm (non height-adjustable armrests)

Seat Width 515mm

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA3250 Arvada® high-back patient chair

CA3251 Arvada® high-back patient chair with housekeeping wheels

CA3253 Arvada® high-back patient chair, height-adjustable with housekeeping wheels

CA3255 Arvada® mid-back patient chair

CA3256 Arvada® mid-back patient chair with housekeeping wheels

CA3257 Arvada® mid-back patient chair, height-adjustable with housekeeping wheels

CA3258 Arvada® high-back bariatric patient chair with housekeeping wheels Weight capacity: 300kg (47 stone)

CA3259 Arvada® mid-back bariatric patient chair with housekeeping wheels Weight capacity: 300kg (47 stone)

CA3247 Arvada® high-back patient chair with drop arms and housekeeping wheels, height-adjustable

CA3248 Arvada® high-back patient chair with drop arms

CA3249 Arvada® high-back patient chair with drop arms and housekeeping wheels

Models marked with are available from our 5-Day Express Range, in Atlantic.

Accessories

CA3254 Arvada® pressure care seat cushion, extra thick, black

CA3260 Arvada® pressure care seat cushion for bariatric chair, black

CA3246 Arvada® footstool – Height 310mm, Length 520mm, Width 350mm

CA3245 Arvada® legrest – Height 380–460mm, Length 530mm, Width 460mm

Bariatric

Bariatric

Turkis

Amethyst

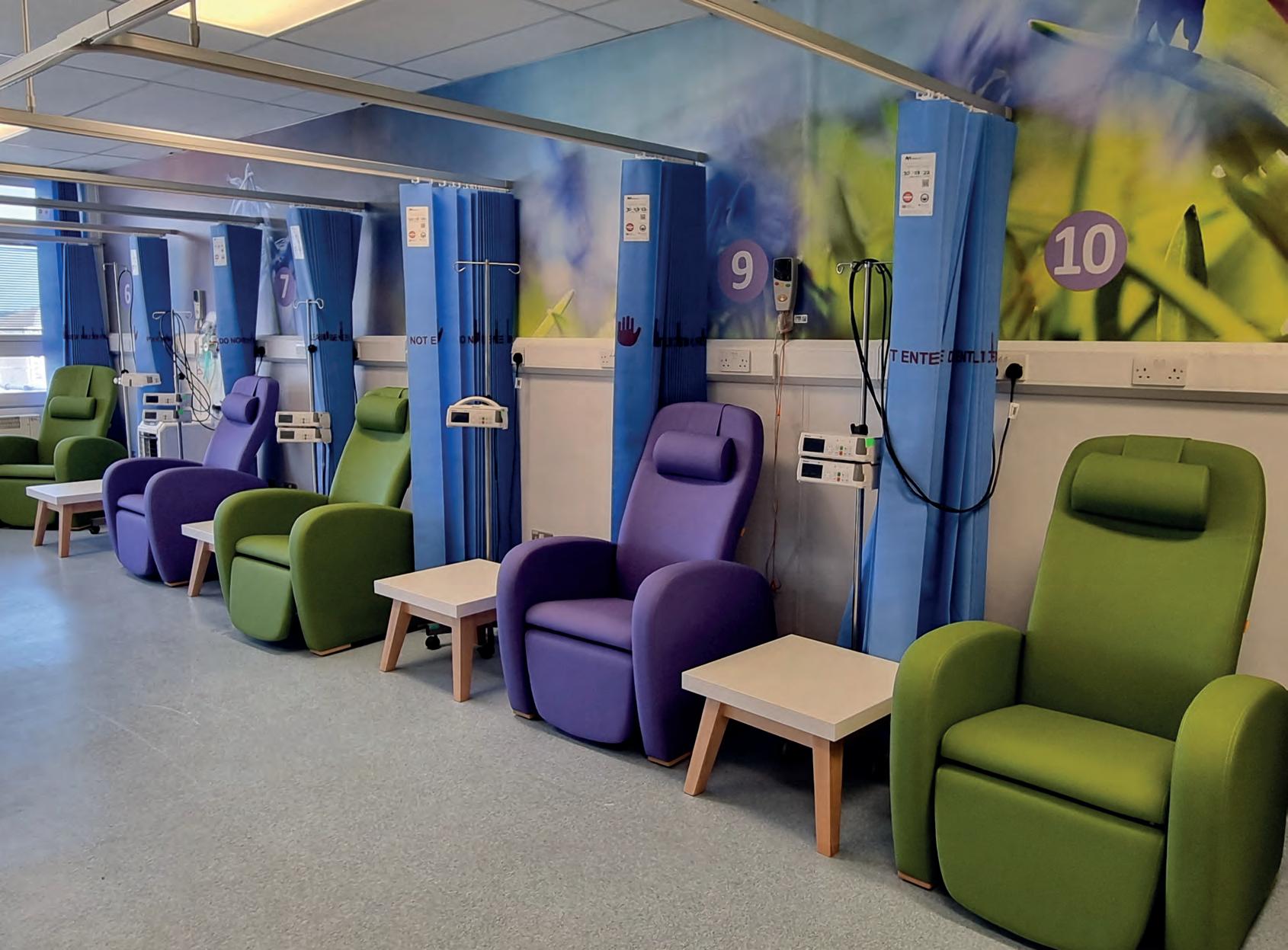

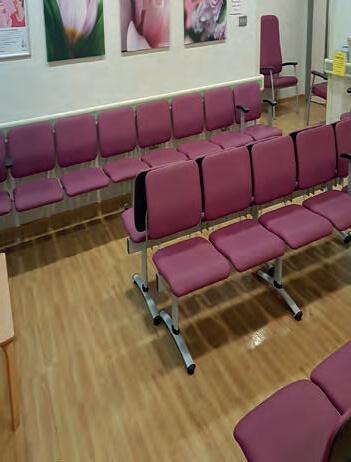

Case Study Breast Care Centre – Ipswich Hospital

Location

Ipswich

The brief

The reprovision of breast services from across the hospital was to be moved to one dedicated facility bringing together clinics, treatment, diagnostics and imaging, administrative support, and consultation under one roof for all breast services. The project objective is to improve patient pathways and experience, another key driver was to increase staff efficiencies, the reprovision meant all new furniture was required for the centre.

The approach

East Suffolk and North Essex NHS Foundation Trust, the Trust which runs Ipswich and Colchester hospitals have previously worked with us on different projects. The Capital Projects team identified our products due to a few factors; the new furniture needed to aid infection control, and so the Arvada® was chosen due to its metal legs and removable seat cushion for ease of cleaning. Patient comfort was paramount, the low armrests on

Arvada® helped avoid sensitive areas. And lastly, the flexibility of design, standard, height-adjustable, and bariatric chairs are all available under the same aesthetic.

The outcome

The colours are inviting and less ‘clinical’ than grey and white. Patients and visitors have commented on how comfy and secure the chairs are; if an extended wait is required for results Arvada® offers high comfort levels to patients seated for longer periods of time.

The flexibility of the seating in all areas is subtle but meets varying patient needs to ensure the unit is meeting EDI standards to the highest level. Infection control was happy to sign off Arvada® due to its clean lines and ease of cleaning. The chairs are sturdy meaning they are better for less ambulant patients as they don’t move or slip around on the floor.

The colours have been noted frequently by staff and visitors – offering a softer, less clinical feel.

“The chair colours have been noted frequently by staff and visitors – brighter with a less clinical feel”

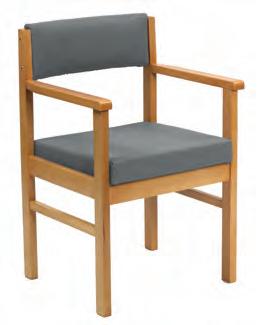

Westray and Rona Chair

The Westray is a perfect solid wooden-framed bedside chair which offers exceptional comfort and support.

Rona is traditional in its design and construction using a solid timber frame, the Rona has an extra thick seat and back cushion making its comfortability the perfect choice for any rest or relaxation environment.

Key Features

Providing all the comfort a patient or visitor needs when seated for long periods of time.

• Easy to clean antimicrobial to aid infection control

• Strong construction, ensuring long life span

Colour Options

• Rona available in a range of sizes, with or without arms

• 19 stone/120kg

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

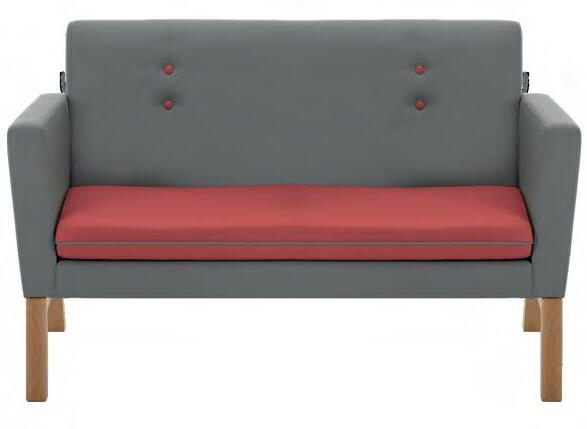

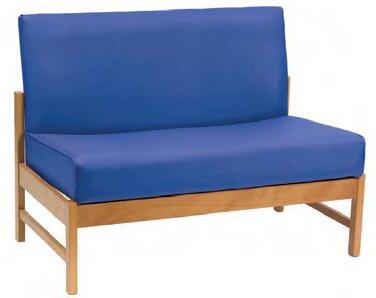

CA3161 Rona low-line chair, no armrests

CA3162 Rona low-line chair, with armrests

CA3163 Rona low-line 2-seater chair with armrests

CA3165 Rona low-line 2-seater chair, no armrests

Dimensions

All Rona Models

Height 850mm

Seat Height 390mm

Depth 720mm

Seat Depth 550mm

Seat Width 510mm 1020mm (2 seater)

Width 570mm (CA3161) 630mm (CA3162) 1080mm (CA3163) 1140mm (CA3164)

Westray

CA3270 Westray high-back patient’s chair

CA3704 Padded patient’s footstool

Models marked with are available from our 5-Day Express Range, in Atlantic.

CA3165

CA3162

CA3270

Schwarz

Delft

Atlantic

Turkis

Amethyst

Berry

Kirsche KI Pink

Foula Armchair

A classic style for statement waiting zones.

Key Features

Available in mid or high-back.

• Easy to clean antimicrobial vinyl to aid infection control

• Designed to cope with heavy usage, with the armrests built integral to the frame

• The curved armrests and shaped backrest give a high level of comfort with an elegant style

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

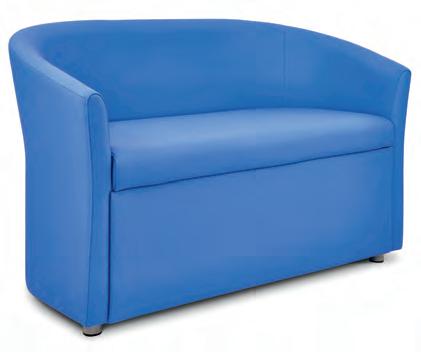

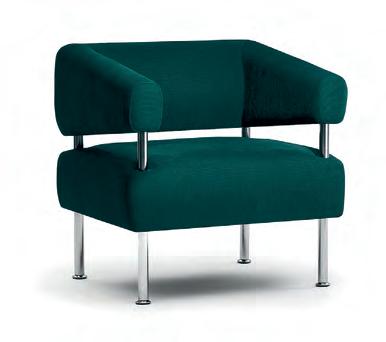

Barra Tub Seating

The Barra range of seating has been designed for high traffic areas, constructed for durability with a modern design twist to create impact and provide users with comfort.

Key Features

Available in single and double versions, allowing for multiple options to create functional areas, even where space is restricted. Available in a large range of colours to allow colour matching with department décor.

• Easy to clean antimicrobial vinyl to aid infection control

• Choice of an open or closed front design

• 19 stone/120kg

CA3710 CA3709

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA3709 Barra single tub chair, closed front

CA3710 Barra double tub chair, closed front

CA3711 Barra single tub chair, open front

CA3712 Barra double tub chair, open front

Dimensions

CA3709

Height 800mm

Seat Height 490mm

Depth 630mm

Seat Depth 490mm

Width 71 0mm

Seat Width 500mm

Armrest Width 90mm

CA3710

Height 800mm

Seat Height 490mm

Depth 630mm

Seat Depth 490mm

Width 131 0mm

Seat Width 1050mm

Armrest Width 90mm

CA3711 Height 780mm Seat Height 450mm Depth 630mm Seat Depth 490mm Width 680mm Seat Width 500mm

Armrest Width 90mm CA3712 Height 780mm Seat Height 450mm Depth 600mm

Seat Depth 500mm

Width 1270mm Seat Width 1050mm

Armrest Width 90mm

Schwarz

Delft

Atlantic

Turkis

Amethyst

Berry

Kirsche

Pink

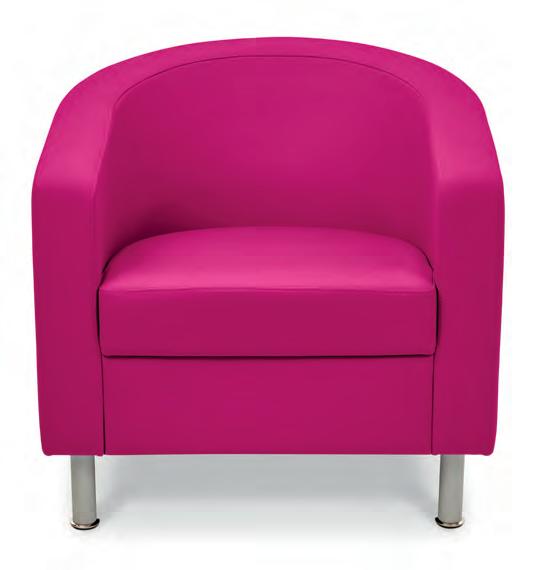

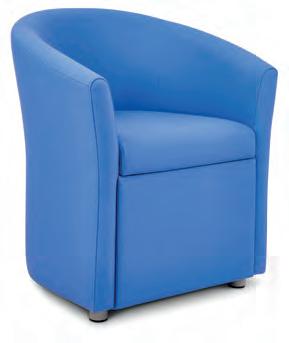

Easdale Tub Chair

Classic in its design with a home-like feel.

Key Features

Easdale chair is available in a choice of finish: walnut or natural. A single or double-width seating option is available, making this versatile piece of healthcare furniture ideal for reception seating and breakout areas to transform the look of any modern working environment.

• Easy to clean antimicrobial vinyl to aid infection control

• Removable seat cushion and clean lines, providing an efficient solution for supporting infection control

• Built to withstand heavy usage

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Perle PE Schwarz

Delft

Atlantic

Turkis

Berry BY Kirsche KI Pink

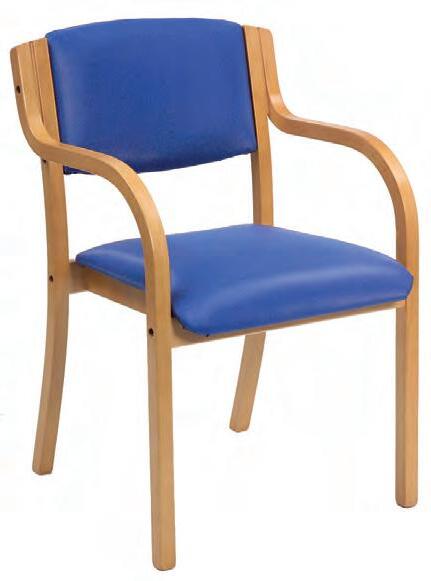

Arran and Shuna Chairs

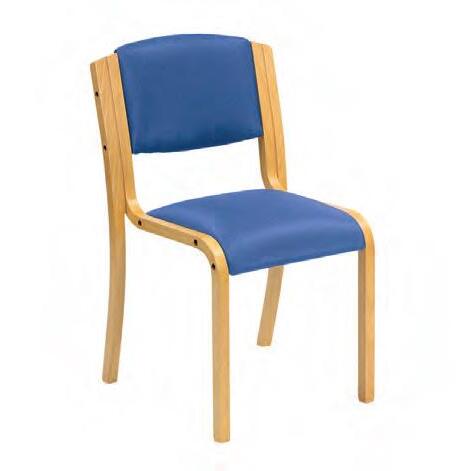

These traditional wooden framed chairs are a great fit for reception and waiting zones that experience high traffic.

Key Features

With a sleek curved frame, the Shuna is perfect if you require side chairs that can be stacked together when not in use. The ideal product for a space-saving solution. Alternatively, the Arran side chair has a traditional design, and like the Shuna is available with or without arms.

• Easy to clean antimicrobial to aid infection control

• The Shuna is stackable up to five chairs high

• 19 stone/120kg

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Dimensions

Arran

Height 810mm

Seat Height 455mm

Depth 520mm

Seat Depth 460mm

Seat Width 440mm

Width 505mm (CA3181) 535mm (CA3185)

Shuna

Height 960mm

Seat Height 495mm

Depth 620mm

Seat Depth 460mm

Seat Width 460mm

Width 520mm

Schwarz

Delft

Atlantic

Turkis

Berry

Kirsche

Odessa® Seating

A space efficient range with multiple options, including upholstered or solid wood backs, standard or bariatric widths, with or without arms. A range that offers the same aesthetics no matter if you select from the bariatric or standard width chair.

Key Features

• Space efficient stacking up to 5 high and easy to move due to the light but durable frame

• Odessa® is carbon neutral – we offset Odessa® carbon emissions by annual tree planting

• No extra cost for two-tone colour

• Easy to clean antimicrobial vinyl, even the underside of the seat is vinyl covered to aid infection control

• 36 stone/230kg (47 stone/300kg for bariatric models)

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA2100 Odessa® visitor chair, upholstered seat and back, no arms

CA2110 Odessa® visitor chair, upholstered seat and back, with arms

CA2120 Odessa® visitor chair, bariatric, upholstered seat and back, with arms Bariatric

CA2121 Odessa® visitor chair, bariatric, upholstered seat and beech finish back, with arms Bariatric

CA2122 Odessa® visitor chair, bariatric, upholstered seat and elm finish back, with arms Bariatric

CA2101 Odessa® visitor chair, upholstered seat and beech finish back, no arms

CA2102 Odessa® visitor chair, upholstered seat and elm finish back, no arms

CA2111 Odessa® visitor chair, upholstered seat and beech finish back, with arms

CA2112 Odessa® visitor chair, upholstered seat and elm finish back, with arms

Models marked with are available from our 5-Day Express Range, in Atlantic.

Atlantic

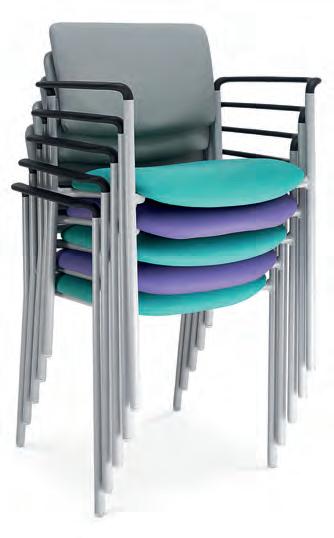

Odessa® stacks up to five high

Dimensions

CA2100/CA2101/CA2102

Height 825mm

Seat Height 480mm

Depth 540mm

Seat Depth 450mm

Width 510mm

Seat Width 460mm

CA2110/CA2111/CA2112

Height 825mm

Seat Height 480mm

Depth 540mm

Seat Depth 450mm

Width 595mm

Seat Width 460mm

CA2120/CA2121/CA2122

Height 825mm

Seat Height 480mm

Depth 540mm

Seat Depth 450mm

Width 795mm

Seat Width 660mm

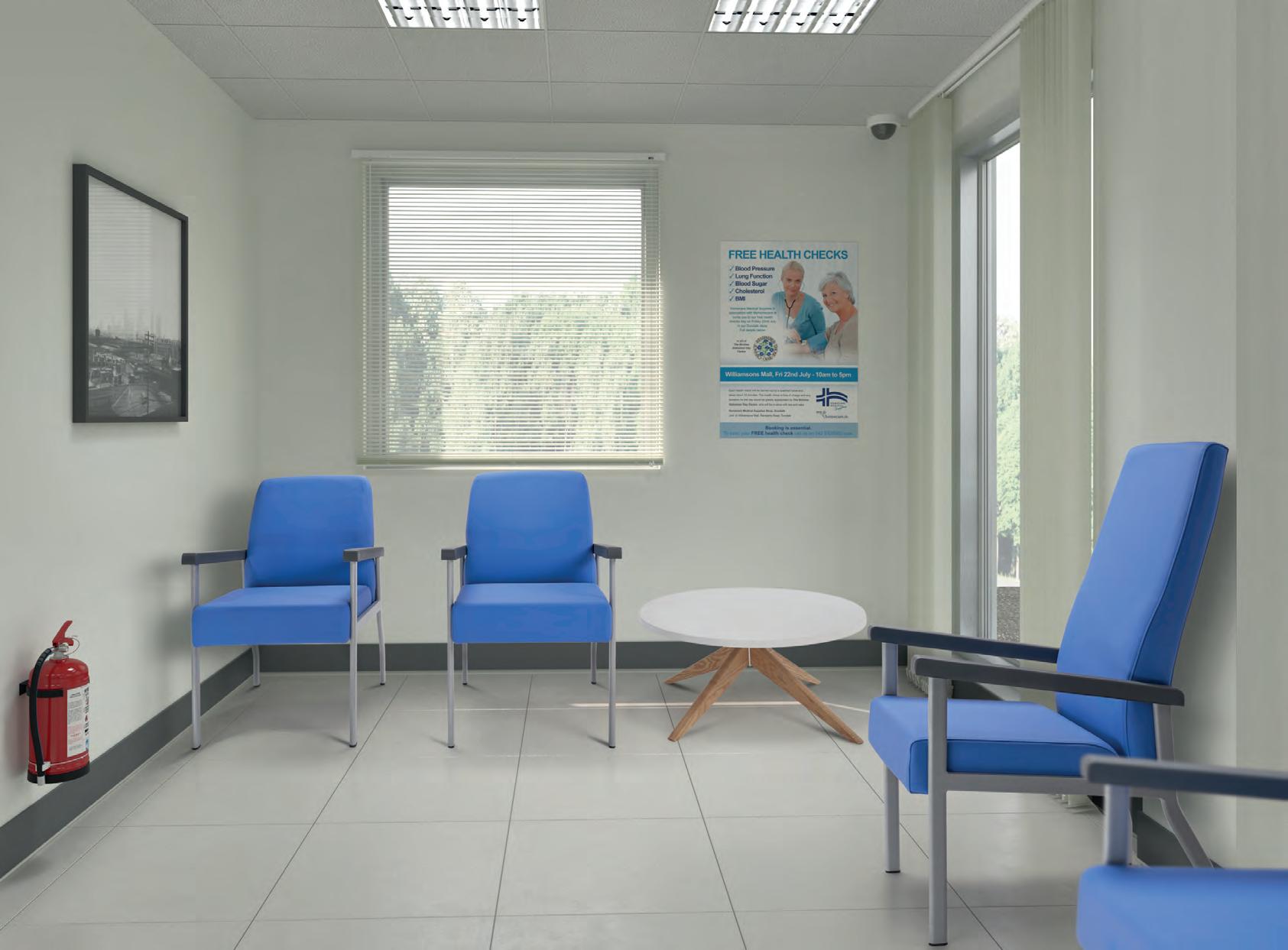

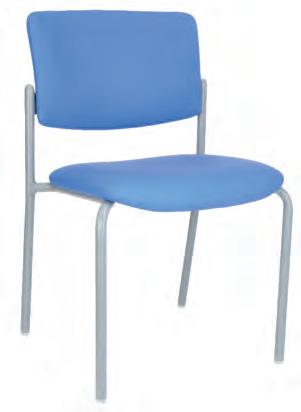

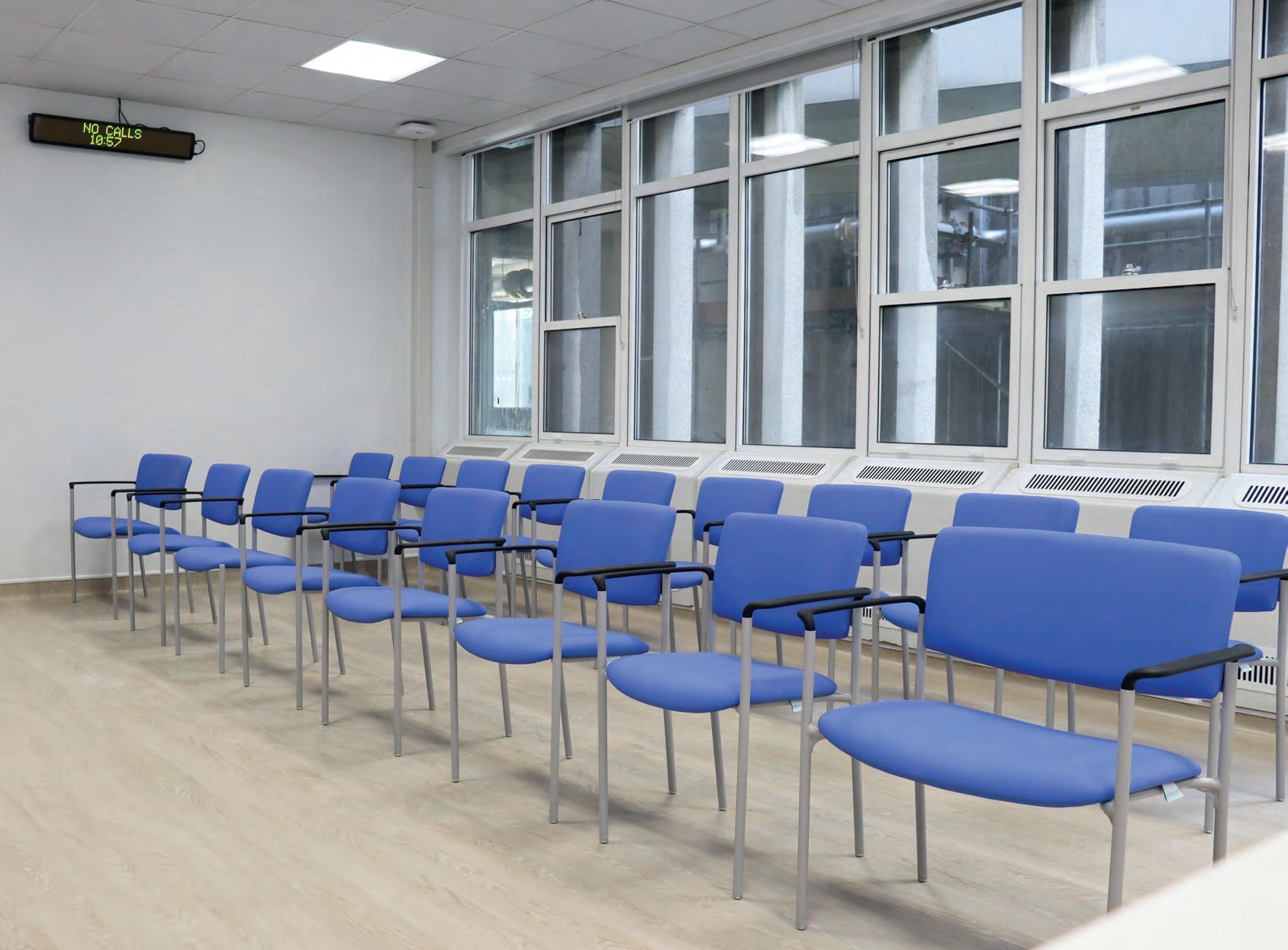

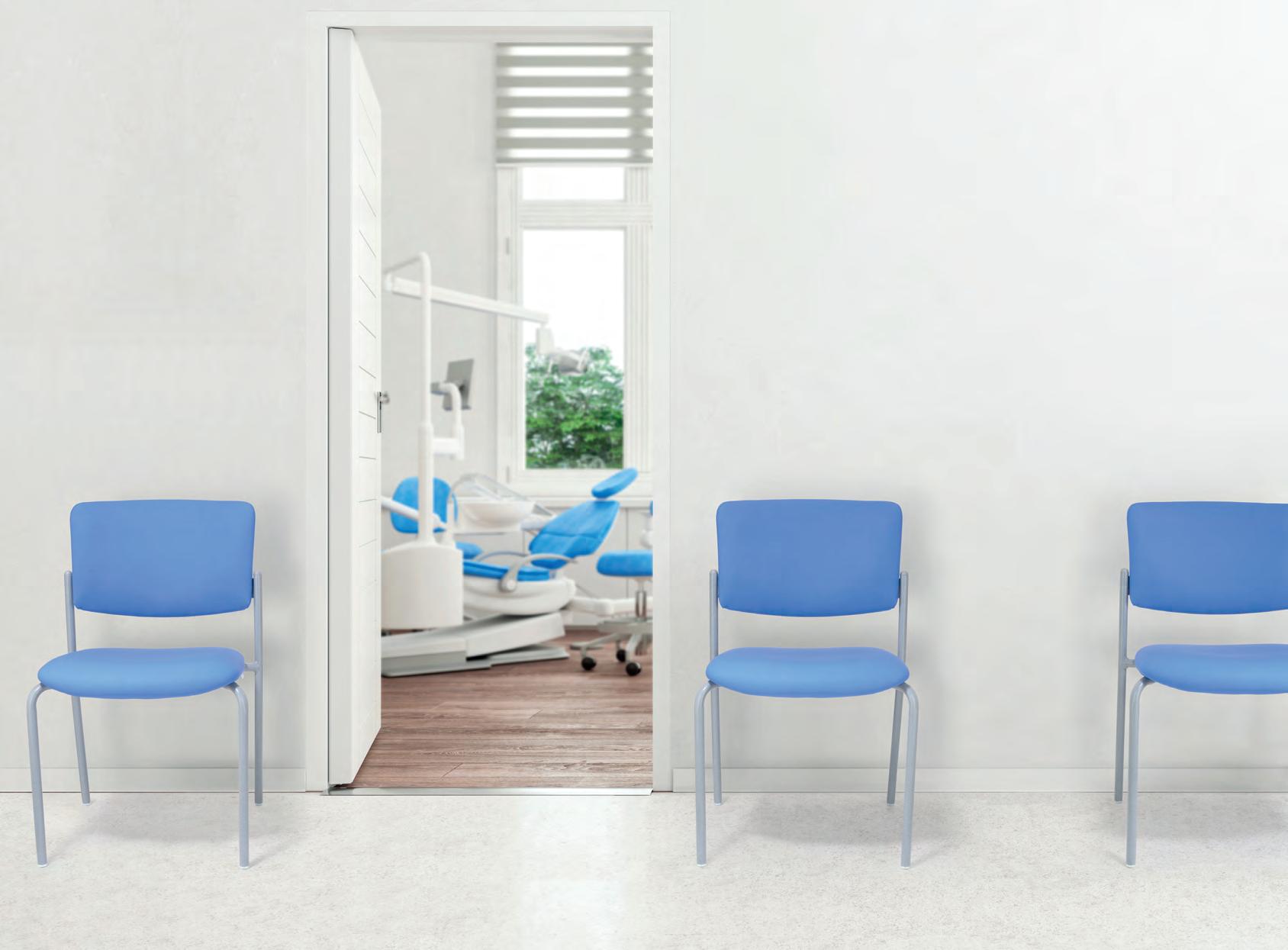

Gola Metal Frame Reception Chair

Modern and practical, the Gola reception chair offers style and enhancement to any guest or visitor environment and is a perfect option for hospital waiting room furniture.

Key Features

The Gola is a practical choice with regard to comfort for the user with its clever ergonomic design. Available in an array of colours to coordinate different colour tones with the shell and vinyl, allowing this chair to enhance any interior design scheme.

• Easy to clean antimicrobial vinyl to aid infection control

• Available in a non-upholstered seat and backrest

• Strong polished metal frame complements the sturdy plastic seat and backrest

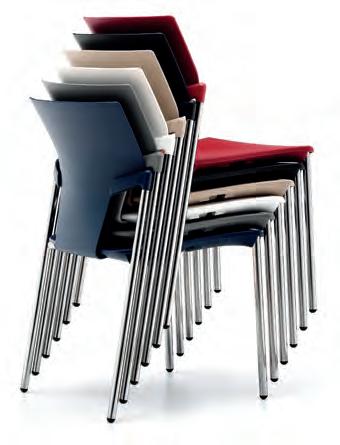

• Space saving solution stackable to 6 high when not in use

• 19 stone/120kg

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Plastic Finishes

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA3074 Gola reception chair, upholstered back and seat without armrests

CA3075 Gola reception chair, upholstered back and seat with armrests

CA3076 Gola reception chair, plastic back and seat without armrests

CA3077 Gola reception chair, plastic back and seat with armrests

Dimensions

CA3074/CA3076

Height 830mm

Seat Height 440mm

Depth 560mm

Seat Depth 530mm

Width 520mm

Seat Width 500mm

CA3075/CA3077

Height 830mm

Seat Height 440mm

Depth 560mm

Seat Depth 530mm

Width 540mm

Seat Width 500mm

Armrest Width 20mm

Turkis

Kirsche

White Red Black Grey

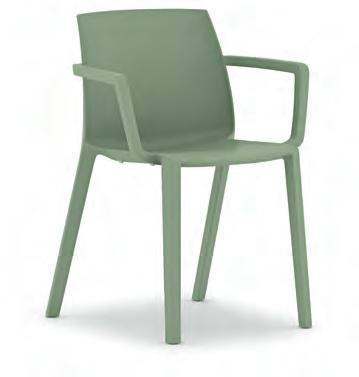

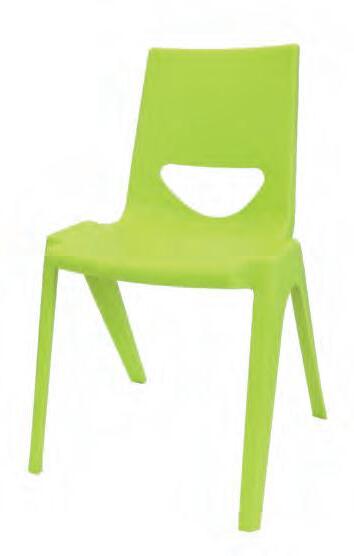

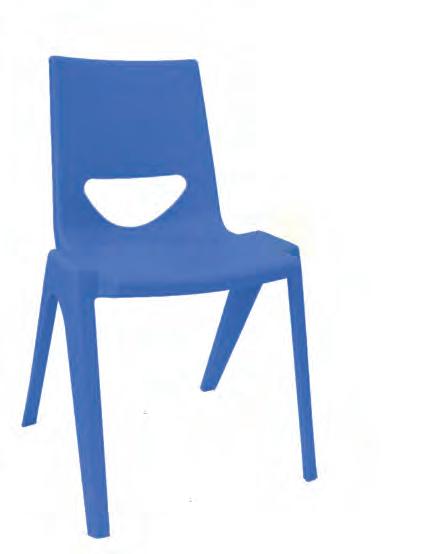

Aurora & Atmore Plastic Stacking Chairs

The Aurora & Atmore are modern four-leg stackable plastic chairs.

Key Features

Environmentally friendly, the Aurora & Atmore use fewer materials than any others in their class. Functional in their appearance the chairs offer complete strength and durability. They have a weight capacity of 120kg, but are lightweight to carry. Fully washable and easy to clean with no parts to maintain.

• Stackable – Aurora up to 6, Atmore up to 21

• Fully washable and easy to clean

• Non-absorbent, resulting in no dirt build up

• Fully recyclable

Dimensions

Aurora

Height 800mm

Seat Height 460mm

Depth 550mm

Seat Depth 440mm

Seat Width 500mm

Width 490mm (CA3803) 580mm (CA3804)

Atmore

Height 800mm

Seat Height 460mm

Depth 515mm

Seat Depth 378mm

Width 500mm

Seat Width 365mm

Colours

Although every effort is made to ensure that the product supplied matches the colours on this page, variations may occur due to limitations in printing processes.

Atmore

• A linking device option is available for Atmore which enables the chairs to be securely linked together

• 19 stone/120kg

Aurora

Ordering Information

When ordering, quote the product code and add the colour as a suffix, i.e. (Code) Purple

Code Description

CA3806 Atmore plastic chair

CA3803 Aurora plastic multipurpose four leg chair with arms

CA3804 Aurora plastic multipurpose four leg chair without arms

Models marked with are available from our 5-Day Express Range, in Atlantic.

Atmore stacks up to 21 chairs high

White Purple Cherry Red BananaMandarin

Lime Green Sky BlueRoyal Blue Night Grey Black

White Anthracite Coral Pistachio TealSand

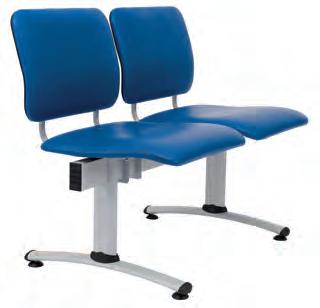

Fremont Beam Seating

Designed for high-use areas, the Fremont beam is the versatile solution for high density seating applications. Perfect for the majority of hospital areas.

Dimensions

All Models

Height 830mm

Depth 560mm

Seat Height 480mm

Seat Depth 480mm

Seat Width 500mm (per seat)

2 seater length 11 00mm

3 seater length 1610mm

4 seater length 2140mm

5 seater length 2600mm

Key Features

Available in two to five seat configurations and freestanding or floor fixed options available.

• Easy to clean antimicrobial vinyl to aid infection control

• Available with optional armrests and/or table

• 22 stone/140kg per seat

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA3860 Fremont two seat beam, freestanding

CA3861 Fremont three seat beam, freestanding

CA3862 Fremont four seat beam, freestanding

CA3863 Fremont five seat beam, freestanding

CA3864 Fremont two seat beam, floor fixed

CA3865 Fremont three seat beam, floor fixed

CA3866 Fremont four seat beam, floor fixed

CA3867 Fremont five seat beam, floor fixed

Accessories

CA3868 Fremont arm, single

CA3869 Fremont table

Perle

Schwarz

Delft

Atlantic

Turkis

Amethyst

Berry

Kirsche

Pink

Haywood V Plastic Beam Seating

The Haywood is a high-quality beam seat unit and ideal waiting room solution, perfect for areas such as receptions, busy waiting areas and specialised wards.

Key Features

The seating has been designed to withstand high-frequency usage whilst being comfortable and stylish, presenting a positive first impression of your department. Available in two to five seat configurations.

• High-quality plastic which protects against abrasion and staining

• Freestanding or floor fixed options available

Colour Options

Black BK Blue BL

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code) BK for Black. Code Description

CA4865 Haywood V plastic two seat beam, freestanding

The Haywood V beam seat freestanding will come with a 'T' leg design

Dimensions

All Models

Height 832 mm

Depth 591mm

Seat Height 485mm

Seat Depth 435mm

Seat Width 460mm (per seat)

2 Seater Length 1040mm

3 Seater Length 1559mm

4 Seater Length 2075mm

5 Seater Length 2595mm

CA4866 Haywood V plastic three seat beam, freestanding

CA4867 Haywood V plastic four seat beam, freestanding

CA4868 Haywood V plastic five seat beam, freestanding

CA4869 Haywood V plastic two seat beam, floor fixed

CA4870 Haywood V plastic three seat beam, floor fixed

CA4871 Haywood V plastic four seat beam, floor fixed

CA4872 Haywood V plastic five seat beam, floor fixed

Accessories

CA3878 Haywood V arm, single

CA3792 Beam seating screen – Clear – 905 (H) x 519 (L) x 80 (W) mm

*All dimensions do not include armrests when fitted

Vaila Beam Seating

The Vaila beam is a comfortable seating option ideal for public areas including waiting rooms, reception areas and corridors.

Key Features

The steel chair frame supports an upholstered seat and back with contoured CMHR cushions. Available in banks from two to five seats, upholstered in a choice of fabrics and antimicrobial vinyl.

• Freestanding or floor fixing options

• Metal beam fabricated ERW steel tube with powder coated finish

Dimensions

All Models

Height 820mm

Seat Height 470mm

Depth 600mm

Seat Depth 465mm

Seat Width 485mm (per seat)

• Armrests can be positioned on ends and between the seats

• 25 stone/160kg per seat

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

2 Seater Length 1050mm

3 Seater Length 1570mm

4 Seater Length 2090mm

5 Seater Length 2610mm

*All dimensions do not include armrests when fitted

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA3780 Vaila 2 seat beam, freestanding, silver frame

CA3781 Vaila 3 seat beam, freestanding, silver frame

CA3782 Vaila 4 seat beam, freestanding, silver frame

CA3783 Vaila 5 seat beam, freestanding, silver frame

CA3785 Vaila 2 seat beam, floor fixed, silver frame

CA3786 Vaila 3 seat beam, floor fixed, silver frame

CA3787 Vaila 4 seat beam, floor fixed, silver frame

CA3788 Vaila 5 seat beam, floor fixed, silver frame

Accessories

CA3790 Vaila table, available in black or beech

CA3791 Vaila arm

CA3792 Beam seating screen – Clear – 905 (H) x 519 (L) x 80 (W) mm

Amethyst AM Berry BY Kirsche KI Pink PK

Baltimore Soft Seating

Key Features

The range provides an ideal solution for contemporary front of house applications within hospitals and for areas that are looking for a fresh approach to soft seating. Big enough in size for a comfortable experience but smaller than other ranges for areas that are space conscious. Available in a single tub and double tub chair.

• Easy to clean antimicrobial vinyl to aid infection control

• 19 stone/120kg

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

The Baltimore is a neat and desirable modern range which is understated but smart in its appearance.

Equala® Seating

“The various combinations of seating that were available, bariatric and standard seating in the same unit for example, has allowed us to cater to all of our various patient groups”

Key Features

The Equala® seating range offers additional levels of support for the back and shoulders. The Equala® is robust in construction, with a kick-back leg design which stops the chair back from contacting the walls. There is a hygiene gap between the backrest and seat cushion for easy cleaning and sturdy, supportive, easy access arms.

• Easy to clean antimicrobial vinyl to aid infection control

• Easy access polyurethane arms which are easy to clean and robust in construction

• Easy entry/exit arm

• Equala® is carbon neutral – we offset Equala® carbon emissions by annual tree planting

• 32 stone/204kg

47 stone/300kg for bariatric models

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA2050 Equala® 2-seater beam seat with centre arms, high-back, one seat bariatric Bariatric

CA2051 Equala® 2-seater beam seat with centre arms, medium-back, one seat bariatric Bariatric

CA2030 Equala® 2-seater beam seat, no centre arms, high-back

CA2031 Equala® 2-seater beam seat, no centre arms, medium-back

CA2032 Equala® 2-seater beam seat, with centre arms, high-back

CA2033 Equala® 2-seater beam seat, with centre arms, medium-back

CA2060 Equala® 3-seater beam seat with centre arms, high-back, one seat bariatric Bariatric

CA2061 Equala® 3-seater beam seat with centre arms, medium-back, one seat bariatric Bariatric

CA2040 Equala® 3-seater beam seat, no centre arms, high-back

CA2041 Equala® 3-seater beam seat, no centre arms, medium-back

CA2042 Equala® 3-seater beam seat, with centre arms, high-back

CA2043 Equala® 3-seater beam seat, with centre arms, medium-back

CA2071 Equala® coffee table – L 915mm x W 560mm x H 425mm

CA2070 Equala® corner table – L 560mm x W 560mm x H 425mm

CA2020 Equala® high-back visitor chair

CA2022 Equala® high-back visitor chair, bariatric Bariatric

CA2021 Equala® medium-back visitor chair

CA2023 Equala® medium-back visitor chair, bariatric Bariatric

Atlantic

Turkis

Kick-back leg

Dimensions

Armrest Height 680mm

Seat Height 490mm

Seat Depth 490mm

Seat Width 535mm (standard)

787mm (bariatric)

Total Height 890mm (medium-back)

1140mm (high-back)

Total Depth 690mm

Total Width 590mm (single seat)

840mm (2 -seat bariatric)

11 20mm (2 -seat beam)

1380mm (2 -seat beam, 1 seat bariatric)

1660mm (3 -seat beam)

1920mm (3 -seat beam, 1 seat bariatric)

CA2041

CA2030

CA2051

CA2060

CA2042

CA2021

CA2020

CA2023

CA2033

CA2022

Chandler Soft Seating

Our Chandler range is timeless in design and superior in comfort.

Key Features

The range includes an ample size armchair along with a matching two seater and three seater sofas. With its clean lines and stylish form, the Chandler would suit all areas looking for premium soft seating.

• Easy to clean antimicrobial vinyl to aid infection control

• 19 stone/120kg per seat

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic. Code Description

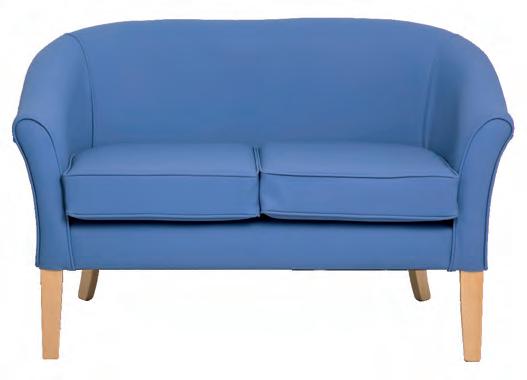

CA3775 Chandler single seat armchair

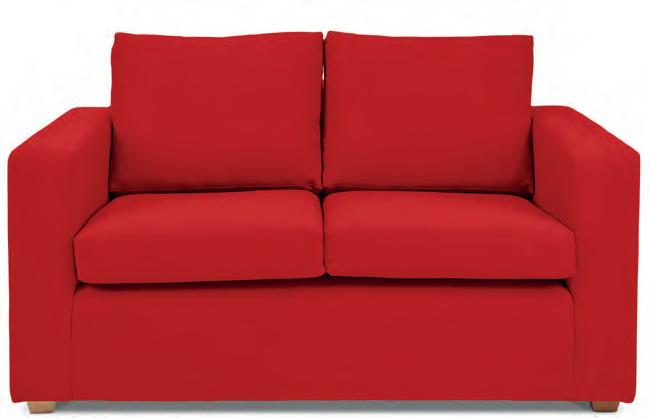

CA3776 Chandler two seat sofa with arms

CA3777 Chandler three seat sofa with arms

Dimensions

All Models

Height 760mm

Seat Height 410mm

Depth 830mm

Seat Depth 460mm

CA3775

Width 1000mm

Seat Width 550mm

CA3776

Seat Width 1150mm

Width 1600mm

CA3777

Seat Width 1750mm

Width 2200mm

Perle PE Schwarz SC Delft DE Atlantic AT Turkis TU

Amethyst AM Berry BY Kirsche KI Pink PK

CA3776

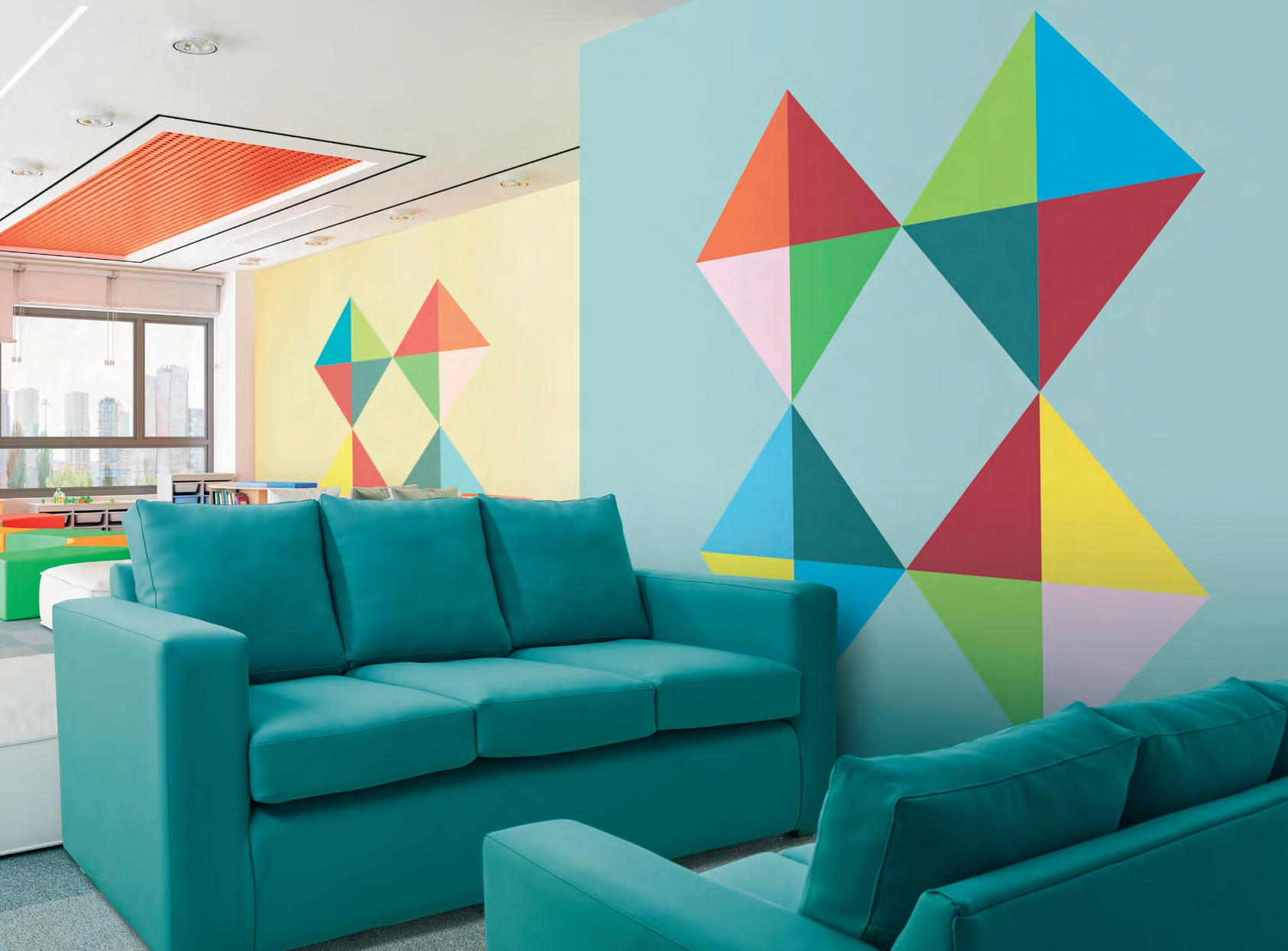

Kilda Armchairs and Sofas

Our Kilda provides you with comfortable seating in your parents/relatives day room or in staff rest room areas.

Key Features

The Kilda range includes a comfortable and ample size armchair with a matching two or three seater sofa to offer superior comfort levels to visitors.

• Antimicrobial vinyl to aid infection control

• Removable cushions for ease of cleaning

• The wide, padded armrests provide support when entering and exiting the chair and comfort when seated

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Dimensions

All Models

Height 830mm

Seat Height 480mm

Depth 880mm

Seat Depth 580mm

Armrest Width 102mm

CA4850

Width 930mm

Seat Width 585mm

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA4850 Kilda single seat armchair

CA4851 Kilda two seat sofa with arms

CA4852 Kilda three seat sofa with arms

CA4851

Width 1540mm

Seat Width 1130mm

CA4852

Width 1800mm

Seat Width 1450mm

Perle PE Schwarz SC Delft DE Atlantic AT Turkis TU

Amethyst AM Berry BY Kirsche KI Pink PK

Domus Club Soft

The Domus makes ample combinations possible.

Key Features

Standing up is no problem, thanks to the firm, rounded armrests and the adapted seat height. Together with a 2-seater and/or 3-seater sofa, a complete salon can be created in accordance with everyone’s needs.

• Easy to clean antimicrobial to aid infection control

• Removable seat cushion for ease of cleaning

• 19.5 stone/125kg per seat

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Perle PE Schwarz SC Delft DE Atlantic AT Turkis TU

Amethyst AM Berry BY Kirsche KI Pink PK

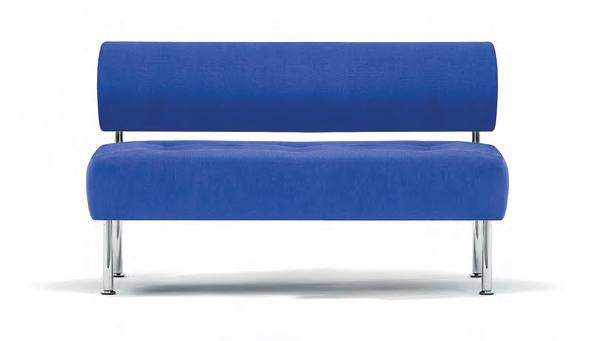

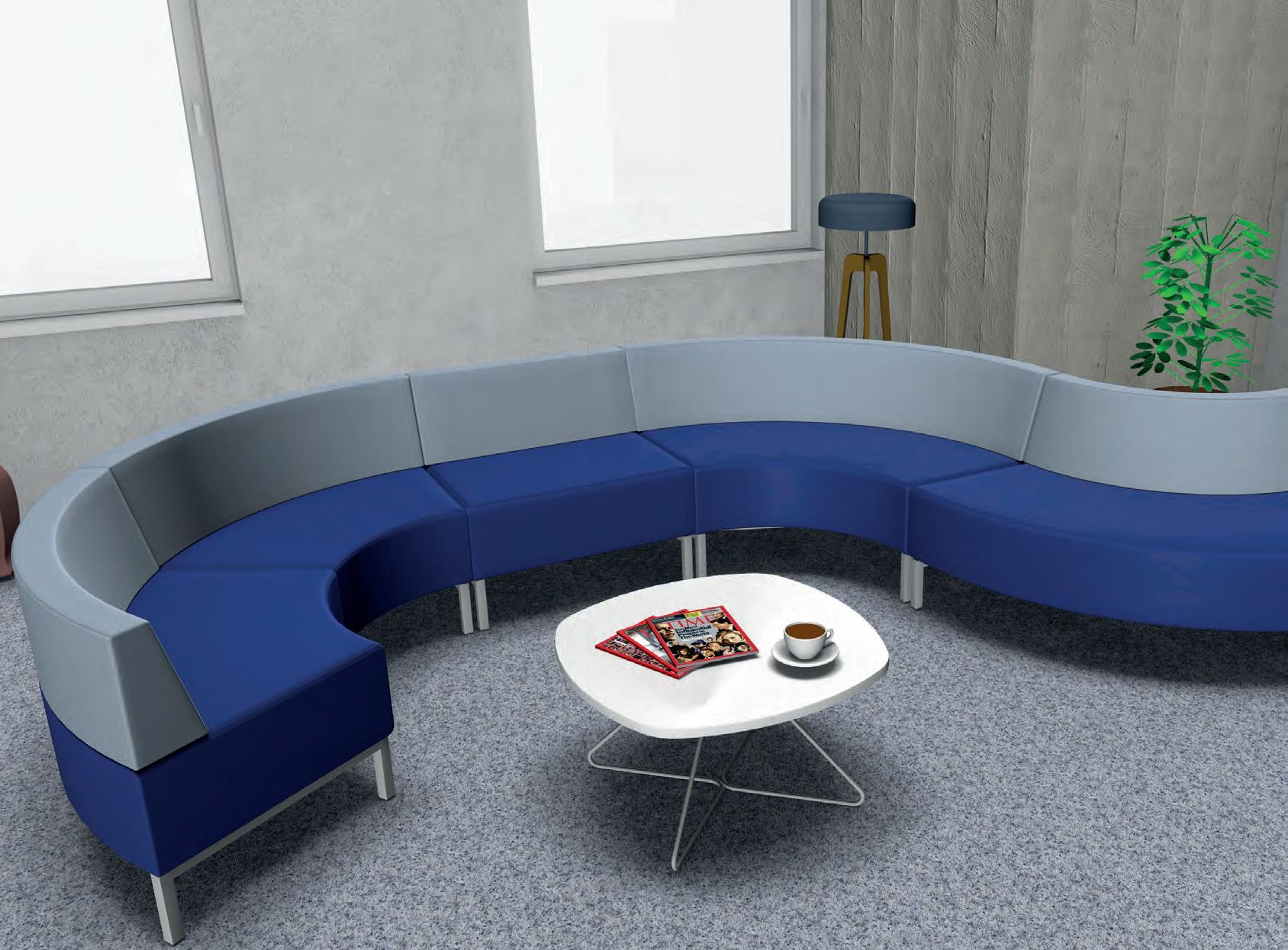

Detroit Soft Seating

The Detroit is a clever modular system with endless possibilities of configuration with the use of 90 degree planning pieces.

Key Features

The units are interchangeable and are available without backrests to create bench style seating or versatile arrangements to suit different departments within a hospital. Available in sofa and bench styles with corner units as an option.

• Easy to clean antimicrobial vinyl to aid infection control

• Two-tone vinyl colour is optional – costs 10% extra

• 19 stone/120kg per seat

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Top colours for Denton Tables

Dimensions

Double

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA3830 Detroit single seat upholstered chair, no back

CA3831 Detroit double seat upholstered chair, no back

CA3832 Detroit double seat upholstered chair, no back, extra wide

CA3833 Detroit single seat upholstered chair

CA3834 Detroit single seat upholstered chair with right hand arm

CA3835 Detroit single seat upholstered chair with left hand arm

CA3836 Detroit double seat upholstered chair

CA3837 Detroit double seat upholstered chair, extra wide

CA3838 Detroit double seat upholstered chair, extra wide with right hand arm

CA3839Detroit double seat upholstered chair, extra wide with left hand arm

CA3840 Detroit square coffee table

CA3841 Detroit rectangular coffee table

Double

Dimensions

Detroit Tables Height 440mm Depth 555mm

White Black Walnut

Koko

“Koko has helped us create a wonderful area, relaxing and comfortable, great for time to reflect”

Key Features

A distinctive compact seating range moving away from the traditional. With subtle curves and elevated backrest and arms, Koko adds a new dimension to any reception area.

• Easy to clean antimicrobial vinyl to aid infection control

• Elevated back

• Four leg frame

• Sturdy steel frame and heavily padded seats and armrests act as excellent lumbar support

• Chrome finish

• 19 stone/120kg per seat

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA3660 Koko single seat bench with back

CA3661 Koko two seat bench with back

CA3662 Koko three seat bench with back

CA3663 Koko single seat armchair with armrests

CA3664 Koko two seat sofa with back with armrests

CA3665 Koko three seat sofa with back with armrests

Dimensions

All Models

Height 780mm

Seat Height 430mm

Depth 660mm

Seat Depth 510mm

CA3660

Width 720mm

Seat Width 720mm

CA3661

Width 12 20mm

Seat Width 12 20mm

CA3662

Width 1720mm

Seat Width 1720mm

CA3663

Width 720mm

Seat Width 580mm

CA3664

Width 12 20mm

Seat Width 1080mm

CA3665

Width 1720mm

Seat Width 1580mm

Amethyst AM Berry BY Kirsche KI Pink PK

Case Study

Orpington Hospital –staff well-being hub

Location

Orpington Hospital

The brief

Orpington Hospital identified the need to improve the staff facilities at the Hospital, to provide a well-being hub for hard-working staff to relax and take their breaks in. A courtyard within the Hospital provided the perfect space for an outdoor break area. The trust knew providing a place to rest would enhance staff well-being and help with retention and recruitment.

The approach

Ocura worked closely with Claire and her colleagues at Orpington Hospital, to design an area that would provide a high level of comfort and convenience for staff, whilst complementing the modern design of the new facility. Space planning and design concepts helped Claire and her team decide on the preferred styles of furniture. Earthy colours were selected to create a woodland theme for the well-being hub.

The outcome

The new purpose-built facility in the hospital courtyard is a bright and airy space for staff to take a restful break, and have a snack or beverage. The Trust selected Koko sofas and custom-made stools for the interior area, and Aurora chairs and tables for the exterior area.

MP Gareth Bacon who opened the facility says it “looks fantastic”. Professor Clive Kay, Chief Executive of King’s College Hospital NHS Foundation Trust, which runs Orpington Hospital, said, “We know how important facilities like this are, and I am very pleased that we have been able to create such a fantastic space. I hope staff will enjoy this facility for many years to come”.

The hospital charity, Friends of Orpington Hospital gave a generous donation towards the project, funding the furniture for both the interior and exterior.

“Comfortable, relaxing, has inviting colours, the space is fantastic and a brilliant peaceful area for staff”

Tulsa Soft Seating

With the growth in open and breakout areas within hospital environments and the lean towards contemporary seating styles, the Tulsa has come to the forefront as a piece of healthcare furniture that ticks all the boxes.

Key Features

Designed to have less of a clinical feel and more of a comfort style, creating a certain sense of warmth, the Tulsa is a chair which makes you feel like you’re in a space which is a home away from home. Available in a range of armchairs with a matching two seater sofa.

• Easy to clean antimicrobial vinyl to aid infection control

• Two-tone vinyl colour is available but adds 10% surcharge

• There are three backrest height options to suit the range of patient heights

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA3820 Tulsa single seat armchair, low-backrest

CA3821 Tulsa single seat armchair, medium-backrest

CA3822 Tulsa single seat armchair, high-backrest

CA3823 Tulsa two seat armchair, medium-backrest

Dimensions

Single Seat Models

Depth 700mm

Seat Depth 500mm

Width 780mm

Seat Width 540mm

Seat Height 500mm

Height 750mm (CA3820) 850mm (CA3821) 950mm (CA3822)

CA3823

Depth 700mm

Seat Depth 500mm

Width 1290mm

Seat Width 11 00mm

Height 850mm

Seat Height 500mm

Clini-Cart® Secure Slimline Phlebotomy Trolley

Key Features

The slimline phlebotomy trolley comes equipped with a sharps bin holder as standard to facilitate blood collection. This medical trolley is a desirable choice for areas where space is limited. The lockable trolley provides ample size drawers for storage where items are kept safe through its central locking system.

The trolley can be customised to the users’ needs with a range of dividers and accessories. The trolley is complete with a pull out tray to increase the work surface for ease of use and supplied on 100mm castors, two of which are braked.

• Push handle for ease of manoeuvrability

• One-piece moulded worktop with slightly raised edges

• Lockable drawers

• Easy clean

• Dividers not included

Dimensions

Height 1005mm Width (including handle) 61 0mm

Depth 540mm Width (excluding handle) 505mm

Internal drawer dimensions

Height 2 x 75, 2 x 150, 1 x 220mm Width 360mm Depth 390mm

Ordering Information

Code Description

CA4371 Clini-Cart® Secure Slimline phlebotomy trolley

Accessories

CA4353 Dividers for 75mm drawer (Narrow/Slimline/Sepsis)

CA4354 Dividers for 150mm drawer (Narrow/Slimline/Sepsis)

Please see page 88 for a full range of accessories. Please note, if you wish to install any accessories to your CliniCart® trolleys, these must be included in your order. We are unfortunately unable to retrofit accessories to the trolleys once they have completed production.

Following extensive research with healthcare professionals, this option has been introduced into our Clini-Cart® range.

Clini-Cart® Secure Slimline Standard and Low Height Trolley

The Clini-Cart® slimline trolley is a desirable choice for areas where space is limited.

Key Features

The lockable trolley provides five drawers of storage where items are kept safe through its central locking system. The trolley can be customised to the user’s needs with a range of dividers and accessories. Complete with a pull out tray to increase the work surface for ease of use.

It is also available in a low height, four-drawer option. Both versions are supplied on 100mm castors, two of which are braked.

• One-piece moulded worktop with slightly raised edges

• Lockable drawers

Dimensions

• Easy clean

• Dividers not included

Internal drawer dimensions CA4361

Ordering Information

Code Description

CA4361 Clini-Cart® Secure Slimline hospital trolley, standard height

CA4366 Clini-Cart® Secure Slimline hospital trolley, low height

Models marked with are available from our 5-Day Express Range.

Accessories

CA4353 Dividers for 75mm drawer (Narrow/Slimline/Sepsis)

CA4354 Dividers for 150mm drawer (Narrow/Slimline/Sepsis)

Please see page 88 for a full range of accessories. Please note, if you wish to install any accessories to your CliniCart® trolleys, these must be included in your order. We are unfortunately unable to retrofit accessories to the trolleys once they have completed production.

Clini-Cart® Secure

Standard and Low Height Trolleys

Designed for use in theatres, wards and a wide range of hospital environments.

Key Features

Clini-Cart® can be customised with a range of accessories to suit any department’s needs. Standard and low height trolleys are fitted with four large 125mm castors, including two braked castors and one directional castor to enable easy manoeuvrability and a large pull out side tray to increase work surface area.

• One-piece moulded worktop with slightly raised edges

• Lockable drawers

Dimensions

• Easy clean

• Dividers not included

Height 880mm (CA4064) Depth 540mm

1025mm (CA4064) Width 815mm

Internal drawer dimensions

CA4064 Height 1 x 75 , 3 x 150mm

Ordering Information

Code Description

CA4064 Clini-Cart® Secure hospital trolley, low height, 4 drawer

CA4065 Clini-Cart® Secure hospital trolley, standard height, 5 drawer

Models marked with are available from our 5-Day Express Range.

Accessories

CA4083 Dividers for 75mm drawer, standard width, 3 long, 3 short

CA4084 Dividers for 150mm drawer, standard width, 2 long, 2 short

Please see page 88 for a full range of accessories. Please note, if you wish to install any accessories to your CliniCart® trolleys, these must be included in your order. We are unfortunately unable to retrofit accessories to the trolleys once they have completed production.

Economy Narrow Trolley

When you just need simplicity without the need for additional accessories.

Key Features

Simple in its design, there is no push handle or accessory rail, resulting in an economically-priced product without compromising the quality. Equipped with smooth metal sides for ease of cleaning and a moulded worktop with slightly raised edges, this is an ideal trolley for hospital environments.

• Drawer dividers available – not included

• Four x 100mm castors (two braked)

• 5 lockable drawers

Dimensions

Height 867mm

Depth 540mm

Internal drawer dimensions

Height 3 x 75, 1 x 150, 1 x 220mm

Colour Options

Trolley drawer colour is Atlantic.

• Easy clean

• Please note: Accessories can’t be fitted to this trolley, except for drawer dividers (not included)

Width 520mm

Width 360mm Depth 390mm

Ordering Information

Code Description

CA4350AT Economy lockable storage trolley, narrow, Atlantic

Models marked with are available from our 5-Day Express Range.

Accessories

CA4353 Dividers for 75mm drawer (Narrow/Slimline/Sepsis)

CA4354 Dividers for 150mm drawer (Narrow/Slimline/Sepsis)

CA4099 Spare keys, pair (state key number)

Clini-Cart® Secure Emergency Resus Trolley

Designed with resuscitation requirements in mind, our resus trolley is perfect for emergency situations.

Key Features

Robust in construction, our resus trolleys come equipped with a full-length locking bar with individually numbered plastic seals to ensure security. Drawer dividers and a range of accessories are available to customise the trolley to the user’s specific needs. Also, there is a one-piece moulded worktop with slightly raised edges and a pull out side tray to increase work surface space.

• One-piece moulded worktop with slightly raised edges

• Slimline versions have four x 100mm castors (two braked, one directional)

• Standard versions have four x 125mm castors (two braked, one directional)

• Easy clean

• Drawer dividers not included

Internal drawer dimensions

CA4435/CA4436/CA4430

5 Drawer Height 2 x 75 , 2 x 150, 1 x 220mm

Trolley Dimensions

Ordering Information

Code Description

CA4435 Clini-Cart® Secure emergency resus trolley with locking bar and 100 seals, 5 drawer, red

CA4436 Clini-Cart® Secure emergency resus trolley with locking bar and 100 seals, 4 drawer, red

CA4430 Clini-Cart® Secure emergency resus trolley with locking bar and 100 seals, 5 drawer, blue

CA4440 Clini-Cart® Secure slimline emergency resus trolley with locking bar and 100 seals, 5 drawer, red

CA4441 Clini-Cart® Secure slimline emergency resus trolley with locking bar and 100 seals, 4 drawer, red

Models marked with are available from our 5-Day Express Range.

Accessories

CA4412 Plastic breakaway seals, individually numbered (set of 100)

CA4418 Four gang socket, switched and fused

CA4083 Dividers for 75mm drawer, standard width, 3 long, 3 short

4

CA4440/CA4441

5

CA4084 Dividers for 150mm drawer, standard width, 2 long, 2 short

CA4353 Dividers for 75mm drawer (Narrow/Slimline/Sepsis)

CA4354 Dividers for 150mm drawer (Narrow/Slimline/Sepsis)

Please see page 89 for a full range of accessories. Please note, if you wish to install any accessories to your Clini-Cart® Emergency Resus Trolley, these must be included in your order. We are unfortunately unable to retrofit accessories to the trolleys once they have completed production.

Clini-Cart® Secure Accessories

Please note, if you wish to install any accessories to your Clini-Cart® trolleys, these must be included in your order. We are unfortunately unable to retrofit accessories to the trolleys once they have completed production.

Ordering Information

Code Description

CA4017* Digilock keypad lock for Clini-Cart® Secure trolley

CA4011* Digilock programming key

CA4012* Digilock manager key

CA4081 Sharps bin holder for Clini-Cart® Secure trolley

CA4312 Sharps bin (5L) – pack of 5

CA4082 Glove box holder for Clini-Cart® Secure trolley

CA4086 Glove box holder, triple for Clini-Cart® Secure trolley

CA4085 Hand gel dispenser holder for Clini-Cart® Secure trolley

CA4089 Paper towel roll dispenser (takes up to 250mm wide rolls)

CA4099 Spare keys, pair (state key number)

CA4413 Telescopic two hook IV pole

CA4093 Adjustable laptop/notebook holder

CA4417 Catheter holder/tubes holder

CA4094 A4 Patient notes holder for Clini-Cart® Secure trolley

CA4097 Sharps bin holder for Sharpsmart unit for Clini-Cart® Secure trolley

CA4419 Magnetic label holder (per drawer)

CA4420 Removable drawer liners with dividers (for 75mm drawer)

CA4421 Removable drawer liners with dividers (for 150mm drawer)

CA4098 Sharps bin holder for Sharpsafe 30 Litre bin unit for Clini-Cart® Secure trolley

CA4083 Dividers for 75mm drawer, standard width, 3 long, 3 short

CA4084 Dividers for 150mm drawer, standard width, 2 long, 2 short

CA4313 Sharps Bin Holder for Sharpsguard containers up to 5L

CA4314 Sharps Bin Holder for Sharpsguard containers over 5L

CA4353 Dividers for 75mm drawer (Narrow/Slimline/Sepsis)

CA4354 Dividers for 150mm drawer (Narrow/Slimline/Sepsis)

* CA4017, CA4011 and CA4012 must be bought together. Cannot be sold separately.

CA4093

CA4094

CA4313

CA4086

CA4413

CA4417

CA4085

CA4017

CA4097

CA4081

CA4083

CA4084

Clini-Cart® Secure Emergency Resus Trolley Accessories

Please note, if you wish to install any accessories to your Clini-Cart® trolleys, these must be included in your order. We are unfortunately unable to retrofit accessories to the trolleys once they have completed production.

Ordering Information

Accessories

CA4412 Plastic breakaway seals, individually numbered (set of 100)

CA4413 Telescopic two hook IV pole

CA4414 Defibrillator tray unit

CA4415 CPR board

CA4416 Oxygen bottle holder (145x125x403mm)

CA4417 Catheter holder/tubes holder

CA4418 Four gang socket, switched and fused

CA4422 Threaded inserts for mounting Laerdel suction unit (LSU) wall bracket (wall bracket NOT included)

CA4081 Sharps bin holder for Clini-Cart® Secure trolley

CA4083 Dividers for 75mm drawer, standard width, 3 long, 3 short

CA4084 Dividers for 150mm drawer, standard width, 2 long, 2 short

CA4420 Removable drawer liners with dividers (for 75mm drawer) for standard trolley

CA4421 Removable drawer liners with dividers (for 150mm drawer) for standard trolley

CA4353 Dividers for 75mm drawer (Narrow/Slimline/Sepsis)

CA4354 Dividers for 150mm drawer (Narrow/Slimline/Sepsis)

CA4313 Sharps Bin Holder for Sharpsguard containers up to 5L

CA4414

CA4422 Pull out side tray for additional workspace (supplied as standard)

CA4418

CA4084

CA4416

CA4412

CA4417

Clini-Cart® Open Trolley Standard and Low Height

Designed for safe storage and transportation of hospital supplies.

Key Features

The frame is welded together for premium quality with sturdy plastic runners to ensure durability and longevity. With enclosed sides and a removable plastic top, these trolleys can be cleaned with ease. Various tray configurations are available along with optional dividers and a range of accessories to customise the trolley to the user’s needs.

• Lower model designed to fit under 900mm worktop

• Four x 75mm double wheel castors, 2 lockable

• Drawer dividers not included

• Shallow tray 7.5kg, Deep tray 15kg

Trolley Dimensions

Standard height, single width Width 600mm

Depth 500mm

Height 1060mm

Standard height, double width Width 11 05mm

Depth 500mm

Height 1060mm

Low height, single width Width 600mm

Depth 500mm

Height 855mm

Low height, double width Width 11 05mm

Depth 500mm

Height 855mm

Internal drawer dimensions

Shallow Tray

External Height 80mm Width 465mm

Depth 425mm

Internal Height 75mm Width 445mm

Depth 400mm

Ordering Information

Code Description

CA43201S4D Clini-Cart® Open trolley, Standard height, single width, with 1 shallow and 4 deep trays

CA43203S3D Clini-Cart® Open trolley, Standard height, single width, with 3 shallow and 3 deep trays

CA43211S3D Clini-Cart® Open trolley, Low height, single width, with 1 shallow and 3 deep trays

CA43213S2D Clini-Cart® Open trolley, Low height, single width, with 3 shallow and 2 deep trays

CA43222S8D Clini-Cart® Open trolley, Standard height, double width, with 2 shallow and 8 deep trays

CA43226S6D Clini-Cart® Open trolley, Standard height, double width, with 6 shallow and 6 deep trays

CA43232S6D Clini-Cart® Open trolley, Low height, double width, with 2 shallow and 6 deep trays

CA43236S4D Clini-Cart® Open trolley, Low height, double width, with 6 shallow and 4 deep trays

Models marked with are available from our 5-Day Express Range.

Deep Tray

External Height 157mm Width 465mm

Depth 425mm

Internal Height 150mm Width 445mm

Depth 400mm

Accessories

CA4336 Clini-Cart® Open trolley glove box holder – Triple

CA4337 Clini-Cart® Open trolley sharps bin holder

CA4338 Clini-Cart® Open trolley sharps bin holder for Sharpsmart Unit

CA4339 Clini-Cart® Open trolley, hand gel dispenser holder

CA4330 Set of tray dividers for single depth tray

CA4331 Set of tray dividers for double depth tray

Please see page 94 for a full range of accessories

Clini-Cart® Open Slimline Trolley Standard and Low Height

Designed for safe storage and transportation of hospital supplies.

Key Features

Our slimline trolleys are the perfect solution for busy hospital environments with a lack of space. These trolleys are available in various configurations, making them suitable for a wide variety of applications.

• Enclosed sides and removable plastic top for ease of cleaning

• A range of accessories available

• Low model design to fit under 900mm worktop

Trolley Dimensions

Standard height, single width Width 445mm

Depth 500mm

Height 1060mm

Standard height, double width Width 790mm

Depth 500mm

Height 1060mm

• Four x 75mm double wheel castors, 2 lockable

• Supplied with label holders

• Shallow tray 7.5kg, Deep tray 15kg

Internal drawer dimensions

Shallow Tray

External Height 80mm

Width 310mm

Depth 420mm

Internal Height 75mm

Width 290mm

Ordering Information

Code Description

CA43241S4D

Clini-Cart® Open slimline trolley, Standard height, single width, with 1 shallow and 4 deep trays

CA43243S3D Clini-Cart® Open slimline trolley, Standard height, single width, with 3 shallow and 3 deep trays

CA43251S3D Clini-Cart® Open slimline trolley, Low height, single width, with 1 shallow and 3 deep trays

CA43253S2D Clini-Cart® Open slimline trolley, Low height, single width, with 3 shallow and 2 deep trays

CA43262S8D Clini-Cart® Open slimline trolley, Standard height, double width, with 2 shallow and 8 deep trays

CA43266S6D Clini-Cart® Open slimline trolley, Standard height, double width, with 6 shallow and 6 deep trays

CA43272S6D Clini-Cart® Open slimline trolley, Low height, double width, with 2 shallow and 6 deep trays

Low height, single width

Width 445mm

Depth 500mm

Height 855mm

Low height, double width Width 790mm

Depth 500mm

Height 855mm

Deep Tray

Depth 405mm

External Height 160mm

Width 310mm

Depth 420mm

Internal Height 155mm

Width 290mm

Depth 405mm

CA43276S4D Clini-Cart® Open slimline trolley, Low height, double width, with 6 shallow and 4 deep trays

Models marked with are available from our 5-Day Express Range.

Accessories

CA4336 Clini-Cart® Open trolley glove box holder – Triple

CA4337 Clini-Cart® Open trolley sharps bin holder

CA4338 Clini-Cart® Open trolley sharps bin holder for Sharpsmart Unit

CA4339 Clini-Cart® Open trolley, hand gel dispenser holder

Please see page 94 for a full range of accessories

Clini-Cart® Open Accessories

Please note, if you wish to install any accessories to your trolleys, these must be included in your order.

Ordering Information

Accessories

CA4336 Clini-Cart® Open trolley glove box holder – Triple

CA4337 Clini-Cart® Open trolley sharps bin holder

CA4338 Clini-Cart® Open trolley sharps bin holder for Sharpsmart Unit

CA4339 Clini-Cart® Open trolley, hand gel dispenser holder

CA4330 Set of tray dividers for single depth tray

CA4331 Set of tray dividers for double depth tray

CA4330 and CA4331 drawer dividers are not for slimline trolleys.

CA4336

Glove box holder – Triple

CA4337

Clini-Cart® Open trolley sharps bin holder

CA4338

Clini-Cart® Open trolley sharps bin holder for Sharpsmart Unit

CA4339

Hand gel dispenser holder

CA4330 and CA4331 drawer dividers are not for slimline trolleys

CA4330

Set of tray dividers for single depth tray

CA4331

Set of tray dividers for double depth tray

Clini-Cart® Notes Trolley

Compact and Large

Our medical notes trolleys allow the transportation of medical files securely and with ease.

Key Features

The trolley is available in two sizes to accommodate all room and space requirements, a narrow version and a wider version with a greater capacity. They are supplied on four 125mm castors, two braked, and have sliding tops to provide a work surface.

• Lockable to keep medical notes secure

• Push handle

• Comfortable height for easy access

• The top drawer will accommodate approximately 35 (compact model), or 50 (large model) foolscap suspension files depending on the volume of notes in each one

• Suspension files can be ordered through the hospital stationery supplies

Ordering Information

Code Description

CA4752 Clini-Cart® Notes trolley, compact, lockable

CA4756 Clini-Cart® Notes trolley, large, lockable

CA4758 Clini-Cart® Notes trolley, large, lockable with bottom drawer

Models marked with are available from our 5-Day Express Range.

Trolley Dimensions

All Models

Height 901mm

Depth 526mm

Width 600mm (extends to 1140mm) (compact) 900mm (extends to 1700mm) (large)

CA4752

Clini-Cart® Trolley, Stainless Steel, Flush-Welded

Part of our premium range of durable stainless steel trolleys.

Key Features

Our dressing and instrument trolley is designed to offer greater strength, stability and a higher weight capacity. The trolleys are supplied on four high-quality 95mm antistatic castors, two of which are braked.

• 304 grade stainless steel construction for strength and ease of cleaning

• Supplied with protective buffers

Dimensions

All Models Height 840mm

CA4171 Width 450mm

Depth 450mm

CA4173 Width 61 0mm

Depth 450mm

CA4175 Width 750mm

Depth 450mm

CA4177 Width 91 0mm

Depth 450mm

CA4172 Width 91 0mm

Depth 61 0mm

CA4176 Width 12 20mm

Depth 61 0mm

Ordering Information

Code Description

CA4171 Clini-Cart® Trolley, stainless steel, flush-welded

CA4173 Clini-Cart® Trolley, stainless steel, flush-welded

CA4175 Clini-Cart® Trolley, stainless steel, flush-welded

CA4177 Clini-Cart® Trolley, stainless steel, flush-welded

CA4172 Clini-Cart® Trolley, stainless steel, flush-welded

CA4176 Clini-Cart® Trolley, stainless steel, flush-welded

Models marked with are available from our 5-Day Express Range.

CA4171

CA4175

Clini-Cart® Trolley,

Stainless Steel, Reversible Shelf

Our reversible shelf trolley has upturned edges on one side and a flat surface if reversed.

Key Features

The Reversible Shelf trolleys shelves are completely removable for ease of cleaning and can be steam cleaned or autoclaved. They are constructed with a seamlessly welded frame for durability and ease of cleaning. These trolleys use 95mm antistatic castors, two of which are braked.

• 304 graded stainless steel for strength

• Supplied with protective buffers

• Easy to move

Dimensions

All Models Height 840mm

CA4181 Width 450mm

CA4183 Width 61 0mm

CA4185 Width 750mm

CA4187 Width 91 0mm

Ordering Information

Code Description

CA4181 Clini-Cart® Trolley, stainless steel, reversible shelf

CA4183 Clini-Cart® Trolley, stainless steel, reversible shelf

CA4185 Clini-Cart® Trolley, stainless steel, reversible shelf

CA4187 Clini-Cart® Trolley, stainless steel, reversible shelf

Models marked with are available from our 5-Day Express Range.

epth 450mm

Soiled Linen Trolleys

Key Features

Available in both stainless steel and mild steel, our linen trolleys are durable, long-lasting and exceptionally cost-effective. A variety of models are available, including double-sized options and trolleys with lids, supplied on 75mm castors for easy mobility.

• Lower platform bars provide good bag support and are easy to clean

• Welded frames ensure a high-quality finish and longer life span

• Lidded version is foot-operated for optimum hygiene

• Linen bags available

Ordering Information

Code Description

CA4731 Soiled linen trolley, stainless steel, single

CA4701 Soiled linen trolley, mild steel, single

CA4733 Soiled linen trolley, stainless steel, double

CA4703 Soiled linen trolley, mild steel, double

CA4741 Soiled linen trolley, stainless steel with lid, single

CA4742 Soiled linen trolley, stainless steel with lid, double

Models marked with are available from our 5-Day Express Range.

Dominica Melamine Bedside Cabinet

Focusing on strong construction and durability, the Dominica range of bedside cabinets is the perfect accompaniment to any bedside.

Key Features

Providing ample secure storage space, it’s the perfect choice for patients and ward staff. Supplied with quality braked castors, lockable upper storage and a lower cupboard with adjustable shelves.

• Melamine to withstand everyday use

• Individual locks with keys to ensure security of personal items

• Easy to clean flat surfaces

• The castors allow the cabinet to be easily moved when needed

Colour Options

Ordering Information

Code Description

CA3940BE Dominica bedside cabinet in melamine, with upper and lower cupboards, Beech

CA3940AT Dominica bedside cabinet in melamine, with upper and lower cupboards, Atlantic

CA3940GY Dominica bedside cabinet in melamine, with upper and lower cupboards, Grey

CA3942AT Dominica bedside cabinet in melamine, with two upper drawers and lower cupboard, Atlantic

Dimensions

All Models

Height 91 0mm

Width 490mm

Depth 490mm

Height of top flap 490mm

Locking System

CA3982Keyed alike – all locks are the same (2 keys per lock)

CA3984Master Key for keyed to differ locks (single key)

CA4013 Dominica digital combination lock (colour silver)

CA4014 Master Key for digital combination lock

Models marked with are available from our 5-Day Express Range.

CA3940GY

Dominica Bedside Cabinet with Wardrobe Unit

The perfect addition to our bedside cabinet, the Dominica with a combined wardrobe is the ideal solution for patients who require a longer hospital stay.

Key Features

The unit has a wardrobe positioned to the left hand side.

• Melamine to withstand everyday use

• High-quality castors with brakes

• Locking combinations available

• Easy to clean

Colour Options

Ordering Information

Code Description

CA3944AT Dominica bedside cabinet in melamine, with upper and lower cupboards and wardrobe mounted to side, Atlantic

Locking System

CA3982Keyed alike – all locks are the same (2 keys per lock)

CA3984Master Key for keyed to differ locks (single key)

CA4013 Dominica digital combination lock (colour silver)

CA4014 Master Key for digital combination Lock

Dimensions

Height 1440mm

Width 745mm

Depth 490mm

Height of cabinet 91 0mm

Cool Green - CL Berry - BYKirsche - KI Amethyst - AM Pink - PK

Perle - PE Delft - DEAtlantic - AT Schwarz - SC Turkis - TU Atlantic AT

Overbed Tables

Every design brief has a purpose for us, when we started the process our goal was to create the best value Overbed/Overchair Table.

Key Features

The range is an essential part of patient care, and so our driver was to create a robust and durable product that was designed especially for demanding healthcare environments. The design ensured a product that is ‘one wipe’ clean’ to aid infection control, the 50mm castors allow the table to be easily moved. The table is height-adjustable which allows the patient to choose the height to suit their needs.

• Easy to clean

• Easy height adjustment

• Robust design

• Ergonomically designed one-piece moulded top

• 2 braked castors

• 25kg

Colour Options

Light Grey (Standard)

Ordering Information

Code Description

CA4860 curaCARE easy clean overbed table

CA4861 curaCARE easy clean overchair table

Models marked with are available from our 5-Day Express Range.

Dimensions

Height 720-1035mm

Width 905mm

Depth 420mm

CA4860

CA4861

Mobile Workstation

Our mobile, height-adjustable table is ideal for working in a seated or standing position.

Key Features

Suitable for bedside use, the multifunctional table is perfect for busy areas of a hospital where a mobile work space is required.

• Durable Trespa top which is easy clean

• Gas lift height-adjustable

• Quality castors, 2 braked

Ordering Information

Dimensions

Height 710 -1100mm

Width 500mm

Depth 500mm

“I purchased some of the mobile workstations and they are the answer to all the nurses’ frustration of trying to find a surface to write notes and for resting clinical trays that house items for cannulation and treatment fluid bags, etc. The adjustable height is ergonomic which encourages good posture. They are now an essential day to day item for staff and we wouldn’t be without them. Highly recommended.”

Code Description CA4104 Mobile Workstation

Mild Steel Infusion Stand

Key Features

Our infusion stands provide great stability for patients who are receiving intravenous fluids. The upper poles and hooks are constructed from 304 grade stainless steel and are height-adjustable. Available in a two and four hook version.

• Weighted base

• Five star base with antistatic, non-marking castors, 2 braked

• Delivered fully assembled

CA3410 CA3415

Safety Standards

Meets Appendix A of BS3619:1976 Mobile Infusion Stands. (Stability requirements).

Coloured Base Options

For infusion stands with coloured base (extra cost), add the colour suffix to the end of the code, e.g. CA3410AT.

Ordering Information

Code Description

CA3410Mild Steel Infusion Stand, 2 hook, 50mm castors, weighted base

CA3415Mild Steel Infusion Stand, 4 hook, 50mm castors, weighted base

Models marked with are available from our 5-Day Express Range.

Dimensions

Height 1600-2100mm

Width 560mm

Depth 560mm

A mild steel drip stand which is high-quality and competitively priced.

Stainless Steel Infusion Stand

Compatible with any clinical environment or operating theatre, our premium quality stainless steel infusion stands are constructed from 304 grade stainless steel.

Key Features

A weighted base as standard for optimum stability when heavier items such as infusions pumps are used in conjunction. Supplied with 2 of 4 hooks, and highly mobile with quality castors.

• Five star base with antistatic, non-marking castors

• Height-adjustable

• Delivered fully assembled

Safety Standards

Meets Appendix A of BS3619:1976 Mobile Infusion Stands. (Stability requirements).

Ordering Information

Code Description

CA3460Stainless Steel Infusion Stand, 2 hook, 50mm castors, weighted base

CA3465Stainless Steel Infusion Stand, 4 hook, 50mm castors, weighted base

Dimensions

Height 1600-2100mm

Width 560mm

Depth 560mm

CA3460 CA3465

Mobile Folding Screen –Solid Panel

Our screens are the perfect option for providing patients with temporary or permanent privacy. CA3356

Key Features

Available in three, four or five solid panel versions which are easily movable via a strong castor system on each base section.

• White epoxy frame for durability

• Minimal assembly required

• Easy to clean

Dimensions

All Models

Folded width 615mm

Height 1744mm

Depth 425mm

CA3356

Opened out width 1845mm

CA3357

Opened out width 2460mm

CA3358

Opened out width 3075mm

Premium Folding Privacy Screens

Key Features

Available in plain white with a wall-mountable option if required.

• Available in four, six or eight panel versions

• Easy and compact fold design when closing

• Easy to clean

Ordering Information

Code Description

White Screen Panels

CA3382WH Mobile folding privacy screen, solid panel, 4 sections

CA3383WH Mobile folding privacy screen, solid panel, 6 sections

CA3384WH Mobile folding privacy screen, solid panel, 8 sections

CA3390WH Wall-mounted folding privacy screen, solid panel, 4 sections

CA3391WH Wall-mounted folding privacy screen, solid panel, 6 sections

CA3392WH Wall-mounted folding privacy screen, solid panel, 8 sections

Bubble Design Screen Panels

CA3384WH

Mobile folding privacy screen, solid panel, 8 sections (2400mm long)

Dimensions

All Models

Folded width 400mm

Height 1650mm (mobile)

1850mm (wall-mounted)

Depth 560mm

CA3383BU

Mobile folding privacy screen, solid panel, 6 sections (1800mm long)

4-Section

Opened out width 1200mm

6-Section

Opened out width 1800mm

8-Section

Opened out width 2400mm

CA3382BU Mobile folding privacy screen, solid panel, 4 sections

CA3383BU Mobile folding privacy screen, solid panel, 6 sections

CA3384BU Mobile folding privacy screen, solid panel, 8 sections

CA3390BU Wall-mounted folding privacy screen, solid panel, 4 sections

CA3391BU Wall-mounted folding privacy screen, solid panel, 6 sections

CA3392BU

Wall-mounted folding privacy screen, solid panel, 8 sections

Models marked with are available from our 5-Day Express Range.

Designed specifically for hospital environments, our premium mobile screens have solid panels ensuring stability with an easyclean surface.

Handsfree Waste Bin, Silent

Lid Closure

A soft closing pedal bin designed for use in hospitals and clinical settings.

Key Features

Each bin is available with a variety of standard waste segregation coloured lids, supporting the safe management of health care waste and adherence to infection control guidelines.

• Fire retardant sack holder

• Manufactured from mild steel

• Powder coated in white epoxy for ease of cleaning

• Pedal operated silent closing lids

Lid Colour Options

Yellow Black Orange White Tiger Stripe

BE5065

BE5066

Ordering Information

Code Description

BE5065Handsfree waste bin, silent lid closure, 20 litre

BE5066 Handsfree waste bin, silent lid closure, 50 litre

BE5067 Handsfree waste bin, silent lid closure, 70 litre

Dimensions

20 litre

Height 500mm

Width 275mm

Depth 340mm

70 litre

Height 750mm

Width 395mm

Depth 410mm

50 litre

Height 585mm

Width 395mm

Depth 410mm

BE5067

Kickabout Bowl, Bucket and Bowl Stands

Made from grade 304 stainless steel our bowl, bucket stands and holders are sleek in design and durable in use.

Key Features

All models come equipped with quality antistatic castors. A removable bowl is available for easy cleaning and sterilisation.

• Perfect solution for general surgical use

Ordering Information

Code Description

CA3341 Kickabout bowl holder, stainless steel (includes bowl)

CA3751 Bowl stand, stainless steel, single (excludes bowl)

CA3753 Bowl stand, stainless steel, double (excludes bowls)

CA3345 Bowl, stainless steel, 360mm diameter

CA3347Stainless steel bucket 12 litre

CA3343 Kickabout bucket holder (includes bucket)

Dimensions

CA3341

Width 360mm

Height 250mm

Depth 360mm

CA3343

Width 310mm

Height 320mm

Depth 310mm

CA3345

Width 360mm

Height 150mm

CA3753

Depth 360mm

CA3347

Width 310mm

Height 280mm

Depth 310mm

CA3351

Width 440mm

Height 900mm

Depth 440mm

CA3353

Width 780mm

Height 900mm

Depth 440mm

Mayo Tables and Surgeons Foot Stools

Our stainless steel, height-adjustable Mayo tables are suitable for use in all surgical areas, they come supplied with a removable top tray and are on 50mm non-marking antistatic castors two of which are braked.

Key Features

Our smart foot stools are the perfect aid in any theatre environment with a compact frame and anti-slip aluminium thread.

• Foot stool available in small and large sizes

• 304 grade stainless steel

Ordering Information

Code Description

CA3346Mayo table on castors

CA3348 Surgeons’ foot stool, aluminium tread, small

CA3349 Surgeons’ foot stool, aluminium tread, large

Dimensions

CA3346

Width 650mm

Height 840-1300mm

Depth 395mm

CA3348

Width 310mm

Height 320mm

Depth 310mm

CA3346

CA3348

CA3349

Width 360mm

Height 150mm

Depth 360mm

Sparks Paediatric Reclining Armchair

Modelled on our favourite Denver armchair, the Sparks is designed for younger patients.

Key Features

Maintaining all the key features such as quality and comfort our paediatric armchair is suitable for children between 3 to 7 years of age. An ergonomically designed backrest for lateral back support with an easy, smooth push out recline function, ideal for any young user.

• Antimicrobial vinyl to aid infection control

• Supplied on heavy-duty lockable castors

• Two tone upholstery available for improved aesthetics – 10% surcharge applies

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Dimensions

All Models

Seat Height 360mm

Seat Width 360mm

Width 500mm

Armrest Width 70mm

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA1945

Sparks paediatric manually reclining armchair

Mauro Cushion

Key Features

This cushion easily and securely attaches to the Mauro, Fero or Avento chair, and the back and lateral headrest cushions can be adjusted in height, to suit a range of patient sizes.

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Perle PE Schwarz SC Delft DE Atlantic AT Turkis TU Amethyst AM Berry BY Kirsche KI Pink PK

This anatomical support cushion insert quickly transforms the versatile Mauro, Fero or Avento chair into a supportive chair for much younger children.

Hoy Waiting Area Chairs

The Hoy is a beautiful range of modular seating, allowing you to design a welcoming and friendly waiting area for your patients and visitors.

Dimensions

All Models

Seat Height 480mm

Depth 700mm

Seat Depth 700mm (without backrest)

530mm (with backrest)

Width/Seat Width 800mm (1 seat bench)

1200mm (2 seat/60° bench)

1670mm (90° bench)

1800mm (3 seat bench)

Height 480mm (without backrest)

1 020mm (with backrest)

Key Features

Available with and without backrests, these units can be arranged side by side in a straight line, or a curved U or S shape, to allow you to configure the seating to make excellent use of the space available.

• Antimicrobial vinyl to aid infection control

• Design allows for easy cleaning underneath

• Two tone upholstery available for improved aesthetics – 10% surcharge applies

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA4800Hoy one seat bench, no backrest

CA4801Hoy two seat bench, no backrest

CA4802Hoy three seat bench, no backrest

CA4805Hoy one seat unit, with backrest

CA4806Hoy two seat unit, with backrest

CA4807Hoy three seat unit, with backrest

CA4810 Hoy 60° bench, no backrest

CA4811 Hoy 90° bench, no backrest

CA4812 Hoy 60° external unit, with backrest

CA4813 Hoy 90° external unit, with backrest

CA4814 Hoy 60° internal unit, with backrest

CA4815 Hoy 90° internal unit, with backrest

CA4816 Hoy single armrest, upholstered

Perle PE Schwarz SC Delft DE Atlantic AT Turkis TU Amethyst AM Berry BY Kirsche KI Pink PK

CA4800

CA4816

CA4815

CA4814

CA4813

CA4811

CA4810

CA4807

CA4802

CA4801

CA4806

CA4805

Longa Modular Seating Range

The Longa is a flexible and fun modular seating range with soft curves and gentle waterfall seat edges.

Dimensions

Height/Seat Height 450mm

Depth/Seat Depth 750mm

Width/Seat Width 1520mm

Key Features

Its low wide stance and irregular shapes provides a striking alternative for sitting or relaxing in atriums, reception and break out areas. The irregular shapes allow you to design interesting and attractive patient spaces, with plenty of visibility for parents keeping a watch on their children.

• Antimicrobial vinyl to aid infection control

• Design allows for easy cleaning underneath

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Dimensions

Height/Seat Height 450mm

Depth/Seat Depth 695mm

Width/Seat Width 1550mm

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA4820L Longa small modular bench, left sided unit

CA4821L Longa medium modular bench, left sided unit

CA4822L Longa large modular bench, left sided unit

CA4820R Longa small modular bench, right sided unit

Dimensions

Height/Seat Height 450mm

Depth/Seat Depth 970mm

Width/Seat Width 2150mm

CA4821R Longa medium modular bench, right sided unit

CA4822R Longa large modular bench, right sided unit

Perle PE Schwarz SC Delft DE Atlantic AT Turkis TU

Amethyst AM Berry BY Kirsche KI Pink PK

CA4820L

CA4822R

CA4821L

Papa

Our Papa range consists of a selection of seat shapes to aid you in designing playful and attractive waiting or seating areas, and works well in combination with the other waiting area seating ranges.

CA3890

Height 350mm

Depth 480mm

CA3891

Height 450mm

Depth 480mm

CA3894

Height 350mm

Width 350mm

Depth 350mm

CA3895/6

Height 450mm

Width 450mm

Depth 450mm

CA3897

Height 350mm

Depth 480mm

CA3898

Height 350mm

Length 1200mm

Width 580mm

CA3899

Height 350mm

Length 1200mm

Width 480mm

CA3900

Height 450mm

Depth 480mm

CA3901

Height 450mm

Length 1200mm

Width 580mm

CA3902

Height 450mm

Length 1200mm

Key Features

The Papa range is composed of deeply cushioned shapes which are available in quality vinyl and an array of tantalising colours.

• Antimicrobial vinyl which protects against germs, abrasion and staining

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA3890 Hexagon, upholstered, low height

CA3891 Hexagon, upholstered, standard height

CA3894 Cube seat, upholstered, low height

CA3895 Cube seat, upholstered, standard height

CA3896 Cube table, upholstered, beech effect top

CA3897 Round seat, upholstered, low height

CA3898 Crescent seat, upholstered, low height

CA3899 Oval seat, upholstered, low height

CA3900 Round seat, upholstered, standard height

CA3901 Crescent seat, upholstered, standard height

Height

CA3902 Oval seat, upholstered, standard height

CA3903 Round seat with legs, upholstered

CA3904 Crescent seat with legs, upholstered

CA3905 Oval seat with legs, upholstered

CA4840 Round seat, upholstered, on legs

CA4841 Round seat with cut out, upholstered, on legs

Perle PE Schwarz SC Delft DE Atlantic AT Turkis TU Amethyst AM Berry BY Kirsche KI Pink PK

CA3898

Dimensions

CA3897

CA4840

CA4841

CA3896

Westray Early Years

Our Westray early years range includes an activity table which comes with a beech hardwood frame in a choice of colours or a natural polished finish with a range of brightly coloured tops.

Key Features

A selection of different seating options are available in this range including single chairs, two-seater chairs and benches, all of which come with a beech hardwood frame and fully upholstered in a choice of colours.

• Antimicrobial vinyl to aid infection control

• Westray table is for low activities – chairs do not fit underneath

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Table Top Colours

Dimensions

CA3910

Height 590mm

Seat Height 340mm

Depth 530mm

Seat Depth 400mm

Width 430mm

Seat Width 430mm

CA3912

Seat Height 350mm

Seat Depth 400mm

Seat Width 840mm

CA3911

Height 590mm

Seat Height 340mm

Depth 530mm

Seat Depth 400mm

Width 600mm

Seat Width 600mm

CA3913

Height 330mm

Width 600mm

Depth 600mm

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA3910 Westray child seat, single

CA3911Westray sofa, double

CA3912 Westray bench, double

CA3913Westray table, coloured top

Perle PE Schwarz SC Delft DE Atlantic AT Turkis TU

Amethyst AM Berry BY Kirsche KI Pink PK

Red Yellow GreenBlueBeech

Atmore Chairs and Tables

Bright and cheerful in design, the Atmore Paediatric chairs and tables are simple in design, nice and easy to clean, and work perfectly as a stand alone chair, or to enable a child to sit up at a table for activities.

Key Features

Environmentally friendly, the Atmore chairs and tables use fewer materials than any other in its class and is fully recyclable. Functional and completely made from reinforced polypropylene, the Atmore offers complete strength and durability.

The chairs have a weight capacity of 150kg, however, are lightweight resulting in easy mobility. Fully washable and easy to clean with no moving parts to maintain.

• Chairs stack to 21 high

• Tables stack to 14 high

• Range of seating and table sizes

• Tables are supplied in grey, with a coloured pen holder (select from colours opposite)

Colours

Although every effort is made to ensure that the product supplied matches the colours on this page, variations may occur due to limitations in printing processes.

Ordering Information

When ordering, quote the product code and add the colour as a suffix, i.e. (Code)White.

Code Description

CA3807 Children’s Atmore plastic polypropylene stacking chair, small

CA3808 Children’s Atmore plastic polypropylene stacking chair, medium

CA3809 Children’s Atmore plastic polypropylene stacking chair, large

CA3815 Children’s Atmore plastic polypropylene table, small

CA3816 Children’s Atmore plastic polypropylene table, medium

CA3817 Children’s Atmore plastic polypropylene table, large

Dimensions

CA3807

Height 550mm

Seat Height 310mm

Depth 335mm

Seat Depth 230mm

Width 400mm

Seat Width 285mm

CA3808

Height 630mm

Seat Height 350mm

Depth 405mm

Seat Depth 300mm

Width 460mm

Seat Width 335mm

Dimensions CA3809

Height 770mm

Seat Height 430mm

Depth 510mm

Seat Depth 378mm

Width 500mm

Seat Width 365mm

CA3815

Width 772mm

Height 530mm

Dimensions CA3816

Width 776mm

White Purple Cherry Red BananaMandarin Lime Green Sky BlueRoyal Blue Night Grey Black

Coloured pen holder

Clini-Cart® Secure Paediatric Sticker Set

The Clini-Cart® Secure sticker sets are designed for use in theatres, wards and a wide range of hospital paediatric environments. Our paediatric accessory sets can be used to customise any of our Clini-Cart® Secure range of trolleys on pages 82–87.

Ordering Information

Code Description

CA4015 Clini-Cart® Secure paediatric sea scene sticker set

CA4016 Clini-Cart® Secure paediatric garden scene sticker set

These items are accessories only, a Clini-Cart® from pages 82–87 needs to be ordered with these items.

Clini-Cart® Open Trolley Sticker Set

The Clini-Cart® Open sticker sets are designed for use in theatres, wards and a wide range of hospital paediatric environments. Our paediatric accessory sets can be used to customise any of our Clini-Cart® Open range of trolleys on pages 90–93.

Ordering Information

Code Description

CA4328 Clini-Cart® Open Paediatric Sea Scene sticker set

CA4329 Clini-Cart® Open Paediatric Garden Scene sticker set

These items are accessories only, a Clini-Cart® Open trolley from pages 90–93 needs to be ordered with these items.

Paediatric Bedside Cabinets

Add a beautiful touch to your paediatric ward areas by selecting the Dominica bedside cabinets with a child friendly image, to provide a distraction, a talking point or simply to make the child feel more at home.

Key Features

Providing ample secure storage space, it’s the perfect choice for patients and ward staff. Supplied with quality braked castors, lockable upper storage and a lower cupboard with an adjustable shelf.

• Optional Paediatric castors

• Melamine to withstand everyday use

• Individual locks with keys to ensure security of personal items

• Easy clean

• Keyed to differ supplied as standard

Colour Options

Sea Garden Beach Hut Woodland

Ordering Information

Code Description

CA3946SEA Dominica bedside cabinet, upper and lower cupboard, Sea Scene

CA3946GAR Dominica bedside cabinet, upper and lower cupboard, Garden Scene

CA3946BEA Dominica bedside cabinet, upper and lower cupboard, Beach Hut Scene

CA3946WOO Dominica bedside cabinet, upper and lower cupboard, Woodland Scene

Accessories

CA3395 Set of paediatric castors (yellow cat)

CA3396 Set of paediatric castors (blue bear)

CA3397 Set of paediatric castors (plane)

CA3398 Set of paediatric castors (cow)

CA3946WOO

Premium Paediatric Privacy Screens

Designed specifically for hospital Paediatric environments, this range of premium mobile screens have a paediatric design to add colour to any department or ward.

CA3384SEA

Mobile folding privacy screen, solid panel, 8 sections, sea pattern

Screens shown folded for compact storage

Key Features

These screens are hard wearing, have solid panels, and are supplied on lockable castors (or a wall mounted version), ensuring stability and an easyclean surface.

• Available in four, six or eight panel versions

• Four designs available – Sea scene, garden scene, beach hut or woodland scenes to help make young patients feel more comfortable

• Space saving design, the mobile screens are simple to fold away when not in use

Colour Options

Ordering Information

When ordering, quote the product code and add the colour as a suffix, i.e. (Code) SEA

Code Description

CA3382 Paediatric mobile folding privacy screen, solid panel, 4 sections

CA3383Paediatric mobile folding privacy screen, solid panel, 6 sections

CA3384 Paediatric mobile folding privacy screen, solid panel, 8 sections

CA3390 Paediatric wall-mounted folding privacy screen, solid panel, 4 sections

CA3391 Paediatric wall-mounted folding privacy screen, solid panel, 6 sections

CA3392 Paediatric wall-mounted folding privacy screen, solid panel, 8 sections

Dimensions

All Models

Folded width 400mm

Height 1650mm (mobile) 1850mm (wall-mounted)

Depth 560mm

4-Section

Opened out width 1200mm

6-Section

Opened out width 1800mm

8-Section

Opened out width 2400mm

Sea

CA3383BEA

Mobile folding privacy screen, solid panel, 6 sections, beach pattern

Storage Units for Toys and Books

This range is a selection of coloured storage units for toys and books, to help keep the Paediatric play rooms and waiting areas tidy.

CA4467CY Open book cupboard, large, with coloured end panels

CA4461CY

Storage cupboard, small, with coloured doors and top, lockable, on castors

Colour Options

Cyan CY Pink PI Lime

Tangerine TA

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code) CY for cyan.

Code Description

CA4460 Storage cupboard, small, with coloured doors and top, lockable

CA4461 Storage cupboard, small, with coloured doors and top, lockable, on castors

CA4463PI

Storage cupboard, medium, with coloured doors and top, lockable, on castors

Dimensions

CA4460

Height 550mm

Width 1024mm

Depth 477mm

CA4461

Height 600mm

Width 1024mm

Depth 477mm

Open book cupboard, medium, with coloured end panels

CA4462

Height 783mm

Width 1030mm

Depth 477mm

CA4463

Height 833mm

Width 1030mm

Depth 477mm

CA4464

Height 1018mm

Width 1030mm

Depth 477mm

CA4465

Height 600mm

Width 900mm

Depth 320mm

CA4462 Storage cupboard, medium, with coloured doors and top, lockable

CA4463 Storage cupboard, medium, with coloured doors and top, lockable, on castors

CA4464 Storage cupboard, large, with coloured doors and top, lockable

CA4465 Open book cupboard, small, with coloured end panels

CA4466 Open book cupboard, medium, with coloured end panels

CA4467 Open book cupboard, large, with coloured end panels

CA4466

Height 750mm

Width 900mm

Depth 320mm

CA4467

Height 1018mm

Width 1030mm

Depth 477mm

CA4466CY

Treatment Chairs Comparison

We understand making the right choice should be simple. We also understand the importance of your investment. We’ve created our treatment chair comparison so, at a glance, you can see which of our products best fits your needs.

Case Study New Treatment Chairs for Adnova Clinic

Location

Newcastle Upon Tyne

The brief Adnova partner Charles Durrant wanted treatment chairs that were ergonomically designed, supportive for staff and patients and equipped with the latest technology to suit the look and feel of the new cosmetic surgical practice. They needed to be able to transport patients from the assessment area through to theatre and recovery cubicles. Effective and efficient repositioning of the patient was a major requirement to support staff in a wide range of procedures and cosmetic surgeries.

The approach

The client knew exactly what they wanted our AC+ due to the flexibility of applications and how the chairs can be repositioned during surgery. The surgi-rails accessory needed to be UK Standard so that the client could continue to use the existing clamps to hold equipment. This was a special requirement and was achieved with ease.

The outcome

After using the chairs over the last 3 months Lynne Proctor told us they are really easy and smooth to move around the clinic. Patient flow is optimised as they’re going from being laid flat to sitting up and getting ready to leave the clinic in one chair, reducing recovery time. The handset is simple to use and patients love the ‘relax position’. She also mentioned that the emergency foot bar for quick access to the Trendelenburg position assists in keeping hands free to deal with any emergency that may transpire. Adnova has since safeguarded their investment by purchasing our maintenance contract, a cost-effective way to reduce downtime and enhance the lifetime of their chairs.

“ Our patients feel extremely comfortable in the chairs”

Pictured: gMotio (see page 170)

Verona Therapy Chair

Verona Therapy Chair – Key Features

Verona provides maximum clinical flexibility and the highest level of comfort in areas such as chemotherapy and dialysis. The Verona has a range of movement and the ability to go from a fully upright position to a fully reclined Trendelenburg position, allowing hospitals to use it for initial consultations and treatment. Equipped with up to five electric adjustable motors, the Verona is simplistic in its usability for both patients and clinicians with a picturised handset, to guide users into the desired position.

In addition, the polyurethane arms are cushioned and shaped to facilitate cannulation, and can fold back for easy access from the side of the chair. Complete with an optional shroud over the base and side of the chair, the Verona is easy to clean.

• Antimicrobial vinyl to aid infection control

• Transforms from upright to emergency Trendelenburg position in 7 seconds

• Independent motors allow for adjustments to the leg rest, footrest, seat tilt, backrest and seat height depending on model chosen

• Low entry height of 540mm ideal for patients with mobility issues

• Relax pillow supplied in light grey vinyl

• 34.6 stone/220kg

“I believe our new chairs have made a positive difference to the patients attending the thyroid biopsy clinic, and to the consultants examining the patients during this clinic”

Dimensions

All Models Depth 1480mm Seat Depth 500mm Reclined Length 2300mm Width 800mm Seat Width 600mm

Colour Options

Available in a wide range of colours, from our Valencia range, these can be found on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA1803 Verona therapy chair, 3 motor, fixed height, individually locking castors, manual footrest

CA1813 Verona therapy chair, 3 motor, fixed height, central locking castors, manual footrest

CA1804 Verona premium therapy chair, 4 motor, adjustable height, individually locking castors, manual footrest

CA1814 Verona premium therapy chair, 4 motor, adjustable height, central locking castors, manual footrest

CA1805 Verona deluxe therapy chair, 5 motor, adjustable height, individually locking castors, electric footrest

CA1815 Verona deluxe therapy chair, 5 motor, adjustable height, central locking castors, electric footrest

Accessories

CA1820 LED reading lamp

CA1821 Protective cover – leg section

CA1822 Protective cover – footrest

CA1823 Battery back-up

CA1824 Push handle with holder for paper rolls

CA1825 Holder for infusion pole

CA1826 Infusion pole

CA1827 Foot switch for emergency Trendelenburg positioning

CA1828 Padded vinyl armrests

CA1862 Oxygen bottle holder with assembling bridge

CA1815 Verona deluxe therapy chair in relax position

CA1815

Verona deluxe therapy chair in bed position

CA1815 Verona deluxe therapy chair in Trendelenburg position

Perle PE Schwarz SC Delft DE Atlantic AT Turkis TU

Amethyst AM Berry BY Kirsche KI Pink PK

Ferrara Treatment Chair

“

We are absolutely delighted with our Ferrara chairs. We are now using two treatment rooms which has increased efficiency and reduced time spent in the department. They are incredibly comfortable for patients, easy to use and smooth to control.”

Key Features

Our Ferrara chair is a compact treatment chair suitable for a wide rang of treatments. It is available with upholstered cannulation type armrests or standard armrests, and can be easily placed in a comfort reclined position, or a flat “bed” position, making it a versatile therapy chair; it can also be put into an emergency “Trendelenburg” position quickly. With a seat width of 600mm and the perpendicular angle of the leg section, it can be used as a chair or couch. It is available with or without height adjustment and offers a wide range of accessories to make the Ferrara a next-generation chair.

• Easy to clean antimicrobial vinyl to aid infection control

• The vertical legrest enables the chair to be used in spaces that would be too small for a full length couch

• Innovative armrest technology with individual positioning

• Easy side access

• 100mm twin wheel castors

• 34.6 stone/220kg

Colour Options

Available in a wide range of colours, from our Valencia range, these can be found on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

BE1260 Ferrara treatment chair, 3 motor, fixed height, upholstered arms, individually locking castors

BE1261 Ferrara treatment chair, 3 motor, fixed height, upholstered arms, central locking castors

BE1262 Ferrara treatment chair, 3 motor, fixed height, upholstered arms, fold-out footrest, individually locking castors

BE1263 Ferrara treatment chair, 3 motor, fixed height, upholstered arms, central locking castors, fold-out footrest

BE1264 Ferrara treatment chair, 4 motor, height-adjustable, upholstered arms, central locking castors

BE1265 Ferrara treatment chair, 4 motor, height-adjustable, upholstered arms, central locking castors, fold-out footrest

BE1270 Ferrara treatment chair, 3 motor, fixed height, standard arms, individually locking castors

BE1271 Ferrara treatment chair, 3 motor, fixed height, standard arms, central locking castors

BE1272 Ferrara treatment chair, 3 motor, fixed height, standard arms, fold-out footrest, individually locking castors

BE1273 Ferrara treatment chair, 3 motor, fixed height, standard arms, central locking castors, fold-out footrest

BE1274 Ferrara treatment chair, 4 motor, height-adjustable, standard arms, central locking castors

BE1275 Ferrara treatment chair, 4 motor, height-adjustable, standard arms, central locking castors, fold-out footrest

Accessories

BE1275

Ferrara treatment chair, in the Trendelenburg position, shown with accessories

BE1280 Relax pillow

BE1281 Battery back-up

BE1282 Push handle with holder for paper rolls

BE1283 Foot switch for emergency CPR positioning

BE1284 One piece moulded polyurethane armrests (for upholstered arm versions only)

BE1285 Premium Dolce C5 vinyl for Verona & Ferrara chair

BE1286 Transparent cover for leg rest (not available on versions with fold-out footrest)

CA1825 Holder for infusion pole

CA1826 Infusion pole

CA1862 Oxygen bottle holder with assembling bridge

Perle PE Schwarz SC Delft DE Atlantic AT Turkis TU

Amethyst AM Berry BY Kirsche KI Pink PK

Modena Surgery Treatment Chair

The Modena chair has been introduced to meet the demand for a mobile treatment chair which can be used where traditionally a trolley would be required.

Key Features

Modena’s design saves vitally needed space in a busy hospital environment. It is ideal for minor day procedures, preparation for and transport to and from surgery, and for recovery after anaesthesia. It is powered by high performance motors and can operate from mains or from its integral chargeable battery. A wide range of options exist which can enable the chair to be adapted to different applications.

• Antimicrobial vinyl to aid infection control

• Easy to operate drop down armrests act as cotsides when the patient is lying down

• Electric motor adjustment of backrest, seat and leg section as well as height (adjustment up to 900mm)

• Emergency foot switch for Trendelenburg position, ensuring staff keep their hands free

• Easy side access

• 125mm castors for comfortable transporting, central braking system

• 34.6 stone/220kg

Colour Options

Available in a wide range of colours, from our Valencia range, these can be found on page 206.

Dimensions

Depth 1070mm

Seat Depth 480mm

Reclined Length 2000mm

Width 770mm

Seat Width 600mm

Height 1480-1800mm (pushbar adds 60mm)

Seat Height 580-900mm

Armrest Width 700mm

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA1850 Modena Outpatient surgery treatment chair

Accessories

CA1851 Neck roll cushion

CA1852 Neck pillow

CA1853 Surgi-rails on seat section (pair)

CA1854 Surgi-rails on back section (pair)

CA1855 Push handle

CA1856 Spare/replacement battery

CA1857 Infusion pole (requires holder)

CA1858 Holder for infusion pole

CA1859 Patient table – right hand side (requires holder)

CA1860 Patient table holder – right hand side of seat

CA1861 Patient table holder for back of backrest

CA1862 Oxygen bottle holder with assembling bridge.

BE1295 Premium Dolce C5 vinyl for AC+ and Modena Chair

Perle PE Schwarz SC Delft DE Atlantic AT Turkis TU

Amethyst AM Berry BY Kirsche KI Pink PK

AC+ Chair

“Patient-flow is optimised as patients go from being laid flat to sitting up and getting ready to leave the clinic in one chair, reducing recovery time”

Key Features

AC+ has the same features and adaptability as the Modena chair (see page 150), but has been produced with a lower backrest, this enables this chair to be available for a wider range of applications while incorporating all the existing advantages of the Modena chair.

• Antimicrobial vinyl to aid infection control

• Electric motor adjustment of the backrest, seat tilt and leg section as well as height (adjustment up to 900mm to suit varying patient needs)

• Emergency foot switch for Trendelenburg position, ensuring staff keep their hands free

• The height-adjustable armrests allow side access for patients and can be set at the optimal height for entering or exiting the chair

• 125mm castors for comfortable transporting, central braking system

• 34.6 stone/220kg

Colour Options

Available in a wide range of colours, from our Valencia range, these can be found on page 206.

Dimensions

Depth 1070mm

Seat Depth 480mm

Reclined Length 2000mm (with headrest at maximum)

1620mm (without headrest)

Width 770mm

Seat Width 600mm

Height 1500-1800mm (with headrest at maximum)

Seat Height 580-900mm

Armrest Width 70mm

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

BE1290 AC+ multipurpose outpatients and day surgery mobile chair

Accessories

CA1853 Surgi-rails on seat section (pair)

CA1856 Spare/replacement battery

CA1857 Infusion pole (requires holder)

CA1858 Holder for infusion pole

CA1859 Patient table – right hand side (requires holder)

CA1860 Patient table holder – right hand side of seat

CA1861 Patient table holder for back of backrest

CA1862 Oxygen bottle holder with assembling bridge.

BE1295 Premium Dolce C5 vinyl for AC+ and Modena Chair

Perle PE Schwarz SC Delft DE Atlantic AT Turkis TU

Amethyst AM Berry BY Kirsche KI Pink PK

eMotio Treatment and Examination Chair

Following the largest study ever conducted in relation to medical furniture involving over 200 medical professionals from 6 different countries, Ocura is proud to present eMotio.

Key Features

Designed to deliver efficiency to the clinician, this chair allows the doctor to focus on diagnosis while providing the patient exceptional ergonomics. Low-entry heights and user weight of up to 205kg means equality for all chairs users. Cleverly designed arms that convert to leg rests through one simple function ensure focused time on patient/doctor consultation.

• Four electric motors to ensure easy and safe positioning of patient

• 360 degree access

• The electric height-adjustment allows the couch to be positioned easily allowing for a low entry height for the patient and a comfortable position for the clinician to work at

• Adjustable headrest

Ordering Information

When ordering, quote the product code and add the colour as a suffix, i.e. (Code)Tomato.

Tomato Fuchsia Saphyr Dark Grey Platinum

Le Mans Electric Blood Sampling Chair

One of our most popular chairs, the Le Mans model is held in high esteem for its comfort and usability.

Dimensions

Depth 1056mm

Seat Depth 500mm

Reclined Length 1640mm

Width 660mm

Seat Width 500mm

Height 1385-1790mm

Seat Height 525-930mm

Armrest Width 11 0mm

Ordering Information

When ordering, quote the product code and add the colour as a suffix, i.e. (Code)Tomato.

Code Description

BE1081 Le Mans electric height-adjustable blood sampling chair – combined leg support/backrest adjustment, locking castors

BE1086 Le Mans electric height-adjustable blood sampling chair – independent leg support/backrest adjustment, locking castors

Accessories

BE1062 Stainless steel tray unit

BE1063 Electric backrest adjustment

BE1060 Plastic leg rest cover

Tomato Fuchsia Saphyr Dark Grey Platinum

Valence Hydraulic Blood Sampling Chair

Our stylish Valence chair is height-adjustable by a foot-operated hydraulic pump.

Dimensions

Depth 806mm

Seat Depth 500mm

Reclined Length 1640mm

Width 660mm

Seat Width 500mm

Height 1345-1750mm

Seat Height 525-930mm

Armrest Width 11 0mm

Ordering Information

When ordering, quote the product code and add the colour as a suffix, i.e. (Code)Tomato.

Code Description

BE1070 Valence hydraulic height-adjustable blood sampling chair – combined leg support/backrest adjustment

BE1075 Valence hydraulic height-adjustable blood sampling chair – independent leg support/backrest adjustment

Accessories

BE1062 Stainless steel tray unit

BE1060 Plastic leg rest cover

Tomato Fuchsia Saphyr Dark Grey Platinum

Case Study

New Deneos for The British Airways Health Services Team

customers. They look professional and

the very high standard here.”

Location

Health Centre, London Heathrow Airport

The brief

The British Airways Health Services (BAHS) Team provides an immunisation service along with specialist confidential support and advice for aircrew. Pilots and crew may seek advice about health issues, or they can arrange an appointment with an Occupational Health Physician and AME. The Team was looking to upgrade their current chairs for their health centre beside London Heathrow Airport. Kendall, the Occupational Health Practice Nurse, saw Ocura’s Deneo Chairs in action at the Phlebotomy Department at Hemel Hempstead Hospital, and liked the compact, modern design.

The approach

The new chairs needed to be robust, reliable, and compact, but with a futuristic feel to fit the health centre’s design. We provided a Deneo for the staff to trial to ensure the chair met all their needs. Anita, BA Health Centre Practice Manager told us “everybody had a go [using the chairs] and we had good feedback”. The modern design is better for our customers. It looks professional and fits the very high standard offered here”.

The outcome

British Airways Health Services proceeded with a purchase order for the Deneo Chairs, as well as Orkney Operator Stools for the clinicians. They also purchased an Ocura Care service package as a way of protecting their investment. Our service contracts are a cost-effective way to reduce downtime and enhance the lifetime of your product. They provide a basic Planned Preventative Maintenance strategy, essential for identifying any potential problems whilst helping to keep staff and patients safe when using the furniture.

Once the chairs were manufactured, we arranged delivery, and Robin, Ocura Account Manager provided a training session for staff. Feedback received was “Robin you’re a hit, the nurses felt you were very clear and concise, very good and informative” and “the chair is very straightforward and simple to use”.

“The modern design of Deneo is better for our

fit

Deneo Tilt in Space Blood Sampling Chair

Dimensions

All Models

Seat Depth 500mm

Depth 970mm

Reclined Length 1455mm

Width 575mm

Seat Width 500mm

Armrest Width 150mm

BE1096/BE1097/BE1101/ BE1106/BE1107

Height 500mm

Seat Height 1345mm

BE1108/BE1109

Height 1345-1545mm

Seat Height 500 -700mm

Ordering Information

When ordering, quote the product code and add the colour as a suffix, i.e. (Code)Tomato.

Code Description

BE1096 Deneo fixed height phlebotomy chair with 4 x locking castors and 360° rotation

BE1097 Deneo fixed height phlebotomy chair with 4 x locking castors, 360° rotation and Sit and Go

BE1101 Deneo static base fixed height phlebotomy chair

BE1106 Deneo static base fixed height phlebotomy chair with 360° rotation

BE1107 Deneo static base fixed height phlebotomy chair with 360° rotation and Sit and Go

BE1108 Deneo static base phlebotomy chair with hydraulic height adjustment and 360° rotation

BE1109 Deneo static base phlebotomy chair with hydraulic height adjustment, 360° rotation and Sit and Go

Accessories

BE1111 Leg rest cover for Deneo

BE1112 Headrest cover for Deneo

BE1113 Stainless Steel Tray Unit for Deneo

BE1114 Deneo hand grips (Pair)

Tomato Fuchsia Saphyr Dark Grey Platinum

Shown with options

Brittany Fully Reclining Blood Sampling Chair

Our fixed height Brittany blood sampling chair is similar in its design to the Le Mans, but at an economical price point.

Ordering Information

When ordering, quote the product code and add the colour as a suffix, i.e. (Code)Tomato.

Code Description

BE1051 Brittany blood sampling chair – combined leg support/backrest adjustment, locking castors

BE1056 Brittany blood sampling chair – independent leg support/backrest adjustment, locking castors

Accessories

BE1062 Stainless steel tray unit

BE1060 Plastic leg rest cover

Dimensions

Depth 820mm

Seat Depth 500mm

Reclined Length 1640mm

Width 660mm

Seat Width 500mm

Height 1360mm

Seat Height 500mm

Armrest Width 11 0mm

Tomato Fuchsia Saphyr Dark Grey Platinum

Geneva Blood Sampling Chair

Exceptionally strong within its construction with a 31 stone capacity and modest in its design, the Geneva offers a simple and easy way of delivering blood sampling.

Dimensions

CA1005/CA1006

Depth 609mm

Seat Depth 500mm

Width 700mm

Seat Width 485mm

Height 1091mm (CA1005) 1336mm (CA1006)

Seat Height 520mm

CA1010/CA1011

Depth 609mm

Seat Depth 500mm

Reclined Length 1200mm

Width 700mm

Seat Width 485mm

Height 1091mm (CA1010) 1344mm (CA1011)

Seat Height 520mm

Ordering Information

When ordering, quote the product code and add the colour as a suffix, i.e. (Code)Tomato.

Code Description

CA1005 Geneva phlebotomy chair with two armrests

CA1010 Geneva phlebotomy chair with two armrests and partly reclining backrest

CA1006 Geneva phlebotomy chair with two armrests and headrest

CA1011 Geneva phlebotomy chair with two armrests, partly reclining backrest and headrest

Tomato Fuchsia Saphyr Dark Grey Platinum

Venice Blood Sampling Chair

Compact in size and strong in design, the Venice is supplied with non-slip, height and swivel adjustable armrests.

Key Features

Built to endure rigorous daily use the chair is height-adjustable and compact in size for rooms with limited space.

• Antimicrobial vinyl to aid infection control

• Partially reclining backrest for patient comfort

• Supplied with non-slip, height, and swivel adjustable armrests

• Glide feet

• Available with foot pump or gas lifting mechanism

• 19 stone/120kg

Colour Options

Available in a wide range of colours, from our Valencia range, these can be found on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Dimensions

Both Models

Depth 750mm

Width 650mm

Seat Height 450 -950mm

Perle PE Schwarz SC Delft DE Atlantic AT Turkis TU

Amethyst AM Berry BY Kirsche KI Pink PK

Oslo ENT Ophthalmic Chair

Popular and strong in construction, the firm design of the Oslo offers clinicians a robust and modern chair.

Key Features

Patients can be rotated and raised to the correct positioning to carry out examinations through the hydraulic height mechanism. The Oslo is adaptable and functional for any clinic.

• Antimicrobial vinyl to aid infection control

• The sturdy armrests provide support when entering and exiting the chair

• Compact, lockable rotating seat

• Can be fitted with floor lock castors for safe mobility

• 205 stone/130kg

Colour Options

Available in a wide range of colours, from our Valencia range, these can be found on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

BE1120 Oslo ENT Ophthalmic patient chair

BE1130 Oslo ENT Ophthalmic patient chair, fixed backrest, with castors and floorlock

BE1135 Oslo ENT Ophthalmic patient chair, backrest adjustable to 20 degrees, with castors and floorlock

Dimensions

All Models

Depth 740mm

Seat Depth 470mm

Width 740mm

Seat Width 590mm

Height 850 -1040mm

Seat Height 450 -630mm

BE1135

Reclined Length 850mm

Accessories

BE1023 Removable oval armrests, pair (not with adjustable backrest)

BE1021 Neck bolster

curaPRO ENT Ophthalmic Chair

Durable and pleasing to the eye, the stable design offers clinicians a robust and stylish chair.

Key Features

The curaPRO ranges are developed with the healthcare professional, and their patient needs from concept. As with all curaPRO products from Ocura the ENT and Ophthalmic chair features antibacterial and antimicrobial healthcare vinyl that is a one-wipe clean surface aligned to infection control requirements. Backrest brackets are designed for a long life cycle in the most demanding of environments

• Easy to clean one wipe surface to aid infection control

• Glide feet or castor option with floor locking feature

• A generous seat width to meet varying patient’s needs

• Seat and back angles have been specifically designed for ENT and Ophthalmic departments

• Available with non-rotating gas lift or foot pump

• Quick foot-operated height adjustment which helps clinicians keep their hands free

• 23.5 stone/110kg

Ordering Information

Dimensions

All Models

Width 650mm

Depth 650mm

Seat Width 520mm

Seat Depth 460mm

Height 1010-1150mm

Seat Height 51 0-650mm

Armrest Width 65mm

Thickness of seat pad 11 0mm

Colour Options

Available in a wide range of colours, from our Valencia range, these can be found on page 206.

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

OEN11 curaPRO ENT Ophthalmic Chair, with foot pump and glide feet

OEN12 curaPRO ENT Ophthalmic Chair, with non-rotating gas lift and glide feet

OEN13 curaPRO ENT Ophthalmic Chair, with foot pump, castors and floorlock

OEN14 curaPRO ENT Ophthalmic Chair, with foot pump and glide feet

Carna ENT Ophthalmic Chair

Key Features

Once the patient is seated they can be rotated and raised to the correct position for examination.

The elegant design of the Carna chair coupled with its robust construction ensures many years of useful service in your clinic.

• Antimicrobial vinyl to aid infection control

• Stable five star base

• Sturdy chrome finish armrests

• The hydraulic height adjustment is done by the foot pump to allow clinicians to adjust the height to suit their needs

• 25 stone/159kg

Colour Options

Available in a wide range of colours, from our Valencia range, these can be found on page 206.

Dimensions

All Models

Depth 750mm

Seat Depth 450mm

Width 620mm

Seat Width 510mm

Height 870 -1070mm

Seat Height 480 -580mm

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Perle PE Schwarz SC Delft DE Atlantic AT Turkis TU

Amethyst AM Berry BY Kirsche KI Pink PK

This versatile chair is suitable for many departments across the hospital, especially in ENT and ophthalmic areas.

Bordeaux ENT Ophthalmic Chair

Our durable and comfortable Bordeaux is purpose built for busy environments.

Dimensions

BE1140/BE1141

Depth 840mm (including footrest)

Seat Depth 460mm

Reclined Length 1920mm

Width 620mm

Seat Width 507mm

Height 1326-1526mm (headrest extended)

Seat Height 590-790mm

Ordering Information

When ordering, quote the product code and add the colour as a suffix, i.e. (Code)Tomato

Code Description

BE1140 Bordeaux ENT Ophthalmic chair, height-adjustable and fully reclining with standard headrest

BE1141 Bordeaux ENT Ophthalmic chair, height-adjustable and fully reclining with standard headrest, set of 4 floor fixings

BE1145 Bordeaux ENT Ophthalmic chair, height-adjustable, no footrest, fully reclining with standard headrest

BE1146 Bordeaux ENT Ophthalmic chair, height-adjustable, no footrest, fully reclining with standard headrest, set of 4 floor fixings

Tomato Fuchsia Saphyr Dark Grey Platinum

BE1145 BE1140

Como ENT

Ophthalmic Chair

A perfect blend of design and functionality for ENT and ophthalmic environments. Como is the best solution in ergonomics, mobility and dynamic robustness teamed with maximum comfort.

Key Features

Ergonomically designed for maximum ease of adjustment and comfort with optimum performance within any ENT or ophthalmic setting.

• Pictorial easy to use foot control with the ability to set ‘home’ position.

• Ergonomically designed to offer optimal lumbar support reducing fatigue and tension during prolonged treatments

• Efficient adjustment allows the chair to be easily positioned for individual patients needs

• Removable armrests provide easy access, ideal for patients with mobility issues

• Retractable footrest supports patients’ feet during treatment

• Soft cushioning and easy to clean antimicrobial vinyl to aid infection control

• The highly adjustable headrest can be positioned to support varying patient needs

• The chair rotates smoothly through 360° and can be locked using the small foot lever

• 31 stone/200kg

Colour Options

Available in a wide range of colours, from our Valencia range, these can be found on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Dimensions

CA1611

Width 750mm

Seat Height 530-940mm

Reclined Length 7820mm

Perle

Code Description

CA1611 Como ENT and Ophthalmic Treatment Chair

Accessories CA1610 Paper roll holder

Munich Deluxe ENT Ophthalmic Chair

Providing years of satisfaction and comfort, the Munich has proved to be an outstanding treatment chair with our technicians in the areas of ENT and ophthalmology.

BE1166 Fully reclined position

BE1169

Key Features

The tilt-back armrests allow for easy patient access, with the height function adjusted electronically via use of foot controls. Movement of the backrest, leg rest and footrest is synchronised by a gas assisted lever which is fitted as standard. Electric options are available with optional drop down mobile castor base, allowing for easier chair movement.

• Antimicrobial vinyl to aid infection control

• Fold-out footrest as standard to provide extra comfort and support for the patient

• Includes lockable rotation

• Adjustable from upright to fully reclined position

• Easy to adjust headrest

• Compact base

• 31 stone/200kg

Colour Options

Available in a wide range of colours, from our Valencia range, these can be found on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

BE1166 Munich ENT chair, lockable rotation, fold out footrest

BE1167 Munich ENT chair, electric backrest, lockable rotation, fold out footrest

BE1168 Munich ENT chair, lockable rotation, retractable castor base, fold out footrest

BE1169 Munich ENT chair, electric backrest, lockable rotation, retractable castor base, fold out footrest

BE1172 Munich ENT chair, electric backrest, lockable rotation, retractable castor base, fold out footrest, back adjustment

Dimensions

All Models

Depth 800mm

Seat Depth 450mm

Reclined Length 2040mm

Width 700mm

Seat Width 510mm

Height 1360-1660mm

Seat Height 580-880mm

Armrest Width 60mm

Novak M Day Hospital Chair ZeroG

The Novak M Day Hospital Chair ZeroG replaces a standard patient transport trolley and an electric hospital bed.

Key Features

It is an innovative solution developed in response to the latest trends in outpatient surgery. You can prepare patients for surgery and take them to the OP room in the same chair, surgeons and staff can safely transfer patients on and off the operating table. The soft mattress and safety rails provide optimal patient comfort and safety for recovery.

• The surface is smooth and without seams. It is upholstered in a thin and extra-strong PU coating. It is resistant to blood, urine, oil, fat, and disinfectants. The base cover is UV-resistant, scratch resistant, and prevents dirt build-up

• Easy to use handset for simple height adjustment, allowing clinicians to work at the preferred height, reducing potential back care issues

• Easy to push and manoeuvre due to two additional fifth wheels, moving along corridors and turning on the spot will no longer be a problem, the large castors feature a central locking system

• The most comfortable position for resting is Zero Gravity, fast access is easy by pressing the “cloud” button on a hand set

• Large push handles allow for efficient transport

• The chair corners include a bumper to protect the chair and its surroundings from damage

• Integrated armrests on safety rails support your patient’s arm during preparation for surgery

• Using a handset, you can lower the chair to 58cm to enable easy access for patients with mobility issues

• 39 stone/250kg

Colour Options

Available in a choice of colours.

Light Sky Gray Sky BlueDark Sky Blue

Ordering Information

When ordering, quote the product code and add the colour as a suffix, i.e. (Code) Sky Blue.

Code Description

BE3350 Novak M Day Hospital Chair ZeroG

Accessories

BE3351 Adjustable footrest

BE3352 Infusion stand holder

BE3353 Infusion stand

BE3354 PVC cover for leg section with footrest

BE3355 Battery backup

BE3356 Extended safety rails

BE3357 Oxygen bottle holder

BE3358 Padding for heavy use – navy blue

Dimensions

All Models

Depth Upright 1790mm

Length in flat/bed position 1790mm

Seat Depth 490mm

Width 800mm

Seat Width 690mm

Seat Height 580-830mm

gMotio Gynaecology Chair

gMotio is already considered a must-have gynaecology couch chair.

Shown with accessory options

Dimensions

All Models

Depth 1280mm

Seat Depth 336mm

Reclined Length 1890mm

Width 1006mm

Shown with accessory options

Seat Width 574mm

Height 1553-2068mm

Seat Height 570 -1085mm

Tomato Fuchsia Saphyr Dark Grey Platinum

Ordering Information

When ordering, quote the product code and add the colour as a suffix, i.e. (Code)Tomato.

Code Description

BE1201 gMotio with stirrups

BE1202 gMotio with leg rest

BE1203 gMotio with goeppels

BE1204 gMotio with electrical footrest

BE1206 gMotio with electrical footrest and integrated lights

Accessories

BE1207 gMotio leg rest extension

BE1208 gMotio Head cushion

Stockholm Gynaecology Chair

Practical and simple, the Stockholm is an excellent cost effective choice.

Key Features

Offering key features such as electrical height and tilt adjustment, easy clinician access, detachable leg support and the ability for it to be transformed to a couch when the leg support is attached.

• Antimicrobial vinyl to aid infection control

• Comfortable and adjustable knee troughs allowing easy patient positioning

• Stainless steel tray unit

• Locking castors to allow easy movement of couch when unoccupied

• Low starting height for easy access

• 41 stone/260kg

Colour Options

Available in a choice of colours, see Couch range on page 209.

Mid Blue Beige Ash GreySky Blue Black Damson

Ordering Information

When ordering, quote the product code and add the colour as a suffix, i.e. (Code)AT for Atlantic.

Code Description

BE1240 Stockholm gynaecology chair, electric, with knee troughs

Dimensions

All Models

Depth 870mm

Seat Depth 390mm

Reclined Length 17 70mm (with leg support included)

Width 630mm

Seat Width 600mm

Height 1340-1790mm

Seat Height 460-910mm

Accessories

BE3302 Paper roll holder

BE1236 Fold-down armrests/grab handles (pair)

BE3307 Foot switch, double

BE1237 Wall rack for leg rest storage

BE3321 Neck rest

BE3311 Foot switch; triple

BE3306 Electric backrest

Two Section Couch

Our two section couch is solid in construction and guarantees durability with a long lifespan in demanding healthcare environments.

Key Features

Available with hydraulic or electric height adjustment to ensure the perfect low-entry height for patients and the ideal treatment height for clinicians, reducing back care issues.

• Easy to clean antimicrobial vinyl to aid infection control

• Paper roll holder supplied as standard

• Retractable castors to allow easy movement of couch when unoccupied

• Gas spring assisted backrest

• Electric version 41 stone/260kg

Hydraulic version 35 stone/225kg

Colour Options

Available in a choice of colours, see Couch range on page 209.

Mid Blue Beige Ash GreySky Blue Black Damson

Additional Dimensions

Ordering Information

When ordering, quote the product code and add the colour as a suffix, i.e. (Code) Mid Blue

Code Description

CA5000

2 section hydraulic couch with paper roll holder (Paper roll holder can only be fitted at foot end)

CA5100 2 section electric couch with paper roll holder (Paper roll holder can only be fitted at foot end)

Models marked with are available from our 5-Day Express Range.

Accessories – Please see page 185 for a full range of accessories

CA5060 Stainless steel accessory rail (pair)

CA5061 Stainless steel accessory clamps (units sold individually)

CA5062 Breathe hole

CA5063 Peripheral foot bar for electric model

BE3304 Cot sides, white

BE3305 Foot Switch, single

BE3306 Electric backrest

BE3307 Foot switch, double

BE3314 Phlebotomy armrests

(requires accessory rails and clamps)

Three Section Couch

Our three section couch is solid in construction and guarantees durability with a long lifespan in demanding healthcare environments.

Key Features

Available with hydraulic or electric height adjustment to ensure the perfect low-entry height for patients and the ideal treatment height for clinicians, reducing back care issues.

• Easy to clean antimicrobial vinyl to aid infection control

• Paper roll holder supplied as standard

• Retractable castors to allow easy movement of couch when unoccupied

• Gas spring assisted backrest and legrest

• Electric version 41 stone/260kg

Hydraulic version 35 stone/225kg

Colour Options

Available in a choice of colours, see Couch range on page 209.

Ordering Information

When ordering, quote the product code and add the colour as a suffix, i.e. (Code) Mid Blue

Code Description

BE3020

BE3025

3-Section couch, hydraulic, with paper roll holder

3-Section couch, electric, with paper roll holder

Accessories – Please see page 185 for a full range of accessories

CA5062 Breathe hole

BE3304 Cot sides, white

BE3305 Foot Switch, single

BE3306 Electric backrest

BE3307 Foot switch, double

BE3314 Phlebotomy armrests (pair)

Two and Three Section Bariatric Couch

Our two and three section bariatric couches are solid in construction and guarantee durability with a long lifespan in demanding healthcare environments.

BE3055 (Shown with optional armrests)

BE3050

Key Features

Equipped to facilitate working loads of 41 or 50 stone with a width of 75cm to 100cm wide. The 100cm wide option is compatible for therapists who are required to work with the patient and has a backrest which is adjusted electronically to facilitate this. Our 75cm version has an adjustable backrest via a gas spring. Both versions are height-adjustable to ensure the perfect low entry height for patients and the ideal treatment height for clinicians, reducing back care issues.

• Easy to clean antimicrobial vinyl to aid infection control

• Compatible with most patient hoists

• Retractable castors to allow easy movement of couch when unoccupied

• 750mm wide version 41 stone/260kg 1000mm wide 50 stone/320kg

Colour Options

Available in a choice of colours, see Couch range on page 209.

Ordering Information

When ordering, quote the product code and add the colour as a suffix, i.e. (Code) Mid Blue

Day Care Couch

Combining the key features of a comfortable chair and fully reclining couch, this product is the perfect solution for day procedures which require the patient to be comfortable for long periods of time.

The couch has electric height adjustment and can fully recline and be tilted to the Trendelenburg position.

Key Features

In addition, the provision for seat tilt and folddown armrests ensures patient comfort and safety.

The central locking and steering castors enable the couch to be highly mobile.

• Easy to clean antimicrobial vinyl to aid infection control

• Electric height and tilt adjustment with optional electric backrest adjustment

• Low starting height for easy access

• Gas spring assisted backrest and leg section

• 41 stone/260kg

Colour Options

Available in a choice of colours, see Couch range on page 209.

Ordering Information

When ordering, quote the product code and add the colour as a suffix, i.e. (Code) Mid Blue

Ultrasound Couch

Comprised of three sections, our ultrasound couch has a long backrest to facilitate ultrasound examinations.

Key Features

The electric height-adjustable feature allows the couch to be positioned easily allowing for a low entry height for the patient and a comfortable position for the clinician to work at. The electrically operated tilt facility enables enhanced patient positioning.

• Easy to clean antimicrobial vinyl to aid infection control

• Retractable castors to allow easy movement of couch when unoccupied

• Low starting height for easy access

• Gas spring assisted backrest and leg section

• 41 stone/260kg

Colour Options

Available in a choice of colours, see Couch range on page 209.

Mid Blue Beige Ash GreySky Blue Black Damson

Ordering Information

When ordering, quote the product code and add the colour as a suffix, i.e. (Code) Mid Blue.

Echocardiography Couch

Designed

Key Features

The electric height-adjustable feature allows the couch to be positioned easily allowing for a low entry height for the patient and a comfortable position for the clinician to work at. The interchangeable operator seat and patient hand grips can be moved from one side to the other to suit left and right handed technicians. This couch is also available with an electric tilting seat. Supplied on retractable castors to allow easy movement when not in use.

• Easy to clean antimicrobial vinyl to aid infection control

• Low starting height for easy access

• Gas spring assisted backrest and leg section

• 41 stone/260kg

Colour Options

Available in a choice of colours, see Couch range on page 209.

Ordering Information

When ordering, quote the product code and add the colour as a suffix, i.e. (Code) Mid Blue.

for the use of cardiac examinations, our electric echocardiography couch is furnished with a shaped backrest for ease of use in the cardiac area.

Phlebotomy Couch

Our variable height-adjustable phlebotomy couch comes equipped with two fully adjustable blood sampling armrests for patient comfort and easy access.

Key Features

The couch can be easily reclined if there is a requirement.

• Easy to clean antimicrobial vinyl to aid infection control

• Retractable castors to allow easy movement of couch when unoccupied

• Low starting height for easy access

• Gas spring assisted backrest and leg section

• Height-adjustable – hydraulic or electric

• Electric version 41 stone/260kg

Hydraulic version 35 stone/225kg

Colour Options

Available in a choice of colours, see Couch range on page 209.

Mid Blue Beige Ash GreySky Blue Black Damson

Ordering Information

When ordering, quote the product code and add the colour as a suffix, i.e. (Code) Mid Blue.

Accessories – Please see page 185 for a full range of accessories BE3302

Bergen Gynaecology Couch

Our Bergen couch is part of our quality gynaecology range, designed for comfort, speed and ease of use. The central backrest can be lowered to enable the Bergen to be converted from a gynaecology chair to a flat couch, without the requirement of lifting or removing heavy sections of upholstery.

Key Features

The electric height, tilt and central backrest saves operator fatigue and enables a swift and practical adjustment. In addition, the whole couch can tilt to 15 degrees Trendelenburg and is equipped with adjustable knee troughs to allow easy patient positioning.

• Double thickness, antimicrobial vinyl which protects against germs, abrasion and staining

• Stainless steel tray unit

• Low starting height for easy access

• Electric height, tilt and central backrest adjustment as standard

• Gas spring assisted backrest and leg section

• 41 stone/260kg*

* When gynaecology seat is used maximum capacity is 180kg

Colour Options

Available in a choice of colours, see Couch range on page 209.

Mid Blue Beige Ash GreySky Blue Black Damson

Ordering Information

When ordering, quote the product code and add the colour as a suffix, i.e. (Code) Mid Blue

Couch Accessories

Ordering Information

Code Description

CA5062 Breathe hole

BE3302 Paper roll holder

BE3313 Standard armrests (pair)

BE3308 Bariatric adjustable armrests

BE3316 Cot sides, Chrome

BE3304 Cot sides, White

BE3317 Transportation castors (set of 4)

BE3310 Gynaecology knee troughs (pair)

BE3312 Gynaecology stirrups (pair)

BE3318 Arm support tables

BE3306 Electric backrest

BE3319 Padded cot sides

BE3314 Phlebotomy armrests

BE3320 Oxygen bottle holder

BE3305 Foot Switch, single

BE3307 Foot switch, double

BE3311 Foot switch, triple

BE3324 Linked castor system

BE3325 IV Pole

BE3326 Clean-edge base cover

BE3327 Vinyl foot section cover

BE3309 Battery operating system

BE3999 Extra cost for non-standard vinyl, for couches

BE3329 Battery back-up

BE3323 Electric tilting seat

BE3328 Electric leg support

CA5062 Breathe hole

BE3310 Gynae knee troughs

BE3314 Phlebotomy armrests

BE3325 IV pole (chrome)

BE3313/BE3308 Standard/Bariatric armrests

BE3318 Arm support tables

BE3305/BE3307/ BE3311 Foot switch (3 types)

BE3309 Battery operating system

BE3302 Paper roll holder

BE3312 Gynae stirrups

BE3320 Oxygen bottle holder

BE3326 Clean-edge base cover

BE3304/BE3316 Cot sides – white/ chrome

BE3306 Electric backrest

BE3327 Vinyl foot section cover

BE3317 Transportation castors

BE3319 Padded cot sides

BE3324 Linked castor system

Pictured: Novak M Day Hospital Chair (see page 168)

Shetland Operator Stool

Key Features

The fully upholstered seat pad is supplied in a padded wipe clean antimicrobial vinyl for ease of cleaning. Available in a compact model with a 500mm base for confined spaces.

• 50mm castors

• Height-adjustable

• 23.5 stone/150kg

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA3002 Shetland operator stool 530-720mm, medium height with castors and backrest

CA3003 Shetland operator stool 530-720mm, medium height with castors

CA3004 Shetland operator stool 530-720mm, foot-operated height adjustment with castors

CA3006 Shetland operator stool 530-720mm, foot-operated height adjustment with castors and backrest

CA3070 Shetland compact operator stool, 530-720mm with castors

Models marked with are available from our 5-Day Express Range, in Atlantic.

Dimensions

Height 970-1160mm

Width 630mm 500mm (CA3070 compact)

Depth 630mm 500mm (CA3070 compact)

Accessories

CA3024 Foot ring (only for CA3002, CA3003 and CA3070)

CA3026 Glide feet (to replace castors)

Please see page 201 for other castor or feet options

Seat Height 530-720mm

Seat Width 400mm

Seat Depth 400mm

Perle

Schwarz

Delft

Atlantic

Turkis

Amethyst

Berry

Kirsche

Pink

Built to withstand heavy-duty usage and available with or without a backrest, the Shetland is designed for use in clinical areas of the hospital or in surgery.

CA3006

CA3003

Orkney Operator Stool

A perfect cost-effective alternative to the Shetland, the Orkney is supplied on a heightadjustable base with a black plastic finish.

Key Features

Suitable for outpatients and clinical areas within a hospital.

• Easy to clean antimicrobial vinyl to aid infection control

• Five star base

• 50mm castors

• 23.5 stone/150kg

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA3060 Orkney operator stool

CA3065 Orkney operator Stool with backrest

CA3062 Orkney operator stool with foot ring

CA3067 Orkney operator stool with backrest and foot ring

Accessories

CA3026 Glide feet (to replace castors)

Please see page 201 for other castor or feet options

Dimensions

All Models

Width 630mm

Depth 630mm

Seat Height 530-720mm

Seat Width 400mm

Seat Depth 400mm

CA3065/CA3067

Height 970-1160mm

CA3060

CA3065

Scarp Saddle Stool

Key Features

The adjustable tilting seat has been combined with a gas height adjustment to achieve the perfect seating position allowing the user to distribute pressure on the lower body. The stool’s aim is to promote a healthy seating position and is back care friendly.

• Easy to clean antimicrobial vinyl to aid infection control

• Supplied with soft brake castors to prevent the stool rolling away when not in use

• 50mm castors

CA3650

• 23.5 stone/150kg

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA3650 Scarp saddle stool, brake unloaded soft wheel castors

CA3651 Scarp saddle stool with backrest, brake unloaded soft wheel castors

CA3655 Scarp saddle stool, black base, brake unloaded soft wheel castors

Dimensions

All Models

Width 630mm

Depth 630mm

Seat Height 530-720mm

Seat Width 430mm

Seat Depth 360mm

CA3651/CA3656

Height 970-1160mm

CA3656 Scarp saddle stool with backrest, black base, brake unloaded soft wheel castors

Models marked with are available from our 5-Day Express Range, in Atlantic.

Accessories

CA3026 Glide feet (to replace castors)

Please see page 201 for other castor or feet options

Schwarz

Delft

Atlantic

Turkis

Kirsche

Ergonomically designed, the Scarp saddle stool is an ideal option for those who spend a large majority of time on a stool in the working environment.

CA3656

Bute Surgeons Stool

Equipped

CA3008

Key Features

There is a simple hand-operated height adjustment for optimum positioning or alternatively the Bute is available with a foot-operated height adjustment.

• Antistatic castors or glide feet to suit your application

• 23.5 stone/150kg

Colour Option

Black

Ordering Information

Code Description

CA3008 Bute surgeons stool, removable seat pad, anti-static castors

CA3022 Bute surgeons stool, foot-operated height adjustment, removable seat pad, anti-static castors

Accessories

CA3024 Foot ring (only for CA3008)

CA3020 Anti-static glide feet; set of 5 (instead of castors)

CA3010 Replacement anti-static seat pad

Please see page 201 for other castor or feet options

Dimensions

All Models

Width 630mm

Depth 630mm

Seat Height 530-720mm

Seat Width 380mm

Seat Depth 380mm

with a removable antistatic seat pad for ease of cleaning, the Bute offers durability and longevity as the seat pad can be replaced when required.

Handa Theatre Chairs and Operator Stools

The extensive Handa range offers a seamless solution to theatre and operator staff with focus on ensuring they are perfect for sterile environments.

Handa Theatre Stool as seen on BBC Documentary Surgeons: At the Edge of Life

Key Features

The Handa range of stools and chairs include the choice of round or ergonomic seats, two different styles of adjustable backrests and supportive adjustable armrests. The padded tilting backrest provides excellent support which aids good postural structure during procedures. The castors are soft braked as standard.

• Easy to clean antimicrobial vinyl to aid infection control

• 19 stone/120kg

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA3620 Handa theatre stool, round seat

CA3621 Handa theatre stool, round seat, with backrest

CA3622 Handa theatre stool, ergo seat

CA3623 Handa theatre stool, ergo seat, with backrest

CA3630 Handa anaesthetists chair, round seat, adjustable armrests

CA3631 Handa anaesthetists chair, ergo seat, adjustable armrests

CA3640 Handa surgeons chair, round seat, no armrests

CA3642 Handa surgeons chair, round seat, adjustable armrests

CA3641 Handa surgeons chair, ergo seat, no armrests

CA3643 Handa surgeons chair, ergo seat, adjustable armrests

Accessories

CA3680 Foot-operated height adjustment

CA3024 Foot ring

Dimensions

All Models

Width 640mm

Depth 640mm

Seat Height 490-685mm

Seat Width 400mm

Seat Depth 400mm

CA3640/CA3642

Height 880-1075mm

CA3623/CA3631

Height 870-1065mm

CA3621/CA3630

Height 820 -1015mm

CA3641/CA3643

Height 81 0-1005mm

Perle

Schwarz

Delft

Atlantic

Turkis

Amethyst

Berry BY Kirsche KI Pink PK

Jura Surgeons Chair

The Jura is an exceptionally high-quality precision engineered chair.

Key Features

Unique in its design with features such as a multifunctional backrest which can be rotated 180 degrees around the seat, to be used as either an armrest or for front support during surgery. Fully height-adjustable with a tilt function to recline into position.

• Comfortable, durable and hygienic upholstery

• 50mm soft brake castors to prevent the chair from rolling away when not in use

• 20.5 stone/130kg

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

BE4010 Jura Surgeons’ chair

BE4020 Jura Surgeons’ chair with foot-operated height adjustment

Accessories

BE4031 Anti-static black upholstery and castors

CA3026 Glide feet (to replace castors)

Please see page 201 for other castor or feet options

Perle PE Schwarz SC Delft DE Atlantic AT Turkis TU Amethyst AM Berry BY Kirsche KI Pink PK

Sanda Technicians Chair

and Stool

Made

Dimensions

All Models

Width 630mm

Depth 630mm

CA3101

Height 975-1165mm

Seat Height 535-725mm

Seat Width 480mm

Seat Depth 410mm

CA3101

Key Features

The height-adjustable backrest provides positive ergonomic support and is fully adjustable for the user’s comfort.

• Height-adjustable

• Easy clean

• Great for laboratories and clean rooms

• 20.5 stone/130kg

Colour Option

Black

Ordering Information

Code Description

CA3101 Sanda technicians chair with glide feet and foot ring, 535-725mm

CA3102 Sanda technicians chair with castors, no foot ring. 380-480mm

CA3103 Sanda technicians stool with glide feet and foot ring, 535-725mm

CA3104 Sanda technicians stool with castors, no foot ring. 380-480mm

CA3108 Sanda technicians chair with glide feet, adjustable arms and foot ring, 535-725mm

CA3109 Sanda technicians chair with castors, adjustable arms, no foot ring, 380-480mm

Models marked with are available from our 5-Day Express Range, in Atlantic.

Accessories

CA3102 Height 820 -920mm

Seat Height 380 -480mm

Seat Width 480mm

Seat Depth 410mm

CA3103 Height 975-1165mm

Seat Height 535-725mm

CA3026 Glide feet (to replace castors)

Please see page 201 for other castor or feet options

from a durable, hard-wearing polyurethane seat which is chemical resistant, the Sanda is the ideal choice of chair for users who are looking for product longevity.

Lewis Laboratory and Operator Chair

Specifically designed for use when staff are working at a higher surface, the Lewis laboratory chair has an extended height-adjustable gas column, foot ring and glide feet. CA3117

Key Features

The Lewis operator chair meanwhile, is designed for clinicians who require a chair that is higher than a standard desk chair, for example, when examining a patient or inserting a cannula. The operator models don’t have a foot ring, and are on mobile castors. Both models have a large and comfortable backrest, ensuring user comfortability and good posture.

• Easy to clean antimicrobial vinyl to aid infection control

• Back care friendly

• 23.5 stone/150kg

Colour Options

Our nine most popular colours are below, however these chairs are also available in the full Valencia range shown on page 206.

Technicians Seating

Dimensions

All Models

Width 630mm

Seat Width 500mm

Depth 630mm

Seat Depth 430mm

CA3116/CA3118/CA3032/CA3034

Seat Height 530 -730mm

Height 1040-1240mm

CA3115/CA3117/CA3119/CA3122

Seat Height 600-870mm

Height 1110 -1380mm

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA3117 Lewis laboratory chair with glide feet, polished base and foot ring

CA3115 Lewis laboratory chair with glide feet, polished base, adjustable arms and foot ring

CA3119 Lewis laboratory chair with glide feet, black base and foot ring

CA3122 Lewis laboratory chair with glide feet, black base, adjustable arms and foot ring

CA3116 Lewis operator chair with castors and black base

CA3118 Lewis operator chair with castors and polished base

CA3032 Lewis operator chair with castors, black base and adjustable armrests

CA3034 Lewis operator chair with castors, polished base and adjustable armrests

Models marked with are available from our 5-Day Express Range, in Atlantic.

Schwarz

Delft

Atlantic

Turkis

Amethyst

Berry

Kirsche

Pink

Puffin Administrator Chair

The

CA3086

Key Features

The chair can be tailored with fixed ring arms, height-adjustable arms for extra shoulder and arm support or alternatively, if the preference suits, no arms, guaranteeing complete user comfort.

• Easy to clean antimicrobial vinyl to aid infection control

• Height-adjustable

• 23.5 stone/150kg

Colour Options

Available in a wide range of colours, from our Valencia and Panaz Cadet ranges on pages 206 and 207.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA3081 Puffin administration chair, medium backrest

CA3083 Puffin administration chair, medium backrest, fixed armrests

CA3085 Puffin administration chair, medium backrest, adjustable armrests

CA3082 Puffin administration chair, high backrest

CA3084 Puffin administration chair, high backrest, fixed armrests

CA3086 Puffin administration chair, high backrest, adjustable armrests

Dimensions

All Models

Width 630mm

Seat Width 500mm

Depth 630mm

Seat Depth 430mm

Height 440-510mm

CA3081/CA3083/CA3086

Height 960 -1080mm

CA3082/CA3084/CA3085

Height 1050-1170mm

Models marked with are available from our 5-Day Express Range, in Atlantic.

Accessories

CA3285 Inflatable lumbar

CA3026 Glide feet (to replace castors)

Kirsche

Puffin is ergonomically strong, which provides practicality within any hospital setting.

Skye Nurses Station Chair

Key Features

Available in options to suit all needs the Skye has a tilting seat and adjustable backrest for support and comfort, in addition its available with height-adjustable armrests for shoulder and arm support.

• Easy to clean antimicrobial vinyl to aid infection control

• Height-adjustable

• 23.5 stone/150kg

Colour Options

CA3152

Available in a wide range of colours, from our Valencia and Panaz Cadet ranges on pages 206 and 207.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA3121 Skye medium back nurses station chair, no armrests

CA3125 Skye medium back nurses station chair, fixed armrests

CA3131 Skye medium back nurses station chair, adjustable armrests

CA3142 Skye high back nurses station chair, no armrests

CA3145 Skye high back nurses station chair, fixed armrests

CA3152 Skye high back nurses station chair, adjustable armrests

CA3121/CA3125/CA3131

Accessories

CA3285 Inflatable lumbar

CA3026 Glide feet (to replace castors)

CA3142/CA3145/CA3152

Schwarz

Delft

Atlantic

Turkis

Berry

Kirsche

Pink

Designed with nurses’ key requirements in mind, the Skye is strong in its ergonomics.

Consultant Chair

Our specialist consultants chair has been designed with a generous seat and backrest combination, featuring high-density ergonomic contoured foam to provide exceptional levels of comfort for those in managerial or consultant positions.

Key Features

Available with or without armrests depending on user preference.

• Easy to clean antimicrobial vinyl to aid infection control

• Tilt adjustable backrest

• 23.5 stone/150kg

Colour Options

Available in a wide range of colours, from our Valencia and Panaz Cadet ranges on pages 206 and 207.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA3105 Consultants chair, high backrest, no armrests

CA3107 Consultants chair, high backrest, adjustable armrests

Accessories

CA3026 Glide feet (to replace castors)

Dimensions

Both Models

Width 630mm

Depth 630mm

Seat Height 450 -570mm

Height 610-680mm

Seat Width 480mm

Seat Depth 490mm

Perle PE Schwarz SC Delft DE Atlantic AT Turkis TU

Amethyst AM Berry BY Kirsche KI Pink PK

Arlington Multi Task Chair

Key Features

Designed with a posture correcting back as standard for users who are working for long periods of time. Available with or without height-adjustable armrests.

• Seat height, tilt and lockable/adjustable permanent contact backrest

• Available in different base colour options

• 60mm twin wheel castors

• Optional seat slide and inflatable lumbar support

• 23.5 stone/150kg

Colour Options

Available in a wide range of colours, from our Valencia and Panaz Cadet ranges on pages 206 and 207.

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)AT for Atlantic.

Code Description

CA3280 Arlington high back ergonomic chair, black base, no armrests

CA3281 Arlington high back ergonomic chair, black base, adjustable armrests

CA3282 Arlington high back ergonomic chair, metal base, no armrests

CA3283 Arlington high back ergonomic chair, metal base, adjustable armrests Accessories

New to our range, the Arlington is a versatile and distinctive chair adapted for the modern working environment.

Castor Options

Ordering Information

Code Description

CA3012 Foot

CA3013 Unbraked castors

CA3014 Brake unloaded castors - brake locked when seat is empty

CA3015 Brake loaded castors - brake locks when seat is occupied

CA3016 Anti-static glide feet

CA3017 Individual locking castors

CA3018 Anti-static castors

CA3019 Anti-static brake loaded castors

CA3021 Anti-static brake unloaded castors

A wide range of castor options are available in soft tread, twin wheeled and anti skid for our chairs and stools to meet all the requirements and needs of our users.

CA3013/CA3014/CA3015 Standard castor options

CA3012/CA3016 Foot

CA3018/CA3019/CA3021 Anti-static castors

CA3017 Individual locking castors

Staff Meeting Room and Break Room

Our staff well-being products offer a safe and comfortable environment for hard-working staff to relax. An investment in our products is an investment in your staff.

Key Features

With a simple but comprehensive selection of finishes, you are sure to find exactly what you are looking for.

• White glove delivery service available including room placement, assembly and removal of packaging – please enquire for details

• Many other sizes, designs and finishes available for larger projects, please enquire

• Quality British craftsmanship

Pedestal Dimensions

Wood Finish Width 430mm Depth 600mm Height 625mm

Metal Finish Width 410mm Depth 500mm Height 597mm

Desks, Table Tops Desks and and Pedestals Table Frames

White WH Beech Silver

Ordering Information

Code Description

CA3520 Elite desk 1400x800mm, silver frame

CA3521 Elite desk 1600x800mm, silver frame

CA3522 Elite desk 1800x800mm, silver frame

CA3525 Elite under desk pedestal, metal finish, on castors, 2 upper drawers, 1 lower filing drawer

CA3526 Elite under desk pedestal, wood finish, on castors, 2 upper drawers, 1 lower filing drawer

CA3530 Elite meeting table 1200x800mm, folding, on lockable castors, silver frame

CA3531 Elite meeting table 1400x800mm, folding, on lockable castors, silver frame

CA3532 Elite meeting table 1600x800mm, folding, on lockable castors, silver frame

Accessories

CA3535 Cable Tray for Elite 1400mm desk

CA3536 Cable Tray for Elite 1600mm desk

CA3537 Cable Tray for Elite 1800mm desk

Pictured: Puffin Administrator Chair (see page 197) and Shetland Operator Stool (see page 188)

Pictured: Arvada – mid back (see pages 40-43)

Spradling Valencia

Flammability Rating:

BS5852 Ignition Source (Crib) 5.

BS7176 Medium Hazard.

Antimicrobial Protection:

Anti-fungal, mildew resistant ASTM-G21. Anti-bacterial, AATCC Test Method 147. Permablok 3 from Spradling is a proven vinyl protective coating that’s engineered to create a tough, effective barrier against the three biggest problems encountered in hospital and healthcare environments – germs, abrasion and stains.

Abrasion Resistance:

>300,000 Martindale Rubs.

Cleaning: Wipe clean routinely with a microfibre cloth, lightly dampened with cold water only, then dry with a clean, absorbent cloth. Remove body fluids and extreme soiling immediately (within 15 minutes) with cold water. Apply your approved infection protocol, a 5% sodium chlorite bleach solution, Haz-Tabs or Chlor-Clean. Remove product residues and then dry with a clean, absorbent cloth.

Stains:

Dyes and pigments from jeans, ballpoint and felt tip pens may permanently stain.

Colours:

Although every effort is made to ensure that the vinyl supplied matches the colours on this page, variations may occur due to limitations in printing processes.

Grüin

Terracotta

Taupe

Graphite

Platin

Melone

Leinin

Mocca

Skylight

Citrus

Lotus Tomato

Baltic

Pearlessence Pink

Teal

Chestnut Laurel Lightgrau

Silver Safran Ivory Praliné

Coral

Avocado

Sisal

Port

Lavdendel

Jade

Pure White Berry

Marine

Camel Gold

Perle

Squash

Warm Grey

Buche

Titan Olive

Auster

Kirsche

Atlantic

Turkis

Amethyst

Ultra Violet Schwarz

Night

Cashmere

Beige

Meteor

Petrol

Sonne Rosé Orange

Delft

Apfel Weiss Rot

Panaz Cadet

Flammability Rating:

BS5852 Ignition Source (Crib) 5.

BS7176 Medium Hazard.

Antimicrobial Protection: Shield Plus Technology permanently inhibits the broadest spectrum of microbes (even C diff spore) and prevents nasty odours.

Abrasion Resistance:

350,000 Martindale Rubs.

Cleaning:

Wipe clean routinely with a microfibre cloth, lightly dampened with cold water only, then dry with a clean, absorbent cloth. Remove body fluids and extreme soiling immediately (within 15 minutes) with cold water. Apply your approved infection protocol, a 5% sodium chlorite bleach solution, Haz-Tabs or Chlor-Clean. Remove product residues and then dry with a clean, absorbent cloth.

Stains:

Dyes and pigments from jeans, ballpoint and felt tip pens may permanently stain.

Colours:

Although every effort is made to ensure that the vinyl supplied matches the colours on this page, variations may occur due to limitations in printing processes.

Grey

Midnight Blue

Plum Antistatic Saphyr Fuchsia Dark Peacock Tomato Platinum Glacier Lemon

Couch

Flammability Rating:

BS5852 Ignition Source (Crib) 5.

Antimicrobial Protection: Vinyl inhibits MRSA (3352 Methicillin resistant to Staphylococcus Aurous) Bio-Pruf treated to resist the growth of mould, mildew and odour causing microbes.

Cleaning:

Wipe clean routinely with a microfibre cloth, lightly dampened with cold water only, then dry with a clean, absorbent cloth. Remove body fluids and extreme soiling immediately (within 15 minutes) with cold water. Apply your approved infection protocol, a 5% sodium chlorite bleach solution, Haz-Tabs or Chlor-Clean. Remove product residues and then dry with a clean, absorbent cloth.

Stains:

Dyes and pigments from jeans, ballpoint and felt tip pens may permanently stain.

Colours:

Although every effort is made to ensure that the vinyl supplied matches the colours on this page, variations may occur due to limitations in printing processes

Candy Raspberry Crush Pillar Box Gun Metal Grey Ash Grey White Damson Sky Blue Beige Apple Mint Black Mid Blue Citrus Green Dark Blue

Memphis Faux Leather

Flammability Rating:

BS5852 Ignition Source (Crib) 5.

Antimicrobial Protection: Anti-fungal, including Aspergillus Niger, E. coli, Allinata, Salmonella, Penicillium, Staphylococcus Aureus, Cladosporium Herbarum and will not support microbial growth.

Abrasion Resistance:

>200,000 Martindale Rubs.

Cleaning:

Wipe clean routinely with a microfibre cloth, lightly dampened with cold water only, then dry with a clean, absorbent cloth. Remove body fluids and extreme soiling immediately (within 15 minutes) with cold water. Apply your approved infection protocol, a 5% sodium chlorite bleach solution, Haz-Tabs or Chlor-Clean. Remove product residues and then dry with a clean, absorbent cloth.

Stains:

Dyes and pigments from jeans, ballpoint and felt tip pens may permanently stain.

Colours:

Although every effort is made to ensure that the vinyl supplied matches the colours on this page, variations may occur due to limitations in printing processes.

Vanilla

Dazzle

Conker

Peat

Paprika

Ultra Plum

Slate Chocola Spanish

Espersso

Royal

Indigo Regal

Oyster Lawn

Fondant Tropic

Black

Poppy

Cobalt Linen

Saddle

Chestnut Citrus

Garden

Fushcia Blossom

Mem phis Faux Leather

Dolce C5

Flammability Rating:

BS5852 Ignition Source (Crib) 5.

Antimicrobial Protection: Antimycotic, Antibacterial and Antifungal Protection, including Aspergillus Niger, E. coli, Allinata, Salmonella, Penicillium, Staphylococcus Aureus, Cladosporium Herbarum and will not support microbial growth.

Abrasion Resistance:

>300,000 Martindale Rubs.

Cleaning:

We recommend cleaning at least once a week to extend the lifespan of the upholstery, preventing dirt and contamination from building up and stains from becoming permanent. Clean the whole surface in circular motions using liquid hand soap and water (1 part soap to 9 parts water), or check the guide for recommended cleaning products. Rinse and wipe with a clean damp white cloth to get rid of any excess soap. Repeat as needed and then let dry. Once a month, you can use a softbristle brush for a deeper cleaning. Remember, light colours need more care, more often.

Stains:

Dyes and pigments from jeans, ballpoint and felt tip pens may permanently stain.

Colours:

Although every effort is made to ensure that the vinyl supplied matches the colours on this page, variations may occur due to limitations in printing processes.

Indigo

Chocolate

Ivory Marsala

Artesian Mocha White Burgundy Peacock Vinyl Colours | D olce C5

Citron Camel Charcoal Granadila Grass Latte Pinetree Black

General Cleaning Instructions

Ocura proudly supplies high-quality products, designed to be used in demanding environments. With the correct care and attention, your furniture will provide many years of useful life. The following information is issued as a guide to help maintain our furniture to high standards of cleanliness and thereby prevent the spread of infection. All surfaces should be diligently cleaned, disinfected regularly, and kept dry to minimize the risk of cross-contamination and damage.

Cleaning and subsequent disinfection must be carried out at regular intervals

The following times are usually observed.

• If required.

• Af ter each patient change.

• In accordance with the guidelines of the operator’s hygiene plan.

The product must always be disconnected from the mains supply by unplugging the mains plug before commencing cleaning work.

All General Surfaces

• Clean all surfaces with a soft, damp cloth and polish completely dry. Abrasive cloth must not be used.

• Any stains, spills or soiling should be cleaned up immediately to prevent the possibility of permanent staining.

• For disinfection, use diluted chlorine products at a strength of 1,000ppm chlorine and 10,000ppm for blood/blood-stained body fluid spillages.

• All surfaces must be kept dry at all times. Exposure to wet or humid conditions could result in rust marks, paint lifting, discolouration, and/or corrosion.

• Do not use concentrated bleach, synthetic detergents, solvents, wax polishes, or aerosol sprays on any surface.

• Using cleaning products contrary to the recommended instructions may compromise the integrity of the furniture and invalidate your warranty.

Electrical Components

• Electrical components must not be exposed to any form of liquid or humid conditions.

• Plastic casings containing actuators or handsets should be cleaned using a soft damp non-abrasive cloth and polished dry immediately.

• Do not use solvents, abrasives, synthetic detergents, wax polishes, or aerosol sprays on any electrical components.

Trolleys and Overbed Tables

• Clean all surfaces with a soft, damp cloth and polish completely dry.

• Under no circumstances should scouring sponges or cleaning agents containing abrasive particles, abrasives or other blunting substances be used.

• All surfaces must be kept dry at all times. Exposure to wet or humid conditions could result in rust marks, paint lifting, discolouration, and/or corrosion.

• Keep trolleys and tables away from direct sunlight.

• Exposure to wet or humid conditions could result in rust marks, paint lifting, discolouration, or corrosion.

Vinyl Upholstery

Our vinyl ranges offer excellent stain resistance and cleanability and have been tested for compatibility with the Department of Health and Social Care’s recommended cleaning regimes. Our vinyl is compatible with most NHS-approved cleaning solutions and wipes, including ChlorClean, Haz-tab, Actichlor-Plus, Milton, Clinell and Tristel.

Vinyl upholstery must be cleaned daily in order to maintain its appearance and to prevent any build-up of dirt and contaminants.

1. Wipe clean with a soft cloth (microfibre or similar), lightly dampened with a cleaning agent, if required, and cold water only. Do not use soap or cleaning solutions that contain alcohol, acetates, or solvents (mineral/white spirits).

2. Completely remove excess cleaner with a white, clean, damp cloth.

3. Completely dry the surface with a soft cloth (microfibre or similar). Ensure the vinyl is completely dry before putting the product back into use.

Remove bodily fluid, heavy stains and extreme soiling with cold water immediately.

Any stains, spills, or soiling should be cleaned up promptly to prevent the possibility of permanent staining. Lacquers, strong cleaners, detergents, xylene-based solutions, and acetone may cause immediate damage and contribute to the deterioration of the material. The use of such cleaners is at the end user’s risk.

• Do not use organic solvents (e.g. petrol, benzene, turpentine, toluene, xylene or acetone, chlorides, aerosol sprays, chemical cleaning agents, or wax polishes to clean the vinyl).

• Oil, sweat and blood must be removed immediately. If disinfection is required, use diluted chlorine products at a strength of 1,000 ppm chlorine and 10,000ppm for blood/ blood-stained body fluid spillages. Do not use excessive amounts of water to clean the vinyl.

• Care should be taken to protect the vinyl from oil-based products (including body oils) as continued use will cause the vinyl to harden.

• Dyes and pigments from, iodine, ballpoint pen, lipstick, newsprint, food colourings and clothing, e.g. jeans may be absorbed by the vinyl and cause permanent staining.

• Exposure to wet or humid conditions could result in rust marks, paint lifting, discolouration, or corrosion.

Cleaning results may vary, depending on the size of the stain, the cleaning product used and the time the surface is exposed. The use of unsuitable cleaning agents, disinfectants, the incorrect mixing ratio, and insufficient care of the vinyl can cause damage to the surface coating for which Ocura Healthcare is not liable.

Please note, this guide on its own is not a warranty. It has recommendations for cleaning Ocura devices. Users are responsible for using and cleaning Ocura products safely with cleaning agents that do not affect the surface, composition, performance, or lifespan.

For further support, contact our Customer Care team at customercare@ocura.co.uk or call us on 01732 367777.

Ocura Aftercare

Investment in our furniture is an investment in your staff, patients and future. Make sure your investment is cared for by Ocura Care. Our servicing plans combine unrivalled technical expertise with exceptional customer care, outstanding value, and complete peace of mind. We care as much about your furniture as you do.

Level 1

Manual or single motor medical chairs and couches

All manual chairs, recliners, plinth couches and blood sampling chairs.

• One annual service visit in accordance with our standard maintenance procedure

• Includes engineer’s travel time, costs and time on site

• 25% off replacement parts not covered under warranty

• Free follow up call out which includes 1st half hour on site (time will then be charged at £89.00 + VAT per hour)

Level 2

Multiple motor treatment chairs

All electric recliners, plinth couches, treatments chairs and blood sampling chairs.

• One annual service visit in accordance with our standard maintenance procedure

• Includes engineer’s travel time, costs and time on site

• 25% off replacement parts not covered under warranty

• Free follow up call out which includes 1st half hour on site (time will then be charged at £89.00 + VAT per hour)

Lewis Page 196

Sofia Page 38

Mauro Page 30

Shetland Page 188

2 Section Couch Page 174

Page 51

Arvada® Page 40

curaPRO ENT Ophthalmic Chair Page 161

Sanda Page 192

Westray Page 46

Atmore Page 57

Boston Page 22

Puffin Page 197

Scarp Page 190

Denver Page 16

Dominica Page 100

Clini-Cart® Open Slimline Trolley Page 92

Economy Narrow Trolley Page 85

Clini-Cart® Secure Emergency Resus Trolley Page 86

Soiled Linen Trolley Page 98

Overbed Table Page 104

Mild Steel Infusion Stand

Page 108

Mobile Folding Privacy Screen Page 111

Clini-Cart® Trolley Page 96

Clini-Cart Open Trolley Page 90

Clini-Cart® Notes Trolley Page 95
