Ocura Healthcare 2024/25 Trolleys & Storage Section by Ocura

Hospital

and Storage Secure 98 Polymer 102 Secure Emergency Resus 104 Open 108 Soiled Linen Trolleys 114 Notes 115 Trolley 116 ® Lockable 118 ® Open 128 ® Static or Mobile 134 Book and Storage Cupboard 136 Hospital Trolleys | Contents Our mini-icons in the ordering section will help you quickly identify product features and benefits Available for 48 Hour Delivery Pressure Care Options available Bariatric Model available Bariatric Carbon Neutral Product Paediatric Products

Trolleys

Clini-Cart® Secure Slimline Phlebotomy

Trolley

Following extensive research with healthcare professionals, this option has been introduced into our Clini-Cart® range.

Key Features

The slimline phlebotomy trolley comes equipped with a sharps bin holder as standard to facilitate blood collection. This medical trolley is a desirable choice for areas where space is limited. The lockable trolley provides ample size drawers for storage where items are kept safe through its central locking system.

The trolley can be customised to the users’ needs with a range of dividers and accessories. The trolley is complete with a pull out tray to increase the work surface for ease of use, and is supplied on 100mm castors, two of which are braked and one is directional for easier movement.

• Push handle for ease of manoeuvrability

• One-piece moulded worktop with slightly raised edges

• Lockable drawers

• Easy clean

• Dividers not included

• 100kg (max.20kg per drawer)

Dimensions

Internal drawer dimensions

Ordering Information

Please

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 98

Height 1005mm Width (including handle) 610mm Depth 540mm Width (excluding handle) 505mm

Height 2 x 75, 2 x 150, 1 x 220mm Width 360mm Depth 390mm

Code Description CA4371 Clini-Cart® Secure Slimline phlebotomy trolley Accessories CA4353 Dividers for 75mm drawer (Narrow/Slimline/Sepsis) CA4354 Dividers for 150mm drawer (Narrow/Slimline/Sepsis)

see page 101 for a full range of accessories. Please note, if you wish to install any accessories to your CliniCart® trolleys, these must be included in your order. We are unfortunately unable to retrofit accessories to the trolleys once they have completed production.

Hospital Trolleys | Clini-Cart ® Secure

Clini-Cart® Secure Slimline Standard and Low Height Trolley

The Clini-Cart® slimline trolley is a desirable choice for areas where space is limited. Our paediatric accessory sets can be used to customise any of our Clini-Cart® Secure range of trolleys

Key Features

The lockable trolley provides five drawers for storage where items are kept safe through its central locking system. The trolley can be customised to the user’s needs with a range of dividers and accessories. Complete with a pull out tray to increase the work surface for ease of use.

It is also available in a low height, four-drawer option. Both versions are supplied on 100mm castors, two of which are braked and one is directional for easier movement.

• One-piece moulded worktop with slightly raised edges

• Lockable drawers

Ordering Information

• Easy clean

• Dividers not included

Internal drawer dimensions CA4361

Models

Accessories

CA4353 Dividers for 75mm drawer (Narrow/Slimline/Sepsis)

CA4354 Dividers for 150mm drawer (Narrow/Slimline/Sepsis)

CA4015 Clini-Cart® Secure paediatric sea scene sticker set

CA4016 Clini-Cart® Secure paediatric garden scene sticker set

Please see page 101 for a full range of accessories. Please note, if you wish to install any accessories to your CliniCart® trolleys, these must be included in your order. We are unfortunately unable to retrofit accessories to the trolleys once they have completed production.

Pull out tray

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 99

Code Description

Clini-Cart® Secure Slimline hospital trolley, standard height

Clini-Cart® Secure Slimline hospital trolley, low height

CA4361

CA4366

with

from our 48 Hour Express Range.

marked

are available

Hospital Trolleys | Clini-Cart ® Secure

1005mm Width

610mm 845mm

Width

505mm

540mm

Dimensions Height

(including handle)

(low height)

(excluding handle)

Depth

Height 2 x 75, 2 x 150, 1 x 220mm CA4366 Height 1 x 75, 3 x 150mm Width 360mm Width 360mm Depth 390mm Depth 390mm

CA4361 CA4366

CA4015

Clini-Cart® Secure Standard and Low Height Trolleys

Designed for use in theatres, wards and a wide range of hospital environments.

Key Features

Clini-Cart® can be customised with a range of accessories to suit any department’s needs. Standard and low height trolleys are fitted with four large 125mm castors, including two braked castors and one directional castor to enable easy manoeuvrability and a large pull out side tray to increase work surface area.

• One-piece moulded worktop with slightly raised edges

• Lockable drawers

• 100kg (max.20kg per drawer)

• Easy clean

• Dividers not included

Ordering Information

CA4065

CA4083

CA4084

CA4016

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 100

Code Description

Clini-Cart® Secure hospital trolley, low height, 4 drawer

CA4064

Clini-Cart® Secure hospital trolley, standard height, 5 drawer

marked with are available from our 48 Hour Express Range. Accessories

Models

Dividers for 75mm drawer, standard width, 3 long, 3 short

Dividers for 150mm drawer, standard width, 2 long, 2 short

sticker set

CA4015 Clini-Cart® Secure paediatric sea scene

Clini-Cart® Secure paediatric garden scene sticker set

Hospital Trolleys | Clini-Cart ® Secure Dimensions Height 880mm (CA4064) Depth 540mm 1025mm (CA4065) Width 815mm Internal drawer dimensions CA4064 Height 1 x 75, 3 x 150mm CA4065 Height 2 x 75, 2 x 150,1 x 220mm Width 550mm Width 550mm Depth 390mm Depth 390mm Pull out tray CA4015 CA4065 CA4064

Clini-Cart® Secure Accessories

Please note, if you wish to install any accessories to your Clini-Cart® trolleys, these must be included in your order. We are unfortunately unable to retrofit accessories to the trolleys once they have completed production.

Ordering Information

Code Description

CA4017* Digilock keypad lock for Clini-Cart® Secure trolley

CA4011* Digilock programming key

CA4012* Digilock manager key

CA4081 Sharps bin holder for Clini-Cart® Secure trolley

CA4312 Sharps bin (5L) – pack of 5

CA4082 Glove box holder for Clini-Cart® Secure trolley

CA4086 Glove box holder, triple for Clini-Cart® Secure trolley

CA4085 Hand gel dispenser holder for Clini-Cart® Secure trolley

CA4089 Paper towel roll dispenser (takes up to 250mm wide rolls)

CA4099 Spare keys, pair (state key number)

CA4413 Telescopic two hook IV pole

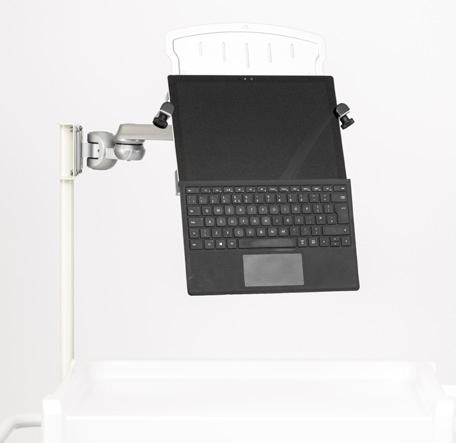

CA4093 Adjustable laptop/notebook holder

CA4417 Catheter holder/tubes holder

CA4094 A4 Patient notes holder for Clini-Cart® Secure trolley

CA4097 Sharps bin holder for Sharpsmart unit

CA4419 Magnetic label holder (per drawer)

CA4420 Removable drawer liners with dividers (for 75mm drawer)

CA4421 Removable drawer liners with dividers (for 150mm drawer)

CA4098 Sharps bin holder for Sharpsafe 30 Litre bin unit

CA4083 Dividers for 75mm drawer, standard width, 3 long, 3 short

CA4084 Dividers for 150mm drawer, standard width, 2 long, 2 short

CA4313 Sharps Bin Holder for Sharpsguard containers up to 5L

CA4314 Sharps Bin Holder for Sharpsguard containers over 5L

CA4353 Dividers for 75mm drawer (Narrow/Slimline/Sepsis)

CA4354 Dividers for 150mm drawer (Narrow/Slimline/Sepsis)

CA4015 Clini-Cart® Secure paediatric sea scene sticker set

CA4016 Clini-Cart® Secure paediatric garden scene sticker set

* CA4017, CA4011 and CA4012 must be bought together.

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 101

CA4093 CA4094 CA4313 CA4086 CA4413 CA4081 CA4085 CA4017 CA4097 CA4081 CA4083 CA4084

Hospital Trolleys | Clini-Cart ® Secure Accessories

Clini-Cart® Polymer Trolley

The Clini-Cart® polymer procedure and emergency resus trolley takes infection prevention and control to a whole new level. It’s patented construction from 100% antimicrobial polymer means it represents the cutting edge of medical cart design.

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 102 Hospital Trolleys | Clini-Cart ® Polymer

Clini-Cart Polymer Procedure Trolley 46” high

Clini-Cart Polymer Emergency Trolley 41” high New

CCP1168BCL101

CCP1041RSL101

Key Features

Choose the Clini-Cart® polymer procedure trolley if you desire the highest levels of IPC for your healthcare facility. Its lightweight yet strong polymer construction means by choosing Clini-Cart® polymer you are choosing to care for your medical staff. Less weight equals fewer musculoskeletal issues, and 100% antimicrobial surfaces avoids your workers being harmed by avoidable infections. A comprehensive range of accessories are available to customise your trolley to the specific needs of your teams. Complete with a pop-out additional work surface. Choose the Clini-Cart® polymer emergency resus trolley if you desire the highest levels of IPC for your healthcare facility. The specially designed breakaway numbered seal locking system removes the need for traditional locking bars to secure the drawers, meaning less dirt traps that could harbour bacteria. A comprehensive range of accessories is available to customise your trolley to the specific needs of your resus team. Complete with a pop-out additional work surface to support your team

Both versions are supplied on 125mm castors, two of which are braked and one is directional for easier movement.

• Integral bumper to protect your facility and the cart

• Lightweight but strong

• 100% antimicrobial polymer

• Dividers not included

• Attractive blue and light grey colourway

• Very resistant to hospital cleaning products

• Choice of 5 or 6 easy to remove ISO drawers for cleaning & restocking

• Two height options 41” or 46” to suit your needs

• Keylock or codelock alternative locking systems

• Patented design

Ordering Information

Code Description

CCP1041RSL101 Clini-Cart® polymer emergency trolley, 41” high, Red side/Red handles, W/44449 drawers, seal lock

CCP1041BKL102 Clini-Cart® polymer procedure trolley, 41” high, Blue side/Blue handles, W/44449 drawers, key lock

CCP1041BCL103 Clini-Cart® polymer procedure trolley, 41” high, Blue side/Blue handles, W/44449 drawers, code lock

CCP1168BKL101 Clini-Cart® polymer procedure trolley, 46” high, Blue side/Blue handles, W/444449 drawers, key lock

Accessories

CCP1000 Waste basket for cart, including holder

CCP1001 Front Shelf on Poly poles

CCP1002 Adjustable laptop arm for pole (only with CCP1001, CCP1005 or CCP1006)

CCP1003 Height adjustable All-in-One central monitor arm for Poly cart

CCP1004 IV pole

CCP1005 4 compartments tilt bin L.Gray Body Blue Handle

CCP1006 5 compartments tilt bin L.Gray Body Blue Handle

CCP1007 3p clear top mat

CCP1008 Sharps bin holder for cart

CCP1009 Oxygen bottle holder

CCP1010 Glove holder for 1 box

CCP1011 Glove holder for 3 boxes

CCP1012 Defibrillator arm for Poly cart (only for CCP1041RSL101 emergency trolley)

CCP1013 Divider set for 4” drawer (1 long, 1 short, 4 compartments)

CCP1014 Divider set for 9” drawer (1 long, 1 short, 4 compartments)

CCP1015 Disinfection Liquid Bottle Holder

CCP1016 Add on IV hooks for accessory bridge (only with CCP1001, CCP1005 or CCP1006)

CA4412 Plastic seals (set of 100) (For Emergency Trolley seal lock)

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 103

Dimensions Height 1040mm 1170mm (CCP1168BCL101) Depth 580mm Width (including handle) 840mm Width (excluding handle) 770mm Internal Drawer Dimensions 5 Drawer Models Height 4 x 122 (4”), 1 x 249mm (6”) Depth 320mm Width 520mm 6 Drawer Models Height 5 x 122 (4”), 1 x 249mm(6”) Depth 320mm Width 520mm Hospital Trolleys | Clini-Cart ® Polymer

Clini-Cart® Secure Emergency Resus Trolley

Designed with resuscitation requirements in mind, our resus trolley is perfect for emergency situations.

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 104

Hospital Trolleys | Clini-Cart ® Secure CA4430 CA4440

Key Features

Robust in construction, our resus trolleys come equipped with a full-length locking bar with individually numbered plastic seals to ensure security. Drawer dividers and a range of accessories are available to customise the trolley to the user’s specific needs. Also, there is a one-piece moulded worktop with slightly raised edges and a pull out side tray to increase work surface space.

• One-piece moulded worktop with slightly raised edges

• Slimline versions have four x 100mm castors (two braked, one directional)

• Standard versions have four x 125mm castors (two braked, one directional)

• Easy clean

• Drawer dividers not included

• 100kg (max.20kg per drawer)

Internal drawer dimensions

Trolley Dimensions

Ordering Information

CA4436

Models marked with are available from our 48 Hour Express Range.

Accessories

CA4354

Please see page 106 for a full range of accessories. Please note, if you wish to install any accessories to your Clini-Cart® Emergency Resus Trolley, these must be included in your order. We are unfortunately unable to retrofit accessories to the trolleys once they have completed production.

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 105

CA4435/CA4436/CA4430 5 Drawer Height 2 x 75, 2 x 150, 1 x 220mm Width 550mm Depth 390mm 4 Drawer Height 3 x 150, 1 x 220mm Width 550mm Depth 390mm CA4440/CA4441 5 Drawer Height 2 x 75, 2 x 150, 1 x 220mm Width 360mm Depth 390mm 4 Drawer Height 3 x 150, 1 x 220mm Width 360mm Depth 390mm Pull out tray Hospital Trolleys | Clini-Cart ® Secure

Code Description CA4435 Clini-Cart® Secure emergency resus trolley with locking bar and 100 seals, 5 drawer, red

Clini-Cart

Secure emergency

with

bar and 100 seals, 4 drawer, red CA4430 Clini-Cart® Secure emergency resus trolley with locking bar and 100 seals, 5 drawer, blue CA4440 Clini-Cart® Secure slimline emergency resus trolley with locking bar and 100 seals, 5 drawer, red

Clini-Cart® Secure slimline emergency resus trolley with locking bar and 100 seals, 4 drawer, red

resus trolley

locking

CA4441

CA4083 Dividers for 75mm drawer, standard width, 3 long, 3 short

drawer, standard width,

long,

short

CA4084 Dividers for 150mm

CA4353 Dividers for 75mm drawer (Narrow/Slimline/Sepsis)

Dividers for 150mm drawer (Narrow/Slimline/Sepsis)

Standard Width Models Height 1025mm Depth 540mm Width 815mm Slimline Models Height 1005mm Depth 540mm Width 610mm

Clini-Cart® Secure Emergency Resus Trolley Accessories

Ordering Information

Accessories

CA4412 Plastic breakaway seals, individually numbered (set of 100)

CA4413 Telescopic two hook IV pole

CA4414 Defibrillator tray unit

CA4415 CPR board

CA4416 Oxygen bottle holder (145x125x403mm)

CA4417 Catheter holder/tubes holder

CA4418 Four gang socket, switched and fused

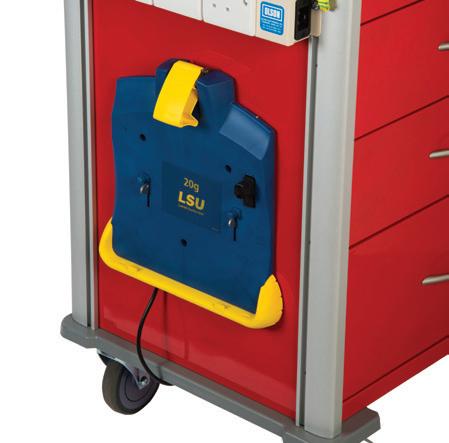

CA4422 Threaded inserts for mounting Laerdel suction unit (LSU) wall bracket (wall bracket NOT included)

CA4081 Sharps bin holder for Clini-Cart® Secure trolley

CA4083 Dividers for 75mm drawer, standard width, 3 long, 3 short

CA4084 Dividers for 150mm drawer, standard width, 2 long, 2 short

CA4420 Removable drawer liners with dividers (for 75mm drawer) for standard trolley

CA4421 Removable drawer liners with dividers (for 150mm drawer) for standard trolley

CA4353 Dividers for 75mm drawer (Narrow/Slimline/Sepsis)

CA4354 Dividers for 150mm drawer (Narrow/Slimline/Sepsis)

CA4313 Sharps Bin Holder for Sharpsguard containers up to 5L

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 106

CA4414 CA4422 CA4418 CA4084 CA4416 CA4412 CA4417

Pull out side tray for additional workspace (supplied as standard)

Hospital Trolleys | Clini-Cart ® Secure Accessories

Economy Narrow Trolley

When you just need simplicity without the need for additional accessories.

Key Features

Simple in its design, there is no push handle or accessory rail, resulting in an economically-priced product without compromising the quality. Equipped with smooth metal sides for ease of cleaning and a moulded worktop with slightly raised edges, this is an ideal trolley for hospital environments.

• Drawer dividers available – not included

• Four x 100mm castors (two braked)

• 5 lockable drawers

Dimensions

Colour Options

Trolley drawer colour is Atlantic.

• Easy clean

• Please note: Accessories can’t be fitted to this trolley, except for drawer dividers (not included)

Ordering Information

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 107

Height 867mm Depth 540mm Width 520mm

Height 3 x 75, 1 x 150, 1 x 220mm Width 360mm Depth 390mm

Internal drawer dimensions

Atlantic AT

Code Description CA4350AT Economy lockable storage trolley, narrow, Atlantic Models marked with are available from our 48 Hour Express Range. Accessories CA4353 Dividers for 75mm drawer (Narrow/Slimline/Sepsis) CA4354 Dividers for 150mm drawer (Narrow/Slimline/Sepsis) CA4099 Spare keys, pair (state key number) Hospital Trolleys | Clini-Cart ® Secure

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 108 Hospital Trolleys | Clini-Cart ® Open

Open Trolley Standard and Low Height

Clini-Cart®

Designed for safe storage and transportation of hospital supplies. CA43226S6D

Key Features

The frame is welded together for premium quality with sturdy plastic runners to ensure durability and longevity. With enclosed sides and a removable plastic top, these trolleys can be cleaned with ease. Various tray configurations are available along with optional dividers and a range of accessories to customise the trolley to the user’s needs.

• Lower model designed to fit under 900mm worktop

• Four x 75mm double wheel castors, 2 lockable

• Drawer dividers not included

• 300kg

• Shallow tray 7.5kg, Deep tray 15kg

Trolley Dimensions

Internal drawer dimensions

Ordering Information

Code Description

CA43201S4D Clini-Cart® Open trolley, Standard height, single width, with 1 shallow and 4 deep trays CA43203S3D Clini-Cart® Open trolley, Standard height, single width, with 3 shallow and 3 deep trays

CA43211S3D Clini-Cart® Open trolley, Low height, single width, with 1 shallow

CA43222S8D Clini-Cart® Open trolley, Standard height, double width, with 2 shallow and 8 deep trays

CA43226S6D Clini-Cart® Open trolley, Standard height, double width, with 6 shallow and 6 deep trays

CA43232S6D Clini-Cart® Open trolley, Low height, double width, with 2 shallow and 6 deep trays

CA43236S4D Clini-Cart® Open trolley, Low height, double width, with 6 shallow and 4 deep trays

Accessories

CA4336 Clini-Cart® Open trolley glove box holder – Triple

CA4337 Clini-Cart® Open trolley sharps bin holder

CA4338 Clini-Cart® Open trolley sharps bin holder for Sharpsmart Unit

CA4339 Clini-Cart® Open trolley, hand gel dispenser holder

CA4330 Set of tray dividers for single depth tray

CA4331 Set of tray dividers for double depth tray

Please see page 112 for a full range of accessories

Low height version, 1 shallow and 3 deep trays

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 109

Standard height, single width Width 600mm Depth 500mm Height 1060mm Standard height,

width Width 1105mm Depth 500mm Height 1060mm Low height,

Width 600mm Depth 500mm Height 855mm Low height,

Width 1105mm Depth 500mm Height 855mm

double

single width

double width

Tray External Height 80mm Width 465mm Depth 425mm Internal Height 75mm Width 445mm Depth 400mm Deep Tray External Height 157mm Width 465mm Depth 425mm Internal Height 150mm Width 445mm Depth 400mm

Shallow

deep

Clini-Cart

and 3

trays CA43213S2D

® Open trolley, Low height, single width, with 3 shallow and 2 deep trays

Hospital Trolleys | Clini-Cart ® Open

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 110 Hospital Trolleys | Clini-Cart ® Open

Clini-Cart® Open Slimline Trolley Standard and Low Height

Designed for safe storage and transportation of hospital supplies. CA43266S6D

Key Features

Our slimline trolleys are the perfect solution for busy hospital environments with a lack of space. These trolleys are available in various configurations, making them suitable for a wide variety of applications.

• Enclosed sides and removable plastic top for ease of cleaning

• A range of accessories available

• 300kg

• Shallow tray 7.5kg, Deep tray 15kg

Trolley Dimensions

Standard

• Low model design to fit under 900mm worktop

• Four x 75mm double wheel castors, 2 lockable

• Supplied with label holders

Ordering Information

Code Description

CA43241S4D

CA43243S3D

Clini-Cart® Open slimline trolley, Standard height, single width, with 1 shallow and 4 deep trays

Clini-Cart® Open slimline trolley, Standard height, single width, with 3 shallow and 3 deep trays

CA43251S3D Clini-Cart® Open slimline trolley, Low height, single width, with 1 shallow and 3 deep trays

CA43253S2D Clini-Cart® Open slimline trolley, Low height, single width, with 3 shallow and 2 deep trays

CA43262S8D

Clini-Cart® Open slimline trolley, Standard height, double width, with 2 shallow and 8 deep trays

Internal drawer dimensions

Shallow Tray

CA43266S6D

Clini-Cart® Open slimline trolley, Standard height, double width, with 6 shallow and 6 deep trays

CA43272S6D Clini-Cart® Open slimline trolley, Low height, double width, with 2 shallow and 6 deep trays

CA43276S4D Clini-Cart® Open slimline trolley, Low height, double width, with 6 shallow and 4 deep trays

Accessories

CA4336 Clini-Cart® Open trolley glove box holder – Triple

CA4337 Clini-Cart® Open trolley sharps bin holder

CA4338 Clini-Cart® Open trolley sharps bin holder for Sharpsmart Unit

CA4339 Clini-Cart® Open trolley, hand gel dispenser holder

Please see page 112 for a full range of accessories

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 111

Standard height version, 3 shallow and 3 deep trays Hospital Trolleys | Clini-Cart ® Open

height,

Width 445mm Depth 500mm Height 1060mm Standard height, double width Width 790mm Depth 500mm Height 1060mm Low height, single width Width 445mm Depth 500mm Height 855mm Low height, double width Width 790mm Depth 500mm Height 855mm

single width

External Height 80mm Width 310mm Depth 420mm Internal Height 75mm Width 290mm Depth 405mm Deep Tray External Height 160mm Width 310mm Depth 420mm Internal Height 155mm Width 290mm Depth 405mm

Clini-Cart® Open Accessories

Please note, if you wish to install any accessories to your trolleys, these must be included in your order.

CA4336 Glove box holder – Triple

CA4337 Clini-Cart® Open trolley sharps bin holder

CA4338 Clini-Cart® Open trolley sharps bin holder for Sharpsmart Unit

CA4339 Hand gel dispenser holder

Ordering Information

Accessories

CA4335 Clini-Cart® Open trolley glove box holder – single

CA4336 Clini-Cart® Open trolley glove box holder – triple

CA4337 Clini-Cart® Open trolley sharps bin holder

CA4338 Clini-Cart® Open trolley sharps bin holder for Sharpsmart Unit

CA4339 Clini-Cart® Open trolley, hand gel dispenser holder

CA4330 Set of tray dividers for single depth tray

CA4331 Set of tray dividers for double depth tray

CA4330 and CA4331 drawer dividers are not for slimline trolleys.

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 112

CA4331 Set of tray dividers for double depth tray CA4330 Set of tray dividers for single depth tray

Hospital Trolleys | Clini-Cart

Open Accessories

CA4330 and CA4331 drawer dividers are not for slimline trolleys

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 113 Hospital Trolleys | Clini-Cart ® Open

Soiled Linen Trolleys

Key Features

Available in both stainless steel and mild steel, our linen trolleys are durable, long-lasting and exceptionally cost-effective. A variety of models are available, including double-sized options and trolleys with lids, supplied on 75mm castors for easy mobility.

• Lower platform bars provide good bag support and are easy to clean

• Welded frames ensure a high-quality finish and longer life span

• Lidded version is foot-operated for optimum hygiene

• Linen bags available

Ordering Information

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 114

Code Description CA4731 Soiled linen trolley, stainless steel, single CA4701 Soiled linen trolley, mild steel, single CA4733 Soiled linen trolley, stainless steel, double CA4703 Soiled linen trolley, mild steel, double CA4741 Soiled linen trolley, stainless steel with lid, single CA4742 Soiled linen trolley, stainless steel with lid, double Models marked with are available from our 48 Hour Express Range. Accessories CA4711 Nylon Linen Bag – White CA4731/CA4701 CA4742 Dimensions CA4701/CA4731 Height 860mm Width 460mm Depth 460mm CA4703/CA4733 Height 860mm Width 1055mm Depth 460mm CA4741 Height 900mm Width 390mm Depth 540mm CA4742 Height 900mm Width 780mm Depth 540mm Hospital Trolleys | Soiled Linen Trolleys

Clini-Cart® Notes Trolley

Compact and Large

Our medical notes trolleys allow the transportation of medical files securely and with ease.

Key Features

The trolley is available in two sizes to accommodate all room and space requirements, a narrow version and a wider version with a greater capacity. They are supplied on four 125mm castors, two braked, and have sliding tops to provide a work surface.

• Lockable to keep medical notes secure

• Push handle

• Comfortable height for easy access

• The top drawer will accommodate approximately 35 (compact model), or 50 (large model) foolscap suspension files depending on the volume of notes in each one

• Suspension files can be ordered through the hospital stationery supplies

Ordering Information

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 115

Code Description

Clini-Cart® Notes trolley, compact, lockable CA4756 Clini-Cart® Notes trolley, large, lockable CA4758 Clini-Cart® Notes trolley, large, lockable with bottom drawer Models marked with are available from our 48 Hour Express Range. CA4752

CA4752

Models Height 901mm Depth 526mm Width 600mm (extends to 1140mm) (compact) 900mm (extends to 1700mm) (large) Hospital Trolleys | Clini-Cart ® Open Accessories Accessories

Digilock keypad lock for Clini-Cart® Secure trolley

key

Trolley Dimensions All

CA4017*

CA4011* Digilock programming

CA4012* Digilock manager key

* CA4017, CA4011 and CA4012 must be bought together. Cannot be sold separately.

Clini-Cart® Trolley, Stainless Steel, Flush-Welded

Part of our premium range of durable stainless steel trolleys.

Key Features

Our dressing and instrument trolley is designed to offer greater strength, stability and a higher weight capacity. The trolleys are supplied on four high-quality 95mm antistatic castors, two of which are braked.

• 304 grade stainless steel construction for strength and ease of cleaning

• Supplied with protective buffers

Dimensions

Ordering Information

CA4175 Clini-Cart® Trolley, stainless steel, flush-welded 750x450mm

CA4177 Clini-Cart® Trolley, stainless steel, flush-welded 910x450mm

CA4172 Clini-Cart® Trolley, stainless steel, flush-welded 910x610mm

CA4176 Clini-Cart® Trolley, stainless steel, flush-welded 1220x610mm

Models marked with are available from our 48 Hour Express Range.

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 116

All Models Height 840mm CA4171 Width 450mm Depth 450mm CA4173 Width 610mm Depth 450mm CA4175 Width 750mm Depth 450mm CA4177 Width 910mm Depth 450mm CA4172 Width 910mm Depth 610mm CA4176 Width 1220mm Depth 610mm

Code

Description CA4171 Clini-Cart® Trolley, stainless steel, flush-welded 450x450mm

CA4173 Clini-Cart® Trolley, stainless steel, flush-welded 610x450mm

CA4171

Hospital Trolleys | Clini-Cart ® Trolley

CA4175

Clini-Cart® Trolley, Stainless Steel, Reversible Shelf

Our reversible shelf trolley has upturned edges on one side and a flat surface if reversed.

Key Features

The Reversible Shelf trolleys shelves are completely removable for ease of cleaning and can be steam cleaned or autoclaved. They are constructed with a seamlessly welded frame for durability and ease of cleaning. These trolleys use 95mm antistatic castors, two of which are braked.

• 304 graded stainless steel for strength

• Supplied with protective buffers

• Easy to move

Ordering Information

CA4183

CA4185 Clini-Cart® Trolley, stainless steel, reversible shelf 750x450mm

CA4187 Clini-Cart® Trolley, stainless steel, reversible shelf 910x450mm

Models marked with are available from our 48 Hour Express Range.

117

Dimensions All Models Height 840mm CA4181 Width 450mm Depth 450mm CA4183 Width 610mm Depth 450mm CA4185 Width 750mm Depth 450mm CA4187 Width 910mm Depth 450mm

Code Description

CA4181 Clini-Cart® Trolley, stainless steel, reversible shelf 450x450mm

Clini-Cart® Trolley, stainless steel, reversible shelf 610x450mm

Hospital Trolleys | Clini-Cart ® Trolley

Cart with Tambour Door

If you are looking for secure, movable storage cabinets for your medical equipment and consumables, our Clini-Store® high-density mobile storage is the answer.

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 118

Clini-Store® Lockable High-Density Mobile Storage - Single E

Hospital Trolleys | Clini-Store ® Lockable

ABS

Height 1830mm Depth 526mm Width 748mm New

CSL183SET104 Clini-Store lockable single E cart with tambour door, 1830mm high, 8 x 100mm and 2 x 200mm deep

baskets

Key Features

Choose the Clini-Store® lockable high-density mobile storage if you require a flexible and versatile storage solution that can be easily moved and reconfigured to suit changing needs. With zero melamine (wood) used in the construction, it’s lightweight IP&C compliant design is market leading and will mean your storage areas are at the forefront of modern healthcare provision. A comprehensive selection of sizes, door types and tray modules mean the options for personalisation are almost endless.

• Integral bumper to protect your facility and the cart

• Lightweight

• IP&C compliant - no wood

• Mobile storage is flexible and versatile as needs change

CS1009

• Key locking system

• 1830mm high efficient storage

• Washable

Ordering Information

Code Description

CSL183SET101 Clini-Store lockable single E cart with tambour door, 1830mm high, 12 x 100mm deep ABS baskets

CSL183SET102 Clini-Store lockable single E cart with tambour door, 1830mm high, 12 x 100mm deep clear polycarbonate baskets

CSL183SET103 Clini-Store lockable single E cart with tambour door, 1830mm high, 12 x 100mm deep clear polycarbonate trays

CSL183SET104 Clini-Store lockable single E cart with tambour door, 1830mm high, 8 x 100mm and 2 x 200mm deep ABS baskets

CSL183SET105 Clini-Store lockable single E cart with tambour door, 1830mm high, 8 x 100mm and 2 x 200mm deep clear polycarbonate baskets

CSL183SET106 Clini-Store lockable single E cart with tambour door, 1830mm high, 8 x 100mm and 2 x 200mm deep clear polycarbonate trays

CSL183SET107 Clini-Store lockable single E cart with tambour door, 1830mm high, with 12 x stainless steel wire shelf 60X40 w/handles for sterile instrument packs

Accessories

CS1000 Divider set per 100mm deep ABS basket or tray (1 long, 1 short) to create 4 compartments

CS1001 Divider set per 200mm deep ABS basket or tray (1 long, 1 short) to create 4 compartments

CS1015

Stainless Steel Wire Shelf Dimensions Depth

CS1002 Divider set per 100mm deep clear polycarbonate basket or tray (1 long, 1 short) to create 4 compartments

CS1003 Divider set per 200mm deep clear polycarbonate basket or tray (1 long, 1 short) to create 4 compartments

CS1004 Silicone mat for wire trays, 275x485mm, to prevent sterile wrap damage (single)

CS1009 Handle for baskets or trays, E type, blue

CS1010 Handle for baskets or trays, E type, green

CS1011 Handle for baskets or trays, E type, red

CS1012 Handle for baskets or trays, E type, yellow

CS1013 Pair of stops to prevent a basket or tray from falling out

CS1014 Label holder for baskets or trays, credit card sized 91x57mm, horizontal, with white label plate

CS1015 Label holder for baskets or trays, 57x40mm, vertical, with clear cover

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 119

Hospital Trolleys | Clini-Store ® Lockable

Height 100/200mm

400mm (external) / 320mm (internal)

600mm (external) / 520mm

ISO Plastic Trays/Baskets Dimensions

Depth

Width

(internal)

400mm

600mm

Width

If you are looking for secure, movable storage cabinets for your medical equipment and consumables, our Clini-Store® high-density mobile storage is the answer.

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 120 Hospital Trolleys | Clini-Store ® Lockable Clini-Store® Lockable High-Density Mobile Storage - Double E Cart with Tambour Door

Height 1830mm Depth 526mm Width 1460mm CSL183DET104 Clini-Store lockable double E cart with tambour door, 1830mm high, 16 x 100mm and 4 x 200mm deep ABS baskets New

Key Features

• Integral bumper to protect your facility and the cart

• Lightweight

• IP&C compliant - no wood

• Mobile storage is flexible and versatile as needs change

CS1009

• Key locking system

• 1830mm high efficient storage

• Washable

Ordering Information

Code Description

CSL183DET101 Clini-Store lockable double E cart with tambour door, 1830mm high, 24 x 100mm deep ABS baskets

CSL183DET102 Clini-Store lockable double E cart with tambour door, 1830mm high, 24 x 100mm deep clear polycarbonate baskets

CSL183DET103 Clini-Store lockable double E cart with tambour door, 1830mm high, 24 x 100mm deep clear polycarbonate trays

CSL183DET104 Clini-Store lockable double E cart with tambour door, 1830mm high, 16 x 100mm and 4 x 200mm deep ABS baskets

CSL183DET105 Clini-Store lockable double E cart with tambour door, 1830mm high, 16 x 100mm and 4 x 200mm deep clear polycarbonate baskets

CSL183DET106 Clini-Store lockable double E cart with tambour door, 1830mm high, 16 x 100mm and 4 x 200mm deep clear polycarbonate trays

CSL183DET107 Clini-Store lockable double E cart with tambour door, 1830mm high, with 24 x stainless steel wire shelf 60X40 w/handles for sterile instrument packs

Accessories

CS1000 Divider set per 100mm deep ABS basket or tray (1 long, 1 short) to create 4 compartments

CS1001 Divider set per 200mm deep ABS basket or tray (1 long, 1 short) to create 4 compartments

CS1015

CS1002 Divider set per 100mm deep clear polycarbonate basket or tray (1 long, 1 short) to create 4 compartments

CS1003 Divider set per 200mm deep clear polycarbonate basket or tray (1 long, 1 short) to create 4 compartments

CS1004 Silicone mat for wire trays, 275x485mm, to prevent sterile wrap damage (single)

CS1009 Handle for baskets or trays, E type, blue

CS1010 Handle for baskets or trays, E type, green

CS1011 Handle for baskets or trays, E type, red

CS1012 Handle for baskets or trays, E type, yellow

CS1013 Pair of stops to prevent a basket or tray from falling out

CS1014 Label holder for baskets or trays, credit card sized 91x57mm, horizontal, with white label plate

CS1015 Label holder for baskets or trays, 57x40mm, vertical, with clear cover

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 121

Hospital Trolleys | Clini-Store ® Lockable

Dimensions Height 100/200mm

400mm (external) / 320mm (internal)

600mm (external) / 520mm (internal)

ISO Plastic Trays/Baskets

Depth

Width

400mm

600mm

Stainless Steel Wire Shelf Dimensions Depth

Width

If you are looking for secure, movable storage cabinets for your medical equipment and consumables, our Clini-Store® high-density mobile storage is the answer.

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 122 Clini-Store® Lockable High-Density Mobile Storage -

Single U Cart with Tambour Door

Hospital Trolleys | Clini-Store ® Lockable Height 1830mm Depth 726mm Width 548mm CSL183SUT104 Clini-Store lockable single U cart with tambour door, 1830mm high, 8 x 100mm and 2 x 200mm deep ABS baskets New

Key Features

• Integral bumper to protect your facility and the cart

• Lightweight

• IP&C compliant - no wood

• Mobile storage is flexible and versatile as needs change

• Key locking system

• 1830mm high efficient storage

• Washable

Ordering Information

Code Description

CSL183SUT101 Clini-Store lockable single U cart with tambour door, 1830mm high, 12 x 100mm deep ABS baskets

CSL183SUT102 Clini-Store lockable single U cart with tambour door, 1830mm high, 12 x 100mm deep clear polycarbonate baskets

CSL183SUT103 Clini-Store lockable single U cart with tambour door, 1830mm high, 12 x 100mm deep clear polycarbonate trays

CSL183SUT104 Clini-Store lockable single U cart with tambour door, 1830mm high, 8 x 100mm and 2 x 200mm deep ABS baskets

CSL183SUT105 Clini-Store lockable single U cart with tambour door, 1830mm high, 8 x 100mm and 2 x 200mm deep clear polycarbonate baskets

CSL183SUT106 Clini-Store lockable single U cart with tambour door, 1830mm high, 8 x 100mm and 2 x 200mm deep clear polycarbonate trays

CSL183SUT107 Clini-Store lockable single U cart with tambour door, 1830mm high, with 12 x stainless steel wire shelf 60X40 w/handles for sterile instrument packs

Accessories

CS1000 Divider set per 100mm deep ABS basket or tray (1 long, 1 short) to create 4 compartments

CS1001 Divider set per 200mm deep ABS basket or tray (1 long, 1 short) to create 4 compartments

CS1002 Divider set per 100mm deep clear polycarbonate basket or tray (1 long, 1 short) to create 4 compartments

CS1003 Divider set per 200mm deep clear polycarbonate basket or tray (1 long, 1 short) to create 4 compartments

CS1004 Silicone mat for wire trays, 275x485mm, to prevent sterile wrap damage (single)

CS1005 Handle for baskets or trays, U type, blue

CS1006 Handle for baskets or trays, U type, green

CS1007 Handle for baskets or trays, U type, red

CS1008 Handle for baskets or trays, U type, yellow

CS1013 Pair of stops to prevent a basket or tray from falling out

CS1014 Label holder for baskets or trays, credit card sized 91x57mm, horizontal, with white label plate

CS1015 Label holder for baskets or trays, 57x40mm, vertical, with clear cover

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 123

Hospital Trolleys | Clini-Store ® Lockable

Trays/Baskets Dimensions Height 100/200mm

400mm (external) / 320mm (internal)

600mm (external) / 520mm (internal)

ISO Plastic

Depth

Width

Depth 400mm Width 600mm

Stainless Steel Wire Shelf Dimensions

CS1005 CS1015

If you are looking for secure, movable storage cabinets for your medical equipment and consumables, our Clini-Store® high-density mobile storage is the answer.

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 124 Hospital Trolleys | Clini-Store ® Lockable Clini-Store® Lockable High-Density Mobile Storage - Double U Cart with Tambour Door

Height 1830mm Depth 726mm Width 1060mm CSL183DUT104 Clini-Store lockable double U cart with tambour door, 1830mm high, 16 x 100mm and 4 x 200mm deep ABS baskets New

Key Features

• Integral bumper to protect your facility and the cart

• Lightweight

• IP&C compliant - no wood

• Mobile storage is flexible and versatile as needs change

CS1005

• Key locking system

• 1830mm high efficient storage

• Washable

Ordering Information

Code Description

CSL183DUT101 Clini-Store lockable double U cart with tambour door, 1830mm high, 24 x 100mm deep ABS baskets

CSL183DUT102 Clini-Store lockable double U cart with tambour door, 1830mm high, 24 x 100mm deep polycarbonate baskets

CSL183DUT103 Clini-Store lockable double U cart with tambour door, 1830mm high, 24 x 100mm deep polycarbonate trays

CSL183DUT104 Clini-Store lockable double U cart with tambour door, 1830mm high, 16 x 100mm and 4 x 200mm deep ABS baskets

CSL183DUT105 Clini-Store lockable double U cart with tambour door, 1830mm high, 16 x 100mm and 4 x 200mm deep clear polycarbonate baskets

CSL183DUT106 Clini-Store lockable double U cart with tambour door, 1830mm high, 16 x 100mm and 4 x 200mm deep clear polycarbonate trays

CSL183DUT107 Clini-Store lockable double U cart with tambour door, 1830mm high, with 24 x stainless steel wire shelf 60X40 w/handles for sterile instrument packs

Accessories

CS1000 Divider set per 100mm deep ABS basket or tray (1 long, 1 short) to create 4 compartments

CS1001 Divider set per 200mm deep ABS basket or tray (1 long, 1 short) to create 4 compartments

CS1015

CS1002 Divider set per 100mm deep clear polycarbonate basket or tray (1 long, 1 short) to create 4 compartments

CS1003 Divider set per 200mm deep clear polycarbonate basket or tray (1 long, 1 short) to create 4 compartments

CS1004 Silicone mat for wire trays, 275x485mm, to prevent sterile wrap damage (single)

CS1005 Handle for baskets or trays, U type, blue

CS1006 Handle for baskets or trays, U type, green

CS1007 Handle for baskets or trays, U type, red

CS1008 Handle for baskets or trays, U type, yellow

CS1013 Pair of stops to prevent a basket or tray from falling out

CS1014 Label holder for baskets or trays, credit card sized 91x57mm, horizontal, with white label plate

CS1015 Label holder for baskets or trays, 57x40mm, vertical, with clear cover

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 125

Hospital Trolleys | Clini-Store ® Lockable

Dimensions Height 100/200mm

400mm (external) / 320mm (internal)

600mm (external) / 520mm (internal)

ISO Plastic Trays/Baskets

Depth

Width

400mm

600mm

Stainless Steel Wire Shelf Dimensions Depth

Width

with Glass Door

If you are looking for secure, movable storage cabinets for your medical equipment and consumables, our Clini-Store® high-density mobile storage is the answer.

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 126

Clini-Store® Lockable High-Density Mobile Storage - Double U Cart

Hospital Trolleys | Clini-Store ® Lockable Height 1830mm Width 1060mm Depth 726mm CSL183DUG104 Clini-Store lockable double U cart with glass door, 1830mm high, 16 x 100mm and 4 x 200mm deep ABS baskets New

Key Features

• Integral bumper to protect your facility and the cart

• Lightweight

• IP&C compliant - no wood

• Mobile storage is flexible and versatile as needs change

• Key locking system

• 1830mm high efficient storage

• Washable

Ordering Information

Code Description

CSL183DUG101 Clini-Store lockable double U cart with glass door, 1830mm high, 24 x 100mm deep ABS baskets

CSL183DUG102 Clini-Store lockable double U cart with glass door, 1830mm high, 24 x 100mm deep clear polycarbonate baskets

CSL183DUG103 Clini-Store lockable double U cart with glass door, 1830mm high, 24 x 100mm deep clear polycarbonate trays

CSL183DUG104 Clini-Store lockable double U cart with glass door, 1830mm high, 16 x 100mm and 4 x 200mm deep ABS baskets

CSL183DUG105 Clini-Store lockable double U cart with glass door, 1830mm high, 16 x 100mm and 4 x 200mm deep clear polycarbonate baskets

CSL183DUG106 Clini-Store lockable double U cart with glass door, 1830mm high, 16 x 100mm and 4 x 200mm deep clear polycarbonate trays

CSL183DUG107 Clini-Store lockable double U cart with glass door, 1830mm high, with 24 x stainless steel wire shelf 60X40 w/handles for sterile instrument packs

Accessories

CS1000 Divider set per 100mm deep ABS basket or tray (1 long, 1 short) to create 4 compartments

CS1001 Divider set per 200mm deep ABS basket or tray (1 long, 1 short) to create 4 compartments

ISO Plastic Trays/Baskets Dimensions Height

Width

Stainless Steel Wire Shelf Dimensions Depth

CS1002 Divider set per 100mm deep clear polycarbonate basket or tray (1 long, 1 short) to create 4 compartments

CS1003 Divider set per 200mm deep clear polycarbonate basket or tray (1 long, 1 short) to create 4 compartments

CS1004 Silicone mat for wire trays, 275x485mm, to prevent sterile wrap damage (single)

CS1005 Handle for baskets or trays, U type, blue

CS1006 Handle for baskets or trays, U type, green

CS1007 Handle for baskets or trays, U type, red

CS1008 Handle for baskets or trays, U type, yellow

CS1013 Pair of stops to prevent a basket or tray from falling out

CS1014 Label holder for baskets or trays, credit card sized 91x57mm, horizontal, with white label plate

CS1015 Label holder for baskets or trays, 57x40mm, vertical, with clear cover

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 127

Hospital Trolleys | Clini-Store ® Lockable

100/200mm

400mm

Depth

(external)

320mm (internal)

600mm

(external) / 520mm (internal)

400mm

600mm

Width

CS1005 CS1015

When infection prevention and control is of the utmost importance, and you are concerned to make the most efficient use of available space, our Clini-Store Open High-Density Static Storage is the answer.

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 128

Clini-Store® Open HighDensity Static Storage - Single E Frame

Hospital Trolleys | Clini-Store ® Open Height 1921mm Depth 437mm Width 690mm (add-on unit adds 646mm) CSO1921SE104 Clini-Store open single E format static storage unit with adjustable feet, with 8 x 100mm and 2 x 200mm deep ABS baskets New

Key Features

Choose our Clini-Store® open high-density static storage if you require a highly flexible stationary storage system, which maintains the highest levels of cleanliness. With tool-free adjustments possible by your clinical team, reconfiguring or adding to your storage space at short notice to accommodate changes in service provision, is perfectly achievable.

• Add-on modules convert a single rack into multiple bays

• Lightweight yet strong

• Solutions for all hospital departments including surgery and CSSD

• Choose colourcoded handles for easy-identification of supplies

• Open instant-access design

• Adjustable feet for uneven floors

• Patented completely sealed frame design with no open holes

• Tool-free reconfiguration

• Fully customisable

• Basket or frame labelling solutions for easy stockmanagement

ISO Plastic Trays/Baskets Dimensions

Height 100/200mm

Depth 400mm (external) / 320mm (internal)

Width 600mm (external) / 520mm (internal)

Stainless Steel Wire Basket Dimensions

Depth 400mm (external) / 320mm (internal)

Width 600mm (external) / 520mm (internal)

Stainless Steel Wire Shelf Dimensions

Depth

Width 600mm

Ordering Information

Code Description

CSO1921SE101 Clini-Store open single E format static storage unit with adjustable feet, with 12 x 100mm deep ABS baskets

CSO1921SE102 Clini-Store open single E format static storage unit with adjustable feet, with 12 x 100mm deep clear polycarbonate baskets

CSO1921SE103 Clini-Store open single E format static storage unit with adjustable feet, with 12 x 100mm deep clear polycarbonate trays

CSO1921SE104 Clini-Store open single E format static storage unit with adjustable feet, with 8 x 100mm and 2 x 200mm deep ABS baskets

CSO1921SE105 Clini-Store open single E format static storage unit with adjustable feet, with 8 x 100mm and 2 x 200mm deep clear polycarbonate baskets

CSO1921SE106 Clini-Store open single E format static storage unit with adjustable feet, with 8 x 100mm and 2 x 200mm deep clear polycarbonate trays

CSO1921SE107 Clini-Store open single E static storage unit, adjustable feet, 7x s/steel wire shelf 60X40 w/handles for sterile instrument packs, 2x 10cm deep & 2x 20cm deep s/steel wire baskets for heavier packs

Accessories

CSO1000 Connector for joining two Clini-Store E units together

CSO1004 Add-on bay for Clini-Store open single E static storage unit with adjustable feet, with 12 x 100mm deep ABS baskets

CSO1005 Add-on bay for Clini-Store open single E static storage unit with adjustable feet, with 12 x 100mm deep clear polycarbonate baskets

CSO1006 Add-on bay for Clini-Store open single E static storage unit with adjustable feet, with 12 x 100mm deep clear polycarbonate trays

CSO1007 Add-on bay for Clini-Store open single E static storage unit with adjustable feet, with 8 x 100mm and 2 x 200mm deep ABS baskets

CSO1008 Add-on bay for Clini-Store open single E static storage unit with adjustable feet, with 8 x 100mm and 2 x 200mm deep clear polycarbonate baskets

CSO1009 Add-on bay for Clini-Store open single E static storage unit with adjustable feet, with 8 x 100mm and 2 x 200mm deep clear polycarbonate trays

CSO1010 Add-on bay for Clini-Store open single E static storage unit with adjustable feet, with 7 x stainless steel wire shelf 60X40 w/handles for sterile instrument packs, and 2 x 10cm deep and 1 x 20cm deep stainless steel wire baskets for heavier packs

CS1000 Divider set per 100mm deep ABS basket or tray (1 long, 1 short) to create 4 compartments

CS1001 Divider set per 200mm deep ABS basket or tray (1 long, 1 short) to create 4 compartments

CS1002 Divider set per 100mm deep clear polycarbonate basket or tray (1 long, 1 short) to create 4 compartments

CS1003 Divider set per 200mm deep clear polycarbonate basket or tray (1 long, 1 short) to create 4 compartments

CS1004 Silicone mat for wire trays, 275x485mm, to prevent sterile wrap damage (single)

CS1009

CS1010

CS1011

CS1012

Handle for baskets or trays, E type, blue

Handle for baskets or trays, E type, green

Handle for baskets or trays, E type, red

Handle for baskets or trays, E type, yellow

CS1013 Pair of stops to prevent a basket or tray from falling out

CSO1002

Label holder for open frame, 30x30mm (single)

CS1014 Label holder for baskets or trays, credit card sized 91x57mm, horizontal, with white label plate

CS1015 Label holder for baskets or trays, 57x40mm, vertical, with clear cover

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 129

Hospital Trolleys | Clini-Store ® Open

Height 100/200mm

400mm

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 130

Clini-Store® Open HighDensity Static Storage - Single U Frame

Hospital Trolleys | Clini-Store ® Open Height 1921mm Depth 637mm Width 490mm (add-on unit adds 446mm) CSO1921SU104 Clini-Store open single U format static storage unit with adjustable feet, with 8 x 100mm and 2 x 200mm deep ABS baskets New

Key Features

• Add-on modules

convert a single rack into multiple bays

• Lightweight yet strong

• Solutions for all hospital departments including surgery and CSSD

• Choose colourcoded handles for easy-identification of supplies

• Open instant-access design

• Adjustable feet for uneven floors

• Patented completely sealed frame design with no open holes

• Tool-free reconfiguration

• Fully customisable

• Basket or frame labelling solutions for easy stockmanagement

Ordering Information

Code Description

CSO1921SU101 Clini-Store open single U format static storage unit with adjustable feet, with 12 x 100mm deep ABS baskets

CSO1921SU102 Clini-Store open single U format static storage unit with adjustable feet, with 12 x 100mm deep clear polycarbonate baskets

CSO1921SU103 Clini-Store open single U format static storage unit with adjustable feet, with 12 x 100mm deep clear polycarbonate trays

CSO1921SU104 Clini-Store open single U format static storage unit with adjustable feet, with 8 x 100mm and 2 x 200mm deep ABS baskets

CSO1921SU105 Clini-Store open single U format static storage unit with adjustable feet, with 8 x 100mm and 2 x 200mm deep clear polycarbonate baskets

CSO1921SU106 Clini-Store open single U format static storage unit with adjustable feet, with 8 x 100mm and 2 x 200mm deep clear polycarbonate trays

CSO1921SU107 Clini-Store open single U format static storage unit with adjustable feet, with 5 x stainless steel wire shelf 60X40 w/handles and 4 x stainless steel wire shelf for sterile containers

Accessories

CSO1001 Connector for joining two Hygieia U units together

CSO1002 Label holder for open frame, 30x30mm (single)

CSO1011 Add-on bay for Clini-Store open single U static storage unit with adjustable feet, with 12 x 100mm deep ABS baskets

CSO1012 Add-on bay for Clini-Store open single U static storage unit with adjustable feet, with 12 x 100mm deep clear polycarbonate baskets

CSO1013 Add-on bay for Clini-Store open single U static storage unit with adjustable feet, with 12 x 100mm deep clear polycarbonate trays

CSO1014 Add-on bay for Clini-Store open single U static storage unit with adjustable feet, with 8 x 100mm and 2 x 200mm deep ABS baskets

CSO1015 Add-on bay for Clini-Store open single U static storage unit with adjustable feet, with 8 x 100mm and 2 x 200mm deep clear polycarbonate baskets

CSO1016 Add-on bay for Clini-Store open single U static storage unit with adjustable feet, with 8 x 100mm and 2 x 200mm deep clear polycarbonate trays

CSO1017 Add-on bay for Clini-Store open single U static storage unit with adjustable feet, with 5 x stainless steel wire shelf 60X40 w/handles and 4 x stainless steel wire shelf for sterile containers

CS1000 Divider set per 100mm deep ABS basket or tray (1 long, 1 short) to create 4 compartments

CS1001 Divider set per 200mm deep ABS basket or tray (1 long, 1 short) to create 4 compartments

CS1002 Divider set per 100mm deep clear polycarbonate basket or tray (1 long, 1 short) to create 4 compartments

CS1003 Divider set per 200mm deep clear polycarbonate basket or tray (1 long, 1 short) to create 4 compartments

ISO Plastic Trays/Baskets Dimensions

Depth 400mm (external) / 320mm (internal)

Width 600mm (external) / 520mm (internal)

Stainless Steel Wire Shelf Dimensions

Depth 400mm

Width 600mm

CS1004 Silicone mat for wire trays, 275x485mm, to prevent sterile wrap damage (single)

CS1005

CS1006

Handle for baskets or trays, U type, blue

Handle for baskets or trays, U type, green

CS1007 Handle for baskets or trays, U type, red

CS1008 Handle for baskets or trays, U type, yellow

CS1013 Pair of stops to prevent a basket or tray from falling out

CS1014 Label holder for baskets or trays, credit card sized 91x57mm, horizontal, with white label plate

CS1015 Label holder for baskets or trays, 57x40mm, vertical, with clear cover

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 131

Hospital Trolleys | Clini-Store ® Open

Height 100/200mm

When you need instant access and easy transportation of your medical consumables, surgical instruments and more, look no further than the Clini-Store® open high-density mobile storage.

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 132

Clini-Store® Open HighDensity Mobile Storage - Single U Cart

Hospital Trolleys | Clini-Store ® Open Height 1880mm Depth 685mm Width 570mm

CS01880MU101

New

Clini-Store open single U format mobile storage unit 515x630xH1880mm with lockable castors, with 12 x 100mm deep ABS baskets

Key Features

Choose our Clini-Store® open high-density mobile storage if you require lightweight movable carts with an open design, giving instant access to essential supplies. The lightweight yet immensely strong aluminium frame means by choosing Clini-Store® open high-density mobile storage you are choosing to care for your medical staff. The numerous configurations allow you to transport clean and dirty instruments within theatre, day surgical or CSSD areas, medical consumables, or personal protective equipment, with equal ease.

• Bumpers protect your facility and the cart

• Lightweight but strong

• Easy to clean

• Choose colour-coded drawer handles for easy-identification of supplies

• Open instant-access design

• Compact footprint

• Basket or frame labelling solutions for easy stockmanagement

• Space-efficient

• Ability to combine ISO6040 modules and shelves in the same unit

• Optional push handles for enhanced manoeuvrability

Stainless Steel Wire Shelf Dimensions

Depth 400mm

Width 600mm

Ordering Information

Code Description

CS01880MU101 Clini-Store open single U format mobile storage unit 515x630xH1880mm with lockable castors, with 12 x 100mm deep ABS baskets

CS01880MU102 Clini-Store open single U format mobile storage unit 515x630xH1880mm with lockable castors, with 12 x 100mm deep clear polycarbonate baskets

CS01880MU103 Clini-Store open single U format mobile storage unit 515x630xH1880mm with lockable castors, with 12 x 100mm deep clear polycarbonate trays

CS01880MU104 Clini-Store open single U format mobile storage unit 515x630xH1880mm with lockable castors, with 8 x 100mm and 2 x 200mm deep ABS baskets

CS01880MU105 Clini-Store open single U format mobile storage unit 515x630xH1880mm with lockable castors, with 8 x 100mm and 2 x 200mm deep clear polycarbonate baskets

CS01880MU106 Clini-Store open single U format mobile storage unit 515x630xH1880mm with lockable castors, with 8 x 100mm and 2 x 200mm deep clear polycarbonate trays

CS01880MU107 Clini-Store open single U format mobile storage unit 515x630xH1880mm with lockable castors, with 5 x stainless steel wire shelf 60X40 w/handles and 4 x stainless steel wire shelf for sterile containers

Accessories

CSO1002 Label holder for open frame, 30x30mm (single)

CSO1003 Pair of push handles for Salus cart

CS1000 Divider set per 100mm deep ABS basket or tray (1 long, 1 short) to create 4 compartments

CS1001 Divider set per 200mm deep ABS basket or tray (1 long, 1 short) to create 4 compartments

CS1002 Divider set per 100mm deep clear polycarbonate basket or tray (1 long, 1 short) to create 4 compartments

CS1003 Divider set per 200mm deep clear polycarbonate basket or tray (1 long, 1 short) to create 4 compartments

CS1004 Silicone mat for wire trays, 275x485mm, to prevent sterile wrap damage (single)

CS1005 Handle for baskets or trays, U type, blue

CS1006 Handle for baskets or trays, U type, green

CS1007 Handle for baskets or trays, U type, red

CS1008 Handle for baskets or trays, U type, yellow

CS1013 Pair of stops to prevent a basket or tray from falling out

CS1014 Label holder for baskets or trays, credit card sized 91x57mm, horizontal, with white label plate

CS1015 Label holder for baskets or trays, 57x40mm, vertical, with clear cover

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 133

Hospital Trolleys | Clini-Store ® Open

100/200mm

ISO Plastic Trays/Baskets Dimensions Height

Depth 400mm (external) / 320mm (internal)

Width 600mm (external) / 520mm (internal)

Clini-Store® Static or Mobile 4-Shelf Unit

Clini-Store static or mobile – the only shelving you will ever need. For easy-clean medical shelving in either stationary units with an unbelievable capacity of up 1000kg per unit, or mobile with a capacity of 250kg per unit, you need look no further.

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 134

Hospital Trolleys | Clini-Store ® 4-Shelf Unit

CSS185CD100 Clini-Store static 4-shelf unit on adjustable feet, 450x1000mm, 250kg per shelf capacity

New

CSS185FS145 Clini-Store mobile 4-shelf unit on lockable castors, 600x1450mm, 250kg total capacity

Key Features

Our Clini-Store® static or mobile shelving has been designed in response to requests for a simple range of strong, easy to clean medical shelving, that is easily adjustable without tools. With a staggering 1000kg capacity on the stationary units, your facility can store anything from heavy containers of dialysate solution to lightweight yet bulky medical consumables.

• Extremely durable

• Multiple sizes to suit your space and the items being stored

• Join other units together to create continuous storage space or island units

• Adjustable feet or lockable castor wheels

• Lightweight

• Easy to clean

• Labelling solutions for easy stockmanagement

• Ability to combine shelves and ISO6040 storage modules in the same unit

• Stationary units up to 1000kg capacity

• Mobile units up to 250kg capacity

Will not rust

The lowest shelf starts from a height of 320mm to leave an easily accessible cleaning space of 265mm under the trolley.

Ordering Information

Code Description

CSS185FS100 Clini-Store static 4-shelf unit on adjustable feet, 450x1000mm, 250kg per shelf capacity

CSS185FS115 Clini-Store static 4-shelf unit on adjustable feet, 450x1150mm, 250kg per shelf capacity

CSS185FS145 Clini-Store static 4-shelf unit on adjustable feet, 450x1450mm, 250kg per shelf capacity

CSS185FD100 Clini-Store static 4-shelf unit on adjustable feet, 600x1000mm, 250kg per shelf capacity

CSS185FD115 Clini-Store static 4-shelf unit on adjustable feet, 600x1150mm, 250kg per shelf capacity

CSS185FD145 Clini-Store static 4-shelf unit on adjustable feet, 600x1450mm, 250kg per shelf capacity

CSS185CS100 Clini-Store mobile 4-shelf unit on lockable castors, 450x1000mm, 250kg total capacity

CSS185CS115 Clini-Store mobile 4-shelf unit on lockable castors, 450x1150mm, 250kg total capacity

CSS185CS145 Clini-Store mobile 4-shelf unit on lockable castors, 450x1450mm, 250kg total capacity

CSS185CD100 Clini-Store mobile 4-shelf unit on lockable castors, 600x1000mm, 250kg total capacity

CSS185CD115 Clini-Store mobile 4-shelf unit on lockable castors, 600x1150mm, 250kg total capacity

CSS185CD145 Clini-Store mobile 4-shelf unit on lockable castors, 600x1450mm, 250kg total capacity

Accessories

CSO1002 Label holder for open frame, 30x30mm (single)

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 135

Hospital Trolleys | Clini-Store ® 4-Shelf Unit Dimensions All Trolleys Height 1850mm CSS185FS100 Width 1070mm Depth 460mm CSS185FS115 Width 1220mm Depth 460mm CSS185FS145 Width 1520mm Depth 460mm CSS185FD100 Width 1070mm Depth 610mm CSS185FD115 Width 1220mm Depth 610mm CSS185FD145 Width 1520mm Depth 610mm CSS185CS100 Width 1130mm Depth 500mm CSS185CS115 Width 1280mm Depth 500mm CSS185CS145 Width 1580mm Depth 500mm CSS185CD100 Width 1130mm Depth 650mm CSS185CD115 Width 1280mm Depth 650mm CSS185CD145 Width 1580mm Depth 650mm

Storage Units for Toys and Books

This range is a selection of coloured storage units for toys and books, to help keep the Paediatric play rooms and waiting areas tidy.

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 136

CA4467TA Open book cupboard, large, with coloured end panels

cupboard, small, with coloured doors and top, lockable, on castors Paediatric Range | Storage Units

CA4461CY Storage

Storage cupboard, medium, with coloured doors and top, lockable, on castors

Open book cupboard, medium, with coloured end panels

Colour Options

Cyan CY Pink PI Lime LI Tangerine TA

Ordering Information

When ordering, quote the product code and add the colour code as a suffix, i.e. (Code)CY for cyan.

Code Description

CA4460

Storage cupboard, small, with coloured doors and top, lockable

CA4461 Storage cupboard, small, with coloured doors and top, lockable, on castors

CA4462 Storage cupboard, medium, with coloured doors and top, lockable

CA4463 Storage cupboard, medium, with coloured doors and top, lockable, on castors

CA4464 Storage cupboard, large, with coloured doors and top, lockable

CA4465 Open book cupboard, small, with coloured end panels

CA4466 Open book cupboard, medium, with coloured end panels

CA4467 Open book cupboard, large, with coloured end panels

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 137

CA4466CY CA4463PI

Dimensions CA4460 Height 550mm Width 1024mm Depth 477mm CA4461 Height 600mm Width 1024mm Depth 477mm CA4462 Height 783mm Width 1030mm Depth 477mm CA4463 Height 833mm Width 1030mm Depth 477mm CA4464 Height 1018mm Width 1030mm Depth 477mm CA4465 Height 600mm Width 900mm Depth 477mm CA4466 Height 750mm Width 900mm Depth 477mm CA4467 Height 1018mm Width 1030mm Depth 477mm Paediatric Range | Storage Units

ocura.co.uk t: 01732 367777 e: sales@ocura.co.uk 138
