2022 Sup Dealer Guide

Page 1


Rider : Danai Chotikapanich
Location : Ao Nang, Krabi Thailand
Board : O2 The Quest FS

SUP

HIT

ELEMENTS

COCOFLAX

DC SURF

• CRUISER

• ELEMENTS OVERVIEW

• FLATWATER

• CRUISE

• ALLROUNDER

• COCOFLAX OVERVIEW

• PERFORMANCE TOURING

• CRUISE

• ALLROUNDER

• DC SURF OVERVIEW

• DC SURF WIDE

• DC ELEMENTS SURF SUP

• DC SUPER X

• DC SURF X

P2 SOFT

YOGA

INFLATABLE

• P2 SOFT OVERVIEW

• FLATWATER

• CRUISE

• ALLROUNDER

• YOGA OVERVIEW

• COCOMAT LOTUS

• P2 LOTUS

• LOTUS FS

• NSPIRATION MAT FS

• INFLATABLE OVERVIEW

• TOURING FS

• ALLROUNDER LT

• CRUISER FS

• CRUISER WINDSURF FS

• THE QUEST FS

• FISHERMAN SEAT

• PIONEER FS

• PUMPS

• RACE FSL

• AIR7 V3 FIN BOX

• CARNIVAL CRUISER HD

• PREMIUM BACKPACK

• DELUXE BACKPACK

PADDLES

• PADDLES

• PADDLE RANGE OVERVIEW

• BLADE TECHNOLOGY

• BLADE SHAFTS

• SHAFT TECHNOLOGY

• ADJUSTABLE SHAFTS

ACCESSORIES • PADDLE BAG

• FINS

• PERFORMANCE FINS

• SUP BOARD BAGS

• WAIST BELT, RAIL TAPE, TIE-DOWNS & ROOF RACK

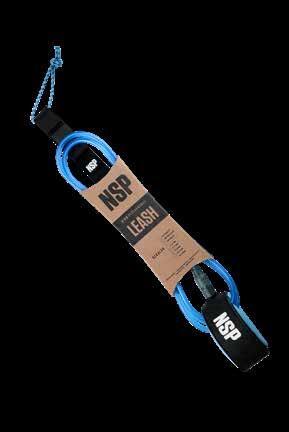

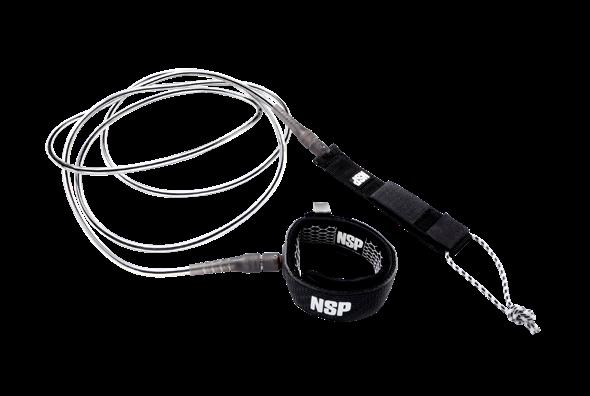

LEASH • COIL LEASH

• SOFT ROOF RACKS

• BUOYS

RESCUE BOARD

TECHNOLOGY

• TECH COMPARISON

• ELEMENTS & HIT

• SLX & P2 SOFT

• COCOFLAX & COCOMAT

• O2 INFLATABLE

FLATWATER

11’0” x 30”

12’0” x 31”

CRUISE

9’8” X 32”

10’2” X 32”

11’0” X 31”

11’6” X 33”

ALLROUNDER

9’2 X 29 3/8”

10’0 X 32”

10’6 X 32”

10’11 X 32 1/4”

•NETR0801 •NETR0802

•NECR0901 •NECR0902 •NECR0903 •NECR0904

•NECR1001 •NECR1002 •NECR1003 •NECR1004

PERFORMANCE TOURING

12’6” X 32” 14’0” X 30”

•NCTR1001 •NCTR1002

HIT

9’8” X 31 1/2”

10’2” X 32”

11’2” X 32 1/2”

11’6” X 33 1/2”

•NHIT1001

•NHIT1002

•NHIT1003 •NHIT1004

•NEAR0902

•NEAR0904 •NEAR0906 •NEAR0908

CRUISE

9’8” X 32” 10’2” X 32” 11’0” X 31” 11’6” X 33”

•NCCR0901 •NCCR0902 •NCCR0903 •NCCR0904

•NCCR1001 •NCCR1002 •NCCR1003 •NCCR1004

ALLROUNDER

•NEAR1001 •NEAR1002 •NEAR1003 •NEAR1004

8’10” X 29 1/8” 9’2” X 29 3/8” 10’0” X 32”

10’6” X 32” 10’11” X 32 1/4”

LOTUS

9’8” X 32” 10’2” X 32”

•NCAR0902 •NCAR0904

•NCAR0906

•NCAR0908

•NCAR0910

•NCAR1001 •NCAR1002 •NCAR1003

•NCAR1004 •NCAR1005

HIT WS

11’6” WS X 33 1/2”

•NHIT1005

VOYAGER

9’8” X 31 1/2”

10’2” X 32” 11’2” X 32 1/2”

•NDTV1001

•NDTV1002

•NDTV1003

•NCYG1001 •NCYG1002

SURF SUP

FLATWATER

11’0” X 30” •NSTR1001

DC SURF SUPER X

9’0” X 28”

10’0” X 27 1/2”

10’0” X 29”

10’0” X 32”

CRUISE

10’2” X 32”

•NSCR1001

DC SURF X

6’10” X 23”

7’2” X 26 3/4”

7’8” X 27”

8’2” X 27 1/2”

8’6” X 28”

ALLROUNDER

8’0” X 29 1/2”

9’2” X 29 3/8”

•NSAR1001

•NSAR1002

•NDSX1006

•NDSX1007

•NDSX1008

•NDSX1009

CRUISER FS

10’0” X 32”

10’6” X 33”

ALLROUNDER LT

9’8” X 31”

10’6” X 32”

•NDSX1001

•NDSX1002

•NDSX1003

•NDSX1004

•NDSX1005

DC SURF WIDE

8’3” X 32”

8’7” X 32”

8’10” X 32”

LOTUS

10’2” X 32”

•NSCR1002

•NDSW1004

•NDSW1005

•NDSW1006

DC ELEMENTS SURF SUP

8’3” X 32”

8’7” X 32”

8’10” X 32”

•NDSW1001

•NDSW1002

•NDSW1003

11’6” X 33”

12’6” X 32”

PIONEER FS

•NOXY0905 •NOXY0904

CRUISER WINDSURF FS

10’0” X 32” •NOXY0906

TOURING FS

12’6” X 30” •NOXY1007

•NOXY0915 •NOXY0911

•NOXY0916 •NOXY1006 THE QUEST FS

11’6” X 39” •NOXY0908

LOTUS FS

11’0” X 35 1/2” •NOXY0907

NSPIRATION MAT FS

8’0” X 36”

•NOXY1003

RACE FSL

10’6” x 23”

12’6” X 25”

14’0” X 23”

14’0” X 25”

14’0” X 27”

•NOXYPT03

•NOXY0903

•NOXY1008

•NOXY0902

•NOXY0901

10’6” X 33” 10’0 X 35” •NOXY1001 •NOXY1002

NSPIRATION MAT ONLY

8’0” x 36” •NOXY1004

CARNIVAL CRUISER HD

18’0” X 60” •NOXY0806

:

Photographer
: Kylie Shields

CRUISER

The HIT Cruiser is ideal for schools, rental centres and resorts. It’s your all-round, family-friendly durable paddleboard.

All four HIT Cruisers (9’8”, 10’2”, 11’2” and 11’6”) are designed with stability, glide and easy turning in mind. Volume is evenly distributed through the standing area while the wide round nose and tail really help with a stable standing position. The tail section of the HIT Cruiser SUPs benefit from a concaved V-bottom that makes turning even easier.

WS is for windsurfing

The 11’6” WS, like all NSP HIT Cruisers, comes with a mast insert so your customers can sail as well. But unlike the regular 11’6”, the WS version features a daggerboard as well, for effortless upwind navigation!

To develop the Cruiser, we worked on a proven shape from the successful Elements range and improved the outline, rail and bottom shapes for a better glide over flat water. This directly affects the allround paddling performance for everyday use, but with some key design characteristics, accomplished paddlers will also appreciate taking this Cruiser into small and medium waves.

• A standing guide on the deckpad will help first-timers find their standing position on that all-important maiden voyage.

• Locking anchor hole on the nose makes the board ideal for rental and schools to lock the board when not in use.

• Full-length thermoformed EVA deck pad for durability and comfort.

• M8 screw insert available on all models to attach windsurf mast base.

Locking anchor hole
Full EVA deck pad Bungee cord for cargo Standing guide
Center ledge handle and M8 insert to attach windsurf mast
HIT WS
HIT Cruiser
Photographer : : Mana Amphol
Rider : Mana’s team (SUP Addict)
Location : Chantaburi, Thailand
Board : Hit Cruiser

VOYAGER NSP

Designed to be versatile and durable, the D-Tech Voyager is the perfect choice for weekend hobbiest and full time enthusiasts alike. Combining flatwater stability, surf performance, and the durability with our new Dura-Tech (D-Tech) consruction, the Voyager is the perfect combination of go anywhere, and do anything.

Design

• All three D-Tech Voyagers (9’8”, 10’2”, and 11’2”) are designed with maximum stability, manuoeuvrabilty, and control in mind.

• Single to double concave bottom with a light V through to help generate speed and maintain smooth transitions from turn to turn.

• Fin box options to optimize the conditions or suit your prefered fin setup.

• Evenly distributed volume with a round nose and tail provide a stable standing position.

• Standing guides on the deck are perfect for beginners to find their standing positions. Ideal for schools, rental stations, and businesses looking to proide a little extra fun on the water.

Accessories included : 9” fin for the 10’2” and 11’2”

8” fin for the 9’8”

2x MFC-shaped side biters

D-Tech Voyager Design Features

Tried and Tested Shape

To develop the Voyager we combined the shape from the highly stable and popular HIT range with the bottom from the successful Elements range, marrying the two together while improving the outline and rails for the perfect combination of smooth gliding and handling. Directly affecting the all round capabilities for everday use in a multitude of conditions ranging from flat water to small and medium surf.

Designed for Commercial Use

Durable and safe for commercial use; the full deck EVA pad with standing guides lets beginners safety explore the board and find their balance in confidence. The soft grippy, EVA also provides a level of comfort for anyone who preferes to kneel or not quite ready to stand-up. Bungee cords at the nose are great for securing floatation devices (PFD’s), bags, water bottles, and other personal items. Reinforcemetns along the rails, nose, and tail, protect the Voyager’s from paddle impact, and other generalbumps and knocks.

Constuction of the D-Tech Voyager

D-Tech board construction uses eco-friendly SecureCell EPS cores that are fully wrapped in fiberglass. Once laminated with epoxy resin, the core is sealed in thermoformed in ABS and then wrapped with a tough reinforced rail band. All of this increase the boards longevity, durability, and impact resistance.

D-Tech construction also features a deck covered with preium thermoforced EVA padding, and a multi-purpose handle that makes lifting and moving the board easier than ever before, delivering the perfect blend of performance, comfort, and handling.

Locking

Large locking point

Gore Tex valve
Fiberglass standing area
Fiberglass full wrap
Fiberglass
SecureCell EPS core
Bungee & PFD inserts
Premium thermoformed full EVA deckpad
ABS rail band
D-Tech protective shield (deck & bottom)

FLATWATER

Designed by Alain Teurquetil as the first choice for recreational flatwater paddling and short distance touring.

•NETR0801

CRUISE

One of our best-selling cruising boards in the SUP range and one of the most popular SUP’s in the world.

•NECR0901

•NECR0902

•NECR0903

•NECR0904

•NECR1001

•NECR1002

•NECR1003

•NECR1004

ALLROUNDER

The ultimate allround SUP – Our best selling SUP surf board is a perfect combination for first-time wave riders and paddlers looking for fun in the surf.

•NEAR0902

•NEAR0904

•NEAR0906

•NEAR0908

•NEAR1001

•NEAR1002

•NEAR1003

•NEAR1004 Aqua White

FLATWATER NSP

The NSP Elements Flatwater offers durability, value and performance. It’s a unique blend of paddling stability, comfort, cruising speed and touring glide.

• Flatwater paddling is about enjoyment and these boards are equally fun on a river delta, creek, lake, coastal cruising, fitness training or short open water runs in light conditions.

• Fitted with plugs on the nose for cargo straps to take food, water and life jackets.

• Fast, stable and great glide for long paddling sessions on the water.

• Eco-friendly green epoxy resin provides durability and value.

Designed by NSP’s racing, the bulbous nose, gradually shifting into the proven displacement design, is what makes paddling the Elements Flatwater effortless and relaxing.

Cargo plugs on nose with bungee
Center handle

CRUISE

One of our best-selling boards in the SUP range is also one of the most popular cruising SUP’s in the world.

Suitable for riders of all sizes and skill levels, the design features a wider nose and rounded square tail creating a stable platform with generous volume and easy turning.

• A double concave delivers glide and rewards as a super stable board that performs best on flat water, small waves and breaks.

• The combination of fiberglass, durable gel coat skin, glass stringers, a wood layer under the standing area and a secure-cell EPS core make this board durable, great value and with enough performance to enjoy it for years to come.

• Bungee cord on the nose to carry all your gear.

• Thermoformed EVA deck pad for ultimate grip and comfort.

• FCS plug on the nose to mount your action camera.

Note the 9’8” has a round tail for greater maneuverability.

Cargo plugs with bungee cord included
Center fin box
Center Ledge handle and thermoformed EVA
Photographer : David Edmondson
Location : Burj Al Darab, Dubai
Board : Elements Cruise

ALLROUNDER

Our best selling allround SUP – a perfect combination for first-time wave riders and paddlers looking for fun in light surf.

• Proven outline with semi-pointed surf-style nose and moderate nose lift.

• Pulled in round tail for speed, maneuverability and control.

• Single to double concave bottom and a light V through the tail, generates speed quickly and maintains smooth flow fr om turn to turn.

• Fin box options allow different setups to optimize for a wide range of conditions.

• The 10’, 10’6” and 10’11” come with two plugs on deck to attach personal flotation devices or other gear .

• Nose insert for action camera.

FIVE-BOX FIN CLUSTER

The Elements Allrounder comes with a nylon 3-fin set. A single center fin and two FTU-sidefins, designed by Maui Fin Company.

The five-box fin cluster allows for unlimited tuning potential. So whatever your spot is looking like, set up your Allrounder to make the most out of your session.

Cary-over allrounders come with twin tab fin boxes while the new Aqua design comes with FTU fin boxes, two MFC-designed side fins and a single center fin.

Dolphin fin 8”, 9” & 2 x FTU fin designed by MFC
Aqua
Cargo plugs for PFD
Center Ledge handle
5 Fin box setup
FCS Plug for GoPro®
White
Photographer : Opal Jonesy Rider : Kaelan Lockhart
Location

PERFORMANCE TOURING

Explore what’s around the next corner and the next, go further and paddle faster in all conditions!

CRUISE

Cruise across lakes, flat water, ride small waves and experience stand-up paddling in its purest form!

Flax Blue

•NCCR0901

•NCCR0902

•NCCR0903

•NCCR0904

•NCCR1001

•NCCR1002

•NCCR1003

•NCCR1004

ALLROUNDER

Our best-selling SUP surf board is a perfect blend for weekend wave riders and paddlers looking to have fun in the surf. The Allrounder comes in NSP’s award-winning CocoFlax construction, which is our most eco-friendly construction to date. Like all other boards the Allrounder now comes in 100% bio-degradable packaging.

Flax Natural

•NCAR0902

•NCAR0904

•NCAR0906

•NCAR0908

•NCAR0910

Flax Blue

•NCAR1001

•NCAR1002

•NCAR1003

•NCAR1004

•NCAR1005

Rider : Opal, Lilly, and Freddy(Dog) (Freddy Team)
Location : Noosa Festival of Surfing, Australia Board : CocoFlax Allrounder

PERFORMANCE TOURING

The ultimate touring board. Carry lots of gear and explore what’s around the next corner and the next, go further and faster in all conditions!

• The Performance Touring range incorporates NSP’s race-winning designs from the original NSP Ninja for exceptional glide with touring-specific features.

• Uniquely designed for stability in all conditions, with enough volume to carry extra gear for daytrips and overnight camping adventures.

• Flattened nose and tail deck areas for gear loading, plenty of insert points for attaching your gear with nose and tail bungee plus FCS inserts for attaching a GoPro® or GPS.

• Added volume in the bulbous nose to support heavy payloads and to ride over chop easily.

• Paddlers will appreciate the great tracking and superior handling in crosswinds*

• Cocoflax is the premium model, offering the benchmark strength-to-weight ratio for performance touring.

INVERTED BULBOUS NOSE DESIGN

Designed by NSP’s racing team, the Performance Touring range incorporates NSP’s race-winning nose design of the original Ninja raceboard for an exceptional glide.

Cargo plugs bungee included
Center fin box
Bulbous nose
Center ledge handle
Hatchet 9”
Cargo plugs on nose and tail
Blue Wave
Photographer : Peter Lintner
Rider : Felix Lintner
Location : Germany
Board : CocoFlax Performance Touring

CRUISE

The NSP Cruise is one of the best-selling boards in the SUP range and one of our more popular shapes worldwide. Cruising on a quiet body of water is an essential part of the stand-up paddling experience, and most SUP athletes covered their first meters on an NSP Cruise at some point. Built in the aesthetically pleasing CocoFlax technology, the Cruise is as easy on the eye as it is on the water. CocoFlax construction has already earned a “Product of the Year” award at the Paddle Expo, and from this year on, all NSP boards are shipped in 100% bio-degradable packaging.

• Suitable for riders of all sizes and skill levels, its design features a wider nose and square tail (10’2’’, 11’0’’, 11’6’’), which creates a stable platform. The bottom of the Cruise has a double concave that helps the gliding characteristics, making the Cruise a board that works both on flatwater and in small waves

• The eco-friendly construction makes for a visually unique board with an unmatched strength-to-weight ratio. A CocoFlax is light to carry, easy to maneuver and a breeze to paddle. Its responsive flex and strength, allowing paddlers to progress and expand their comfort zones.

• Bungee cord on deck and tail to carry all your gear .

Note: the 9’8” has a round tail for greater maneuverability.

Cargo plugs
9’8” 9’8”
Bungee cord included
Ledge handle FCS insert on nose for GoPro®
Flax Natural Square Tail 10’2’’, 11’0’’, 11’6’’
Flax Natural 9’8” Round Tail
Flax Blue 9’8” Round Tail
Flax Blue 10’2’’, 11’0’’, 11’6’’
Photographer : David Edmondson
Location : Burj Al Darab, Dubai
Board : CocoFlax Cruise

ALLROUNDER

NSP’s best-selling allround SUP surf board– a perfect blend for wave riders and paddlers looking to have fun in the surf. Awarded at the Paddle Expo, CocoFlax Construction has already earned a product of the year award, putting this construction at the vanguard of green SUP-board technologies.

• Proven outline with semi pointed surf style nose with moderate nose lift, a forward wide point for stability and easy paddling.

• Pulled-in round tail for speed, maneuverability and control.

• Single to double concave bottom and a light V through the tail, generates speed quickly and maintains smooth flow from turn to turn. Suitable for 1 to 5 foot surf.

• Two plugs on deck on the 10’0”, 10’6” and 10’11” will accommodate a personal flotation device or other gear .

• Nose insert for GoPro®.

FIVE-BOX FIN CLUSTER

Depending on the size you ride, the Allrounder comes with the NSP 8” CocoMat fin, and two side fins, allowing for different setups and various tuning options so riders can find their ideal fin setup.

Allrounders are available with twin tab fin boxes or with NSP’s all new FTU fin boxes (compatible with Futures fins). Each board is supplied with MFC-designed nylon side fins and a 8” center fin.

Natural flax fiber rails 2
FCS insert on nose for GoPro®
Flax Blue
Flax Natural
Photographer : Ty Judson Rider : Ty Judson
Board : CocoFlax Allrounder

DC SURF WIDE

The evolution of the popular and well-tested DC Surf Wide range. Now in one of award-winning technologies; CocoFlax.

DC ELEMENTS SURF SUP

Built to meet the demand for a lower-priced DC Elements Surf Sup, the Elements version is added to the range. Riders wanting to surf a highly durable, stable and responsive signature SUP sled are going to want an Elements DC Elements Surf Sup.

DC SURF X

Shaped and designed by Dale Chapman, this is the 3rd evolution of the DC Super X. The longboard in our SUP line-up, this classic wave rider has a swallow tail for snappier turns and channel bottom for extra speed.

•NDSX1001 •NDSX1002 •NDSX1003 •NDSX1004 •NDSX1005

DC SURF SUPER X

The DC Surf X is becoming our teamrider go-to-board - it’s usally the first order a teamrider places when they start riding NSP. Pros and experienced paddlers have come to appreciate the performance of the DC Surf X in some of the very best spots in the world. Now with swallow tail for snappier turns and channel bottom for extra speed.

DC SURF WIDE

The evolution of the popular and well-tested DC Surf Wide range. Now in one of our award winning technologies; CocoFlax.

• Square tail for extra speed and stability.

• Single to double concave bottom with a slight V through the tail makes this board a turning machine in small and mushy conditions.

• The five fin boxes offer tri-fin or quad-fin set ups to optimize for your style and surf conditions.

• Outstanding strength-to-weight ratio utilizing exclusive CocoFlax technology with eco-friendly green epoxy resin.

• Ideal for the surfer looking for a highly durable, stable, responsive surf SUP to take their performance to the next level.

• Shaped and designed by legendary shaper Dale Chapman.

FIVE-BOX FIN CLUSTER

The Surf Wide comes with a set of performance thrusters by NSP, but the five-box fin cluster allows for unlimited tuning potential. So whatever your spot is looking like, set up your Surf Wide to make the most out of your session.

All five boxes on the DC Surf Wide are FTU boxes, making them 100% Futures compatible. Out of the box, the board comes with a thruster set of J5 performance fins.

Natural flax fiber rails
3 x J5 fins
5 x FTU boxes
Kicktail pad

DC ELEMENTS SURF SUP

Our all new round tail DC Elements Surf Sup is built to meet the demand for a lower-priced surf Sup. Paddlers wanting to surf a highly durable, stable and responsive signature SUP sled are going to want an Elements DC Elements Surf Sup.

• A DC Elements Surf Sup offers 95% of the performance envelope of a dedicated performance surf SUP, with the benefit of a comfortable width.

• A rounded tail for excellent maneuverability and turning in real world conditions.

• A perfect shape for rental centers or riders looking for a board that’s made for surf SUP and will put up with consistent and prolonged use.

• The five fin cluster offers all kinds of tuning options, for different fins, riders and conditions.

• Thermoformed EVA kicktail pad with center arch for extra grip.

FIVE-BOX FIN CLUSTER

The Elements Surf SUP comes with a nylon 3-fin set, but the five-box fin cluster allows for unlimited tuning potential. So whatever your spot is looking like, set up your DC Surf to make the most out of your session.

All four side fin boxes are FTU boxes and are 100% Futures® compatible. The supplied FTU-sidebites are designed by MFC, and come with a Wave 6“ performance fin by NSP.

tail for excellent maneuverability

Rounded
Kicktail pad with arch bar
Twin tab fin box or FTU fin box + 1 Surf 10 fin box
Wave 6” &
by MFC
Blue
Photographer : Ezequiel Zaccardi
Rider : Bruno Pitanga
Location : Lagos, Portugal
Board : DC Elements Surf Sup

DC SURF SUPER X

The longboard in our SUP surf line-up, this classic wave rider now features a channel bottom for extra speed and swallow tail for snappier turns. Shaped and designed by Dale Chapman, this is the 3rd evolution of the DC Super X.

I’m happiest paddling these out to my local point at Currumbin Gold Coast, trimming on the nose, or back on the swallow and effortlessly enjoying a classic cutty or two. ---- Dale Chapman - Shaper ----

• Flax rails and Paulonia wood deck provide extra durability and strength, while keeping in line with our brand’s eco-friendly initiatives.

• The tail has been slightly widened and the addition of the channel bottom generates speed, while the swallow tail loosens up the tail for greater maneuverability.

• The DC Super X range suits both small and big swell.

• Performance riders will appreciate the extra grip with our newly designed thermoformed EVA tail kick pad with center arch.

FOR THE BIG STUFF AND SMALLER SWELL

The range suits both smaller and bigger swell. Depending on the conditions, the DC Super X works in a wide variety of conditions, allowing you to rip on bigger days or try yourself with some classic moves like the helicopter or goof around with a transfer.

Fins:

All Super X come with NSP’s FTU boxes (compatible with Futures® fins). The DC Super X comes with a set of 2 x J3 FTU performance fins and one wave 6” performance center fin by NSP.

Flax rails
for speed
Photographer : Opal Jonesy
Rider : Paul Jonesy
Location : Australia
Board : DC Surf Super X

DC SURF X

The DC Surf X is our teamrider go-to-board. Pros and experienced paddlers have come to appreciate the performance of the DC Surf X all over the globe in some of the very best spots in the world.

Dale Champan’s creation continues to rip, with its easy-to-control shape and a single concave for speed and agility. Which is why teamriders like Ty Judson (AU), or Geovani Perez (MEX) grab their DC Surf X when the surf is big.

• Our DC Surf range features an eco-friendly deck and flax rails for added strength and durability; keeping in line with our brand’s eco-friendly sustainability initiatives.

• Swallow tail loosens up the tail, creating that twin-like ride.

• Four speed channels provide a quicker route to the tail of the board, generating speed.

• Performance riders will appreciate the extra grip with our newly designed thermoformed EVA tailkick pad with center arch.

DC Surf X 6’10”

A teamrider favorite, developed for riders who’s skills have outgrown larger designs. Get ready for an uncompromised surfing experience!

DC Surf X 7’2”

The 7’2” is a perfect step up board from the 6’10. It’s fast and turns on a dime.

DC Surf X 7’8”

Designed for experienced riders up to 75kg, The 7’8”

DC Surf X 8’2”

Designed for experienced riders up to 85kg,

DC Surf X 8’6”

Designed for experienced riders up to 90kg, The 8’6”

Fins:

All Surf X are available with NSP’s all new FTU boxes (compatible with Futures® fins). The DC Surf X comes with a set of 3 x J5 FTU performance fins by NSP.

Flax rails 4 Speed channels
Emerald
Photographer : Dane Gillett
Rider : Takumi Yasui
Location : Japan
Board : DC Surf X

FLATWATER

A unique blend of paddling stability, comfort, cruising speed and glide. Now also available in P2 Soft, this version offers flatwater glide, durability and great value for money.

CRUISE

The NSP Cruise is one of the best-selling boards in the SUP range and one of our more popular shapes worldwide. Cruising on a quiet body of water is an essential part of the stand-up paddling experience, and most SUP athletes covered their first meters on an NSP Cruise at some point.

ALLROUNDER

The ultimate allround surf SUP - a perfect blend of fun wave performance, making this board a trendsetter in the market. Its soft deck and smaller size also makes it ideal for kids

FLATWATER

A unique blend of paddling stability, comfort, cruising speed and glide.

The P2 Soft Flatwater is a unique blend of paddling stability, comfort, sustainable cruising speeds and glide. Flatwater is about the joy of paddling and these boards are equally fun on an estuary, river, lake, coastal cruising, fitness training or short open water runs in light conditions.

• Developed by NSP’s race design team to be the first choice for flatwater paddling and recreational touring.

• Built in sturdy P2 construction, the flatwater is affordable, extremely durable and a fantastic choice for recreational paddling.

• Trim guide on deck standing area to assist with proper foot placement.

• Flatwater is about enjoyment and these boards are equally fun on a river, lake, estuary or for fitness training. These boards are also excellent for short ventures out on open water.

• Fitted with plugs on the nose for cargo straps to take food, water, life jackets and camping gear.

• Fully protected on the nose and tail with rubber bumpers. The soft top and soft bottom make this a favorite for tour operators, rental centers and holiday resorts.

*In order to reduce our carbon foot print we offer to ship the soft boards with or without boxes (special conditions apply).

Trim guide
Protected rails
Center ledge handle Carry handles nose & tail
Nose & Tail protectors 9” Hybrid fin

CRUISE

The NSP Cruise is one of the best-selling boards in the SUP range and one of our more popular shapes worldwide. Cruising on a quiet body of water is an essential part of the stand-up paddling experience, and most SUP athletes covered their first meters on an NSP Cruise at some point in time.

Available in a single size, this P2 Cruise makes things easy for your customers. Take their decision-making out of the equation as any rider will enjoy paddling these.

• Suitable for riders of all sizes and skill levels, the design features a wider nose and rounded square tail creating a stable platform with generous volume and easy turning.

• Full EPS glass wrapped for extra strength and durability.

• Durable slick bottom.

• Full thermoformed EVA deck pad with inserts to attach a personal floatation device.

• Bungee cord on nose to carry extra gear.

• Nose and tail rubber bumpers for extra protection.

• Carry handles nose and tail.

EASY-TO-USE STANDING GUIDE

The standing guide on the deckpad will help first-timers find their standing position that all-important maiden voyage.

*In order to reduce our carbon foot print we offer to ship the soft boards with or without boxes (special conditions apply).

Protected rails
Bungee cord inserts
Center ledge handle Carry handles nose & tail
Nose & tail rubber bumpers
Dolphin fin 8”
Photographer : Ezequiel Zaccardi
Location : Lagos, Portugal
Board : P2 Soft Cruise

ALLROUNDER

A perfect blend for sup surf wave riders and paddlers looking to learn and have fun in the surf. The Allrounder, in P2 Soft, is a perfect option for venues who need a rugged, ding-resistant and a safe surf SUP board.

• Proven outline with semi pointed surf style nose with moderate nose lift, a forward wide point for stability and easy paddling.

• 3 x FCS ll soft fins to maximize surf performance.

• Full EPS glass wrapped for extra strength and durability.

• Durable slick bottom.

• Full Thermoformed EVA deck pad with inserts to attach a personal floatation device.

• Nose and tail rubber bumpers for extra protection.

• Carry handles nose and tail.

• Trim guides to assist with proper foot placement.

Round tail

The P2 Soft Allrounder comes in three technologies: CocoFlax and Elements, but where the P2 Soft Allrounder is unique, is that it comes in one size only.

Its round tail is a compromise between a big wave tail and a performance tail like the squash tail. Compared to a pintail or swallow tail, it creates more lift, translating into a SUP that is faster and easier to turn.

*In order to reduce our carbon foot print we offer to ship the soft boards with or without boxes (special conditions apply).

Trim guide
Insert for PFD
Center ledge handle Carry handles nose & tail

COCOFLAX LOTUS

P2 LOTUS

Super stable and wide, the Lotus in P2

construction creates a floating platform to make SUP yoga accessible to anyone.

Easily

NSPIRATION MAT FS -INFLATABLE

LOTUS

The Lotus is our versatile and easy-to-paddle yoga board for water-based fitness workouts.

• Lightweight and strong, the Lotus is easy to move on and off the water.

• The 10’2” is super stable creating a floating platform to make SUP yoga accessible for anyone.

• Full-length thermoformed EVA adds durability, comfort and grip for more advanced yoga poses.

• Paddle holder on the tail.

• The 9’8” is a smaller version of the 10’2” and comes with a rounded tail, making it more maneuverable and a great choice for the lighter paddler.

• Nose insert for GoPro® and 4 inserts on deck for bungee.

5 mm Thermoformed EVA full deckpad
Paddle holder
Mandala-inspired artwork
Center ledge handle
CocoMat fin 8”
Bungee and GoPro® inserts
Shiraz
Shiraz

LOTUS

Super stable and wide, the Lotus in P2 Soft construction creates a floating platform to make SUP yoga accessible to anyone.

For anyone looking to enjoy tranquility, stability, family fun and waterbased fitness workouts on a dedicated SUP-yoga platform.

• Designed using our most popular SUP shape, the cruise, our P2 Lotus is super stable and wide, creating a floating platform to make SUP yoga accessible to anyone.

• The grippy full length padded EVA deck gives confidence to practice advanced yoga poses.

• P2 Construction allows for intensive use over an extended period of time, which makes a gr eat return on investment.

• The Lotus is a very versatile and easy-to-paddle board for water-based fitness workouts for the whole family.

• D-ring on the nose to help anchor or tie-down your board to prevent extra movement and drifting.

WHY A P2 SOFT LOTUS?

Choosing the Soft Lotus for its P2 Soft construction is usually about safety and providing a platform that enables paddlers to enjoy their board in the safest way possible.

And while the P2 Soft Lotus is already a great platform for beginning SUP yogi, the full-EVA cover makes it even better.

*In order to reduce our carbon foot print we offer to ship the soft boards with or without boxes (special conditions apply).

Shiraz
Center handle ledge
Paddle holder
Nose & tail rubber bumpers
Dolphin fin 8”
Shiraz

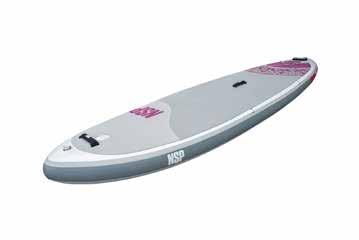

LOTUS FS

Easily travel with your fitness or your yoga board to the next holiday retreat.

• Soft EVA covers deck completely

• Fusion-reinforced double layer glueless pre-lamination, with double sealing rail band provides added durability, yet maintains lightweight.

• GoPro® camera mount on nose

• Neoprene carry handles

• Neoprene paddle holder

• 4 point removable cargo straps

• 3x D-rings on nose (deck and bottom) and tail to easily anchor board together during class

• Shoulder carry strap

• 9“ Dolphin center fin

• High-pressure double action pump

• Premium dual compartment wheelie bag with integrated paddle and pump holder

• Recommended pressure 15 - 18 PSI

Paddle holder
Double sealing rail band
Soft EVA cover deck completely
D-ring on nose
Removable shoulder strap on backpack
GoPro® camera mount 4 point removable cargo straps
Neoprene carry handle
Dolphin fin
- Premium Backpack with wheels - Double Action pump
Photographer : Peter Lintner
Rider : Larissa Lintner
Location : Germany
Board : Inflatable Lotus FS

NSPIRATION MAT FS

The NSPiration Mat was created to meet the needs of the fitness market. Easily teach your next fitness or yoga class in the pool, lake or sea. The square dimensions make sure several boards fit in a single swimming pool.

• Full EVA Deck pad.

• 4x Neoprene padded handles.

• Bungee strap to attach gear.

• Plenty of super heavy-duty reinforced D-rings to attach exercise bands.

• Extra D-rings on the rail and bottom for anchor points.

• Triple-reinforced rails for strength and rigidity.

• Double sealing rail band for durability and strength.

• Recommended pressure 15 - 18 PSI

* We offer the NSPiration Mat as a full set with bag and pump or contact us to order only the mat for your fitness clubs - special conditions apply.

4 point cargo straps
Double sealing band
Reinforced D-ring attachments
EVA Deck pad Thermoformed
Double sealing band
Mandala-inspired deckpad
Deluxe backpack
Double Action pump
Photographer : Dane Gillett
Rider : Alyssa Neubarth, Stacy Gartner
Location : Japan
Board : NSPiration Mat FS

INFLATABLE

ALLROUNDER LT

Single layer, lightweight, strong and durable at a great price-point, full package, right out of the box with board, pump and paddle.

CRUISER FS

Inspired by our most popular Allround shapes, the new O² Cruiser FS inflatables are perfect for cruising, touring, and exploring. Now with an extra chamber of flotation.

CRUISER WINDSURF FS

Our newly designed Cruiser Windsurf FS is a multi-faceted board designed to get you cruising or exploring on the flat days or when the wind kicks up, add your windsurf rig and enjoy the feeling of flying over the water.

TOURING FS

The Touring FS is longer than conventional inflatables and with its sharper shape, it has better tracking and efficiency for extended paddle excursions.

THE QUEST FS

For those who love to explore, fish and carry lots of gear. Now with double-chamber technology and two additional side-chambers on the rail for those venturing out to sea. Focus on your fishing only!

PIONEER FS

The ultimate board for adventurers looking to run the rapids!

RACE FSL

It’s sleek, it’s fast, it’s inflatable. Athletes wanting to do away with roof racks and cumbersome transportation should try the O² Race FSL. Perfect for open water endurance paddling!

CARNIVAL CRUISER HD

Created to get everyone on board. For resorts, beach clubs, schools and event organizers to share paddling experiences for groups of up to 10 people.

TOURING FS

Back by popular demand!

Your next adventure awaits. Easily carry all your gear and essentials on your next long distance water journey.

Features Include:

• Fusion reinforced double layer glueless pre-lamination

• 2x accessory mounts to load up your GPS, camera or drink holder

• 2x cargo straps on nose and tail to load your gear

• 3x neoprene carry handles

• Neoprene paddle holder on tail

• D-rings on nose and tail to tail off or anchor

• Square groove thermoformed deck pad for extra grip

• 9” Touring center fin

• Bravo double action pump

• Super deluxe dual compartment backpack

D-rings on nose and tail
Accessory mounts
Neoprene carry handle
4-point cargo straps
Premium Backpack with wheels
Photographer : Maxime Hainneville
Rider : Capucine Hainneville
Location : Phuket, Thailand

ALLROUNDER LT

Ditch the roof racks today and score some paddle strokes on the fly. This go-anywhere inflatable is something else. With a coiled leash, the deluxe backpack and a 3-piece paddle along with a pump, the Allrounder LT is a one-stop solution.

Inspired by one of our most popular shapes, the Allrounder LT is perfect for cruising, touring, exploring and traveling with a SUP.

• Lightweight single layer construction

• Double layer rail construction

• Thermoformed EVA deckpad and thermoformed square grooved tail pad

• 4-point cargo straps on nose

• Neoprene carry handle

• D-rings on nose and tail

• Double action pump

• Coil leash

• Adjustable aluminum paddle

• Deluxe lightweight backpack

• Recommended pressure 15 - 18 PSI

D-Ring on Tail
4-Point cargo straps
Double layer rail tape
D-Ring on nose
Neoprene carry handle 9” Dolphin fin
3-piece paddle
Coil Leash
Deluxe backpack High-pressure double action pump
Rider : Mia Soares Silva
Portugal

CRUISER FS

Inspired by our most popular Allround shapes, the new O² Cruiser FS inflatables are perfect for cruising, touring, and exploring. Feel at ease knowing you have a double chamber of extra flotation should you run into trouble.

• Rounded square tail for increased stability

• Fusion-reinforced double layer glueless pre-lamination

• Double layer rail construction with double sealing rail band

• Double air chamber with r einforced sidewalls provides additional stiffness and acts as extra flotation in case of puncture to the outside chamber.

• 6-inch dropstich provides more buoyancy and rigidity.

• Integrated windsurf mount

• Action camera mount

• 2x D-rings for shoulder carry straps

• D-rings on nose, deck and bottom - nose ring for tying off or towing, tail D-ring for leash.

• Thermoformed EVA deck pad and kicktail pad for extra grip and durability compared to standard EVA.

• 4-point cargo straps to carry extra gear

• Neoprene carry handle

• 9” Dolphin center fin

• Double action pump

• Premium dual compartment backpack with wheels

• Recommended pressure 15 - 18 PSI, 12 PSI for center chamber

Reinforced D-Ring on Tail
4-point cargo straps
Action camera mount
D-Ring on nose
Neoprene carry handle Thermoformed EVA grip
9” Dolphin fin
- Premium Backpack with wheels - High-pressure double action pump
Photographer : Felix Lintner
Rider : Peter Lintner
Location : Spain
Board : O2 Inflatable Cruiser FS

CRUISER WINDSURF FS

Our redesigned Cruiser Windsurf FS is a multi-purpose inflatable that gets you cruising or exploring on flat days. And when the wind picks up, you can rig up a windsurf sail and enjoy the feeling of effortless windsurf cruising with the Cruiser Windsurf FS.

• Integrated mast foot insert to attach your windsurf sail (not included).

• Windsurf center fin box for sub-planning conditions.

• Rounded square tail for increased stability.

• Double layer rail construction with double sealing rail band.

• Fusion-reinforced double layer glueless pre-lamination.

• 6 inch dropstitch in the 10’0’’ for better stiffness and more float.

• GoPro® camera mount.

• 2x D-rings for shoulder carry straps.

• D-rings on nose, deck and bottom - nose ring for tying off or towing, tail D-ring for leash.

• Thermoformed EVA deck pad and kicktail pad provides extra grip and durability compared to standard EVA.

• 4-point cargo straps to carry extra gear.

• Neoprene carry handle.

• 1 x 9” Dolphin center fin + 1 x Dolphin 10”.

• Double action pump.

• Premium dual compartment backpack with wheels.

• Recommended pressure 15 - 18 PSI

Windsurf mount D-ring
Bungee chord
Windsurf center box and tail center fin box
Cruiser Windsurf
- Premium Backpack with wheels - High pressure double action pump
Photographer : NSP Japan
Location : Japan
Board : O2 Inflatable Cruiser “ Windsurf FS

THE QUEST FS

Extra wide outline for those who love to fish, camp or run the rapids, The Quest is a great river running board and perfect for catching the big one!

• 4 air chambers creates additional safety should the board get punctured.

• The 5” thickness + 2” additional chambers create an extra high rail for balance and stability while river running and to keep fish on the deck.

• Double chamber for better air distribution, guaranties extra board stiffness, avoids soft and bouncy feeling and adds more safety.

• Fusion reinforced double layer glue less prelamination.

• 3x standard accessory mounts on deck.

• 2 x 2” round mounts on nose and tail.

• 2 x Neoprene paddle holders.

• Thermoformed EVA deckpad.

• Neoprene carry handle on nose.

• 6 point removable cargo straps on nose.

• 4 point removable cargo straps on tail.

• 4x D-rings for shoulder carry straps.

• 6x D-rings on deck for additional attachments (IE seat, icebox).

• 2x D-rings on tail.

• 1x D-ring on nose deck and bottom.

• 9” Hybrid fin.

• High-pressure triple action pump.

• Premium dual compartment wheelie bag with integrated paddle and pump holder.

• Newly designed deckpad with cut outs to allow faster water drainage and reduces weight.

• Recommended pressure 15 - 18 PSI, 12 PSI for sidewalls

This board can get down sections a raft cannot,narrow enough to make tight moves, designed with buoyancy and displacement that will glide through water only an inch deep. The ultimate trouting machine.

-- Ken Hoeve --

The Quest
Removable shoulder strap on backpack
3 Standard mounts on deck
Double Chamber
Anchor D-ring on deck and bottom
2” round mount on nose
9” Hybrid fin
2” round mount on tail
2x D-rings on tail
6-point cargo straps
Premium Backpack with wheels
High-pressure Triple action pump

Seat with Shoulder Strap

FISHERMAN SEAT

•NACC0607

• Durable and UV resistant Nylon seat turns your SUP into a Kayak with ease.

• Fiber tube reinforced seat back and the adjustable webbing straps ensure a perfect upright seating comfort.

• Saltwater resistant clips and buckles.

• Comes together with 1 piece padded shoulder strap, which also can be used as leg strap in combination with the supplied shoulder/leg strap on our NSP The Quest board

FISHERMAN CARGO STRAP SET

•NACC0607

•NACC0608

Fisherman

PIONEER FS

The Pioneer is designed for unexplored waterways, scenic woodland creeks, and running rapids.

Royally equipped with mounts, D-rings and heavy-duty tie-downs for all the equipment you want to have at your disposal on the water.

Designed in collaboration with backcountry adventurer Ken Hoeve who resides in beautiful Colorado where the rivers flow rapidly and the fish are plentiful.

• Fusion-reinforced double layer glueless pre-lamination.

• Double layer rail construction with double sealing rail band.

• Increased nose and tail rocker for best white water experience.

• Heavy duty nose D-rings for anchoring in rough conditions.

• Nose and tail heavy duty tie down belts for safely gear.

• 3 x Deck plate Inserts for attaching fishing gear, GPS, or seat.

• Thermoformed EVA deckpad.

• 2 x D-rings on tail.

• 2 + 1 fin set up with Click fins.

• Paddle holder on the tail.

• Recommended pressure 15 - 18 PSI

Premium Backpack with wheels
Double Action pump
Heavy duty tie down belts, Deck plates for aftermarket accessories and Thermoformed EVA deckpad
2x D-rings on tail
Padded handle and D-ring on the nose
9” Nylon center fin + FCS II Click Fins
Photographer : Ken Hoeve Rider : Ken Hoeve
Location : Eagle Creek, CO, USA
Board : The Pioneer
Photographer : Dane Gillett
Location : Chiba, Japan
Board : Double Action Pump

PUMPS NSP

HIGH PRESSURE TRIPLE ACTION PUMP

• Biggest SUP pump on the market

• Capacity 3.5 + 3.5 L

• Max pressure 26pcs

• 3 stage individual adjustable between max capacity (1), medium (2) & max pressure (3)

• Ergonomic handlebar and Canted foot packs

“That pump is bad ass! Fastest one I have found.” -- Ken Hoeve --

HIGH CAPACITY DOUBLE ACTION PUMP

• Offered with all FS inflatable boards

• Ergonomic handle

• Double to single action switch

• High airflow piston for easy inflation

• Capacity 2.0 + 2.0L max pressure 26psi

HIGH PRESSURE DOUBLE ACTION PUMP

• Offered with Allrounder LT boards

• Capacity 1.8 + 1.8L

• Max pressure 26psi

• Hight airflow piston for easier inflation

• Switch tab from single to double action

HIGH PRESSURE DOUBLE ACTION MINI PUMP

• High pressure 29psi

• High airflow piston for easier inflation

• Switch tab from single to double action

• Inflate/deflate

• Double/Single actions : during the 1st phase of the inflation use double action higher value, switch to single action.

• Manometer on handle

• Aluminum shaft

• Medium volume 2*1500cc.

• Foldable base, handle can be disassembled, save space, easy to pack

Equipped :

• Adaptors

• 1.25m high quality hose (LDPE + EVA), Ø20mm

Handle can be disassembled

Foldable base

•NACC0701
•NAIR1004
•NAIR1011

RACE FSL

Not everyone is blessed with enough storage space for a dedicated race board. Athletes wanting to do away with roof racks and cumbersome transportation should look into the Race FSL.

FSL = Fusion Light

Fusion-reinforced double layer glueless pre-lamination combined with the new machine woven dropstitch. Compared to traditional knitted dropstitch, the fibers of the new machine woven dropstich are stiffer and thus the amount of fibers per square meter can be reduced. This allows an average weight reduction of 1.5 kg, while the board is also stiffer, less bouncy, faster acceleration.

• Double layer rail construction with double sealing rail band

• New low-profile Air7 V3 finbox system creates less drag while racing and allows for easy board roll-up while not in use (see page 49 for more details)

• 2” mount D-rings for PFD attachment on tail

• Thermoformed EVA deckpad for durability, grip and comfort

• Recommended pressure 15 - 18 PSI

Low-profile Air7 V3 finbox system
Double sealing rail band
D-rings for PFD attachment

WORLD CHAMPION ICF WORLD CHAMPION

Photographer : Adam Collins
Rider : Duna Gordillo
Location : 2021 ICF SUP World Championships, Hungary
Board : RACE FSL
Photographer : Adam Collins Rider : Aaron Sanchez
Location : 2021 ICF SUP World Championships, Hungary
Board : RACE FSL

Air7 V3 Internal US fin box

NSP has partnered with Air7 Fin Systems, the leader in performance and quality parts for inflatable water craft since 2009, for the next fin revolution on our Race Inflatable range. The Air7 (V3) is the future fin system for all inflatable boards. The thickness of inflatable boards is not always the same and with the V3 you can now easily adjust the fin box to suit all thicknesses, from 4 inches to 6 inches and more.

The low-profile fin box creates less drag while racing and when not in use, remove the box, easily roll up the board and store it in the supplied backpack.

Specs:

The 210mm / 8.3 inch fin track makes the V3 compatible with your existing fins and suits most classic US box fins and a growing range of “push in and go” Click Fins.

Benefits:

• Low profile.

The V3 is more hydrodynamic then other fin boxes on the market, with a lower profile, offering less drag, making the board more efficient and faster. And the V3 fin box gives the board the look, feel and performance of a “hard board”.

• Stronger and stiffer.

Not only joined to the bottom surface, the V3 is also connected to the top and internal portion of the board. This makes for not only a much stronger, but stiffer board, which equals less losses to flex and more power transferred into your ride with every stroke.

• Completely removable. Travel easier, stow smarter.

The clear benefits to the customers is the board is less cumbersome and now much more easy to roll-up and store. To retailers and warehouses, the benefits include: smaller packing, less storage volume, less warehouse space and reduced transportation fees.

• Replace parts easier:

Fixing and replacing broken fin boxes creates a lot of undue stress, cost and frustration to customers and brands. Eliminating downtime on the water is key and with the “pop-in and go” ease of the V3 , riders are back on the water in no time. Replacement parts can now be easily kept in stock, greatly reducing shipping back and forth across the country / world.

• Better for the Environment.

Reduced shipping volume = smaller carbon footprint. In addition, with a non-permanent, non-glued and removable part, it is much easier to replace and recycle due to damage or at the end of board life. The V3 puts us one step closer to saving the planet!

To Remove Fin Box :

1) Uninstall fin.

2) Deflate board.

3) Decouple BELT from TOP PLATE, (leave attached to track part).

4) Completely remove fin box (both parts) from board.

5) Reconnect removed parts with BELT for safe storage.

Tip for easy install :

1) Remove the TOP PLATE but leave belt attached.

2) Inflate board just to get basic shape (less than one psi)

3) Don’t inflate board yet. Place the TRACK PART of fin box under the board.

4) Pull BELT through the board.

6) Fix hook & loop on BELT to correct length (as per marking on

7) Inflate to full recommended pressure.

8) Turn board over, install fin in to TRACK PART.

9) Go out on the water

5) Thread decoupled BELT ends through TOP PLATE.
BELT)

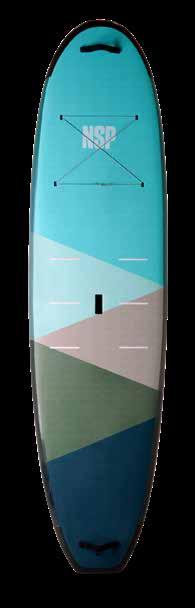

CARNIVAL CRUISER HD

CREATE UNFORGETTABLE PADDLE EXPERIENCES Sharing the stoke is what the Carnival Cruiser is all about. Created to get everyone on board, the Carnival Cruiser lowers the entry barrier to SUP if there ever was one. For resorts, beach clubs, schools and event organizers, the Carnival Cruiser is inflatable, comes with a royal amount of soft EVA and offers the best possible shared paddling

Experience for groups of up to 10 people. Explore local waters, paddle into a party wave or race another Carnival Cruiser - the choice is yours, and they’re all fun!

• Thermoformed Full EVA Deck pad

• 12x Neoprene handles

• Oversized bungee straps to secure everyone’s gear

• 7 Heavy-duty reinforced D-rings

• Triple reinforced rails for strength and rigidity

• Double sealing rail band for durability and strength

• Easy to inflate with two air valves

• Recommended pressure 15 - 18 PSI

Carnival Cruiser HD
12 x Neoprene carry handle
Double sealing rail band
4-point cargo straps
7 super heavy-duty reinforced D-rings
Full EVA Deck pad Thermoformed
10’’ Fin
Carry Bag
2x High pressure double action pump
Photographer : : Tanavut_Wattanasomwong
Location : Siam Fest event @ Pattaya
Board : Carnival Cruiser

PREMIUM BACKPACK

Packed with features for easy travel and storage.

• Heavy duty 600D fabric and 1000D fabric on the bottom

• Extra large storage compartment for board

• Multi-purpose front compartment

• Pump and paddle holder

• 2 carry handles

• Shoulder carry straps

• Name card slot

• Heavy-duty zipper

• Webbing straps for size adjustment

• Heavy duty roller

Hidden shoulder strap compartment
600D fabric
Heavy duty and rust-free zipper Molded grab handle and heavy
Packed with features for easy travel and storage.
Pump and paddle holder, Name card slot
Heavy duty roller wheels
Molded grab handle that seconds as a board bag stand
Pump and paddle holder two carry handles,
Shoulder carry straps
Extra large storage compartment for board
Photographer : Peter Lintner
Model : Larissa Lintner
Location : Corsica, France
Board : NSP Premium backpack

DELUXE BACKPACK

Deluxe backpack with extra large compartment to easily carry board, paddle, pump and accessories.

• Heavy duty 600D fabric

• Carry handle on top

• Webbing straps for size adjustment

• Big zipper for complete front opening

• 1 big compartment to fit boar d, pump, and 3pcs paddles

Available with the following boards :

• ALLROUNDER SL- Medium

• TOURING SL - Medium

• NSPIRATION Mat - Small

Extra large compartment
Shoulder carry straps
Model : Mia Soares Silva
Location : Portugal
Product : NSP Deluxe Backpack
Molded grab handle that seconds as a board bag stand
600D fabric
Name card slot
Packed with features for easy travel and storage.
Padded carrying straps
Adjustment strap

PADDLES NSP

Our NSP paddle range is designed to get you where you want to go with ease, efficiency and speed. Utilizing the best materials, lay-ups and production processes, NSP paddles are engineered with just the right amount of flex, strength and weight to allow for longer paddle sessions on the water.

The power face of our Speedster and Allround models are exactly the same, however the difference lies in the lay-ups. We now offer our top of the line carbon, eco-friendly coco fiber hybrid and an eco, but yet price-friendly carbon hybrid with a more pronounced dihedral.

The raised and extended dihedral provides more strength to the blade and allows a smooth transition and thinner blade. The edge is only 1.7mm thick, creating the smoothest water entrance with immediate bite. The raised tip is parallel to the shaft for aggressive catch and controlling the pace going through the power face.

Every rider will have the same feel when the blade hits the water. NSP blades produce consistent speed, conserve energy and allow paddlers to get more out of their session, every single time.

Rider : Kaelan Lockhart Location : 12 Towers Race Event, Australia Board : Ninja

Perfect for hardcore endurance athletes, reduced diameter (RDM) shafts work for any paddler wanting a scaleddown shaft for their racing - these high-performance are not just for kids and women.

SPEEDSTER 86,81 & 76 sqi

Fast, Durable, Lightweight

• Super light Biax Carbon for best flex r esponse

• Uni-directional carbon stringer

• HD CNC cut PVC cor e, light weight and minimum r esin uptake

• Pre-molded carbon neck for maximum str ength

• Full ABS rail around the entire edge of the blade for extra durability

• Laminated with eco-friendly bio r esin

ALLROUND (COCO CARBON HYBRID) 86 sqi

Eco-friendly, Lightweight, Durable

• Coco Sandwich Construction, adapted fr om our bestselling Coco boards

• 100% CNC cut long grain balsa cor e, strong, light and eco-friendly

• Pre-molded carbon neck for maximum str ength

• Laminated with eco-friendly bio r esin

• Matte finishing

ALLROUND CARBON HYBRID 86 sqi

• Carbon fiberglass hybrid layup

• CNC cut PET Foam Core

• Reinforced neck to increase strength

• Laminated with eco-friendly bio resin

• Matte blade finishing

Perfect for those new to the sport, schools or rental centers

The blade features a V-shaped area to provide power and stability with every single stroke. Durable and strong PP-Fiber blade with adjustable, anodized aluminium shaft. Clamp for quick adjustment and the ergonomic handle for perfect grip. This paddle is a perfect solution for rentals and schools due to high strength, durability, protective bumper and its adjustability.

Length: 170 – 212 cm

ALLOY 94 sqi
Lightweight, Durable, Great Price Point
Front Back
Front Back

A

PERFECT PADDLE STROKE EVERY TIME ON THE WATER!

• The Speedster, Allround and Elements models have the same power face.

• New designed profile of the power face.

• More pronounced dihedral - beginning right at the shaft, we created a double concave to direct the water flow, giving stability through the whole stroke while minimizing fluttering.

• The higher dihedral provides more strength to the blade and allows a smooth transition.

• The edge is only 1.7mm thick, creating the smoothest water entrance with immediate bite.

• Raised tip is parallel to the shaft for aggressive catch and controlling the pace going through the power face.

Medium to firm flex

• Available with all Speedster paddles

• Perfect for paddlers and racers who are looking for direct power transfer and minimal flex

• New Grip Tech Texture for better grip and performance

Soft to medium flex

• Available with all Allrounder Coco Hybrid Carbon and Elements Carbon Hybrid Carbon

• The perfect shaft to avoid shoulder pain on longer tours.

• New Grip Tech Texture for better grip and performance

FLEX GRIP TECH

29 mm 26 mm

CARBON FILAMENT

STANDARD DIAMETER

NSP’s standard 29mm shaft is the most-used performance shaft in all paddling conditions.

Available for :

- Allround paddle shafts

- Speedster paddle shafts

- Elements paddle shafts

REDUCED DIAMETER

Perfect for hardcore endurance athletes, reduced diameter (RDM) shafts work for any rider wanting a scaled-down shaft for their paddling - not just kids and women.

Available for :

- Speedster paddle shafts

Large-scale adoption of carbon fiber technology allows us to build some of the fastest and lightest paddels on the market.

A filament shaft is the perfect balance between tensile strength and torsion resistance. Due to the computer controlled continuous fiber wrap around the shaft, a high consistency is achieved. The result is an incredibly light, thin, durable and flexible shaft wall.

2-PIECE ADJUSTABLE SHAFT

Our lightweight Coco Hybrid adjustable paddles are great eco-friendly options for those looking to travel or share with their friends. The Carbon Hybrid adjustable offers not only an eco-friendly option, but a great step-up option from our popular Alloy. All of our adjustable paddles are perfect for any recreational paddler, school or rental center.

3-PIECE ADJUSTABLE SHAFT

For people who like to take their paddle everywhere they travel, our 3pc adjustable is the perfect choice. You can easily disassemble and pack the paddle in a standard size suitcase or if traveling with our inflatable board the 3-piece is the perfect companion and fits nicely inside the supplied inflatable bag.

ADJUSTABLE CLAMPS & HANDLES

• NSP’s designed clamping feature allows you to easily adjust the length of your paddle shaft while maintaining a tight seal. • The inner groove slot reduces movement and twisting when locked into place.

paddles: 12K

/ Flex 35 fixed shafts Coco Hybrid Paddles: 3K

2-piece & 3-piece adjustable paddles E lements Carbon

Rider From Left: Kota Nakao Misono Sakaguchi
Sumika Minamoto
Yusuke Hyogo

RTM TECHNOLOGY

(Resin Transfer Moulding) : Lightweight performance core side fins offering great flex, speed, maneuverability and responsiveness; these can be used in a variety of allround surf conditions. Available in 3 side bites J3 (112.5mm), J5 (115mm), J7 (120 mm)

J3 FTU

Position : Center/ Left / Right

Length : 112.5 mm

J5 FTU

Position : Center/ Left / Right Length : 115.0 mm

J7 FTU

Position : Center/ Left / Right

Length : 120.0 mm

WAVE 6”

RTM Technology with high-performance core construction for speed, drive and maneuverability.

Position : Center Length : 226.0 mm

HATCHET 9”

Position : Center Length : 226.0 mm

GLASS FIN

8’’ COCOMAT

Our eco-friendly composite fin is made from coconut husks and matches perfectly with our CocoMat and CocoFlax surf and SUP boards. Strong, durable and made to perform.

Position : Center

Honeycomb performance series thruster side fins for those looking to up their game and for greater maneuverability in all surf conditions.

PERFORMANCE SERIES

PERFORMANCE SERIES

PERFORMANCE SERIES SIDE FINS

PERFORMANCE SERIES QUAD

PERFORMANCE SINGLE FIN

PERFORMANCE SINGLE FIN

PERFORMANCE SINGLE FIN

SUP BOARD BAGS

• Heat and water resistant polysack.

• Padded carry handle plus center handle on travel bag for easy carrying of wider boards (except SUP Surf bags).

• Detachable padded shoulder straps.

• Fin slots included on all SUP bags and for surf longboard bags.

• Lockable heavy duty zipper.

• Name slots on all boards.

Day (4 mm) Travel (8 mm)

SUP SURF BOARD BAG

SUP BOARD BAG

• Air vent on travel bags.

WAIST BELT

• High-quality nylon webbing belt.

• Comfortable neoprene front liner.

• Swivel mount to avoid tangling.

• Quick-release clip.

• One size fits all.

• Compatible with all NSP leashes.

Leash sold separately SUP Coil available in 9’ (9 mm) Blue

RAIL TAPE

Protect your SUP rails with 3M protection tape. Available in: 2x 200 cm x 7.5 cm

TIE DOWN STRAPS

NSP’s heavy-duty Tie Down Straps are ideal for securing your surf, foil and SUP boards to the roof of your car. Made with strong, yet soft nylon straps that will easily secure your boards without scratching the board. The heavy-duty cam buckles are encased in a padded EVA to to

ROOF RACK PADS

NSP subtly branded roof rack pads easily attach to your existing roof racks for a padded landing for your surf, sup or foil boards. The Roof Rack Pads are designed with a foam core wrapped in a durable 600D water-resistant fabric and fit most standard sized round or square roof racks.

Available in one size only: 17” pads

•NACR0901

• 7mm TPU

• Double Stainless steel swivels

• Double layer neoprene ankle strap

• Integrated key pocket

• Rail saver

• Calf fit for 10’ 9mm

Durable cord 7mm & 9mm
Double stainless steel swivels
Double layer neoprene strap
Triple wrap rail saver

SOFT ROOF RACKS - SINGLE

NSP’s Soft Roof Racks are perfect for carrying your surf, SUP, or foil boards to the beach on the roof of your car.

The Soft Racks are secured with heavy duty nylon straps that are designed to wrap around the inside of your car while safely securing your boards to the roof. The durable cam buckles keep your boards in place without sliding during transport. The Soft Racks are designed to work on most vehicles.

Available in a Double or Single rack sizing.

Features:

• Single racks hold up 3 shortboards or 2 longboards.

• Double racks hold up to 6 surfboards

• Universal fit for most cars, trucks, and SUVs

• Thick, long length nylon straps

• Heavy-duty, corrosion-free buckles encased in padded EVA to avoid scratching the vehicle.

• Water-resistant, durable, nylon-wrapped, soft rubber pads.

• Compact size and easy to store.

SOFT

ROOF RACKS - DOUBLE

BUOYS

Designed utilizing our durable PVC inflatable board material, our racing buoys are equipped with 4 heavy-duty D-rings for easy and secure anchoring in any lake or open ocean. Great for race, demo events and promotions.

Pyramide inflatable racing buoy 120x120 cm (Orange) Pyramide inflatable racing buoy 200x200 cm (Orange)

: David Edmondson

Location : Srilanka

TENT - BANNER - BEACH FLAG

Photographer
Side view Bottom view with heavy duty reinforced d-rings

SLX technology delivers wave riding performance and reduced weight without compromising durability.

CocoMat is an innovative, sustainable, proprietary and patent pending technology using organic coconut husk fibers.

All double railed with reinforced double layers on the deck and bottom for durability, rigidity and strength. Traveling with your paddleboard just got easier.

Highly durable, reinforced fibers from the flax plant combined with NSP’s CocoMat construction helps reduce the use of fiberglass and minimizes the carbon foot-print of our ecological manufacturing process.

Durability, value and performance - the go-to board for any recreational paddler.

The only choice for SUP schools that put durability over everything. A longer-lasting construction with rubber bumpers, soft tops and soft bottoms.

An all-new durable and ding-resistant technology that represents exceptional value for money. Designed for fleet and rental centers.

Combining the shape from the highly stable and popular HIT range with the bottom from the successful Elements range, for the perfect combination of smooth gliding, handling. And durability.

Durability, value and performance – the go-to board for any recreational paddler.

Selling features:

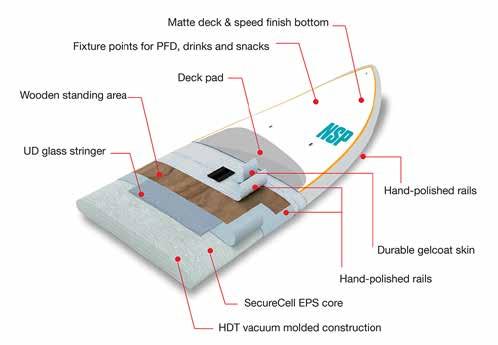

• EPS SecureCell core is wrapped in lightweight fiberglass and molded creating a durable shell.

• The ultimate choice for retailers looking to stock a single SUP range.

• Offers the recreational market proven performance shapes at attractive prices.

• Wide range of construction features, includingbio-resin, an eco-friendly gamechanger.

• 3/4 Thermoformed EVA deck pad.

The High Impact Technology (HIT) is the ultimate, worry free fleet board, great for schools, rental centers and personal daily use.

Selling features:

• Eco-friendly SecureCell EPS cores fully wrapped in military-grade fiberglass

• Extremely tough “bullet skin” increases longevity.

• Reinforced rail bands protects against paddle impact.

• Full deck thermoformed EVA for ultimate comfort.

• Ledge handle for easy carrying.

• Oversized locking hole integrated in the nose to secure your board(s) while in storage.

• Bungee cord on the nose.

• M8 screw insert available on all models to attach windsurf mast base.

Our high-performance wave boards are now built even lighter than before, while leveraging more eco-conscious construction methods. SLX delivers wave-riding performance and a reduced weight without compromising durability.

Available in: DC Super X and DC SURF X

Selling features:

• Vacuum bonded SLX (Super Light Epoxy) core offers a light weight SUP surf option.

• Biaxial glass and Paulownia wood veneer deck for improved impact resistance.

• Uni-directional flax rails for superior flex control and increased durability.

• Eco-friendly option with SecureCell core, bio resin, Paulownia wood veneer and flax rails.

• NSP performance fins included.

• Comes with all-new FTU fin boxes.

• Swallow tail for extra maneuverability.

• 4 speed channels - for extra speed on the wave.

*Specs and construction are subject to change promising durability.

SLX

Strong, durable and easy to learn on, the P2 Soft boards are great for schools, rental centers and marinas.

Selling features:

• P2 technology focuses on safety first and ease of teaching.

• The P2 core is NSP’s SecureCell EPS, fully glassed in a durable fiber epoxy shell with eco friendly bio-resin.

• Finished with a soft-top deck with protected rails and slick PE bottom.

• A solid rubber bumper on nose and tail minimizes potential injuries and wear-and-tear, and neoprene handles allow instructors to take control with ease.

• P2 series offers a proven return on investment for surf schools and rental operators worldwide.

• Easy to carry with handles on nose and tail as as well as a center ledge handle.

NSP flax fiber is a highly-durable, reinforced fiber from the flax plant, helping us to reduce the use of conventional fiberglass in our manufacturing process.

This tough little fiber minimizes the carbon footprint of NSP’s ecological manufacturing methods even more.

Selling features:

• Visually appealing with unmatched strength-to-weight ratio.

• Easy to carry because of its weight, easy to maneuver and paddle.

• Responsive flex and considerable strength to handle big conditions.

• Durable flax rails.

• 2019 Paddle Expo “Product of the Year” winner

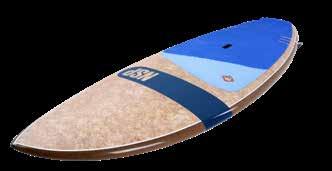

Eco-friendly precision molded SUP boards utilizing organic coconut husks, providing durability and visual appeal.

Selling features:

• CocoMat is an innovative, sustainable,proprietary and patent pending technology.

• NSP uses raw coconut husk fibers from naturally sustainable plantations and eco-friendly bio resin.

• Visually unique board with an unmatched strength-to-weight ratio.

• Light to carry, easy to maneuver and even lighter to paddle.

• Responsive flex and considerable strength.

LT TECHNOLOGY

: ALLROUNDER LT : TOURING LT

FS TECHNOLOGY

: CRUISER WINDSURF FS : LOTUS FS : NSPIRATION MAT

FS DOUBLE CHAMBER TECHNOLOGY

: CRUISER FS : PIONEER FS : THE QUEST FS

NSP OUR STORY

NSP was born in 2001 from the vision of Bruce

“Buzz” Hansen, a life-long surfer, skater and all round waterman.

While working on Maui as a custom surfboard builder, Buzz had an epiphany about producing affordable, versatile, durable and great performing surfboards. Buzz correctly realized there were everyday surfers who needed an affordable board that performed in Hawaii, yet they didn’t require “custom” or specialized competition or extreme surf boards.

His dream was a utilitarian surfboard that could ride in the back of a pick-up truck to the beach, be left in the sun all-day or loaned to a friend without fear of damage – of course it had to surf well enough to be given to his long-time surfing buddies, neighbors and friends.

The quest began, so Buzz summoned his friends working for a leading composites manufacturer with the goal to create a light, very durable surf board at highly competitive prices. Working together they introduced a new epoxy technology that would go on to revolutionize the industry and quite possibly recreational surfing. Weekend and occasional surfers no longer had to rely on the ill- performing “foamies” or be relegated to the used board market.

Our code name during development was “New Surf Project”. The name stuck and “NSP” was established. Over the years, we changed and evolved, and so did the name. Today, NSP stands for “Nature”, “Surfing” and “Products” because at the end of the day, that is what the company is all about.

Creating amazing products, firmly maintaining our surfing roots while we expand in other exciting water sports with the best possible designers, engineers and materials involved. And last but definitely not least; “Nature”. Choosing repurposed, recycled or renewable resources wherever we can is essential to us as a brand, creating a more sustainable future for ourselves and our sport.

Bruce ‘Buzz’ Hansen on one of the first NSP epoxy surfboards

Today, NSP is one of the world’s largest brands in recreational surfing and stand-up paddle boards. Everyday new enthusiasts, young and old, go out and introduce their friends and family to the freedom of the sport and the brand.

NSP

Since 2013 NSP has produced some of the fastest SUP race boards on the planet, quickly racking up some of the most sought after and prestigious titles with the help of national and international athletes.

In almost 20 years, with hundreds of thousands of boards produced, our core values remain the same. NSP stays true to the vision of creating great performing, affordable, durable surf and paddle boards that allow everyone to catch more waves.

Photographer : Laurent Nevarez Rider : Titouan Puyo Location : France
: Race Carolina

A FEW NSP MILESTONES

• Sold our first boards in Australia and Hawaii

• Shipped our first SUP boards

• Launched our first NSP race boards used in ISA Worlds

• Dale Chapman & Alain Teurquetil started on the race program

• Travis Grant joined the team

• Launched patent pending, award-winning Coco technology

• Alain Teurquetil started exclusively designing our race program

• Travis Grant won Molokai on a production NSP board

• Launched our first foil boards

• Cocoflax wins Paddle Expo product of the year

• Collaborated with Carl Schaper on a performance surf range

• Collaborated with Tully St. John on new longboard Sleep Walker and created new Teaching soft board with Dane Gillett.

• NSP’s first Pro model surf boards are put into production designed by Carl Schaper.

Photographer : Fenna De King Rider : Will De King, Izzi Caldow, Noah Davies, Paul Jonesy, Tully St. John
Location : Australia
Board : PU Sleep Walker, Elements Sleep walker, Cocoflax Dream Rider, CSE Pro-9, CSE Chopstix, Sundowner, CSE Butter Knife

NSP MISSION

To create a utilitarian surf, race, foil or paddle board that can ride in the back of a pick-up truck, be left in the sun all-day or loaned to a friend – without fear of damage – and of course, that performs well.

NSP VISION

Seeing people of all ages and skill levels enjoying the lifestyle of surf and paddle boarding by providing boards that paddle faster, catch more waves, last longer and are a whole lot of fun to ride.

Photographer : @Paillavoine
Rider : Alex Bicrel
Location : France Board : Airwave , Surf Foil

SOCIAL MEDIA

SURF SUP FOIL RACE

#justaddwater

#nspsurfnsup

#nsp

#nspsurf

#surfing

#paddling

#balance

#outdoors

#epoxy

#ecoboard

#catchmorewaves

#sustainablesurf

#harmlessvest

#justaddwater

#nspsurfnsup #nsp

#nspsup

#nspsurf

#livetheadventure

#surfing

#paddling

#supsurf

#balance

#outdoors

#livetoride

#paddleboarding

#harmlessharvest

#sustainablesurf

#justaddwater

#NSPfoil

#loyaltothefoil

#nspairwave

#nspfoiling

#frequentflyer

#justaddwater

#nspsurfnsup

#nsp

#nspsup

#nspracing

#livetheadventure

#paddling

#supsurf

#balance

#outdoors

#recessdeck

#dugout

#sonic

#ninja

#puma

#carolina

#ecoboard

#sustainablesurf

#harmless harvest

GET CREATIVE

And remember, the key to success in social media is being “on it”. Posting for the sake of posting will show, and your posts will go unnoticed.

Engage your shops, team riders, ambassadors, share demo days, winter sales, summer sales, product reviews or anything else you think is interesting. Your audience will let you know what they like.

TAGGING #HASHTAGS USE DIFFERENT HASHTAGS

Tagging is what lets people know you are talking to them, and will trigger engagement. Tagging a single person activates their network, carrying you and your message that much further.

#sopitted is going to attract different instagram users than #tractionpad or #kookoftheday. Being creative and adding the hashtags that apply to a specific situation will allow you to get more followers so make sure to change things up!

NATURE SURFING PRODUCTS

Photographer : Fenna De King
Rider : Paul Jonesy
Location : Australia
Board : DC Surf Super X

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
