NSP WELCOME TO 2025
Welcome to 2025! NSP is thrilled to showcase the Foil range, this year, we’re excited to introduce three standout additions, the Meteor Wing, Bluefin Foil board, and Vivace Paddle. The Meteor Wing offers exceptional control and agility.
The Bluefin Foil board delivers sup foil, wing and downwind crossover capabilities and one to checkout. Our focus remains the same, delivering high quality, reliable equipment to support your foiling adventures. See you out on the water!
ALAIN TEURQUETIL - DESIGNER FOIL BOARD RANGE OVERVIEW
• KINGPIN SURF FOIL
• KINGPIN SURF FOIL - CONSTRUCTION
• HOT SHOT WING FOIL
• HOT SHOT WING FOIL - CONSTRUCTION
• WING FOIL FS (Inflatable)
• WING FOIL FS (Inflatable) - CONSTRUCTION & NSP FOOT STRAP
• SPITFIRE (Downwind/ SUP Foil)
• SPITFIRE (Downwind/ SUP Foil) - CONSTRUCTION
• BLUEFIN
• AIRWAVE
• AIRWAVE MODULAR HYDROFOIL SYSTEM
• AIRWAVE MODULAR 80 SET

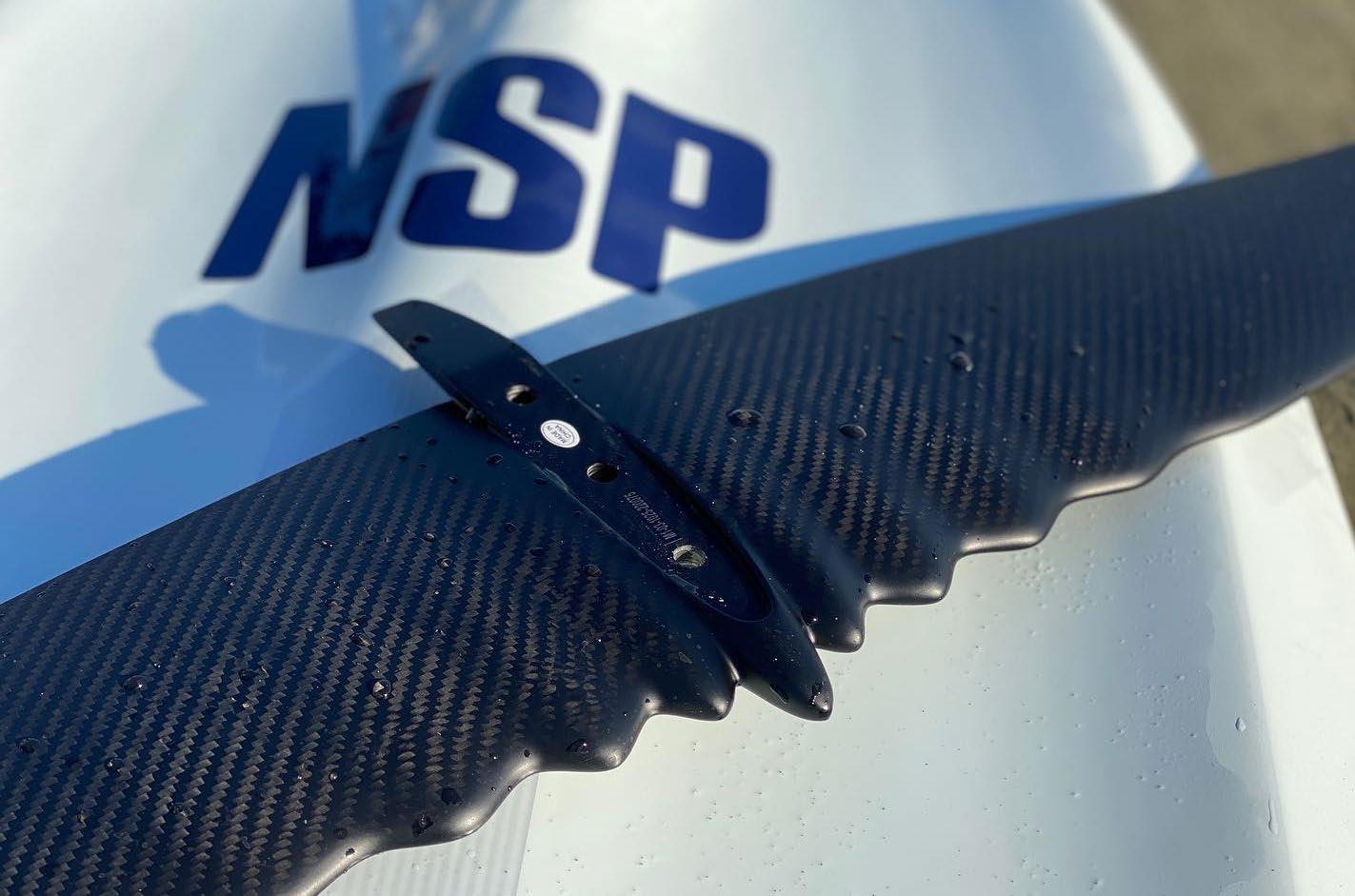

• RIBLET FW SERIES - RIBLET REAR WINGS
• GULL FW SERIES - GLIDER FW SERIES
• REAR WINGS
• WING PAIRING

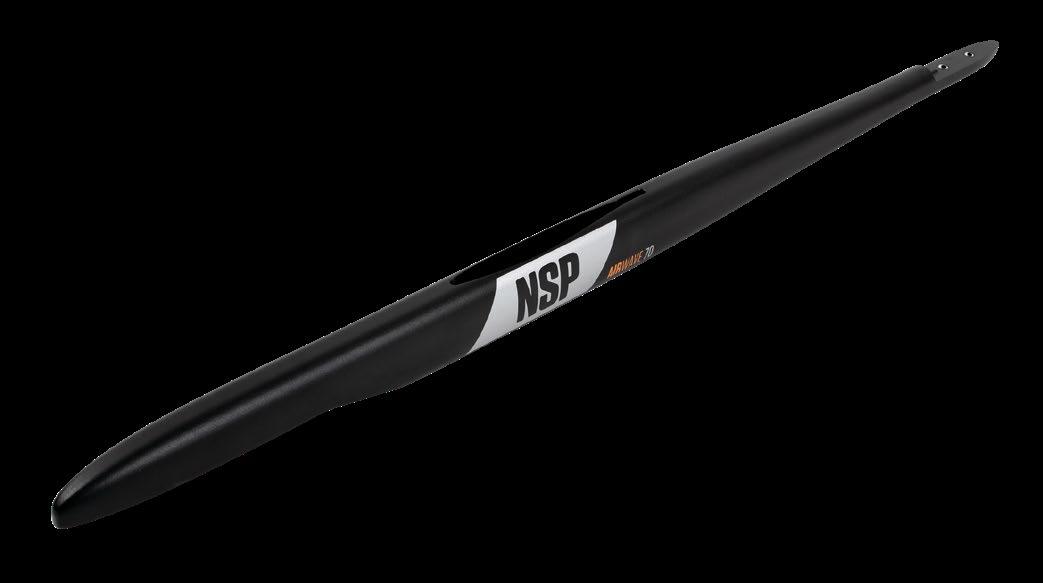

• FUSELAGES
• MASTS - MOUNTING PLATE - TUTTLE BOX
• SHIMS - MAST SHIM
• AIRWAVE ACCESSORIES

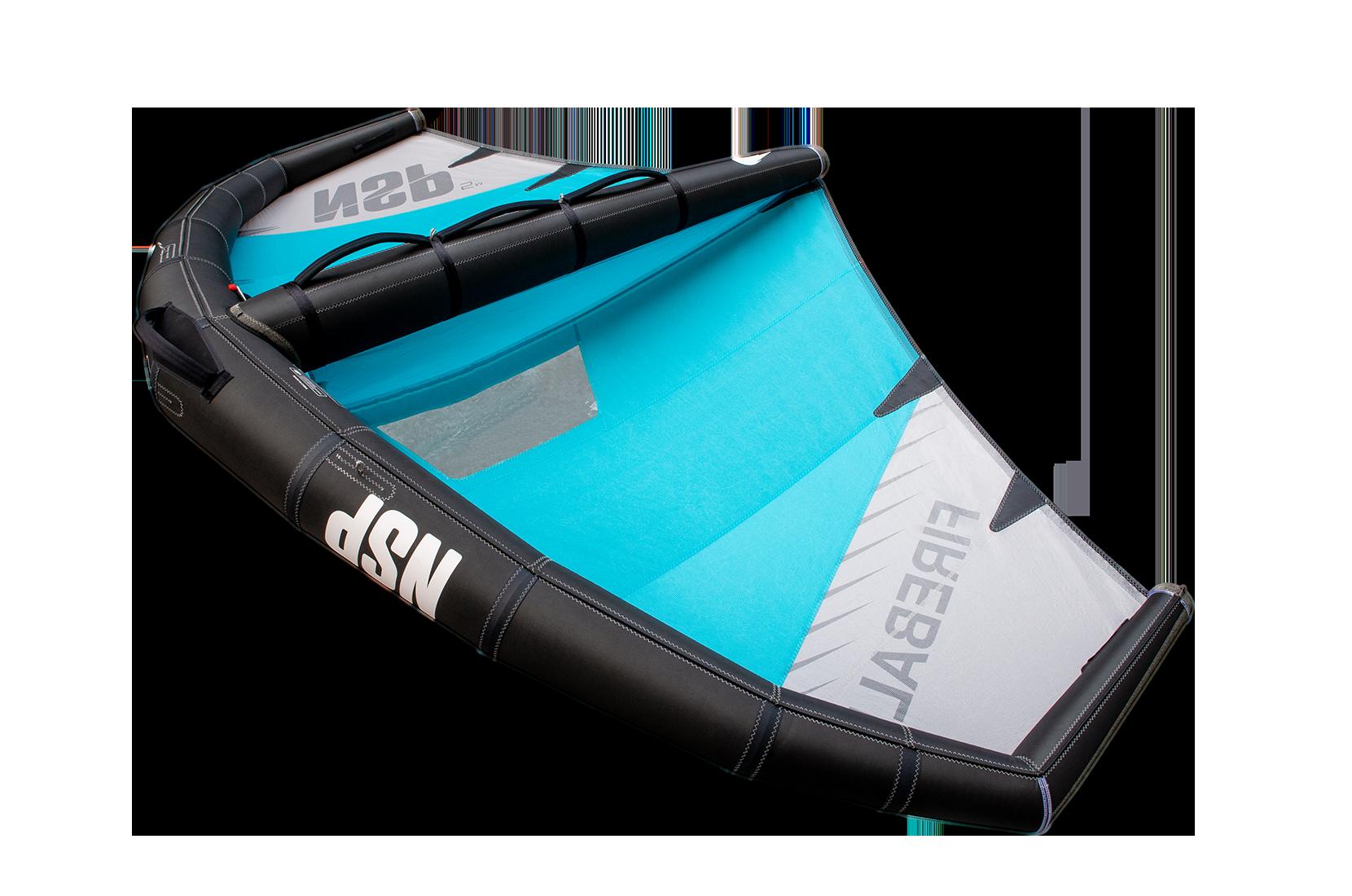

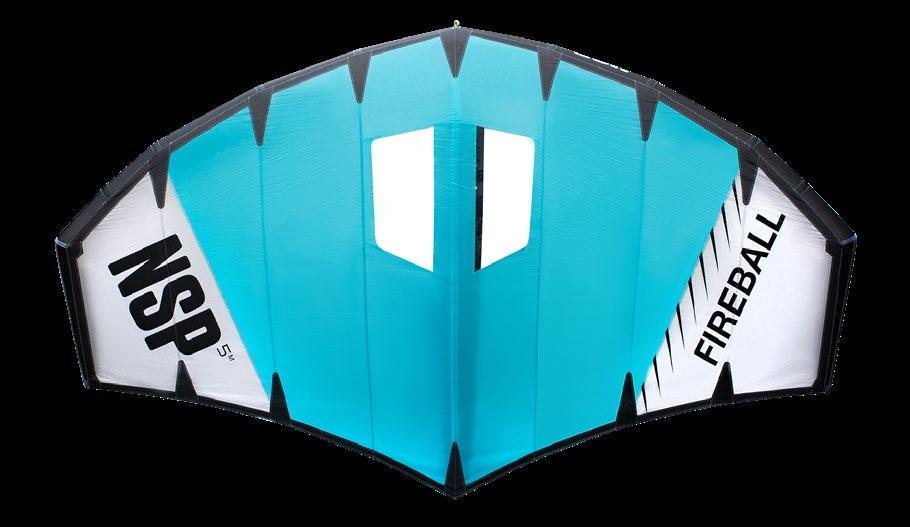

• AIRWAVE USER MANUAL FIREBALL
• DYNAMIC DYHEDRAL AND LIGHTER WEIGHT
• REFINED AND REDESIGNED
• FEATURES & SPECS
• TECHNICAL FEATURES AND MATERIALS

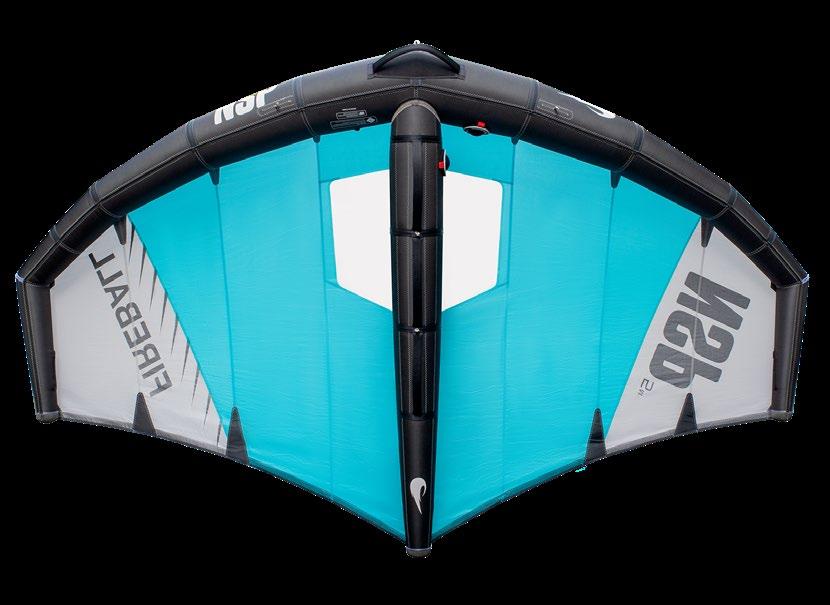

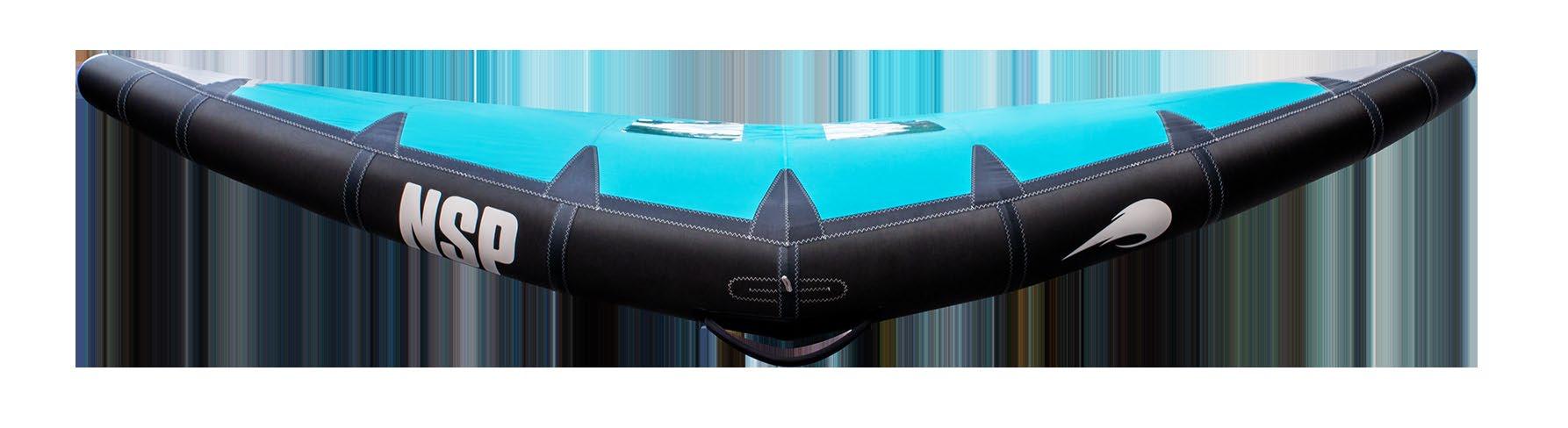

• METEOR WING

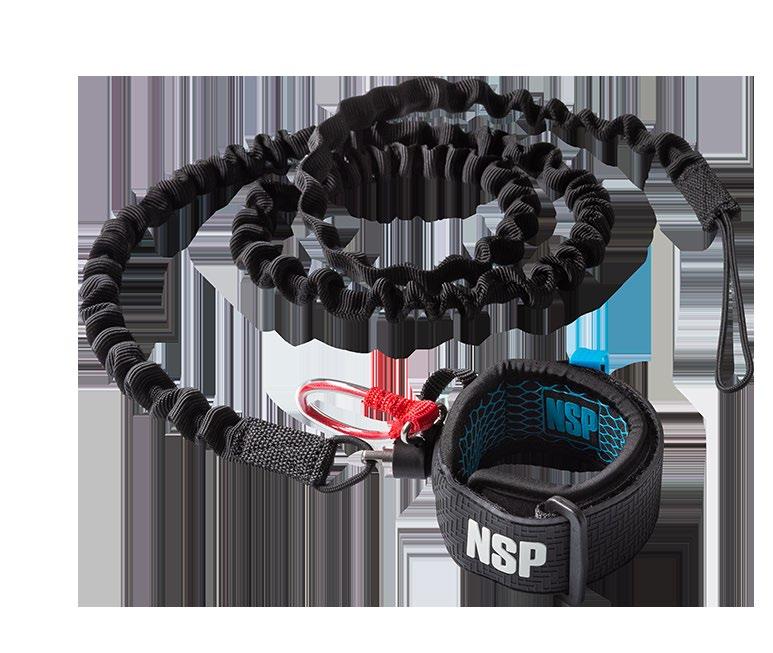

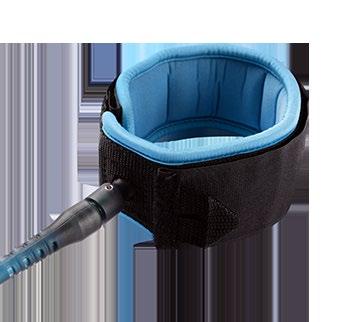

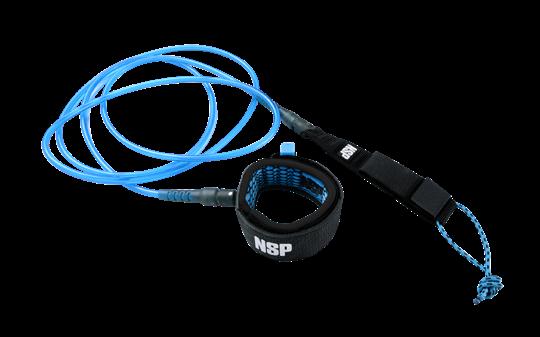

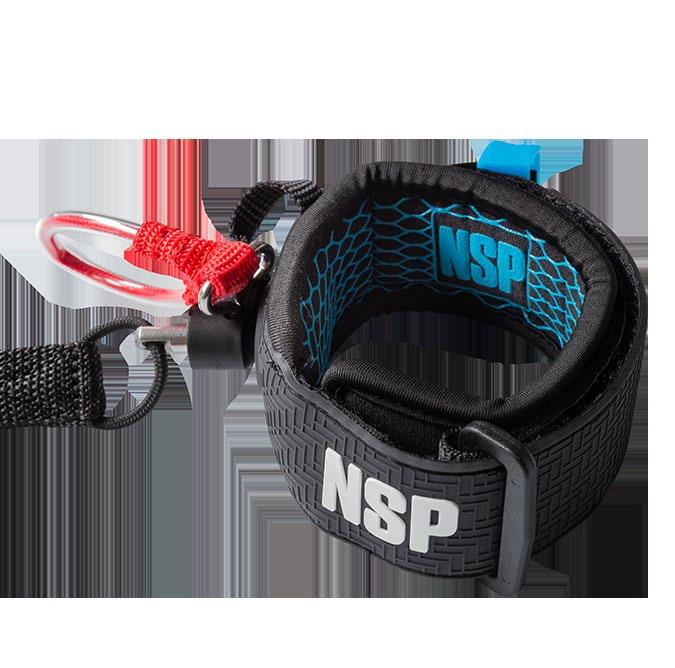

• PREMIUM QUICK RELEASE WING LEASH
• SIZE CHART

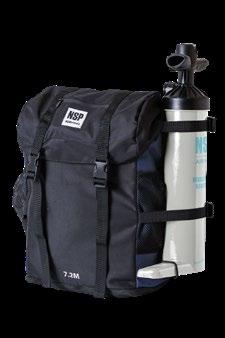

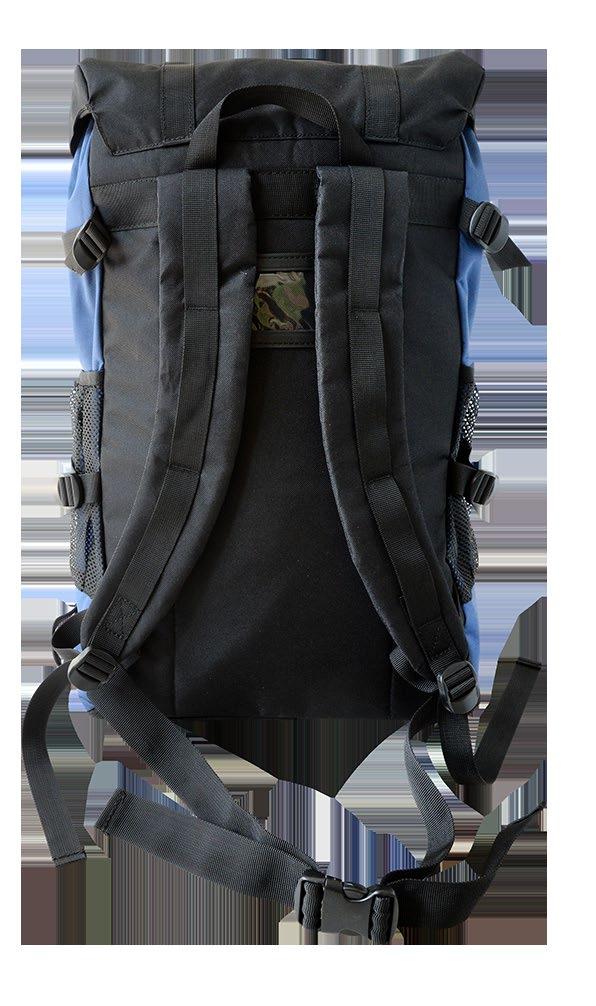

• BACKPACK
• ACCESSORIES
• MANUAL ACCESSORIES

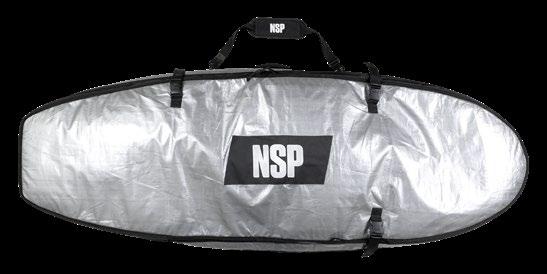

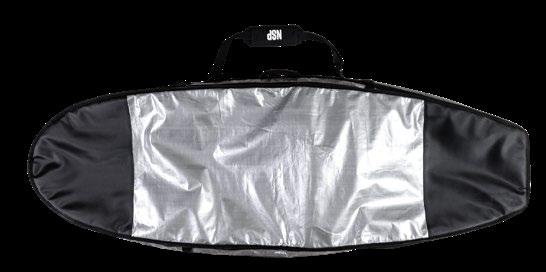

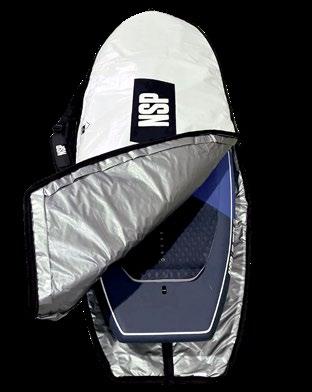

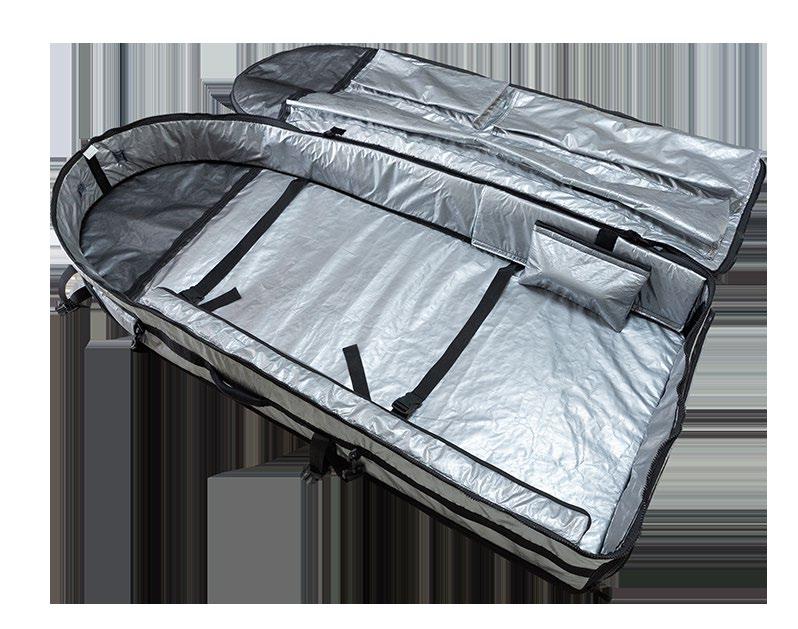

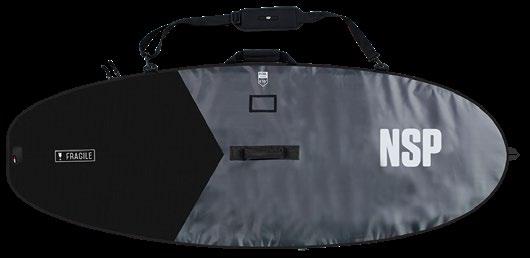

• FOIL KIT BOARD BAGS 5’6”

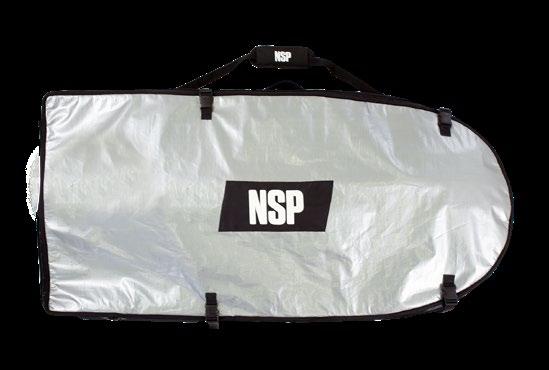

• FOIL KIT BOARD BAGS SINGLE & DOUBLE

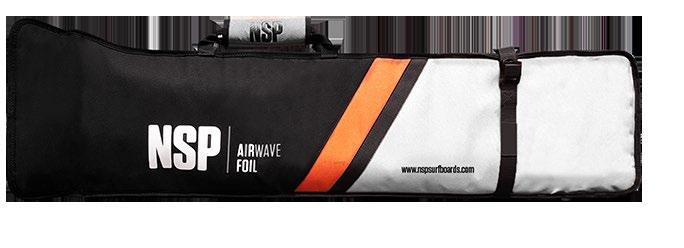

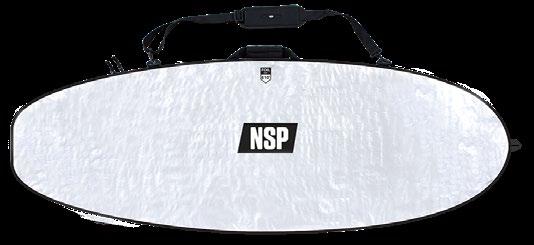

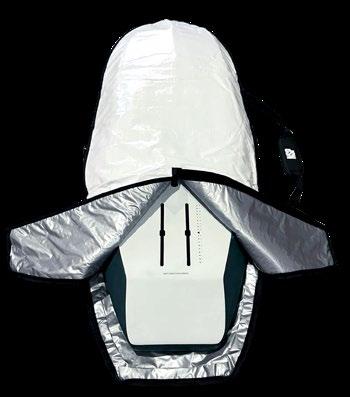

• FOIL BAGS

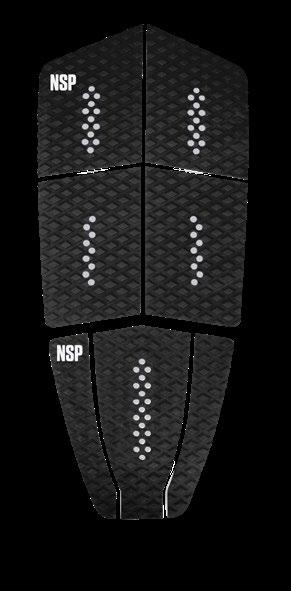

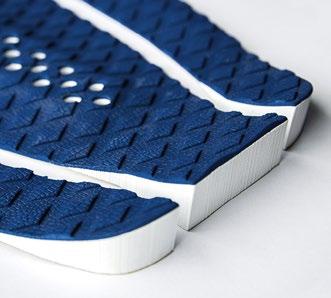

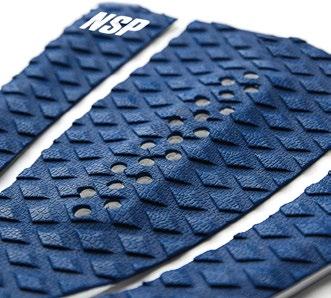

• TRACTION PADS

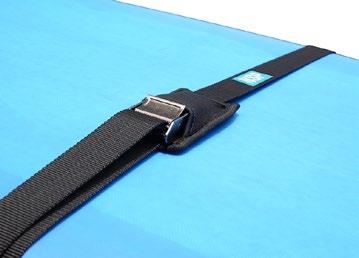

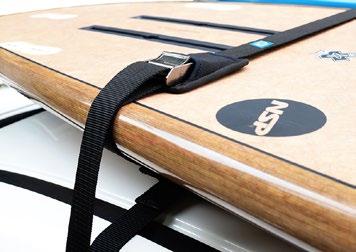

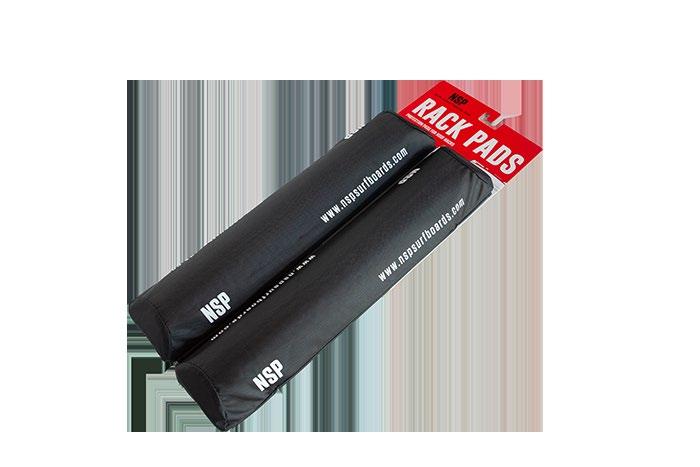

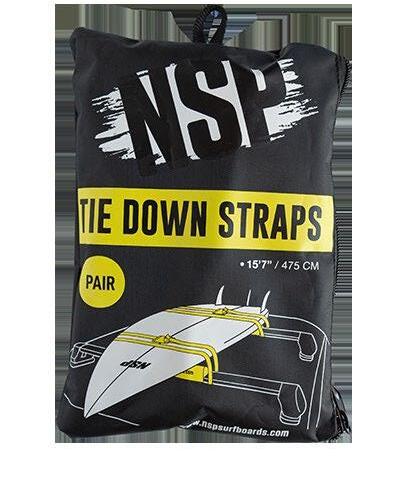

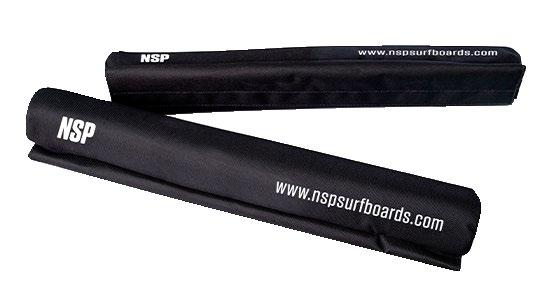

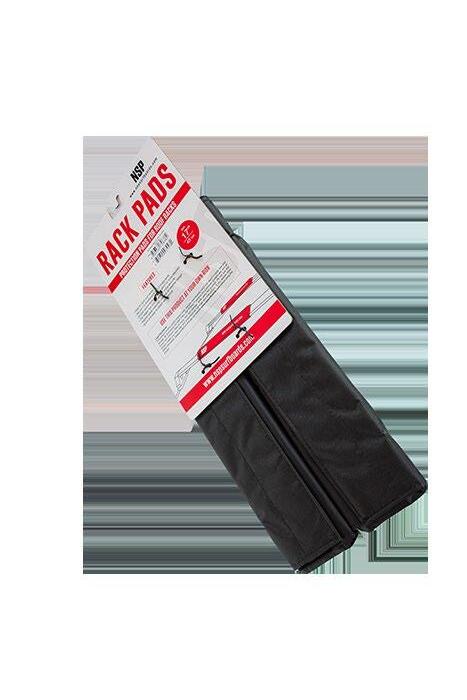

• MFC FOOTSTRAPS - RAIL TAPE - TIE DOWN STRAPS - ROOF RACK PADS

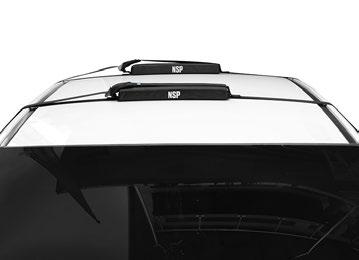

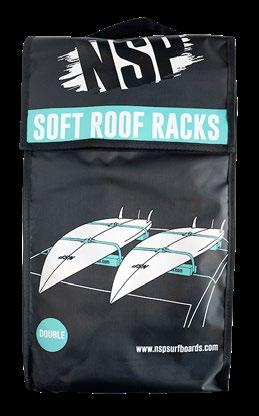

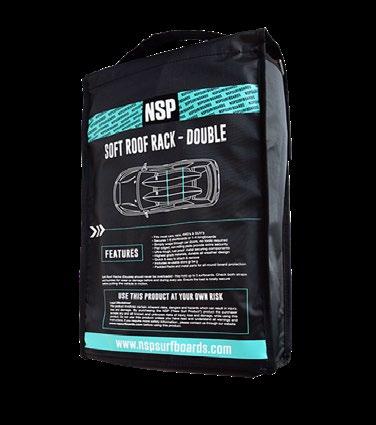

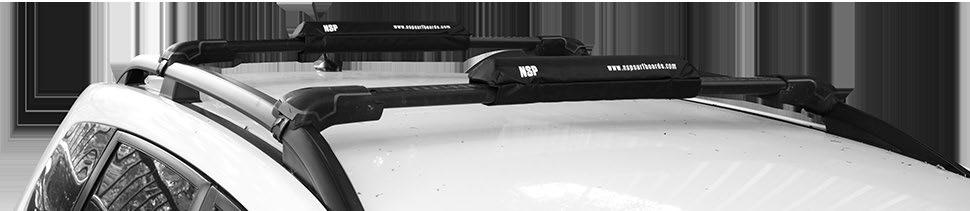

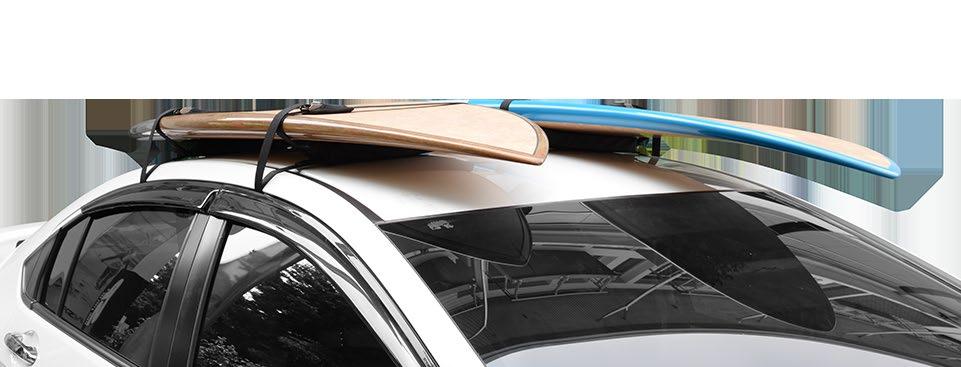

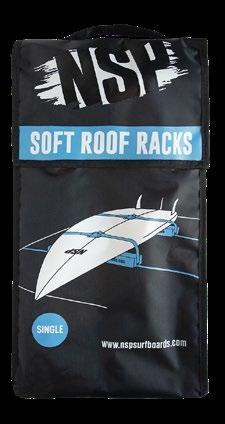

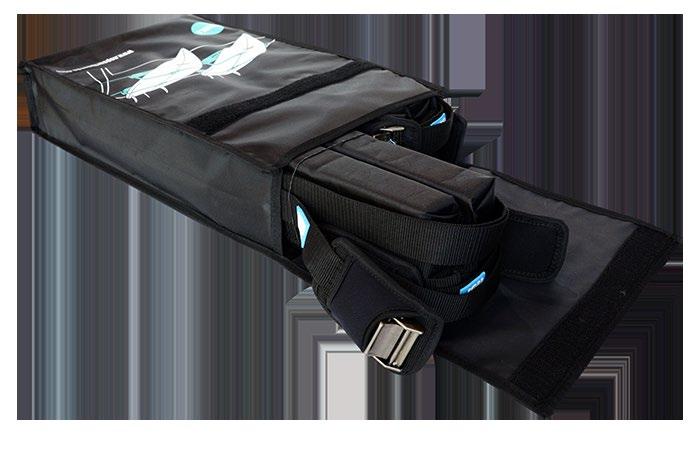

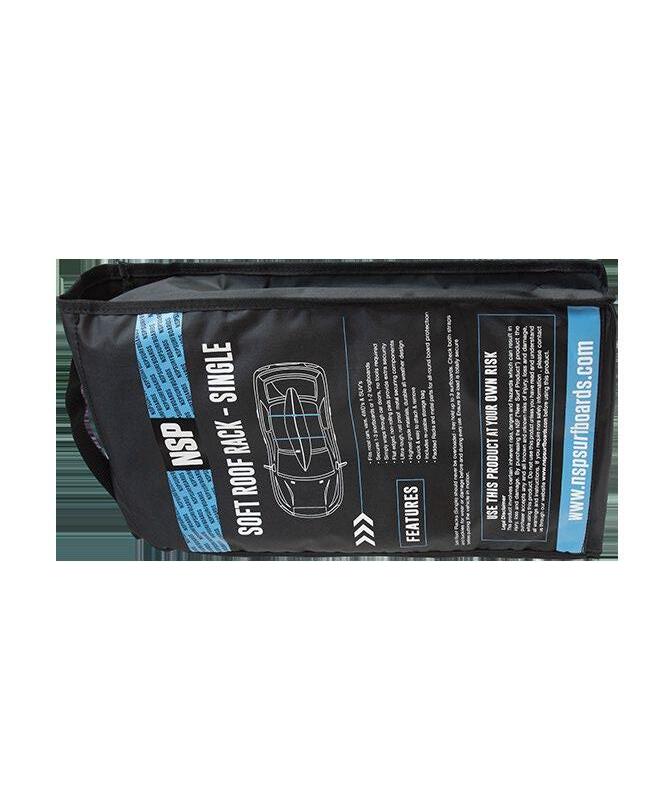

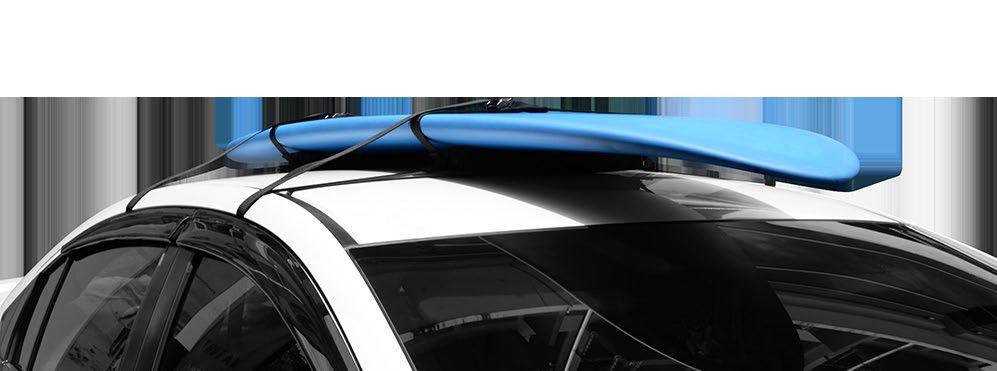

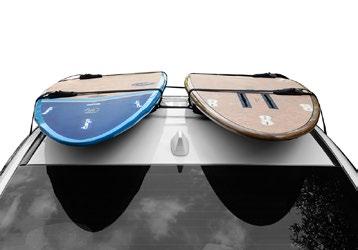

• SOFT ROOF RACKS - SINGLE & DOUBLE

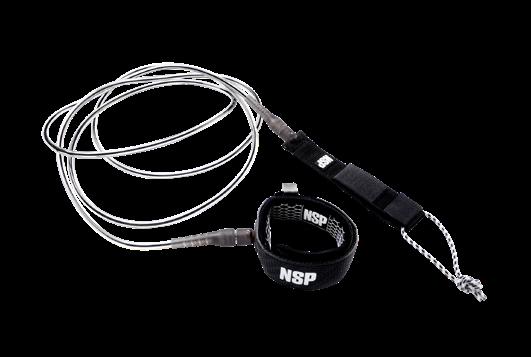

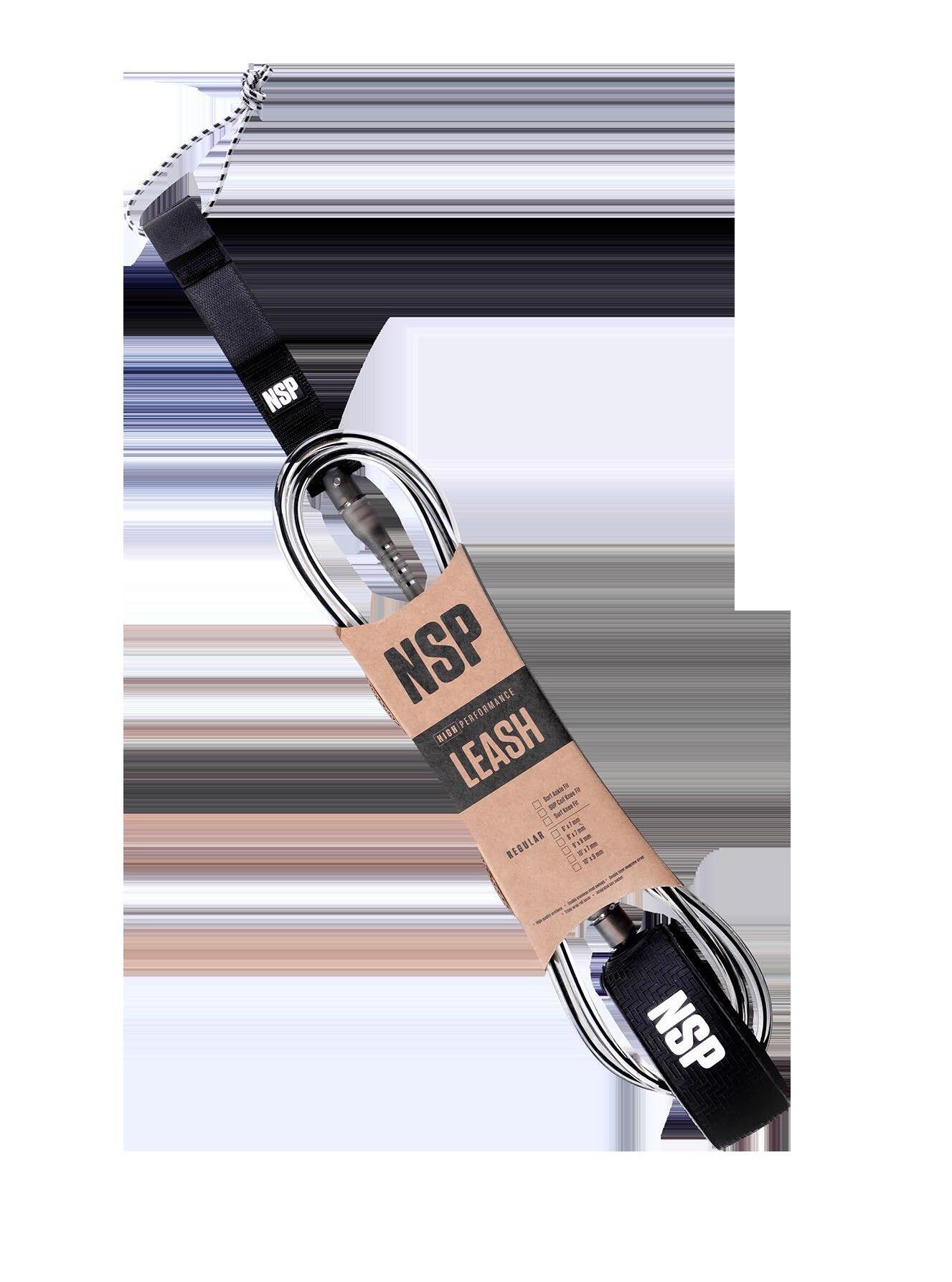

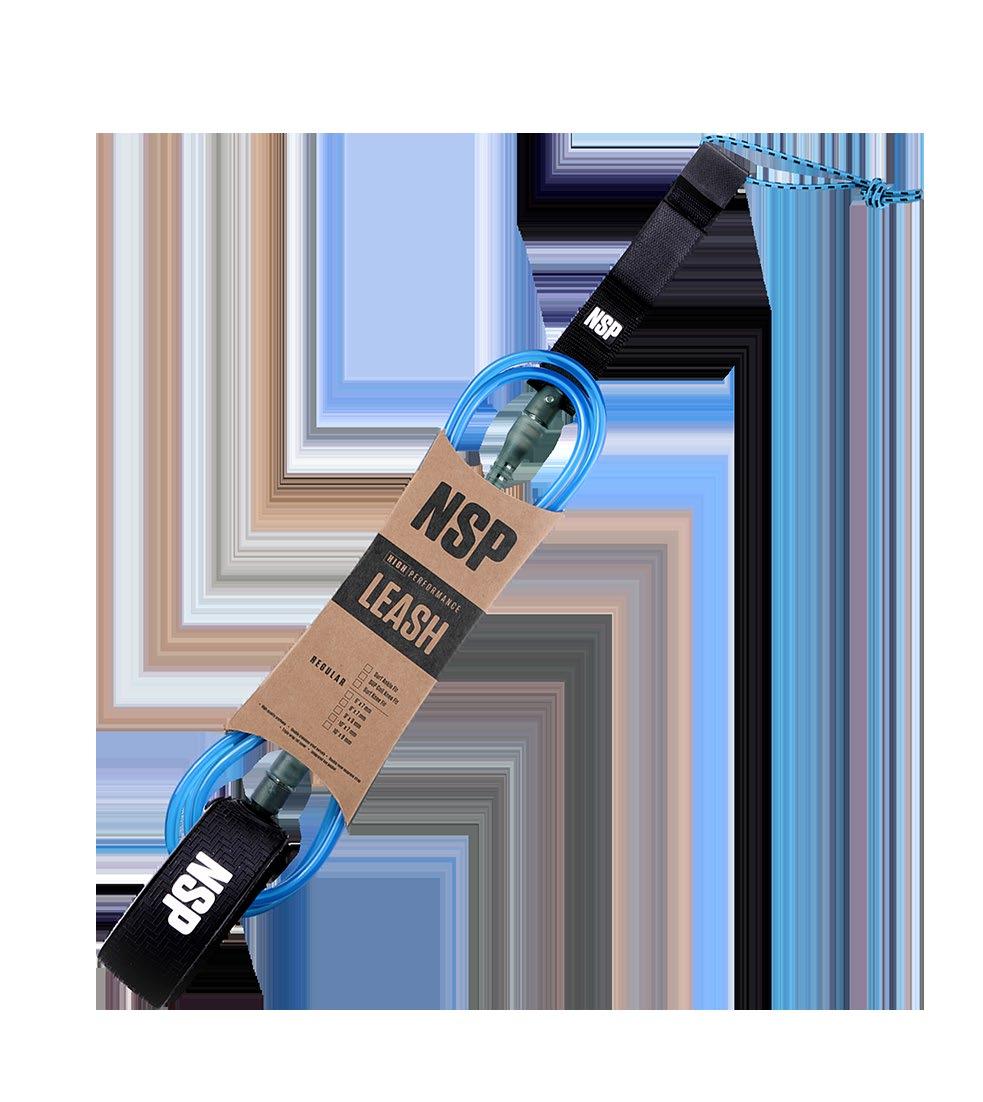

• SURF LEASHES

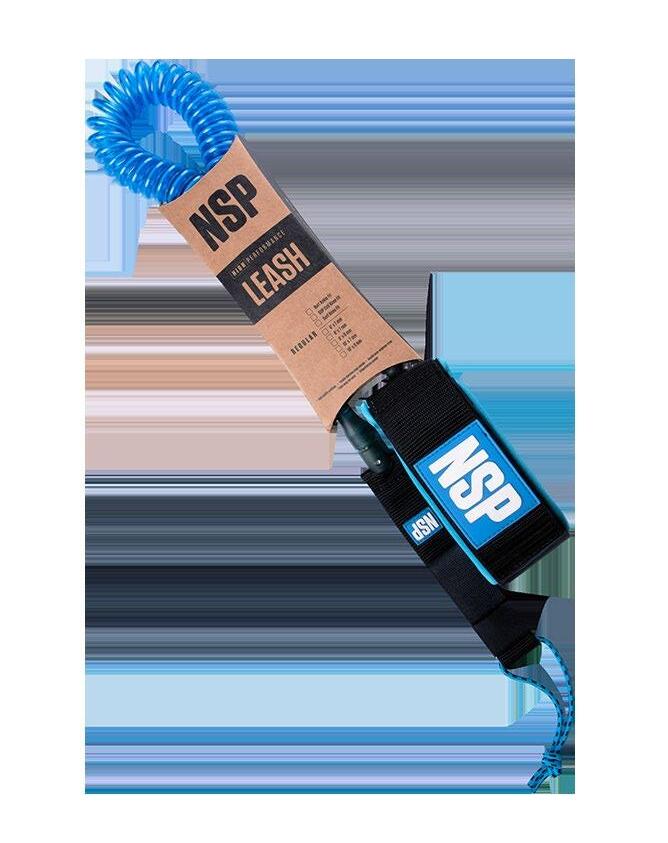

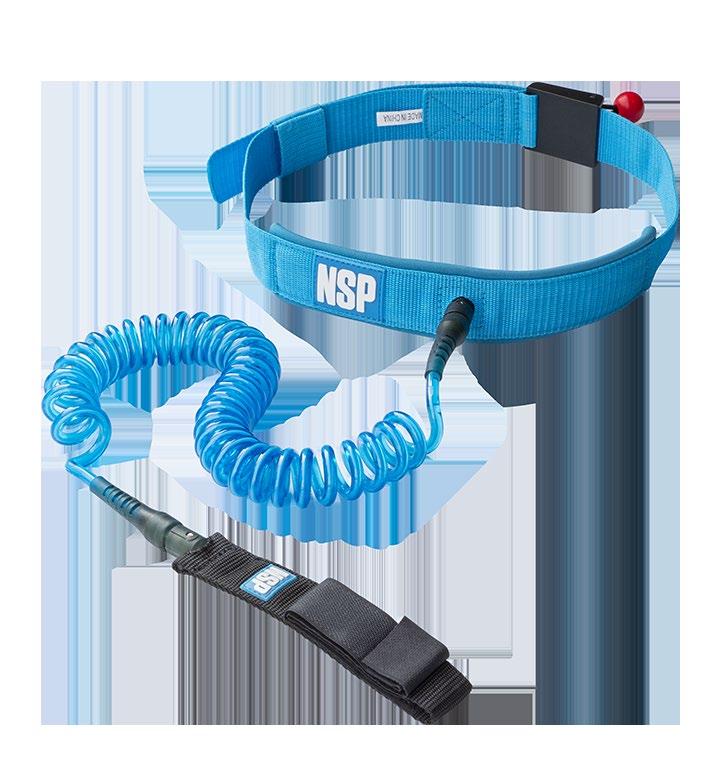

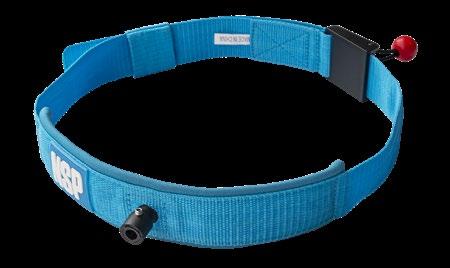

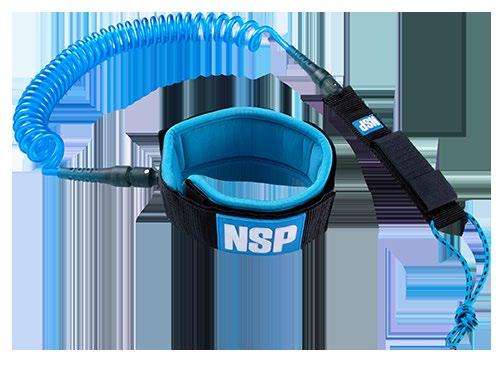

• SUP COIL LEASHES - WAIST BELT

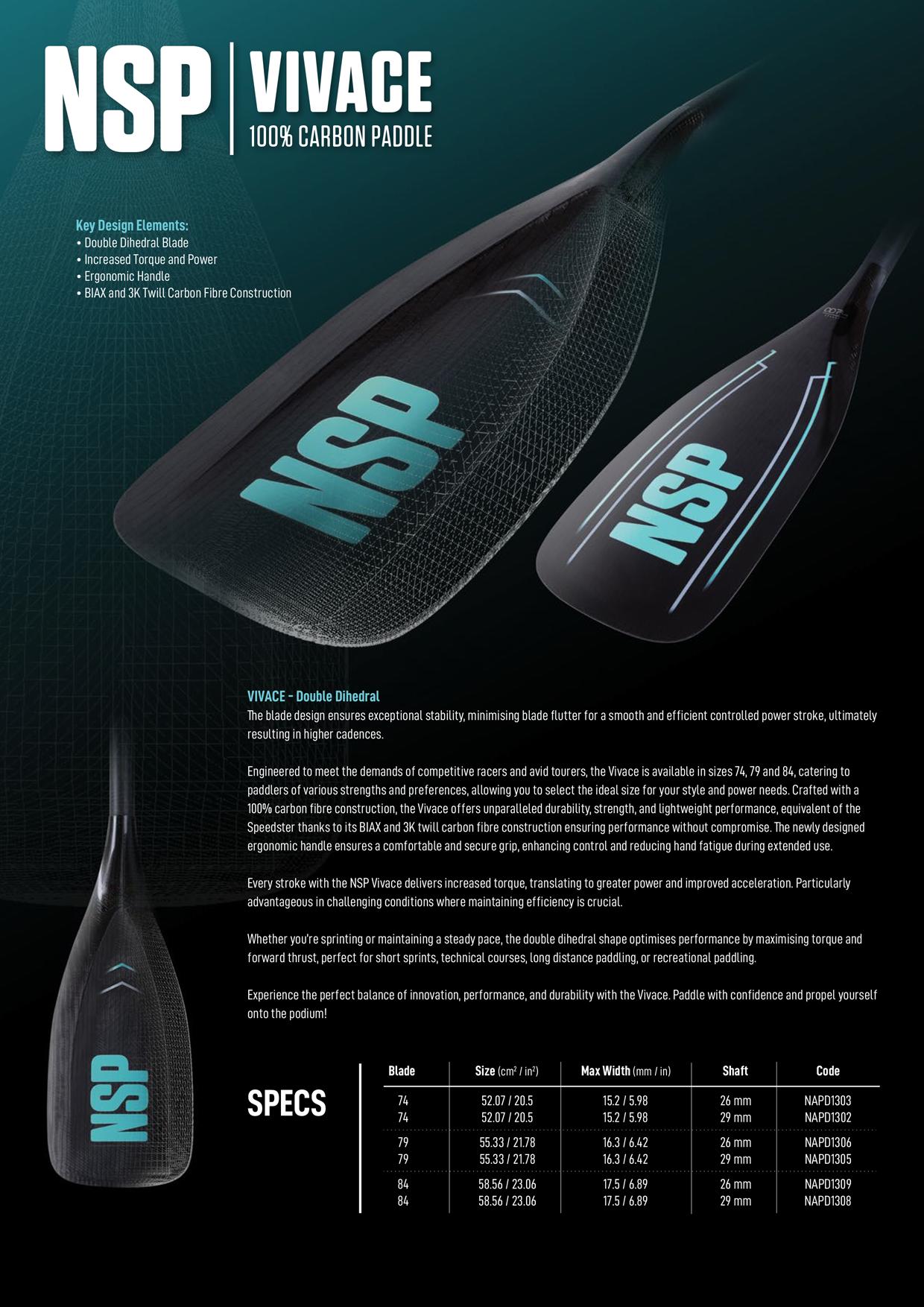

• VIVACE BLADE

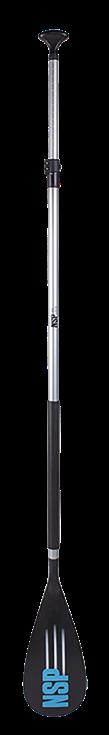

• PADDLE RANGE

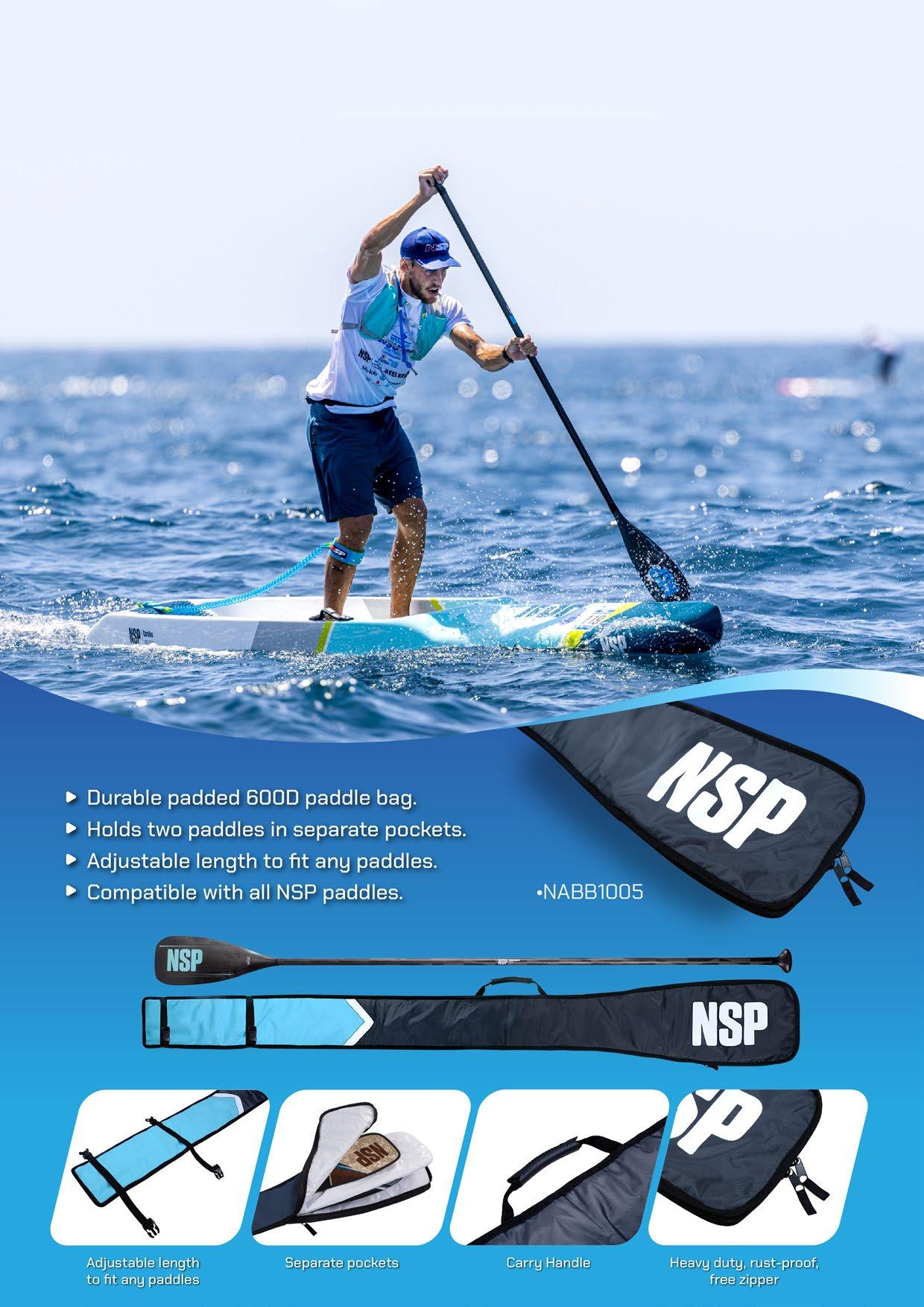

• PADDLE BAG
• BUOYS - BEACH FLAG - TENT - BANNER
ALAIN TEURQUETIL - SHAPER
RACE / SUP DESIGNER
Renowned for his winning race board designs, Alain Teurquetil applies his engineering skills to designing foil boards too. NSP is stoked about the cooperation with Alain and his second generation of SUP foil, Wing foil and Surf foil boards.
Features like double concave bottoms, chinned rails, strap inserts and unique cut-outs on the bottom of the Hot Shot and Kingpin and the sharp pintail on the Spitfire, ensures this generation of NSP foil boards continue to be state-of-the-art.
Whether you are passionate about foiling downwind, in the surf, on a SUP or with wings, NSP’s foil shapes offer an unsurpassed experience that get you on the foil with ease.
Photographer : Henrique Casinhas
Rider : Alex Bicrel
Location : Madeira, Portugal
Board : Kingpin Surf Foil, AirWave Riblet
FOIL BOARD OVERVIEW
KINGPIN SURF FOIL
The concave deck is comfortable to paddle and ultra-responsive to rider input. Combined with a new deckpad and the option of foot straps, the Kingpin will be an integral part of the NSP Foil range.
Length Width Thickness Code
4’4” 19” 3 3/16” •NSSF1101-0404
4’8” 20” 3 3/16” •NSSF1102-0408
5’0” 21” 3 3/16” •NSSF1103-0500
5’4” 22” 3 3/16” •NSSF1104-0504
HOT SHOT WING FOIL WING FOIL FS (Inflatable)
An exercise in hydrodynamic efficiency. Reducing drag by optimizing release and maximum speed pre-foiling also translates to less drag when riders touch down, allowing them to successfully relaunch.
Length Width Thickness Code
4’10” 22 1/2” 4 1/16” •NFHS1101-0410
5’0” 24” 4 9/16” •NFHS1102-0500
5’2” 25 1/2” 4 7/8” •NFHS1103-0502
5’4” 27” 5 3/16” •NFHS1104-0504
5’6” 28 1/2” 5 3/16” •NFHS1105-0506
SPITFIRE (Downwind / SUP Foil)
The spitfire is the latest development in a category of boards that demands both a shorter board for manageability as well as lifting efficiently to get onto foil for endless rides bump-to-bump.
Length Width Thickness Code
5’5” 22 1/2” 5 1/8” •SFFL12-0505-PR
5’9” 24” 5 3/16” •SFFL12-0509-PR
6’1” 25” 5 1/4” •SFFL12-0601-PR
6’6” 26” 5 1/4” •SFFL12-0606-PR
6’11” 27” 5 1/4” •SFFL12-0611-PR
7’4” 28” 5 5/16” •SFFL12-0704-PR
For minimal storage needs, the Hot Shot FS inflatable can be stowed away anywhere, and inflated when you are ready to fly. The Hot Shot FS inflatable benefits from FS Construction for the most rigid inflatable foiling experience possible.
Length Width Thickness Code
5’10” 27.5” 5” •NOXY1005
The spitfire is the latest development in a category of boards that demands both a shorter board for manageability as well as lifting efficiently to get onto foil for endless rides bump-to-bump.
Length Width Thickness Code
7’6” 19” 5 1/16” •BFPC13-0706
7’9” 20 1/2” 5 1/16” •BFPC13-0709
8’0” 22” 5 1/16” •BFPC13-0800
8’3” 23 1/2” 5 1/16” •BFPC13-0803
8’6” 25” 5 1/8” •BFPC13-0806
BLUEFIN

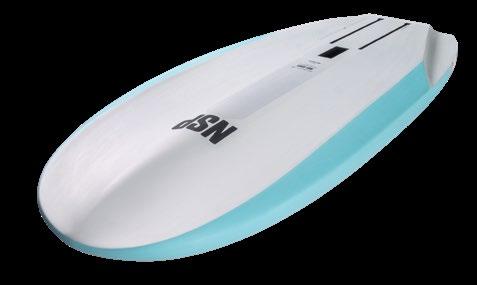

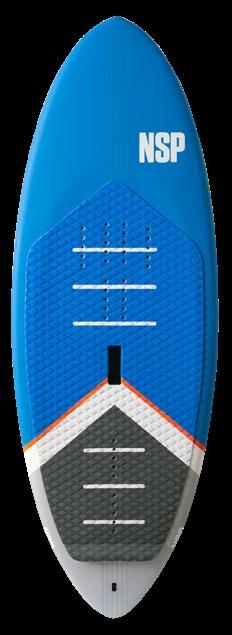

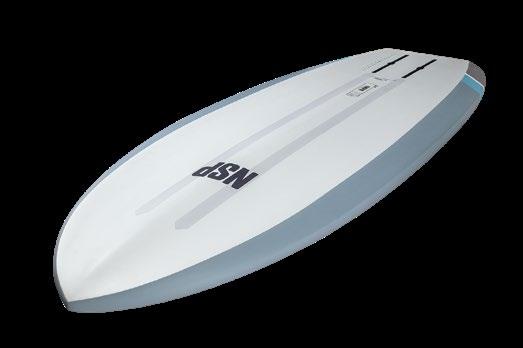

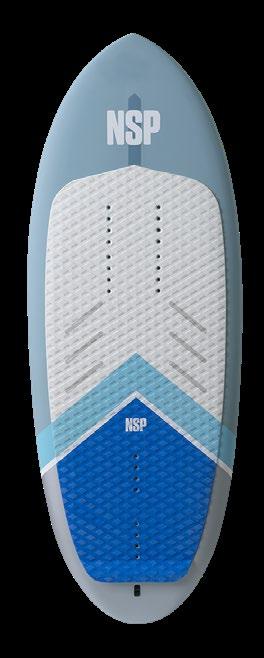

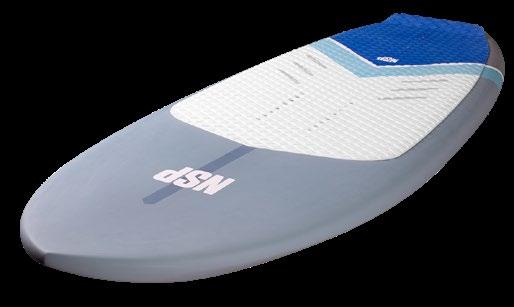

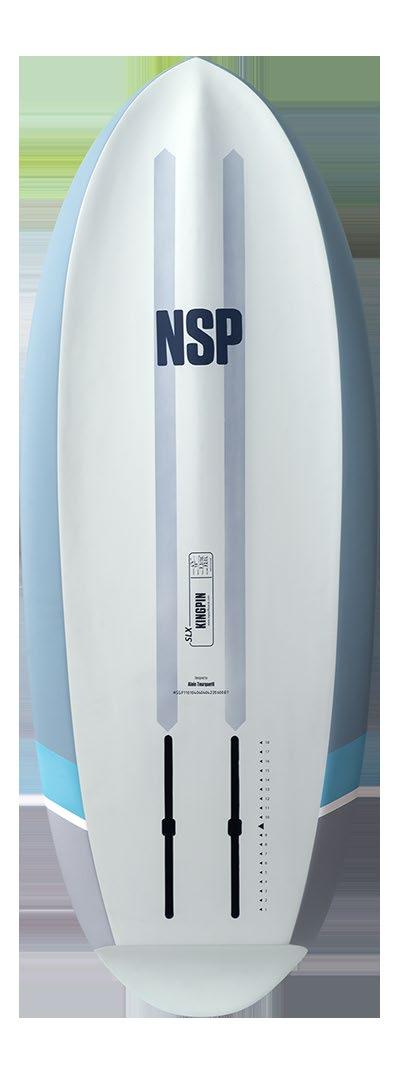

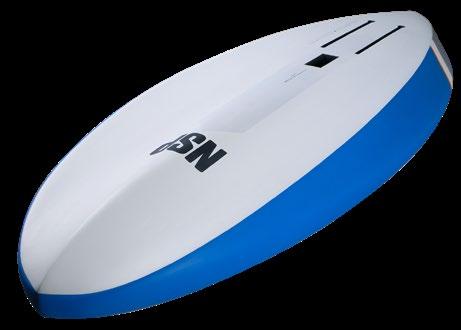

NSP KINGPIN SURF FOIL

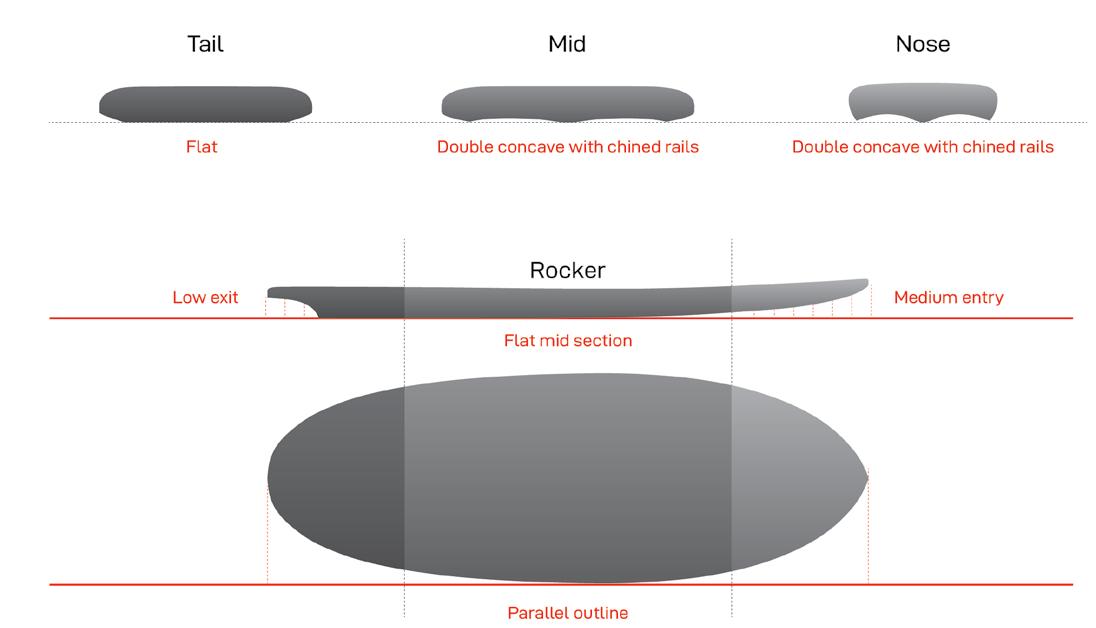

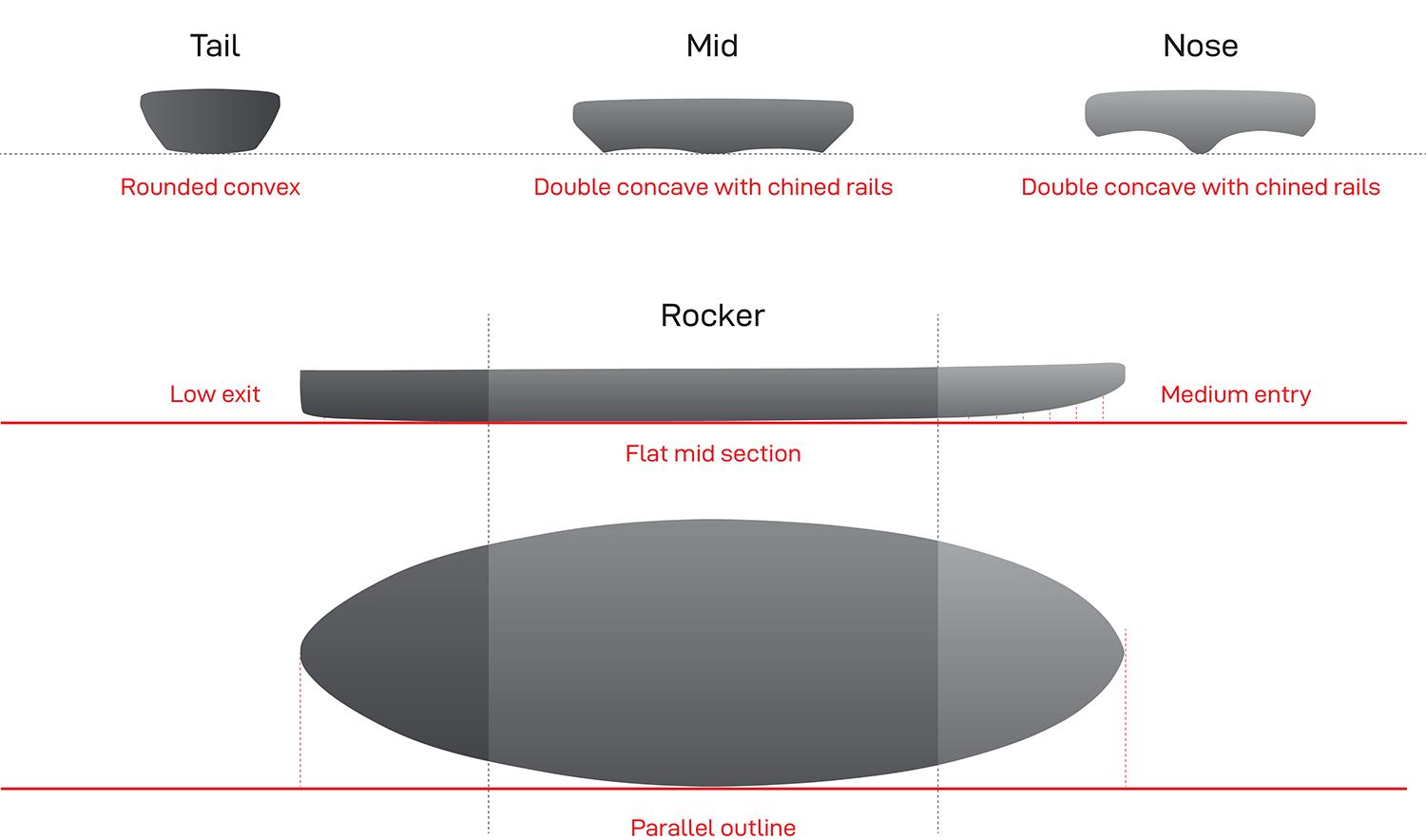

T he full volume pointed round nose features a deep double concave hydro hull transitioning to a flat rocker through the middle and tail. This is complimented by a full chined rail and cutaway round tail, reducing surface area and promoting early release. This combination of concaves, rocker, rail chines, and cutaway tail release faster without drag for a super smooth take-off and easily handles touchdowns.
The concave deck is comfortable to paddle and ultra-responsive to rider input. Combined with a deckpad and the option of foot straps, the Kingpin will be an integral part of the NSP Foil range.

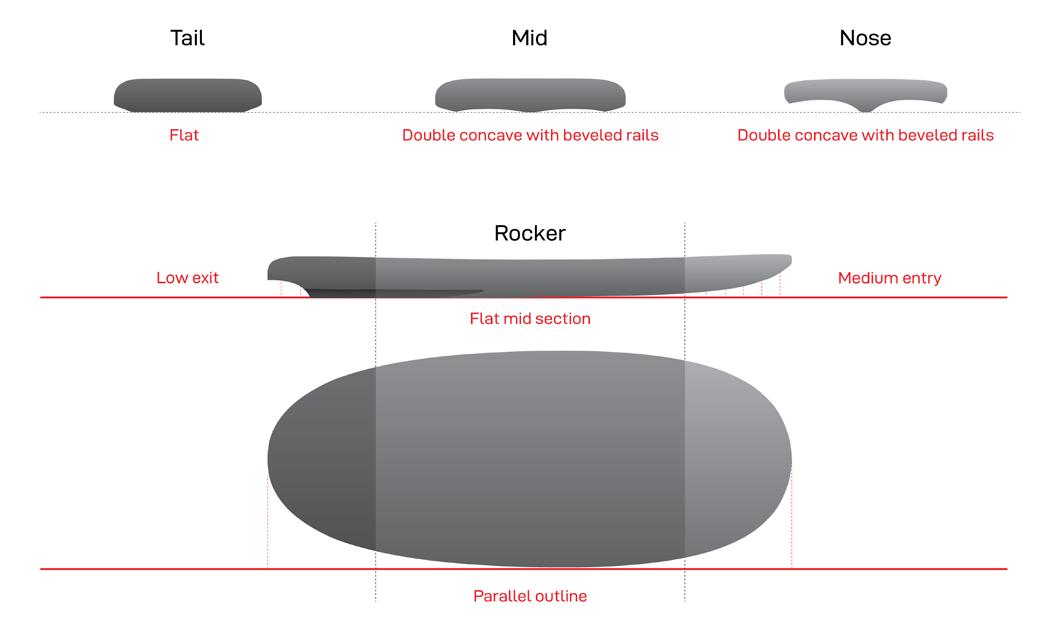

Design:
• The volume distribution is concentrated around the chest area to give surfers a perfect platform for paddling into waves.
• Deep double concave Hydro Hull nose. Chined rails and tail cutaway for maximum paddle speed and release on take-off and touchdowns.
• Flat rocker through the middle and tail with relief from the tail cutaway to kick the tail early to get onto foil.
• Thermoformed EVA with pronounced tail kick.
• Twin track foil tuning guide.
Construction Features:
• Leash plug
• Compact shape for pumping
• Beveled rails for quick water release and bounce backs
• Single rear foot strap and double front strap options
• Tail kick pad - added leverage to help lift the foil out of the water, reducing the tail touching the water when pumping and turning
• Narrow nose outline for faster paddling, pushing through waves, and easy quick turns.
• Medium nose kicker prevents the board pearling and with enough curve to recover from touch-downs
• Hydro hull is a combination of increased “V”, subtle double concaves and double-edged chine rails
• 10” US box reinforced twin tracks for a fully adjustable setup, made easier to remember with the scale printed on the board
• Mounting tracks embedded in high-density closed cell PVC blocks
• Hybrid SLX Carbon construction - lightweight construction for stiffness, maneuverability and glide
• Dual bottom carbon stringers, and single deck carbon stinger
10” Twin track / foil tuning guide
Foot strap inserts
Single Unidirectional carbon stringers on the deck
Concave & chined rails
Dual unidirectional carbon stringers on the bottom
Tail kick pad with center arch and side wedges

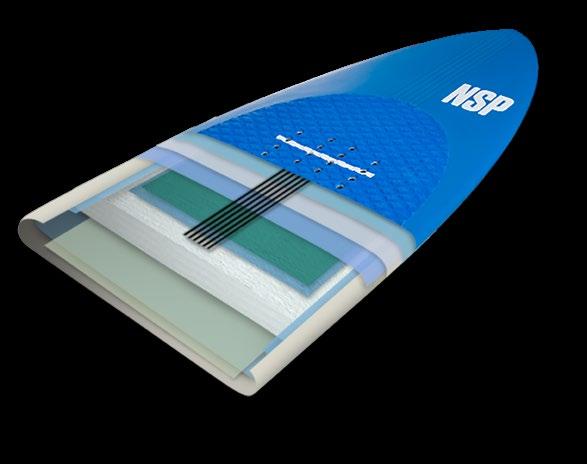

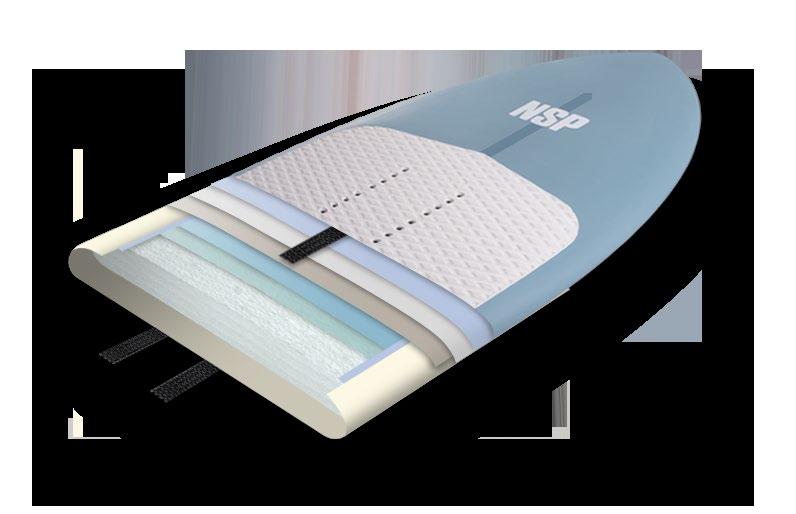

KINGPIN SURF FOIL - CONSTRUCTION
Unidirectional Carbon stringer
Biaxial Fiberglass
Unidirectional Carbon stringer
Uni-directional carbon stringer
Twin track / Foil tuning guide

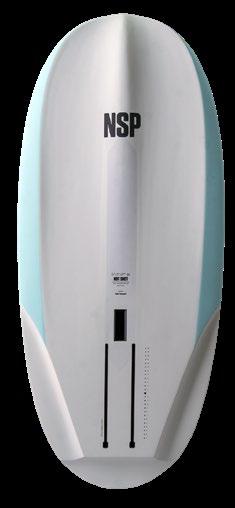

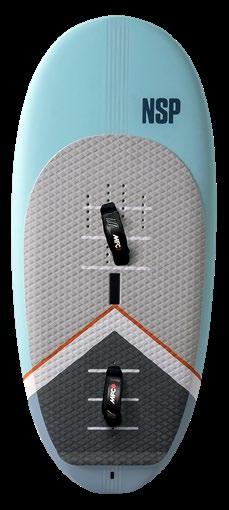

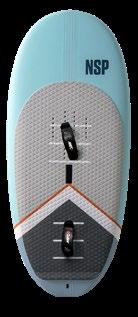

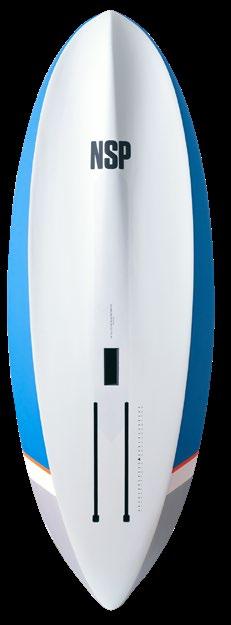

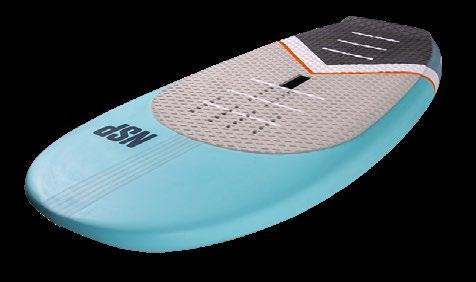

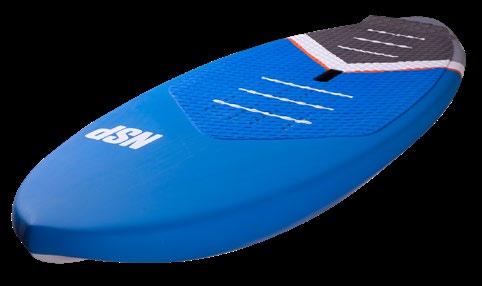

HOT SHOT WING FOIL
An exercise in pure hydrodynamics reducing drag by optimized release and maximum speed sub foil also means less drag when riders touch down, allowing them to relaunch quickly and smoothly.
The nose features a refined double concave hydro hull transitioning to a flat rocker with cut-away chined rails positioned one-third above the rounded cut-away tail, reducing surface area and drag. Despite the reduced length, the fuller outline and rail maintain volume to assist starts and recovery in rough water and combined with the bottom, the take-off is as smooth as silk and gives riders confidence to push hard.
The concave deck is comfortable and ultra-responsive to rider input. Combined with a deckpad and included MFC foot straps, the Hot Shot is the perfect board together with NSP’s new Fireball to take your wing foiling to the next level.
Design:
• The volume distribution is designed to reduce the board’s swing weight when you are on the foil and allows for quicker directional changes and jibes.
• Directional efficiency when you are off the foil, so all applied forces convert into forward movement.
• Enough buoyancy and stability to recover in rough water and stay comfortable when you are not on the foil.
• Thermoformed EVA deckpad with pronounced kick tail.
• Twin track foil tuning guide.
• Multi-positioning foot strap inserts mid-deck and tail.
Construction features:
• Compact shape for pumping
• Chined rails for quick water release and bounce backs
• 3/4 length EVA deckpad - grip where needed
• Tactile and visual stance references
• Multiple foot strap insert positions - Ride with 1, 2, or 3 straps, half straps, or no straps
• Mounting tracks embedded in high density closed cell PVC blocks
• 13” reinforced twin tracks for a fully adjustable setup, made easier to remember with the scale printed on the board
• Tail kick pad - perfect for riding without straps
• Quick release track mount - detach your foil without removing the bolts
• Hybrid carbon technology - lighter weight construction for stiffness, maneuverability and glide
• Hydro hull is a combination of increased “V”, subtle double concaves and cut-away double-edged chine rails and tail.
• Integrated bottom and deck SUP handles for easy transportation - carry your Hot Shot with one hand and your wing with the other.
• Leash plug
Tail kick pad with footstrap inserts
Concave & chined rails
13” Twin track / foil tuning guide
Unidirectional Carbon stringer
Multiple foot strap options
Rounded tail with cut-away chined rails and tail
HOT SHOT WING FOIL - CONSTRUCTION
Fiberglass
Biaxial Fiberglass
Unidirectional Carbon stringer
Fiberglass
Hybrid carbon stringer
Fiberglass
SecureCell EPS core
Fiberglass
Twin track / Foil tuning guide

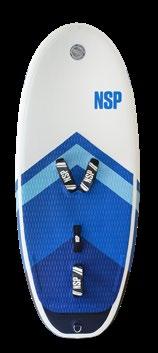

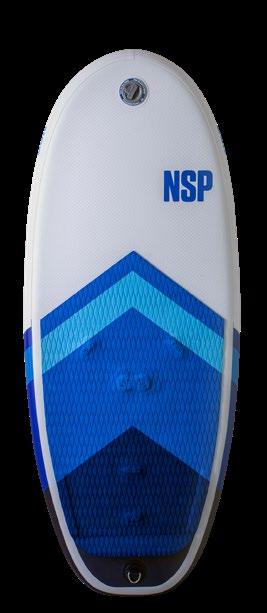

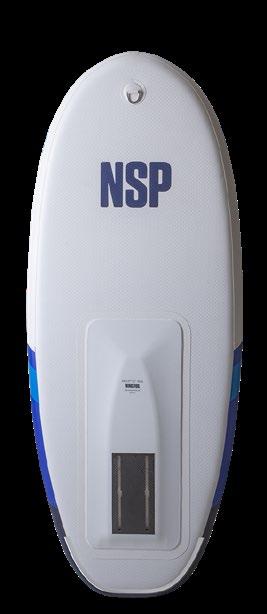

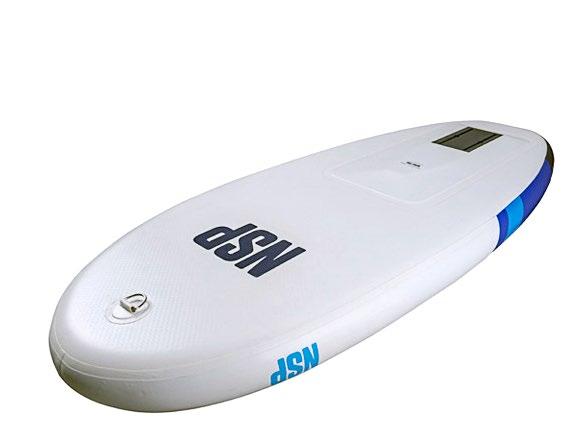

WING FOIL FS (Inflatable)
The ultimate compact wing foiling traveling companion!
Without sacrificing performance and stability, the Wing Foil inflatable board rolls up into a backpack and makes storage and traveling so much easier. The design concept comes from our well known composite foil boards and has been tested with the same rigor, intensity and detail that our team gives to every board put into production. Built with 5” drop stitch reinforced double layer glueless pre-lamination, double layer rail band and a full carbon pre-preg foil mounting plate, the Wing Foil board is extremely durable and rigid. Equipped with footstrap inserts this board is all you need to travel, get airs and have a whole lot of fun.
Features:
• Rounded square tail for increased stability.
• Fusion reinforced double layer glueless pre-lamination.
• Double layer rail construction with double sealing railband.
• Thermoformed diamond grooved EVA deckpad with kicktail .
• M5 footstrap V-shaped inserts to attach footstraps for winging.
• Reinforced full carbon pre-preg foil mounting plate with 10” twin track.

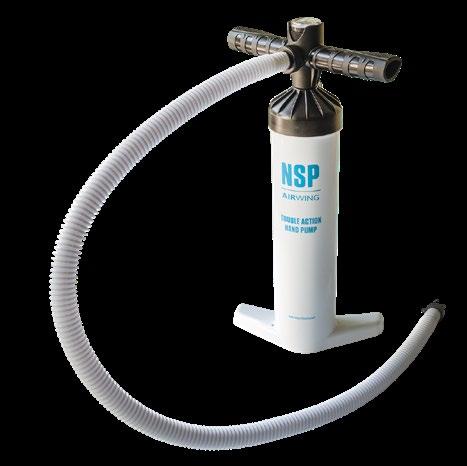

• High capacity double action pump
• Premium dual compartment backpack with wheels.
• 3 adjustable footstraps.
diamond grooved
Double rail band
Full carbon pre-preg mounting plate
Footstrap V-shaped inserts
Thermoformed
EVA deckpad with kicktail
WING FOIL FS (Inflatable) - CONSTRUCTION
Thermoformed EVA deckpad
Traditional dropstitch technology
Double railband reinforcement
Dual rail construction
Fusion skin (Pre-laminated dual layer)
100% carbon foil mounting plate
Traditional dropstitch technology
Double railband reinforcement
Dual rail construction
Fusion skin (Pre-laminated dual layer)

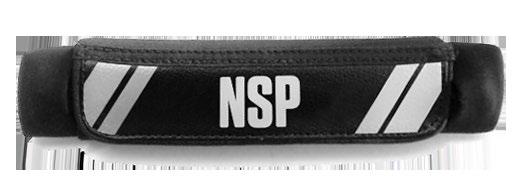

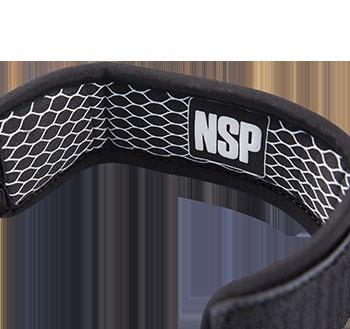

FOOTSTRAP
Supplied exclusively with our Wing Foil FS, the NSP footstrap available with the infllatble board. The external adjustable system and 1/2/3 bolts accommodate every foot size and board setup, while offering the best comfort and support. You will feel ‘locked in’ when you slip your feet into the NSP footstrap.
Features:
• Comfortable 7mm neoprene padding
• Internal adjustment system
• Single or double insert compatibility
• Maximum comfort

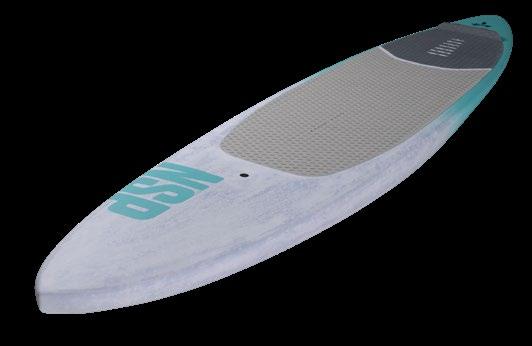

SPITFIRE (Downwind/ SUP Foil)
The Spitfire fits in a category of boards that demands both a shorter board for manageability as well as lifting efficiently as possible to get on to foil for endless rides bump-to-bump.
To achieve this, the Spitfire features a narrow nose and pin tail to lengthen the waterline and advanced hydrodynamics with a deep double concave hydro hull and chined rail to push less water and lift unbelievably early. This is key to downwinding as initial speed from the paddle and early lift to foil is the key to chasing the bumps.
The narrower tail width creates efficient water exit but also allows the nose to lift quickly. The concave deck is super comfortable to paddle and ultra responsive to rider input. Combined with a deckpad and the option for multi-positioned foot straps the Spitfire is the perfect board to enjoy your time in downwind conditions.
Design:
• Designed to lift back onto foil quickly and efficiently to endlessly ride downwind bumps and get you back on foil easily if you come down.
• Directional efficiency when you are off the foil, so all applied forces are converted into forward movement.
• Thermoformed EVA deckpad with pronounced kick tail and visual stance references.
• Multi-positioning foot strap inserts mid deck and tail.
• Chined rails for quick water release and bounce backs.
• Inset bottom and deck handles for easy transportation.
• 13” reinforced twin tracks for a fully adjustable setup, made easier to remember with the scale printed on the board.
• Quick release track mount - detach your foil without removing the bolts.
• Tactile and visual stance references.
• Hybrid carbon technology-lighter weight construction for stiffness, maneuverability and glide.
• Deep double concave hydro hull and double-edged chine rails.
• Adjustable footstraps.
SPITFIRE (Downwind/ SUP Foil) - CONSTRUCTION
Fiberglass
Biaxial Fiberglass
Uni directional Carbon stringer
Fiberglass
Hybrid carbon stringer
Fiberglass
SecureCell EPS core
Fiberglass
Twin track / Foil tuning guide

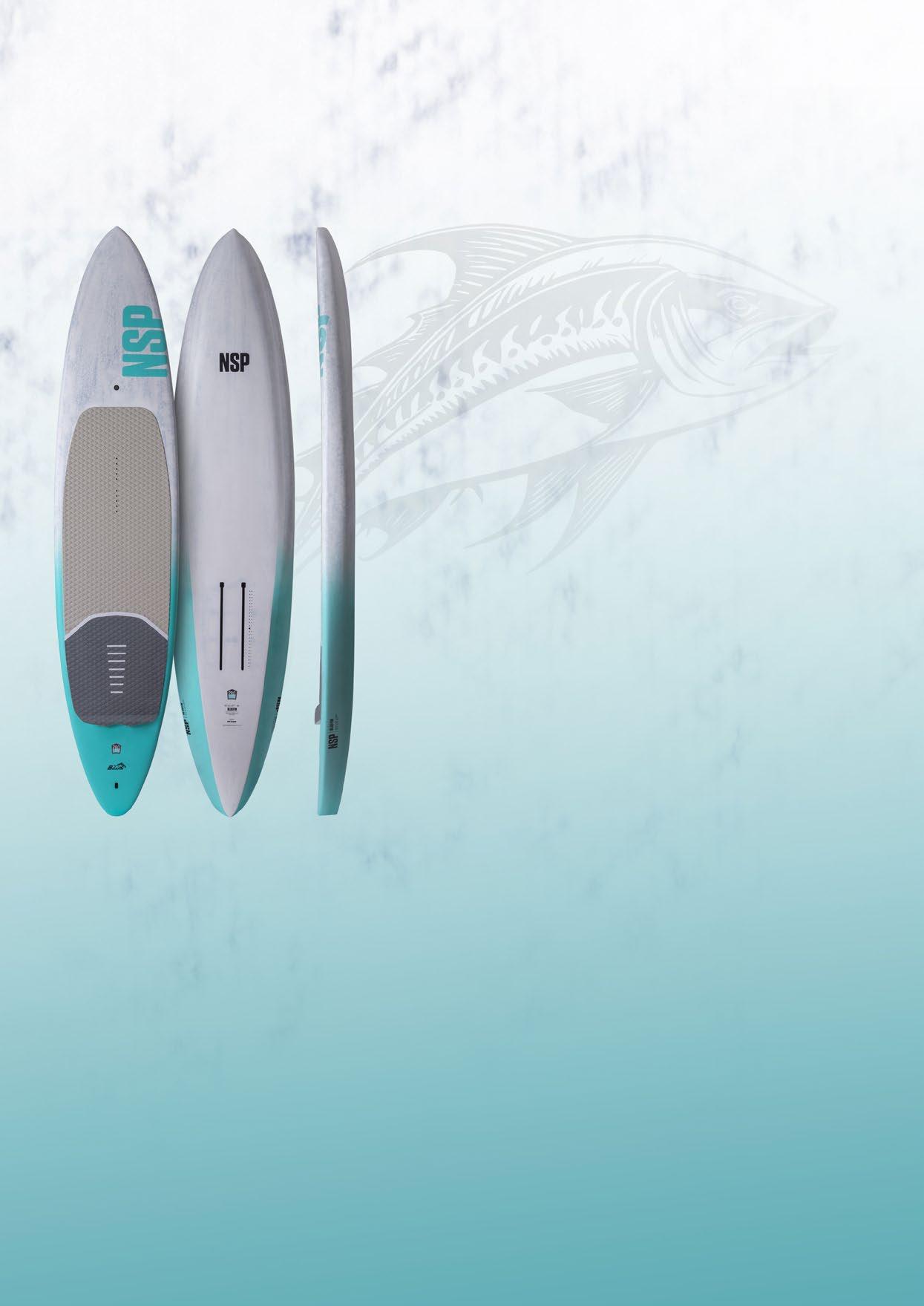

BLUEFIN - Downwind Board
At the heart of the Bluefin series lies its full carbon fibre light weight shell, a testament to NSP’s commitment to pushing the boundaries of foiling technology!
This full carbon fibre craft not only delivers unparalleled stiffness, enhancing manoeuvrability, responsiveness, and glide, but also a significant weight saving advantage allowing riders to effortlessly navigate even the most challenging downwind conditions.
Designed by Alain Teurquetil this race inspired outline ensures effortless take offs and limitless functionality, empowering riders to push their limits with confidence resulting in designs that are faster, narrower and more efficient than ever before. The compact 7’6 model prioritises agility, perfect for riders seeking lightning fast responsiveness and precision in their manoeuvres either prone, wing or SUP. Stepping through to the 8’0 and 8’3 models, these create a balance between stability and manoeuvrability, making them versatile choices for exploring downwind conditions and refining your skills. For ultimate stability and control, the spacious 8’6 option is crafted with precision offering effortless glide and a commanding presence on the water.
Named after one of the fastest fish in the ocean, the Atlantic Bluefin, the Bluefin Foil board embodies speed, agility, and performance, drawing inspiration from nature’s ultimate speed demon. Crafted with precision engineering and inspired by the relentless pursuit of perfection, this board stands as a testament to NSP’s commitment to pushing the boundaries of what’s possible on the water.
Key Design Elements:
• Pro carbon construction, lightest in the market by a large margin.
• Race inspired board design for easy take off and landing.
• Full carbon fibre wrap.
• Reinforced foil tracks.
• Foot strap inserts for front foot.
Narrow pin tail Dual track measurements for accurate mast placement
Thermoform EVA traction
Photographer : Henrique Casinhas Rider : Alex Bicrel
Location : Madeira, Portugal Board : Kingpin and AirWave

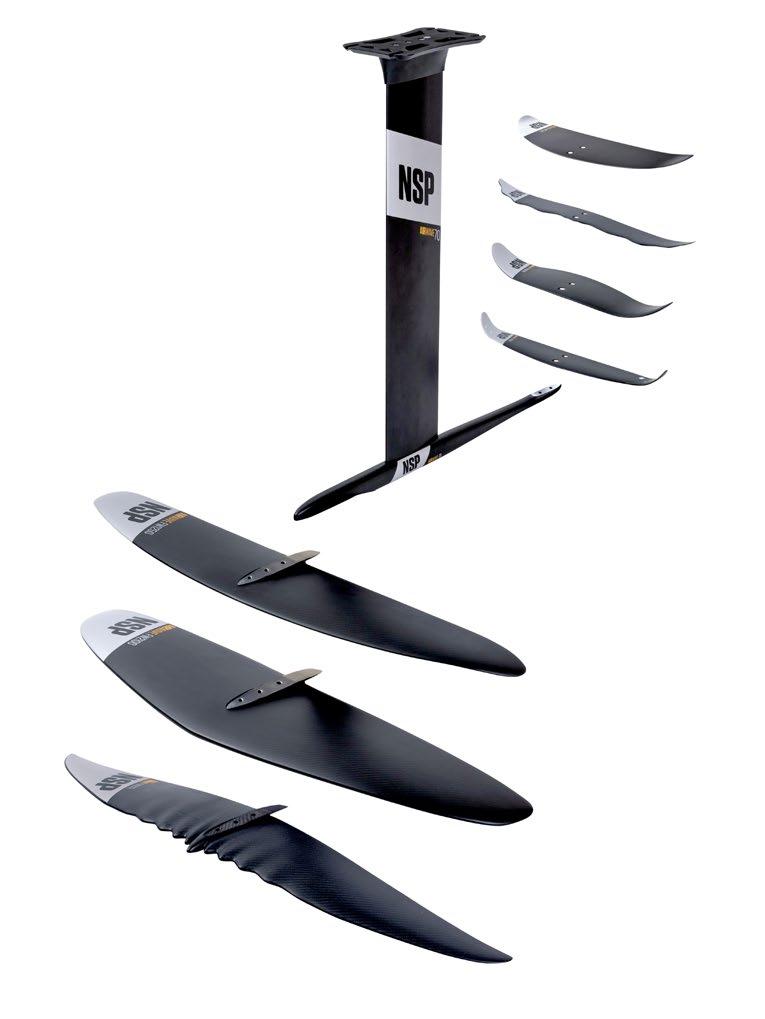

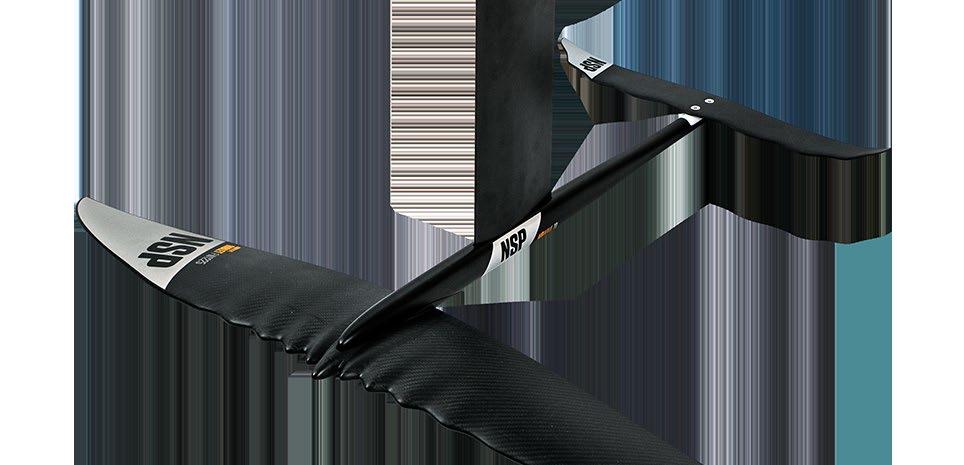

A I R W A V E

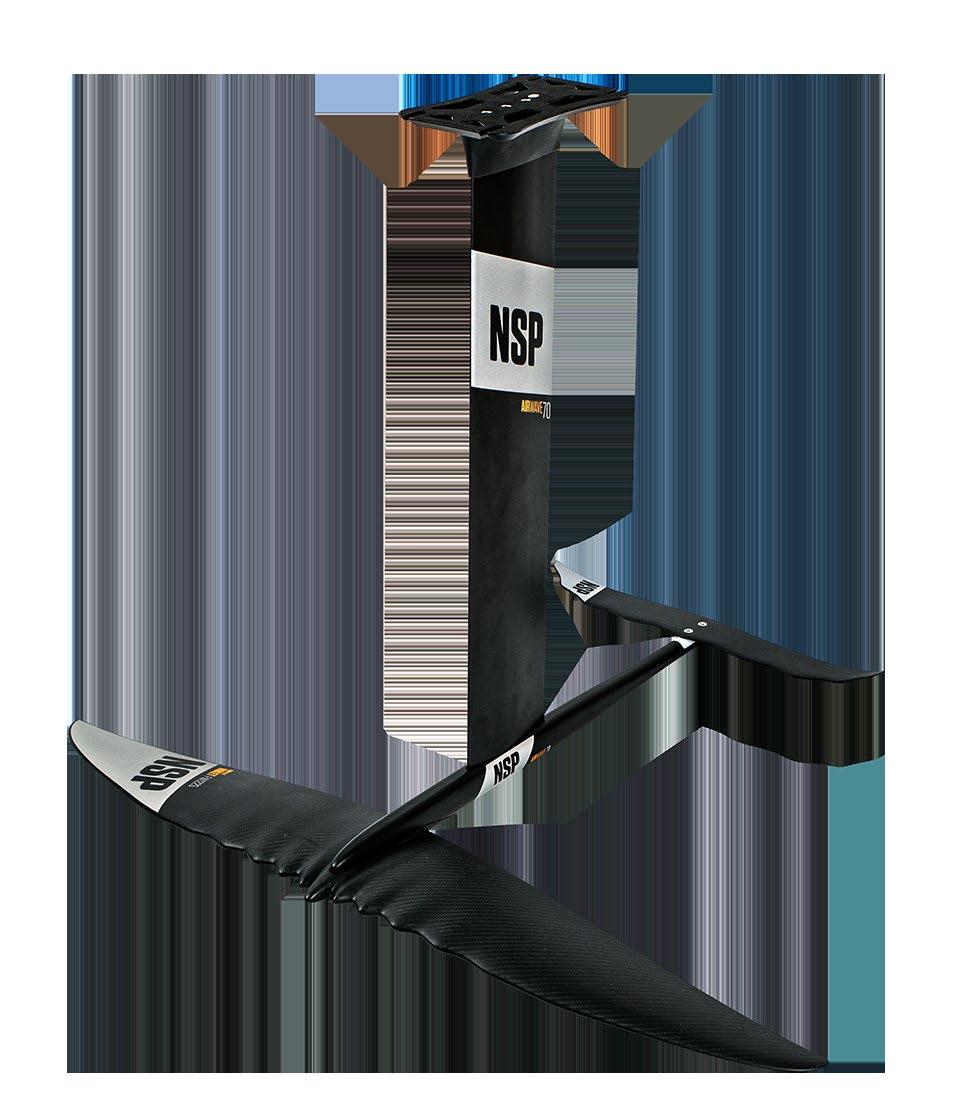

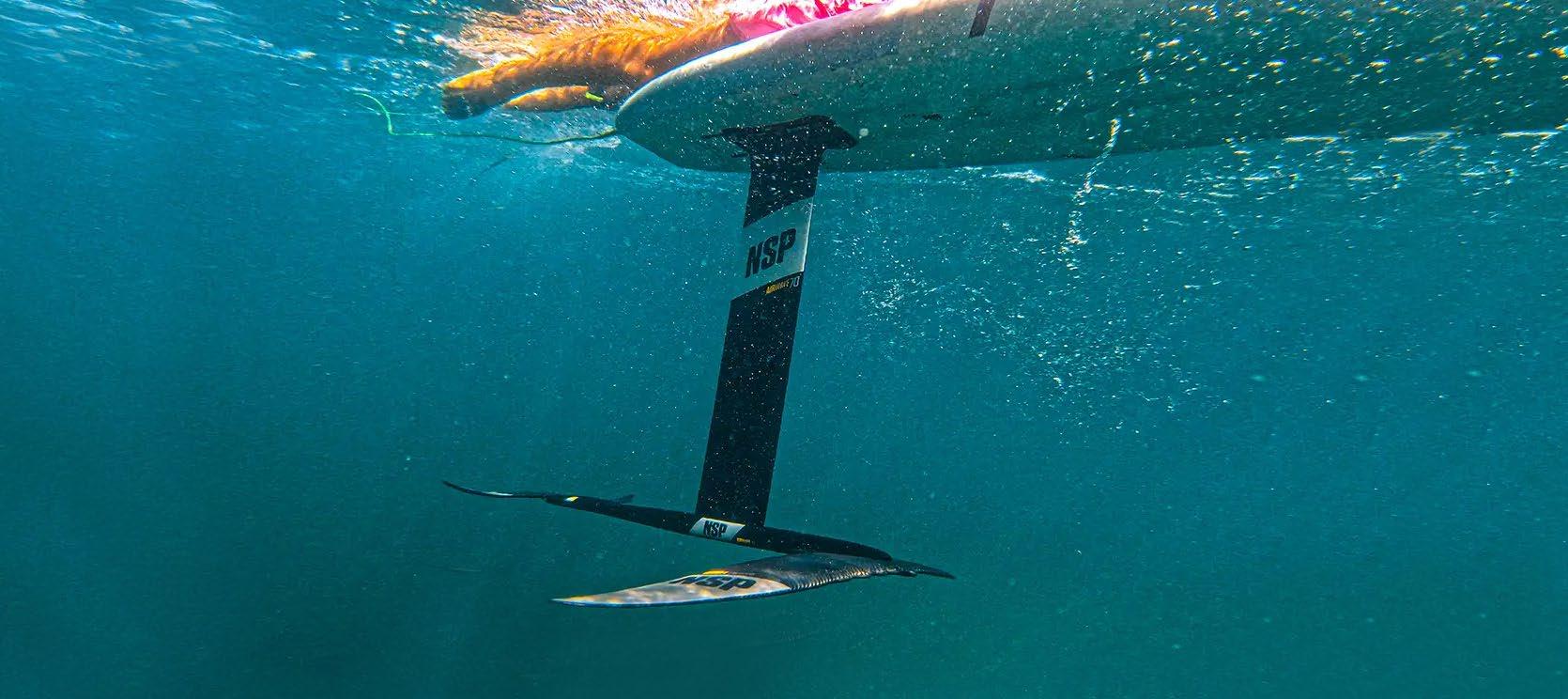

AIRWAVE NSP
Designed with performance, hydrodynamic efficiency and durability in mind. This modular platform can be tuned for every type of foiling: Surf, SUP, downwind, tow, wake, kite and wingfoiling.
It’s an extremely versatile foiling platform with all the necessary add-ons to allow you to customize your NSP Airwave across the entire watersports spectrum, no matter the riders weight or ability.
The backbone of the NSP Airwave is the unique 13.5cm (5.31”) wide 6061-T6 Aluminum mast. It is substantially wider than other masts for additional strength and directional stability. Connected to our beefed-up, precision CNC-cut 6061-T6
Aluminum fuselage, the Airwave will withstand loads generated from high speed turns and those inevitable wipe-outs.
The 6061-T6 Aluminum twin track mounting plate perfectly balances strength and weight. Control and lift can be adjusted with the interchangeable shims under the rear wings for the right combination of lift, stability and speed.
NSP wings are built to last, featuring a reinforced foam core laminated with 100% pre-preg 3K carbon fiber.

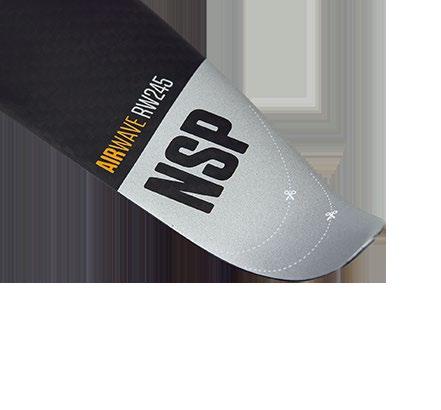

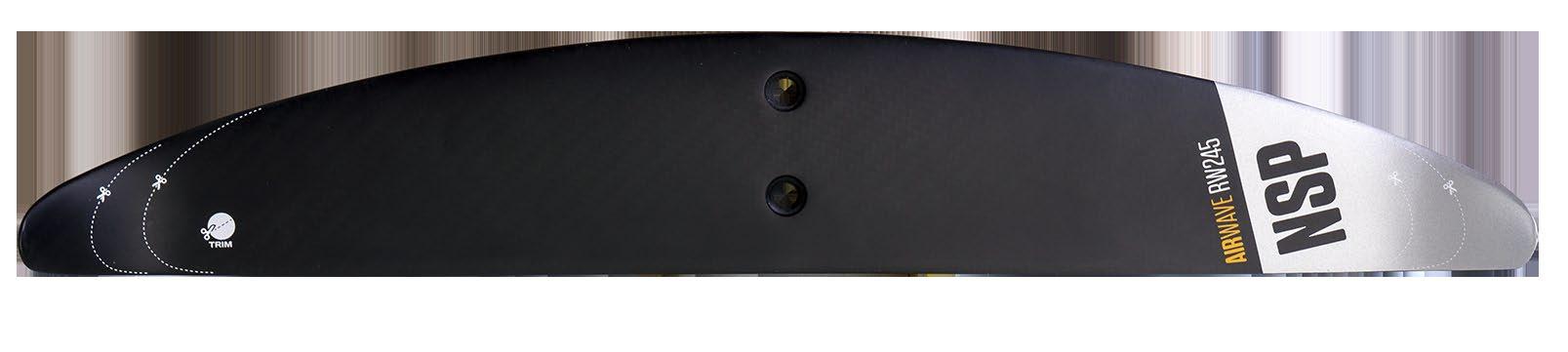

The rear wings with cutoff marks are fully made from carbon, allowing you to tweak its ride characteristics by cutting off the tips.
NSP Airwave wings will handle regular wear and tear and the inevitable groundings.

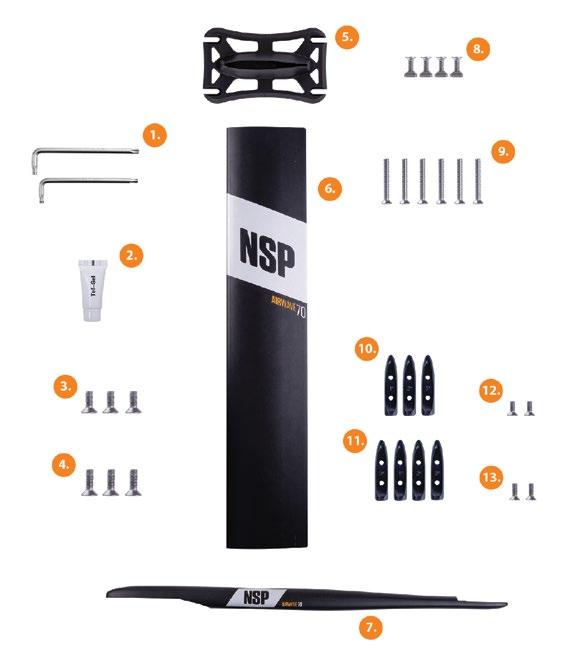

- Twin track base
- 316 stainless Torx screws

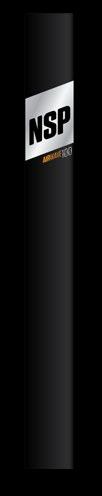

- Deep mast sleeves, CNC-milled for best strength-to-weight ratio
- Bomb-proof, 6061-T6 Aircraft grade anodized aluminum base
- Optional tuttle box adapter available
- 13.5cm wide for strength and directional stability
- Extruded 6061-T6 anodized aircraft aluminum

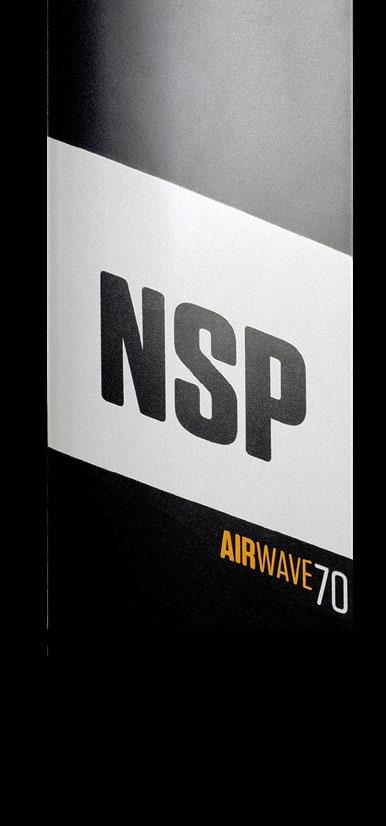

- Mast 60, entry-level or shallows
- Mast 70, Ideal first mast, perfect allrounder
- Mast 80, Advanced height for surfers, downwind, wing and windsurf
- Mast 90, Kite, wing or windsurf and downwind
- Mast 100, Kite, wing, windsurf and tow-in foilers
- High-end 3k pre-preg carbon rear wings :
- RW 330 Flat wing
- RW 340 M wing
- RW 245 HA Wing
- RW 225 Riblet
- RW 275 Riblet
- Super strong, CAD designed precision
CNC-cut 6061-T6 anodized aluminum :
- Fuselage 57.5
- Fuselage 60
- Fuselage 70
- Fuselage 85
- High-end 3K pre-preg carbon front wings :
- FW 1720 (Gull Wing series)
- FW 2100 (Gull Wing series)
- FW 1050 (Glider Series)
- FW 1250 (Glider Series)
- FW 1450 (Glider Series)
- FW 1650 (Glider Series)
- FW 825 (Riblet Series)
- FW 1025 (Riblet Series)
- FW 1225 (Riblet Series)
- FW 1425 (Riblet Series)
MODULAR HYDROFOIL SYSTEM
(Gull Wing Series) (Gull Wing Series) (Glider Series) (Glider Series) (Glider Series) (Glider Series) (Riblet Series) (Riblet Series) (Riblet Series) (Riblet Series)
The Airwave is designed as the most versatile and performance oriented foil platform on the market. The NSP Airwave can be used for surf, SUP, tow-in, wake surfing, kiting or downwinding.
There is an ideal Airwave for you with a great variety of tuning options so you get the most out of your spot and its conditions.

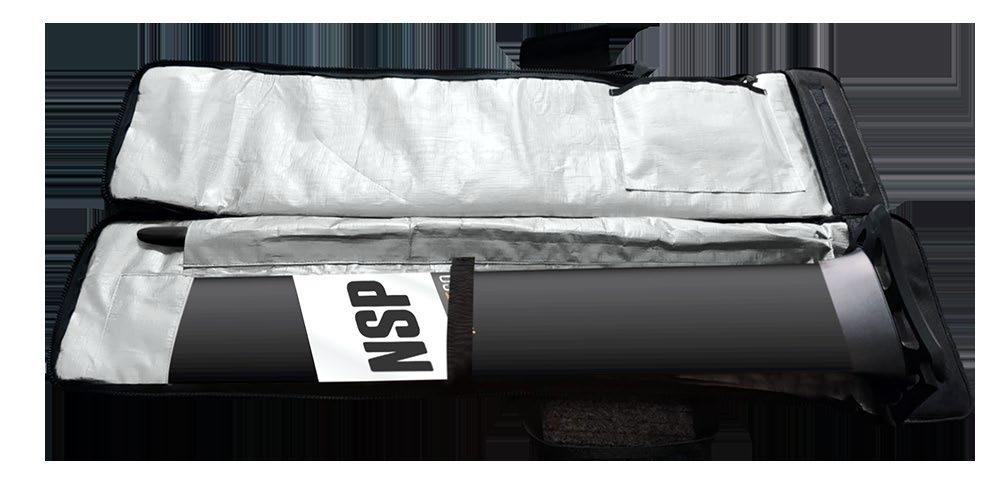

AIRWAVE MODULAR MAST 80 - SET IN BAG
The NSP Airwave Modular 80 set contains a mounting plate, Fuselage 70, Mast 80 includes all necessary shims and tools to attach every available NSP Front and rear wing. (Does not include mast shims needed/recommended for use with Riblets).

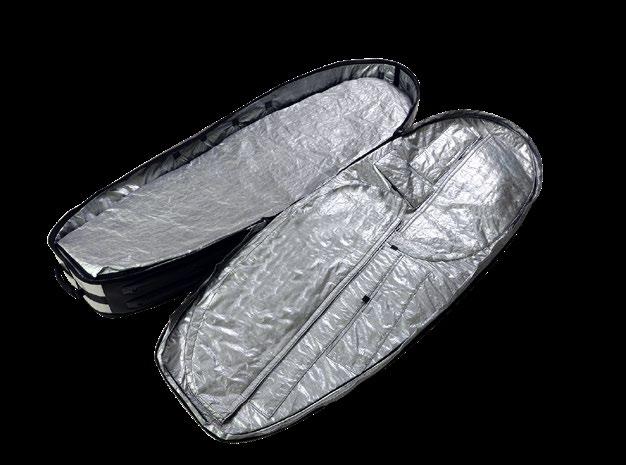

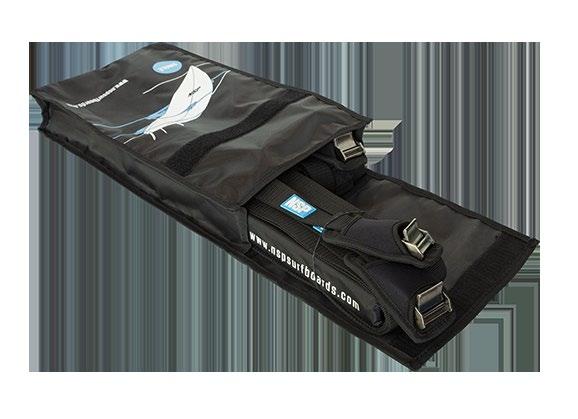

The 600D padded bag with carry handle is designed to fit every mast from 60cm to 100cm and the bag length can be adjusted with the attached webbing strap.
•AWMK1101-80
1. T30/T40 Torx Allen Keys NFOIL27
2. Tef Gel anti-corrosion paste
3. Front Wing Mounting Screws M8 x 25 (3x) for Riblet 1025/1225 AWXX1104-M8
4. Front Wing Mounting Screws M8 x 30 (3x) NFOIL11
5. Mounting Plate AWXX1103-MP
6. Mast 80 AWMS1103-80
7. Fuselage 70 AWFL1103-70
8. Board Mounting Hardware M8 x 35 (4x) AWXX1111-SC
9. Mast Mounting Screws M6 x 45 (6x) NFOIL13
10. Rear Wing Shims Kit (1°, 2°, 3°) for RW 330, RW 340 and RW 245 AWXX1102-SH
11. Rear Wing Shims Kit (0°, 1°, 2°, 3°) for all Riblet Rear Wings AWXX1106-SH
12. Rear Wing Mounting Screws M6 x 20 (2x) AWXX1105-M6
13. Rear Wing Mounting Screws M6 x 25 (2x) AWXX1107-M6 only for RW 340 and RW 245
BIOMIMICRY!
The tubercles, or large raised bumps, on the leading-edge of whale fins and foil and outline of a Manta Ray have inspired this design using scientifically proven features to provide additional control, hold and propulsion.
NSP was inspired by these phenomena and has created the new Riblet front and rear wings, striking a perfect balance between efficient lift and rail-to-rail maneuvering.
The new anhedral design translates into glide, stability and excellent speed.
Riblet wings are excellent for wing- and surf foiling in high-wind conditions, but will also perform as endless downwinders for advanced foilers who can leverage the efficient shape of these wings.
(Note: We strongly recommend using the all new mast shim with the Riblet to fine tune the performance).
Designed as high-aspect stabilizers, Riblet Rear Wings perform best in combination with their front wing counterparts, creating sustained glide and extreme maneuverability. The 225 and 275 combine well with the Riblet 1025 FW and Riblet 1225 FW
Four shims are available for the Riblet series, ranging from 0 to 3 degrees.
All Riblet rear wings use M6x20 screws.
RIBLET
RIBLET
RIBLET
GULL SERIES
NSP Gull Wings come in two sizes; the tried-and-tested 1720 and a new 2100 as well.
The Gull Wing Series has softer winglets that increase maneuverability, while retaining stability. This makes these front wings a game changer for beginners who are just getting into foiling, intermediate riders looking to increase their skills or expert free riders looking for a wing that works in all conditions.
GLIDER SERIES
NSP’s high-aspect (HA) gliders are available in four sizes.
The 1050 is the latest addition to our HA line-up, ideally used in big downwind conditions, big surf and for any rider wanting more speed from their setup. Perfect for surf, SUP and wingfoiling, the new glider series are the basis of any foiling quiver.
On the smaller glider wings, the reduction of surface area means less drag, increased efficiency and maneuverability, better acceleration and more top-end speed.
All HA sizes have been tweaked for a looser ride and increased maneuverability, allowing for lightning fast turns and drawn out circles.
The NSP Glider Series is available in the following dimensions:
The Gull Wing is available in the following dimensions
RW 330 FLAT WING
REAR WINGS
• The rear wings have also been tweaked for improvised turning, increased acceleration and minimal drag.
• Thanks to our new solid carbon fiber construction, all rear wings are exceptionally rigid, reducing the level of input needed while up on foil.
• Both simulations and test reports found a top-mount solution improved efficiency and we redesigned the NSP fuselage, allowing it to carry rear wings on the top.
• The Shims have been redesigned and can be used for the 330, 340, and 245 rear wings.
• The attachment point of 245 wing has been redesigned to ensure the best angle of attack when in the water.
• New cutoff marks on the 245 allow you to easily reduce the surface area by up to 35cm2 down to 225 or right up to a surface of 210, really loosening up the foil. (For instance, trimming down the 245 changes its ride from HA to a great stabilizer for surf foiling).
• The 330 will use M6x20 screws, the 340 & 245 uses M6x25. All screws are provided in the modular set.
NSP Rear Wings are available in the foiling sizes:
- The 330 is the best allrounder for all conditions
- The 340 M wing is best for surf and windsurf
- The 245 works as a high-aspect glider or trimmed down for a loose, surf ride
Photographer : Dane Gillett
: Ralph Gillett
SUGGESTED WING PAIRING
GULL WING PAIRING:
• Best to start with the 330 Rear Wing as it is the most stable and most allround rear wing in the range.
• The 340 M Rear Wing is better suited for surf or windsurf foiling. Handling is fast, changes in directions swift and free riders, windsurfers, wing and kite surfers. Radical surfers are best served with a 245 Rear Wing that they trim down to their liking.
• Riders looking specifically to go windsurf foiling are going High Aspect to get the best performance from the 85cm fuselage as it is the most stable size in the fuselage range.
GLIDER WING PAIRING:
The 245 High-Aspect rear wings perform best in down wind and wing foiling applications. Cutting the winglets from the Rear Wings converts them from high-aspect to more of a stabilizer, best used by radical surfers who prefer a loose feel and the ability to turn quickly. While the aspect ratio remains high compared to the 330 and 340, its directional stability is removed in exchange for a more skate-like ride.
RIBLET WING PAIRING:
Riblet Rear Wings work best with the Riblet Front Wings but the R&D team is extremely stoked about riding the Riblet Front Wings paired with the 245 High Aspect Rear Wing as a stabilizer.
Furthermore its turned out that pairing the 1225 & 1425 Riblet Front Wings with the 330 Rear Wing is a great allround combination, a perfect compromise of speed and maneuverability
Suggested Front and Rear Wing Pairing
Glider
Glider
Glider
Glider
Gull
Gull
Riblet
Riblet
Riblet
Riblet
FUSELAGE
The fuselage range for the Airwave is now expanded with two additional sizes; the 57.5cm and 60cm fuselage. What’s more, we have also redesigned the Airwave fuselage
Inserted threads
Adding marine-grade stainless steel insert threads has drastically increased the integrity of the Airwave system
Tail mount flipped
After countless hours of testing and an appropriate amount of computational fluid dynamics, we found that flipping the tail eliminates significant drag and turbulence, so from now on, rear wings are mounted on the top of the fuselage
Reworked tail section
By adding thickness and width, NSP fuselages will now accommodate deeper screws for a more secure connection
57.5cm for Radical Surf
The ultra-short, 57.5cm fuselage is perfect for advanced wake- and surf foilers wanting to go from rail-to-rail as quick as possible and perform lightning fast turns
60cm for stable and fast turning
Super-responsive but balanced, your gybe is going to be tighter, consistent and most of all, easier. Your pumping cadence also improves, allowing for some very big wings to be pumped
70cm Allround
Included as the standard go-to fuselage in the Modular Kit, the 70cm is our best allround option for foilers wanting stability, prolonged glide and efficiency The 70cm is also ideal for downwind runs
85cm for windsurf foiling
The 85cm is our longest, stiffest and most directional fuselage. Great for beginning foilers trying to wake for the first time, and wingfoilers looking to get the most out of their larger kit
NSP Fuselages are available in four different sizes:
Sleeved mast position for the strongest possible bond between mast and fuselage
Marine-grade stainless steel thread inserts

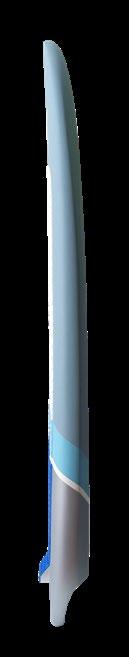

MASTS
With a width of 13.5mm, NSP masts are 22.5% wider than conventional masts on the market. The wider chord allows for a more efficient foil profile, directional stability and the use of high-rigidity 6061-T6 aircraft-grade aluminum. All Airwave masts feature three full-length channels for the stiffest possible construction. Airwave masts are anodized for protection and a branded look, sealed with silicone plugs to keep them waterproof.
AIrwave foil setups are fully compatible with any of the available mast sizes:
MAST 60 MAST 70 MAST 80 MAST 90 MAST 100
•AWMS1101-60
•AWMS1102-70
•AWMS1103-80
•AWMS1104-90
•AWMS1105-10
Entry level and shallow conditions (1.45kg)
Allround length (1.7kg)
Included in our Modular 80 set, the 80cm is our most popular, most stable and most versatile mast. (1.9kg)
Wind, kite and windsurfers (2.1kg)
Kite and windsurfers (2.3kg)
TUTTLE CONVERTER MOUNTING PLATE
Designed to distribute forces as evenly as possible, The CNC-cut, anodized aluminum Airwave base has open slots for easy mounting and fine-tuning. With the mast embedded in a solid four-centimeter sleeve, the mounting plate will handle all the loads you can exert on your NSP Airwave.
For riders wanting to use their Airwave on a tuttle box, swapping the mounting plate with a tuttle converter allows you to use an even wider variety of boards for your Airwave.
Mast60
Mast70 Mast80
Mast90
Mast100
SHIMS
As part of the new range, we have reworked our shims, and there are now two sets on offer, molded from fiber-reinforced nylon. NSP has the 3-piece 1-3 degrees shim set which we offer for the standard rear wings. But we now also offer a four-piece, 0-3 degrees set for the Riblet rear wings.
The different degrees of each shim changes the angle of the wings in the water so you can customize your ride for more stability, faster lift maximum speed, or the best for pumping or winging.
• The 1-degree shim gives the least amount of drag, increasing speed but requiring some pumping to get up on foil.
• The 2-degree shim offers a great balance between stability and speed. It is the best choice to start out on.
• The 3-degrees shim gives the most lift and is the easiest to get up on foil with, but a little slower, making it useful for beginners or foilers who prefer a quick lift.
Rear
Trim Shim Kit
245/ 330 / 340 Rear Wings
Riblet Rear Wing Trim Shim Kit
The Riblet Rear Wings come with the zero-degrees shim as well, which is the fastest shim in the setup, perfect for high-speed downwind runs. A perfect shim for time trials and downwind competitions, where every millisecond counts.
Mast Shim Plate
The Mast Shim Plate is designed to further enhance endless flight.
Every foil set-up and board design are different, and our Mast Shim Plate allows you to fine-tune your ride by dialing-in the correct angle of attack.
The Mast Shim Plate can be used to increase or decrease the angle of attack allowing you to have a comfortable board trim, more acceleration, and glide.
The mast shim is set to 1 degree, and you can combine two shims or more to obtain the desired trim angle.
AIRWAVE FOIL ACCESSORIES
Board Mounting Hardware M8 x 35 - 4pcs
Four high-grade stainless steel bolts with M8 countersunk Torx® screws will take the required torque to secure your foil to the board without stripping. Corrosion resistant nuts, sourced for marine applications, allow tuning of your setup as you slide them up or down the twin rack mount.
Front Wing Mounting Screws M8 x 30 - 3pcs
Mount your Front wing to the fuselage with three high-grade stainless steel bolts, For all Front Wings, except Riblet 1025 & 1225
Rear Wing Mounting Screws M6 x 25 - 2pcs
Mast Mounting Screws M6 x 45 - 6pcs
M6 long countersunk Torx® screws mount your Airwave mast to the fuselage and mounting plate.
Front Wing Mounting Screws M8 x 25 - 3pcs
For Riblet Front Wings 1025 & 1225
For 340 & 245 Rear Wing •AWXX1104-M8
Rear Wing Mounting Screws M6 x 20 - 2pcs
For all Rear Wings except 340 & 245
•AWXX1107-M6
T30/T40 Torx Allen Keys - 2pcs
Screw Pairing (Front Wings, Rear Wings and Masts)
MODULAR KIT
GULL WING SERIES
GLIDER SERIES RIBLET SERIES
WARNING
The use of this product exposes the user to many unavoidable and unexpected risks, injury, DANGERS and HAZARDS. NSP will not be held liable for any damage to property or any personal injury caused by any use, misuse, abuse, accidental or irresponsible use of this product by the user.
Hydrofoiling can be DANGEROUS to anyone in the vicinity of its use and must be taken seriously. We recommend to seek the guidance of professional instructors and experienced foilers. Improper and/or unreasonable use of this hydrofoil may result in DEATH or SERIOUS INJURY to ANY part of your body and to OTHERS. As you learn the sport, work within your own limitations and do NOT try to exceed them. Always wear an USCG (Type III or V) approved lifejacket, a helmet and leash.
If you are below the age of 18, you should have your parent or guardian read and explain these warnings, cautions and instructions to you. Do not use this product unless you are under the guidance of an experienced foiler.
CONTENTS:
Unpack contents and ensure all necessary parts are present to complete assembly. Before each use inspect all parts for damage and wear and tear. Do not use parts that show any signs of damage or wear. Replace all worn and damaged parts with genuine NSP spare parts.
1. T30/T40 Torx Allen Keys NFOIL27
2. Tef Gel anti-corrosion paste
3. Front Wing Mounting Screws M8 x 25 (3x) for Riblet 1025/1225 AWXX1104-M8
4. Front Wing Mounting Screws M8 x 30 (3x) NFOIL11
5. Mounting Plate AWXX1103-MP
6. Mast 80 AWMS1103-80
7. Fuselage 70 AWFL1103-70
8. Board Mounting Hardware M8 x 35 (4x) AWXX1111-SC
9. Mast Mounting Screws M6 x 45 (6x) NFOIL13
10. Rear Wing Shims Kit (1°, 2°, 3°) for RW 330, RW 340 and RW 245 AWXX1102-SH
11. Rear Wing Shims Kit (0°, 1°, 2°, 3°) for all Riblet Rear Wings AWXX1106-SH
12. Rear Wing Mounting Screws M6 x 20 (2x) AWXX1105-M6
13. Rear Wing Mounting Screws M6 x 25 (2x) AWXX1107-M6 only for RW 340 and RW 245

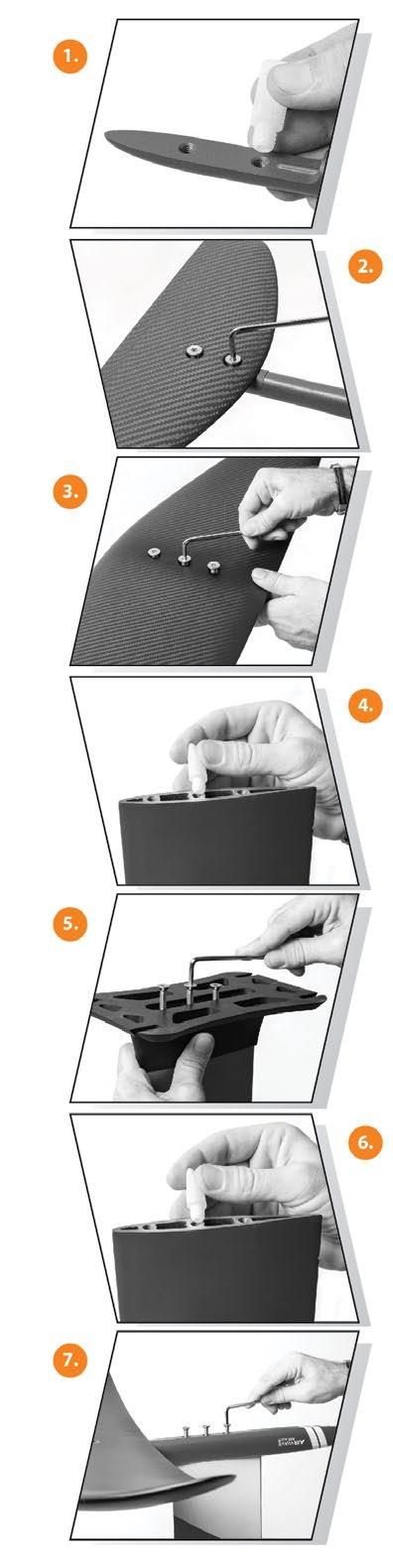

FOIL INSTALLATION:
CAUTION:
Do not over-tighten the bolts as this will damage the foil.
Using the supplied Tef Gel, dab a small amount onto the threads of the two screws M6 screws* for the fuselage.
Attach the rear wing as shown with the two M6 screws*. Tighten by hand using the supplied T30 Allen key. Never use power tools.
* Depending on the rear wing you are using, either 20mm or 25mm screws are required. If your setup requires the 25mm this will be clearly stated on the rear wing itself.
Using the supplied Tef Gel, dab a small amount of the anti-seize grease onto the threads of the front two holes of the fuselage. Attach the front wing as shown with the three M8 screws*. Tighten by hand using the supplied T40 Allen key.
* Depending on the frong wing you are using, either 25mm or 30mm screws are required. If your setup requires the 30mm this will be clearly stated on the rear wing itself.
Using the supplied Tef Gel, dab a small amount of it onto the threads of the three holes in the top of the mast.
Attach the mounting plate to the top of the mast using three of the M6 x 45mm supplied screws. Tighten by hand using the supplied T30 Allen key.
Using the supplied Tef Gel, dab a small amount of it onto the threads of the three holes in the bottom of the mast.
Attach the fuselage to the bottom of the mast using remaining three M6 x 45mm supplied screws . Tighten by hand using the supplied T30 Allen key.
* After every use disassemble, wash with water and dry each piece.

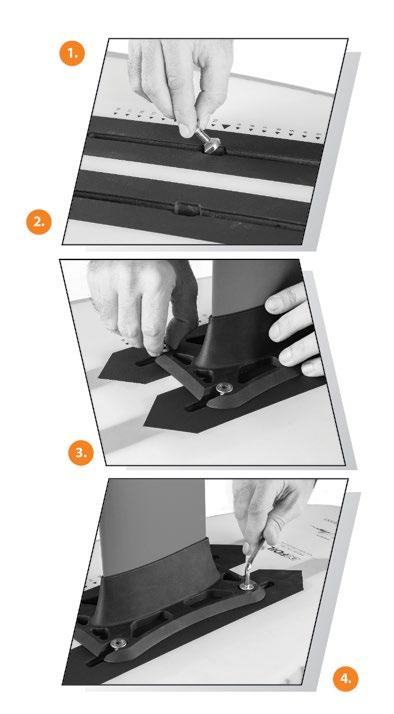

ATTACHING THE FOIL TO THE TWIN TRACK MOUNT
Dab a small amount of supplied Tef Gel to the threads of the four stainless nuts.
Thread M8 screws into stainless nuts just slightly (3-4 turns) and insert stainless nuts into track (2 screws in each track). Slide screws to opposite ends of the tracks.
With the mounting plate centered on the tracks, you can simply slide the screw into the recesses. Next, use the positioning guide to place netune the desired position of your mounting plate.
4. Tighten your screws with the supplied T40 Allen key. Do not overtighten.
* After use disassemble, wash with water and dry each piece.
NSP has a wide variety of wings, after-market accessories and replacement parts available for your foil setup.
Scan the QR code below to see our complete Foil overview online:
Photographer : Henrique Casinhas
Rider : Alex Bicrel
Location : Aderia Island, Portugal
Board : Kingpin Surf Foil, Fireball, FW 1250 and RW 245

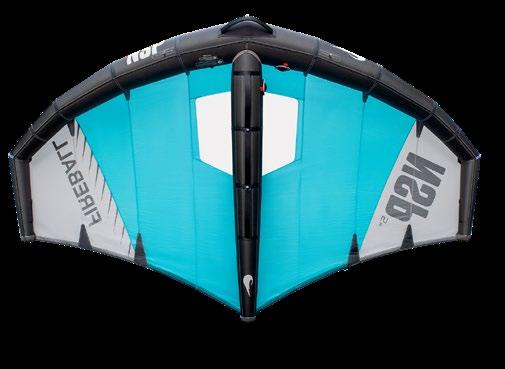

DYNAMIC DYHEDRAL AND LIGHTER WEIGHT
The Fireball wings are the result of months of design, development and testing by the development team. The new design offers a lightweight and rigid structure that delivers smooth and instant power that is stable under all conditions. Ride a Fireball for freeride cruising, wave riding, big air boosting and aerial antics, down winders or go hard on a parking lot with a skateboard under your feet, or a snowboard if you’re hitting the slopes.
The redesigned Leading Edge and Strut create a dynamic dihedral shape that promotes stability and accessible power in all conditions. Double reinforcements in the Leading Edge translates to a more rigid wing structure and less flex.
The Fireball wings are lighter and more maneuverable than their predecessor, delivering a solid and balanced feeling. Power is readily available even in light wind conditions, thanks to the added rigidity. The Leading Edge stitching is relocated to minimize turbulence and to protect the rider and seams are covered
• Performs on land, snow and water
• Durability through reinforcements
• Lightweight and simple to set up
• Stable in all conditions
REFINED AND REDESIGNED
Balancing comfort with performance, the redesigned Strut improves riding ergonomics, allowing you to ride longer with more control. Additional protection makes the Fireball more durable and suitable for land and snow as well. Windows on either side of the strut help riders keep an overview and improve safety.
Note: Despite reinforced wing tips we recommend keeping your Fireball wing off the ground at all times.
SIZING :
All Fireball wings come with a single neutral handle on the Leading Edge
FEATURES & SPECS
SUP valve for quick rigging up. NSP wings can be pumped up the NSP Fireball Pump (supplied separately) or with most standard SUP pumps.
Premium Leading Edge handle for neutral wave rides or depowering your Fireball.
Harness loops on the strut just in case you want to use the wing with a kite harness.
Double reinforced leading edge for added rigidity.

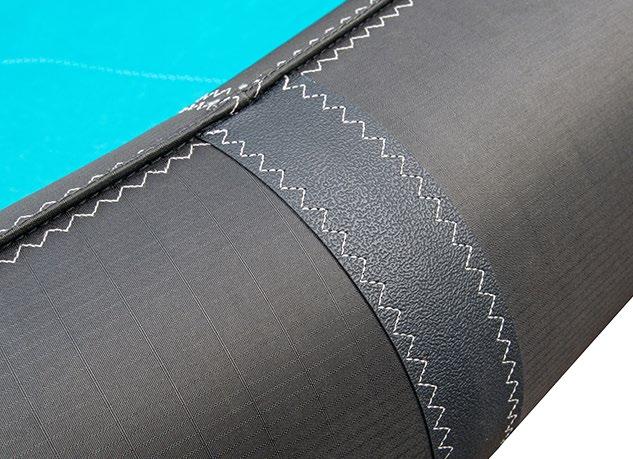

Added reinforcements between the strut and the leading edge.
Easy bladder access points on the leading edge and wing tips.

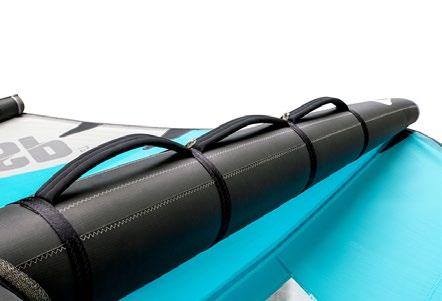

Optimized handles for improved control: new handle design and orientation allows riders to make subtle adjustments to their hand positioning, to get the most power from their wing.

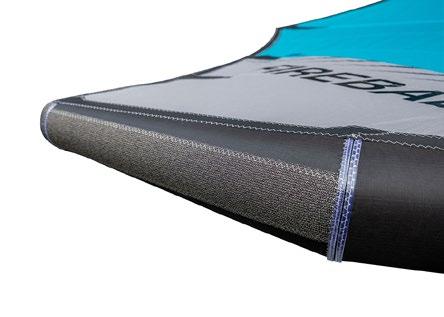

Kevlar, PVC and TPU abrasion protection along the Leading Edge protects the wing from wear and tear when making contact.
2xLE knots that allow for aftermarket Y handles or alternative leash positions.

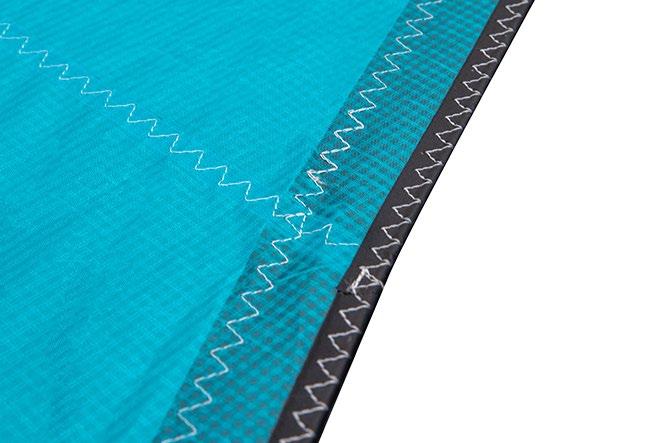

Extra tight trailing edge minimizes leach flutter. Added batons add stability
TECHNICAL FEATURES AND MATERIALS

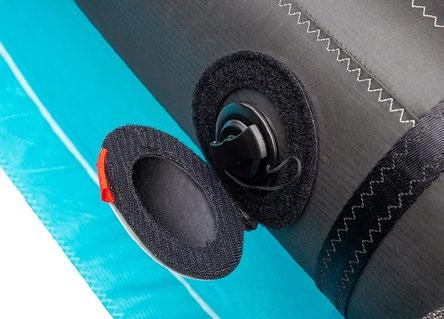

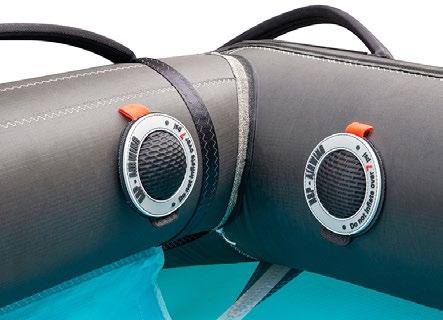

Halkey valves
Less time spent inflating means more time o n the water. A lightweight, high-diameter Halkey valves allows fast inflating and deflating
Triple stitching protection
Additional 2-ply strips and triple stitching protect the trailing edge from stretching, wear and tear or protects ripping.
Rapid flow system
Hardcore wingtip reinforcements
To protect the wing from rough surfaces, TPU strips with Kevlar protect the wing tips from punctures and wear
Premium comfortable handles
Premium handles on the Strut and Leading Edge allow for hours of comfortable riding, sheeting in and out, gibing and getting as much power from your Fireball as possible. The Leading Edge handle is placed as neutral as possible, allowing for a complete depowered wing to be held as you focus on angled carves, downwinding and surfing.
Kevlar, PVC and TPU abrasion protection materials to increase the life-span of the Fireball
SUP valves that fit most SUP pumps, covered with premium PVC and velcro covers.

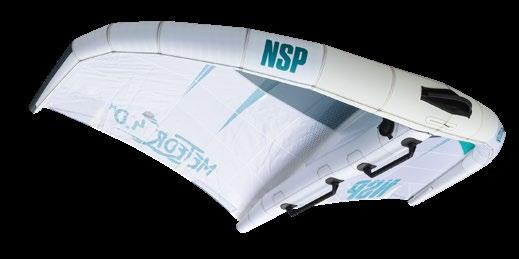

METEOR NSP
Take flight with the NEW NSP Meteor Wing, designed for those who seek performance and precision on the water. This flagship pro series wing is meticulously crafted for advanced to professional riders, offering a blend of lightweight materials and robust construction. The use of Dacron at key pressure points enhances control and rigidity, making the Meteor agile and responsive, ready for any challenge.
The Meteor’s standout features include dual composite rigid handles to increase control, offer superior grip and handling, combined with the innovative canopy paneling which reduces weight while boosting maneuverability. This combo has been a winner amongst our team around the world and R&D department.
High quality sailcloth provides an excellent strength to weight ratio, ensuring durability and optimal performance. The redesigned dihedral shape of the Meteor further enhances stability and control, allowing for smoother transitions and improved flight dynamics. Additionally, the inclusion of SUP valves makes inflation quick and easy so you can spend more time on the water.
Whether you’re catching air or carving through waves, the NSP Meteor Wing promises a reliable wing. For those aiming to elevate their wind sports experience, the Meteor is an essential addition to their gear. With its cutting edge canopy design and performance elements, the NSP Meteor Wind Wing is set to become a favorite among foilers and serious wind sports enthusiasts.
Hardcore wingtip reinforcements
To protect the wing from rough surfaces, Kevlar protect the wing tips from punctures and wear.
Premium comfortable handles
Premium handles on the Strut allow for hours of comfortable riding, sheeting in and out, gibing and getting as much power from your Fireball as possible. The Leading Edge handle is placed as neutral as possible, allowing for a complete depowered wing to be held as you focus on angled carves, downwinding and surfing.
Rapid flow system
SUP valves that fit most SUP pumps, covered with premium PVC and velcro covers.
Additional 2-ply strips and triple stitching protect the trailing edge from stretching, wear and tear or protects ripping.
Triple stitching protection
PREMIUM QUICK RELEASE WING LEASH
Highly durable 6mm TPU coiled wing leash with integrated quick release system, double stainless steel swivels, and double layered neoprene strap.
Approximate leash length extended Approximate coiled length Wingspan
Photographer : Raph Gillett
Rider : Dane Gillett
Location : Hebara beach, Chiba Japan
Board : Fireball, Airwave & SUP Foil
Suggested wing sizes based on an average 80kgs / 17lb rider
Actual sizes depend highly on rider skill, ability, personal preference and conditions Saftey Note: Always double check surf and beach conditions before winging.
Wing size and wind strength : Land
Wing size and wind strength: Water
Colouring in the diagram indicates the level required to navigate the specified size comfortably.
Orange = beginner wing foiler Light blue = Intermediate wing foiler
Rider : Shaan Miller Board : Hot Shot Wing Foil & Meteor AirWing

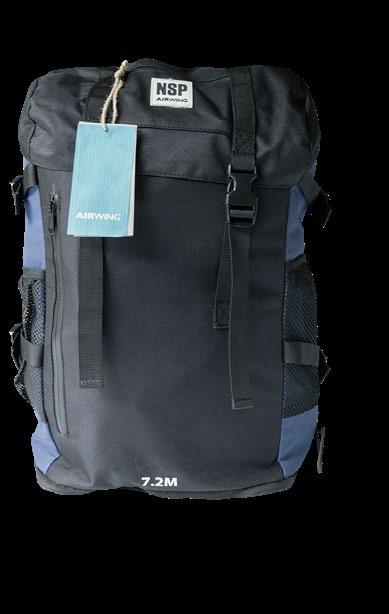

BACKPACK
Zippered lid compartment
Drawstring closure

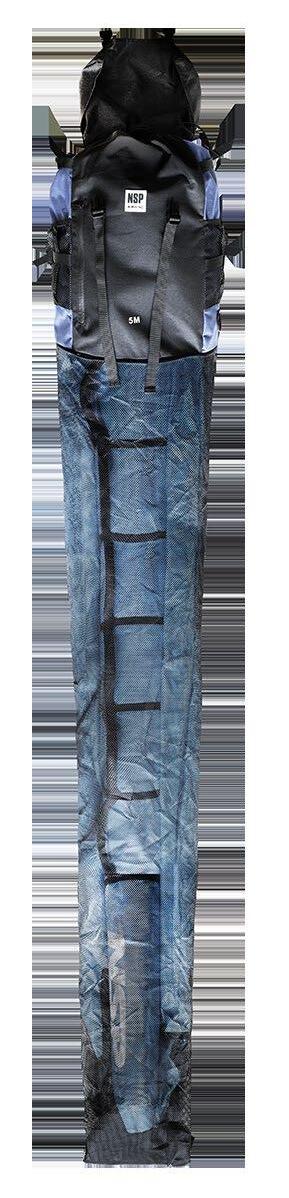

Extendable mesh wing storage compartment reduces window creasing when folding
Extended view
600D Nylon fabric
Compression straps with quick release buckle closures
Carry handle and padded shoulder straps
Front zippered compartment, side mesh pocket and compression straps
Waist adjustment belt with side release buckle
ACCESSORIES
1. FIREBALL LEADING EDGE BLADDERS 2. FIREBALL STRUT BLADDERS
NSP Fireball 2.7 LE
NSP Fireball 3.3 LE
NSP Fireball 4.0 LE
NSP Fireball 5.0 LE
NSP Fireball 6.0 LE
NSP Fireball 7.2 LE
•NAIR1007
•NAIR1008
•NAIR1009
•NAIR1010
•NAIR1012
•NAIR1013
3. HIGH PRESSURE DOUBLE ACTION MINI PUMP
• Max pressure 13PSI
• High airflow piston for easier inflation
• Switch tab from single to double action
• Inflate/deflate
NSP Fireball 2.7 Strut
NSP Fireball 3.3 Strut
NSP Fireball 4.0 Strut
NSP Fireball 5.0 Strut
NSP Fireball 6.0 Strut
NSP Fireball 7.2 Strut
•NAIR1014
•NAIR1015
•NAIR1016
•NAIR1017
•NAIR1018
•NAIR1019
• Double/Single actions : during the 1st phase of the inflation use double action higher value, switch to single action.
• Manometer on handle
• Aluminum shaft
• Medium volume 2 x 2300cc
•NAIR1011
Rider : Alex Bicrel
Location : Tenerife, Islas Canarias, España Spain Board : Fireball, Surf Foil Pro
MANUAL
Contents:
One NSP Fireball in the size of your choice
Fireball repair kit including TPU repair patches, dacron and canopy sheets, mark cloth, and users manual
Quick release wing leash
Fireball Backpack
* NSP low pressure pump sold separately
Feature:
Kelvar reinforced wingtips
Double reinforced leading edge with abrasion protection
Double reinforced strut with optimized handles
* We recommend purchasing the NSP low pressure pump

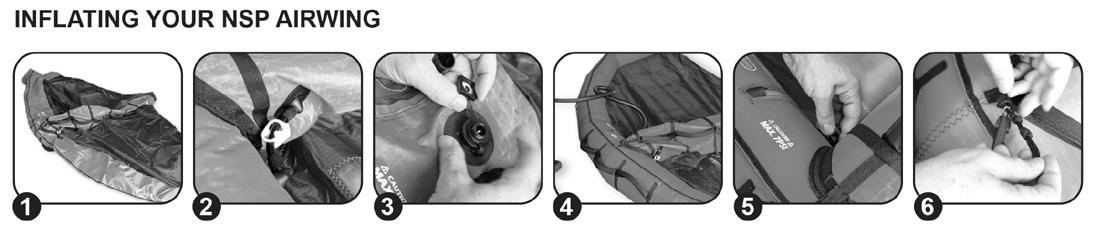

Inflating your NSP Fireball
1. Lay the wing flat on a non abrasive surface, free from sharp objects that could damage the canopy, making sure the handles face up.
2. Lift open the velcro valve covers to gain access to the standard SUP valves underneath.
3. Make sure there’s no sand or debris around the valve before opening.
4. Twist the valve nib to the closed position so that any air pumped in does not escape when you remove the pump.
5. Using a standard SUP pump, twist on the nozzle, and pump up the Leading Edge to 8psi*.
6. Remove the nozzle, reinstall the valve top, and close the velcro valve cover.
7. Repeat steps 1-6 for the Strut.
* Note: When pumping, the actual pressure in the bladder shows at the end of every stroke on the pump gauge. Always use a pump with a low-pressure gauge.
DO NOT OVER-INFLATE; DAMAGES AS A RESULT ARE NOT COVERED UNDER WARRANTY.
Completely deflating your NSP Fireball*
1. Lay the wing down on a non abrasive surface free of sharp objects, with the handles facing up.
2. Open the velcro valve covers, and twist off the valve covers.
3. Twist open the valve nib to the open position to release the air.
4. Repeat 1 - 3 for the Strut.
5. With the wing fully deflated start from the wing tips, roll them towards the strut, removing any remaining air.
6. With both wing tips rolled to the Strut, start at the end tip of the strut and roll up towards the LE, removing any remaining air.
7. Put the folded wing into the supplied back pack for easy carry and storage.
* We recommend users drying the wing completely before any long term storage. Trapped water can result in irreparable marking, color transfer, and mold.
Partially deflating your NSP Fireball*
1. Lay the wing down on a non abrasive surface free of sharp objects, with the handles facing up.
2. On the Leading Edge only, open the velcro valve covers, and twist off the valve covers
3. Twist open the velcro valve nib to the open position to release the air.
4. Fold from the tips towards the Strut.
5. Open and pull out the mesh extension from the NSP backpack.
6. Slide the Strut in through the top all the way through and close the top of the backpack.
* Recommended for cold or near freezing temperatures and/or transporting the wing from one location to the next or home before drying properly.
Note: If using the wing in near freezing temperatures DO NOT fold the TPU windows; folding can damage / crack the TPU windows. Damages as a result of improper storage are not covered under warranty
User manual is also available on our website.
ACCESSORIES NSP
Photographer : Henrique Casinhas
Rider : Alex Bicrel
Location : Maderia Island, portugal
Board : SPITFIRE (Downwind/ SUP Foil), Fireball, FW 1250 and RW 245
FOIL KIT BOARD BAG 5’6”
The bag is designed to fit up to the biggest size of our Hot Shot, the 5’6”. Several padded pockets can accommodate all foil gear and the bag has enough space to nicely fit 2 Airwings.
Dimensions: 170 x 70 x 20 cm
• Heavy-duty polyester outer layer with 1680D nose & tail reinforcements
• 5 padded pockets for Wings, Masts, Fuselages and Mounting plate. Big enough to fit your wings including the padded sleeves
• 2 Mesh pockets for boardshorts, sunscreen, bits and bites

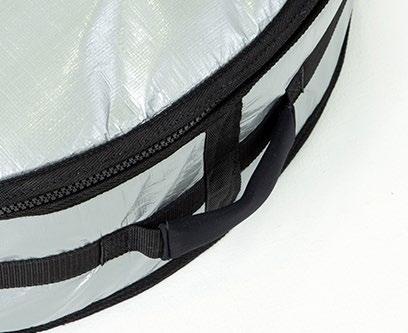

• 2 Ergonomic Tube grab handles
• Adjustable shoulder strap for a comfortable transit
• Heavy-duty, rust-resistant zippers
• Two internal compression straps to keep the boards or other contents in place
• Two exterior compressions straps to tie down your bag
• Heavy Duty drag rails
• Quick access lid on the back
Exterior compression straps
Scuff resistant drag
5 padded pockets
Quick access lid on the back
Small bag inside
Adjustable shoulder strap
Padded carry handle
1680D nose and tail Scuff resistant drag reinforcement

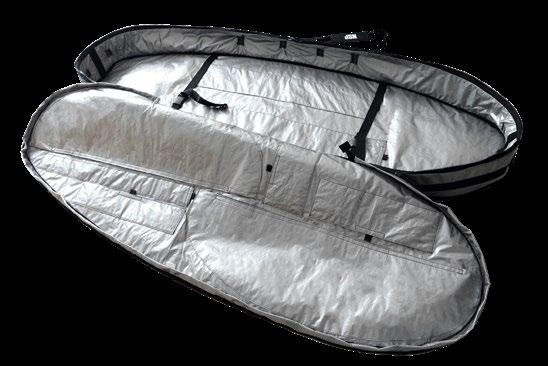

FOIL KIT BOARD BAG 6’2
The 6’2” Single and Double Foil Kit bags are designed to keep all your foil gear same from harm and in one, easy-to-carry bag.
The double bag holds enough space for two foil boards up to 6’2” and two complete kits, preparing you for every condition mother nature can throw at you.
• Single Bag 202 x 70 x 18 cm
• Double Bag 202 x 70 x 32 cm
• 10mm foam padded heat and water resistant polysack
• Padded carry handle
• Detachable padded shoulder-straps
• Lockable heavy duty zipper
• 1680D Nose and Tail reinforcement
• 2 interior compression straps to keep your boards tight .
• 3 exterior compression straps.
• Scuff resistant drag protective rails
The inside part of the bag lid features two big Front Wing pockets, designed to accommodate the FW 1650 and 1450 or the Allrounder FW 1700 and 1325.
The Rear Wing pockets help stowing away the high-aspect RW 245 easily as well as securing the allround 330 RW. Fuselage and mounting hardware can be stored in the top section as well, while the board section has additional pockets for the mounting plate and two masts up to 100cm in size.
The boards are separated from the foil gear by a 20mm thick padded foam divider.
SINGLE
Exterior compression straps
Scuff resistant drag
2 interior compression straps
1680D nose and tail Scuff resistant drag reinforcement
FOIL BAGS

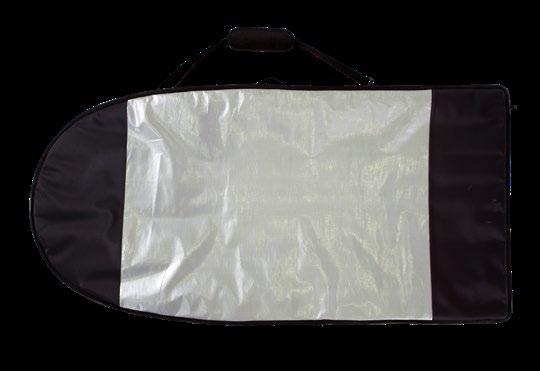

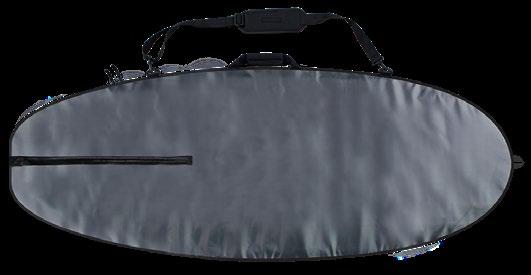

FOIL DAY BAG 4mm
• 4mm Polysack inside and out
• Ideal for day trips
• name tag slot
• Carry handle
• Detachable padded shoulder strap
• Rust-proof hardware
• Fin slot
SURF Foil Day Bag 4’8”
SURF Foil Day Bag 5’6”
SUP Foil Day Bag 5’10”
SUP Foil Day Bag 6’11”
SUP Foil Day Bag 7’6”
•NABB0860 •NABB0827
•NABB0861 •NABB1102-0611 •NABB0850 Code

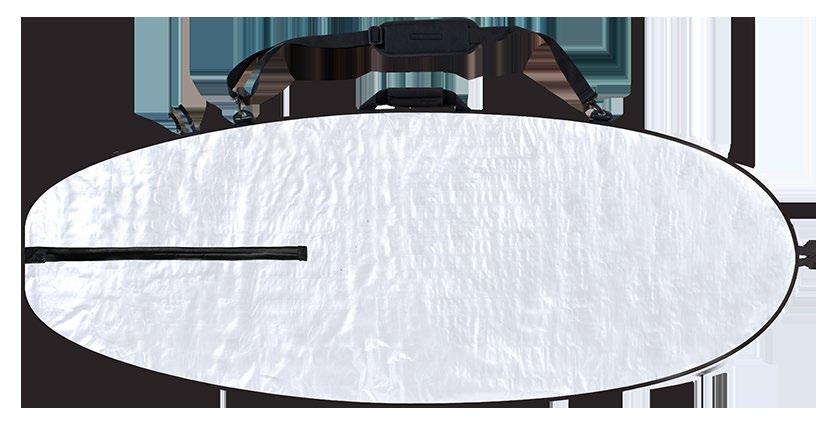

FOIL TRAVEL BAG 8mm
• Travel bag 8mm
• Durable 8mm padded bag Polysack inside and out and 600D reinforcement at tail
• Ideal for travel with name tag slot
• Carry handle
• Detachable padded shoulder strap
• Rust-proof hardware
• Fin slot
SURF Foil Travel Bag 4’8’’
SURF Foil Travel Bag 5’6’’
SUP Foil Travel Bag 5’10’’
SUP Foil Travel Bag 6’11’’
SUP Foil Travel Bag 7’6’’
•NABB0863 •NABB0848
•NABB0864
•NABB1103-0611
•NABB0851 Code
Front pad (Only)
Tail pad (Only)

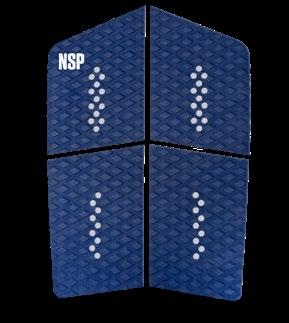

TRACTION PADS
Whether you are foiling, surfing or paddling – the NSP traction pads provide long-lasting grip and confidence. Especially in foiling, a delicate balance is required to get you flying over the surface of the water and your feet need precise positioning to control pitch, roll and yaw.
Always centered
NSP tail pads feature a kicktail and a mild dome in the center of the pad. The ridges of the dome will make sure your back foot finds the dead center of your board without ever looking down.
Thermoformed texture ensures your back foot stays planted over the mast at all times. For hard pumping or committing to a tight radius, get that extra leverage by moving your back foot against the kicktail and force the last bit of performance from your board.
More durable
There is nothing worse than a peeling deckpad, which is why NSP uses premium 3M adhesives, as it provides the best possible bond between your board and the thermoformed EVA. Different from conventional EVA, thermoforming gives these pads a more abrasion-resistant layer that will hold up longer. Make sure your board is properly cleaned up before applying the pads, and wait 24 hours before hitting the water to get the best possible bond for years to come. Removal is easiest with a hot air gun and some soapy water.
Versatile patterns
A 3-piece tail pad is the most versatile pattern that still offers variable width and an arched center strip. It’s the easiest to install, offers tons of grip and will work on any board. In combination with the 4-piece pattern for the front part of the deck, you should have the standing area of your board covered.
Directional diamond-shaped pattern
The deeper the grooves, the more resistance against slipping and superior traction.
Kick & Arch
Performance riders benefit from a 45 degrees kick whenever your foot needs to be well-placed to blow out a wave. Apart from the comfort aspect, an arch helps your backfoot instinctively find the center line of your board without ever having to look down.
Sold as a package - Traction Pad Set black
Traction Pad Front Blue
Tail pad Blue
Solid tail kick
Directional diamond-shaped pattern
MFC-DESIGNED FOOTSTRAPS
The MFC-designed footstrap is a must have for anyone looking to get into wingding foiling, windsurf foiling or kitesurf foiling. The external adjustable system and 1/2/3 bolts accommodate every foot size and board setup while offering the best comfort and support. You will feel “locked in” when you slip your feet into the MFC footstrap. Sold one per package.
Features:
• 7mm neoprene padding
• Internal adjustment system
• Single or double insert compatibility
• Maximum comfort
RAIL TAPE
Protect your SUP rails with 3M protection tape.
Available in: 2x 200 cm x 7.5 cm

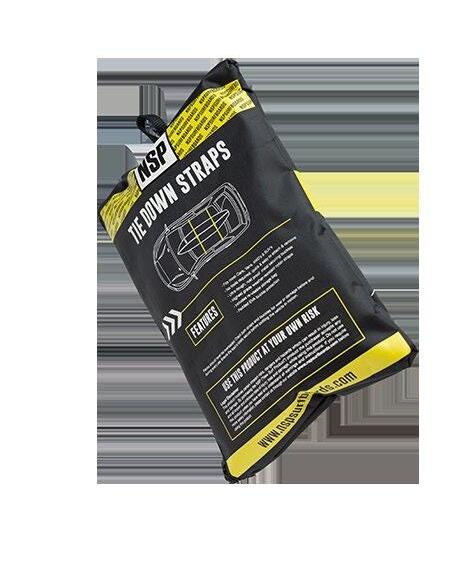

TIE DOWN STRAPS
NSP’s heavy-duty Tie Down Straps are ideal for securing your surf, foil and SUP boards to the roof of your car. Made with strong, yet soft nylon straps that will easily secure your boards without scratching the board. The heavy-duty cam buckles are encased in a padded EVA to prevent damage to your board or car.
Available in one size only: 15’7” (475 cm)

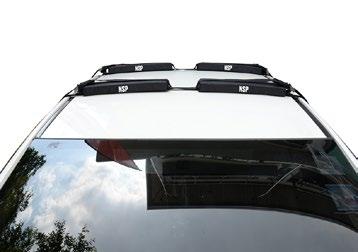

ROOF RACK PADS
NSP subtly branded roof rack pads easily attach to your existing roof racks for a padded landing for your surf, sup or foil boards. The Roof Rack Pads are designed with a foam core wrapped in a durable 600D water-resistant fabric and fit most standard sized round or square roof racks.
Available in one size only: 17” pads
SOFT ROOF RACKS
NSP’s Soft Roof Racks are perfect for carrying your surf, SUP, or foil boards to the beach on the roof of your car.
The Soft Racks are secured with heavy duty nylon straps that are designed to wrap around the inside of your car while safely securing your boards to the roof. The durable cam buckles keep your boards in place without sliding during transport. The Soft Racks are designed to work on most vehicles.
Available in a Double or Single rack sizing.
Features:
• Single racks hold up 3 shortboards or 2 longboards.
• Double racks hold up to 6 surfboards
• Universal fit for most cars, trucks, and SUV
• Thick, long length nylon straps
• Heavy-duty, corrosion-free buckles encased in padded EVA to avoid scratching the vehicle.
• Water-resistant, durable, nylon-wrapped, soft rubber pads.
• Compact size and easy to store.
SOFT ROOF RACKS - SINGLE
SOFT ROOF RACKS - DOUBLE
SURF / SUP LEASH
• 7mm TPU
• Double Stainless steel swivels
• Double layer neoprene ankle strap
• Integrated key pocket
• Rail saver
• Calf fit for 10’ 9mm
Durable cord 7mm & 9mm
Double stainless steel swivels
Double layer neoprene strap
Triple wrap rail saver
COIL LEASH
The ultimate combination of strength, stretch and elasticity. Durable Thermoplastic Polyurethane (TPU) leashes with two stainless-steel swivels, leash string, key pocket and double layered velcro strap.
• High-quality BASF™ TPU.
• Coiled 7mm cord.
• Double stainless steel swivels.
• Double layer neoprene calf strap.
• Integrated key pocket.
• Rail saver.
Length Diameter Code
6’ 10’ 7mm 9mm
•NALR1011
•NALR1010
cord 7mm & 9mm
WAIST BELT
• High-quality nylon webbing belt.
• Comfortable neoprene front liner.
• Swivel mount to avoid tangling.
• Quick-release clip.
• One size fits all.
• Compatible with all NSP leashes.
Leash sold separately SUP Coil available in 9’ (9 mm) Blue
Durable
Double layer neoprene strap
PADDLE RANGE NSP
Vivace Carbon Fixed
Designed for both competitive racers and dedicated tourers, the Vivace comes in sizes 74, 79, and 84 to match different paddling strengths and styles. Its 100% carbon fibre build ensures exceptional durability and lightweight performance, mirroring the Speedster’s capabilities with its BIAX and 3K twill carbon fibre construction. This paddle delivers high performance without compromise. All Vivace have a fix shaft with 100% carbon content (no fiberglass used). The 74 blade will come with the smaller handle size.
PADDLE RANGE NSP
PADDLE BAG
Photographer : Christoph Keil
Rider : Ty Judson
Location : Berlin SUP Race event, Berlin Germany
Board : Ninja with Speedster paddle
BUOYS
Designed utilizing our durable PVC inflatable board material, our racing buoys are equipped with 4 heavy-duty D-rings for easy and secure anchoring in any lake or open ocean. Great for race, demo events and promotions.
TENT - BANNER - BEACH FLAG
Side view
Bottom view with heavy duty reinforced d-rings
Photographer : Henrique Casinhas Rider : Alex Bicrel
Location : Madeira, Portugal
Board : AirWave Riblet
